1. LECTURE - 3
 Binary Addition
 Binary Subtraction
 Complements
1’s Complement
2’s Complement
 Subtraction Using Complements

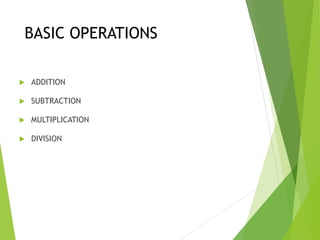

2. BASIC OPERATIONS
 ADDITION
 SUBTRACTION
 MULTIPLICATION
 DIVISION

3. COMPUTER OPERATIONS
 BINARY ADDITION
 BINARY SUBTRACTION

4. The First Computer
• Covered a whole Room
• Separate Functions for Adding,
Subtracting, Multiplication and Division

5. ELIMINATION OF OPERATIONS
 MULTIPLICATION and DIVISION were eliminated
 MULTIPLICATION :
repeated addition
(2 x 4 = 8) , (2+ 2+ 2 + 2 = 8)
 DIVISION :
repeated subtractions

6. TODAY’S COMPUTER
 Computations
Addition – (ADDERS)
Subtraction – (SUBTRACTORS)

7. BINARY ADDITION
LOGIC:
0 + 0 = 0
0 + 1 = 1
1 + 0 = 1
1 + 1 = 0 (1 Carry)

8. EXAMPLE
1 0 0 1 1 0
+ 1 1 0 1 0 1
1 0 1 1 0 1 1
Carry

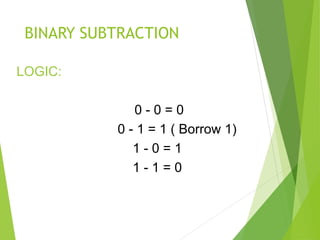

9. BINARY SUBTRACTION
LOGIC:
0 - 0 = 0
0 - 1 = 1 ( Borrow 1)
1 - 0 = 1
1 - 1 = 0

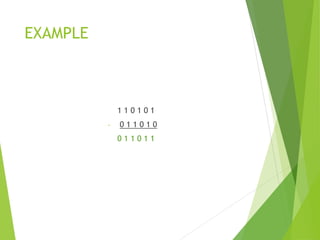

10. EXAMPLE
1 1 0 1 0 1
- 0 1 1 0 1 0
0 1 1 0 1 1

11. COMPLEMENTS
2 types:
 1’s Complement
 2’s Complement

12. 1’s COMPLEMENT
PROCEDURE
 Change every 0 to 1 and every 1 to 0
EXAMPLE
Find 1’s Complement of:
( 1 1 0 0 1 0 1 0 )2

13. 2’s COMPLEMENT
PROCEDURE
1. Find 1’s Complement:
Change every 0 to 1 and every 1 to 0
2. Add 1 to L.S.B

14. EXAMPLE
Find 2’s Complement of :
( 1 1 0 1 0 1 0 )2

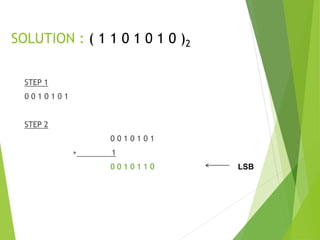

15. SOLUTION : ( 1 1 0 1 0 1 0 )2
STEP 1
0 0 1 0 1 0 1
STEP 2
0 0 1 0 1 0 1
+ 1
0 0 1 0 1 1 0 LSB

16. SUBTRACTION USING COMPLEMENTS
SUBTRACTION
 MINUEND (1st value)
 SUBTRAHEND (2nd value)

17. SUBTRACTION USING 1’S
COMPLEMENT
STEP 1
Take 1’s Complement of Subtrahend
STEP 2
Add the result to Minuend
STEP 3
Look for end Carry.

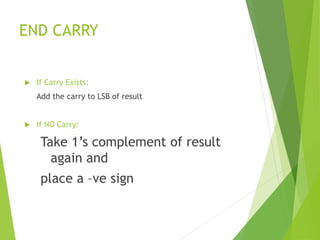

18. END CARRY
 If Carry Exists:
Add the carry to LSB of result
 If NO Carry:
Take 1’s complement of result
again and
place a –ve sign

19. EXAMPLE
Subtract: ( 1 1 0 1 0 1 1 - 1 0 1 1 0 1 )2
SOLUTION
Minuend: 1 1 0 1 0 1 1
Subtrahend: 0 1 0 1 1 0 1
STEP 1 1’s Complement of Subtrahend
1 0 1 0 0 1 0
STEP 2 Add to Minuend
STEP 3 Add end carry to LSB of result.

20. SUBTRACTION USING 2’S
COMPLEMENT
 STEP 1
Take 2’s Complement of Subtrahend
 STEP 2
Add the result to Minuend
 STEP 3
Look for end Carry.

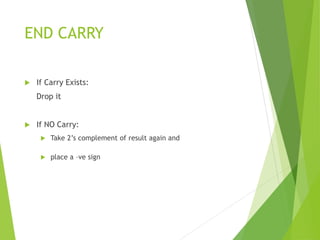

21. END CARRY
 If Carry Exists:
Drop it
 If NO Carry:
 Take 2’s complement of result again and
 place a –ve sign

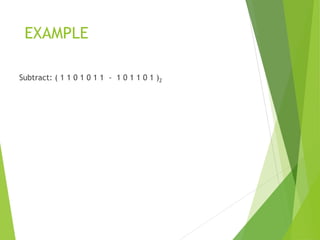

22. EXAMPLE
Subtract: ( 1 1 0 1 0 1 1 - 1 0 1 1 0 1 )2

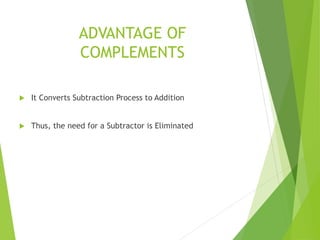

23. ADVANTAGE OF
COMPLEMENTS
 It Converts Subtraction Process to Addition
 Thus, the need for a Subtractor is Eliminated
