Spring Web Services

Contract-last web services
 Contract-last web services does not require to
manipulate complex WSDL and XSD files.
 In contract-last web services a service class in Java
is written and the web service framework “SOAP-
ifies” it.
 When a web service is developed in contract last,
its contract ends up being a reflection of the
application’s internal API.
 Changes to the internal API will mean changes to
your service’s contract, which will ultimately
require changes in the clients that are consuming
your service.

Contract-first web service
Step Action Purpose
1 Define the service contract This involves designing sample XML
messages that will be processed by our
web service. We’ll use these sample
messages to create XML Schema that will
later be used to create WSDL
2 Write a service endpoint. We’ll create classes that will receive and
process the messages sent to the web
service.
3 Configure the endpoint and
Spring-WS infrastructure.
We’ll wire up our service endpoint along
with a handful of Spring-WS beans that will
tie everything together.

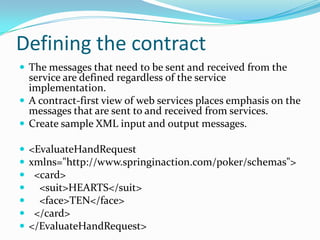

Defining the contract
 The messages that need to be sent and received from the
service are defined regardless of the service
implementation.
 A contract-first view of web services places emphasis on the
messages that are sent to and received from services.
 Create sample XML input and output messages.
 <EvaluateHandRequest
 xmlns="http://www.springinaction.com/poker/schemas">
 <card>
 <suit>HEARTS</suit>
 <face>TEN</face>
 </card>
 </EvaluateHandRequest>

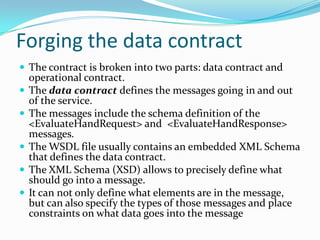

Forging the data contract
 The contract is broken into two parts: data contract and
operational contract.
 The data contract defines the messages going in and out
of the service.
 The messages include the schema definition of the
<EvaluateHandRequest> and <EvaluateHandResponse>
messages.
 The WSDL file usually contains an embedded XML Schema
that defines the data contract.
 The XML Schema (XSD) allows to precisely define what
should go into a message.
 It can not only define what elements are in the message,
but can also specify the types of those messages and place
constraints on what data goes into the message

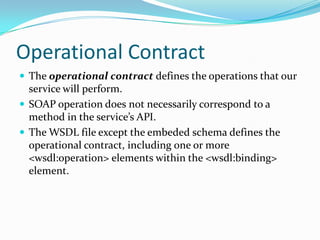

Operational Contract
 The operational contract defines the operations that our
service will perform.
 SOAP operation does not necessarily correspond to a
method in the service’s API.
 The WSDL file except the embeded schema defines the
operational contract, including one or more
<wsdl:operation> elements within the <wsdl:binding>
element.

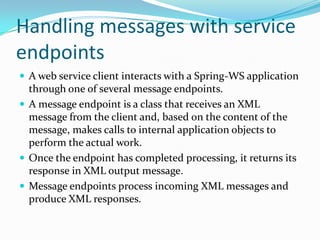

Handling messages with service
endpoints
 A web service client interacts with a Spring-WS application
through one of several message endpoints.
 A message endpoint is a class that receives an XML
message from the client and, based on the content of the
message, makes calls to internal application objects to
perform the actual work.
 Once the endpoint has completed processing, it returns its
response in XML output message.
 Message endpoints process incoming XML messages and
produce XML responses.

Message endpoint in Spring-WS
Abstract Endpoint Class Description
AbstractDom4jPayloadEndpoint Handles message payloads as dom4j
Elements
AbstractDomPayloadEndpoint Handles message payloads as DOM
Elements
AbstractJDomPayloadEndpoint Handles message payloads as JDOM
Elements
AbstractMarshallingPayloadEndpoint Unmarshals the request payload into an
object and marshals the response object
into XML
AbstractSaxPayloadEndpoint Handles message payloads through a
SAX ContentHandler implementation
AbstractStaxEventPayloadEndpoint Handles message payloads using event-
based StAX
AbstractStaxStreamPayloadEndpoint Handles message payloads using
streaming StAX
AbstractXomPayloadEndpoint Handles message payloads as XOM
Elements

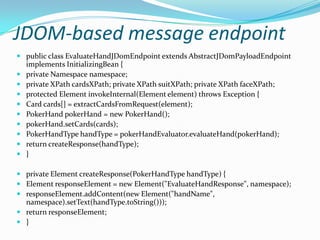

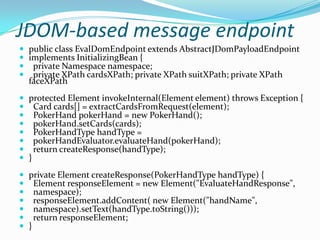

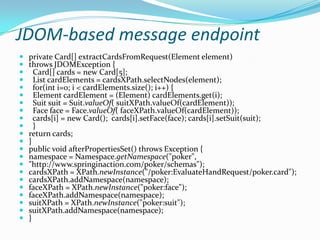

JDOM-based message endpoint
 public class EvalDomEndpoint extends AbstractJDomPayloadEndpoint
 implements InitializingBean {
 private Namespace namespace;
 private XPath cardsXPath; private XPath suitXPath; private XPath
faceXPath
 protected Element invokeInternal(Element element) throws Exception {
 Card cards[] = extractCardsFromRequest(element);
 PokerHand pokerHand = new PokerHand();
 pokerHand.setCards(cards);
 PokerHandType handType =
 pokerHandEvaluator.evaluateHand(pokerHand);
 return createResponse(handType);
 }
 private Element createResponse(PokerHandType handType) {
 Element responseElement = new Element("EvaluateHandResponse",
 namespace);
 responseElement.addContent( new Element("handName",
 namespace).setText(handType.toString()));
 return responseElement;
 }

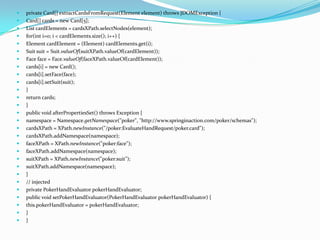

 private Card[] extractCardsFromRequest(Element element)
 throws JDOMException {
 Card[] cards = new Card[5];
 List cardElements = cardsXPath.selectNodes(element);
 for(int i=0; i < cardElements.size(); i++) {
 Element cardElement = (Element) cardElements.get(i);
 Suit suit = Suit.valueOf( suitXPath.valueOf(cardElement));
 Face face = Face.valueOf( faceXPath.valueOf(cardElement));
 cards[i] = new Card(); cards[i].setFace(face); cards[i].setSuit(suit);
 }
 return cards;
 }
 public void afterPropertiesSet() throws Exception {
 namespace = Namespace.getNamespace("poker",
 "http://www.springinaction.com/poker/schemas");
 cardsXPath = XPath.newInstance("/poker:EvaluateHandRequest/poker.card");
 cardsXPath.addNamespace(namespace);
 faceXPath = XPath.newInstance("poker:face");
 faceXPath.addNamespace(namespace);
 suitXPath = XPath.newInstance("poker:suit");
 suitXPath.addNamespace(namespace);
 }

 public class EvaluateHandJDomEndpoint extends AbstractJDomPayloadEndpoint
implements InitializingBean {
 private Namespace namespace;
 private XPath cardsXPath; private XPath suitXPath; private XPath faceXPath;
 protected Element invokeInternal(Element element) throws Exception {
 Card cards[] = extractCardsFromRequest(element);
 pokerHand.setCards(cards);
 PokerHandType handType = pokerHandEvaluator.evaluateHand(pokerHand);
 return createResponse(handType);
 }
 private Element createResponse(PokerHandType handType) {
 Element responseElement = new Element("EvaluateHandResponse", namespace);
 responseElement.addContent(new Element("handName",
namespace).setText(handType.toString()));
 return responseElement;
 }

 private Card[] extractCardsFromRequest(Element element) throws JDOMException {
 Card[] cards = new Card[5];
 List cardElements = cardsXPath.selectNodes(element);
 for(int i=0; i < cardElements.size(); i++) {
 Element cardElement = (Element) cardElements.get(i);
 Suit suit = Suit.valueOf(suitXPath.valueOf(cardElement));
 Face face = Face.valueOf(faceXPath.valueOf(cardElement));
 cards[i] = new Card();
 cards[i].setFace(face);
 cards[i].setSuit(suit);
 }
 return cards;
 }
 public void afterPropertiesSet() throws Exception {
 namespace = Namespace.getNamespace("poker", "http://www.springinaction.com/poker/schemas");
 cardsXPath = XPath.newInstance("/poker:EvaluateHandRequest/poker.card");
 cardsXPath.addNamespace(namespace);
 faceXPath = XPath.newInstance("poker:face");
 faceXPath.addNamespace(namespace);
 suitXPath = XPath.newInstance("poker:suit");
 suitXPath.addNamespace(namespace);
 }
 // injected
 private PokerHandEvaluator pokerHandEvaluator;
 public void setPokerHandEvaluator(PokerHandEvaluator pokerHandEvaluator) {
 this.pokerHandEvaluator = pokerHandEvaluator;
 }
 }

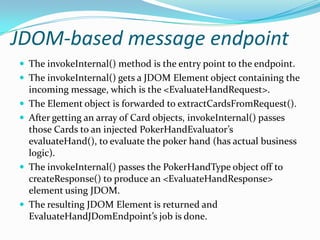

 The invokeInternal() method is the entry point to the endpoint.
 The invokeInternal() gets a JDOM Element object containing the
incoming message, which is the <EvaluateHandRequest>.
 The Element object is forwarded to extractCardsFromRequest().
 After getting an array of Card objects, invokeInternal() passes
those Cards to an injected PokerHandEvaluator’s
evaluateHand(), to evaluate the poker hand (has actual business
logic).
 The invokeInternal() passes the PokerHandType object off to
createResponse() to produce an <EvaluateHandResponse>
element using JDOM.
 The resulting JDOM Element is returned and
EvaluateHandJDomEndpoint’s job is done.

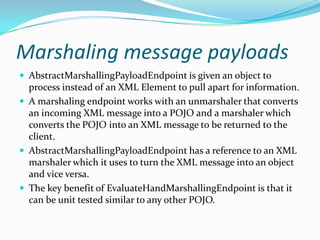

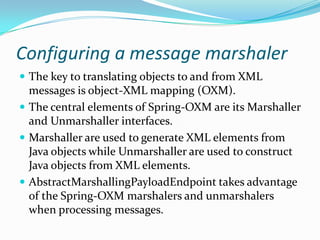

Marshaling message payloads
 AbstractMarshallingPayloadEndpoint is given an object to
process instead of an XML Element to pull apart for information.
 A marshaling endpoint works with an unmarshaler that converts
an incoming XML message into a POJO and a marshaler which
converts the POJO into an XML message to be returned to the
client.
 AbstractMarshallingPayloadEndpoint has a reference to an XML
marshaler which it uses to turn the XML message into an object
and vice versa.
 The key benefit of EvaluateHandMarshallingEndpoint is that it
can be unit tested similar to any other POJO.

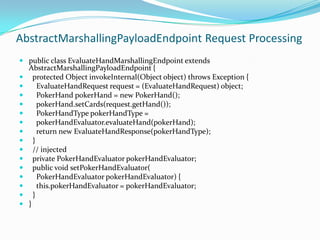

AbstractMarshallingPayloadEndpoint Request Processing
 public class EvaluateHandMarshallingEndpoint extends
AbstractMarshallingPayloadEndpoint {
 protected Object invokeInternal(Object object) throws Exception {
 EvaluateHandRequest request = (EvaluateHandRequest) object;
 pokerHand.setCards(request.getHand());
 PokerHandType pokerHandType =
 pokerHandEvaluator.evaluateHand(pokerHand);
 return new EvaluateHandResponse(pokerHandType);
 }
 // injected
 private PokerHandEvaluator pokerHandEvaluator;
 public void setPokerHandEvaluator(
 PokerHandEvaluator pokerHandEvaluator) {
 this.pokerHandEvaluator = pokerHandEvaluator;
 }
 }

Wiring Spring-WS
 Spring-WS can be fronted by MessageDispatcherServlet, a
subclass of DispatcherServlet that knows how to dispatch SOAP
requests to Spring-WS endpoints.
 <servlet>
 <servlet-name>poker</servlet-name>
 <servlet-class>org.springframework.ws.transport.http.
 ➥ MessageDispatcherServlet</servlet-class>
 </servlet>
 <servlet-mapping>
 <url-pattern>/services/*</url-pattern>
 </servlet-mapping>

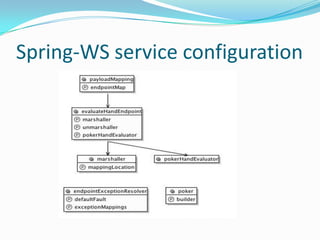

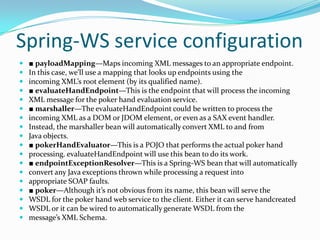

Spring-WS service configuration

Spring-WS service configuration
 ■ payloadMapping—Maps incoming XML messages to an appropriate endpoint.
 In this case, we’ll use a mapping that looks up endpoints using the
 incoming XML’s root element (by its qualified name).
 ■ evaluateHandEndpoint—This is the endpoint that will process the incoming
 XML message for the poker hand evaluation service.
 ■ marshaller—The evaluateHandEndpoint could be written to process the
 incoming XML as a DOM or JDOM element, or even as a SAX event handler.
 Instead, the marshaller bean will automatically convert XML to and from
 Java objects.
 ■ pokerHandEvaluator—This is a POJO that performs the actual poker hand
 processing. evaluateHandEndpoint will use this bean to do its work.

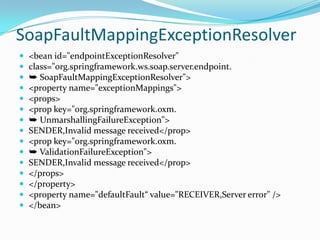

 ■ endpointExceptionResolver—This is a Spring-WS bean that will automatically
 convert any Java exceptions thrown while processing a request into
 appropriate SOAP faults.
 ■ poker—Although it’s not obvious from its name, this bean will serve the
 WSDL for the poker hand web service to the client. Either it can serve handcreated
 WSDL or it can be wired to automatically generate WSDL from the
 message’s XML Schema.

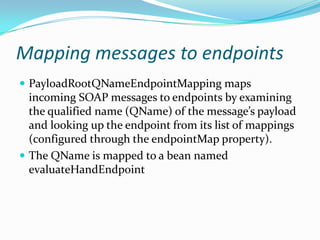

Mapping messages to endpoints
 The incoming messages need to be mapped to the endpoints that
process them.
 MessageDispatcherServlet uses an endpoint mapping to decide which
endpoint should receive an incoming XML message.
 <bean id="payloadMapping"
 class="org.springframework.ws.server.endpoint.mapping.
 PayloadRootQNameEndpointMapping">
 <property name="endpointMap">
 <map>
 <entry key=
 "{http://www.springinaction.com/poker/schemas}
 EvaluateHandRequest"
 value-ref="evaluateHandEndpoint" />
 </map>
 </property>
 </bean>

Mapping messages to endpoints
 PayloadRootQNameEndpointMapping maps
incoming SOAP messages to endpoints by examining
the qualified name (QName) of the message’s payload
and looking up the endpoint from its list of mappings
(configured through the endpointMap property).
 The QName is mapped to a bean named
evaluateHandEndpoint

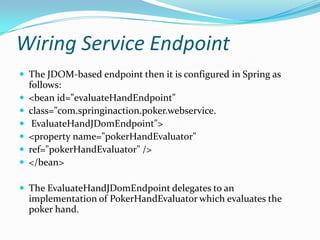

Wiring Service Endpoint
 The JDOM-based endpoint then it is configured in Spring as
follows:
 <bean id="evaluateHandEndpoint"
 class="com.springinaction.poker.webservice.
 EvaluateHandJDomEndpoint">
 <property name="pokerHandEvaluator"
 ref="pokerHandEvaluator" />
 </bean>
 The EvaluateHandJDomEndpoint delegates to an
implementation of PokerHandEvaluator which evaluates the
poker hand.

Wiring Service Endpoint

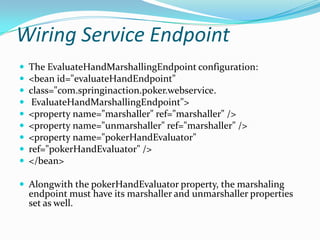

 The EvaluateHandMarshallingEndpoint configuration:
 <bean id="evaluateHandEndpoint"
 class="com.springinaction.poker.webservice.
 EvaluateHandMarshallingEndpoint">
 <property name="marshaller" ref="marshaller" />
 <property name="unmarshaller" ref="marshaller" />
 <property name="pokerHandEvaluator"
 ref="pokerHandEvaluator" />
 </bean>
 Alongwith the pokerHandEvaluator property, the marshaling
endpoint must have its marshaller and unmarshaller properties
set as well.

Configuring a message marshaler
 The key to translating objects to and from XML
messages is object-XML mapping (OXM).
 The central elements of Spring-OXM are its Marshaller
and Unmarshaller interfaces.
 Marshaller are used to generate XML elements from
Java objects while Unmarshaller are used to construct
Java objects from XML elements.
 AbstractMarshallingPayloadEndpoint takes advantage
of the Spring-OXM marshalers and unmarshalers
when processing messages.

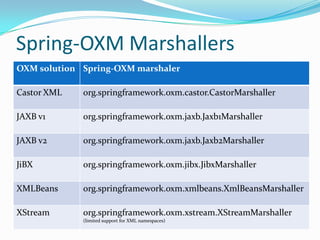

Spring-OXM Marshallers
OXM solution Spring-OXM marshaler
Castor XML org.springframework.oxm.castor.CastorMarshaller
JAXB v1 org.springframework.oxm.jaxb.Jaxb1Marshaller
JAXB v2 org.springframework.oxm.jaxb.Jaxb2Marshaller
JiBX org.springframework.oxm.jibx.JibxMarshaller
XMLBeans org.springframework.oxm.xmlbeans.XmlBeansMarshaller
XStream org.springframework.oxm.xstream.XStreamMarshaller
(limited support for XML namespaces)

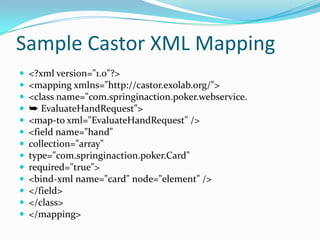

Sample Castor XML Mapping
 <?xml version="1.0"?>
 <mapping xmlns="http://castor.exolab.org/">
 <class name="com.springinaction.poker.webservice.
 ➥ EvaluateHandRequest">
 <map-to xml="EvaluateHandRequest" />
 <field name="hand"
 collection="array"
 type="com.springinaction.poker.Card"
 required="true">
 <bind-xml name="card" node="element" />
 </field>
 </class>
 </mapping>

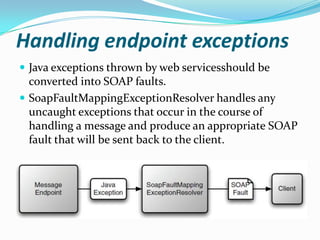

Handling endpoint exceptions
 Java exceptions thrown by web servicesshould be
converted into SOAP faults.
 SoapFaultMappingExceptionResolver handles any
uncaught exceptions that occur in the course of
handling a message and produce an appropriate SOAP
fault that will be sent back to the client.

SoapFaultMappingExceptionResolver
 <bean id="endpointExceptionResolver"
 class="org.springframework.ws.soap.server.endpoint.
 ➥ SoapFaultMappingExceptionResolver">
 <property name="exceptionMappings">
 <props>
 <prop key="org.springframework.oxm.
 ➥ UnmarshallingFailureException">
 SENDER,Invalid message received</prop>
 <prop key="org.springframework.oxm.
 ➥ ValidationFailureException">
 SENDER,Invalid message received</prop>
 </props>
 </property>
 <property name="defaultFault“ value="RECEIVER,Server error" />
 </bean>

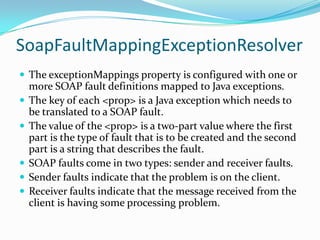

SoapFaultMappingExceptionResolver
 The exceptionMappings property is configured with one or
more SOAP fault definitions mapped to Java exceptions.
 The key of each <prop> is a Java exception which needs to
be translated to a SOAP fault.
 The value of the <prop> is a two-part value where the first
part is the type of fault that is to be created and the second
part is a string that describes the fault.
 SOAP faults come in two types: sender and receiver faults.
 Sender faults indicate that the problem is on the client.
 Receiver faults indicate that the message received from the
client is having some processing problem.

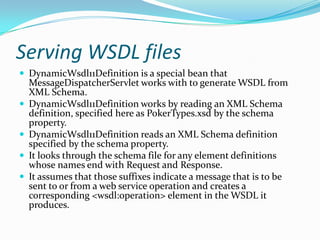

Serving WSDL files
 DynamicWsdl11Definition is a special bean that
MessageDispatcherServlet works with to generate WSDL from
XML Schema.
 DynamicWsdl11Definition works by reading an XML Schema
definition, specified here as PokerTypes.xsd by the schema
property.
 DynamicWsdl11Definition reads an XML Schema definition
specified by the schema property.
 It looks through the schema file for any element definitions
whose names end with Request and Response.
 It assumes that those suffixes indicate a message that is to be
sent to or from a web service operation and creates a
corresponding <wsdl:operation> element in the WSDL it
produces.

DynamicWsdl11Definition
 <bean id="poker"
 class="org.springframework.ws.wsdl.wsdl11.
 ➥ DynamicWsdl11Definition">
 <property name="builder">
 <bean class="org.springframework.ws.wsdl.wsdl11.builder.
 ➥ XsdBasedSoap11Wsdl4jDefinitionBuilder">
 <property name="schema" value="/PokerTypes.xsd"/>
 <property name="portTypeName" value="Poker"/>
 <property name="locationUri"
 value="http://localhost:8080/Poker-WS/services"/>
 </bean>
 </property>
 </bean>

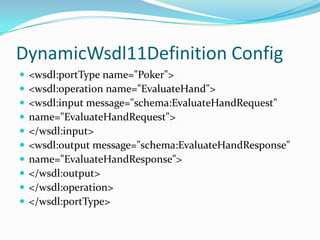

DynamicWsdl11Definition Config
 <wsdl:portType name="Poker">
 <wsdl:operation name="EvaluateHand">
 <wsdl:input message="schema:EvaluateHandRequest"
 name="EvaluateHandRequest">
 </wsdl:input>
 <wsdl:output message="schema:EvaluateHandResponse"
 name="EvaluateHandResponse">
 </wsdl:output>
 </wsdl:operation>
 </wsdl:portType>

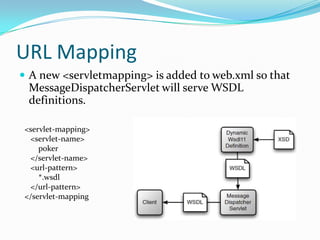

URL Mapping
 A new <servletmapping> is added to web.xml so that
MessageDispatcherServlet will serve WSDL
definitions.
<servlet-mapping>
<servlet-name>
poker
</servlet-name>
<url-pattern>
*.wsdl
</url-pattern>
</servlet-mapping

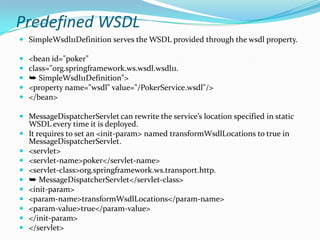

Predefined WSDL
 SimpleWsdl11Definition serves the WSDL provided through the wsdl property.
 <bean id="poker"
 class="org.springframework.ws.wsdl.wsdl11.
 ➥ SimpleWsdl11Definition">
 <property name="wsdl" value="/PokerService.wsdl"/>
 </bean>
 MessageDispatcherServlet can rewrite the service’s location specified in static
WSDL every time it is deployed.
 It requires to set an <init-param> named transformWsdlLocations to true in
MessageDispatcherServlet.
 <servlet>
 <servlet-class>org.springframework.ws.transport.http.
 ➥ MessageDispatcherServlet</servlet-class>
 <init-param>
 <param-name>transformWsdlLocations</param-name>
 <param-value>true</param-value>
 </init-param>
 </servlet>

Consuming Spring Web services

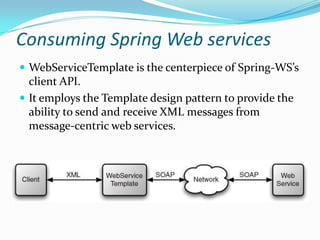

 WebServiceTemplate is the centerpiece of Spring-WS’s
client API.
 It employs the Template design pattern to provide the
ability to send and receive XML messages from
message-centric web services.

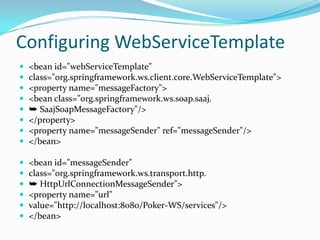

Configuring WebServiceTemplate
 <bean id="webServiceTemplate"
 class="org.springframework.ws.client.core.WebServiceTemplate">
 <property name="messageFactory">
 <bean class="org.springframework.ws.soap.saaj.
 ➥ SaajSoapMessageFactory"/>
 </property>
 <property name="messageSender" ref="messageSender"/>
 </bean>
 <bean id="messageSender"
 class="org.springframework.ws.transport.http.
 ➥ HttpUrlConnectionMessageSender">
 <property name="url"
 value="http://localhost:8080/Poker-WS/services"/>
 </bean>

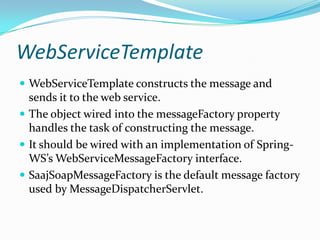

WebServiceTemplate
 WebServiceTemplate constructs the message and
sends it to the web service.
 The object wired into the messageFactory property
handles the task of constructing the message.
 It should be wired with an implementation of Spring-
WS’s WebServiceMessageFactory interface.
 SaajSoapMessageFactory is the default message factory
used by MessageDispatcherServlet.

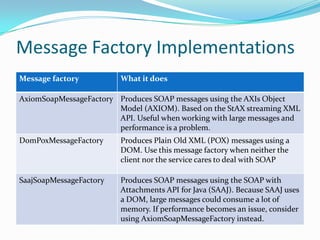

Message Factory Implementations
Message factory What it does
AxiomSoapMessageFactory Produces SOAP messages using the AXIs Object
Model (AXIOM). Based on the StAX streaming XML
API. Useful when working with large messages and
performance is a problem.
DomPoxMessageFactory Produces Plain Old XML (POX) messages using a
DOM. Use this message factory when neither the
client nor the service cares to deal with SOAP
SaajSoapMessageFactory Produces SOAP messages using the SOAP with
Attachments API for Java (SAAJ). Because SAAJ uses
a DOM, large messages could consume a lot of
memory. If performance becomes an issue, consider
using AxiomSoapMessageFactory instead.

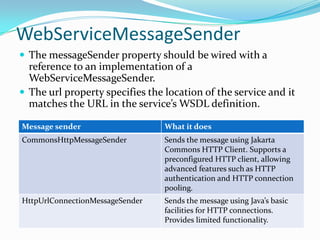

WebServiceMessageSender
 The messageSender property should be wired with a
reference to an implementation of a
WebServiceMessageSender.
 The url property specifies the location of the service and it
matches the URL in the service’s WSDL definition.
Message sender What it does
CommonsHttpMessageSender Sends the message using Jakarta
Commons HTTP Client. Supports a
preconfigured HTTP client, allowing
advanced features such as HTTP
authentication and HTTP connection
pooling.
HttpUrlConnectionMessageSender Sends the message using Java’s basic
facilities for HTTP connections.
Provides limited functionality.

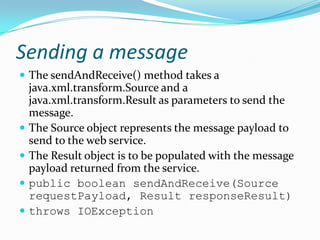

Sending a message
 The sendAndReceive() method takes a
java.xml.transform.Source and a
java.xml.transform.Result as parameters to send the
message.
 The Source object represents the message payload to
send to the web service.
 The Result object is to be populated with the message
payload returned from the service.
 public boolean sendAndReceive(Source
requestPayload, Result responseResult)
 throws IOException

WebServiceTemplate Implementation

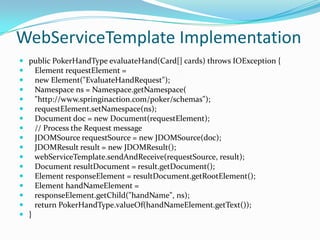

 public PokerHandType evaluateHand(Card[] cards) throws IOException {
 Element requestElement =
 new Element("EvaluateHandRequest");
 Namespace ns = Namespace.getNamespace(
 "http://www.springinaction.com/poker/schemas");
 requestElement.setNamespace(ns);
 Document doc = new Document(requestElement);
 // Process the Request message
 JDOMSource requestSource = new JDOMSource(doc);
 JDOMResult result = new JDOMResult();
 webServiceTemplate.sendAndReceive(requestSource, result);
 Document resultDocument = result.getDocument();
 Element responseElement = resultDocument.getRootElement();
 Element handNameElement =
 responseElement.getChild("handName", ns);
 return PokerHandType.valueOf(handNameElement.getText());
 }

Marshalers on Client side
 WebServiceTemplate provides marshalSendAndReceive()
method for sending and receiving XML messages that are
marshaled to and from Java objects.
 public class MarshallingPokerClient implements PokerClient {
 public PokerHandType evaluateHand(Card[] cards)
 throws IOException {
 EvaluateHandRequest request = new EvaluateHandRequest();
 request.setHand(cards);
 EvaluateHandResponse response = (EvaluateHandResponse)
 webServiceTemplate.marshalSendAndReceive(request);
 return response.getPokerHand();
 }
 }

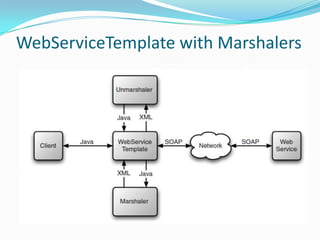

WebServiceTemplate with Marshalers

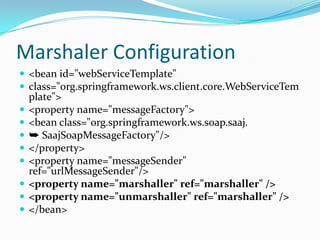

Marshaler Configuration
 <bean id="webServiceTemplate"
 class="org.springframework.ws.client.core.WebServiceTem
plate">
 <property name="messageFactory">
 <bean class="org.springframework.ws.soap.saaj.
 ➥ SaajSoapMessageFactory"/>
 </property>
 <property name="messageSender"
ref="urlMessageSender"/>
 <property name="marshaller" ref="marshaller" />
 <property name="unmarshaller" ref="marshaller" />
 </bean>

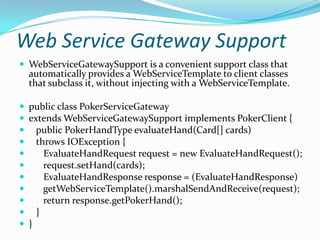

Web Service Gateway Support
 WebServiceGatewaySupport is a convenient support class that
automatically provides a WebServiceTemplate to client classes
that subclass it, without injecting with a WebServiceTemplate.
 public class PokerServiceGateway
 extends WebServiceGatewaySupport implements PokerClient {
 public PokerHandType evaluateHand(Card[] cards)
 throws IOException {
 EvaluateHandRequest request = new EvaluateHandRequest();
 request.setHand(cards);
 EvaluateHandResponse response = (EvaluateHandResponse)
 getWebServiceTemplate().marshalSendAndReceive(request);
 return response.getPokerHand();
 }
 }

Spring Web Services

More Related Content

What's hot

Similar to Spring Web Services

More from Emprovise

Recently uploaded

Spring Web Services
