The “I” in API is for Identity (Nordic APIS April 2014)
The document discusses identity management standards for APIs, including OAuth 2.0, SAML, and OpenID Connect. It provides an overview of each standard, including how they work and examples of them in action. The document recommends either using SAML + OAuth 2.0 due to broad SAML adoption, or OpenID Connect as it is simpler, works across all clients, and uses OAuth access tokens. It also describes Ping Identity's solution for implementing these identity standards for APIs.
More Related Content
![OpenID Connect - a simple[sic] single sign-on & identity layer on top of OAut...](https://cdn.slidesharecdn.com/ss_thumbnails/gluecon2014-oidc-140521065808-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to The “I” in API is for Identity (Nordic APIS April 2014)
![[WSO2Con USA 2018] Identity APIs is the New Black](https://cdn.slidesharecdn.com/ss_thumbnails/wso2conusa18identityapisisthenewblack-180718104220-thumbnail.jpg?width=640&height=640&fit=bounds)
The “I” in API is for Identity (Nordic APIS April 2014)
- 1.
- 2. THE “I” INAPI IS FOR IDENTITY David Gorton Senior Program Manager Copyright © 2014 Ping Identity Corp. All rights reserved. 2

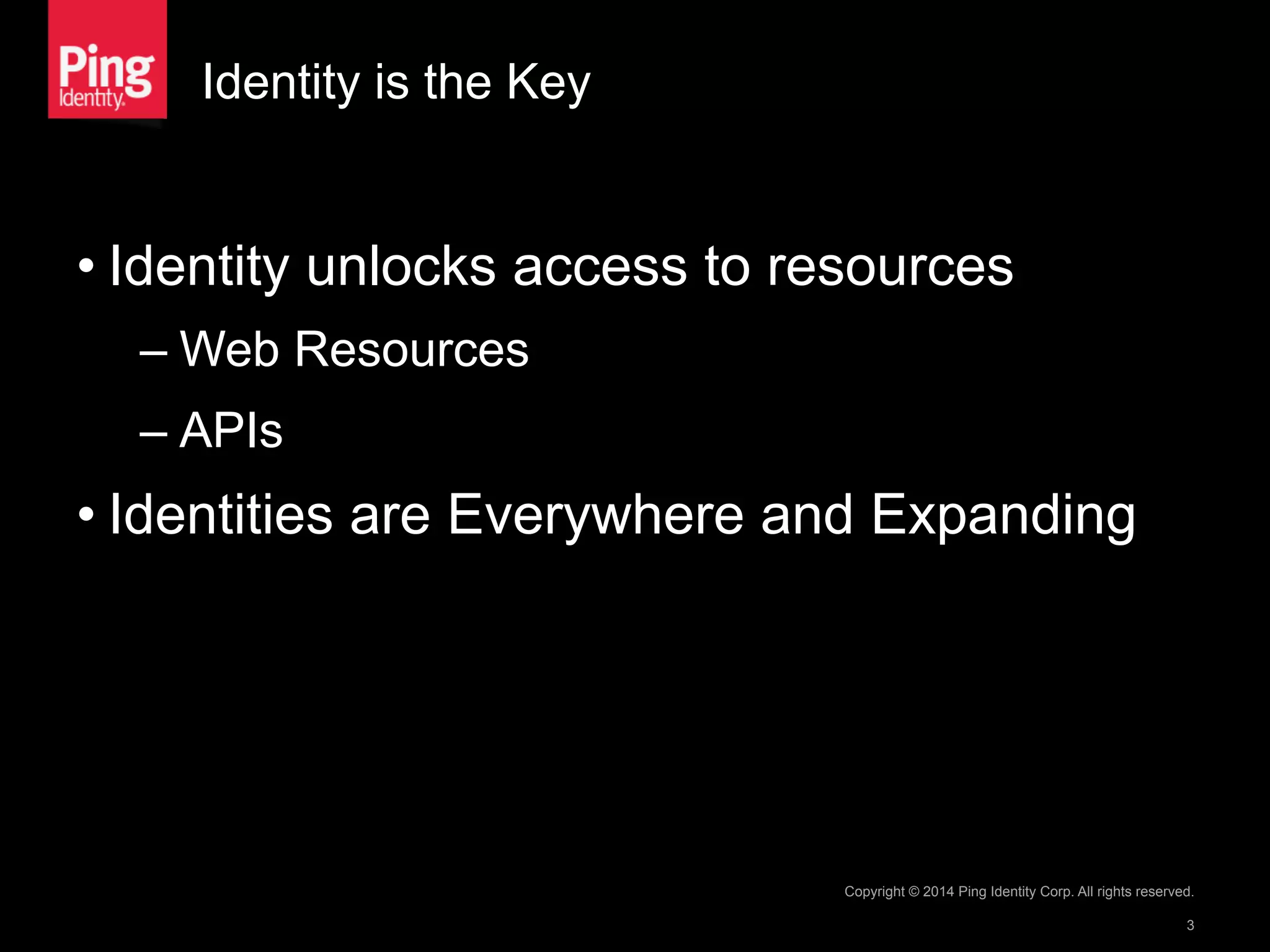

- 3. Identity is theKey • Identity unlocks access to resources – Web Resources – APIs • Identities are Everywhere and Expanding Copyright © 2014 Ping Identity Corp. All rights reserved. 3

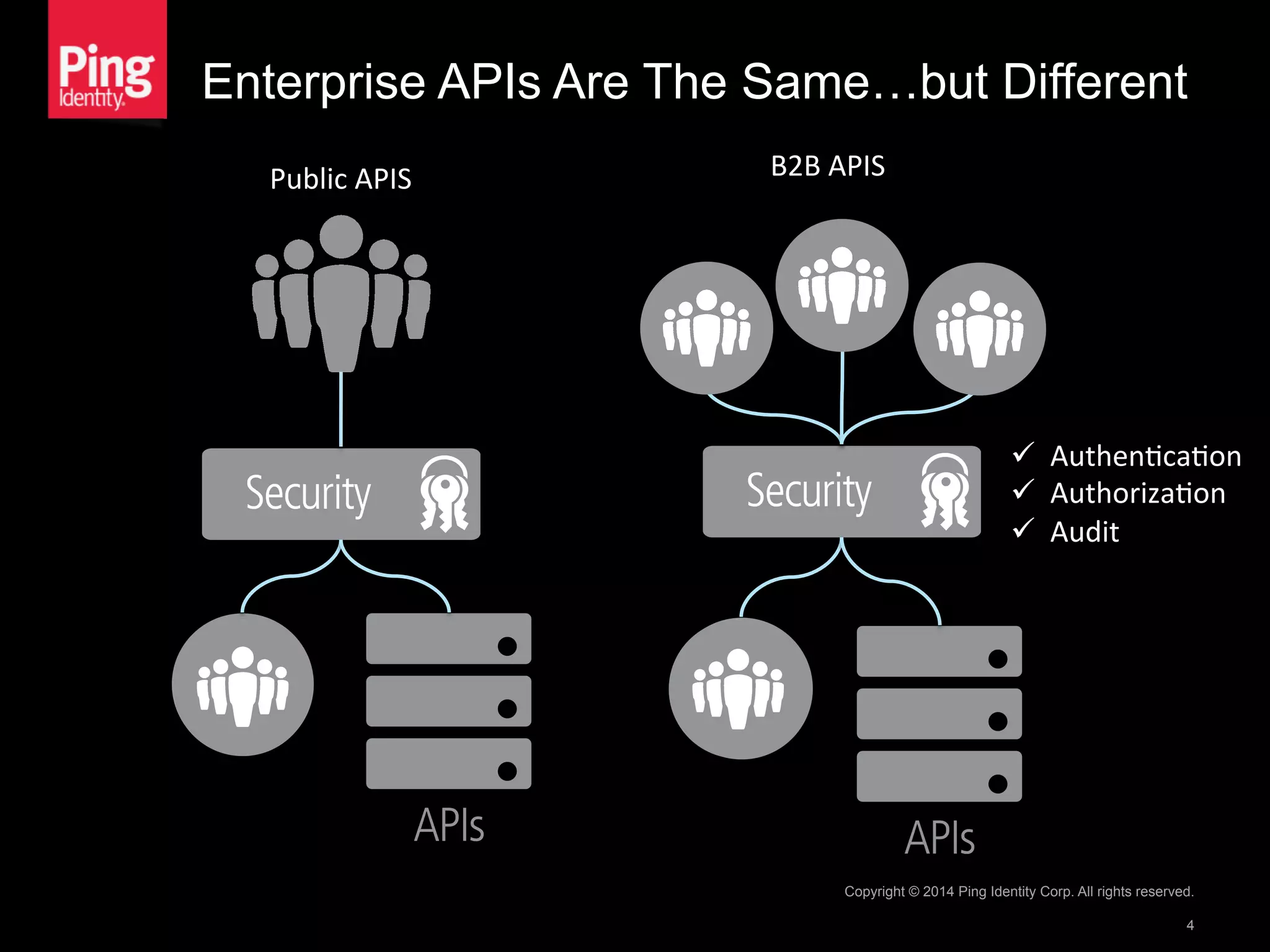

- 4. Enterprise APIs AreThe Same…but Different Copyright © 2014 Ping Identity Corp. All rights reserved. 4 Public APIS B2B APIS ü Authen1ca1on ü Authoriza1on ü Audit

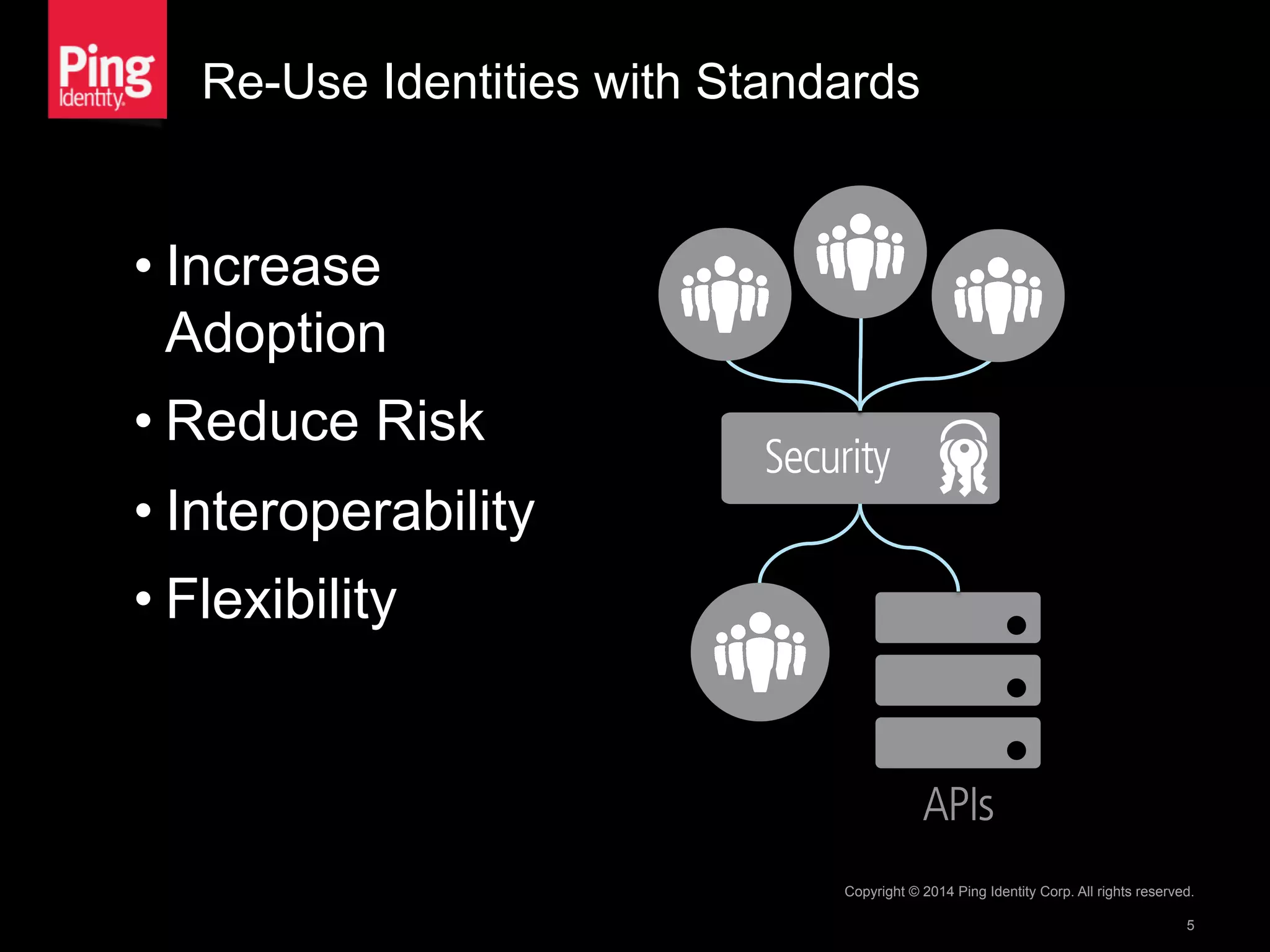

- 5. Re-Use Identities withStandards • Increase Adoption • Reduce Risk • Interoperability • Flexibility Copyright © 2014 Ping Identity Corp. All rights reserved. 5

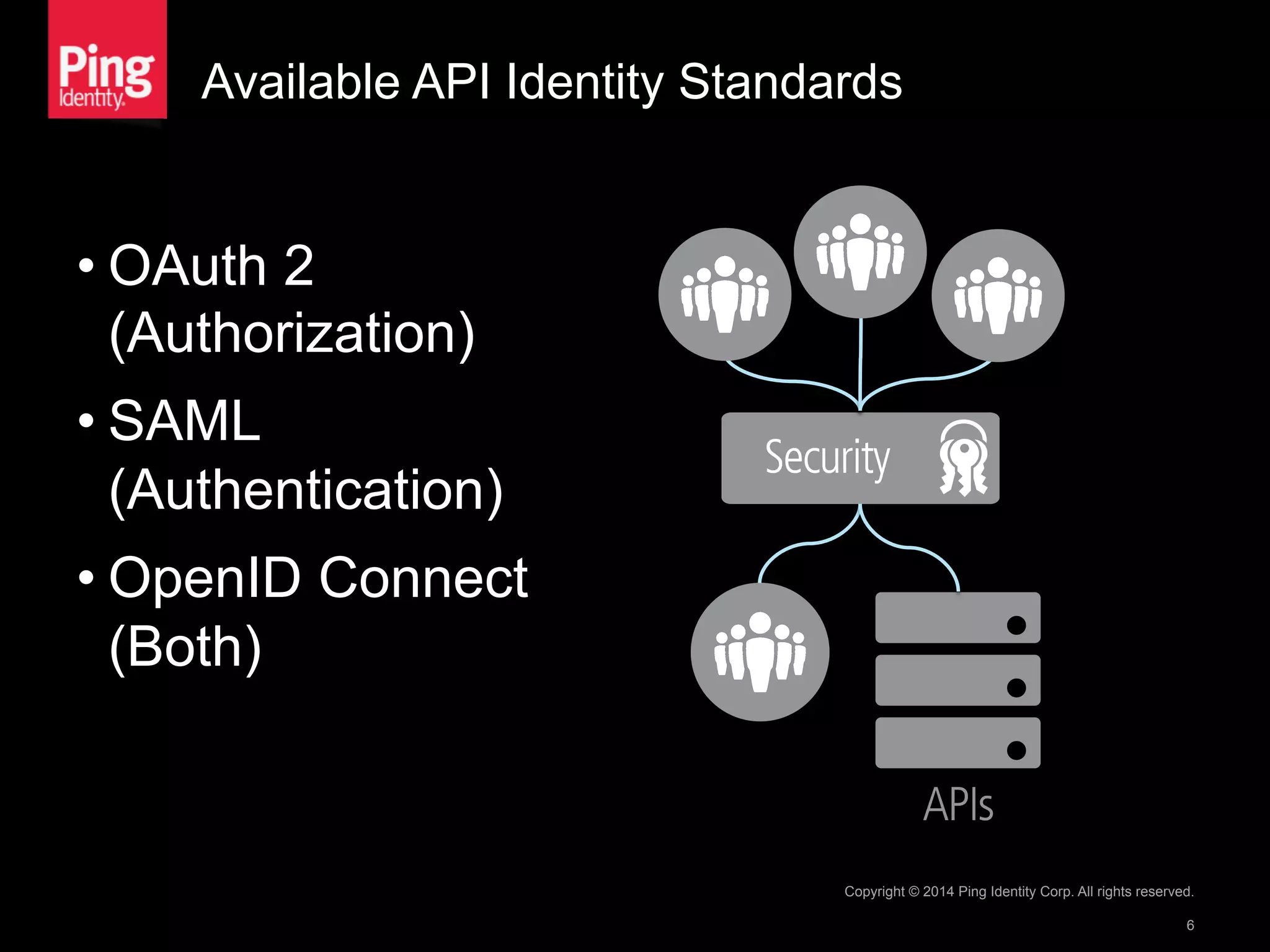

- 6. Available API IdentityStandards • OAuth 2 (Authorization) • SAML (Authentication) • OpenID Connect (Both) Copyright © 2014 Ping Identity Corp. All rights reserved. 6

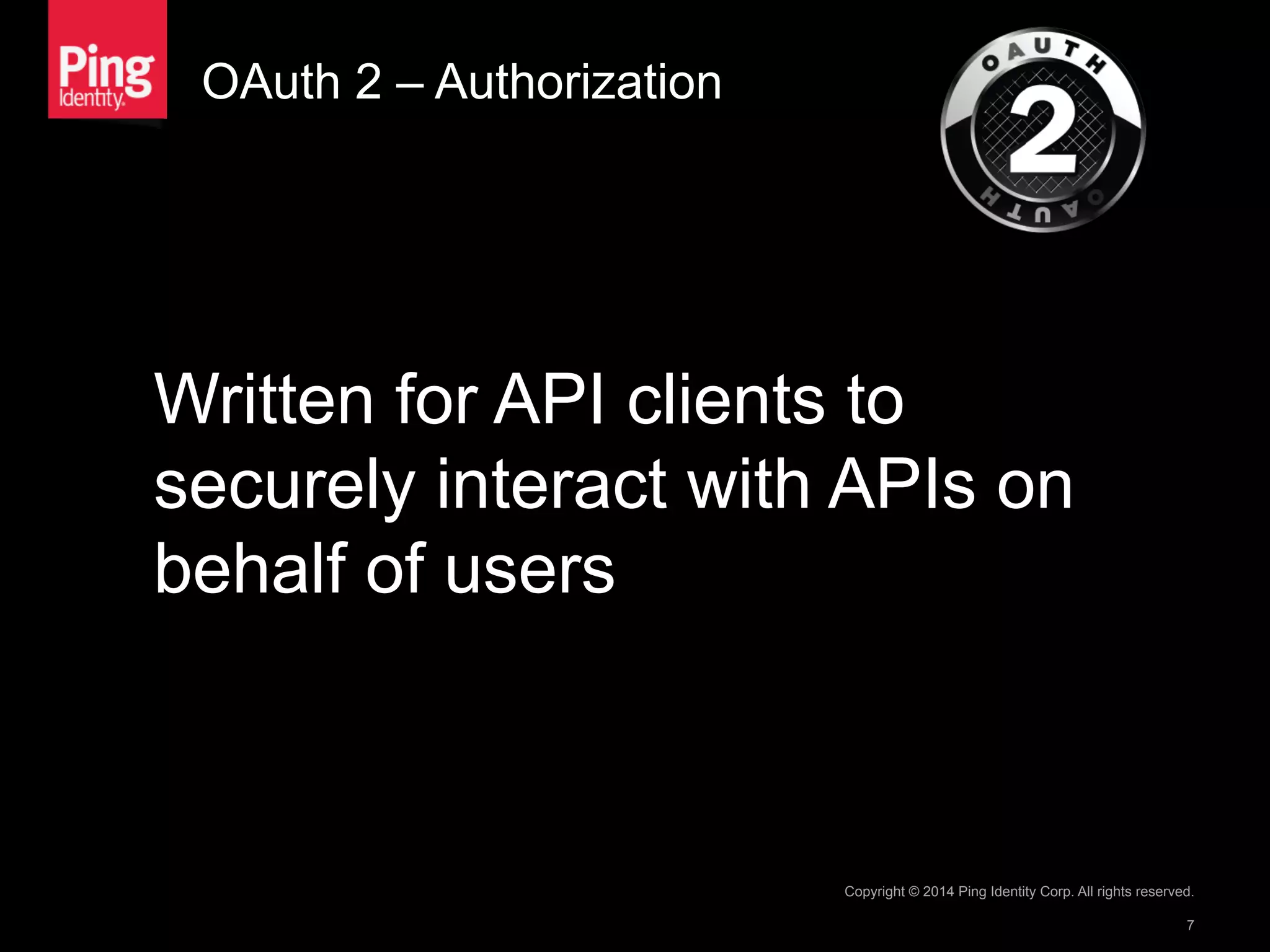

- 7. OAuth 2 –Authorization Written for API clients to securely interact with APIs on behalf of users Copyright © 2014 Ping Identity Corp. All rights reserved. 7

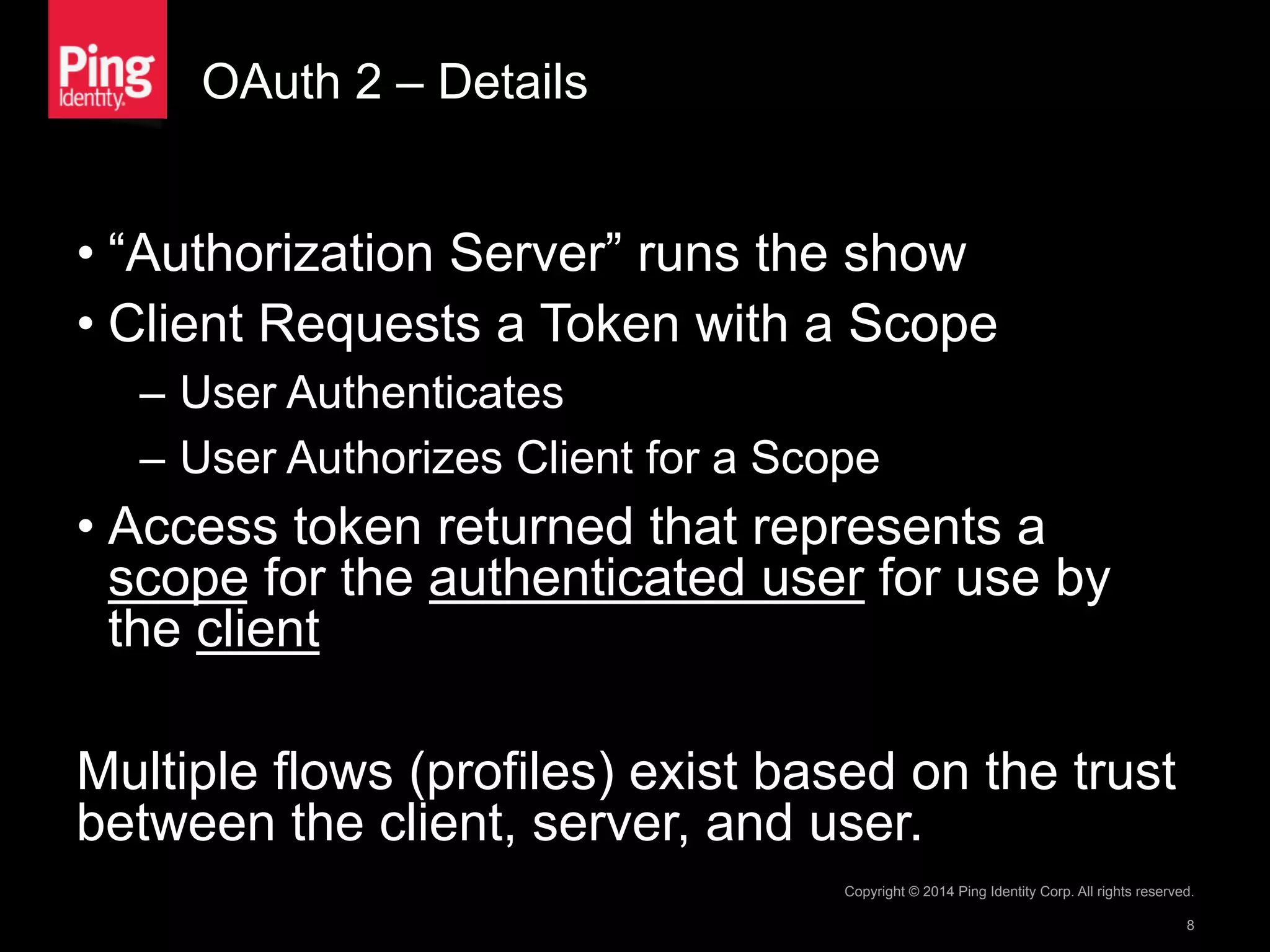

- 8. OAuth 2 –Details • “Authorization Server” runs the show • Client Requests a Token with a Scope – User Authenticates – User Authorizes Client for a Scope • Access token returned that represents a scope for the authenticated user for use by the client Multiple flows (profiles) exist based on the trust between the client, server, and user. Copyright © 2014 Ping Identity Corp. All rights reserved. 8

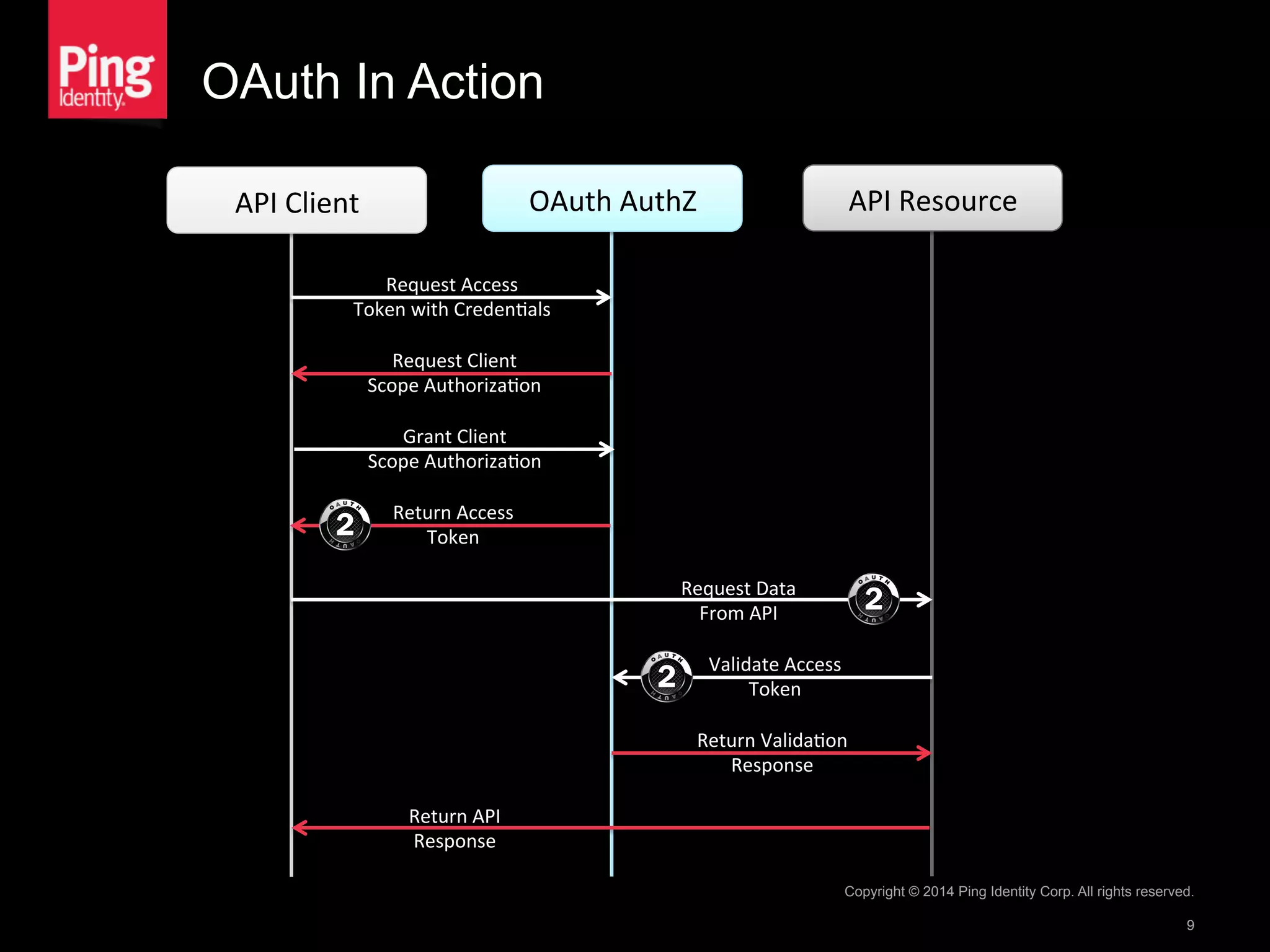

- 9. OAuth In Action Copyright© 2014 Ping Identity Corp. All rights reserved. 9 API Client OAuth AuthZ API Resource Request Access Token with Creden1als Return Access Token Request Data From API Validate Access Token Return API Response Return Valida1on Response Request Client Scope Authoriza1on Grant Client Scope Authoriza1on

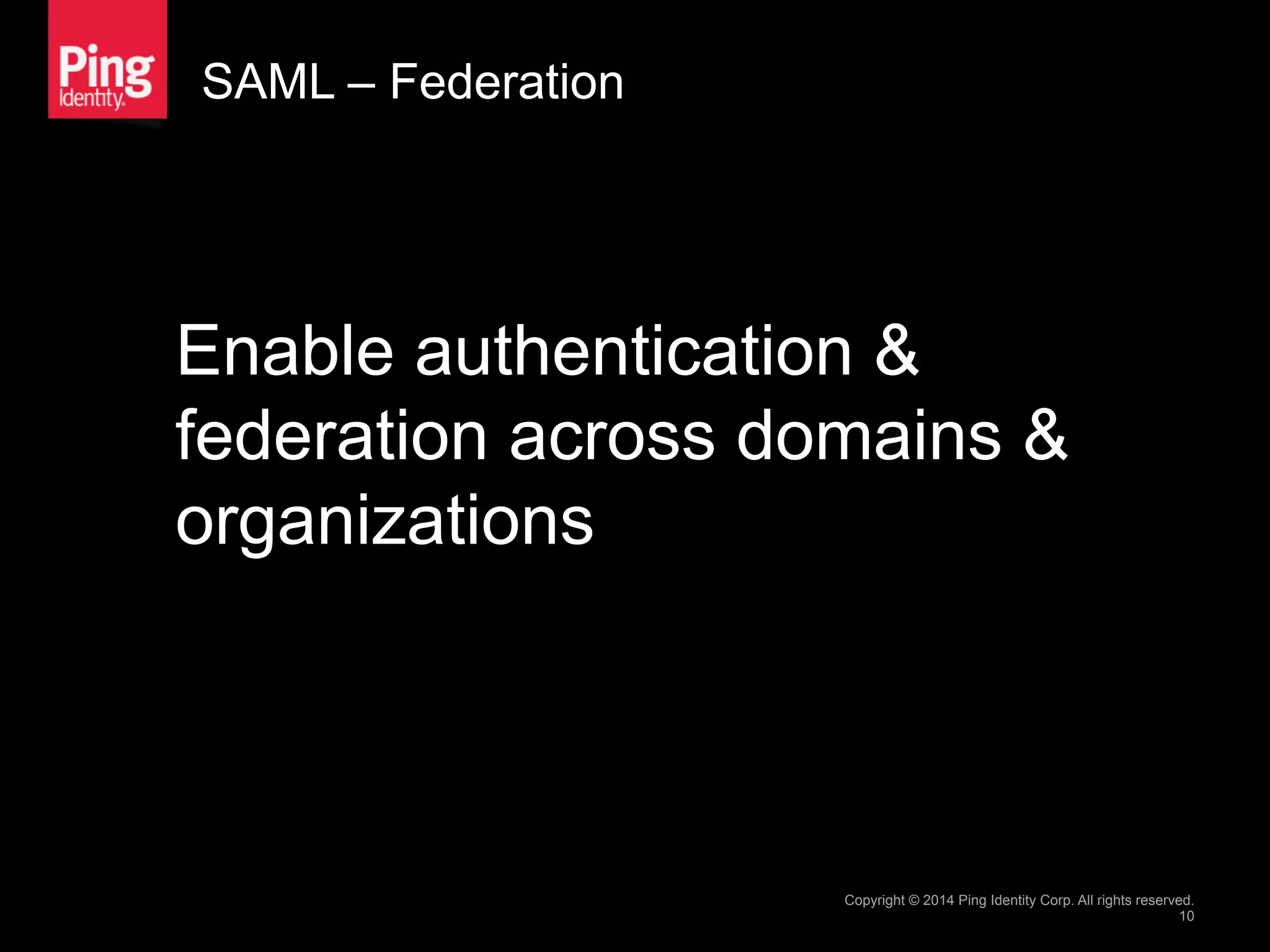

- 10. SAML – Federation Enableauthentication & federation across domains & organizations Copyright © 2014 Ping Identity Corp. All rights reserved. 10

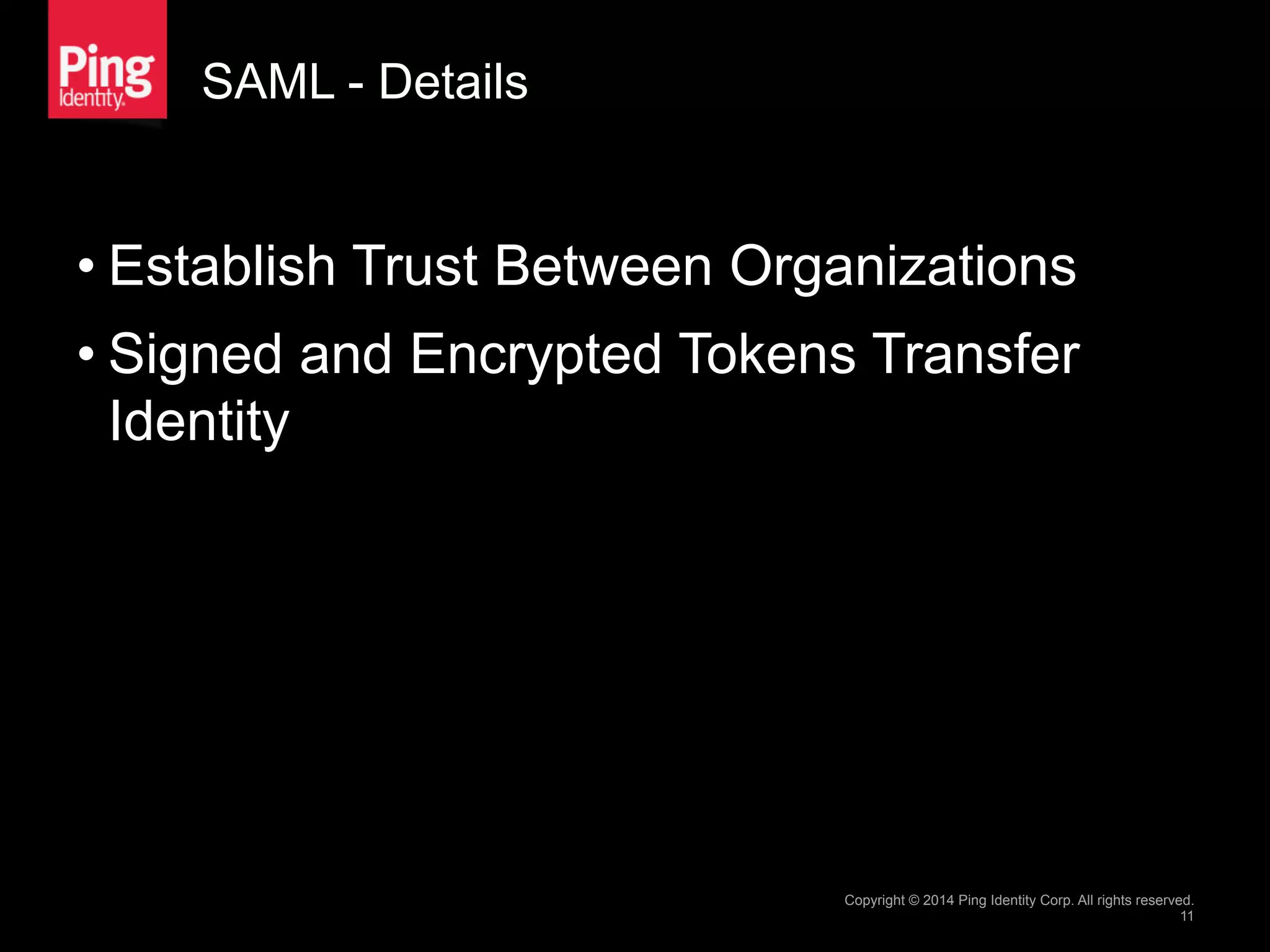

- 11. SAML - Details • EstablishTrust Between Organizations • Signed and Encrypted Tokens Transfer Identity Copyright © 2014 Ping Identity Corp. All rights reserved. 11

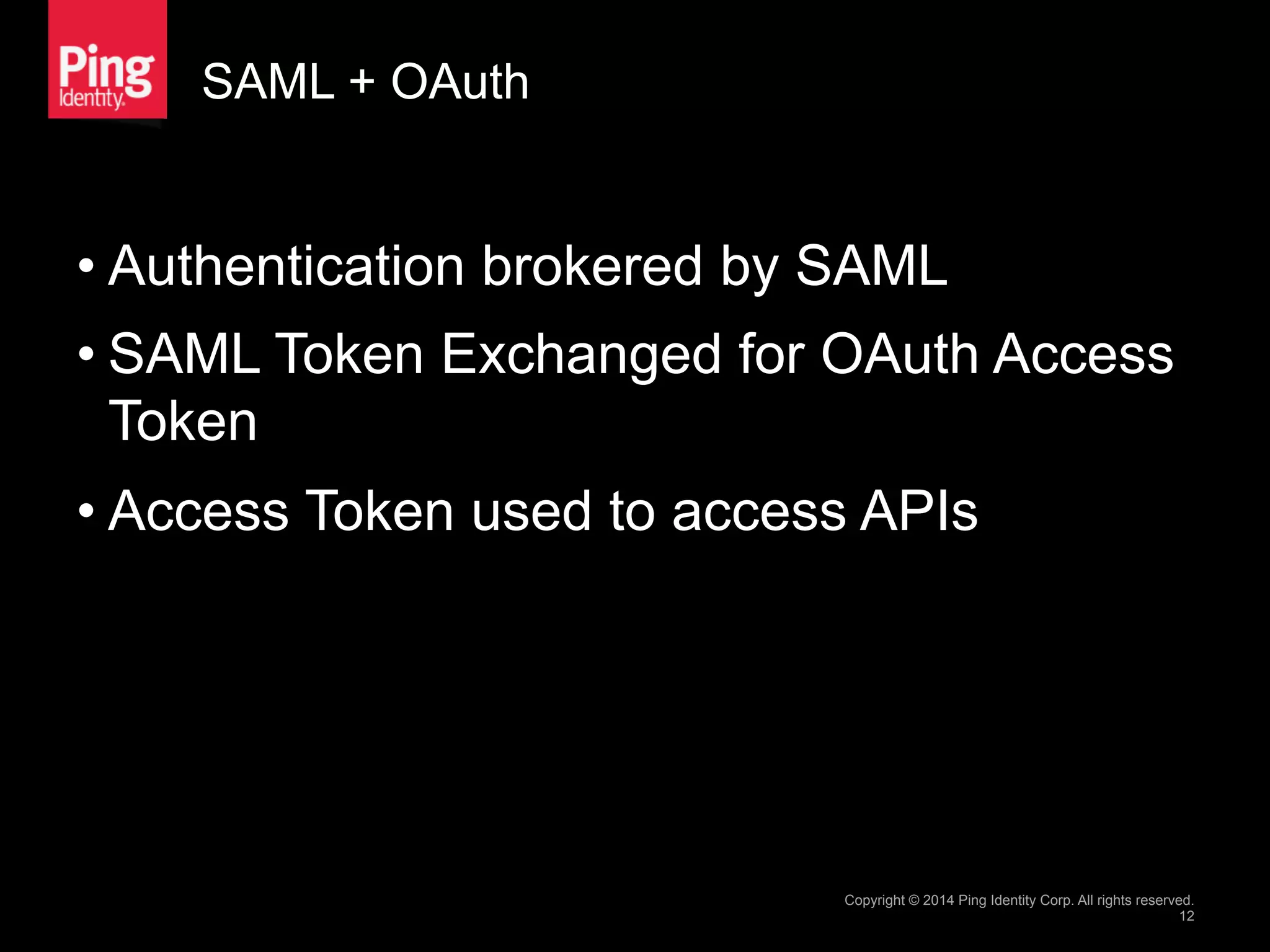

- 12. SAML + OAuth • Authenticationbrokered by SAML • SAML Token Exchanged for OAuth Access Token • Access Token used to access APIs Copyright © 2014 Ping Identity Corp. All rights reserved. 12

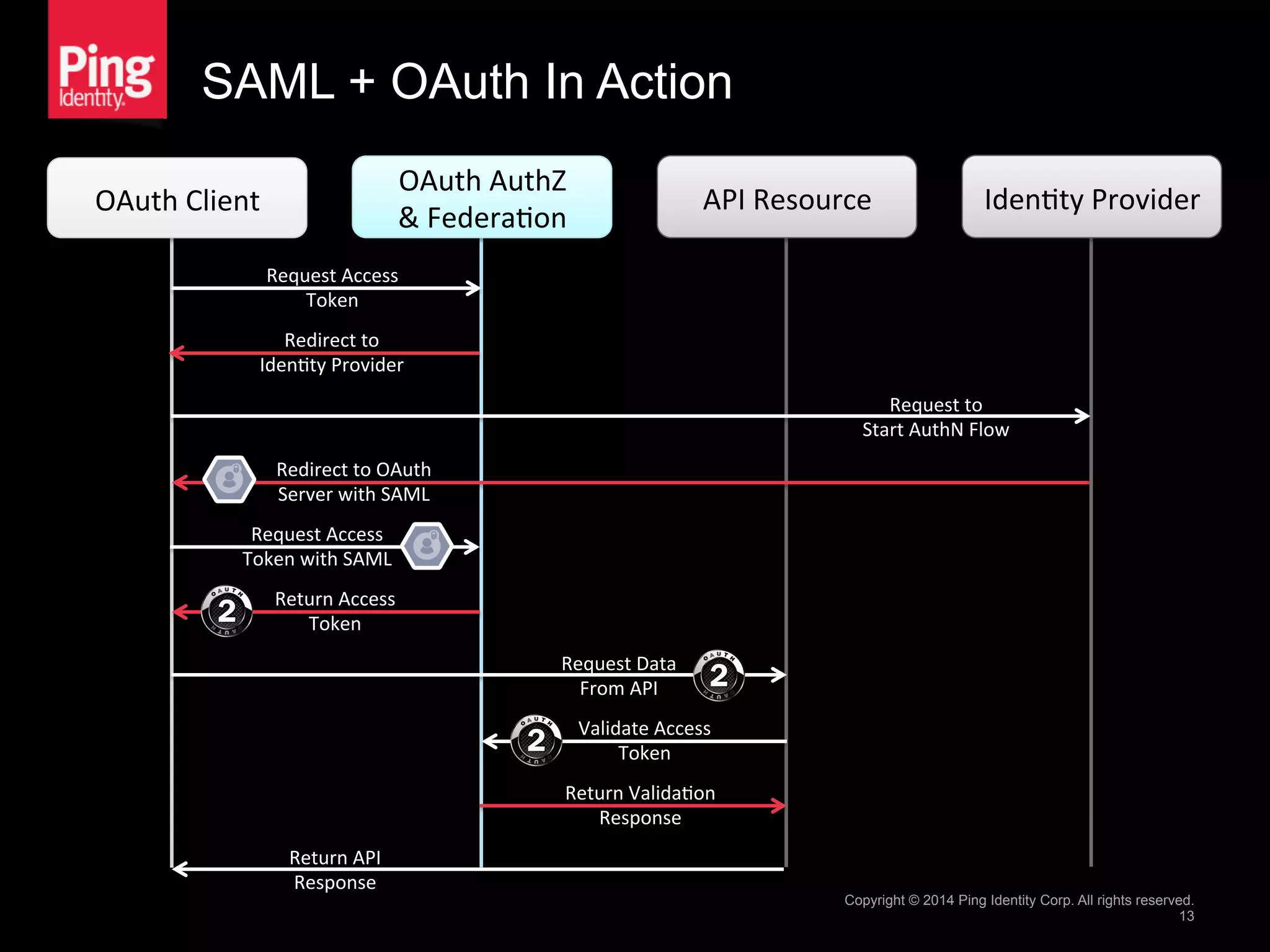

- 13. SAML + OAuthIn Action Copyright © 2014 Ping Identity Corp. All rights reserved. 13 OAuth Client OAuth AuthZ & Federa1on API Resource Request Access Token Redirect to OAuth Server with SAML Request Data From API Validate Access Token Return API Response Return Valida1on Response Iden1ty Provider Redirect to Iden1ty Provider Request to Start AuthN Flow Request Access Token with SAML Return Access Token

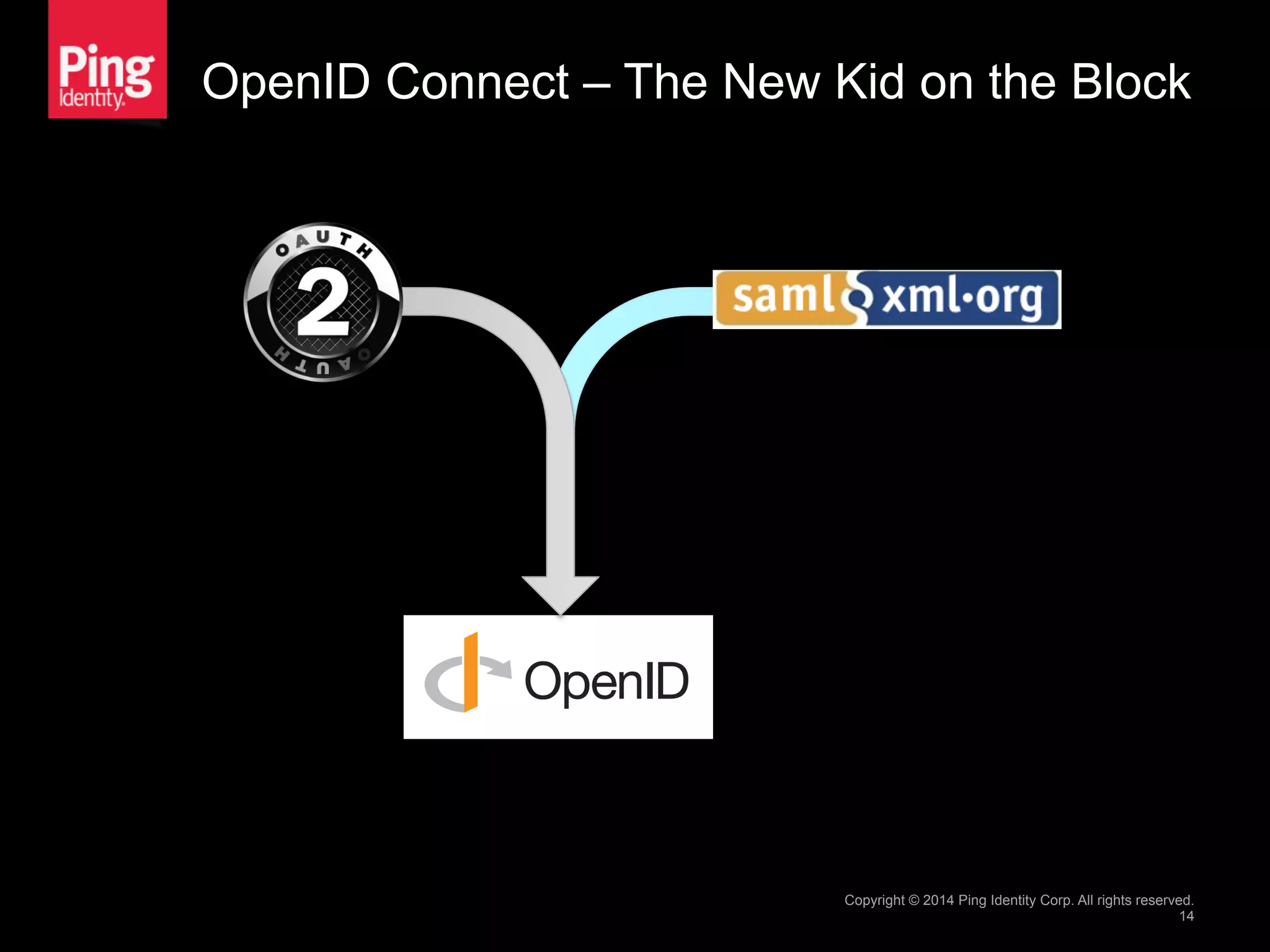

- 14. OpenID Connect –The New Kid on the Block Copyright © 2014 Ping Identity Corp. All rights reserved. 14 Connect

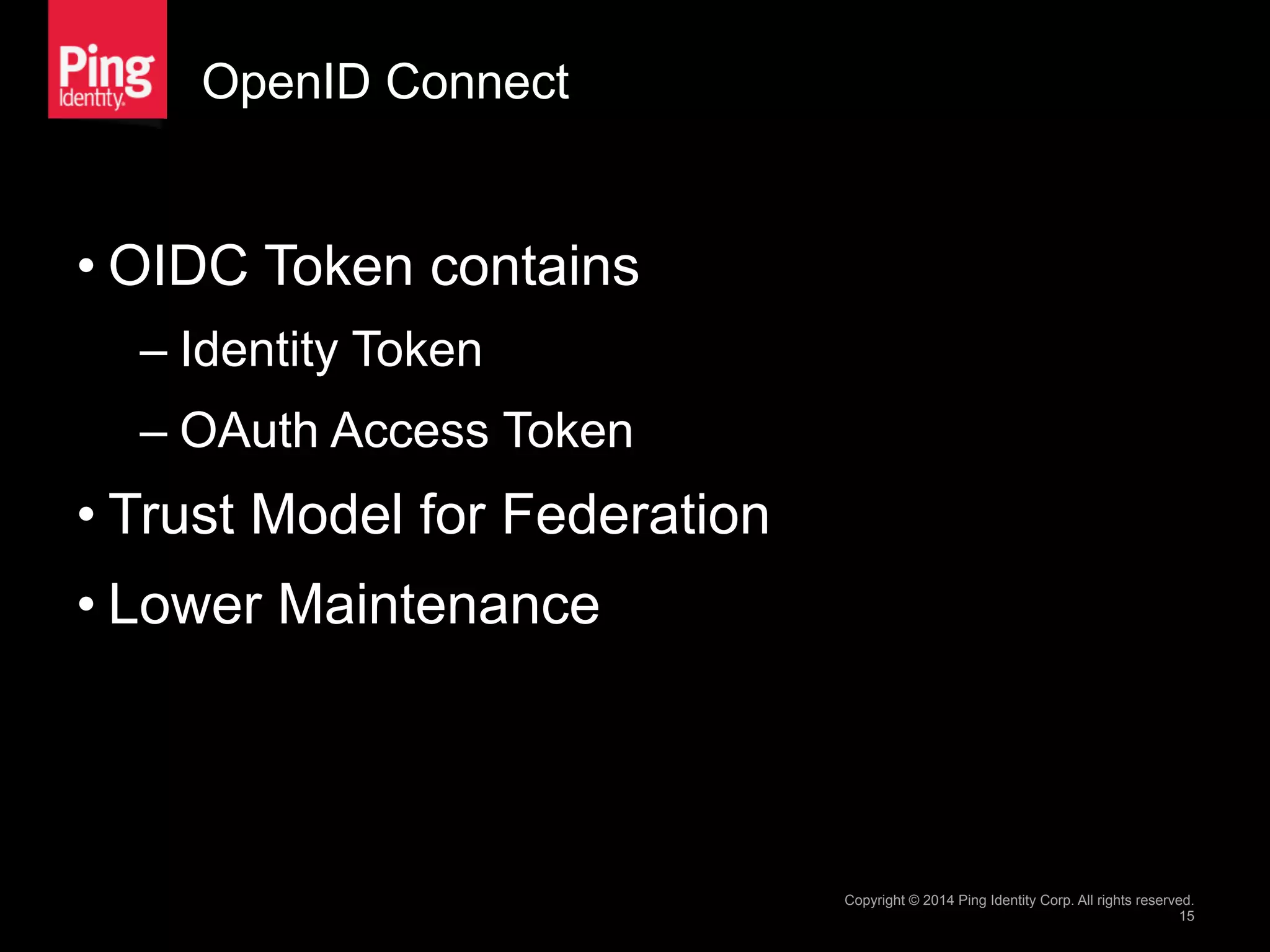

- 15. OpenID Connect • OIDC Tokencontains – Identity Token – OAuth Access Token • Trust Model for Federation • Lower Maintenance Copyright © 2014 Ping Identity Corp. All rights reserved. 15

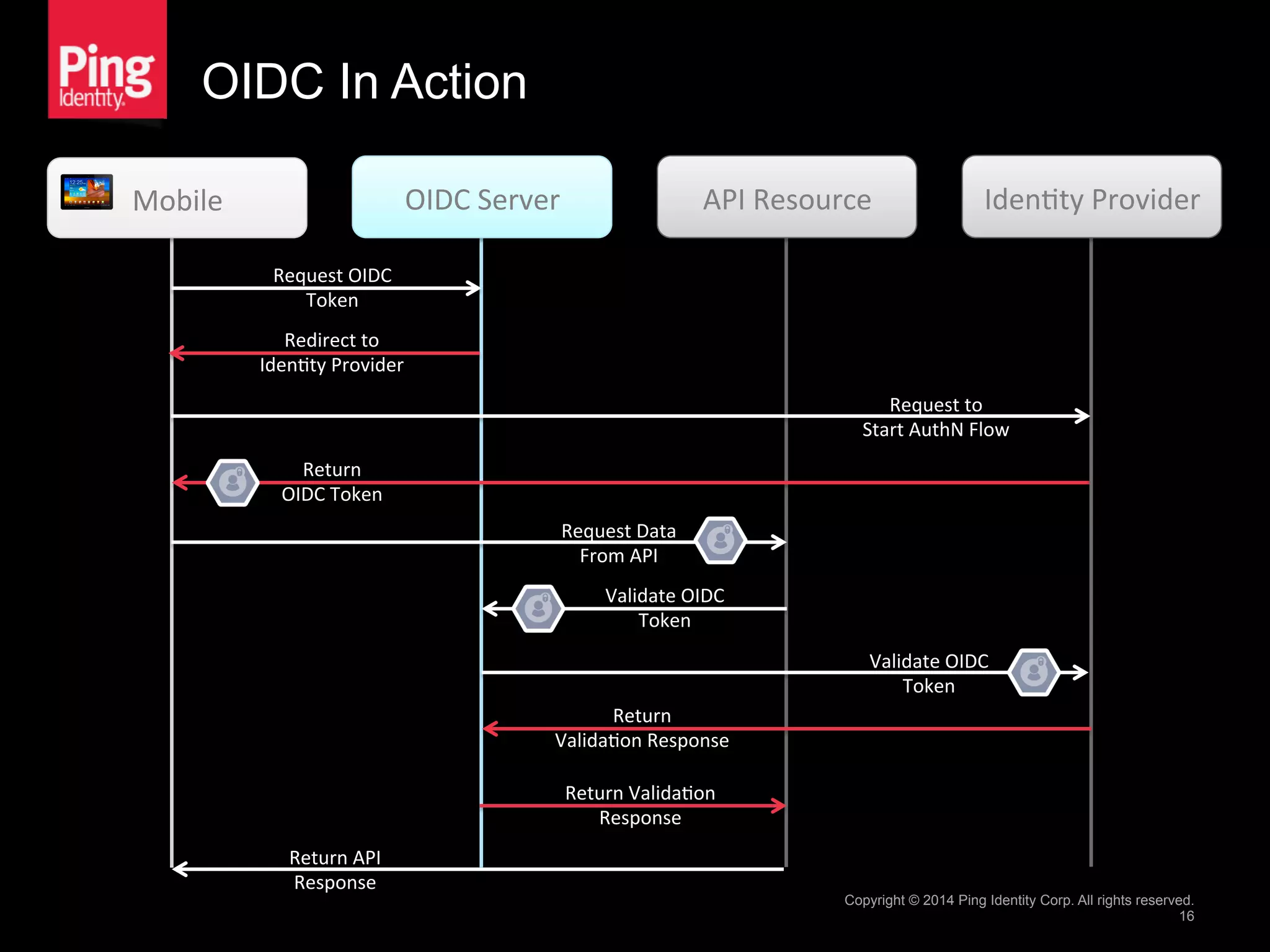

- 16. OIDC In Action Copyright© 2014 Ping Identity Corp. All rights reserved. 16 Mobile OIDC Server API Resource Request OIDC Token Return OIDC Token Request Data From API Validate OIDC Token Return API Response Return Valida1on Response Iden1ty Provider Redirect to Iden1ty Provider Request to Start AuthN Flow Validate OIDC Token Return Valida1on Response

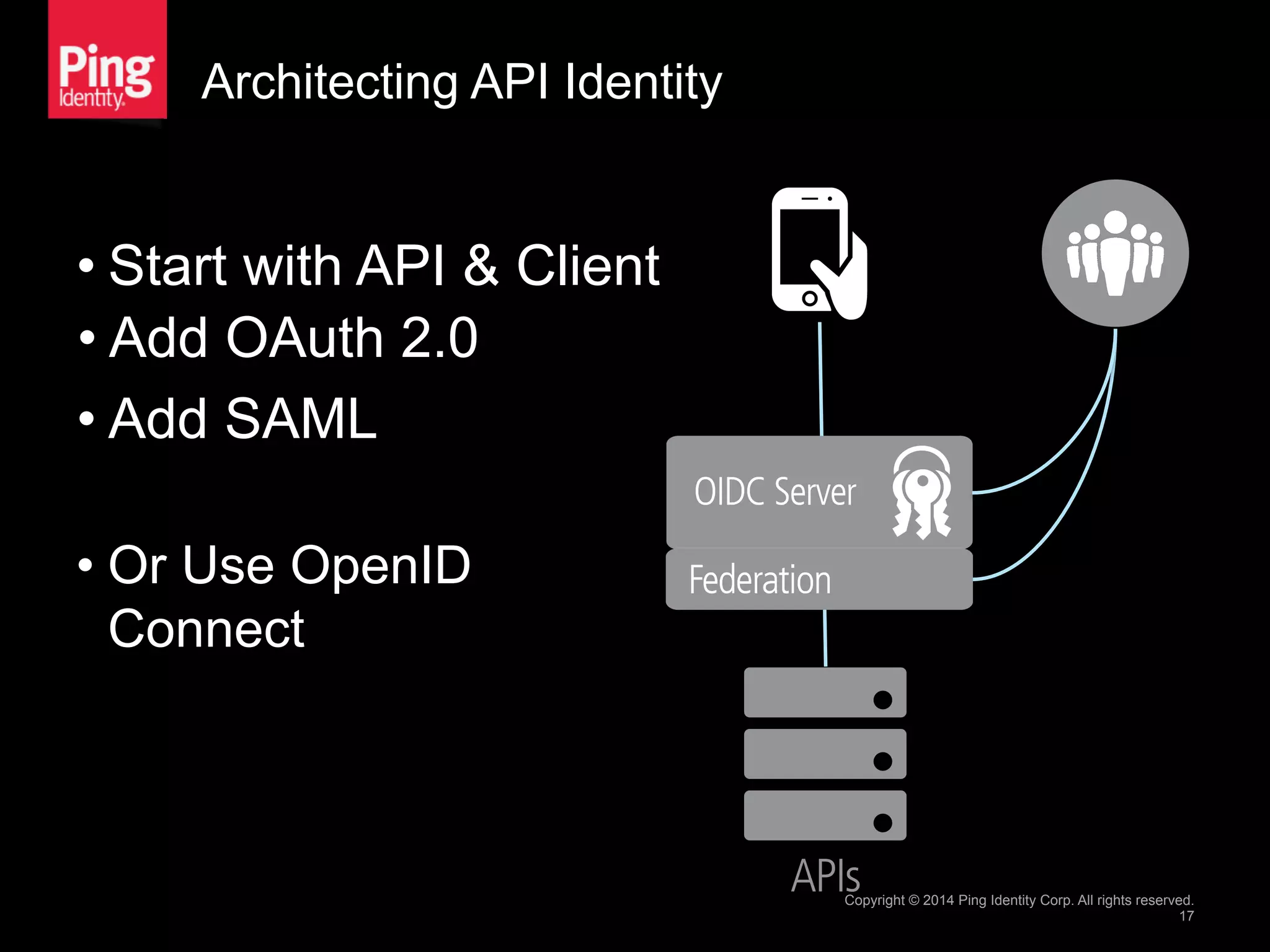

- 17. Architecting API Identity • Startwith API & Client Copyright © 2014 Ping Identity Corp. All rights reserved. 17 • Add OAuth 2.0 • Add SAML • Or Use OpenID Connect

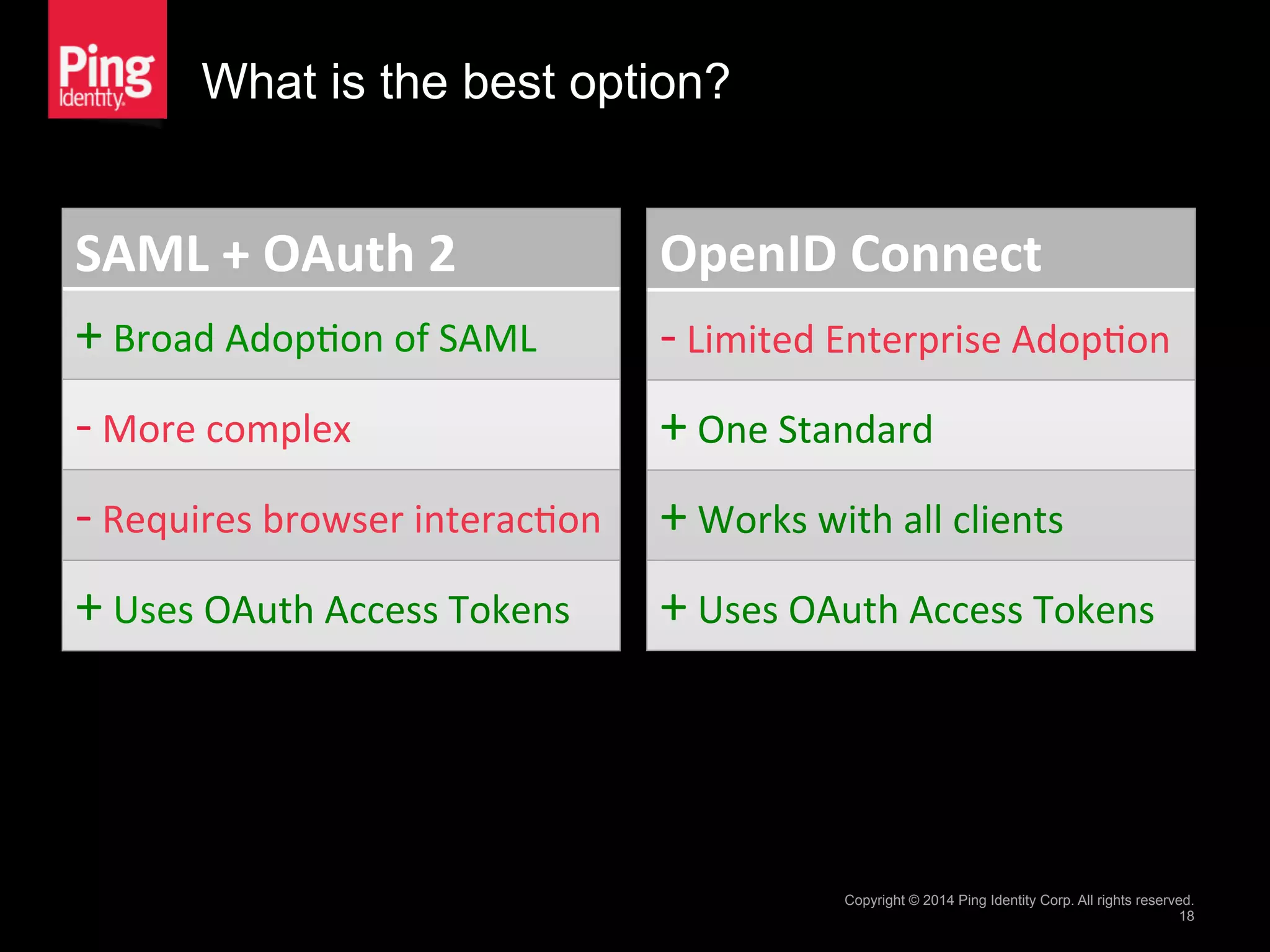

- 18. What is thebest option? SAML + OAuth 2 + Broad Adop1on of SAML -‐ More complex -‐ Requires browser interac1on + Uses OAuth Access Tokens Copyright © 2014 Ping Identity Corp. All rights reserved. 18 OpenID Connect -‐ Limited Enterprise Adop1on + One Standard + Works with all clients + Uses OAuth Access Tokens

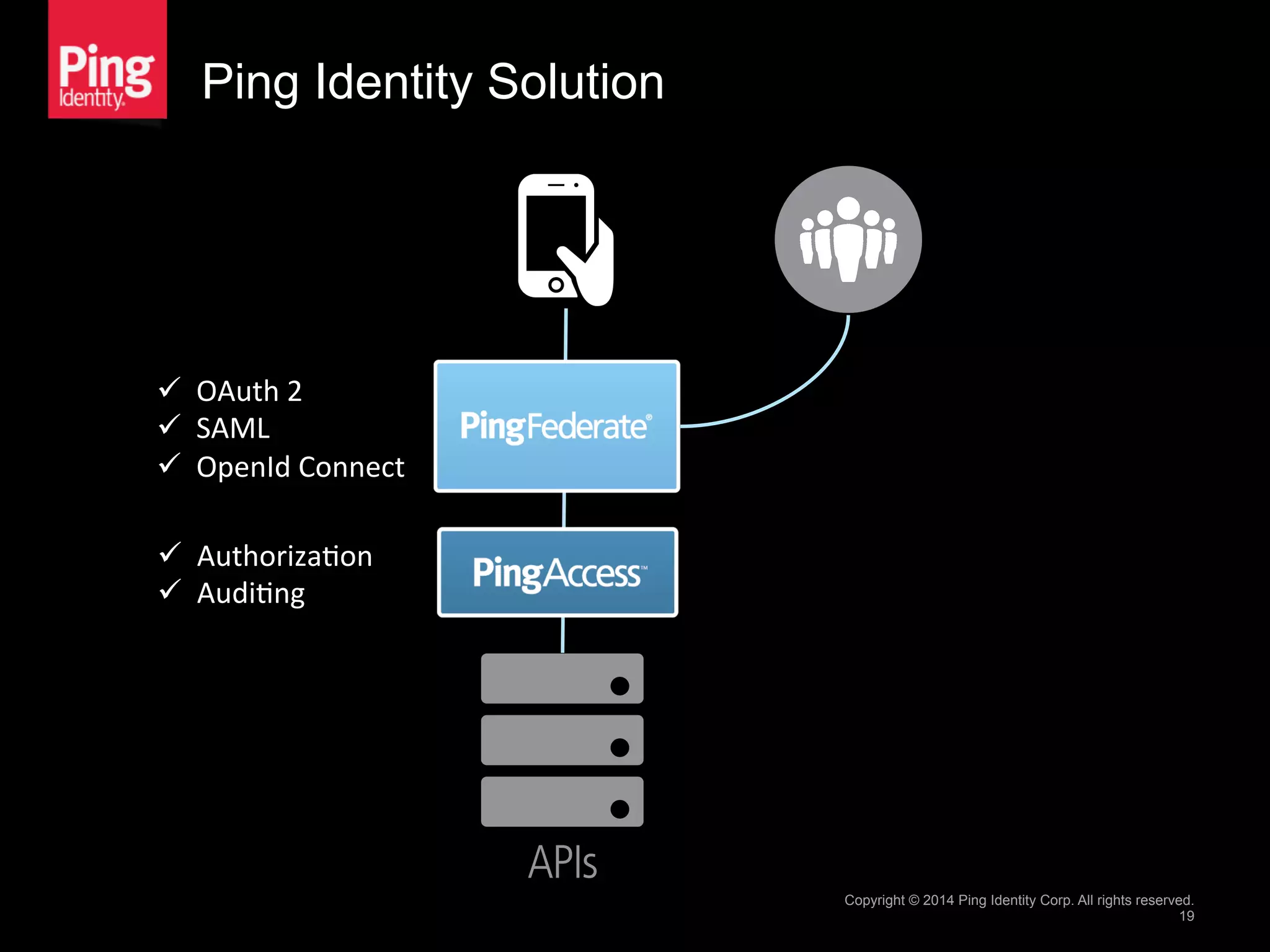

- 19. Ping Identity Solution Copyright© 2014 Ping Identity Corp. All rights reserved. 19 ü OAuth 2 ü SAML ü OpenId Connect ü Authoriza1on ü Audi1ng
- 20. ? Copyright © 2014Ping Identity Corp. All rights reserved. 20
