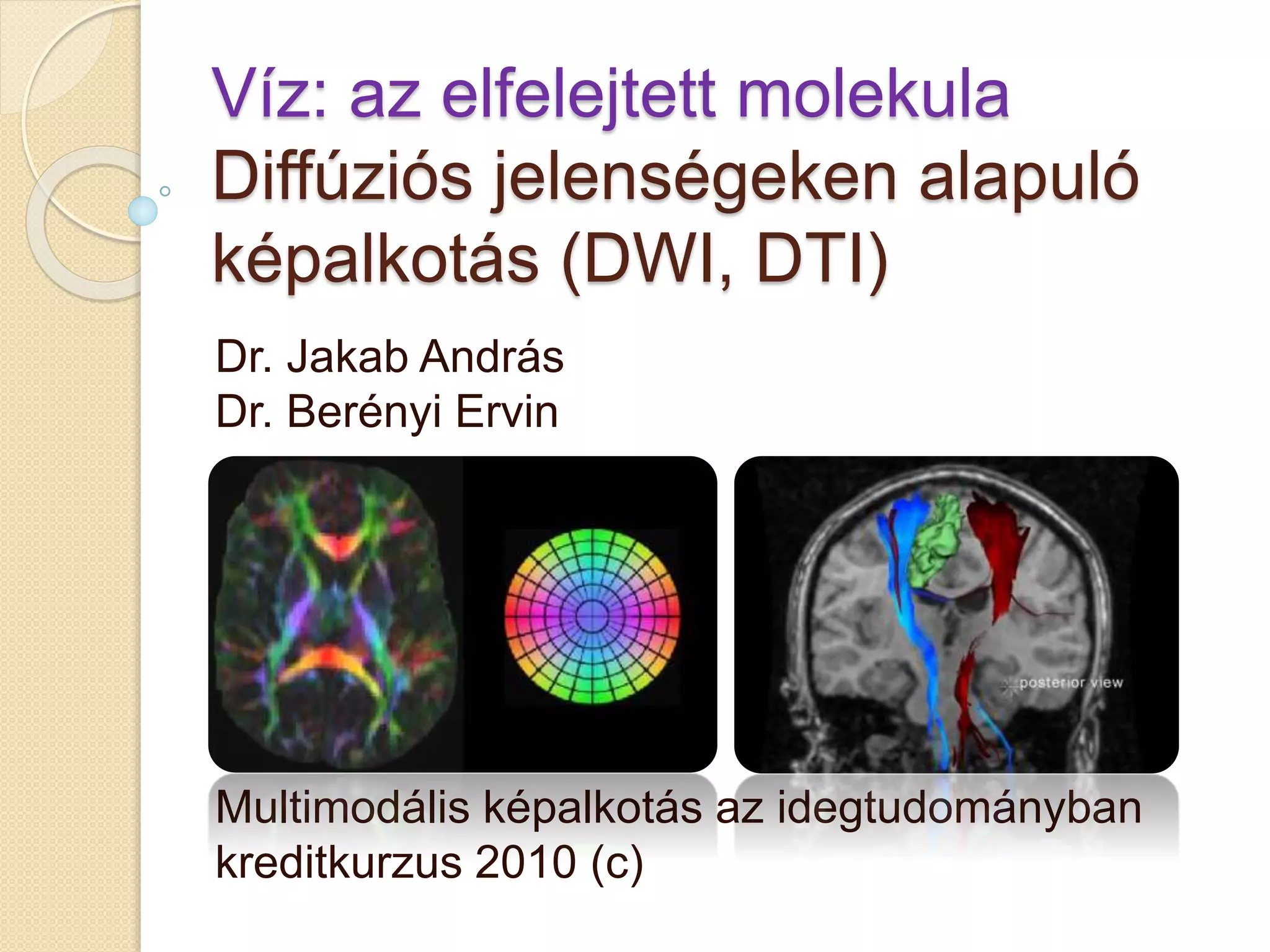

1. Víz: az elfelejtett molekula
Diffúziós jelenségeken alapuló
képalkotás (DWI, DTI)
Dr. Jakab András
Dr. Berényi Ervin
Multimodális képalkotás az idegtudományban
kreditkurzus 2010 (c)

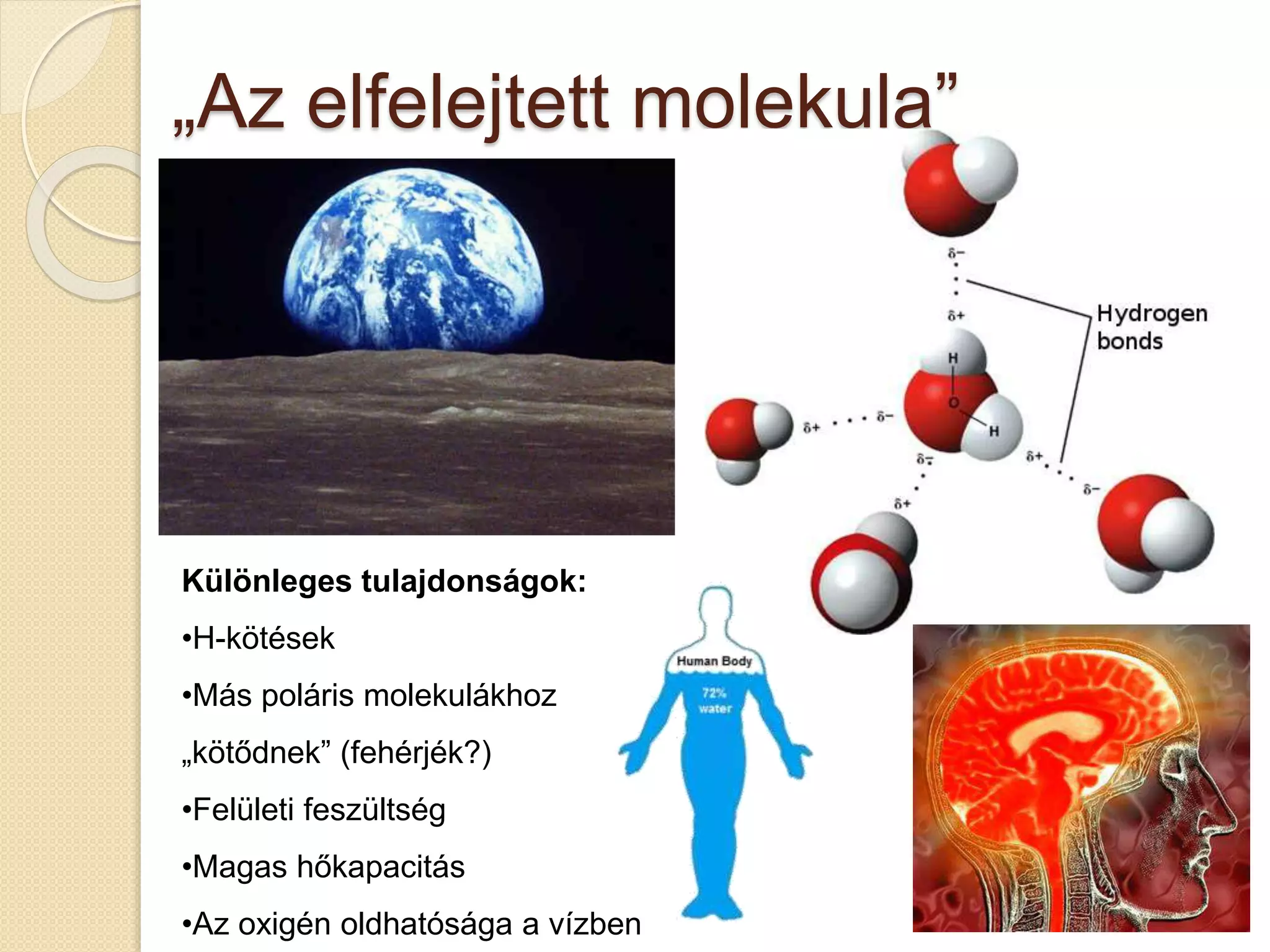

2. „Az elfelejtett molekula”
Különleges tulajdonságok:
•H-kötések
•Más poláris molekulákhoz
„kötődnek” (fehérjék?)
•Felületi feszültség
•Magas hőkapacitás
•Az oxigén oldhatósága a vízben

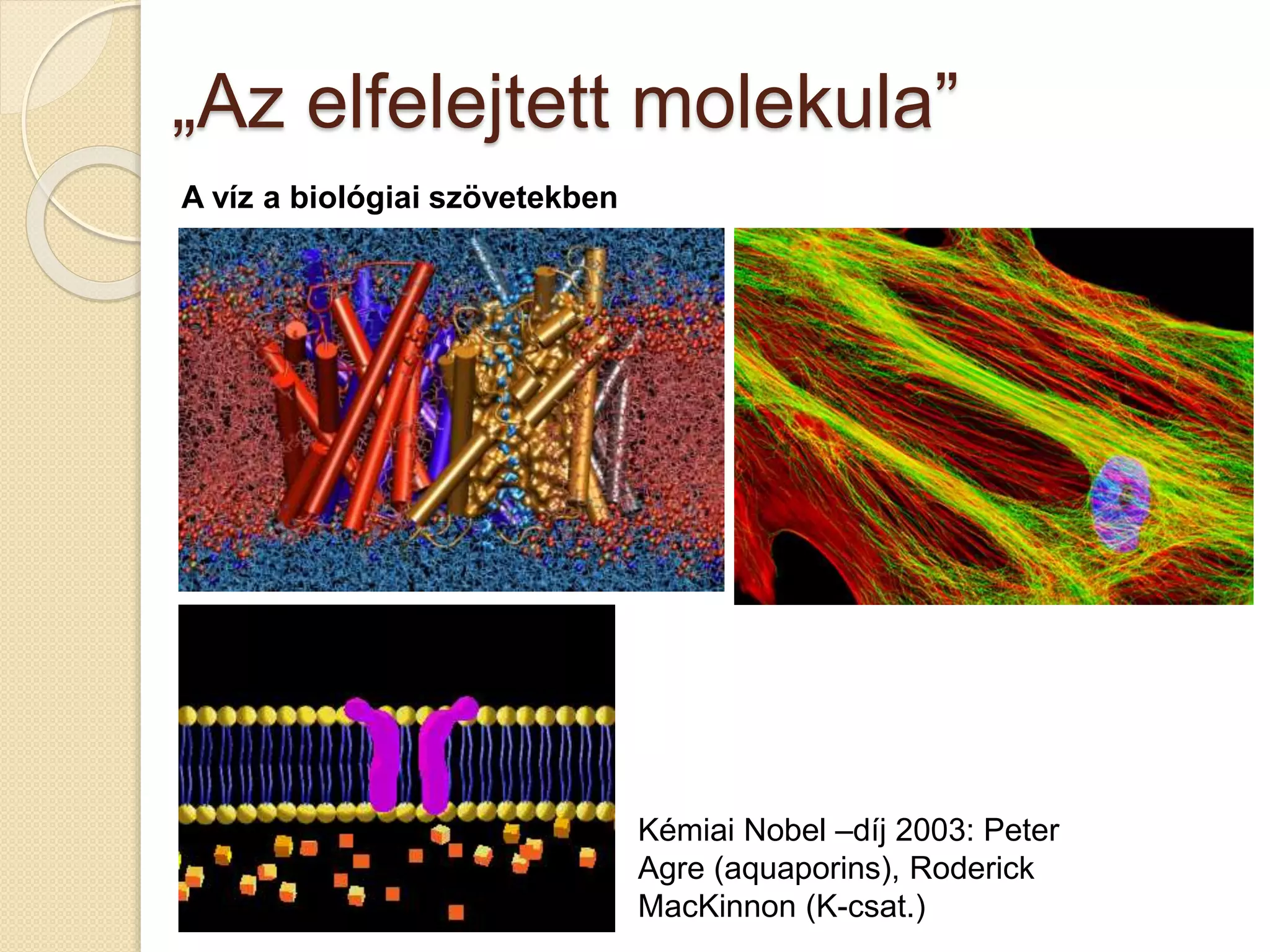

3. „Az elfelejtett molekula”
A víz a biológiai szövetekben
Kémiai Nobel –díj 2003: Peter
Agre (aquaporins), Roderick
MacKinnon (K-csat.)
4.

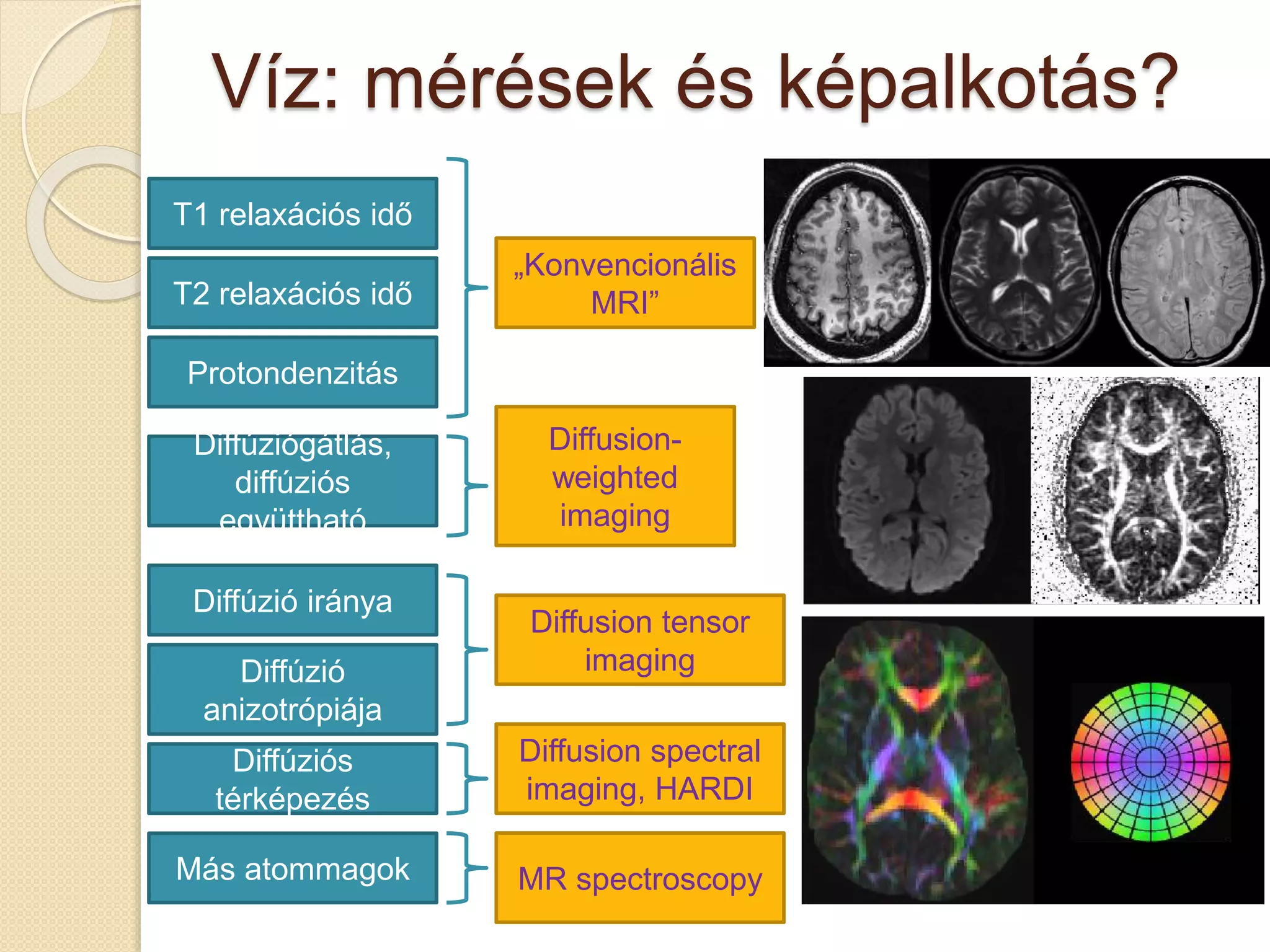

5. Víz: mérések és képalkotás?
T1 relaxációs idő
T2 relaxációs idő
Protondenzitás
Diffúziógátlás,
diffúziós
együttható
Diffúzió iránya
Diffúzió
anizotrópiája
Diffúziós
térképezés
Más atommagok
„Konvencionális
MRI”
Diffusion-
weighted
imaging
Diffusion tensor
imaging
Diffusion spectral
imaging, HARDI
MR spectroscopy

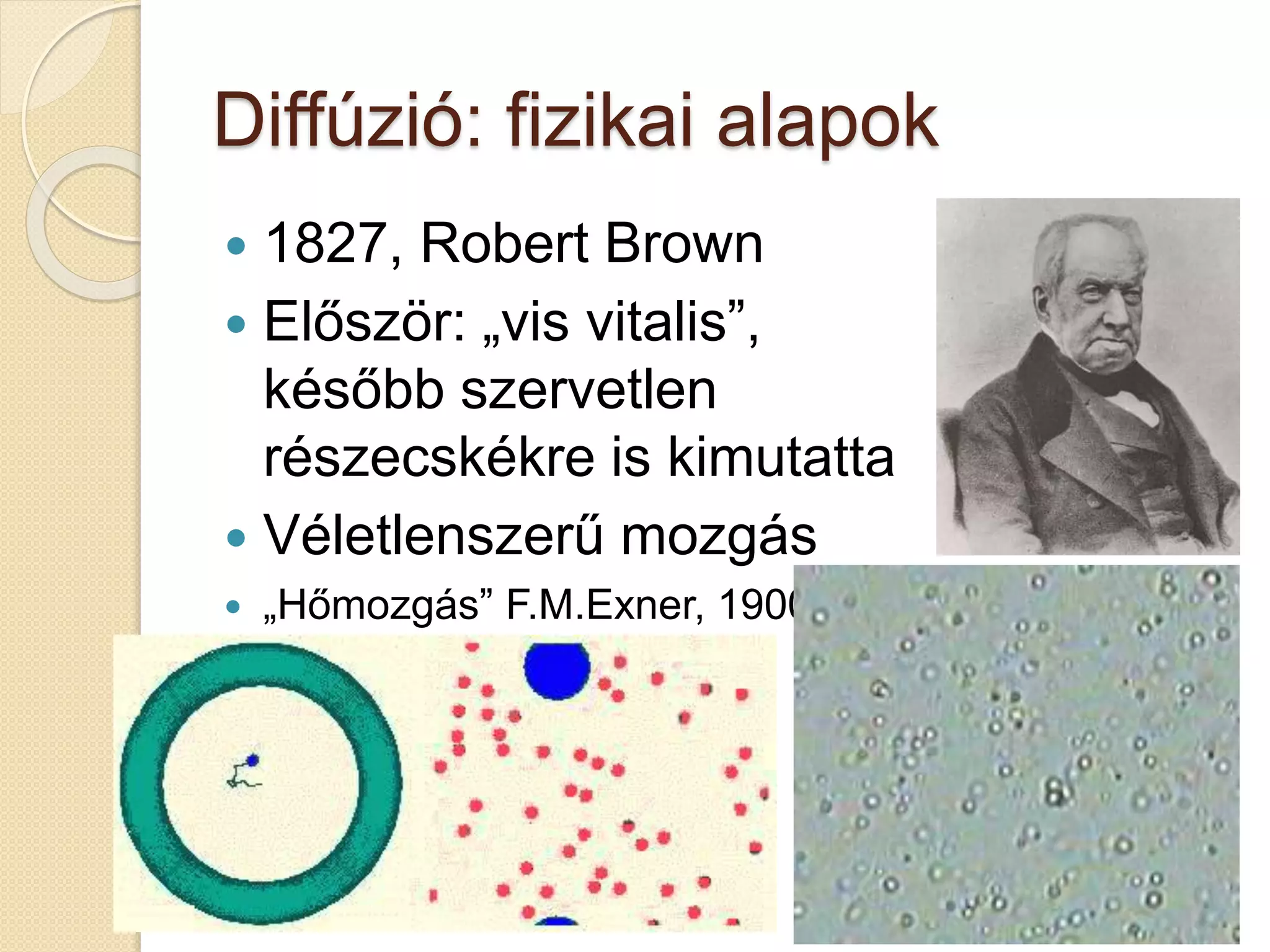

6. Diffúzió: fizikai alapok
1827, Robert Brown
Először: „vis vitalis”,
később szervetlen
részecskékre is kimutatta
Véletlenszerű mozgás
„Hőmozgás” F.M.Exner, 1900
7. A diffúzió: fizikai alapok
1905: „a csodálatos év”
“On a Heuristic Point of View on the Creation
and Conversion of Light”(17 March
1905)(Photo-Electric Effect) Nobel prize in
physics, 1921
“On the Electrodynamics of Moving Bodies” (30
June 1905)
“Does the inertia of a body depend on its
energy content?”(27 September 1905)(Theory of
Special Relativity) E = mc²
“Investigation on the Theory of the Brownian
Movement: On the motion of small particles
suspended in liquids at rest …”(11 May 1905)
Albert Einstein, 1905 körül

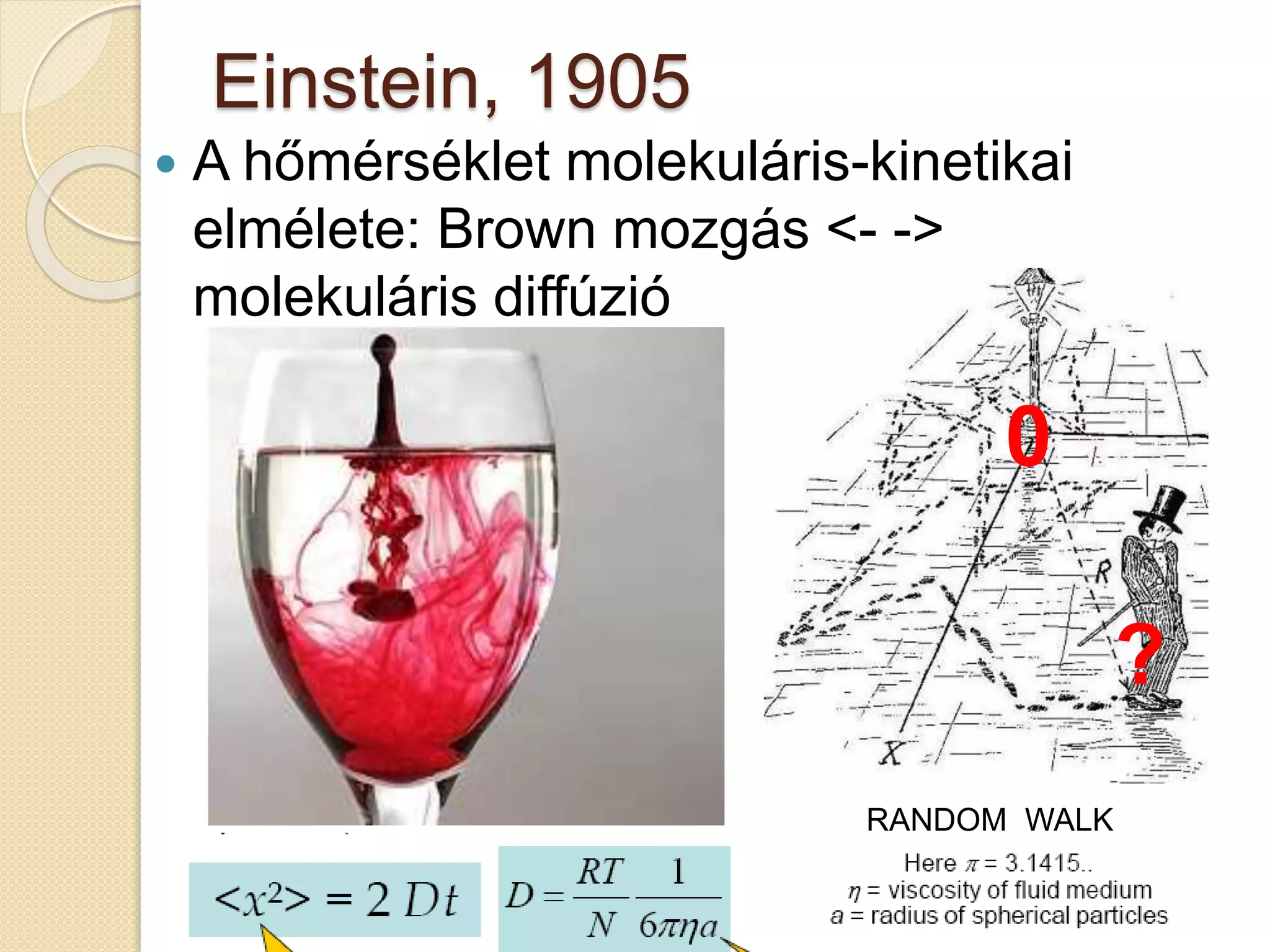

8. Einstein, 1905
A hőmérséklet molekuláris-kinetikai
elmélete: Brown mozgás <- ->
molekuláris diffúzió
RANDOM WALK
0
?

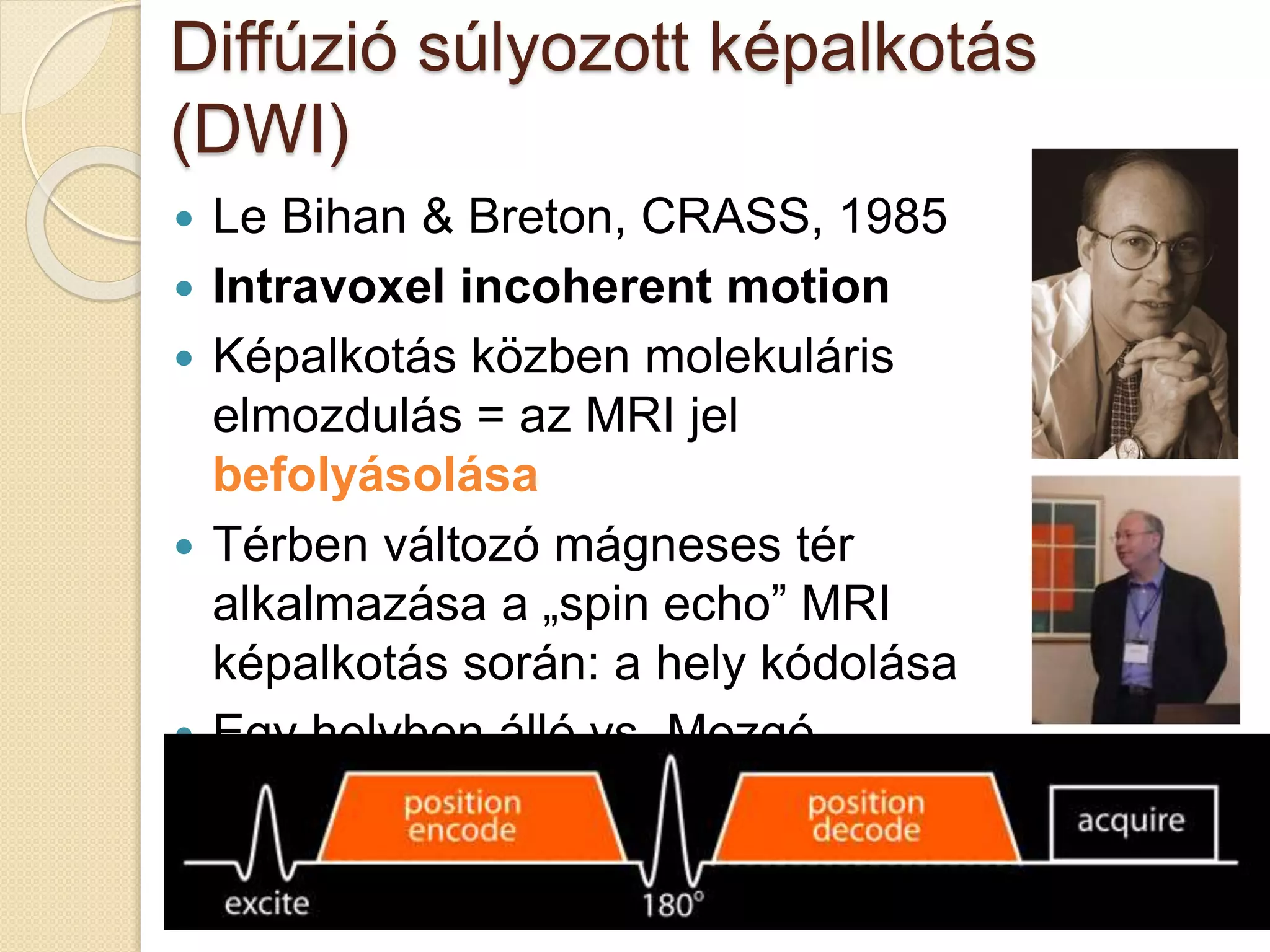

10. Diffúzió súlyozott képalkotás
(DWI)
Le Bihan & Breton, CRASS, 1985
Intravoxel incoherent motion
Képalkotás közben molekuláris
elmozdulás = az MRI jel
befolyásolása

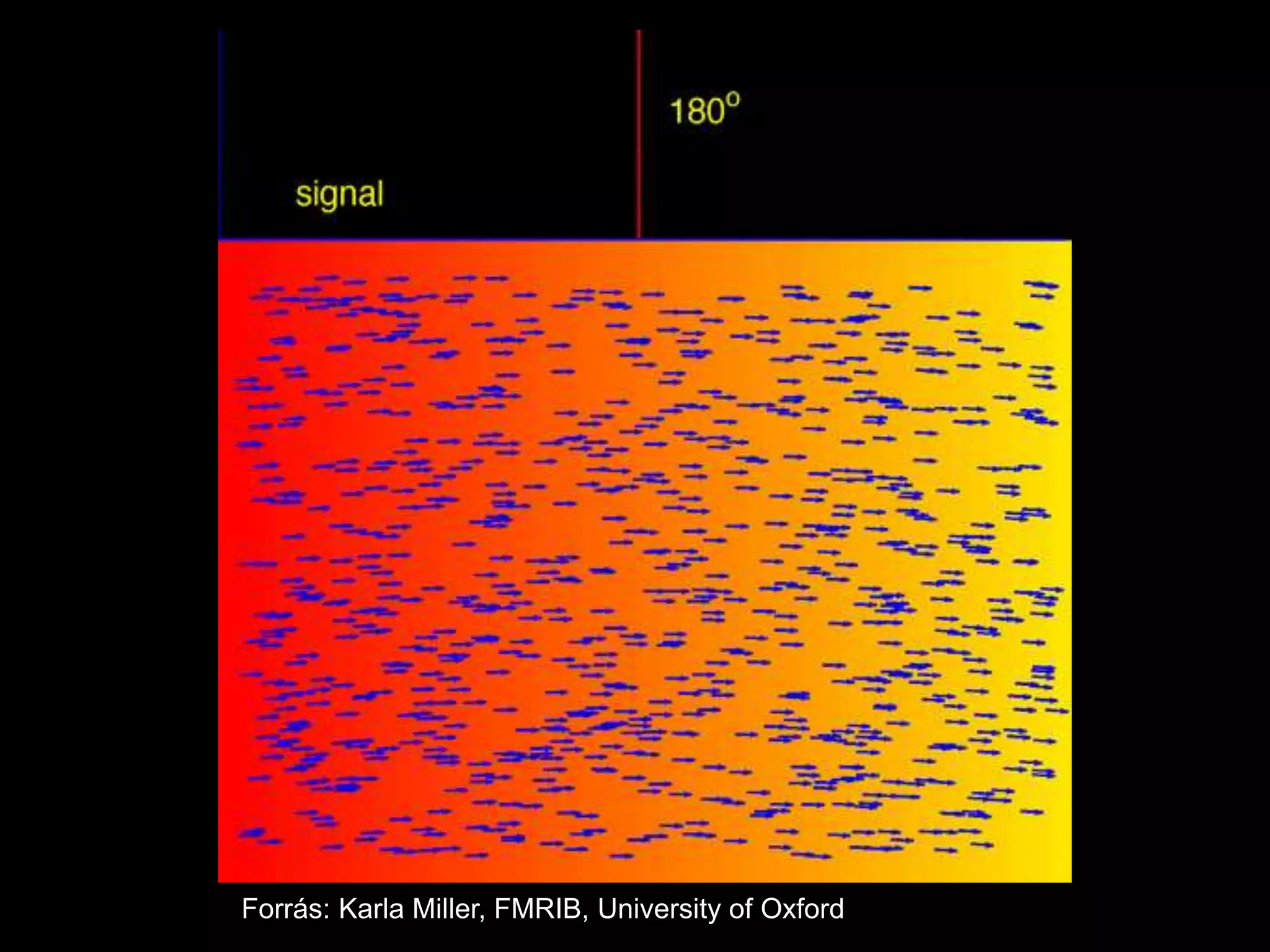

Térben változó mágneses tér
alkalmazása a „spin echo” MRI
képalkotás során: a hely kódolása
Egy helyben álló vs. Mozgó
részecskék

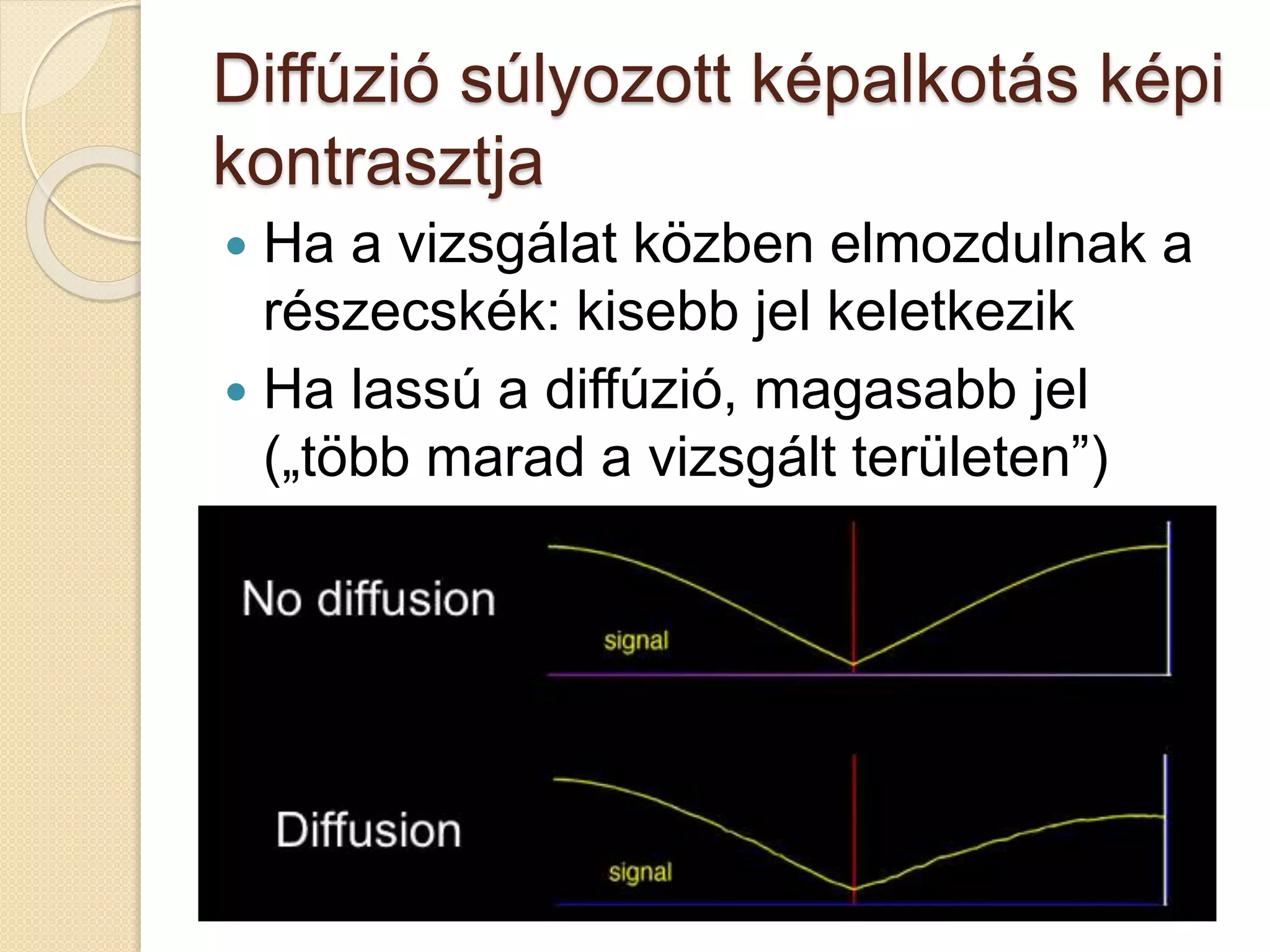

13. Diffúzió súlyozott képalkotás képi
kontrasztja
Ha a vizsgálat közben elmozdulnak a
részecskék: kisebb jel keletkezik
Ha lassú a diffúzió, magasabb jel
(„több marad a vizsgált területen”)

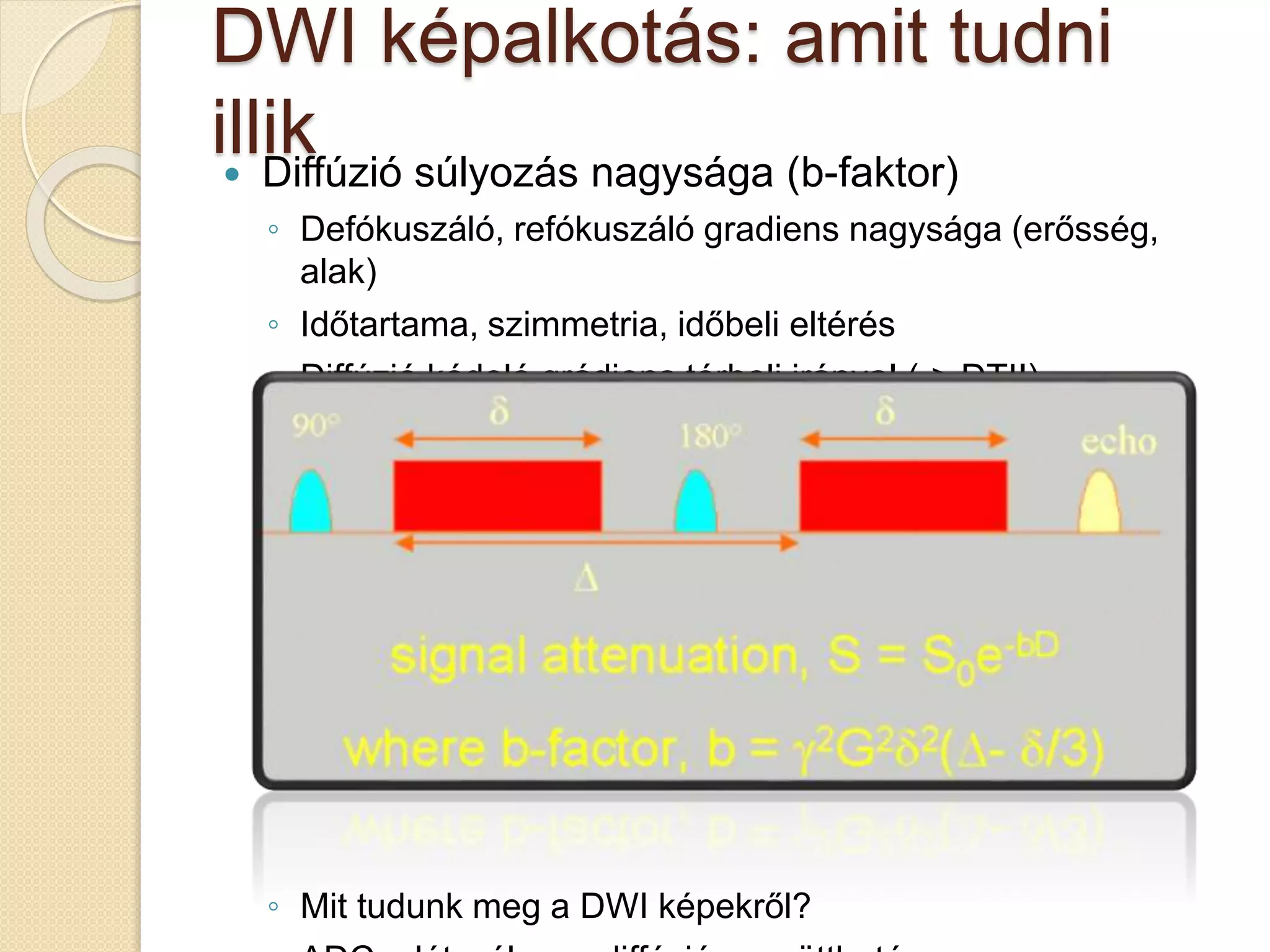

14. DWI képalkotás: amit tudni
illik Diffúzió súlyozás nagysága (b-faktor)
◦ Defókuszáló, refókuszáló gradiens nagysága (erősség,
alak)
◦ Időtartama, szimmetria, időbeli eltérés
◦ Diffúzió kódoló grádiens térbeli iránya! (-> DTI!)
◦ Mit tudunk meg a DWI képekről?

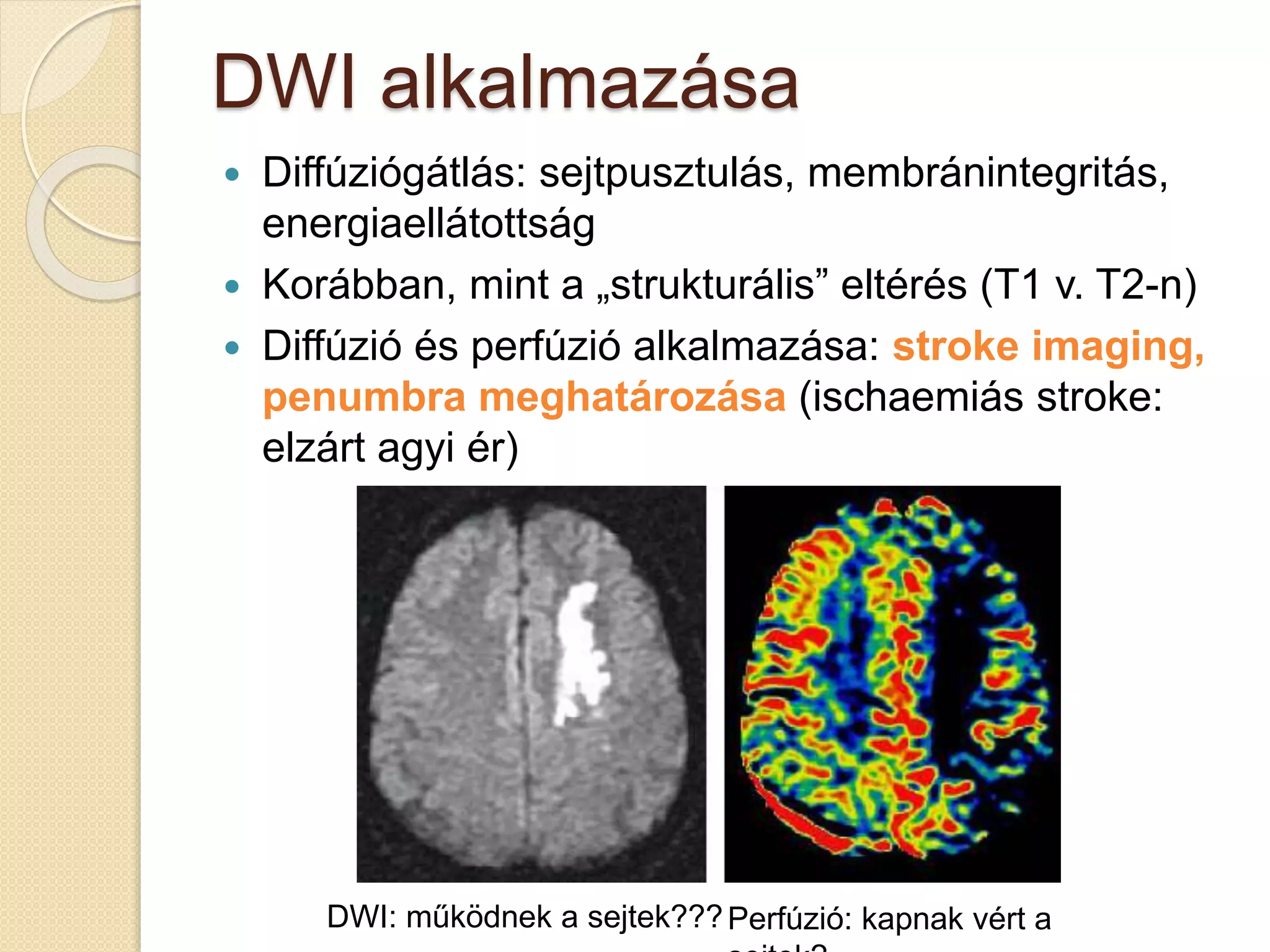

15. DWI alkalmazása
Diffúziógátlás: sejtpusztulás, membránintegritás,
energiaellátottság
Korábban, mint a „strukturális” eltérés (T1 v. T2-n)
Diffúzió és perfúzió alkalmazása: stroke imaging,
penumbra meghatározása (ischaemiás stroke:
elzárt agyi ér)
DWI: működnek a sejtek???Perfúzió: kapnak vért a

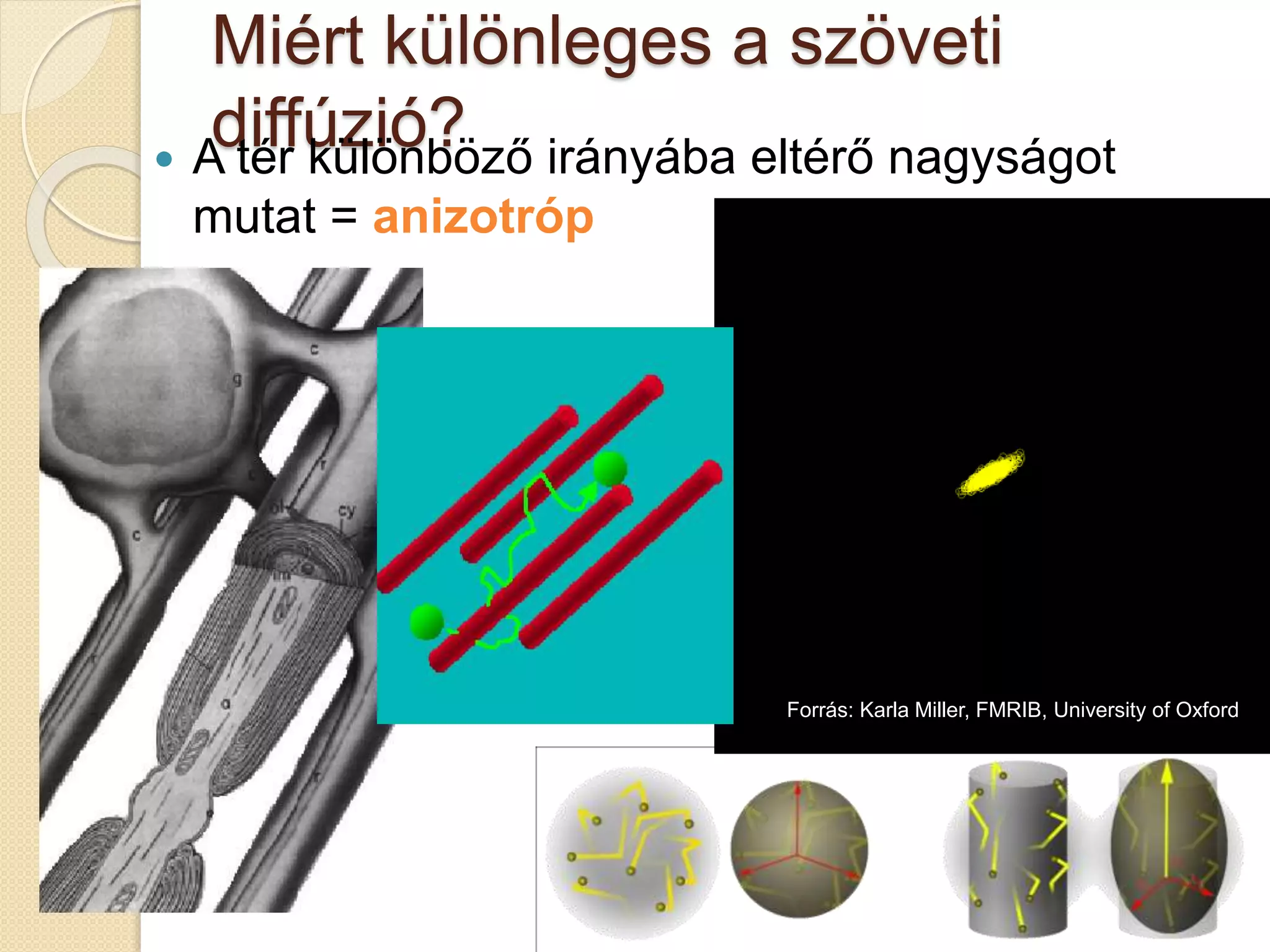

16. Miért különleges a szöveti
diffúzió? A tér különböző irányába eltérő nagyságot
mutat = anizotróp

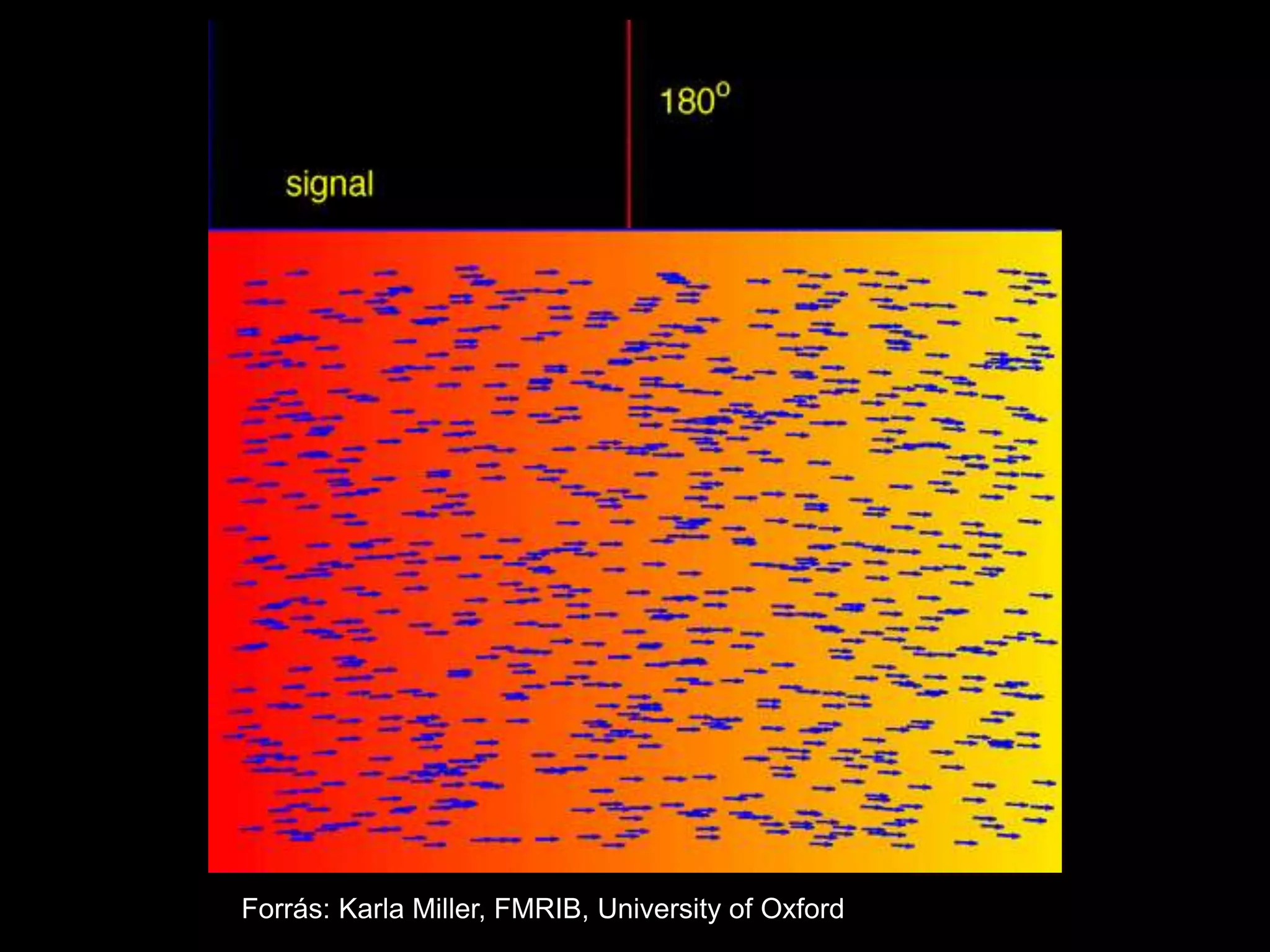

Forrás: Karla Miller, FMRIB, University of Oxford

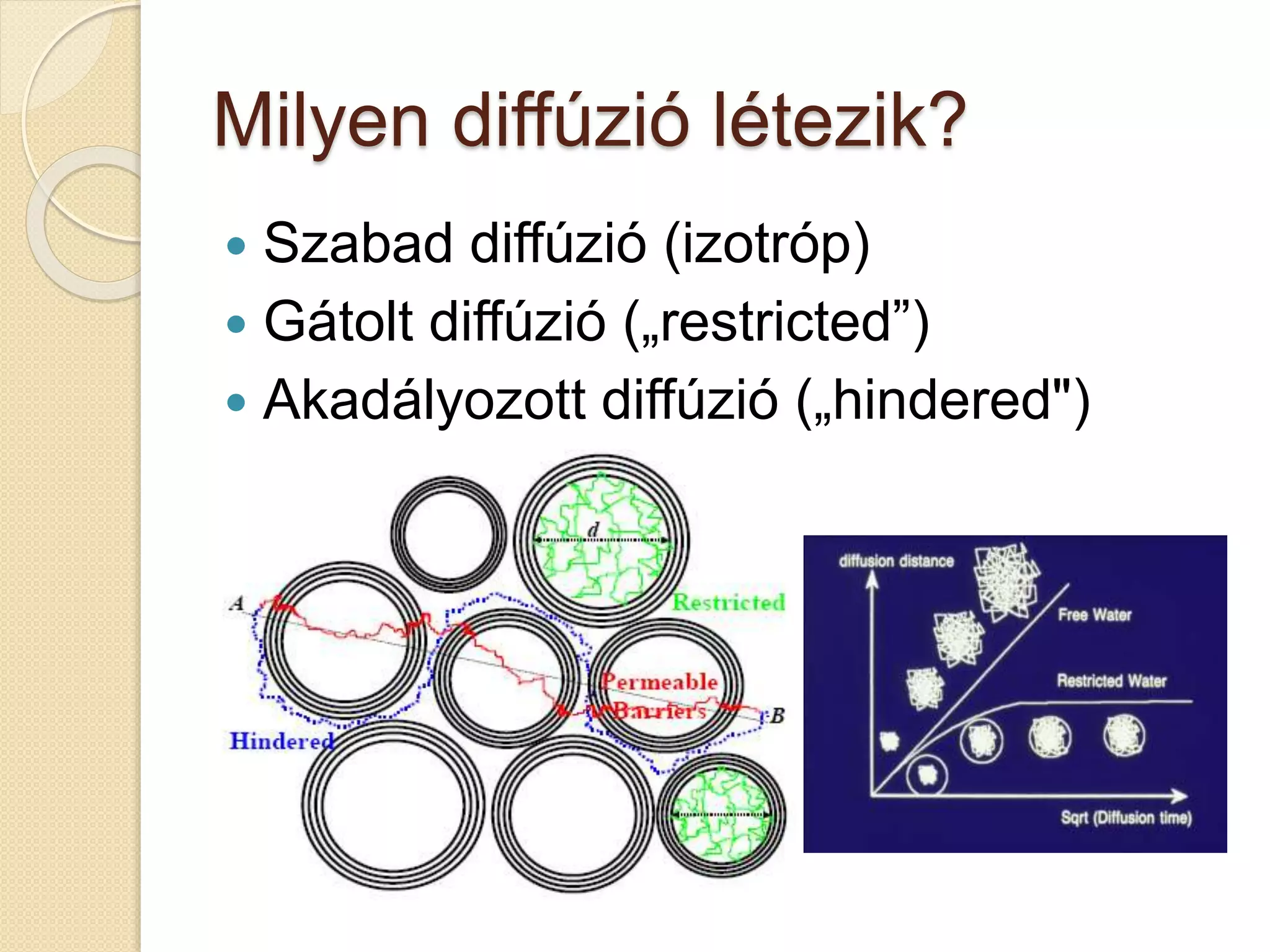

17. Milyen diffúzió létezik?
Szabad diffúzió (izotróp)
Gátolt diffúzió („restricted”)
Akadályozott diffúzió („hindered")

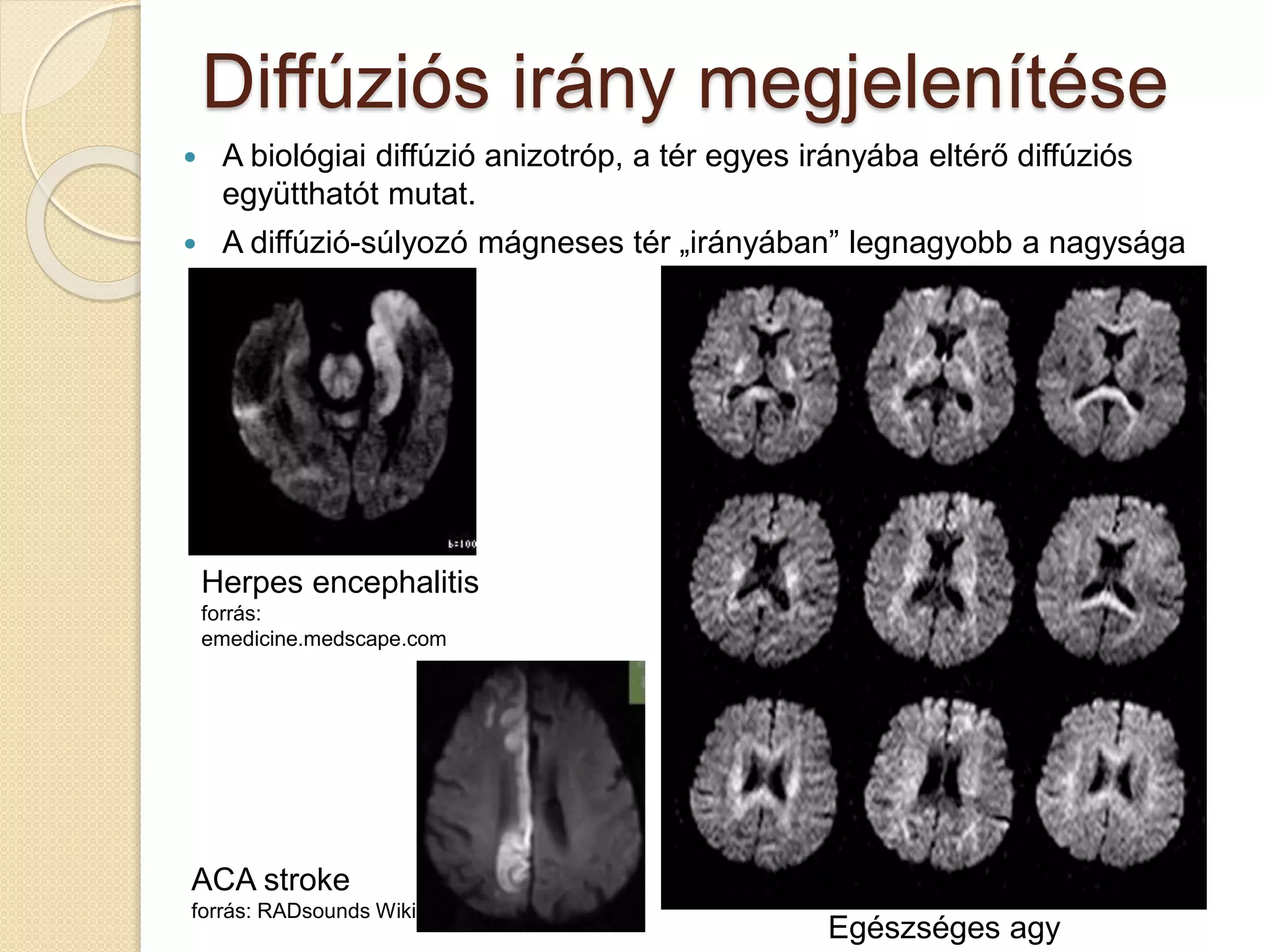

18. Diffúziós irány megjelenítése
A biológiai diffúzió anizotróp, a tér egyes irányába eltérő diffúziós
együtthatót mutat.
A diffúzió-súlyozó mágneses tér „irányában” legnagyobb a nagysága
Herpes encephalitis
forrás:
emedicine.medscape.com
Egészséges agy
ACA stroke
forrás: RADsounds Wiki
19. Diffúziós tenzor (?)
képalkotás Sokféle irányú diffúzió súlyozó grádiens = „sok irányból
megvizsgáljuk a diffúzió nagyságát”
Peter Basser (NIH)
TENZOR:
a megjelenítés
kulcsa

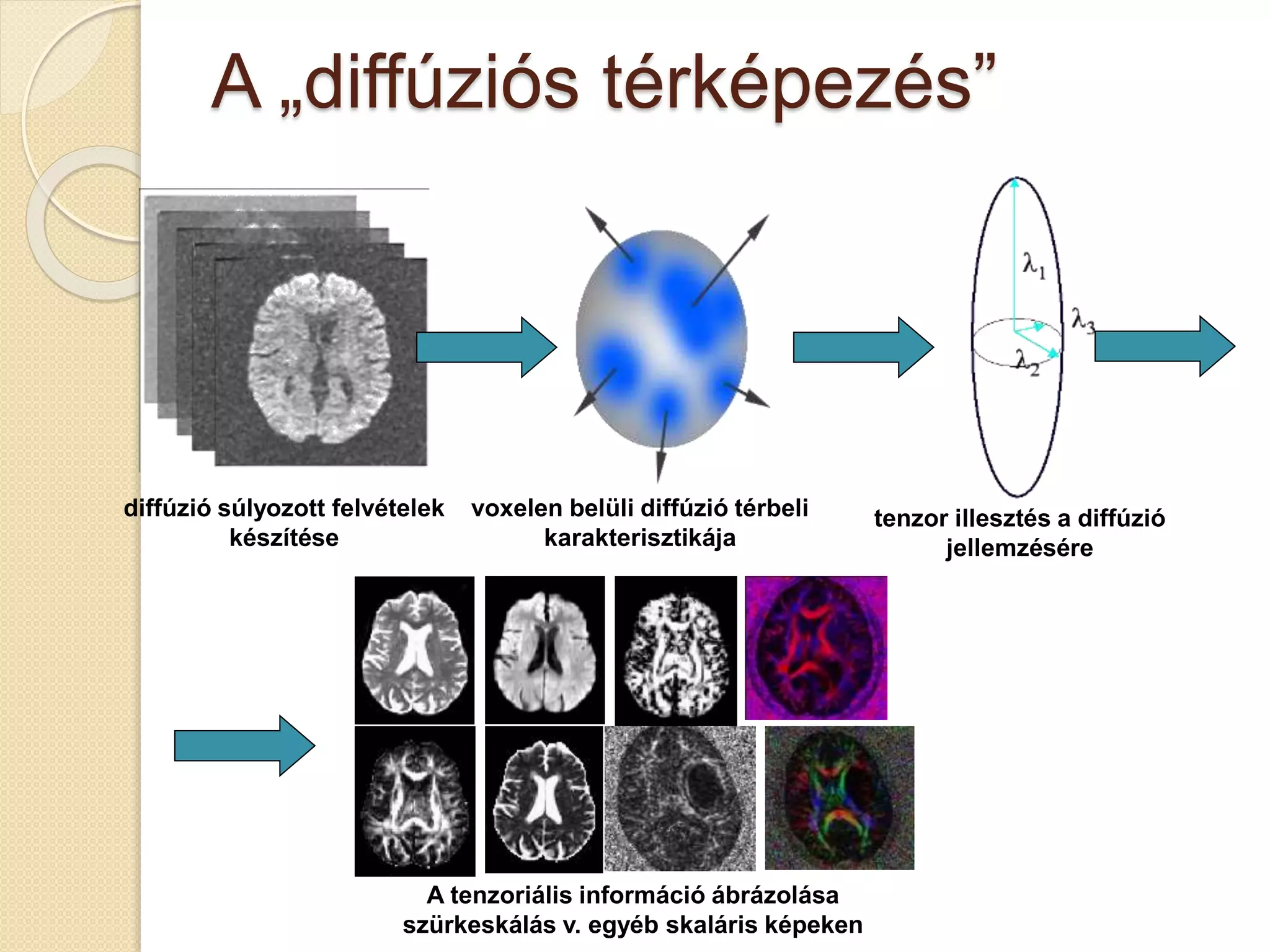

20. A „diffúziós térképezés”
diffúzió súlyozott felvételek
készítése
voxelen belüli diffúzió térbeli
karakterisztikája
tenzor illesztés a diffúzió
jellemzésére
A tenzoriális információ ábrázolása
szürkeskálás v. egyéb skaláris képeken

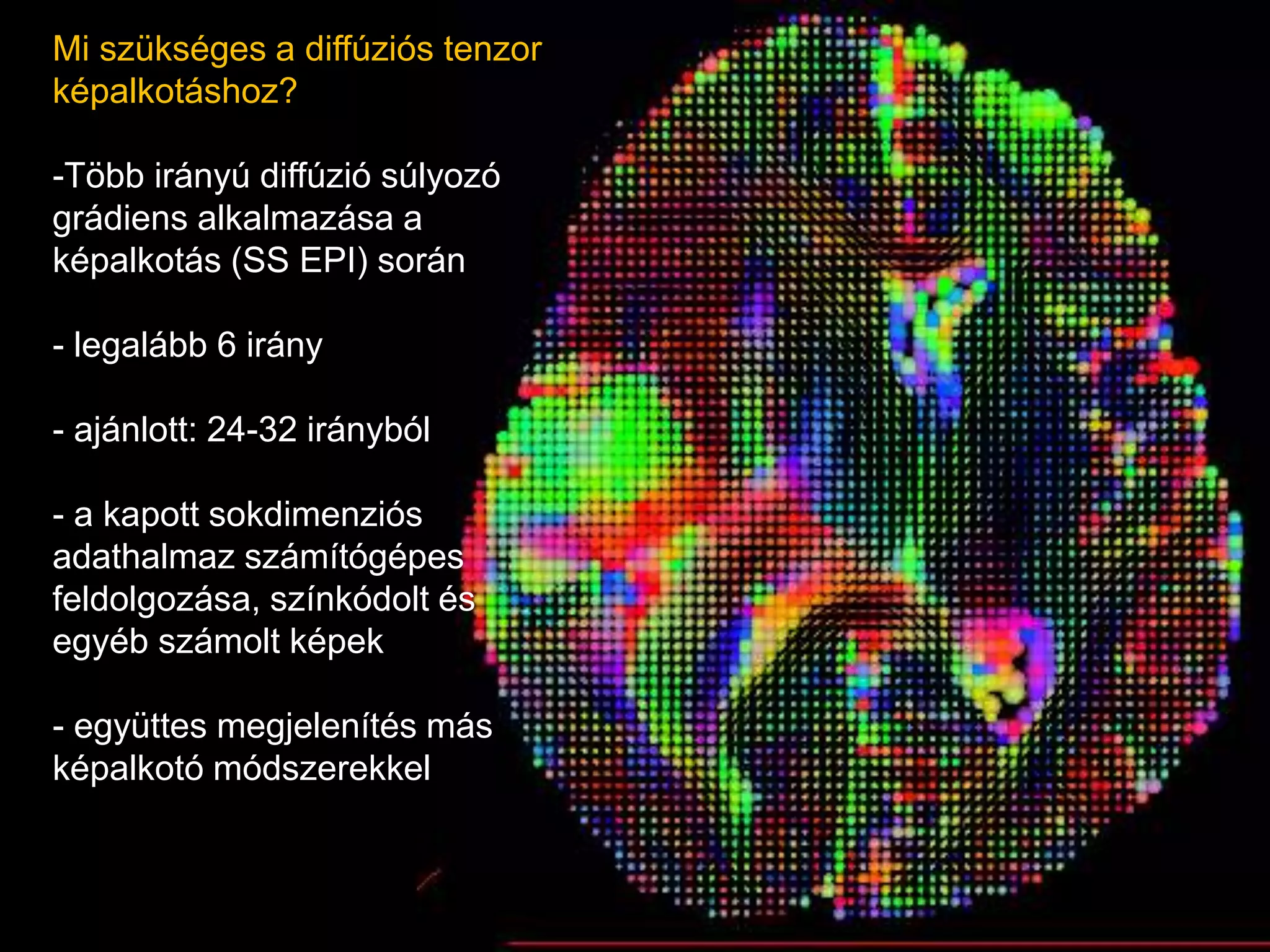

21. Mi szükséges a diffúziós tenzor
képalkotáshoz?
-Több irányú diffúzió súlyozó
grádiens alkalmazása a
képalkotás (SS EPI) során
- legalább 6 irány
- ajánlott: 24-32 irányból
- a kapott sokdimenziós
adathalmaz számítógépes
feldolgozása, színkódolt és
egyéb számolt képek
- együttes megjelenítés más
képalkotó módszerekkel

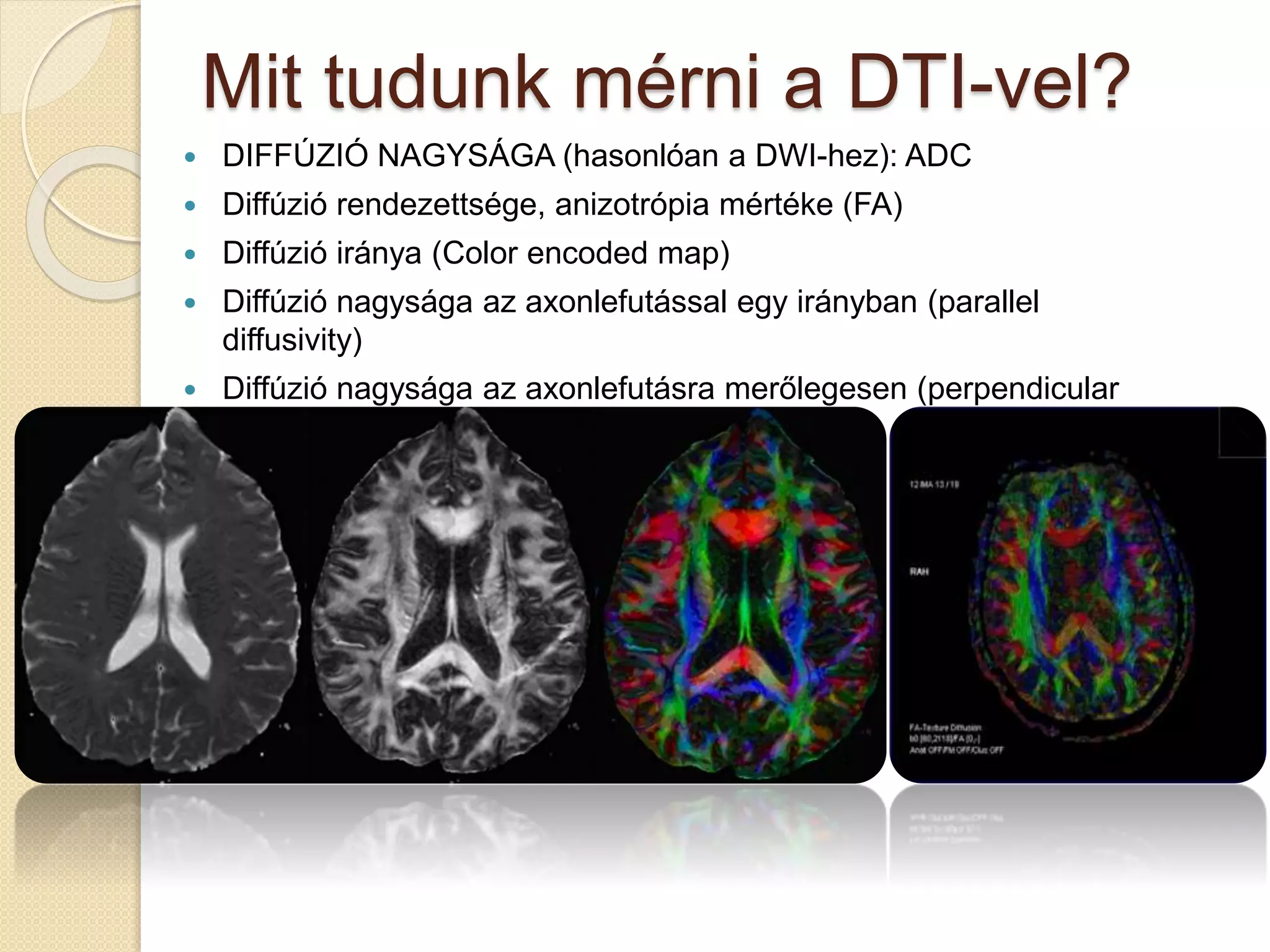

22. Mit tudunk mérni a DTI-vel?
DIFFÚZIÓ NAGYSÁGA (hasonlóan a DWI-hez): ADC
Diffúzió rendezettsége, anizotrópia mértéke (FA)
Diffúzió iránya (Color encoded map)

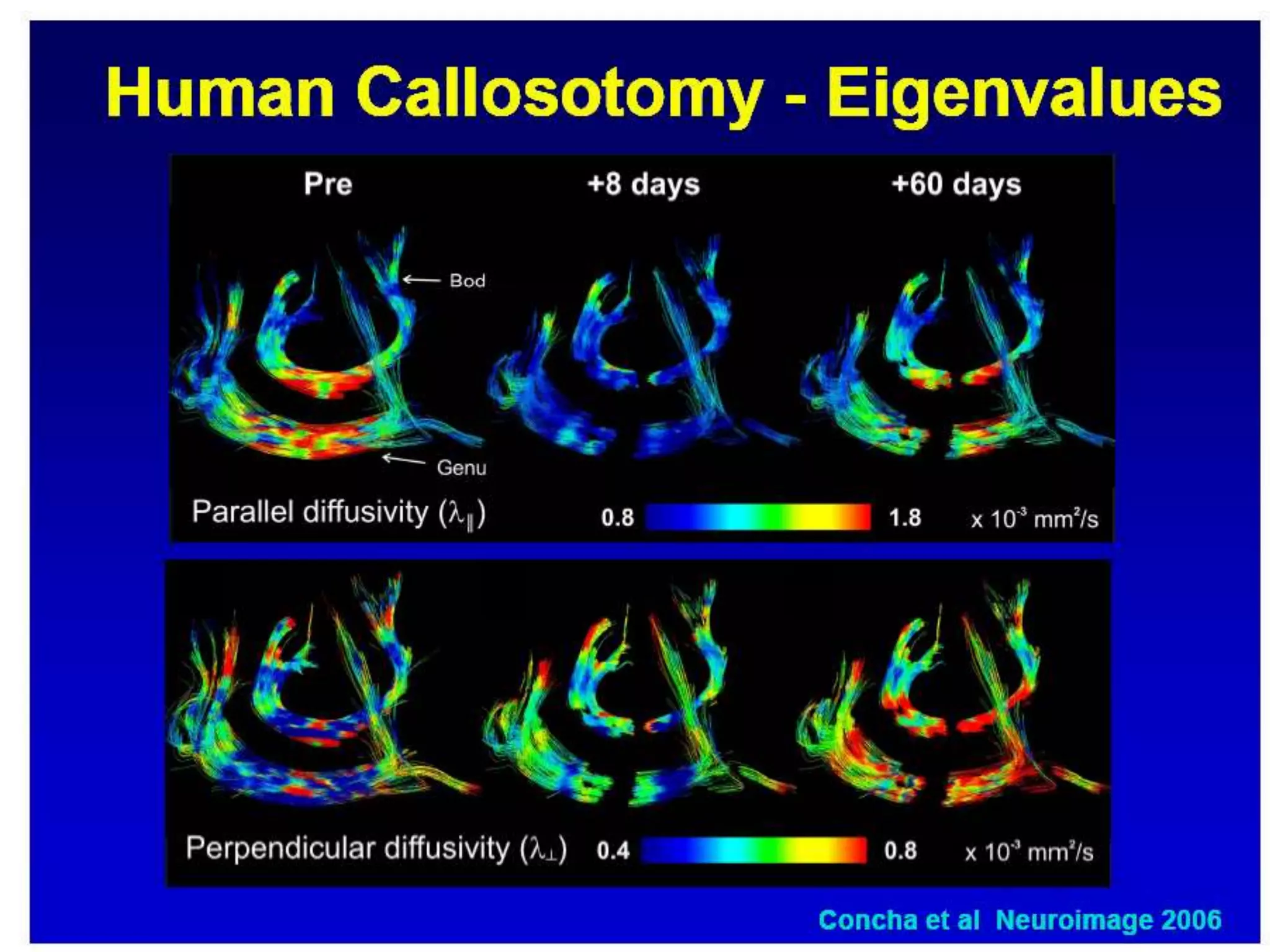

Diffúzió nagysága az axonlefutással egy irányban (parallel
diffusivity)
Diffúzió nagysága az axonlefutásra merőlegesen (perpendicular
diffusivity)

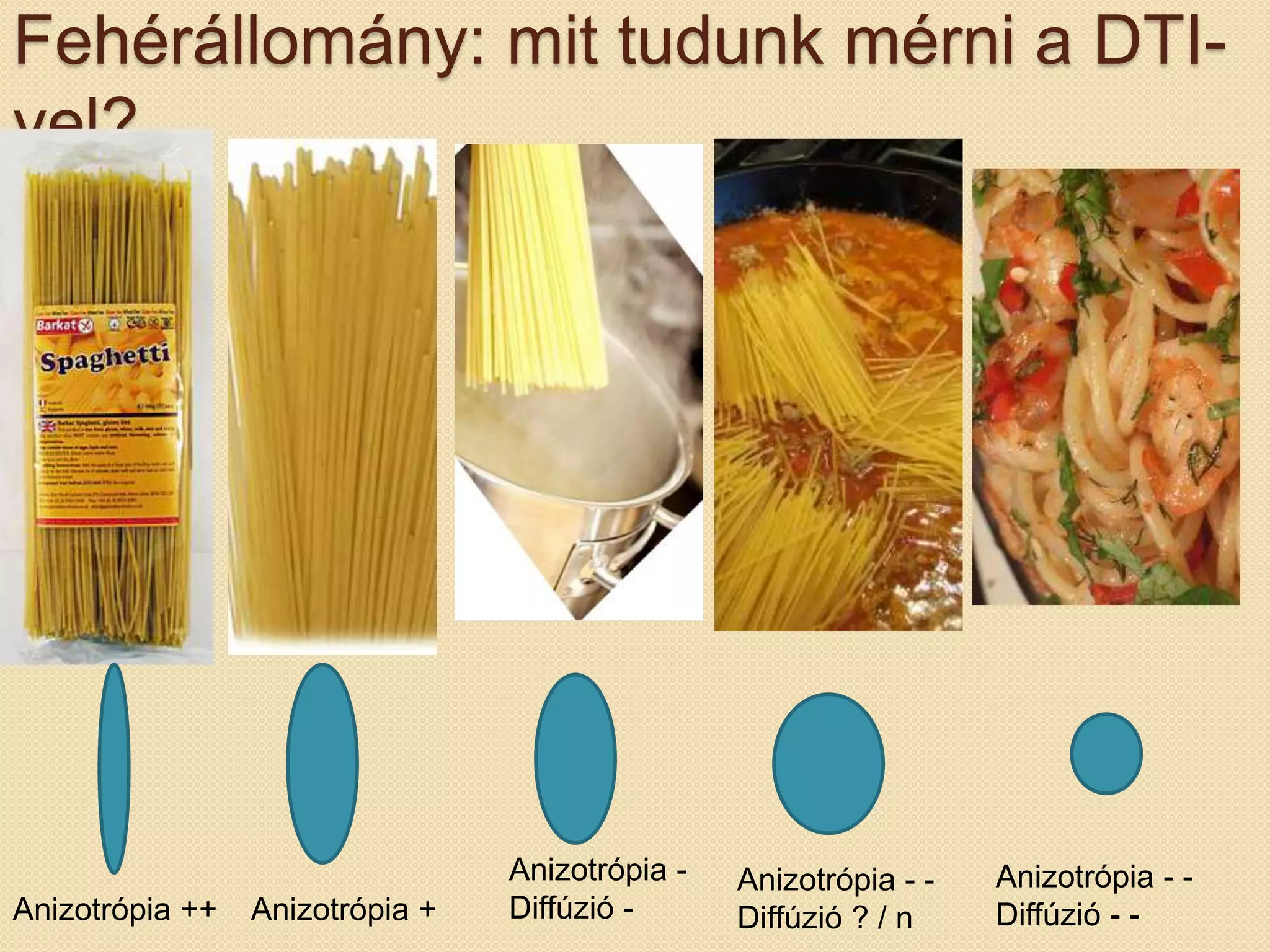

23. Fehérállomány: mit tudunk mérni a DTI-
vel?
Anizotrópia ++ Anizotrópia +
Anizotrópia -
Diffúzió -
Anizotrópia - -
Diffúzió ? / n
Anizotrópia - -
Diffúzió - -

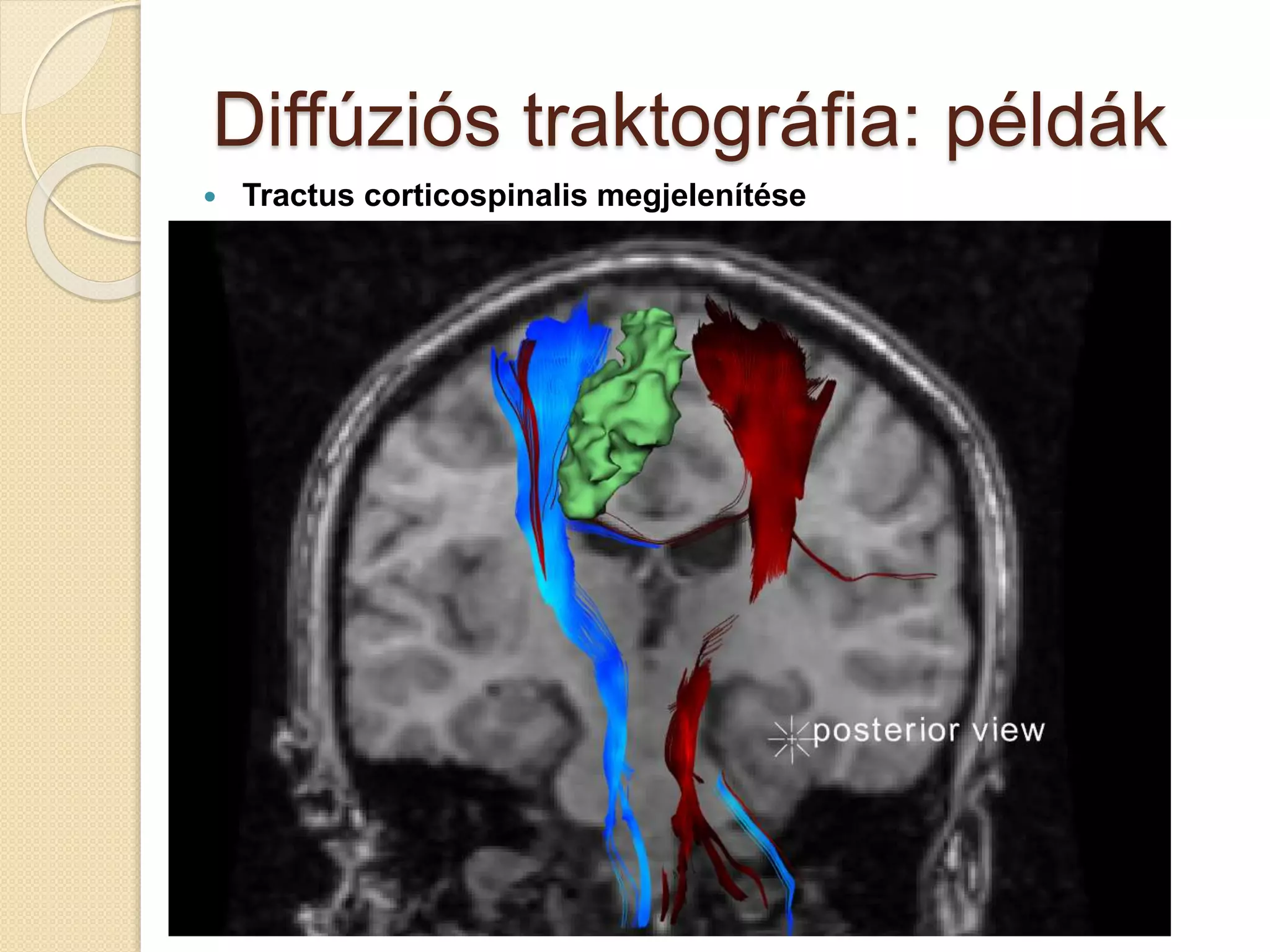

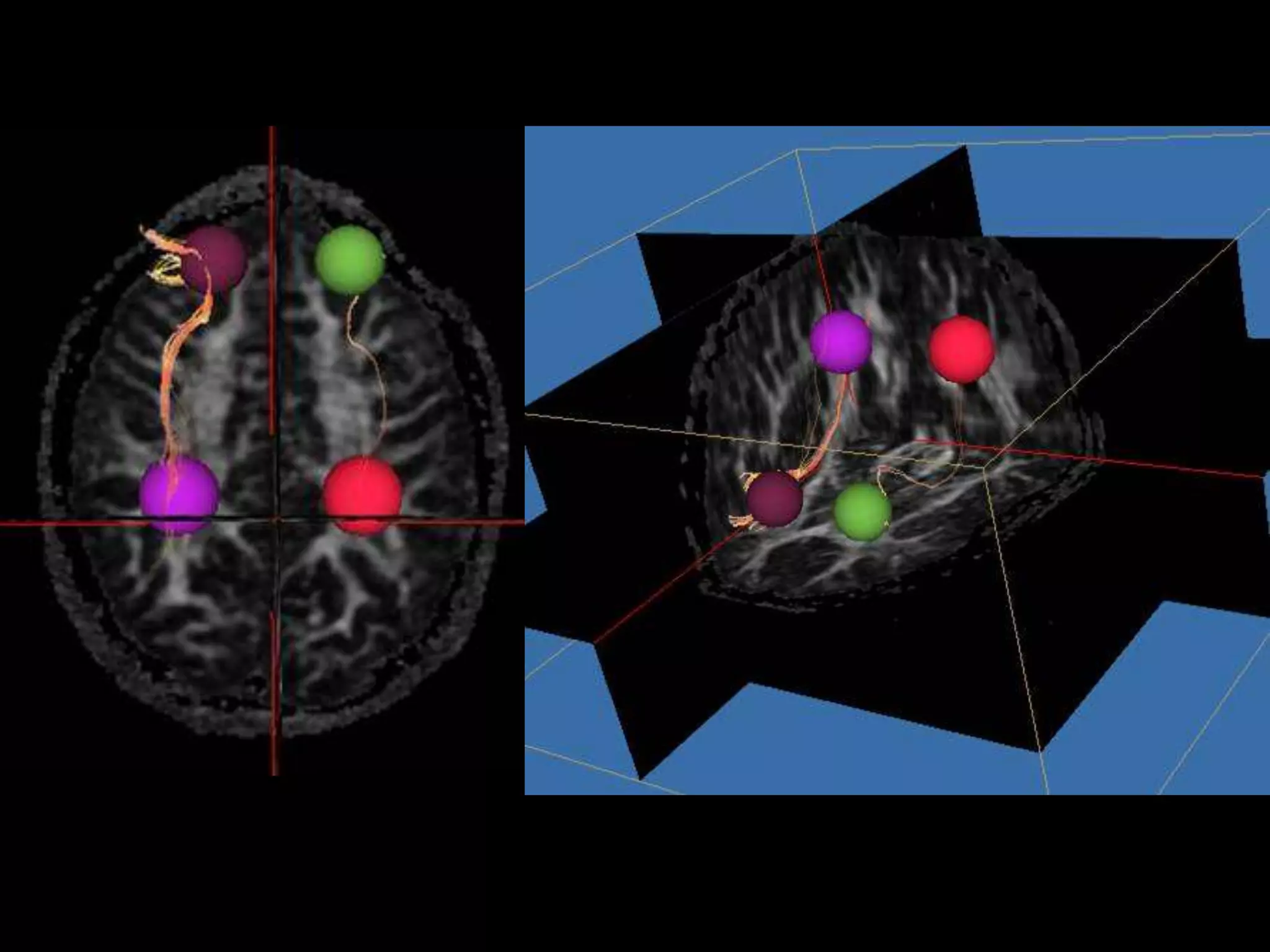

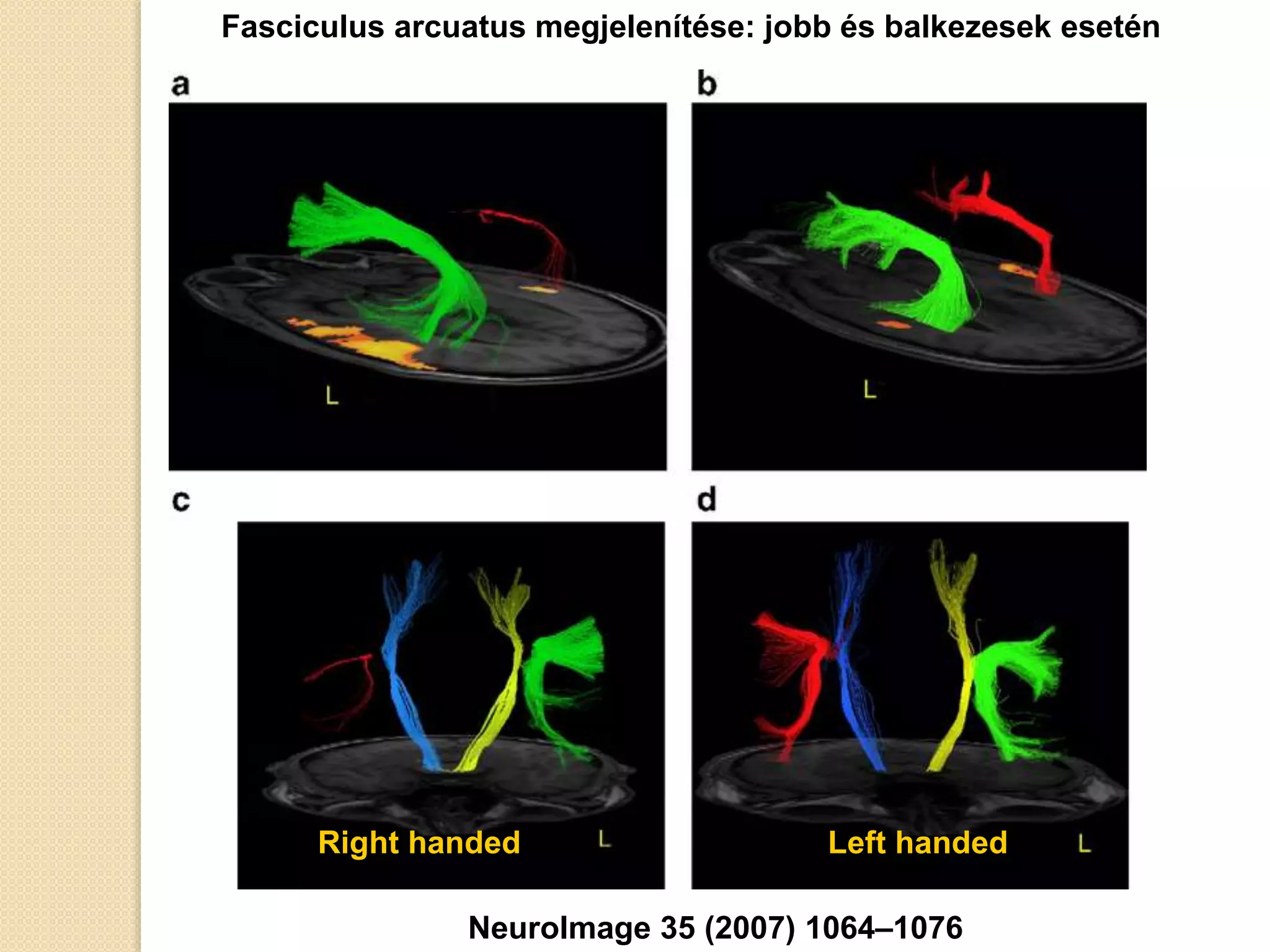

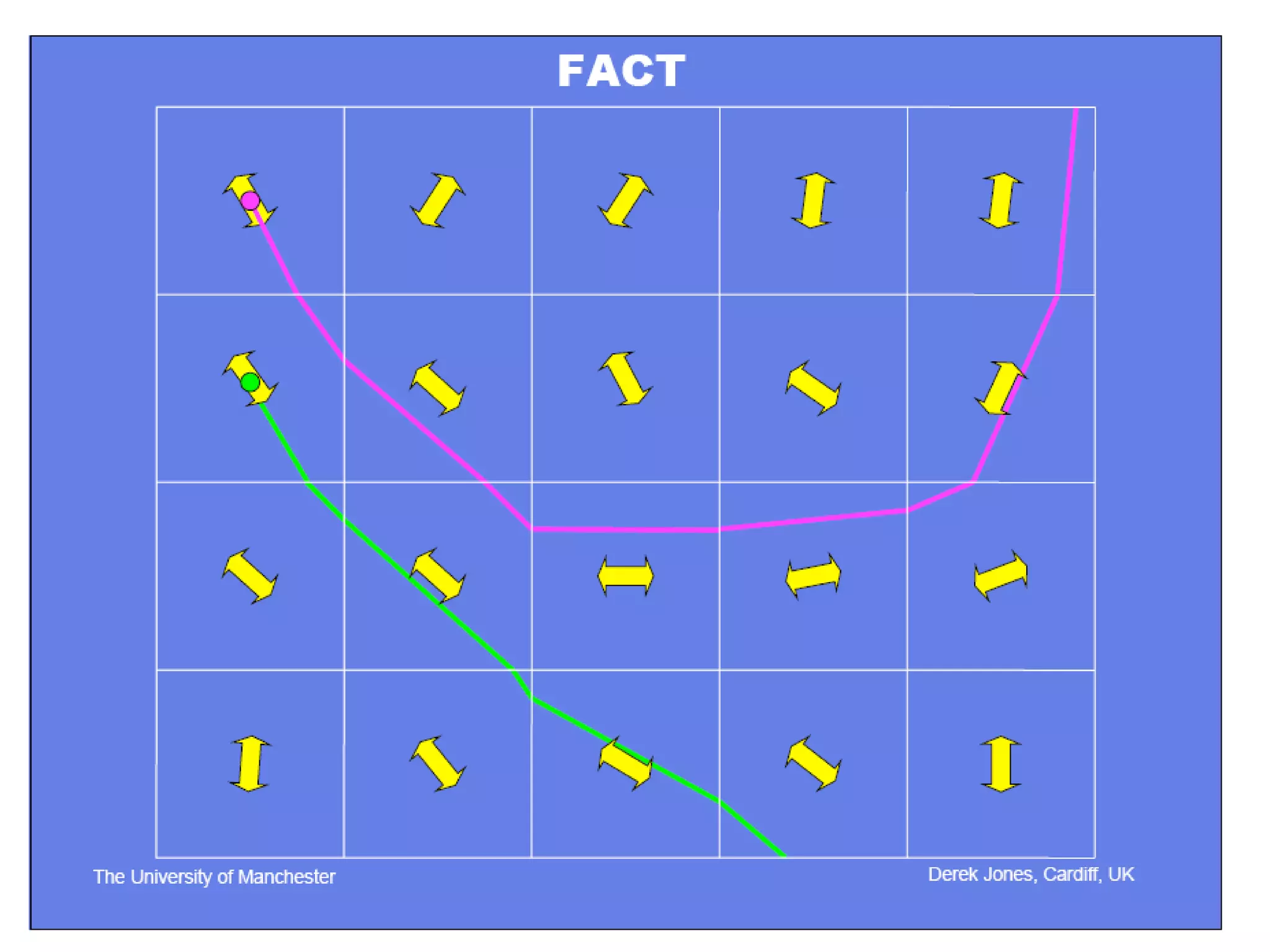

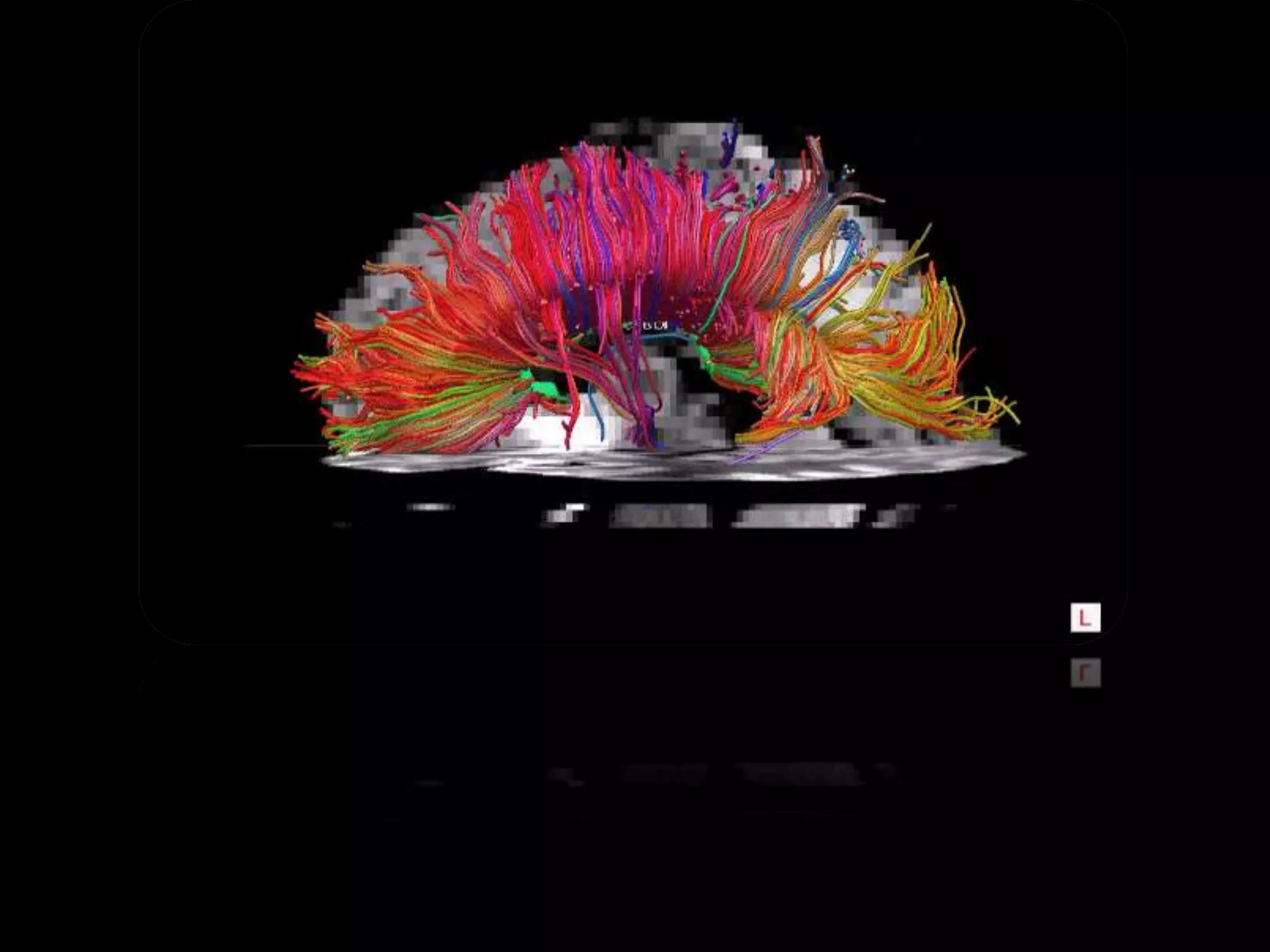

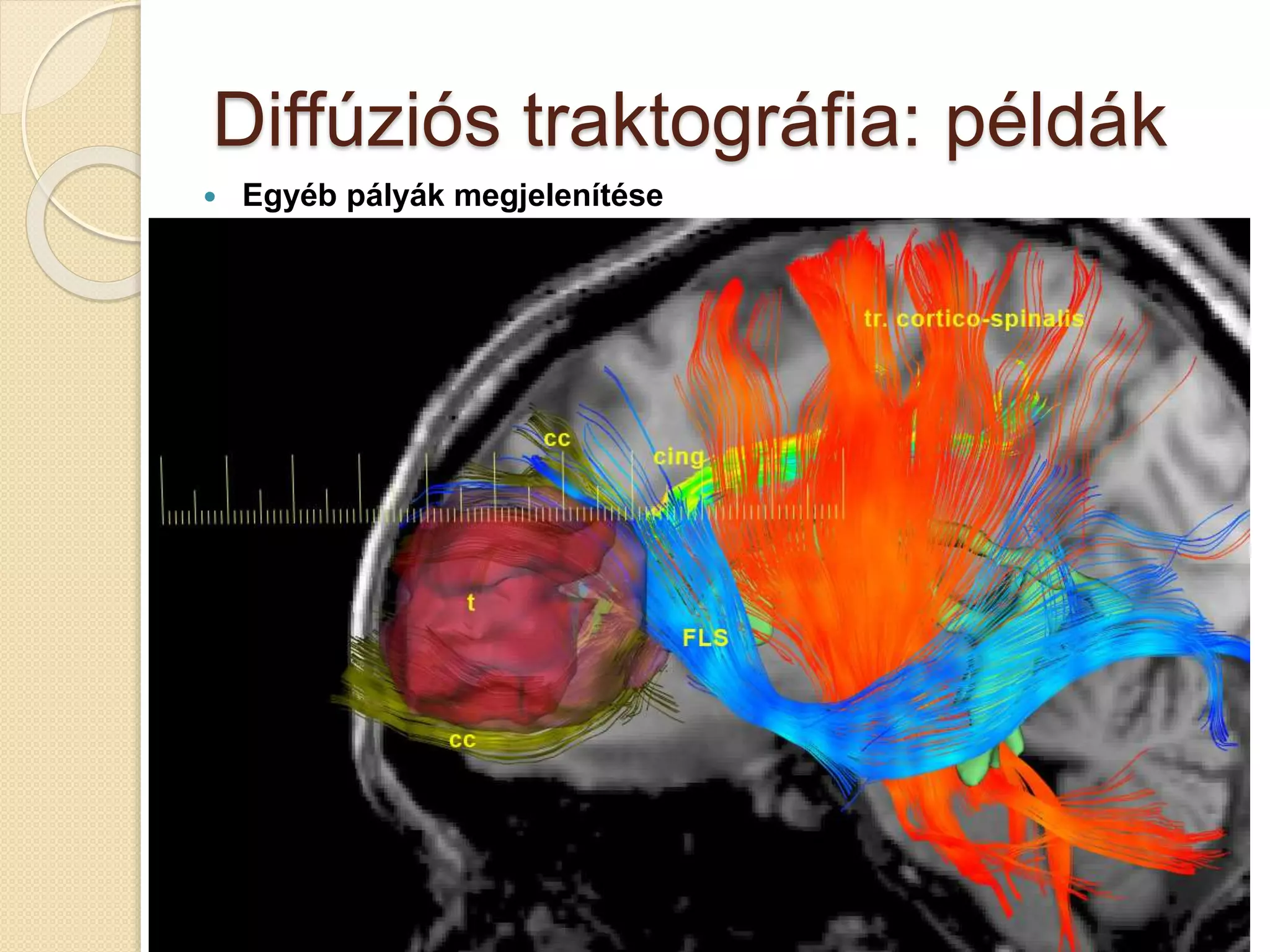

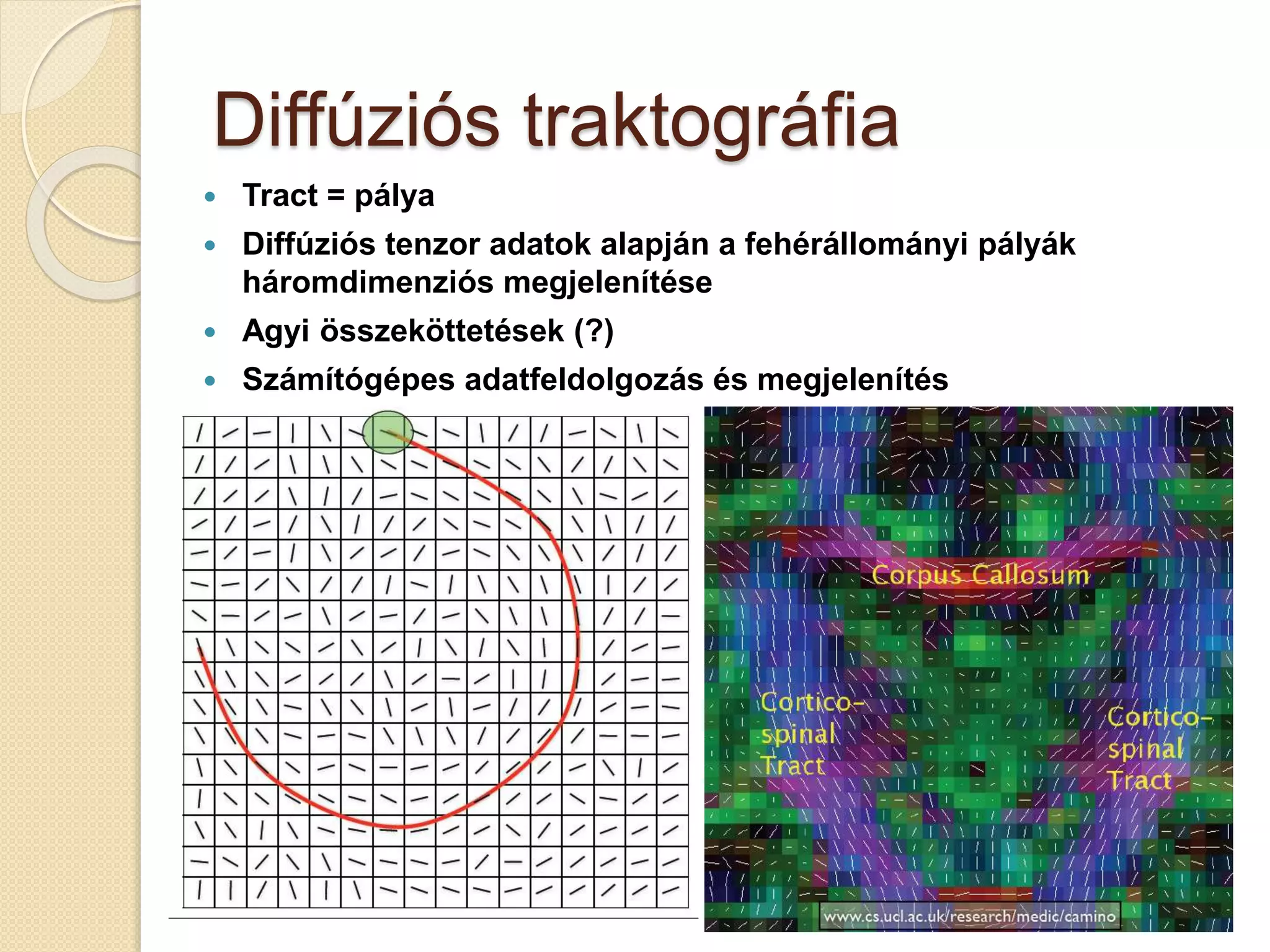

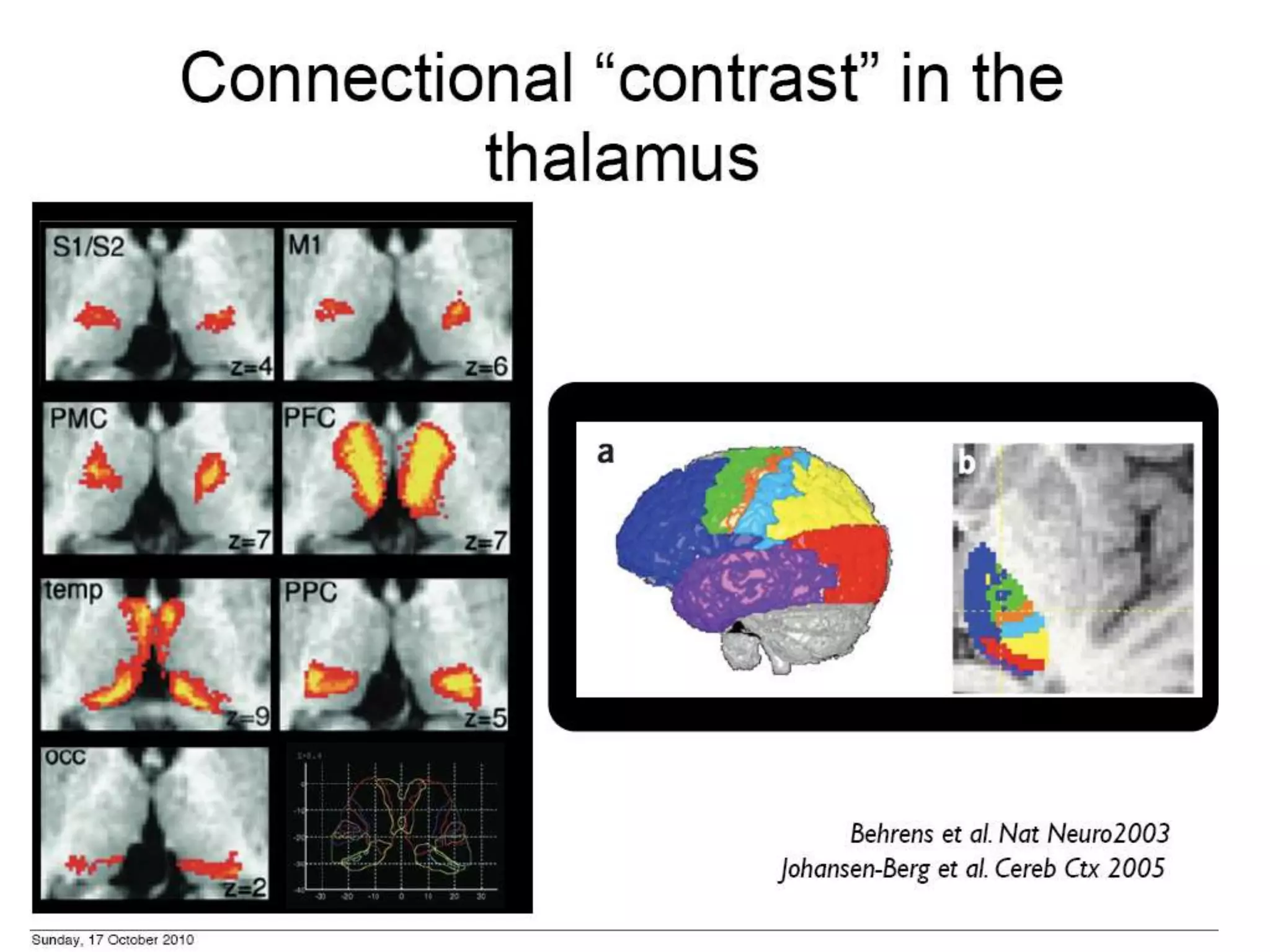

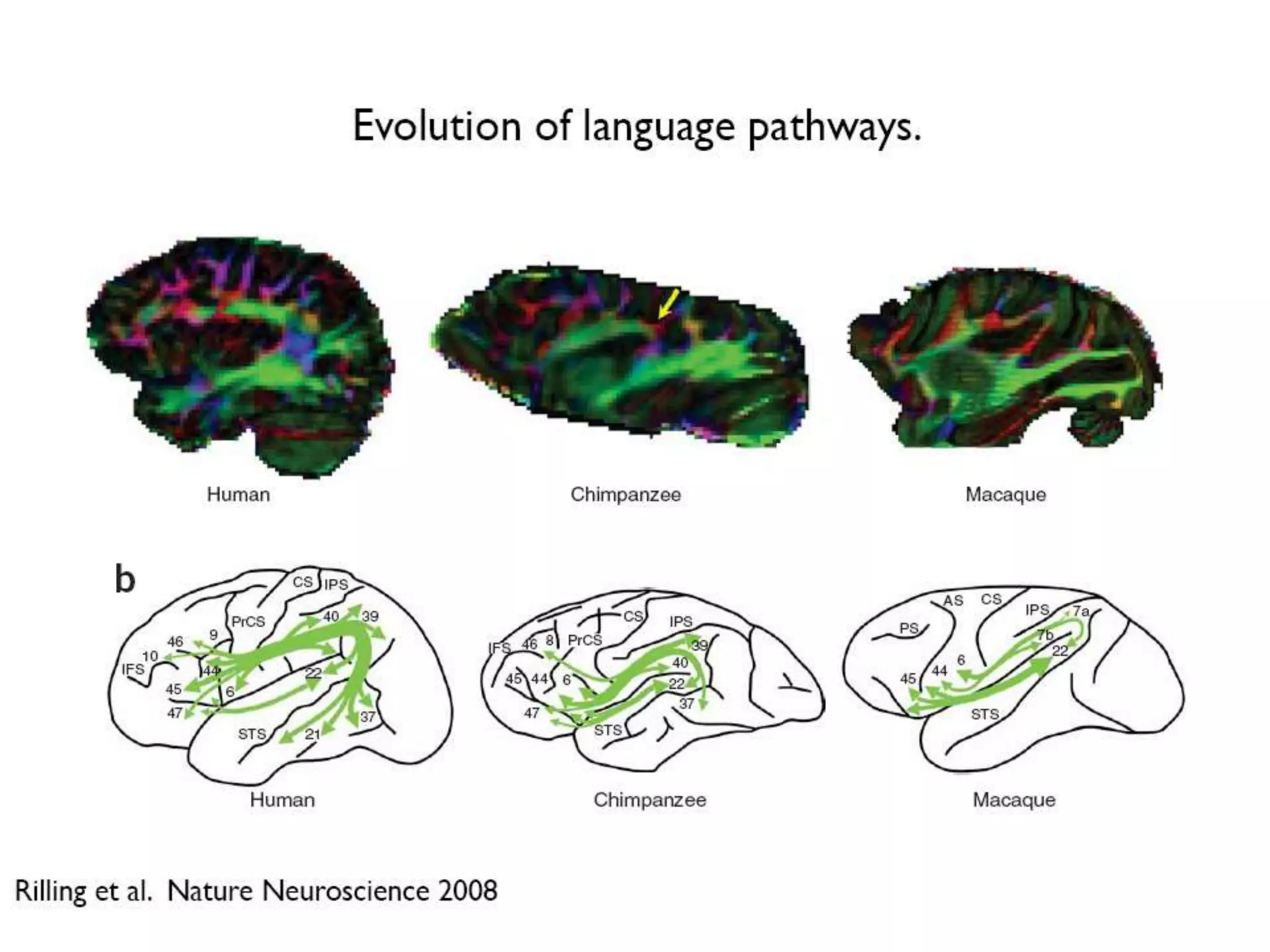

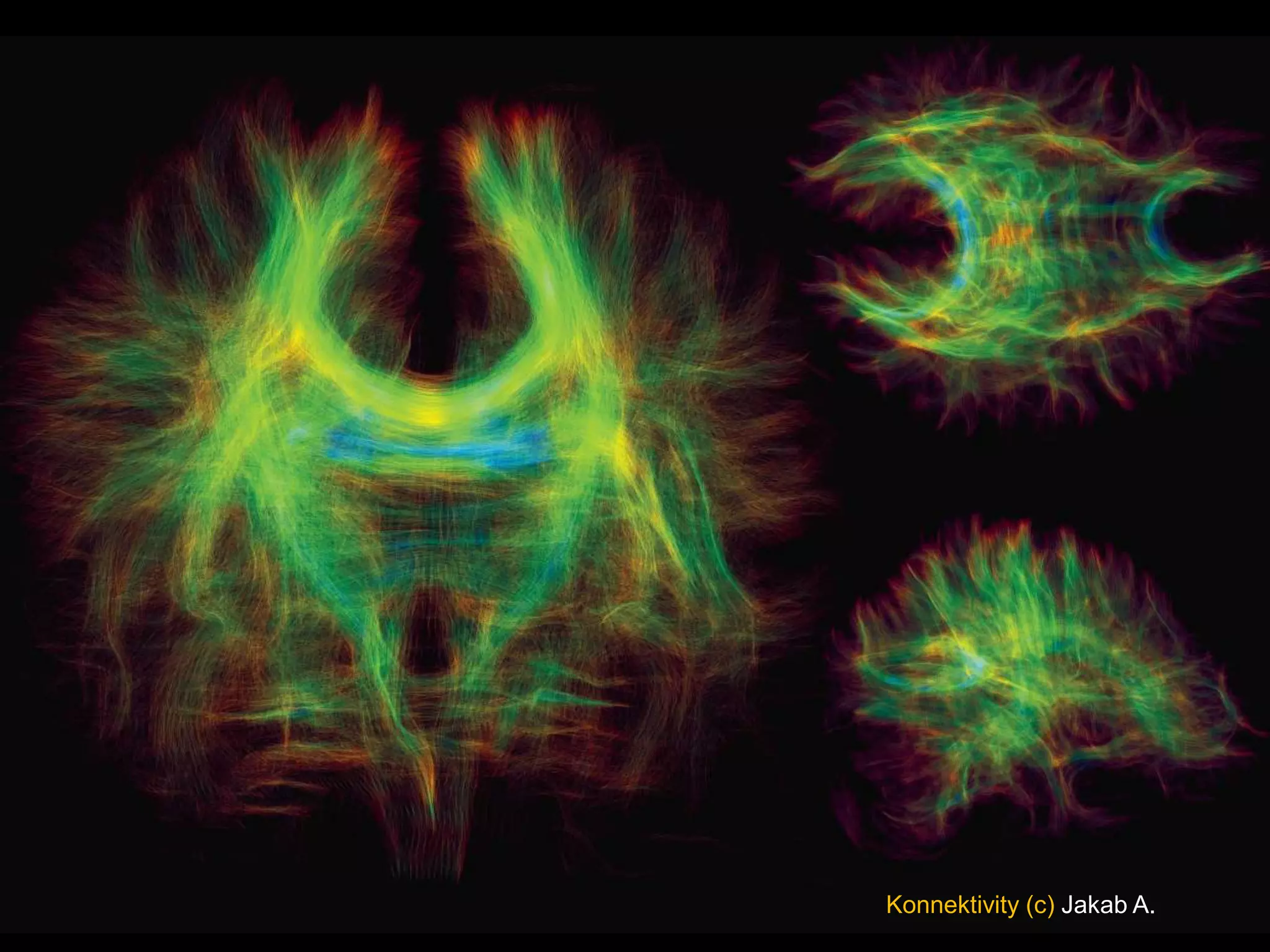

24. Diffúziós traktográfia
Tract = pálya
Diffúziós tenzor adatok alapján a fehérállományi pályák
háromdimenziós megjelenítése
Agyi összeköttetések (?)
Számítógépes adatfeldolgozás és megjelenítés

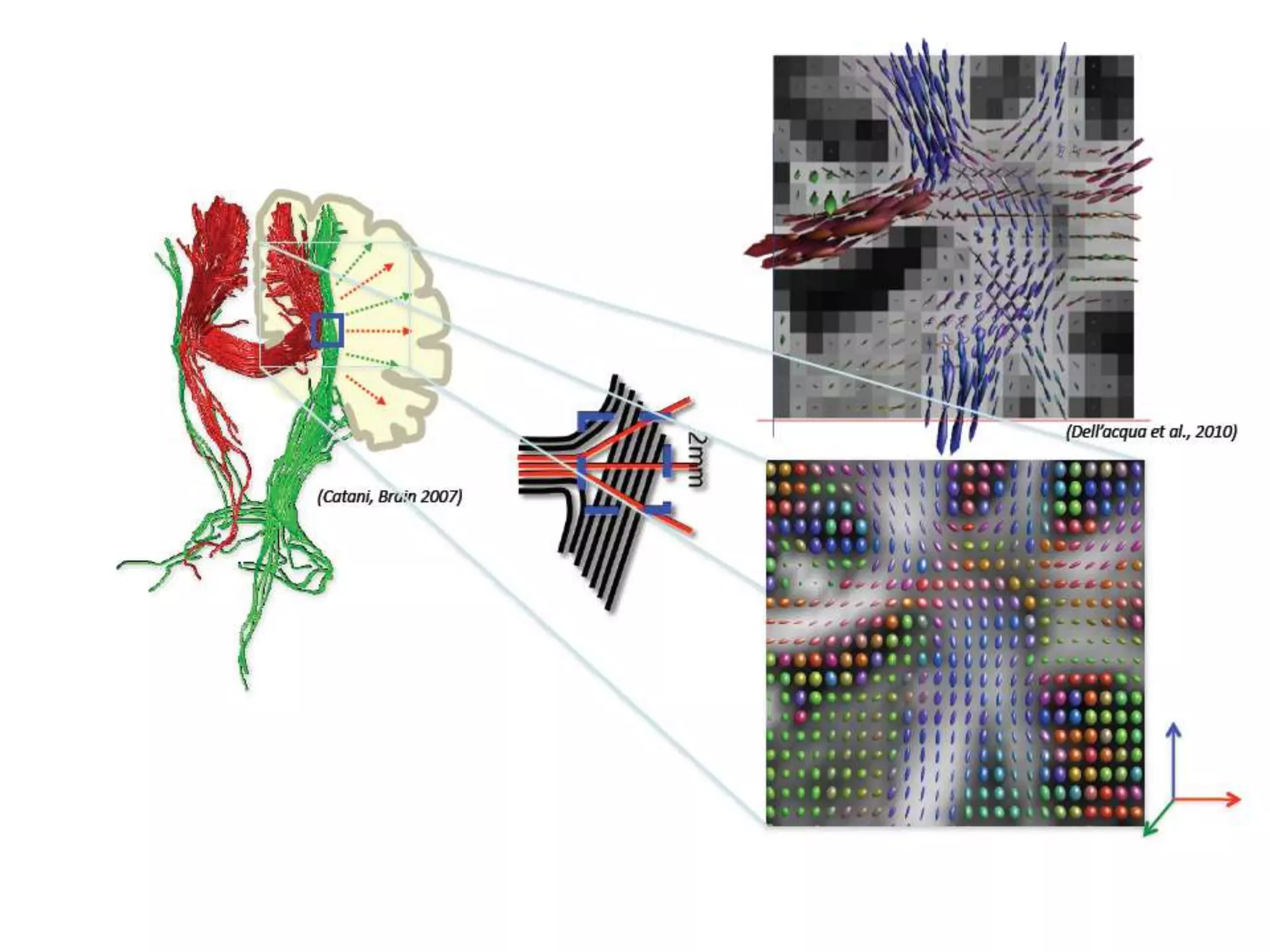

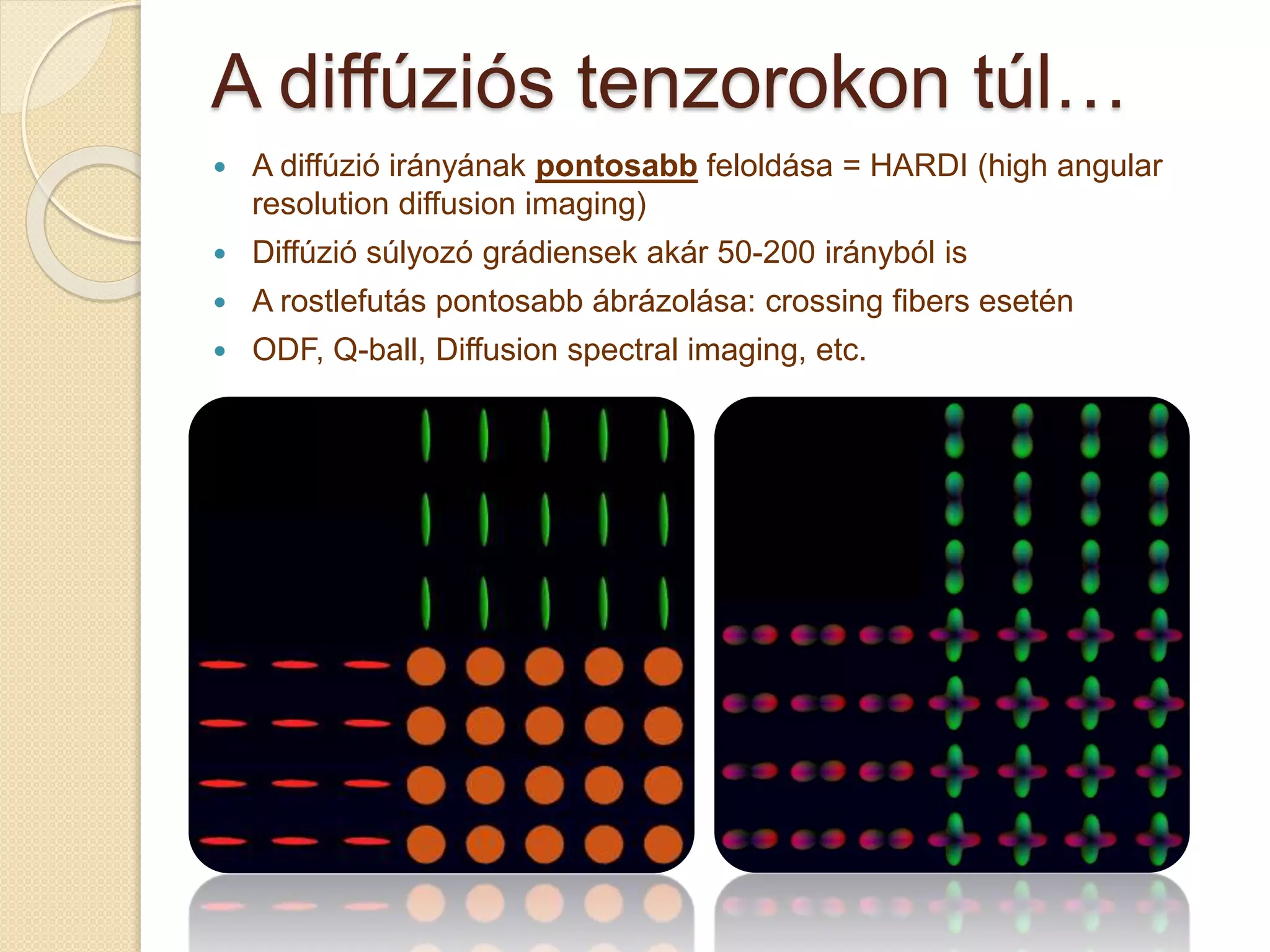

32. A diffúziós tenzorokon túl…
A diffúzió irányának pontosabb feloldása = HARDI (high angular
resolution diffusion imaging)
Diffúzió súlyozó grádiensek akár 50-200 irányból is
A rostlefutás pontosabb ábrázolása: crossing fibers esetén
ODF, Q-ball, Diffusion spectral imaging, etc.
33.
34.

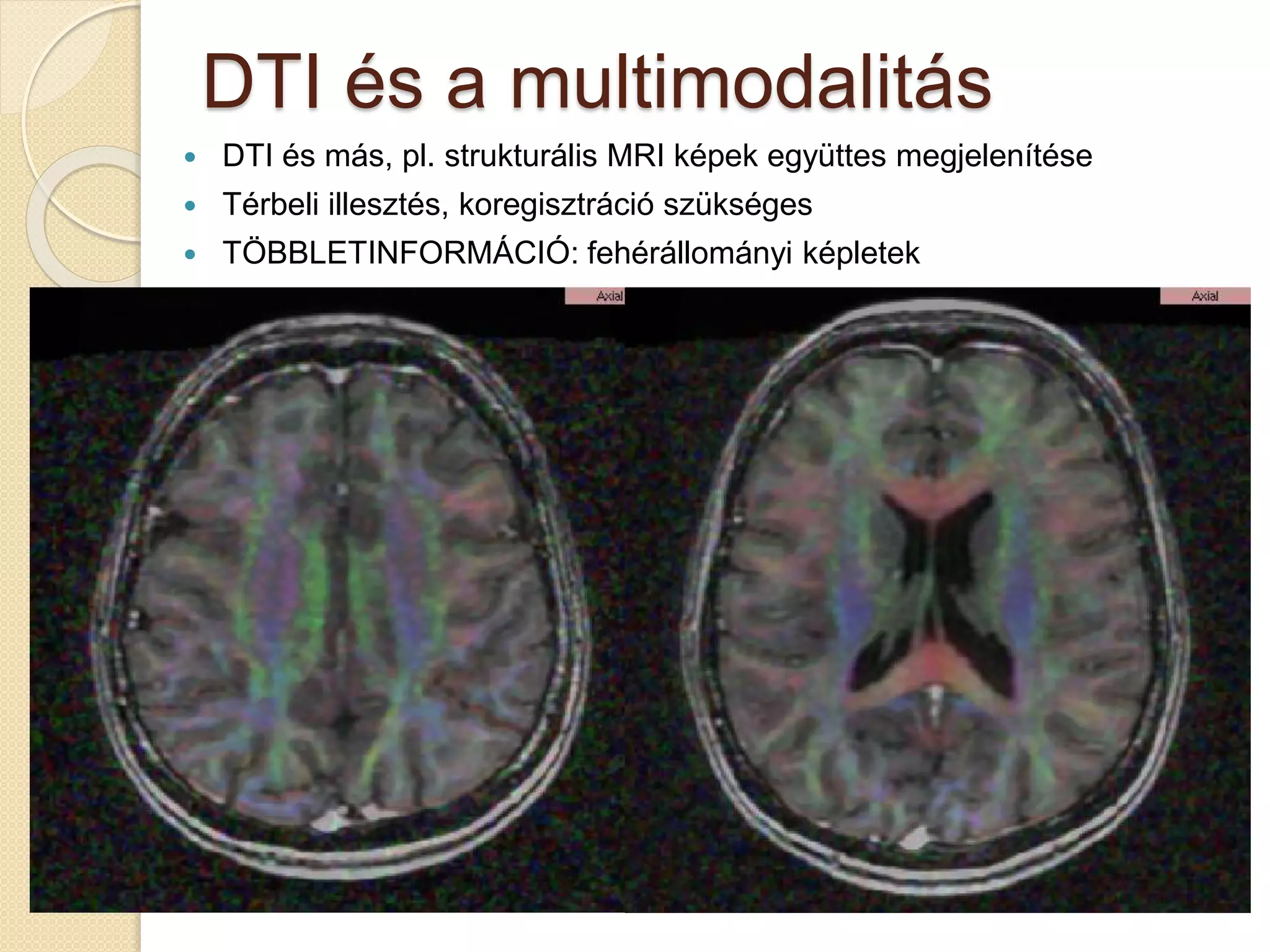

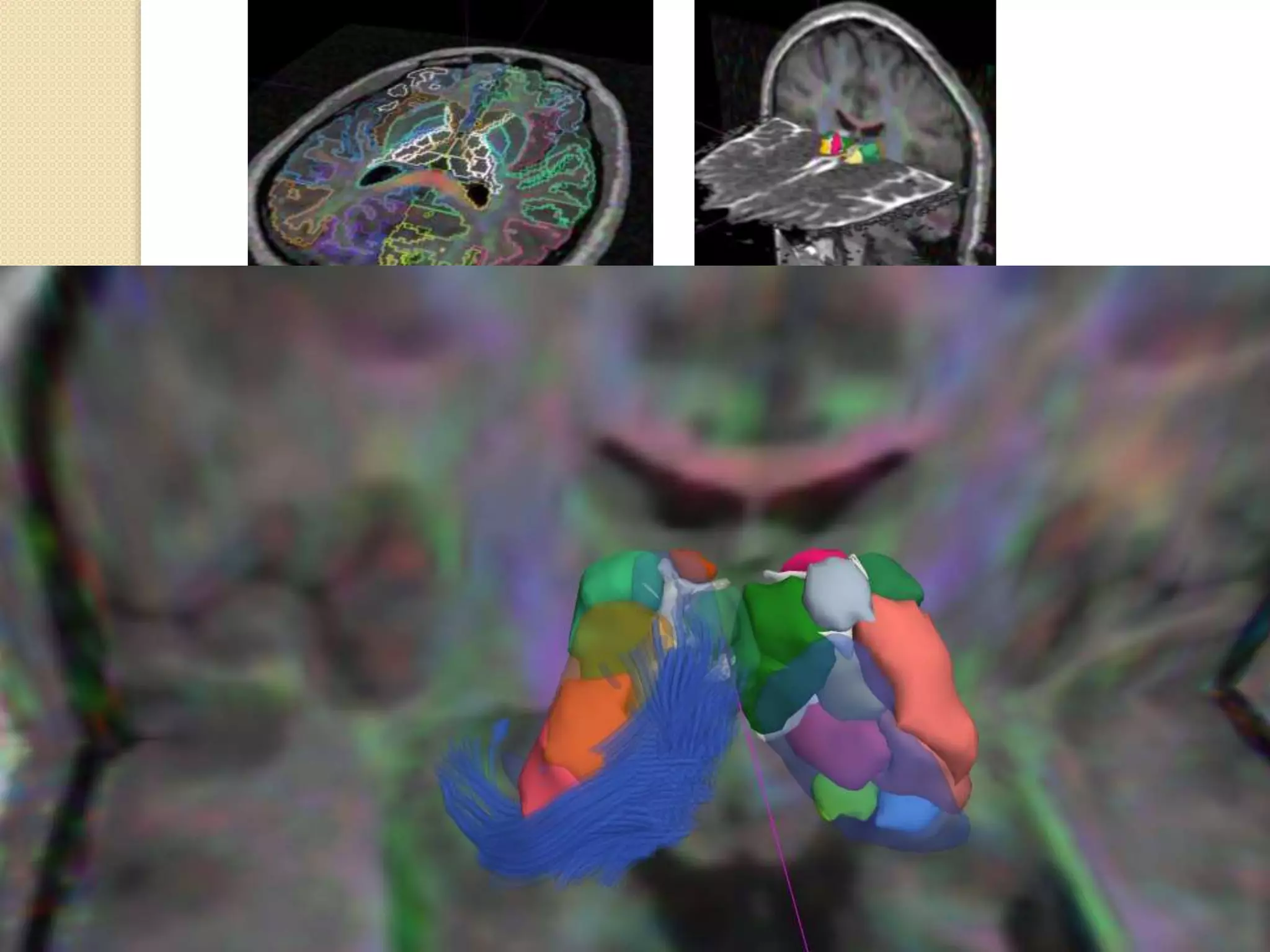

35. DTI és a multimodalitás
DTI és más, pl. strukturális MRI képek együttes megjelenítése
Térbeli illesztés, koregisztráció szükséges
TÖBBLETINFORMÁCIÓ: fehérállományi képletek

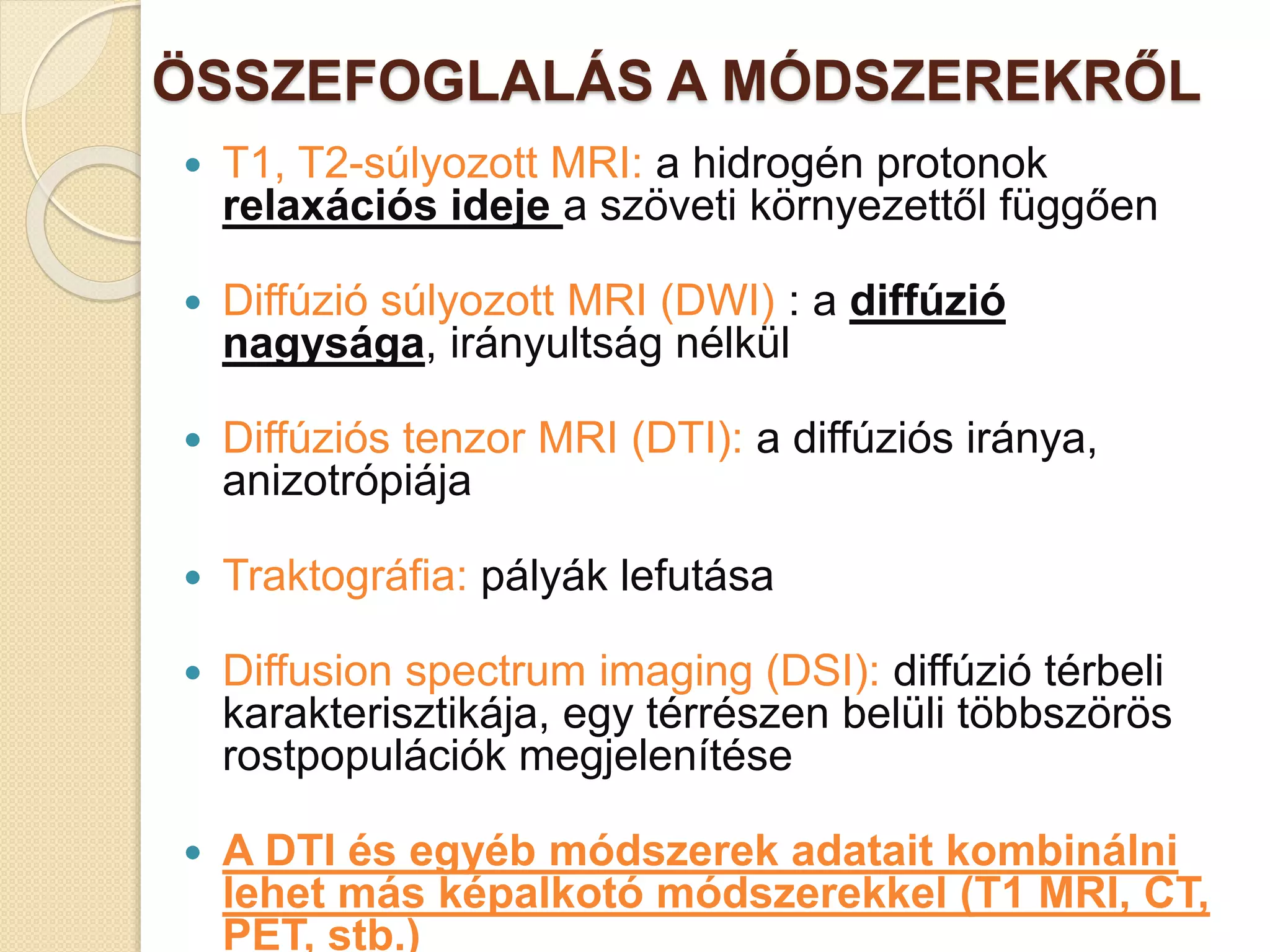

36. ÖSSZEFOGLALÁS A MÓDSZEREKRŐL
T1, T2-súlyozott MRI: a hidrogén protonok
relaxációs ideje a szöveti környezettől függően
Diffúzió súlyozott MRI (DWI) : a diffúzió
nagysága, irányultság nélkül
Diffúziós tenzor MRI (DTI): a diffúziós iránya,
anizotrópiája
Traktográfia: pályák lefutása

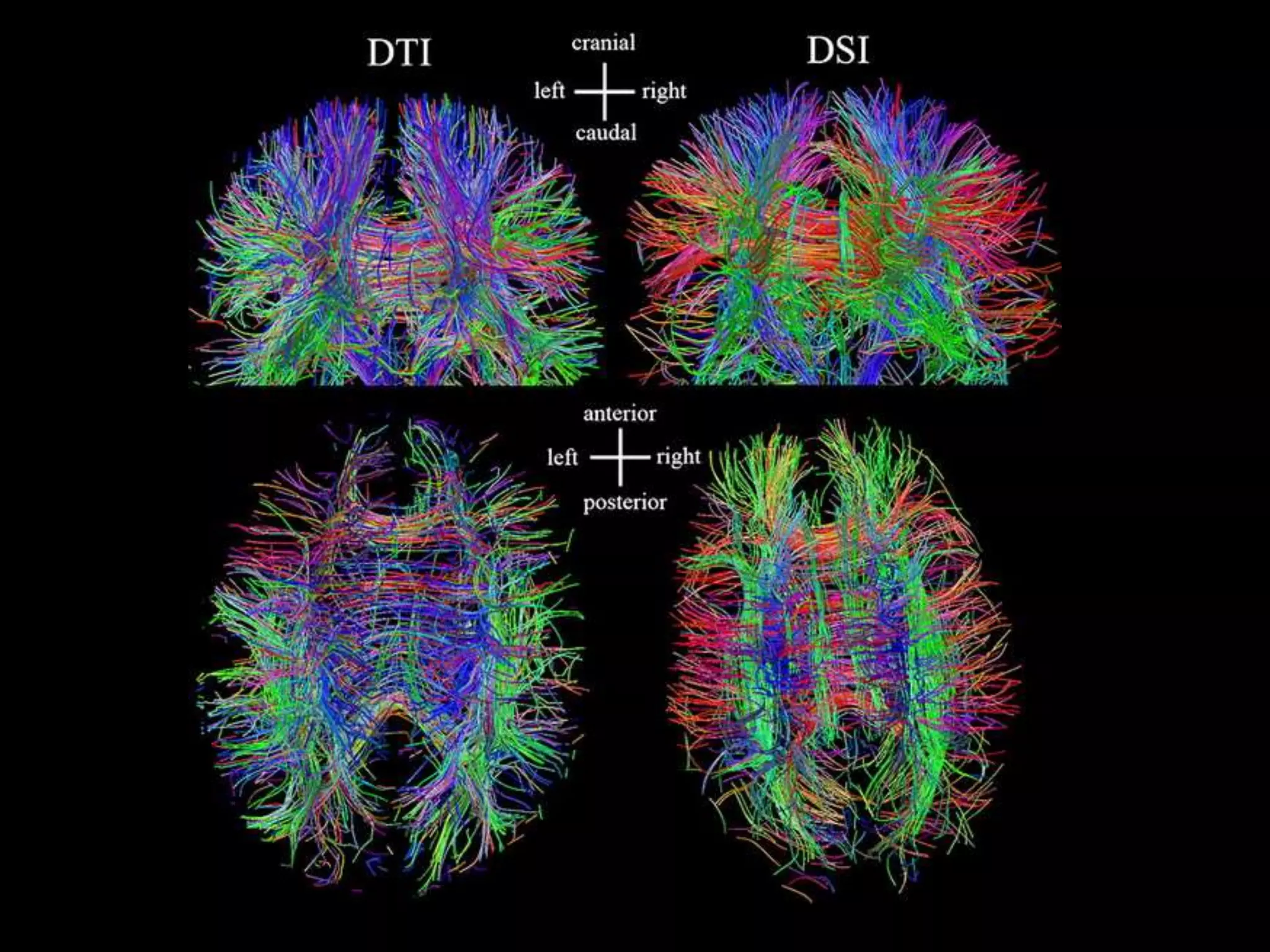

Diffusion spectrum imaging (DSI): diffúzió térbeli
karakterisztikája, egy térrészen belüli többszörös
rostpopulációk megjelenítése
A DTI és egyéb módszerek adatait kombinálni
lehet más képalkotó módszerekkel (T1 MRI, CT,
PET, stb.)

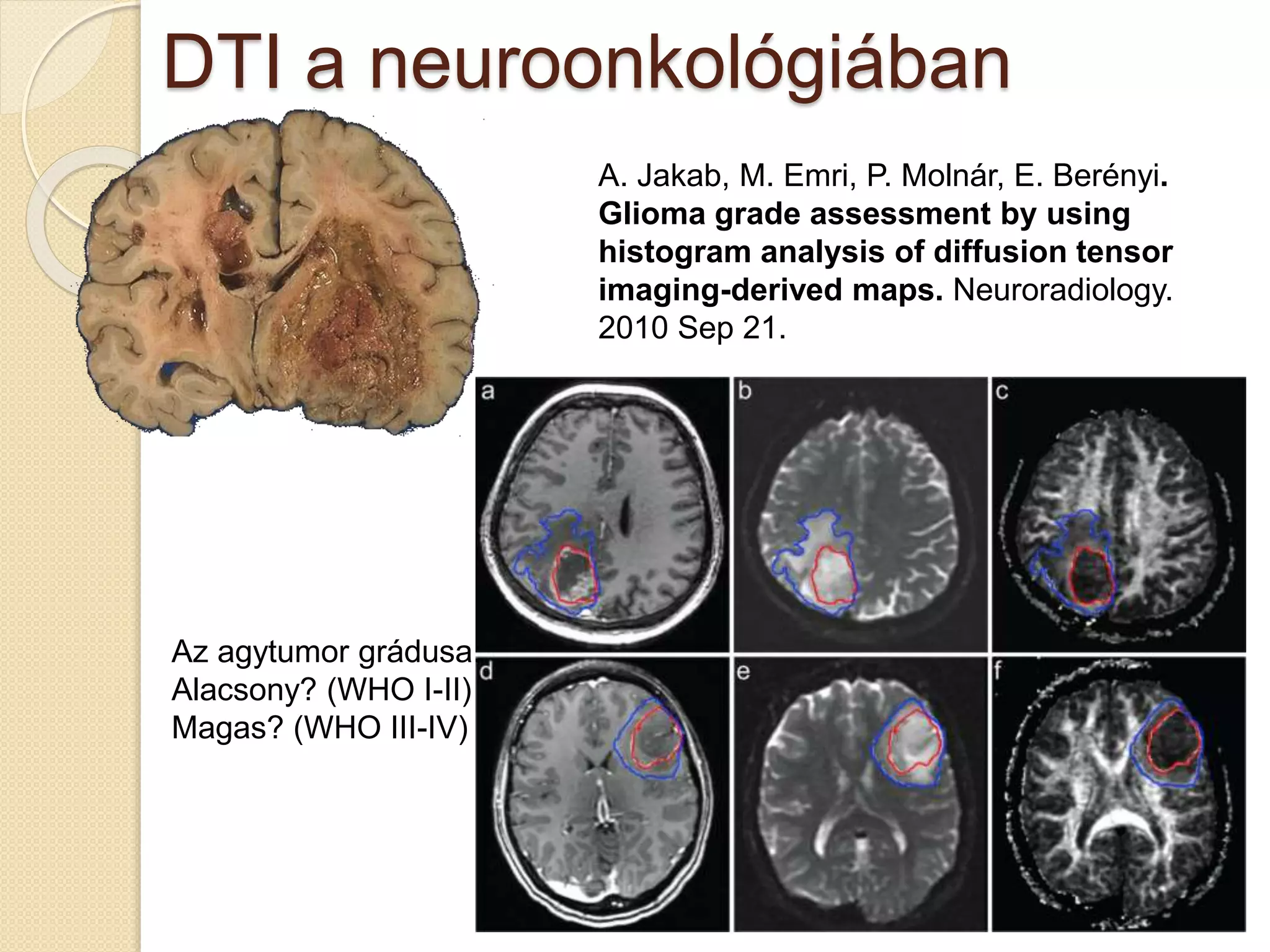

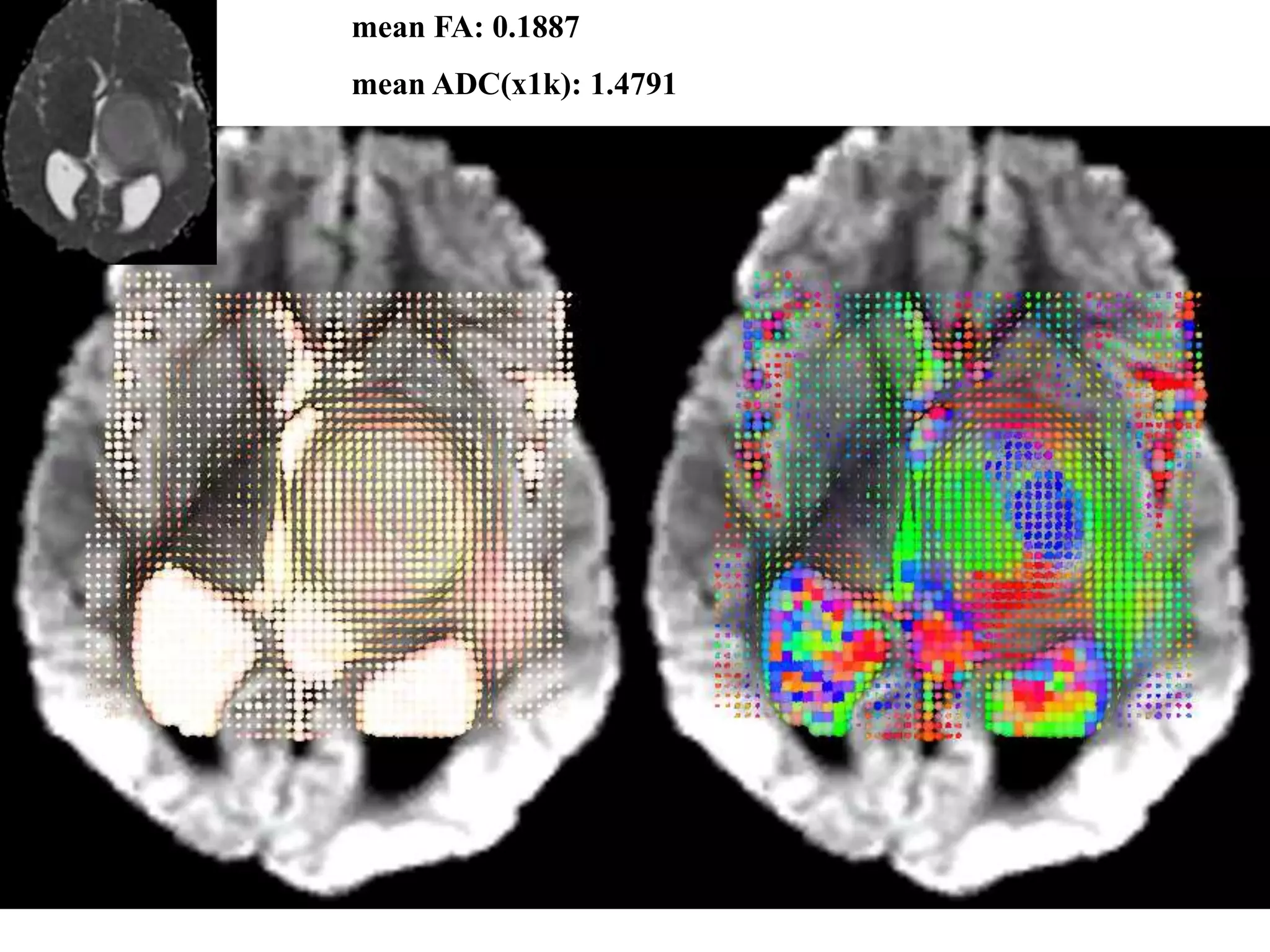

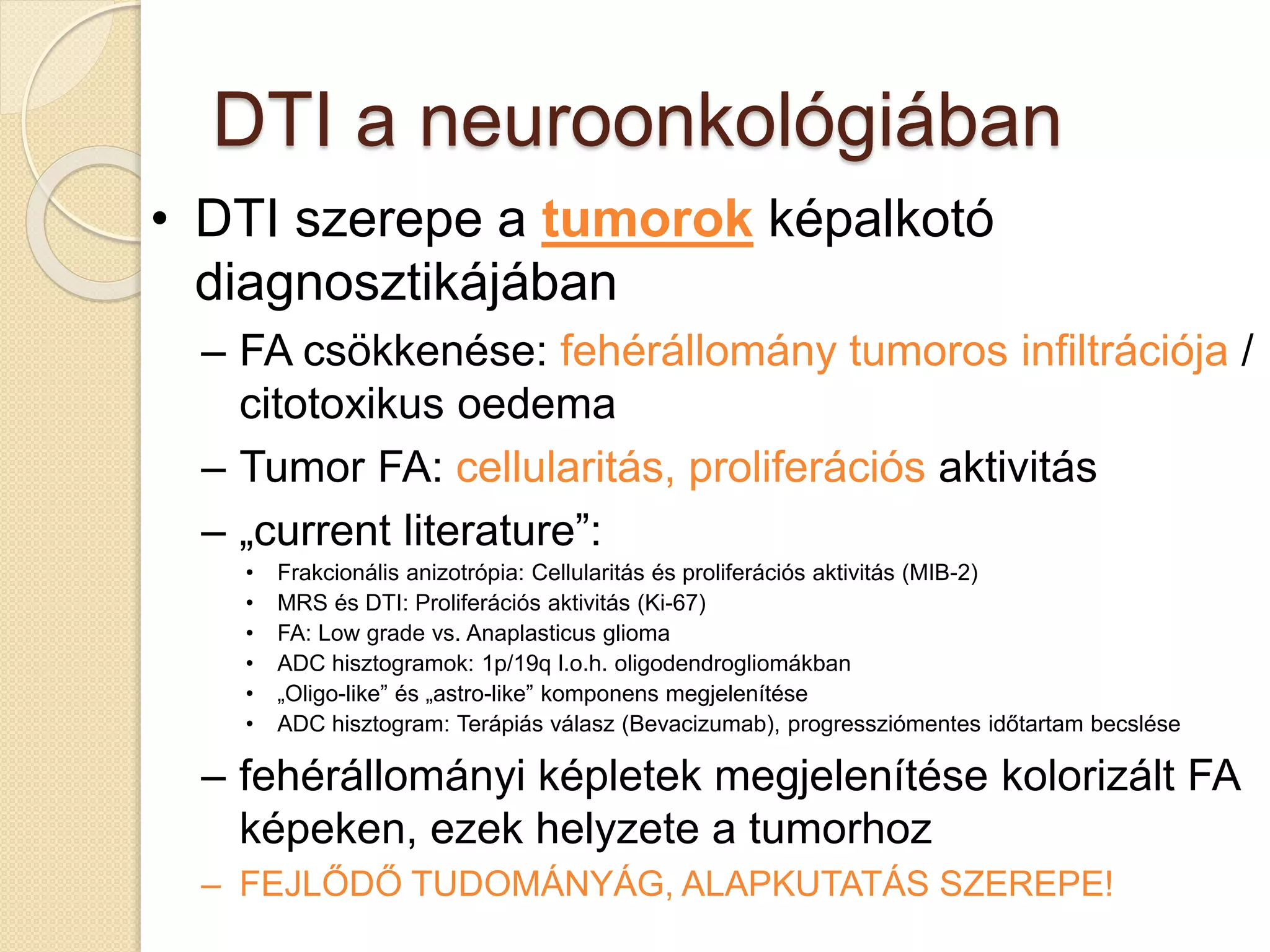

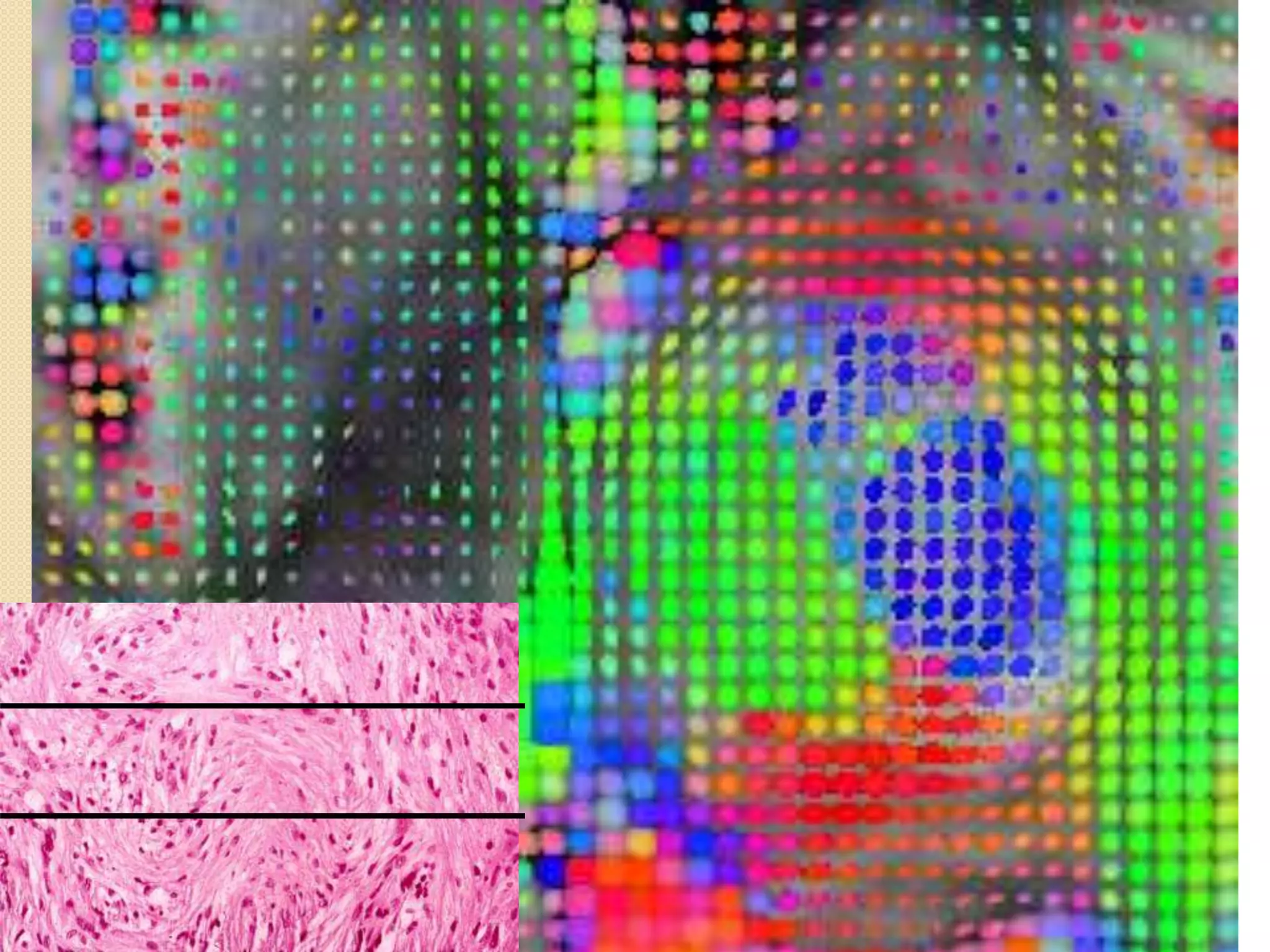

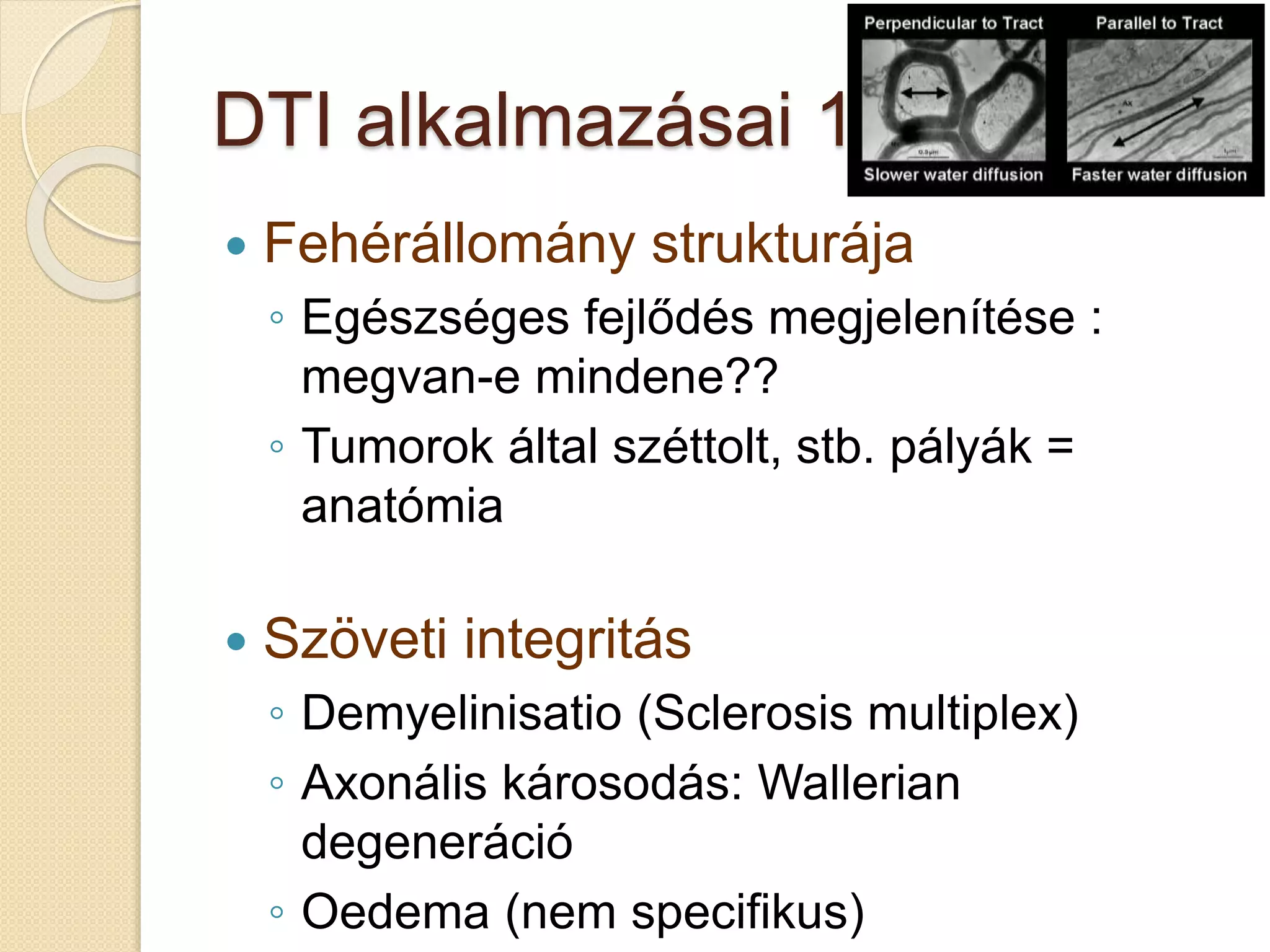

42. DTI a neuroonkológiában
A. Jakab, M. Emri, P. Molnár, E. Berényi.
Glioma grade assessment by using
histogram analysis of diffusion tensor
imaging-derived maps. Neuroradiology.
2010 Sep 21.
Az agytumor grádusa:
Alacsony? (WHO I-II)
Magas? (WHO III-IV)

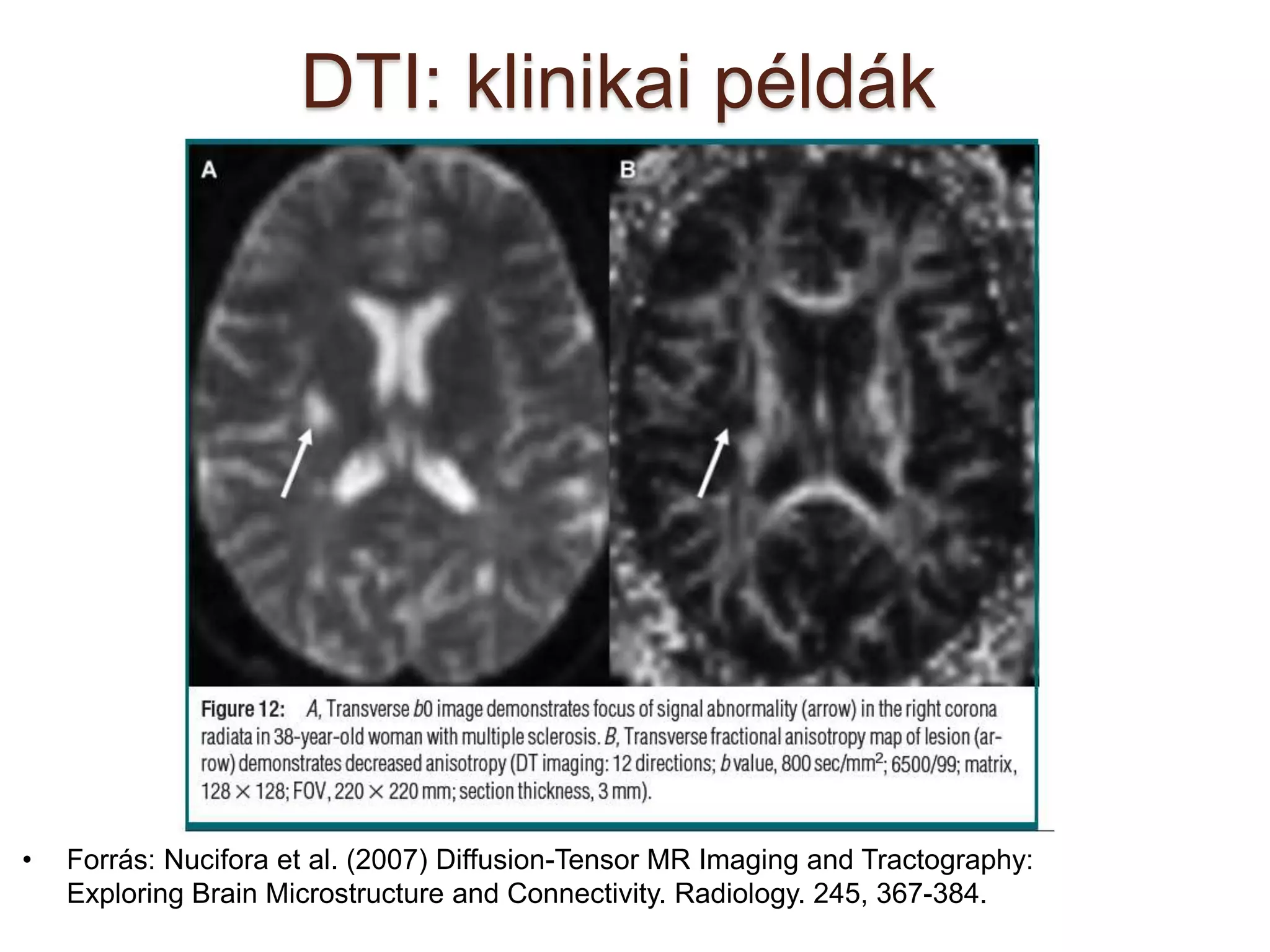

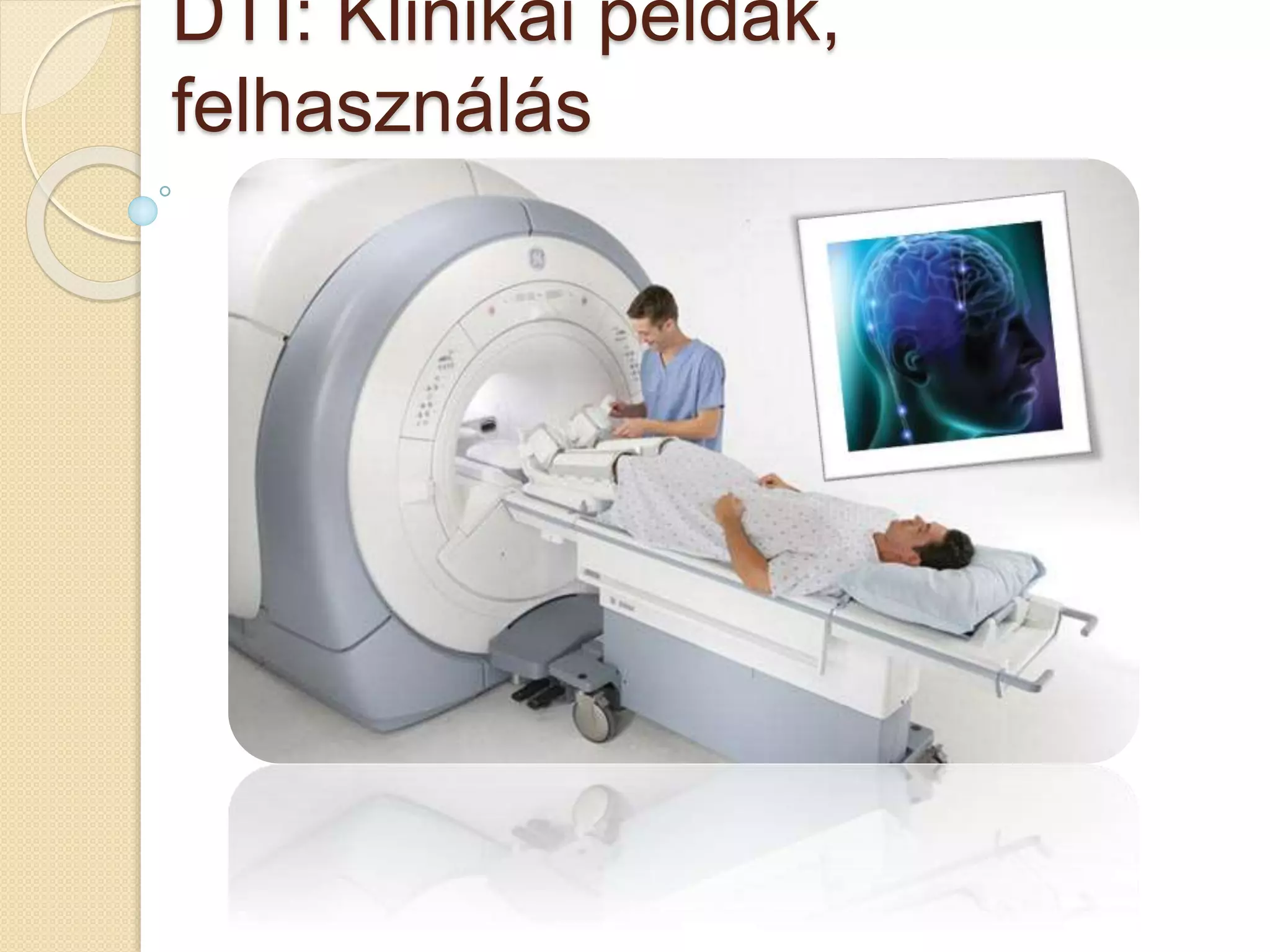

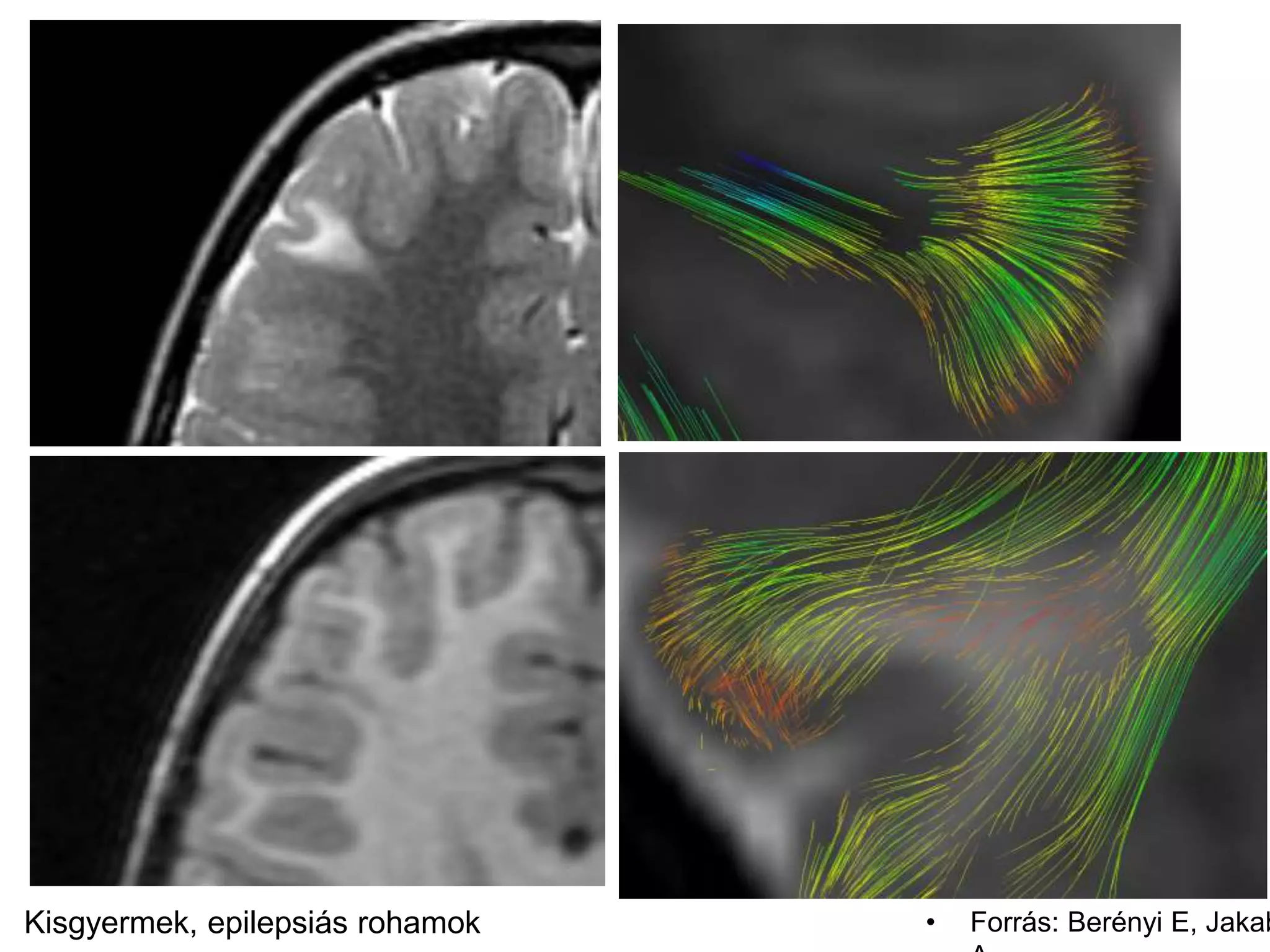

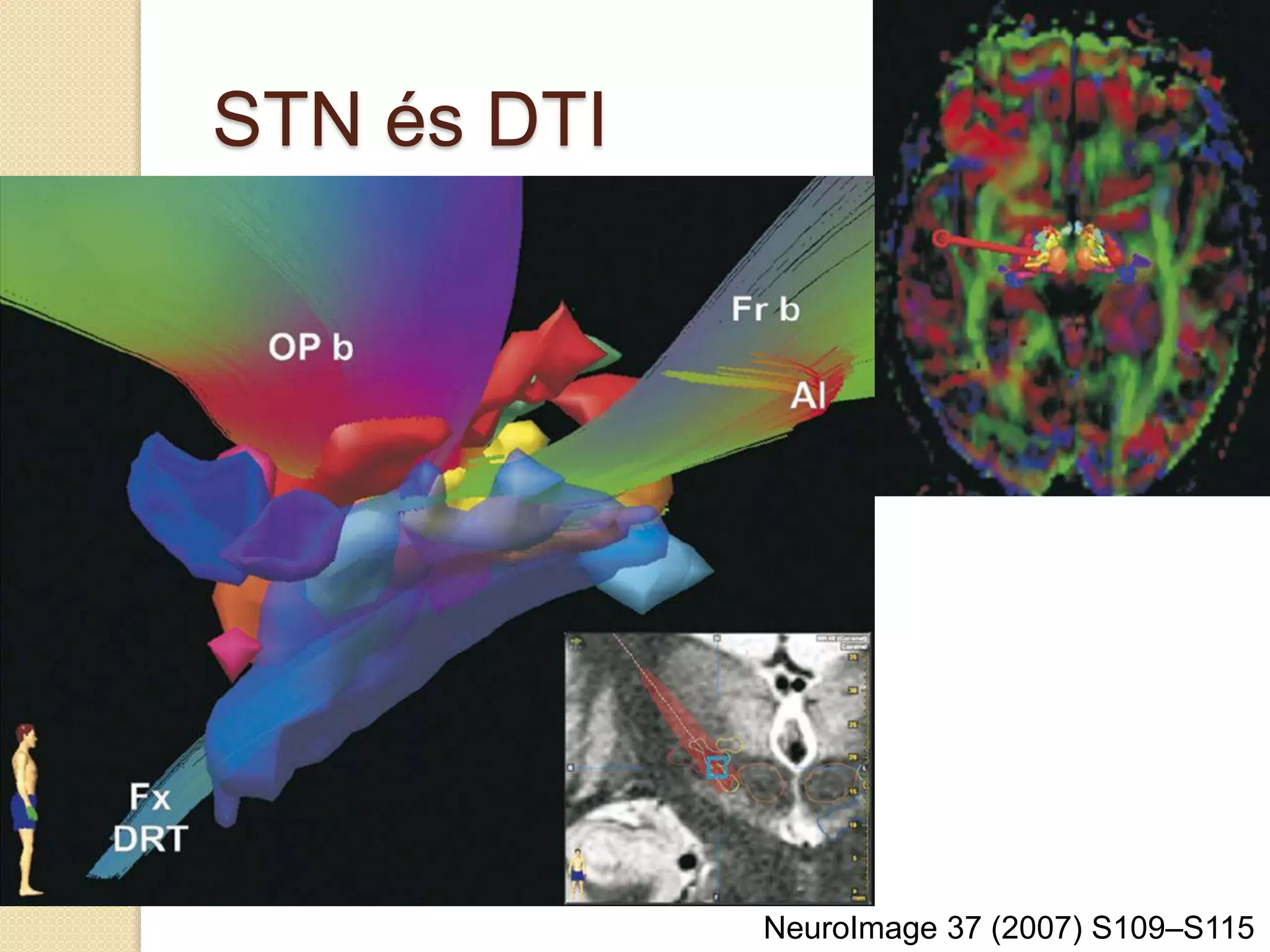

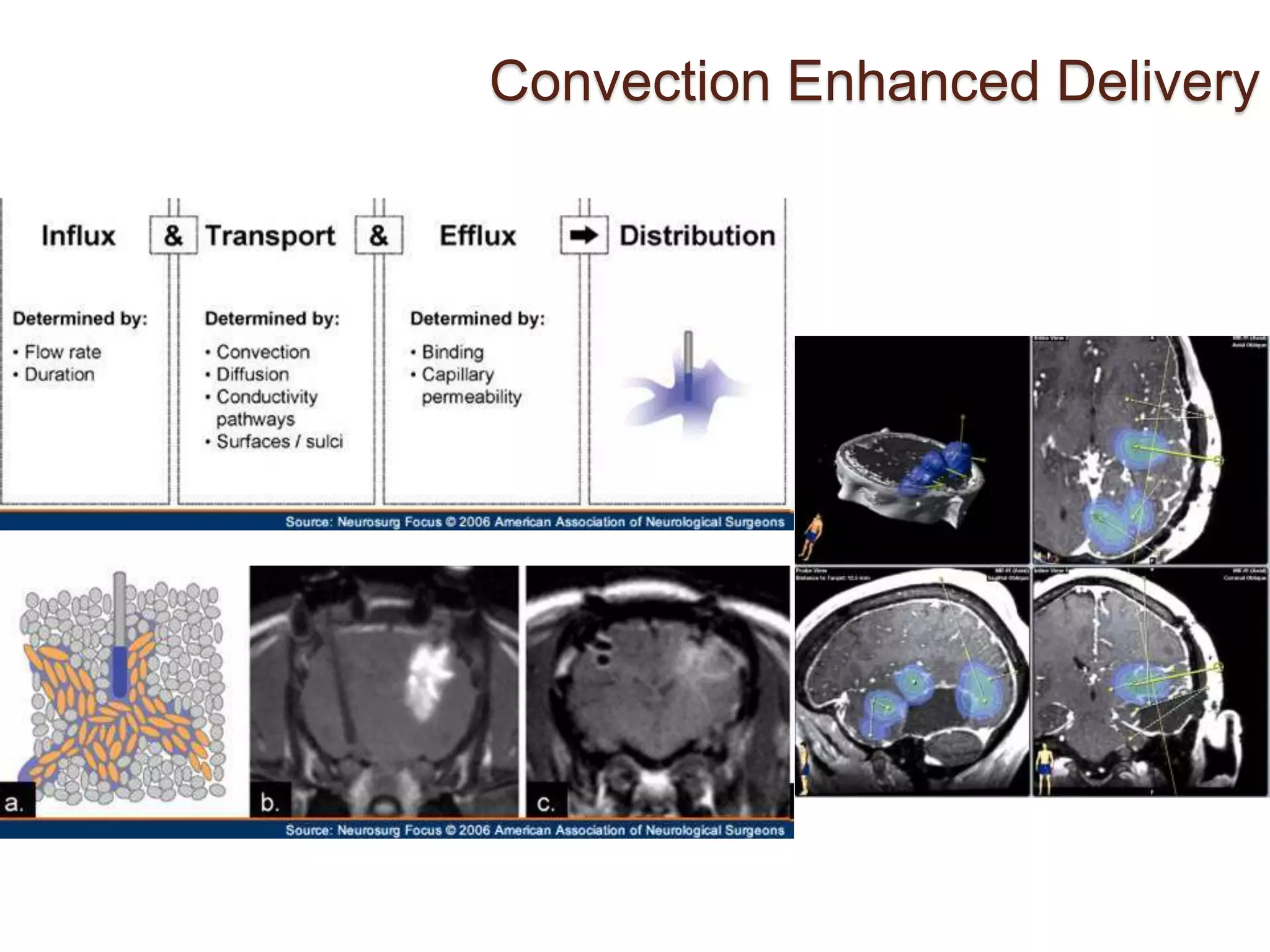

43. DTI: klinikai példák
• Forrás: Nucifora et al. (2007) Diffusion-Tensor MR Imaging and Tractography:
Exploring Brain Microstructure and Connectivity. Radiology. 245, 367-384.
44. • Forrás: Nucifora et al. (2007) Diffusion-Tensor MR Imaging and Tractography:
Exploring Brain Microstructure and Connectivity. Radiology. 245, 367-384.
45.

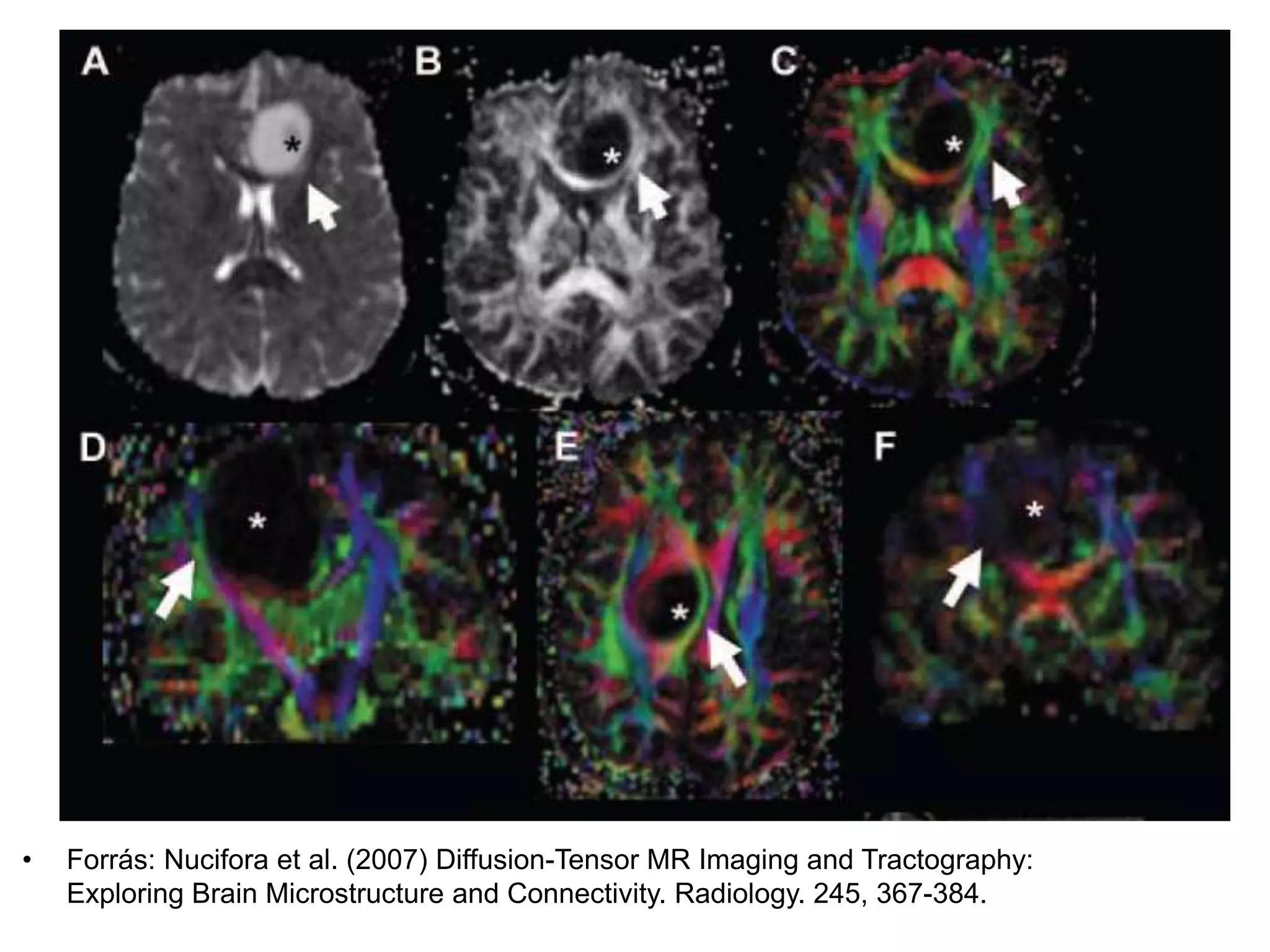

46. • Forrás: Nucifora et al. (2007) Diffusion-Tensor MR Imaging and Tractography:
Exploring Brain Microstructure and Connectivity. Radiology. 245, 367-384.

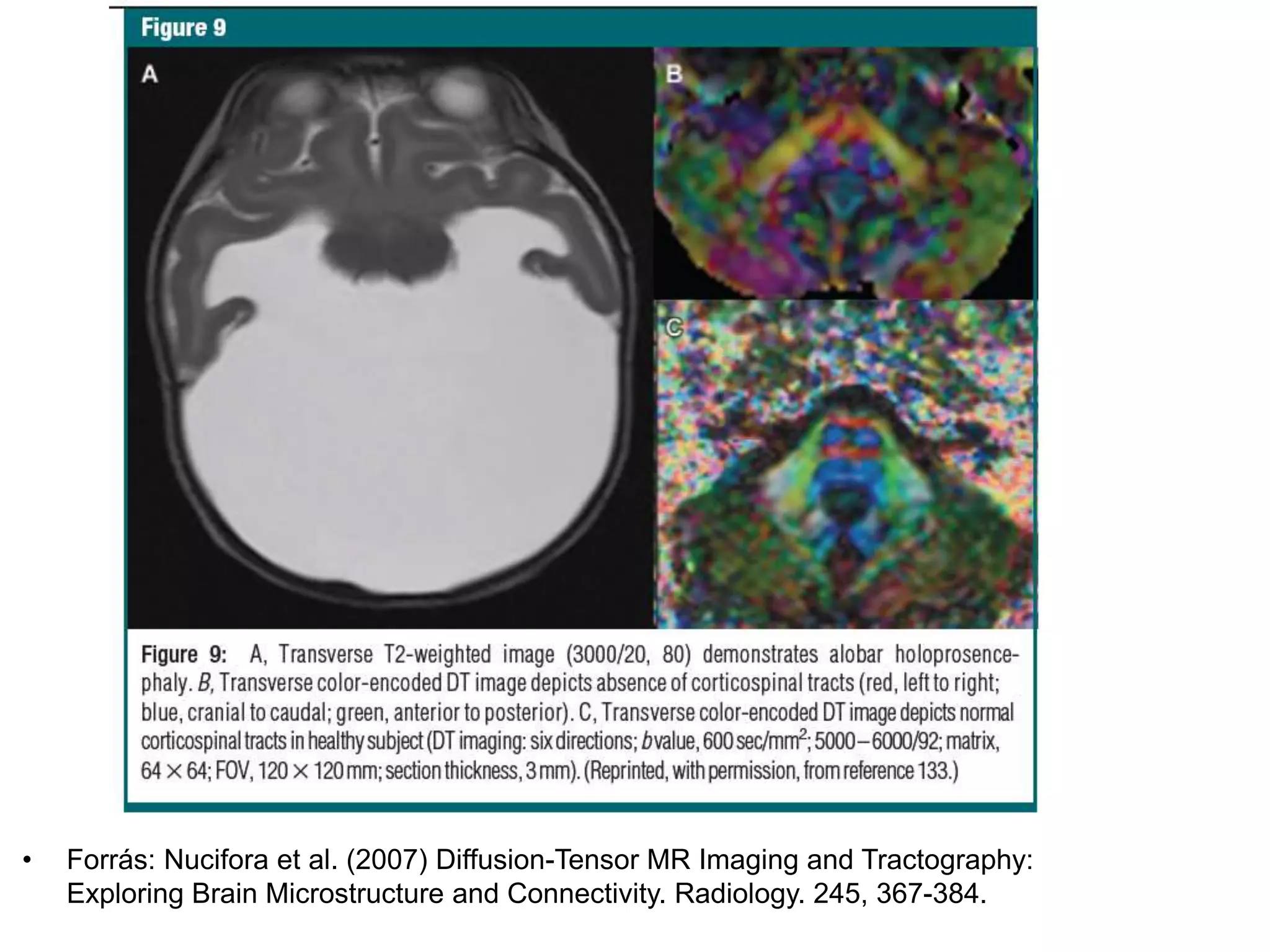

47. • Forrás: Nucifora et al. (2007) Diffusion-Tensor MR Imaging and Tractography:
Exploring Brain Microstructure and Connectivity. Radiology. 245, 367-384.

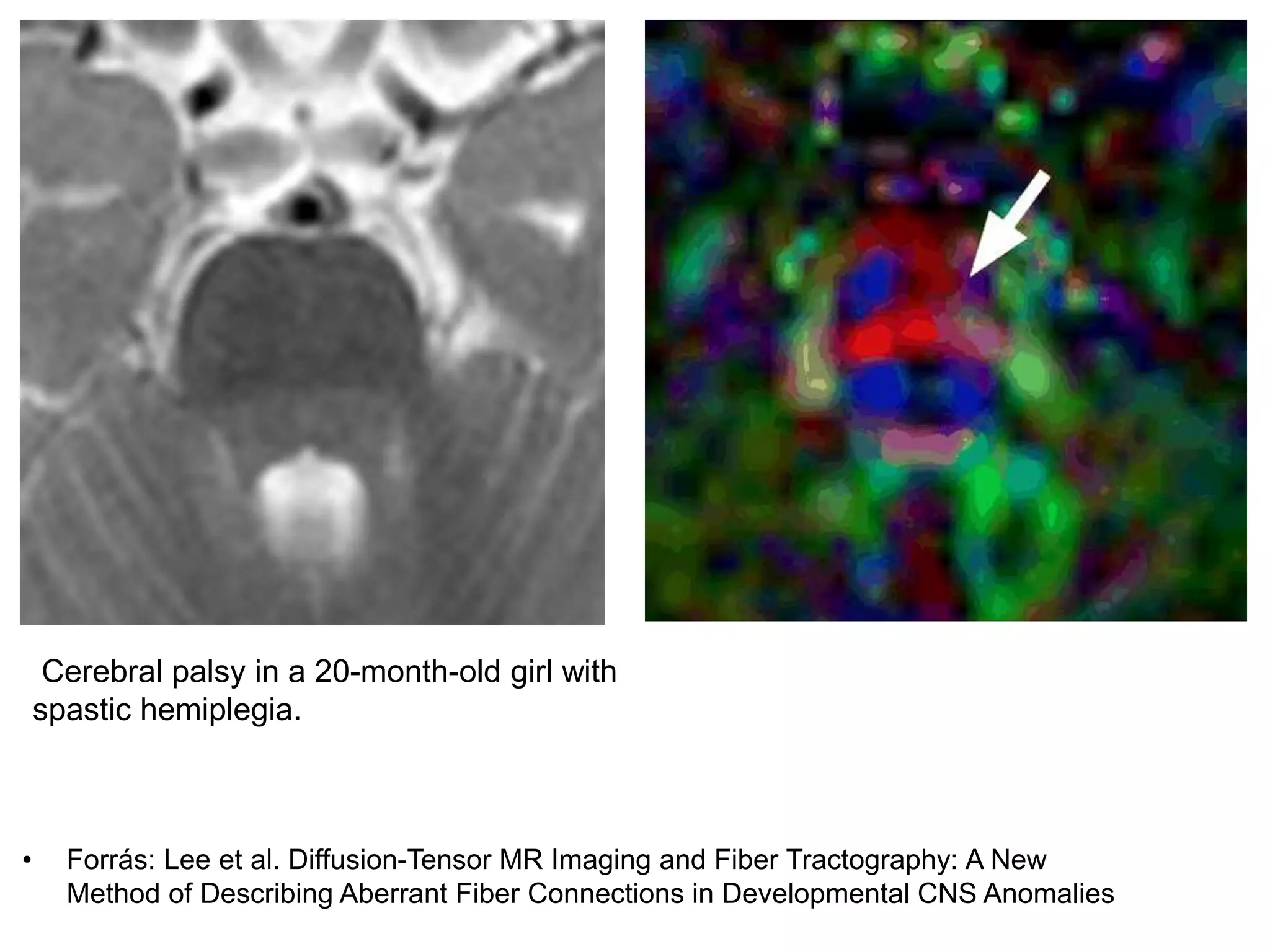

48. • Forrás: Lee et al. Diffusion-Tensor MR Imaging and Fiber Tractography: A New
Method of Describing Aberrant Fiber Connections in Developmental CNS Anomalies
Cerebral palsy in a 20-month-old girl with
spastic hemiplegia.
