1. Team Emertxe
Strings and Storage
Classes

2. Assignment 9

3. Assignment 9

4. Assignment 9
WAP to generate consecutive NRPS of length ‘n’ using ‘k’
distinct character

5. Assignment 9
WAP to generate consecutive NRPS of length ‘n’ using ‘k’
distinct character
Input:

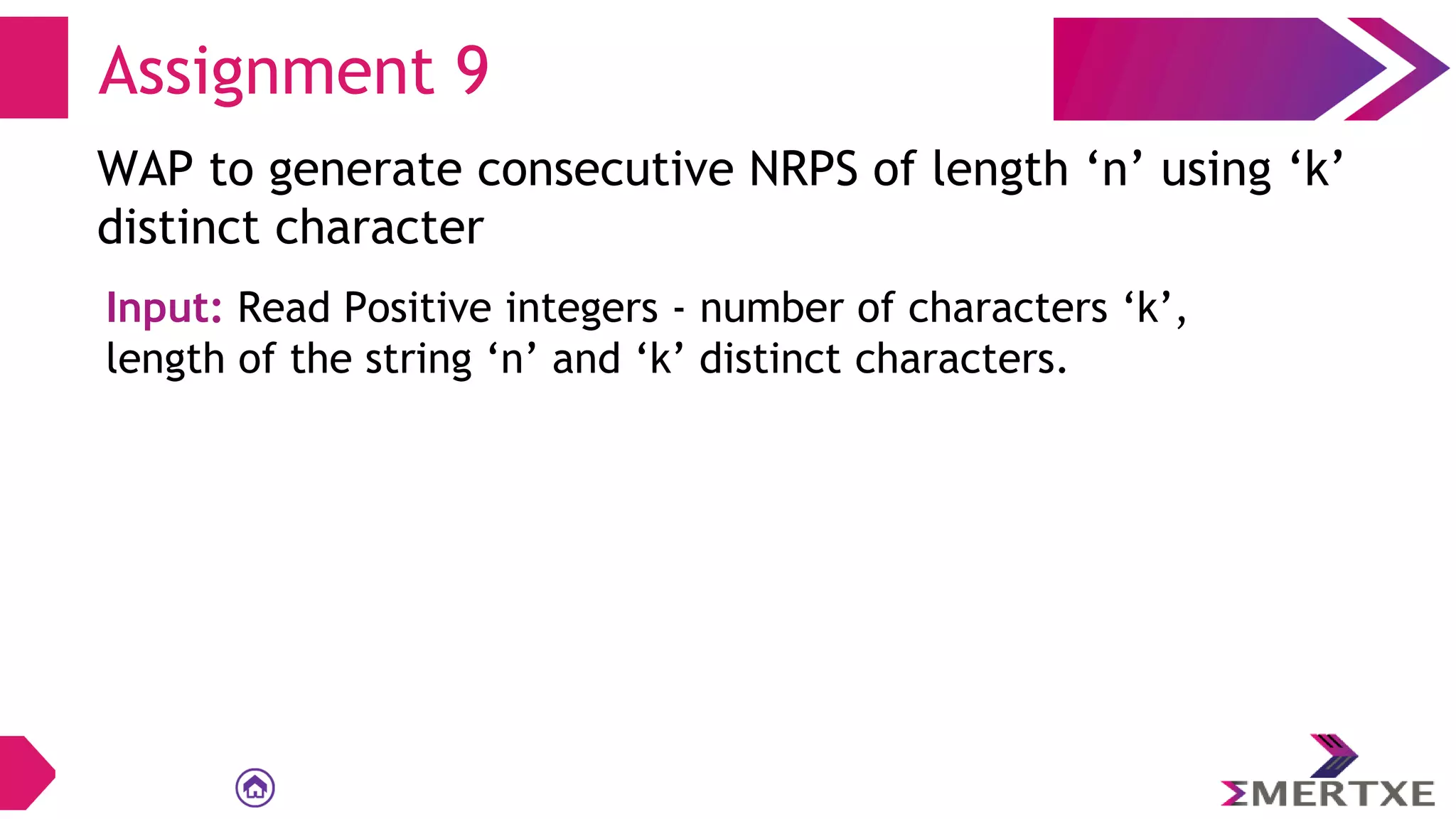

6. Assignment 9
WAP to generate consecutive NRPS of length ‘n’ using ‘k’
distinct character
Input: Read Positive integers - number of characters ‘k’,
length of the string ‘n’ and ‘k’ distinct characters.

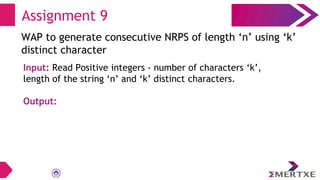

7. Assignment 9
WAP to generate consecutive NRPS of length ‘n’ using ‘k’
distinct character
Input: Read Positive integers - number of characters ‘k’,
length of the string ‘n’ and ‘k’ distinct characters.
Output:

8. Assignment 9
WAP to generate consecutive NRPS of length ‘n’ using ‘k’
distinct character
Input: Read Positive integers - number of characters ‘k’,
length of the string ‘n’ and ‘k’ distinct characters.
Output: Print NRPS.

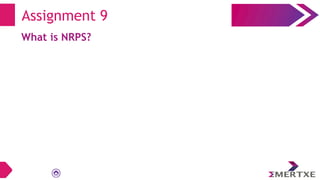

9. Assignment 9
What is NRPS?

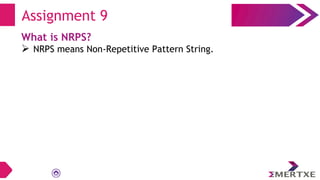

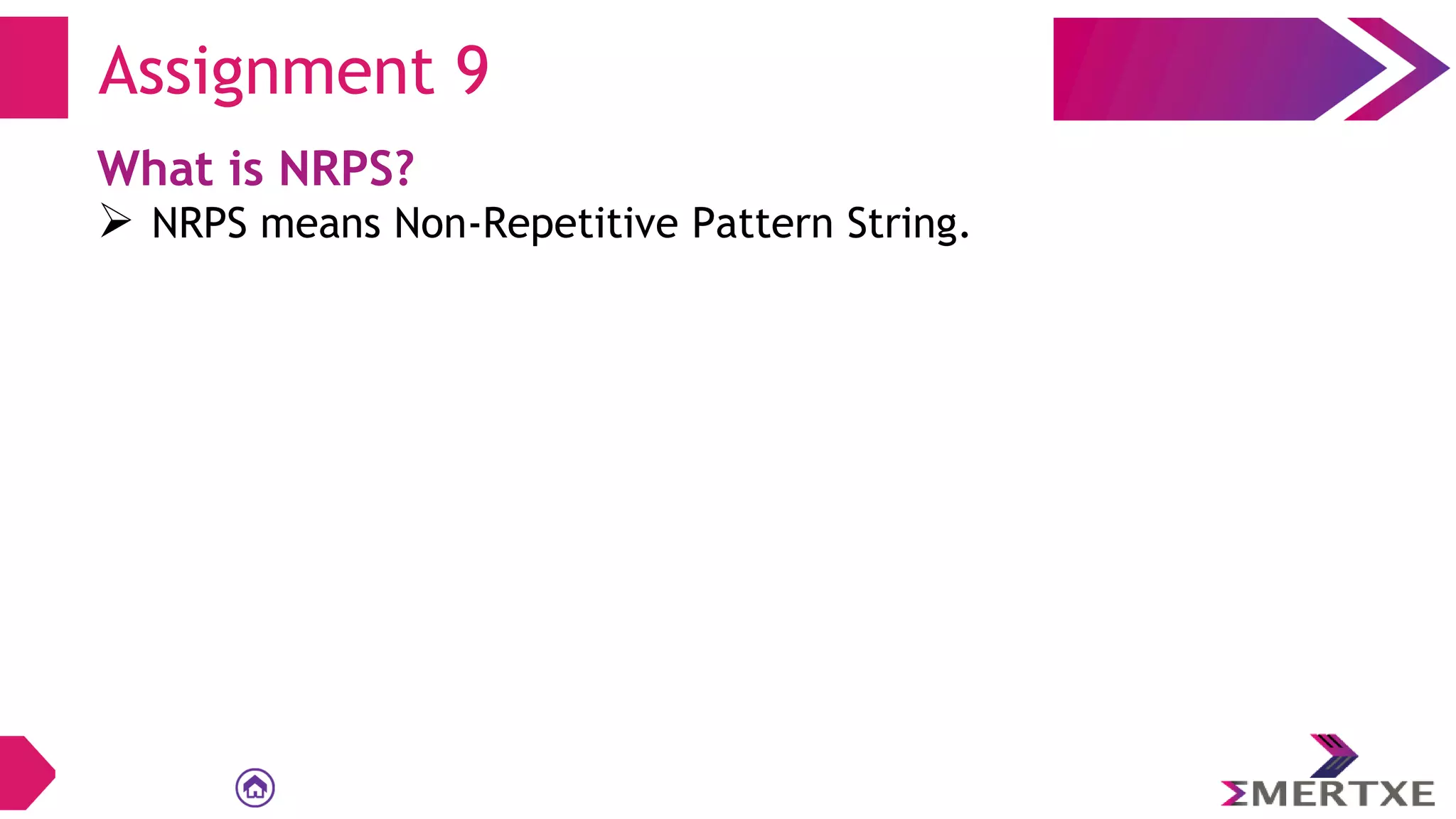

10. Assignment 9
What is NRPS?
 NRPS means Non-Repetitive Pattern String.

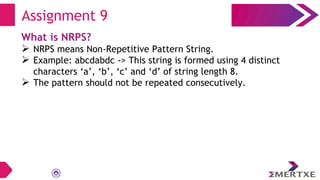

11. Assignment 9
What is NRPS?
 NRPS means Non-Repetitive Pattern String.
 Example: abcdabdc -> This string is formed using 4 distinct
characters ‘a’, ‘b’, ‘c’ and ‘d’ of string length 8.
 The pattern should not be repeated consecutively.

12. Assignment 9
How will you check the string is NRPS or not?

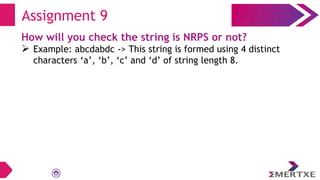

13. Assignment 9
How will you check the string is NRPS or not?
 Example: abcdabdc -> This string is formed using 4 distinct
characters ‘a’, ‘b’, ‘c’ and ‘d’ of string length 8.

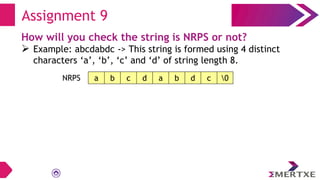

14. Assignment 9
How will you check the string is NRPS or not?
 Example: abcdabdc -> This string is formed using 4 distinct
characters ‘a’, ‘b’, ‘c’ and ‘d’ of string length 8.
a b c d a b d c 0
NRPS

15. Assignment 9
How will you check the string is NRPS or not?
 Example: abcdabdc -> This string is formed using 4 distinct
characters ‘a’, ‘b’, ‘c’ and ‘d’ of string length 8.
a b c d a b d c 0
NRPS

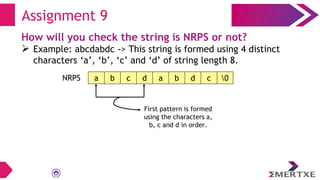

First pattern is formed
using the characters a,
b, c and d in order.

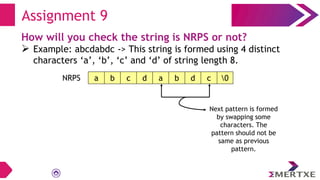

16. Assignment 9

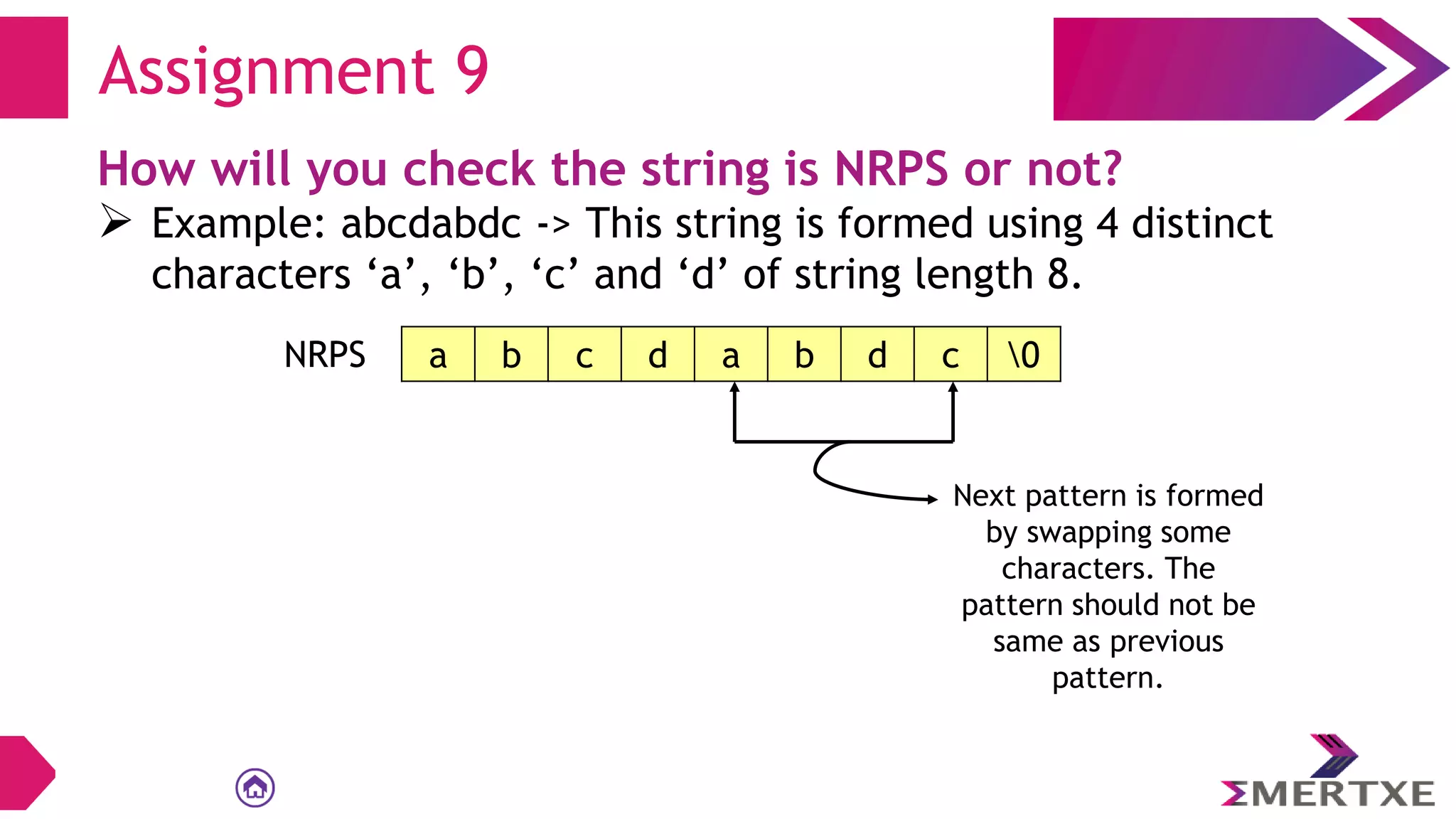

How will you check the string is NRPS or not?
 Example: abcdabdc -> This string is formed using 4 distinct
characters ‘a’, ‘b’, ‘c’ and ‘d’ of string length 8.
a b c d a b d c 0
NRPS
Next pattern is formed
by swapping some
characters. The
pattern should not be
same as previous
pattern.

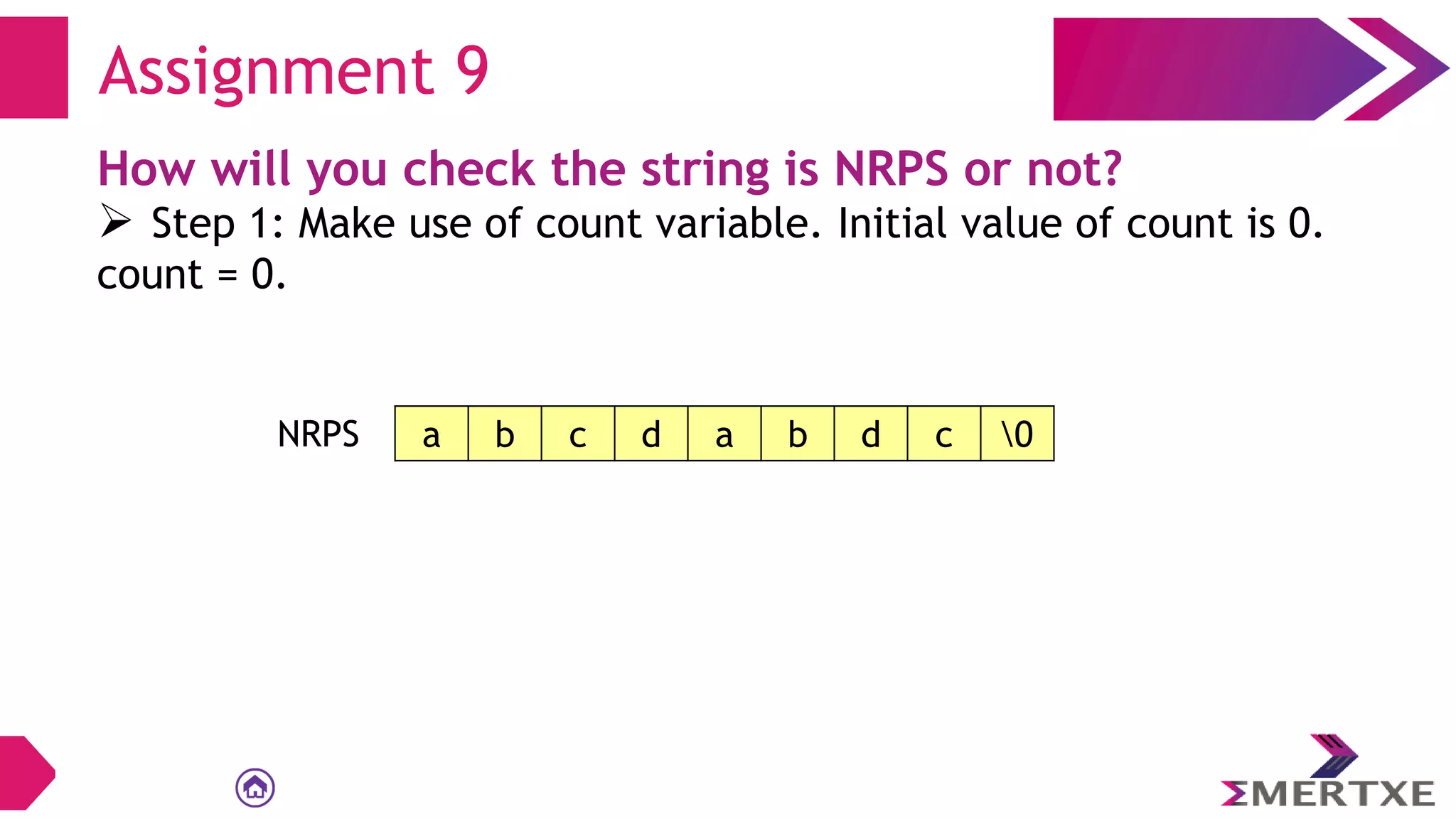

17. Assignment 9
How will you check the string is NRPS or not?
 Step 1: Make use of count variable. Initial value of count is 0.
count = 0.
a b c d a b d c 0
NRPS

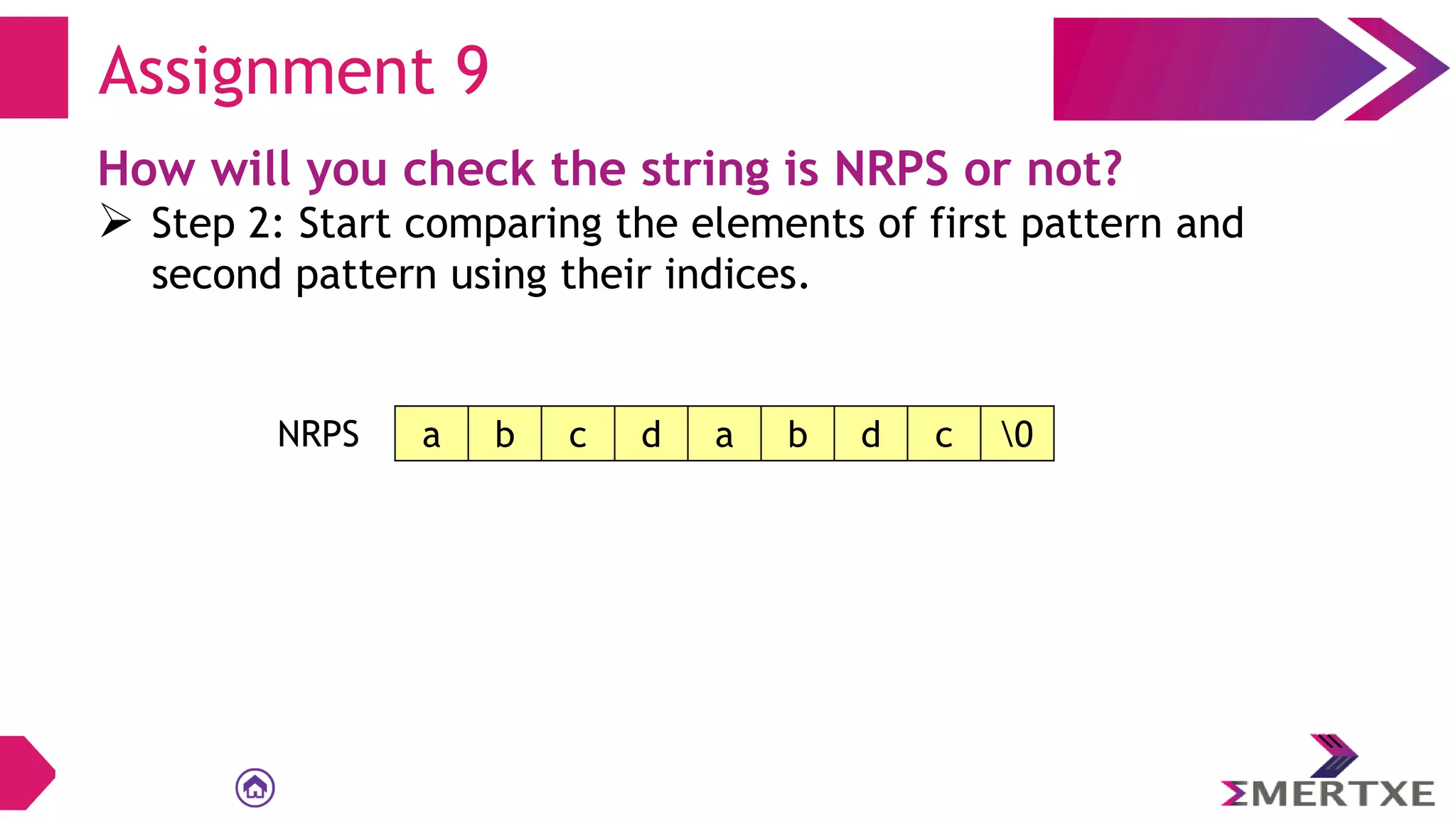

18. Assignment 9
How will you check the string is NRPS or not?

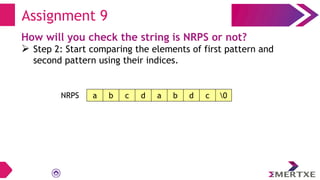

 Step 2: Start comparing the elements of first pattern and
second pattern using their indices.
a b c d a b d c 0
NRPS

19. Assignment 9
How will you check the string is NRPS or not?
 Step 2: Start from ‘a’ from abcd and ‘a’ from abdc.
 If, both are same, increment count by 1
a b c d a b d c 0
NRPS
count = 1

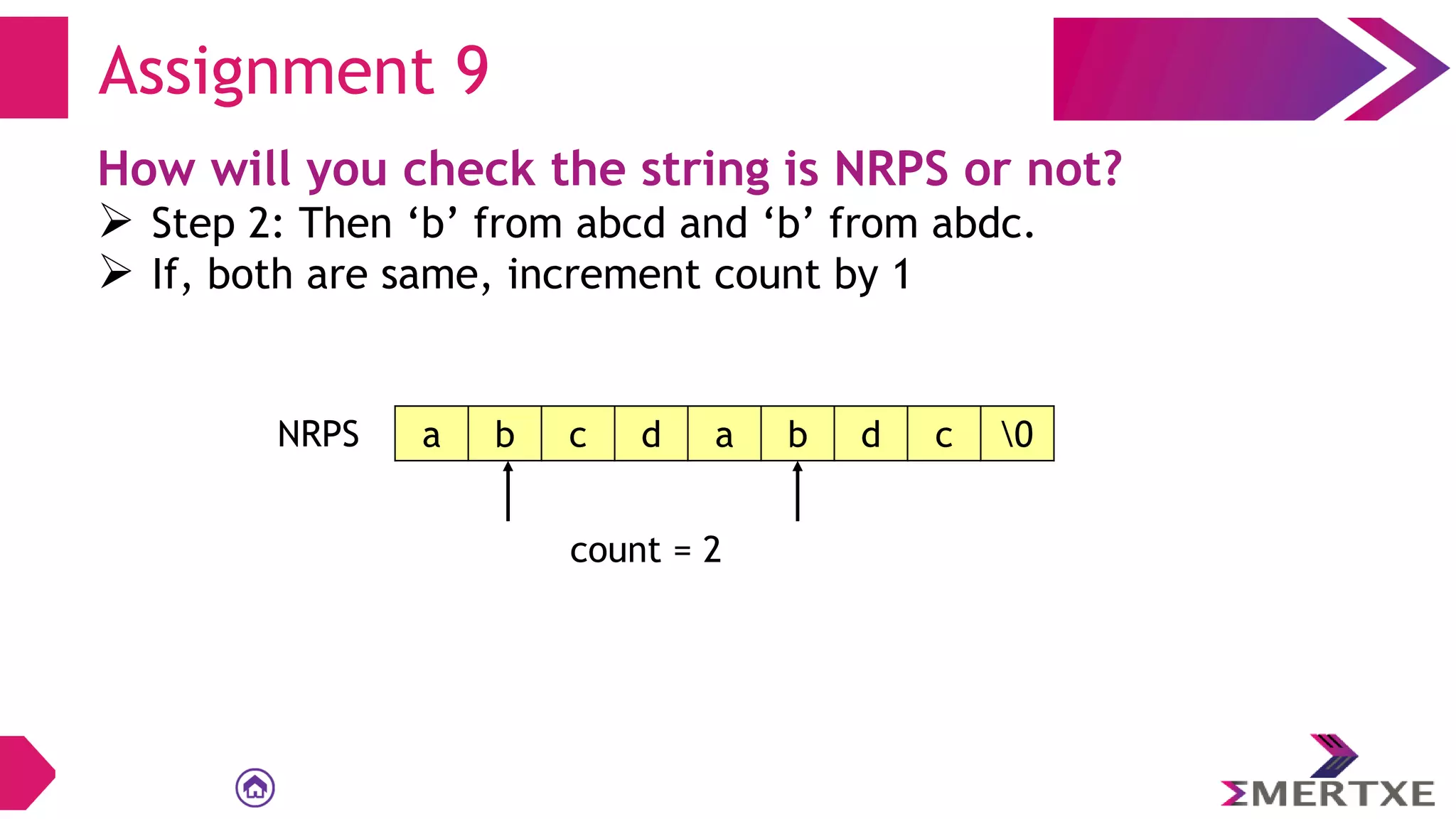

20. Assignment 9
How will you check the string is NRPS or not?
 Step 2: Then ‘b’ from abcd and ‘b’ from abdc.
 If, both are same, increment count by 1
a b c d a b d c 0
NRPS
count = 2

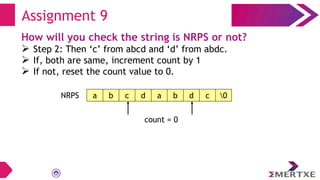

21. Assignment 9
How will you check the string is NRPS or not?
 Step 2: Then ‘c’ from abcd and ‘d’ from abdc.
 If, both are same, increment count by 1
 If not, reset the count value to 0.
a b c d a b d c 0
NRPS
count = 0

22. Assignment 9

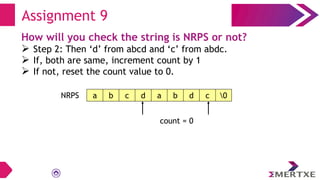

How will you check the string is NRPS or not?
 Step 2: Then ‘d’ from abcd and ‘c’ from abdc.
 If, both are same, increment count by 1
 If not, reset the count value to 0.
a b c d a b d c 0
NRPS
count = 0

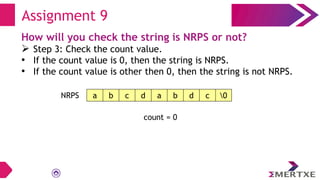

23. Assignment 9
How will you check the string is NRPS or not?
 Step 3: Check the count value.
• If the count value is 0, then the string is NRPS.
• If the count value is other then 0, then the string is not NRPS.
a b c d a b d c 0
NRPS
count = 0

24. Assignment 9
How will you check the string is NRPS or not?
 Step 3: Check the count value.
• If the count value is 0, then the string is NRPS.
• If the count value is other then 0, then the string is not NRPS.
• Here, the count value is 0, so, abcdabdc is NRPS.
a b c d a b d c 0
NRPS
count = 0

25. Assignment 9
How to create a NRPS?

26. Assignment 9
How to create a NRPS?
 Read how many distinct characters(k) are required to create
NRPS from user. Assume ‘k’ = 3.
 Read 3 distinct characters from user i.e., ‘a’, ‘b’ and ‘c’.
 Read the length(n) of the string to be formed using ‘k’ distinct
characters. n = 6.

27. Assignment 9
How to create a NRPS?
 k = 3, n = 6 and characters are ‘a’, ‘b’ and ‘c’.
 Step 1: Create the first pattern of characters in order.
a b c
NRPS

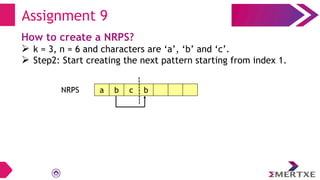

28. Assignment 9
How to create a NRPS?
 k = 3, n = 6 and characters are ‘a’, ‘b’ and ‘c’.
 Step2: Start creating the next pattern starting from index 1.
a b c b
NRPS

29. Assignment 9
How to create a NRPS?
 k = 3, n = 6 and characters are ‘a’, ‘b’ and ‘c’.

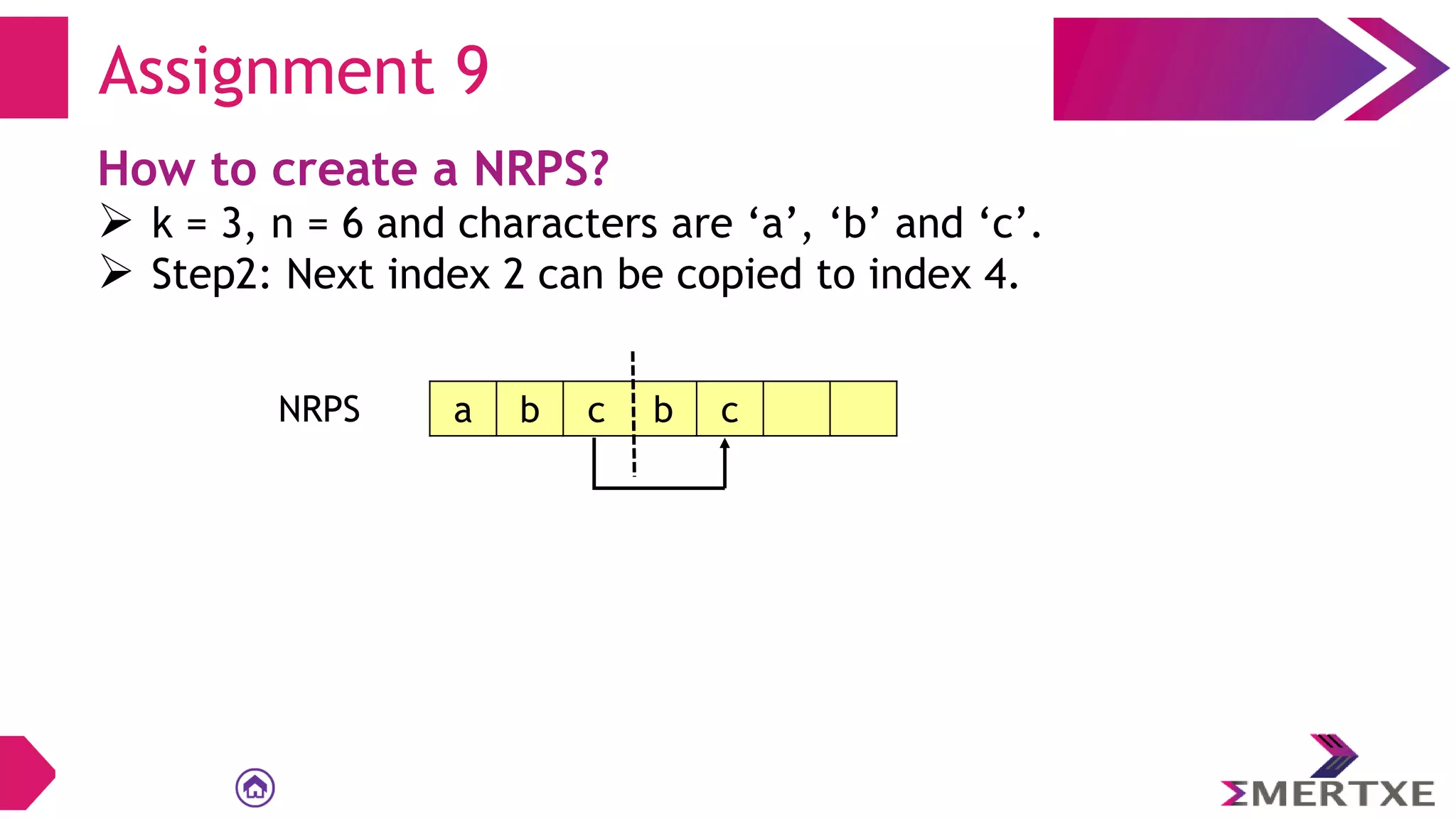

 Step2: Next index 2 can be copied to index 4.
a b c b c
NRPS

30. Assignment 9
How to create a NRPS?
 k = 3, n = 6 and characters are ‘a’, ‘b’ and ‘c’.

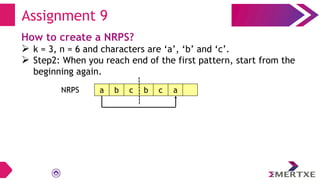

 Step2: When you reach end of the first pattern, start from the
beginning again.
a b c b c a
NRPS

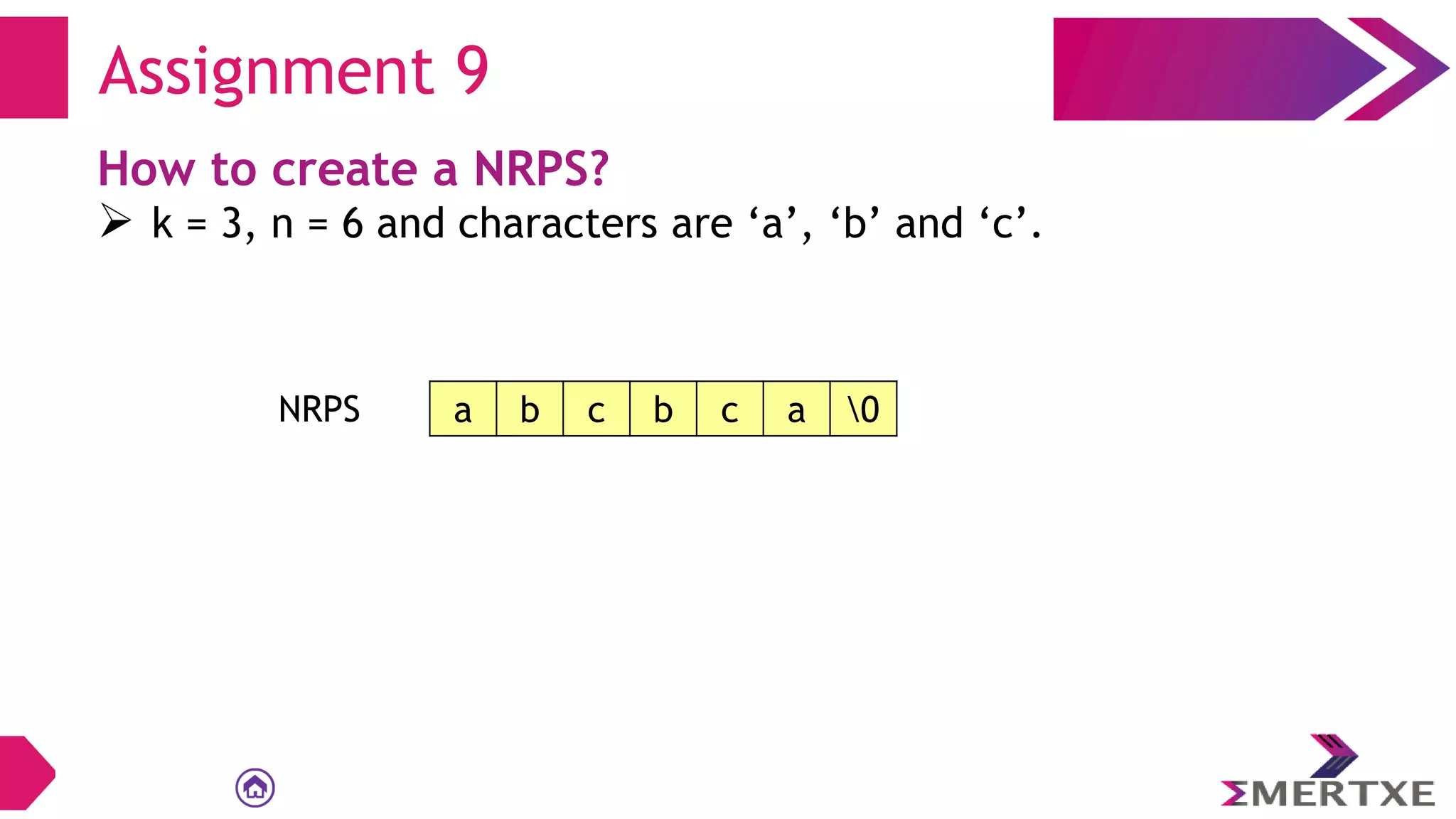

31. Assignment 9
How to create a NRPS?
 k = 3, n = 6 and characters are ‘a’, ‘b’ and ‘c’.
a b c b c a 0
NRPS

32. Assignment 9
How to create a NRPS?
 Read how many distinct characters(k) are required to create
NRPS from user. Assume ‘k’ = 3.
 Read 3 distinct characters from user i.e., ‘a’, ‘b’ and ‘c’.
 Read the length(n) of the string to be formed using ‘k’ distinct
characters. n = 9.

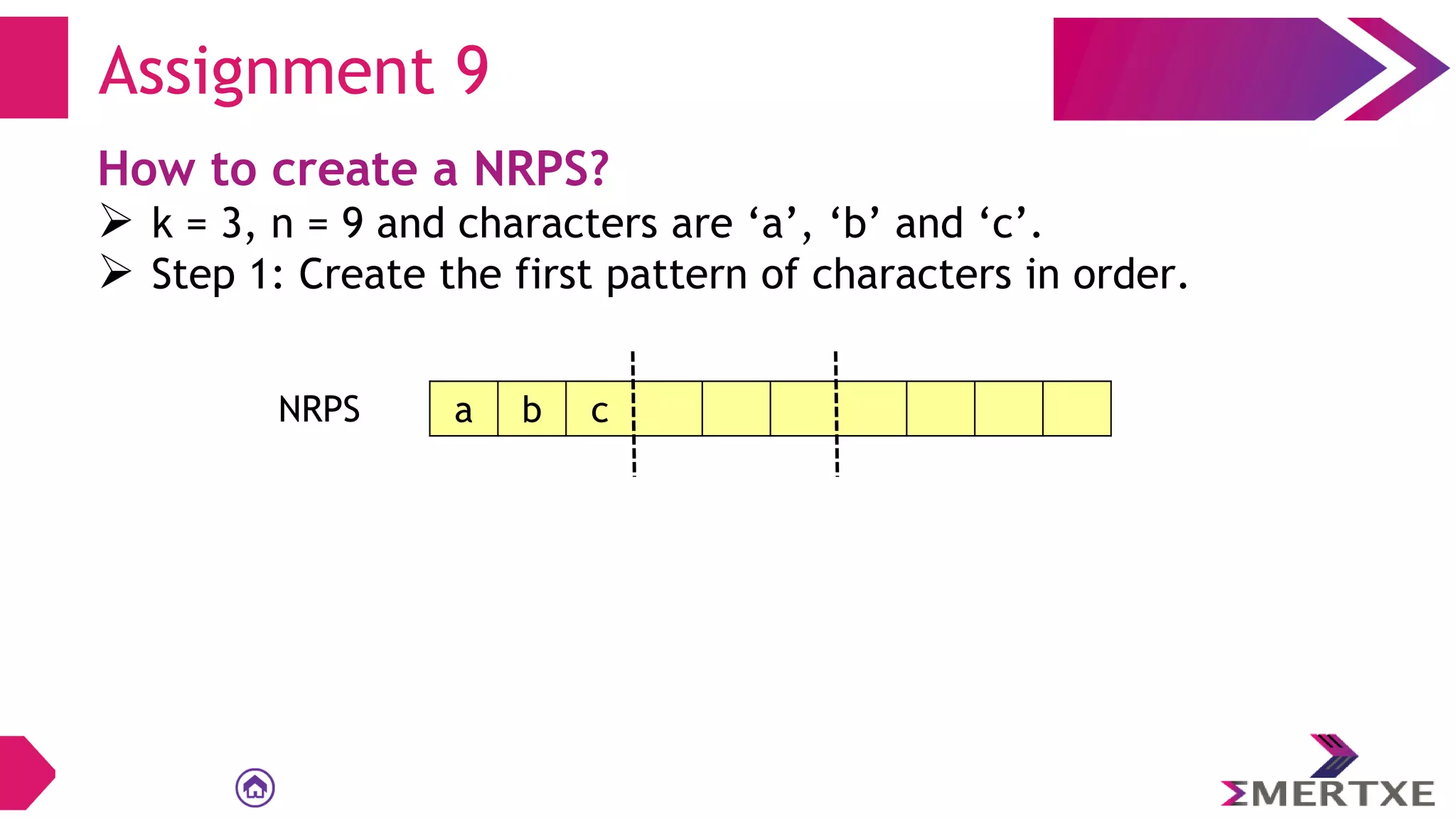

33. Assignment 9
How to create a NRPS?
 k = 3, n = 9 and characters are ‘a’, ‘b’ and ‘c’.
 Step 1: Create the first pattern of characters in order.
a b c
NRPS

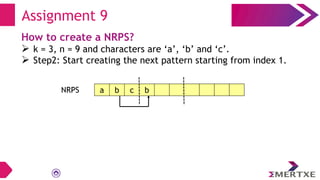

34. Assignment 9
How to create a NRPS?
 k = 3, n = 9 and characters are ‘a’, ‘b’ and ‘c’.
 Step2: Start creating the next pattern starting from index 1.
NRPS a b c b

35. Assignment 9

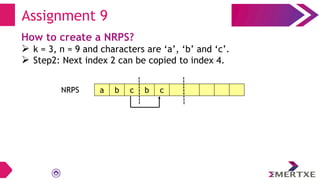

How to create a NRPS?
 k = 3, n = 9 and characters are ‘a’, ‘b’ and ‘c’.
 Step2: Next index 2 can be copied to index 4.
NRPS a b c b c

36. Assignment 9
How to create a NRPS?
 k = 3, n = 9 and characters are ‘a’, ‘b’ and ‘c’.
 Step2: When you reach end of the first pattern, start from the
beginning again.
NRPS a b c b c a

37. Assignment 9
How to create a NRPS?
 k = 3, n = 9 and characters are ‘a’, ‘b’ and ‘c’.
 Step1: Repeat the process to create next pattern till length ‘n’.
NRPS a b c b c a c

38. Assignment 9
How to create a NRPS?
 k = 3, n = 9 and characters are ‘a’, ‘b’ and ‘c’.

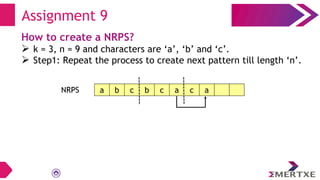

 Step1: Repeat the process to create next pattern till length ‘n’.
NRPS a b c b c a c a

39. Assignment 9
How to create a NRPS?
 k = 3, n = 9 and characters are ‘a’, ‘b’ and ‘c’.
 Step1: Repeat the process to create next pattern till length ‘n’.
NRPS a b c b c a c a b

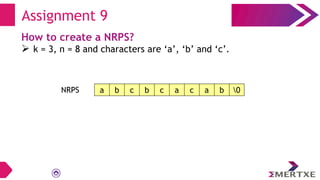

40. Assignment 9
How to create a NRPS?
 k = 3, n = 8 and characters are ‘a’, ‘b’ and ‘c’.
NRPS a b c b c a c a b 0

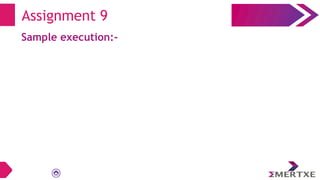

41. Assignment 9
Sample execution:-

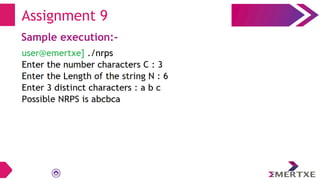

42. Assignment 9
Sample execution:-

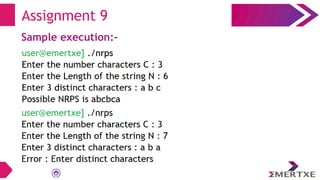

43. Assignment 9
Sample execution:-

44. Assignment 9
Pre-requisites:-

45. Assignment 9
Pre-requisites:-
⮚Strings

46. Assignment 9
Pre-requisites:-
⮚Strings
⮚Arrays

47. Assignment 9
Pre-requisites:-
⮚Strings
⮚Arrays
⮚Pointers

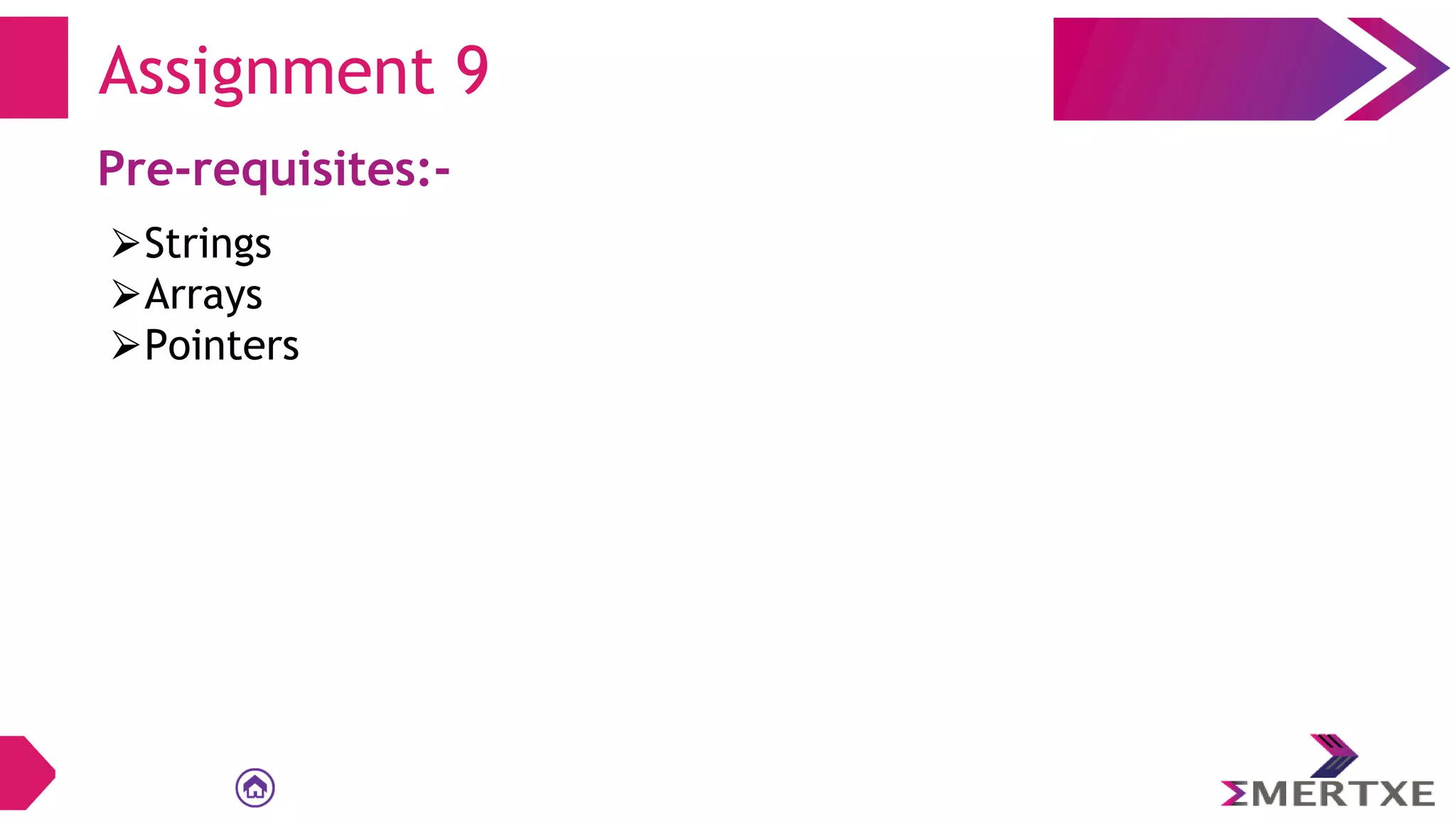

48. Assignment 9
Pre-requisites:-
⮚Strings
⮚Arrays
⮚Pointers
Objective:-

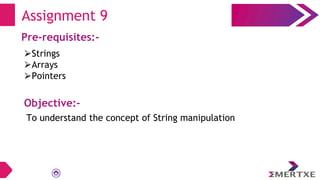

49. Assignment 9
Pre-requisites:-
⮚Strings
⮚Arrays
⮚Pointers
Objective:-
To understand the concept of String manipulation

50. Team Emertxe
Thank you
