ZYCKO ACCESSORIES & COMPONENTS ‘08

VOICE / VIDEO & PoE
Modern day realities such as globalization and worldwide competition are driving the need for quantum leaps in
productivity and efficiency that leverage operating expenses and maximize return on investment. These leaps in
productivity and efficiency need to be paired with top line growth that is fuelled by delivering differentiated and
innovative products and services that are sustainable over time. Business tactics that drive costs down such as
off-shoring, models that embrace more strategic partnering and organizations that reflect modern day working and
lifestyle realities such as remote working are adding distance to the workplace. Distance hinders people meeting
together easily and effectively to discuss, make decisions or agree action plans. Furthermore, business information
is now readily available in companies and a strategic competitive tool if used to make collaborative decisions
quickly at all levels within an organization.

The IP Telephony market will find great added value in having power available wherever there is a LAN connection.

By deploying centralized UPS, PoE Midspans provide a cost-effective way to distribute back-up power for a single
Ethernet terminal. This capability increases IP telephony service reliability by ensuring that IP phones keep working
in the event of power failures.

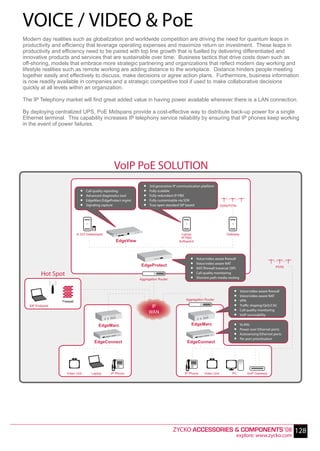

VoIP PoE SOLUTION
. .
. 3rd generation IP communication platform

.
.
Call quality reporting
Advanced diagnostics tool .
.
Fully scalable
Fully redundant IP-PBX

. EdgeMarc/EdgeProtect mgmt
Signaling capture . Fully customisable via SDK
True open standard SIP based ISDN/PSTN

H.323 Gatekeeper Lignup Gateway
IP PBX
EdgeView Softswitch

.
. Voice/video aware firewall
EdgeProtect .
.
Voice/video aware NAT
NAT/firewall traversal (SIP) PSTN

Hot Spot
Aggregation Router
. Call quality monitoring
Shortest path media routing

.
. Voice/video aware firewall

Aggregation Router .
.
Voice/video aware NAT
VPN

.
Firewall
SIP Endpoint IP Traffic shaping/QoS/CAC
WAN . Call quality monitoring
VoIP survivability

EdgeMarc EdgeMarc .
. VLANs

.
.
Power over Ethernet ports
Autosensing Ethernet ports
Per port prioritisation
EdgeConnect EdgeConnect

Video Unit Laptop IP Phone IP Phone Video Unit PC VoIP Gateway

ZYCKO ACCESSORIES & COMPONENTS ‘08 128

Video Conferencing
Polycom develops, manufactures and markets a full range of high-quality, easy-to-use and affordable voice and
video communication endpoints, video management software, web conferencing software, multi-network gateways
and multipoint conferencing and network access solutions.

Video Solutions
PVX TM

Industry-leading software application delivers Polycom's premium quality
audio, video, and content sharing to your PC and USB camera. Ideal for
offices, cubicles, classrooms, healthcare and government remote sites
Easy to set up and manage from your desktop
Outstanding video and audio using the latest technology
Easily share data with conference participants

Features and Benefits
Provides the highest quality video and audio experience in the industry
DVD-quality video resolutions
14 kHz audio
Only PC application delivering VGA resolution, secure communications, and People+Content™
Premium performance and advanced features complement larger room systems
iPriority™ features enable your PC to deliver video conferencing over IP networks

V700 TM

An integrated, high quality video conference solution ideal for executive
offices, Doctors' offices or education resource rooms
Ideal for the executive office or small meeting space - up to 4 people
Incredible video using the latest in video standards and technology
Superior audio performance with stereo microphones and speakers
Easily share data, videos and pictures with all conference participants
Stylish and compact video conferencing system that provides excellent
and audio quality

Maximizes desk space with a small footprint and a 17" LCD that doubles as a PC monitor
Can double as a PC display when not on a video call
Pro-Motion™ provides smooth natural motion and sharp, clear images for optimal viewing
Offers StereoSurround™ for optimal motion handling and video resolution


Video Solutions - Continued
VSX TM
3000
An integrated, high quality video conference solution ideal for executive
offices, Doctor's offices or education resource rooms
Ideal for the executive office or small meeting space - up to 4 people
Incredible video using the latest in video standards and technology
Superior audio performance with stereo microphones and speakers
Easily share data, videos and pictures with all conference participants
Stylish and compact video conferencing system that provides excellent
and audio quality

Maximizes desk space with a small footprint and a 17” LCD that doubles as a PC monitor
Can double as a PC display when not on a video call
Order as an IP system or a dual mode IP/ISDN system
Pro-Motion™ provides smooth natural motion and sharp, clear images for optimal viewing
Offers StereoSurround™ for optimal motion handling and video resolution

VSX TM
5000
Entry-level compact video conferencing solution for small meeting spaces
Excellent price performance
Premium video and audio performance, with essential functions
Easily share data with all conference participants

Connects to any TV or XGA display
Embedded Electronic PTZ camera easily includes 3-7 people in the
viewing window
Sits conveniently on top of TVs, plasma or LCD displays
Offers multiple ways of dialing conference attendees and delivering content
Integrate with the SoundStation VTX 1000® to launch video calls

VSX TM
7000e
Advanced video conferencing for medium and large rooms, with more
flexibility than ever before
Ideal for medium to large rooms of up to 40 people
Incredibly natural imaging using the latest in video technology and
standards
Easily share presentations, movie files, audio clips and pictures
Fits seamlessly with any meeting room, flat panel displays, plasmas
and LCD's

Ideal for rooms needing the camera and video system separated
Smooth, natural motion and sharp, clear images for optimal viewing
Excellent audio and call clarity with Siren™ 14 audio and StereoSurround™
Integrate the SoundStation VTX 1000® conference phone for dialing and microphone functionality


VSX TM
7000s
Versatile video conferencing for medium to large rooms and meeting
spaces
Ideal for medium to large rooms of up to 40 people
An all-in-one solution including embedded PTZ camera
Incredibly natural imaging using the latest in video technology and
standards
Embedded speaker and subwoofer for superior audio performance
Easily share presentations, movie files, audio clips and pictures

Easily sits on top of any TV or XGA display
Smooth, natural motion and sharp, clear images for optimal viewing
Excellent audio and call clarity with Siren™ 14 audio and StereoSurround™

VSX TM
8000
Flexible integrator's codec for custom-designed meeting rooms
Ideal for custom-tailored boardrooms, large integrated rooms and
auditoriums
Slim, sleek form for efficient rack-mount installation
Pro-Motion™ provides premium quality video at any bandwidth
StereoSurround™ delivers crisp clarity with dual channel, Siren™ 14
technology
Easily share documents, presentations, images and more during a
video conference

Professional quality audio and video brings the power of visual communications to any meeting room,
auditorium, training facility
Share data easily from a PC with the click of a button
Flexible connections – Supports multiple connections for input sources
Combine the VSX 8000with the VSX Executive Collection furniture solutions

HDX 4000 TM

Extending the benefits of Polycom® UltimateHD™ with premier
conferencing at the desktop
True Multimedia experience with a 20.1 inch HD screen and powerful
speakers
True high definition video at 1280x720 (720p) resolution
Realistic and natural conversations using Siren22 Stereo Surround Audio
Share CAD drawings, movies, images, spreadsheets – and more –
all in native resolution

UltimateHD experience with HD Video, Voice and Content
Large 20.1 inch screen for improved productivity and multimedia experience
VoIP or analog speakerphone capable
Privacy feature allows for connection of third party headset and microphone
Two models available, the HDX 4001 offers standard definition video resolution while the HDX 4002
offers the complete UltimateHD™ experience with HD video quality


HDX 8000 TM
Series
For organizations and enterprises who understand the value of high quality
video and audio communications, the Polycom HDX 8000™ Series offers
a video solution that will exceed expectations everyday
Delivers UltimateHD: HD voice, HD video and HD content for extreme
performance
Flexible design for multiple environments
Unique and industry-leading options for sharing data during a conference
Internal MCU supports up to 4 participants in a single conference

Advanced HD video technology, offers smooth, natural motion and sharp clear images for outstanding
video
Polycom StereoSurround™, using 22kHz audio, delivers crisp, natural voice clarity even when multiple
parties are speaking
Share content with remote sites in unique ways, including sharing PC data and information from other
video sources

HDX 9000 TM
Series
Power, performance and flexibility for highly integrated video conferencing
environments
True high definition video at 720p resolution with the ability to connect
multiple HD video sources
Hear voices and music clearly with 22 kHz audio in StereoSurround™
Share HD content easily in native resolution including images,
documents and multimedia
Optimize your meeting room with the HDX Executive Collection floor
stand or wall mount solutions

See and hear every detail with amazing clarity - UltimateHD
Experience optimal video at any bandwidth
Become part of your presentation with Polycom’s exclusive People On Content chroma key technology
Share CAD drawings, movies, images, spreadsheets – and more – all in native resolution
Join multiple participants in a single call easily and quickly


Video Accessories
HDX TM
accessories VSX TM
accessories
Microphone Array ClassStation™ VSX
360 degree coverage Offers students and teachers the tools
22 kHz of high fidelity audio and environment for success
HDX units are capable of supporting Completely automated
up to four microphone arrays Ease-to-use
Ships with a 15-foot cable Increases educational equity and
content access

HDX Ceiling Microphone Array
PowerCam Presenter™
Easy and flexible installation
Unobtrusive design Wireless tracking provides complete
360-degree voice pickup with three freedom of movement
microphone elements Use any video conferencing platform
StereoSurround support so voices are Easy-to-use Polycom remote
distinctly heard from opposites sides of the Long battery life
room Automatic zoom function

People + Content IP People + Content IP
Show content from laptop/PC over IP network Show content from laptop/PC over IP
connection network connection
No resolution input adjustments required on No resolution input adjustments required
presenter's laptop/PC on presenter's laptop/PC
Supports CIF, SIF, 4CIF, 4SIF, VGA, SVGA, Supports CIF, SIF, 4CIF, 4SIF, VGA,
XGA display resolutions SVGA, XGA display resolutions
Zoom control Zoom control
PC Utility available for unlimited download PC Utility available for unlimited
download

HDX Remote Control
Additional Advanced Remote Controls
Programmable for use with other devices and
individual Polycom HDX codecs Home button - quickly return to the home
Compatible with older Polycom video devices (Place a Call) page
Directory button - instant access to the
directory
Dot - easy entry "." for IP addresses
Stereo Speaker Kit Snap button - program to access
calendar, recent calls, call statistics,
Add the experience of Siren 22 Stereo to your system info or off
room Graphics Button - Easily stop and start
Easy to install, easy to set-up content graphics for People+
All HDX systems are stereo ready, no software Content™ collaboration
to install
22kHz audio in stereo, just like being there

Stereo Speaker Kit

For more information Add the experience of patent pending
Siren 14 stereo to your room
on the full range of accessories, please Easy to install, easy to set-up
contact your Zycko account manager on All VSX systems are stereo ready, no
software to install
14 kHz audio in stereo sounds just like
+44 (0)1285 868500 being there


Polycom Video Product Comparison HDX 9000 & 8000 Series - Continued

Form Factors HDX 9004 HDX 9002 HDX 8004 HDX 8002 HDX 4000
INTEGRATORS SPLIT SPLIT DESKTOP 20.1” WD SC

Video Resolution HD HD HD HD HD
Max Call Speed 4 Mbps 2 Mbps (4M option) 4 Mbps 2 Mbps (4M option) 2 Mbps (4M option)
Video Inputs 5 (all HD) 4 (3 HD) 4 (3 HD) 3 (2 HD) 3 (2 HD)
Video Outputs 4 3 3 (2 display, VCR 2 (1 display, VCR) 1
Audio Inputs 3 2 2 2 2
Audio Outputs 2 2 2 2 2
Rack Mountable Yes Yes No No No
RS-232 Ports 2 2 1 1 1
People + Content Included Included Option Option Option

Optional MP Capabilities

Max Throughput 4 or 8 Mbps 4 Mbps 4 Mbps 2 or 4 Mbps 2 or 4 Mbps
MP Max 4 or 8 way 4 way 4 way 4 way 4 way
HD CP Yes Yes No No No


Polycom Video Product Comparison - Continued
PVX V700 VSX 3000 VSX 5000 VSX 7000s VSX 7000e VSX 8000

Form Factors Software 17” LCD 17” LCD + Set Top Set Top Split Rack
application Base unit

Network
IP (H.323 & SIP) 2Mbps 768kbps 2Mbps 768 Kbps 2 Mbps 2 Mbps 2 Mbps
128K ISDN
512K ISDN
E1/T1 ISDN
V.35 Support
International POTS

Key Features
PTZ Camera
Voice Tracking
Single Monitor XGA Support
Dual Monitor Support
Microphone Array Support 1 3 3 3
RS-232 Ports 1 1 2 2
2nd Camera Support
VCR Playback
VCR Record

Leadership Options
SoundStation VTX 1000 ® Integration
VSX People+Content
People+Content™ IP
MPPlus 4-way
MPPlus 6-way

Signature Benefits
StereoSurround™
Siren™ 14 Audio
Pro-Motion™ H.263 *
Pro-Motion H.264
H.264 Video
Dual Monitor Emulation
iPriority™
AES Encryption

* Receive-only


Voice Handsets
Polycom brings unprecedented price and performance to voice conferencing and collaboration, making it an
affordable productivity tool for more employees and organizations.

Voice Solutions
POLYCOM SoundPoint IP 301
Entry-level two-line desktop IP phone that delivers remarkable value
Application targets: common areas, warehouse
2 lines
PoE support with optional cable
Monitor-only speakerphone
4 line x 20 character-based LCD
12 dedicated hard keys, 3 context-sensitive soft keys
SIP, MGCP

POLYCOM SoundPoint IP 330 / 320
Entry-level IP phones with enterprise-grade features and outstanding voice quality
Application targets:
- Cubicle, call center (SoundPoint IP 330)
- Common areas, dorm rooms, wall-mounted
deployments (SoundPoint IP 320)
2 lines
Integrated PoE support (IEEE 802.3af)
Full-duplex speakerphone with Acoustic Clarity Technology
102 x 33 pixel graphical LCD
Two-port 10/100 Ethernet switch (SoundPoint IP 330)
Single 10/100 Ethernet port (SoundPoint IP 320)
SIP

Full-duplex speakerphone, built-in PoE, and a graphical LCD
Application target: cubicle
2 lines
Full-duplex speakerphone with Acoustic Clarity
Technology
132 x 46 pixel graphical LCD
SIP

Three-line desktop IP phone that delivers exceptional voice quality
Application targets: office, SOHO, hotel room
3 lines
PoE support with optional cable
Full-duplex speakerphone with Acoustic Clarity
Technology
160 x 80 pixel grayscale graphical LCD
SIP, MGCP


Voice Solutions - Continued
Cutting-edge SIP feature set meets Polycom HD Voice
Application targets: manager's / professional's office
4 lines
Polycom HD Voice for all audio paths
320 x 160 pixel backlit grayscale graphical LCD
SIP

Six-lines, advanced functionality, and Expansion Module support
Application targets: manager’s office, telephone
attendant's desk
6 lines (standalone) / 12 lines (with Expansion Module)
Integrated PoE support (IEEE 802.3af and Cisco Inline Power)
Full-duplex speakerphone with Acoustic Clarity Technology
Support of up to three Expansion Modules (SIP only)
SIP, MGCP

High-performance IP phone with Polycom HD Voice™
Application targets: executive office
6 lines (standalone) / 12 lines (with Expansion Module)
Polycom HD Voice for all audio paths
320 x 160 pixel backlit grayscale graphical LCD
Support of up to three Expansion Modules
USB port for future applications
SIP

POLYCOM SoundStation IP Expansion Module
Application target: telephone attendant's desk
14 illuminated keys configurable as a line key, or a speed dial with BLF
Plug-and-play, hot-swappable
Cord-free, no AC adapter required – power and signaling are provided
by the host phone

POLYCOM SoundStation IP 4000
The clear IP conferencing solution
Full-duplex conference phone featuring Acoustic
Clarity Technology
10-ft. microphone coverage expandable to 20-ft.x
30-ft. with optional extension microphones
PoE support with optional PoE Interface Module
248 x 68 pixel backlit graphical LCD
SIP


© 2006 Polycom, Inc. All rights reserved. Polycom, the Polycom logo, SoundStation, and SoundPoint are registered trademarks of Polycom, Inc. in the U.S. and various countries.

Stu
Studio quality sound. Now available at your desk.
Intro
Introducing the SoundPoint IP 560 desktop phone with GigE, a four-line SIP
pho
phone that delivers calls of unprecedented richness and clarity and supports
co
a comprehensive range of cutting-edge features to futureproof your
inve
investment in network infrastructure.

It’s b
brought to you by the same people who make the market
lead
leading SoundStation® conference phones.

Hear the difference at:
www.polycom.com/ad/advoice

Explore more at: www.zycko.com

VIDEO VOICE DATA WEB TOGETHER, GREAT THINGS HAPPEN

Polycom VoIP Product Comparison
FEATURE / MODEL ENTRY-LEVEL MAINSTREAM

SoundPoint IP 301 SoundPoint IP 330 and 320 SoundPoint IP 430 SoundPoint IP 501

Positioning
Application Targets Common areas, IP 330 - Cubicle, call center Cubicle, call center Office
wall-mounted deployments, IP 320 - Common areas,
warehouse wall-mounted deployments
LCD Display 4 line x 20 character 102 x 33 pixel 132 x 46 pixel 160 x 80 pixel
monochrome graphical graphical graphical
Unicode Characters Support European character set European character set European character set
Expansion Module Support
Audio Features
Polycom HD Voice Technology
Full-Duplex Speakerphone with ■ ■ ■
Acoustic Clarity Technology
Telephony Keys
Lines (Directory Numbers) 2 2 2 3
Line/Speed Dial Keys 2 2 2 3
Mute, Headset, and Hands Free Keys Mute and headset ■ ■ ■
Context-Sensitive Soft Keys 3 3 4 4
Display/Menu Navigation Keys 2 5 5 6
Message Waiting Indicator ■ ■ ■ ■
Advanced Features 2
Busy Lamp Field (BLF) Functionality ■ ■ ■ ■
Shared Call / Bridged Line Appearance ■ ■ ■ ■
Flexible Line Appearance ■ ■ ■ ■
Multiple Call Appearances ■ ■ ■ ■
XHTML Micro-Browser ■ ■1 ■1
Microsoft LCS 2005 Interoperability for ■ ■ ■ ■
Telephony and Presence 3
Connectivity
USB Port
Two-port 10/100 Mbps Ethernet Switch ■ IP 330 – yes ■ ■
IP 320 – single Ethernet port
Power Options
AC Power ■ ■ 7 ■ ■
Power Over Ethernet (Cisco) ■5 ■5
Power Over Ethernet (IEEE 802.3af) ■5 ■ ■ ■5
Protocol Support
IETF MGCP V1.0 With NCS ■8 ■8
SIP (RFC 3261) ■ ■ ■ ■


Polycom VoIP Product Comparison - Continued
PERFORMANCE ATTENDANT CONFERENCE

SoundPoint IP 550 SoundPoint IP 601 SoundPoint IP 650 SoundPoint IP Expansion Module SoundStation IP 4000

Manager’s / professional’s Manager’s office / Executive office / Attendant’s desk – Small to medium-sized
of fice Attendant’s desk – with Attendant’s desk – with with SoundPoint IP 601 conference room
Expansion Modules Expansion Modules or 650
320 x 160 pixel 320 x 160 pixel 320 x 160 pixel 160 x 320 pixel 248 x 68 pixel
backlit graphical grayscale graphical grayscale backlit graphical grayscale graphical grayscale backlit graphical
■ ■ ■ ■ ■
Up to 3 Expansion Modules Up to 3 Expansion Modules

■ ■
■ ■ ■ ■

4 6 (12 with Exp. Module) 6 (12 with Exp. Module) 1
4 6 (48 with 3 Exp. Modules) 6 (48 with 3 Exp. Modules) 14
■ ■ ■ Mute and hands free
4 4 4 3
6 6 6 3
■ ■ ■

■ ■ ■ Through the host phone ■
■ ■ ■ Through the host phone
■1 ■ ■ Through the host phone ■1

■
■ ■ ■ Single Ethernet port

■
■ ■ ■ Through the host phone ■6

■8


VoIP Infrastructure Products
The EdgeMarc suite of Converged Networking Appliances offer small to large enterprises reduced operational
and capital expenses of up to 90% while improving call quality, security, and simplifying the user experience.
They are an all-in-one solution that contain all of the features needed to deliver business class VoIP services.

All EdgeMarc products are Plug & Dial ready, allowing service providers and enterprises to install hosted VoIP
service in minutes, not hours.

EdgeMarc Product Family
200 Series
The EdgeMarc 200 is a flexible, application ready, low-cost ADSL or Ethernet
router. The 200 Seires can be expanded to other applications such as hosted
VoIP, SIP trunking and enterprise video over IP. It is the ideal platform for
service providers offering home office SIP trunking services, hosted VoIP and
other managed small office/home office products and services.

4500 Series
The EdgeMarc 4500 Series combines multiple voice and data features into a
single, easy to use converged networking router. It includes models that have
up to 4 T1 WAN interfaces or a single ethernet WAN, a 4 port managed VLAN
switch, optional 802.11 Wireless Access Point and optional integrated analog
phone and line ports. Designed for SOHO and small to medium enterprise
deployment the 4500 Series contains models that support 2, 5, 10 or 30
concurrent WAN VoIP calls.

5300 Series
Ideal for medium to large enterprise locations the 5300 Converged Network
Appliance includes 2 x 10/100/1000 Ethernet interfaces, a 1 x 10/100 Mbps
Ethernet out of band management interface and support for up to 300
concurrent WAN VoIP calls.

6400 Series
Designed for demanding environments the 6400 Converged Network
Appliance offers 2 x 10/100/1000 Mbps Ethernet interfaces and dual
redundant, hot swap AC or DC power supplies.

SME Large Enterprise SOHO
Group
IP Phone Computers IP Phone IP Phone
Systems

EdgeConnect 800 PoE
LAN LAN

EdgeMarc 200E
EdgeMarc
Personal EdgeMarc 5300
IP PBX Computers Computers
Systems

WAN / Internet

EdgeProtect

EdgeView

Soft Switch


EdgeMarc Product Family Specifications
SOHO & Small to Medium Business

4500 4500T4 4508T4 4508T4W 4562T4W 4508E
1 x 10/100 1 x 10/100 1 x 10/100 1 x 10/100 1 x 10/100 1 x 10/100
WAN Ports Mbps Ethernet Mbps Ethernet Mbps Ethernet Mbps Ethernet Mbps Ethernet Mbps Ethernet
4 x 10/100 4 x 10/100 4 x 10/100 4 x 10/100 4 x 10/100 4 x 10/100
LAN Ports Mbps Ethernet Mbps Ethernet Mbps Ethernet Mbps Ethernet Mbps Ethernet Mbps Ethernet
AUX Ports 1 Male DB9 1 Male DB9 1 Male DB9 1 Male DB9 1 Male DB9 1 Male DB9
Dimensions 1.7”/10”/7” 1.7”/10”/7” 1.7”/10”/7” 1.7”/10”/7” 1.7”/10”/7” 1.7”/10”/7”
Weight 2 lbs. 2 lbs. 2 lbs. 2 lbs. 2 lbs. 2 lbs.
Power 12.0V, 3.0A 12.0V, 3.0A 12.0V, 3.0A 12.0V, 3.0A 12.0V, 3.0A 12.0V, 3.0A
Operating Operating Operating Operating Operating Operating
Temperature: Temperature: Temperature: Temperature: Temperature: Temperature:
5°C - 40°C 5°C - 40°C 5°C - 40°C 5°C - 40°C 5°C - 40°C 5°C - 40°C
ambient ambient ambient ambient ambient ambient
Environmental
Humidity: Humidity: Humidity: Humidity: Humidity: Humidity:
20%-80% non- 20%-80% non- 20%-80% non- 20%-80% non- 20%-80% non- 20%-80% non-
condensing condensing condensing condensing condensing condensing
UL, CE, FCC UL, CE, FCC UL, CE, FCC UL, CE, FCC UL, CE, FCC UL, CE, FCC
Regulatory Part 68, FCC Part 68, FCC Part 68, FCC Part 68, FCC Part 68, FCC Part 68, FCC
Part 15, Industry Part 15, Industry Part 15, Industry Part 15, Industry Part 15, Industry Part 15, Industry
Canada, CB Canada, CB Canada, CB Canada, CB Canada, CB Canada, CB
T1 Ports - up to 4 up to 4 up to 4 up to 4 -
FXS Ports - - 6 6 2 8
FXO Ports - - 2 2 6 -
WiFi Ports - - - 802.11 a/b/g 802.11 a/b/g -
USB Ports 2 2 2 2 2 2
VLANs 16 16 16 16 16 16

Medium to Large Business

5300 6400
WAN Ports 1x10/100 Mbps Ethernet 1x10/100 Mbps Ethernet
LAN Ports 1x10/100 Mbps Ethernet 1x10/100 Mbps Ethernet
AUX Ports 1x10/100 Mbps Ethernet 1x10/100 Mbps Ethernet
Serial Ports 1xRS-232 (DB9) 1xRS-232 (DB9)
Dimensions 1.68”/16.88”/14” 3.75”/17.5”/26.5”
Weight 13 lbs 50 lbs
100/240v VAC, auto-selecting 50 to 60 Hz Dual redundant 100/240v VAC, auto-selecting,
Power 47 to 63 Hz Regulatory
Operating Temperature: Operating Temperature:
0°C - 45°C ambient 5°C - 40°C ambient
Environmental
Humidity: Humidity:
20%-80% non-condensing 95% non-condensing
FCC part 15 ClassA, VCCI Class A, MIC, C-tick, Safety:
Regulatory ICES-003, CE, RoHS UL 60950, CSA 60950, IEC 950, TUV/GS
EN60950

Emissions:
FCC Class A, CISPR 22 Class A, EN 55022
Class A, VCCI Class A ITE
VLANs 16 16


EdgeProtect Product Family Specifications
5300
WAN Ports - 1x10/100 Mbps Ethernet
LAN Ports - 1x10/100 Mbps Ethernet
Aux Ports - 1x10/100 Mbps Ethernet
Serial Ports - 1xRS-232 (DB9)
Dimensions - 1.68” (H) x 16.88” (W) x 14” (D)
Weight - 13 lbs
Power - 100/240v VAC, auto-selecting, 50 to 60 Hz
Regulatory - FCC part 15, VCCI Class A, MIC, C-tick, ICES-003, RoHS

6400
Dimensions - 3.75” (H) x 17.5” (W) x 26.5” (D)
Weight - 45 lbs
Power - Dual, redundant 100/240v VAC, auto-selecting, 47 to 63 Hz Regulatory
Regulatory - Safety: RoHS, UL 60950, CSA 60950, IEC 950, TUV/GS EN60950
Emissions: FCC Class A, CISPR 22 Class A, EN 55022 Class A,
VCCI

EdgeConnect
The EdgeConnect 2402PoE (Power over Ethernet) is a flexible, easy-to-use, managed Power over Ethernet
switch ideal for converged voice, video and data applications.

The EdgeConnect 800PoE incorporates all of the features needed for today’s converged networking environment
including prioritization using 802.1Q VLANs, 8 x 10/100 Mbps auto-sensing Ethernet ports, 2 x 10/100/1000 Mbps
uplink, up to 256 active VLANs, and up to 5.6 Gbps aggregated throughput with full wire speed forwarding.

Key Features
Automated setup when used in conjunction with EdgeMarc and EdgeView
8 or 24 x 10/100 Mbps Autosensing Ethernet ports
2 x 10/100/1000 Mbps Autosensing, Ethernet uplinks or high speed server ports with RJ-45 or
SFP Fiber connectors
In-line Ethernet power (802.3af) with automatic power device detection
In-line power for many legacy (non-802.3af) IP handsets
Per port optional power sourcing
Full wire-speed forwarding
L2/L3/L4 traffic management
802.1Q VLAN support
802.1p based Quality of Service (QoS) with priority queuing
Link aggregation (802.3ad)
Complies with IEEE802.3, IEEE802.3u, IEEE802.3x and IEEE802.3af
Broadcast storm control
Management: integration with EdgeView NMS and support for SNMP, RMON, http, Telnet and
DHCP


EdgeConnect - Continued
Key Benefits
Scalable, easy setup and configuration
Seamless integration with EdgeMarc and EdgeView VoIP Support Systems
Support for high bandwidth applications
Save costs and time with in-line power
Per port prioritization to ensure highest service quality for IP applications
Manage traffic and troubleshoot at link, transport and application layer
Improves customer support and reduces on-site calls
Greater reliability with external UPS capability
Advanced monitoring capabilities, real-time troubleshooting

2402PoE Switch
The EdgeConnect 2402PoE incorporates all of the features needed for today’s converged networking
environment including prioritization using 802.1Q VLANs, 24 x 10/100 Mbps auto-sensing Ethernet ports,
2 x 10/100/1000 Mbps uplink or high speed server ports, and up to 8.8 Gbps aggregated throughput with full wire
speed forwarding.

LAN Ports - 24 x 10/100 Mbps Ethernet, auto-negotiating, full or half duplex, backpressure flow control at half-
duplex, IEEE802.3x flow control at full-duplex, RJ45
Aux Ports - 2 x 10/100/1000 Mbps Ethernet Combo Ports - auto-negotiating, full duplex IEEE802.3x, flow control
at full-duplex , RJ45 or SFP
Tagged VLAN - up to 256 IEEE 802.1Q based VLANs
8.8 Gbps aggregated throughput with full wire speed forwarding
Dimensions - Height (1.69”), W (17.32”), D (16.14")
Weight - 12.7 lbs.
Power - Supports IEEE 802.3af with maximum of 15.4W per port and a total of 375W for the switch
Regulatory - CE Mark, FCC Class A, VCCI Class A, CISPR Class A, TUV/GS(EN60950), CB, CSA/NRTL
(CSA 22.2.No 60950)

800PoE Switch
The EdgeConnect 800PoE incorporates all of the features needed for today’s converged networking environment
including prioritization using 802.1Q VLANs, 8 x 10/100 Mbps auto-sensing Ethernet ports, 2 x 10/100/1000 Mbps
uplink, up to 256 active VLANs, and up to 5.6 Gbps aggregated throughput with full wire speed forwarding.

LAN Ports - 8 x 10/100 Mbps Ethernet, auto-negotiating, full or half duplex, backpressure flow control at half-
duplex, IEEE802.3x flow control at full-duplex, RJ45
Aux Ports - 2 x 10/100/1000 Mbps Ethernet Combo Ports - auto-negotiating, full duplex IEEE802.3x, flow control
at full-duplex , RJ45 or SFP
Tagged VLAN - up to 256 IEEE 802.1Q based VLANs
5.6 Gbps aggregated throughput with full wire speed forwarding
Dimensions - Height (1.75”), W (11”), D (6.69")
Weight - 2.2 lbs.
Power - Supports IEEE 802.3af with maximum of 15.4W per port and a total of 375W for the switch
Regulatory - CE Class A, CE Mark, FCC Part 15 Class A, UL, cUL, CB

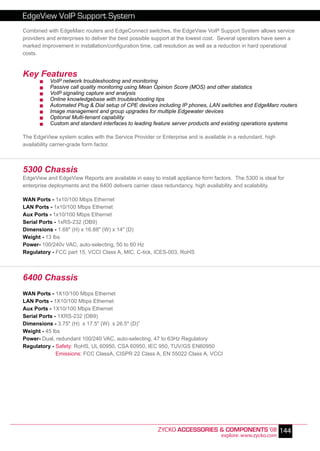

EdgeView VoIP Support System
Combined with EdgeMarc routers and EdgeConnect switches, the EdgeView VoIP Support System allows service
providers and enterprises to deliver the best possible support at the lowest cost. Several operators have seen a
marked improvement in installation/configuration time, call resolution as well as a reduction in hard operational
costs.

Key Features
VoIP network troubleshooting and monitoring
Passive call quality monitoring using Mean Opinion Score (MOS) and other statistics
VoIP signaling capture and analysis
Online knowledgebase with troubleshooting tips
Automated Plug & Dial setup of CPE devices including IP phones, LAN switches and EdgeMarc routers
Image management and group upgrades for multiple Edgewater devices
Optional Multi-tenant capability
Custom and standard interfaces to leading feature server products and existing operations systems

The EdgeView system scales with the Service Provider or Enterprise and is available in a redundant, high
availability carrier-grade form factor.

5300 Chassis
EdgeView and EdgeView Reports are available in easy to install appliance form factors. The 5300 is ideal for
enterprise deployments and the 6400 delivers carrier class redundancy, high availability and scalability.

Dimensions - 1.68" (H) x 16.88" (W) x 14" (D)
Weight - 13 lbs
Power- 100/240v VAC, auto-selecting, 50 to 60 Hz
Regulatory - FCC part 15, VCCI Class A, MIC, C-tick, ICES-003, RoHS

6400 Chassis
WAN Ports - 1X10/100 Mbps Ethernet
LAN Ports - 1X10/100 Mbps Ethernet
Aux Ports - 1X10/100 Mbps Ethernet
Serial Ports - 1XRS-232 (DB9)
Dimensions - 3.75" (H) x 17.5" (W) x 26.5" (D)”
Weight - 45 lbs
Power- Dual, redundant 100/240 VAC, auto-selecting, 47 to 63Hz Regulatory
Regulatory - Safety: RoHS, UL 60950, CSA 60950, IEC 950, TUV/GS EN60950
Emissions: FCC ClassA, CISPR 22 Class A, EN 55022 Class A, VCCI


Power over Ethernet products
Power over Ethernet (PoE) integrates power and data onto one single cabling infrastructure, eliminating the need
to have AC power available at all locations. Power and Data is integrated onto the same cable, supporting category
5/5e up to 100 Meters. During power failures, PoE ensures continuous operation of remotely connected devices,
such as IP telephones, wireless LAN access points and IP security cameras, when used in conjunction with a
centralized uninterrupted power supply (UPS). PoE is already widely adopted in the market, saving up to 50% of
overall installation costs by eliminating the need to install separate electrical wiring and power outlets.

IEEE 802.3af is the global standard for remotely powering Ethernet devices over LAN infrastructure. The standard
defines the specifications of delivering power over standard Ethernet cables, and stipulates the way to design
Ethernet power sourcing equipment and
powered terminals. The standard involves
delivering power over existing cable Ethernet Switch
infrastructure, including Category 5, 5e, patch
cables, patch-panels,and connecting hardware. PowerDsine TM

A PoE system comprises a PSE (Power Power over Ethernet
Midspan
Sourcing Equipment) and a PD (Powered UPS
Device). The PSE may either be an Endspan
(i.e. a Layer 2 Ethernet Switch) or a mid-span,
while the PD is a PoEenabled terminal (such
as an IP phone, Wireless LAN access point, Active Splitter
etc.). Power may be delivered over either data Ethernet Cable
pairs (1/2 as "ñ" and 3/6 as "+") or spare pairs Power & Data
Data only
(4/5 as "+" and 7/8 as "ñ") of standard CAT-5 Network Wireless LAN IP Phone
Power only
Camera Access Point
cabling. IEEE 802.3af power sourcing
equipment contains a detection mechanism to
prevent powering of non-compliant devices. Only terminals that present an authenticated Power over Ethernet
signature based on the 802.3af standard will receive power, preventing damage to other equipment.

3000 Series Entry Level 802.3af compliant non-managed Midspans
1-Port cost effective PoE device, AC Input PD-3001/AC
6-Port cost effective PoE Hub, AC Input PD-3006/AC
12-Port cost effective PoE Hub, AC Input PD-3012/AC
PoE kit includes PD-3001/AC and PD-AS-401/12 PD-KIT-3001-12V
19" Mounting brackets for 3000 midspans PD-3000/MBK

6500 Series Midspans with SNMP v3
6-Port PoE Midspan PD-6506/AC/M
24-Port PoE Midspan 200w total power PD-6524/AC/M
24-Port PoE Midspan 400w total power PD-6524/AC/M/F

8000 Series High-Power Midspans
6-Port High Power Midspan, AC Input PD-8001/AC


PoE Splitters
Many different vendors or nertwork devices provision PoE in different ways, Powerdsine’s range
of active and passive splitters ensures that Powerdsine midspans will work with any vendors IP
phones, wireless access points and IP cameras.

Active splitters
5V output, DC jack round 5.5x2.1mm PD-AS-401/5
5V output, DC jack rect 4-pin PD-AS-401/5-4PIN
5V output, DC jack round 3.4x1.35mm PD-AS-401/5-3413
5V output, DC jack round 4.0x1.7mm PD-AS-401/5-COLUB
802.3af, 5V output, DC jack round 3.4x1.35mm PD-AS-601/5
5V output, DC jack round 5.5x2.5mm or 5.5x3.3x1mm PD-AS-401/12-55331
Cisco/802.3af, 18V output, DC jack round 5.5x2.1mm PD-AS-601/18-5521
Cisco/802.3af, 18V output, DC jack round 5.5x2.5mm PD-AS-601/18-5525
Cisco/802.3af, 48V output, DC jack round 5.5x2.5mm PDPS800
High PoE, 12V output, DC jack round 5.5x2.5mm or PD-AS-801/12-55331
5.5x3.3x1mm

Passive splitters
Passive splitter for Cisco terminals PD-PS-401/CISCO
Passive splitter for Nortel phones powered from a midspan PD-PS-401/RA-NTRL
Passive splitter for Enterasys terminals PD-PS-401/ENTR
Passive splitter for Nortel phones powered from a switch PD-PS-402/RA-NTRL

Others
PoE Tester that tests PoE presence on the Ethernet port PD-TESTER
19" Mounting brackets for 3006/12 PoE Midspans PD-3000/MBK

Why should I use PoE in my installation?
Massive savings on not having to cost in AC power points for telephones, AC power points can
cost as much as £250 each

No need to factor electrical contractors into installation meaning savings on cost and time

In most instances the cost of a midspan is less than the cost difference between a non PoE
switch and PoE Enabled switch

As the Midspan is invisible to the switch the installation can be done on a port by port basis
meaning that you don’t have to down the network to perform the upgrade

The Midspan allows an easily deliverable UPS protected power to your IP telephones

Midspans allow an easy way round regulations for AC power in public places such as shops,
leisure centres and airports

Bottom line.....
Using midspans in your installation will make your life easier, your installation quicker, your customer
more confident and help you to invoice sooner. All of this is in addition to the amazing margin
opportunities presented by the midspan.


MEMORY&STORAGE
SOLUTIONS www.simpletech.com

SimpleTech, Inc. is a worldwide provider of consumer technology products that empower
individuals and organizations to effectively capture, move, optimize, store and share digital
information. As an industry leader, SimpleTech enhances the digital lifestyle with a complete
line of flash memory cards and card readers, flash drives, memory upgrades, and hard drives.

Explore more at: www.zycko.com

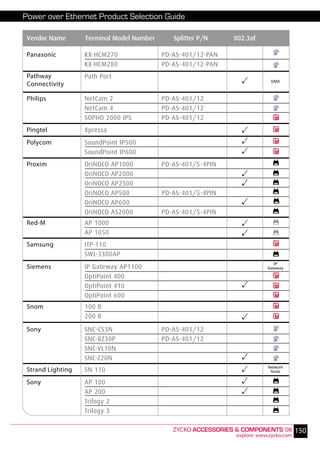

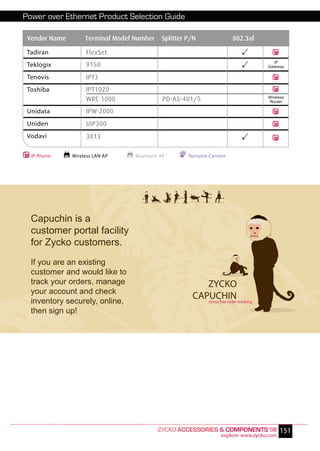

Power over Ethernet Product Selection Guide

Vendor Name Terminal Model Number Splitter P/N 802.3af

3Com AP 6000
AP 8000
NBX1102 PS-3Com
NBX 2102
NBX 3102
NJ100 /NJ200 Hub

Agere AP 2000
AP-3AE
Airespace AP 1200
Alcatel 4035
4038
4068
4037F
4098FRE
Altigen HP300 PD-AS-401/5
Artem ComPoint PD-AS-401/5
Artistic Licence HP300 DMX

Ascom ComPoint

Avaya 4606
4612
4620
4624
4630
AP-1 PD-AS-401/5
AP-2 PD-AS-401/5
AP-3
AP-4
AP-5
Axis 2100 PD-AS-401/12
2110 PD-AS-401/12
2130 PD-AS-401/12-PAN
2400 PD-AS-401/12 Video Server

2401 PD-AS-401/12 Video Server

IP Phone Wireless LAN AP Bluetooth AP Network Camera




Axis 2420 PD-AS-401/12
9010 PD-AS-401/12
Location
BlueSoft BWH1000 Reciever

Bosch NetCam2 PD-AS-401/12
NetCam4 PD-AS-401/12
Canon VB-C10R PD-AS-401/12-PAN
Chantry BP100S
Cisco 7910 PD-PS-401/Cisco
7970
7905G
7912G
7940G PD-PS-401/Cisco
7960G PD-PS-401/Cisco
Aironet 1100
Aironet 1200 PD-PS-401/Cisco
Aironet 350 PD-PS-401/Cisco
Colubris CN1050 PD-AS-401/5-COLUB
CN3000 PD-AS-401/5-COLUB
DeTeWe IP-RBS IP Gateway

OpenPhone 63 IP
Winipphone 120
Protocol
Digi Int'l Digi one 1A Adapter
Wireless
D-Link DI-624 PD-AS-401/5 Router

DWL-1000AP PD-AS-401/5
DWL-800AP PD-AS-401/5
DWL900AP PD-AS-401/5
Enterasys RoamAbout PD-PS-401/ENTR
RoamAbout R-2 PD-PS-401/ENTR
Ericsson Dialog 4425
Dialog 3413 PD-AS-401/12
MPEG2
Exterity isocket AV server Encoder

Foundry IronPoint 200





Fujistu 24
Info
FullPlay LVS1000 Kiosk

Wireless
Gemtek WOR-3000 Router

HP WL420
WL520 PD-AS-401/5
Innovaphone IP200
Intel Pro/Wireless 5000
Intermec 2101 PD-AS-401/5-3413
2102 PD-AS-401/5-3413
WA 21
Interpoch IWE1100
ipDialog SipTone
Lancom L-54
Access
MECS JobPort 2.0 Control
Access
TimePort 2.0 Control

Mitel 5001
5005
5010
5020
5140
5201
5207
5215
5220
5230
5240
IPERA
NEC Dterm 75
NETGEAR WG302
Nokia A036
Nortel i2002 PD-PS-401/RA-NRTL
i2004 PD-PS-401/RA-NRTL





Panasonic KX-HCM270 PD-AS-401/12-PAN
KX-HCM280 PD-AS-401/12-PAN
Pathway Path Port
DMX
Connectivity

Philips NetCam 2 PD-AS-401/12
NetCam 4 PD-AS-401/12
SOPHO 2000 IPS PD-AS-401/12
Pingtel Xpressa
Polycom SoundPoint IP500
SoundPoint IP600
Proxim OriNOCO AP1000 PD-AS-401/5-4PIN
OriNOCO AP2000
OriNOCO AP2500
OriNOCO AP500 PD-AS-401/5-4PIN
OriNOCO AP600
OriNOCO AS2000 PD-AS-401/5-4PIN
Red-M AP 1000
AP 1050
Samsung ITP-110
SWL-3300AP
IP
Siemens IP Gateway AP1100 Gateway

OptiPoint 400
OptiPoint 410
OptiPoint 600
Snom 100 B
200 B
Sony SNC-CS3N PD-AS-401/12
SNC-RZ30P PD-AS-401/12
SNC-VL10N
SNC-Z20N
Network
Strand Lighting SN 110 Node

Sony AP 100
AP 200
Trilogy 2
Trilogy 3




Tadiran FlexSet
IP
Teklogix 9150 Gateway

Tenovis IPT3
Toshiba IPT1020
Wireless
WRC 1000 PD-AS-401/5 Router

Unidata IPW-2000
Uniden UIP300
Vodavi 3813

IP Phone Wireless LAN AP
N Bluetooth AP Network Camera
