Break Through Live Video
                                                  Streaming Limitations!
WORLDWIDE DISTRIBUTION
•Akamai HD Network
•CDNetworks
•Limelight
•Level3
•UStream
•Livestream
•Other Premium CDN’s




LIVE STREAMING SERVERS
•Adobe® Flash® Media Server 3.5
•Wowza Media Server Pro
•HTTP Web Servers                   Live HD video encoding and                            Stream 720p 30 at only 1.8 Mbps or
                                    streaming software without                            1080p 30 at only 4 Mbps
                                    breaking your distribution budget.
                                                                                          Broadcast quality H.264 video with
PLAYER PLATFORM
•Windows                            Proprietary encoding technology                       AAC stereo audio
•Mac                                ensures the highest quality H.264
•Linux                              streams                                               Accepts HD-SDI, SDI, analog or DV
•iPhone™/iPad™
•Android                                                                                  inputs and delivers up to 4 primary
•BlackBerry                         Replace costly satellite uplinks with                 streams and 4 backup streams
•Windows Mobile                     high quality, high definition IP-
                                    based live video broadcasting
                                  XStream Live 2™ is a live video encoding and          encoding technology, XStream Live 2 provides
                                  streaming software solution. It is designed           significantly higher live HD/SD H.264 video
                                  with flexibility in mind for live event production,   quality than any other encoder on the market,
                                  IPTV, church streaming, media publishing,             while maintaining a lower uplink bandwidth
                                  telepresence, newsgathering, and sporting             requirement. XStream Live 2 provides an
                                  event production. Achieve a better viewer             easy to use encoder GUI including an
                                  experience, longer audience retention, and            encoding preset selector and a video preview
                                  lower distribution cost with the highest quality      window. A preset builder GUI application is
                                  per bitrate H.264 video streams in the industry       also included for easily creating customized
                                  including native support for Flash™ and next          encoding profiles by selecting preprocessing,
                                  generation HTML5 based HTTP streaming.                audio and video bit rate, RTMP/HTTP
                                  Access the largest global penetration of              publishing point, and encoding mode. For
                                  playback devices and browsers providing a             users with more advanced needs, XML preset
                                  seamless playback experience for your                 files may be edited directly providing access to
                                  audience . Utilizing Kulabyte’s proprietary           all available encoder variables and settings.



                                                      Live Video Streaming.
                                                          Transformed.

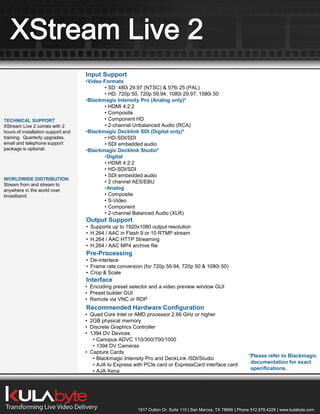

Input Support
                                    •Video Formats
                                           • SD: 480i 29.97 (NTSC) & 576i 25 (PAL)
                                           • HD: 720p 50, 720p 59.94, 1080i 29.97, 1080i 50
                                    •Blackmagic Intensity Pro (Analog only)*
                                           • HDMI 4:2:2
                                           • Composite
TECHNICAL SUPPORT                          • Component HD
XStream Live 2 comes with 2                • 2-channel Unbalanced Audio (RCA)
hours of installation support and   •Blackmagic Decklink SDI (Digital only)*
training. Quarterly upgrades,              • HD-SDI/SDI
email and telephone support                • SDI embedded audio
package is optional.                •Blackmagic Decklink Studio*
                                           •Digital
                                           • HDMI 4:2:2
                                           • HD-SDI/SDI
                                           • SDI embedded audio
WORLDWIDE DISTRIBUTION
                                           • 2 channel AES/EBU
Stream from and stream to
anywhere in the world over                 •Analog
broadband.                                 • Composite
                                           • S-Video
                                           • Component
                                           • 2-channel Balanced Audio (XLR)
                                    Output Support
                                    •   Supports up to 1920x1080 output resolution
                                    •   H.264 / AAC in Flash 9 or 10 RTMP stream
                                    •   H.264 / AAC HTTP Streaming
                                    •   H.264 / AAC MP4 archive file
                                    Pre-Processing
                                    • De-interlace
                                    • Frame rate conversion (for 720p 59.94, 720p 50 & 1080i 50)
                                    • Crop & Scale
                                    Interface
                                    • Encoding preset selector and a video preview window GUI
                                    • Preset builder GUI
                                    • Remote via VNC or RDP
                                    Recommended Hardware Configuration
                                    • Quad Core Intel or AMD processor 2.66 GHz or higher
                                    • 2GB physical memory
                                    • Discrete Graphics Controller
                                    • 1394 DV Devices
                                       • Canopus ADVC 110/300/700/1000
                                       • 1394 DV Cameras
                                    • Capture Cards
                                                                                                                  *Please refer to Blackmagic
                                       • Blackmagic Intensity Pro and DeckLink /SDI/Studio
                                                                                                                   documentation for exact
                                       • AJA Io Express with PCIe card or ExpressCard interface card
                                                                                                                   specifications.
                                       • AJA Xena




                                                           1917 Dutton Dr. Suite 110 | San Marcos, TX 78666 | Phone 512.878.4228 | www.kulabyte.com
Acquire                            Encode




                        Internet or
                     Private Network




              Content Distribution*
       Flash            Wowza                      Apache
       Media            Media                       Web
       Server           Server                     Server


   Internet or
                                          3G/4G Network
Private Network




 PC / Mac                     Mobile                             Mobile



       * Streaming server licensing cost and bandwidth charge may apply




                   1917 Dutton Dr. Suite 110 | San Marcos, TX 78666 | Phone 512.878.4228 | www.kulabyte.com
Acquire                             Encode




                        Internet




              Content Distribution*
                   UStream
                  LiveStream


   Internet                             3G/4G Network




PC / Mac                                   Mobile




              * Advertisement supported, no server or bandwidth charge




                 1917 Dutton Dr. Suite 110 | San Marcos, TX 78666 | Phone 512.878.4228 | www.kulabyte.com
