The document describes the main features of the Honeywell Series C system. It discusses the deliverables in the Series C release, which include the C300 controller, I/O modules, and a new firmware that allows upgrading from an R300 system. It then covers the key attributes of Series C hardware, such as its more efficient and compact design that reduces footprint by up to 30% compared to equivalent systems. New terminology is also introduced, like IOTA, IOTA carrier, and I/O modules. The performance targets of the R300 release are provided.

1. 1
3/28/2023

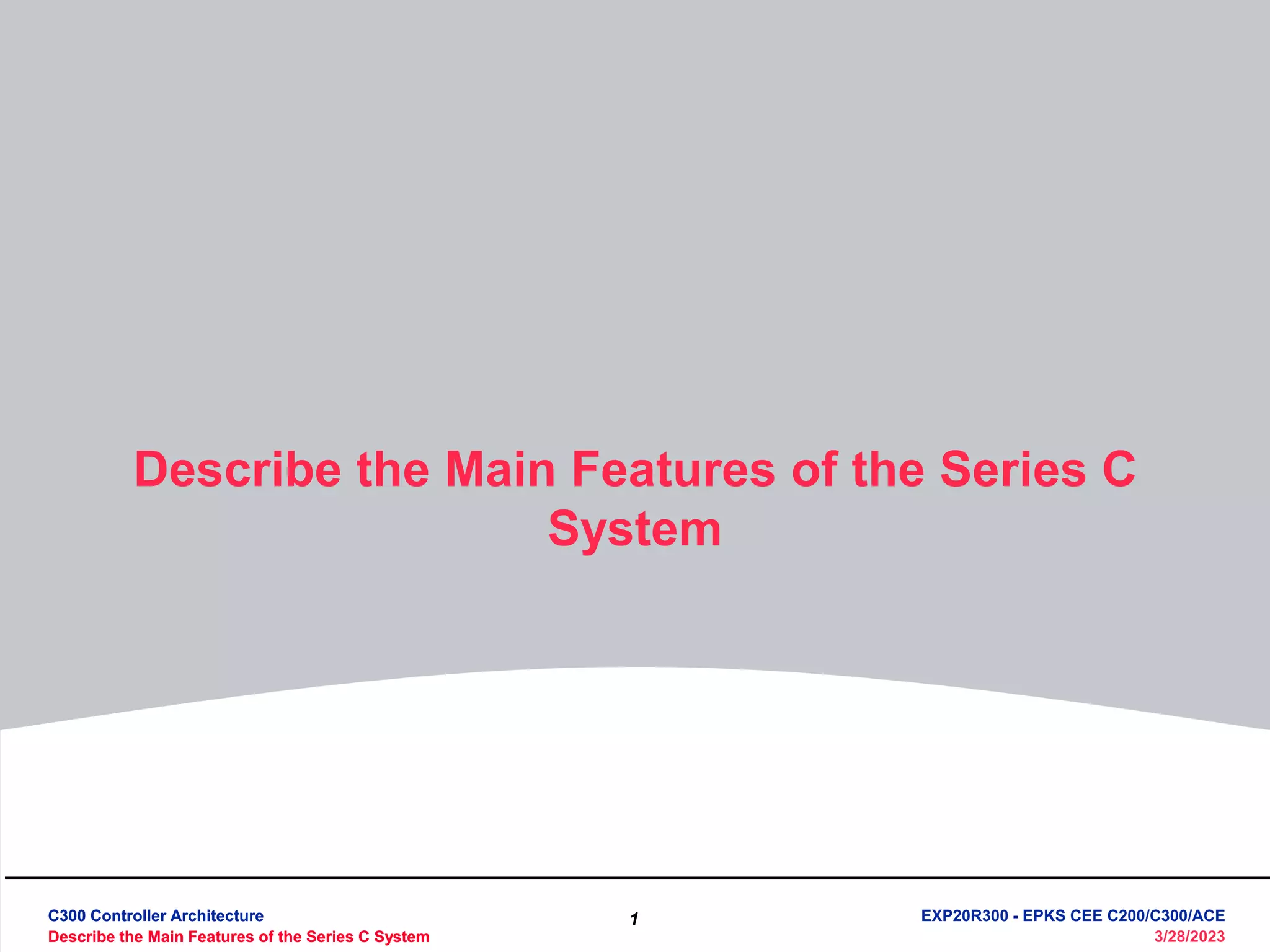

Describe the Main Features of the Series C
System
C300 Controller Architecture
Describe the Main Features of the Series C System
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

2. Honeywell
2
3/28/2023
Topics
• Series C Deliverables
• Key features of Series C hardware
• R300 performance targets



C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

3. Honeywell
3
3/28/2023

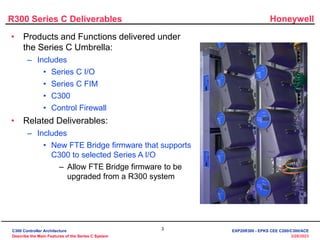

R300 Series C Deliverables
• Products and Functions delivered under
the Series C Umbrella:
– Includes
• Series C I/O
• Series C FIM
• C300
• Control Firewall
• Related Deliverables:
– Includes
• New FTE Bridge firmware that supports
C300 to selected Series A I/O
– Allow FTE Bridge firmware to be
upgraded from a R300 system
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

4. Honeywell
4
3/28/2023
R300 Series C Deliverables, contd.
• Products delivered in R300 Series C
Release
– C300 Controller
– HART (HLAI) Analog Input
– HART Analog Output
– Discrete Input
– Discrete Output
– Low Level Mux Input
– Fieldbus Interface Module (FIM)
– Control Firewall
– Power System
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

5. Honeywell
5
3/28/2023

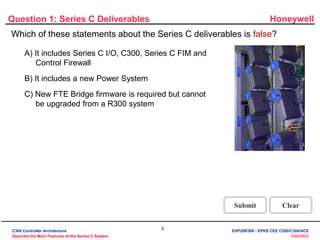

Question 1: Series C Deliverables
Incorrect. The false statement is " New FTE
Bridge firmware is required but it cannot be
upgraded from a R300 system."
Click anywhere to continue.
Incorrect. The false statement is " New FTE
Bridge firmware is required but it cannot be
upgraded from a R300 system."
Click anywhere to continue.
Correct! The false statement is " New FTE Bridge
firmware is required but it cannot be upgraded
from a R300 system."
Click anywhere to continue.
Correct - Click anywhere to continue
Incorrect - Click anywhere to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this question completely
You must answer the question before
continuing
Submit Clear
Which of these statements about the Series C deliverables is false?
A) It includes Series C I/O, C300, Series C FIM and
Control Firewall
B) It includes a new Power System
C) New FTE Bridge firmware is required but cannot
be upgraded from a R300 system
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

6. Honeywell
6
3/28/2023

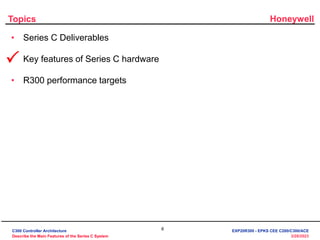

Topics
• Series C Deliverables
• Key features of Series C hardware
• R300 performance targets

C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

7. Honeywell
7
3/28/2023
Packaging - Overview
• “Series C” term is for the new styling for family
of Controller and I/O
• Space-efficient design
– “Designed Vertical”
– No electronic card files
– “Zero Footprint” power system does not impact
module space
– >30% reductions compared to equivalent HPM
• Combines I/O Processor and Field Terminations
into one Assembly
– Fewer components providing higher MTBF
and Availability
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

8. Honeywell
8
3/28/2023

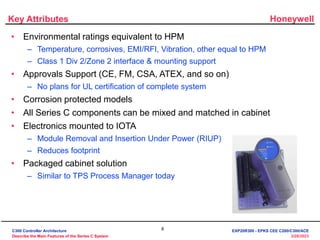

Key Attributes
• Environmental ratings equivalent to HPM
– Temperature, corrosives, EMI/RFI, Vibration, other equal to HPM
– Class 1 Div 2/Zone 2 interface & mounting support
• Approvals Support (CE, FM, CSA, ATEX, and so on)
– No plans for UL certification of complete system
• Corrosion protected models
• All Series C components can be mixed and matched in cabinet
• Electronics mounted to IOTA
– Module Removal and Insertion Under Power (RIUP)
– Reduces footprint
• Packaged cabinet solution
– Similar to TPS Process Manager today
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

9. Honeywell
9
3/28/2023

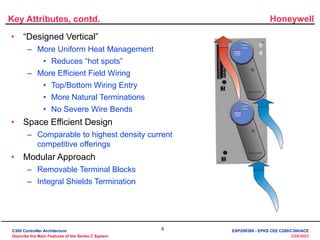

Key Attributes, contd.
• “Designed Vertical”
– More Uniform Heat Management
• Reduces “hot spots”
– More Efficient Field Wiring
• Top/Bottom Wiring Entry
• More Natural Terminations
• No Severe Wire Bends
• Space Efficient Design
– Comparable to highest density current
competitive offerings
• Modular Approach
– Removable Terminal Blocks
– Integral Shields Termination
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

10. Honeywell
10
3/28/2023

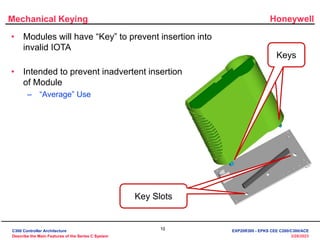

Mechanical Keying
Keys
Key Slots
• Modules will have “Key” to prevent insertion into
invalid IOTA
• Intended to prevent inadvertent insertion
of Module
– “Average” Use
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

11. Honeywell
11
3/28/2023
New Terminology
IOTA Support
IOTA Carrier
IOTA (Input/Output
Termination Assembly)
IOM (Input/Output Module)
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

12. Honeywell
12
3/28/2023
I/O Options for C300
• Series C I/O
– New form Factor
– AI, AO, DI, DO, LLMUX
• Series C Fieldbus Interface
• PMIO
– As supported by C200
• FTEB connected Series A I/O
– Serial Interface, Profibus
Interface, DeviceNet Interface,
and Pulse Input
– NOT regular chassis I/O
• FTEB connections to AB PLCs
– Using a bridge chassis with a
FTEB and downlink CNI
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

13. Honeywell
13
3/28/2023

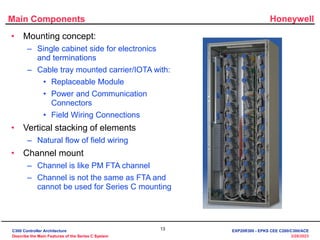

Main Components
• Mounting concept:
– Single cabinet side for electronics
and terminations
– Cable tray mounted carrier/IOTA with:
• Replaceable Module
• Power and Communication
Connectors
• Field Wiring Connections
• Vertical stacking of elements
– Natural flow of field wiring
• Channel mount
– Channel is like PM FTA channel
– Channel is not the same as FTA and
cannot be used for Series C mounting
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

14. Honeywell
14
3/28/2023

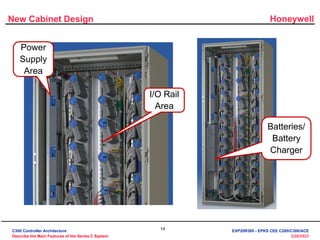

New Cabinet Design
Power
Supply
Area
I/O Rail
Area
Batteries/
Battery
Charger
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

15. Honeywell
15
3/28/2023

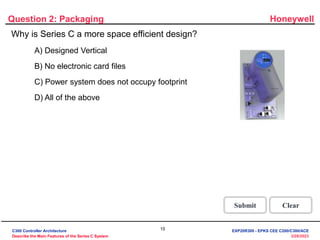

Question 2: Packaging
Incorrect! All of the above statements are true and
make Series C a more space efficient design.
Click anywhere to continue.
Incorrect! All of the above statements are true and
make Series C a more space efficient design.
Click anywhere to continue.
Incorrect! All of the above statements are true and
make Series C a more space efficient design.
Click anywhere to continue.
Correct! All of the above statements are true and
make Series C a more space efficient design.
Click anywhere to continue.
Correct - Click anywhere to continue
Incorrect - Click anywhere to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this question completely
You must answer the question before
continuing
Submit Clear
Why is Series C a more space efficient design?
A) Designed Vertical
B) No electronic card files
C) Power system does not occupy footprint
D) All of the above
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

16. Honeywell
16
3/28/2023

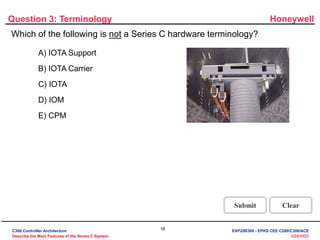

Question 3: Terminology
Incorrect. The term "CPM" is not a Series C
hardware terminology and is used when
referring to a C200 controller.
Click anywhere to continue.
Incorrect. The term "CPM" is not a Series C
hardware terminology and is used when
referring to a C200 controller.
Click anywhere to continue.
Incorrect. The term "CPM" is not a Series C
hardware terminology and is used when
referring to a C200 controller.
Click anywhere to continue.
Incorrect. The term "CPM" is not a Series C
hardware terminology and is used when
referring to a C200 controller.
Click anywhere to continue.
Correct! The term "CPM" is not a Series C
hardware terminology and is used when
referring to a C200 controller.
Click anywhere to continue.
Correct - Click anywhere to continue
Incorrect - Click anywhere to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this question completely
You must answer the question before
continuing
Submit Clear
Which of the following is not a Series C hardware terminology?
A) IOTA Support
B) IOTA Carrier
C) IOTA
D) IOM
E) CPM
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

17. Honeywell
17
3/28/2023

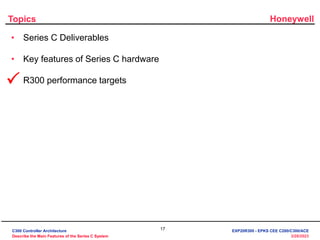

Topics
• Series C Deliverables
• Key features of Series C hardware
• R300 performance targets

C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

18. Honeywell
18
3/28/2023

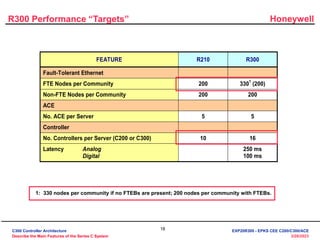

R300 Performance “Targets”
FEATURE R210 R300
Fault-Tolerant Ethernet
FTE Nodes per Community 200 330
1
(200)
Non-FTE Nodes per Community 200 200
ACE
No. ACE per Server 5 5
Controller
No. Controllers per Server (C200 or C300) 10 16
Latency Analog
Digital
250 ms
100 ms
1: 330 nodes per community if no FTEBs are present; 200 nodes per community with FTEBs.
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

19. Honeywell
19
3/28/2023

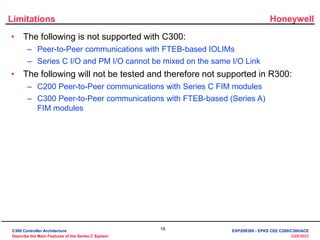

Limitations
• The following is not supported with C300:
– Peer-to-Peer communications with FTEB-based IOLIMs
– Series C I/O and PM I/O cannot be mixed on the same I/O Link
• The following will not be tested and therefore not supported in R300:
– C200 Peer-to-Peer communications with Series C FIM modules
– C300 Peer-to-Peer communications with FTEB-based (Series A)
FIM modules
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

20. Honeywell
20
3/28/2023

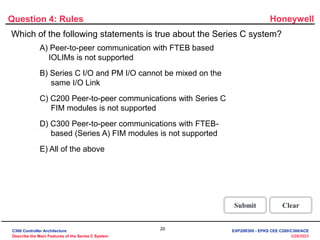

Question 4: Rules
Incorrect. All of the above statements
are true about the Series C system.
Click anywhere to continue.
Incorrect. All of the above statements
are true about the Series C system.
Click anywhere to continue.
Incorrect. All of the above statements
are true about the Series C system.
Click anywhere to continue.
Incorrect. All of the above statements
are true about the Series C system.
Click anywhere to continue.
Correct! All of the above statements
are true about the Series C system.
Click anywhere to continue.
Correct - Click anywhere to continue
Incorrect - Click anywhere to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this question completely
You must answer the question before
continuing
Submit Clear
Which of the following statements is true about the Series C system?
A) Peer-to-peer communication with FTEB based
IOLIMs is not supported
B) Series C I/O and PM I/O cannot be mixed on the
same I/O Link
C) C200 Peer-to-peer communications with Series C
FIM modules is not supported
D) C300 Peer-to-peer communications with FTEB-
based (Series A) FIM modules is not supported
E) All of the above
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

21. Honeywell
21
3/28/2023
Summary
• Series C hardware includes
– Series C I/O (HART AI, AO, DI, DO, LLMUX)
– Series C FIM
– C300 Controller
– Control Firewall
• Series C is a space efficient design that combines I/O processor and
field termination into one assembly
• Series C electronics are mounted to IOTAs reducing footprint and
supporting module removal and insertion under power (RIUP)
• C300 controller supports Series C, Series A, and PM I/O, Series C
Fieldbus interface and FTEB connections to AB PLCs via Downlink CNI
• 16 C300 controllers are supported per server
• C300 Peer-to-Peer communications with FTEB-based IOLIMs is not
supported
• Series C and PM I/O cannot be mixed on the same I/O link







C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

22. Honeywell
22
3/28/2023

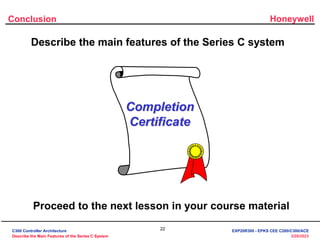

Conclusion
Describe the main features of the Series C system
Completion
Certificate
Proceed to the next lesson in your course material
C300 Controller Architecture
Describe the Main Features of the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

23. 23
3/28/2023

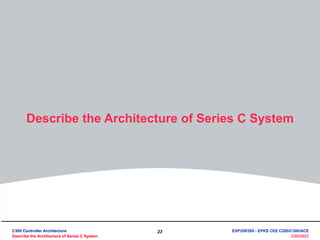

Describe the Architecture of Series C System
C300 Controller Architecture
Describe the Architecture of Series C System
C300 Controller Architecture
Describe the Architecture of Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

24. Honeywell
24
3/28/2023
Experion Platform Architecture
Redundant
Global Database & Historian
Experion Server
Investment Protection
for TPS/TDC
Experion on LCN
Integrated
Supervisory Control
ACE
Regulatory, Logic
Sequential & Model
Based Controls
C300/C200 & Profit Loop
Process
Manager
Basic
Controller
Plant Asset
Management
Asset Manager
Plant Wide
Data
Warehouse
PHD
Remote Operations
Experion Station
Video as a Process Sensor
Digital Video Manager
Casual User
Secure Read Only
Process Display
Web Server
eServer
Desktop
Access
for Business
Applications
Web Browsers
Web-based Human Interface
Experion Station
ASM Operator Effectiveness
Multivariable Control
and Optimization
Profit Suite
Field Mobility
Mobile PKS
Wireless
Access
Redundant and/or
Remote I/O
Ergonomic
Operator Consoles
Icon Series
Advanced Applications Network
Business Network
Field Rounds
Automation
IntelaTrac PKS
Local Control Network
Video Ethernet
Advanced Enterprise Wide
Applications
Business FLEX
Workcenter
POMS, OptiVISION
Firewall
Supervisory Control Network
Wireless
Transmitters
SIL 3 Safety System
Safety Manager
Precision Measurement
and Control
Quality Control System
Integrated
Physical
Security
Enterprise
Building
Integrator
Plant Simulation
UniSim
Focus of this Presentation
C300 Controller Architecture
Describe the Architecture of Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

25. Honeywell
25
3/28/2023
Series C Architecture
C300 Controller Architecture
Describe the Architecture of Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

26. Honeywell
26
3/28/2023
Question 1: Architecture
Correct! The false statement is " Series C FIM is
connected to L1 or L2 Cisco switch". The Series C
FIM is the Fieldbus interface module which
connects to the Control Firewall via FTE.
Click anywhere to continue.
Incorrect. The false statement is " Series C FIM is
connected to L1 or L2 Cisco switch". The Series C
FIM is the Fieldbus interface module which
connects to the Control Firewall via FTE.
Click anywhere to continue.
Incorrect. The false statement is " Series C FIM is
connected to L1 or L2 Cisco switch". The Series C
FIM is the Fieldbus interface module which
connects to the Control Firewall via FTE.
Click anywhere to continue.
Incorrect. The false statement is " Series C FIM is
connected to L1 or L2 Cisco switch". The Series C
FIM is the Fieldbus interface module which
connects to the Control Firewall via FTE.
Click anywhere to continue.
Correct - Click anywhere to continue
Incorrect - Click anywhere to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this question completely
You must answer the question before
continuing
Submit Clear
Which of the following statements is not true about the Series C Architecture?
A) Series C FIM is connected to L1 or L2 switch
B) Serial Interface, Pulse Input, Device Net Interface,
and Profibus Interface Series A I/Os are connected
to Control Firewall using FTEB
C) Allen Bradely PLCs can also be connected to a rack,
and then to the Control Firewall using an FTEB
D) All of the above
C300 Controller Architecture
Describe the Architecture of Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

27. Honeywell
27
3/28/2023
Summary

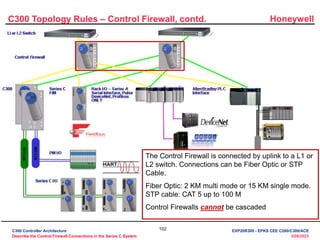

• Control Firewalls are connected to Level 1 or Level 2 switches
• The C300 Controller is connected to the Control Firewall using FTE
• The Series C FIM is the Fieldbus interface. This module also connects
to the Control Firewall via FTE
• Series A Rack IO connects to the C300 through the Control Firewall
using an FTEB
– This IO is currently limited to Serial Interface, Pulse Input, DeviceNet
Interface and Profibus Interface modules only. This rack is connected to the
Control Firewall using an FTEB and via FTE
• Allen Bradley PLCs can also be connected to a Rack and then to the
Control Firewall using an FTEB





C300 Controller Architecture
Describe the Architecture of Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

28. Honeywell
28
3/28/2023
Describe the Architecture of Series C System
Completion
Certificate
Proceed to the next lesson in your course material
Conclusion
C300 Controller Architecture
Describe the Architecture of Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

29. 29
3/28/2023
Describe Series C Input-Output Modules and
Options
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

30. Honeywell
30
3/28/2023
C300 Controller Supported I/O
• Flexible I/O support:
– Adaptable to fit range of I/O interface
requirements mix and match
– Can be any mix of
• PMIO
• Series C I/O
• Series A Chassis I/O (supported modules
only) through FTE Bridge module
• FIMs
– 64 primary I/O units per C300
– Support 2 on board IOLINK interfaces
• Each IOL can support 40 I/O units
IOL
Connection
IOL
Connection
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

31. Honeywell
31
3/28/2023
Types of Series C I/O Modules
• HART Analog Input (AI) – 16 Channels
• HART Analog Output (AO) – 16 Channels

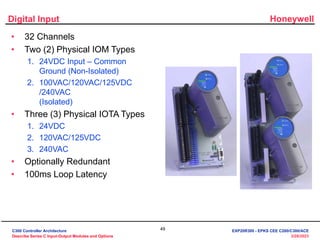

• Digital Input (DI)– 32 Channels – 2 physical types
– 24VDC Input – Common Ground (Non-Isolated)
– 100VAC/120VAC/125VDC/240VAC (Isolated)
• Digital Output (DO) – 32 Channels
– Relay Extension Board
• Low Level Analog Input (LL) – 64 channels
– Thermocouple and RTD
• AI, AO, DI and DO are optionally redundant
• LL Inputs are not available in redundant configuration
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

32. Honeywell
32
3/28/2023
Non-Redundant Series C I/O Module
• IOM is physically placed on
an IOTA
• The IOTA has all the wiring
and power connections
• The IOM has the
electronics and diagnostics
• AI, AO, and LL modules
mount on a 6” IOTA
• DI/DO modules mount on a
9” IOTA
Field
Termination
I/O Module
I/O Link
Connection
Calibration
Resistors /
Jumpers
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

33. Honeywell
33
3/28/2023

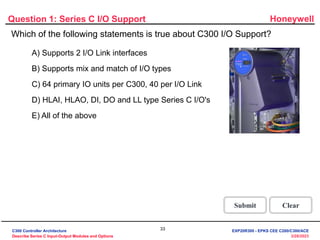

Question 1: Series C I/O Support
Correct - Click anywhere to continue
Incorrect - Click anywhere to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this question completely
You must answer the question before
continuing
Submit Clear
Incorrect. All of the above statements
are true about Series C I/O support.
Click anywhere to continue.
Incorrect. All of the above statements
are true about Series C I/O support.
Click anywhere to continue.
Incorrect. All of the above statements
are true about Series C I/O support.
Click anywhere to continue.
Incorrect. All of the above statements
are true about Series C I/O support.
Click anywhere to continue.
Correct! All of the above statements are
true about Series C I/O support.
Click anywhere to continue.
Which of the following statements is true about C300 I/O Support?
A) Supports 2 I/O Link interfaces
B) Supports mix and match of I/O types
C) 64 primary IO units per C300, 40 per I/O Link
D) HLAI, HLAO, DI, DO and LL type Series C I/O's
E) All of the above
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

34. Honeywell
34
3/28/2023
Redundant Series C I/O Module
• Same IO module as non redundant
• AI, AO, DI, DO modules mount on a
12” IOTA
• Modular Redundancy
• Modular Connection
System
– No Common Backplane
– No Single Point of Failure
I/O Link
Connection
I/O Module
Field
Termination
Redundant IOM
I/O Termination
Assembly
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

35. Honeywell
35
3/28/2023

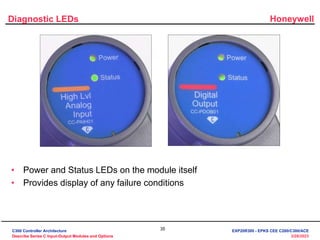

Diagnostic LEDs
• Power and Status LEDs on the module itself
• Provides display of any failure conditions
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

36. Honeywell
36
3/28/2023

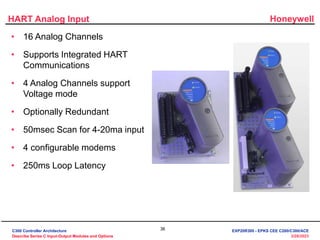

HART Analog Input
• 16 Analog Channels
• Supports Integrated HART
Communications
• 4 Analog Channels support
Voltage mode
• Optionally Redundant
• 50msec Scan for 4-20ma input
• 4 configurable modems
• 250ms Loop Latency
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

37. Honeywell
37
3/28/2023
HART Analog Input – Non Redundant
I/O Link
Connections
Analog Input
I/O Module
Differential
Voltage Input
Channels 13-16
I/O Link
Address
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

38. Honeywell
38
3/28/2023

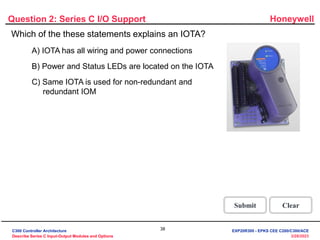

Question 2: Series C I/O Support
Correct - Click anywhere to continue
Incorrect - Click anywhere to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this question completely
You must answer the question before
continuing
Submit Clear
Correct! The IOTA has all the wiring and
power connections.
Click anywhere to continue.
Incorrect. The IOTA has all the wiring
and power connections.
Click anywhere to continue.
Incorrect. The IOTA has all the wiring
and power connections.
Click anywhere to continue.
Which of the these statements explains an IOTA?
A) IOTA has all wiring and power connections
B) Power and Status LEDs are located on the IOTA
C) Same IOTA is used for non-redundant and
redundant IOM
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

39. Honeywell
39
3/28/2023

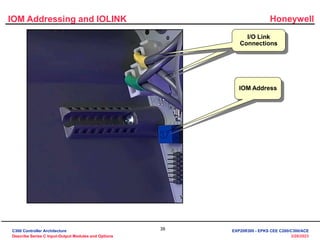

IOM Addressing and IOLINK
I/O Link
Connections
IOM Address
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

40. Honeywell
40
3/28/2023

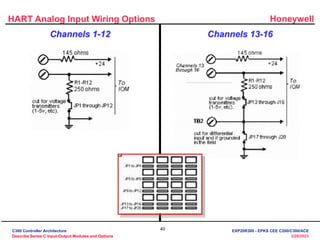

HART Analog Input Wiring Options
Channels 1-12 Channels 13-16
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

41. Honeywell
41
3/28/2023

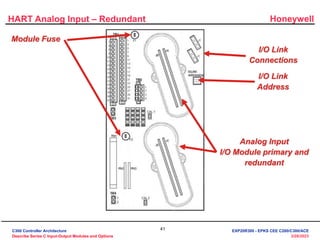

HART Analog Input – Redundant
I/O Link
Connections
Analog Input
I/O Module primary and
redundant
I/O Link
Address
Module Fuse
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

42. Honeywell
42
3/28/2023

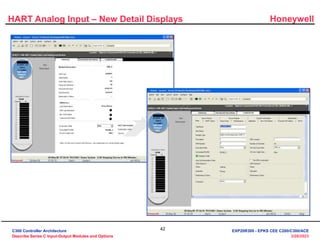

HART Analog Input – New Detail Displays
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

43. Honeywell
43
3/28/2023

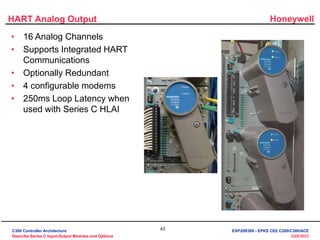

HART Analog Output
• 16 Analog Channels
• Supports Integrated HART
Communications
• Optionally Redundant
• 4 configurable modems
• 250ms Loop Latency when
used with Series C HLAI
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

44. Honeywell
44
3/28/2023
HART Analog Output, contd.
I/O Link
Connections
Analog Output
I/O Module
I/O Link
Address
Calibration
Voltage
Reference
Standby Manual
(Future)
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

45. Honeywell
45
3/28/2023

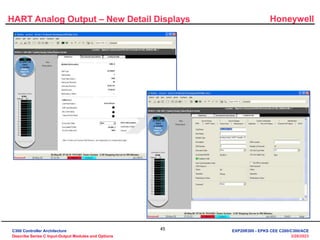

HART Analog Output – New Detail Displays
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

46. Honeywell
46
3/28/2023

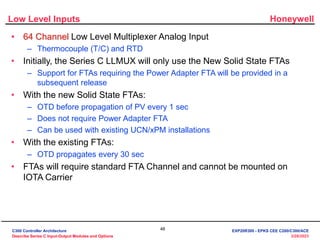

Low Level Inputs
• 64 Channel Low Level Multiplexer Analog Input
– Thermocouple (T/C) and RTD
• Initially, the Series C LLMUX will only use the New Solid State FTAs
– Support for FTAs requiring the Power Adapter FTA will be provided in a
subsequent release
• With the new Solid State FTAs:
– OTD before propagation of PV every 1 sec
– Does not require Power Adapter FTA
– Can be used with existing UCN/xPM installations
• With the existing FTAs:
– OTD propagates every 30 sec
• FTAs will require standard FTA Channel and cannot be mounted on
IOTA Carrier
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

47. Honeywell
47
3/28/2023
LLMUX Solutions
R300 Solution Power Adapter Solution (Future)
51304465-xxx Internal Cabinet Cable
LL IN-CABINET CONFIGURATION
B-Size
LLMUX Models
MU/MC-TAMT04
MU/MC-TAMR04
MU/MC-TAMT14
FTA Assemblies must be
installed in a cabinet.
CU/CC-TAIM01
VL/BS
LL TCMUX IOTA
Power
Status
PMIO LLMUX
CC-PAIM01
C
6 Conductor Cable Head
LLMUX Models
MU/MC-TAMT03
MU/MC-TAMR03
MU/MC-TAMT13
MU/MC-TAMT04
MU/MC-TAMR04
MU/MC-TAMT14
CU/CC-TAIM11
VL/BS
LL TCMUX IOTA
C
PM
FTA
Connector
LL REMOTE CONFIGURATION
51304465-xxx Internal Cable
or
Model MU-KLXxxx External Cabinet Cable
[305 meters(1000 feet) Maximum Length]
A-Size
B-Size
FTA Cable
Model MU-KFTAxxx Internal FTA Cabinet Cable
or
Model KFTSxxx External FTA Cabinet Cable
[50 meters (164 feet) MAximum Length]
FTA Assemblies must be
installed in a cabinet or a
NEMA 12 mounting box.
Power
Status
CC-PAIM01
PMIO LLMUX
C
New FTAs Only (no Power Adapter) New or Existing FTAs(Requires Power Adapter)
Max. Length
1000 ft.
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

48. Honeywell
48
3/28/2023
LLMUX Solutions, contd.
I/O Link
Connections
R300 Solution Power Adapter Solution (Future)
I/O Link
Address
Fuses
IOLINK
addressing
IOLINK
addressing
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

49. Honeywell
49
3/28/2023
Digital Input
• 32 Channels
• Two (2) Physical IOM Types
1. 24VDC Input – Common
Ground (Non-Isolated)
2. 100VAC/120VAC/125VDC
/240VAC
(Isolated)
• Three (3) Physical IOTA Types
1. 24VDC
2. 120VAC/125VDC
3. 240VAC
• Optionally Redundant
• 100ms Loop Latency
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

50. Honeywell
50
3/28/2023
Digital Input, contd.
Internal Used with Honeywell’s 24v power
supply
Pin 1 – external return
Pin 2 – external 24v
Pin 3 – internal return
Pin 4 – internal 24v
External Used with customer’s provided 24v
power supply
Pin 1 – external return
Pin 2 – external 24v
Pin 3 – internal return
Pin 4 – internal 24v
I/O Link
Connections
Digital Input
I/O Module
I/O Link
Address
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

51. Honeywell
51
3/28/2023
Digital Input – New Detail Displays
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

52. Honeywell
52
3/28/2023
Digital Output
• 32 Channels
• 24VDC Bussed Output
• Relay Output
– 100VAC / 120VAC / 240VAC /
125VDC / 48VDC
– Utilizes Relay Extension Board
• Optionally Redundant
• 100ms Loop Latency
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

53. Honeywell
53
3/28/2023
Digital Output, contd.
I/O Link
Connections
Digital Output
I/O Module
Internal Used with Honeywell’s 24v power
supply
Pin 1 – external return
Pin 2 – external 24v
Pin 3 – internal return
Pin 4 – internal 24v
External Used with customer’s provided 24v
power supply
Pin 1 – external return
Pin 2 – external 24v
Pin 3 – internal return
Pin 4 – internal 24v
I/O Link
Address
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

54. Honeywell
54
3/28/2023

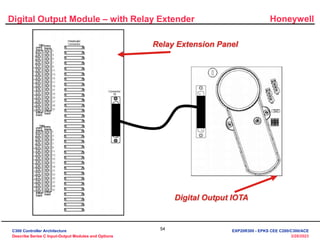

Digital Output Module – with Relay Extender
Relay Extension Panel
Digital Output IOTA
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

55. Honeywell
55
3/28/2023
Digital Output – New Detail Displays
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

56. Honeywell
56
3/28/2023
Series C I/O in Hazardous Areas
• Honeywell will initially work
with MTL to manufacturer an
IOTA for use wiring into hazardous
locations (C1D1 / Zone 1)
• The IOTA will be larger than a
standard IOTA (approximately
9” wide)
• 1-, 2- and 4-channel options will be available
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

57. Honeywell
57
3/28/2023
Series C I/O in Hazardous Areas, contd.
Non-Redundant
IOTA + IOM
Redundant
IOTA + IOM
“Extended”
IOTA Footprint
for IS
Standard
IOTA Footprint
6.00”
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

58. Honeywell
58
3/28/2023

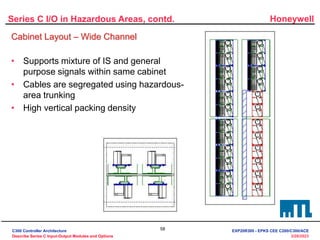

Series C I/O in Hazardous Areas, contd.
Cabinet Layout – Wide Channel
• Supports mixture of IS and general
purpose signals within same cabinet
• Cables are segregated using hazardous-
area trunking
• High vertical packing density
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

59. Honeywell
59
3/28/2023
Process Manager I/O
• No separate IOLIM needed, connects directly to
IOLink
• PM I/O includes AI, AO, DI, DO, RTD, T/C, DI
SOE
• PM I/O can be redundant
• FTA for I/O
• Remote I/O using Fiber Optic
PM I/O
Direct connection
to C300 IOLINK
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

60. Honeywell
60
3/28/2023
Honeywell DE Transmitters and C300
• Support is provided for Honeywell DE-based smart transmitters in C300
via existing PMIO modules:
– Smart Transmitter Interface (STI)
– Smart Transmitter Interface – Multivariable (STI-MV)
• The Experion Platform provides full integration of all DE information
(diagnostics, configuration, etc.) within the standard system displays
• No additional Asset Management software (e.g., Asset Manager PKS or
Field Device Manager) is required to access the DE data
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

61. Honeywell
61
3/28/2023
FTE Bridge in Series C
• FTE Bridge, as part of a Series C
system allows:
– A C300 Controller to use selected
Series A chassis I/O (Serial,
DeviceNet, Profibus, and Pulse Input
modules) without the need for a C200
– A C300 to communicate (Exchange
Block peer-to-peer) with Rockwell
devices like PLC5 and CL5550 using
a bridge chassis with a FTEB and
downlink CNI
• The FTEB continues to operate at
10Mbps after updating firmware to
support C300 communication with
Series A Chassis I/O
• C200 with FTEB can be used for
Peer to Peer with a C300 Controller
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

62. Honeywell
62
3/28/2023

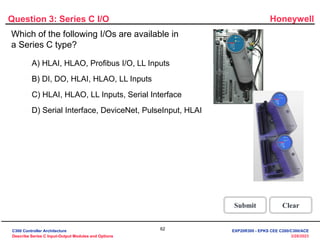

Which of the following I/Os are available in
a Series C type?
Question 3: Series C I/O
Incorrect. The I/O's available in a
Series C type are DI, DO, HLAI,
HLAO and LL Inputs.
Click anywhere to continue.
Correct! The I/O's available in a
Series C type are DI, DO, HLAI,
HLAO and LL Inputs.
Click anywhere to continue.
Incorrect. The I/O's available in a
Series C type are DI, DO, HLAI,
HLAO and LL Inputs.
Click anywhere to continue.
Incorrect. The I/O's available in a
Series C type are DI, DO, HLAI,
HLAO and LL Inputs.
Click anywhere to continue.
Correct - Click anywhere to continue
Incorrect - Click anywhere to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this question completely
You must answer the question before
continuing
Submit Clear
A) HLAI, HLAO, Profibus I/O, LL Inputs
B) DI, DO, HLAI, HLAO, LL Inputs
C) HLAI, HLAO, LL Inputs, Serial Interface
D) Serial Interface, DeviceNet, PulseInput, HLAI
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

63. Honeywell
63
3/28/2023

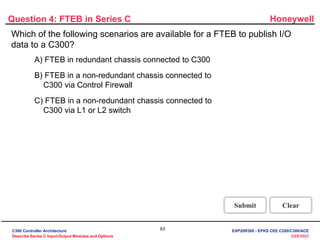

Which of the following scenarios are available for a FTEB to publish I/O
data to a C300?
Question 4: FTEB in Series C
Incorrect. The valid scenario for FTEB to publish I/O
data to C300 is " FTEB in a non redundant I/O chassis
connected to C300 via Control Firewall."
Click anywhere to continue.
Correct! The valid scenario for FTEB to publish I/O
data to C300 is " FTEB in a non redundant I/O chassis
connected to C300 via Control Firewall."
Click anywhere to continue.
Incorrect. The valid scenario for FTEB to publish I/O
data to C300 is " FTEB in a non redundant I/O chassis
connected to C300 via Control Firewall."
Click anywhere to continue.
Correct - Click anywhere to continue
Incorrect - Click anywhere to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this question completely
You must answer the question before
continuing
Submit Clear
A) FTEB in redundant chassis connected to C300
B) FTEB in a non-redundant chassis connected to
C300 via Control Firewall
C) FTEB in a non-redundant chassis connected to
C300 via L1 or L2 switch
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

64. Honeywell
64
3/28/2023
C300 I/O Compatibility
I/O
Family
I/O Type
C300
Support
C200
Support
xPM
Support
HLAI   
HLAI w/ HART  
LLAI   
LLMUX   
RHMUX   
STI   
STI-MV   
AO8   
AO16   
AO16 w/ HART   
Serial Device 
Serial 
Pulse 
DI   
DI-24V   
DISOE   
DO16   
DO32   
PMIO
Fieldbus 
I/O
Family
I/O Type
C300
Support
C200
Support
xPM
Support
HLAI w/ HART 
LLMUX64 
AO16 w/ HART 
DI24D32 
DI32 
DO24D32 
DO32 
SERIES
C
Fieldbus 
I/O
Family
I/O Type
C300
Support
C200
Support
xPM
Support
HLAI16 
HLAI6 
HLAI8 w/ HART 
LLAI-TC6 
LLAI-RTD6 
AO6V 
AO6MA 
AO8 
AO8 w/ HART 
Pulse (6I2O)  
DI120A16I 
DI220A16I 
DI120A8D 
DI120A16 
DI24D16I 
DI24D16D 
DI24D32 
DO220A16-Relay 
DO24D16I 
DO24D16D 
DO24D32 
Serial  
Fieldbus 
Profibus DP  
CHASSIS
SERIES-A
DeviceNet  
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

65. Honeywell
65
3/28/2023
C300 I/O Compatibility, contd.
I/O
Family
I/O Type
C300
Support
C200
Support
xPM
Support
HLAI 
DI24D 
DI120A 
LLAI-TC 
LLAI-RTD 
AO 
DO24D 
DO120A 
RAIL
-
SERIES
A
DO-Relay 
I/O
Family
I/O Type
C300
Support
C200
Support
xPM
Support
HLAI8 
LLAI8 
AO8 
DI16 
DO4 
RAIL
–
SERIES
H
DI16 
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

66. Honeywell
66
3/28/2023
Conclusion
Describe Series C Input/Output Modules and Options
Completion
Certificate
Proceed to the next lesson in your course material
C300 Controller Architecture
Describe Series C Input-Output Modules and Options
EXP20R300 - EPKS CEE C200/C300/ACE

67. 67
3/28/2023

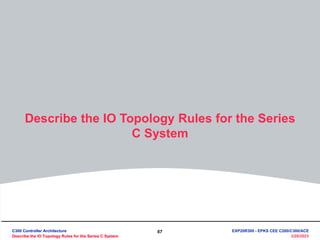

Describe the IO Topology Rules for the Series
C System
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

68. Honeywell
68
3/28/2023
Series C IO Topology Rules
• I/O topology rules
– 2 IOLINKS
– PMIO and Series C I/O on same C300
– Connect select series A I/O using FTEB
– Connect Allen Bradley PLCs using FTEB
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

69. Honeywell
69
3/28/2023

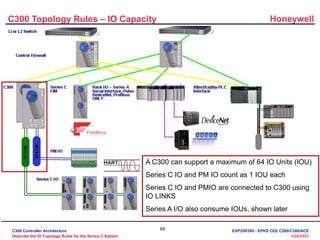

C300 Topology Rules – IO Capacity
A C300 can support a maximum of 64 IO Units (IOU)
Series C IO and PM IO count as 1 IOU each
Series C IO and PMIO are connected to C300 using
IO LINKS
Series A I/O also consume IOUs, shown later
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

70. Honeywell
70
3/28/2023
C300 Topology Rules – IO Capacity, contd.
Each IO Link can support a maximum of 40 IOUs
A C300 controller supports 2 IOLINKs
An IOLINK can be configured for either Series C IO
(at 750 kb link speed) or PMIO (at 375 kb link speed)
An IOLINK cannot support both Series C IO and
PMIO on the same link
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

71. Honeywell
71
3/28/2023

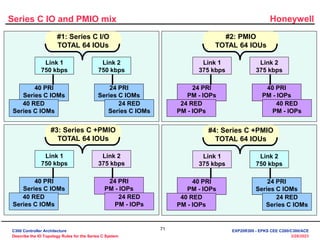

Series C IO and PMIO mix
#1: Series C I/O
TOTAL 64 IOUs
Link 1
750 kbps
Link 2
750 kbps
40 PRI
Series C IOMs
40 RED
Series C IOMs
24 PRI
Series C IOMs
24 RED
Series C IOMs
#2: PMIO
TOTAL 64 IOUs
Link 1
375 kbps
Link 2
375 kbps
24 PRI
PM - IOPs
24 RED
PM - IOPs
40 PRI
PM - IOPs
40 RED
PM - IOPs
#3: Series C +PMIO
TOTAL 64 IOUs
Link 1
750 kbps
Link 2
375 kbps
40 PRI
Series C IOMs
40 RED
Series C IOMs
24 PRI
PM - IOPs
24 RED
PM - IOPs
#4: Series C +PMIO
TOTAL 64 IOUs
Link 1
375 kbps
Link 2
750 kbps
40 PRI
PM - IOPs
40 RED
PM - IOPs
24 PRI
Series C IOMs
24 RED
Series C IOMs
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

72. Honeywell
72
3/28/2023
C300 Topology Rules – IO Capacity
A C300 can support up to 8 FTEBs for interfacing with
supported Chassis I/O or AB PLC interface
FTEBs must be connected to the same Control Firewall
as the C300
This limits the FTEBs to 6 per redundant C300
controller
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

73. Honeywell
73
3/28/2023
C300 Topology Rules – IO Capacity, contd.
Each FTEB used to connect Series A IO can support
up to 16 IOUs. The IOU count per module is
The FTEB used for Series A cannot be in a
redundant configuration
Serial Interface 4 DeviceNet Interface 2
Profibus Interface 2 Pulse Input 1
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

74. Honeywell
74
3/28/2023
C300
Capacity 3 – MIX #3
Link 1
750 kbps
Link 2
375 kbps
24 PRI
PM-IOPs
24 RED
PM-IOPs
24 PRI
Series C IOMs
24 RED
Series C IOMs
16 Series A IO
Units w/FTEB
FTE
#5: Series C + PMIO + Series A
TOTAL 64 IOUs
Pulse Input,
Serial, DeviceNet,
and ProfiBus
IOMs only
C300 Controller I/O Link Configurations
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

75. Honeywell
75
3/28/2023
C300 Topology Rules – IO Capacity
Important limitations:
An FTEB connected chassis can allow connections
to only 1 C300 controller
You cannot have any other C200, IO or CNI
downlink modules in the FTEB chassis to connect to
other IO chassis
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

76. Honeywell
76
3/28/2023

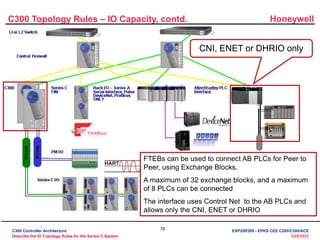

C300 Topology Rules – IO Capacity, contd.
FTEBs can be used to connect AB PLCs for Peer to
Peer, using Exchange Blocks.
A maximum of 32 exchange blocks, and a maximum
of 8 PLCs can be connected
The interface uses Control Net to the AB PLCs and
allows only the CNI, ENET or DHRIO
CNI, ENET or DHRIO only
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

77. Honeywell
77
3/28/2023
C300 Topology Rules – IO Capacity, contd.
A Series C FIM can be used with or without the C300
controller
A FIM needs to connect to a C300 controller if a
combined control strategy is needed
A FIM counts as 4 IOUs
A C300 controller can support 15 FIMs
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

78. Honeywell
78
3/28/2023
C300 Topology Rules – IO Capacity, contd.
An Experion Server can support upto 125 FIMs
A FIM supports 4 H1 links, with 16 devices per link
Do the math: An Experion server can support 500
links, with a total of 8000 FieldBus devices!
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

79. Honeywell
79
3/28/2023

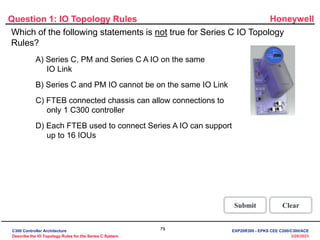

Question 1: IO Topology Rules
Correct! Series C, PM and Series A IO on the same IOLINK
is not true for a Series C IO Topology. An IOLINK cannot
support both Series C IO and PMIO on the same link. An
FTEB connected to the same Control Firewall as the C300
controller can publish Series A IO data to the C300.
Click anywhere to continue.
Correct - Click anywhere to continue
Incorrect - Click anywhere to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this question completely
You must answer the question before
continuing
Submit Clear
Which of the following statements is not true for Series C IO Topology
Rules?
Incorrect. Series C, PM and Series A IO on the same
IOLINK is not true for a Series C IO Topology. An IOLINK
cannot support both Series C IO and PMIO on the same
link. An FTEB connected to the same Control Firewall as
the C300 controller can publish Series A IO data to the
C300.
Click anywhere to continue.
Incorrect. Series C, PM and Series A IO on the same
IOLINK is not true for a Series C IO Topology. An IOLINK
cannot support both Series C IO and PMIO on the same
link. An FTEB connected to the same Control Firewall as
the C300 controller can publish Series A IO data to the
C300.
Click anywhere to continue.
Incorrect. Series C, PM and Series A IO on the same
IOLINK is not true for a Series C IO Topology. An IOLINK
cannot support both Series C IO and PMIO on the same
link. An FTEB connected to the same Control Firewall as
the C300 controller can publish Series A IO data to the
C300.
Click anywhere to continue.
A) Series C, PM and Series C A IO on the same
IO Link
B) Series C and PM IO cannot be on the same IO Link
C) FTEB connected chassis can allow connections to
only 1 C300 controller
D) Each FTEB used to connect Series A IO can support
up to 16 IOUs
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

80. Honeywell
80
3/28/2023

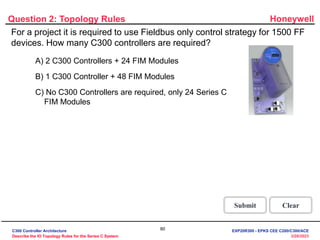

Question 2: Topology Rules
Correct - Click anywhere to continue
Incorrect - Click anywhere to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this question completely
You must answer the question before
continuing
Submit Clear
No. The correct statement is "No C300 controllers are
required, only 24 Series C FIM Modules". Since the
project requires only Fieldbus control strategy the C300
controller is not required. Each FIM Module has 4 FF links
and each link supports 16 FF devices. Hence 1 FIM
module can support a maximum of 64 (16*4) FF devices.
Hence only 24 (1500/64) Series C FIM Modules are
required.
Click anywhere to continue.
No. The correct statement is "No C300 controllers are
required, only 24 Series C FIM Modules". Since the
project requires only Fieldbus control strategy the C300
controller is not required. Each FIM Module has 4 FF links
and each link supports 16 FF devices. Hence 1 FIM
module can support a maximum of 64 (16*4) FF devices.
Hence only 24 (1500/64) Series C FIM Modules are
required.
Click anywhere to continue.
Yes! The correct statement is "No C300 controllers are
required, only 24 Series C FIM Modules". Since the
project requires only Fieldbus control strategy the C300
controller is not required. Each FIM Module has 4 FF links
and each link supports 16 FF devices. Hence 1 FIM
module can support a maximum of 64 (16*4) FF devices.
Hence only 24 (1500/64) Series C FIM Modules are
required.
Click anywhere to continue.
For a project it is required to use Fieldbus only control strategy for 1500 FF
devices. How many C300 controllers are required?
A) 2 C300 Controllers + 24 FIM Modules
B) 1 C300 Controller + 48 FIM Modules
C) No C300 Controllers are required, only 24 Series C
FIM Modules
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

81. Honeywell
81
3/28/2023
Question 3: Topology Rules
Incorrect. All of the above statements are correct
for FTEBs used in the Series C topology.
Click anywhere to continue.
Incorrect. All of the above statements are correct
for FTEBs used in the Series C topology.
Click anywhere to continue.
Incorrect. All of the above statements are correct
for FTEBs used in the Series C topology.
Click anywhere to continue.
Correct! All of the above statements are correct for
FTEBs used in the Series C topology.
Click anywhere to continue.
Correct - Click anywhere to continue
Incorrect - Click anywhere to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this question completely
You must answer the question before
continuing
Submit Clear
FTEBs can be used in the Series C topology under specific scenarios.
Which of the these is true?
A) FTEB connected to AB PLC via Downlink CNI
B) FTEBs must be connected to the same Control
Firewall as the C300
C) An FTEB connected chassis can allow connections
to only 1 C300 controller
D) All of the above
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

82. Honeywell
82
3/28/2023

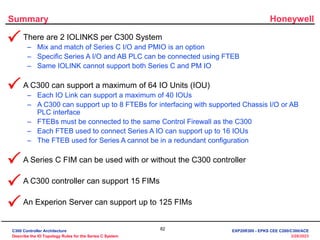

Summary
• There are 2 IOLINKS per C300 System
– Mix and match of Series C I/O and PMIO is an option
– Specific Series A I/O and AB PLC can be connected using FTEB
– Same IOLINK cannot support both Series C and PM IO
• A C300 can support a maximum of 64 IO Units (IOU)
– Each IO Link can support a maximum of 40 IOUs
– A C300 can support up to 8 FTEBs for interfacing with supported Chassis I/O or AB
PLC interface
– FTEBs must be connected to the same Control Firewall as the C300
– Each FTEB used to connect Series A IO can support up to 16 IOUs
– The FTEB used for Series A cannot be in a redundant configuration
• A Series C FIM can be used with or without the C300 controller
• A C300 controller can support 15 FIMs
• An Experion Server can support up to 125 FIMs





C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

83. Honeywell
83
3/28/2023
Conclusion
Describe the I/O Topology Rules for the Series C System
Completion
Certificate
Proceed to the next lesson in your course material
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

84. Honeywell
84
3/28/2023
This page intentionally left blank
C300 Controller Architecture
Describe the IO Topology Rules for the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

85. 85
3/28/2023
Describe Fiber Optic Extender and its
Connection Rules
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

86. Honeywell
86
3/28/2023
• Overview
• Series C I/O Link Fiber Optic Extender Module
• Topology – Series C IOM, PM IOP
• Topology Type – Daisy Chain, Star, Tree
• Distance Limitation
• Cabinet Layout
• Specifications
Topics
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

87. Honeywell
87
3/28/2023
Overview
• C300 controller can now be connected remotely to Series C I/O or PMIO
through the use of an I/O Link Fiber Optic Extender (FOE) module
• Same FOE cannot be used for Series C and PMIO connections,
concurrently
• Each FOE can connect to two remote sites
– Two fiber optic ports sets, FO1 and FO2
– Ports have both receive (Rx) and transmit (Tx)
• Mounting options
– IOTA
– Din Rail
– Stand Alone
• Two types of IOLINK cables
– PMIO
– Series C
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

88. Honeywell
88
3/28/2023

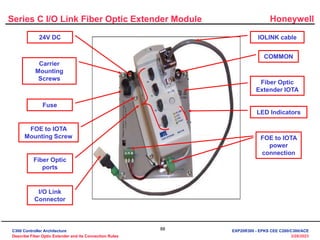

Series C I/O Link Fiber Optic Extender Module
IOLINK cable
COMMON
Fiber Optic
Extender IOTA
LED Indicators
24V DC
Carrier
Mounting
Screws
Fuse
FOE to IOTA
Mounting Screw FOE to IOTA
power
connection
Fiber Optic
ports
I/O Link
Connector
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

89. Honeywell
89
3/28/2023
Topology – Series C IOM
Star
Series C IOM
Daisy chain
Series C IOM
Tree (Star + Daisy chain)
Series C IOM
• Configuration possible are
C300
IOM
IOM
Remote
Site A
Remote
Site B
1.5 Km
Max.
1.5 Km Max.
4 KM Max. (requires
IOLE every 1.5 km)
Fiber Optic
Cable
IO Link
Cable
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

90. Honeywell
90
3/28/2023
Topology – PM IOP
C300
PM IOP
With IOLink Extender IOP
Remote Site B
Remote Site A
PM IOP
With IOLink Extender IOP
1.5 Km Max.
1.5 Km
Max.
10 Km Max.
(requires
IOLE every
1.5 Km)
1.5 Km
Max.
IOLink Extender
pair MC-IOLX02
Fiber Optic
Cable
IO Link
Cable
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

91. Honeywell
91
3/28/2023

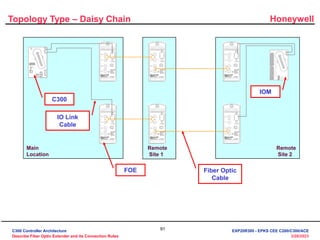

Topology Type – Daisy Chain
Remote
Site 2
C300
FOE
IOM
Fiber Optic
Cable
IO Link
Cable
Remote
Site 1
Main
Location
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

92. Honeywell
92
3/28/2023

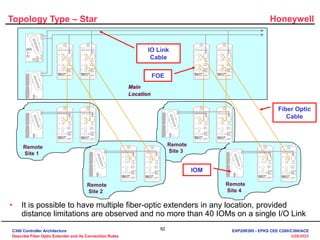

Topology Type – Star
• It is possible to have multiple fiber-optic extenders in any location, provided
distance limitations are observed and no more than 40 IOMs on a single I/O Link
Remote
Site 1
Remote
Site 2
Remote
Site 3
Remote
Site 4
FOE
IOM
Fiber Optic
Cable
IO Link
Cable
Main
Location
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

93. Honeywell
93
3/28/2023
Topology Type – Tree
C300
IOM
IOM
FOE
Fiber Optic
Cable
IO Link
Cable
Fiber1
Fiber2
Fiber3
Fiber1
Fiber2
Fiber3
Remote
Site 2
Remote
Site 1
Main
Location
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

94. Honeywell
94
3/28/2023

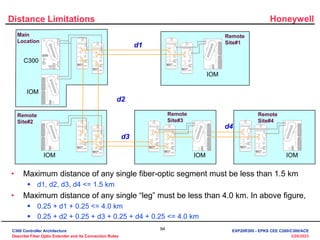

Distance Limitations
• Maximum distance of any single fiber-optic segment must be less than 1.5 km
 d1, d2, d3, d4 <= 1.5 km
• Maximum distance of any single “leg” must be less than 4.0 km. In above figure,
 0.25 + d1 + 0.25 <= 4.0 km
 0.25 + d2 + 0.25 + d3 + 0.25 + d4 + 0.25 <= 4.0 km
Main
Location
Remote
Site#2
Remote
Site#3
Remote
Site#4
Remote
Site#1
d1
d2
d3
d4
IOM IOM
IOM
IOM
C300
IOM
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

95. Honeywell
95
3/28/2023
Distance Limitations (Example)
• The connections shown in figure above will work because,
– d1(1.5), d2(1.0), d3 (1.0), d4(1.0) <= 1.5 km
– 0.25 + d1(1.5) + 0.25 = 2.0 <= 4.0 km
0.25 + d2(1.0) + 0.25 + d3(1.0) + 0.25 + d4(1.0) + 0.25 = 4.0 <= 4.0 km
d1 = 1.5 km
d2 = 1.0 km
d3 =
1.0 km
d4 =
1 km
IOM
IOM IOM
IOM
C300
Main
Location
Remote
Site#2
Remote
Site#3
Remote
Site#4
Remote
Site#1
IOM
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

96. Honeywell
96
3/28/2023

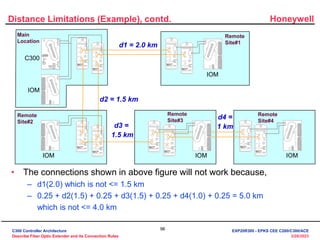

Distance Limitations (Example), contd.
• The connections shown in above figure will not work because,
– d1(2.0) which is not <= 1.5 km
– 0.25 + d2(1.5) + 0.25 + d3(1.5) + 0.25 + d4(1.0) + 0.25 = 5.0 km
which is not <= 4.0 km
d1 = 2.0 km
d2 = 1.5 km
d3 =
1.5 km
d4 =
1 km
IOM
IOM IOM
IOM
IOM
C300
Main
Location
Remote
Site#2
Remote
Site#3
Remote
Site#4
Remote
Site#1
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

97. Honeywell
97
3/28/2023

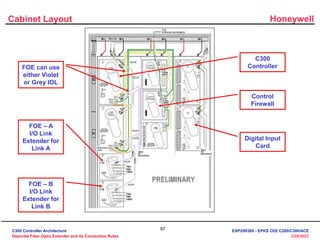

Cabinet Layout
FOE – A
I/O Link
Extender for
Link A
FOE – B
I/O Link
Extender for
Link B
FOE can use
either Violet
or Grey IOL
C300
Controller
Control
Firewall
Digital Input
Card
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

98. Honeywell
98
3/28/2023

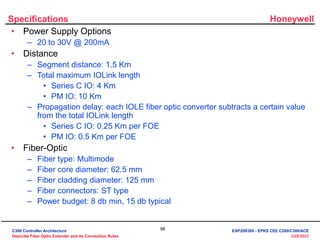

Specifications
• Power Supply Options
– 20 to 30V @ 200mA
• Distance
– Segment distance: 1.5 Km
– Total maximum IOLink length
• Series C IO: 4 Km
• PM IO: 10 Km
– Propagation delay: each IOLE fiber optic converter subtracts a certain value
from the total IOLink length
• Series C IO: 0.25 Km per FOE
• PM IO: 0.5 Km per FOE
• Fiber-Optic
– Fiber type: Multimode
– Fiber core diameter: 62.5 mm
– Fiber cladding diameter: 125 mm
– Fiber connectors: ST type
– Power budget: 8 db min, 15 db typical
C300 Controller Architecture
Describe Fiber Optic Extender and its Connection Rules
EXP20R300 - EPKS CEE C200/C300/ACE

99. 99
3/28/2023
Describe the Control Firewall Connections in
the Series C System
C300 Controller Architecture
Describe the Control Firewall Connections in the Series C System
C300 Controller Architecture
Describe the Control Firewall Connections in the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

100. Honeywell
100
3/28/2023

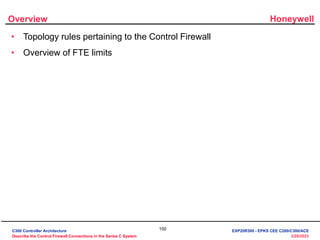

Overview
• Topology rules pertaining to the Control Firewall
• Overview of FTE limits
C300 Controller Architecture
Describe the Control Firewall Connections in the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

101. Honeywell
101
3/28/2023

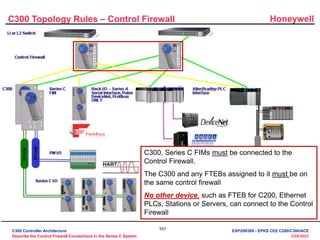

C300 Topology Rules – Control Firewall
C300, Series C FIMs must be connected to the
Control Firewall.
The C300 and any FTEBs assigned to it must be on
the same control firewall
No other device, such as FTEB for C200, Ethernet
PLCs, Stations or Servers, can connect to the Control
Firewall
C300 Controller Architecture
Describe the Control Firewall Connections in the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

102. Honeywell
102
3/28/2023
C300 Topology Rules – Control Firewall, contd.
The Control Firewall is connected by uplink to a L1 or
L2 switch. Connections can be Fiber Optic or STP
Cable.
Fiber Optic: 2 KM multi mode or 15 KM single mode.
STP cable: CAT 5 up to 100 M
Control Firewalls cannot be cascaded
C300 Controller Architecture
Describe the Control Firewall Connections in the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

103. Honeywell
103
3/28/2023

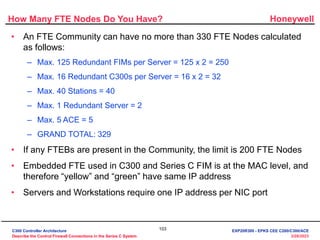

How Many FTE Nodes Do You Have?
• An FTE Community can have no more than 330 FTE Nodes calculated
as follows:
– Max. 125 Redundant FIMs per Server = 125 x 2 = 250
– Max. 16 Redundant C300s per Server = 16 x 2 = 32
– Max. 40 Stations = 40
– Max. 1 Redundant Server = 2
– Max. 5 ACE = 5
– GRAND TOTAL: 329
• If any FTEBs are present in the Community, the limit is 200 FTE Nodes
• Embedded FTE used in C300 and Series C FIM is at the MAC level, and
therefore “yellow” and “green” have same IP address
• Servers and Workstations require one IP address per NIC port
C300 Controller Architecture
Describe the Control Firewall Connections in the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

104. Honeywell
104
3/28/2023

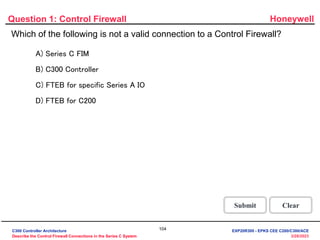

Question 1: Control Firewall
Correct - Click anywhere to
continue
Incorrect - Click anywhere
to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this
question completely
You must answer the question before
continuing
Submit Clear
Incorrect. FTEB for C200 controller is not a valid device to
connect to Control Firewall. No device such as FTEB for
C200, Ethernet PLCs, Stations or Servers, can connect to
the Control Firewall
Click anywhere to continue.
Incorrect. FTEB for C200 controller is not a valid device to
connect to Control Firewall. No device such as FTEB for
C200, Ethernet PLCs, Stations or Servers, can connect to
the Control Firewall
Click anywhere to continue.
Incorrect. FTEB for C200 controller is not a valid device to
connect to Control Firewall. No device such as FTEB for
C200, Ethernet PLCs, Stations or Servers, can connect to
the Control Firewall
Click anywhere to continue.
Correct! FTEB for C200 controller is not a valid device to
connect to Control Firewall. No device such as FTEB for
C200, Ethernet PLCs, Stations or Servers, can connect to
the Control Firewall
Click anywhere to continue.
Which of the following is not a valid connection to a Control Firewall?
A) Series C FIM
B) C300 Controller
C) FTEB for specific Series A IO
D) FTEB for C200
C300 Controller Architecture
Describe the Control Firewall Connections in the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

105. Honeywell
105
3/28/2023

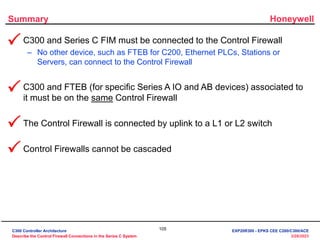

Summary
• C300 and Series C FIM must be connected to the Control Firewall
– No other device, such as FTEB for C200, Ethernet PLCs, Stations or
Servers, can connect to the Control Firewall
• C300 and FTEB (for specific Series A IO and AB devices) associated to
it must be on the same Control Firewall
• The Control Firewall is connected by uplink to a L1 or L2 switch
• Control Firewalls cannot be cascaded




C300 Controller Architecture
Describe the Control Firewall Connections in the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

106. Honeywell
106
3/28/2023
Describe the Control Firewall connections in the
Series C System
Completion
Certificate
Proceed to the next lesson in your course material
C300 Controller Architecture
Describe the Control Firewall Connections in the Series C System
EXP20R300 - EPKS CEE C200/C300/ACE

107. 107
3/28/2023
Define a Typical Series C Configuration
C300 Controller Architecture
Define a Typical Series C Configuration
C300 Controller Architecture
Define a Typical Series C Configuration
EXP20R300 - EPKS CEE C200/C300/ACE

108. Honeywell
108
3/28/2023

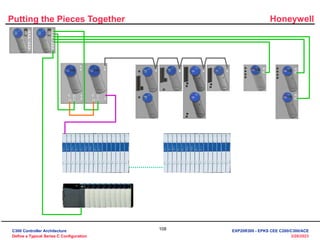

Putting the Pieces Together
C300 Controller Architecture
Define a Typical Series C Configuration
EXP20R300 - EPKS CEE C200/C300/ACE

109. Honeywell
109
3/28/2023

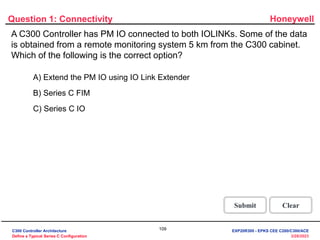

A C300 Controller has PM IO connected to both IOLINKs. Some of the data
is obtained from a remote monitoring system 5 km from the C300 cabinet.
Which of the following is the correct option?
Question 1: Connectivity
Correct! To get data from the remote vibrating
monitoring system extend the PM IO using IO
Link Extender.
Click anywhere to continue.
Incorrect. To get data from the remote
vibrating monitoring system extend the PM IO
using IO Link Extender.
Click anywhere to continue.
Incorrect. To get data from the remote
vibrating monitoring system extend the PM IO
using IO Link Extender.
Click anywhere to continue.
Correct - Click anywhere to continue
Incorrect - Click anywhere to continue
You answered this correctly!
Your answer:
The correct answer is:
You did not answer this question completely
You must answer the question before
continuing
Submit Clear
A) Extend the PM IO using IO Link Extender
B) Series C FIM
C) Series C IO
C300 Controller Architecture
Define a Typical Series C Configuration
EXP20R300 - EPKS CEE C200/C300/ACE

110. Honeywell
110
3/28/2023

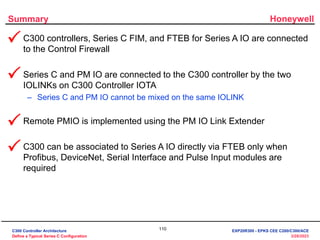

Summary
• C300 controllers, Series C FIM, and FTEB for Series A IO are connected
to the Control Firewall
• Series C and PM IO are connected to the C300 controller by the two
IOLINKs on C300 Controller IOTA
– Series C and PM IO cannot be mixed on the same IOLINK
• Remote PMIO is implemented using the PM IO Link Extender
• C300 can be associated to Series A IO directly via FTEB only when
Profibus, DeviceNet, Serial Interface and Pulse Input modules are
required




C300 Controller Architecture
Define a Typical Series C Configuration
EXP20R300 - EPKS CEE C200/C300/ACE

111. Honeywell
111
3/28/2023
Define a Typical Series C Configuration
Completion
Certificate
Proceed to the next lesson in your course material
Conclusion
C300 Controller Architecture
Define a Typical Series C Configuration
EXP20R300 - EPKS CEE C200/C300/ACE

112. Honeywell
112
3/28/2023
This page intentionally left blank
C300 Controller Architecture
Define a Typical Series C Configuration
EXP20R300 - EPKS CEE C200/C300/ACE
