Daniel Irwin - Crossrail: Future-Proofing Railway Asset Management
- 1. Project Goals: TheProduct Future-Proofing Asset Management Dan Irwin GIS Manager
- 2. Overview Scope Information Management Where doAssets fit in? Agenda Asset Information Key Concepts Asset Data Collection Workflow Geospatial Integration Future-Proofing Handover Asset Management Geospatial BIM
- 3. Largest infrastructure projectin Europe 90 km of surface railway 42 km of new twin tunnels under central London Carry 200 million passengers a year Largest single addition to the London transport network for over 50 years Overview: Scope
- 4. Data,Information,Knowledge Traditional Process Lifecycle Information Management Overview:Lifecycle Information Management Planning Conceptual Design Detailed Design Construction Operation and Maintenance
- 5.

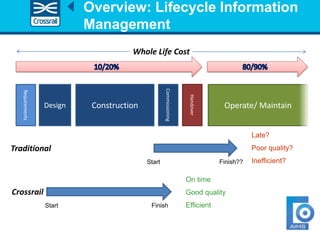

- 6. Design Construction Commissioning Handover Operate/ Maintain Requirements Traditional StartFinish?? Crossrail Start Finish Late? Poor quality? Inefficient? On time Good quality Efficient Whole Life Cost Overview: Lifecycle Information Management

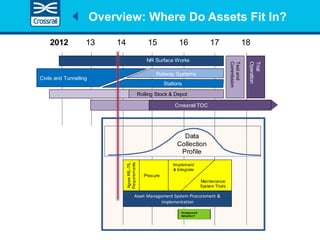

- 7. Overview: Where DoAssets Fit In? 13 14 15 16 17 18 Railway Systems Stations Rolling Stock & Depot NR Surface Works Testand Commission Trial Operation Crossrail TOC 2012 Civils and Tunnelling Procure AgreeRfL-TfL Requirements Asset Management System Procurement & Implementation Data Collection Profile Overground Adoption? Implement & Integrate Maintenance System Trials
- 8. Overview: Where DoAssets Fit In?
- 9. Asset Information atCrossrail
- 10. Asset Generic term torepresent: A physical thing that delivers rail services e.g. train control A physical thing that provides supporting services e.g. compressed air Any grouping of the above We record assets down to the level we would expect to maintain them e.g. pump and not pump motor bearing Asset Information: Key Concepts

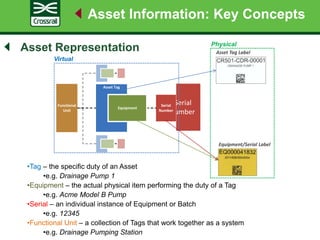

- 11. Asset Representation Asset Information:Key Concepts Asset Tag Equipment Serial Number •Tag – the specific duty of an Asset •e.g. Drainage Pump 1 •Equipment – the actual physical item performing the duty of a Tag •e.g. Acme Model B Pump •Serial – an individual instance of Equipment or Batch •e.g. 12345 •Functional Unit – a collection of Tags that work together as a system •e.g. Drainage Pumping Station Functional Unit Serial Number Equipment Asset Tag Asset Tag Label Equipment/Serial Label Virtual Physical

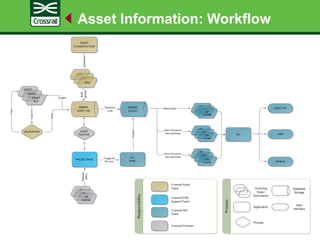

- 12. Asset Information: Workflow Responsibility Process Incoming Data/ Documents Incoming Data / Documents ApplicationApplication ProcessProcess Database Storage Database Storage User Interface User Interface Crossrail Asset Team Crossrail GIS Team Crossrail Contract Crossrail CAD Support Team Bulk Upload AD4 AD4 AD4 RDBMS (AIMS / eB) Submit ASSET XLSASSET XLSASSET XLS Create VALIDATION Pass Fail PROJECTWISE 3D MODEL3D MODEL3D MODEL Manual Entry ASSET PAINTER RDBMS (Oracle) Dynamic Link Triggered Process ETL (FME) Output Semi-Dynamic Derived Data Base Data Semi-Dynamic Derived Data 3D LAYER3D LAYER3D LAYER LRS CLASSLRS CLASSLRS CLASS 2D PLAN2D PLAN2D PLAN GIS DESKTOP WEB MOBILE ASSET CLASSIFICATION Defines

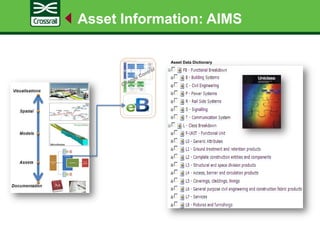

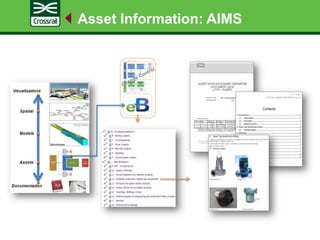

- 13. Asset Information: AIMS AssetData Dictionary
- 14.
- 15.
- 16. Asset Information: AssetPainter 3D Model World Asset World Asset Painter Asset Tags made available from eB AIMS Paint Asset Tag (Applies Asset Tag & Links to Information)

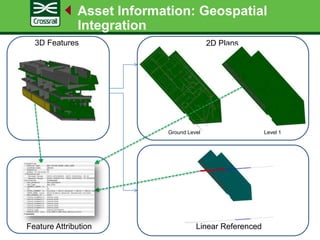

- 17. Asset Information: Geospatial Integration 2DPlans Ground Level Level 1 3D Features Linear ReferencedFeature Attribution
- 18.

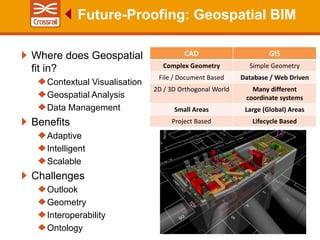

- 19. Where does Geospatial fitin? Contextual Visualisation Geospatial Analysis Data Management Benefits Adaptive Intelligent Scalable Challenges Outlook Geometry Interoperability Ontology Future-Proofing: Geospatial BIM CAD GIS Complex Geometry Simple Geometry File / Document Based Database / Web Driven 2D / 3D Orthogonal World Many different coordinate systems Small Areas Large (Global) Areas Project Based Lifecycle Based
