SlideShare a Scribd company logo

heterojunction lecture notes 7-03-23.pptx

•Download as PPTX, PDF•
•
N
NelyJay

Electrical. Materials 2

Engineering
1 of 18
ELECTRICAL MATERIALS II HETEROJUNCTIONS

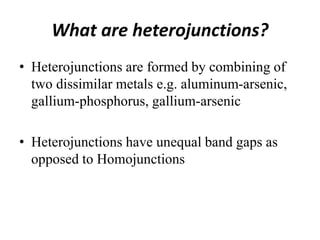

What are heterojunctions? • Heterojunctions are formed by combining of two dissimilar metals e.g. aluminum-arsenic, gallium-phosphorus, gallium-arsenic • Heterojunctions have unequal band gaps as opposed to Homojunctions

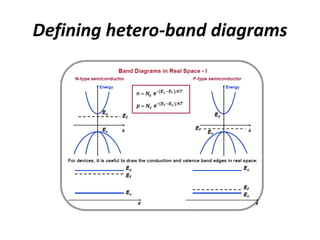

Defining hetero-band diagrams

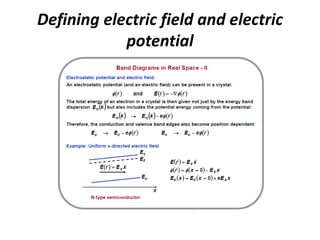

Defining electric field and electric potential

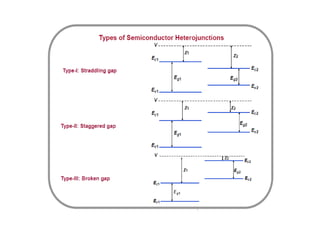

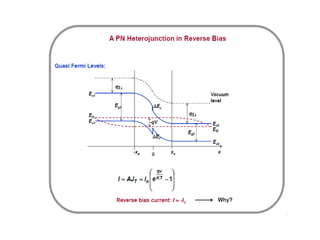

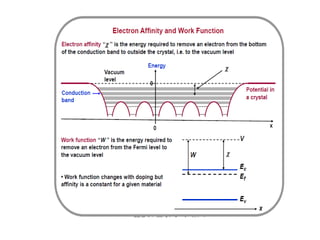

heterojunction lecture notes 7-03-23.pptx

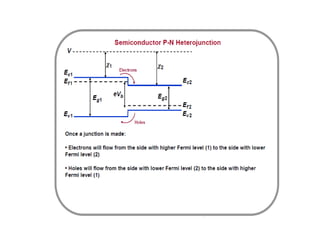

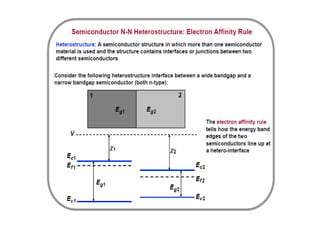

heterojunction lecture notes 7-03-23.pptx

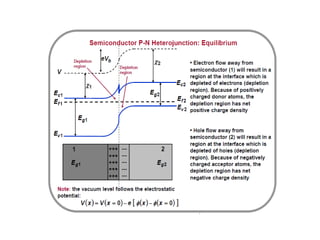

heterojunction lecture notes 7-03-23.pptx

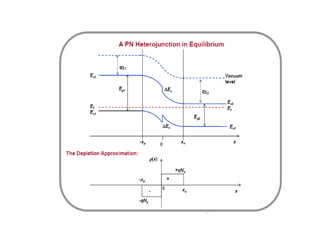

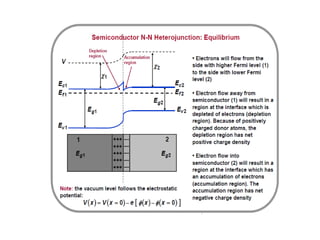

heterojunction lecture notes 7-03-23.pptx

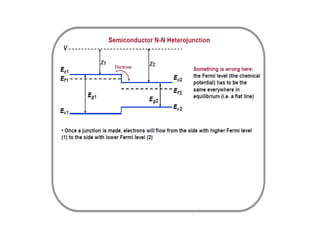

heterojunction lecture notes 7-03-23.pptx
heterojunction lecture notes 7-03-23.pptx

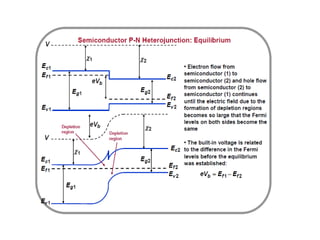

heterojunction lecture notes 7-03-23.pptx
heterojunction lecture notes 7-03-23.pptx

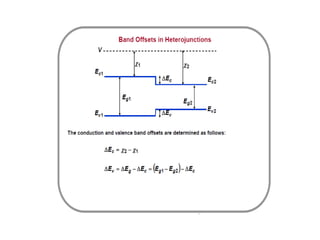

heterojunction lecture notes 7-03-23.pptx

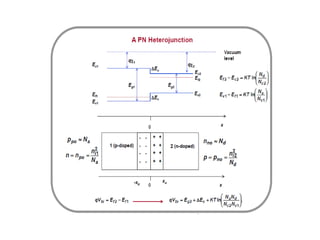

heterojunction lecture notes 7-03-23.pptx
heterojunction lecture notes 7-03-23.pptx
heterojunction lecture notes 7-03-23.pptx

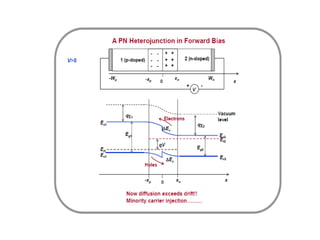

heterojunction lecture notes 7-03-23.pptx
heterojunction lecture notes 7-03-23.pptx
