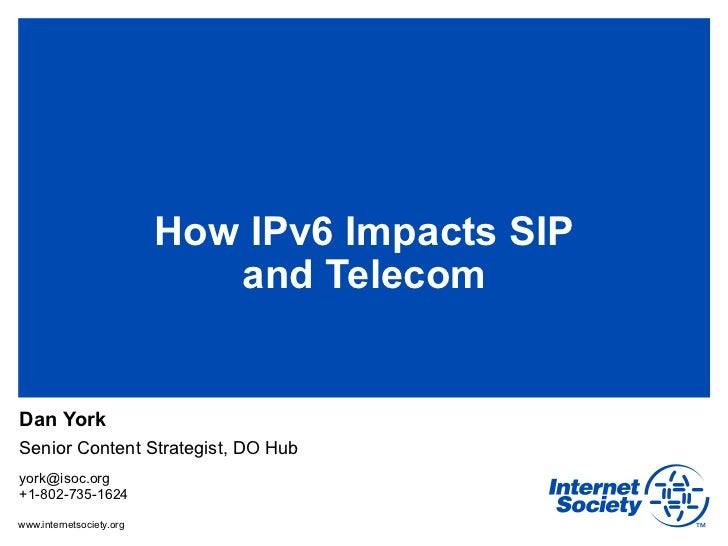

How IPv6 Impacts SIP                             and TelecomDan YorkSenior Content Strategist, DO Hubyork@isoc.org+1-802-7...
Dan York                       www.danyork.comThe Internet Society
My Recent Change                       DO Hub Project                       york@isoc.org                       +1-802-735...
The Internet Society
Why IPv6?www.internetsociety.org
In The Beginning...                       192.168.20.12The Internet Society
Mobility                       www.flickr.com/photos/kapungo/3396823518/The Internet Society
A Plethora of Portable Platforms                       www.flickr.com/photos/clonedmilkmen/5111779335/The Internet Society
Internet of Things                       www.flickr.com/photos/dmje/5159177886/The Internet Society
Internet of ThingsThe Internet Society
Internet of ThingsThe Internet Society
EVERYTHING                          over                           IPThe Internet Society
How IP Address Allocation Works                       Regional Internet Registries (RIRs)                       Internet S...
Global IPv4 Disparity !The Internet Society
Oops... as of Feb 1, 2011...                                                     All Gone!                       Regional ...
Solutions?www.internetsociety.org
IPv4 MarketplaceThe Internet Society
Prolonging IPv4 - NAT Today                                                                         NAT	                  ...
Carrier Grade NAT (a.k.a. LSN)                                                         NAT	                         Public...
Old NATs Never Die...                                                         NAT	                                     NAT...
The Problem?      SIP              NATThe Internet Society
Oh, and by the way...                (sorry... we still have NAT-like networks with IPv6...)The Internet Society
And then there is...The Internet Society
IPv6 Challenges:                           User Interfaceswww.internetsociety.org
See the problem?The Internet Society
See the problem?The Internet Society
IPv4                       192.168.20.12The Internet Society
IPv62001:db8:34a5:23:aa1f:12f4:9009:1234The Internet Society
IPv6 Address Compression 2001:db8:34a5:0:0:0:0:1 2001:db8:34a5::1  (oh, and they aren’t case-sensitive)The Internet Society
IPv6 Addresses                       127.0.0.1   ::1                       0.0.0.0     ::The Internet Society
DNS is your friend!The Internet Society
IPv6 Challenges:                            Port Numberswww.internetsociety.org
IPv4 Port Numbers                       192.168.20.12:5060The Internet Society
IPv4 Port Numbers in IPv6?                       192.168.20.12:5060     2001:db8:34a5::1234:5060The Internet Society
IPv6 Port Numbers [2001:db8:34a5::1234]:5060The Internet Society
IPv6 addressinghttp://[2001:db8:34a5::1234]/index.html       http://[2001:db8:34a5::1234]:8080           sip:dan@[2001:db8...
DNS is your friend!The Internet Society
IPv6 Challenge:                    Multiple Addresseswww.internetsociety.org
IPv4 – Single Address / Interface                       192.168.20.12The Internet Society
IPv6 – Multiple Addresses / Interface                            192.168.20.12 2001:db8:34a5:92:21c:a5ff:fe12:3a80        ...
IPv6 – Neighbor Discovery                 No More DHCP For Address                        Assignment                      ...
IPv6 – Address Creation               Router Advertisement 2001:db8:34a5:92:21c:a5ff:fe12:3a80                            ...
DNS is your friend!The Internet Society
IPv6 Challenges:                                DNSwww.internetsociety.org
IPv4 and DNSexample.com 3600 IN A 192.168.20.12The Internet Society
IPv6 and DNSexample.com 3600 IN A 192.168.20.12example.com 3600 IN AAAA 2001:db8:34a5::1234The Internet Society
IPv6 DNS Fun         What if DNS gives a AAAA....        but your system doesn’t have          “real” IPv6 connectivity?  ...
UNhappy Eyeballs                                       DNS                                       Svrexample.com A 192.168....
Happy Eyeballs                                       DNS                                       Svrexample.com A 192.168.20...
Happy Eyeballsdraft-ietf-v6ops-happy-eyeballsThe Internet Society
IPv6 Challenges:               Storing IP Addresseswww.internetsociety.org
How Do You Store IP Addresses?                        Memory?                       Databases?                       Confi...
Config Files<category name="SIP">      <item name="Server1">127.0.0.1:5060      </item></category>The Internet Society
IPv6 and SIPwww.internetsociety.org
IPv6 Works Fine!                           Linphone – http://www.linphone.org            Open source, free and available f...
Linphone and IPv6                           Linphone – http://www.linphone.org            Open source, free and available ...
RFC 6157                       RFC 6157    “IPv6 Transition in the Session        Initiation Protocol (SIP)”              ...
SIP Architecture                                  SIP              SIP                                 Proxy            Pr...
SIP Reality                       SIP           SIP              SIP             SIP         SIP                       Pro...
“SIP” = Multiple Protocols     SIP                       SDP                             RTPThe Internet Society
IPv4/IPv6 FunCommunicating between IPv4 client and IPv6 clientthrough a proxy§  Record-Route: <sip:2001:db8::1;lr>§  Rec...
IPv6 and SDPOnly allows a single IP address per media stream (“c=“parameter)§  c=IN IP4 192.168.20.12§  c=IN IP6 2001:db...
NAT, NAT, NAT...                       STUN, TURN, ICE                          (RFC 5245)The Internet Society
Discovery of SIP ServersUser agents need to find SIP servers/proxiesDHCPv6§  SIP Options in RFC 3319DNS SRV, NAPTR and AA...
Other IPv6 ConsiderationsOther interfaces§  Web and management systems§  Logging§  APIsCustom SIP headersMulti-vendor i...
SIPNOC 2011 IPv6 BOFApril 2011 BOF at SIPNOC 2011 in Herndon, VAIdentified potential actions:§  Migration plans: collecti...
SIP Forum “IPv6” Mailing Listsipforum.org/mailman/listinfo/ipv6The Internet Society
SIPit Test Events                                             sipit.net               SIPit 28: “68% of the implementation...
Get Started With SIP and IPv6...                http://bit.ly/voxeoipv6The Internet Society
Set up Test Lab or your Home Office              http://tunnelbroker.net                       www.test-ipv6.com          ...
SIP Softphones Supporting IPv6Linphone§  www.linphone.orgJitsi (formerly SIP Communicator)§  www.jitsi.orgThe Internet S...
Olle Would Want Me To Mention...                       Asterisk 1.8The Internet Society
Voxeo Application Platforms        Voxeo Prophecy 10.1        §  Standards-based platform for speech, IVR and SIP applica...
SIP Forum “IPv6” Mailing Listsipforum.org/mailman/listinfo/ipv6The Internet Society
A New Internet Society Initiative   Bridging the Divide Between IETF Standards and Industry-wide Deploymentwww.internetsoc...
Deployment & Operationalization (DO) Hub   Helps you           •  DO IPv6           •  DO DNSSEC           •  DO other fut...
What DO Hub Will Look Like       •  Online portals for new standards adoption                •      IPv6, DNSSEC, future s...
When DO Hub Will Be Available       •  October 2011                •  Preview web presence release                •  Engag...
How DO Hub Will Grow       •  New deployment articles will be added to the          knowledge base on a regular basis     ...
How to Participate       •  Help Create Content                •  We are working with first adopters and experts to       ...
Dan York   Senior Content Strategist, DO Hub,   Internet Society   york@isoc.org   +1-802-735-1624                        ...
