Qt Widgets In-Depth
    QWidget Under The Surface
About Me

• Marius Bugge Monsen
• Qt Developer
• Qt Widgets Team Lead
• Widgets and Window Systems
• Flags and Attributes
• The Future of Qt Widgets
by extranoise on flickr




Widgets and Window Systems
• Widgets and Window Systems
 • Window Systems
 • Windows and Widgets
 • Updates and Painting
 • Events and Loops
• Widgets and Window Systems
 • Window Systems
 • Windows and Widgets
 • Updates and Painting
 • Events and Loops

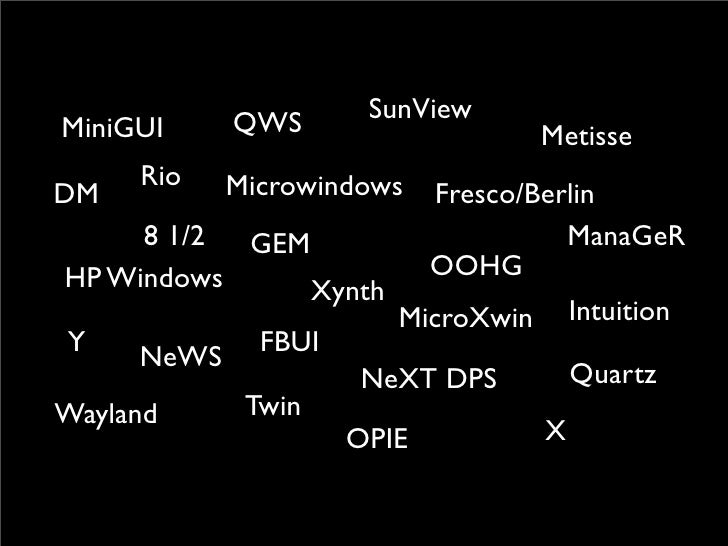

QWS       SunView
MiniGUI                             Metisse
     Rio    Microwindows
DM                          Fresco/...

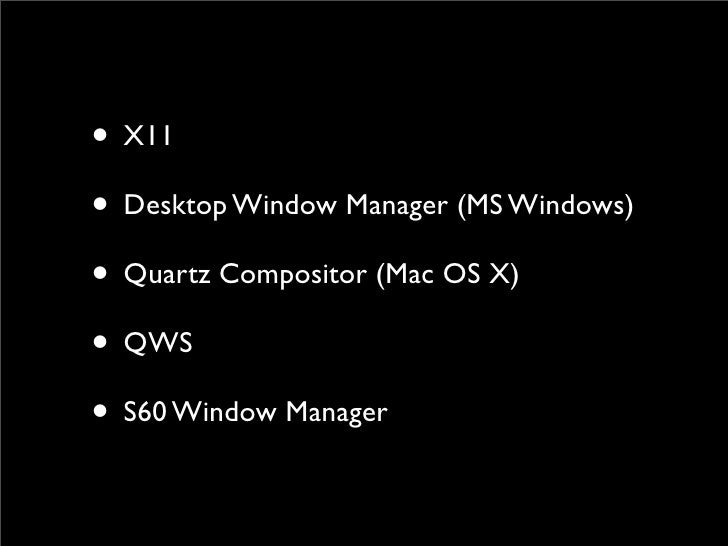

• X11
• Desktop Window Manager (MS Windows)
• Quartz Compositor (Mac OS X)
• QWS
• S60 Window Manager

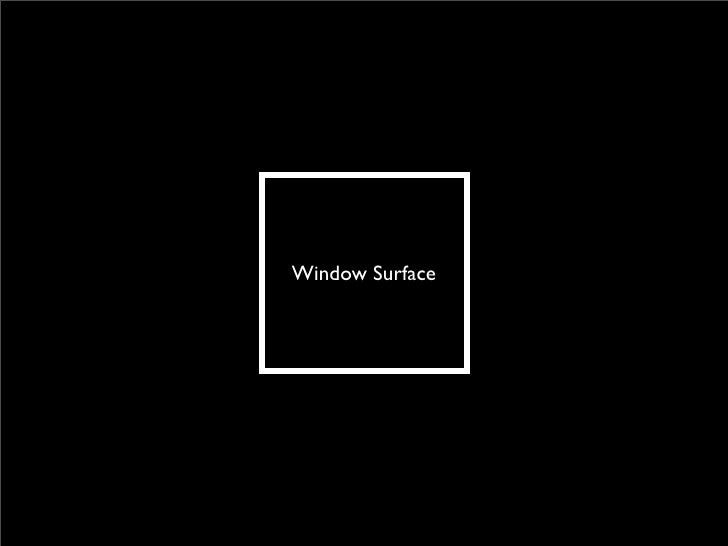

Window Surface

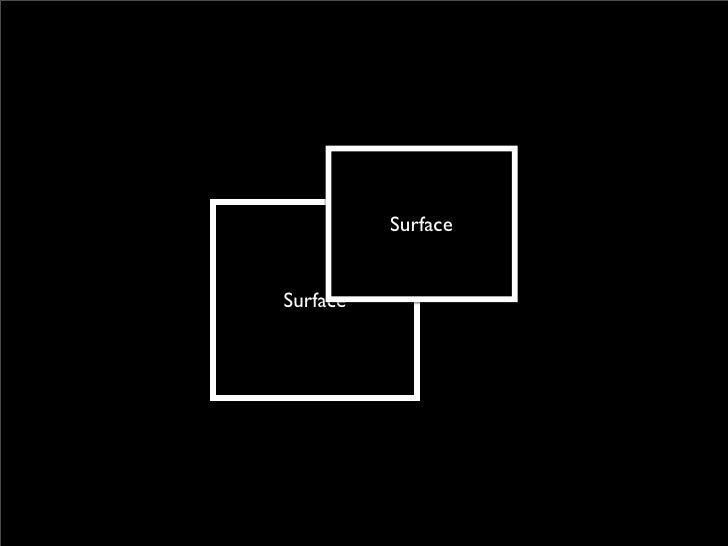

Surface


Surface

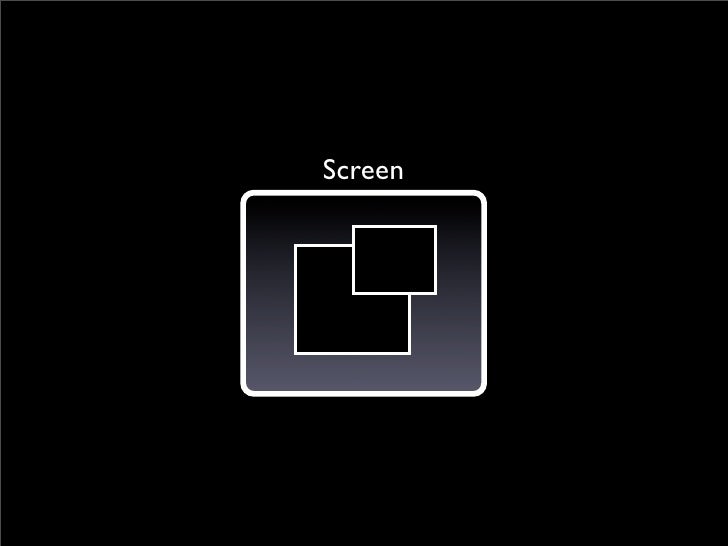

Screen

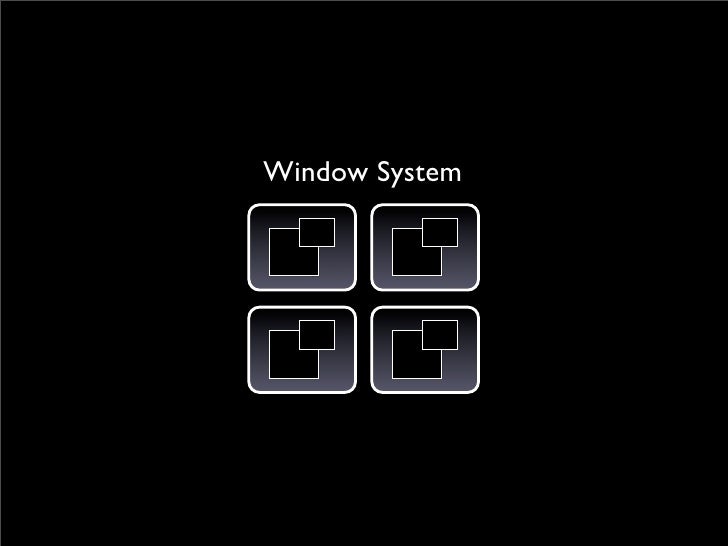

Window System

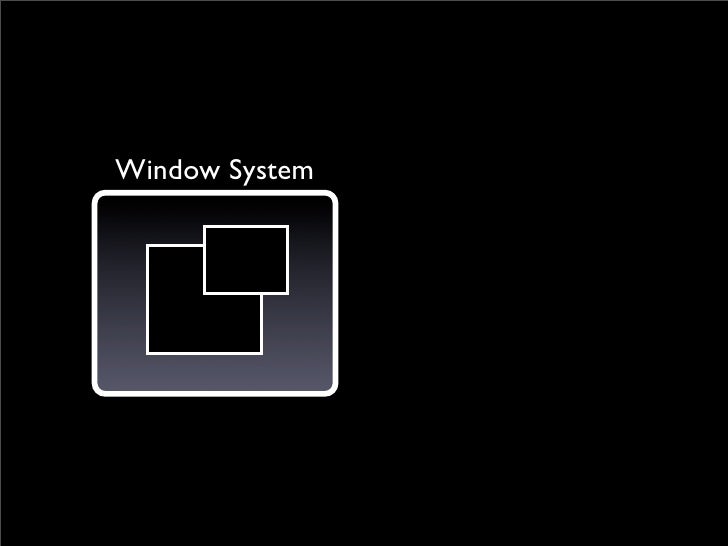

Window System

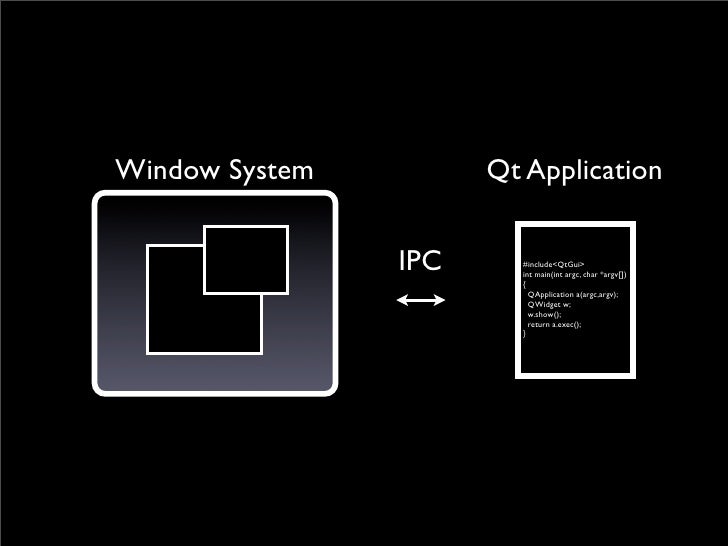

Window System         Qt Application


                IPC     #include<QtGui>
                        int main(int argc, ...

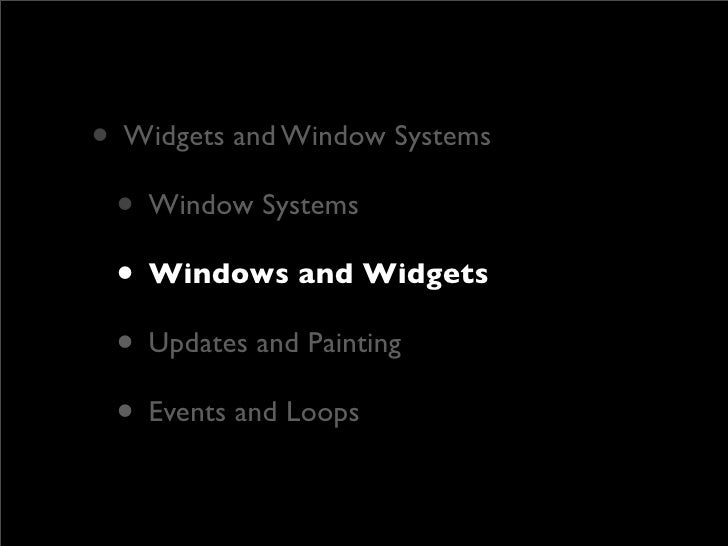

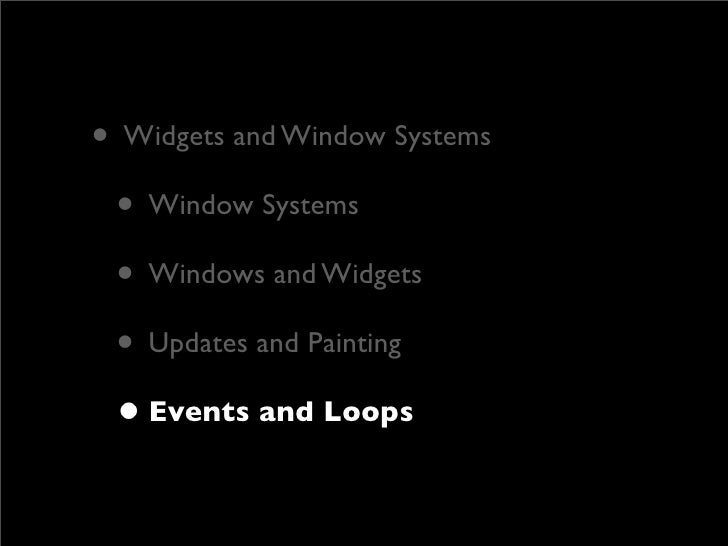

• Widgets and Window Systems
 • Window Systems
 • Windows and Widgets
 • Updates and Painting
 • Events and Loops

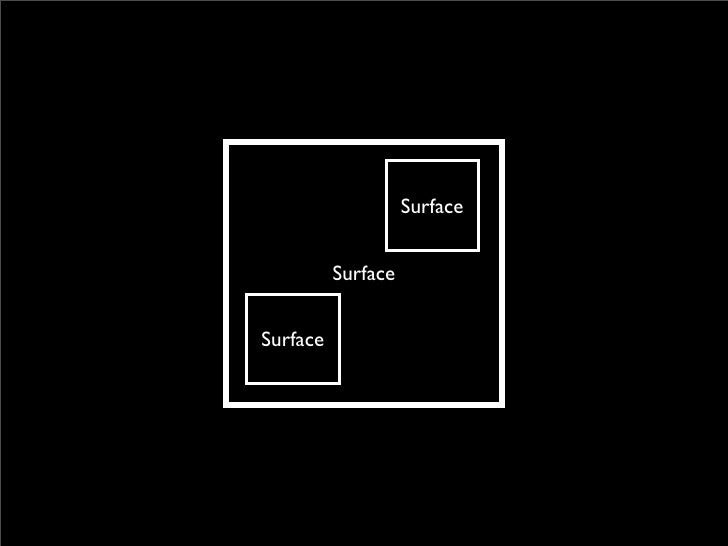

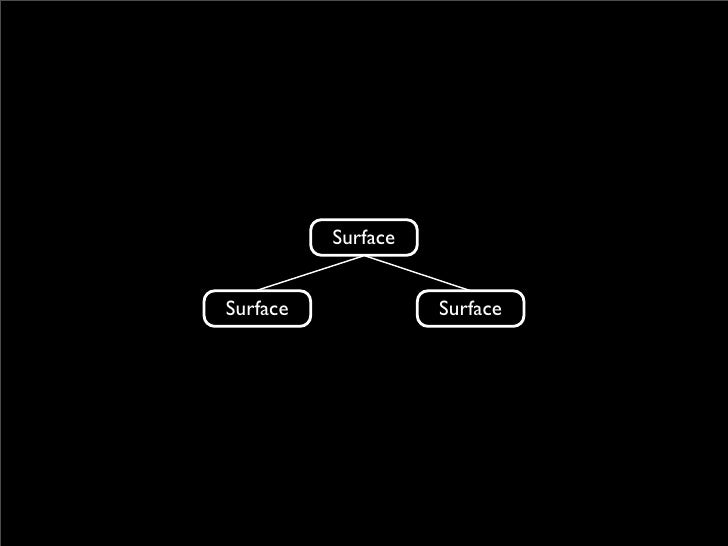

Surface


          Surface


Surface
Surface


Surface             Surface

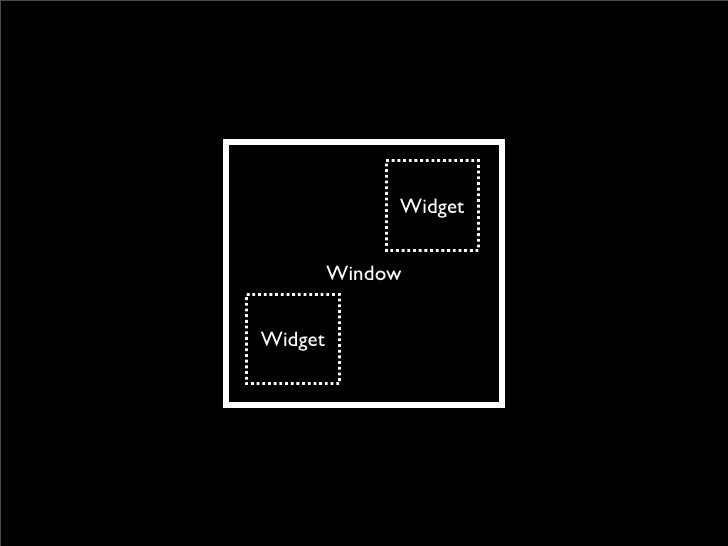

Widget

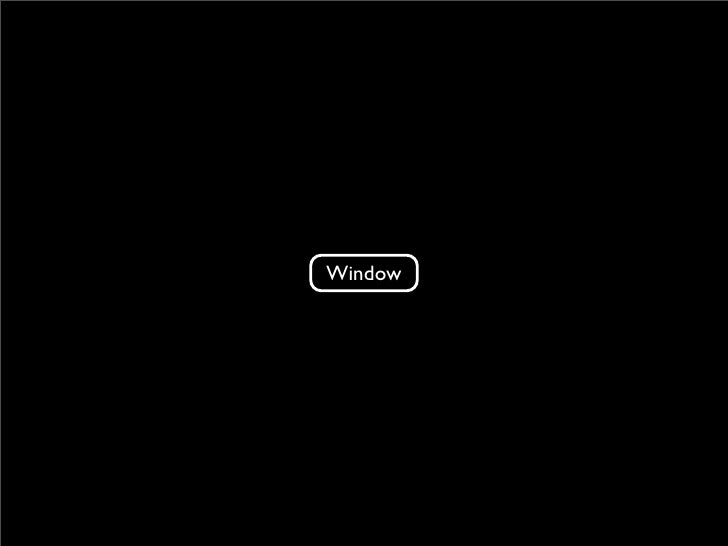

         Window


Widget
Window
• Widgets and Window Systems
 • Window Systems
 • Windows and Widgets
 • Updates and Painting
 • Events and Loops

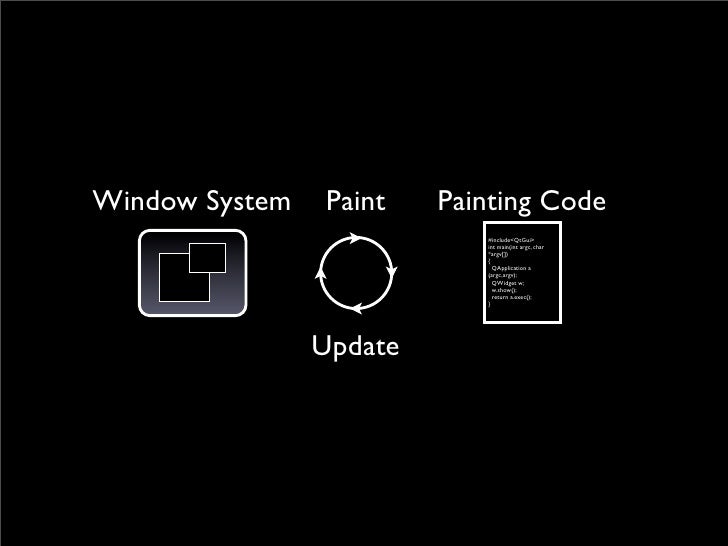

Window System   Paint    Painting Code
                            #include<QtGui>
                            int main(in...

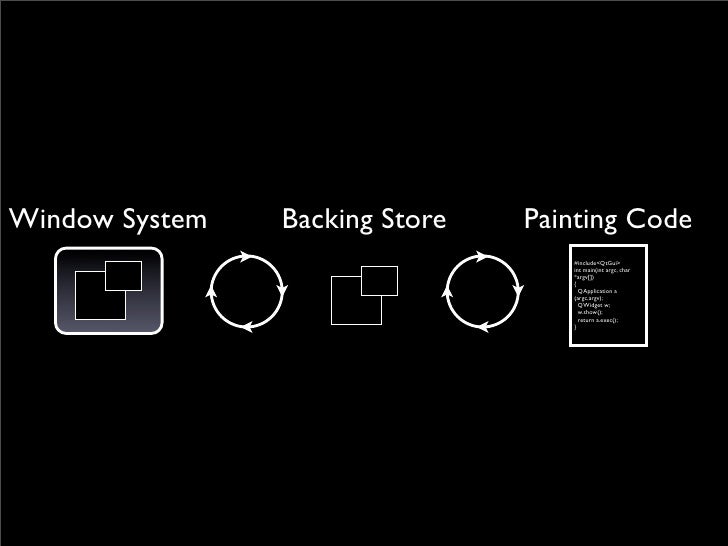

Window System   Backing Store   Painting Code
                                   #include<QtGui>
                         ...

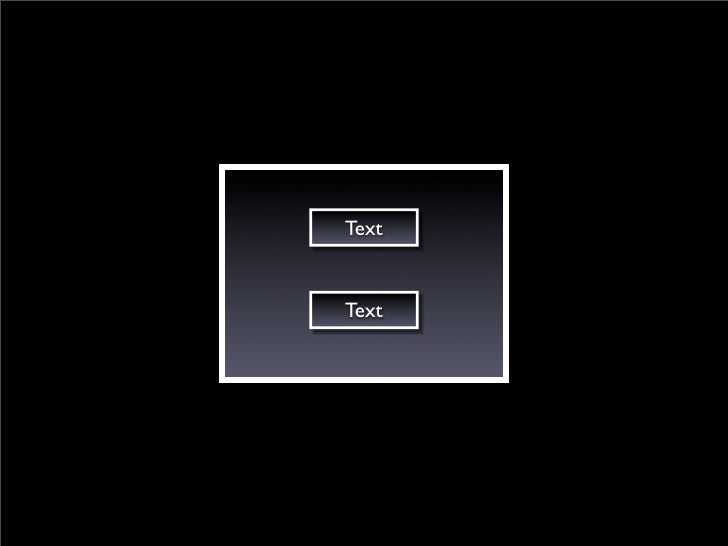

Text


Text

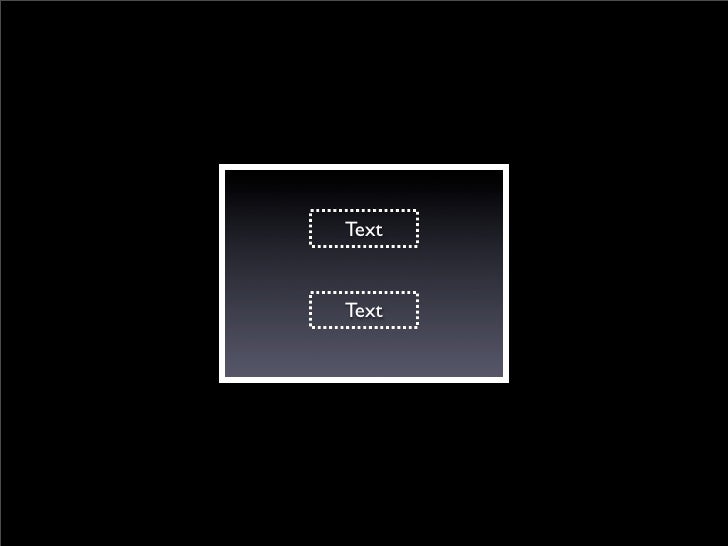

Text


Text

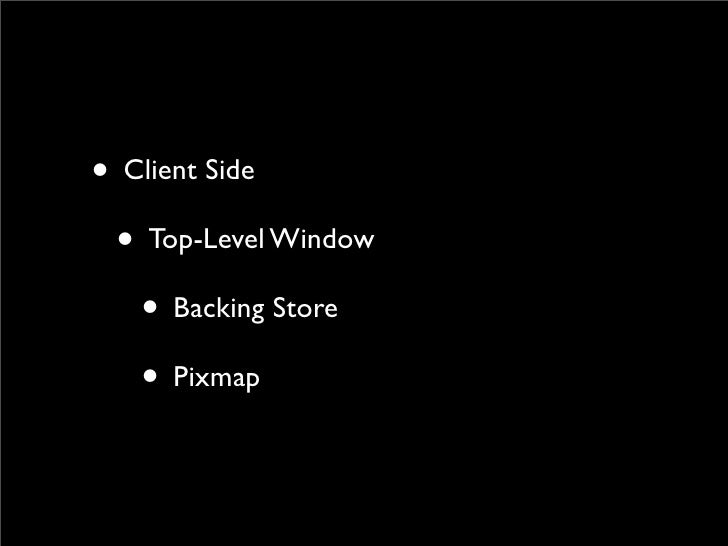

• Client Side
 • Top-Level Window
   • Backing Store
   • Pixmap

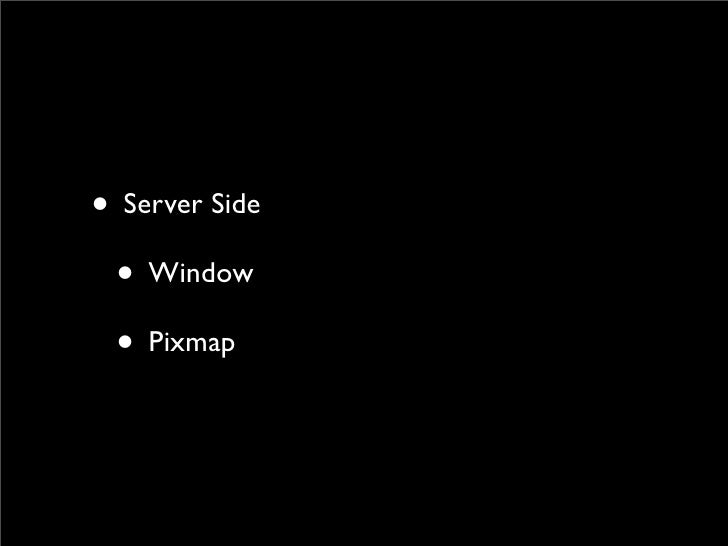

• Server Side
 • Window
 • Pixmap

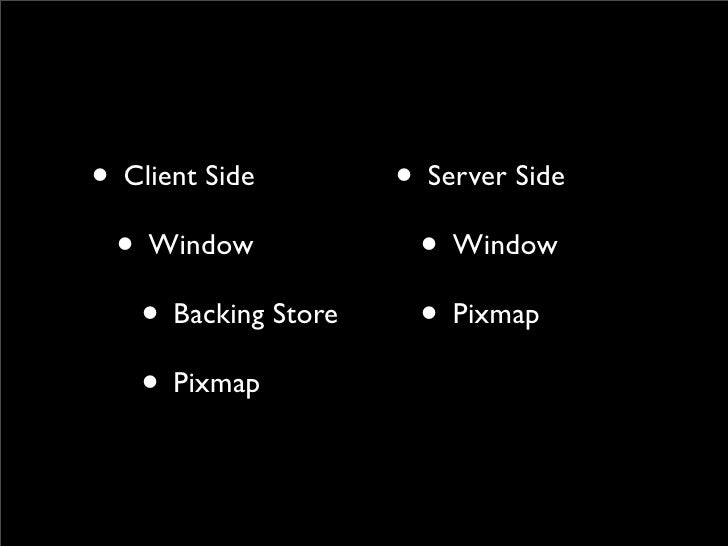

• Client Side        • Server Side
 • Window             • Window
   • Backing Store    • Pixmap
   • Pixmap

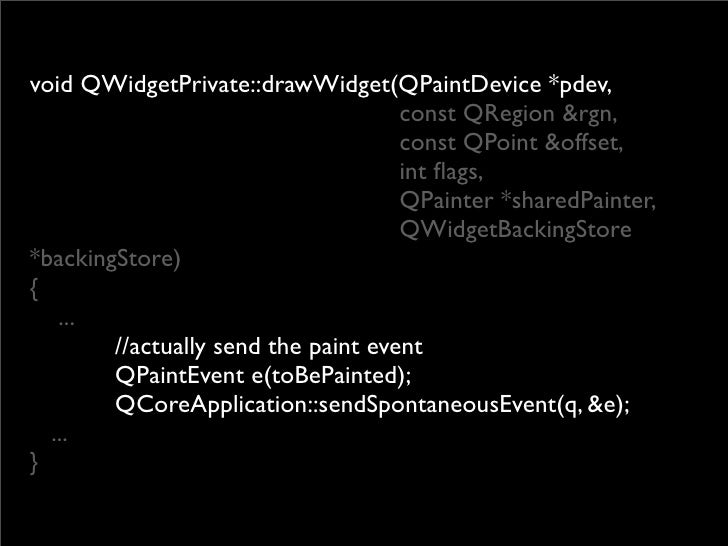

void QWidgetPrivate::drawWidget(QPaintDevice *pdev,
                                     const QRegion &rgn,
             ...
• Widgets and Window Systems
 • Window Systems
 • Windows and Widgets
 • Updates and Painting
 • Events and Loops

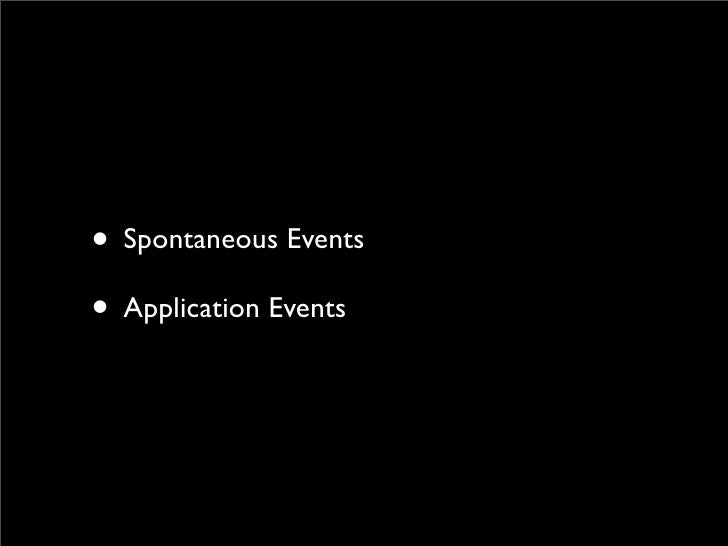

• Spontaneous Events
• Application Events

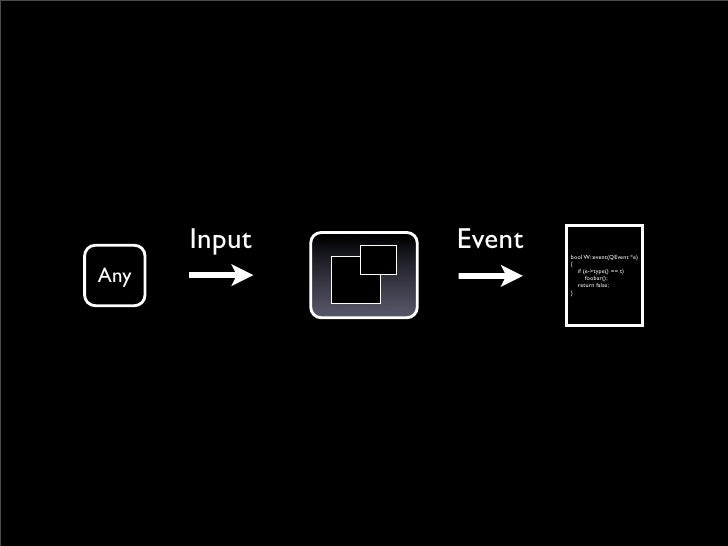

Input   Event   bool W::event(QEvent *e)
                      {

Any                     if (e->type() == t)
            ...

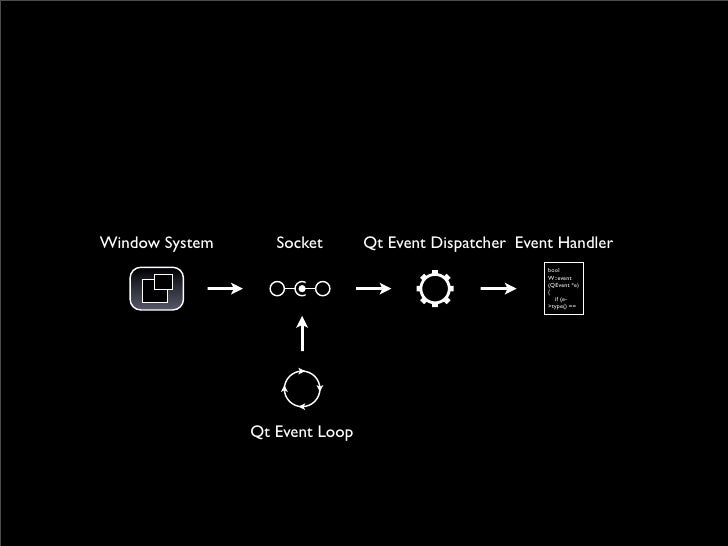

Window System      Socket       Qt Event Dispatcher Event Handler
                                                        ...

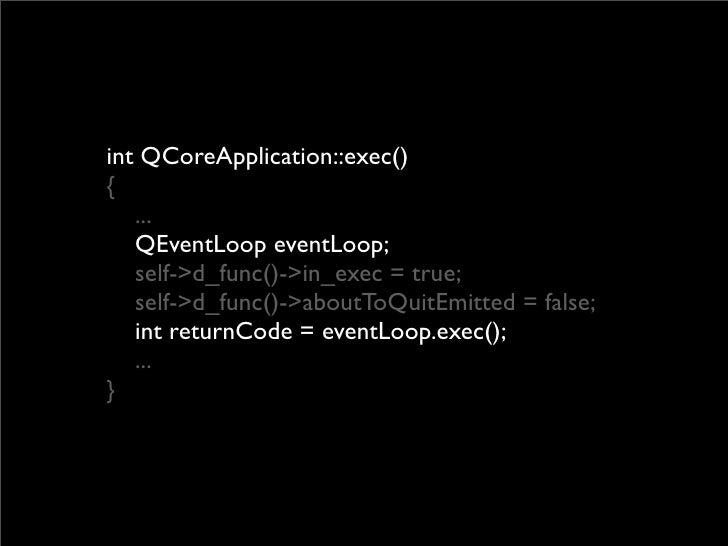

int QCoreApplication::exec()
{
   ...
   QEventLoop eventLoop;
   self->d_func()->in_exec = true;
   self->d_func()->about...

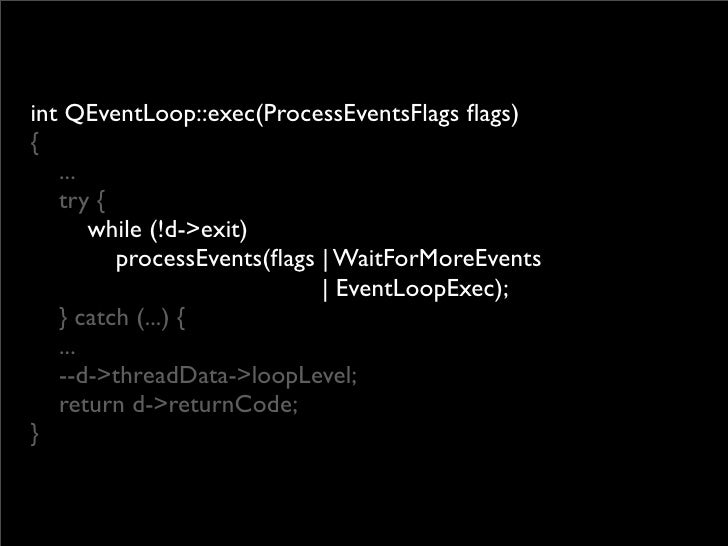

int QEventLoop::exec(ProcessEventsFlags flags)
{
   ...
   try {
       while (!d->exit)
         processEvents(flags | Wait...

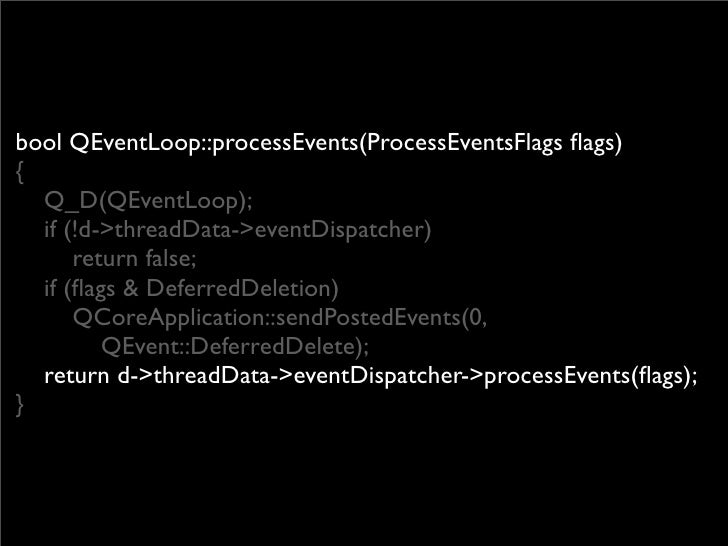

bool QEventLoop::processEvents(ProcessEventsFlags flags)
{
  Q_D(QEventLoop);
  if (!d->threadData->eventDispatcher)
      ...

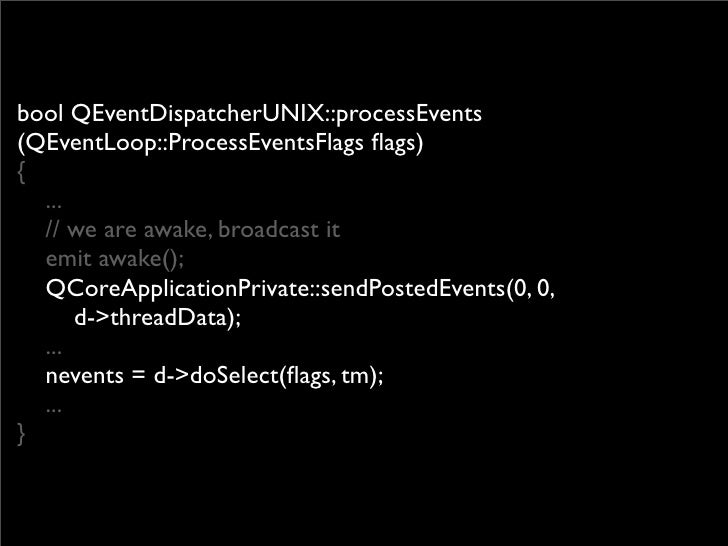

bool QEventDispatcherUNIX::processEvents
(QEventLoop::ProcessEventsFlags flags)
{
  ...
  // we are awake, broadcast it
  e...
int QEventDispatcherUNIXPrivate::doSelect(
   QEventLoop::ProcessEventsFlags flags, timeval *timeout)
{
   ...
   // Proces...

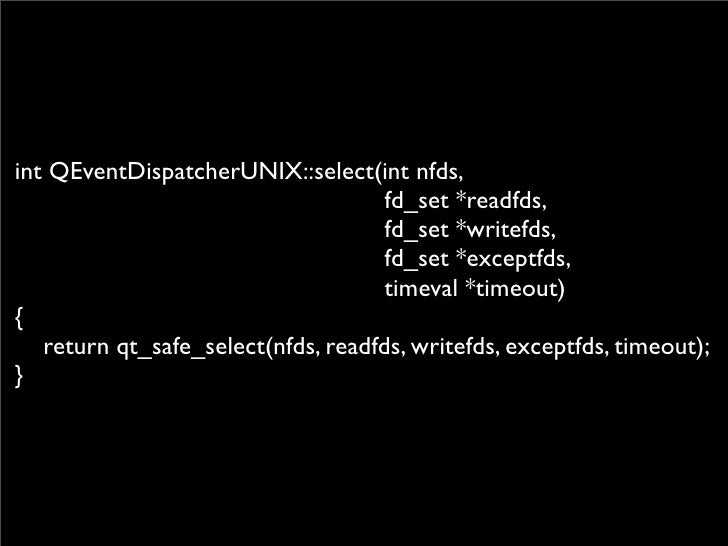

int QEventDispatcherUNIX::select(int nfds,
                                     fd_set *readfds,
                         ...

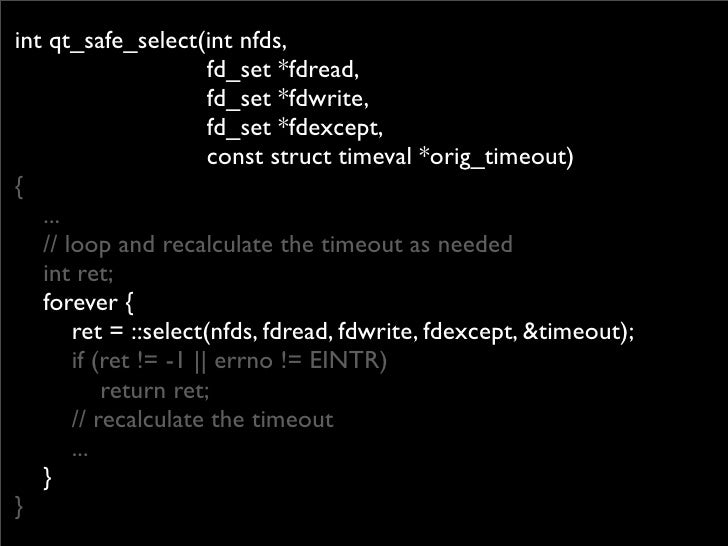

int qt_safe_select(int nfds,
                       fd_set *fdread,
                       fd_set *fdwrite,
              ...

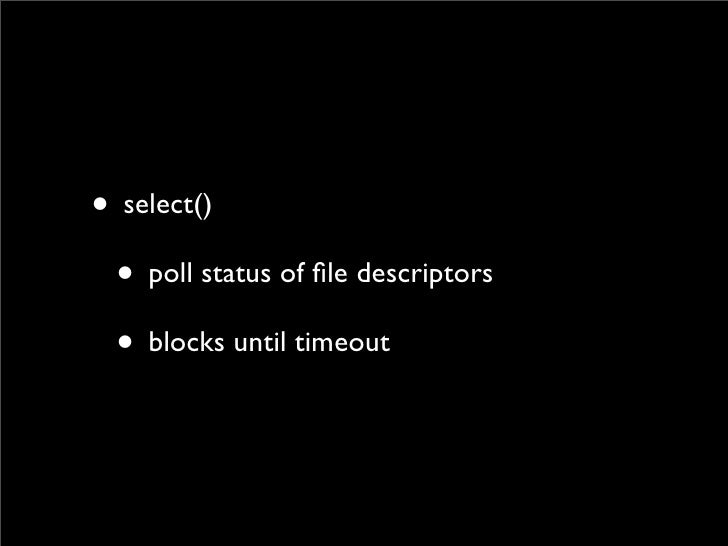

• select()
 • poll status of file descriptors
 • blocks until timeout

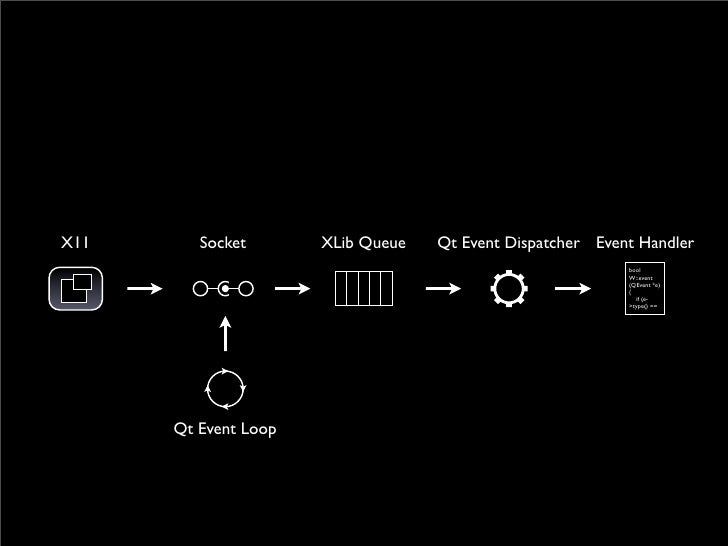

X11      Socket       XLib Queue   Qt Event Dispatcher Event Handler
                                                     ...

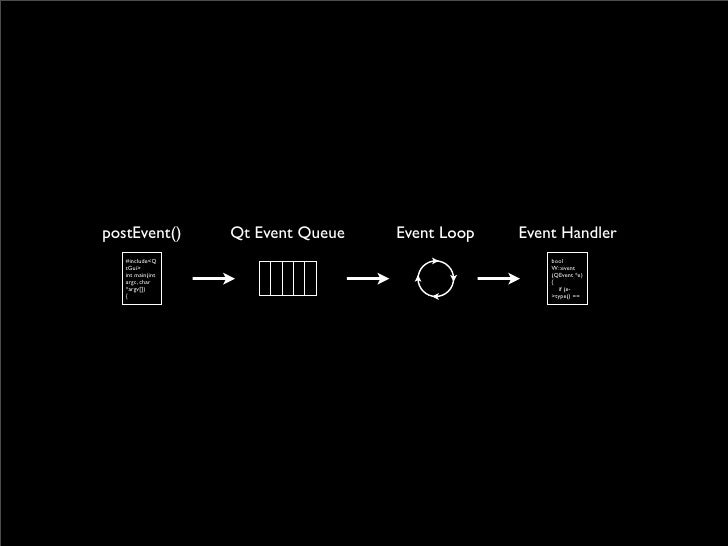

postEvent()       Qt Event Queue   Event Loop   Event Handler
   #include<Q                                       bool
   ...

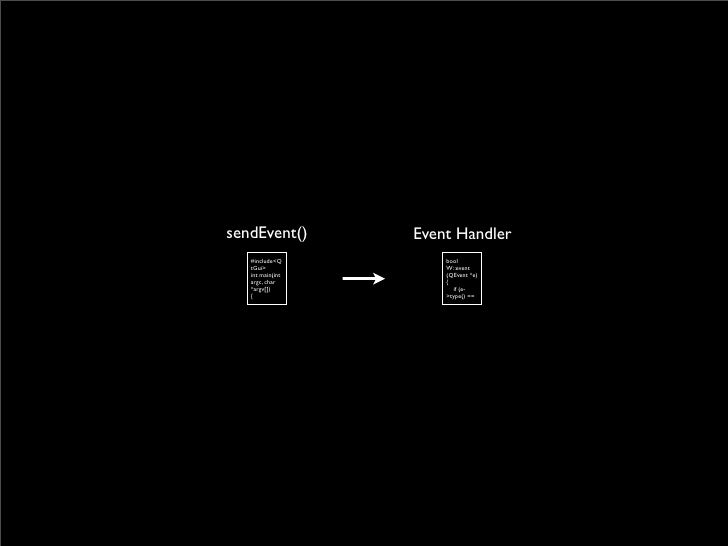

sendEvent()       Event Handler
   #include<Q         bool
   tGui>              W::event
   int main(int       (QEvent *e...

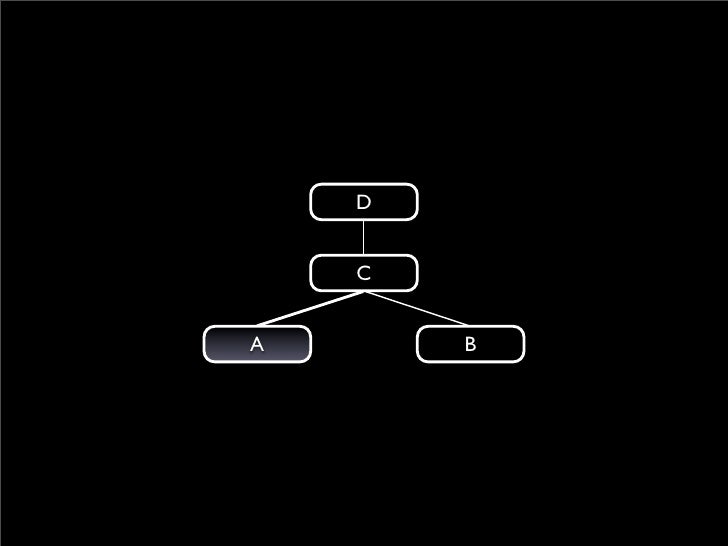

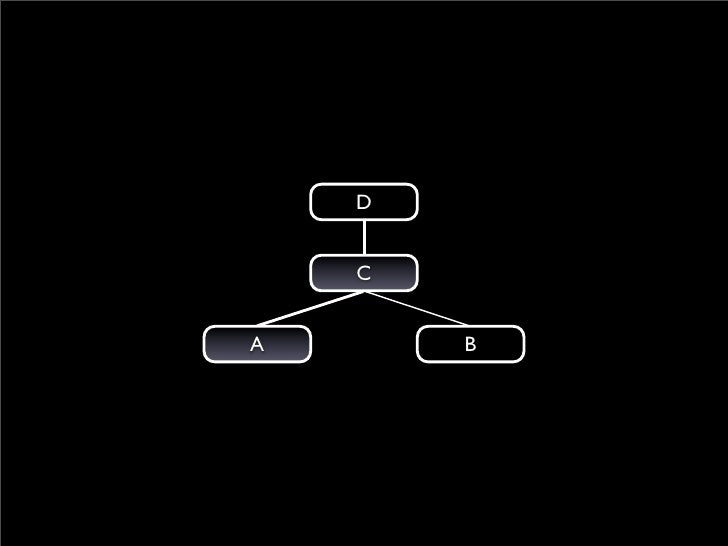

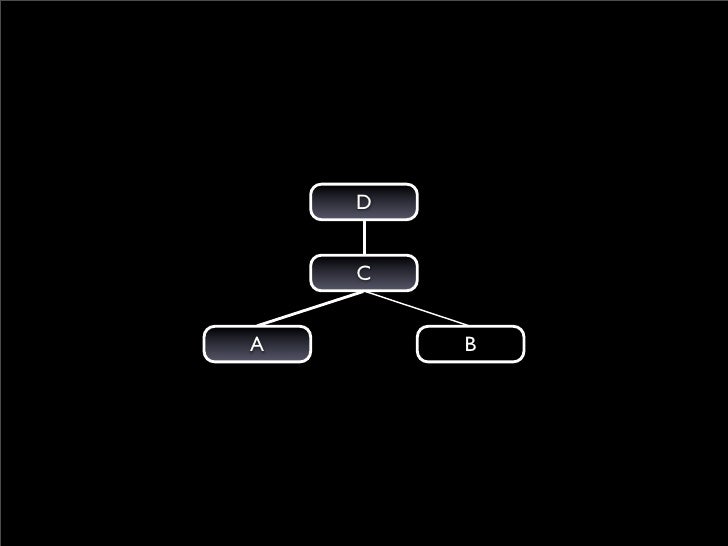

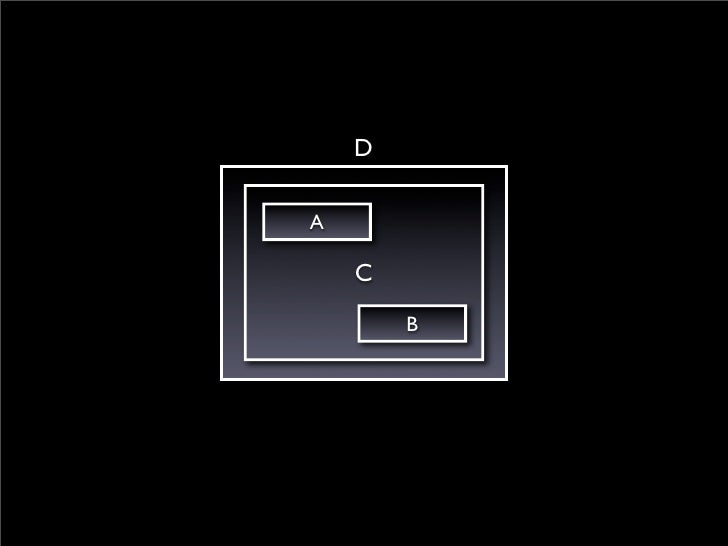

• Event Propagation

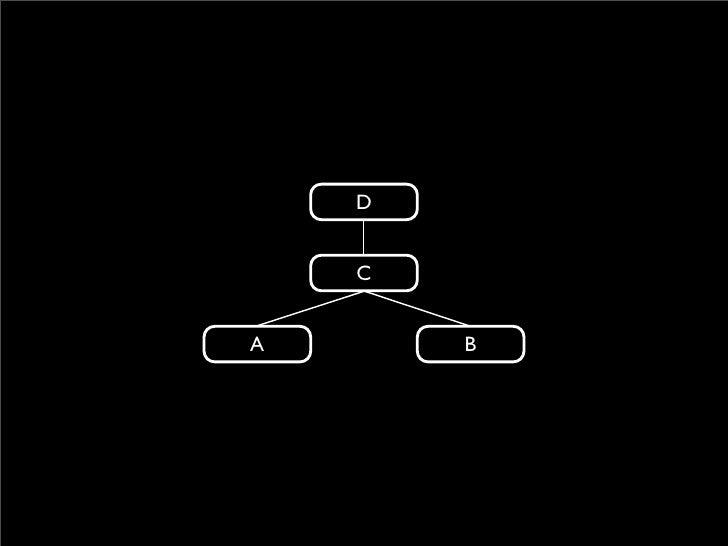

D

A

    C
        B
D


    C


A       B
D


    C


A       B
D


    C


A       B
D


    C


A       B

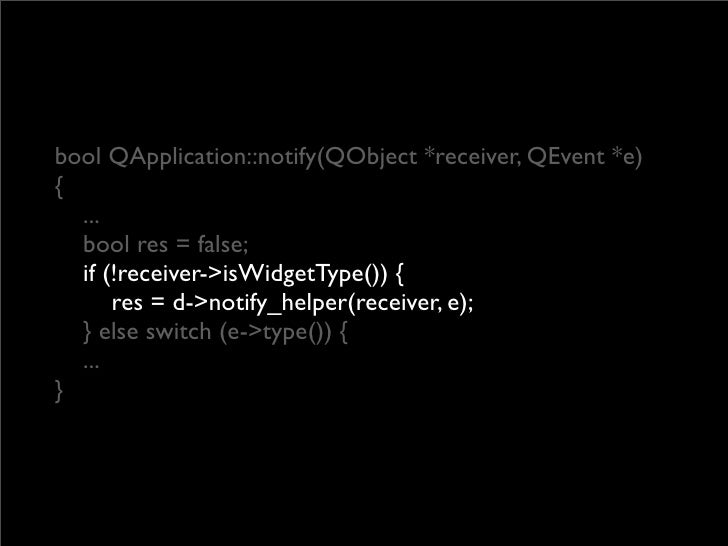

bool QApplication::notify(QObject *receiver, QEvent *e)
{
  ...
  bool res = false;
  if (!receiver->isWidgetType()) {
   ...
• Widgets Propagate Events
...

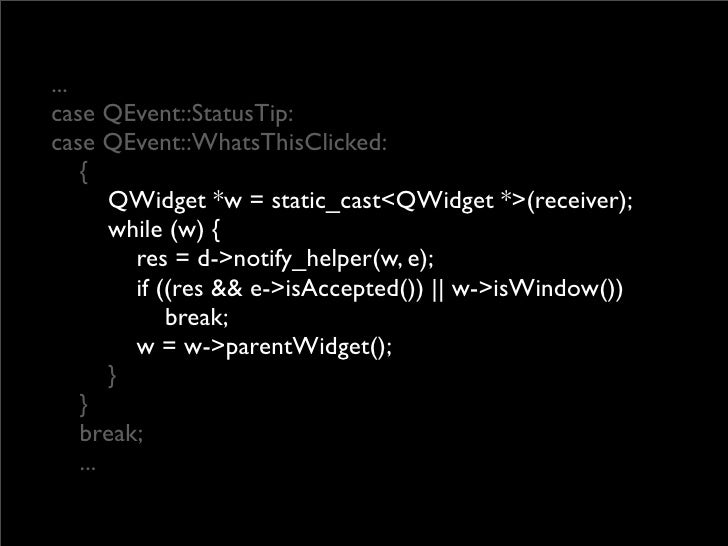

case QEvent::StatusTip:
case QEvent::WhatsThisClicked:
    {
        QWidget *w = static_cast<QWidget *>(receiver);
  ...

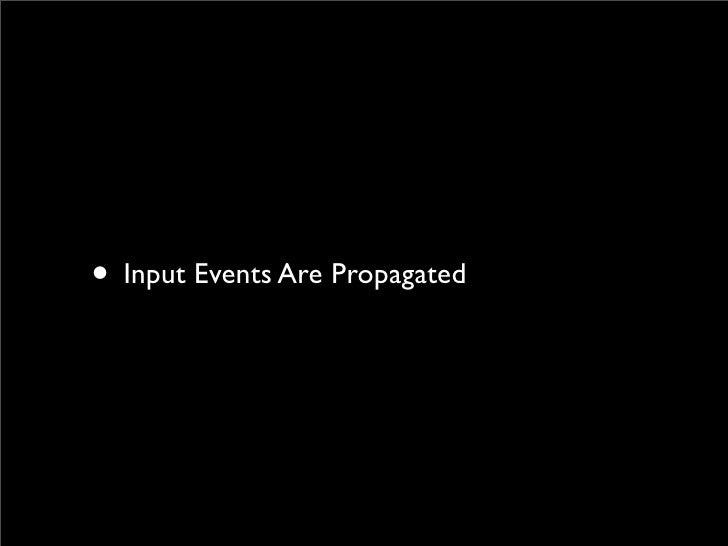

• Input Events Are Propagated

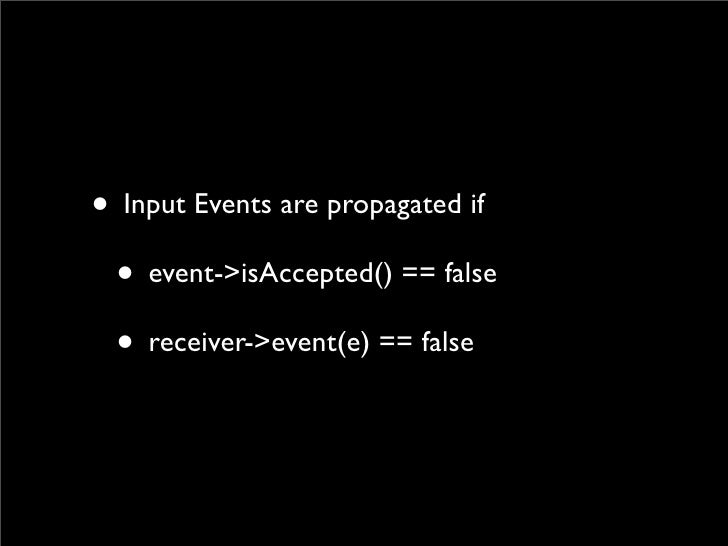

• Input Events are propagated if
 • event->isAccepted() == false
 • receiver->event(e) == false

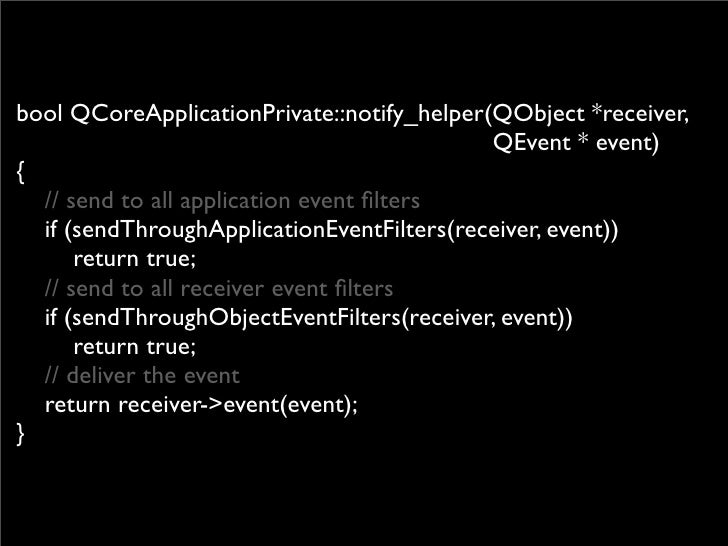

bool QCoreApplicationPrivate::notify_helper(QObject *receiver,
                                            QEvent * event)...
by Dan Queiroz on flickr




Flags and Attributes
• Flags and Attributes
 • Window Types
 • Window Hints
 • Widget States
 • Widget Attributes
• QWidget
 • QPaintDevice
 • QObject
• QWindowSurface
• Flags and Attributes
 • Window Types
 • Window Hints
 • Widget States
 • Widget Attributes

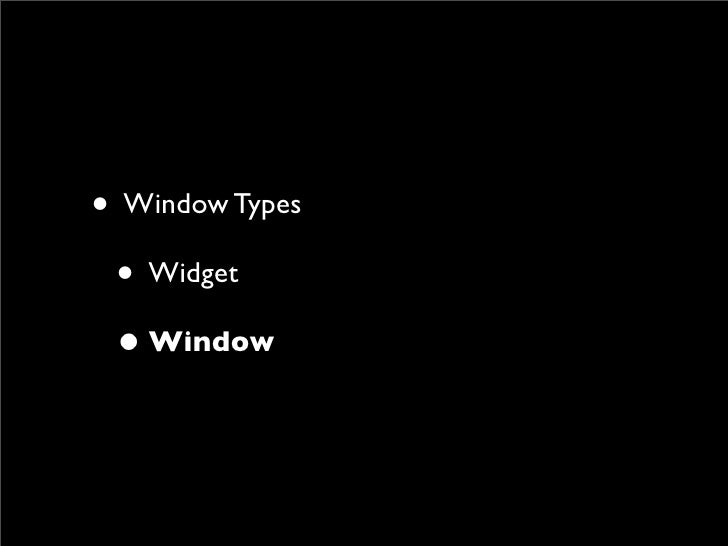

• Window Types
 • Widget
 • Window

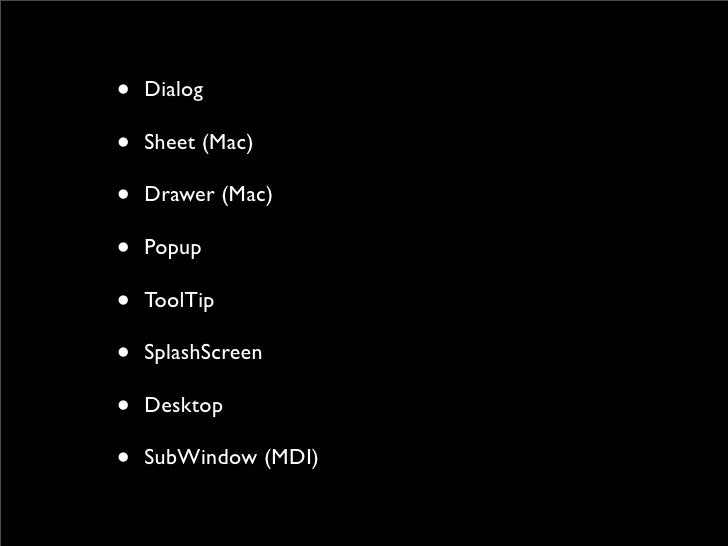

•   Dialog

•   Sheet (Mac)

•   Drawer (Mac)

•   Popup

•   ToolTip

•   SplashScreen

•   Desktop

•   SubWindow (MDI)

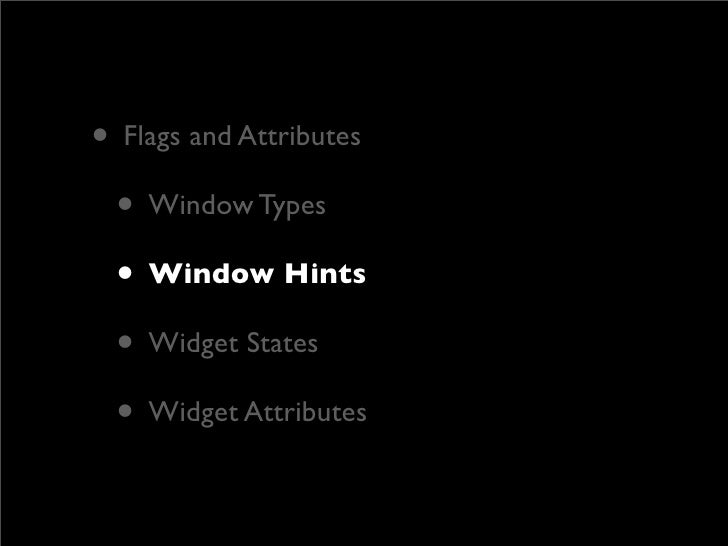

• Flags and Attributes
 • Window Types
 • Window Hints
 • Widget States
 • Widget Attributes

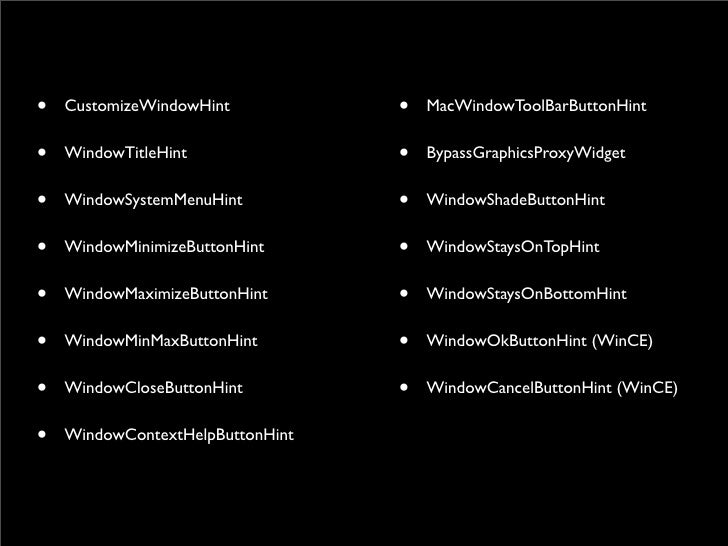

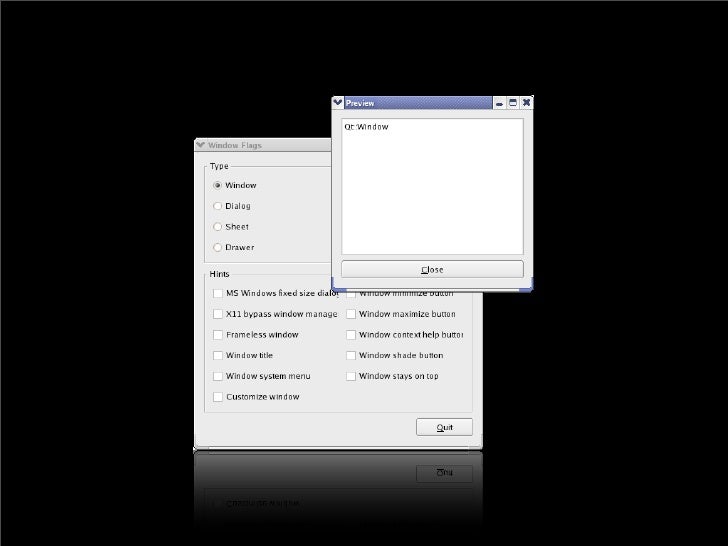

•   CustomizeWindowHint           •   MacWindowToolBarButtonHint

•   WindowTitleHint               •   BypassGraphicsProx...
• Flags and Attributes
 • Window Types
 • Window Hints
 • Widget States
 • Widget Attributes

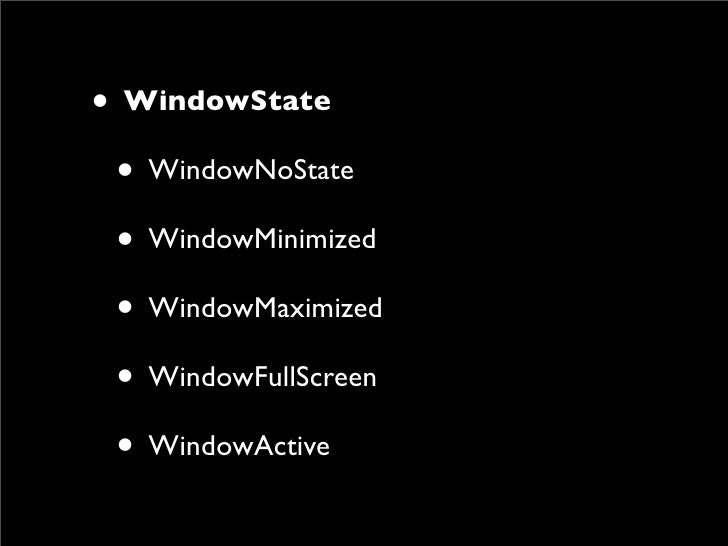

• WindowState
 • WindowNoState
 • WindowMinimized
 • WindowMaximized
 • WindowFullScreen
 • WindowActive

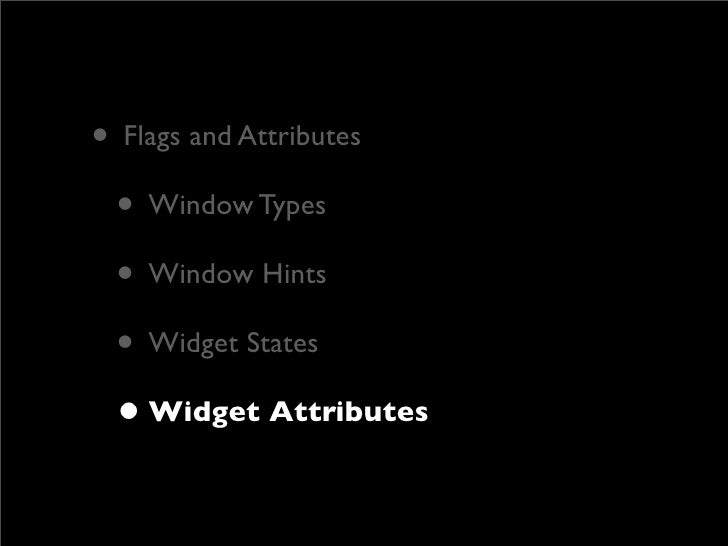

• Flags and Attributes
 • Window Types
 • Window Hints
 • Widget States
 • Widget Attributes

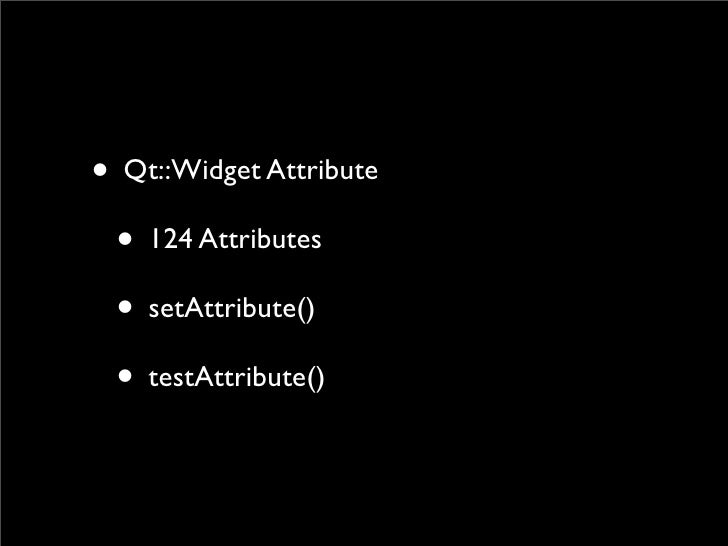

• Qt::Widget Attribute
 • 124 Attributes
 • setAttribute()
 • testAttribute()

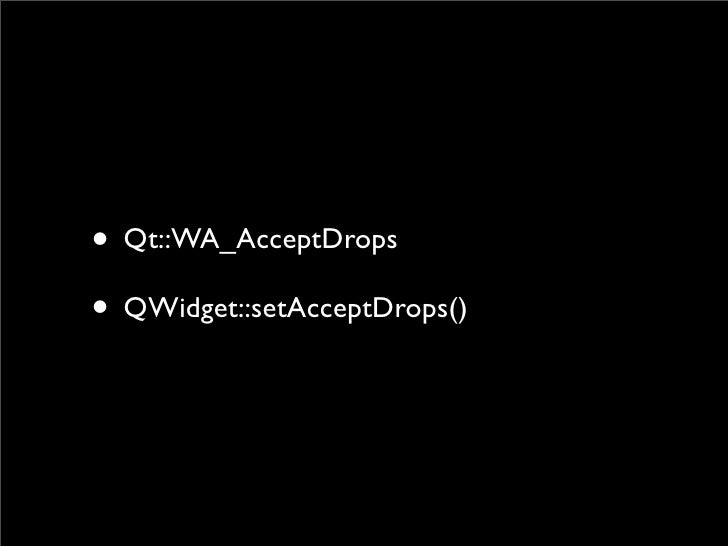

• Qt::WA_AcceptDrops
• QWidget::setAcceptDrops()
by robclimbing on flickr




Tips and Tricks

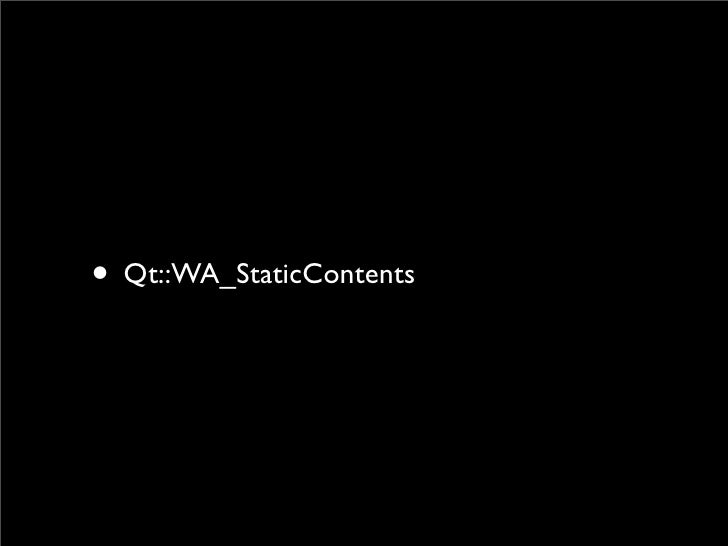

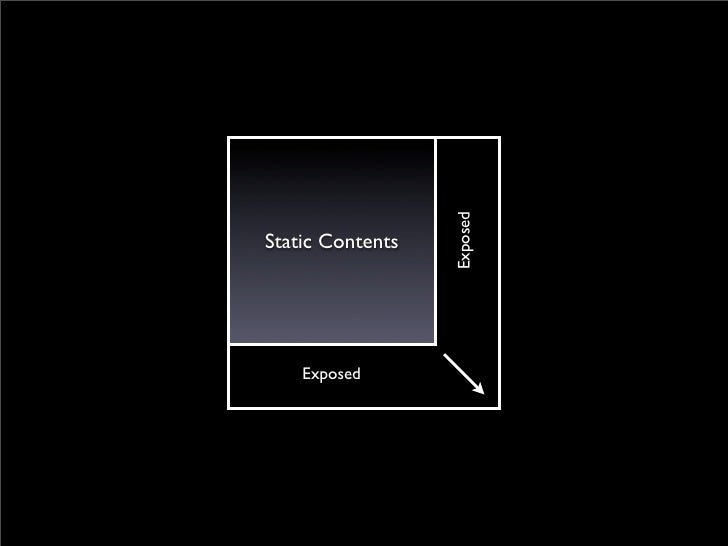

• Qt::WA_StaticContents
Exposed
Static Contents




    Exposed

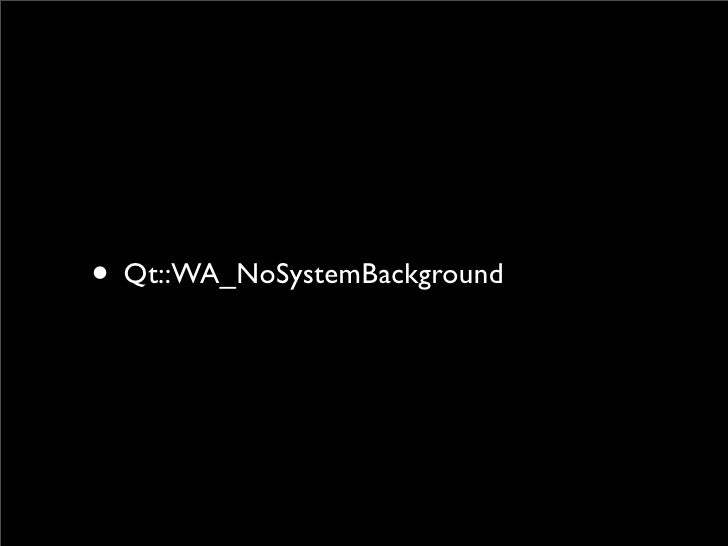

• Qt::WA_NoSystemBackground

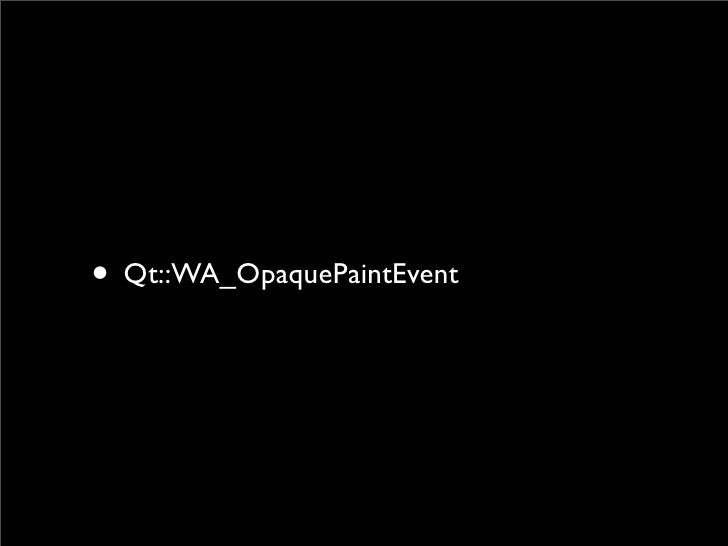

• Qt::WA_OpaquePaintEvent

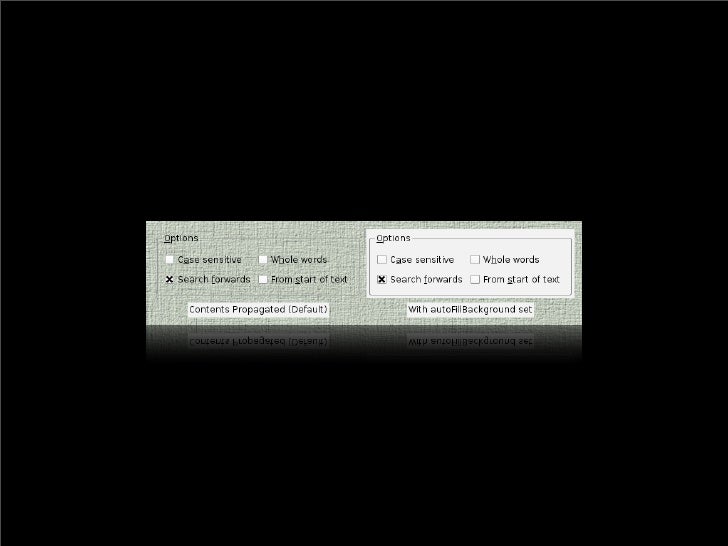

• QWidget::autoFillBackground
• Qt::WA_OpaquePaintEvent
• QWidget::scroll()
 • QWidget::autoFillBackground
 • Qt::WA_OpaquePaintEvent

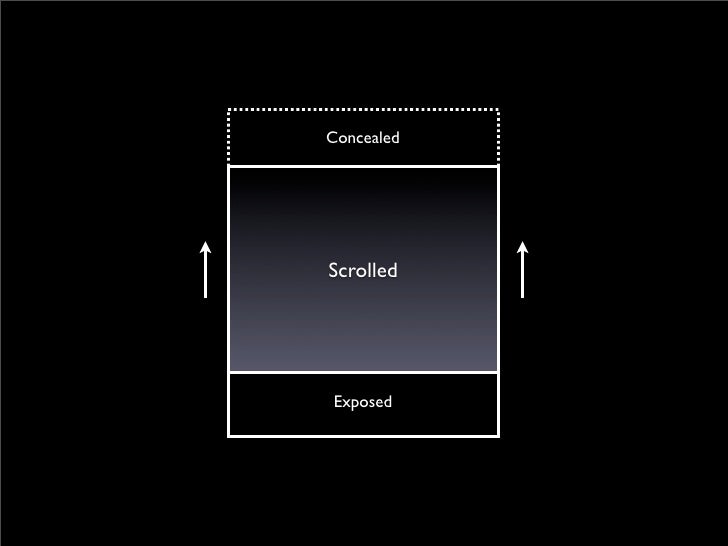

Concealed




Scrolled




Exposed

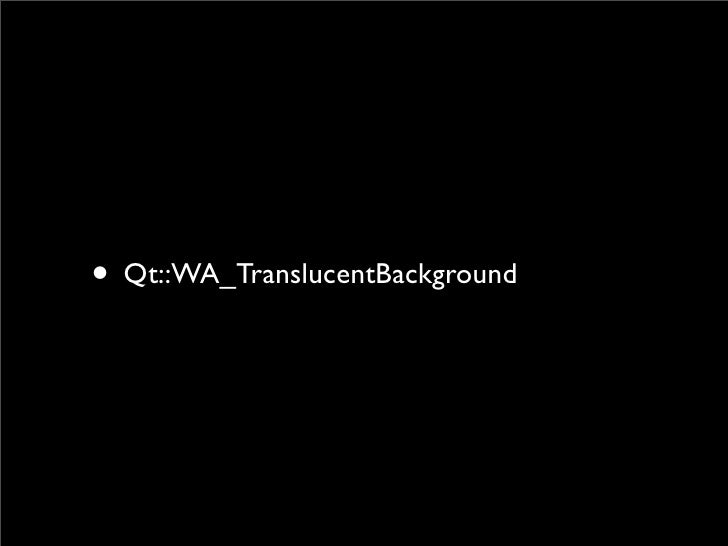

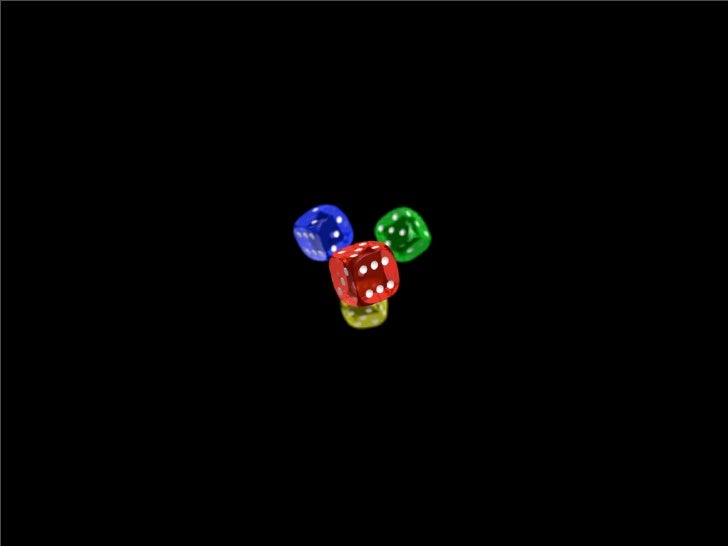

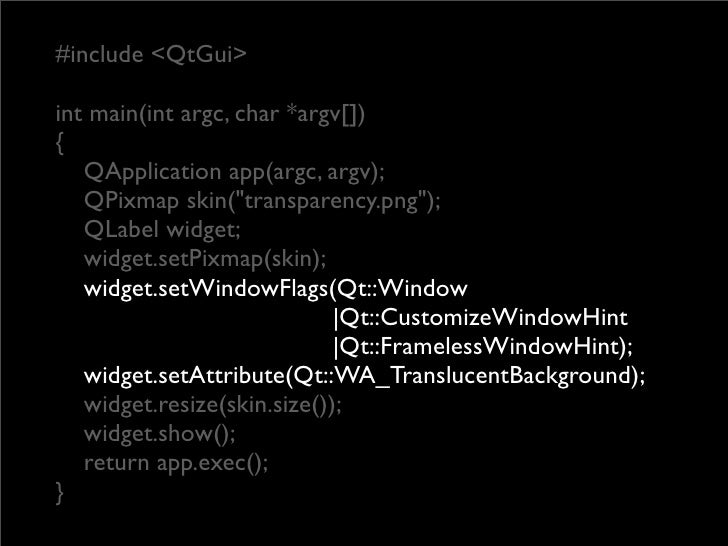

• Qt::WA_TranslucentBackground
#include <QtGui>

int main(int argc, char *argv[])
{
   QApplication app(argc, argv);
   QPixmap skin("transparency.png");...
by jeff_c on flickr




The Future of Qt Widgets

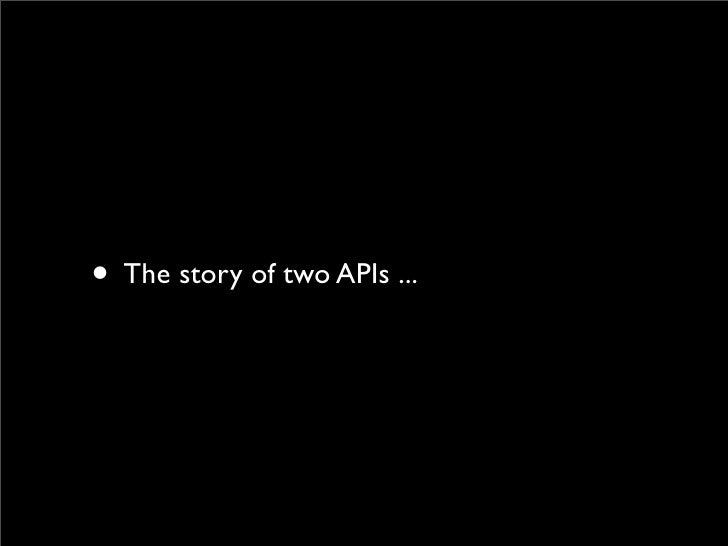

• The story of two APIs ...

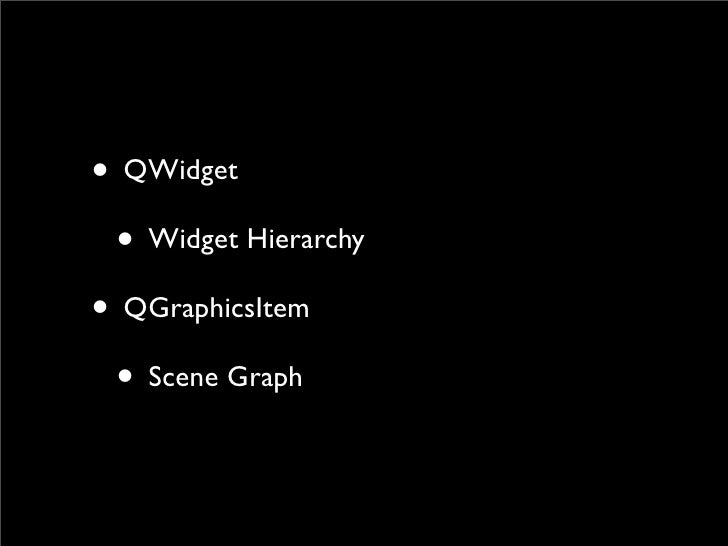

• QWidget
 • Widget Hierarchy
• QGraphicsItem
 • Scene Graph
• QWidget
 • Alien Widgets
 • Graphics Effects
 • Disable Clipping ?
 • Disable Move Events ?
 • Transformations ?

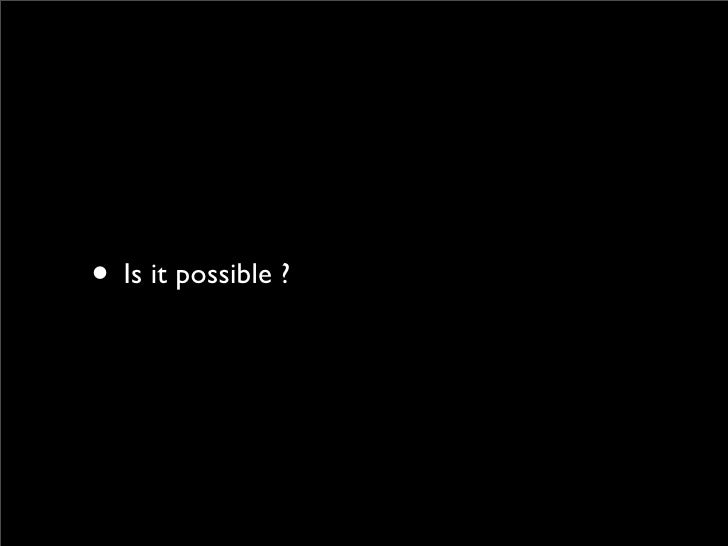

• Is it possible ?

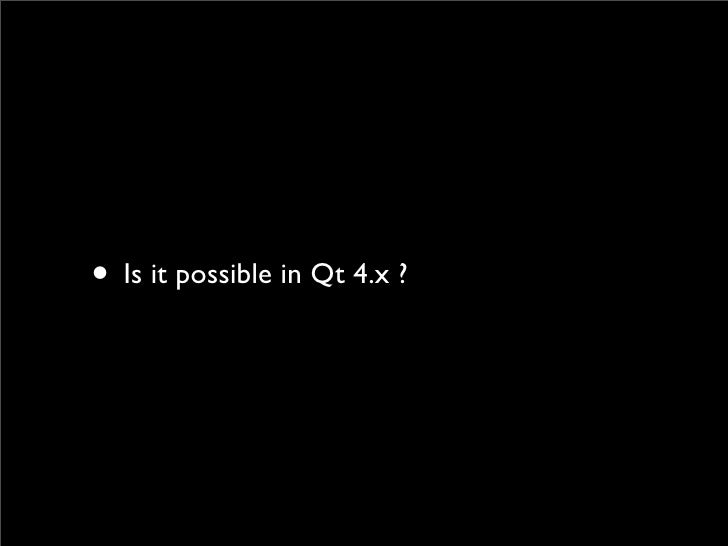

• Is it possible in Qt 4.x ?
Thank you!

Questions?
Bonus Material
Qt Developer Days
 Window System

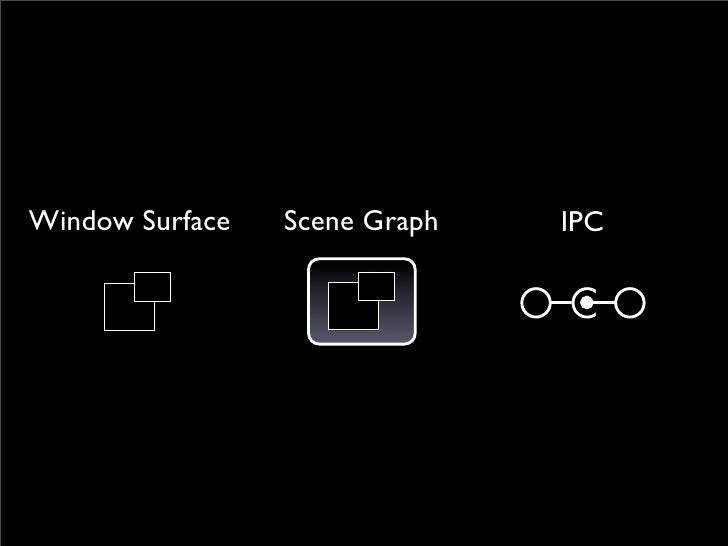

Window Surface   Scene Graph   IPC

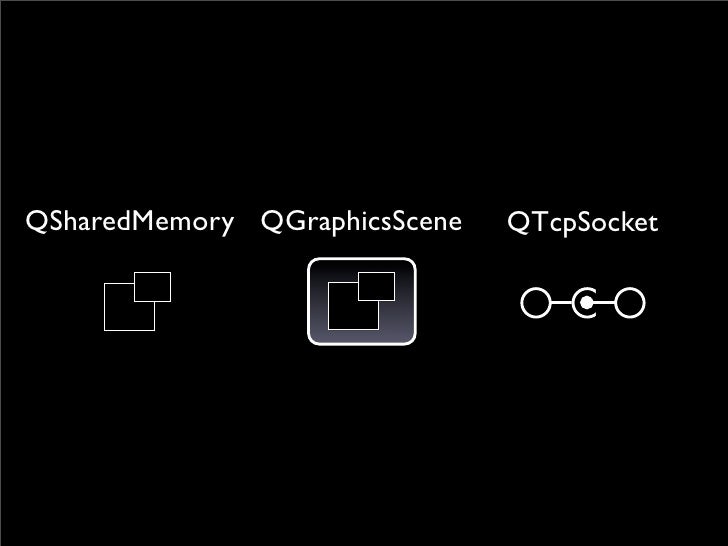

QSharedMemory QGraphicsScene   QTcpSocket
• Server
• Window

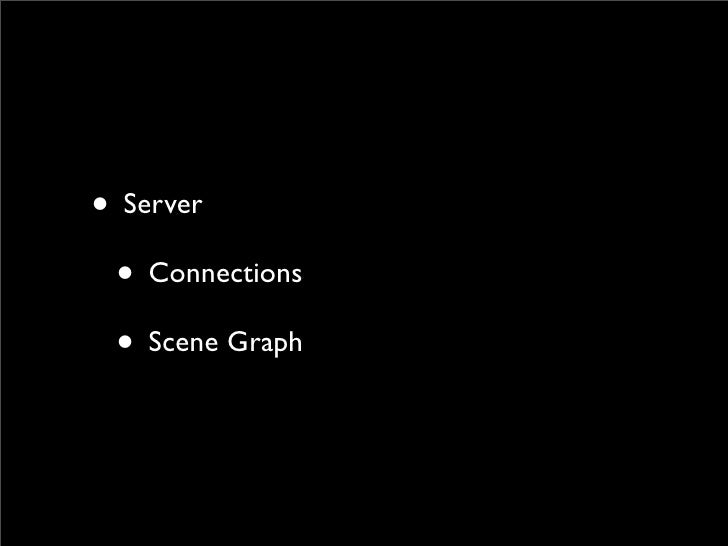

• Server
 • Connections
 • Scene Graph
• Window
 • Surface
 • Geometry
 • Id

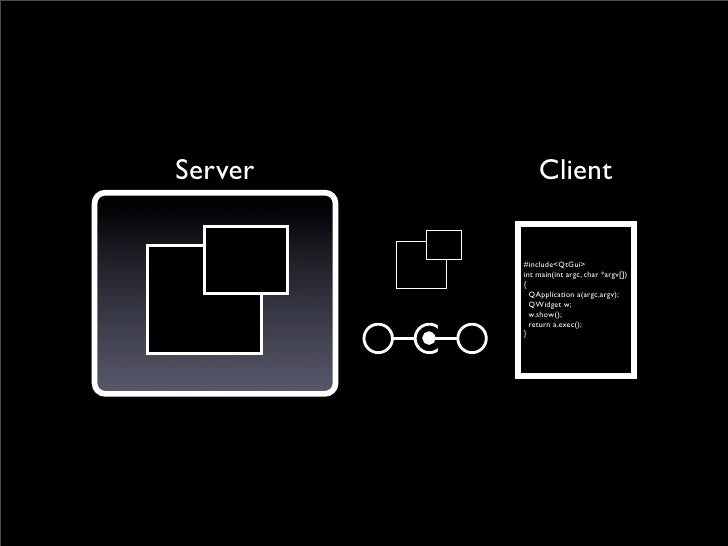

Server       Client

         #include<QtGui>
         int main(int argc, char *argv[])
         {
           QApplication...

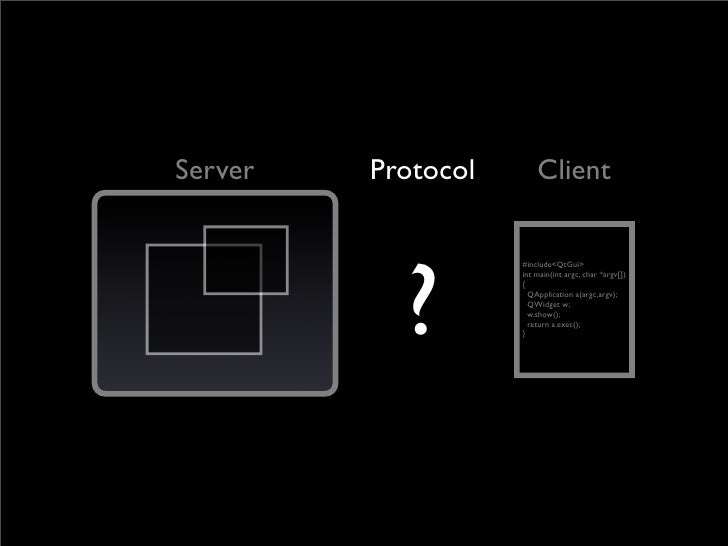

Server   Protocol       Client




           ?
                    #include<QtGui>
                    int main(int argc,...

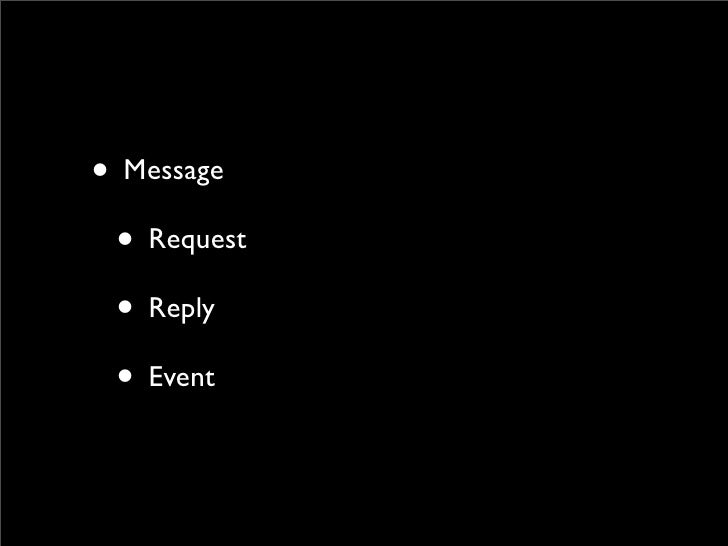

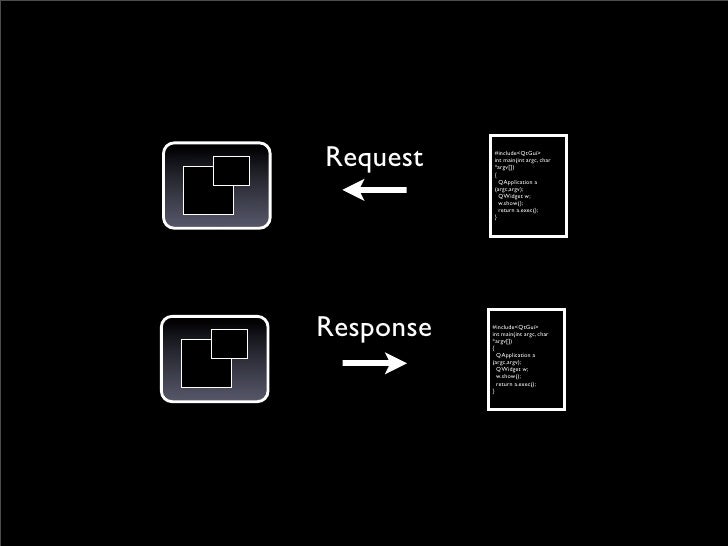

• Message
 • Request
 • Reply
 • Event
Request    #include<QtGui>
           int main(int argc, char
           *argv[])
           {
             QApplication a...

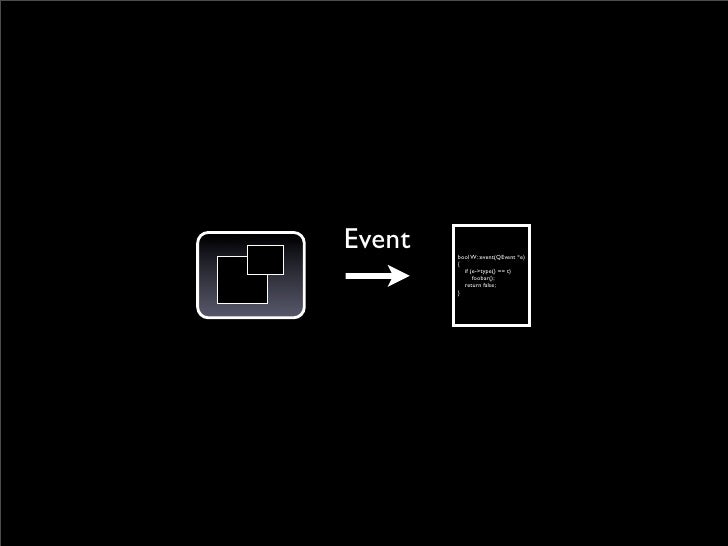

Event   bool W::event(QEvent *e)
        {
          if (e->type() == t)
              foobar();
          return false;
 ...
Lighthouse

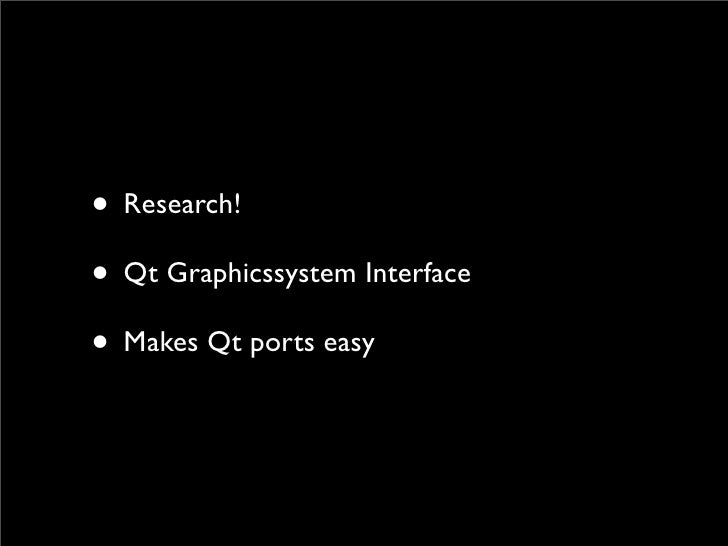

• Research!
• Qt Graphicssystem Interface
• Makes Qt ports easy

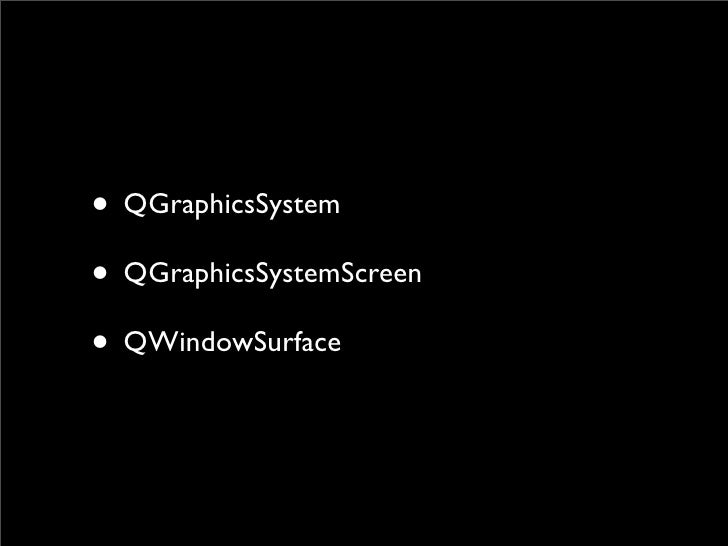

• QGraphicsSystem
• QGraphicsSystemScreen
• QWindowSurface

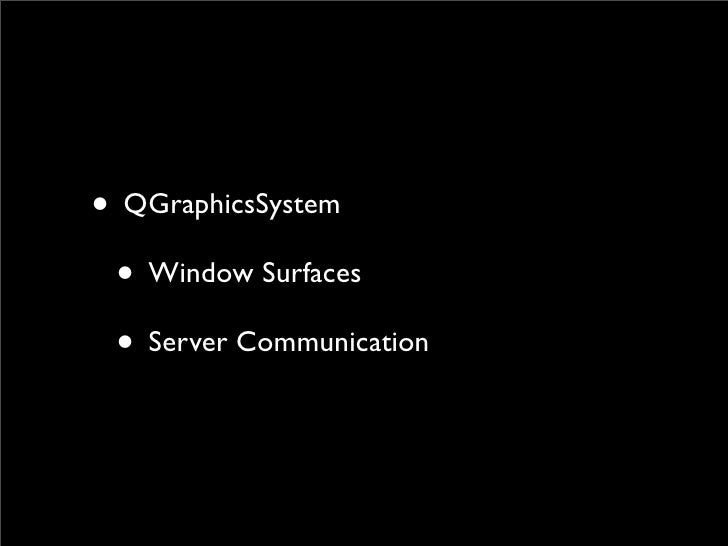

• QGraphicsSystem
 • Window Surfaces
 • Server Communication
• QGraphicsSystemScreen
 • Screen Information
   • Depth
   • Resolution
   • Size

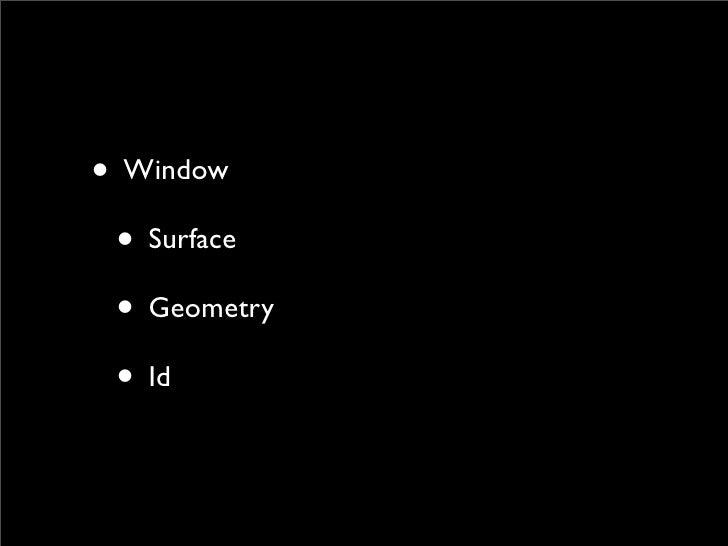

• QWindowSurface
 • Surface
 • Geometry
 • Id
Demo
Source Code


•   git://gitorious.org/+qt-developers/qt/lighthouse.git
