Optimizing Performance in Qt-Based Applications

  1. Optimizing Performance in Qt Applications 11/16/09

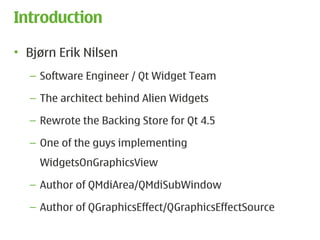

  2. Introduction • Bjørn Erik Nilsen – Software Engineer / Qt Widget Team – The architect behind Alien Widgets – Rewrote the Backing Store for Qt 4.5 – One of the guys implementing WidgetsOnGraphicsView – Author of QMdiArea/QMdiSubWindow – Author of QGraphicsEffect/QGraphicsEffectSource 2

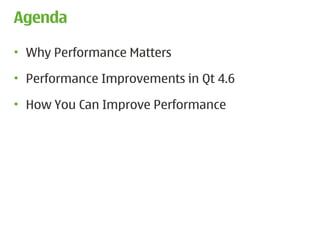

  3. Agenda • Why Performance Matters • Performance Improvements in Qt 4.6 • How You Can Improve Performance 3
  4. Why Performance Matters • Attractive to users • Looks more professional • Help you get things done more efficiently • Keeps the flow 4
  5. Why Performance Matters • An example explains more than a thousand words 5
  6. Why Performance Matters • Performance is more important than ever before – Dynamic user interfaces • Qt Everywhere – Desktop – Embedded platforms with limited hardware • We cannot just buy better hardware anymore • Clock speed vs. number of cores 6
  7. Why Performance Matters • Not all applications can take advantage of multiple cores • And some will actually run slower: – Each core in the processor is slower – Most applications not programmed to be multi- threaded • Multi-core crisis? 7
  8. Agenda • Why Performance Matters • Performance Improvements in Qt 4.6 • How You Can Improve Performance 8
  9. Performance Improvements in Qt 4.6 • We continuously strive to optimize the performance – QWidget painting performance, for example: – Qt 4.6 no exception! 9
  10. Performance Improvements in Qt 4.6 QtOpenGL QtGui QtOpenVG QtSvg QtScript QtCore QtWebKit QtNetwork 10
  11. Performance Improvements in Qt 4.6 • Graphics View – New update mechanism QtGui – New painting algorithm – New scene indexing – Reduced QTransform/QVariant/floating point overhead • QPixmapCache – Extended with an int based API 11
  12. Performance Improvements in Qt 4.6 • Item Views – Item selection QtGui – Drag 'n' drop – QTableView and QHeaderView • QTransform – fromTranslate/fromScale – mapRect for projective transforms • QRegion – No longer a GDI object on Windows 12
  13. Performance Improvements in Qt 4.6 • QObject – Destruction QtCore – Connect and disconnect – Signal emission • QVariant – Construction from float and pointers • QIODevice – Less (re)allocations in readAll() 13
  14. Performance Improvements in Qt 4.6 • QNetworkAccessManager – HTTP back-end QtNetwork • QHttpNetworkConnectionChannel – Pipelining HTTP requests (off by default) • QHttpNetworkConnection – Increased the number of concurrent connections • QLocalSocket – New Windows implementation – Major performance improvements 14
  15. Performance Improvements in Qt 4.6 QtScript • QtScript now uses JavaScriptCore as the back-end! – Still the same API, but with JSC performance 15
  16. Performance Improvements in Qt 4.6 • New OpenGL 2.x paint engine • General improvements QtOpenGL – Clipping – Text drawing 16
  17. Performance Improvements in Qt 4.6 • New OpenVG paint engine New module! – Uses Khronos EGL API QtOpenVG – Configure Qt with “-openvg” • Support for hardware-accelerated 2D vector graphics on: – Embedded, mobile and consumer electronic devices – Desktop • More info: http://labs.trolltech.com/blogs 17
  18. Performance Improvements in Qt 4.6 Embedded • Improved support for DirectFB – Enabling hardware graphics acceleration on embedded platforms • Maemo Harmattan optimizations 18
  19. Agenda • Why Performance Matters • Performance Improvements in Qt 4.6 • How You Can Improve Performance 19
  20. How You Can Improve Performance • Theory of Constraints (TOC) by Eliyahu M. Goldratt • The theory is based on the idea that in any complex system, there is usually one aspect of that system that limits its ability to achieve its goal or optimal functioning. To achieve any significant improvement of the system, the constraint must be identified and resolved. • Applications will perform as fast as their bottlenecks 20
  21. Theory of Constraints • Define a goal: – For example: This application must run at 30 FPS • Then: 1) Identify the constraint 2) Decide how to exploit the constraint 3) Improve 4) If goal not reached, go back to 1) 5) Done 21
  22. Identifying hot spots (1) • The number one and most important task • Make sure you have plausible data • Don't randomly start looking for slow code paths! – An O(n2) algorithm isn't necessarily bad – Don't spend time on making it O(n log n) just for fun • Don't spend time on optimizing bubble sort 22
  23. Identifying hot spots (1) • “Bottlenecks occur in surprising places, so don't try second guess and put in a speed hack until you have proven that is where the bottleneck is” -- Rob Pike 23
  24. Identifying hot spots (1) • The right approach for identifying hot spots: – Any profiler suitable for your platform • Shark (Mac OSX) • Valgrind (X11) • Visual Studio Profiler (Windows) • Embedded Trace Macrocell (ETM) (ARM devices) • NB! Always profile in release mode 24
  25. Identifying hot spots (1) • Run application: “valgrind --tool=callgrind ./application” • This will collect data and information about the program • Data saved to file: callgrind.out.<pid> • Beware: – I/O costs won't show up – Cache misses (--simulate-cache=yes) • The next step is to analyze the data/profile • Example 25
  26. Identifying hot spots (1) • Profiling a section of code (run with “–instr-atstart=no”): #include<BbrValgrind/callgrind.h> int myFunction() const { CALLGRIND_START_INSTRUMENTATION; int number = 10; ... CALLGRIND_STOP_INSTRUMENTATION; CALLGRIND_DUMP_STATS; return number; } 26
  27. Identifying hot spots (1) • When a hot-spot is identified: – Look at the code and ask yourself: Is this the right algorithm for this task? • Once the best algorithm is selected, you can exploit the constraint 27
  28. How to exploit the constraint (2) • Optimize – Design level – Source code level – Compile level • Optimization trade-offs: – Memory consumption, cache misses – Code clarity and conciseness 28
  29. How to exploit the constraint (2) • “Any intelligent fool can make things bigger, more complex, and more violent. It takes a touch of genius – and a lot of courage – to move in the opposite direction.” --Einstein 29
  30. How to exploit the constraint (2) • Wouldn't it be great to have a cross-platform tool to measure performance? 30
  31. QTestLib • Say hello to QBENCHMARK • Extension to the QTestLib framework • Cross-platform • Straight forward: QBENCHMARK { <code here> } • Code will then be measured based on – Walltime (default) – CPU tick counter (-tickcounter) – Valgrind/Callgrind (-callgrind) – Event counter (-eventcounter) 31
  32. QTestLib • Let's create a benchmark • Run with ./mytest -xml -o results.xml • git clone git://gitorious.org/qt-labs/qtestlib-tools.git • Visualize with – Graph (generatereport results.xml) – BMCompare (bmcompare results1.xml results2.xml) • Now that we have tool, it is easier to measure and decide which algorithm to use 32
  33. How to exploit the constraint (2) • General tricks: – Caching – Delay a computation until the result is required – Reduce computation in tight loops – Compiler optimizations • Optimization Techniques for Qt: – Choose the right container – Use implicit data sharing efficiently – Discover the magic flags 33
  34. Implicit data sharing in Qt • Maximize resource usage and minimize copying Object obj0; // Creates ObjectData // Copies (share the same data) Object obj1, obj2, obj3 = obj0; Object 1 Object 0 ObjectData Object 2 Object 3 Shallow copies 34
  35. Implicit data sharing in Qt • Data is only copied if someone modifies it: Deep copy ObjectData Object 1 Object 0 ObjectData Object 2 Object 3 Shallow copies 35
  36. Implicit data sharing in Qt • How to avoid deep-copy: – Only use const operators and functions if possible – Be careful with the foreach keyword • For classes that are not implicitly shared: – Always pass them around as const references – Passing const references is a good habit in any case • Examples 36
  37. Implicit data sharing in Qt Original Optimized T *readOnly = list[index]; T *readOnly = list.at(index); QList<T>::iterator i; QList<T>::const_iterator i; i = list.begin(); i = list.constBegin(); foreach (QString s, strings) foreach (const QString &s, strings) NB! QTransform is not implicitly shared! void foo(QTransform t); void foo(const QTransform &t); 37
  38. Implicit data sharing in Qt • See the “Implicitly Shared Classes” documentation for a complete list of implicitly shared classes in Qt • http://doc.trolltech.com/4.6-snapshot/shared.html • Note: All Qt containers are implicitly shared 38
  39. Qt Containers QLinkedList QList QVector QSet QStack QQueue QMultiHash QMap QHash QMultiMap 39
  40. Qt Containers QHash QMap QMultiHash QMultiMap Associative Containers 40
  41. Qt Containers QSet QList QVector QLinkedList QQueue QStack Sequential Containers 41
  42. Qt Containers vs QList QVector QLinkedList QQueue QStack Sequential Containers 42
  43. QVector<T> • Items are stored contiguously in memory • One block of memory is allocated: QBasicAtomicInt int int uint T T ref alloc size flags array[0] ... array[alloc - 1] QVectorTypedData<T> d QVector<T> 43
  44. QVector<T> • Reserves space at the end • Growth strategy depends on the type T – Movable types: realloc by increments of 4096 bytes – Non-movable types: 50% increments • What is a movable type? – Primitive types: bool, int, char, enums, pointers, … – Plain Old Data (POD) with no constructor/destructor – Basically everything that can be moved around in memory using memcpy() or memmove() – Good article: http://www.ddj.com/cpp/184401508 44
  45. Movable types • User-defined classes are treated as non-movable by default • Oh no! • Have no fear, Q_DECLARE_TYPEINFO is here • You can tell Qt that your class is a: – Q_PRIMITIVE_TYPE: POD with no constr./destr. – Q_MOVABLE_TYPE: has constr./destr., but can be moved in memory using memcpy()/memmove() 45
  46. Movable types (Q_PRIMITIVE_TYPE) struct Point2D { int x; int y; }; Q_DECLARE_TYPEINFO(Point2D, Q_PRIMITIVE_TYPE); 46
  47. Movable types (Q_MOVABLE_TYPE) class Point2D { public: Point2D() { data = new int[2]; } Point2D(const Point2D &other) { … } ~Point2D() { delete [] data; } Point2D &operator=(const Point2D &other) { … } int x() const { return data[0]; } int y() const { return data[1]; } private: int *data; }; Q_DECLARE_TYPEINFO(Point2D, Q_MOVABLE_TYPE); 47
  48. QVector<T> • Insertion in the middle: – Movable type: memmove() – Non-movable type: operator=() 1 0 1 2 3 4 5 6 0 1 2 3 4 5 6 7 48
  49. QList<T> • Two representations • Array of pointers to items on the heap (general case) QBasicAtomicInt int int int uint void * void * ref alloc begin end flags array[0] ... array[alloc - 1] QListData::Data T T d QList<T> 49
  50. QList<T> • Special case: T is movable and sizeof(T) <= sizeof(void *) • Items are stored directly (same as QVector) QBasicAtomicInt int int int uint T T ref alloc begin end flags array[0] ... array[alloc - 1] QListData::Data d QList<T> 50
  51. QList<T> • Reserves space at the beginning and at the end • Benefits of reserving space at the beginning – Prepending an item usually takes constant time – Removing the first item usually takes constant time – Faster insertion 51
  52. QVector<T> vs. QList<T> • QList expands to less code in the executable • For most purposes, QList is the right class to use • If all you do is append(), use QVector – Use reserve() if you know the size in advance – Also consider QVarLengthArray or plain C array • When T is movable and sizeof(T) <= sizeof(void *) – Almost no difference, except that QList provides faster insertions/removals in the first half of the list • (Constant time insertions in the middle: Use QLinkedList) 52
  53. General Qt Container Advices • Avoid deep copies, e.g: – Use at() rather than operator[] – constData()/constBegin()/constEnd() – Basically: limit usage of non-const functions • When you know the size in advance: – Use reserve() • Let Qt know whether your class is movable or not – Q_DECLARE_TYPEINFO • Choose the right container for the right circumstance 53
  54. General Painting Optimizations • Prefer QPixmap over QImage (if possible) – QPixmap is accelerated – QPixmap caches information about the pixels • Avoid QPixmap/QImage::setAlphaChannel() – Use QPainter::setCompositionMode instead • Avoid QPixmap/QImage::transformed() – Use QPainter::setWorldTransform instead • If you for sure know the image has alpha: – Qt::NoOpaqueDetection (QPixmap::fromImage) 54
  55. General Painting Optimizations Original int width = image.width(); int height = image.height(); for (int y = 0; y < height; ++y) { for (int x = 0; x < width; ++x) { QRgb pixel = image.pixel(x, y); … } } NB! Image is 32 bit 55
  56. General Painting Optimizations Optimized int width = image.width(); int height = image.height(); for (int y = 0; y < height; ++y) { QRgb *line = reinterpret_cast<QRgb *>(image.scanLine(y)); for (int x = 0; x < width; ++x) { QRgb pixel = line[x]; … } } 56
  57. General Painting Optimizations Even more optimized int numPixels = image.width() * image.height(); QRgb *pixels = reinterpret_cast<QRgb *>(image.bits()); for (int i = 0; i < numPixels; ++i) { QRgb pixel = pixels[i]; … } } 57
  58. General Painting Optimizations Original Optimized MyWidget::paintEvent(...) MyWidget::paintEvent(...) { { QPainter painter(this); QPainter painter(this); painter.fillRect(rect(), Qt::red); painter.fillRect(rect(), Qt::red); } } int main(int argc, char **argv) int main(int argc, char **argv) { { ... ... MyWidget widget; MyWidget widget; ... widget.setAttribute( } Qt::WA_OpaquePaintEvent); ... } 58
  59. General Painting Optimizations Original Optimized painter.drawLine(line1); QLine lines[3]; painter.drawLine(line2); ... painter.drawLine(line3); painter.drawLines(lines, 3); painter.drawPoint(point1); QPoint points[3]; painter.drawPoint(point2); ... painter.drawPoint(point3); painter.drawPoints(points, 3); QString key(“abcd”); QPixmapCache::Key key; QPixmapCache::insert(key, pm); key = QPixmapCache::insert(pm); QPixmapCache::find(key, pm); pm = QPixmapCache::find(key); 59
  60. Other Optimizations Original Optimized const QString s = s1 + s2 + s3; #include <QStringBuilder> ... #define QT_USE_FAST_CONCATENATION const QString s = s1 % s2 % s3; #define QT_USE_FAST_OPERATOR_PLUS QTransform xform = a.inverted(); QTransform xform = b; xform *= b.inverted(); xform *= a; xform = xform.inverted(); foreach (const QString &s, slist) { foreach (const QString &s, slist) { if (s.size() < 5) if (s.size() < 5) continue; continue; const QString m = s.mid(2, 3); QStringRef m(&s, 2, 3); if (m == magicString) if (m == magicString) doMagicStuff(); doMgicStuff(); } } 60
  61. Other Optimizations Original Optimized qFuzzyCompare(opacity+1, 1)); qFuzzyIsNull(opacity)); int nRects = qregion.rects().size(); int nRects = qregion.numRects(); if (expensive() && cheap()) if (cheap() && expensive()) #button1 { background:red } #button1, #button2 { background:red } #button2 { background:red } *[readOnly=”1”] { color:blue } /* Only QLineEdit can possibly be read-only in my application */ QLineEdit[readOnly = “1”] { color:blue } 61
  62. Graphics View Optimizations • Viewport update modes • Scene index – BSP tree index – No index • Avoid QGraphicsScene::changed signal • QGraphicsScene::setSceneRect • Cache modes – Device coordinates – Item coordinates • OpenGL viewport 62
  63. Platform Specific Optimizations • Link time optimization LTCG (Windows only) – Approx. 10%-15% speedup – Configure Qt with “-ltcg” • Don't use explicit double arithmetic – qreal is float on embedded (QWS) – 100 / 2.54 → 100 / qreal(2.54) • It's time time to take advantage of what we have learned • Let's do some real optimizations! 63
  64. Theory of Constraints • Define a goal: – For example: This application must run at 30 FPS • Then: 1) Identify the constraint 2) Decide how to exploit the constraint 3) Improve 4) If goal not reached, go back to 1) 5) Done 65
  65. Agenda • Why Performance Matters • Performance Improvements in Qt 4.6 • How You Can Improve Performance 66
  66. Questions?

×
