Turbine flow meters are precision instruments used to measure fluid flow, offering high accuracy and suitability for extreme temperatures and pressures. They are effective for gases and liquids but are limited to low viscosities and require clean fluids due to moving parts. This document details their advantages, disadvantages, working principles, and applications, along with a schematic diagram.

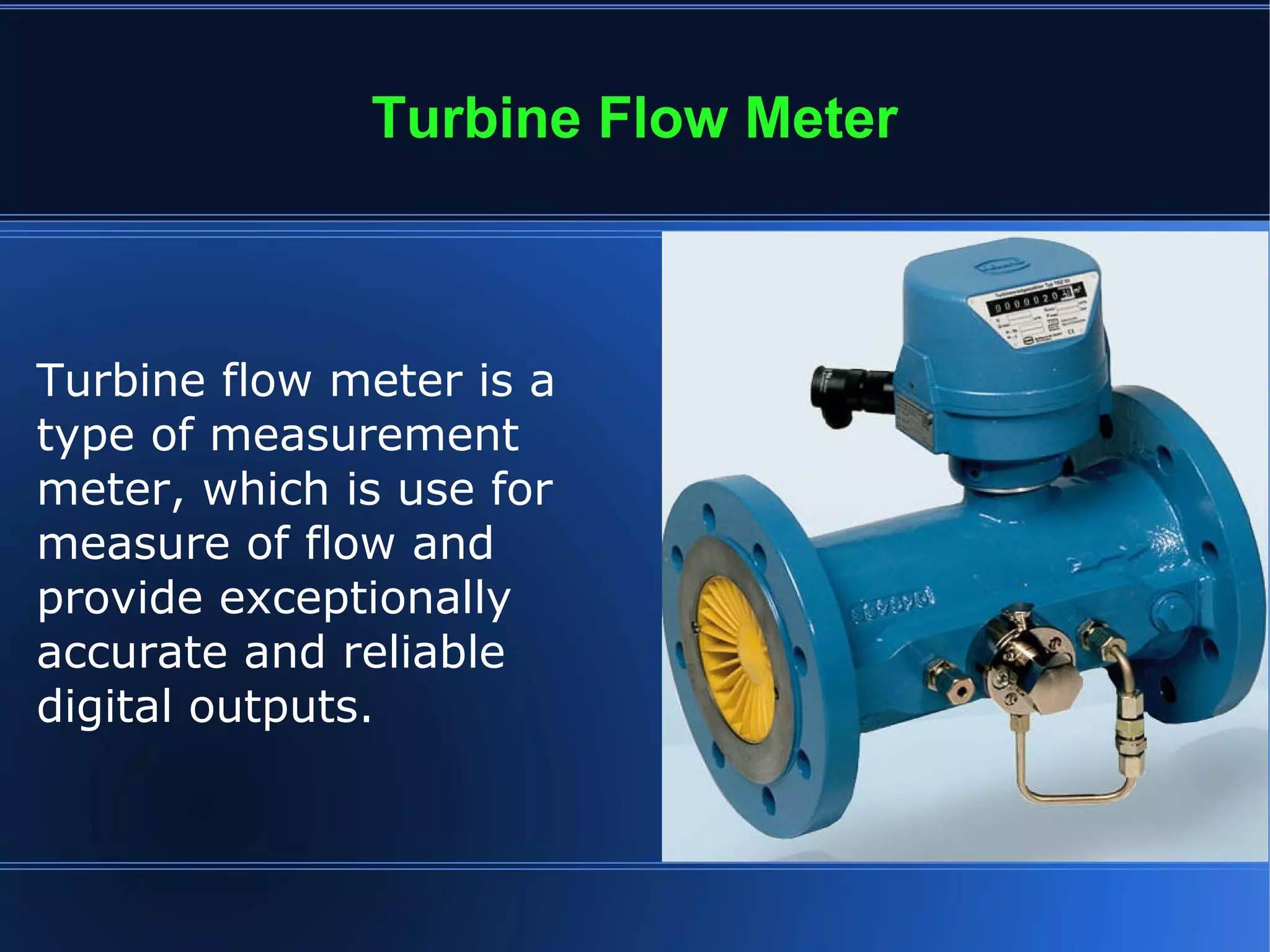

1. Turbine Flow Meter
Turbine flow meter is a
type of measurement
meter, which is use for
measure of flow and
provide exceptionally
accurate and reliable
digital outputs.

2. Advantage and Disadvantage of Turbine Flow
Meter
Advantages
● High Accuracy
● Sutable for extreme
temperatures and
pressures
● It can be used on gas
liquid
Disadvantages
● Only for low viscosities
● Moving parts
● Sensitive to flow profile
● Require clean fluids

3. Turbine flow meter is used for translates the
mechanical action of the turbine rotating in the liquid
flow around an axis into a user-readable rate of flow.
These meters are an ideal solution when high
accuracy, compact size and fast response are critical
requirements.
Working Princple of Turbine
Flow Meter

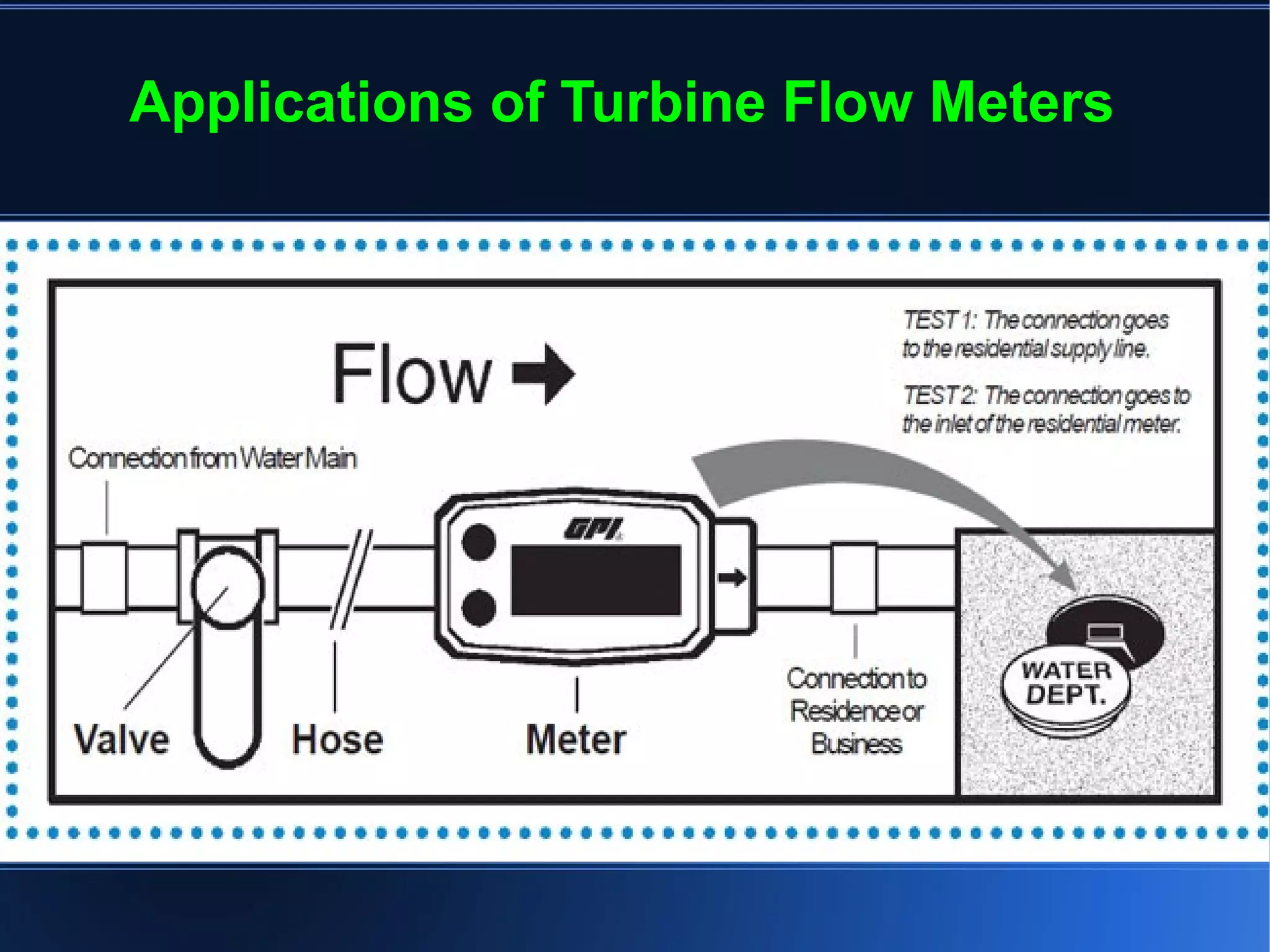

4. Applications of Turbine Flow Meters

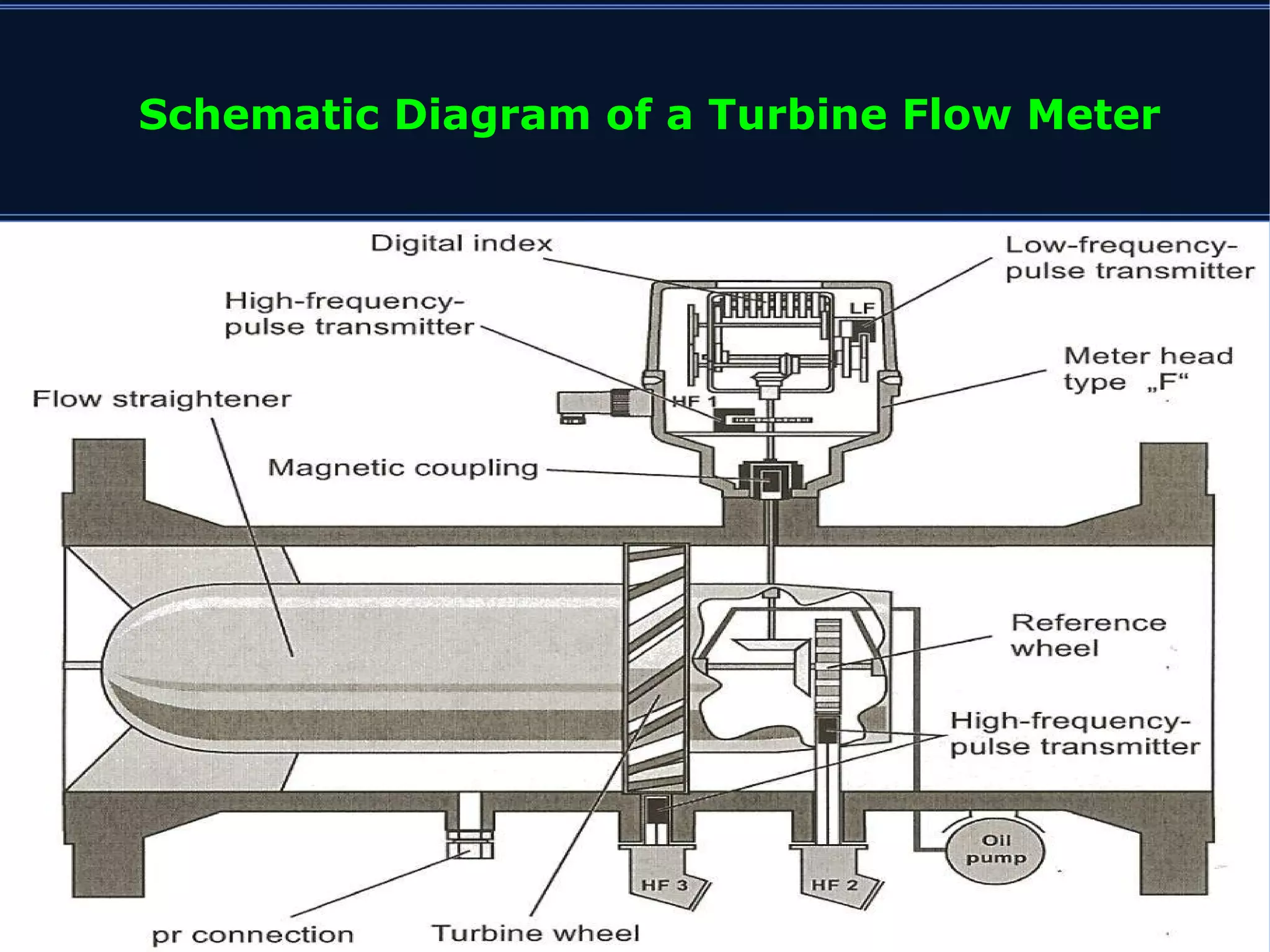

5. Schematic Diagram of a Turbine Flow Meter

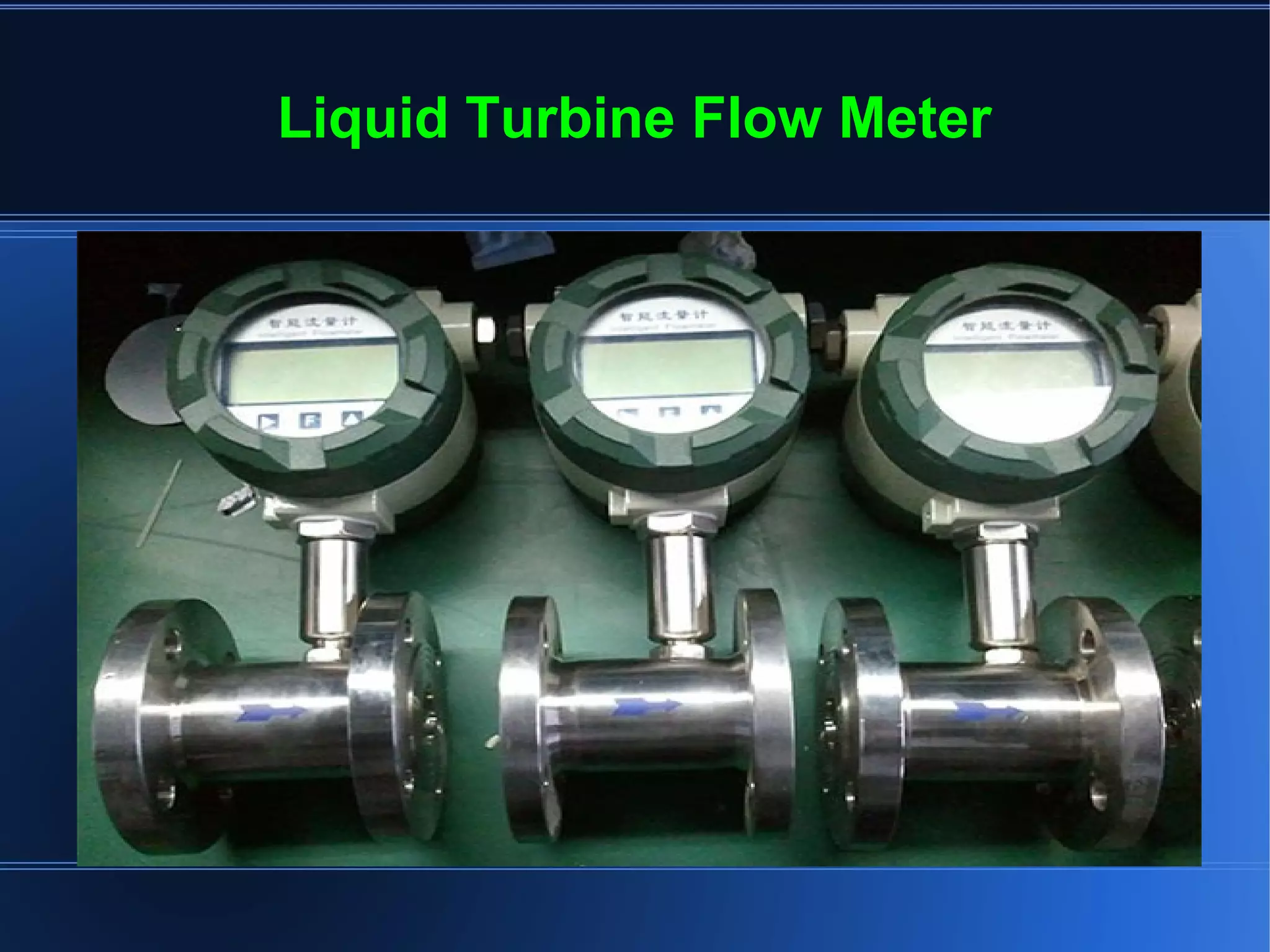

6. Liquid Turbine Flow Meter

7. Gas Turbine Flow Meter

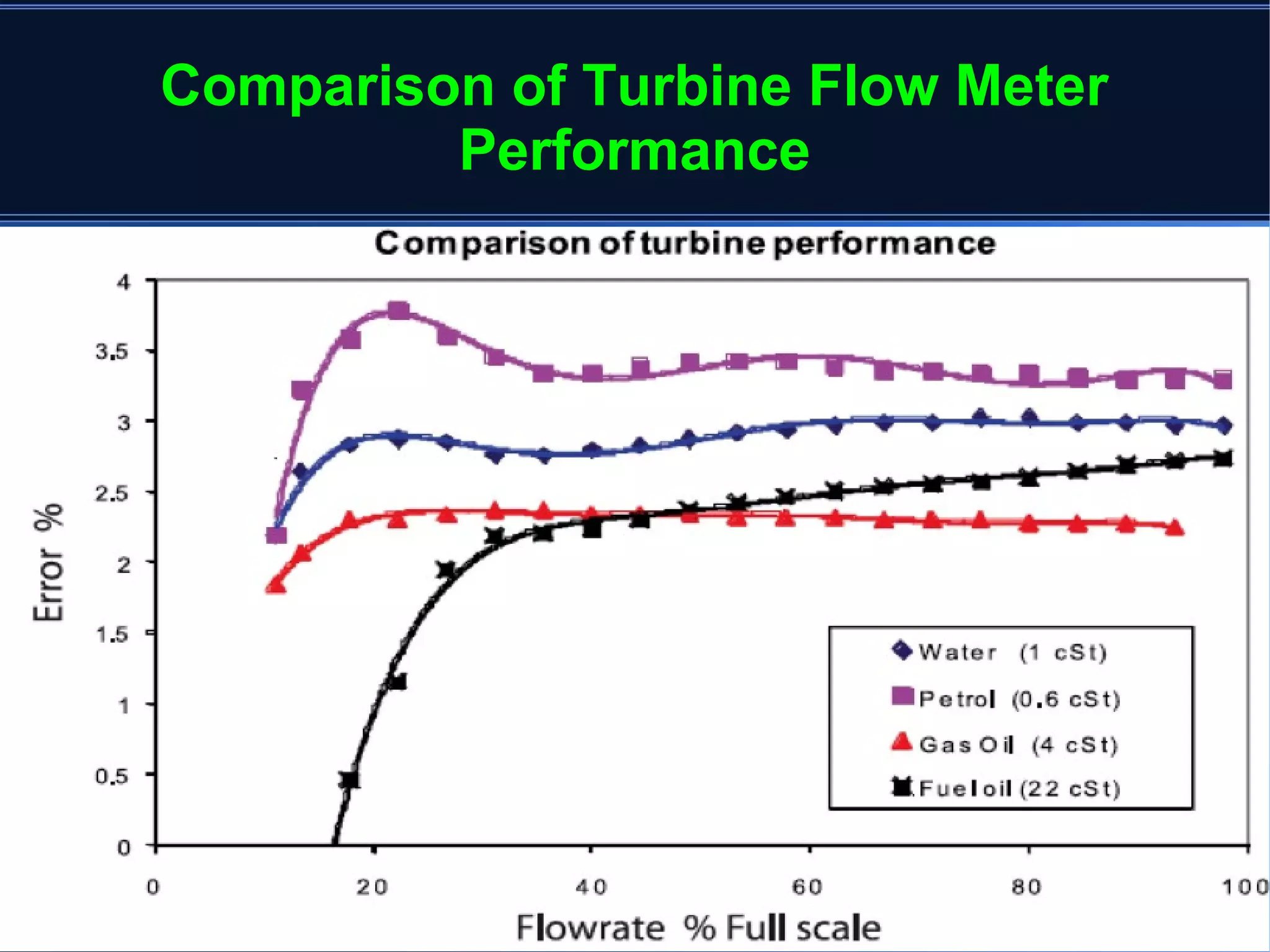

8. Comparison of Turbine Flow Meter
Performance

9. About us
In this presentation, we are show you all info about
turbine flow meter and how it works, if you are looking
for turbine flow meter in bulk. You can visit our site
http://www.tradeindia.com/manufacturers/turbine-flow-meter.html

10. Thank You
