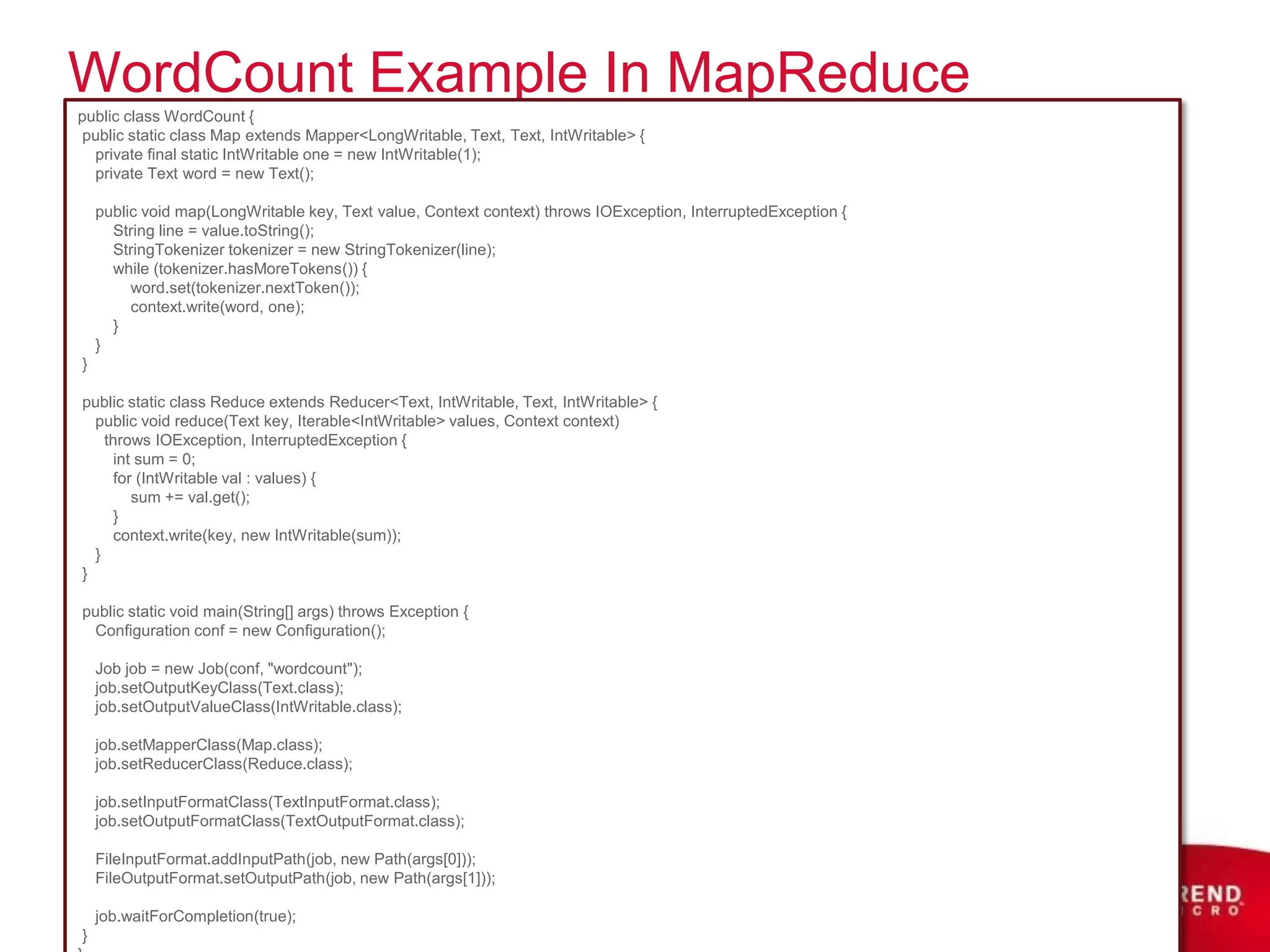

![WordCount Example In MapReduce
public class WordCount {
public static class Map extends Mapper<LongWritable, Text, Text, IntWritable> {
private final static IntWritable one = new IntWritable(1);
private Text word = new Text();
public void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {
String line = value.toString();
StringTokenizer tokenizer = new StringTokenizer(line);
while (tokenizer.hasMoreTokens()) {
word.set(tokenizer.nextToken());
context.write(word, one);
}
}
}
public static class Reduce extends Reducer<Text, IntWritable, Text, IntWritable> {
public void reduce(Text key, Iterable<IntWritable> values, Context context)
throws IOException, InterruptedException {
int sum = 0;
for (IntWritable val : values) {
sum += val.get();
}
context.write(key, new IntWritable(sum));
}
}
public static void main(String[] args) throws Exception {
Configuration conf = new Configuration();
Job job = new Job(conf, "wordcount");
job.setOutputKeyClass(Text.class);
job.setOutputValueClass(IntWritable.class);
job.setMapperClass(Map.class);
job.setReducerClass(Reduce.class);
job.setInputFormatClass(TextInputFormat.class);
job.setOutputFormatClass(TextOutputFormat.class);
FileInputFormat.addInputPath(job, new Path(args[0]));
FileOutputFormat.setOutputPath(job, new Path(args[1]));
job.waitForCompletion(true);
}](https://image.slidesharecdn.com/zhtwcloudcomputingera-130311215909-phpapp01/75/Zh-tw-cloud-computing-era-37-2048.jpg)
![Hbase – Data Model
• Cells are “versioned”
• Table rows are sorted by row key
• Region – a row range [start-key:end-key]](https://image.slidesharecdn.com/zhtwcloudcomputingera-130311215909-phpapp01/75/Zh-tw-cloud-computing-era-44-2048.jpg)
More Related Content
Similar to Zh tw cloud computing era
Zh tw cloud computing era
- 1.

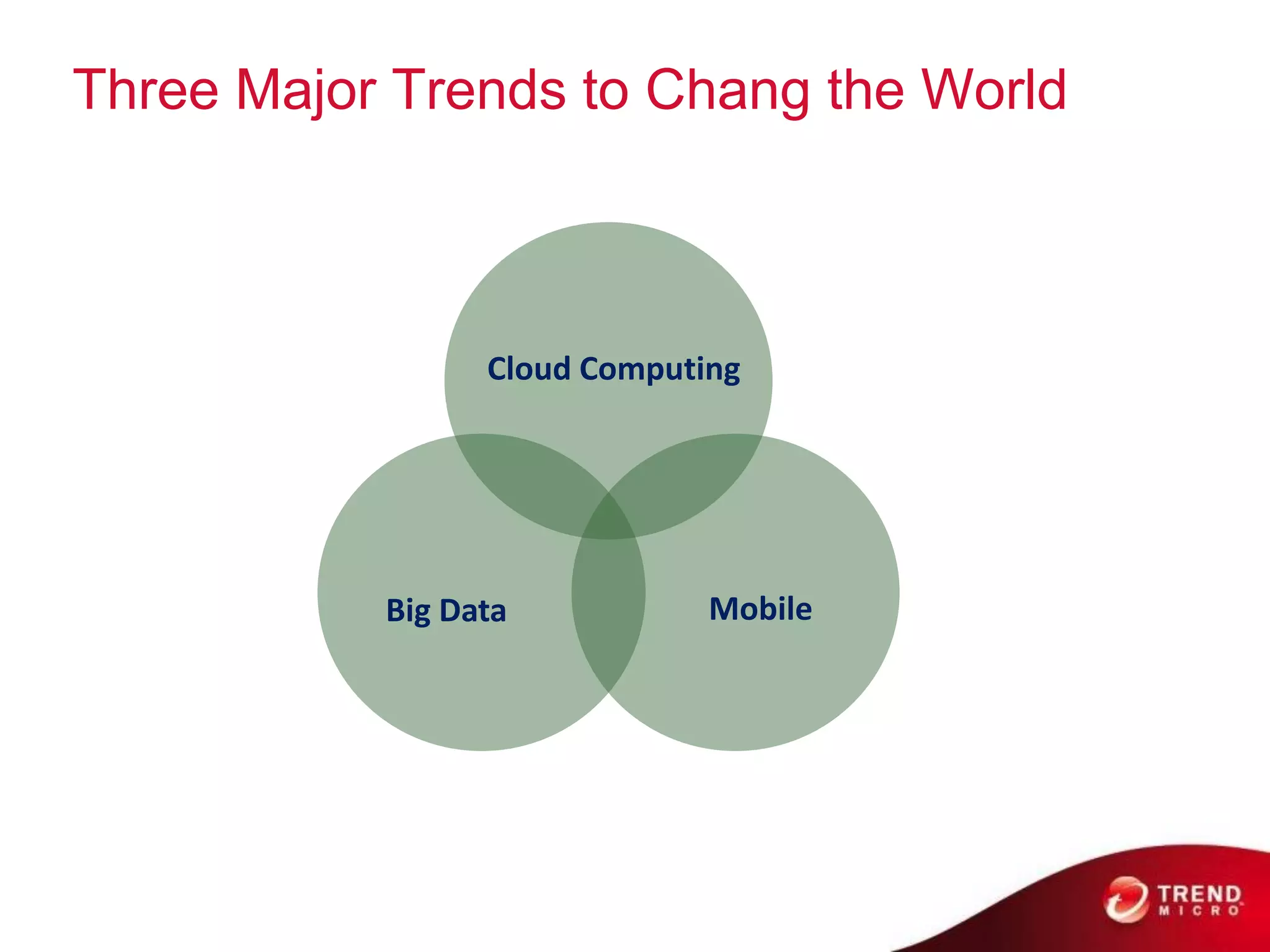

- 2. Three Major Trendsto Chang the World Cloud Computing Big Data Mobile

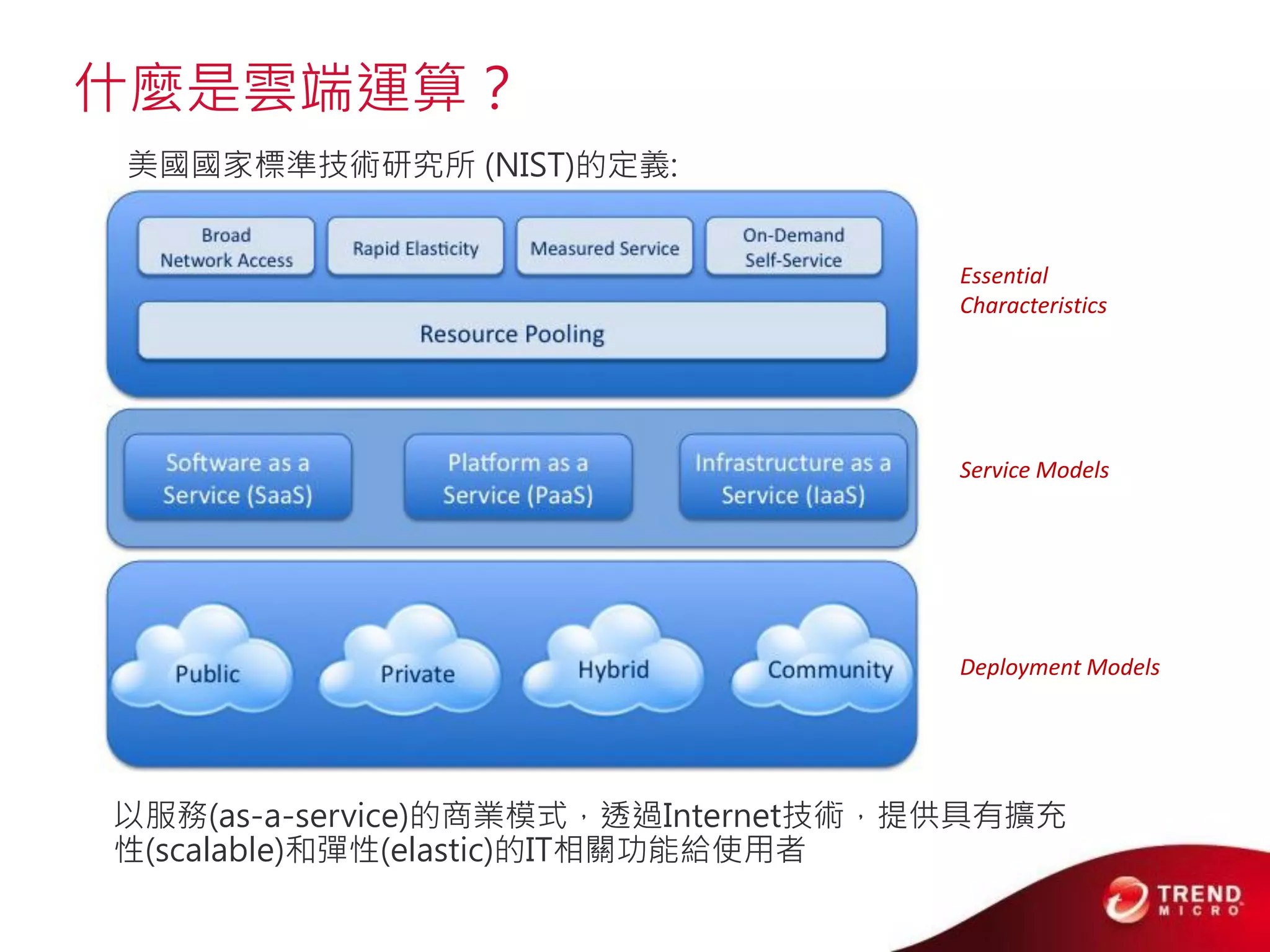

- 3. 什麼是雲端運算？ 美國國家標準技術研究所 (NIST)的定義: Essential Characteristics Service Models Deployment Models 以服務(as-a-service)的商業模式，透過Internet技術，提供具有擴充 性(scalable)和彈性(elastic)的IT相關功能給使用者

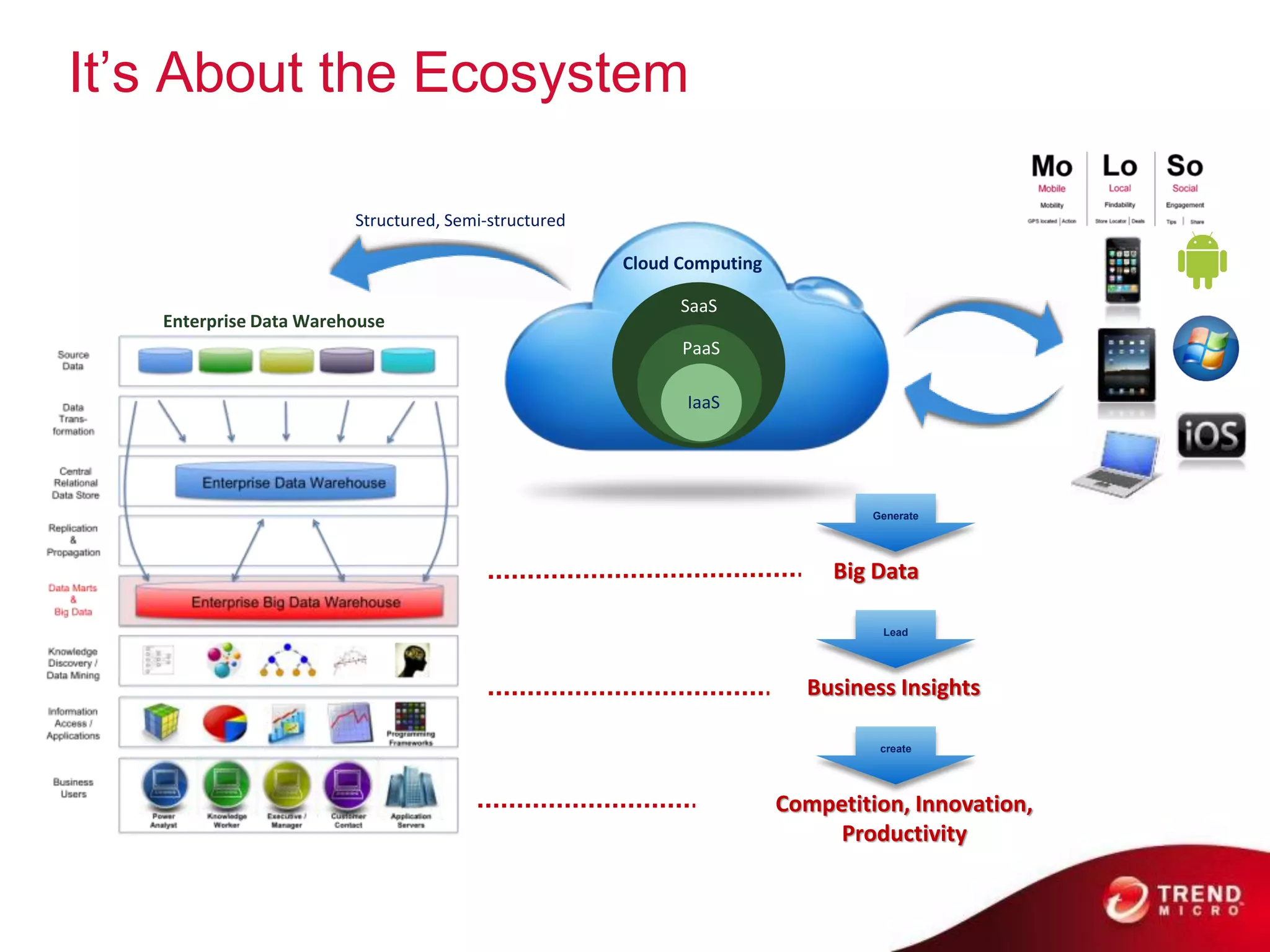

- 4. It’s About theEcosystem Structured, Semi-structured Cloud Computing SaaS Enterprise Data Warehouse PaaS IaaS Generate Big Data Lead Business Insights create Competition, Innovation, Productivity

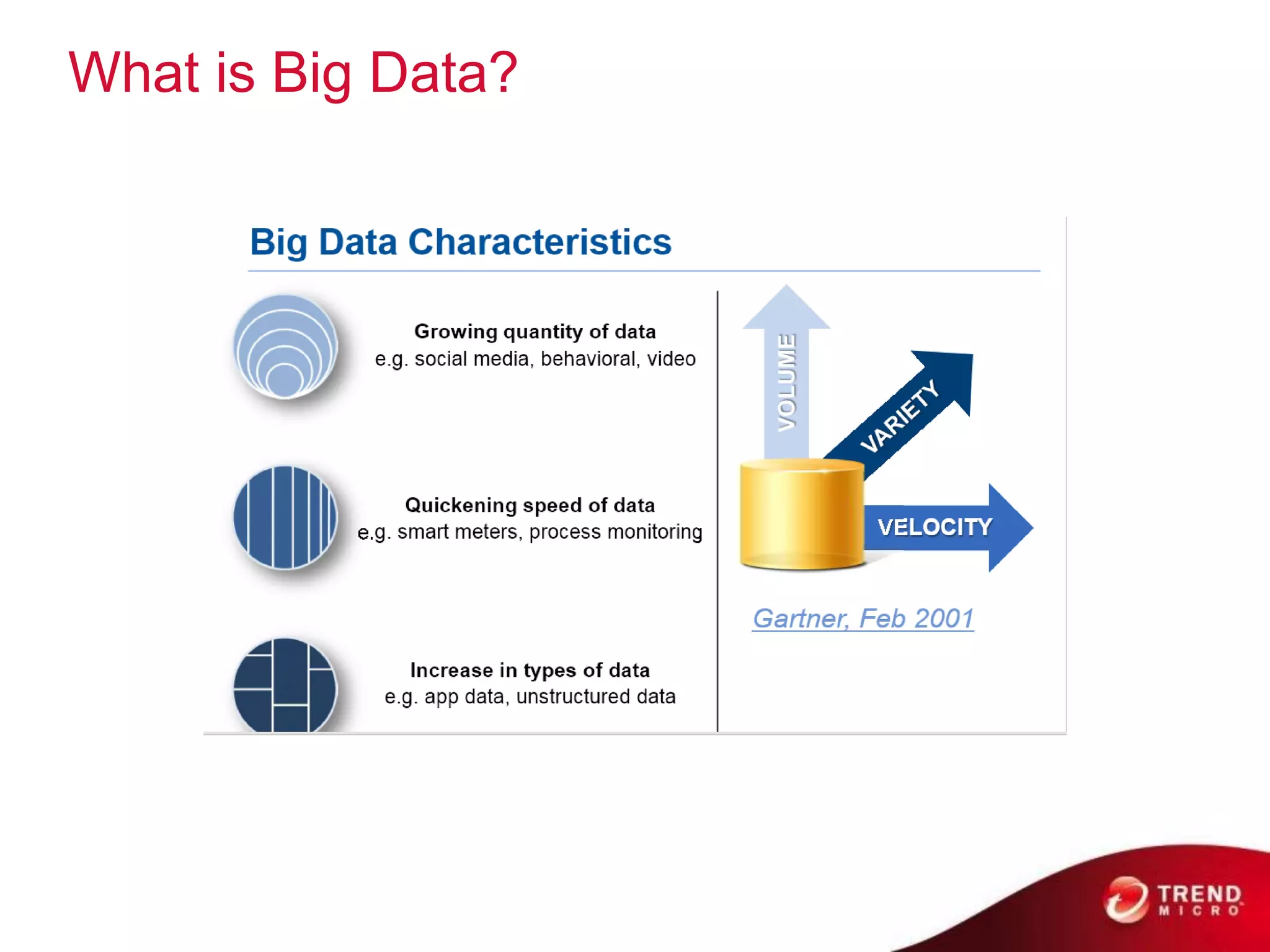

- 5. What is BigData?
- 6. What is theproblem • Getting the data to the processors becomes the bottleneck • Quick calculation – Typical disk data transfer rate: • 75MB/sec – Time taken to transfer 100GB of data to the processor: • approx. 22 minutes!
- 7. The Era ofBig Data – Are You Ready Data for business commercial analysis • 2011: multi-terabyte (TB) • 2020: 35.2 ZB (1 ZB = 1 billion TB)

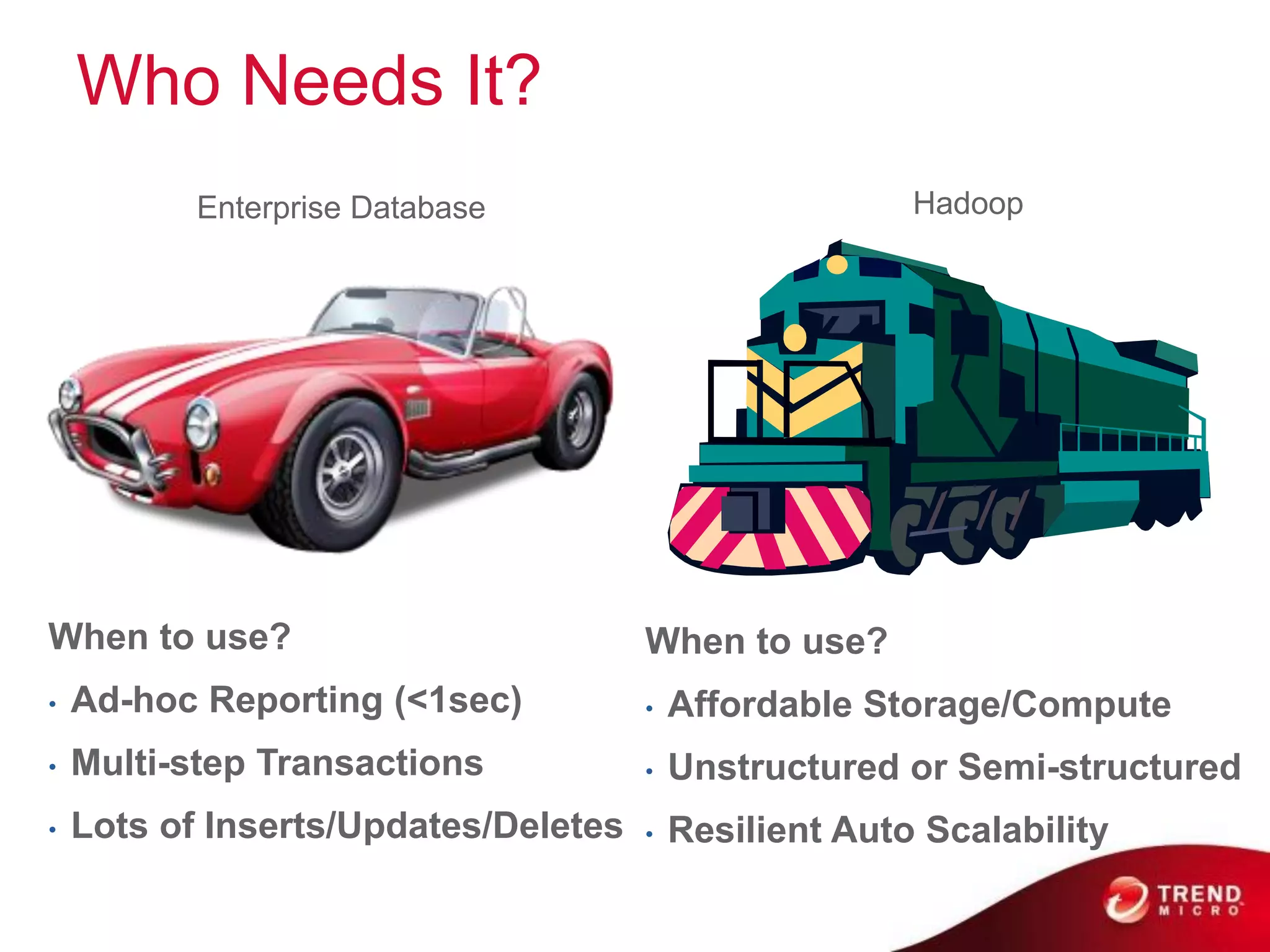

- 8. Who Needs It? Enterprise Database Hadoop When to use? When to use? • Ad-hoc Reporting (<1sec) • Affordable Storage/Compute • Multi-step Transactions • Unstructured or Semi-structured • Lots of Inserts/Updates/Deletes • Resilient Auto Scalability
- 9.

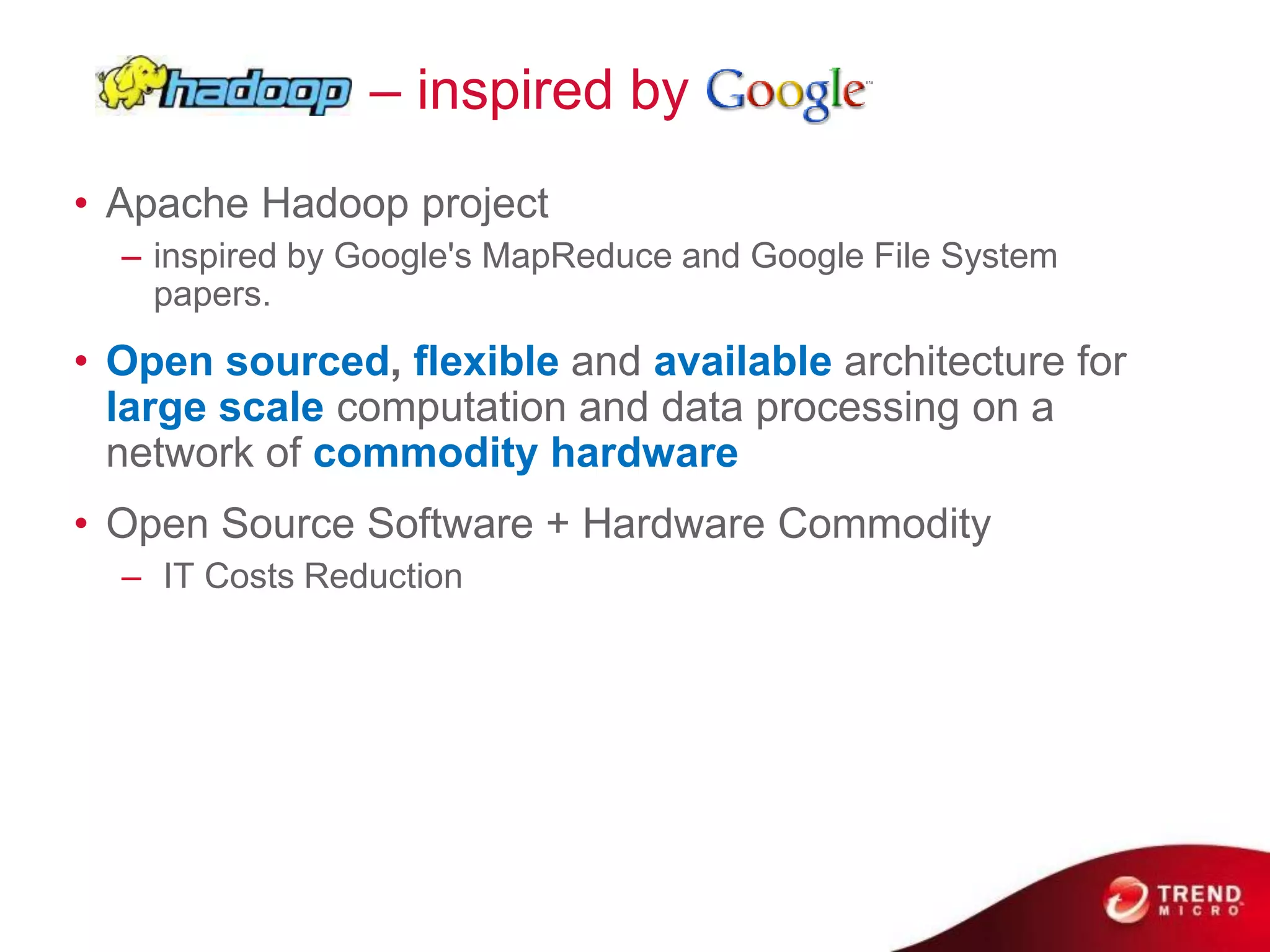

- 10. – inspired by •Apache Hadoop project – inspired by Google's MapReduce and Google File System papers. • Open sourced, flexible and available architecture for large scale computation and data processing on a network of commodity hardware • Open Source Software + Hardware Commodity – IT Costs Reduction

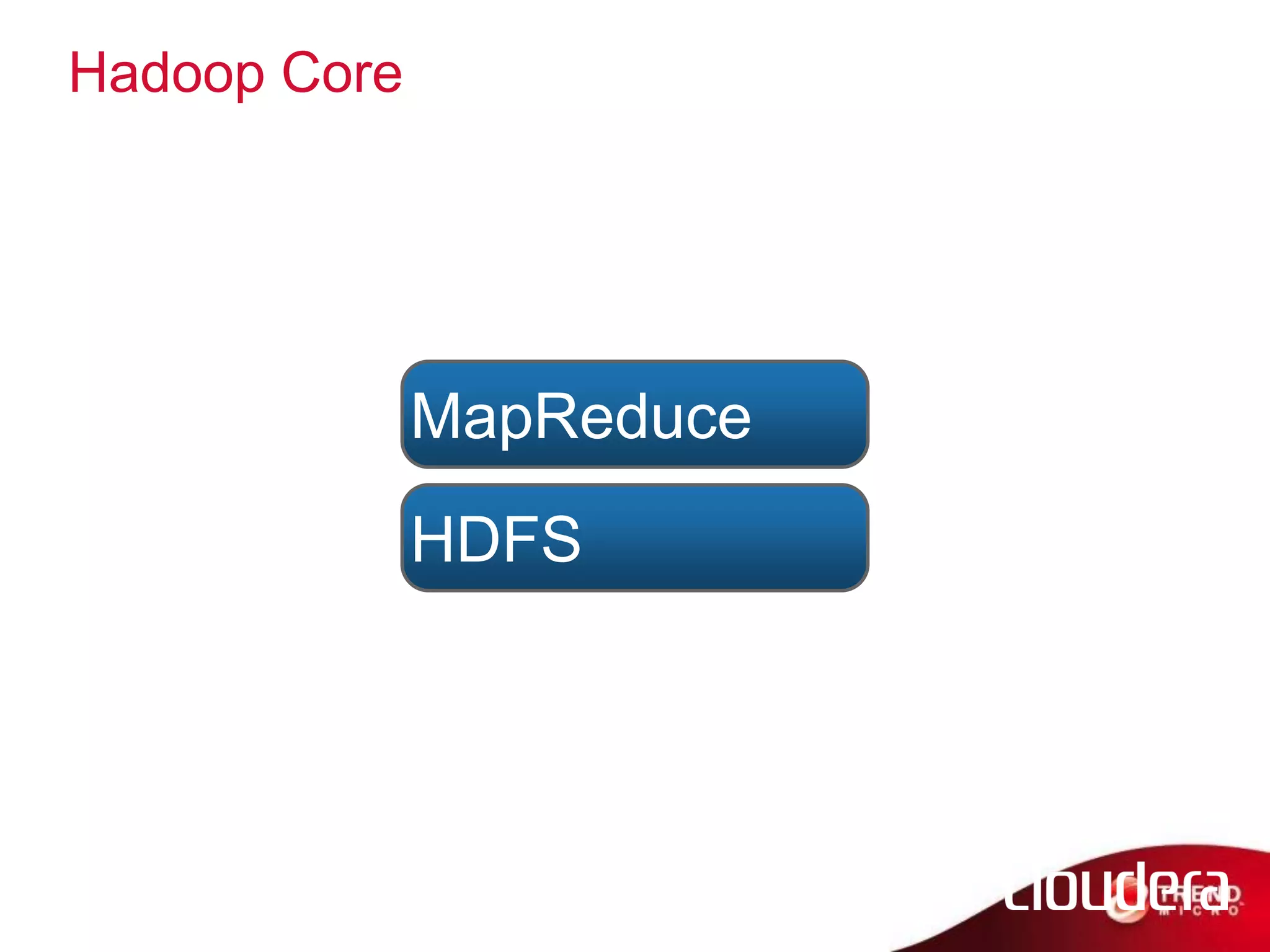

- 11. Hadoop Core MapReduce HDFS © 2011 Cloudera, Inc. All Rights Reserved.

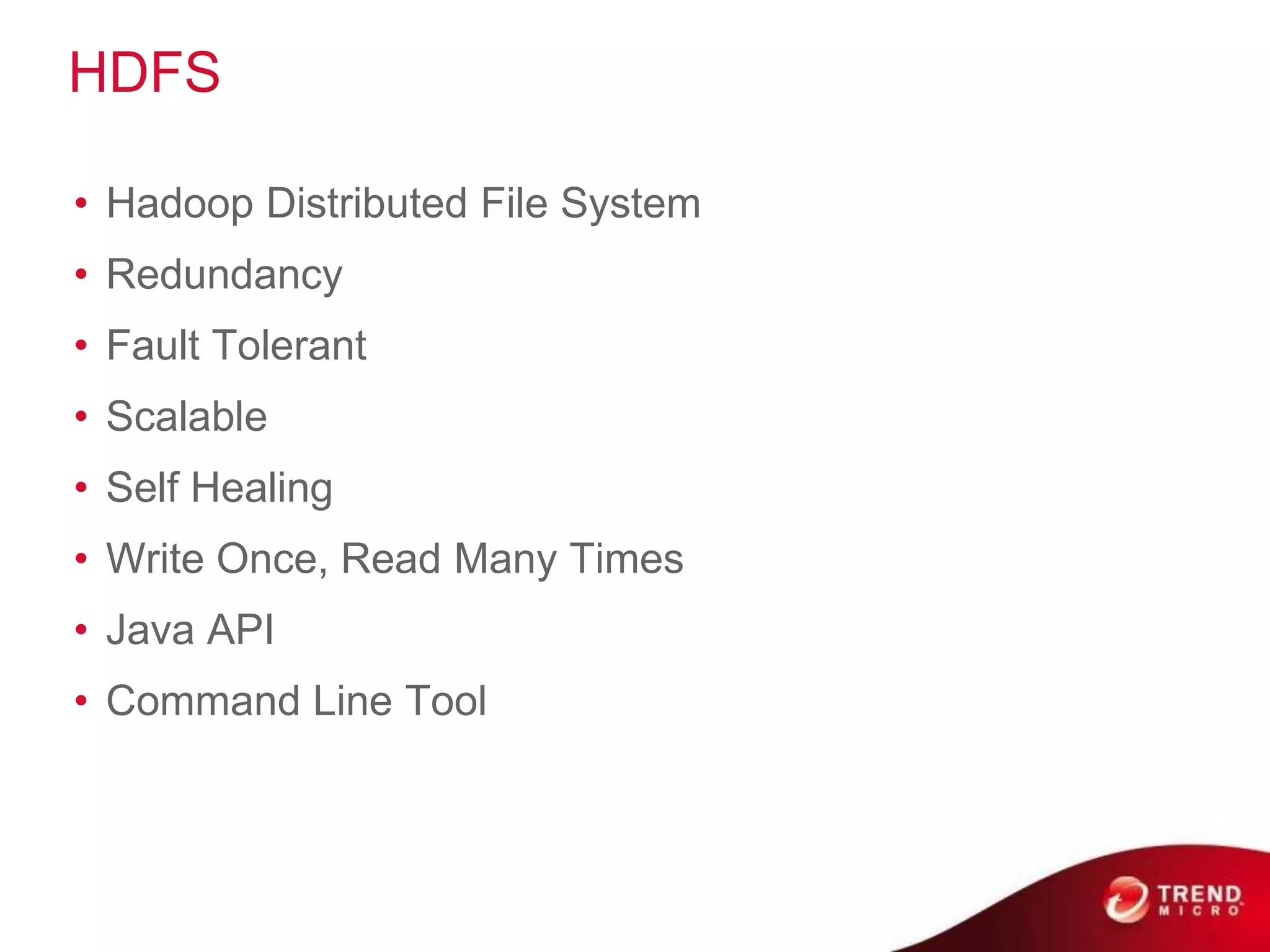

- 12. HDFS • Hadoop DistributedFile System • Redundancy • Fault Tolerant • Scalable • Self Healing • Write Once, Read Many Times • Java API • Command Line Tool © 2011 Cloudera, Inc. All Rights Reserved.
- 13. MapReduce • TwoPhases of Functional Programming • Redundancy • Fault Tolerant • Scalable • Self Healing • Java API 13 © 2011 Cloudera, Inc. All Rights Reserved.

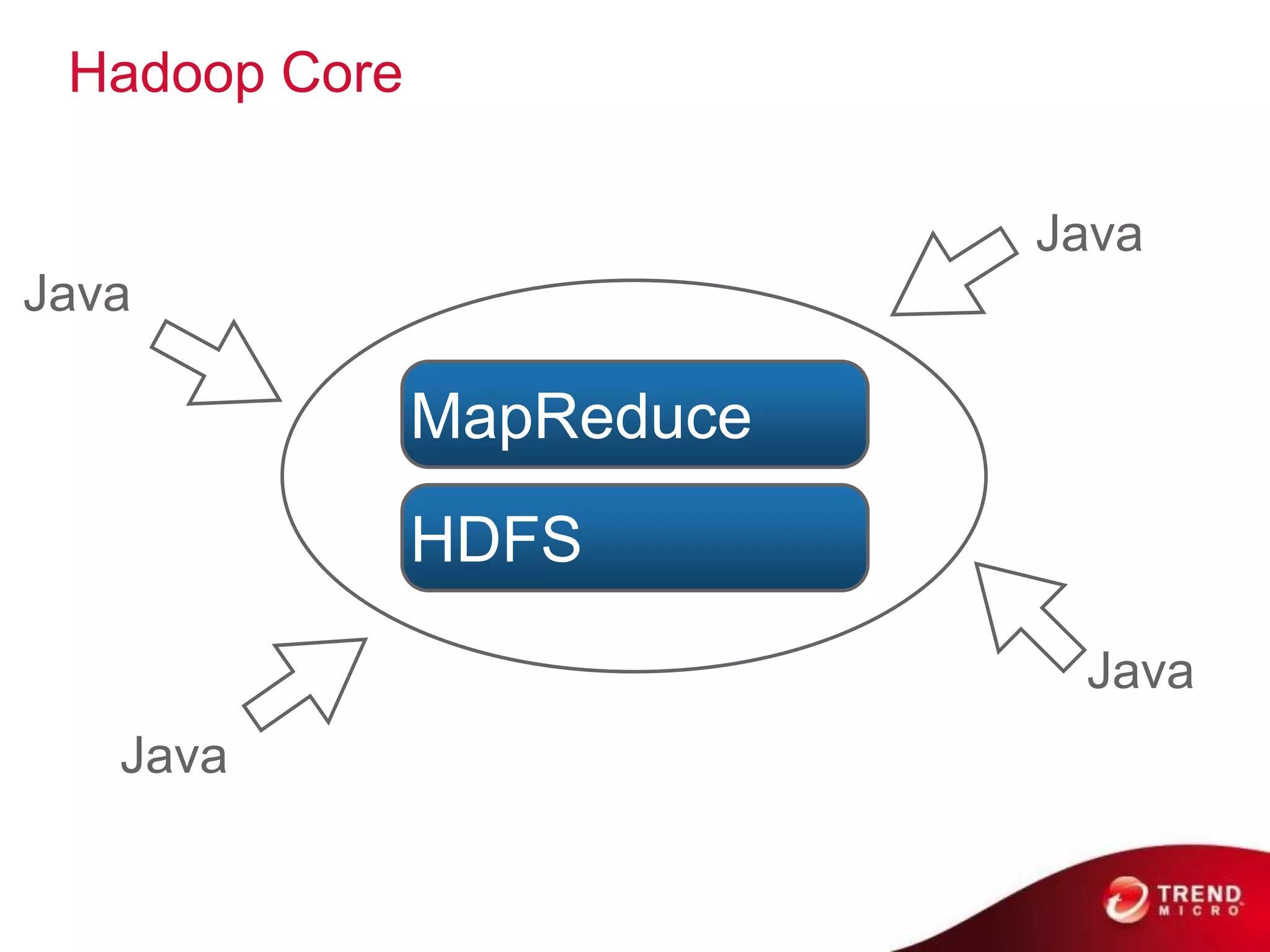

- 14. Hadoop Core Java Java MapReduce HDFS Java Java 14 © 2011 Cloudera, Inc. All Rights Reserved.

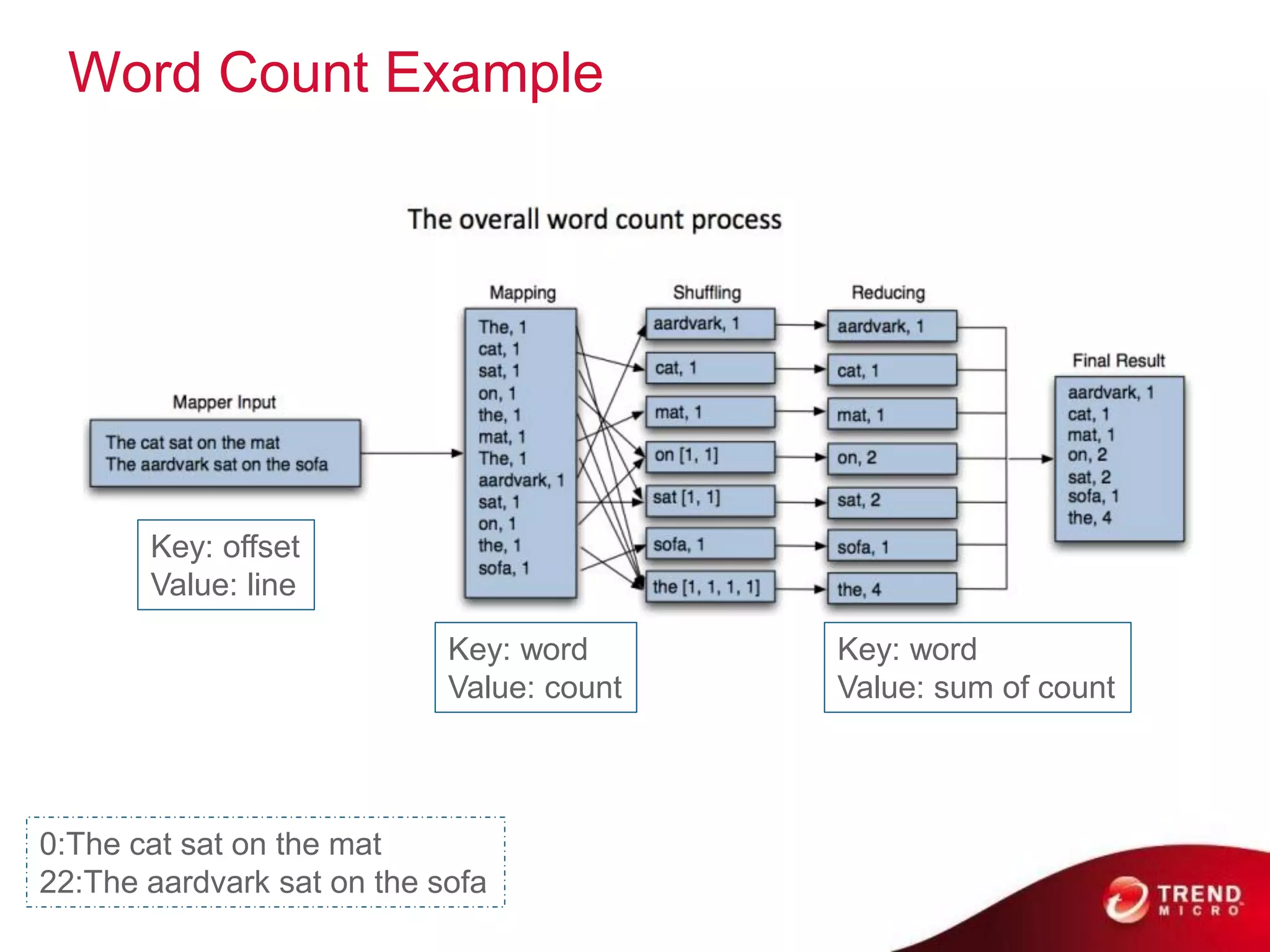

- 15. Word Count Example Key: offset Value: line Key: word Key: word Value: count Value: sum of count 0:The cat sat on the mat 22:The aardvark sat on the sofa
- 16.
- 17. The Ecosystem isthe System • Hadoop has become the kernel of the distributed operating system for Big Data • No one uses the kernel alone • A collection of projects at Apache

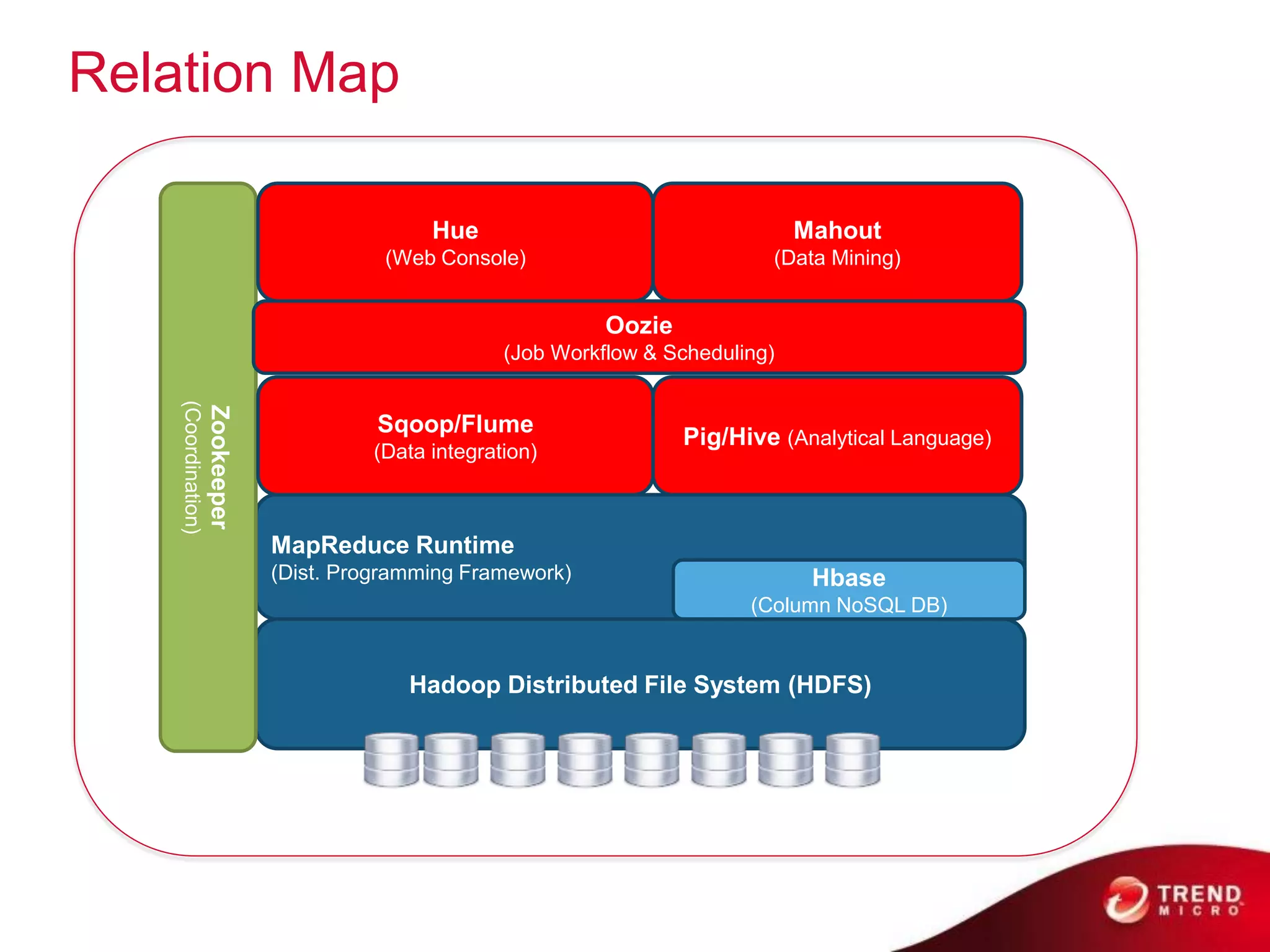

- 18. Relation Map Hue Mahout (Web Console) (Data Mining) Oozie (Job Workflow & Scheduling) (Coordination) Zookeeper Sqoop/Flume Pig/Hive (Analytical Language) (Data integration) MapReduce Runtime (Dist. Programming Framework) Hbase (Column NoSQL DB) Hadoop Distributed File System (HDFS)

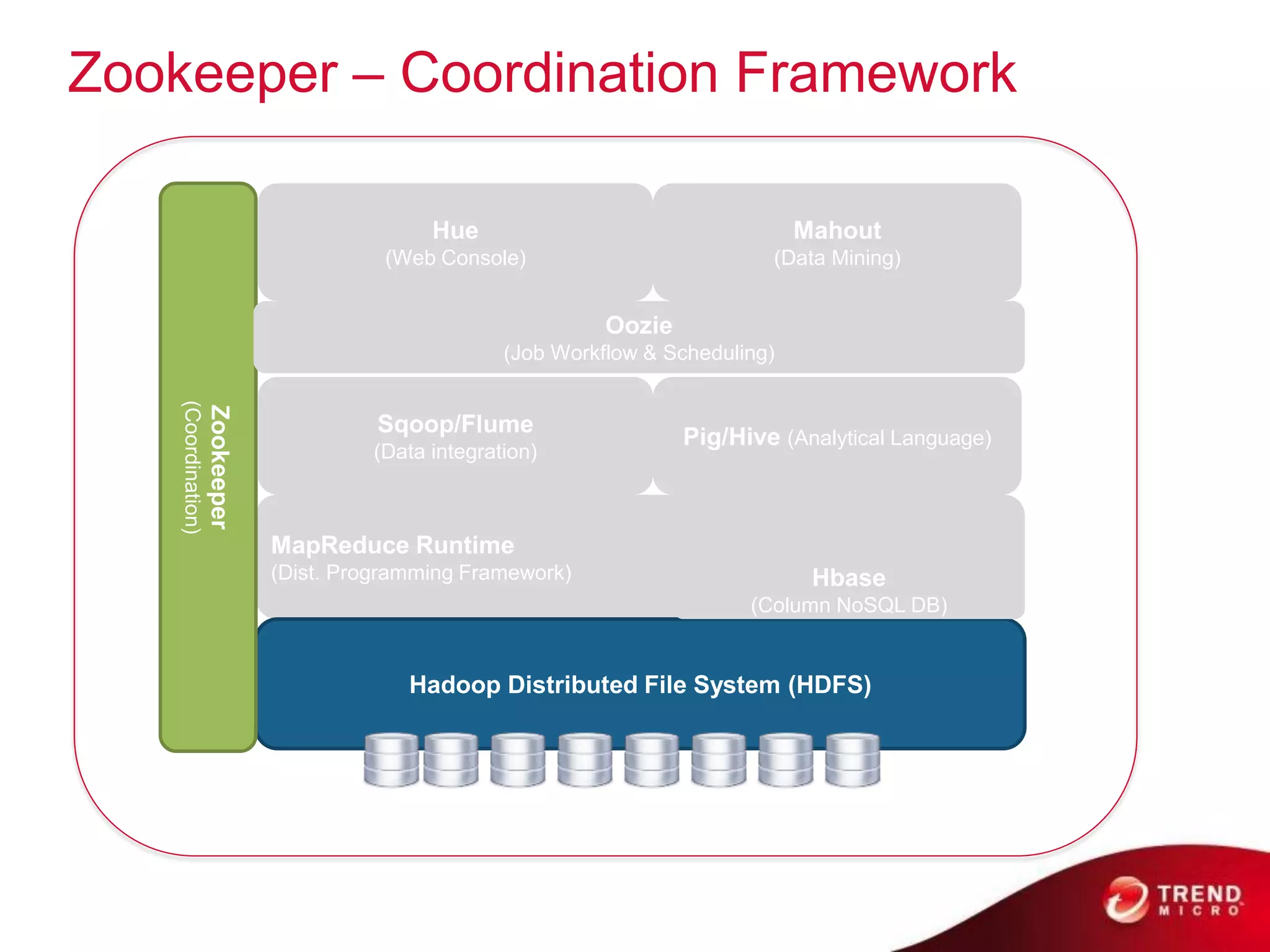

- 19. Zookeeper – CoordinationFramework Hue Mahout (Web Console) (Data Mining) Oozie (Job Workflow & Scheduling) (Coordination) Zookeeper Sqoop/Flume Pig/Hive (Analytical Language) (Data integration) MapReduce Runtime (Dist. Programming Framework) Hbase (Column NoSQL DB) Hadoop Distributed File System (HDFS)

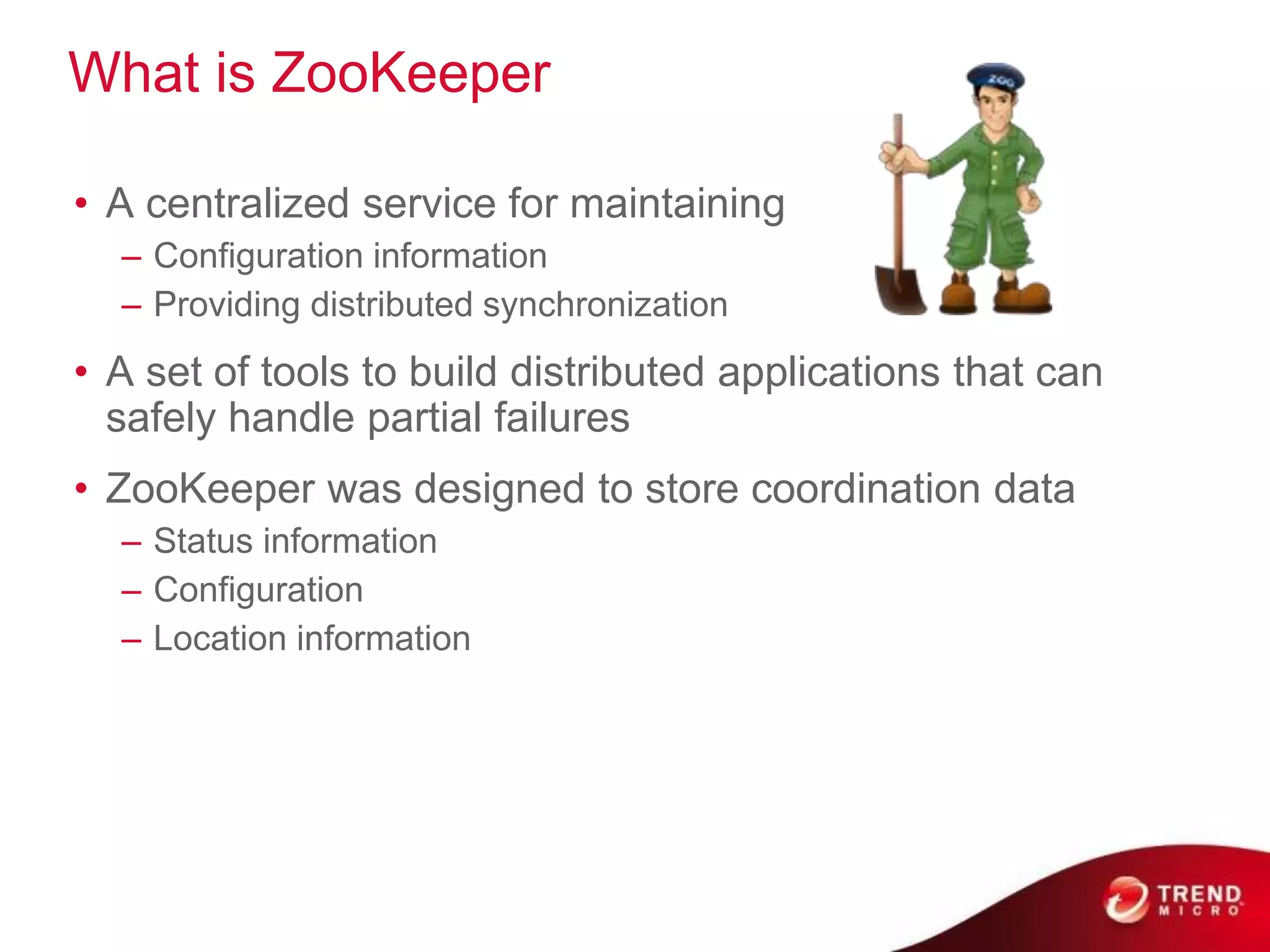

- 20. What is ZooKeeper •A centralized service for maintaining – Configuration information – Providing distributed synchronization • A set of tools to build distributed applications that can safely handle partial failures • ZooKeeper was designed to store coordination data – Status information – Configuration – Location information

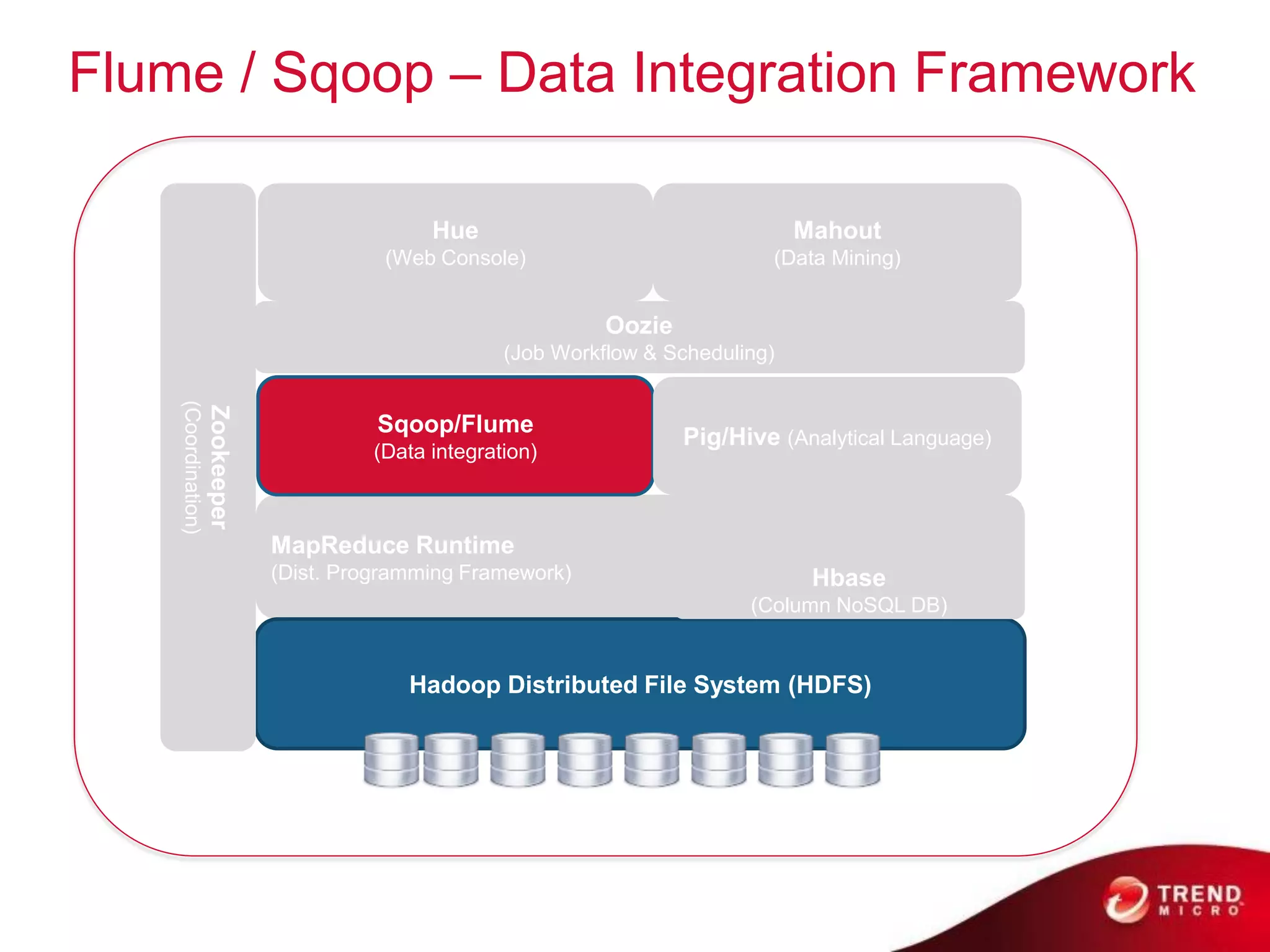

- 21. Flume / Sqoop– Data Integration Framework Hue Mahout (Web Console) (Data Mining) Oozie (Job Workflow & Scheduling) (Coordination) Zookeeper Sqoop/Flume Pig/Hive (Analytical Language) (Data integration) MapReduce Runtime (Dist. Programming Framework) Hbase (Column NoSQL DB) Hadoop Distributed File System (HDFS)

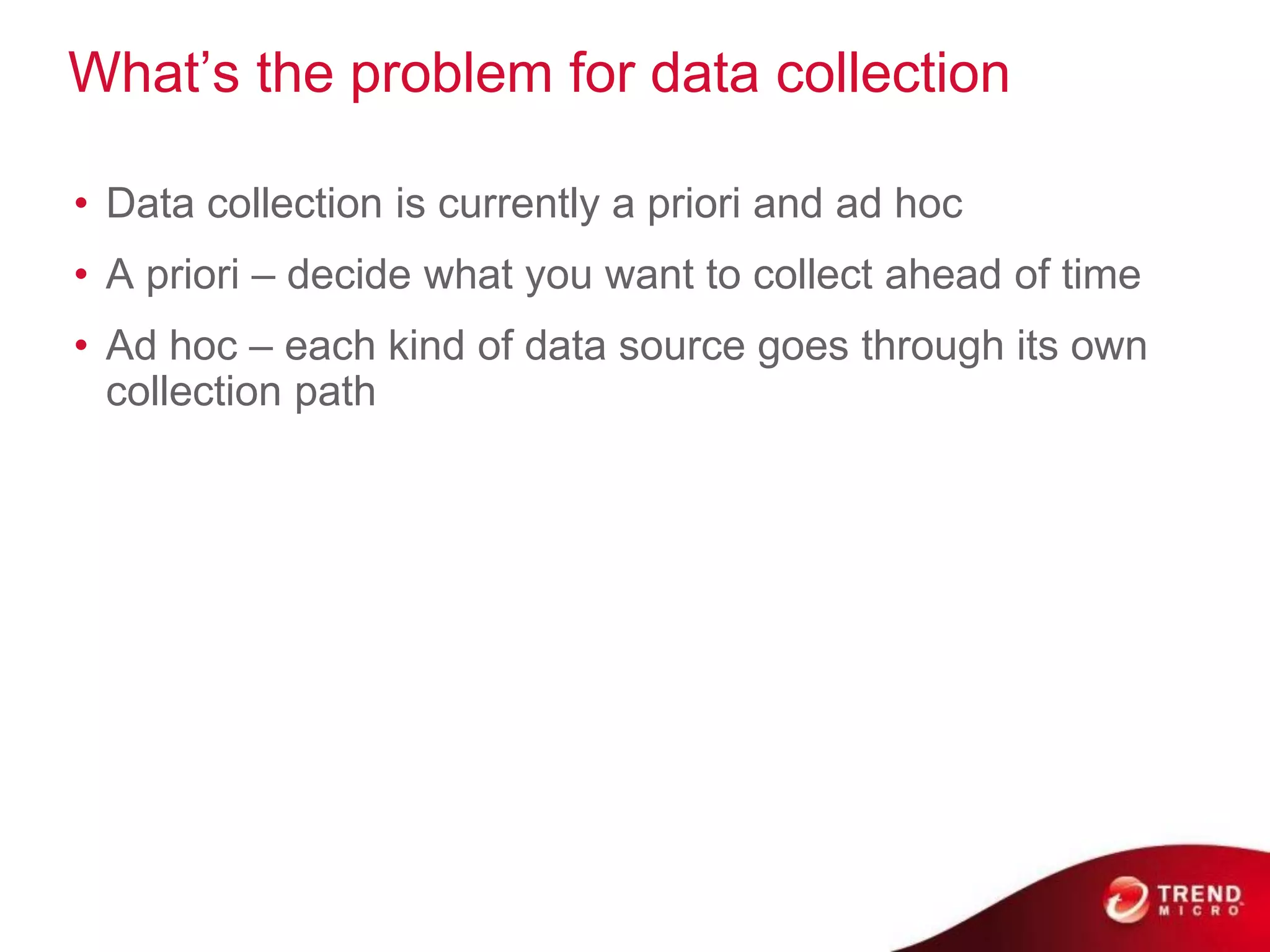

- 22. What’s the problemfor data collection • Data collection is currently a priori and ad hoc • A priori – decide what you want to collect ahead of time • Ad hoc – each kind of data source goes through its own collection path

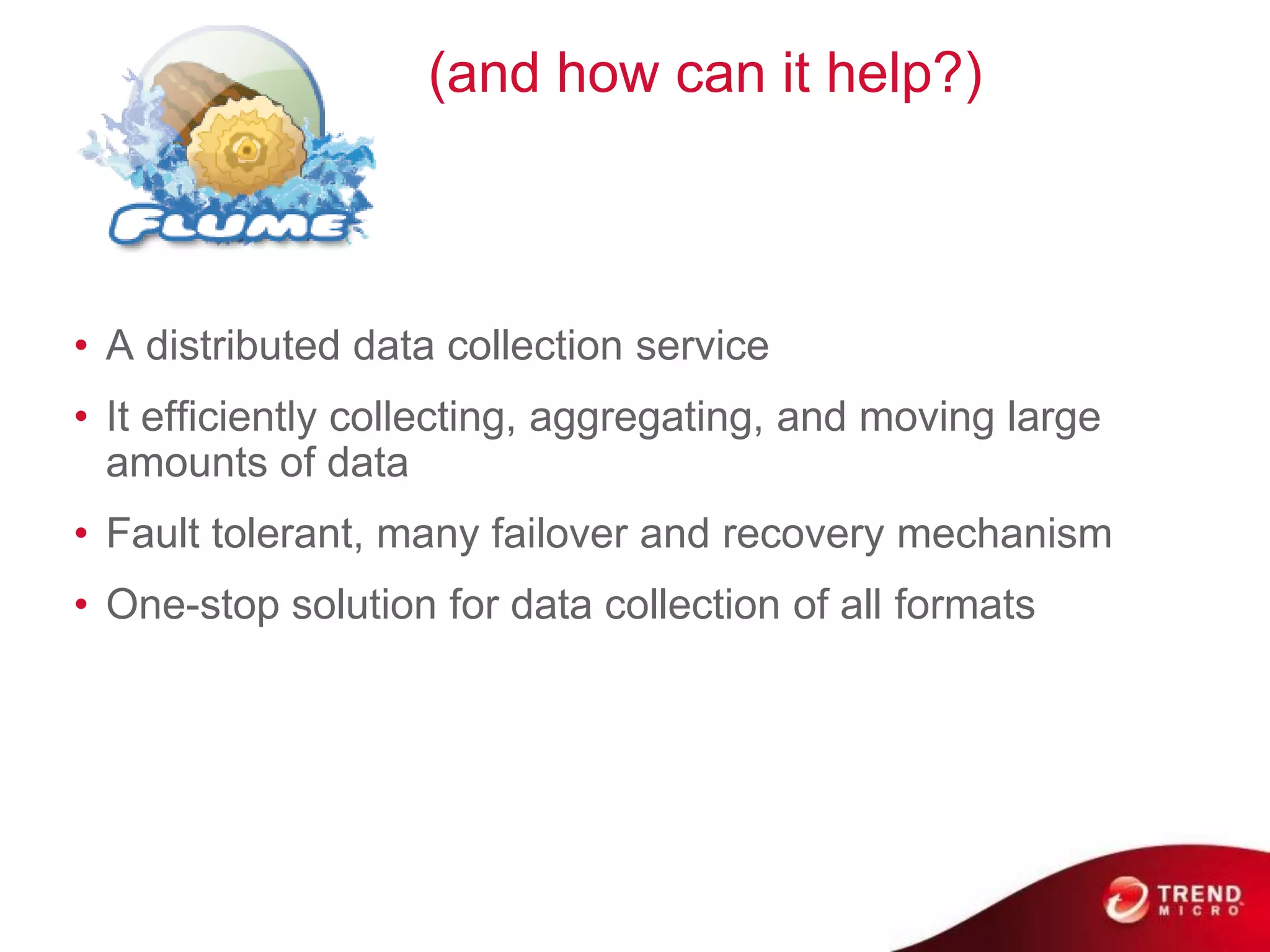

- 23. (and how canit help?) • A distributed data collection service • It efficiently collecting, aggregating, and moving large amounts of data • Fault tolerant, many failover and recovery mechanism • One-stop solution for data collection of all formats

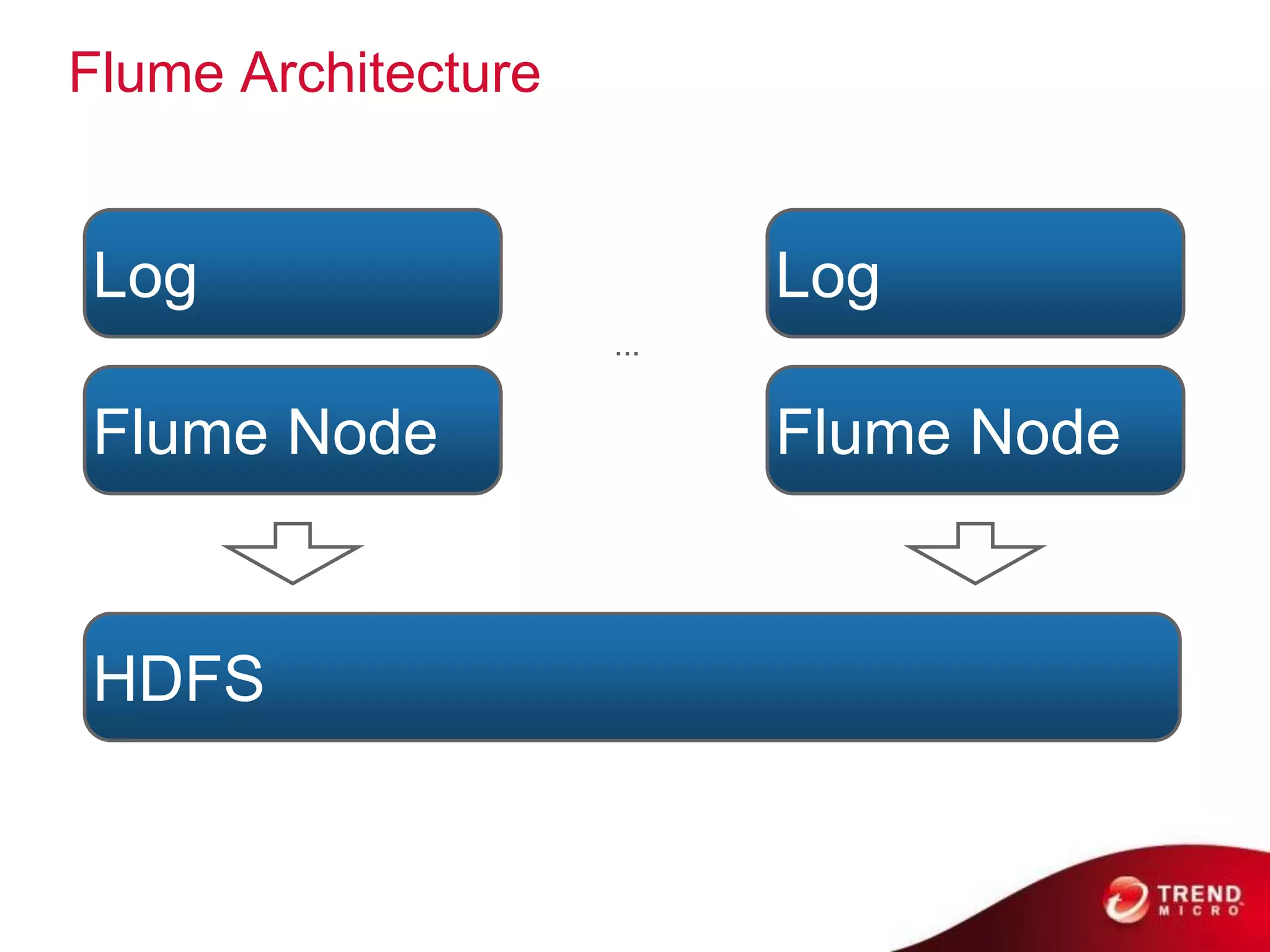

- 24. Flume Architecture Log Log ... Flume Node Flume Node HDFS © 2011 Cloudera, Inc. All Rights Reserved.

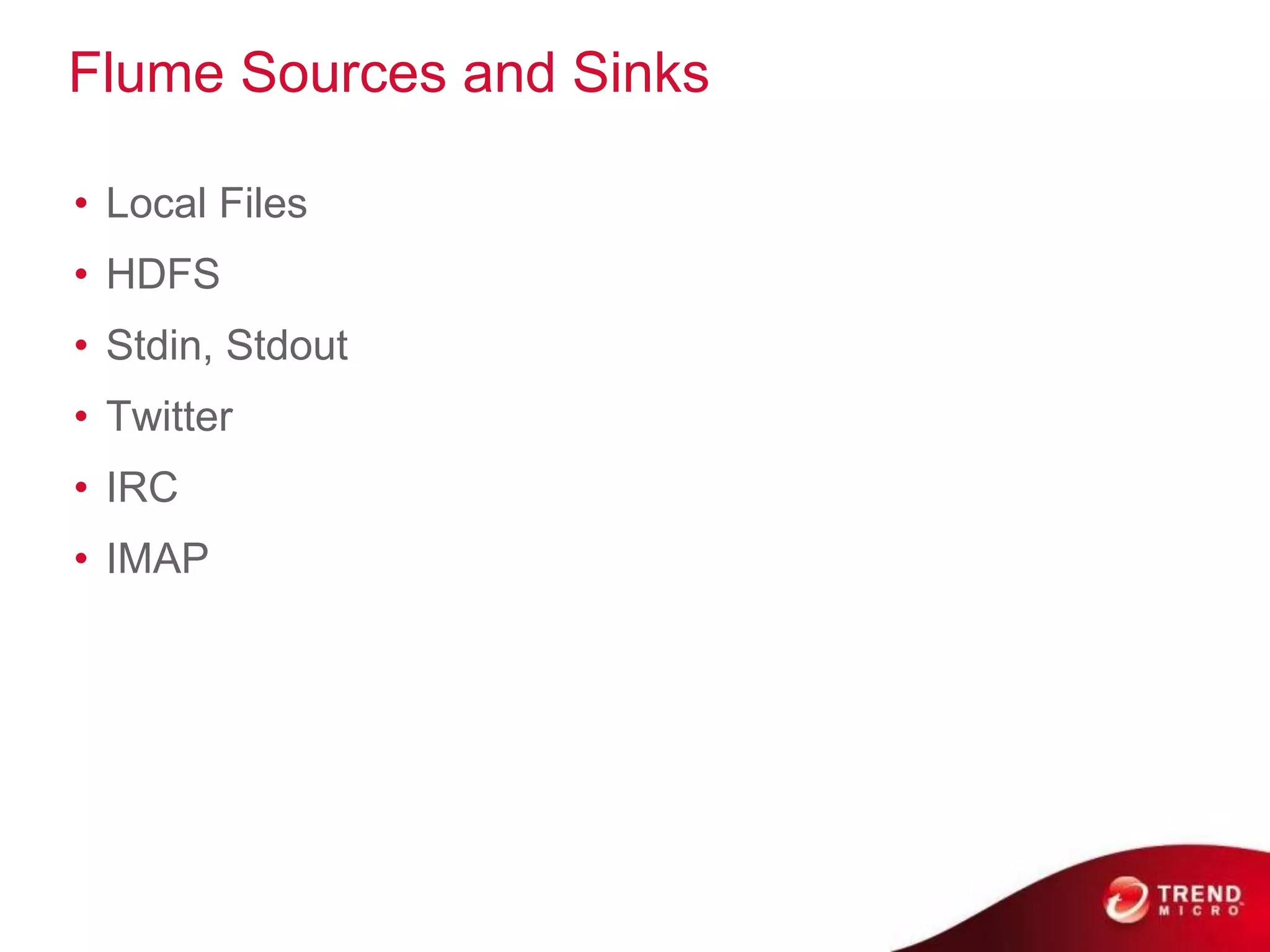

- 25. Flume Sources andSinks • Local Files • HDFS • Stdin, Stdout • Twitter • IRC • IMAP © 2011 Cloudera, Inc. All Rights Reserved.

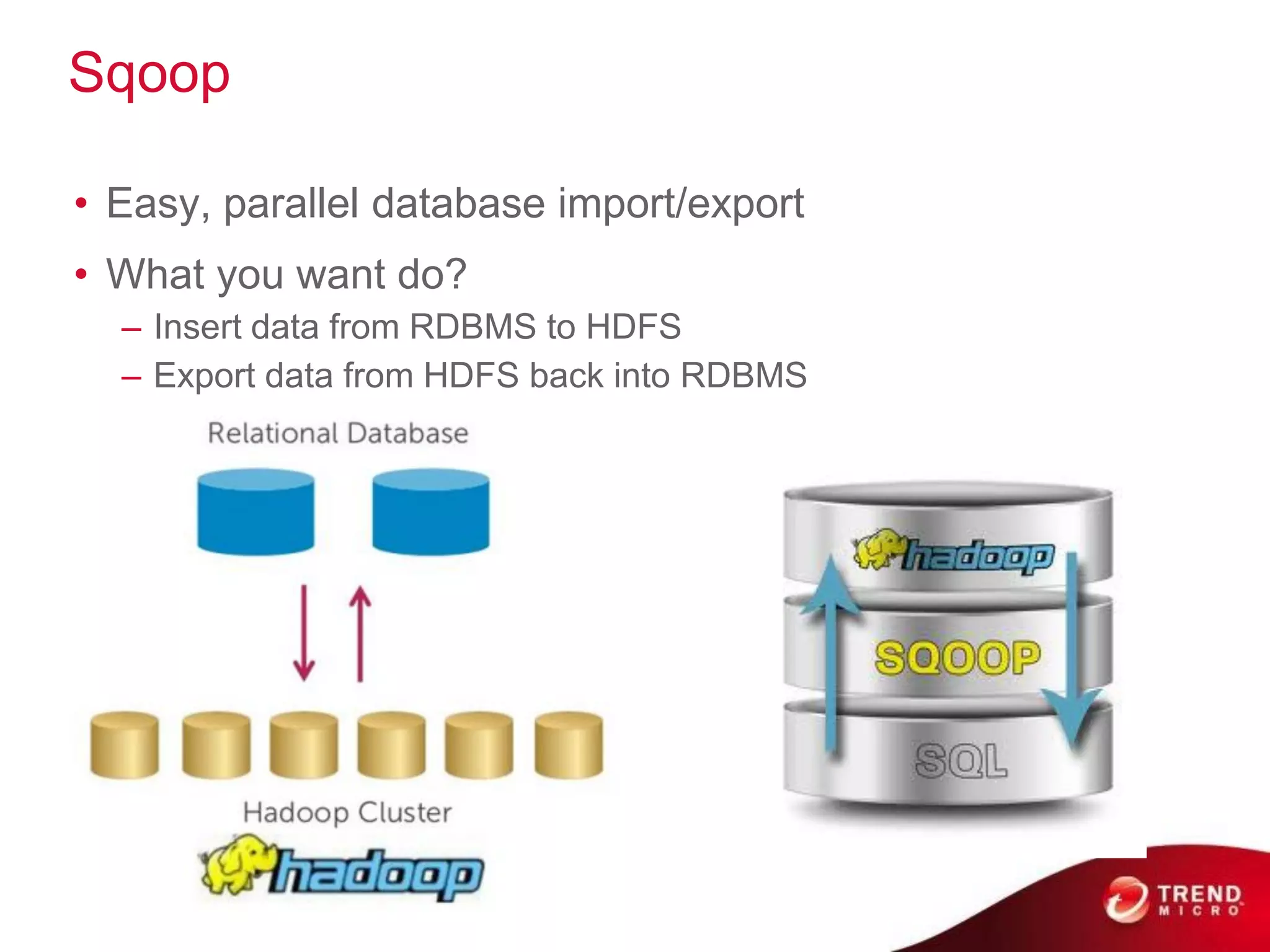

- 26. Sqoop • Easy, paralleldatabase import/export • What you want do? – Insert data from RDBMS to HDFS – Export data from HDFS back into RDBMS

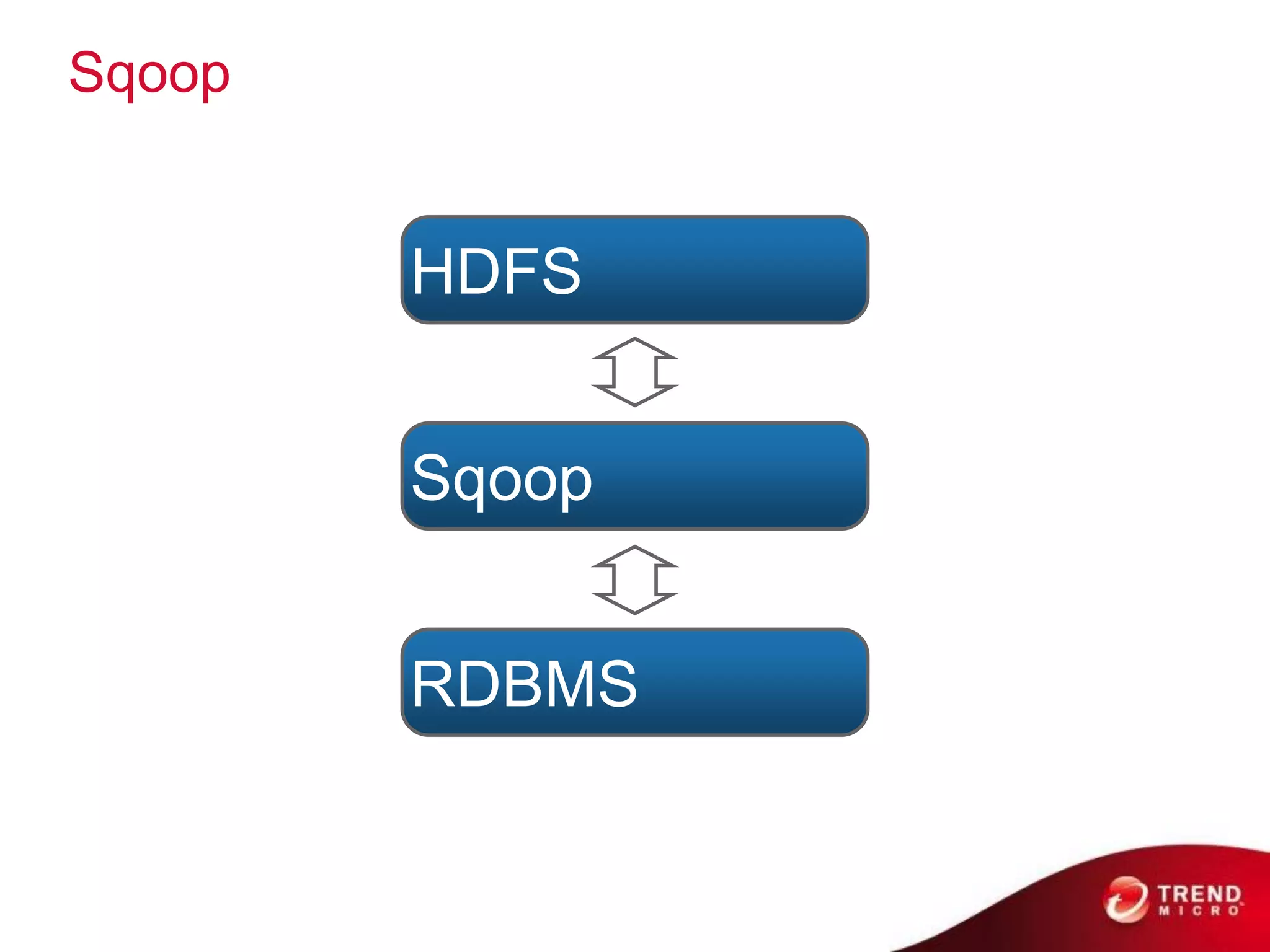

- 27. Sqoop HDFS Sqoop RDBMS 28 © 2011 Cloudera, Inc. All Rights Reserved.

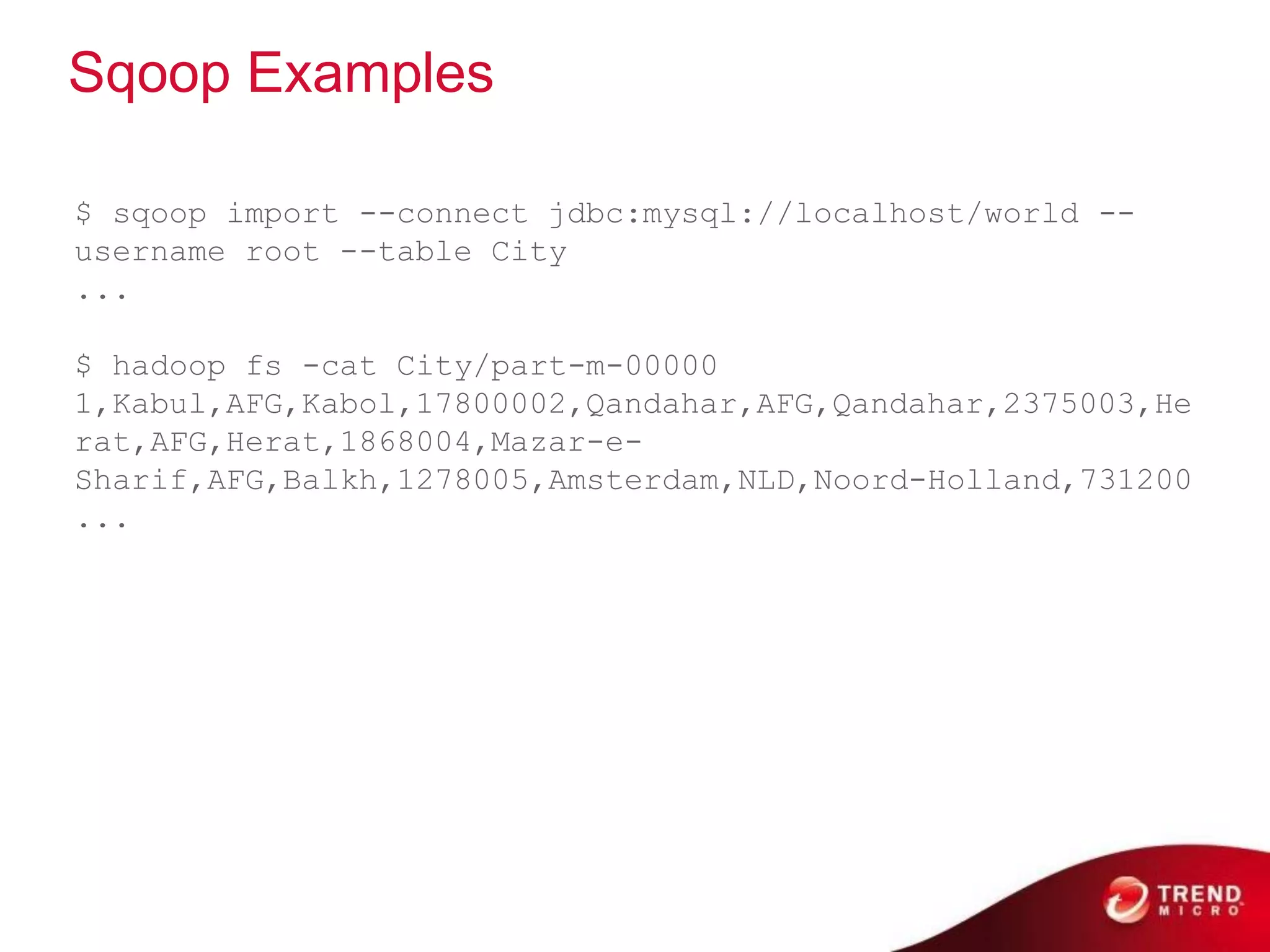

- 28. Sqoop Examples $sqoop import --connect jdbc:mysql://localhost/world -- username root --table City ... $ hadoop fs -cat City/part-m-00000 1,Kabul,AFG,Kabol,17800002,Qandahar,AFG,Qandahar,2375003,He rat,AFG,Herat,1868004,Mazar-e- Sharif,AFG,Balkh,1278005,Amsterdam,NLD,Noord-Holland,731200 ... 29 © 2011 Cloudera, Inc. All Rights Reserved.

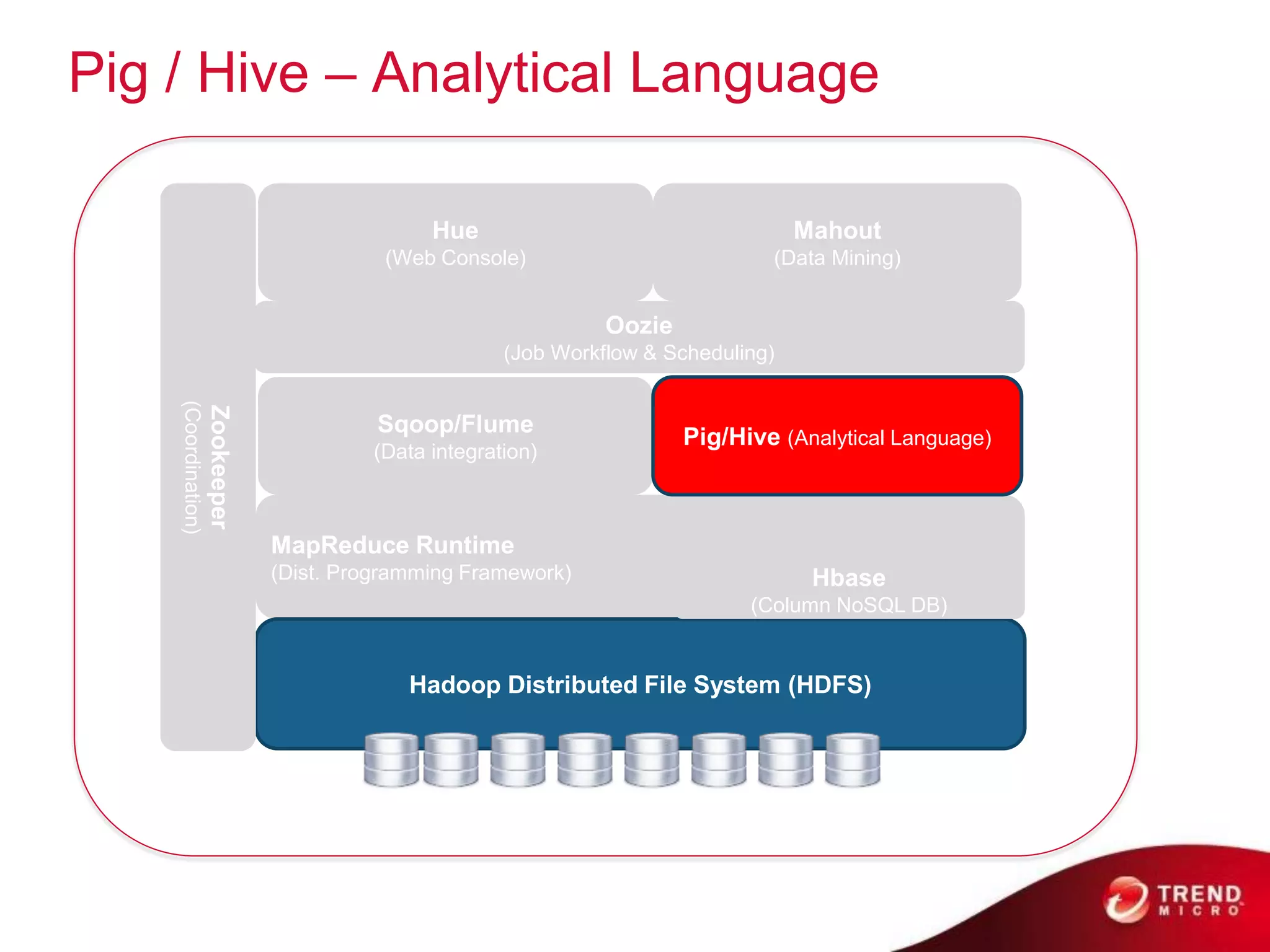

- 29. Pig / Hive– Analytical Language Hue Mahout (Web Console) (Data Mining) Oozie (Job Workflow & Scheduling) (Coordination) Zookeeper Sqoop/Flume Pig/Hive (Analytical Language) (Data integration) MapReduce Runtime (Dist. Programming Framework) Hbase (Column NoSQL DB) Hadoop Distributed File System (HDFS)

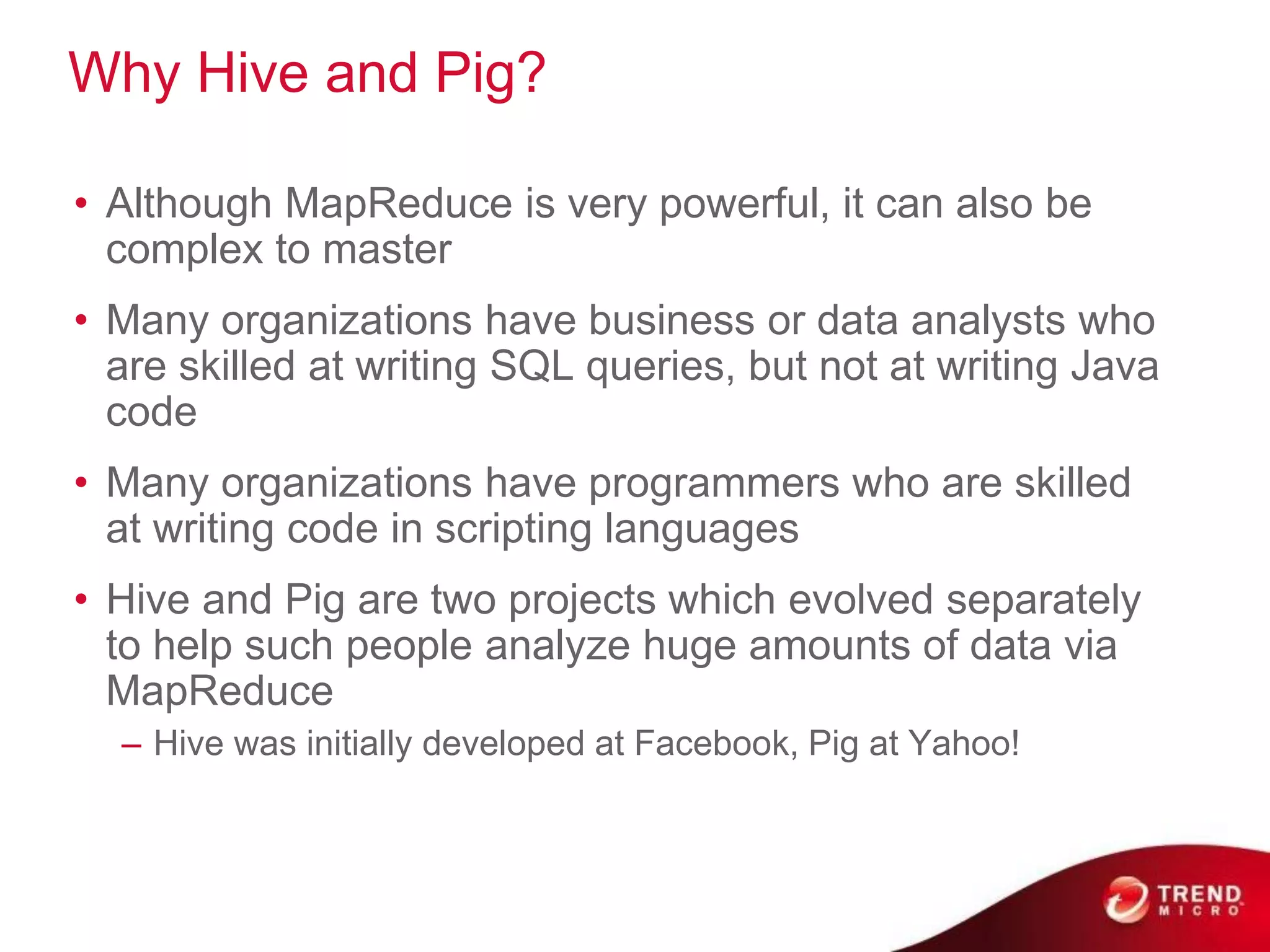

- 30. Why Hive andPig? • Although MapReduce is very powerful, it can also be complex to master • Many organizations have business or data analysts who are skilled at writing SQL queries, but not at writing Java code • Many organizations have programmers who are skilled at writing code in scripting languages • Hive and Pig are two projects which evolved separately to help such people analyze huge amounts of data via MapReduce – Hive was initially developed at Facebook, Pig at Yahoo!

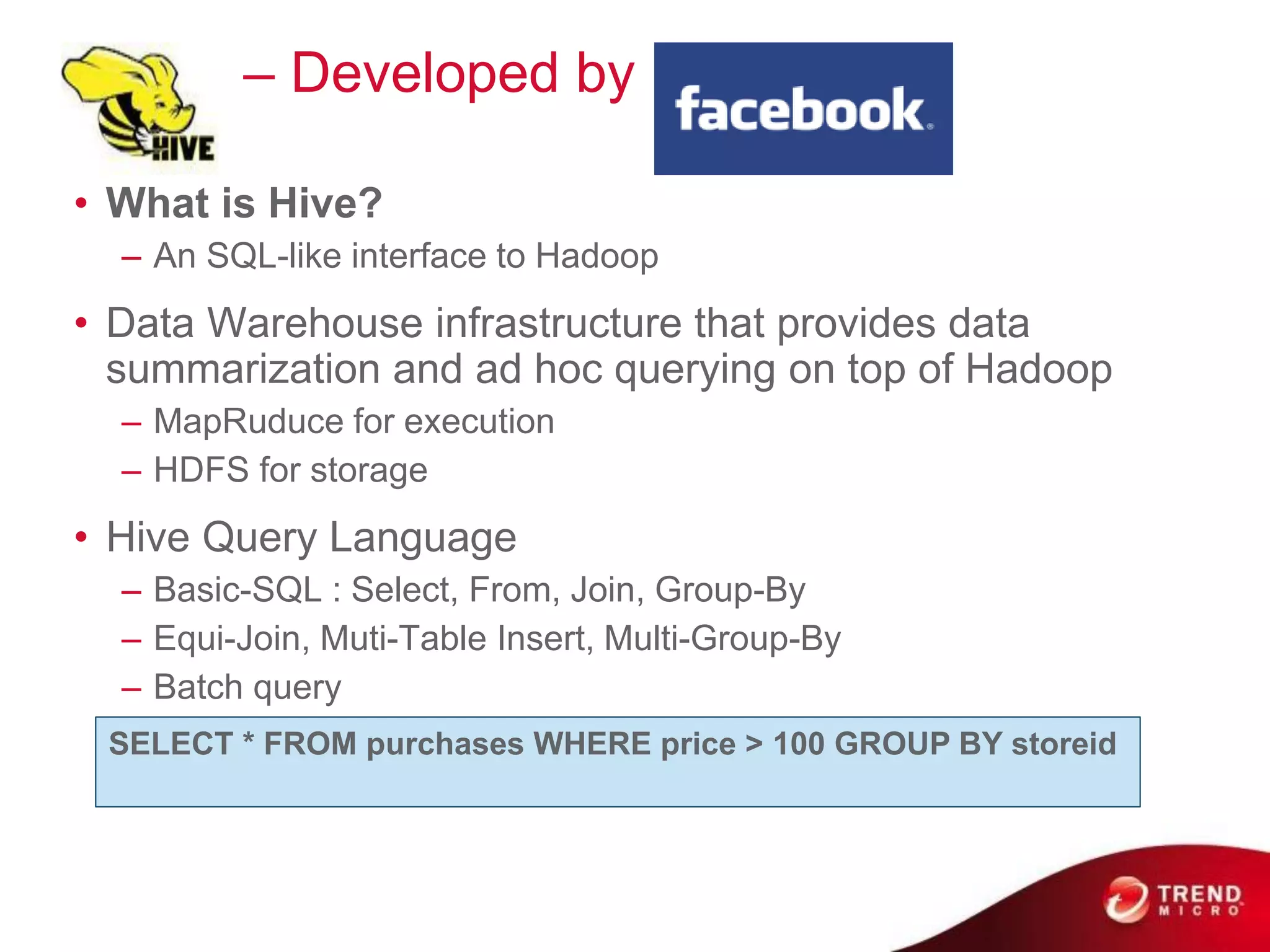

- 31. Hive – Developed by • What is Hive? – An SQL-like interface to Hadoop • Data Warehouse infrastructure that provides data summarization and ad hoc querying on top of Hadoop – MapRuduce for execution – HDFS for storage • Hive Query Language – Basic-SQL : Select, From, Join, Group-By – Equi-Join, Muti-Table Insert, Multi-Group-By – Batch query SELECT * FROM purchases WHERE price > 100 GROUP BY storeid

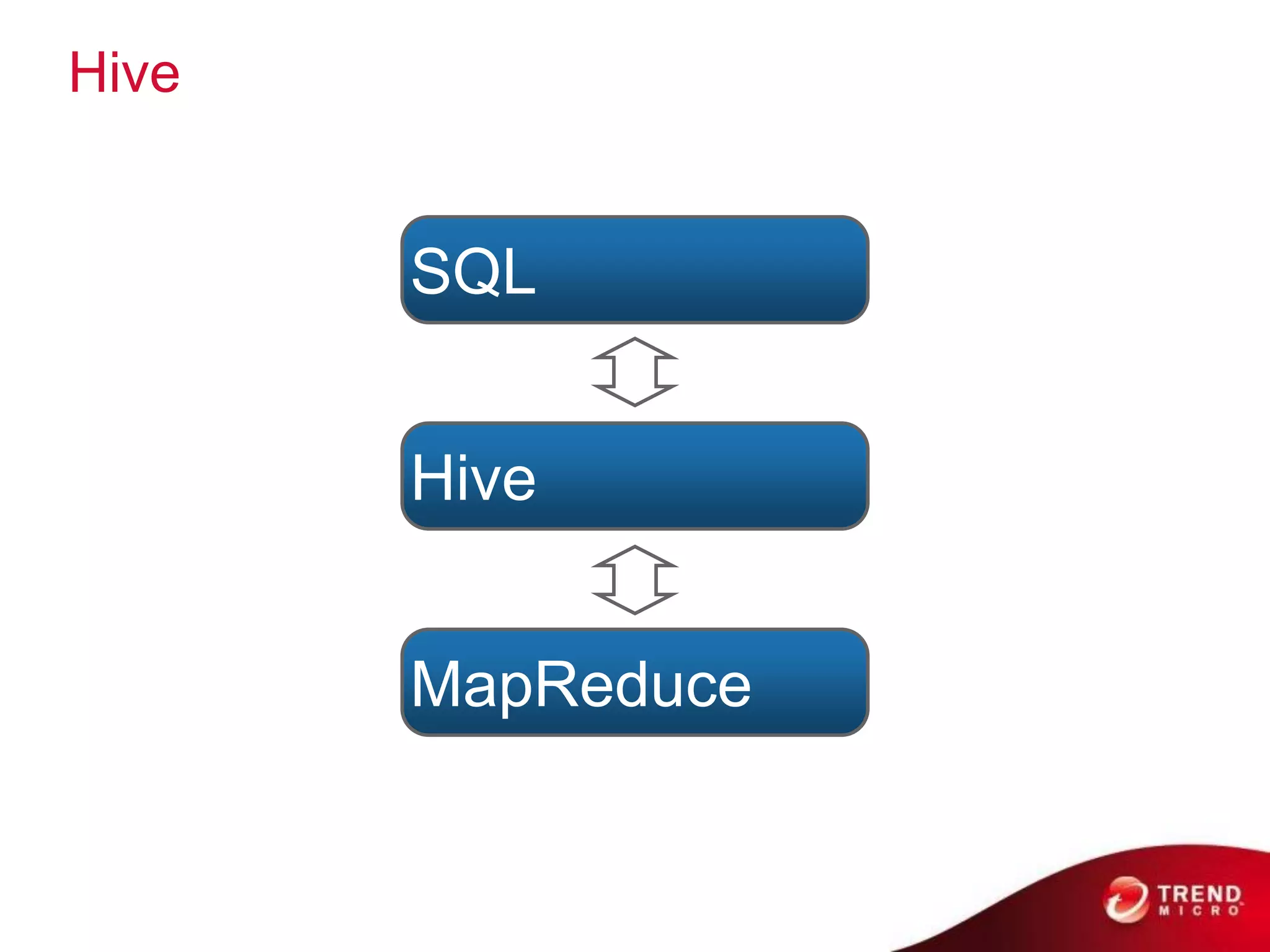

- 32. Hive SQL Hive MapReduce 33 © 2011 Cloudera, Inc. All Rights Reserved.

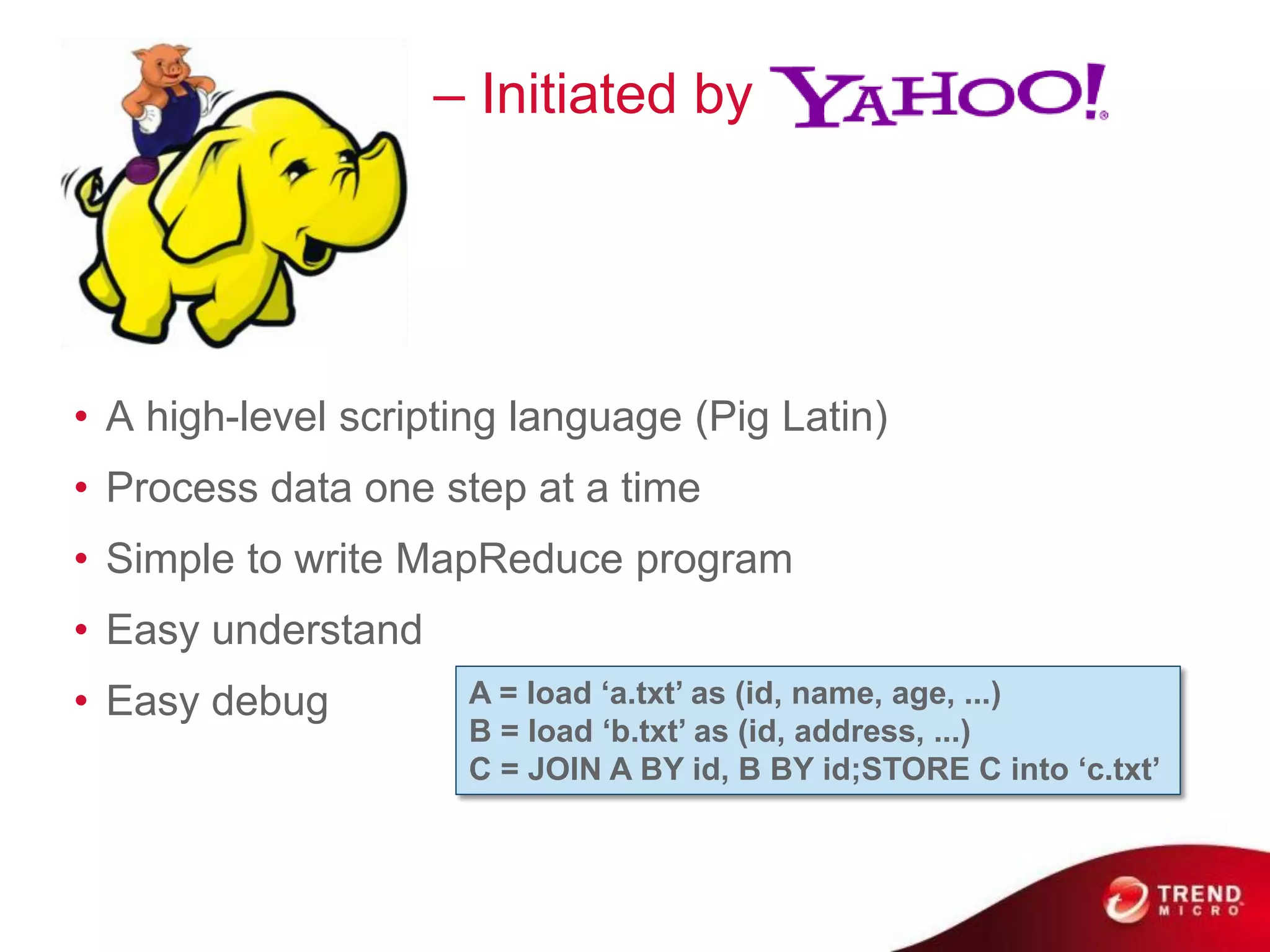

- 33. Pig – Initiated by • A high-level scripting language (Pig Latin) • Process data one step at a time • Simple to write MapReduce program • Easy understand • Easy debug A = load ‘a.txt’ as (id, name, age, ...) B = load ‘b.txt’ as (id, address, ...) C = JOIN A BY id, B BY id;STORE C into ‘c.txt’
- 34. Pig Script Pig MapReduce © 2011 Cloudera, Inc. All Rights Reserved.

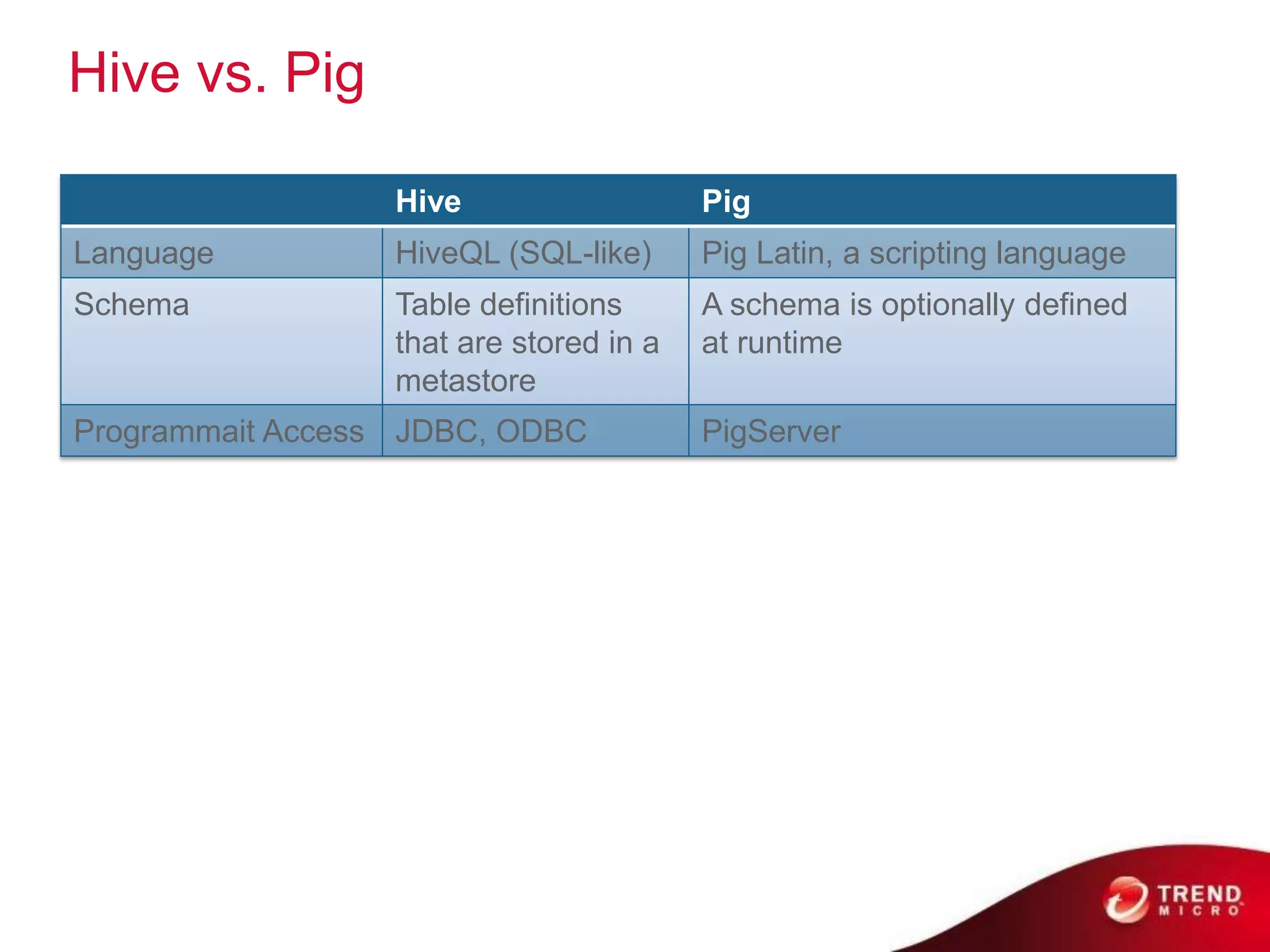

- 35. Hive vs. Pig Hive Pig Language HiveQL (SQL-like) Pig Latin, a scripting language Schema Table definitions A schema is optionally defined that are stored in a at runtime metastore Programmait Access JDBC, ODBC PigServer

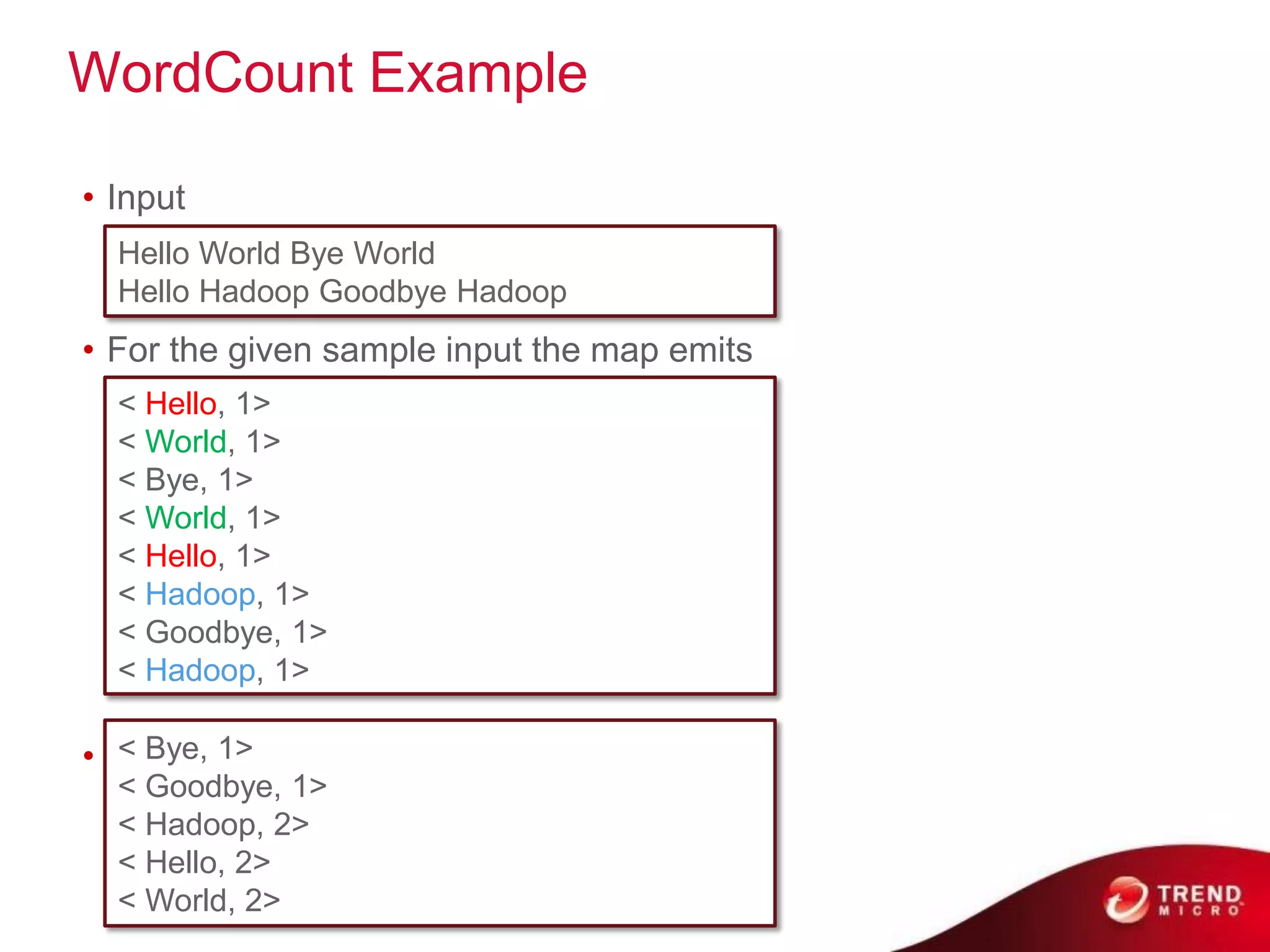

- 36. WordCount Example • Input Hello World Bye World Hello Hadoop Goodbye Hadoop • For the given sample input the map emits < Hello, 1> < World, 1> < Bye, 1> < World, 1> < Hello, 1> < Hadoop, 1> < Goodbye, 1> < Hadoop, 1> • the reduce just sums up the values < Bye, 1> < Goodbye, 1> < Hadoop, 2> < Hello, 2> < World, 2>
- 37. WordCount Example InMapReduce public class WordCount { public static class Map extends Mapper<LongWritable, Text, Text, IntWritable> { private final static IntWritable one = new IntWritable(1); private Text word = new Text(); public void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException { String line = value.toString(); StringTokenizer tokenizer = new StringTokenizer(line); while (tokenizer.hasMoreTokens()) { word.set(tokenizer.nextToken()); context.write(word, one); } } } public static class Reduce extends Reducer<Text, IntWritable, Text, IntWritable> { public void reduce(Text key, Iterable<IntWritable> values, Context context) throws IOException, InterruptedException { int sum = 0; for (IntWritable val : values) { sum += val.get(); } context.write(key, new IntWritable(sum)); } } public static void main(String[] args) throws Exception { Configuration conf = new Configuration(); Job job = new Job(conf, "wordcount"); job.setOutputKeyClass(Text.class); job.setOutputValueClass(IntWritable.class); job.setMapperClass(Map.class); job.setReducerClass(Reduce.class); job.setInputFormatClass(TextInputFormat.class); job.setOutputFormatClass(TextOutputFormat.class); FileInputFormat.addInputPath(job, new Path(args[0])); FileOutputFormat.setOutputPath(job, new Path(args[1])); job.waitForCompletion(true); }

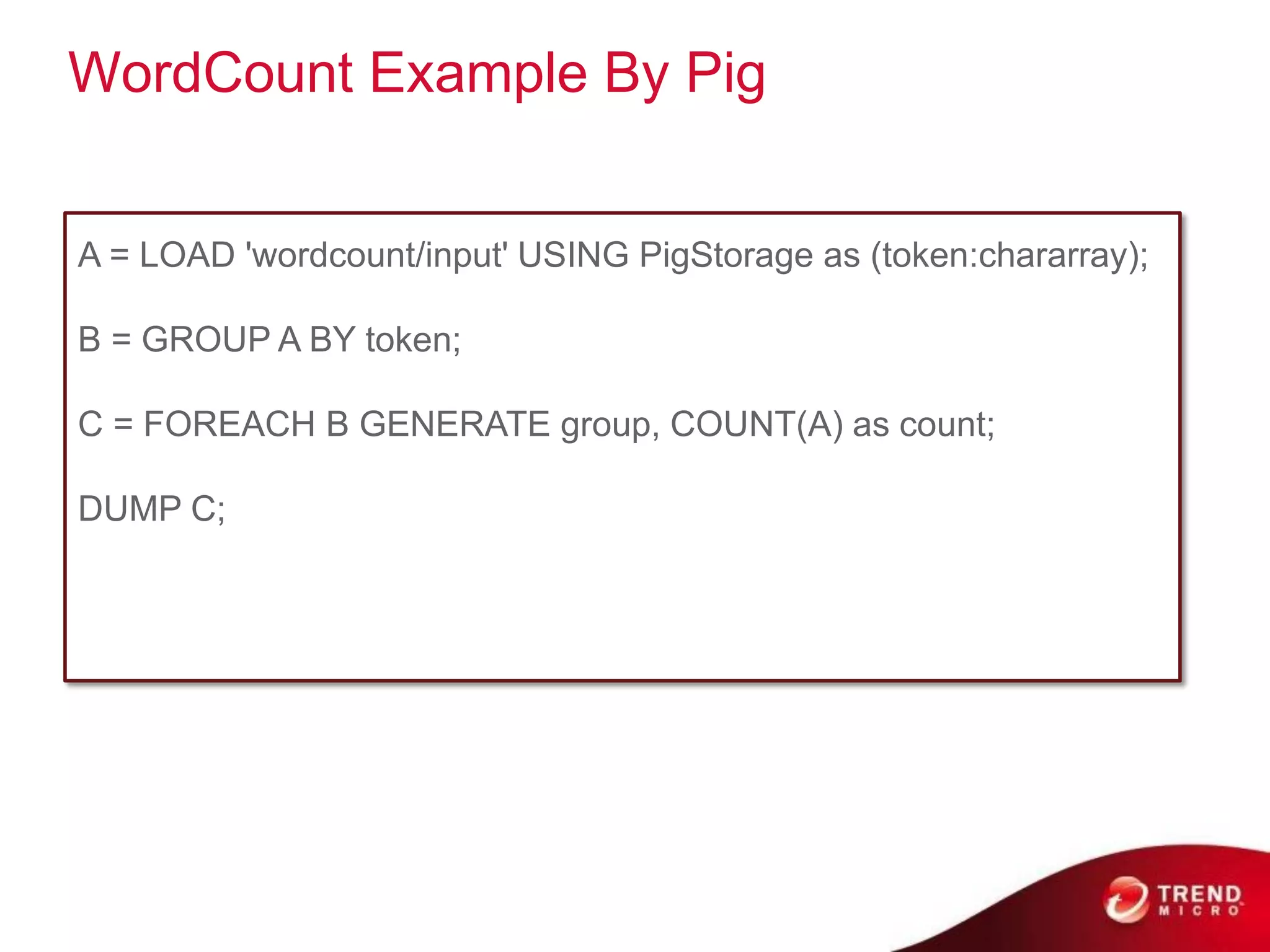

- 38. WordCount Example ByPig A = LOAD 'wordcount/input' USING PigStorage as (token:chararray); B = GROUP A BY token; C = FOREACH B GENERATE group, COUNT(A) as count; DUMP C;
- 39. WordCount Example ByHive CREATE TABLE wordcount (token STRING); LOAD DATA LOCAL INPATH ’wordcount/input' OVERWRITE INTO TABLE wordcount; SELECT count(*) FROM wordcount GROUP BY token;

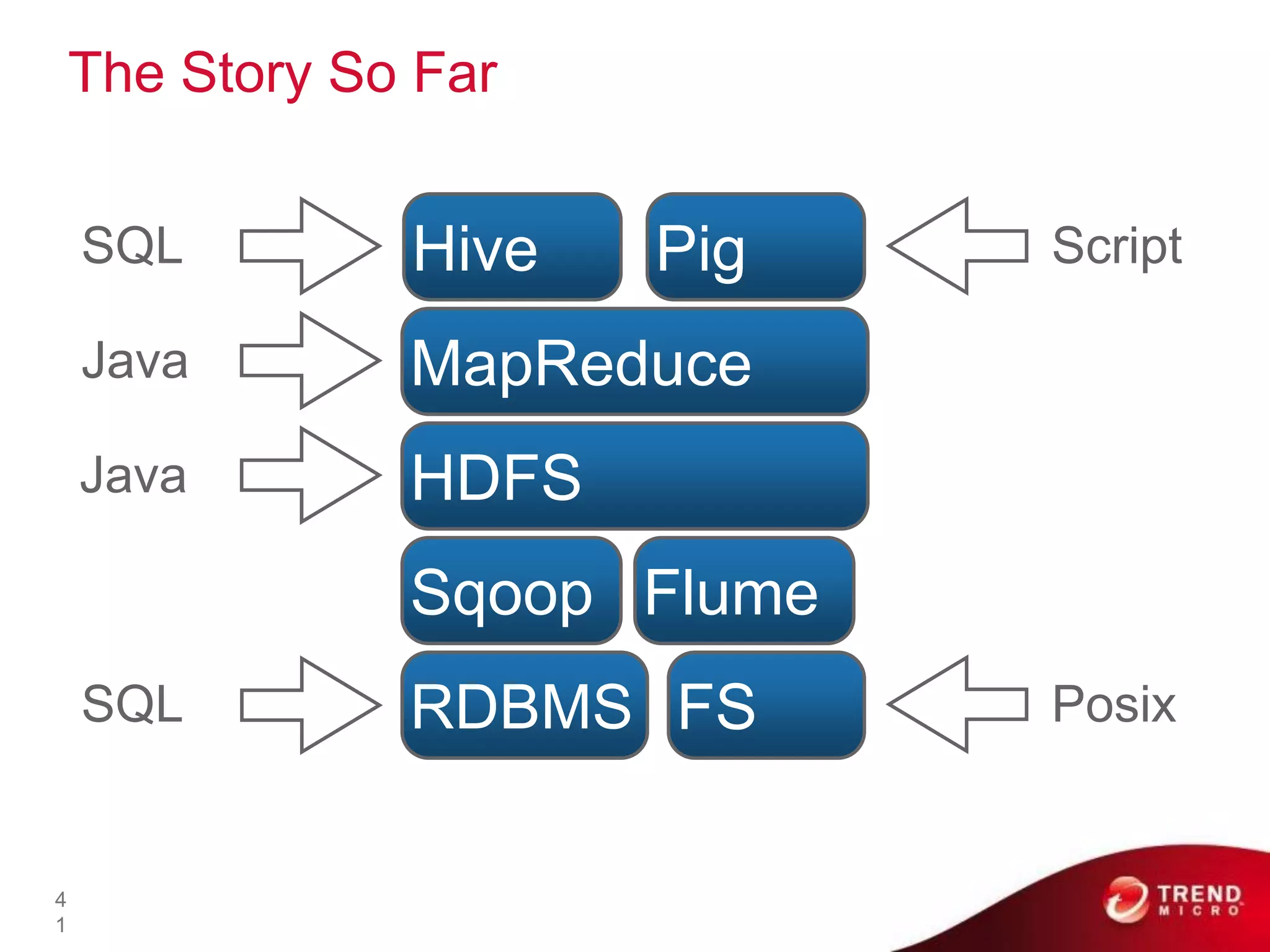

- 40. The Story SoFar SQL Hive Pig Script Java MapReduce Java HDFS Sqoop Flume SQL RDBMS FS Posix 4 1 © 2011 Cloudera, Inc. All Rights Reserved.

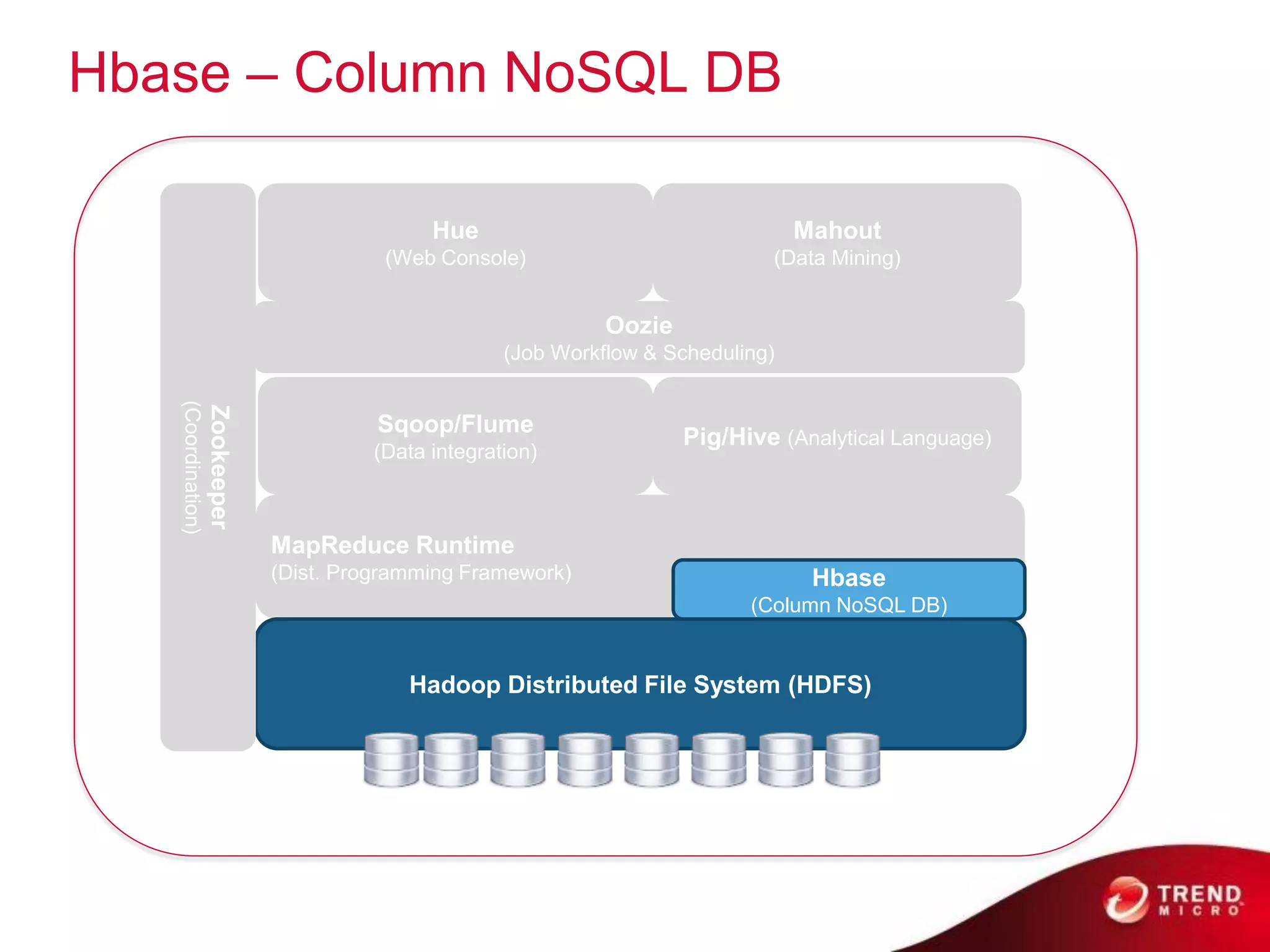

- 41. Hbase – ColumnNoSQL DB Hue Mahout (Web Console) (Data Mining) Oozie (Job Workflow & Scheduling) (Coordination) Zookeeper Sqoop/Flume Pig/Hive (Analytical Language) (Data integration) MapReduce Runtime (Dist. Programming Framework) Hbase (Column NoSQL DB) Hadoop Distributed File System (HDFS)
- 42.

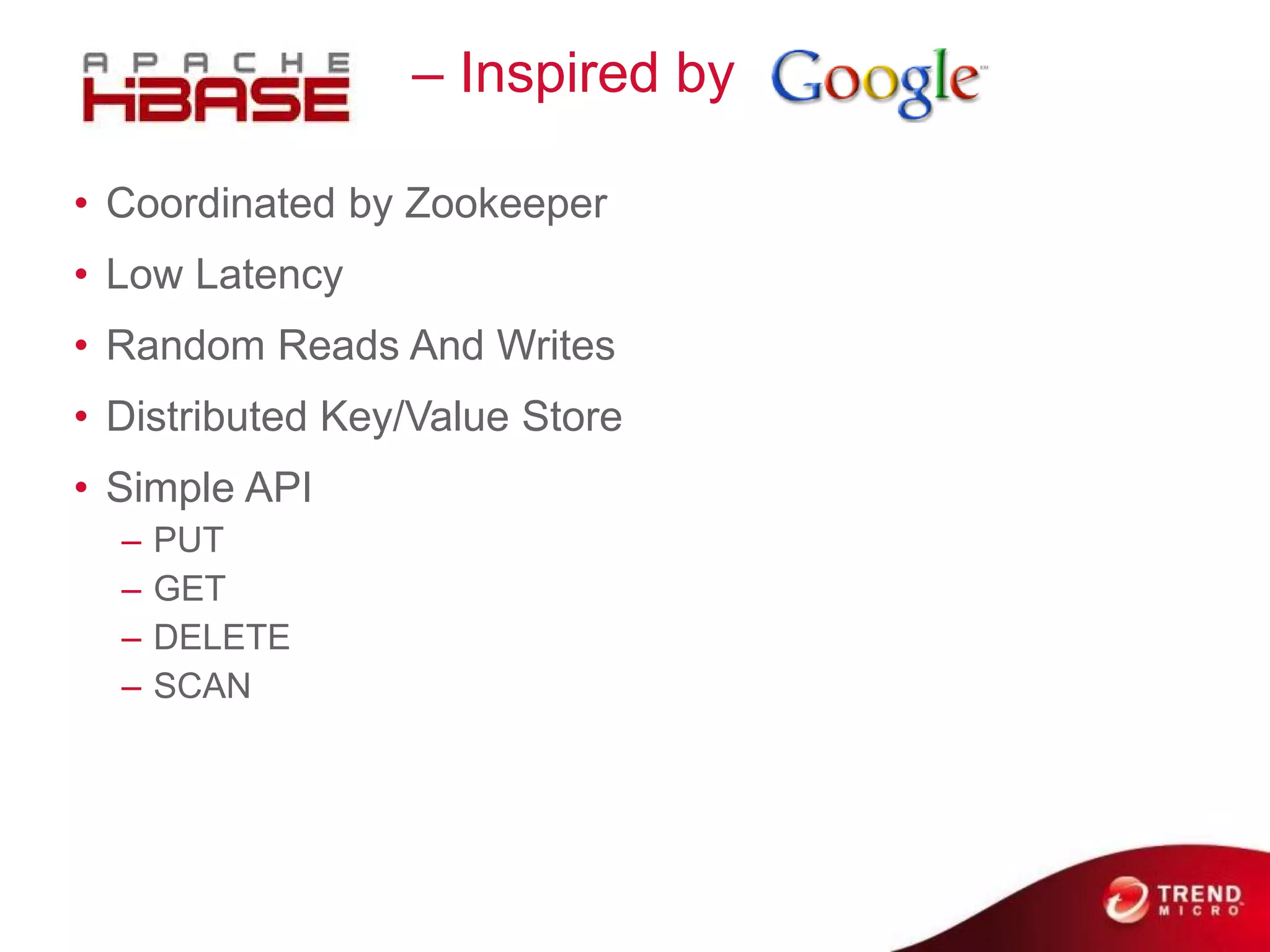

- 43. I – Inspiredby • Coordinated by Zookeeper • Low Latency • Random Reads And Writes • Distributed Key/Value Store • Simple API – PUT – GET – DELETE – SCAN

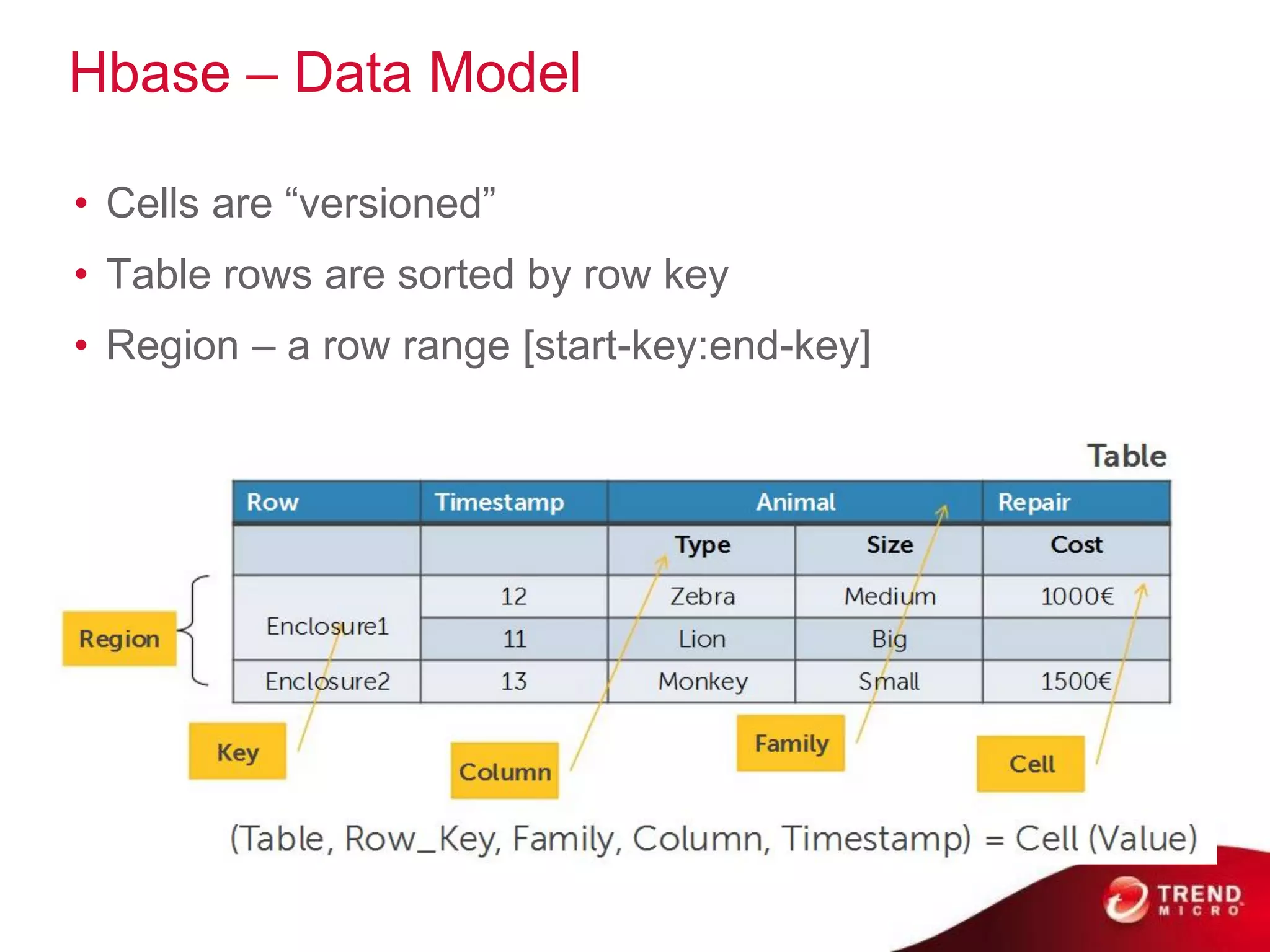

- 44. Hbase – DataModel • Cells are “versioned” • Table rows are sorted by row key • Region – a row range [start-key:end-key]
- 45. HBase Examples hbase> create 'mytable', 'mycf‘ hbase> list hbase> put 'mytable', 'row1', 'mycf:col1', 'val1‘ hbase> put 'mytable', 'row1', 'mycf:col2', 'val2‘ hbase> put 'mytable', 'row2', 'mycf:col1', 'val3‘ hbase> scan 'mytable‘ hbase> disable 'mytable‘ hbase> drop 'mytable' © 2011 Cloudera, Inc. All Rights Reserved.

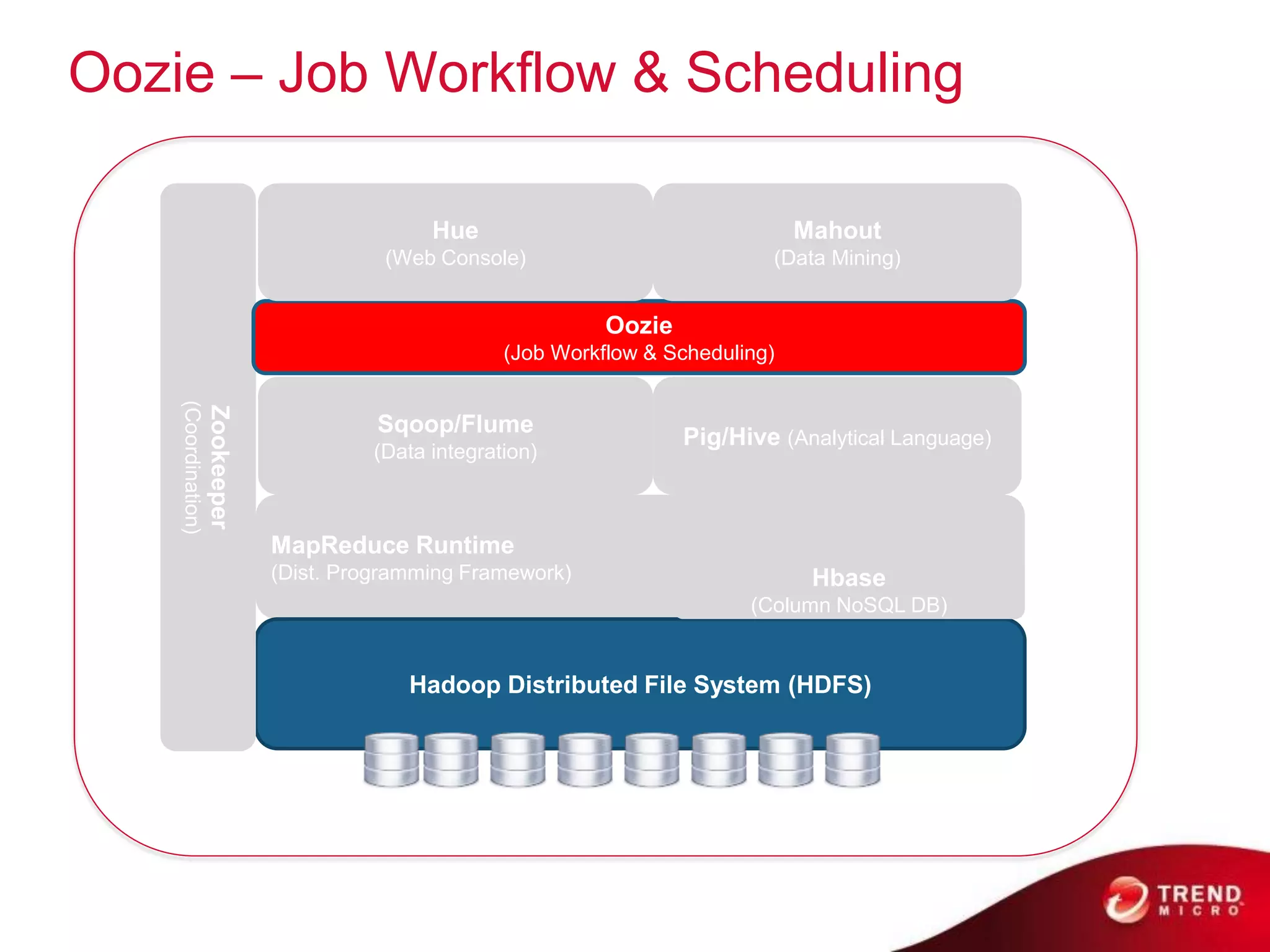

- 46. Oozie – JobWorkflow & Scheduling Hue Mahout (Web Console) (Data Mining) Oozie (Job Workflow & Scheduling) (Coordination) Zookeeper Sqoop/Flume Pig/Hive (Analytical Language) (Data integration) MapReduce Runtime (Dist. Programming Framework) Hbase (Column NoSQL DB) Hadoop Distributed File System (HDFS)

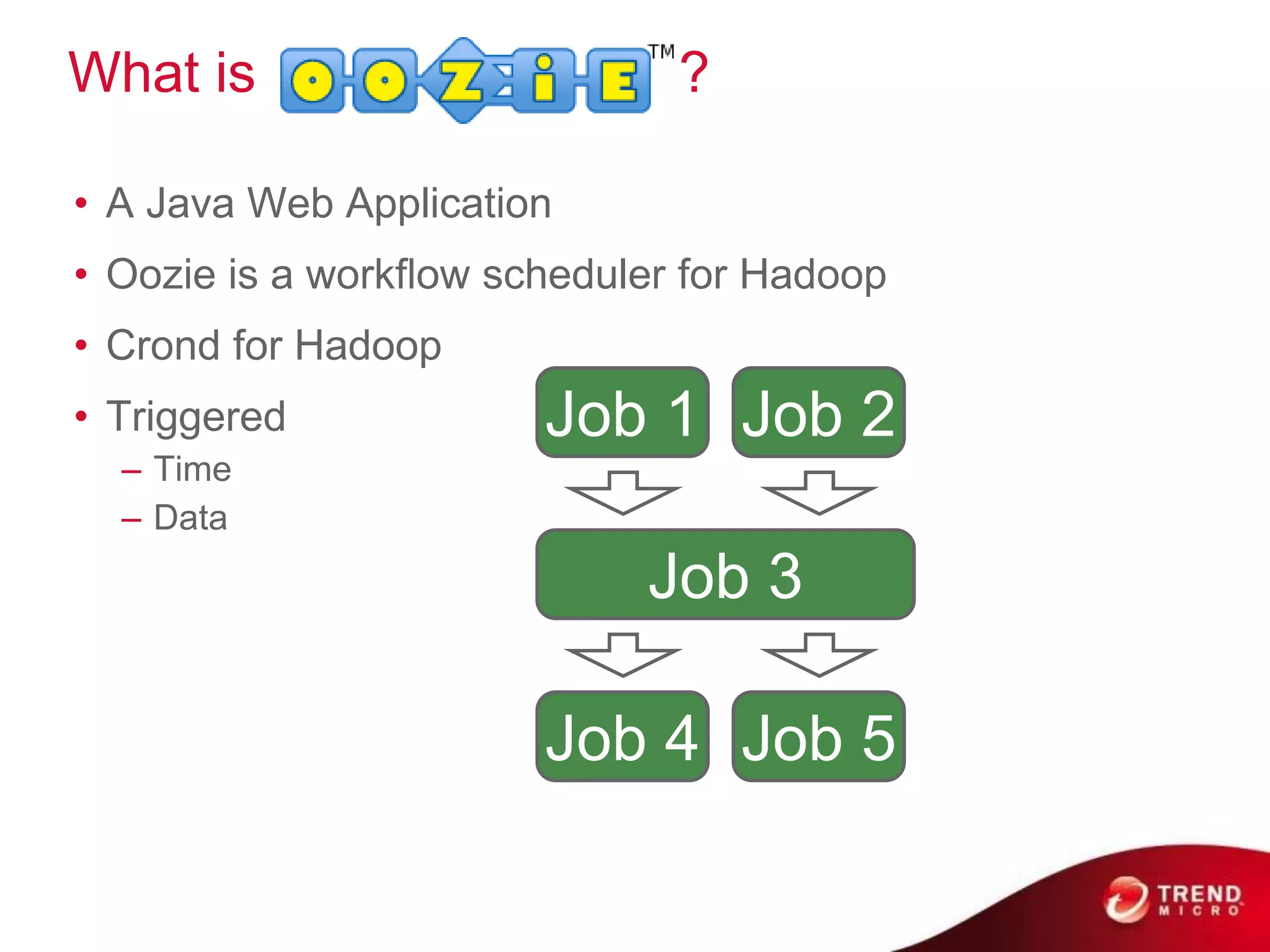

- 47. What is ? • A Java Web Application • Oozie is a workflow scheduler for Hadoop • Crond for Hadoop • Triggered Job 1 Job 2 – Time – Data Job 3 Job 4 Job 5
- 48. Oozie Features • ComponentIndependent – MapReduce – Hive – Pig – SqoopStreaming © 2011 Cloudera, Inc. All Rights Reserved.

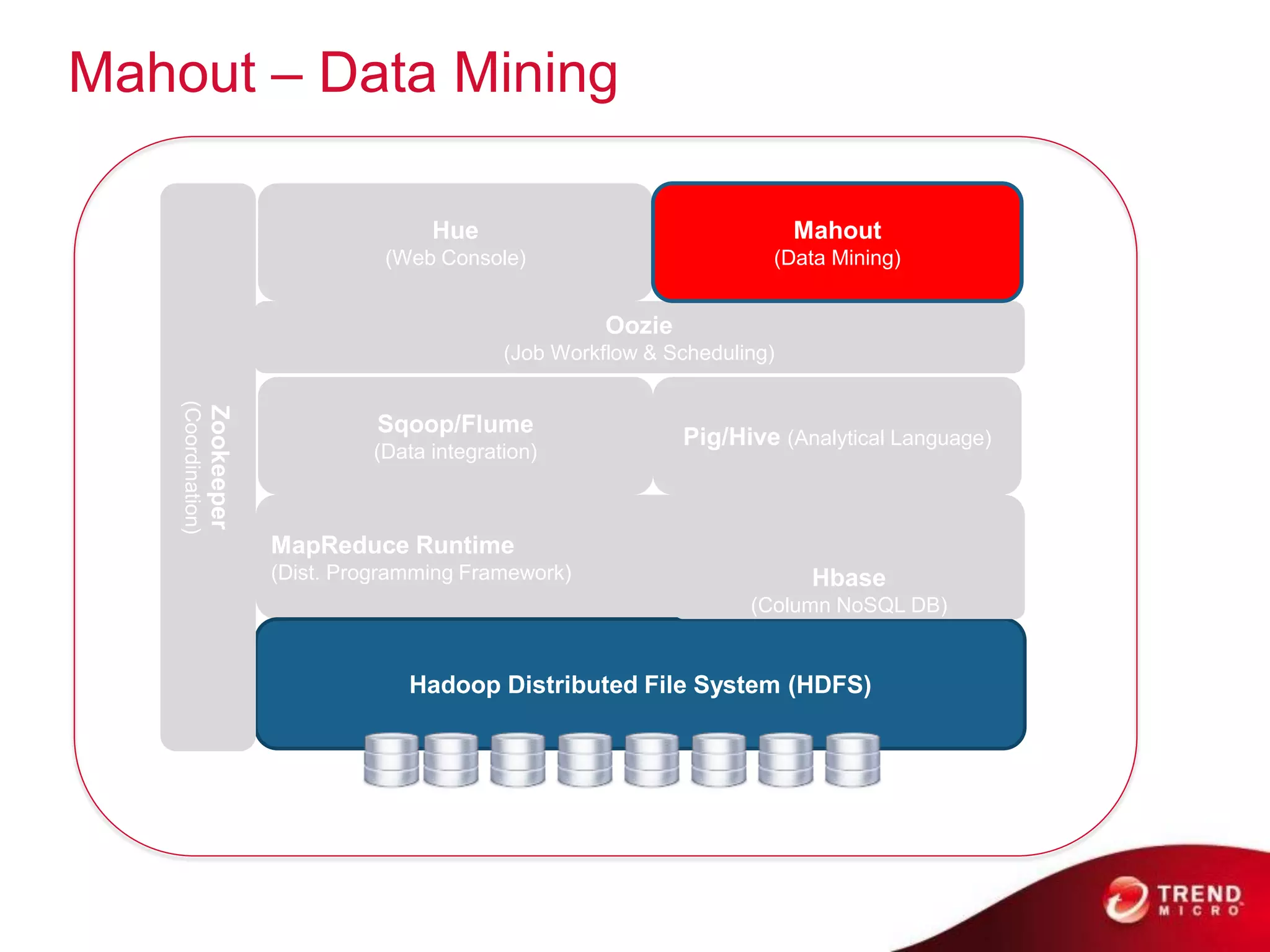

- 49. Mahout – DataMining Hue Mahout (Web Console) (Data Mining) Oozie (Job Workflow & Scheduling) (Coordination) Zookeeper Sqoop/Flume Pig/Hive (Analytical Language) (Data integration) MapReduce Runtime (Dist. Programming Framework) Hbase (Column NoSQL DB) Hadoop Distributed File System (HDFS)

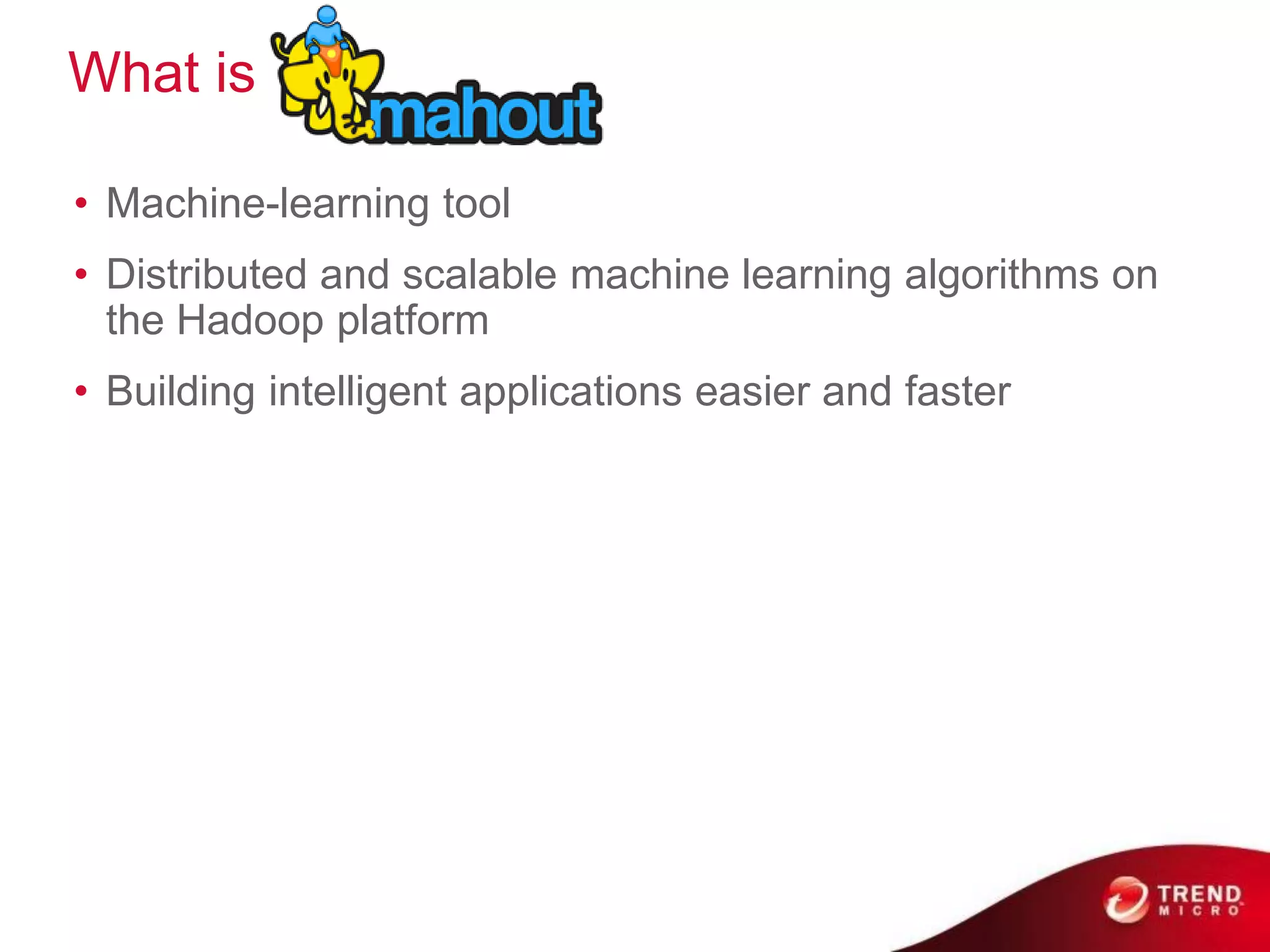

- 50. What is • Machine-learningtool • Distributed and scalable machine learning algorithms on the Hadoop platform • Building intelligent applications easier and faster
- 51. Mahout Use Cases •Yahoo: Spam Detection • Foursquare: Recommendations • SpeedDate.com: Recommendations • Adobe: User Targetting • Amazon: Personalization Platform © 2011 Cloudera, Inc. All Rights Reserved.

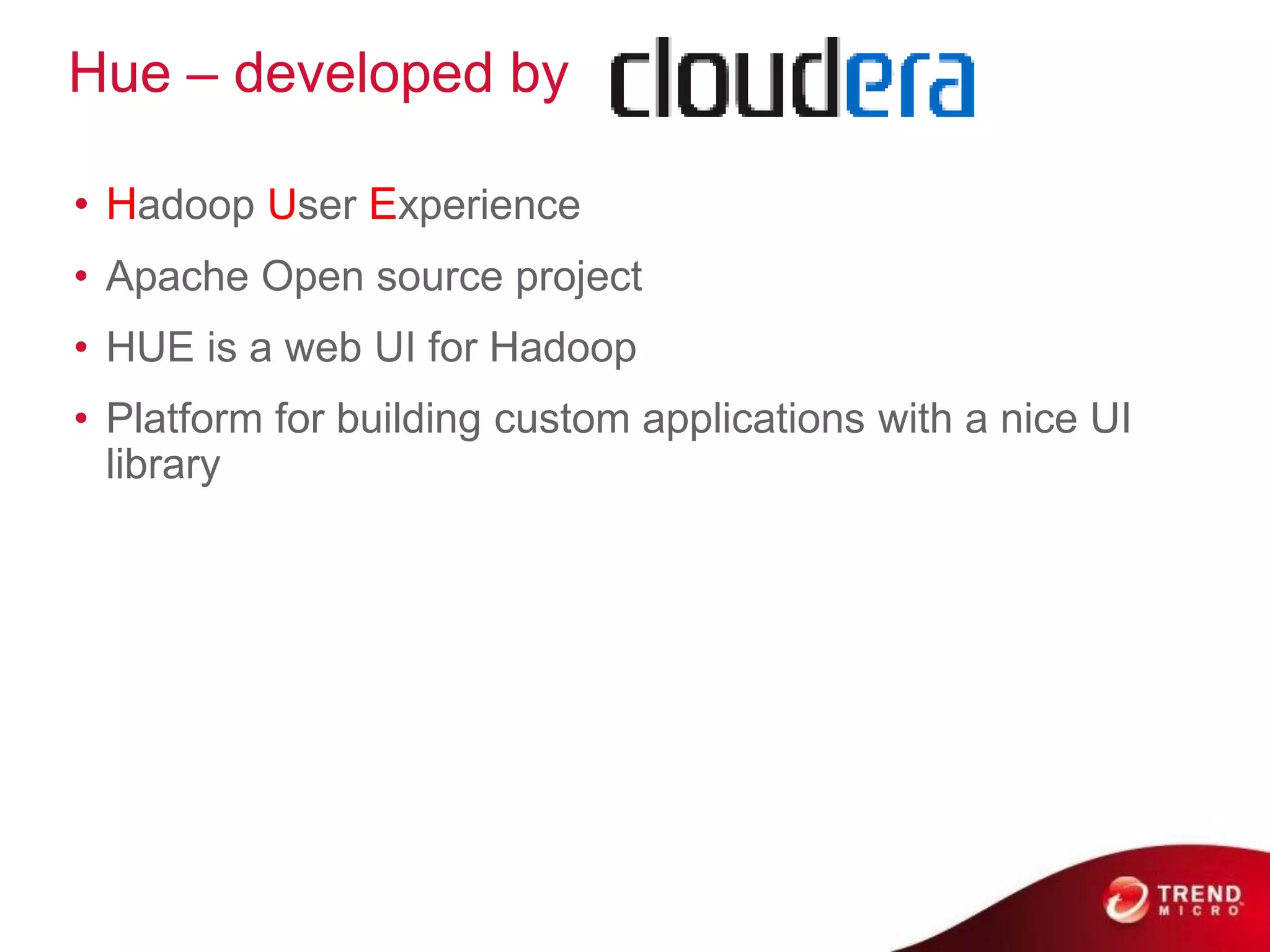

- 52. Hue – developedby • Hadoop User Experience • Apache Open source project • HUE is a web UI for Hadoop • Platform for building custom applications with a nice UI library

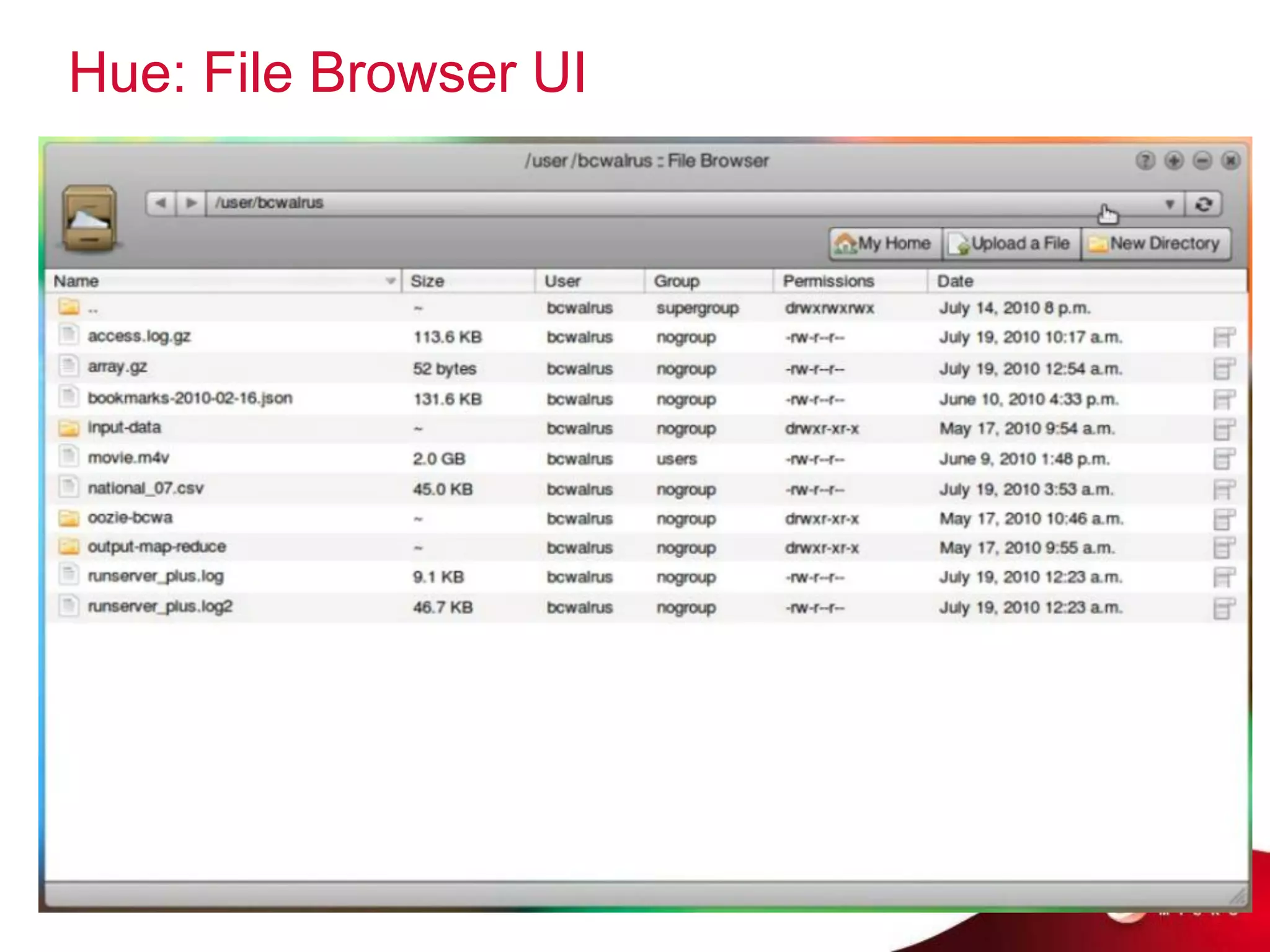

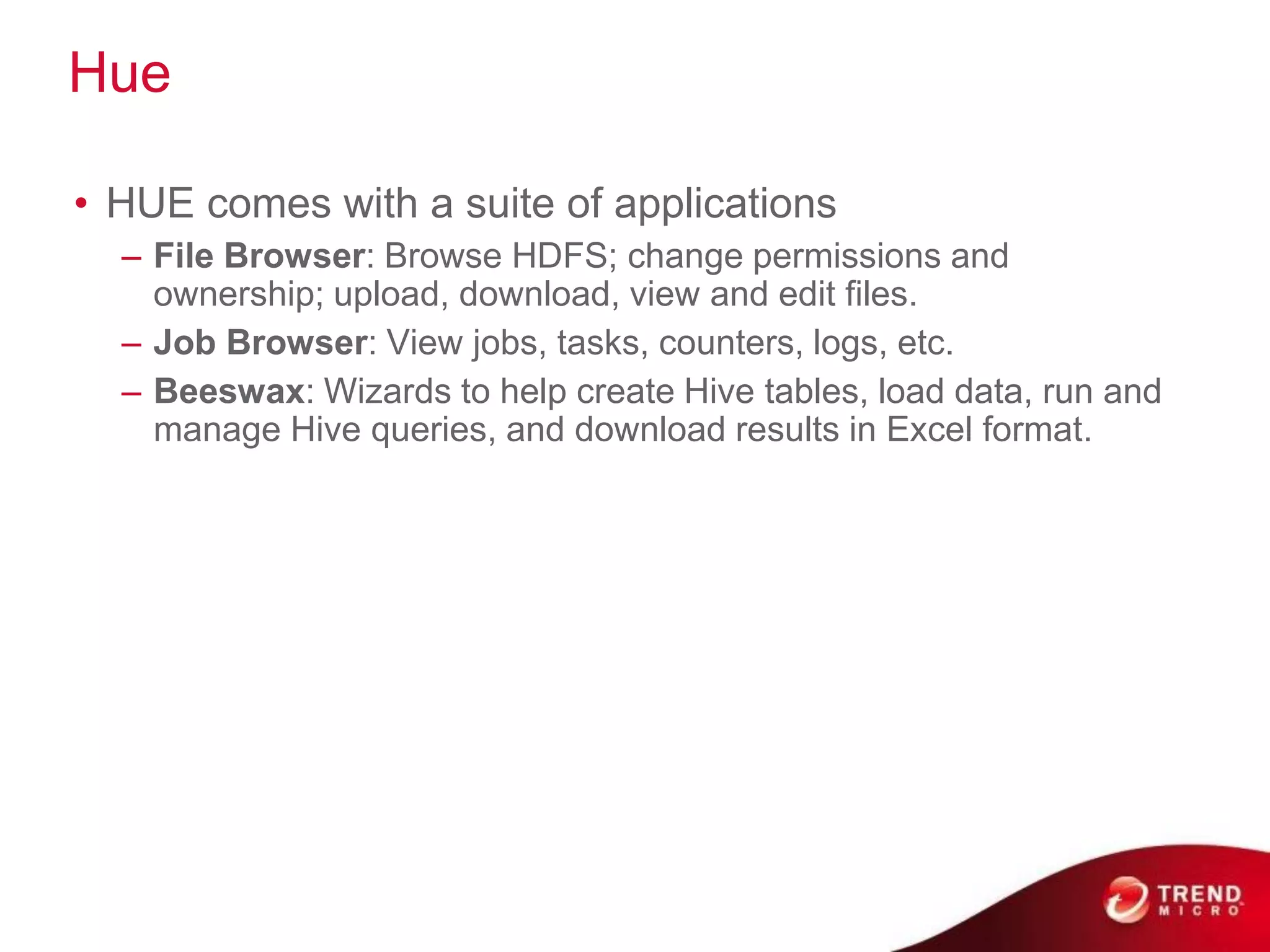

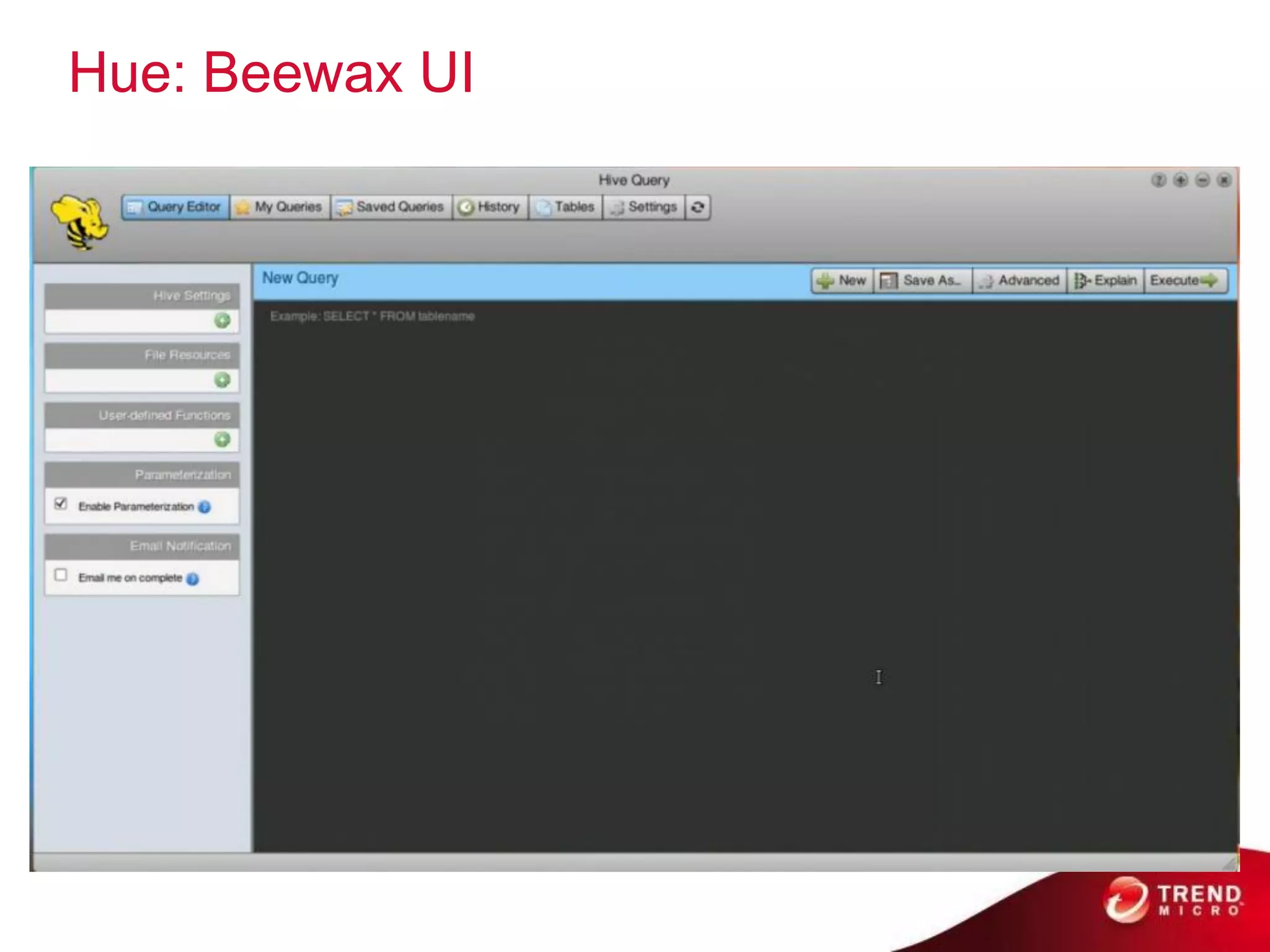

- 53. Hue • HUE comeswith a suite of applications – File Browser: Browse HDFS; change permissions and ownership; upload, download, view and edit files. – Job Browser: View jobs, tasks, counters, logs, etc. – Beeswax: Wizards to help create Hive tables, load data, run and manage Hive queries, and download results in Excel format.
- 54.
- 55.

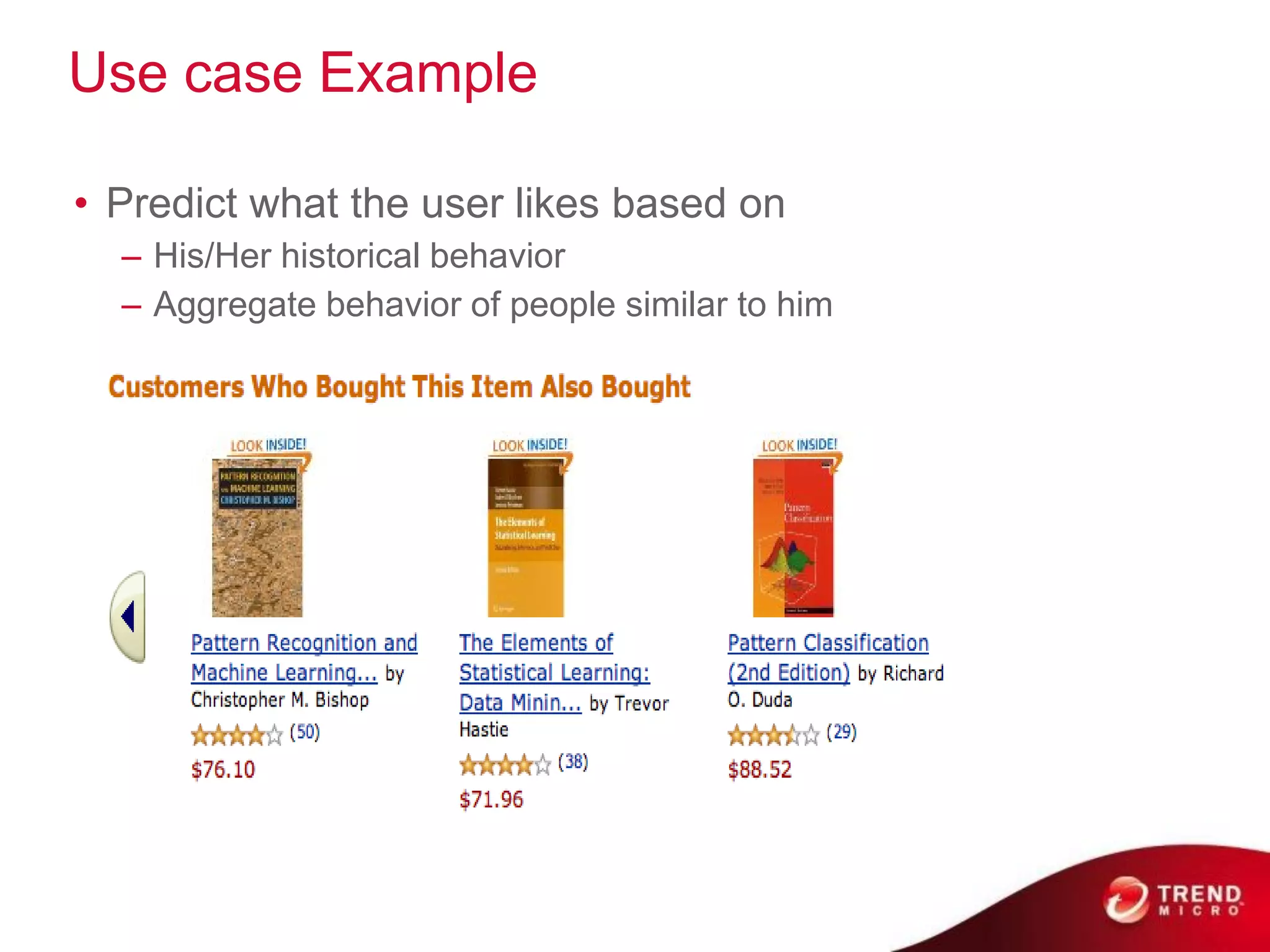

- 56. Use case Example •Predict what the user likes based on – His/Her historical behavior – Aggregate behavior of people similar to him

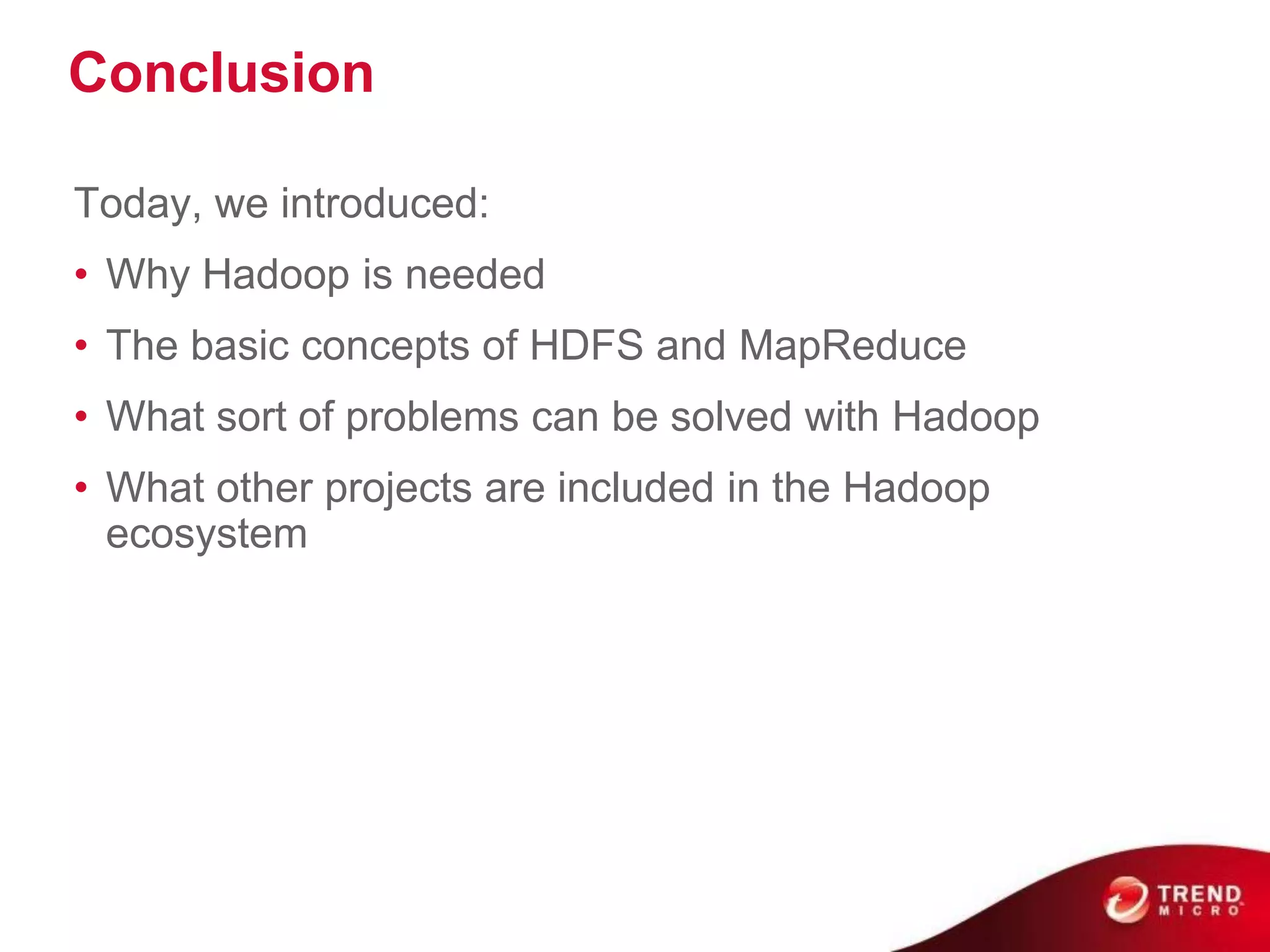

- 57. Conclusion Today, we introduced: •Why Hadoop is needed • The basic concepts of HDFS and MapReduce • What sort of problems can be solved with Hadoop • What other projects are included in the Hadoop ecosystem
- 58. Recap – HadoopEcosystem Hue Mahout (Web Console) (Data Mining) Oozie (Job Workflow & Scheduling) (Coordination) Zookeeper Sqoop/Flume Pig/Hive (Analytical Language) (Data integration) MapReduce Runtime (Dist. Programming Framework) Hbase (Column NoSQL DB) Hadoop Distributed File System (HDFS)
- 59.
- 60. Collaboration in theunderground

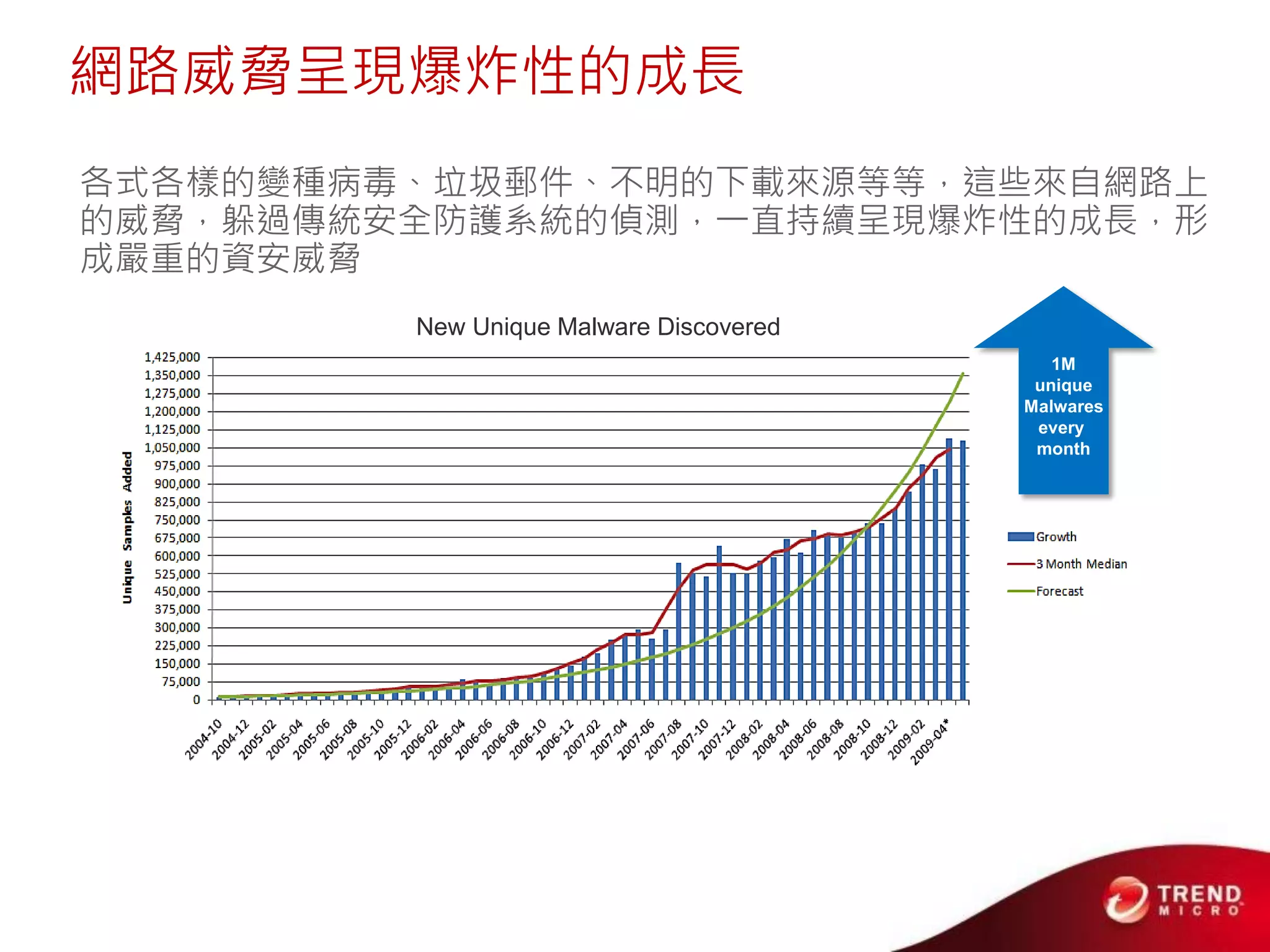

- 61. 網路威脅呈現爆炸性的成長 各式各樣的變種病毒、垃圾郵件、不明的下載來源等等，這些來自網路上 的威脅，躲過傳統安全防護系統的偵測，一直持續呈現爆炸性的成長，形 成嚴重的資安威脅 New Unique Malware Discovered 1M unique Malwares every month

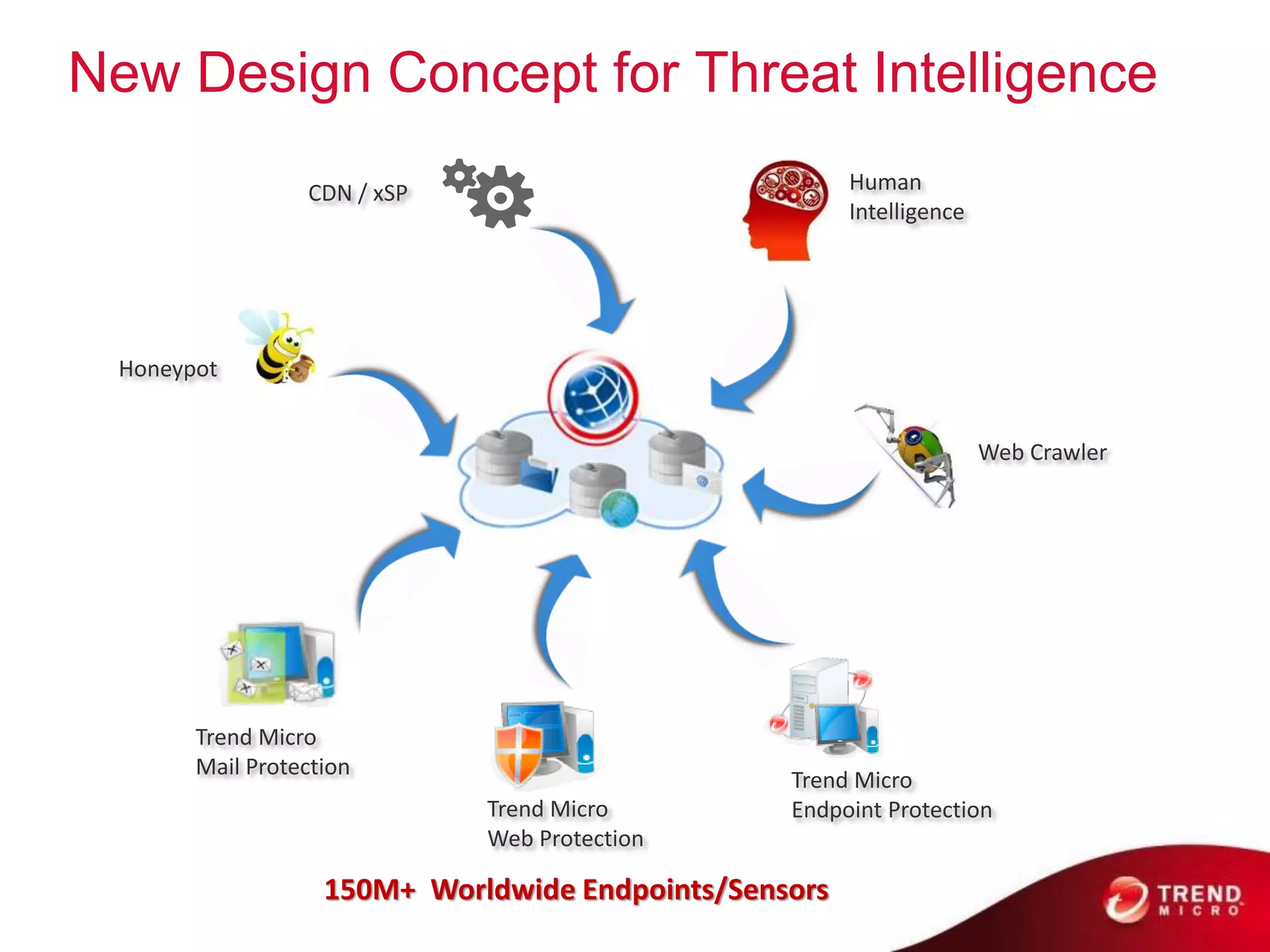

- 63. New Design Conceptfor Threat Intelligence CDN / xSP Human Intelligence Honeypot Web Crawler Trend Micro Mail Protection Trend Micro Trend Micro Endpoint Protection Web Protection 150M+ Worldwide Endpoints/Sensors

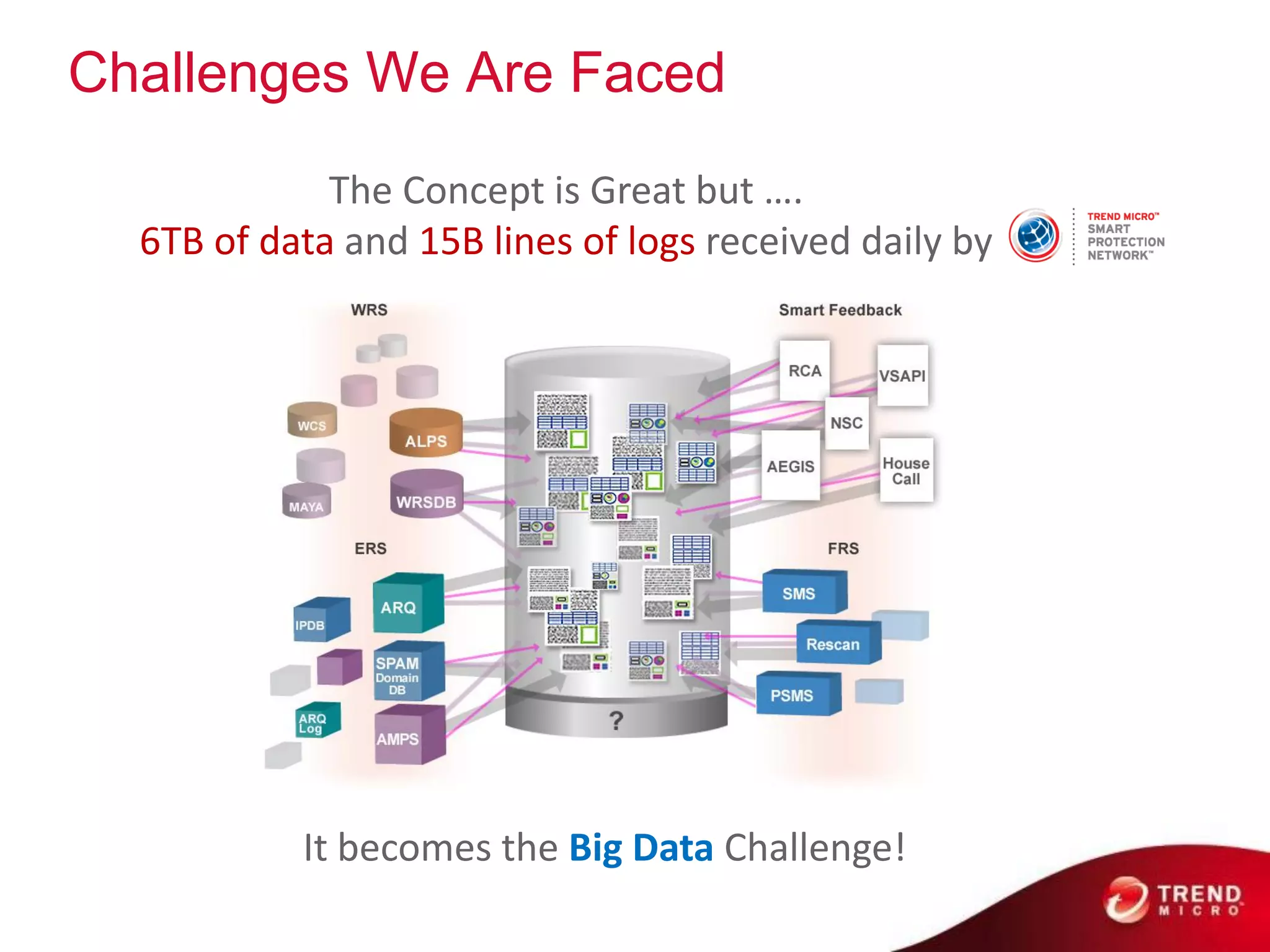

- 64. Challenges We AreFaced The Concept is Great but …. 6TB of data and 15B lines of logs received daily by It becomes the Big Data Challenge!

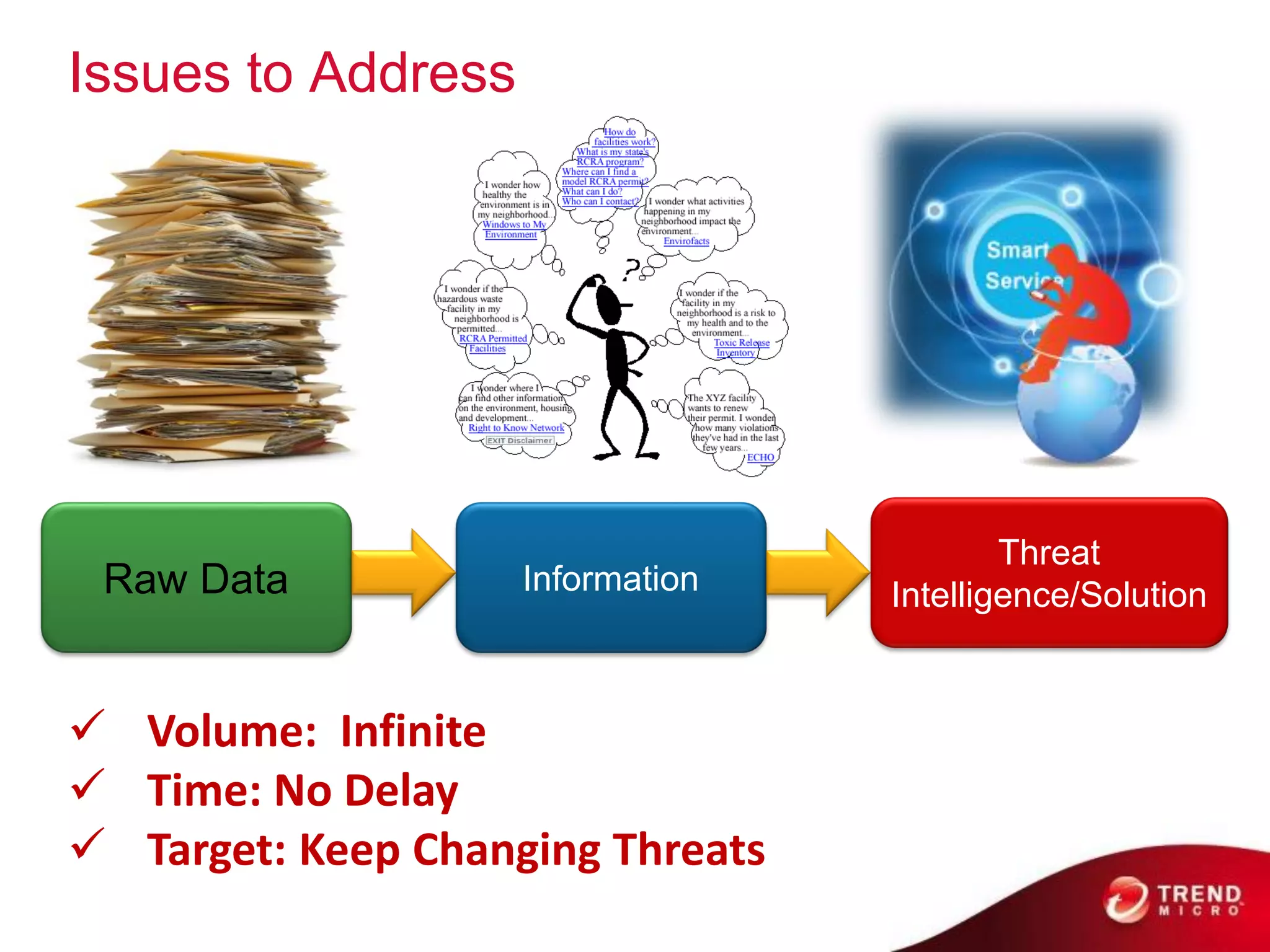

- 65. Issues to Address Threat Raw Data Information Intelligence/Solution Volume: Infinite Time: No Delay Target: Keep Changing Threats

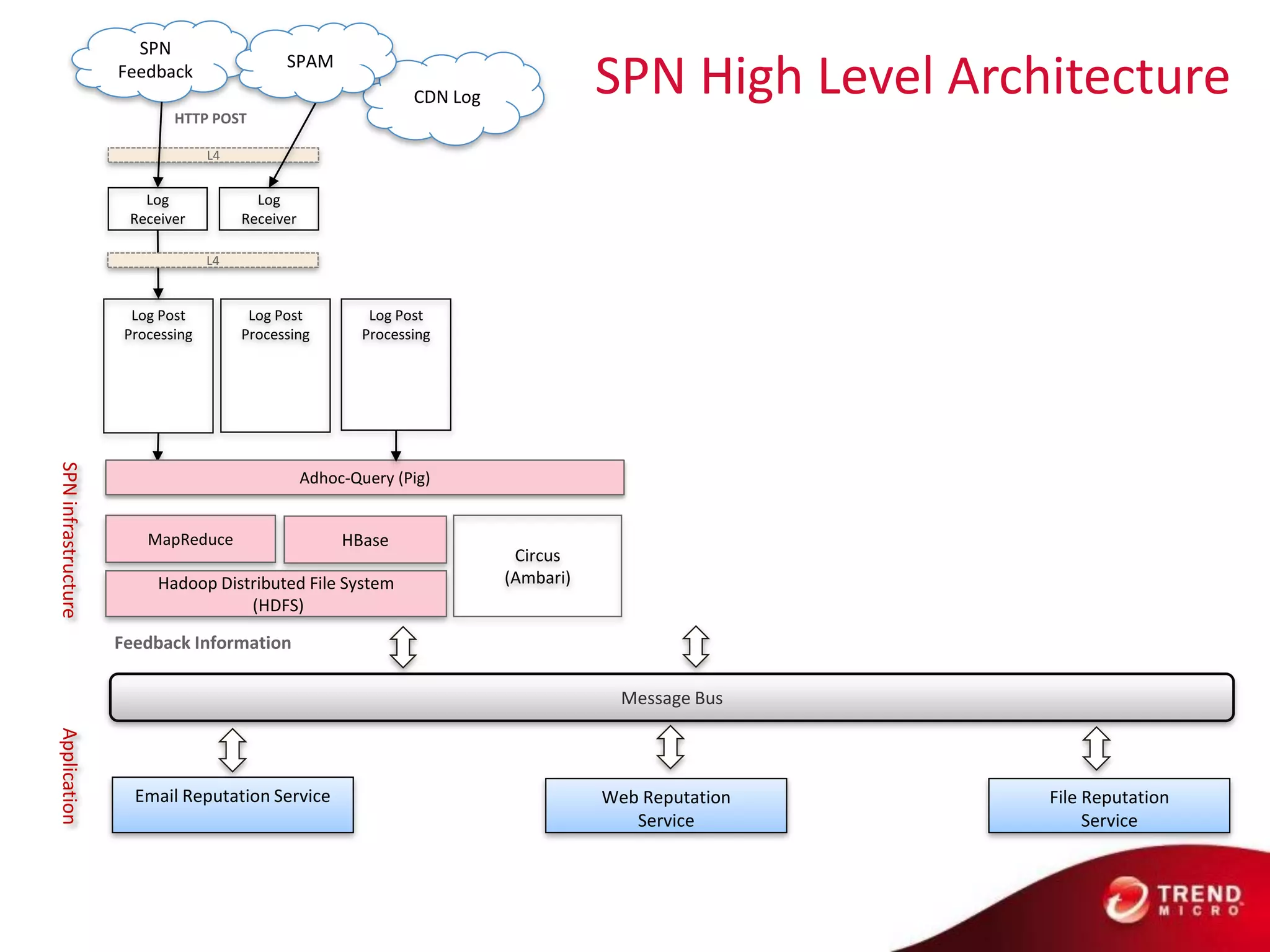

- 66. SPN Feedback SPAM CDN Log SPN High Level Architecture HTTP POST L4 Log Log Receiver Receiver L4 Log Post Log Post Log Post Processing Processing Processing SPN infrastructure Adhoc-Query (Pig) MapReduce HBase Circus Hadoop Distributed File System (Ambari) (HDFS) Feedback Information Message Bus Application Email Reputation Service Web Reputation File Reputation Service Service

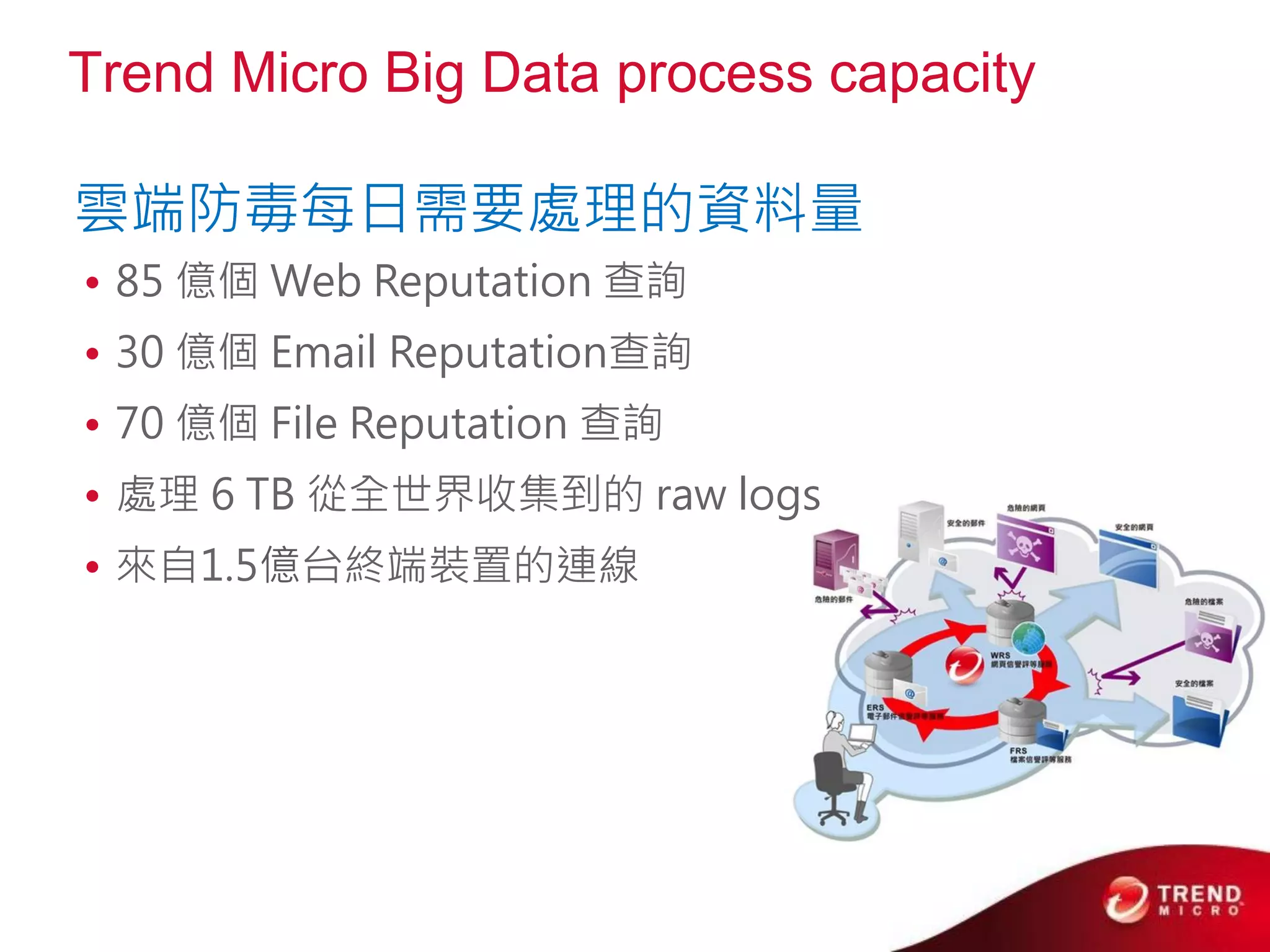

- 67. Trend Micro BigData process capacity 雲端防毒每日需要處理的資料量 • 85 億個 Web Reputation 查詢 • 30 億個 Email Reputation查詢 • 70 億個 File Reputation 查詢 • 處理 6 TB 從全世界收集到的 raw logs • 來自1.5億台終端裝置的連線

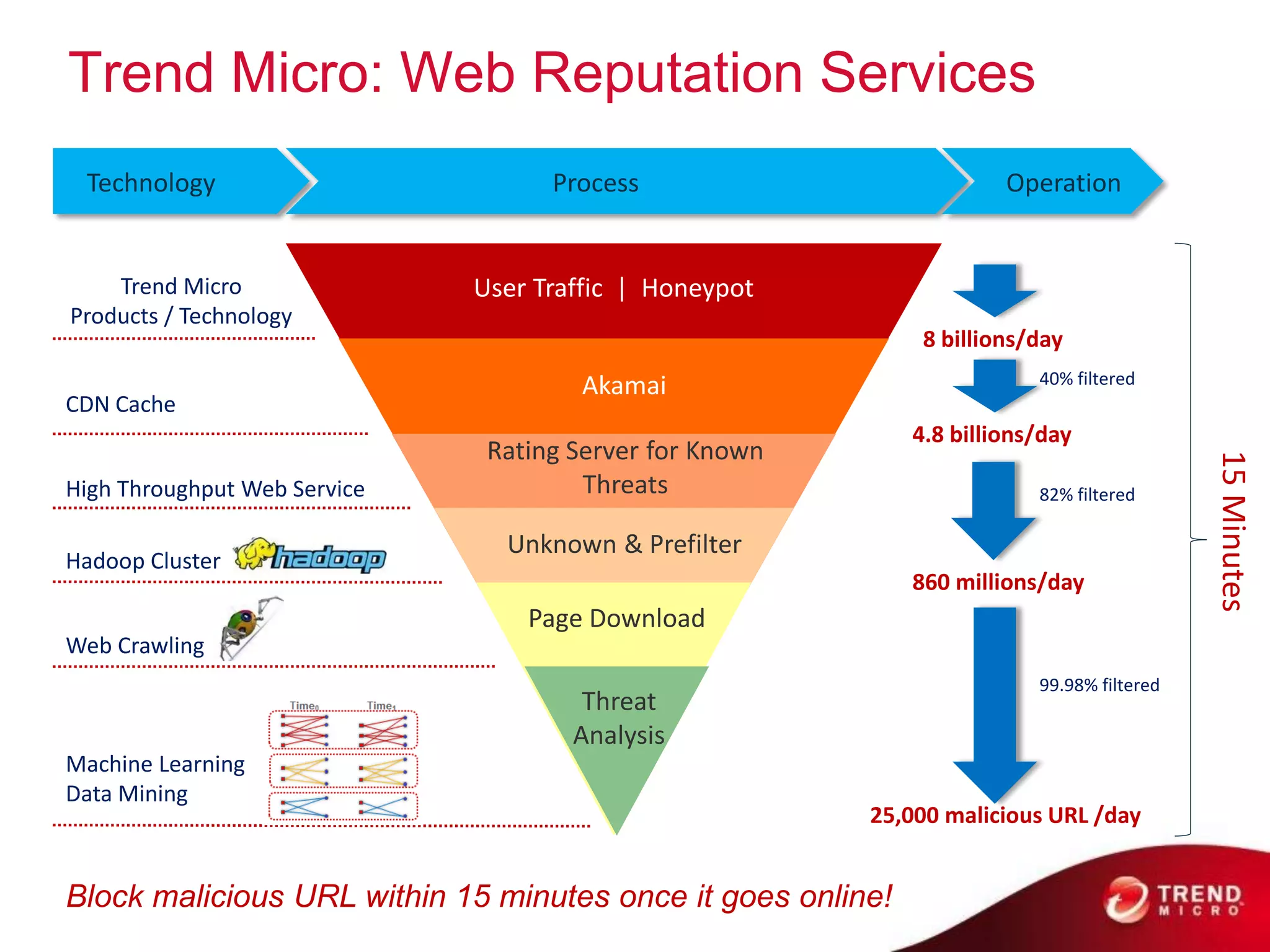

- 68. Trend Micro: WebReputation Services Technology Process Operation Trend Micro User Traffic | Honeypot Products / Technology 8 billions/day Akamai 40% filtered CDN Cache 4.8 billions/day Rating Server for Known 15 Minutes High Throughput Web Service Threats 82% filtered Unknown & Prefilter Hadoop Cluster 860 millions/day Page Download Web Crawling 99.98% filtered Threat Analysis Machine Learning Data Mining 25,000 malicious URL /day Block malicious URL within 15 minutes once it goes online!
- 69.

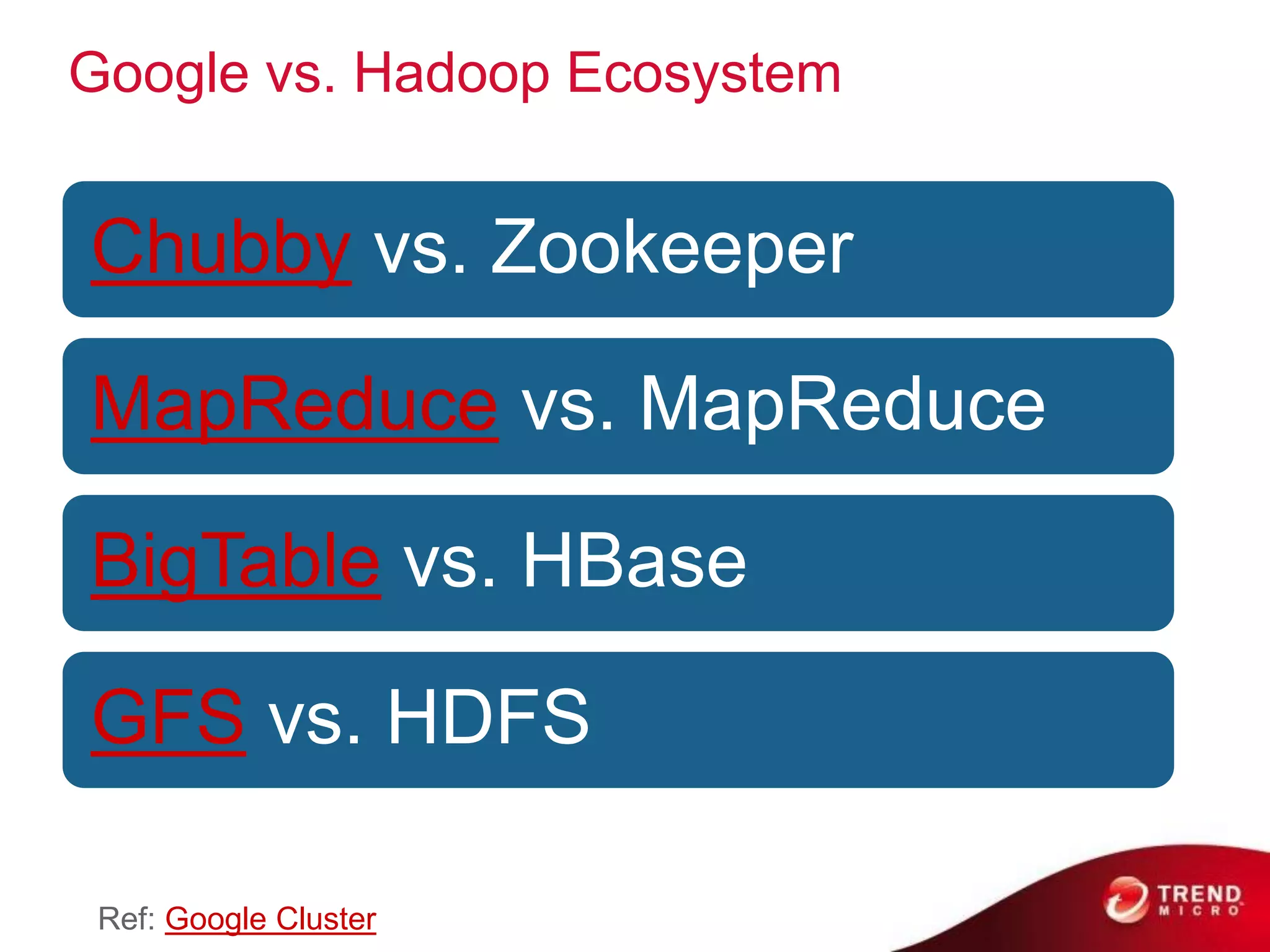

- 70. Google vs. HadoopEcosystem Chubby vs. Zookeeper MapReduce vs. MapReduce BigTable vs. HBase GFS vs. HDFS Ref: Google Cluster
- 71. Pioneer of BigData Infrastructure – Google

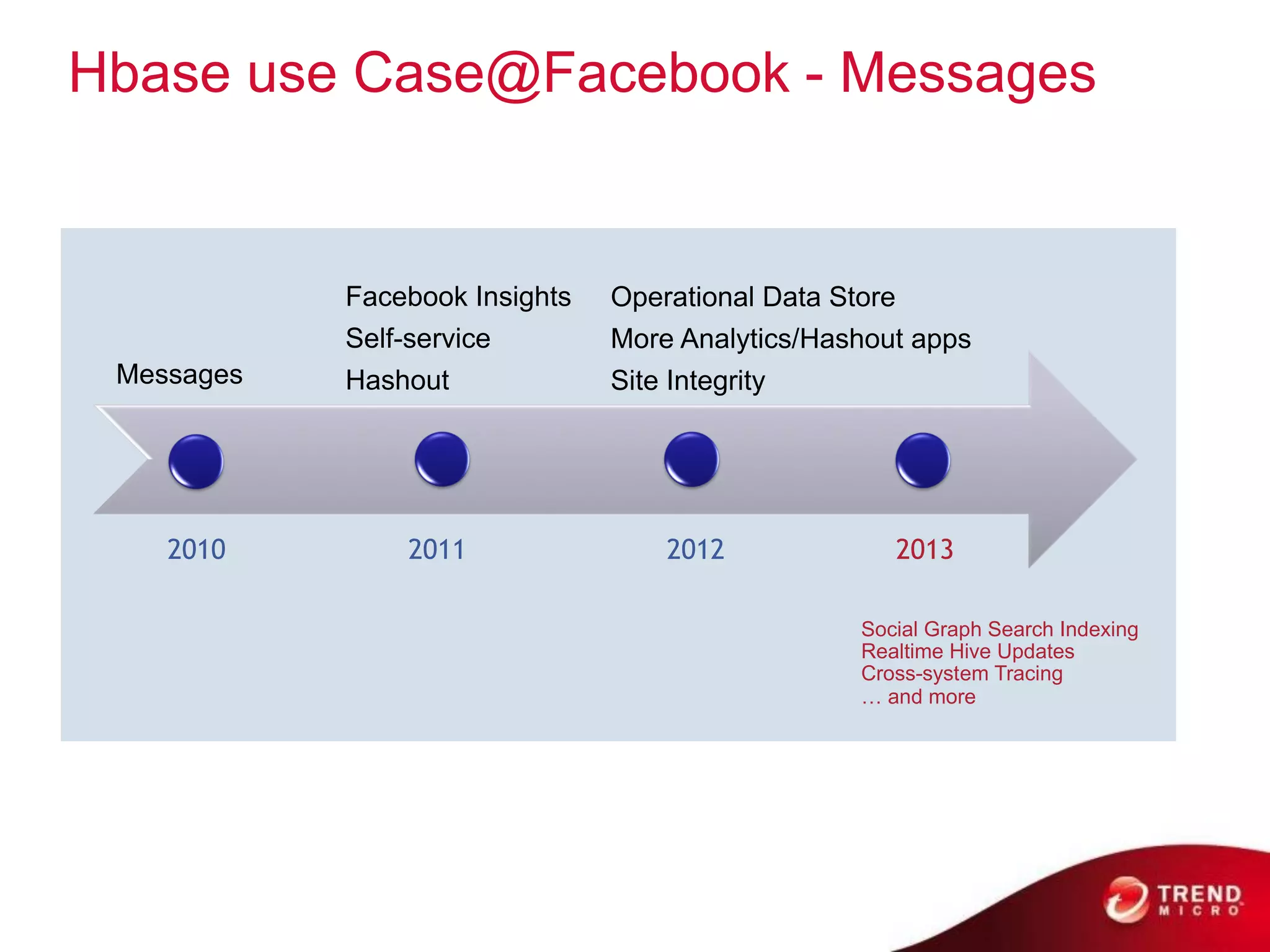

- 72. Hbase use Case@Facebook- Messages HBase Use Cases @ Facebook Facebook Insights Operational Data Store Self-service More Analytics/Hashout apps Messages Hashout Site Integrity 2010 2011 2012 2013 Social Graph Search Indexing Realtime Hive Updates Cross-system Tracing … and more

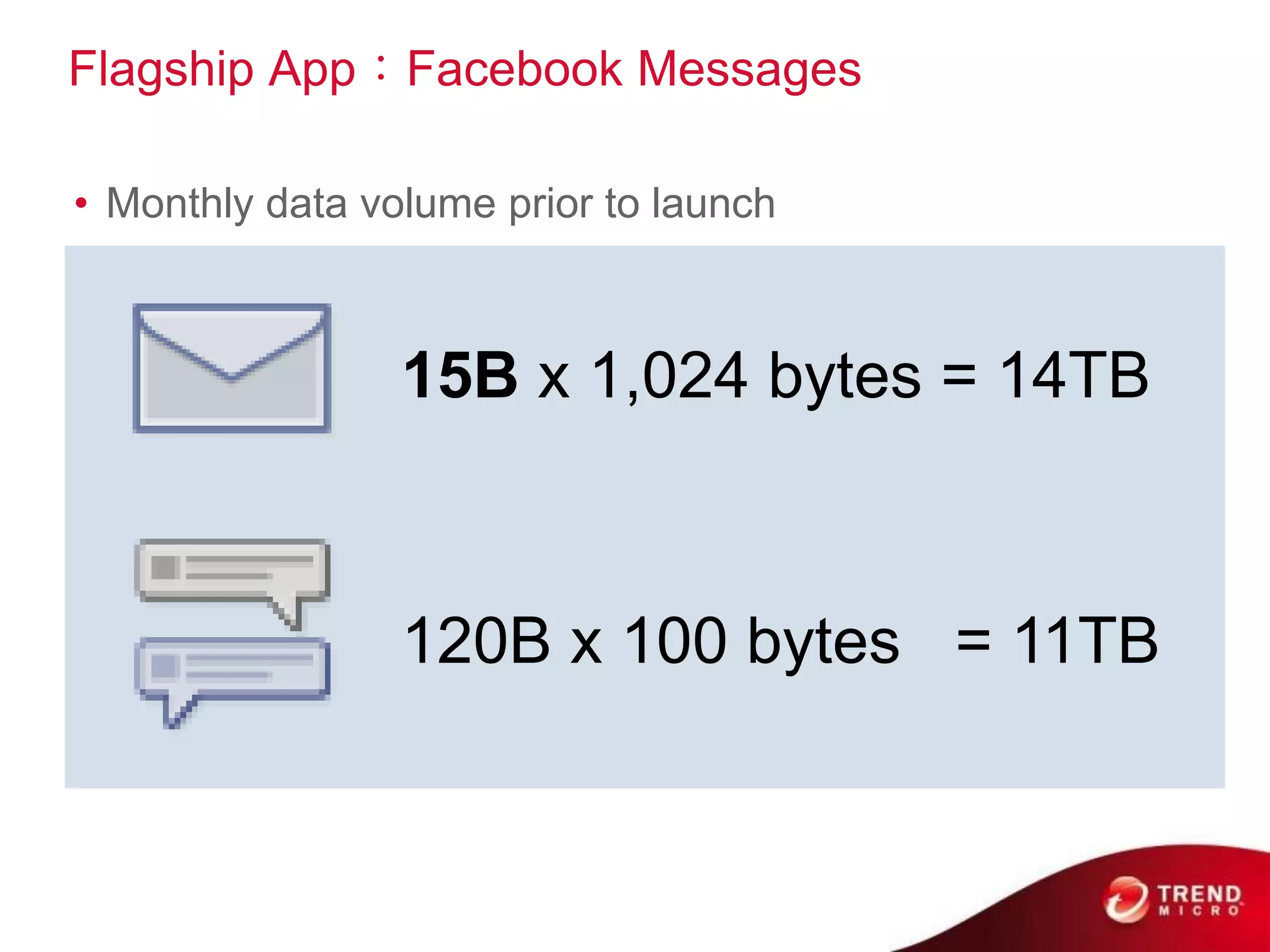

- 73. Flagship App：Facebook Messages Monthlydata volume prior to launch • Monthly data volume prior to launch 15B x 1,024 bytes = 14TB 120B x 100 bytes = 11TB

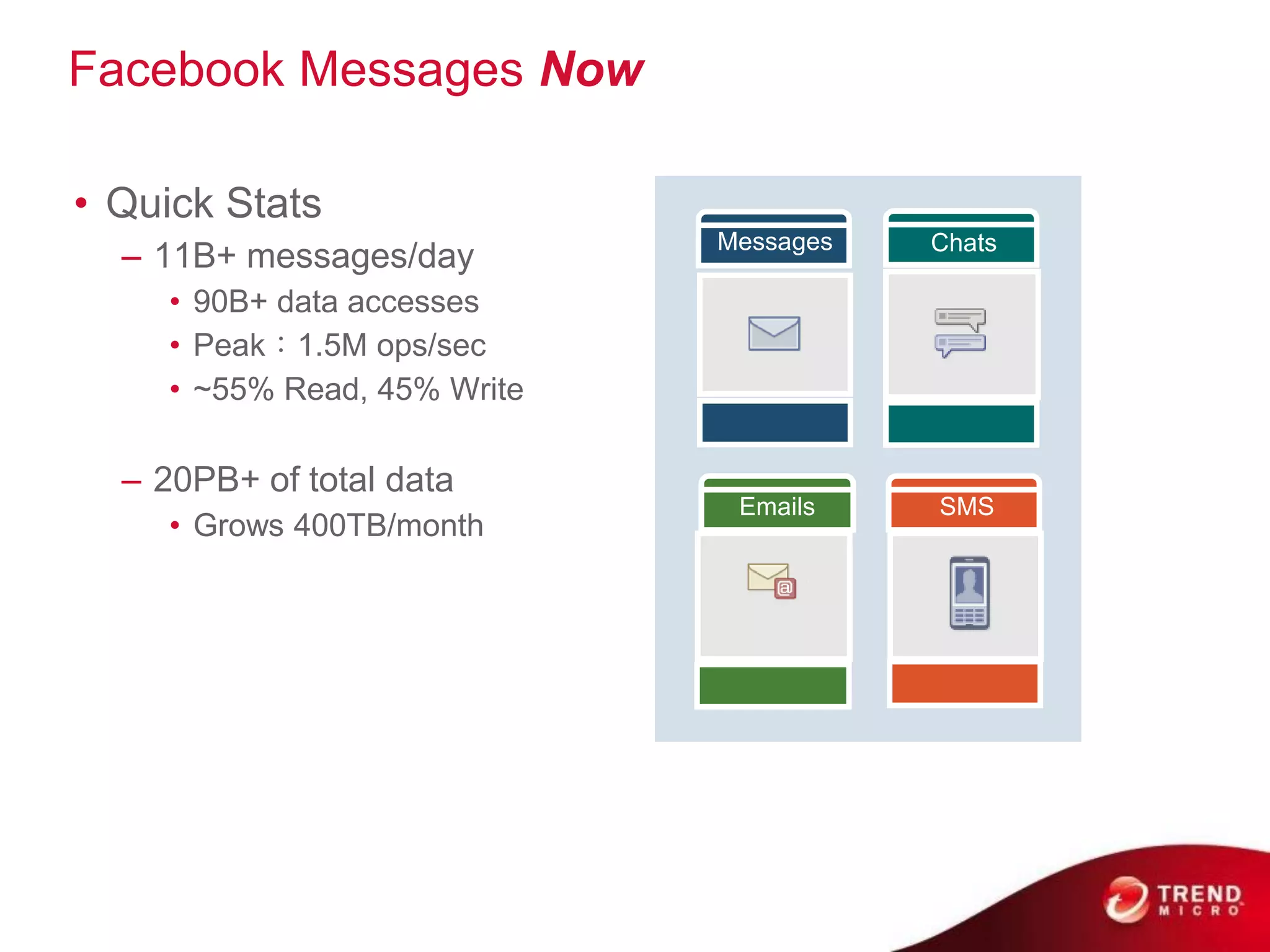

- 74. Facebook Messages Now bookMessages NOW • StatsQuick Stats Messages Chats – 11B+ messages/day • 90B+ data accesses + messages/day • Peak：1.5M ops/sec 0B+ data~55% Read, 45% Write • accesses eak: 1.5M ops/sec 55%Rd, 45% Wr data – 20PB+ of total Emails SMS • Grows 400TB/month B+ of total data rows 400TB/month

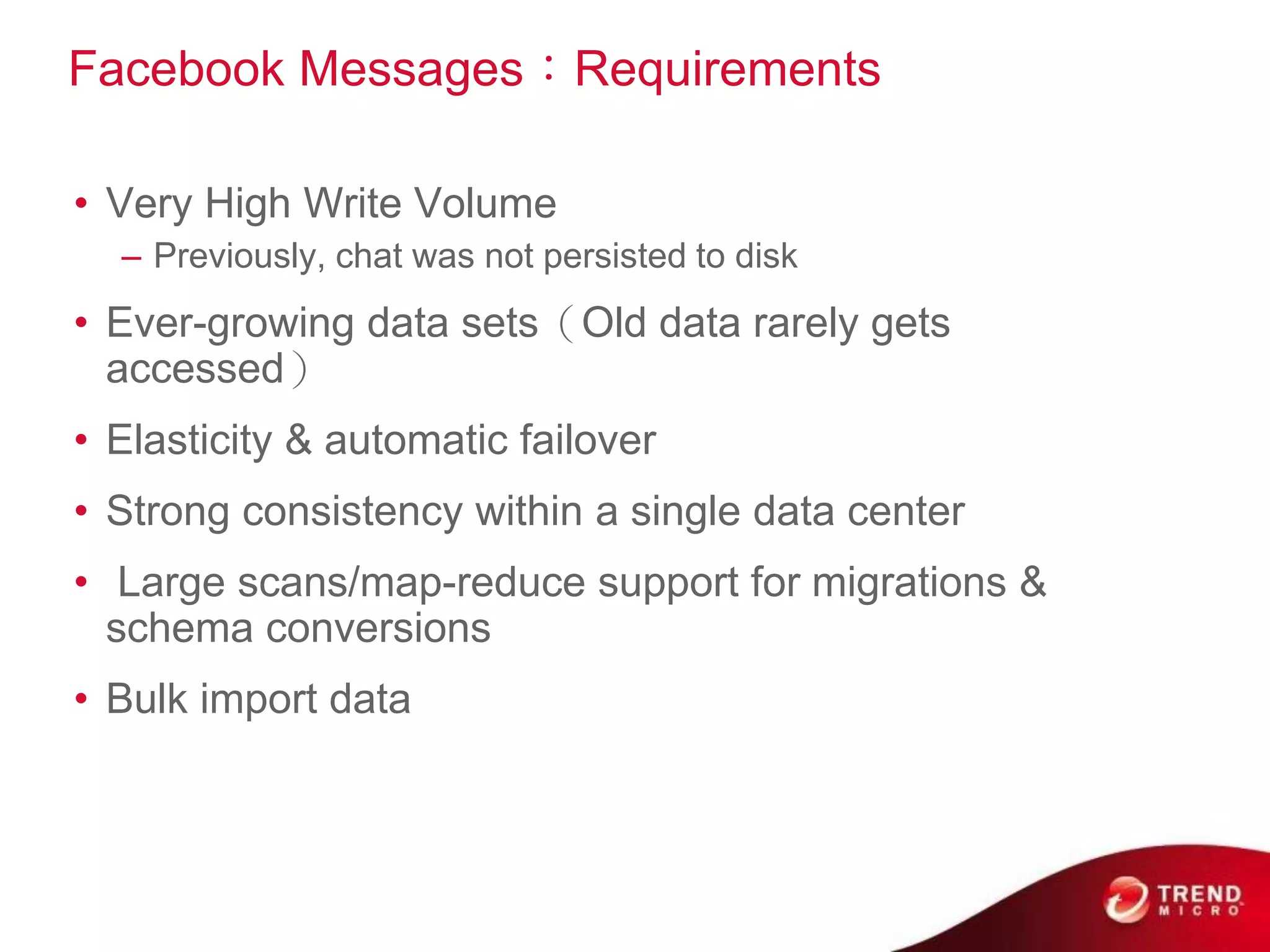

- 75. Facebook Messages：Requirements • VeryHigh Write Volume – Previously, chat was not persisted to disk • Ever-growing data sets（Old data rarely gets accessed） • Elasticity & automatic failover • Strong consistency within a single data center • Large scans/map-reduce support for migrations & schema conversions • Bulk import data

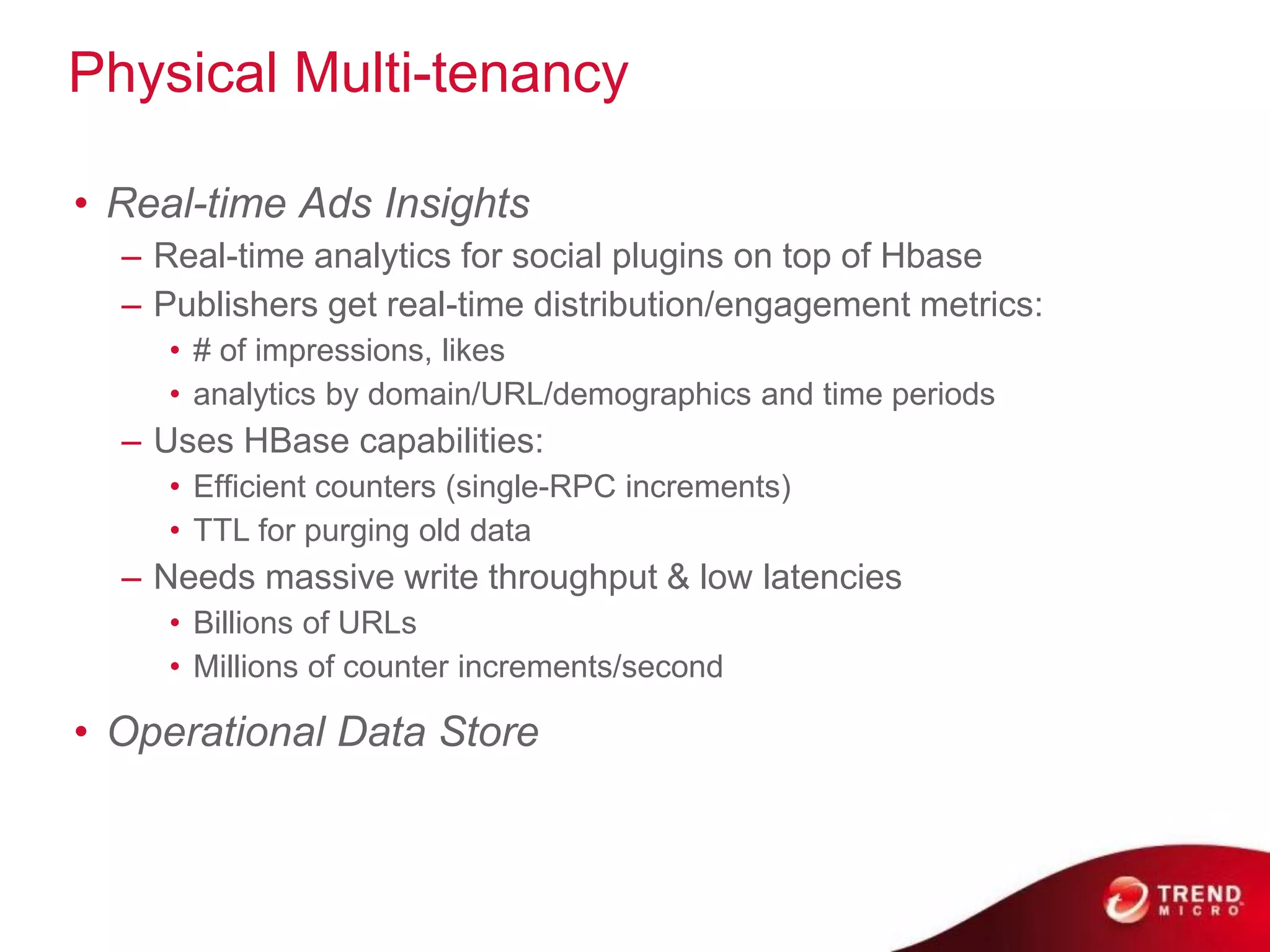

- 76. Physical Multi-tenancy • Real-timeAds Insights – Real-time analytics for social plugins on top of Hbase – Publishers get real-time distribution/engagement metrics: • # of impressions, likes • analytics by domain/URL/demographics and time periods – Uses HBase capabilities: • Efficient counters (single-RPC increments) • TTL for purging old data – Needs massive write throughput & low latencies • Billions of URLs • Millions of counter increments/second • Operational Data Store

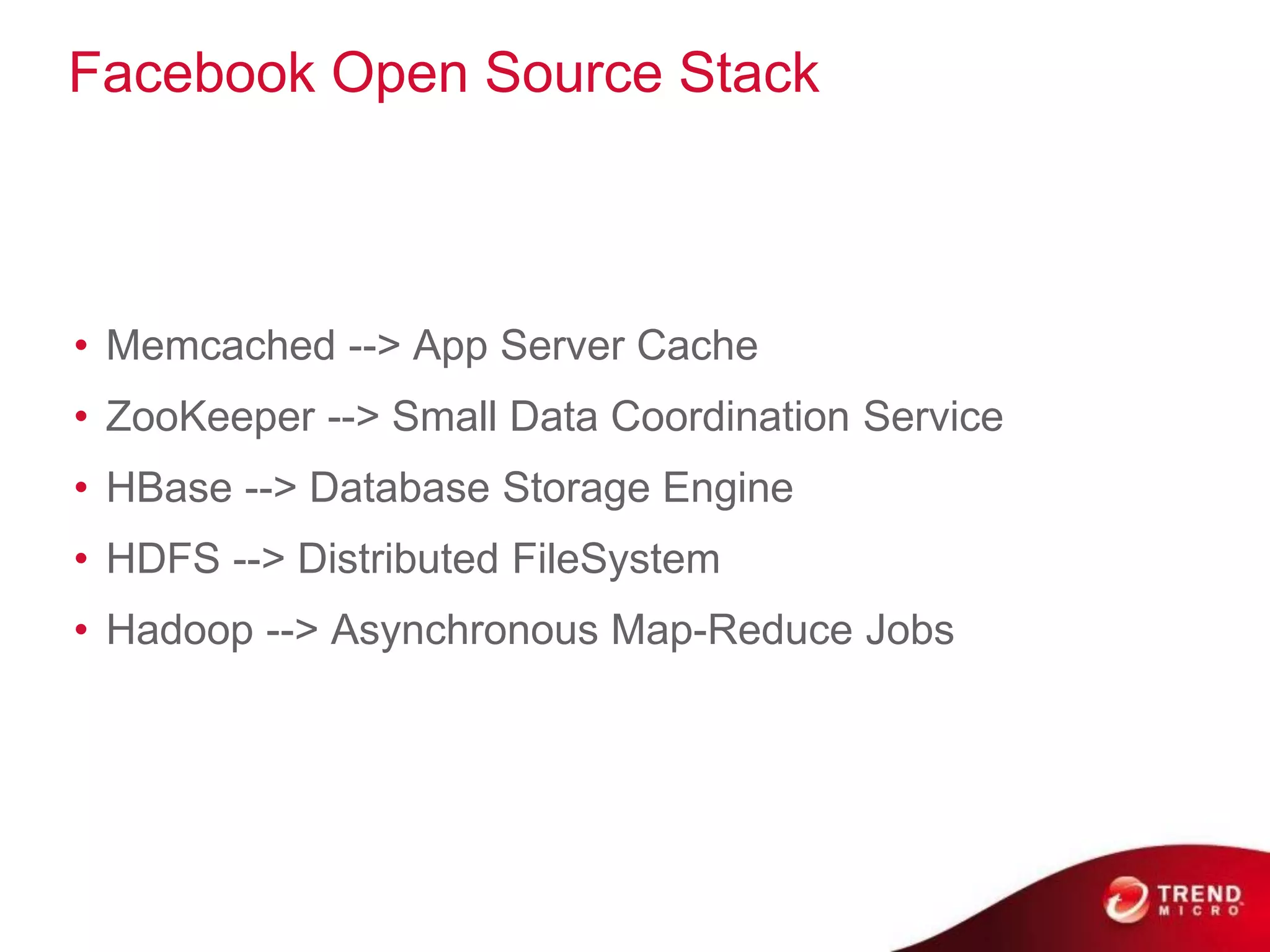

- 77. Facebook Open SourceStack • Memcached --> App Server Cache • ZooKeeper --> Small Data Coordination Service • HBase --> Database Storage Engine • HDFS --> Distributed FileSystem • Hadoop --> Asynchronous Map-Reduce Jobs
