A presentation about ZFS aimed at developers. Given at Datto, see the talk here https://www.youtube.com/watch?v=Wd6eacYeeJI

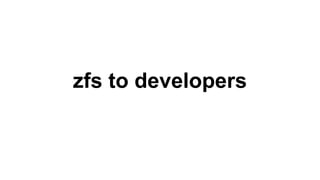

1. zfs to developers

2. zfs, a modern file system built for
large scale data integrity

3. wikipedia to the rescue!

4. NFS
Lustre
Open Office
Sun Microsystems

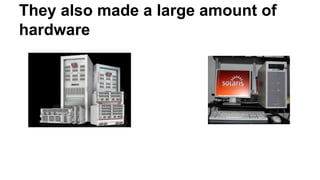

5. They also made a large amount of
hardware

11. http://zfsonlinux.org/docs/LUG12_ZFS_Lustre_for_Sequoia.pdf

12. 2005, integrated into
solaris kernel
45 commits to ZoL 1174 commits to ZoL
2013
OpenZFS
2010 illumos founded
2008 first commit
to ZoL

13. -File systems should be large
-Storage media is not to be trusted
-Storage maintenance should be easy
-Disk storage should be more like ram

14. File systems should be large
Our largest system was 144 TB of storage.
disks * capacity
36 * 4
ZFS can address hard drives so large they could not be
stored on this planet.

15. File systems should be large
ext4 1 EXB
HFS+ 1 EXB
BTRFS 16 EXB
zfs 256X(1024) EXB

16. File systems should be large
who cares?

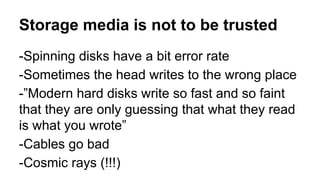

17. Storage media is not to be trusted
-Spinning disks have a bit error rate
-Sometimes the head writes to the wrong place
-”Modern hard disks write so fast and so faint
that they are only guessing that what they read
is what you wrote”
-Cables go bad
-Cosmic rays (!!!)

18. Storage media is not to be trusted
zfs overcomes these problems with checksumming. Every
block is run through fletcher4 before it is written, and that
checksum is combined with other metadata and written “far
away” from the data when they are written out.
sha256
future
Edon-R
Skein

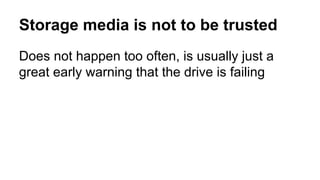

19. Storage media is not to be trusted
Does not happen too often, is usually just a
great early warning that the drive is failing

20. Storage maintenance should be easy
zpool create name disks
zfs create filesystem
zfs set compression=off filesystem
zfs set sync=disabled filesystem
zpool status
zfs destroy

21. Storage maintenance should be easy
Is it intuitive?
zfs snapshot
zfs send/receive
zfs create/destroy

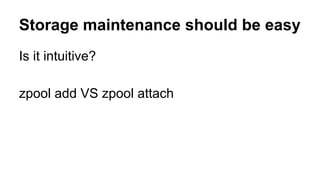

22. Storage maintenance should be easy
Is it intuitive?
zpool add VS zpool attach

23. Storage maintenance should be easy
Is it easy?
I think so

24. Disk storage should be more like ram
Should open a computer up, throw some disks
in there and be running. Never need to mess
with it, never need to tune it.

25. Disk storage should be more like ram
FAIL
tuning is not recommended

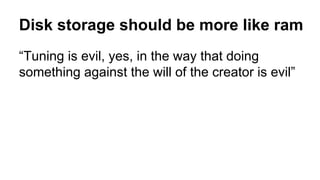

26. Disk storage should be more like ram
“Tuning is evil, yes, in the way that doing
something against the will of the creator is evil”

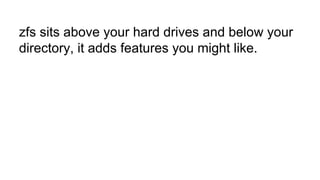

27. zfs sits above your hard drives and below your
directory, it adds features you might like.

28. zfs sits above your hard drives and below your
directory, it adds features you might like.
data integrity
trasnparent compression (LZ4)
improved throughput
snapshoting
replication via snapshoting
speed via ARC
easy maintancne
choice in raid setup

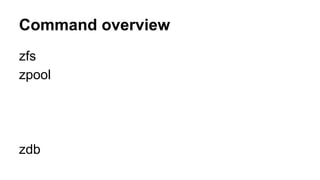

29. Command overview
zfs
zpool
zdb

30. Command overview
zfs every week
zpool every month
zdb depends on the day

31. Command overview
zfs Awesome man page
zpool Awesome man page
zdb meh...

32. zpool create

33. zpool create
zpool create tank -o ashift=12 -O compression=lz4 mirror
ata-WDC_WD1002FAEX-00Y9A0_WD-WCAW32714185
ata-WDC_WD1002FAEX-00Z3A0_WD-WMATR0443468

34. zpool create
zpool create tank -o ashift=12 -O compression=lz4 mirror
ata-WDC_WD1002FAEX-00Y9A0_WD-WCAW32714185
ata-WDC_WD1002FAEX-00Z3A0_WD-WMATR0443468

35. zpool create
zpool create tank -o ashift=12 -O compression=lz4 mirror
ata-WDC_WD1002FAEX-00Y9A0_WD-WCAW32714185
ata-WDC_WD1002FAEX-00Z3A0_WD-WMATR0443468

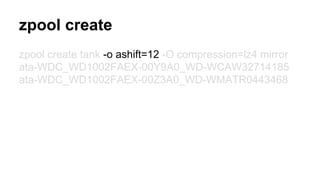

36. zpool create
zpool create tank -o ashift=12 -O compression=lz4 mirror
ata-WDC_WD1002FAEX-00Y9A0_WD-WCAW32714185
ata-WDC_WD1002FAEX-00Z3A0_WD-WMATR0443468

37. zpool create
zpool create tank -o ashift=12 -O compression=lz4 mirror
ata-WDC_WD1002FAEX-00Y9A0_WD-WCAW32714185
ata-WDC_WD1002FAEX-00Z3A0_WD-WMATR0443468

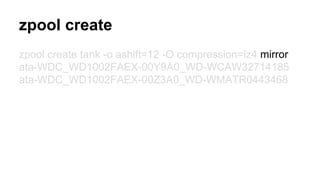

38. zpool create
zpool create tank -o ashift=12 -O compression=lz4 mirror
ata-WDC_WD1002FAEX-00Y9A0_WD-WCAW32714185
ata-WDC_WD1002FAEX-00Z3A0_WD-WMATR0443468

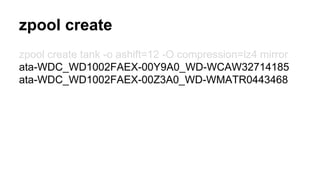

39. zpool create
zpool create tank -o ashift=12 -O compression=lz4 mirror
ata-WDC_WD1002FAEX-00Y9A0_WD-WCAW32714185
ata-WDC_WD1002FAEX-00Z3A0_WD-WMATR0443468

40. zpool create
zpool create tank -o ashift=12 -O compression=lz4 mirror
ata-WDC_WD1002FAEX-00Y9A0_WD-WCAW32714185
ata-WDC_WD1002FAEX-00Z3A0_WD-WMATR0443468
/dev/disk/by-id/ata-*

41. zpool create
zpool create tank -o ashift=12 -O compression=lz4 mirror
ata-WDC_WD1002FAEX-00Y9A0_WD-WCAW32714185
ata-WDC_WD1002FAEX-00Z3A0_WD-WMATR0443468
/dev/disk/by-id/ata-*
http://zfsonlinux.org/faq.
html#WhatDevNamesShouldIUseWhenCreatingMyPool

42. zpool status
/home/sburgess > zpool status
pool: tank
state: ONLINE
scan: scrub repaired 0 in 19h39m with 0 errors on Tue Jul 15 10:23:16 2014
config:
NAME STATE READ WRITE CKSUM
tank ONLINE 0 0 0
mirror-0 ONLINE 0 0 0
ata-WDC_WD1002FAEX-00Y9A0_WD-WCAW32714185 ONLINE 0 0 0
ata-WDC_WD1002FAEX-00Z3A0_WD-WMATR0443468 ONLINE 0 0 0

43. so far
/home/sburgess > zpool get all tank
NAME PROPERTY VALUE SOURCE
tank size 928G -
tank capacity 34% -
tank health ONLINE -

44. so far
/home/sburgess > zfs get all tank
NAME PROPERTY VALUE SOURCE
tank type filesystem -
tank creation Thu Jan 3 15:55 2013 -
tank used 325G -
tank available 589G -
tank referenced 184K -
tank compressratio 1.54x -
tank mounted yes -
tank recordsize 128K default
tank mountpoint /tank default
tank compression lz4 local
tank sync standard default
tank refcompressratio 1.00x

45. so far
/home/sburgess > ls /tank/

46. zfs create
zfs create tank/home

47. zfs create
zfs create tank/home/sburgess
-o mountpoint=/home/sburgess

48. zfs create
zfs create tank/home/sburgess/downloads
zfs create tank/home/sburgess/projects
zfs create tank/home/sburgess/tools

49. zfs create
zfs create tank/home/sburgess/downloads
zfs create tank/home/sburgess/projects
zfs create tank/home/sburgess/tools
chown -R sburgess: /home/sburgess

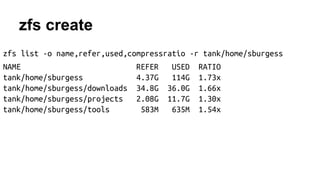

50. zfs create
zfs list -o name,refer,used,compressratio -r tank/home/sburgess
NAME REFER USED RATIO
tank/home/sburgess 4.37G 114G 1.73x
tank/home/sburgess/downloads 34.8G 36.0G 1.66x
tank/home/sburgess/projects 2.08G 11.7G 1.30x
tank/home/sburgess/tools 583M 635M 1.54x

51. zfs create
mv Pictures pic
zfs create tank/home/sburgess/Pictures
chown -R surgess: Pictures
mv pic/* Pictures

52. zfs create
/home/sburgess > zfs list -o name,refer,used,compressratio -r
tank/home/sburgess
NAME REFER USED RATIO
tank/home/sburgess 4.36G 114G 1.73x
tank/home/sburgess/Pictures 11.3M 11.3M 1.16x
tank/home/sburgess/downloads 34.8G 36.0G 1.66x
tank/home/sburgess/projects 2.08G 11.7G 1.30x
tank/home/sburgess/tools 583M 635M 1.54x

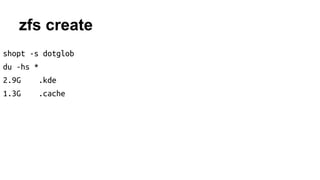

53. zfs create
shopt -s dotglob
du -hs *
2.9G .kde
1.3G .cache

54. uberblock

55. uberblock
The root of the zfs hash tree
“A Merkle tree is a tree in which every non-leaf
node is labelled with the hash of the labels of its
children nodes.”

57. uberblock
zdb -u poolName

58. uberblock
zdb -u test
Uberblock:
magic = 0000000000bab10c
version = 5000
txg = 5
guid_sum = 16411893724316372364
timestamp = 1392754246 UTC = Tue Feb 18 15:10:46 2014

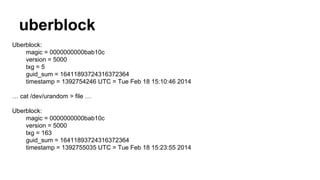

59. uberblock
Uberblock:
magic = 0000000000bab10c
version = 5000
txg = 5
guid_sum = 16411893724316372364
timestamp = 1392754246 UTC = Tue Feb 18 15:10:46 2014
… cat /dev/urandom > file …
Uberblock:
magic = 0000000000bab10c
version = 5000
txg = 163
guid_sum = 16411893724316372364
timestamp = 1392755035 UTC = Tue Feb 18 15:23:55 2014

60. uberblock
Uberblock:
magic = 0000000000bab10c
version = 5000
txg = 163
guid_sum = 16411893724316372364
timestamp = 1392755035 UTC = Tue Feb 18 15:23:55 2014
… zpool attach pool disk1 disk2…
Uberblock:
magic = 0000000000bab10c
version = 5000
txg = 197
guid_sum = 16865875370843337150
timestamp = 1392755190 UTC = Tue Feb 18 15:26:30 2014

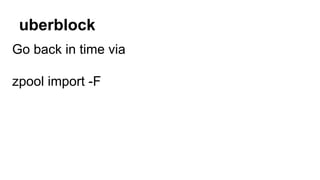

61. uberblock
Go back in time via
zpool import -F

62. snapshotting

63. snapshotting
zfs snapshot tank/home/sburgess@now

64. snapshotting
zfs list -o name,creation,used -t all -r tank/home/sburgess

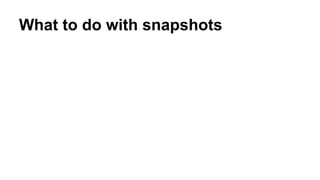

66. What to do with snapshots

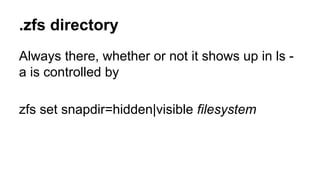

67. .zfs directory
Always there, whether or not it shows up in ls -
a is controlled by
zfs set snapdir=hidden|visible filesystem

68. .zfs directory
Contains .zfs/snapshots, which has a directory
for each snapshot. When you access any
directory, it is temporarily mounted read only
there.

69. .zfs directory
Use case:
-Test if/when a file was created
-Easily restore a file or two, for large
complicated restores, use clone.

70. zfs rollback
zfs rollback tank/home/sburgess@then
Should be the most recent snapshot, but you
can use -r to roll back further

71. zfs rollback
Use case:
Being too bold with tar -x

72. zfs clone
zfs clone tank/home/sburgess@now tank/other
tank/other is a
read/write, snapshotable, cloneable file system
Initially shares all blocks with the parent, takes
0 space, amplify ARC hits

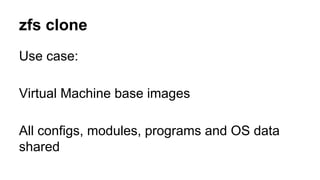

73. zfs clone
Use case:
Virtual Machine base images
All configs, modules, programs and OS data
shared

74. zfs clone
zfs clone
-o readonly=on
-o mountpoint=/tmp/ro
tank/home/sburgess@now tank/other

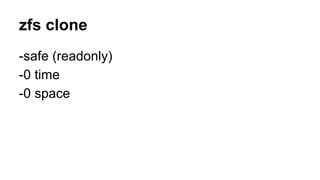

75. zfs clone
-safe (readonly)
-0 time
-0 space

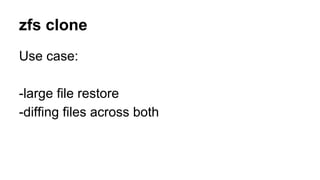

76. zfs clone
Use case:
-large file restore
-diffing files across both

77. zfs clone
What clones of this snapshot exist?
zfs get clones filesystem@snapshot
What snapshot was this filesystem cloned
from?
zfs get origin filesystem

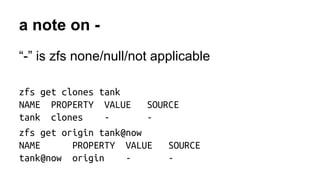

78. a note on -
“-” is zfs none/null/not applicable
zfs get clones tank
NAME PROPERTY VALUE SOURCE
tank clones - -
zfs get origin tank@now
NAME PROPERTY VALUE SOURCE
tank@now origin - -

79. a note on -
“-” is zfs none/null/not applicable
zpool get version
NAME PROPERTY VALUE SOURCE
tank version - default

80. a note on 5000
zpool version numbers no longer increase with
features

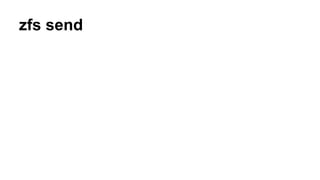

81. zfs send

82. zfs send
Original idea:
Send the changes I made today across the
ocean

83. zfs send
Create a file detailing the changes that need to
be made to transition a filesystem from one
snapshot to another.

84. zfs send
zfs send is a dictation, not a conversation

85. zfs send
zpool create -O compression=off -O copies=2 -o ashift=12
zpool create -O compression=lz4 -O checksum=sha256 -o ashift=9

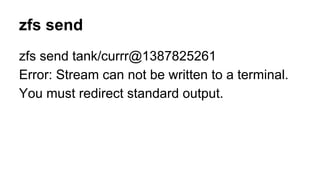

86. zfs send
zfs send tank/currr@1387825261
Error: Stream can not be written to a terminal.
You must redirect standard output.

87. zfs send
-n
-v

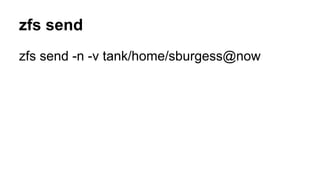

88. zfs send
zfs send -n -v tank/home/sburgess@now

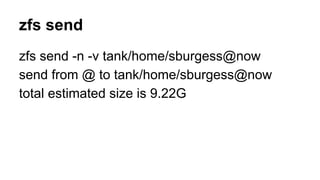

89. zfs send
zfs send -n -v tank/home/sburgess@now
send from @ to tank/home/sburgess@now
total estimated size is 9.22G

90. zfs send
zfs send tank/home/sburgess@now
What does this send? What does it create
when its received?

91. zfs send
zfs send tank/home/sburgess@now
Its sends a “full” filesystem, everything that is
needed to create tank/home/sburgess@now
The receiving side gets a new FS with a single
snapshot named now

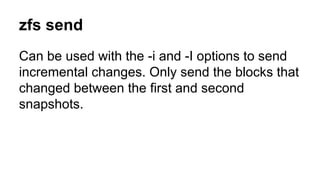

92. zfs send
Can be used with the -i and -I options to send
incremental changes. Only send the blocks that
changed between the first and second
snapshots.

93. zfs send
-i do not send intermediate snapshots
-I send intermediate snapshots

94. zfs send
-i do not send intermediate snapshots
-I send intermediate snapshots
zfs send -I early file/system/path@late

95. zfs get vs zfs list

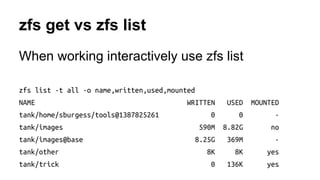

96. zfs get vs zfs list
When working interactively use zfs list
zfs list -t all -o name,written,used,mounted
NAME WRITTEN USED MOUNTED
tank/home/sburgess/tools@1387825261 0 0 -
tank/images 590M 8.82G no
tank/images@base 8.25G 369M -
tank/other 8K 8K yes
tank/trick 0 136K yes

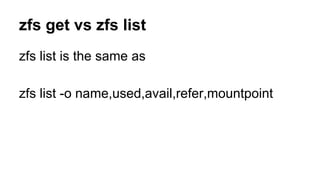

97. zfs get vs zfs list
zfs list is the same as
zfs list -o name,used,avail,refer,mountpoint

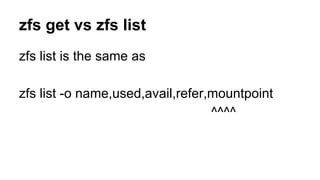

98. zfs get vs zfs list
zfs list is the same as
zfs list -o name,used,avail,refer,mountpoint
^^^^

99. zfs get vs zfs list
zfs list | grep/awk/??

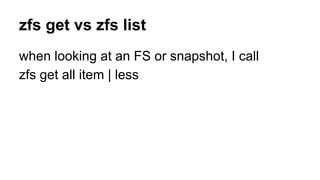

100. zfs get vs zfs list
when looking at an FS or snapshot, I call
zfs get all item | less

101. zfs get vs zfs list
For programmatic use, use zfs get -H -P
zfs get used tank
NAME PROPERTY VALUE SOURCE
tank used 484G -
zfs get used -o value -H -p tank
519265562624

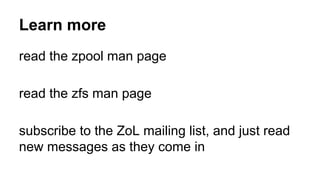

102. Learn more
read the zpool man page
read the zfs man page
subscribe to the ZoL mailing list, and just read
new messages as they come in
