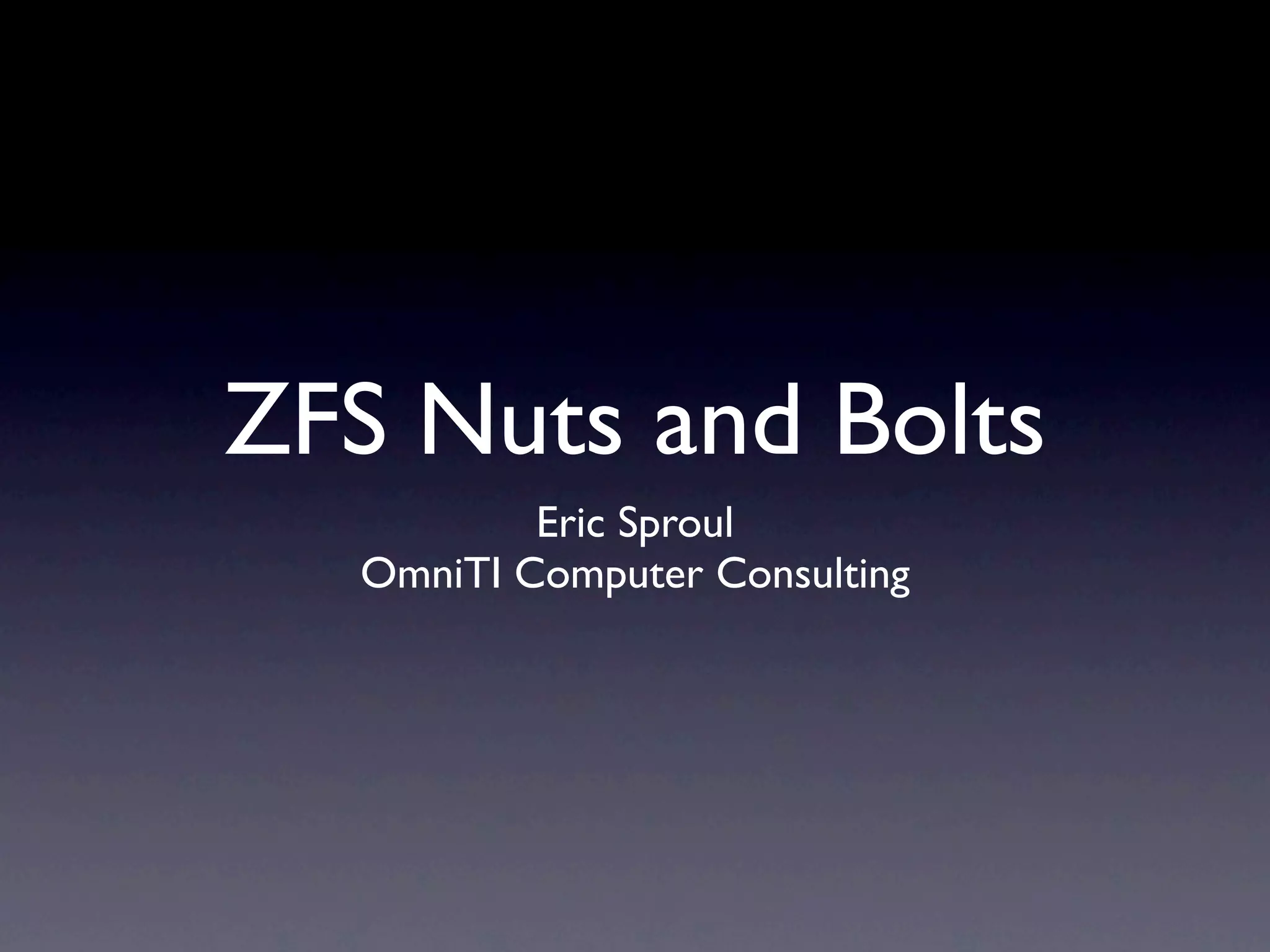

ZFS Nuts and Bolts
          Eric Sproul
  OmniTI Computer Consulting

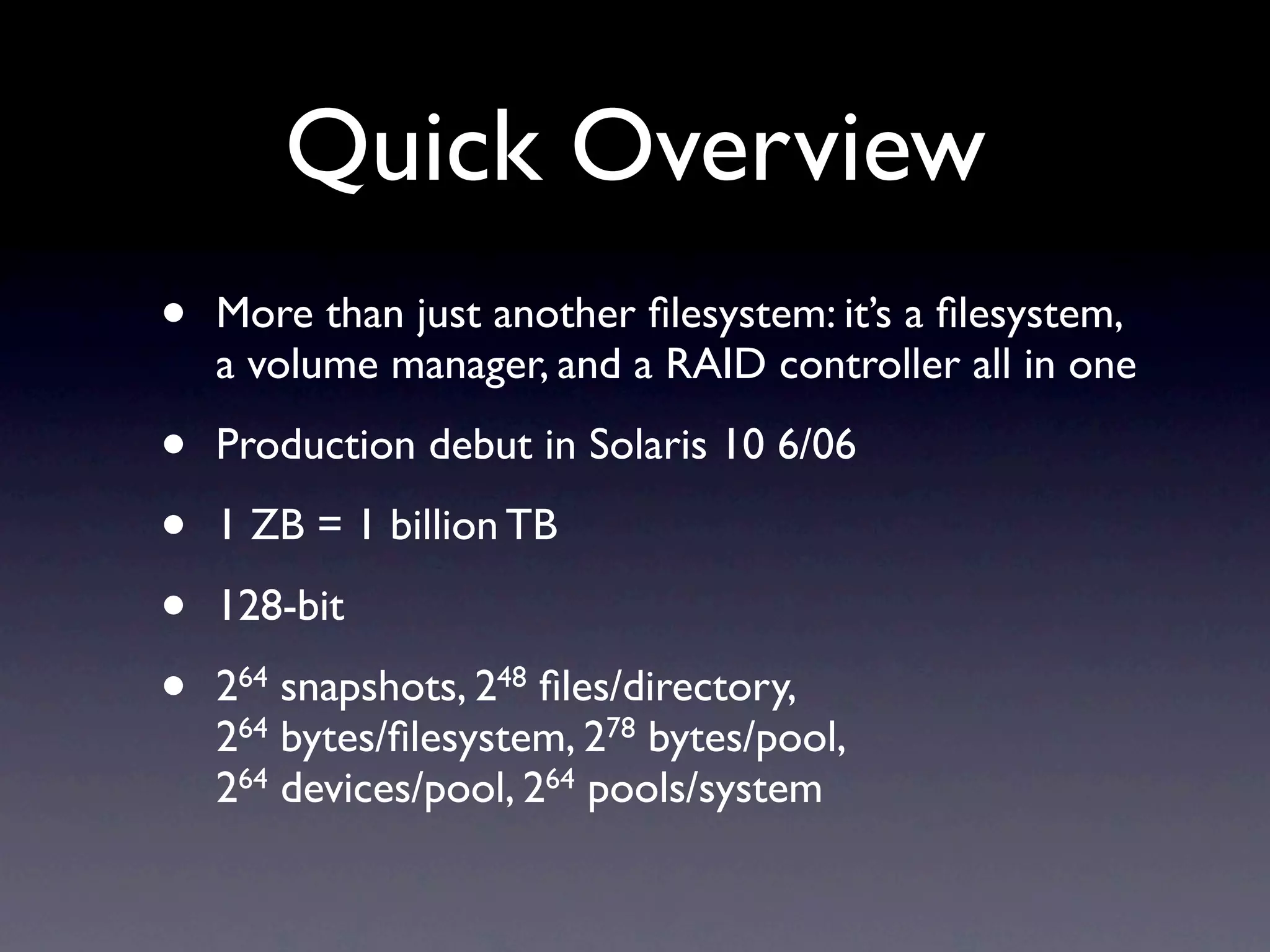

Quick Overview
•   More than just another filesystem: it’s a filesystem,
    a volume manager, and a RAID controller all in one

•   Production debut in Solaris 10 6/06

•   1 ZB = 1 billion TB

•   128-bit

•   264 snapshots, 248 files/directory,
    264 bytes/filesystem, 278 bytes/pool,
    264 devices/pool, 264 pools/system
Old & Busted
Traditional storage stack:
  filesystem(upper): filename to object (inode)
  filesystem(lower): object to volume LBA
  volume manager: volume LBA to array LBA
  RAID controller: array LBA to disk LBA

• Strict separation between layers
• Each layer often comes from separate vendors
• Complex, difficult to administer, hard to predict
 performance of a particular combination
New Hotness
•   Telescoped stack:
        ZPL: filename to object
        DMU: object to DVA
        SPA: DVA to disk LBA
•   Terms:

    •   ZPL: ZFS POSIX layer (standard syscall interface)

    •   DMU: Data Management Unit (transactional object store)

    •   DVA: Data Virtual Address (vdev + offset)

    •   SPA: Storage Pool Allocator (block allocation, data
        transformation)
New Hotness

•   No more separate tools to manage filesystems vs.
    volumes vs. RAID arrays
    •   2 commands: zpool(1M), zfs(1M) (RFE exists to combine these)

•   Pooled storage means never getting stuck with too
    much or too little space in your filesystems

•   Can expose block devices as well; “zvol” blocks
    map directly to DVAs
ZFS Advantages
•   Fast
    •   copy-on-write, pipelined I/O, dynamic striping,
        variable block size, intelligent resilvering


•   Simple management

•   End-to-end data integrity, self-healing
    •   Checksum everything, all the time

•   Built-in goodies
    •   block transforms

    •   snapshots

    •   NFS, CIFS, iSCSI sharing

    •   Platform-neutral on-disk format
Getting Down to Brass Tacks



 How does ZFS achieve these feats?
ZFS I/O Life Cycle
                       Writes
1. Translated to object transactions by the ZPL:
   “Make these 5 changes to these 2 objects.”
2. Transactions bundled in DMU into transaction
   groups (TXGs) that flush when full (1/8 of system
   memory) or at regular intervals (30 seconds)
3. Blocks making up a TXG are transformed (if
   necessary), scheduled and then issued to physical
   media in the SPA
ZFS I/O Life Cycle
                 Synchronous Writes
•   ZFS maintains a per-filesystem log called the ZFS
    Intent Log (ZIL). Each transaction gets a log
    sequence number.
•   When a synchronous command, such as fsync(), is
    issued, the ZIL commits blocks up to the current
    sequence number. This is a blocking operation.
•   The ZIL commits all necessary operations and
    flushes any write caches that may be enabled,
    ensuring that all bits have been committed to stable
    storage.
ZFS I/O Life Cycle
                          Reads
•   ZFS makes heavy use of caching and prefetching
•   If requested blocks are not cached, issue a
    prioritized I/O that “cuts the line” ahead of pending
    writes
•   Writes are intelligently throttled to maintain
    acceptable read performance
•   ARC (Adaptive Replacement Cache) tracks recently
    and frequently used blocks in main memory
•   L2 ARC uses durable storage to extend the ARC
Speed Is Life
•   Copy-on-write design means random writes can
    be made sequential

•   Pipelined I/O extracts maximum parallelism with
    out-of-order issue, sorting and aggregation

•   Dynamic striping across all underlying devices
    eliminates hot-spots

•   Variable block size = no wasted space or effort

•   Intelligent resilvering copies only live data, can do
    partial rebuild for transient outages
Copy-On-Write




   Initial block tree
Copy-On-Write




New blocks represent changes
 Never modifies existing data
Copy-On-Write




 Indirect blocks also change
Copy-On-Write




Atomically update uberblock to point at updated blocks
          The uberblock is special in that it does get overwritten, but 4
          copies are stored as part of the vdev label and are updated in
          transactional pairs. Therefore, integrity on disk is maintained.
Pipelined I/O
  Reorders writes to be as sequential as possible

App #1 writes:
App #2 writes:
Pipelined I/O
  Reorders writes to be as sequential as possible

App #1 writes:
App #2 writes:

If left in original order, we
waste a lot of time waiting
    for head and platter
          positioning:
Pipelined I/O
       Reorders writes to be as sequential as possible

App #1 writes:
App #2 writes:

If left in original order, we
waste a lot of time waiting
    for head and platter
          positioning:
Move
head
Pipelined I/O
       Reorders writes to be as sequential as possible

App #1 writes:
App #2 writes:

If left in original order, we
waste a lot of time waiting
    for head and platter
          positioning:
Move     Spin
head     wait
Pipelined I/O
       Reorders writes to be as sequential as possible

App #1 writes:
App #2 writes:

If left in original order, we
waste a lot of time waiting
    for head and platter
          positioning:
Move     Spin   Move
head     wait   head
Pipelined I/O
       Reorders writes to be as sequential as possible

App #1 writes:
App #2 writes:

If left in original order, we
waste a lot of time waiting
    for head and platter
          positioning:
Move     Spin   Move   Move
head     wait   head   head
Pipelined I/O
       Reorders writes to be as sequential as possible

App #1 writes:
App #2 writes:

If left in original order, we
waste a lot of time waiting
    for head and platter
          positioning:
Move     Spin   Move   Move   Move
head     wait   head   head   head
Pipelined I/O
       Reorders writes to be as sequential as possible

App #1 writes:
App #2 writes:

If left in original order, we
waste a lot of time waiting
    for head and platter
          positioning:
Move     Spin   Move   Move   Move
head     wait   head   head   head
Pipelined I/O
  Reorders writes to be as sequential as possible

App #1 writes:
App #2 writes:

Pipelining lets us examine
  writes as a group and
     optimize order:
Pipelined I/O
  Reorders writes to be as sequential as possible

App #1 writes:
App #2 writes:

Pipelining lets us examine
  writes as a group and
     optimize order:
    Move
    head
Pipelined I/O
  Reorders writes to be as sequential as possible

App #1 writes:
App #2 writes:

Pipelining lets us examine
  writes as a group and
     optimize order:
    Move    Move
    head    head
Dynamic Striping
• Load distribution across top-level vdevs
• Factors determining block allocation
  include:
  •   Capacity

  •   Latency & bandwidth

  •   Device health
Dynamic Striping
                                      New data striped across three mirrors.
Writes striped across both mirrors.   No migration of existing data.
                                      Copy-on-write reallocates data over time,
Reads occur wherever data was         gradually spreading it across all three mirrors.
written.
                                      * RFE for “on-demand” resilvering to explicitly re-balance




                                                                                              +
     # zpool create tank
                                                    # zpool add tank
     mirror c1t0d0 c1t1d0
                                                    mirror c3t0d0 c3t1d0
     mirror c2t0d0 c2t1d0
Variable Block Size
•   No single value works well with all types of files
    •   Large blocks increase bandwidth but reduce metadata and can lead to
        wasted space

    •   Small blocks save space for smaller files, but increase I/O operations on
        larger ones

    •   Record-based files such as those used by databases have a fixed block
        size that must be matched by the filesystem to avoid extra overhead
        (blocks too small) or read-modify-write (blocks too large)
Variable Block Size
•   The DMU operates on units of a fixed record size;
    default is 128KB

•   Files that are less than the record size are written as
    a single filesystem block (FSB) of variable size in
    multiples of disk sectors (512B)

•   Files that are larger than the record size are stored
    in multiple FSBs equal to record size

•   DMU records are assembled into transaction groups
    and committed atomically
Variable Block Size

•   FSBs are the basic unit of ZFS datasets, of which
    checksums are maintained

•   Handled by the SPA, which can optionally transform
    them (compression, ditto blocks today; encryption,
    de-dupe in the future)

•   Compression improves I/O performance, as fewer
    operations are needed on the underlying disk
Intelligent Resilver
•   a.k.a. rebuild, resync, reconstruct

•   Traditional resilvering is basically a whole-disk copy
    in the mirror case; RAID-5 does XOR of the other
    disks to rebuild

    •   No priority given to more important blocks
        (top of the tree)

    •   If you’ve copied 99% of the blocks, but the last
        1% contains the top few blocks in the tree,
        another failure ruins everything
Intelligent Resilver
•   The ZFS way is metadata-driven

•   Live blocks only: just walk the block tree;
    unallocated blocks are ignored

•   Top-down: Start with the most important blocks.
    Every block copied increases the amount of
    discoverable data.

•   Transactional pruning: If the failure is transient,
    repair by identifying the missed TXGs. Resilver
    time is only slightly longer than the outage time.
Keep It Simple
•   Unified management model: pools and datasets

•   Datasets are just a group of tagged bits with
    certain attributes: filesystems, volumes, snapshots,
    clones

•   Properties can be set while the dataset is active

•   Hierarchical arrangement: children inherit
    properties of parent

•   Datasets become administration points-- give
    every user or application their own filesystem
Keep It Simple

•   Datasets only occupy as much space as they need

•   Compression, quotas and reservations are built-in
    properties

•   Pools may be grown dynamically without service
    interruption
Data Integrity
• Not enough to be fast and simple; must be
  safe too
• Silent corruption is our mortal enemy
  •   Defects can occur anywhere: disks, firmware, cables, kernel drivers

  •   Main memory has ECC; why shouldn’t storage have something similar?


• Other types of corruption are also killers:
  •   Power outages, accidental overwrite, use a disk as swap
Data Integrity
  Traditional Method:
 Disk Block Checksum




                cksum
         data
Data Integrity
                     Traditional Method:
                    Disk Block Checksum




                                       cksum
                                data



Only detects problems after data is successfully written (“bit rot”)
Data Integrity
                     Traditional Method:
                    Disk Block Checksum




                                       cksum
                                data



Only detects problems after data is successfully written (“bit rot”)

  Won’t catch silent corruption caused by issues in the I/O path
                      between disk and host
Data Integrity
                        The ZFS Way
                               •   Store data checksum in parent block
                                   pointer
                ptr
                cksum          •   Isolates faults between checksum and
                                   data

       ptr                     •   Forms a hash tree, enabling validation of
       cksum
                                   the entire pool

                               •   256-bit checksums

                               •   fletcher2 (default, simple and fast) or
data            data               SHA-256 (slower, more secure)

                               •   Can be validated at any time with
                                   ‘zpool scrub’
Data Integrity
         App


         ZFS




  data         data
Data Integrity
         App


         ZFS
  data




  data         data
Data Integrity
         App


         ZFS
               data




  data         data
Data Integrity
         App
               data


         ZFS




  data         data
Data Integrity
         App
               data


         ZFS




  data         data
Data Integrity
          App
                data


          ZFS




   data         data




  Self-healing mirror!
Goodie Bag

• Block Transforms
• Snapshots & Clones
• Sharing (NFS, CIFS, iSCSI)
• Platform-neutral on-disk format
Block Transforms
•   Handled at SPA layer, transparent to upper layers
•   Available today:
    • Compression
        •   zfs set compression=on tank/myfs
        •   LZJB (default) or GZIP
        •   Multi-threaded as of snv_79

    •   Duplication, a.k.a. “ditto blocks”
        •   zfs set copies=N tank/myfs
        •   In addition to mirroring/RAID-Z: One logical block = up to 3
            physical blocks
        •   Metadata always has 2+ copies, even without ditto blocks
        •   Copies stored on different devices, or different places on same
            device

•   Future: de-duplication, encryption
Snapshots & Clones
•   zfs snapshot tank/myfs@thursday

•   Based on block birth time, stored in block pointer

•   Nearly instantaneous (<1 sec) on idle system

•   Communicates structure, since it is based on
    object changes, not just a block delta

•   Occupies negligible space initially, and only grows
    as large as the block changeset

•   Clone is just a read/write snapshot
Sharing
•   NFSv4
    •   zfs set sharenfs=on tank/myfs
    •   Automatically updates /etc/dfs/sharetab


•   CIFS
    •   zfs set sharesmb=on tank/myfs
    •   Additional properties control the share name and workgroup
    •   Supports full NT ACLs and user mapping, not just POSIX uid


•   iSCSI
    •   zfs set shareiscsi=on tank/myvol
    •   Makes sharing block devices as easy as sharing filesystems
On-Disk Format
• Platform-neutral, adaptive endianness
  •   Writes always use native endianness, recorded in a bit in the block
      pointer

  •   Reads byteswap if necessary, based on comparison of host endianness to
      value of block pointer bit


• Migrate between x86 and SPARC
  •   No worries about device paths, fstab, mountpoints, it all just works

  •   ‘zpool export’ on old host, move disks, ‘zpool import’ on new host

  •   Also migrate between Solaris and non-Sun implementations, such as
      MacOS X and FreeBSD
Fin
Further reading:
ZFS Community:

http://opensolaris.org/os/community/zfs

ZFS Administration Guide:

http://docs.sun.com/app/docs/doc/819-5461

Jeff Bonwick’s blog:

http://blogs.sun.com/bonwick/en_US/category/ZFS

ZFS-related blog entries:

http://blogs.sun.com/main/tags/zfs

More Related Content

What's hot

binary log と 2PC と Group Commit
binary log と 2PC と Group Commitbinary log と 2PC と Group Commit
binary log と 2PC と Group Commit
Takanori Sejima

[Oracle DBA & Developer Day 2016] しばちょう先生の特別講義!!ストレージ管理のベストプラクティス ~ASMからExada...
[Oracle DBA & Developer Day 2016] しばちょう先生の特別講義!!ストレージ管理のベストプラクティス ~ASMからExada...[Oracle DBA & Developer Day 2016] しばちょう先生の特別講義!!ストレージ管理のベストプラクティス ~ASMからExada...
[Oracle DBA & Developer Day 2016] しばちょう先生の特別講義!!ストレージ管理のベストプラクティス ~ASMからExada...
オラクルエンジニア通信

New Generation Oracle RAC Performance
New Generation Oracle RAC PerformanceNew Generation Oracle RAC Performance
New Generation Oracle RAC Performance
Anil Nair

[오픈소스컨설팅] Red Hat ReaR (relax and-recover) Quick Guide
[오픈소스컨설팅] Red Hat ReaR (relax and-recover) Quick Guide[오픈소스컨설팅] Red Hat ReaR (relax and-recover) Quick Guide
[오픈소스컨설팅] Red Hat ReaR (relax and-recover) Quick Guide
Ji-Woong Choi

Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...
Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...
Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...
Sandesh Rao

Tanel Poder - Scripts and Tools short
Tanel Poder - Scripts and Tools shortTanel Poder - Scripts and Tools short
Tanel Poder - Scripts and Tools short
Tanel Poder

MyRocks Deep Dive
MyRocks Deep DiveMyRocks Deep Dive
MyRocks Deep Dive
Yoshinori Matsunobu

Oracle statistics by example
Oracle statistics by exampleOracle statistics by example
Oracle statistics by example
Mauro Pagano

Oracle Database Management Basic 1
Oracle Database Management Basic 1Oracle Database Management Basic 1
Oracle Database Management Basic 1
Chien Chung Shen

Oracle RAC features on Exadata
Oracle RAC features on ExadataOracle RAC features on Exadata
Oracle RAC features on Exadata
Anil Nair

Linux tuning to improve PostgreSQL performance
Linux tuning to improve PostgreSQL performanceLinux tuning to improve PostgreSQL performance
Linux tuning to improve PostgreSQL performance
PostgreSQL-Consulting

PostgreSQL Performance Tuning
PostgreSQL Performance TuningPostgreSQL Performance Tuning
PostgreSQL Performance Tuning
elliando dias

High Availability for OpenStack
High Availability for OpenStackHigh Availability for OpenStack
High Availability for OpenStack
Kamesh Pemmaraju

CEPH DAY BERLIN - MASTERING CEPH OPERATIONS: UPMAP AND THE MGR BALANCER
CEPH DAY BERLIN - MASTERING CEPH OPERATIONS: UPMAP AND THE MGR BALANCERCEPH DAY BERLIN - MASTERING CEPH OPERATIONS: UPMAP AND THE MGR BALANCER
CEPH DAY BERLIN - MASTERING CEPH OPERATIONS: UPMAP AND THE MGR BALANCER
Ceph Community

PostgreSQL Extensions: A deeper look
PostgreSQL Extensions:  A deeper lookPostgreSQL Extensions:  A deeper look
PostgreSQL Extensions: A deeper look
Jignesh Shah

Disk health prediction for Ceph
Disk health prediction for CephDisk health prediction for Ceph
Disk health prediction for Ceph
Ceph Community

MySQL NDB Cluster 101
MySQL NDB Cluster 101MySQL NDB Cluster 101
MySQL NDB Cluster 101
Bernd Ocklin

Ceph RBD Update - June 2021
Ceph RBD Update - June 2021Ceph RBD Update - June 2021
Ceph RBD Update - June 2021
Ceph Community

HBase replication
HBase replicationHBase replication
HBase replication
wchevreuil

Ceph Tech Talk -- Ceph Benchmarking Tool
Ceph Tech Talk -- Ceph Benchmarking ToolCeph Tech Talk -- Ceph Benchmarking Tool
Ceph Tech Talk -- Ceph Benchmarking Tool
Ceph Community


What's hot (20)

binary log と 2PC と Group Commit
binary log と 2PC と Group Commitbinary log と 2PC と Group Commit
binary log と 2PC と Group Commit

[Oracle DBA & Developer Day 2016] しばちょう先生の特別講義!!ストレージ管理のベストプラクティス ~ASMからExada...
[Oracle DBA & Developer Day 2016] しばちょう先生の特別講義!!ストレージ管理のベストプラクティス ~ASMからExada...[Oracle DBA & Developer Day 2016] しばちょう先生の特別講義!!ストレージ管理のベストプラクティス ~ASMからExada...
[Oracle DBA & Developer Day 2016] しばちょう先生の特別講義!!ストレージ管理のベストプラクティス ~ASMからExada...

New Generation Oracle RAC Performance
New Generation Oracle RAC PerformanceNew Generation Oracle RAC Performance
New Generation Oracle RAC Performance

[오픈소스컨설팅] Red Hat ReaR (relax and-recover) Quick Guide
[오픈소스컨설팅] Red Hat ReaR (relax and-recover) Quick Guide[오픈소스컨설팅] Red Hat ReaR (relax and-recover) Quick Guide
[오픈소스컨설팅] Red Hat ReaR (relax and-recover) Quick Guide

Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...
Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...
Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...

Tanel Poder - Scripts and Tools short
Tanel Poder - Scripts and Tools shortTanel Poder - Scripts and Tools short
Tanel Poder - Scripts and Tools short

MyRocks Deep Dive
MyRocks Deep DiveMyRocks Deep Dive
MyRocks Deep Dive

Oracle statistics by example
Oracle statistics by exampleOracle statistics by example
Oracle statistics by example

Oracle Database Management Basic 1
Oracle Database Management Basic 1Oracle Database Management Basic 1
Oracle Database Management Basic 1

Oracle RAC features on Exadata
Oracle RAC features on ExadataOracle RAC features on Exadata
Oracle RAC features on Exadata

Linux tuning to improve PostgreSQL performance
Linux tuning to improve PostgreSQL performanceLinux tuning to improve PostgreSQL performance
Linux tuning to improve PostgreSQL performance

PostgreSQL Performance Tuning
PostgreSQL Performance TuningPostgreSQL Performance Tuning
PostgreSQL Performance Tuning

High Availability for OpenStack
High Availability for OpenStackHigh Availability for OpenStack
High Availability for OpenStack

CEPH DAY BERLIN - MASTERING CEPH OPERATIONS: UPMAP AND THE MGR BALANCER
CEPH DAY BERLIN - MASTERING CEPH OPERATIONS: UPMAP AND THE MGR BALANCERCEPH DAY BERLIN - MASTERING CEPH OPERATIONS: UPMAP AND THE MGR BALANCER
CEPH DAY BERLIN - MASTERING CEPH OPERATIONS: UPMAP AND THE MGR BALANCER

PostgreSQL Extensions: A deeper look
PostgreSQL Extensions:  A deeper lookPostgreSQL Extensions:  A deeper look
PostgreSQL Extensions: A deeper look

Disk health prediction for Ceph
Disk health prediction for CephDisk health prediction for Ceph
Disk health prediction for Ceph

MySQL NDB Cluster 101
MySQL NDB Cluster 101MySQL NDB Cluster 101
MySQL NDB Cluster 101

Ceph RBD Update - June 2021
Ceph RBD Update - June 2021Ceph RBD Update - June 2021
Ceph RBD Update - June 2021

HBase replication
HBase replicationHBase replication
HBase replication

Ceph Tech Talk -- Ceph Benchmarking Tool
Ceph Tech Talk -- Ceph Benchmarking ToolCeph Tech Talk -- Ceph Benchmarking Tool
Ceph Tech Talk -- Ceph Benchmarking Tool


Viewers also liked

Les Nouveaux Enjeux de la Prescription Musicale par Music-Story @ Radio 2.0 P...
Les Nouveaux Enjeux de la Prescription Musicale par Music-Story @ Radio 2.0 P...Les Nouveaux Enjeux de la Prescription Musicale par Music-Story @ Radio 2.0 P...
Les Nouveaux Enjeux de la Prescription Musicale par Music-Story @ Radio 2.0 P...
ACTUONDA

Biologia: Teorías de la evolución celular
Biologia: Teorías de la evolución celularBiologia: Teorías de la evolución celular
Biologia: Teorías de la evolución celular
Gabriela Martínez Escoto

Building Storage on the Cheap
Building Storage on the CheapBuilding Storage on the Cheap
Building Storage on the Cheap
Yao Jun Yap

ZFS Tutorial LISA 2011
ZFS Tutorial LISA 2011ZFS Tutorial LISA 2011
ZFS Tutorial LISA 2011
Richard Elling

PROYECTO DE ACUERDO COMUNAS EN TUNJA
PROYECTO DE ACUERDO COMUNAS EN TUNJAPROYECTO DE ACUERDO COMUNAS EN TUNJA
PROYECTO DE ACUERDO COMUNAS EN TUNJA
Pedro Hernandez

Respuesta derecho de petición Alcaldia de Tunja
Respuesta derecho de petición Alcaldia de Tunja Respuesta derecho de petición Alcaldia de Tunja
Respuesta derecho de petición Alcaldia de Tunja
Pedro Hernandez


Viewers also liked (7)

Les Nouveaux Enjeux de la Prescription Musicale par Music-Story @ Radio 2.0 P...
Les Nouveaux Enjeux de la Prescription Musicale par Music-Story @ Radio 2.0 P...Les Nouveaux Enjeux de la Prescription Musicale par Music-Story @ Radio 2.0 P...
Les Nouveaux Enjeux de la Prescription Musicale par Music-Story @ Radio 2.0 P...

Biologia: Teorías de la evolución celular
Biologia: Teorías de la evolución celularBiologia: Teorías de la evolución celular
Biologia: Teorías de la evolución celular

Building Storage on the Cheap
Building Storage on the CheapBuilding Storage on the Cheap
Building Storage on the Cheap

ZFS Tutorial LISA 2011
ZFS Tutorial LISA 2011ZFS Tutorial LISA 2011
ZFS Tutorial LISA 2011

PROYECTO DE ACUERDO COMUNAS EN TUNJA
PROYECTO DE ACUERDO COMUNAS EN TUNJAPROYECTO DE ACUERDO COMUNAS EN TUNJA
PROYECTO DE ACUERDO COMUNAS EN TUNJA

Documento soporte
Documento soporteDocumento soporte
Documento soporte

Respuesta derecho de petición Alcaldia de Tunja
Respuesta derecho de petición Alcaldia de Tunja Respuesta derecho de petición Alcaldia de Tunja
Respuesta derecho de petición Alcaldia de Tunja


Similar to Zfs Nuts And Bolts

data_management_and _data_science_cheat_sheet.pdf
data_management_and _data_science_cheat_sheet.pdfdata_management_and _data_science_cheat_sheet.pdf
data_management_and _data_science_cheat_sheet.pdf
JiananWang21

os
osos
Deep Dive on the Amazon Aurora MySQL-compatible Edition - DAT301 - re:Invent ...
Deep Dive on the Amazon Aurora MySQL-compatible Edition - DAT301 - re:Invent ...Deep Dive on the Amazon Aurora MySQL-compatible Edition - DAT301 - re:Invent ...
Deep Dive on the Amazon Aurora MySQL-compatible Edition - DAT301 - re:Invent ...
Amazon Web Services

9 DevOps Tips for Going in Production with Galera Cluster for MySQL - Slides
9 DevOps Tips for Going in Production with Galera Cluster for MySQL - Slides9 DevOps Tips for Going in Production with Galera Cluster for MySQL - Slides
9 DevOps Tips for Going in Production with Galera Cluster for MySQL - Slides
Severalnines

Storage and performance- Batch processing, Whiptail
Storage and performance- Batch processing, WhiptailStorage and performance- Batch processing, Whiptail
Storage and performance- Batch processing, Whiptail
Internet World

z/VM 6.3 - Mudanças de Comportamento do hypervisor para suporte de partições ...
z/VM 6.3 - Mudanças de Comportamento do hypervisor para suporte de partições ...z/VM 6.3 - Mudanças de Comportamento do hypervisor para suporte de partições ...
z/VM 6.3 - Mudanças de Comportamento do hypervisor para suporte de partições ...
Joao Galdino Mello de Souza

ZFS
ZFSZFS
Development to Production with Sharded MongoDB Clusters
Development to Production with Sharded MongoDB ClustersDevelopment to Production with Sharded MongoDB Clusters
Development to Production with Sharded MongoDB Clusters
Severalnines

Introduction to debugging linux applications
Introduction to debugging linux applicationsIntroduction to debugging linux applications
Introduction to debugging linux applications
commiebstrd

The Smug Mug Tale
The Smug Mug TaleThe Smug Mug Tale
The Smug Mug Tale
MySQLConference

Hug Hbase Presentation.
Hug Hbase Presentation.Hug Hbase Presentation.
Hug Hbase Presentation.
Jack Levin

DatEngConf SF16 - Apache Kudu: Fast Analytics on Fast Data
DatEngConf SF16 - Apache Kudu: Fast Analytics on Fast DataDatEngConf SF16 - Apache Kudu: Fast Analytics on Fast Data
DatEngConf SF16 - Apache Kudu: Fast Analytics on Fast Data
Hakka Labs

CS 542 Putting it all together -- Storage Management
CS 542 Putting it all together -- Storage ManagementCS 542 Putting it all together -- Storage Management
CS 542 Putting it all together -- Storage Management
J Singh

vSphere vStorage: Troubleshooting Performance
vSphere vStorage: Troubleshooting PerformancevSphere vStorage: Troubleshooting Performance
vSphere vStorage: Troubleshooting Performance
ProfessionalVMware

Deep Dive on Amazon Aurora
Deep Dive on Amazon AuroraDeep Dive on Amazon Aurora
Deep Dive on Amazon Aurora
Amazon Web Services

VMworld 2013: Just Because You Could, Doesn't Mean You Should: Lessons Learne...
VMworld 2013: Just Because You Could, Doesn't Mean You Should: Lessons Learne...VMworld 2013: Just Because You Could, Doesn't Mean You Should: Lessons Learne...
VMworld 2013: Just Because You Could, Doesn't Mean You Should: Lessons Learne...
VMworld

Key Challenges in Cloud Computing and How Yahoo! is Approaching Them
Key Challenges in Cloud Computing and How Yahoo! is Approaching ThemKey Challenges in Cloud Computing and How Yahoo! is Approaching Them
Key Challenges in Cloud Computing and How Yahoo! is Approaching Them
Yahoo Developer Network

Ceph on All Flash Storage -- Breaking Performance Barriers
Ceph on All Flash Storage -- Breaking Performance BarriersCeph on All Flash Storage -- Breaking Performance Barriers
Ceph on All Flash Storage -- Breaking Performance Barriers
Ceph Community

Introducing HerdDB - a distributed JVM embeddable database built upon Apache ...
Introducing HerdDB - a distributed JVM embeddable database built upon Apache ...Introducing HerdDB - a distributed JVM embeddable database built upon Apache ...
Introducing HerdDB - a distributed JVM embeddable database built upon Apache ...
StreamNative

Mysql talk
Mysql talkMysql talk
Mysql talk
LogicMonitor


Similar to Zfs Nuts And Bolts (20)

data_management_and _data_science_cheat_sheet.pdf
data_management_and _data_science_cheat_sheet.pdfdata_management_and _data_science_cheat_sheet.pdf
data_management_and _data_science_cheat_sheet.pdf

os
osos
os

Deep Dive on the Amazon Aurora MySQL-compatible Edition - DAT301 - re:Invent ...
Deep Dive on the Amazon Aurora MySQL-compatible Edition - DAT301 - re:Invent ...Deep Dive on the Amazon Aurora MySQL-compatible Edition - DAT301 - re:Invent ...
Deep Dive on the Amazon Aurora MySQL-compatible Edition - DAT301 - re:Invent ...

9 DevOps Tips for Going in Production with Galera Cluster for MySQL - Slides
9 DevOps Tips for Going in Production with Galera Cluster for MySQL - Slides9 DevOps Tips for Going in Production with Galera Cluster for MySQL - Slides
9 DevOps Tips for Going in Production with Galera Cluster for MySQL - Slides

Storage and performance- Batch processing, Whiptail
Storage and performance- Batch processing, WhiptailStorage and performance- Batch processing, Whiptail
Storage and performance- Batch processing, Whiptail

z/VM 6.3 - Mudanças de Comportamento do hypervisor para suporte de partições ...
z/VM 6.3 - Mudanças de Comportamento do hypervisor para suporte de partições ...z/VM 6.3 - Mudanças de Comportamento do hypervisor para suporte de partições ...
z/VM 6.3 - Mudanças de Comportamento do hypervisor para suporte de partições ...

ZFS
ZFSZFS
ZFS

Development to Production with Sharded MongoDB Clusters
Development to Production with Sharded MongoDB ClustersDevelopment to Production with Sharded MongoDB Clusters
Development to Production with Sharded MongoDB Clusters

Introduction to debugging linux applications
Introduction to debugging linux applicationsIntroduction to debugging linux applications
Introduction to debugging linux applications

The Smug Mug Tale
The Smug Mug TaleThe Smug Mug Tale
The Smug Mug Tale

Hug Hbase Presentation.
Hug Hbase Presentation.Hug Hbase Presentation.
Hug Hbase Presentation.

DatEngConf SF16 - Apache Kudu: Fast Analytics on Fast Data
DatEngConf SF16 - Apache Kudu: Fast Analytics on Fast DataDatEngConf SF16 - Apache Kudu: Fast Analytics on Fast Data
DatEngConf SF16 - Apache Kudu: Fast Analytics on Fast Data

CS 542 Putting it all together -- Storage Management
CS 542 Putting it all together -- Storage ManagementCS 542 Putting it all together -- Storage Management
CS 542 Putting it all together -- Storage Management

vSphere vStorage: Troubleshooting Performance
vSphere vStorage: Troubleshooting PerformancevSphere vStorage: Troubleshooting Performance
vSphere vStorage: Troubleshooting Performance

Deep Dive on Amazon Aurora
Deep Dive on Amazon AuroraDeep Dive on Amazon Aurora
Deep Dive on Amazon Aurora

VMworld 2013: Just Because You Could, Doesn't Mean You Should: Lessons Learne...
VMworld 2013: Just Because You Could, Doesn't Mean You Should: Lessons Learne...VMworld 2013: Just Because You Could, Doesn't Mean You Should: Lessons Learne...
VMworld 2013: Just Because You Could, Doesn't Mean You Should: Lessons Learne...

Key Challenges in Cloud Computing and How Yahoo! is Approaching Them
Key Challenges in Cloud Computing and How Yahoo! is Approaching ThemKey Challenges in Cloud Computing and How Yahoo! is Approaching Them
Key Challenges in Cloud Computing and How Yahoo! is Approaching Them

Ceph on All Flash Storage -- Breaking Performance Barriers
Ceph on All Flash Storage -- Breaking Performance BarriersCeph on All Flash Storage -- Breaking Performance Barriers
Ceph on All Flash Storage -- Breaking Performance Barriers

Introducing HerdDB - a distributed JVM embeddable database built upon Apache ...
Introducing HerdDB - a distributed JVM embeddable database built upon Apache ...Introducing HerdDB - a distributed JVM embeddable database built upon Apache ...
Introducing HerdDB - a distributed JVM embeddable database built upon Apache ...

Mysql talk
Mysql talkMysql talk
Mysql talk


Recently uploaded

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
Neo4j

Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...
chetankumar9855

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
maigasapphire

WPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide DeckWPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide Deck
Lidia A.

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
Priyanka Aash

DealBook of Ukraine: 2024 edition
DealBook of Ukraine: 2024 editionDealBook of Ukraine: 2024 edition
DealBook of Ukraine: 2024 edition
Yevgen Sysoyev

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
Kief Morris

How to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdfHow to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdf
ChristopherTHyatt

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
SynapseIndia

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc

ARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdf
ARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdfARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdf
ARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdf
Inglês no Mundo Digital

Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdfAcumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
BrainSell Technologies

The Role of Technology in Payroll Statutory Compliance (1).pdf
The Role of Technology in Payroll Statutory Compliance (1).pdfThe Role of Technology in Payroll Statutory Compliance (1).pdf
The Role of Technology in Payroll Statutory Compliance (1).pdf
paysquare consultancy

Password Rotation in 2024 is still Relevant
Password Rotation in 2024 is still RelevantPassword Rotation in 2024 is still Relevant
Password Rotation in 2024 is still Relevant
Bert Blevins

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide
Shiv Technolabs

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
SynapseIndia

How RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptxHow RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptx
SynapseIndia

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
ArgaBisma

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Mydbops

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Torry Harris


Recently uploaded (20)

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf

Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...

WPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide DeckWPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide Deck

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf

DealBook of Ukraine: 2024 edition
DealBook of Ukraine: 2024 editionDealBook of Ukraine: 2024 edition
DealBook of Ukraine: 2024 edition

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf

How to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdfHow to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdf

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In

ARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdf
ARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdfARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdf
ARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdf

Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdfAcumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf

The Role of Technology in Payroll Statutory Compliance (1).pdf
The Role of Technology in Payroll Statutory Compliance (1).pdfThe Role of Technology in Payroll Statutory Compliance (1).pdf
The Role of Technology in Payroll Statutory Compliance (1).pdf

Password Rotation in 2024 is still Relevant
Password Rotation in 2024 is still RelevantPassword Rotation in 2024 is still Relevant
Password Rotation in 2024 is still Relevant

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx

How RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptxHow RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptx

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...


Zfs Nuts And Bolts

  • 1. ZFS Nuts and Bolts Eric Sproul OmniTI Computer Consulting
  • 2. Quick Overview • More than just another filesystem: it’s a filesystem, a volume manager, and a RAID controller all in one • Production debut in Solaris 10 6/06 • 1 ZB = 1 billion TB • 128-bit • 264 snapshots, 248 files/directory, 264 bytes/filesystem, 278 bytes/pool, 264 devices/pool, 264 pools/system
  • 3. Old & Busted Traditional storage stack: filesystem(upper): filename to object (inode) filesystem(lower): object to volume LBA volume manager: volume LBA to array LBA RAID controller: array LBA to disk LBA • Strict separation between layers • Each layer often comes from separate vendors • Complex, difficult to administer, hard to predict performance of a particular combination
  • 4. New Hotness • Telescoped stack: ZPL: filename to object DMU: object to DVA SPA: DVA to disk LBA • Terms: • ZPL: ZFS POSIX layer (standard syscall interface) • DMU: Data Management Unit (transactional object store) • DVA: Data Virtual Address (vdev + offset) • SPA: Storage Pool Allocator (block allocation, data transformation)
  • 5. New Hotness • No more separate tools to manage filesystems vs. volumes vs. RAID arrays • 2 commands: zpool(1M), zfs(1M) (RFE exists to combine these) • Pooled storage means never getting stuck with too much or too little space in your filesystems • Can expose block devices as well; “zvol” blocks map directly to DVAs
  • 6. ZFS Advantages • Fast • copy-on-write, pipelined I/O, dynamic striping, variable block size, intelligent resilvering • Simple management • End-to-end data integrity, self-healing • Checksum everything, all the time • Built-in goodies • block transforms • snapshots • NFS, CIFS, iSCSI sharing • Platform-neutral on-disk format
  • 7. Getting Down to Brass Tacks How does ZFS achieve these feats?
  • 8. ZFS I/O Life Cycle Writes 1. Translated to object transactions by the ZPL: “Make these 5 changes to these 2 objects.” 2. Transactions bundled in DMU into transaction groups (TXGs) that flush when full (1/8 of system memory) or at regular intervals (30 seconds) 3. Blocks making up a TXG are transformed (if necessary), scheduled and then issued to physical media in the SPA
  • 9. ZFS I/O Life Cycle Synchronous Writes • ZFS maintains a per-filesystem log called the ZFS Intent Log (ZIL). Each transaction gets a log sequence number. • When a synchronous command, such as fsync(), is issued, the ZIL commits blocks up to the current sequence number. This is a blocking operation. • The ZIL commits all necessary operations and flushes any write caches that may be enabled, ensuring that all bits have been committed to stable storage.
  • 10. ZFS I/O Life Cycle Reads • ZFS makes heavy use of caching and prefetching • If requested blocks are not cached, issue a prioritized I/O that “cuts the line” ahead of pending writes • Writes are intelligently throttled to maintain acceptable read performance • ARC (Adaptive Replacement Cache) tracks recently and frequently used blocks in main memory • L2 ARC uses durable storage to extend the ARC
  • 11. Speed Is Life • Copy-on-write design means random writes can be made sequential • Pipelined I/O extracts maximum parallelism with out-of-order issue, sorting and aggregation • Dynamic striping across all underlying devices eliminates hot-spots • Variable block size = no wasted space or effort • Intelligent resilvering copies only live data, can do partial rebuild for transient outages
  • 12. Copy-On-Write Initial block tree
  • 13. Copy-On-Write New blocks represent changes Never modifies existing data
  • 15. Copy-On-Write Atomically update uberblock to point at updated blocks The uberblock is special in that it does get overwritten, but 4 copies are stored as part of the vdev label and are updated in transactional pairs. Therefore, integrity on disk is maintained.
  • 16. Pipelined I/O Reorders writes to be as sequential as possible App #1 writes: App #2 writes:
  • 17. Pipelined I/O Reorders writes to be as sequential as possible App #1 writes: App #2 writes: If left in original order, we waste a lot of time waiting for head and platter positioning:
  • 18. Pipelined I/O Reorders writes to be as sequential as possible App #1 writes: App #2 writes: If left in original order, we waste a lot of time waiting for head and platter positioning: Move head
  • 19. Pipelined I/O Reorders writes to be as sequential as possible App #1 writes: App #2 writes: If left in original order, we waste a lot of time waiting for head and platter positioning: Move Spin head wait
  • 20. Pipelined I/O Reorders writes to be as sequential as possible App #1 writes: App #2 writes: If left in original order, we waste a lot of time waiting for head and platter positioning: Move Spin Move head wait head
  • 21. Pipelined I/O Reorders writes to be as sequential as possible App #1 writes: App #2 writes: If left in original order, we waste a lot of time waiting for head and platter positioning: Move Spin Move Move head wait head head
  • 22. Pipelined I/O Reorders writes to be as sequential as possible App #1 writes: App #2 writes: If left in original order, we waste a lot of time waiting for head and platter positioning: Move Spin Move Move Move head wait head head head
  • 23. Pipelined I/O Reorders writes to be as sequential as possible App #1 writes: App #2 writes: If left in original order, we waste a lot of time waiting for head and platter positioning: Move Spin Move Move Move head wait head head head
  • 24. Pipelined I/O Reorders writes to be as sequential as possible App #1 writes: App #2 writes: Pipelining lets us examine writes as a group and optimize order:
  • 25. Pipelined I/O Reorders writes to be as sequential as possible App #1 writes: App #2 writes: Pipelining lets us examine writes as a group and optimize order: Move head
  • 26. Pipelined I/O Reorders writes to be as sequential as possible App #1 writes: App #2 writes: Pipelining lets us examine writes as a group and optimize order: Move Move head head
  • 27. Dynamic Striping • Load distribution across top-level vdevs • Factors determining block allocation include: • Capacity • Latency & bandwidth • Device health
  • 28. Dynamic Striping New data striped across three mirrors. Writes striped across both mirrors. No migration of existing data. Copy-on-write reallocates data over time, Reads occur wherever data was gradually spreading it across all three mirrors. written. * RFE for “on-demand” resilvering to explicitly re-balance + # zpool create tank # zpool add tank mirror c1t0d0 c1t1d0 mirror c3t0d0 c3t1d0 mirror c2t0d0 c2t1d0
  • 29. Variable Block Size • No single value works well with all types of files • Large blocks increase bandwidth but reduce metadata and can lead to wasted space • Small blocks save space for smaller files, but increase I/O operations on larger ones • Record-based files such as those used by databases have a fixed block size that must be matched by the filesystem to avoid extra overhead (blocks too small) or read-modify-write (blocks too large)
  • 30. Variable Block Size • The DMU operates on units of a fixed record size; default is 128KB • Files that are less than the record size are written as a single filesystem block (FSB) of variable size in multiples of disk sectors (512B) • Files that are larger than the record size are stored in multiple FSBs equal to record size • DMU records are assembled into transaction groups and committed atomically
  • 31. Variable Block Size • FSBs are the basic unit of ZFS datasets, of which checksums are maintained • Handled by the SPA, which can optionally transform them (compression, ditto blocks today; encryption, de-dupe in the future) • Compression improves I/O performance, as fewer operations are needed on the underlying disk
  • 32. Intelligent Resilver • a.k.a. rebuild, resync, reconstruct • Traditional resilvering is basically a whole-disk copy in the mirror case; RAID-5 does XOR of the other disks to rebuild • No priority given to more important blocks (top of the tree) • If you’ve copied 99% of the blocks, but the last 1% contains the top few blocks in the tree, another failure ruins everything
  • 33. Intelligent Resilver • The ZFS way is metadata-driven • Live blocks only: just walk the block tree; unallocated blocks are ignored • Top-down: Start with the most important blocks. Every block copied increases the amount of discoverable data. • Transactional pruning: If the failure is transient, repair by identifying the missed TXGs. Resilver time is only slightly longer than the outage time.
  • 34. Keep It Simple • Unified management model: pools and datasets • Datasets are just a group of tagged bits with certain attributes: filesystems, volumes, snapshots, clones • Properties can be set while the dataset is active • Hierarchical arrangement: children inherit properties of parent • Datasets become administration points-- give every user or application their own filesystem
  • 35. Keep It Simple • Datasets only occupy as much space as they need • Compression, quotas and reservations are built-in properties • Pools may be grown dynamically without service interruption
  • 36. Data Integrity • Not enough to be fast and simple; must be safe too • Silent corruption is our mortal enemy • Defects can occur anywhere: disks, firmware, cables, kernel drivers • Main memory has ECC; why shouldn’t storage have something similar? • Other types of corruption are also killers: • Power outages, accidental overwrite, use a disk as swap
  • 37. Data Integrity Traditional Method: Disk Block Checksum cksum data
  • 38. Data Integrity Traditional Method: Disk Block Checksum cksum data Only detects problems after data is successfully written (“bit rot”)
  • 39. Data Integrity Traditional Method: Disk Block Checksum cksum data Only detects problems after data is successfully written (“bit rot”) Won’t catch silent corruption caused by issues in the I/O path between disk and host
  • 40. Data Integrity The ZFS Way • Store data checksum in parent block pointer ptr cksum • Isolates faults between checksum and data ptr • Forms a hash tree, enabling validation of cksum the entire pool • 256-bit checksums • fletcher2 (default, simple and fast) or data data SHA-256 (slower, more secure) • Can be validated at any time with ‘zpool scrub’
  • 41. Data Integrity App ZFS data data
  • 42. Data Integrity App ZFS data data data
  • 43. Data Integrity App ZFS data data data
  • 44. Data Integrity App data ZFS data data
  • 45. Data Integrity App data ZFS data data
  • 46. Data Integrity App data ZFS data data Self-healing mirror!
  • 47. Goodie Bag • Block Transforms • Snapshots & Clones • Sharing (NFS, CIFS, iSCSI) • Platform-neutral on-disk format
  • 48. Block Transforms • Handled at SPA layer, transparent to upper layers • Available today: • Compression • zfs set compression=on tank/myfs • LZJB (default) or GZIP • Multi-threaded as of snv_79 • Duplication, a.k.a. “ditto blocks” • zfs set copies=N tank/myfs • In addition to mirroring/RAID-Z: One logical block = up to 3 physical blocks • Metadata always has 2+ copies, even without ditto blocks • Copies stored on different devices, or different places on same device • Future: de-duplication, encryption
  • 49. Snapshots & Clones • zfs snapshot tank/myfs@thursday • Based on block birth time, stored in block pointer • Nearly instantaneous (<1 sec) on idle system • Communicates structure, since it is based on object changes, not just a block delta • Occupies negligible space initially, and only grows as large as the block changeset • Clone is just a read/write snapshot
  • 50. Sharing • NFSv4 • zfs set sharenfs=on tank/myfs • Automatically updates /etc/dfs/sharetab • CIFS • zfs set sharesmb=on tank/myfs • Additional properties control the share name and workgroup • Supports full NT ACLs and user mapping, not just POSIX uid • iSCSI • zfs set shareiscsi=on tank/myvol • Makes sharing block devices as easy as sharing filesystems
  • 51. On-Disk Format • Platform-neutral, adaptive endianness • Writes always use native endianness, recorded in a bit in the block pointer • Reads byteswap if necessary, based on comparison of host endianness to value of block pointer bit • Migrate between x86 and SPARC • No worries about device paths, fstab, mountpoints, it all just works • ‘zpool export’ on old host, move disks, ‘zpool import’ on new host • Also migrate between Solaris and non-Sun implementations, such as MacOS X and FreeBSD
  • 52. Fin Further reading: ZFS Community: http://opensolaris.org/os/community/zfs ZFS Administration Guide: http://docs.sun.com/app/docs/doc/819-5461 Jeff Bonwick’s blog: http://blogs.sun.com/bonwick/en_US/category/ZFS ZFS-related blog entries: http://blogs.sun.com/main/tags/zfs

Editor's Notes
