2. Managing ECS hosts with AWS lambda and step
functions

3. Terraform at Comtravo

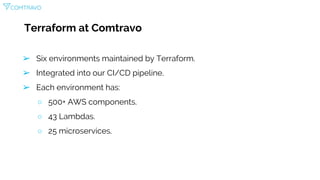

4. Terraform at Comtravo
➢ Six environments maintained by Terraform.
➢ Integrated into our CI/CD pipeline.
➢ Each environment has:
○ 500+ AWS components.
○ 43 Lambdas.
○ 25 microservices.

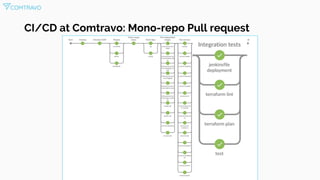

5. CI/CD at Comtravo: Mono-repo Pull request

6. CI/CD at Comtravo: Mono-repo Pull request

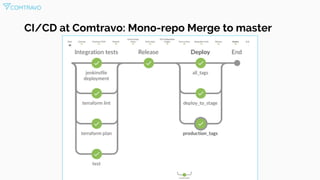

7. CI/CD at Comtravo: Mono-repo Merge to master

8. CI/CD at Comtravo: Mono-repo Merge to master

9. ECS at Comtravo

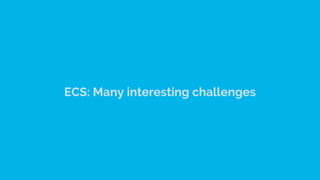

10. ECS: Many interesting challenges

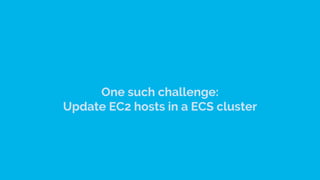

11. One such challenge:
Update EC2 hosts in a ECS cluster

12. Update EC2 hosts in a ECS cluster: Use cases
➢ You have a custom AMI for your ECS cluster(s).
➢ You want to always rollout the latest ECS-optimized AMIs.
➢ You want to rotate the admin keys.
➢ Change Instance type.
➢ Use an updated user_data script.

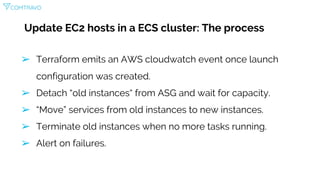

13. Update EC2 hosts in a ECS cluster: The process
➢ Terraform emits an AWS cloudwatch event once launch
configuration was created.
➢ Detach “old instances“ from ASG and wait for capacity.
➢ “Move” services from old instances to new instances.
➢ Terminate old instances when no more tasks running.
➢ Alert on failures.

14. Terraform + AWS Events + AWS Step functions =
Awesome
I created a new
launch configuration
lc-1234 for ASG
asg-1234 belonging
to ECS cluster
cluster-A

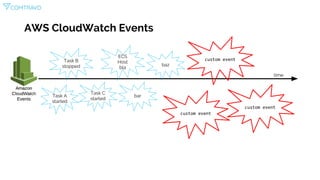

15. AWS CloudWatch Events
time
Task A
started
bar
Task C
started
Task B
stopped
ECS
Host
bla
baz
custom event
custom event
custom event

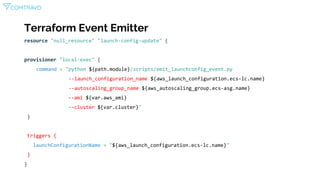

16. Terraform Event Emitter
resource "null_resource" "launch-config-update" {
provisioner "local-exec" {
command = "python ${path.module}/scripts/emit_launchconfig_event.py
--launch_configuration_name ${aws_launch_configuration.ecs-lc.name}
--autoscaling_group_name ${aws_autoscaling_group.ecs-asg.name}
--ami ${var.aws_ami}
--cluster ${var.cluster}"
}
triggers {
launchConfigurationName = "${aws_launch_configuration.ecs-lc.name}"
}
}

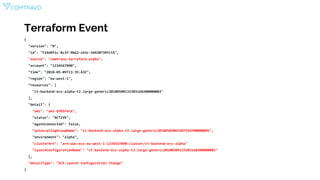

17. Terraform Event
{
"version": "0",
"id": "f24d8f1c-8c3f-9b62-cb3c-54430739fc55",
"source": "comtravo.terraform.alpha",
"account": "1234567890",
"time": "2018-05-09T13:35:43Z",
"region": "eu-west-1",
"resources": [
"ct-backend-ecs-alpha-t2.large-generic20180509133303168200000003"
],
"detail": {
"ami": "ami-bfb5fec6",
"status": "ACTIVE",
"agentConnected": false,
"autoscalingGroupName": "ct-backend-ecs-alpha-t2.large-generic20180503065507554700000005",
"environment": "alpha",
"clusterArn": "arn:aws:ecs:eu-west-1:1234567890:cluster/ct-backend-ecs-alpha"
"launchConfigurationName": "ct-backend-ecs-alpha-t2.large-generic20180509133303168200000003"
},
"detailType": "ECS Launch Configuration Change"
}

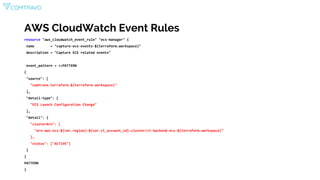

18. AWS CloudWatch Event Rules
resource "aws_cloudwatch_event_rule" "ecs-manager" {
name = "capture-ecs-events-${terraform.workspace}"
description = "Capture ECS related events"
event_pattern = <<PATTERN
{
"source": [
"comtravo.terraform.${terraform.workspace}"
],
"detail-type": [
"ECS Launch Configuration Change"
],
"detail": {
"clusterArn": [
"arn:aws:ecs:${var.region}:${var.ct_account_id}:cluster/ct-backend-ecs-${terraform.workspace}"
],
"status": ["ACTIVE"]
}
}
PATTERN
}

19. AWS Step functions

20. DEMO

22. Questions

23. You all have been awesome!!!

24. Extras

25. ECS Challenge #1
ECS AGENT DISCONNECTS

26. #1 ECS agent disconnects - Initial solution
➢ Cron job on ECS hosts to notify via SNS event and restart
ECS agent.
➢ Chances of ECS agent failing again due to some inherent
problem within the instance are high.

27. #1 ECS agent disconnects - Initial solution

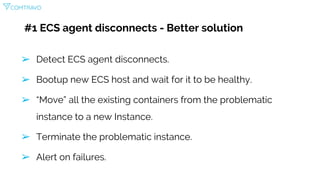

28. #1 ECS agent disconnects - Better solution
➢ Detect ECS agent disconnects.
➢ Bootup new ECS host and wait for it to be healthy.
➢ “Move” all the existing containers from the problematic
instance to a new Instance.
➢ Terminate the problematic instance.
➢ Alert on failures.

29. #1 ECS agent disconnects - Better solution

30. #1 ECS agent disconnects: Detection
How do we detect ECS agent disconnects?
AWS Cloudwatch EVENTS to the
rescue!!!

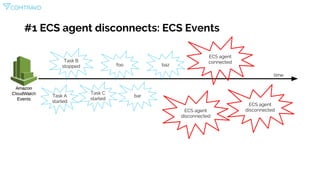

31. #1 ECS agent disconnects: ECS Events
time
Task A
started
bar
Task C
started
Task B
stopped foo baz
ECS agent
disconnected
ECS agent
connected
ECS agent
disconnected

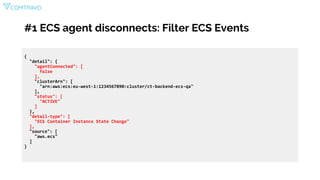

32. #1 ECS agent disconnects: Filter ECS Events
{
"detail": {
"agentConnected": [
false
],
"clusterArn": [
"arn:aws:ecs:eu-west-1:1234567890:cluster/ct-backend-ecs-qa"
],
"status": [
"ACTIVE"
]
},
"detail-type": [
"ECS Container Instance State Change"
],
"source": [
"aws.ecs"
]
}

33. #1 ECS agent disconnects: Trigger step function

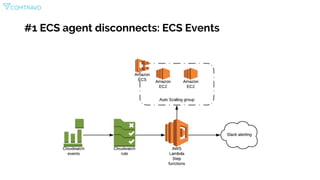

34. #1 ECS agent disconnects: ECS Events
