Dover Energy Automation's Sight Optimization Package offers advanced monitoring and security for well sites, reducing costs and enhancing safety with continuous surveillance and incident notifications. It features a modular smart camera with various imaging capabilities and integrates with the XSPoC SCADA system for real-time audio/video streaming and diagnostics. Thermal radiometry and automated alarms further optimize production and maintenance of critical assets.

1. Dover Energy Automation’s Sight Optimization Package Benefits
• Provides continuous monitoring, reducing travel and time
on the well site
• Saves money and increases safety
• Provides 24/7 security, discouraging theft and vandalism
• Monitors well sites and notifies operators when vehicle or
people are on location
• Provides environmental security by detecting and verifying
leaks and spills
• Captures video of events detected by field devices
• Verifies that remote commands, such as turning off pump
jacks or opening valves, were received
• Decreases event response time to minimize negative impacts

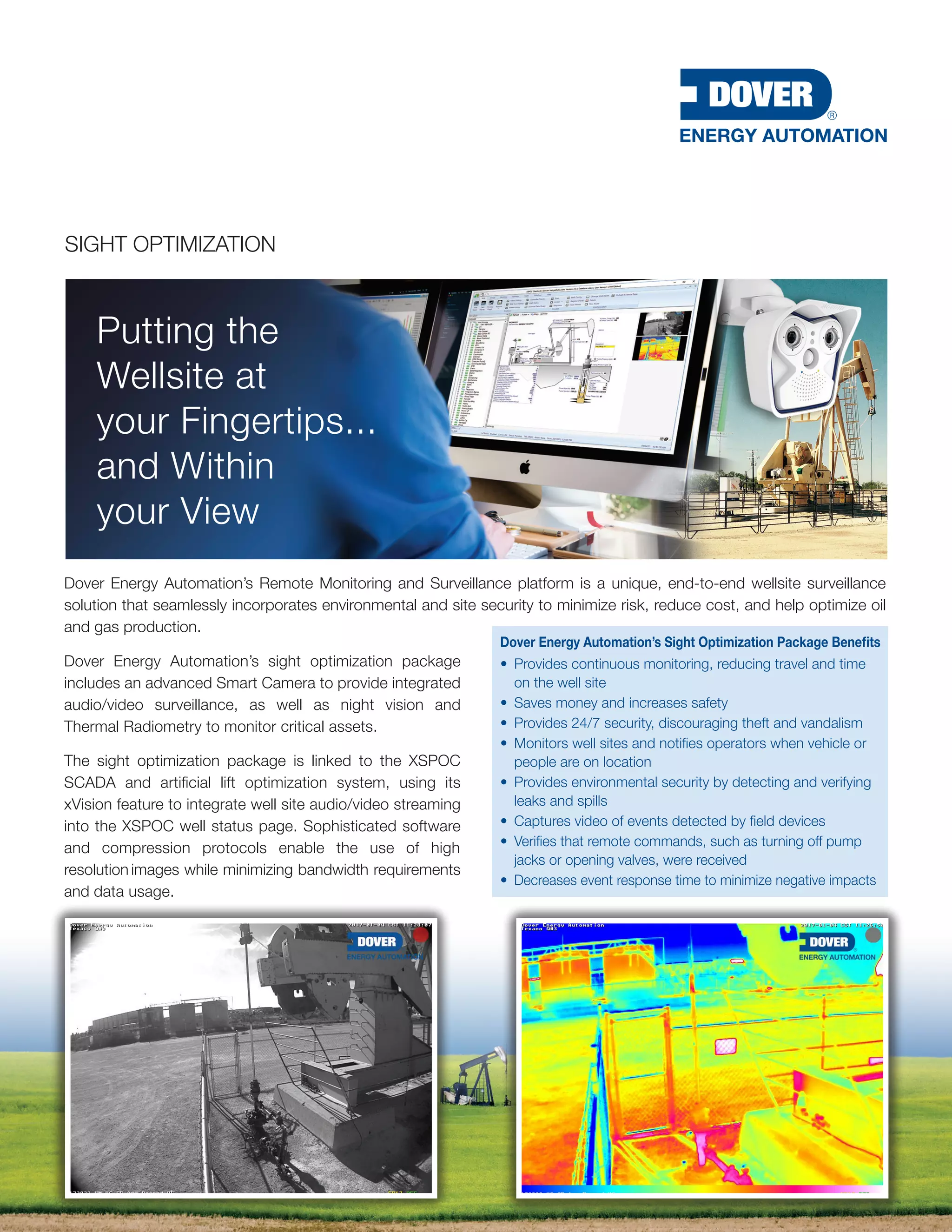

SIGHT OPTIMIZATION
ENERGY AUTOMATION
Putting the
Wellsite at
your Fingertips...
and Within
your View
Dover Energy Automation’s Remote Monitoring and Surveillance platform is a unique, end-to-end wellsite surveillance
solution that seamlessly incorporates environmental and site security to minimize risk, reduce cost, and help optimize oil
and gas production.
Dover Energy Automation’s sight optimization package
includes an advanced Smart Camera to provide integrated
audio/video surveillance, as well as night vision and
Thermal Radiometry to monitor critical assets.
The sight optimization package is linked to the XSPOC
SCADA and artificial lift optimization system, using its
xVision feature to integrate well site audio/video streaming
into the XSPOC well status page. Sophisticated software
and compression protocols enable the use of high
resolution images while minimizing bandwidth requirements
and data usage.

2. KEY FEATURES OF THE SMART CAMERA
• Modular and Weather proof (IP66)
• No moving parts, MTBF > 9 years
• Extremely low power < 6 watts
• Single or dual 6MP (3072 x 2048) sensor modules
• Day, moonlight and Thermal Radiometry images
• Advanced motion detection
• Advanced video compression
• Integrated Microphone and Speaker
SIGHT OPTIMIZATION
PRODUCTION OPTIMIZATION
SPIRIT | THETA | TIMBERLINE | WELLMARK | ICHEM
XSPOC with xVision
XSPOC is the industry leading SCADA and artificial lift
optimization system. At the heart of XSPOC is an advanced
artificial intelligence engine that provides expert diagnostics of
welloperationsinclearlanguage,alongwithrecommendations
to resolve issues that are discovered by the software. The
xVision feature integrates live wellsite audio/video streaming
right on the well status page. Multiple cameras can be
accessed through the xVision feature. Camera events such
as motion detection are stored and timestamped in the open
database along with other wellsite exceptions. Exception
processing and reporting significantly reduces the effort
required to find potentially costly operating problems.
Temperature Events
The Thermal Radiometry (TR) option can generate automatic
alarms, defined by temperature limits or temperature ranges.
In this way, unexpected situations can be analyzed remotely
to plan next steps. Critical assets like tank batteries, heater
treaters, or pumping unit motors can be cost-effectively
monitored and maintained remotely. The thermal dual camera
system offers a thermal overlay feature to localize hot spots
in the visual image.
Feb 2017.Rev 2
ENERGY AUTOMATION
xVision Powered by Mobotix
The modular Mobotix Camera can include advanced motion,
activity, temperature, audio and PIR sensors to capture, detect
and notify when meaningful events occur. In-camera data
storage reduces or eliminates the need for PC or DVR storage.
Optical lens and sensor modules can be combined as needed
on a single platform to build a camera that is ideally suited for the
location. The Mobotix Camera is maintenance-free and operates
in a wide temperature range without heaters, fans or enclosures.
THERMAL RADIOMETRY SENSOR
FEATURES INCLUDE:
• Thermal Resolution Equivalent to 0.05 °C,
range -40 to +550 °C
• Up to 20 different automatic Temperature Events
• Hot Spot Analysis with Thermal Image Overlay
• Motion Detection in complete darkness
www.doverautomation.com
Tlf: +1-888-547-4908
mail to: info@doverautomation.com
