The document discusses the XMOS XS1 chip, its XC programming language, and how they enable concurrent and parallel programming. The XS1 chip features multiple cores that run multithreaded using an event-driven model inspired by CSP. The XC language supports parallelism, communication between threads via channels, and other features mapped directly to hardware for efficiency. Examples demonstrate summing and dividing in parallel, a bounded buffer for asynchronous processes, and event-driven programming using select statements.

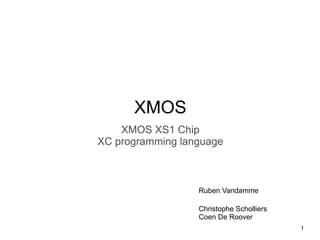

1. XMOS
XMOS XS1 Chip
XC programming language
Ruben Vandamme
Christophe Scholliers
Coen De Roover
1

2. Introduction
● XMOS XS1 chip
● multicore,
multithreaded chip
● event-driven
● similar to Transputer
● XC
● allows use of special
features of the chip
● based upon CSP
● C/C++ support
2

3. Multicore - multithreaded
● 4 XCores/CPUs
● Max 8 threads per
XCore
● ↔ java threads
● message passing
● preemptive scheduling
● Every XCore has I/O
● JTAG for debugging
3
Source: XMOS

4. Event driven
● Threads can subscribe to events
● a timer has past
● a button is pushed
● another thread wants to send data
● Supported in hardware
● no need for interrupts
● with extra event conditions
4

5. Concurrency support
● Par
par ● runs functions in
{
on stdcore[0] : function1(); parallel/interleaved (fork)
on stdcore[1] : function2();
}
... ● ends when all functions
have returned (join)
● assign a thread to a core
5

6. Communication between threads
void sender ( chanend output )
{
● Channels & chanends
output<:1;
} ● mapping by compiler
void receiver ( chanend input )
{
● two way
int i;
input:>i;
printf("%d",i);
● blocking
}
void main()
● Write to channel
{
chan channel; ● chanend <: value
par
{
sender(channel);
● Read from channel
receiver(channel);
}
return 0;
● chanend :> variable
}
● Printf()
● shows data in IDE 6

7. Channels in hardware
● Communication
● in a single XCore
● to another XCore
● to another XS chip
● Transparant but
increasing latency
7
Source: XMOS

8. Sum + Divide
● Pipeline
54321
● sum
f 5 : =3 divide
5 ●
321
f 3 : =2
3
init start sum calc divide end result
5 5+4..+1=15 15/5=3 3
8
Source: Parallel Processing (The Transputer and Occam), A. Carling

9. Sum + Divide (2)
void init(chanend outi){ init
outi <: 5;
}
outi
void sum(chanend ins, chanend outs){
int max, sum = 0;
ins:>max;
ins
for (int i = 0 ; i <= max ; i++)
sum+=i; divide
outs<:max;
outs<:sum;
} outs
void divide(chanend divi, chanend divo){
int average, sum, max; divi
divi:>max;
divi:>sum;
average = sum/max; sum
divo<:average;
}
divo
void result(chanend resi){
int result; resi
resi:>result;
printf("result: %d", result);
} result
9

10. Sum + Divide (3)
int main(void)
● Steps can concurrently
{
chan start, calc,
par
end; ● But communication is
{
on stdcore[0] : init(start);
blocking
on stdcore[1] : sum(start, calc);
on stdcore[2] : average(calc, end);
on stdcore[3] : result(end);
}
return 0;
}
10

11. Select statement
● ≠ switch statement
select ● all case predicates are evaluated
{
case a == 1 => input1 :> c:
...
● boolean guard => input resource
break;
case a == 2 => input2 :> c:
...
● Select an alternative if
break;
}
... ● Boolean guard evaluates to true
● Checks whether resource is ready,
but does not block
● Selection is non-deterministic
but fair
11

12. Bounded buffer
data data
buffer
producer consumer
more
● Asynchronous producer & consumer
● Bounded together with a buffer
● Used when producing rate ≠ consuming rate
12
Source: Communicating Sequential Processes, C.A.R Hoare

13. Bounded buffer (2)
● Timers
void producerprocess(chanend buffer){
for(int i = 0 ; i<= 15 ; i++){ ● wait until a specified time
buffer <: i;
}
printf("producing %dn", i); ● read the current time
}
void consumerprocess(chanend buffer){
timer tc;
● not reset
int i, t = CONSUMER_DELAY;
while(1){
● can be used in select to
tc when timerafter(t) :> void;
t += CONSUMER_DELAY; create a timeout
buffer <: 1; // more signal
buffer :> i;
printf("consuming %dn", i);
● supported in hardware
}
}
13

14. Bounded buffer (3)
void boundedbuffer(chanend producer, chanend consumer){
int moreSignal;
int buffer[12];
int inp = 0;
int outp = 0;
while(1){
select{
case inp < outp + 12 => producer :> buffer[inp % 12]:
inp++;
break;
case outp < inp => consumer :> moreSignal:
consumer <: buffer[outp % 12];
outp++;
break;
}
}
}
0 1 2 3 4 5 6 7 8 9 10 11
1 1 1 1
outp=3 inp=7
14

15. Bounded buffer (4)
int main(void){
chan producer, consumer;
par
{
on stdcore[0] : boundedbuffer( producer, consumer );
on stdcore[1] : consumerprocess( consumer);
on stdcore[2] : producerprocess( producer );
}
return 0;
}
15

16. Purpose
● Architecture designed for
● DSP
● audio, video
● networking
● Port Scheme
● allow usage of XC features via Scheme
● XMOS challenge
16

17. Questions ?
17
