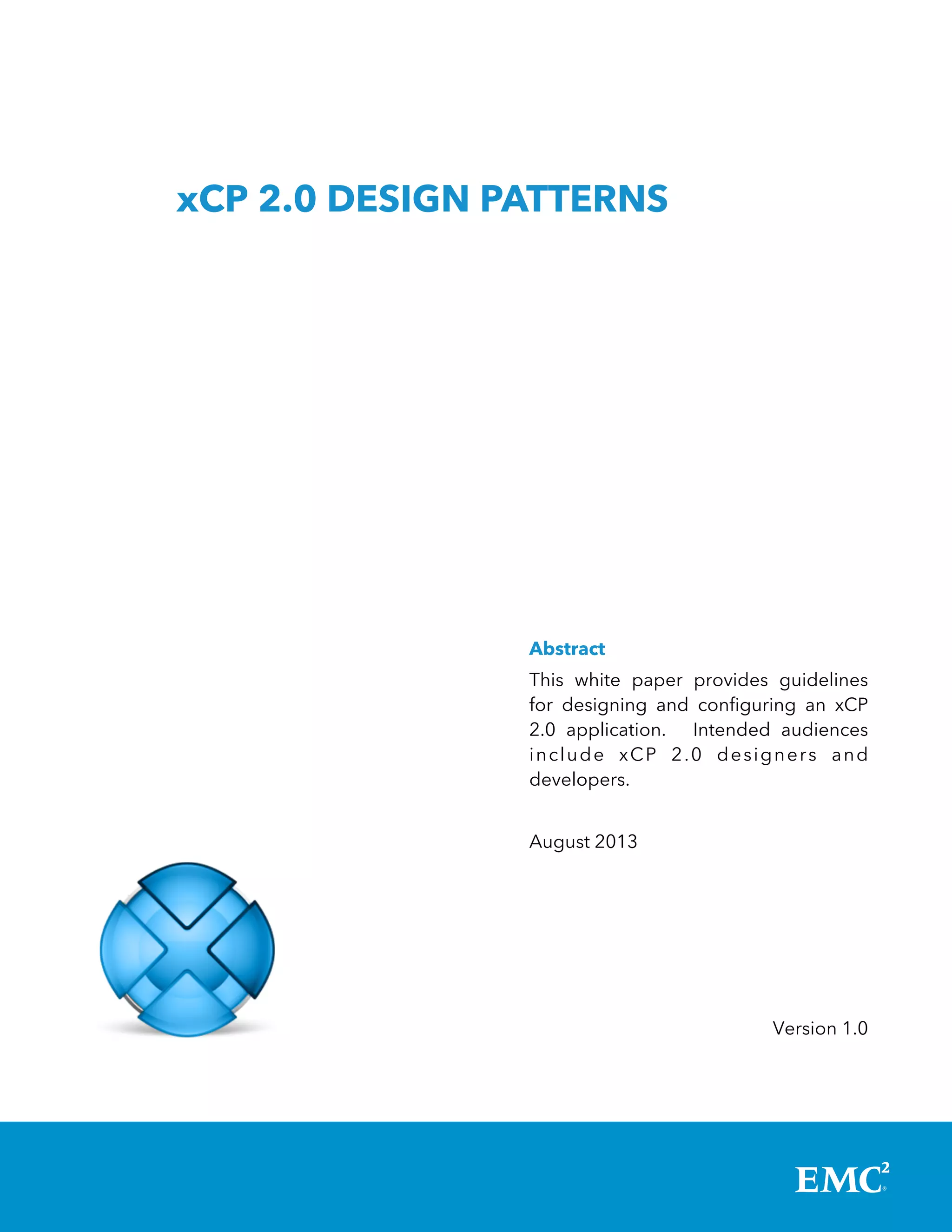

1. xCP 2.0 DESIGN PATTERNS
Abstract
This white paper provides guidelines
for designing and configuring an xCP
2.0 application. Intended audiences
include xCP 2.0 designers and
developers.
August 2013
Version 1.0

2. Copyright © 2013 EMC Corporation. All Rights Reserved.
EMC believes the information in this publication is accurate
as of its publication date. The information is subject to
change without notice.
The information in this publication is provided “as is.” EMC
Corporation makes no representations or warranties of any
kind with respect to the information in this publication, and
specifically disclaims implied warranties of merchantability
or fitness for a particular purpose.
Use, copying, and distribution of any EMC software
described in this publication requires an applicable software
license.
For the most up-to-date listing of EMC product names,
see EMC Corporation Trademarks on EMC.com.
xCP 2.0 Design Patterns
2

3. Table of Contents
Executive Summary ......................................................................................................4
Audience .......................................................................................................................4
Application Patterns .....................................................................................................5
Application and project configuration ...........................................................................5
Sharing projects vs libraries .............................................................................................9
Specializing an artifact from a library............................................................................10
Process Patterns .........................................................................................................11
Generic processes ..........................................................................................................11
Looping processes .........................................................................................................12
Accepting input from a page ........................................................................................14
Concatenating lists .........................................................................................................14
Inbound initiation of processes .....................................................................................15
Managing completion of task assigned to multiple users .........................................16
Waiting for process branches to complete .................................................................18
xCP 2.0 Design Patterns
3

4. Executive Summary
With the great flexibility that xCP 2.0 gives developers when configuring
applications comes the complexity of understanding the best approaches to take
when meeting business requirements.
In some cases there may only be a single design pattern that will meet a business
requirement, and in other cases there may be several valid patterns, but only one
that is expected to meet performance requirements.
The aim of this white paper is to provides guidelines for designing and
configuring an xCP 2.0 application to meet business requirements based on the
experience of EMC subject matter experts.
This version of the document focuses on the design and configuration of the
application model and business processes.
Audience
This white paper is intended for xCP 2.0 designers and developers.
xCP 2.0 Design Patterns
4

5. Application Patterns
An xCP 2.0 application can be configured using the idea of projects and libraries
to support the grouping of related artifacts into logical groups and the sharing
and reuse of those artifacts either as editable projects or read-only libraries.
When working with projects and libraries an application developer needs to be
aware of the requirements and restrictions related to the use of projects and
libraries, such as dependencies between them, to make best use of this feature.
Application and project configuration
Before an application developer begins to configure anything in an application, it
is best to plan whether there will be a need to share any of the artifacts across
applications as a project or library. If the developer can be certain that the
application will be completely self-contained then it is better not to use any subprojects because each project has an impact on speed of deployment from xCP
Designer.
If there is any likelihood that the developer will want to reuse any artifacts across
applications then they should plan the project model in advance (how many
projects and what dependencies will be needed between them). The reason for
this recommendation is that although the developer is able to move artifacts
from one project to another from Designer, the references to the artifact from
other artifacts (such as a real-time query that has a reference to its primary object
model) are not always updated. In this event the developer then has to manually
re-select the model again and reconfigure the query.
Once the developer decides that they do need to use projects in the application,
then next decision is how many are needed. The following diagram shows a
logical configuration that may be considered.

6. Application
Common Processes
Data Model
The Application is where the majority of artifacts are created (pages,
processes, action flows etc). It is set up to depend on both the
Common Processes and Data Model projects.
The Common Processes project contains ‘utility’ processes that will be
reused in other applications, such as a stateless process to return a
filtered list of usernames from the repository, or a generic case
creation process. It is set up to depend on the Data Model project,
because it will be creating instances of the case folder and case
document objects.
The Data Model project contains all the data model artifacts (Folders,
Content etc).
This configuration is reasonable, and will work so long as there is no need to use
a business event on an object type that initiates a process where that process has
a package defined of the object type, as shown in the diagram below.
Process
Event
Content
Object
Model
Package
This pattern cannot be created in the logical application and project model
because it would require a circular dependency between the Common Processes
and Data Model projects, and this is not allowed.
xCP 2.0 Design Patterns
6

7. Another possible logical configuration would be the following.
Application
Customer Artifacts
Claim Handling Artifacts
The Application is where top level components such as application
pages are created. It is set up to depend on both the Customer
Artifacts and Claim Handling Artifacts projects.
The Customer Artifacts project is where artifacts for customer related
features of the application are created, such as the business object for
the customer, the pages (create, view, edit) for the object, and any
processes that act on that object (setup, change of address etc).
The Claim Handling Artifacts project is where artifacts that relate to
claim handling features of the application are created, such as the
folder object for a case, the pages (view, edit) for the object, and any
processes that act on that object (claim creation, escalation, closure).
This projects is setup with a dependency on the Customer Artifacts
project.
The limitation with this approach is that when the developer wants to configure
that a customer can be related to a claim, the relationship cannot be modeled as
a two way relationship because circular dependencies are not allowed. The
developer can only define that a Claim object can relate to one or more
Customer objects.
Considering these restrictions, the simplest approach when needing to share
artifacts among applications is to create a single project within the first
application like this.
xCP 2.0 Design Patterns
7

8. Application
Shared Artifacts
The Application is where all user interface components are created
(application pages and instance pages). It is set up to depend on the
Shared Artifacts project.
The Shared Artifacts project is where everything else is created (object
models, process models, roles etc).
In this way, there are never any limitations with dependencies between artifacts,
while still allowing the developer to reuse the common artifacts between
applications.
One use of this approach is to build device specific variants of an application,
where the pages can be designed with the device form factor in mind in each
application and bound to a common set of object types and processes.
Desktop UI
Shared Artifacts
Tablet UI
Shared Artifacts
Phone UI
Shared Artifacts
xCP 2.0 Design Patterns
8

9. Another use of this approach is in building discrete application modules, such as
Document Functions and Case Functions which can then be exported as libraries
for use in the main application.
Document Functions
Case Functions
Shared Artifacts
Shared Artifacts
Correspondence Management
Shared Artifacts
Document Functions
Case Functions
In this case the application can contain pages used for testing the functionality of
the module, but these do not get included in the exported library containing the
module artifacts.
Sharing projects vs libraries
When exporting a project for reuse the developer has the option to export it as a
project or library. In most cases to prevent conflicting edits being made to
artifacts the use of libraries is the preferred approach.
In the example from the previous section however where a single developer is
building an application that requires three separate user interface designs
(desktop, tablet and phone), the use of a library to share the common artifacts
between the separate applications becomes very time consuming.
When building the tablet UI for example, if the developer decides that a change
is required to the object model then the developer has to
1. Open the application containing the shared artifacts project
2. Make the change
xCP 2.0 Design Patterns
9

10. 3. Export the project as a library
4. Reopen the application (tablet)
5. Remove the original version of the library
6. Add the new version of the library
An approach that the developer can take is to create the project in the first
application and import the project (not the library) into the subsequent
applications without importing a copy but a reference to the project.
Desktop UI
Tablet UI
Phone UI
Shared Artifacts
In this way a change can be made to the shared artifacts from any application
context. Changes that affect the other applications would still require that the
applications are opened and the problems fixed but this is a more efficient way of
working.
It is important when working like this that the applications all reference the same
source artifacts. If the applications each have their own copies of the project,
inconsistencies will occur between the applications, and deploying one will
deploy that applications instance of the artifacts overwriting what is already
deployed in the repository.
Specializing an artifact from a library
There are situations where a library from an application is being used but an
artifact from the library such as a business process needs to be specialized for the
new application context. In this situation the developer may need to use the
project instead of the library, but when the impact is minimal the developer can
simply right click the business process in Designer, choose Duplicate from the
context menu and enter a name for the new process. When duplicated the new
process model becomes editable and can be initiated from a page in the
application.
xCP 2.0 Design Patterns
10

11. Process Patterns
With xCP 2.0 business processes are not only used to manage business functions
that require user input, but to execute actions on objects in the repository in
response to defined business events and enrich user interface functionality. To
configure the most efficient and reliable application it is worth understanding
some of the design patterns that can be used in specific business scenarios.
Generic processes
When configuring an application that is required to handle many different case
types it is very easy to begin by focusing only on the requirements of the initial
case type. Once the data model and processes have been configured for the
first case type the developer then has to try to fit the next case type in to that
design. The result of this approach can be a design that is very hard to extend
and adapt for future case types, and in some instances can end up with too
complex or many duplicated business processes. Careful design of the object
model and the use of modular processes can help in this situation.
Setting up a hierarchical object model, where the common case metadata is
defined at the top level of the object model, allows the developer to add a more
generic case package to a business process. The result of this is that a single
business process is able to accept more that one case type for processing.
General Case
Reference
Account No
Loan Application Case
Loan Type
Loan Value
Account Action Case
Due Date
Action

12. With the object model for case types shown a process can have a package
defined of type General Case, which would allow an object of any of the subtypes
to be added to the process.
A generic business process can then be defined that takes a type of General
Case and assigns the next reference number based on the account type,
regardless of whether it is a type of loan (home, auto , etc.) or account action case
(change of address, updated signature, closure , etc.).
Where case type specific handling is required then the process can be broken up
into more generic and specialized components, where the process is defined
with the generic type for the case package, and each sub-process with a more
specific type for the case package.
Case Closure
(Loan Case)
Begin Case Closure
(General Case)
Case Closure
(Account Action
Case)
Finalise Case
Closure
(General Case)
Looping processes
There are many occasions when an application will need to apply processing to
one or more objects in the repository or an external system. Where a single DQL
query will not suffice it is necessary to set up a looping pattern in a business
process. The most efficient pattern is the one shown.
The list of items can be stored in process attachments, a repeating
process variable or a repeating attribute of a process package.
The first activity Count items uses the Count function in the Set Process
Data activity to count the number of items and saves the result in an
xCP 2.0 Design Patterns
12

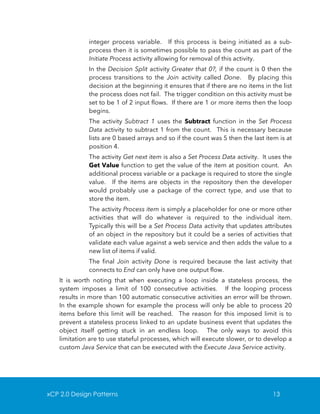

13. integer process variable. If this process is being initiated as a subprocess then it is sometimes possible to pass the count as part of the
Initiate Process activity allowing for removal of this activity.
In the Decision Split activity Greater that 0?, if the count is 0 then the
process transitions to the Join activity called Done. By placing this
decision at the beginning it ensures that if there are no items in the list
the process does not fail. The trigger condition on this activity must be
set to be 1 of 2 input flows. If there are 1 or more items then the loop
begins.
The activity Subtract 1 uses the Subtract function in the Set Process
Data activity to subtract 1 from the count. This is necessary because
lists are 0 based arrays and so if the count was 5 then the last item is at
position 4.
The activity Get next item is also a Set Process Data activity. It uses the
Get Value function to get the value of the item at position count. An
additional process variable or a package is required to store the single
value. If the items are objects in the repository then the developer
would probably use a package of the correct type, and use that to
store the item.
The activity Process item is simply a placeholder for one or more other
activities that will do whatever is required to the individual item.
Typically this will be a Set Process Data activity that updates attributes
of an object in the repository but it could be a series of activities that
validate each value against a web service and then adds the value to a
new list of items if valid.
The final Join activity Done is required because the last activity that
connects to End can only have one output flow.
It is worth noting that when executing a loop inside a stateless process, the
system imposes a limit of 100 consecutive activities. If the looping process
results in more than 100 automatic consecutive activities an error will be thrown.
In the example shown for example the process will only be able to process 20
items before this limit will be reached. The reason for this imposed limit is to
prevent a stateless process linked to an update business event that updates the
object itself getting stuck in an endless loop. The only ways to avoid this
limitation are to use stateful processes, which will execute slower, or to develop a
custom Java Service that can be executed with the Execute Java Service activity.
xCP 2.0 Design Patterns
13

14. Another requirement when looping like this is to pass back a single pass or fail
value for the set of items. There are many approaches the developer can take to
achieve this but when using the looping pattern above all that needs to be added
is a Boolean process variable to hold the outcome with a default value of true.
Inside the loop where the value is tested, the outcome variable is set to false
when the test fails and an extra condition is added in the decision split so that the
process ends when the count is 0 OR the outcome is false. In that way the
process does not have to test every item before returning whether the batch
passed or failed.
Accepting input from a page
One of the features of the Result List widget on a Page is the ability to let the user
select multiple items. Often the developer will need to initiate a business
process to act on those items when the user clicks a button on the page. To
process the list of items (without resorting to the use of an xCelerator) the
developer needs to understand that the list of items is passed into the data
service that initiates the process as a comma separated list of values and not an
array.
Knowing this, the simplest way to process the selected items from the results list
is to add an additional Set Process Data activity into the previous looping pattern
that uses the Split function to separate the comma separated list into a repeating
process variable. In the example below it is called Split items.
Concatenating lists
There are several ways to join a list of items together, but one of the easiest
approaches is to use the Copy function in a Set Process Data activity.
In the example below the output list is a repeating variable called object_formats
and the source is a collection of a_content_type values from a DQL query.
xCP 2.0 Design Patterns
14

15. Ensure that in the right hand side of the data mapping screen the index of the
output is set to LAST and in the Copy function the Input Context is set to All and
the Output Context is set to Over-write. This configuration will append a new
value onto the end of the list and overwrite the new (blank) value with the left
hand value for all values in the left hand side.
Inbound initiation of processes
When an inbound trigger is required in an application, such as the capturing of
an email or a file on an FTP server, there are numerous ways to configure the
business processes to handle the saving of the information. In most situations
the use of a stateless process is better because it is executed as a single
transaction in memory, hence it is fast. The limitation however of a stateless
process however is that none of the Start from... activities can be used. These can
only be used in a stateful process.
The most appropriate solution in this case is to use a stateful process that has a
single Start from... activity to capture the inbound information followed by a Start
process activity that initiates the main process which handles the process.
xCP 2.0 Design Patterns
15

16. As shown in this example the Join activity is required because the Initiate activity
must always be linked to something.
There are two benefits to this design pattern.
1. Most of the Start from... activities delete the information from the source.
Because the trigger process is stateful it will always be initiated and even
if the subsequent stateless process fails, the trigger process will simply be
paused but the information will be captured. Appropriate error handling
can be added to cater for a paused trigger process.
2. If the subsequent handling is intended to create more than one object in
the repository then using a stateless process ensures that the entire
transaction will fail and not leave some objects created and not others.
Managing completion of task assigned to multiple users
A useful process pattern is the assignment of a manual task to one or more users
in a group for action. When defining the performer of the task the developer can
assign the task to all users in the group, the user with the fewest tasks, or the user
who acquires the task first. When the task is assigned to all users in the group
this can lead to a delay in the business process if any single user does not
complete the task.
There are two common approaches to handling this kind of review. The first
involves the use of a timer to enforce that the task assigned to the group of users
will auto-complete within a defined period. An example use of this model would
be to grant the attendees of a meeting 48 hours to review and comment on the
meeting minutes followed by a review of the comments by the meeting
organizer, as shown below.
xCP 2.0 Design Patterns
16

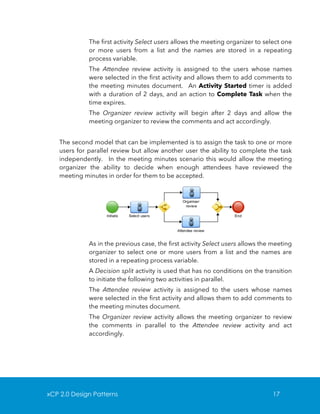

17. The first activity Select users allows the meeting organizer to select one
or more users from a list and the names are stored in a repeating
process variable.
The Attendee review activity is assigned to the users whose names
were selected in the first activity and allows them to add comments to
the meeting minutes document. An Activity Started timer is added
with a duration of 2 days, and an action to Complete Task when the
time expires.
The Organizer review activity will begin after 2 days and allow the
meeting organizer to review the comments and act accordingly.
The second model that can be implemented is to assign the task to one or more
users for parallel review but allow another user the ability to complete the task
independently. In the meeting minutes scenario this would allow the meeting
organizer the ability to decide when enough attendees have reviewed the
meeting minutes in order for them to be accepted.
As in the previous case, the first activity Select users allows the meeting
organizer to select one or more users from a list and the names are
stored in a repeating process variable.
A Decision split activity is used that has no conditions on the transition
to initiate the following two activities in parallel.
The Attendee review activity is assigned to the users whose names
were selected in the first activity and allows them to add comments to
the meeting minutes document.
The Organizer review activity allows the meeting organizer to review
the comments in parallel to the Attendee review activity and act
accordingly.
xCP 2.0 Design Patterns
17

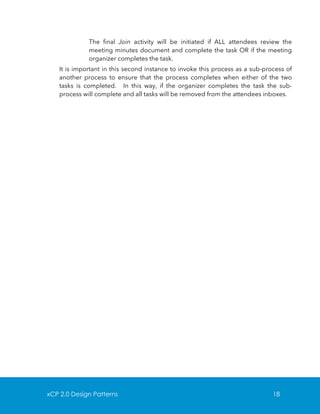

18. The final Join activity will be initiated if ALL attendees review the
meeting minutes document and complete the task OR if the meeting
organizer completes the task.
It is important in this second instance to invoke this process as a sub-process of
another process to ensure that the process completes when either of the two
tasks is completed. In this way, if the organizer completes the task the subprocess will complete and all tasks will be removed from the attendees inboxes.
xCP 2.0 Design Patterns
18
