This document discusses Oracle REST Data Services (ORDS) and how it can be used to expose database objects like tables, views, procedures, and functions through RESTful APIs. It provides examples of enabling different database objects as REST resources and configuring the exposed APIs. It also covers more advanced topics like parameter passing, result handling, authentication, and protecting resources with OAuth client credentials.

1. TheWizard of ORDS

3. Oracle
REST
Data
Services

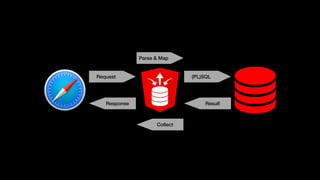

4. Request (PL)SQL
ResultResponse
Parse & Map
Collect

5. AutoREST

6. Build your API like a wall

7. script1.sql
“DATA” SCHEMA
“API” SCHEMA
“API” URL MAPPING

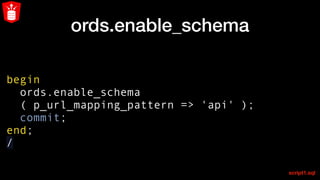

8. ords.enable_schema
begin
ords.enable_schema
( p_url_mapping_pattern => 'api' );
commit;
end;
/
script1.sql

9. ords.enable_object
begin
ords.enable_object
( p_object => 'MY_CUSTOMERS_VW'
, p_object_type => 'VIEW'
, p_object_alias => 'customers'
);
commit;
end;
/
script2.sql

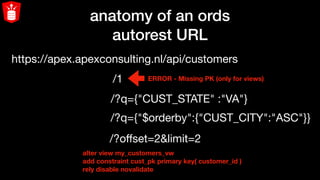

10. anatomy of an ords
autorest URL
https://apex.apexconsulting.nl/api/customers
/1
/?q={"CUST_STATE" :"VA"}
/?q={"$orderby":{"CUST_CITY":"ASC"}}
/?offset=2&limit=2
ERROR - Missing PK (only for views)
alter view my_customers_vw
add constraint cust_pk primary key( customer_id )
rely disable novalidate

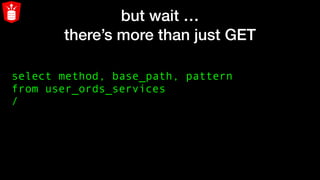

11. but wait …
there’s more than just GET
select method, base_path, pattern
from user_ords_services
/

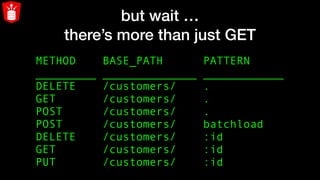

12. but wait …
there’s more than just GET
METHOD BASE_PATH PATTERN
_________ ______________ ____________
DELETE /customers/ .
GET /customers/ .
POST /customers/ .
POST /customers/ batchload
DELETE /customers/ :id
GET /customers/ :id
PUT /customers/ :id

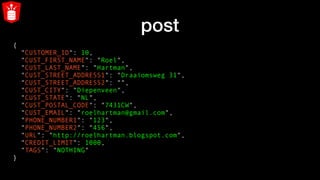

13. post
{
"CUSTOMER_ID": 10,
"CUST_FIRST_NAME": "Roel",
"CUST_LAST_NAME": "Hartman",
"CUST_STREET_ADDRESS1": "Draaiomsweg 31",
"CUST_STREET_ADDRESS2": "",
"CUST_CITY": "Diepenveen",
"CUST_STATE": "NL",
"CUST_POSTAL_CODE": "7431CW",
"CUST_EMAIL": "roelhartman@gmail.com",
"PHONE_NUMBER1": "123",
"PHONE_NUMBER2": "456",
"URL": "http://roelhartman.blogspot.com",
"CREDIT_LIMIT": 1000,
"TAGS": "NOTHING"
}

14. put
{
"CUSTOMER_ID": 10,
"CUST_FIRST_NAME": "Roel",
"CUST_LAST_NAME": "Hartman",
"CUST_STREET_ADDRESS1": "Draaiomsweg 31",
"CUST_STREET_ADDRESS2": "",
"CUST_CITY": "Diepenveen",
"CUST_STATE": "NL",
"CUST_POSTAL_CODE": "7431CW",
"CUST_EMAIL": "roelhartman@gmail.com",
"PHONE_NUMBER1": “06-121218219"
}
Missing elements wil be updated to NULL

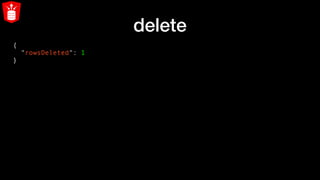

15. delete
{
"rowsDeleted": 1
}

16. Auto”REST”
PL/SQL Objects

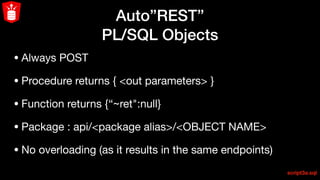

17. Auto”REST”
PL/SQL Objects
• Always POST
• Procedure returns { <out parameters> }
• Function returns {“~ret":null}
• Package : api/<package alias>/<OBJECT NAME>
• No overloading (as it results in the same endpoints)
script3a.sql

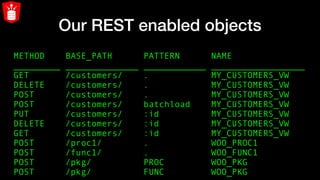

18. Our REST enabled objects
METHOD BASE_PATH PATTERN NAME
_________ ______________ ____________ __________________
GET /customers/ . MY_CUSTOMERS_VW
DELETE /customers/ . MY_CUSTOMERS_VW
POST /customers/ . MY_CUSTOMERS_VW
POST /customers/ batchload MY_CUSTOMERS_VW
PUT /customers/ :id MY_CUSTOMERS_VW
DELETE /customers/ :id MY_CUSTOMERS_VW
GET /customers/ :id MY_CUSTOMERS_VW
POST /proc1/ . WOO_PROC1
POST /func1/ . WOO_FUNC1
POST /pkg/ PROC WOO_PKG
POST /pkg/ FUNC WOO_PKG

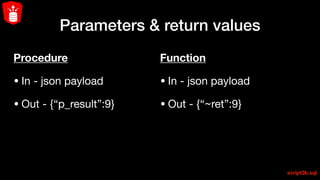

19. Parameters & return values
Procedure
• In - json payload
• Out - {“p_result”:9}
script3b.sql
Function
• In - json payload
• Out - {“~ret”:9}

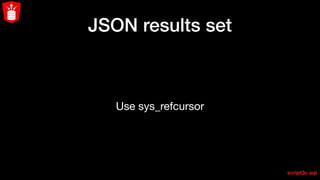

20. JSON results set
Use sys_refcursor
script3c.sql

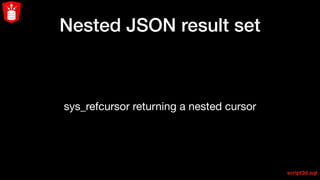

21. Nested JSON result set
sys_refcursor returning a nested cursor
script3d.sql

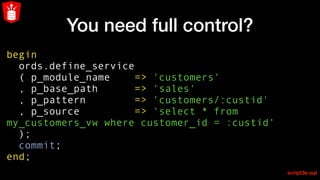

22. You need full control?
begin
ords.define_service
( p_module_name => 'customers'
, p_base_path => 'sales'
, p_pattern => 'customers/:custid'
, p_source => 'select * from
my_customers_vw where customer_id = :custid'
);
commit;
end;
script3e.sql

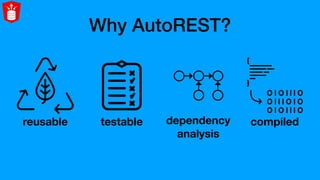

23. Why AutoREST?
reusable testable dependency
analysis
compiled

24. Full SQL power
over REST !

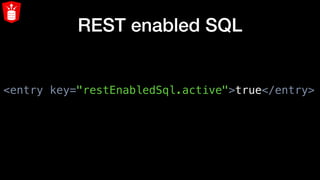

25. REST enabled SQL
<entry key="restEnabledSql.active">true</entry>

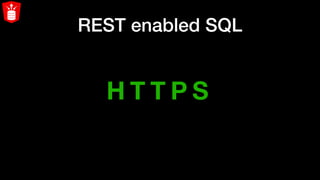

26. REST enabled SQL
H T T P S

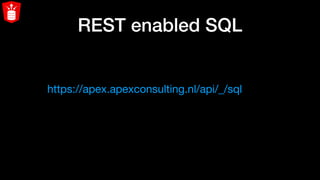

27. REST enabled SQL
https://apex.apexconsulting.nl/api/_/sql

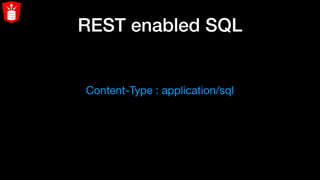

28. REST enabled SQL
Content-Type : application/sql

29. REST enabled SQL
run just 1 statement

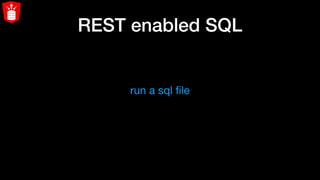

30. REST enabled SQL
run a sql file

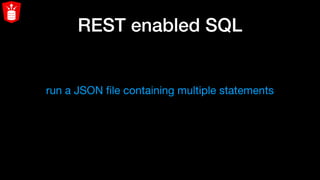

31. REST enabled SQL
run a JSON file containing multiple statements

32. Protect your service

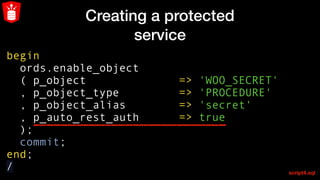

33. Creating a protected
service
begin
ords.enable_object
( p_object => 'WOO_SECRET'
, p_object_type => 'PROCEDURE'
, p_object_alias => 'secret'
, p_auto_rest_auth => true
);
commit;
end;
/ script4.sql

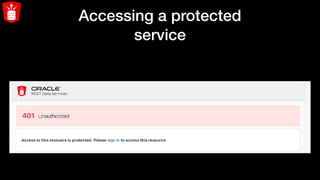

34. Accessing a protected
service

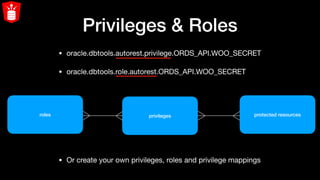

35. Privileges & Roles
• oracle.dbtools.autorest.privilege.ORDS_API.WOO_SECRET
• oracle.dbtools.role.autorest.ORDS_API.WOO_SECRET
roles privileges
• Or create your own privileges, roles and privilege mappings
protected resources

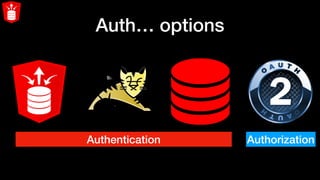

36. Auth… options
Authentication Authorization

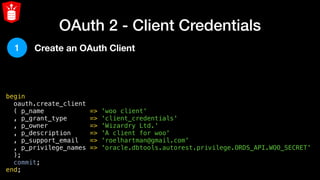

37. OAuth 2 - Client Credentials
begin
oauth.create_client
( p_name => 'woo client'
, p_grant_type => 'client_credentials'
, p_owner => 'Wizardry Ltd.'
, p_description => 'A client for woo'
, p_support_email => 'roelhartman@gmail.com'
, p_privilege_names => 'oracle.dbtools.autorest.privilege.ORDS_API.WOO_SECRET'
);
commit;
end;
1 Create an OAuth Client

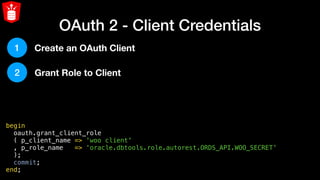

38. OAuth 2 - Client Credentials
begin
oauth.grant_client_role
( p_client_name => 'woo client'
, p_role_name => 'oracle.dbtools.role.autorest.ORDS_API.WOO_SECRET'
);
commit;
end;
1
2
Create an OAuth Client
Grant Role to Client

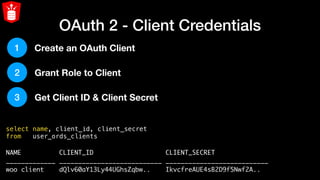

39. OAuth 2 - Client Credentials
select name, client_id, client_secret
from user_ords_clients
NAME CLIENT_ID CLIENT_SECRET
_____________ ___________________________ ___________________________
woo client dQlv60aY13Ly44UGhsZqbw.. IkvcfreAUE4sB2D9f5Nwf2A..
1
2
3
Create an OAuth Client
Grant Role to Client
Get Client ID & Client Secret

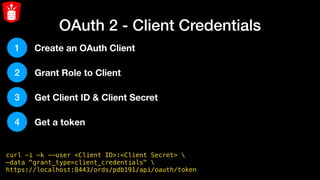

40. OAuth 2 - Client Credentials
curl -i -k --user <Client ID>:<Client Secret>
—data "grant_type=client_credentials"
https://localhost:8443/ords/pdb191/api/oauth/token
1
2
3
4
Create an OAuth Client
Grant Role to Client
Get Client ID & Client Secret
Get a token

41. OAuth 2 - Client Credentials
{“access_token”:”<token>","token_type":"bearer","expires_in":3600}
1
2
3
4
Create an OAuth Client
Grant Role to Client
Get Client ID & Client Secret
Get a token

42. OAuth 2 - Client Credentials
1
2
3
4
5
Create an OAuth Client
Grant Role to Client
Get Client ID & Client Secret
Get a token
Use the token
1.curl --request POST -i -k -H"Authorization: Bearer <token>”
2.https://localhost:8443/ords/pdb191/api/secret/
