In this session, Blaine Carter will explain how to use Docker to create Docker Containers which can be used to develop Database Applications with Node.js and Oracle REST Data Services (ORDS). He will demonstrate how to use Docker to create one container running an Oracle XE Database, a second running REST ORDS, and a third running Node.js on Linux running code from files in a directory on the host machine. All three containers will communicate through a Docker Network. Once the containers are up and running, Blaine will run through a couple of examples using the new Docker Containers.

2. Howdy, I’m Blaine CarterHowdy, I’m Blaine Carter
Oracle Corporation
Developer Advocate for Open Source
Email: blaine.carter@oracle.com
Blog: learncodeshare.net
Twi er: @OraBlaineOS
YouTube: www.youtube.com/blainecarter
Team: community.oracle.com/docs/DOC-
917690

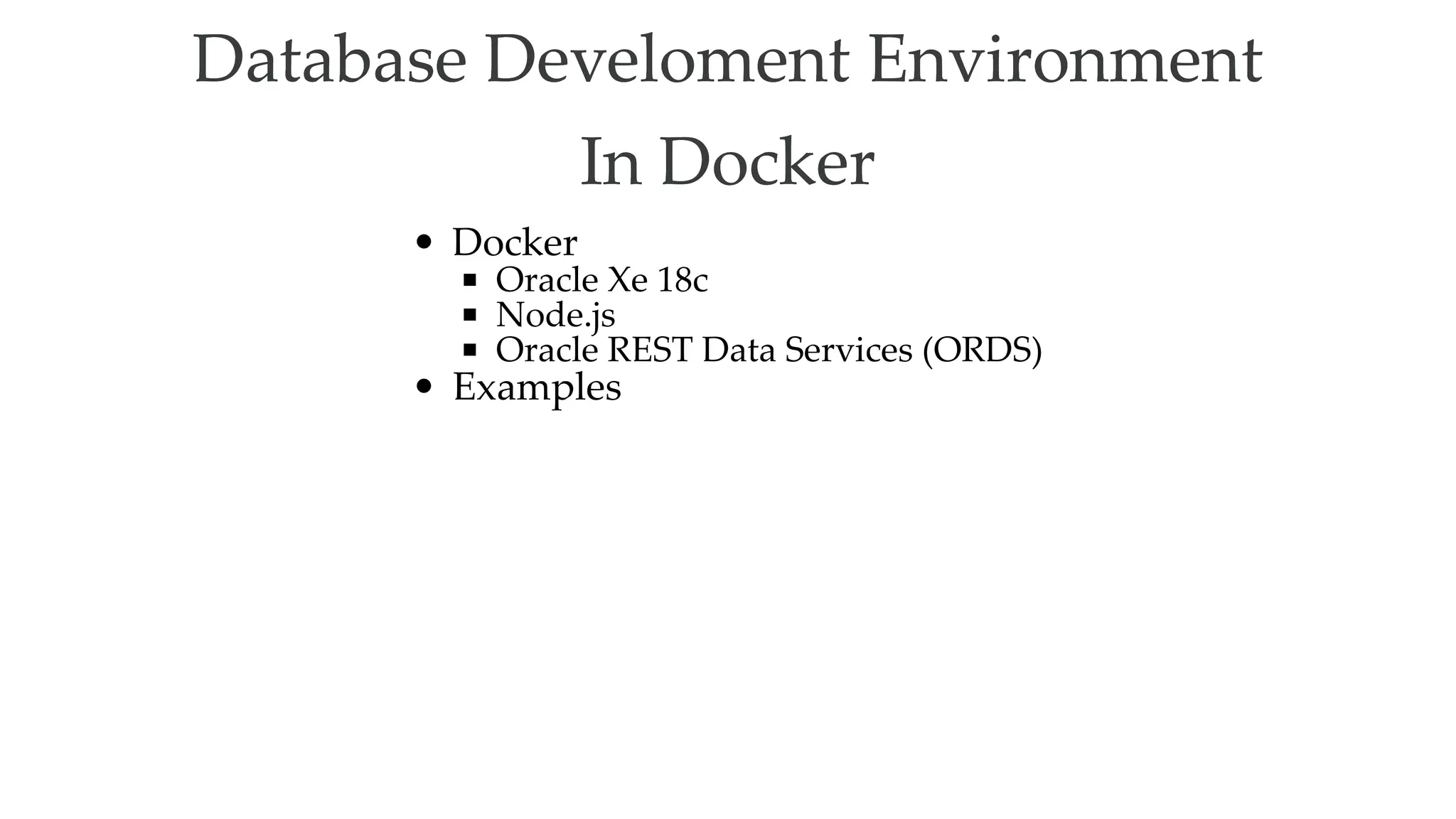

3. Database Develoment EnvironmentDatabase Develoment Environment
In DockerIn Docker
Docker
Oracle Xe 18c
Node.js
Oracle REST Data Services (ORDS)
Examples

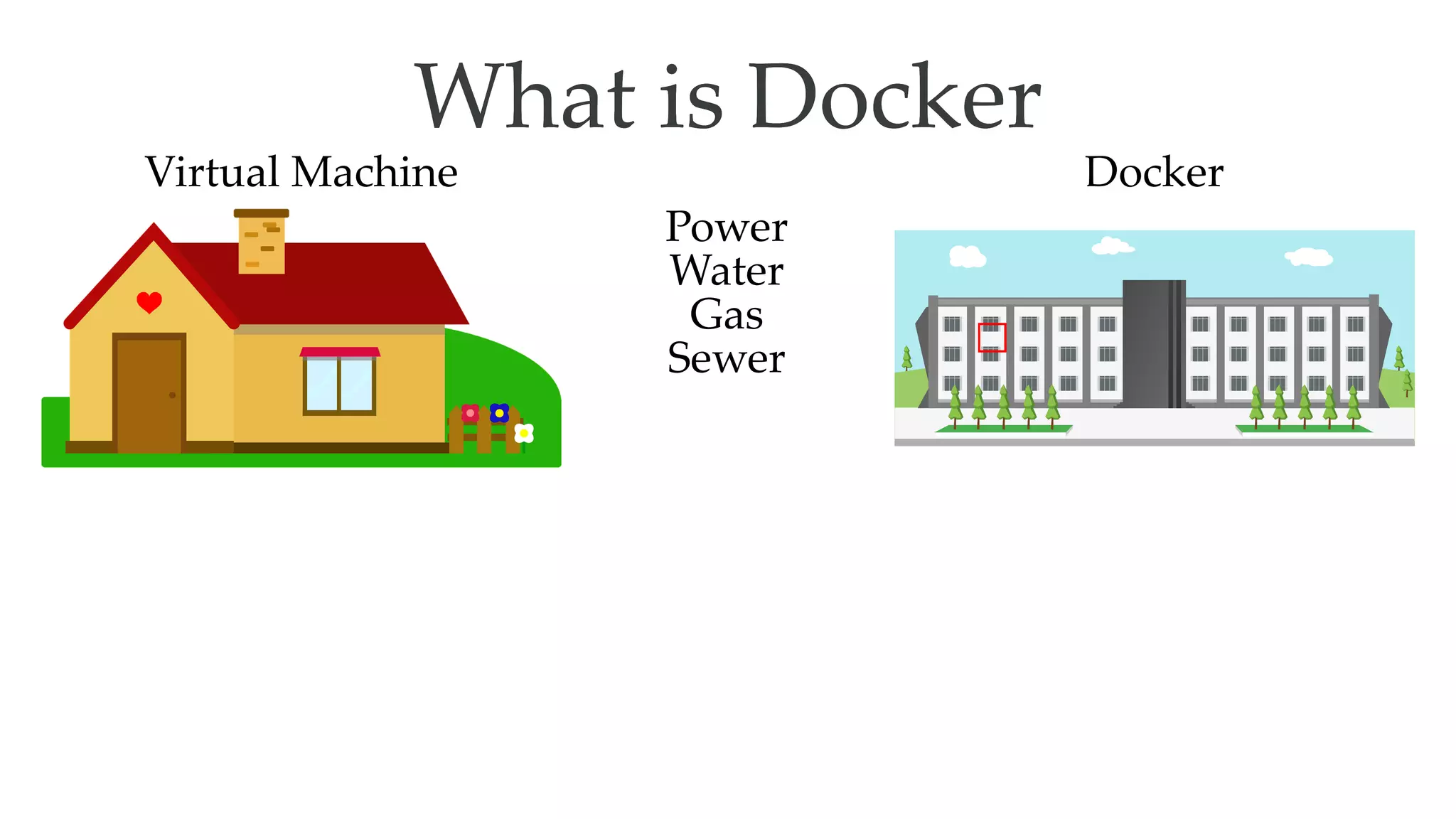

4. What is DockerWhat is Docker
Virtual Machine
Power
Water
Gas
Sewer
Docker

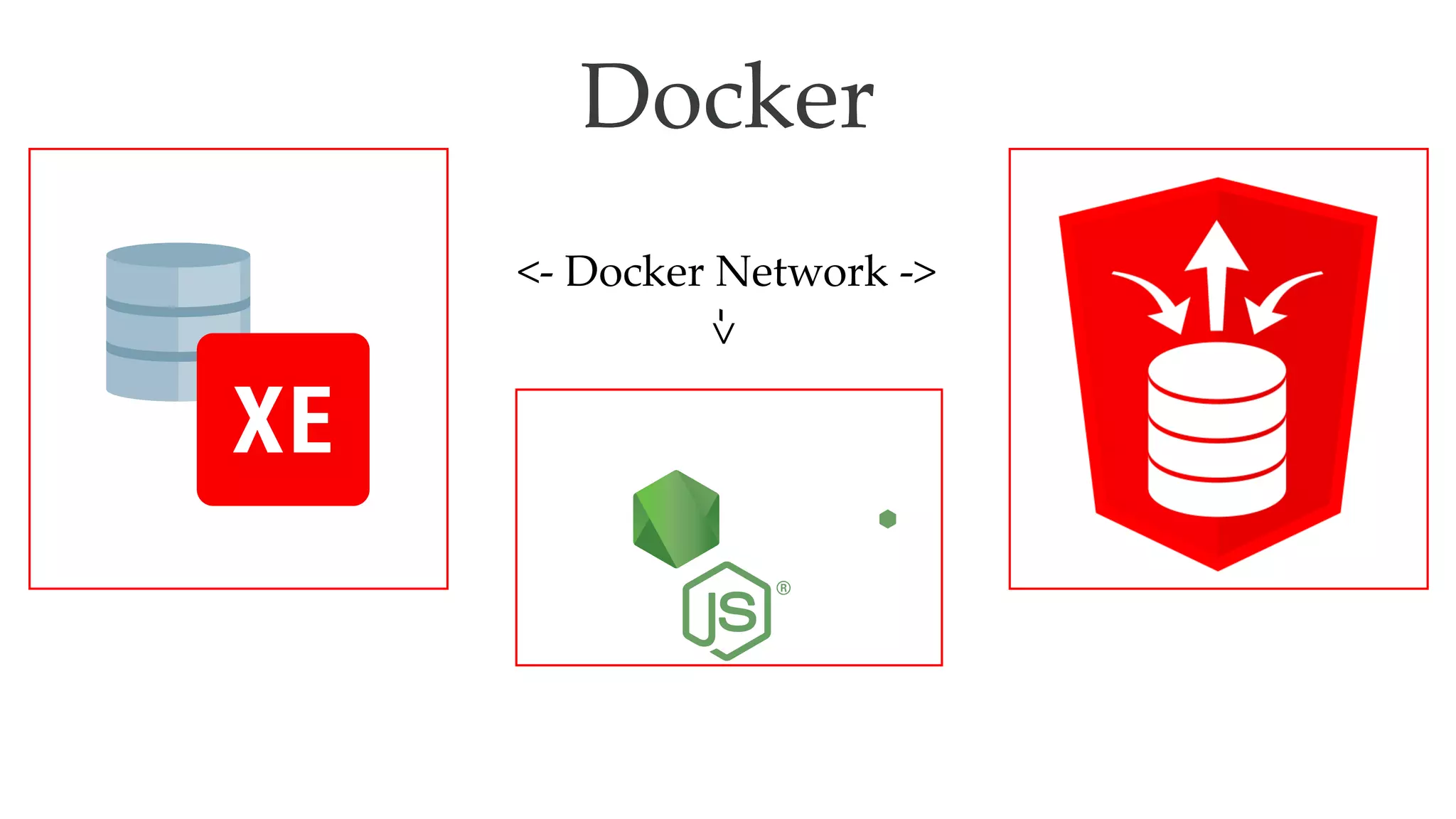

5. DockerDocker
<- Docker Network ->
->

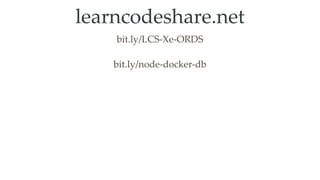

6. learncodeshare.netlearncodeshare.net
bit.ly/LCS-Xe-ORDS
bit.ly/node-docker-db

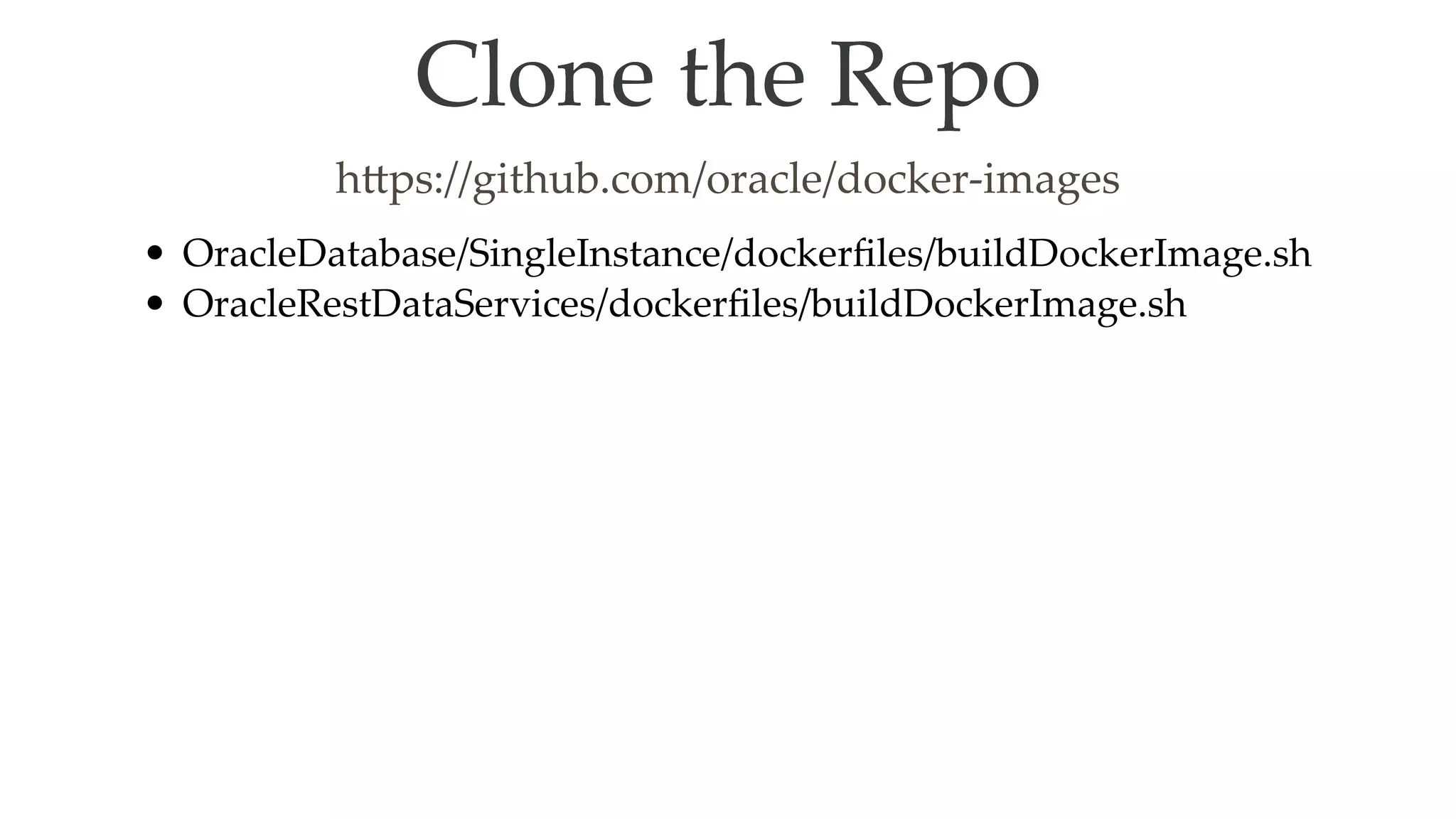

7. Clone the RepoClone the Repo
OracleDatabase/SingleInstance/dockerfiles/buildDockerImage.sh
OracleRestDataServices/dockerfiles/buildDockerImage.sh
h ps://github.com/oracle/docker-images

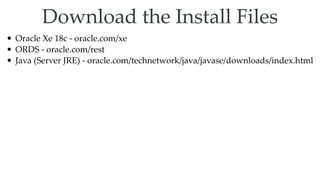

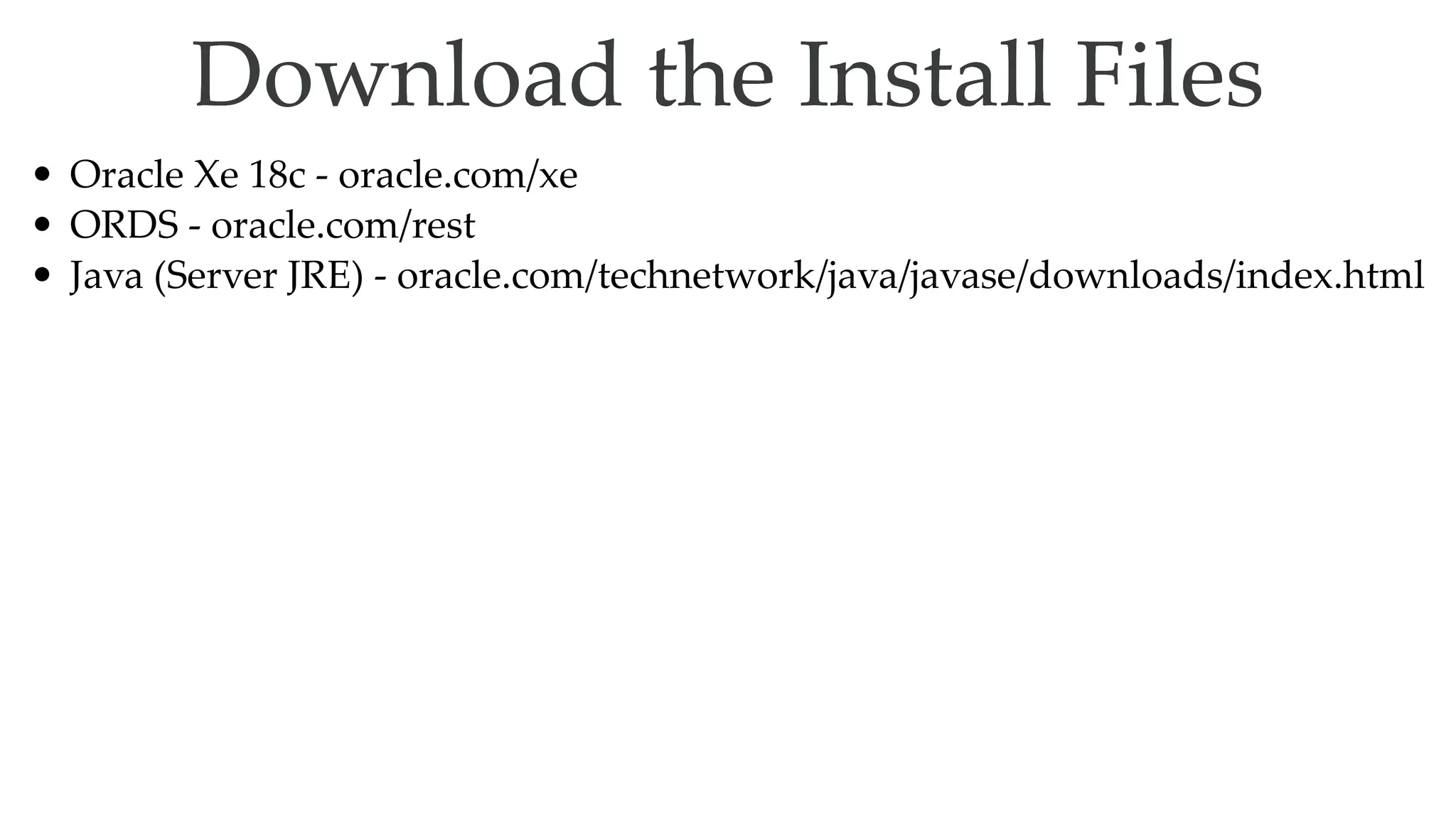

8. Download the Install FilesDownload the Install Files
Oracle Xe 18c - oracle.com/xe
ORDS - oracle.com/rest
Java (Server JRE) - oracle.com/technetwork/java/javase/downloads/index.html

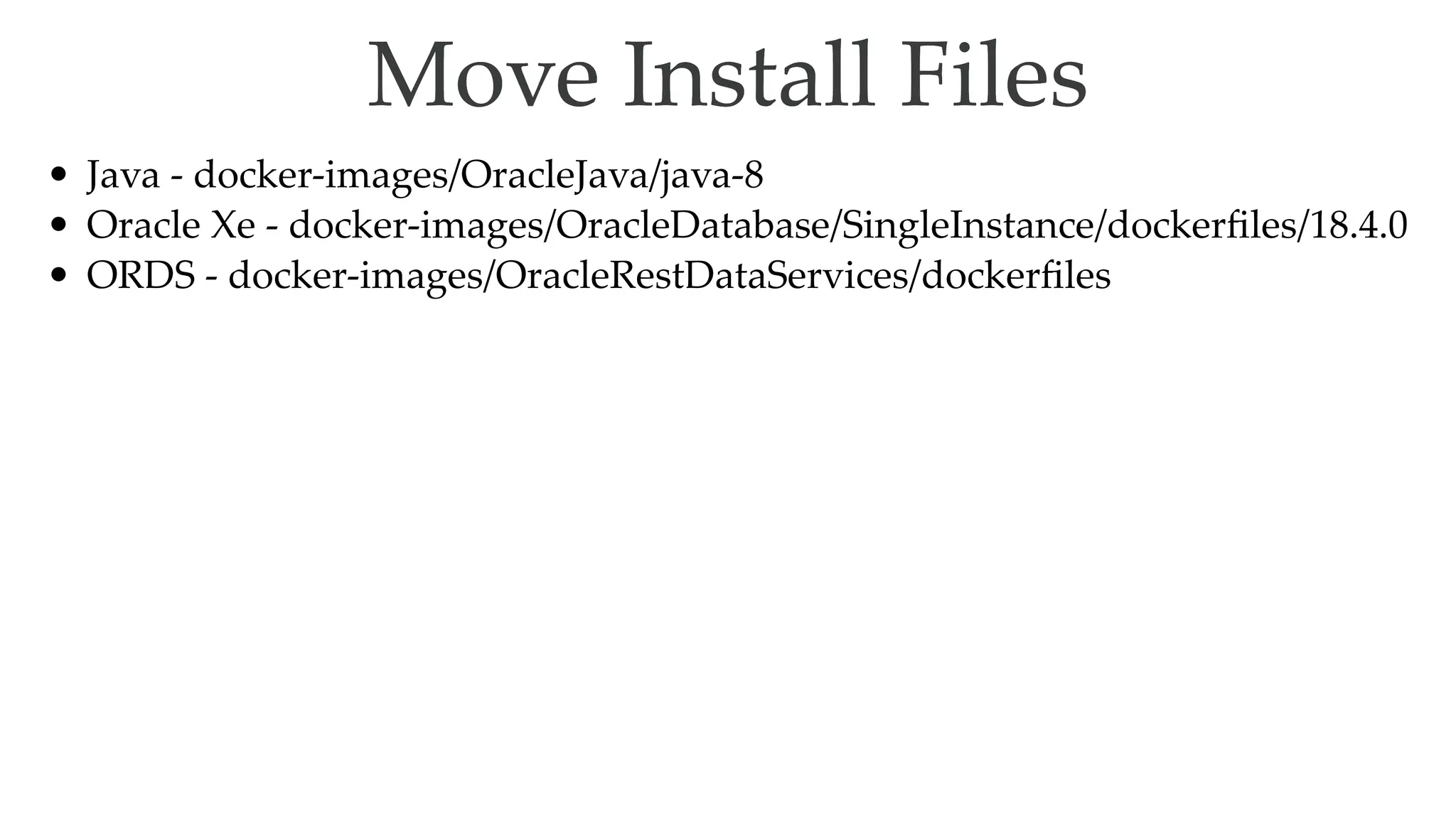

9. Move Install FilesMove Install Files
Java - docker-images/OracleJava/java-8
Oracle Xe - docker-images/OracleDatabase/SingleInstance/dockerfiles/18.4.0
ORDS - docker-images/OracleRestDataServices/dockerfiles

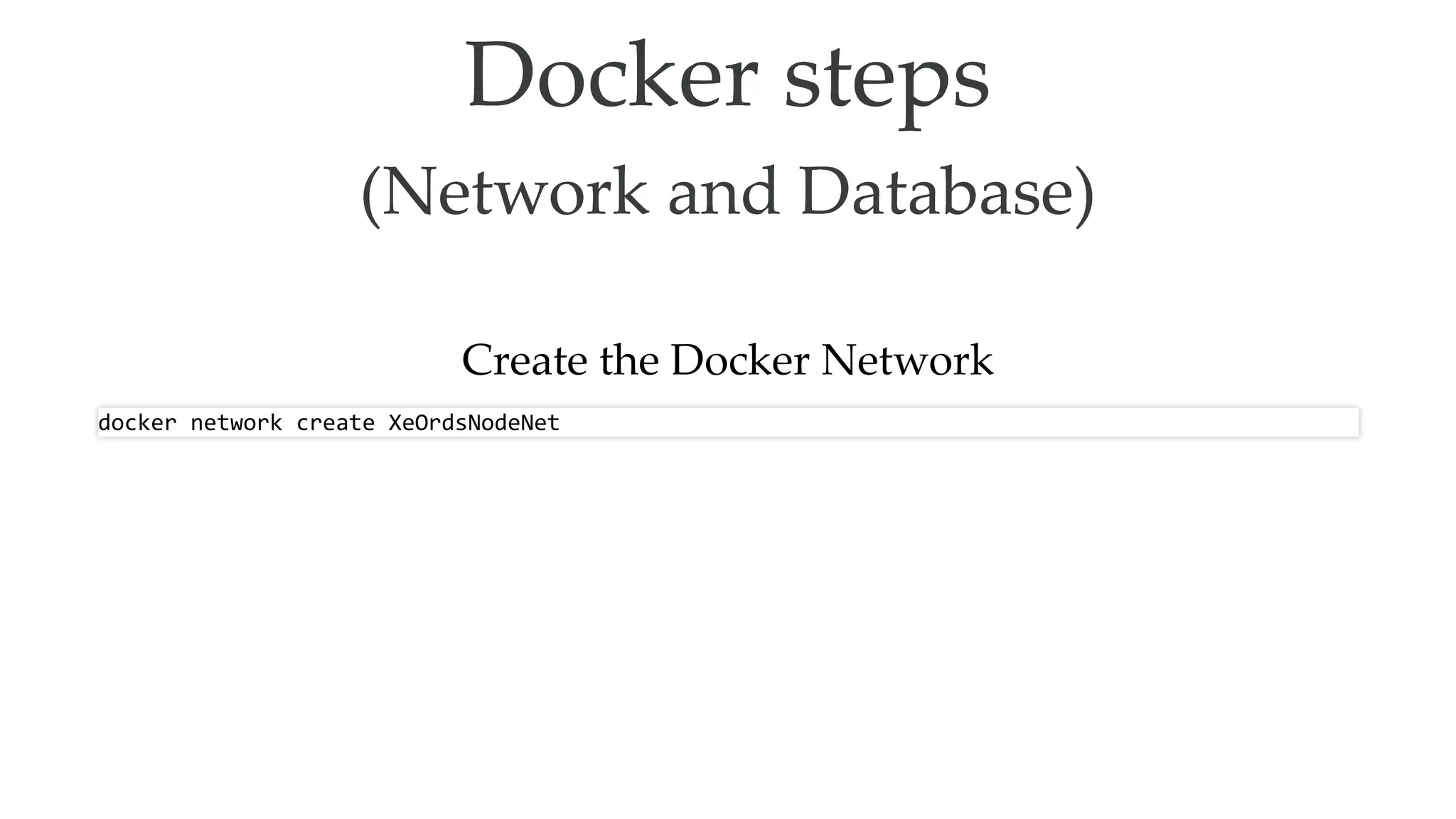

10. Docker stepsDocker steps
(Network and Database)(Network and Database)
Create the Docker Network
docker network create XeOrdsNodeNet

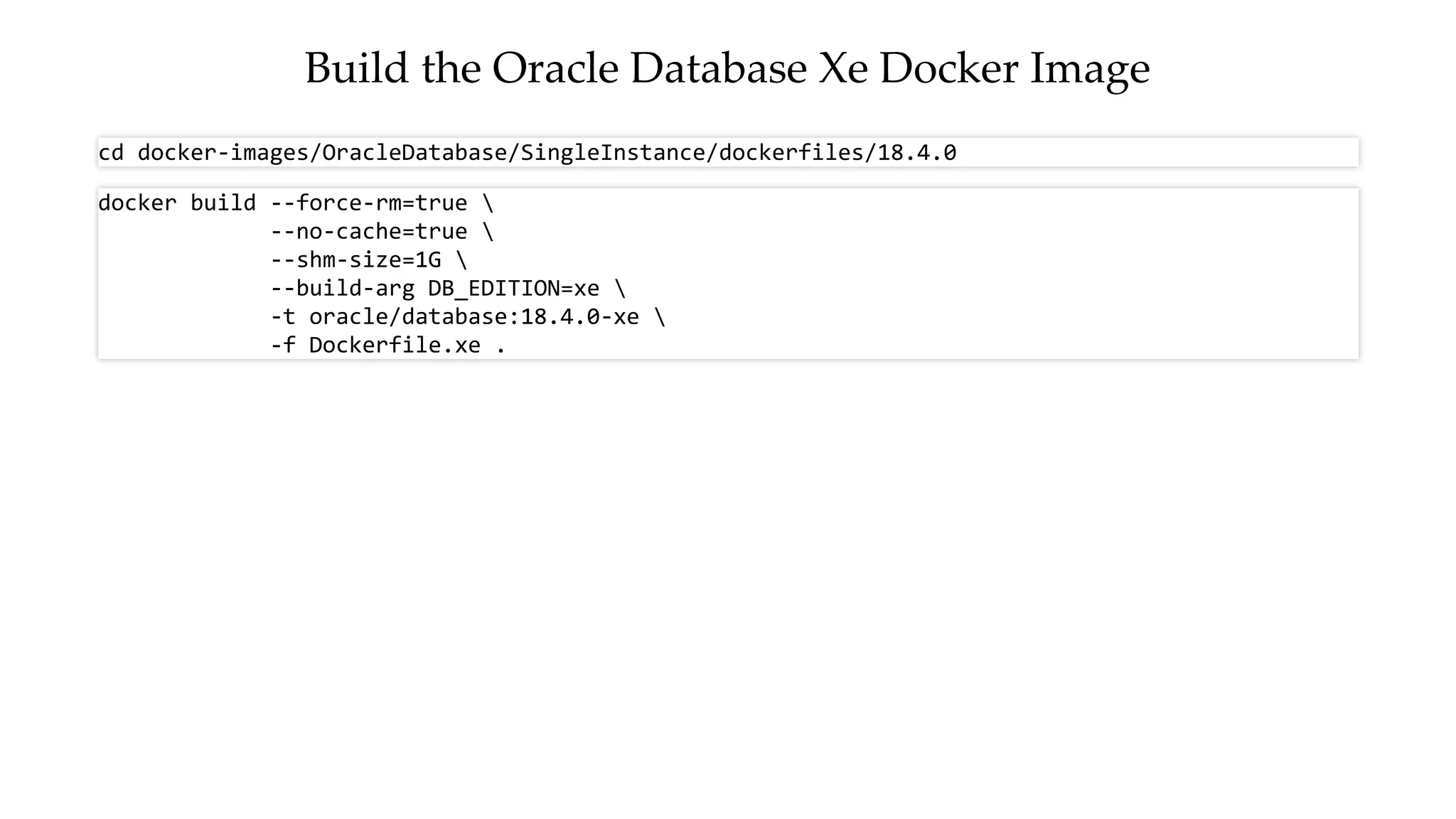

12. Build the Oracle Database Xe Docker Image
cd docker-images/OracleDatabase/SingleInstance/dockerfiles/18.4.0
docker build --force-rm=true
--no-cache=true
--shm-size=1G
--build-arg DB_EDITION=xe
-t oracle/database:18.4.0-xe
-f Dockerfile.xe .

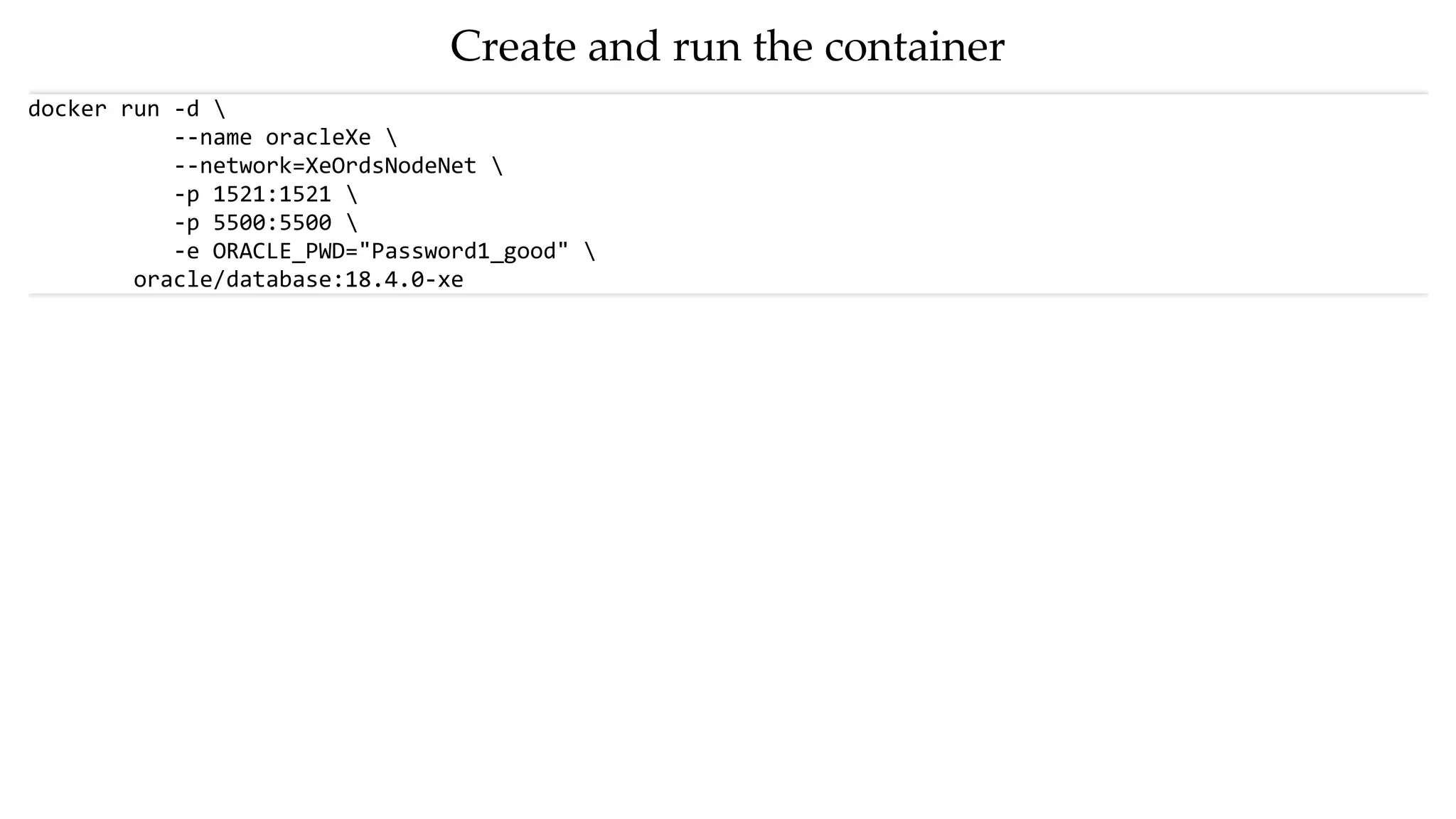

13. Create and run the container
docker run -d
--name oracleXe
--network=XeOrdsNodeNet
-p 1521:1521
-p 5500:5500
-e ORACLE_PWD="Password1_good"
oracle/database:18.4.0-xe

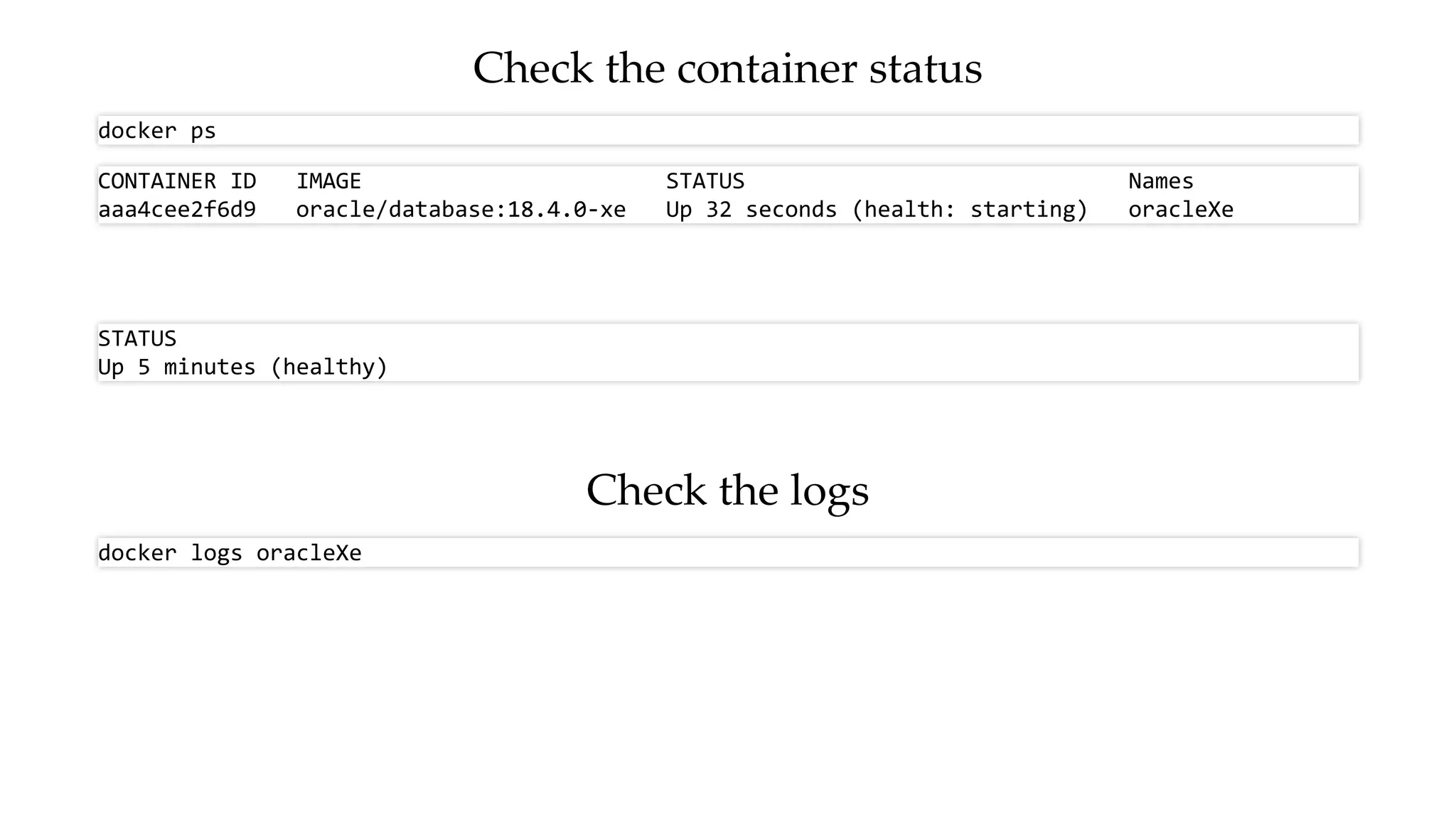

14. Check the container status
Check the logs
docker ps
CONTAINER ID IMAGE STATUS Names
aaa4cee2f6d9 oracle/database:18.4.0-xe Up 32 seconds (health: starting) oracleXe
STATUS
Up 5 minutes (healthy)
docker logs oracleXe

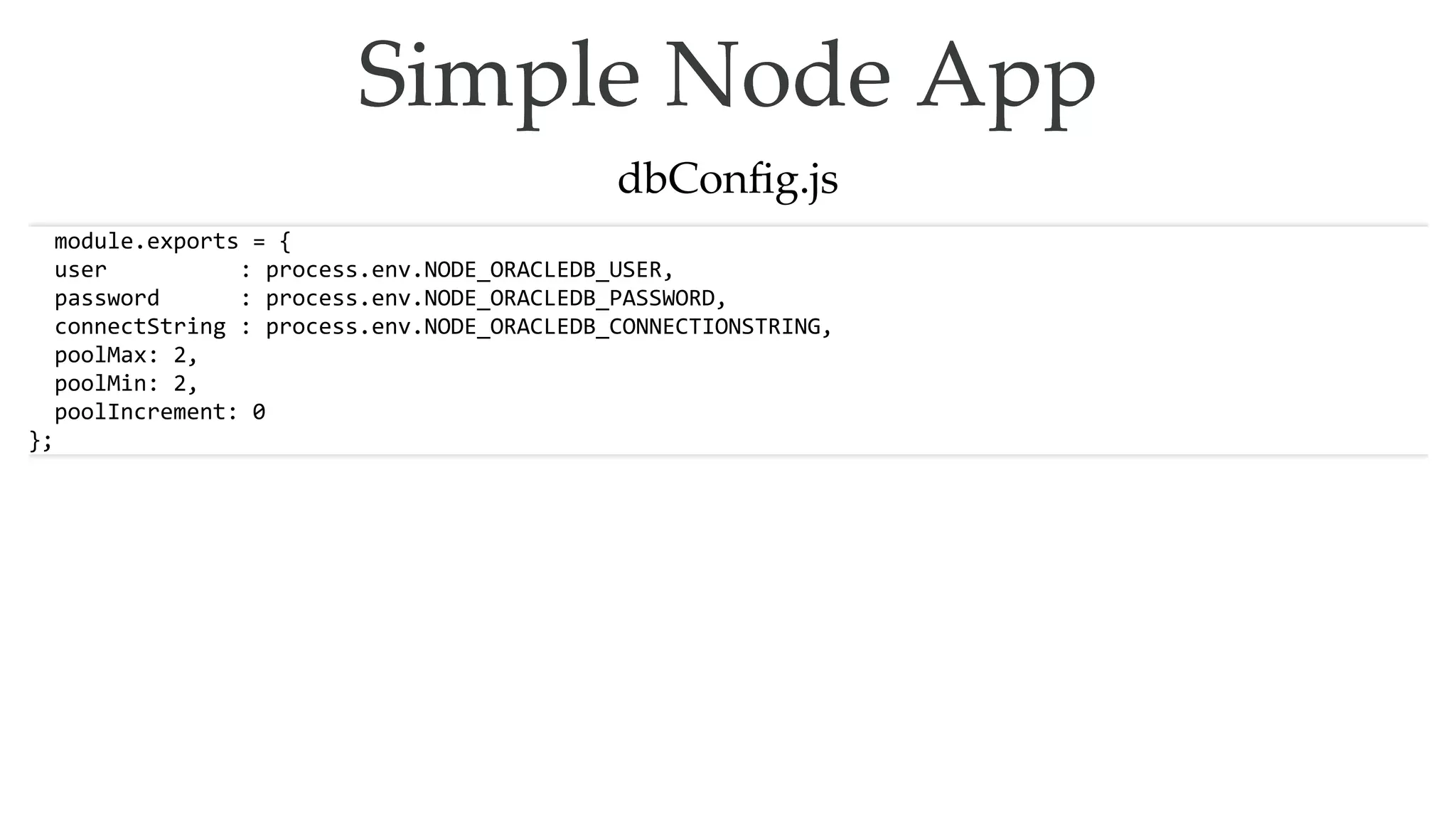

15. Simple Node AppSimple Node App
dbConfig.js
module.exports = {
user : process.env.NODE_ORACLEDB_USER,
password : process.env.NODE_ORACLEDB_PASSWORD,
connectString : process.env.NODE_ORACLEDB_CONNECTIONSTRING,
poolMax: 2,
poolMin: 2,
poolIncrement: 0
};

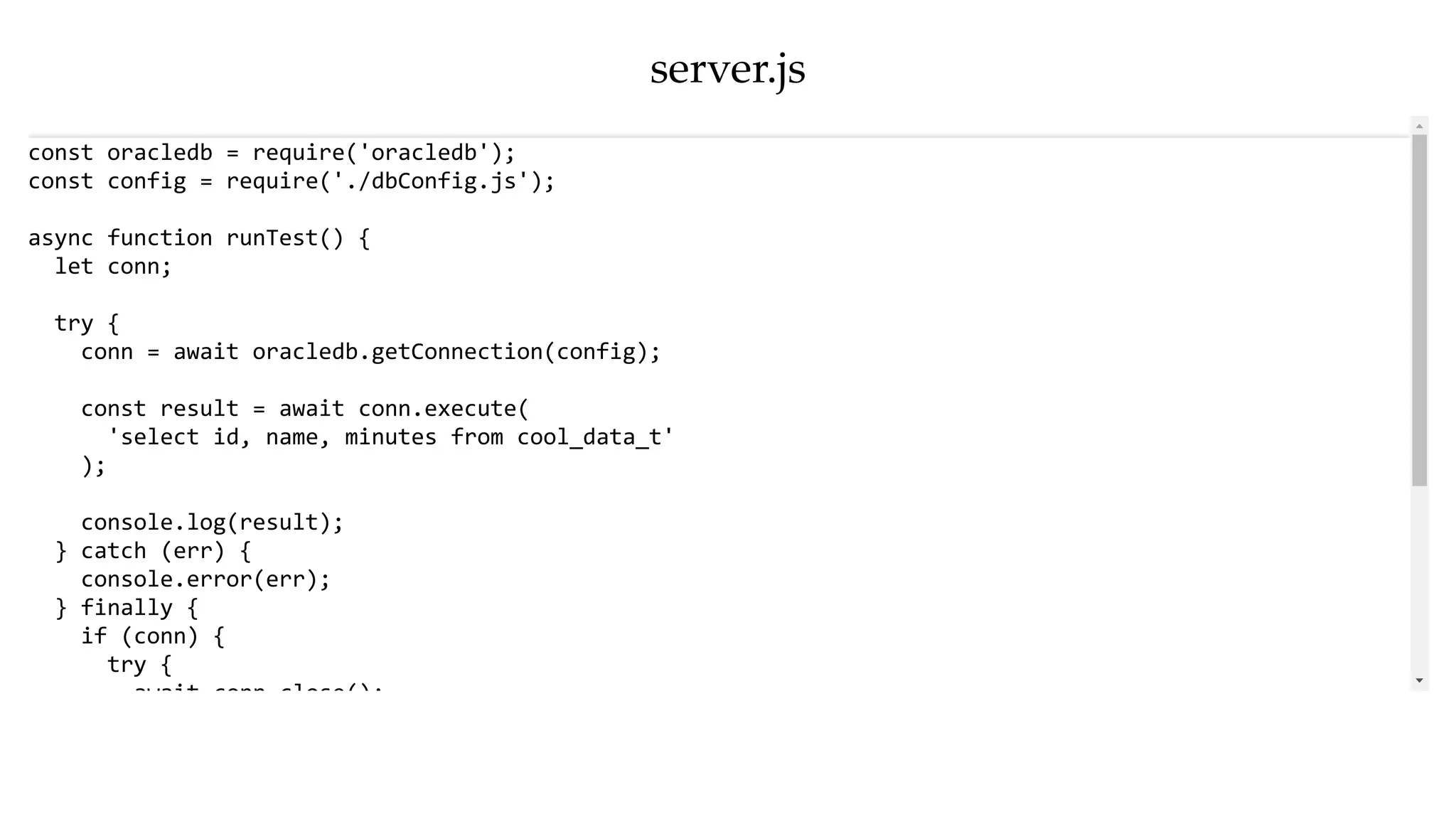

16. server.js
const oracledb = require('oracledb');
const config = require('./dbConfig.js');
async function runTest() {
let conn;
try {
conn = await oracledb.getConnection(config);
const result = await conn.execute(
'select id, name, minutes from cool_data_t'
);
console.log(result);
} catch (err) {
console.error(err);
} finally {
if (conn) {
try {
await conn close();

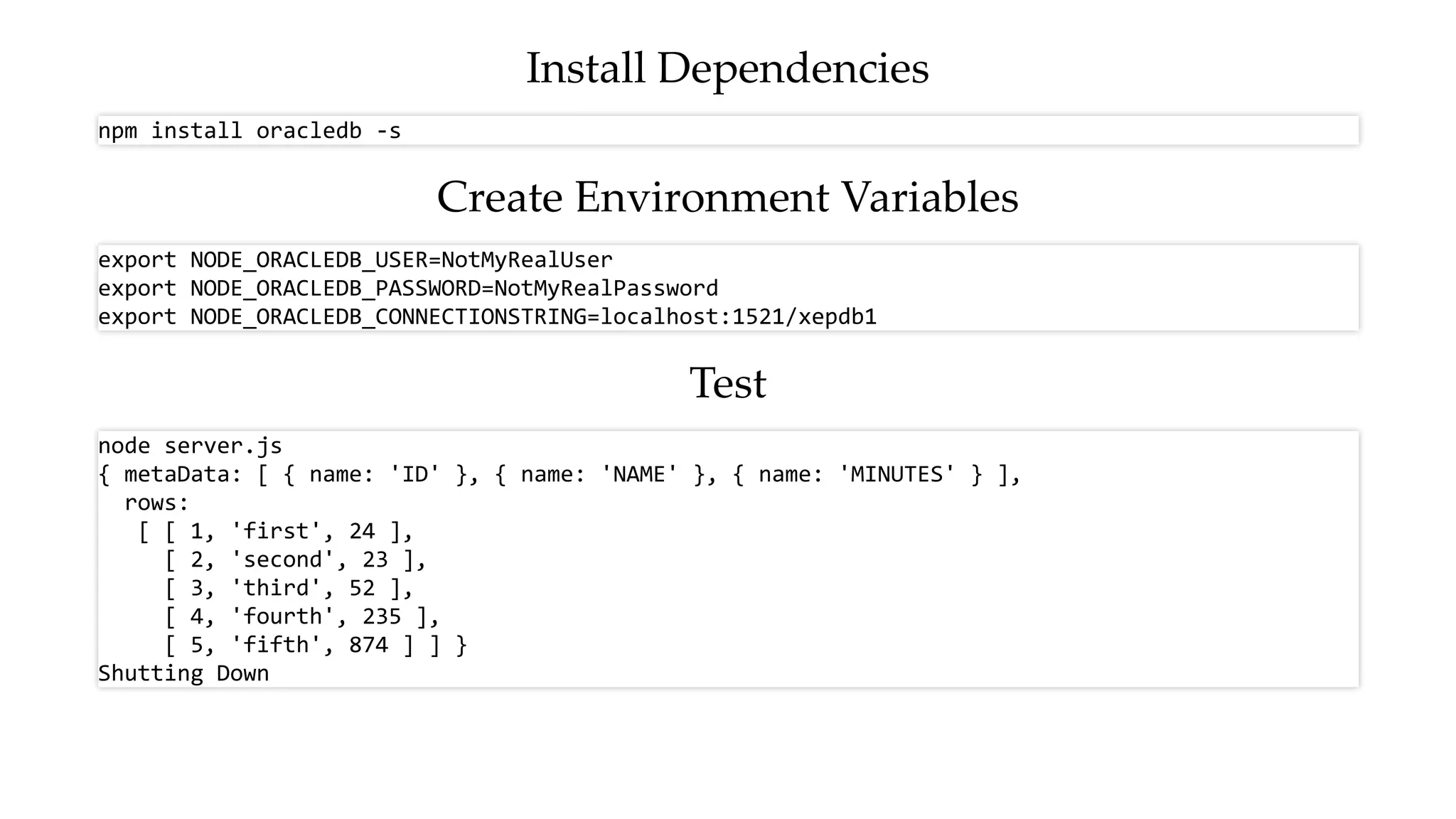

17. Install Dependencies
Create Environment Variables
Test
npm install oracledb -s
export NODE_ORACLEDB_USER=NotMyRealUser
export NODE_ORACLEDB_PASSWORD=NotMyRealPassword
export NODE_ORACLEDB_CONNECTIONSTRING=localhost:1521/xepdb1
node server.js
{ metaData: [ { name: 'ID' }, { name: 'NAME' }, { name: 'MINUTES' } ],
rows:
[ [ 1, 'first', 24 ],
[ 2, 'second', 23 ],
[ 3, 'third', 52 ],
[ 4, 'fourth', 235 ],
[ 5, 'fifth', 874 ] ] }
Shutting Down

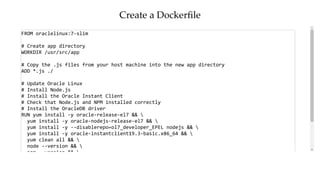

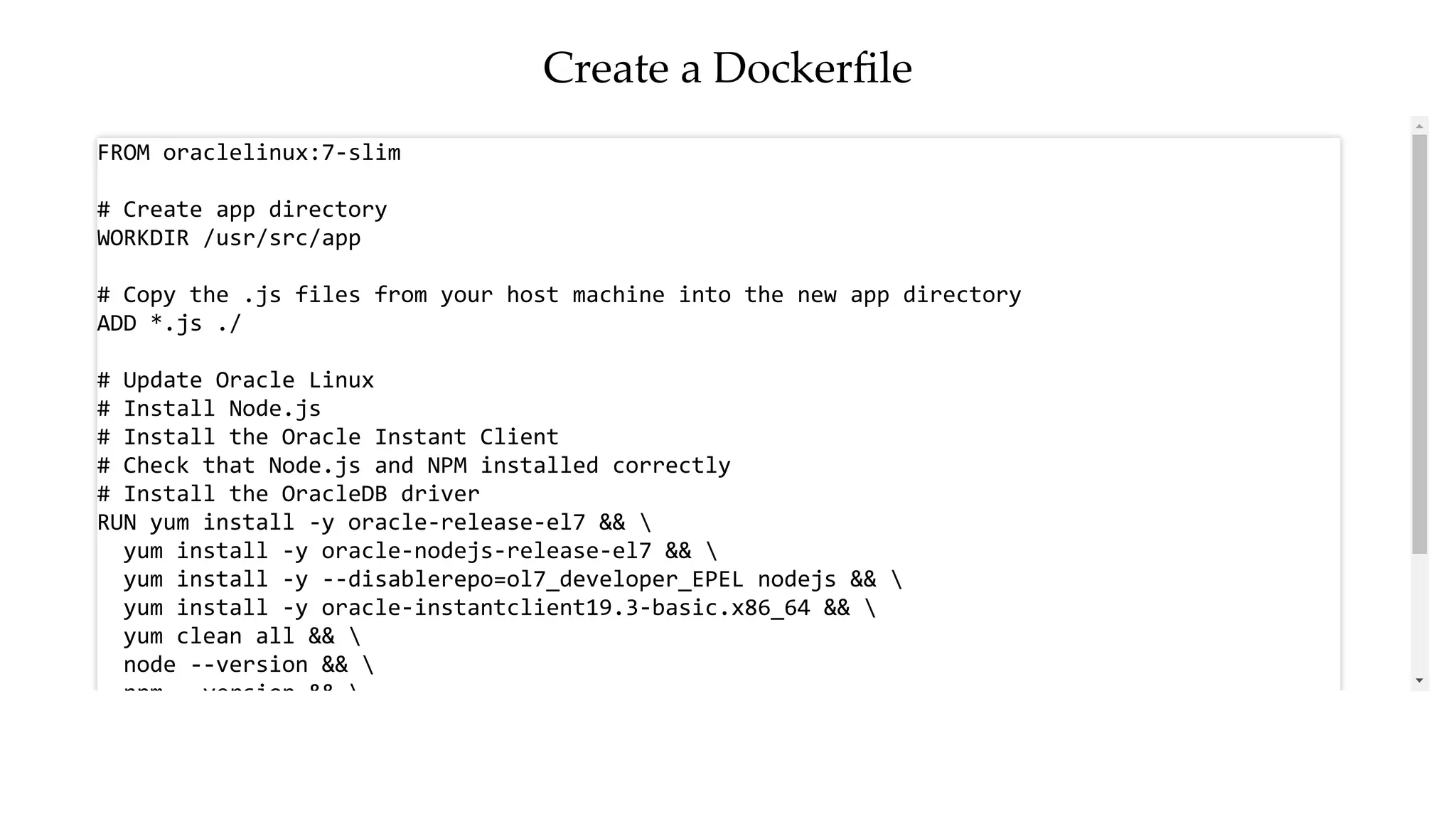

18. Create a Dockerfile
FROM oraclelinux:7-slim
# Create app directory
WORKDIR /usr/src/app
# Copy the .js files from your host machine into the new app directory
ADD *.js ./
# Update Oracle Linux
# Install Node.js
# Install the Oracle Instant Client
# Check that Node.js and NPM installed correctly
# Install the OracleDB driver
RUN yum install -y oracle-release-el7 &&
yum install -y oracle-nodejs-release-el7 &&
yum install -y --disablerepo=ol7_developer_EPEL nodejs &&
yum install -y oracle-instantclient19.3-basic.x86_64 &&
yum clean all &&
node --version &&
npm version &&

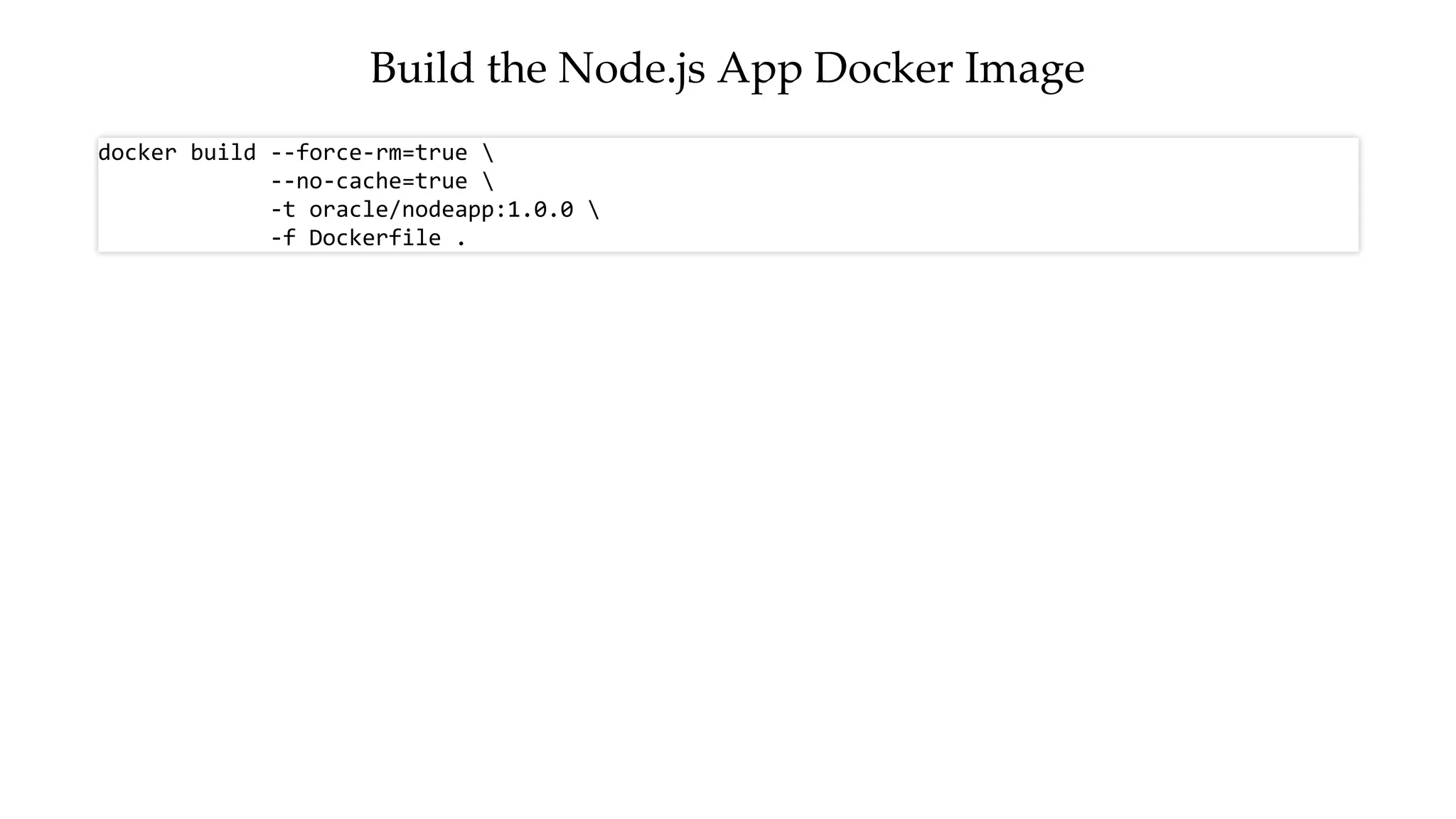

19. Build the Node.js App Docker Image
docker build --force-rm=true
--no-cache=true
-t oracle/nodeapp:1.0.0
-f Dockerfile .

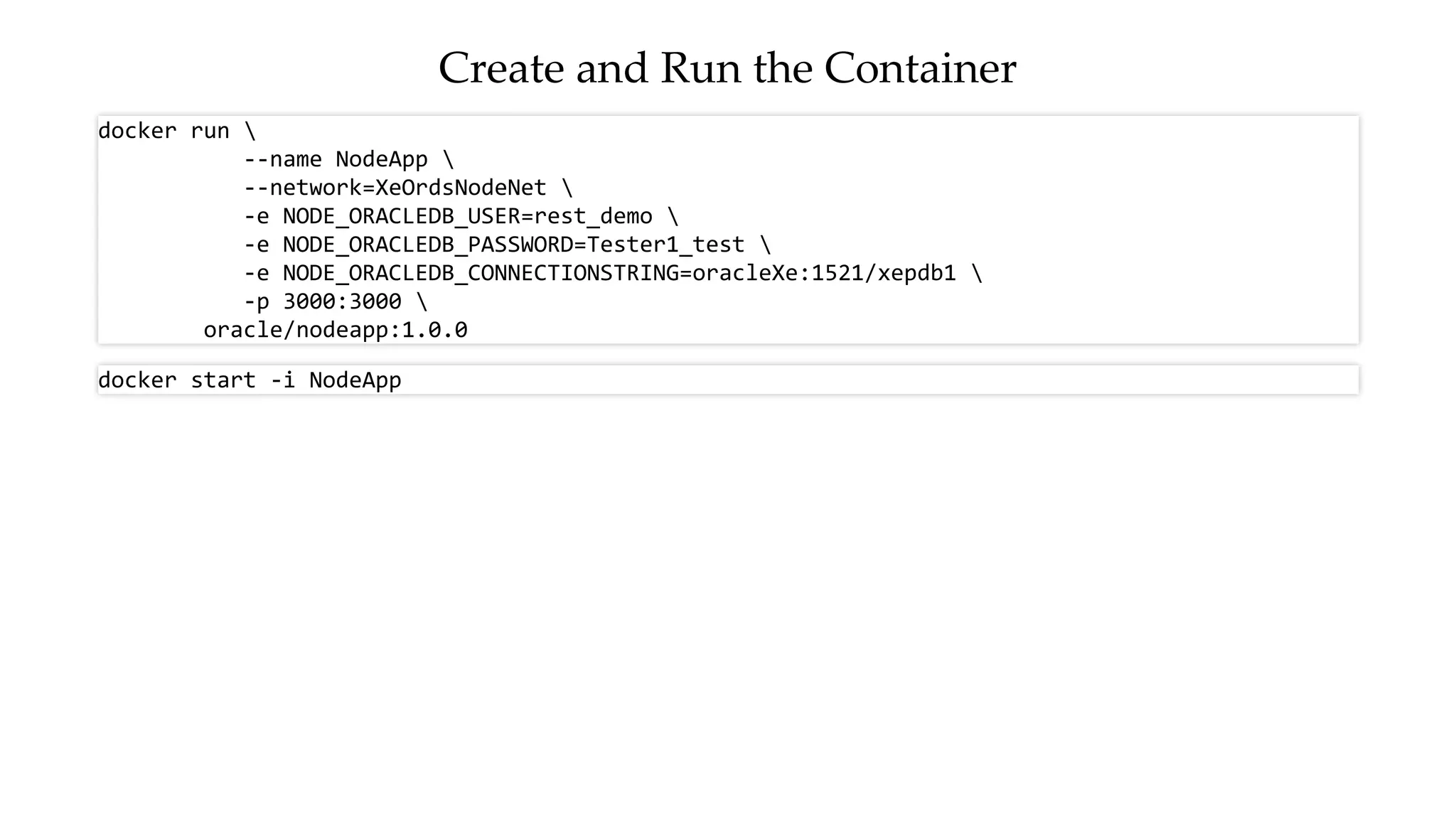

20. Create and Run the Container
docker run
--name NodeApp
--network=XeOrdsNodeNet
-e NODE_ORACLEDB_USER=rest_demo
-e NODE_ORACLEDB_PASSWORD=Tester1_test
-e NODE_ORACLEDB_CONNECTIONSTRING=oracleXe:1521/xepdb1
-p 3000:3000
oracle/nodeapp:1.0.0
docker start -i NodeApp

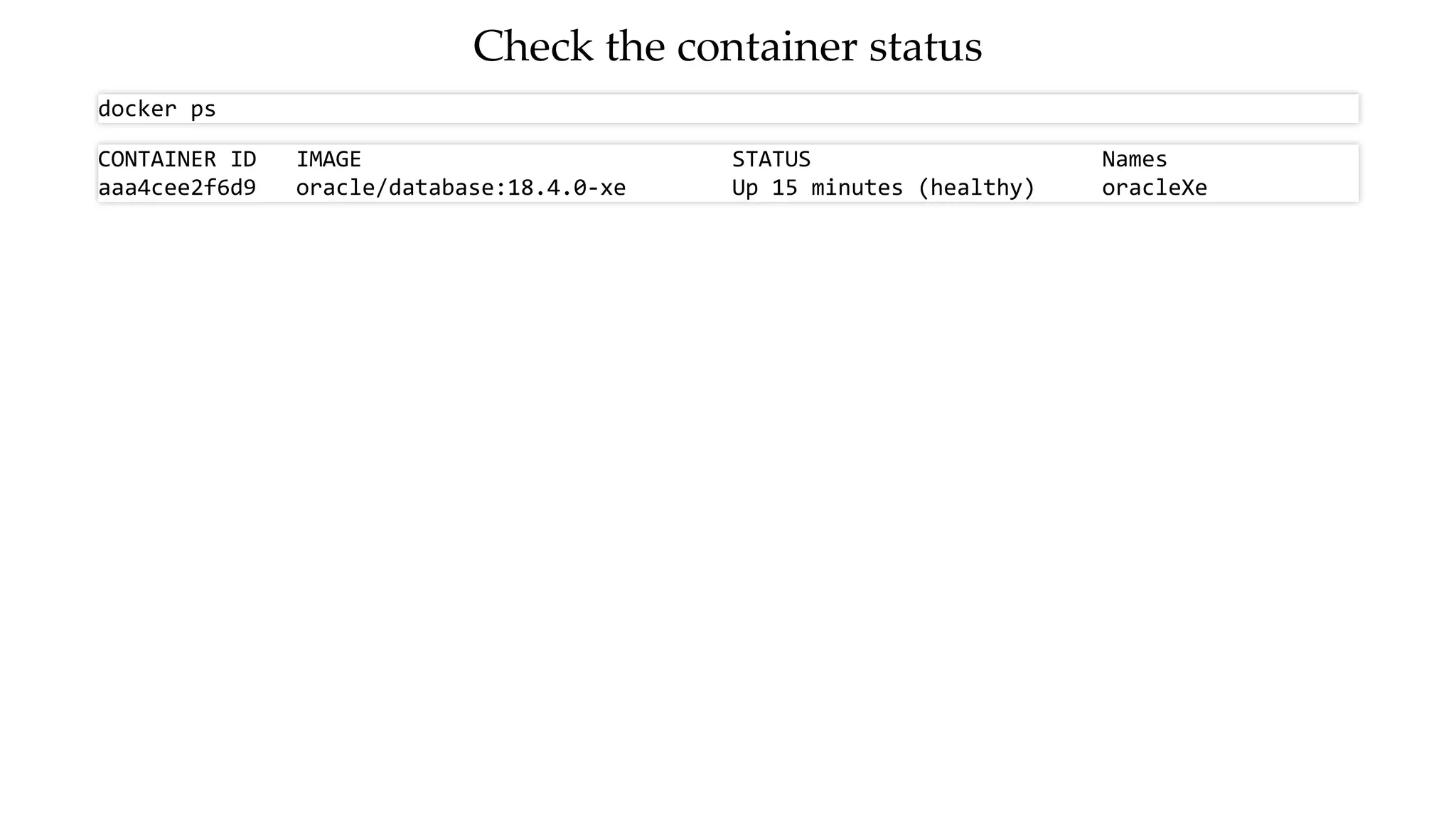

21. Check the container status
docker ps
CONTAINER ID IMAGE STATUS Names
aaa4cee2f6d9 oracle/database:18.4.0-xe Up 15 minutes (healthy) oracleXe

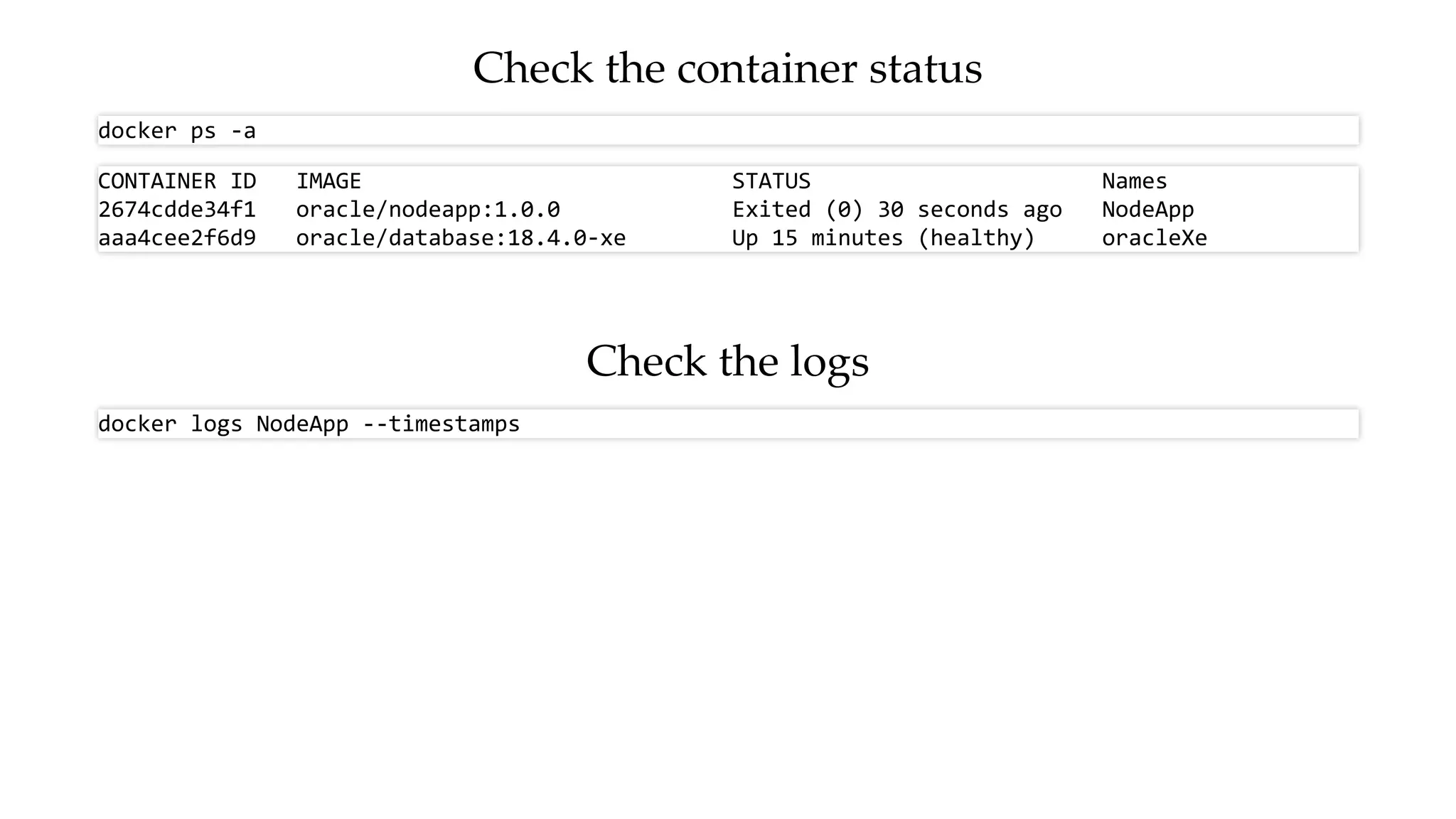

22. Check the container status
Check the logs
docker ps -a
CONTAINER ID IMAGE STATUS Names
2674cdde34f1 oracle/nodeapp:1.0.0 Exited (0) 30 seconds ago NodeApp
aaa4cee2f6d9 oracle/database:18.4.0-xe Up 15 minutes (healthy) oracleXe
docker logs NodeApp --timestamps

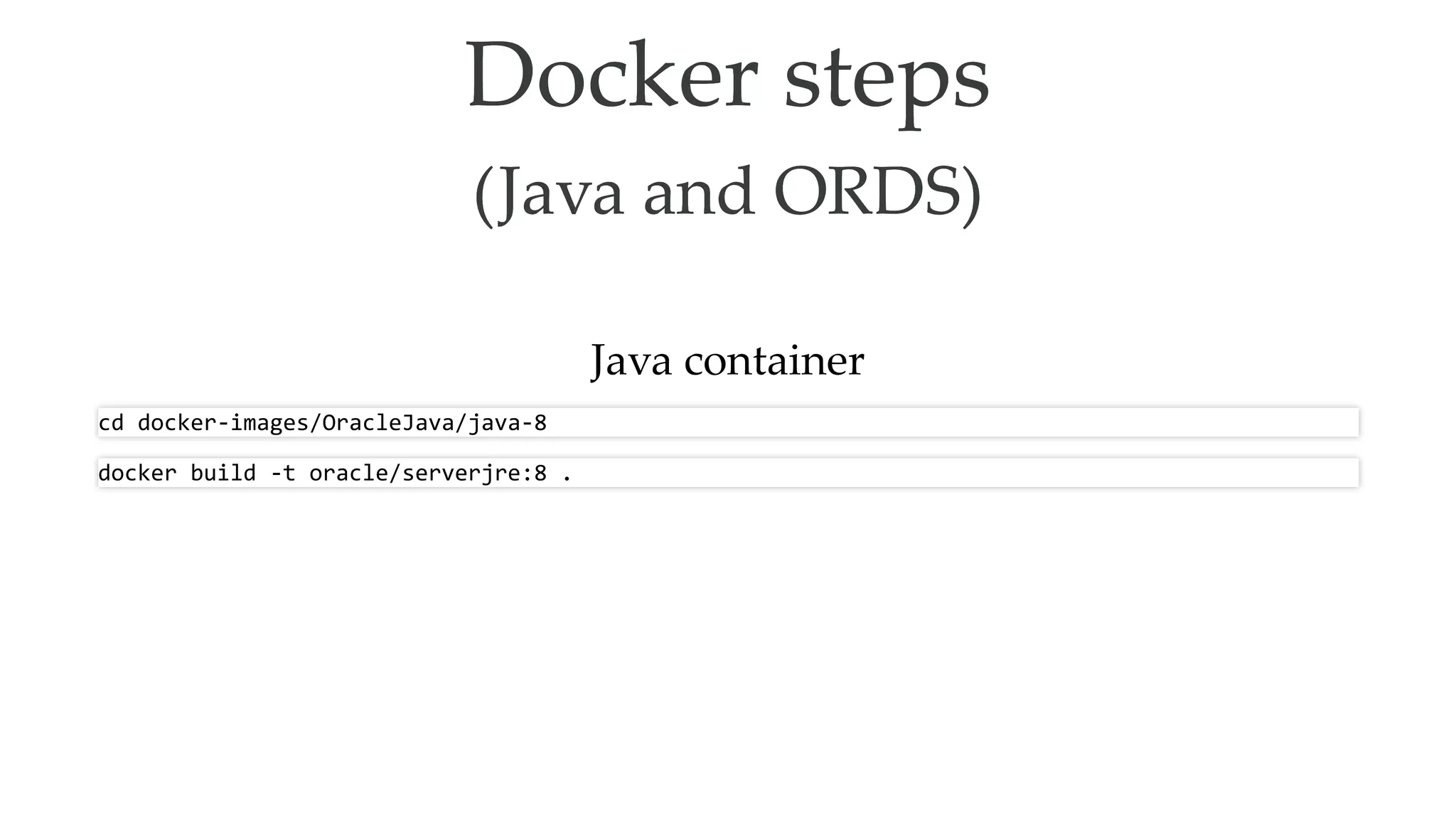

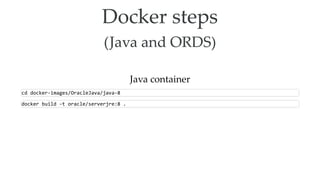

23. Docker stepsDocker steps
(Java and ORDS)(Java and ORDS)
Java container
cd docker-images/OracleJava/java-8
docker build -t oracle/serverjre:8 .

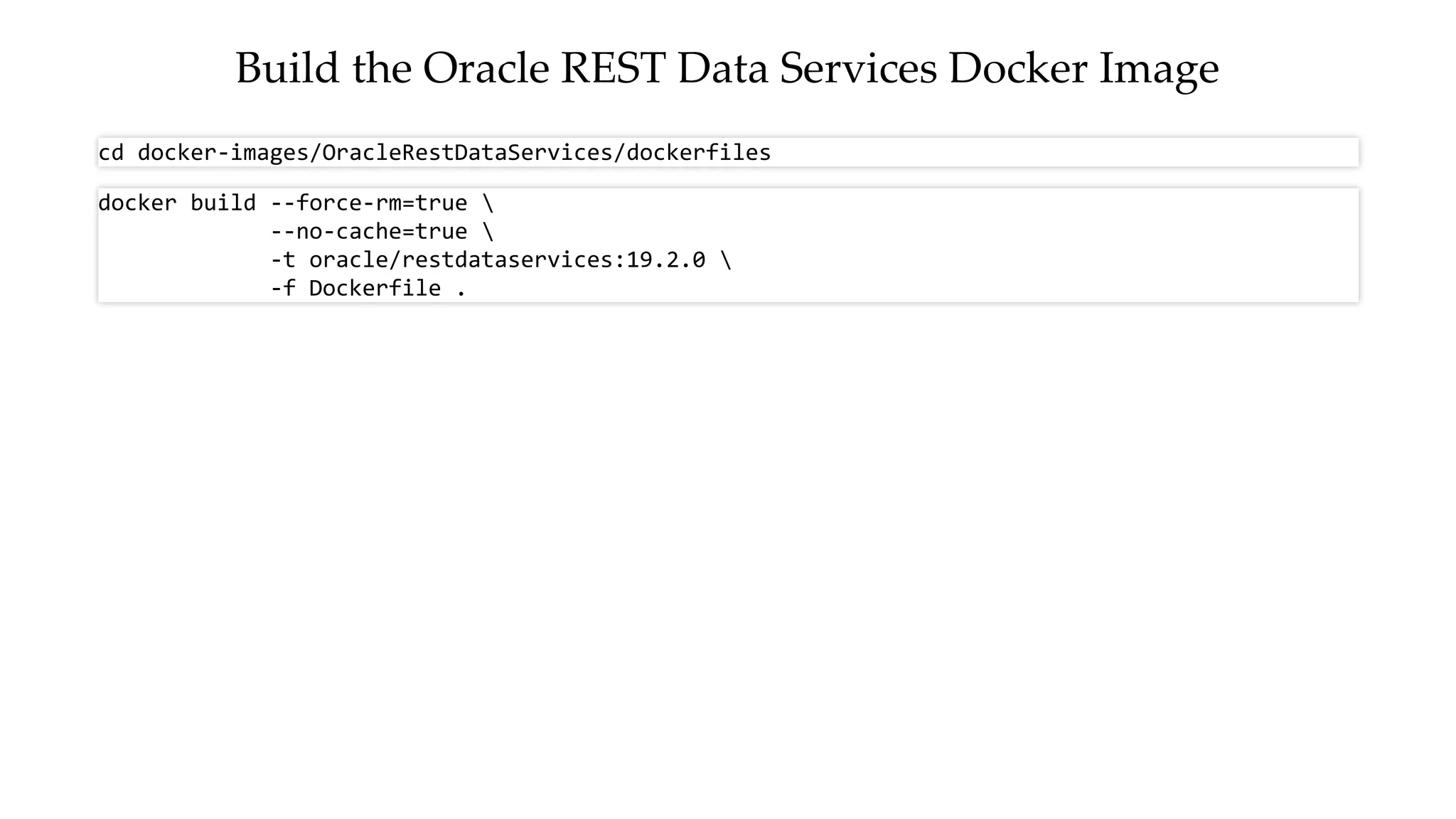

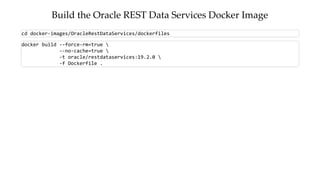

25. Build the Oracle REST Data Services Docker Image
cd docker-images/OracleRestDataServices/dockerfiles
docker build --force-rm=true
--no-cache=true
-t oracle/restdataservices:19.2.0
-f Dockerfile .

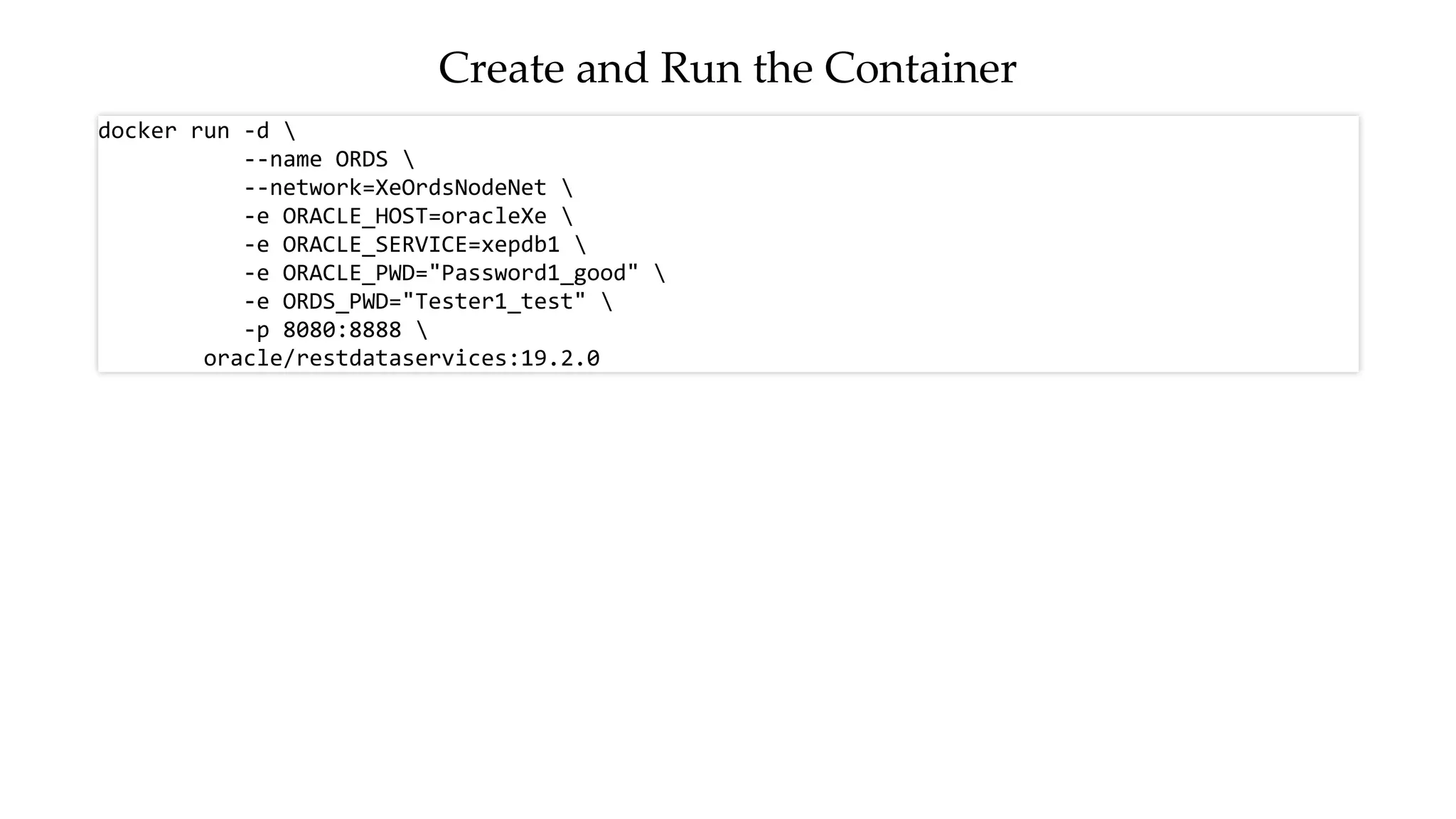

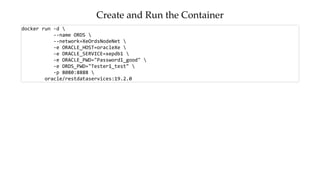

26. Create and Run the Container
docker run -d
--name ORDS
--network=XeOrdsNodeNet
-e ORACLE_HOST=oracleXe
-e ORACLE_SERVICE=xepdb1
-e ORACLE_PWD="Password1_good"
-e ORDS_PWD="Tester1_test"
-p 8080:8888
oracle/restdataservices:19.2.0

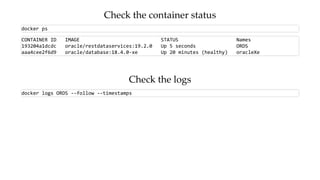

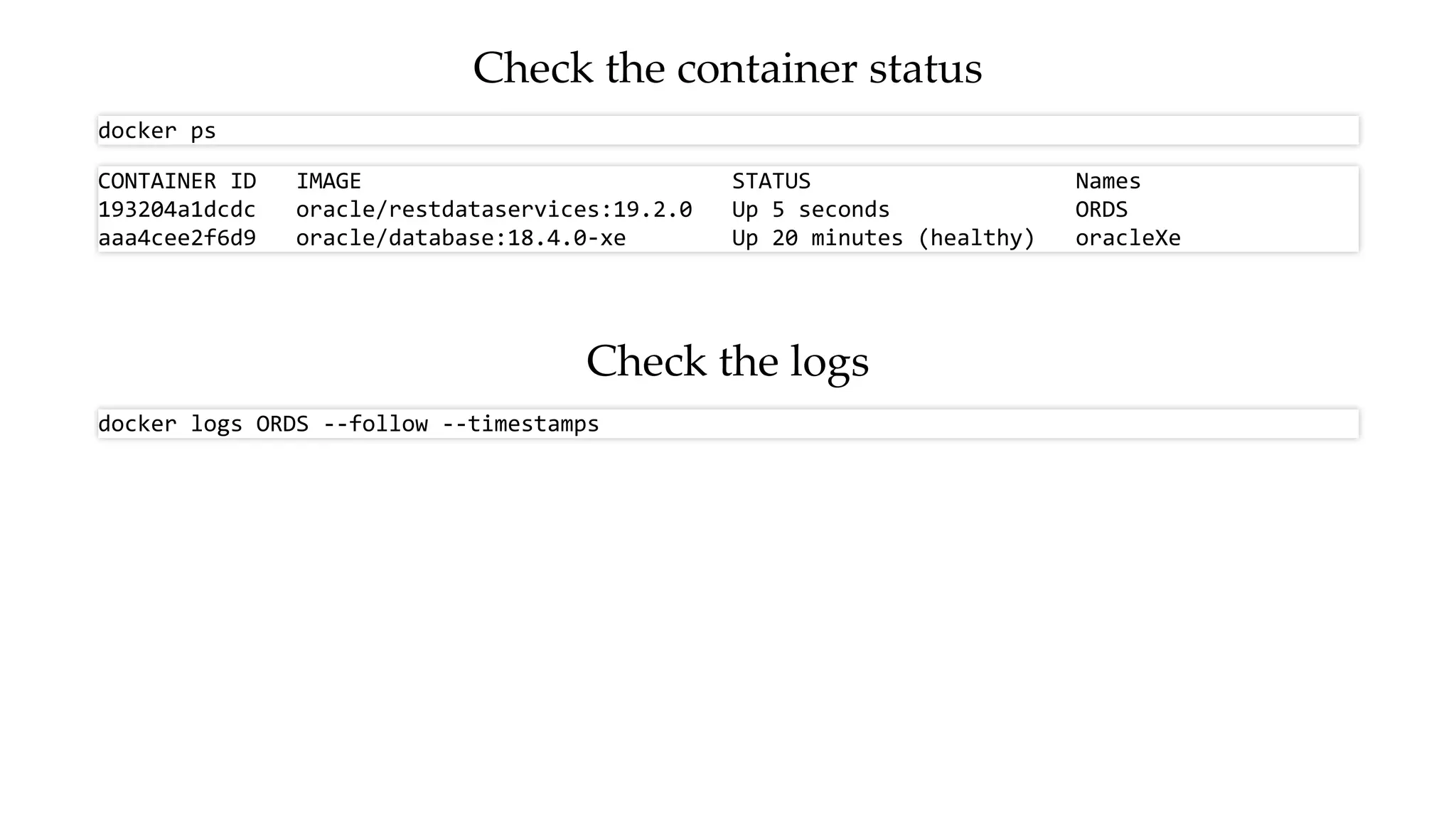

27. Check the container status
Check the logs
docker ps
CONTAINER ID IMAGE STATUS Names
193204a1dcdc oracle/restdataservices:19.2.0 Up 5 seconds ORDS
aaa4cee2f6d9 oracle/database:18.4.0-xe Up 20 minutes (healthy) oracleXe
docker logs ORDS --follow --timestamps

28. OOracleracle RRESTEST DDataata SServiceservices
h ps://oracle.com/rest

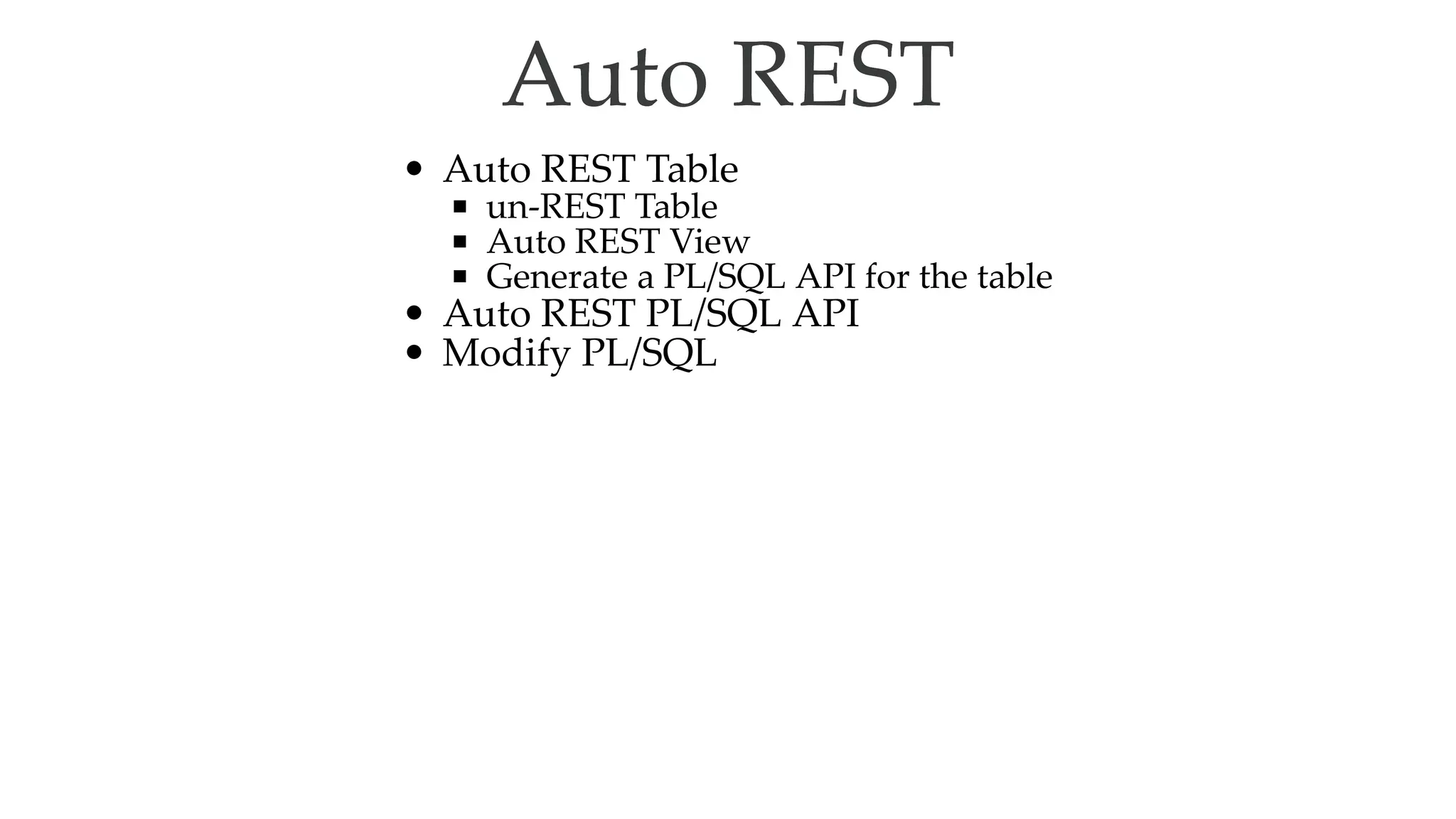

29. Auto RESTAuto REST
Auto REST Table
un-REST Table
Auto REST View
Generate a PL/SQL API for the table
Auto REST PL/SQL API
Modify PL/SQL

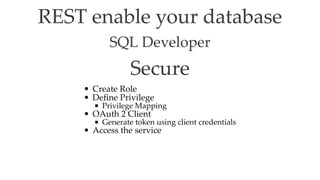

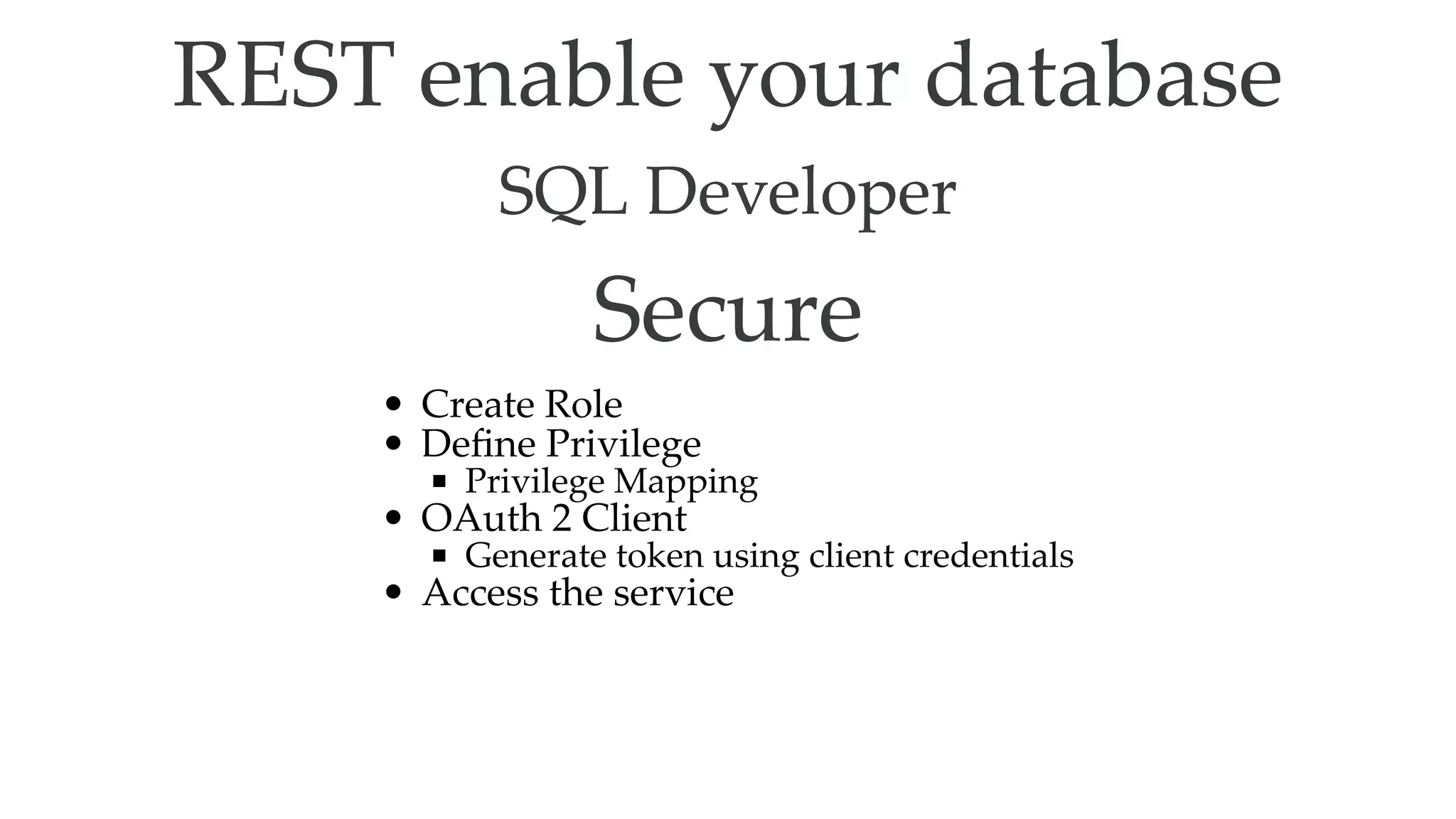

30. REST enable your databaseREST enable your database
SQL DeveloperSQL Developer
SecureSecure
Create Role
Define Privilege
Privilege Mapping
OAuth 2 Client
Generate token using client credentials
Access the service

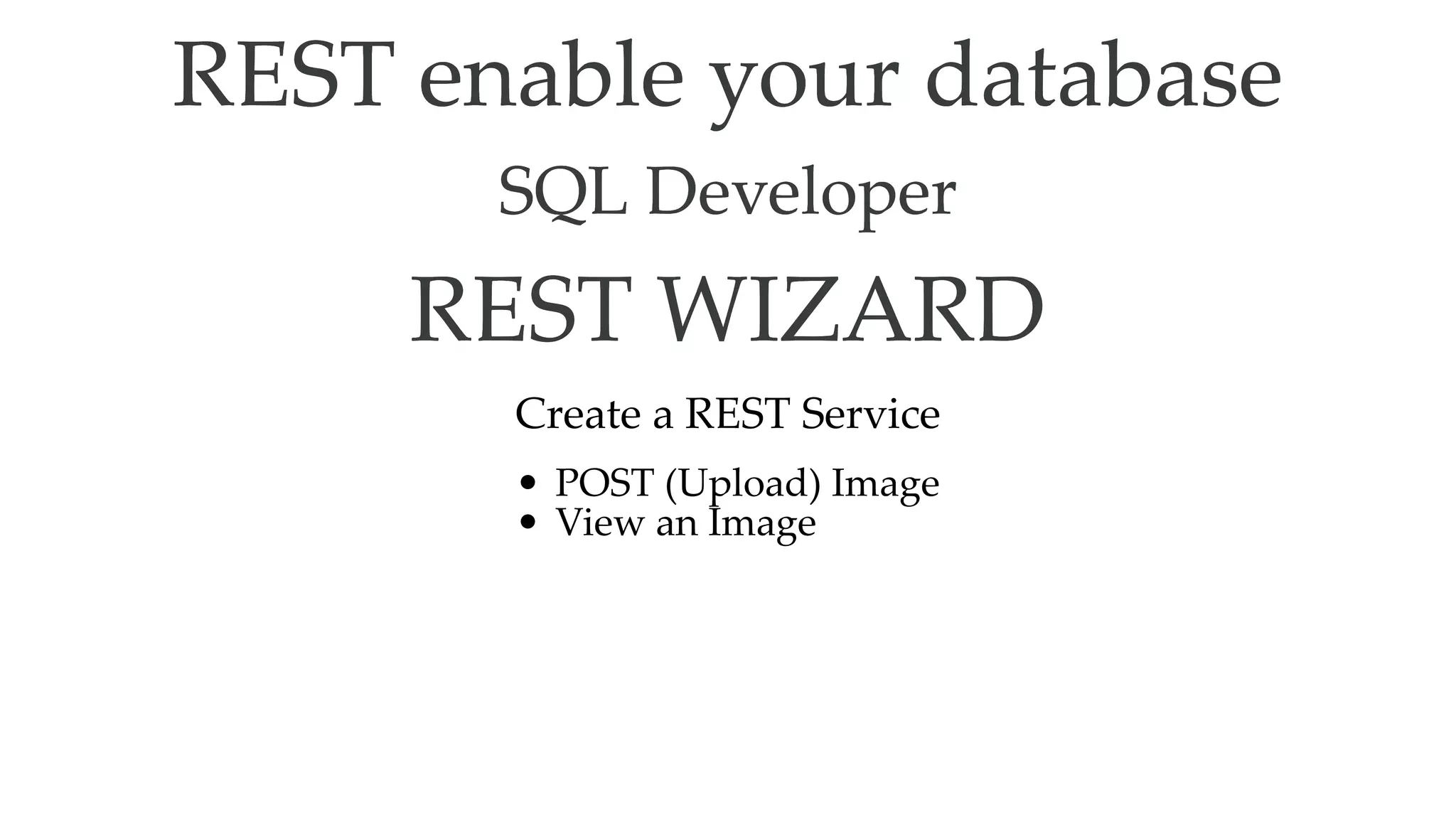

31. REST enable your databaseREST enable your database
SQL DeveloperSQL Developer
REST WIZARDREST WIZARD
Create a REST Service
POST (Upload) Image
View an Image

32. If I've done everything correctlyIf I've done everything correctly

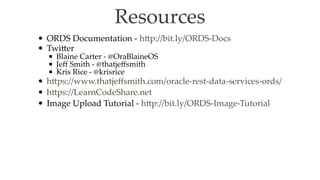

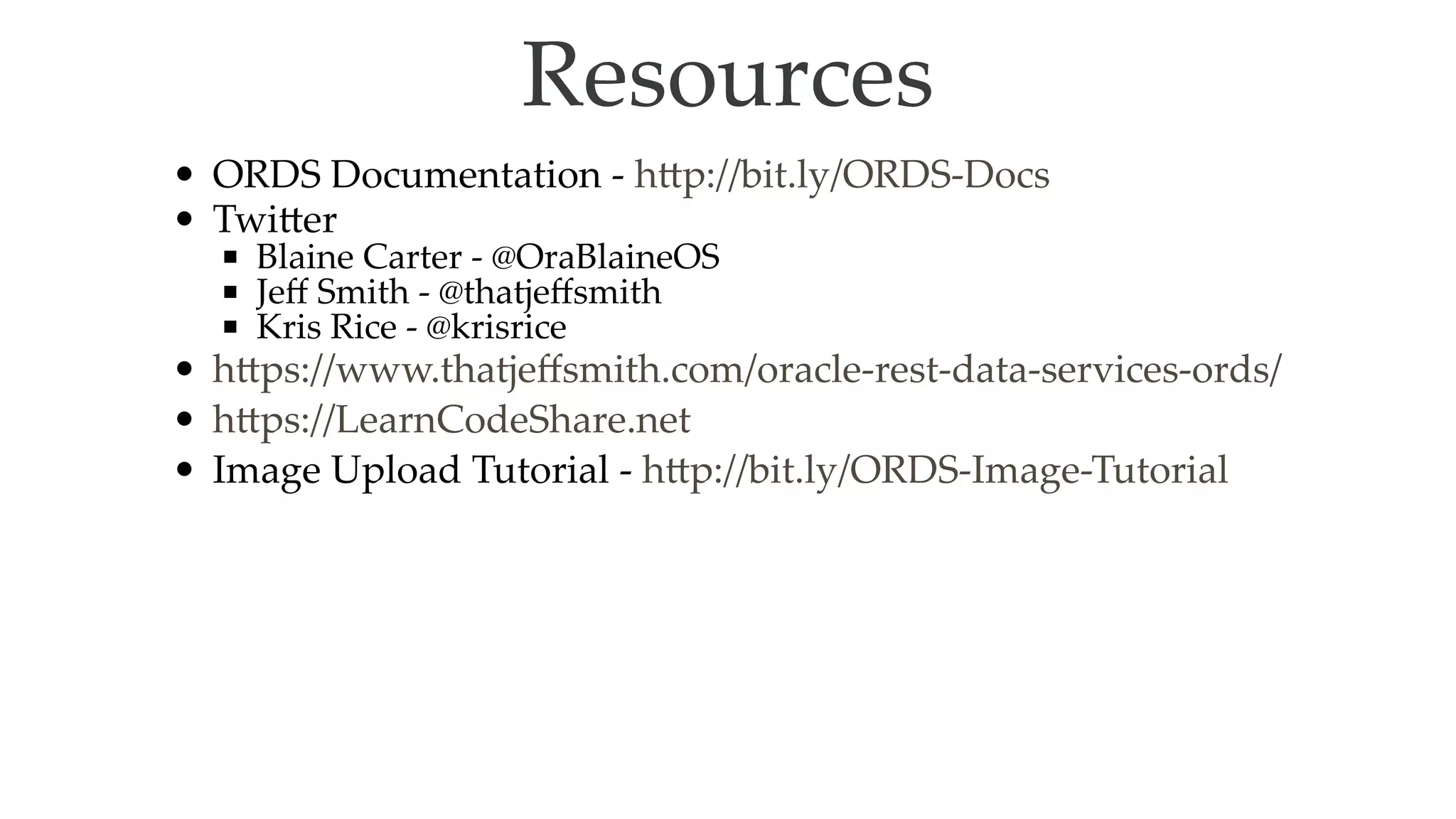

33. ResourcesResources
ORDS Documentation -
Twi er
Blaine Carter - @OraBlaineOS
Jeff Smith - @thatjeffsmith
Kris Rice - @krisrice
Image Upload Tutorial -
h p://bit.ly/ORDS-Docs
h ps://www.thatjeffsmith.com/oracle-rest-data-services-ords/
h ps://LearnCodeShare.net
h p://bit.ly/ORDS-Image-Tutorial
