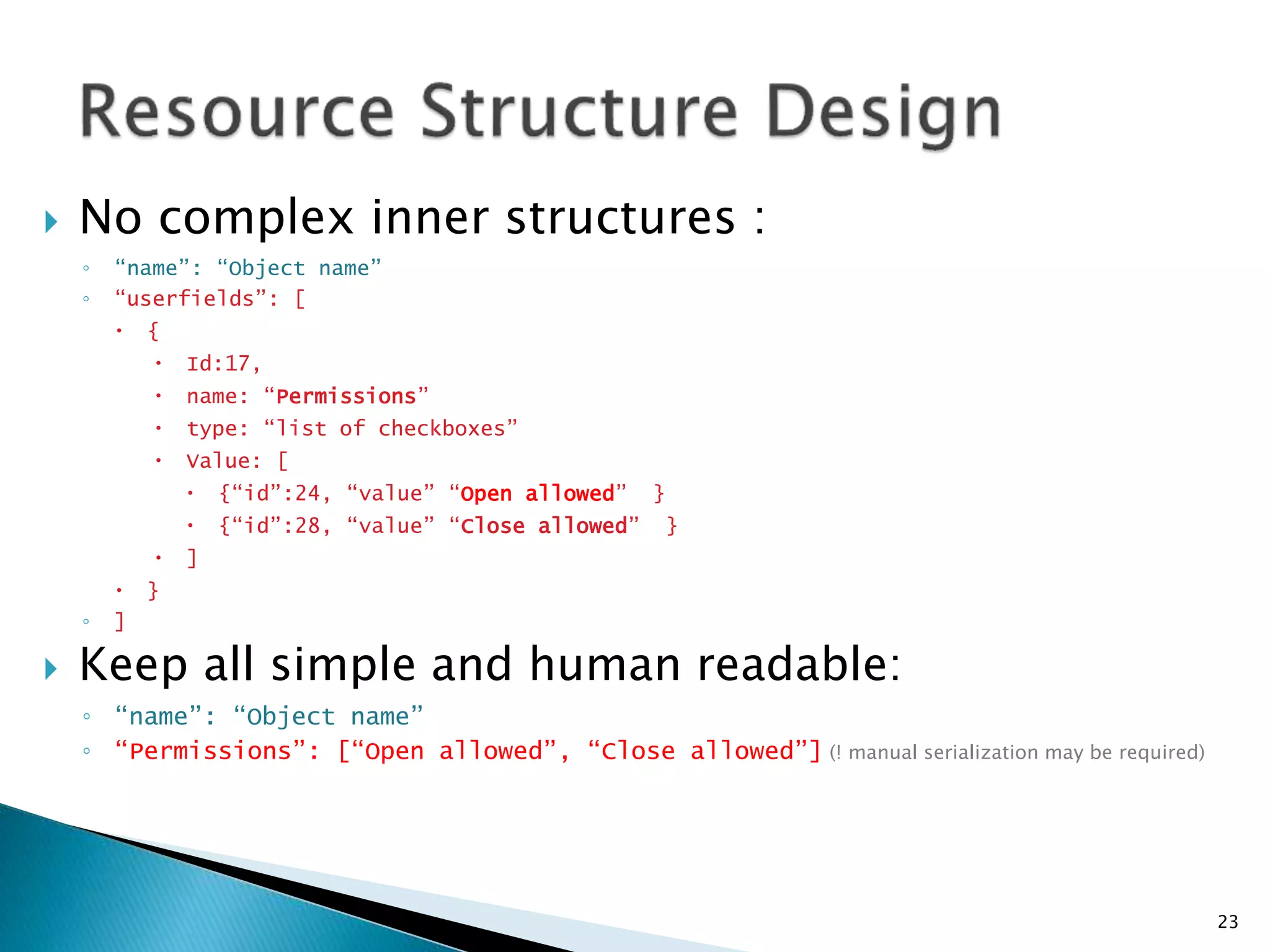

![ No complex inner structures :
◦ “name”: “Object name”
◦ “userfields”: [
{
Id:17,
name: “Permissions”
type: “list of checkboxes”
Value: [
{“id”:24, “value” “Open allowed” }
{“id”:28, “value” “Close allowed” }
]
}
◦ ]
Keep all simple and human readable:
◦ “name”: “Object name”
◦ “Permissions”: [“Open allowed”, “Close allowed”] (! manual serialization may be required)
23](https://image.slidesharecdn.com/random-140922083955-phpapp01/75/About-REST-Softengi-23-2048.jpg)

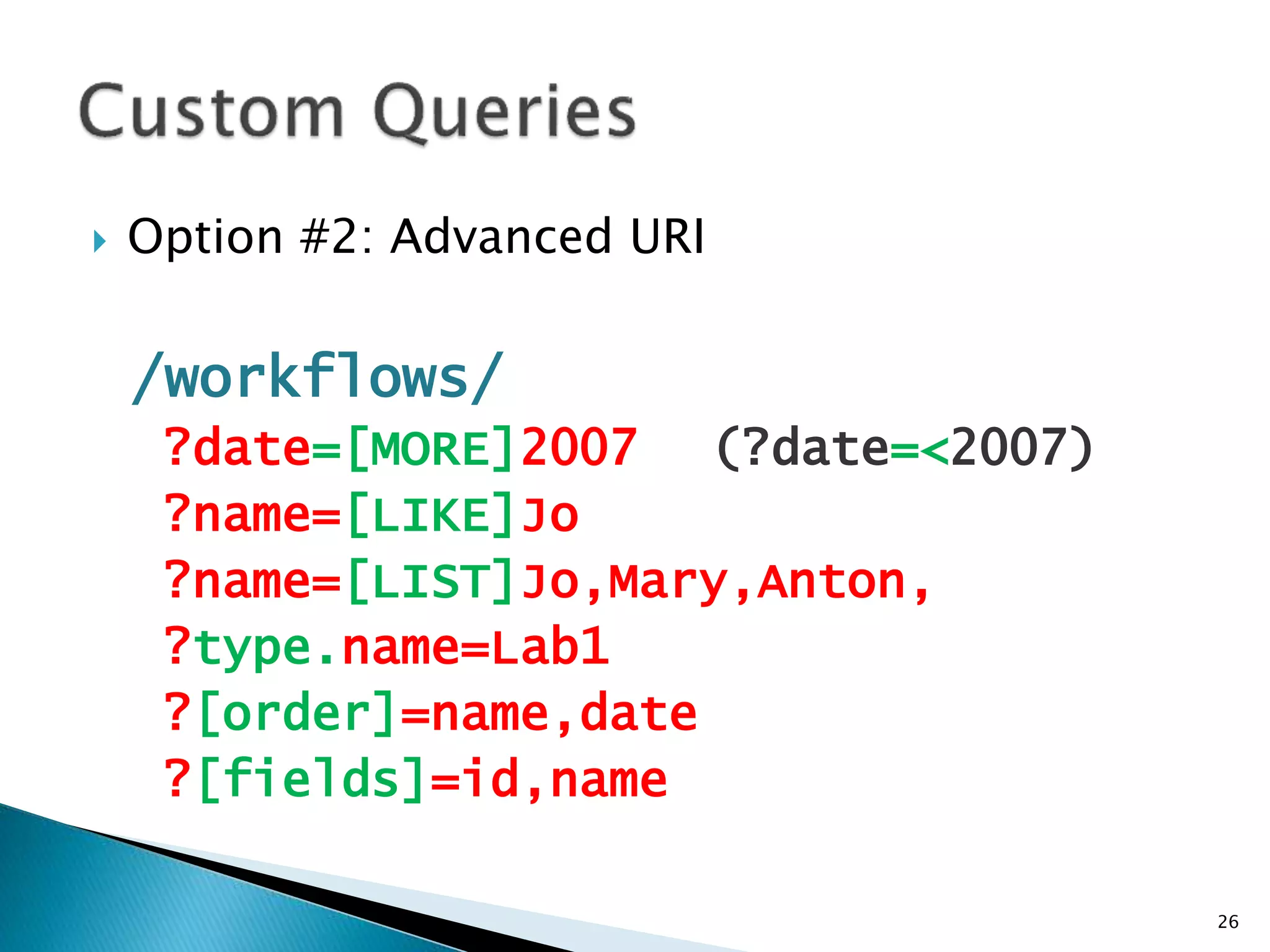

![ Option #2: Advanced URI
/workflows/
?date=[MORE]2007 (?date=<2007)
?name=[LIKE]Jo
?name=[LIST]Jo,Mary,Anton,
?type.name=Lab1
?[order]=name,date
?[fields]=id,name
26](https://image.slidesharecdn.com/random-140922083955-phpapp01/75/About-REST-Softengi-26-2048.jpg)

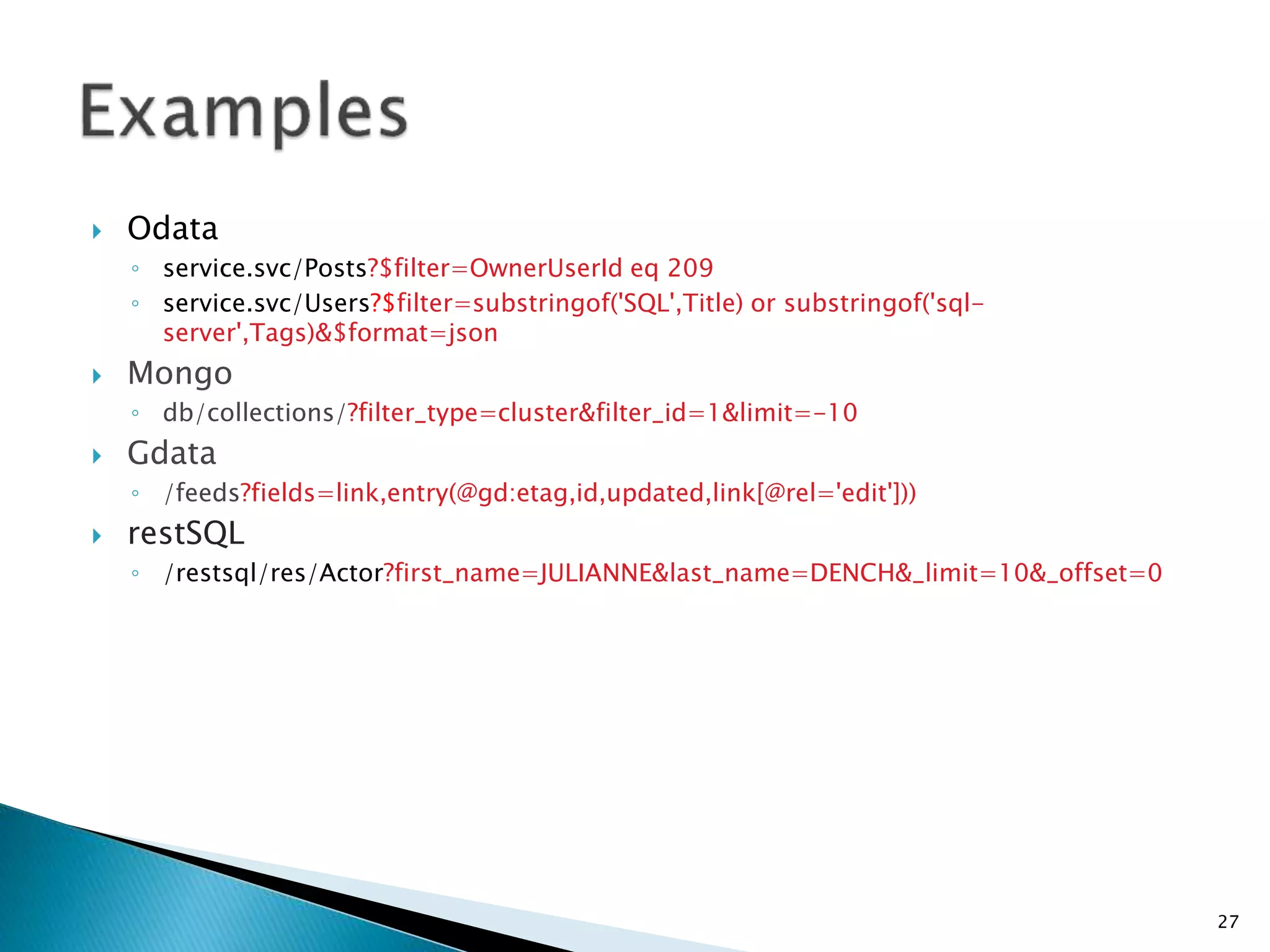

![ Odata
◦ service.svc/Posts?$filter=OwnerUserId eq 209
◦ service.svc/Users?$filter=substringof('SQL',Title) or substringof('sql-server',
Tags)&$format=json
Mongo
◦ db/collections/?filter_type=cluster&filter_id=1&limit=-10
Gdata
◦ /feeds?fields=link,entry(@gd:etag,id,updated,link[@rel='edit']))
restSQL
◦ /restsql/res/Actor?first_name=JULIANNE&last_name=DENCH&_limit=10&_offset=0
27](https://image.slidesharecdn.com/random-140922083955-phpapp01/75/About-REST-Softengi-27-2048.jpg)

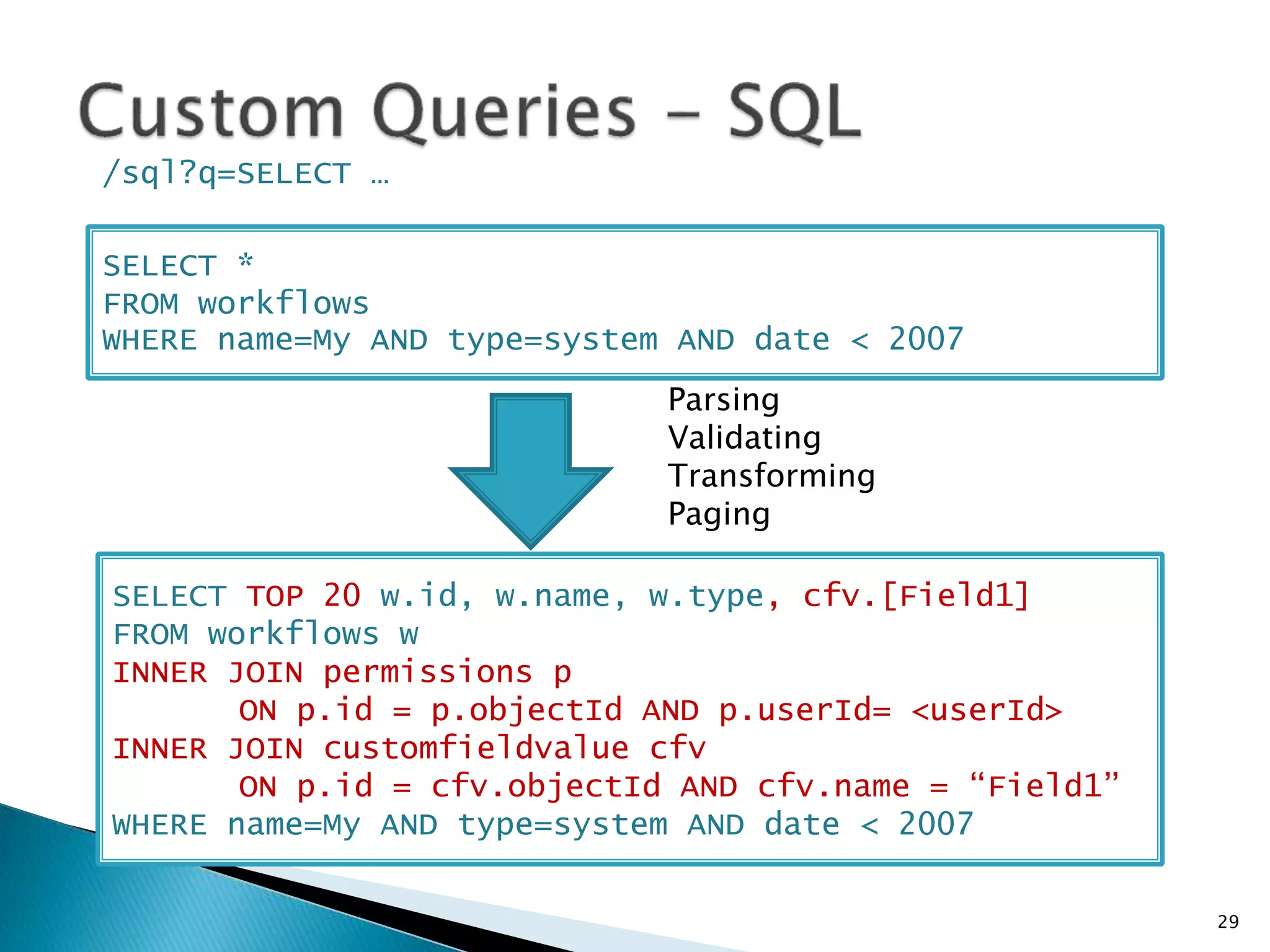

![/sql?q=SELECT …
SELECT *
FROM workflows
WHERE name=My AND type=system AND date < 2007
Parsing
Validating
Transforming
Paging
SELECT TOP 20 w.id, w.name, w.type, cfv.[Field1]
FROM workflows w
INNER JOIN permissions p
ON p.id = p.objectId AND p.userId= <userId>
INNER JOIN customfieldvalue cfv
ON p.id = cfv.objectId AND cfv.name = “Field1”
WHERE name=My AND type=system AND date < 2007
29](https://image.slidesharecdn.com/random-140922083955-phpapp01/75/About-REST-Softengi-29-2048.jpg)
Uploaded bySoftengi
About REST. Архитектурные семинары Softengi
The document discusses Representational State Transfer (REST) as a software architectural style defined by Roy Fielding in 2000, emphasizing principles such as statelessness, cacheability, and a uniform interface for resource manipulation. It also touches on RESTful API design, providing guidelines for creating user-friendly URIs and illustrating typical API requests and responses. Additionally, the document compares REST to SOAP, highlighting differences in complexity, usability, and standards.
More Related Content
![[Coscup 2012] JavascriptMVC](https://cdn.slidesharecdn.com/ss_thumbnails/coscupjavascriptmvc-120818115356-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to About REST. Архитектурные семинары Softengi
![cloud enabling tecnologies , unit ii [cc]](https://cdn.slidesharecdn.com/ss_thumbnails/unit-ii-240619035331-08614007-thumbnail.jpg?width=640&height=640&fit=bounds)
About REST. Архитектурные семинары Softengi
- 1.
- 2. Anton Bogdan ◦ Architect in Softengi company ◦ Enviance team 29 years old 2

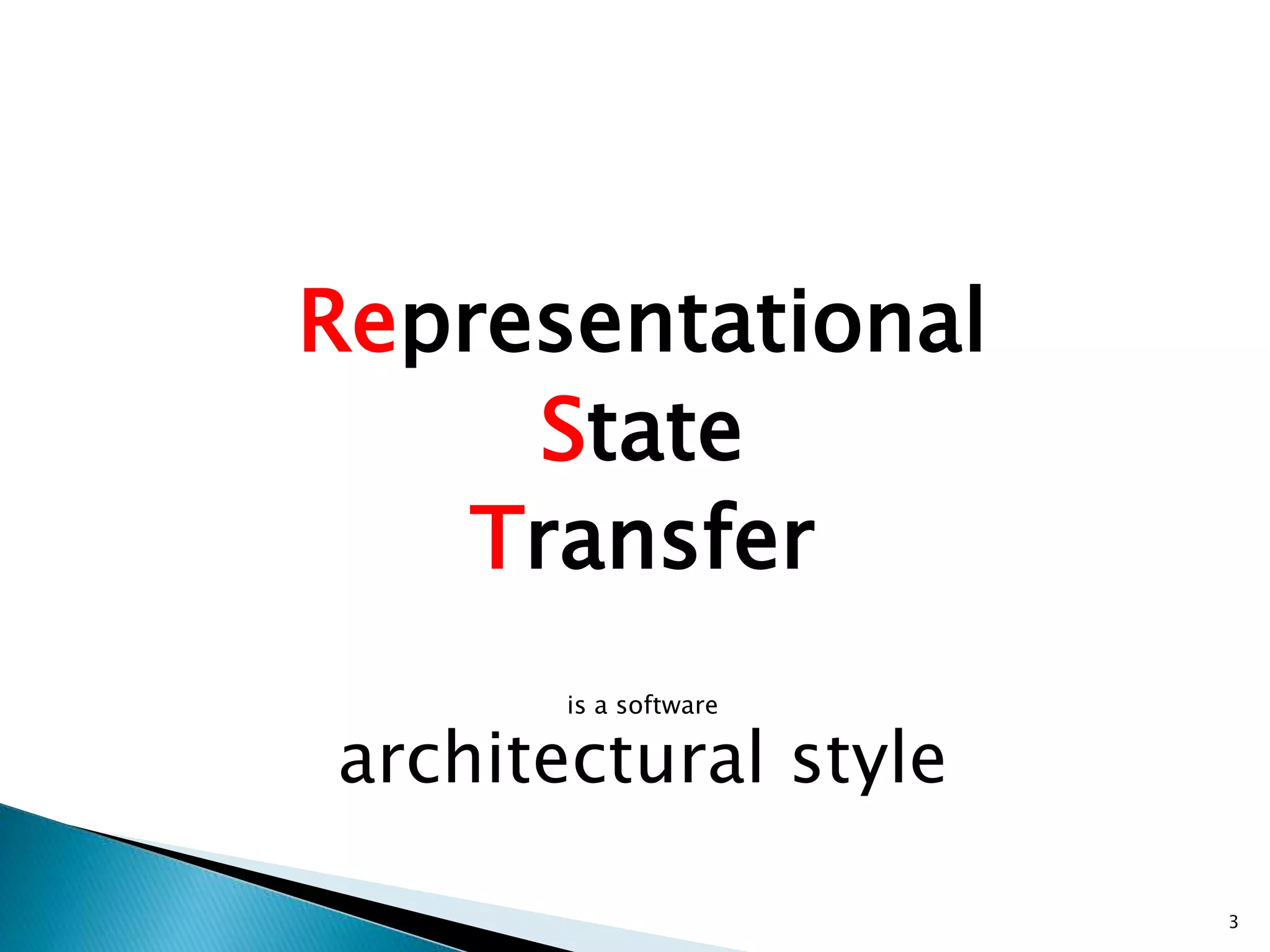

- 3. Representational State Transfer 3 is a software architectural style
- 4. 2000 by RoyFielding in his doctoral dissertation at UC Irvine 4

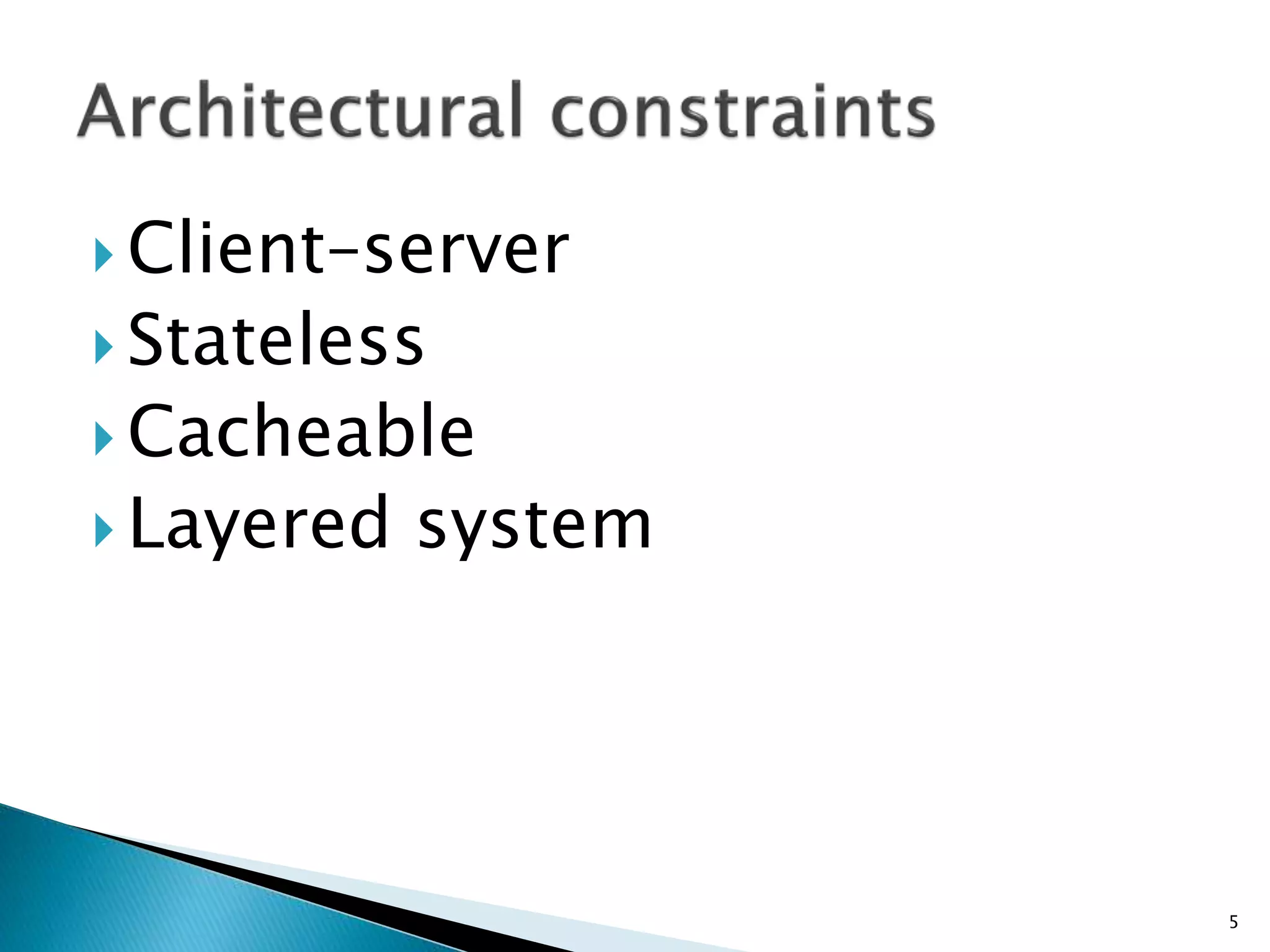

- 5. Client–server Stateless Cacheable Layered system 5

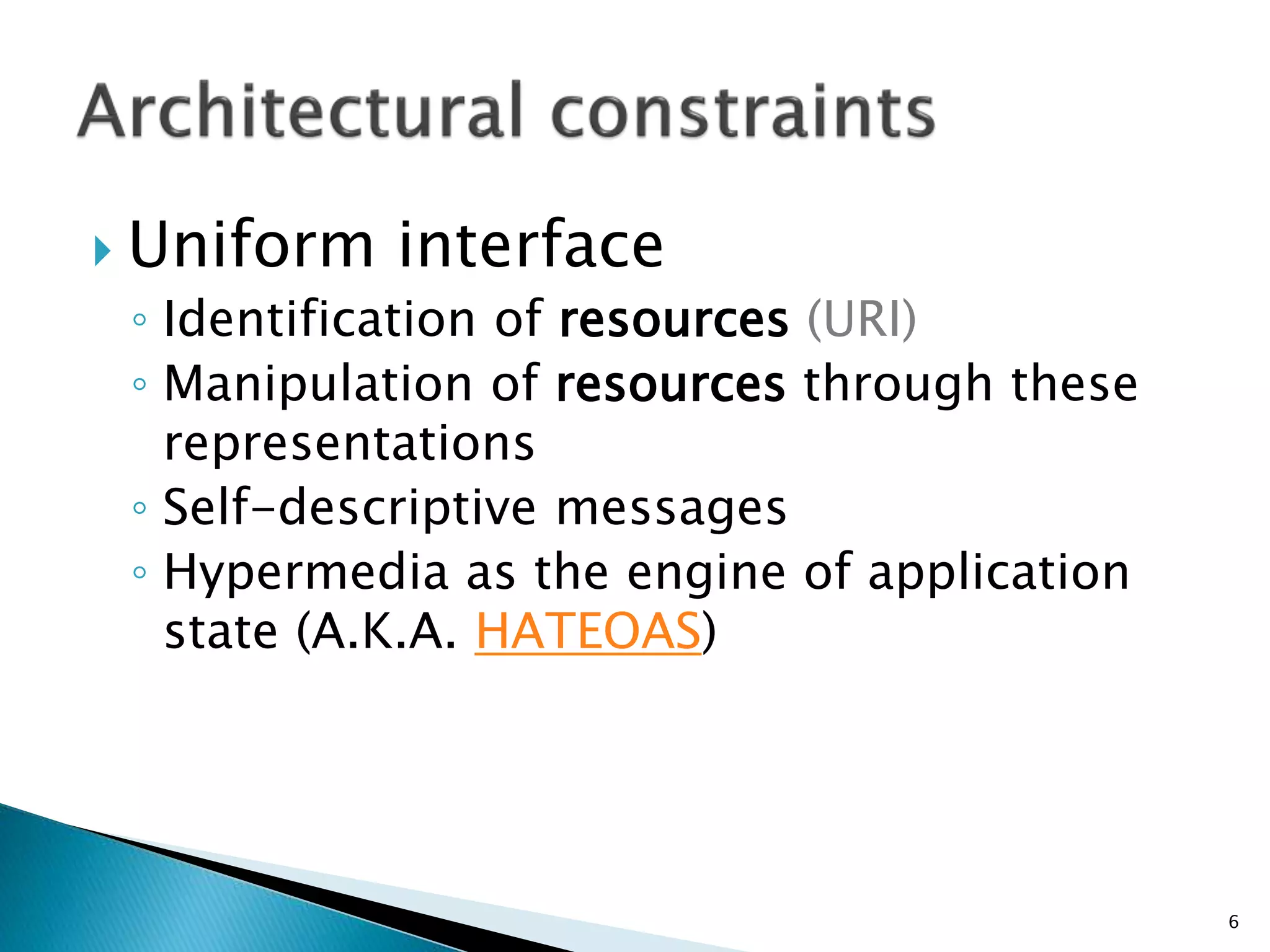

- 6. Uniform interface ◦ Identification of resources (URI) ◦ Manipulation of resources through these representations ◦ Self-descriptive messages ◦ Hypermedia as the engine of application state (A.K.A. HATEOAS) 6

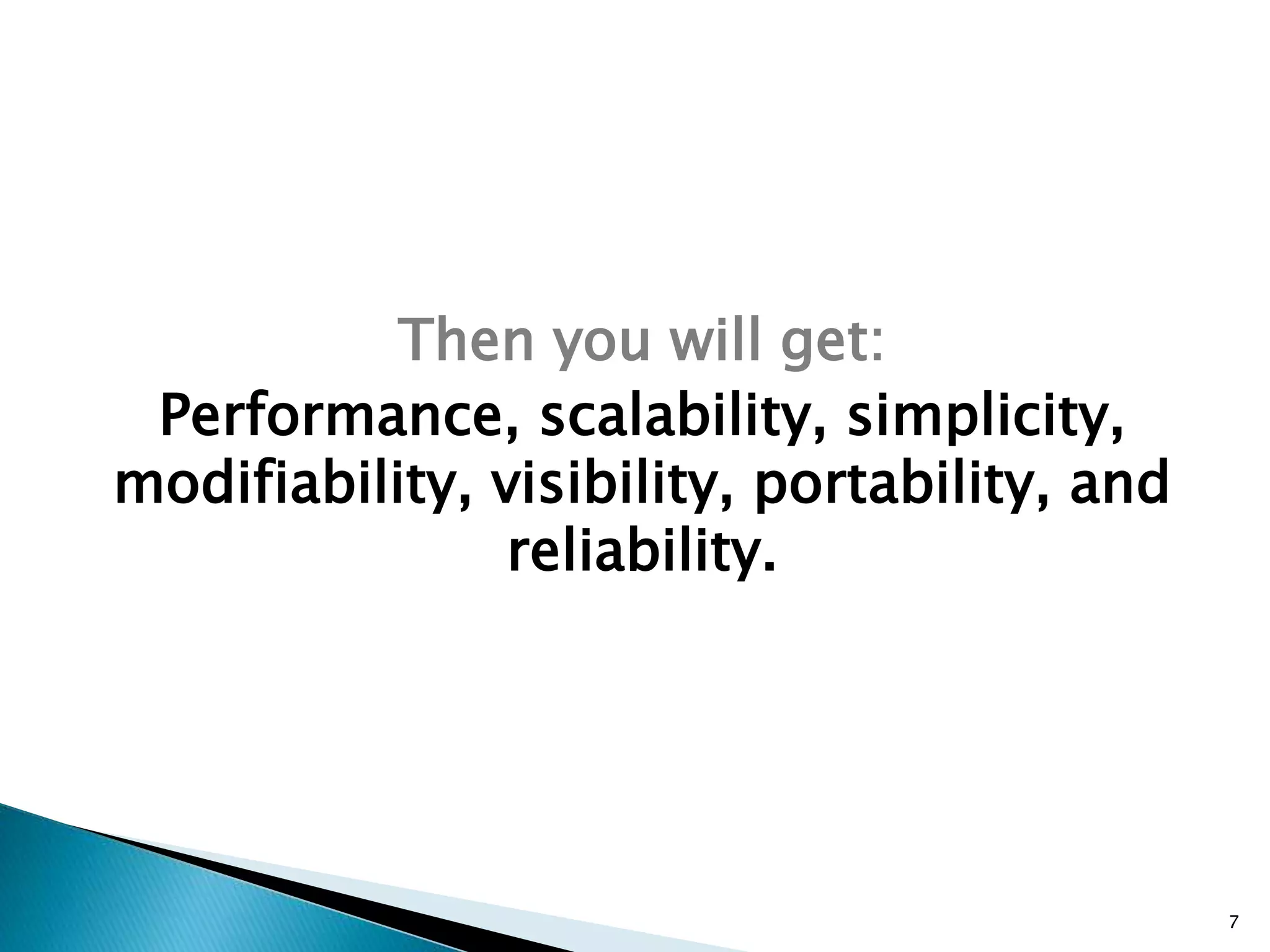

- 7. Then you willget: Performance, scalability, simplicity, modifiability, visibility, portability, and reliability. 7
- 8.
- 9.

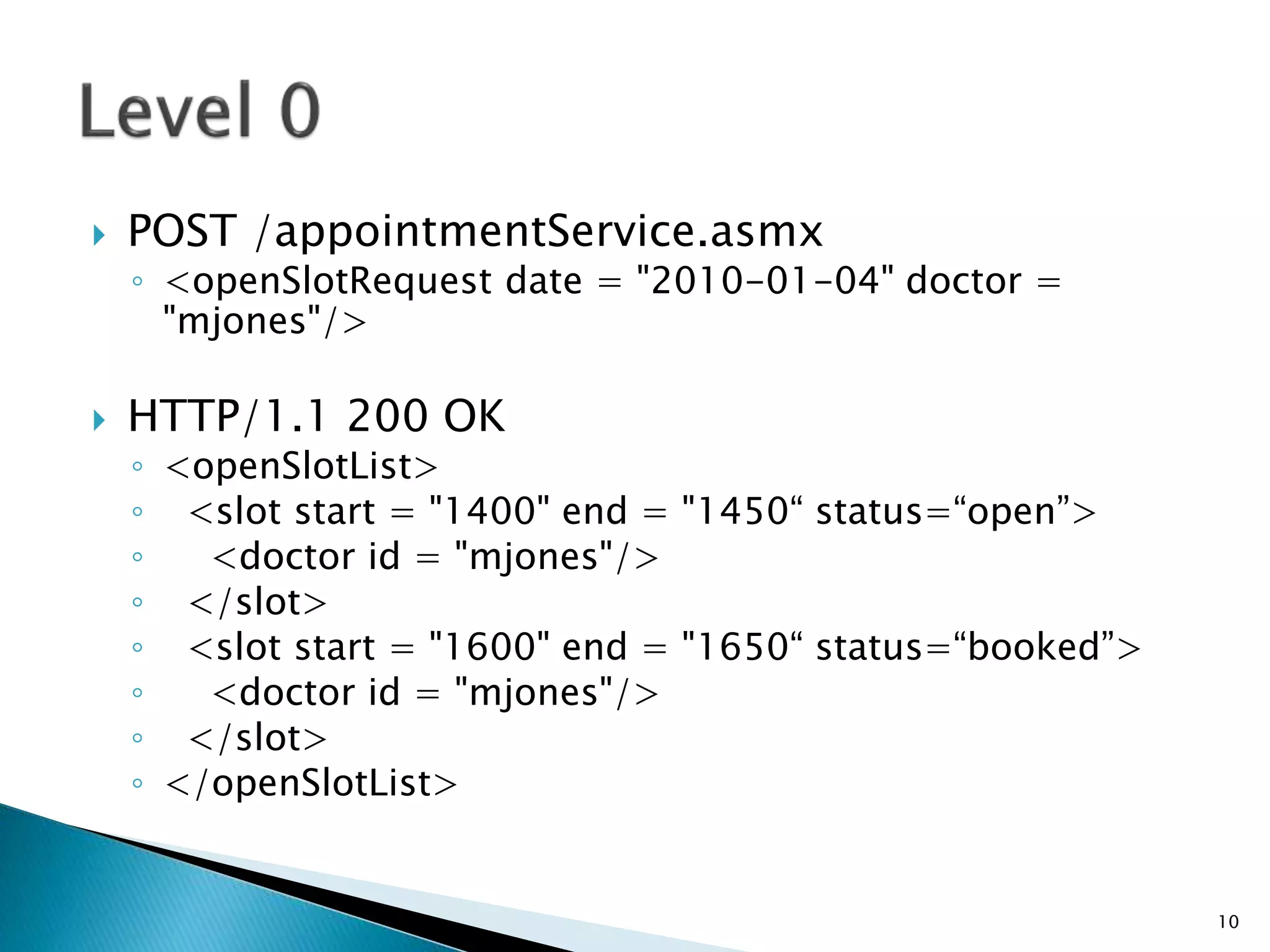

- 10. POST /appointmentService.asmx ◦ <openSlotRequest date = "2010-01-04" doctor = "mjones"/> HTTP/1.1 200 OK ◦ <openSlotList> ◦ <slot start = "1400" end = "1450“ status=“open”> ◦ <doctor id = "mjones"/> ◦ </slot> ◦ <slot start = "1600" end = "1650“ status=“booked”> ◦ <doctor id = "mjones"/> ◦ </slot> ◦ </openSlotList> 10

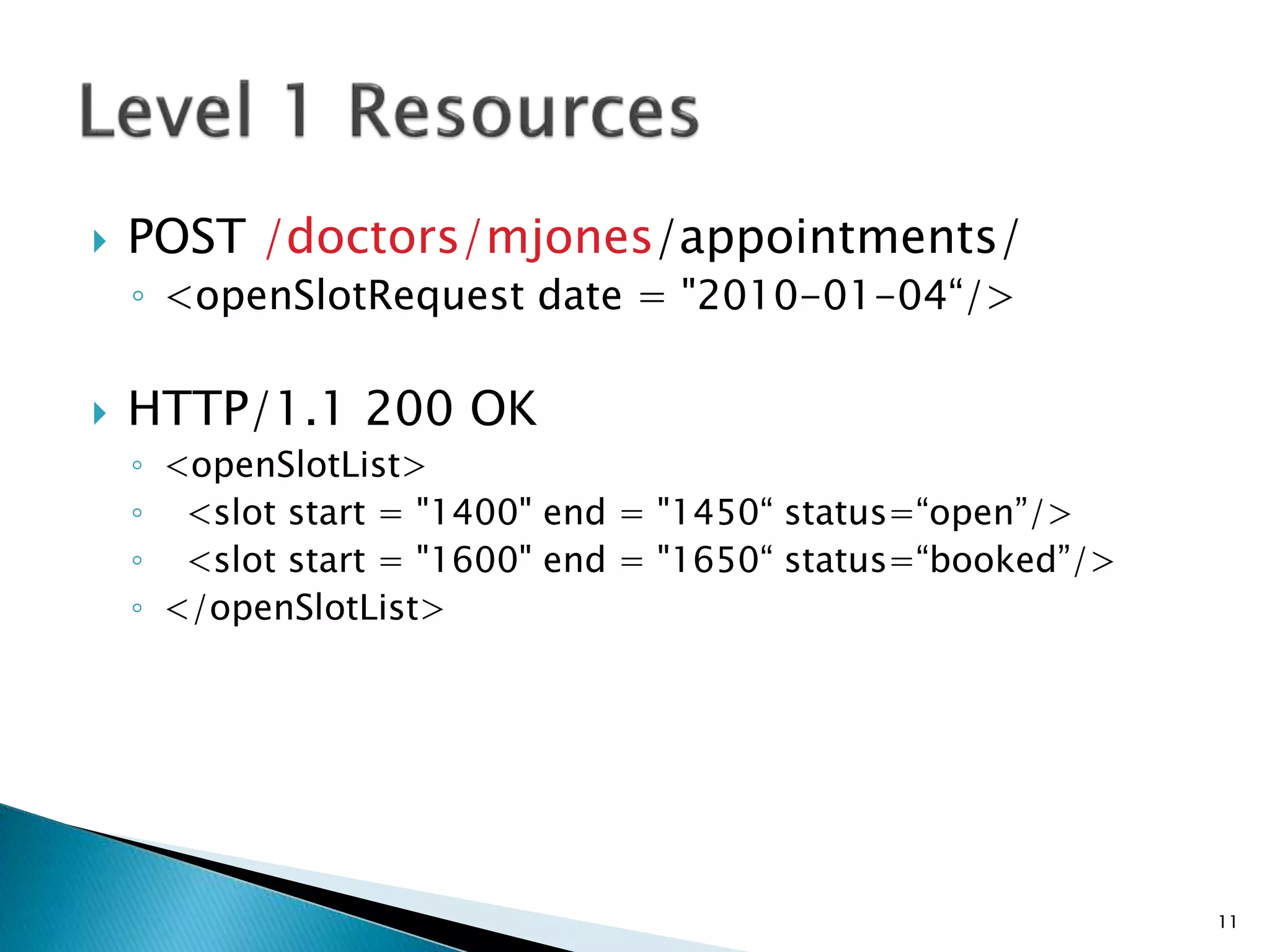

- 11. POST /doctors/mjones/appointments/ ◦ <openSlotRequest date = "2010-01-04“/> HTTP/1.1 200 OK ◦ <openSlotList> ◦ <slot start = "1400" end = "1450“ status=“open”/> ◦ <slot start = "1600" end = "1650“ status=“booked”/> ◦ </openSlotList> 11

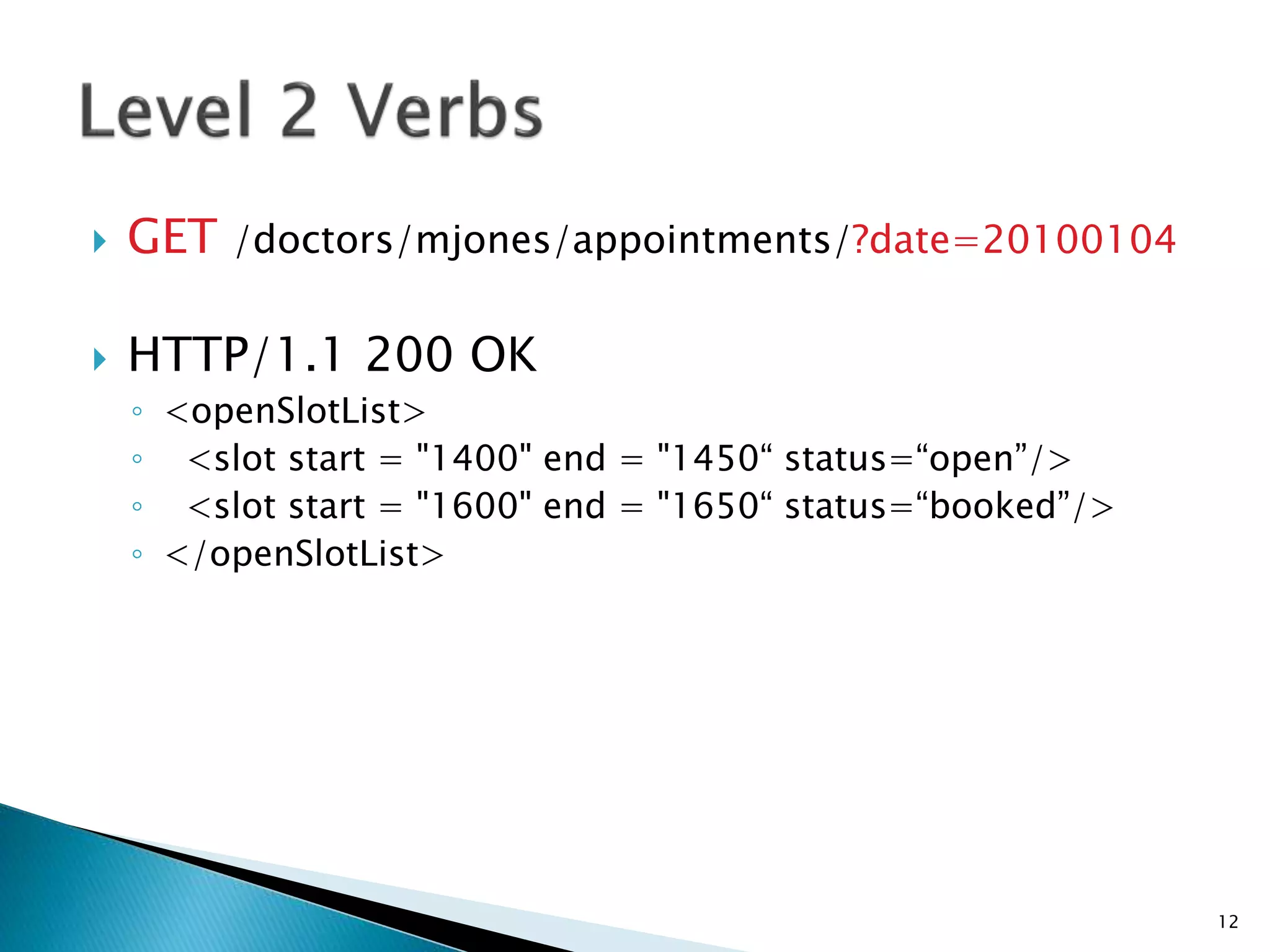

- 12. GET /doctors/mjones/appointments/?date=20100104 HTTP/1.1 200 OK ◦ <openSlotList> ◦ <slot start = "1400" end = "1450“ status=“open”/> ◦ <slot start = "1600" end = "1650“ status=“booked”/> ◦ </openSlotList> 12

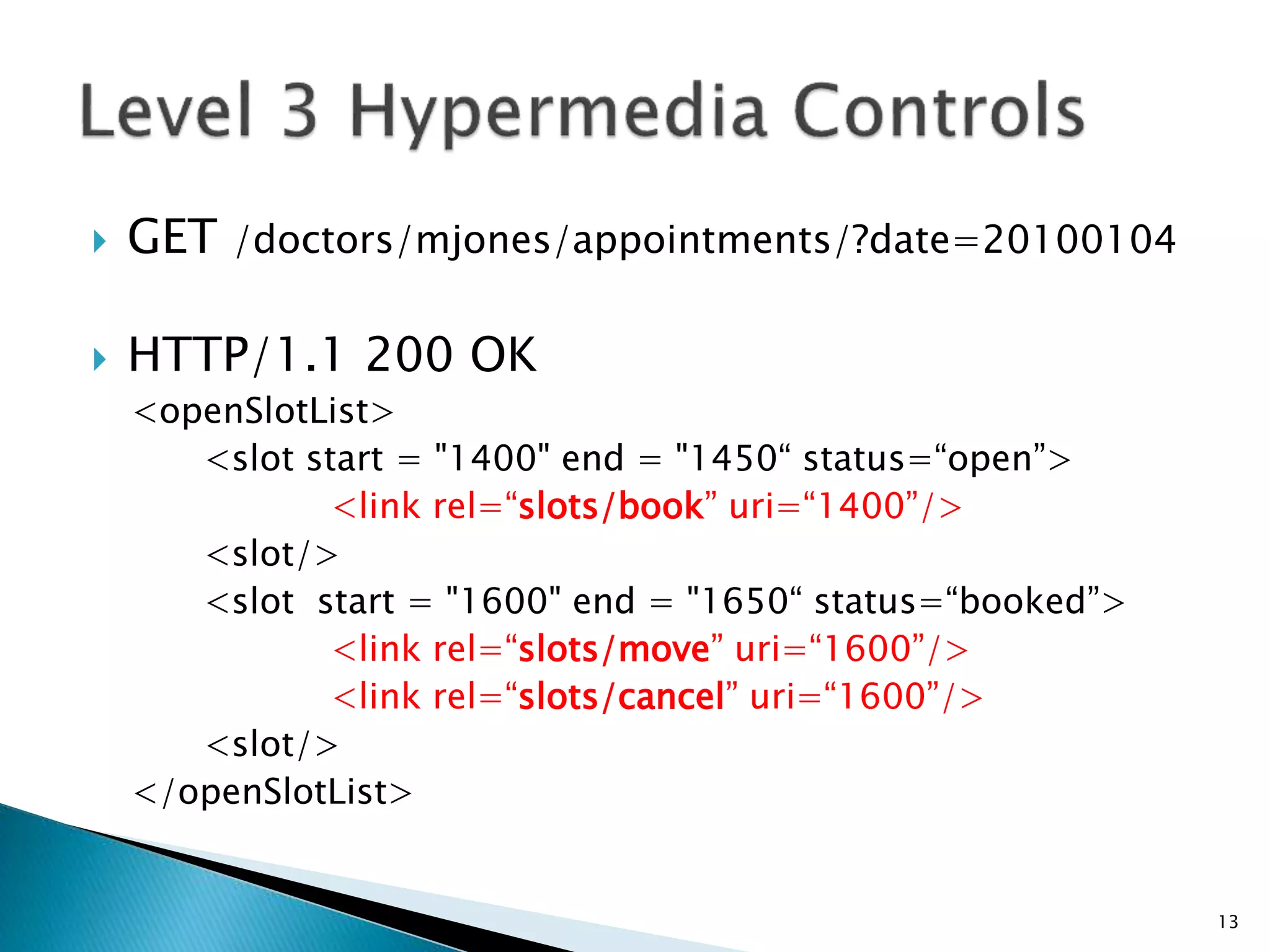

- 13. GET /doctors/mjones/appointments/?date=20100104 HTTP/1.1 200 OK <openSlotList> <slot start = "1400" end = "1450“ status=“open”> <link rel=“slots/book” uri=“1400”/> <slot/> <slot start = "1600" end = "1650“ status=“booked”> <link rel=“slots/move” uri=“1600”/> <link rel=“slots/cancel” uri=“1600”/> <slot/> </openSlotList> 13

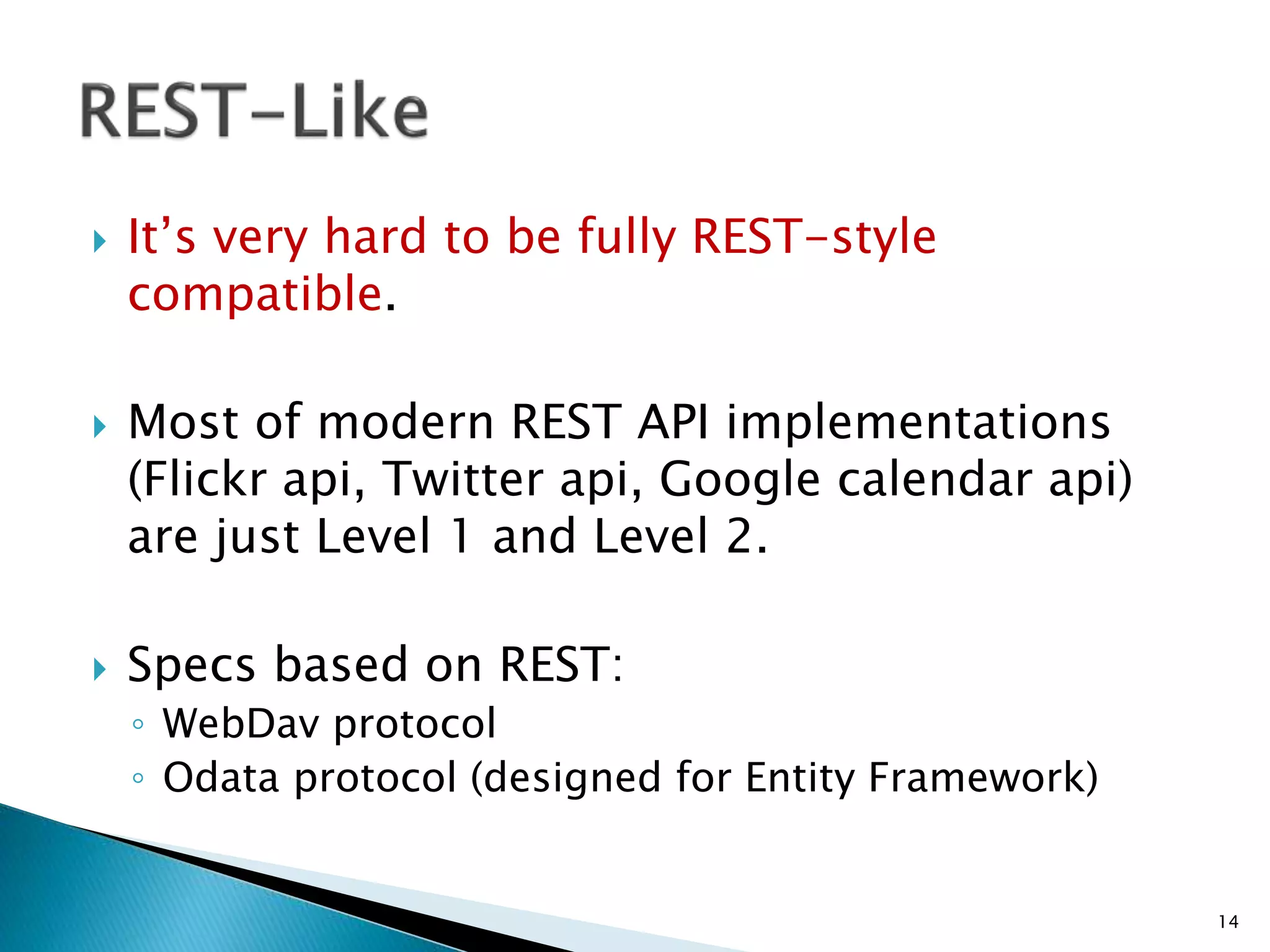

- 14. It’s veryhard to be fully REST-style compatible. Most of modern REST API implementations (Flickr api, Twitter api, Google calendar api) are just Level 1 and Level 2. Specs based on REST: ◦ WebDav protocol ◦ Odata protocol (designed for Entity Framework) 14
- 15.

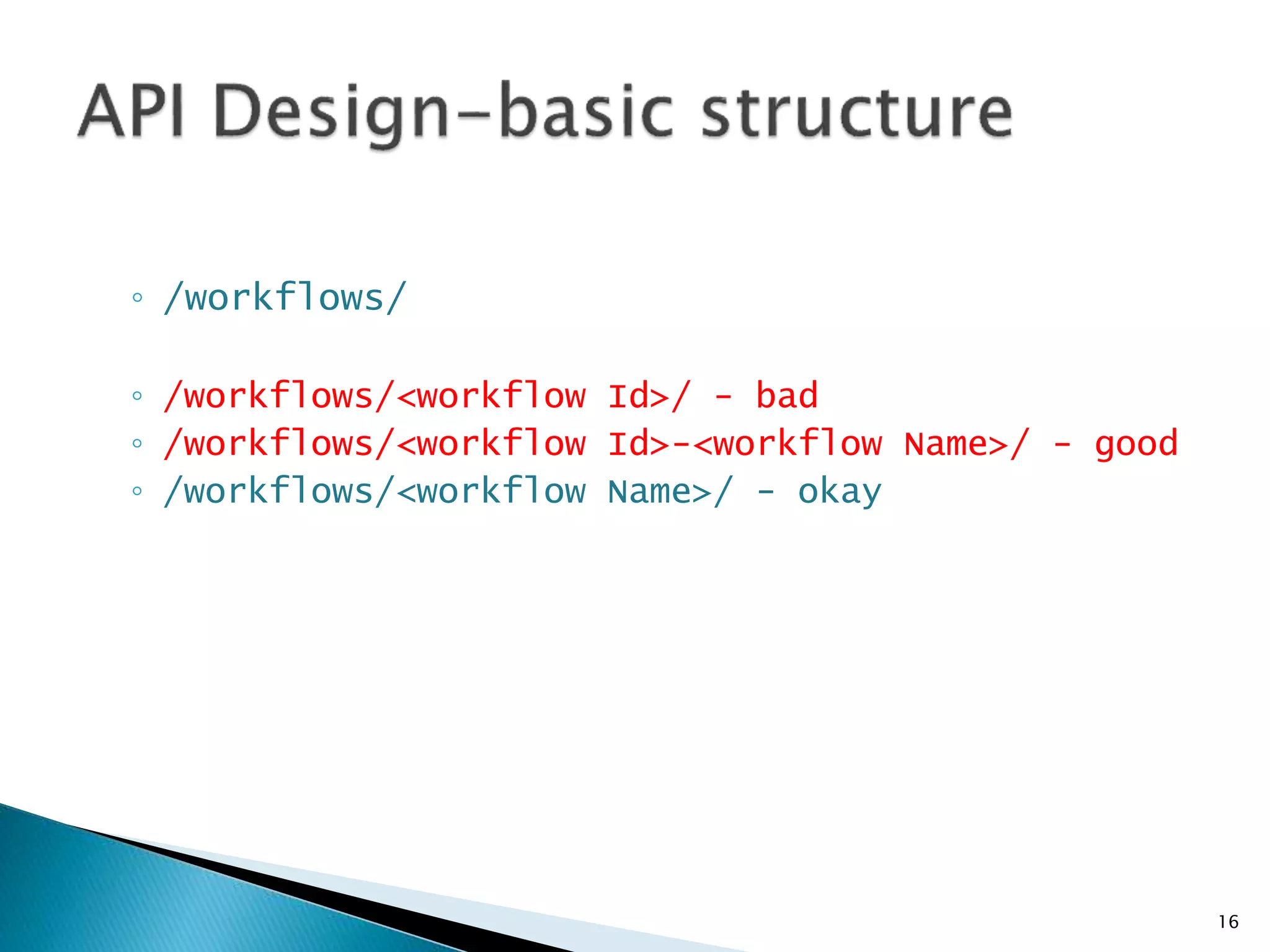

- 16. ◦ /workflows/ ◦/workflows/<workflow Id>/ - bad ◦ /workflows/<workflow Id>-<workflow Name>/ - good ◦ /workflows/<workflow Name>/ - okay 16

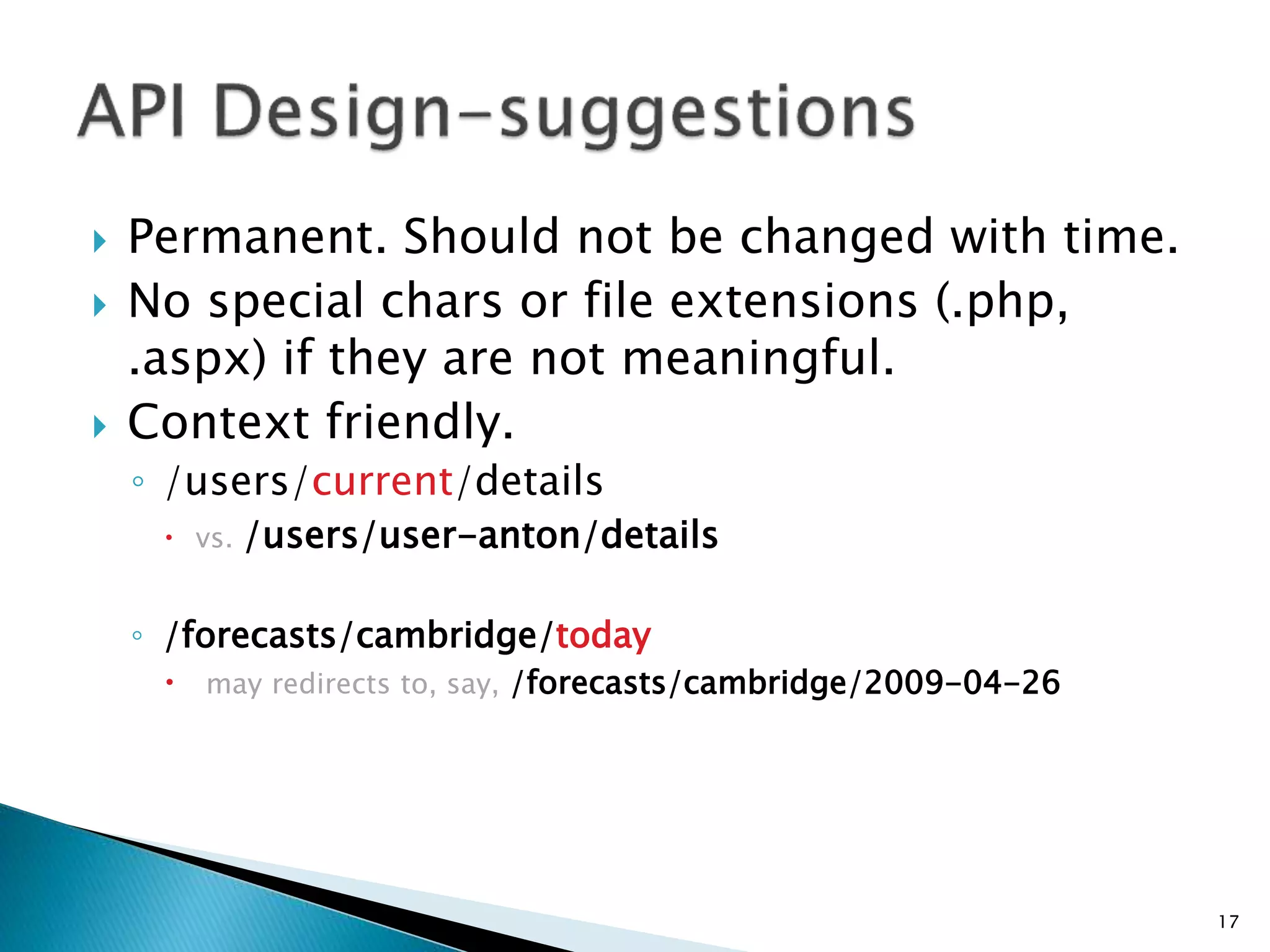

- 17. Permanent. Shouldnot be changed with time. No special chars or file extensions (.php, .aspx) if they are not meaningful. Context friendly. ◦ /users/current/details vs. /users/user-anton/details ◦ /forecasts/cambridge/today may redirects to, say, /forecasts/cambridge/2009-04-26 17

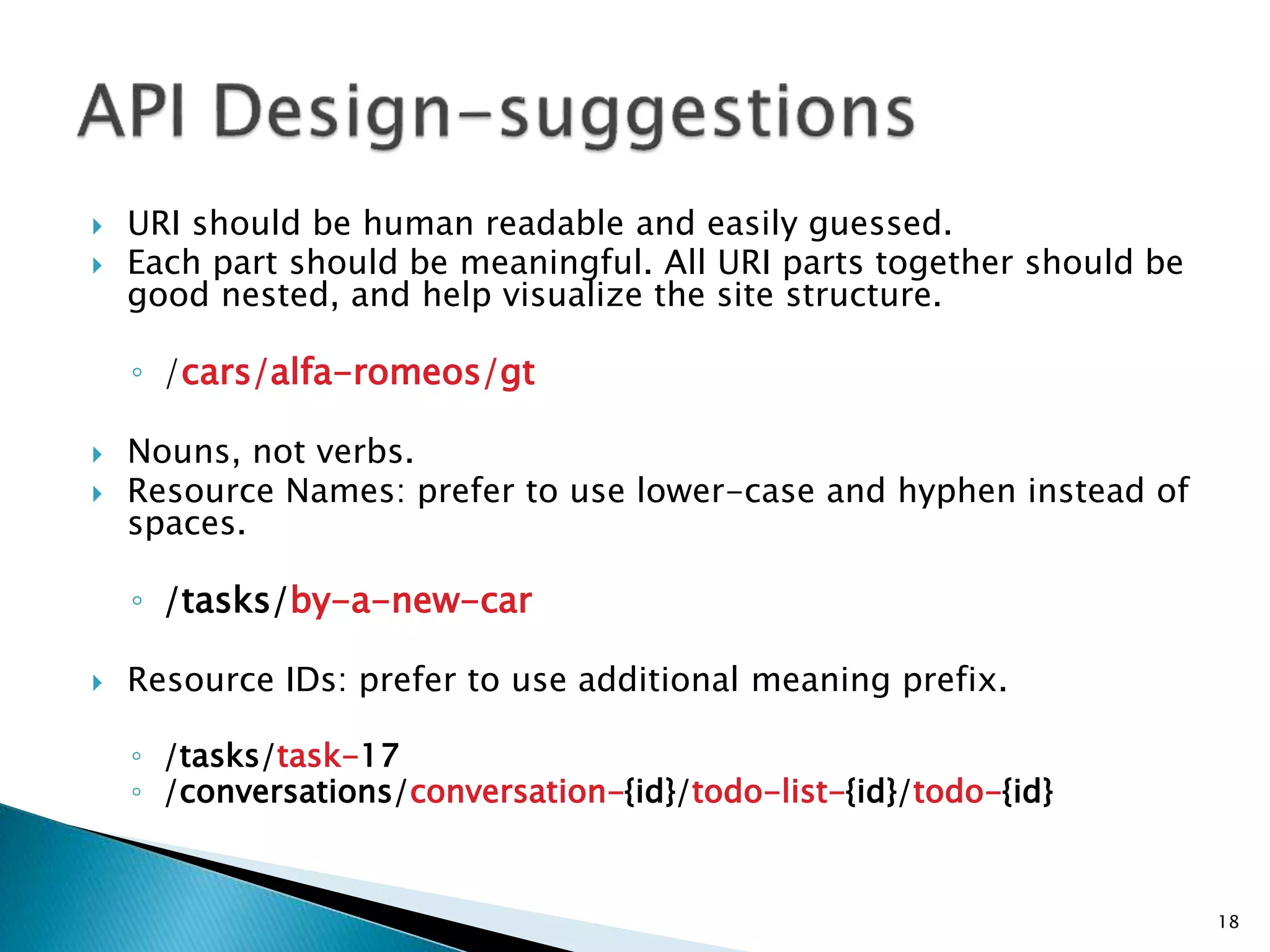

- 18. URI shouldbe human readable and easily guessed. Each part should be meaningful. All URI parts together should be good nested, and help visualize the site structure. ◦ /cars/alfa-romeos/gt Nouns, not verbs. Resource Names: prefer to use lower-case and hyphen instead of spaces. ◦ /tasks/by-a-new-car Resource IDs: prefer to use additional meaning prefix. ◦ /tasks/task-17 ◦ /conversations/conversation-{id}/todo-list-{id}/todo-{id} 18

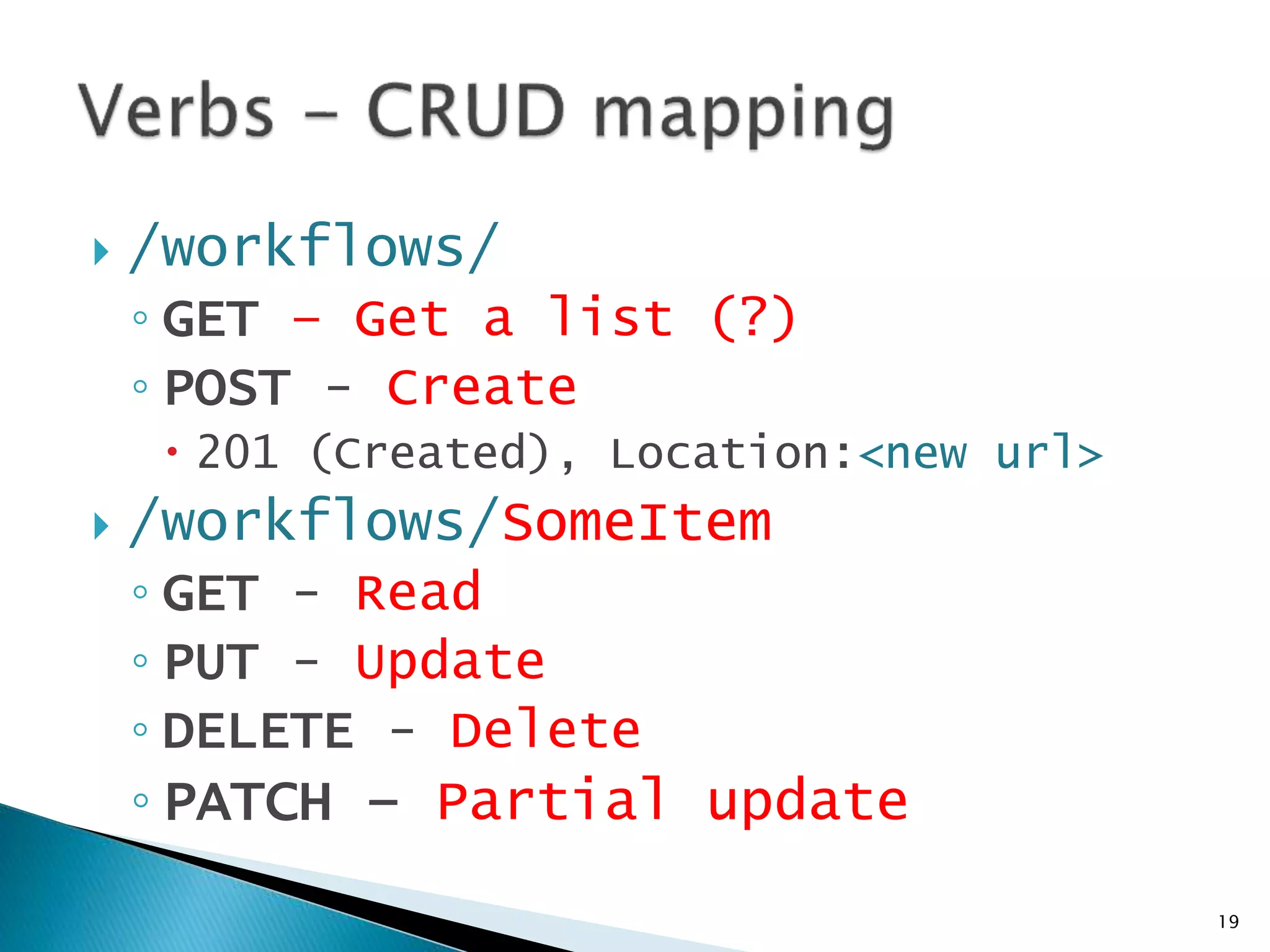

- 19. /workflows/ ◦GET – Get a list (?) ◦ POST - Create 201 (Created), Location:<new url> /workflows/SomeItem ◦ GET - Read ◦ PUT - Update ◦ DELETE - Delete ◦ PATCH – Partial update 19

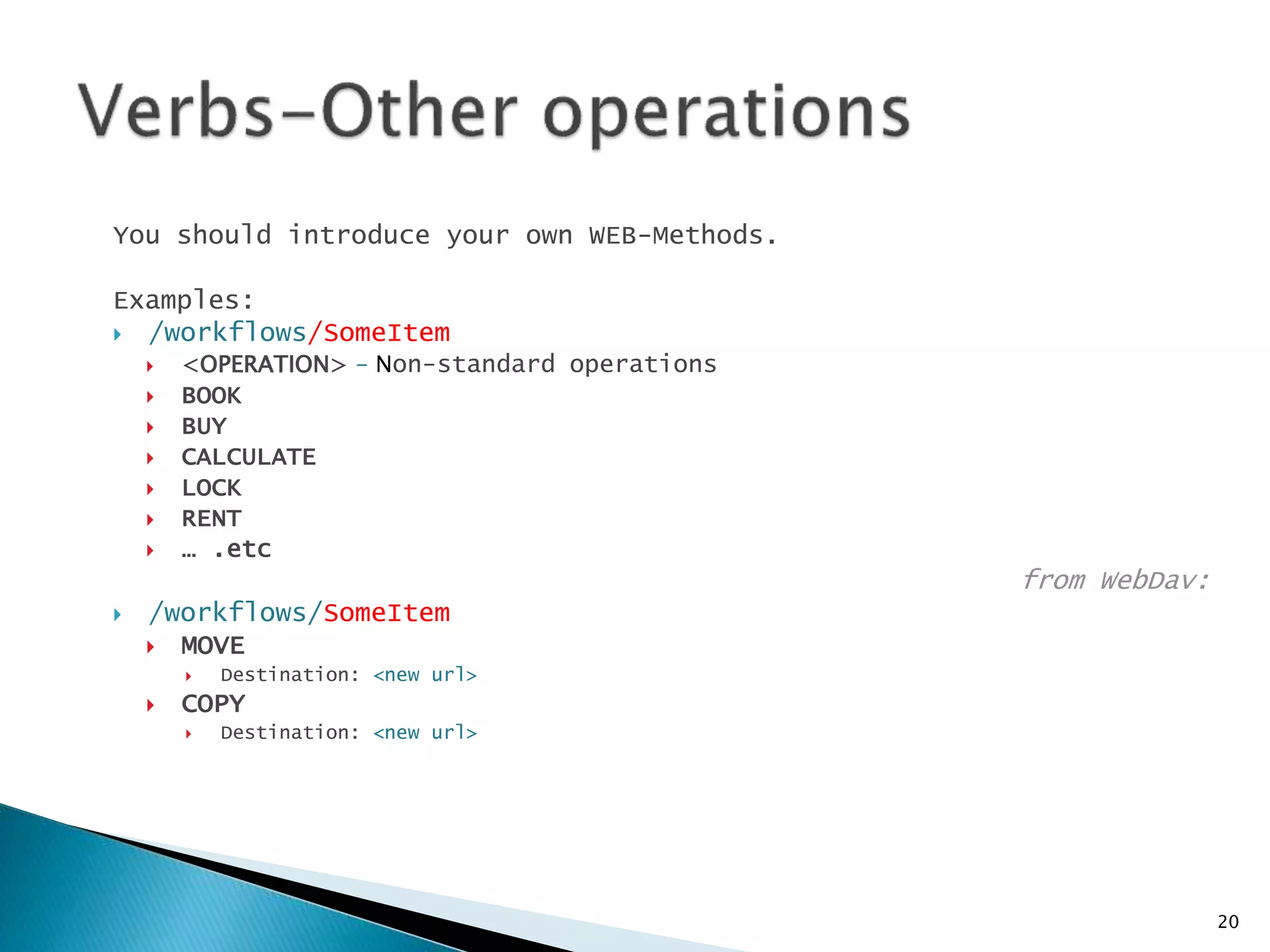

- 20. You should introduceyour own WEB-Methods. Examples: /workflows/SomeItem <OPERATION> - Non-standard operations BOOK BUY CALCULATE LOCK RENT … .etc from WebDav: /workflows/SomeItem MOVE Destination: <new url> COPY Destination: <new url> 20

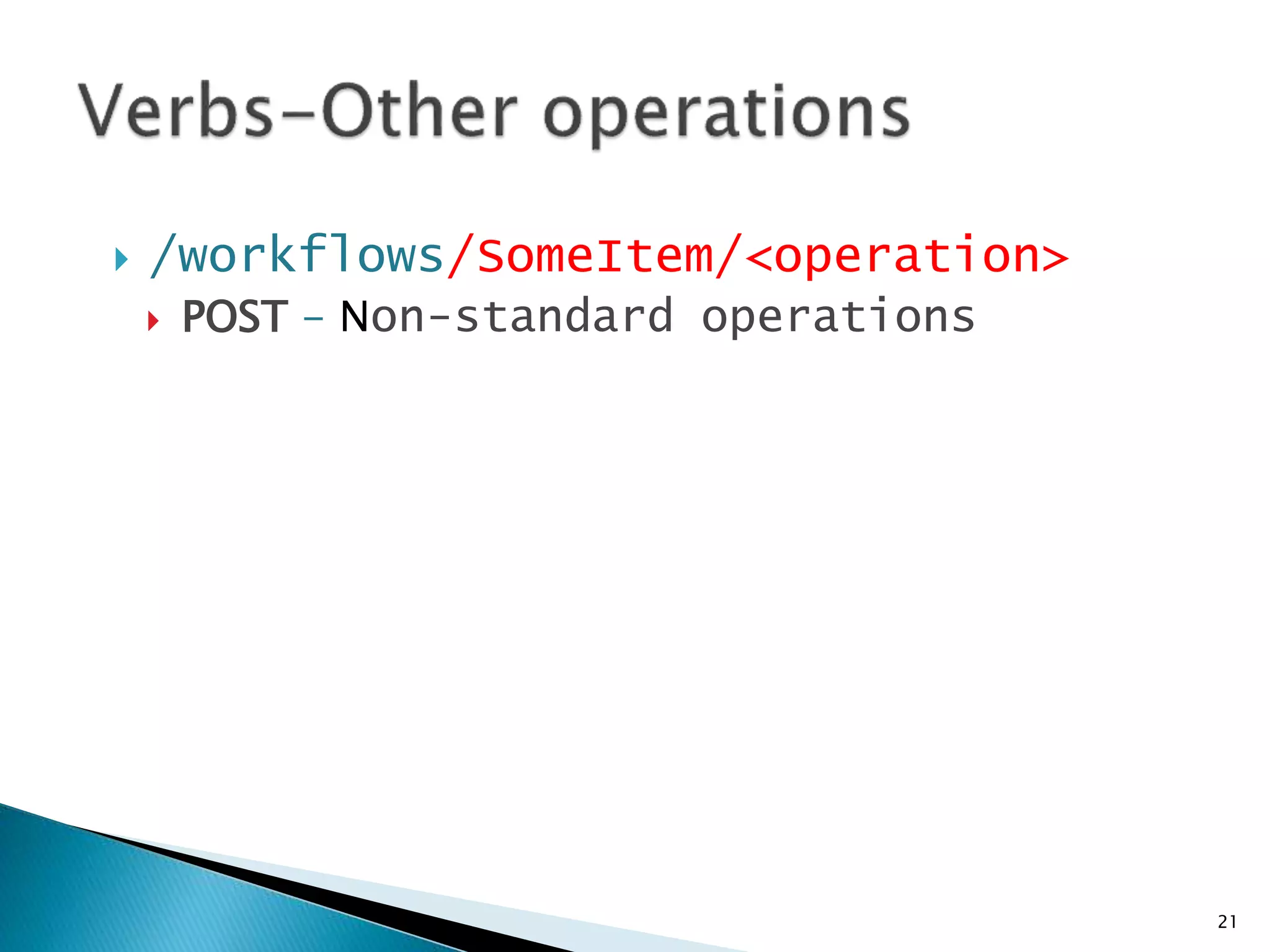

- 21. /workflows/SomeItem/<operation> POST - Non-standard operations 21

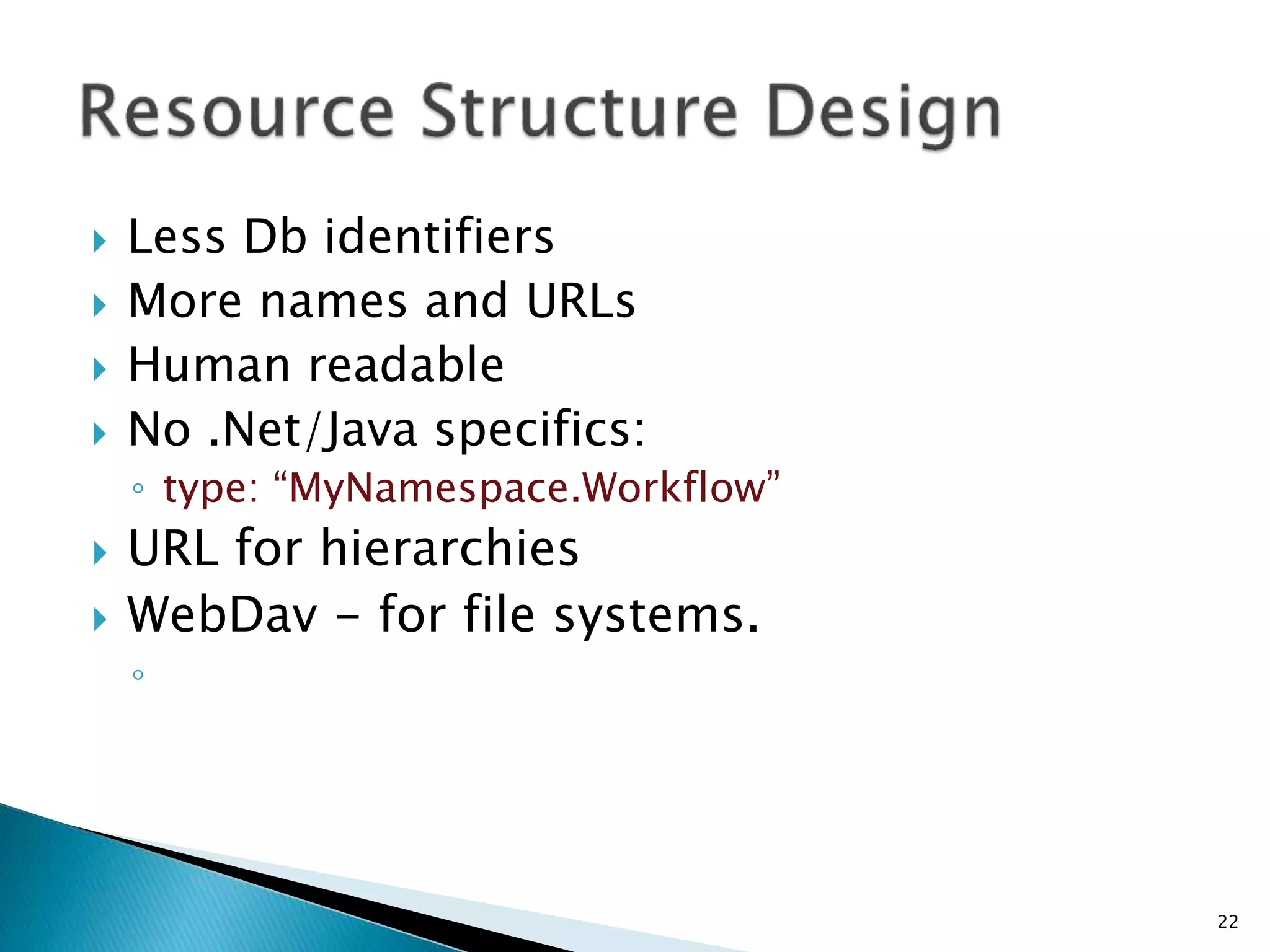

- 22. Less Dbidentifiers More names and URLs Human readable No .Net/Java specifics: ◦ type: “MyNamespace.Workflow” URL for hierarchies WebDav - for file systems. ◦ 22
- 23. No complexinner structures : ◦ “name”: “Object name” ◦ “userfields”: [ { Id:17, name: “Permissions” type: “list of checkboxes” Value: [ {“id”:24, “value” “Open allowed” } {“id”:28, “value” “Close allowed” } ] } ◦ ] Keep all simple and human readable: ◦ “name”: “Object name” ◦ “Permissions”: [“Open allowed”, “Close allowed”] (! manual serialization may be required) 23
- 24.

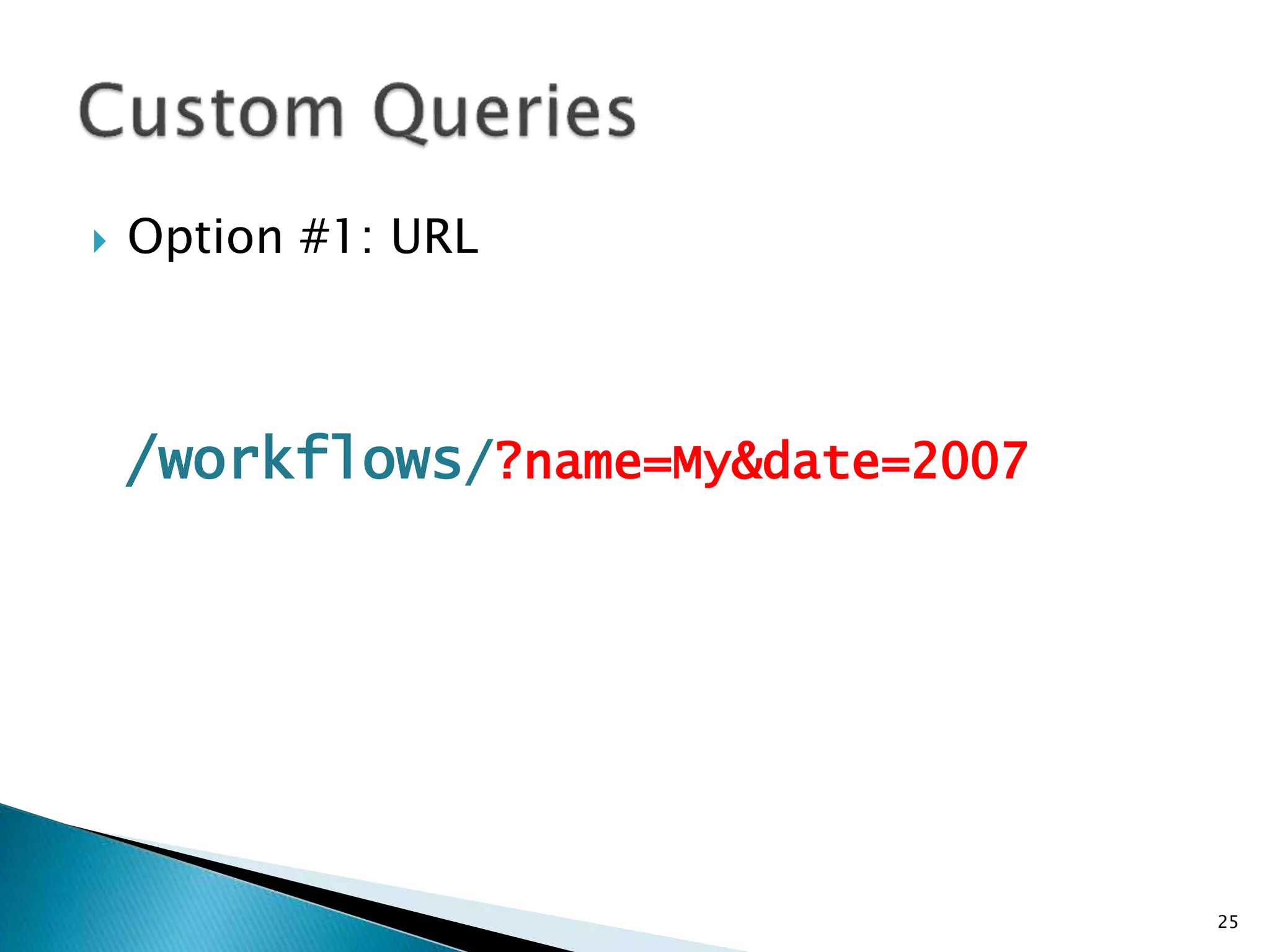

- 25. Option #1:URL /workflows/?name=My&date=2007 25
- 26. Option #2:Advanced URI /workflows/ ?date=[MORE]2007 (?date=<2007) ?name=[LIKE]Jo ?name=[LIST]Jo,Mary,Anton, ?type.name=Lab1 ?[order]=name,date ?[fields]=id,name 26
- 27. Odata ◦service.svc/Posts?$filter=OwnerUserId eq 209 ◦ service.svc/Users?$filter=substringof('SQL',Title) or substringof('sql-server', Tags)&$format=json Mongo ◦ db/collections/?filter_type=cluster&filter_id=1&limit=-10 Gdata ◦ /feeds?fields=link,entry(@gd:etag,id,updated,link[@rel='edit'])) restSQL ◦ /restsql/res/Actor?first_name=JULIANNE&last_name=DENCH&_limit=10&_offset=0 27

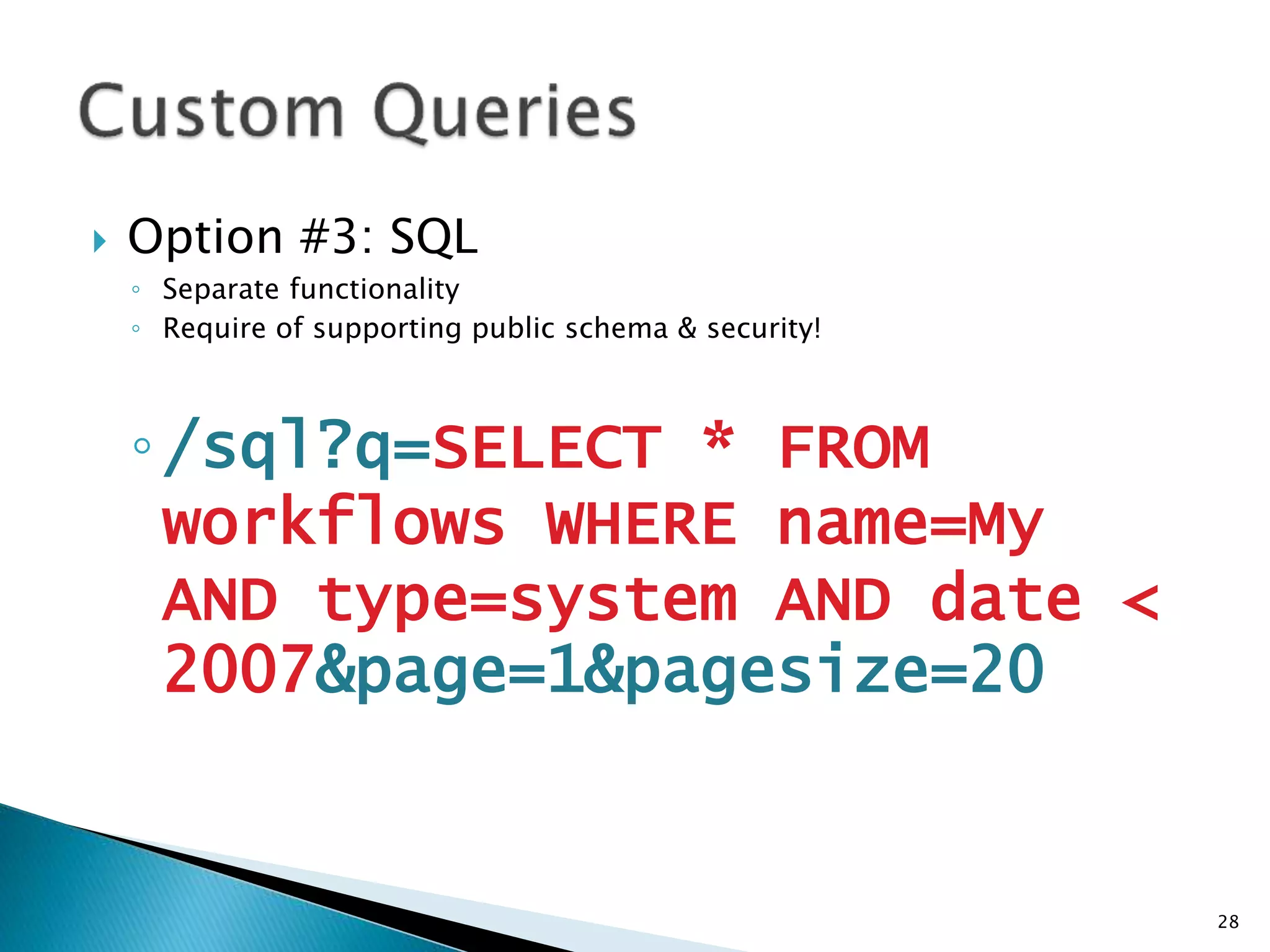

- 28. Option #3:SQL ◦ Separate functionality ◦ Require of supporting public schema & security! ◦/sql?q=SELECT * FROM workflows WHERE name=My AND type=system AND date < 2007&page=1&pagesize=20 28
- 29. /sql?q=SELECT … SELECT* FROM workflows WHERE name=My AND type=system AND date < 2007 Parsing Validating Transforming Paging SELECT TOP 20 w.id, w.name, w.type, cfv.[Field1] FROM workflows w INNER JOIN permissions p ON p.id = p.objectId AND p.userId= <userId> INNER JOIN customfieldvalue cfv ON p.id = cfv.objectId AND cfv.name = “Field1” WHERE name=My AND type=system AND date < 2007 29

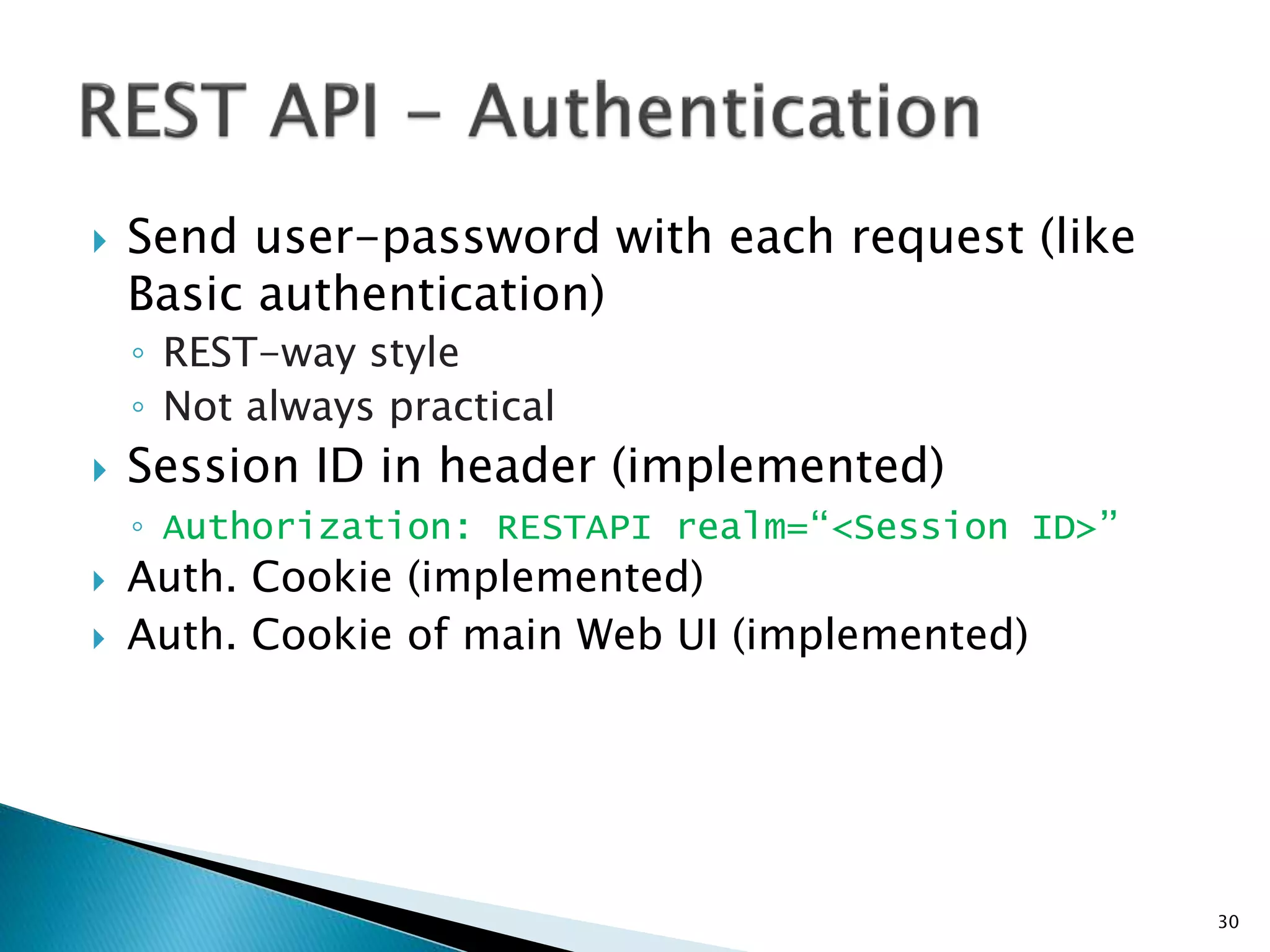

- 30. Send user-passwordwith each request (like Basic authentication) ◦ REST-way style ◦ Not always practical Session ID in header (implemented) ◦ Authorization: RESTAPI realm=“<Session ID>” Auth. Cookie (implemented) Auth. Cookie of main Web UI (implemented) 30

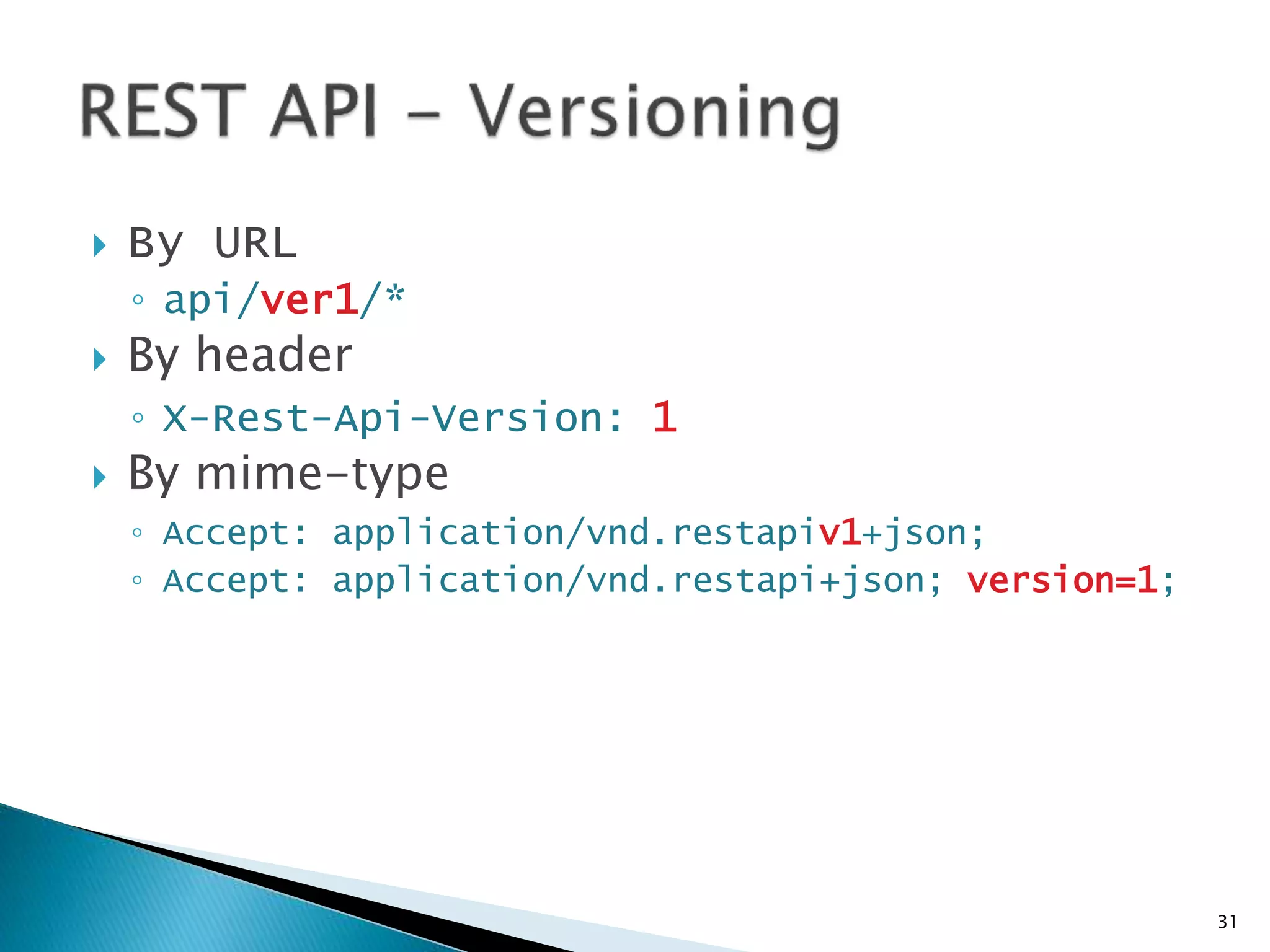

- 31. By URL ◦ api/ver1/* By header ◦ X-Rest-Api-Version: 1 By mime-type ◦ Accept: application/vnd.restapiv1+json; ◦ Accept: application/vnd.restapi+json; version=1; 31

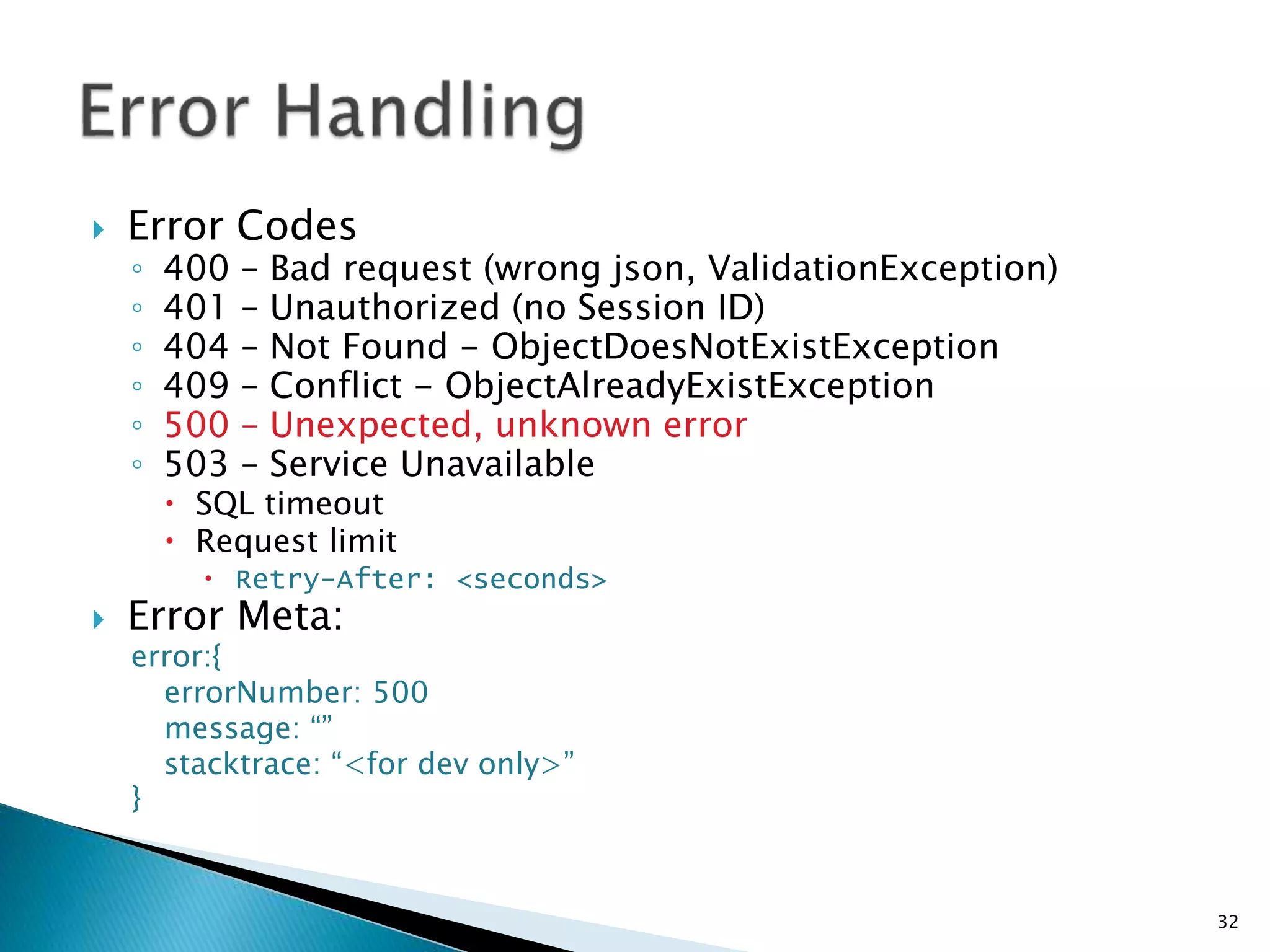

- 32. Error Codes ◦ 400 – Bad request (wrong json, ValidationException) ◦ 401 – Unauthorized (no Session ID) ◦ 404 – Not Found - ObjectDoesNotExistException ◦ 409 – Conflict - ObjectAlreadyExistException ◦ 500 – Unexpected, unknown error ◦ 503 – Service Unavailable SQL timeout Request limit Retry-After: <seconds> Error Meta: error:{ errorNumber: 500 message: “” stacktrace: “<for dev only>” } 32

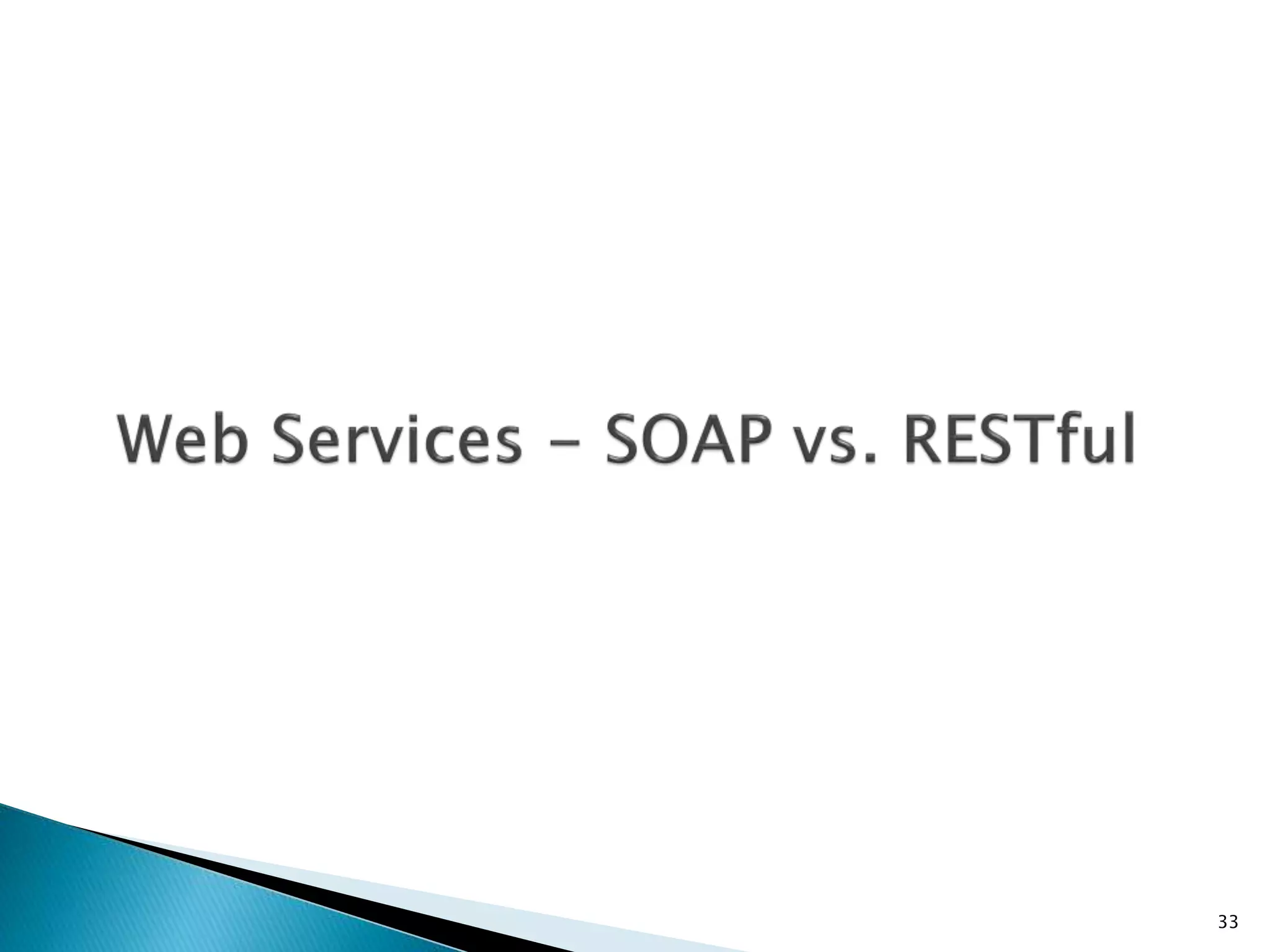

- 33.

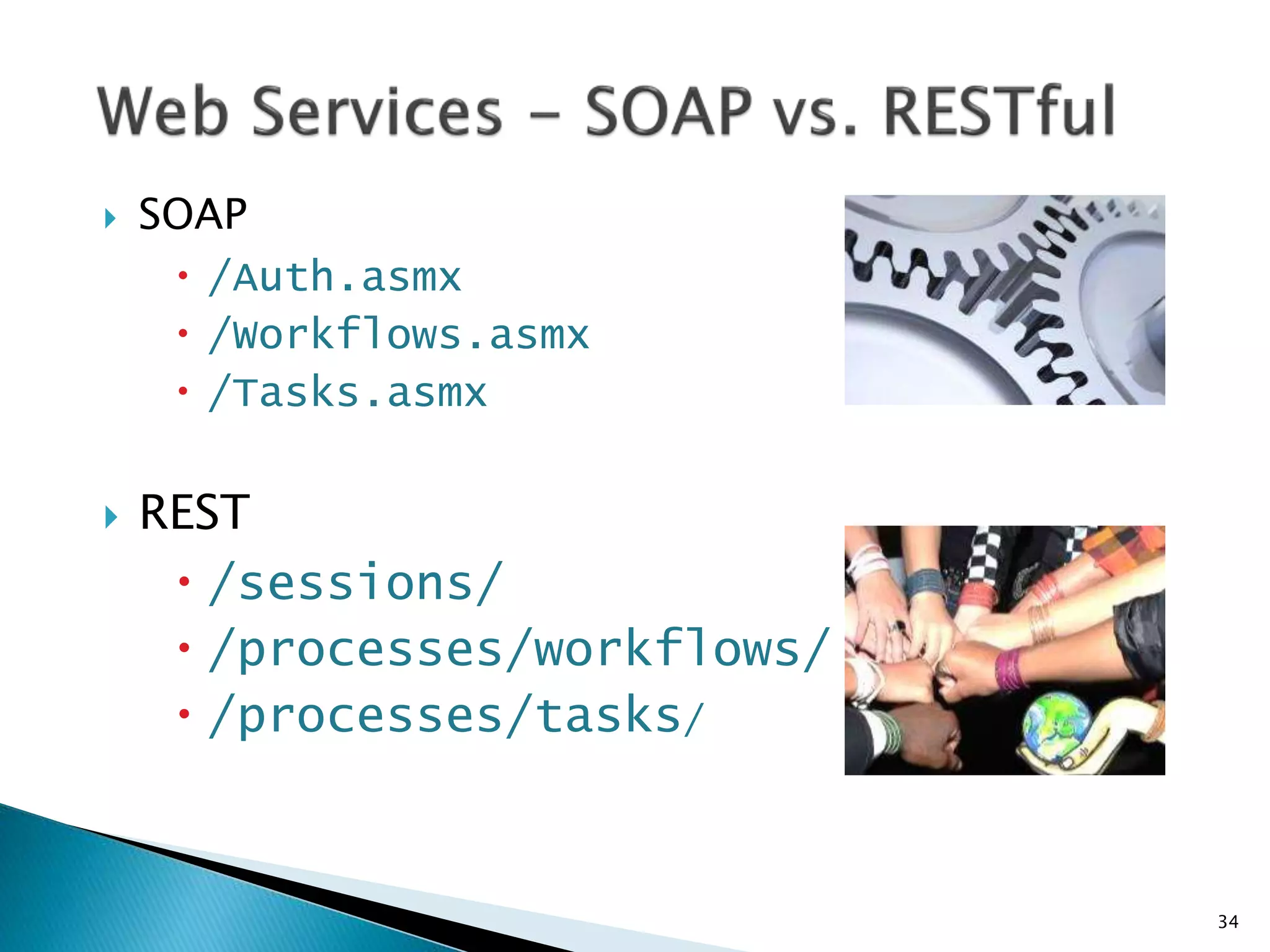

- 34. SOAP /Auth.asmx /Workflows.asmx /Tasks.asmx REST /sessions/ /processes/workflows/ /processes/tasks/ 34

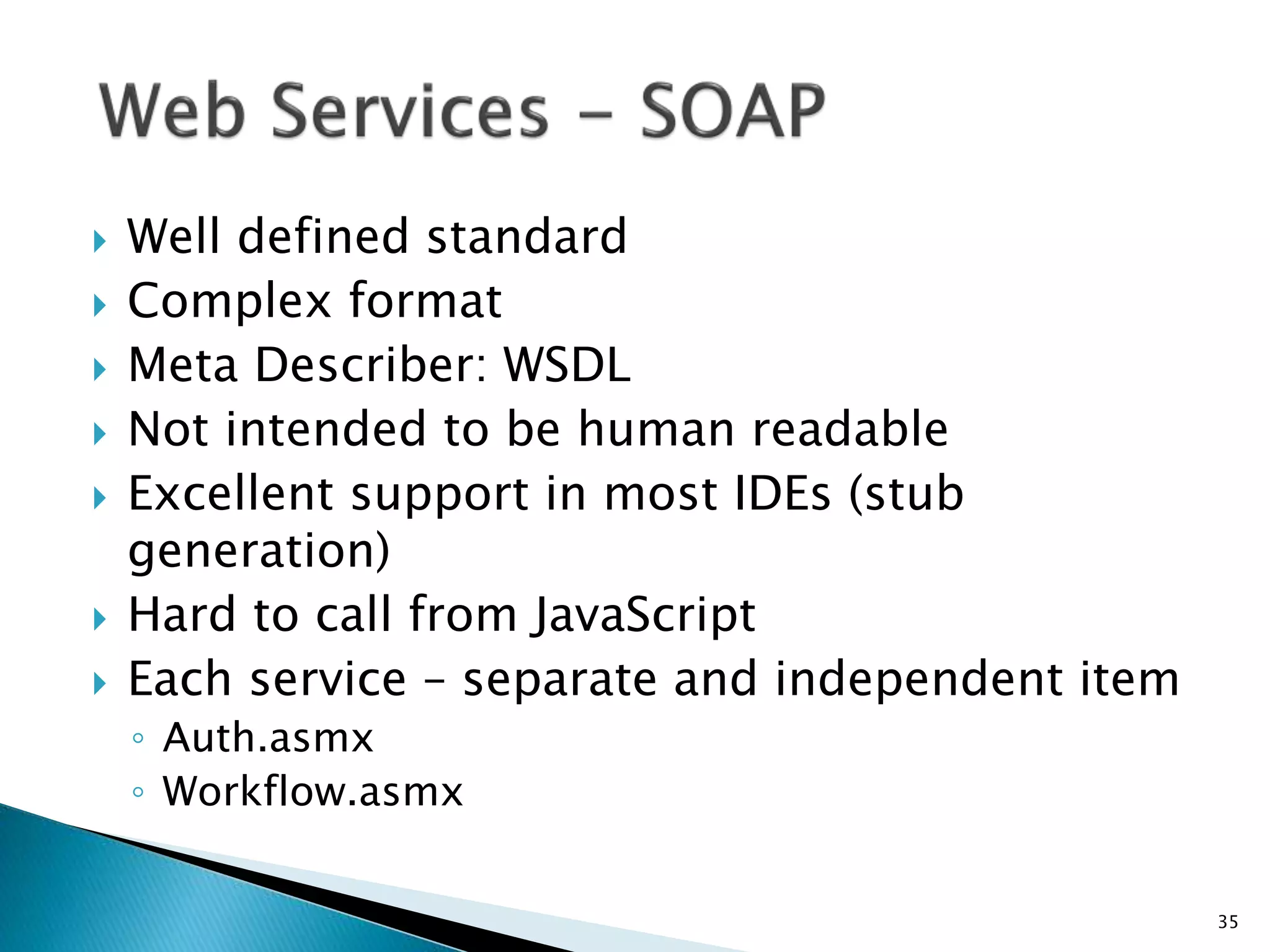

- 35. Well definedstandard Complex format Meta Describer: WSDL Not intended to be human readable Excellent support in most IDEs (stub generation) Hard to call from JavaScript Each service – separate and independent item ◦ Auth.asmx ◦ Workflow.asmx 35

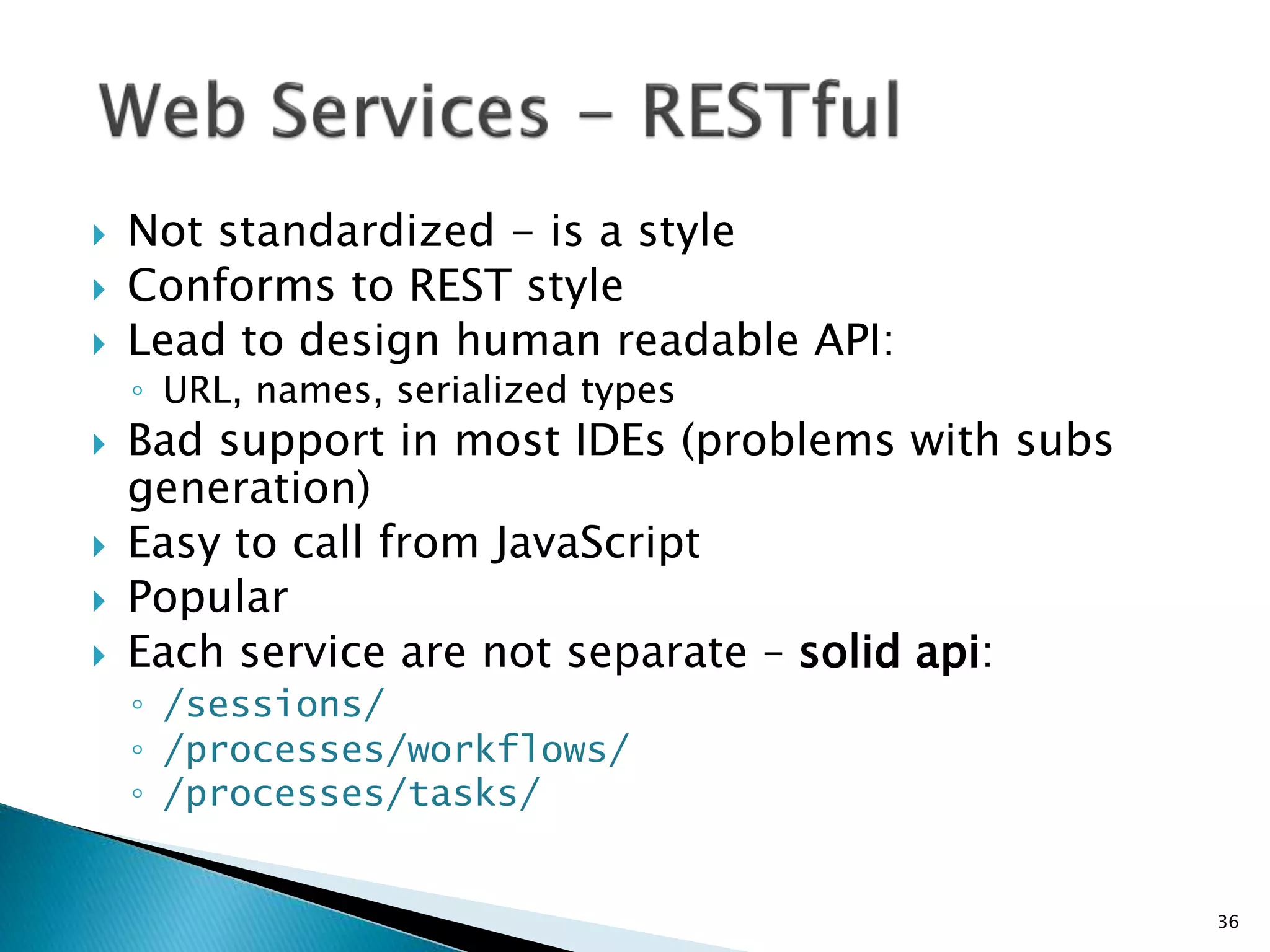

- 36. Not standardized- is a style Conforms to REST style Lead to design human readable API: ◦ URL, names, serialized types Bad support in most IDEs (problems with subs generation) Easy to call from JavaScript Popular Each service are not separate – solid api: ◦ /sessions/ ◦ /processes/workflows/ ◦ /processes/tasks/ 36

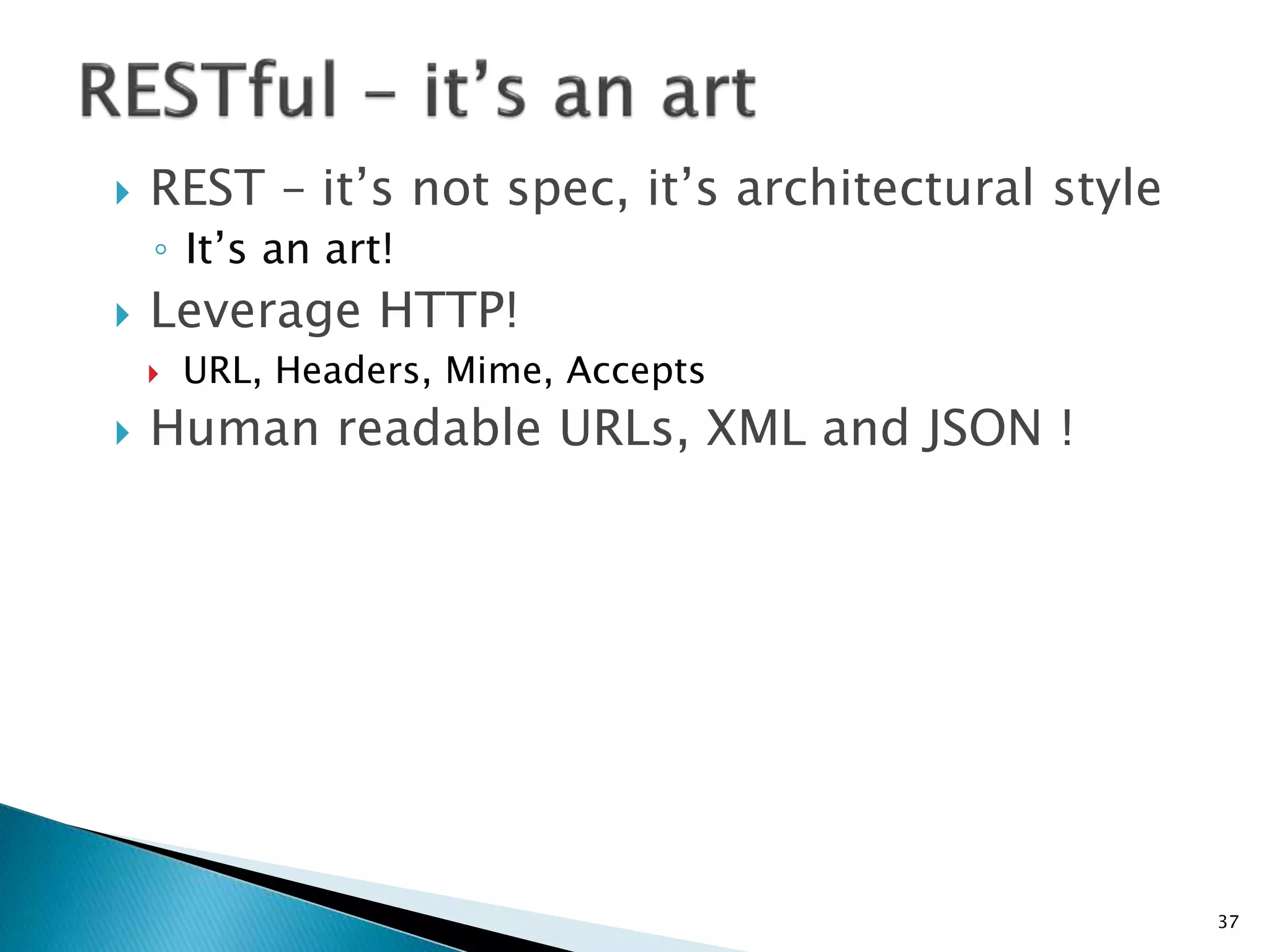

- 37. REST –it’s not spec, it’s architectural style ◦ It’s an art! Leverage HTTP! URL, Headers, Mime, Accepts Human readable URLs, XML and JSON ! 37
- 38.

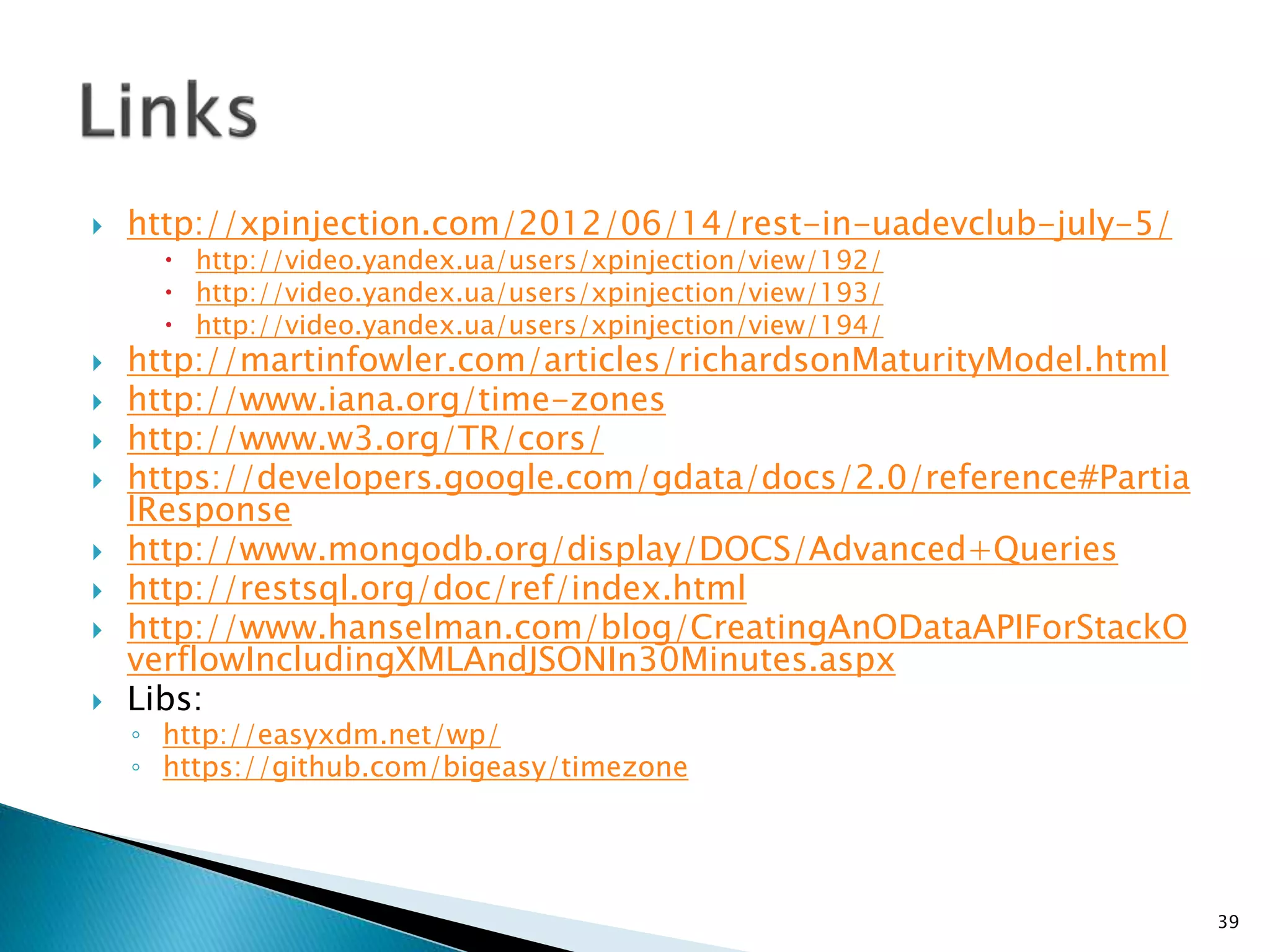

- 39. http://xpinjection.com/2012/06/14/rest-in-uadevclub-july-5/ http://video.yandex.ua/users/xpinjection/view/192/ http://video.yandex.ua/users/xpinjection/view/193/ http://video.yandex.ua/users/xpinjection/view/194/ http://martinfowler.com/articles/richardsonMaturityModel.html http://www.iana.org/time-zones http://www.w3.org/TR/cors/ https://developers.google.com/gdata/docs/2.0/reference#Partia lResponse http://www.mongodb.org/display/DOCS/Advanced+Queries http://restsql.org/doc/ref/index.html http://www.hanselman.com/blog/CreatingAnODataAPIForStackO verflowIncludingXMLAndJSONIn30Minutes.aspx Libs: ◦ http://easyxdm.net/wp/ ◦ https://github.com/bigeasy/timezone 39
Editor's Notes
- #2 Кто не слышал про REST? Кто не только слышал но и знает что такое рест?
- #4 Может для кого-то это будет сюрпризом - REST это не вебсерсисы, это не спецификация - это архитектурный стиль распределенных систем.
- #5 Понятие REST ввел Рой Филдинг в своей докторской диссертации. Он является одним из авторов HTTP и URI. Он выделил определенный стиль или подход распределенной системы WWW, и назвал его REST.
- #6 Если распределенная система хочет хочет следовать REST стилю - то она должна выполяться следующие требования.
- #8 Взамен выполнения таких требований - общая стоимость системы понизиться. Также, у такой системы легко достичь следующих важных качеств: Быстродействие, маштабирование, расширяемость, доступность, отказоустойчивость, гипкость.
- #9 Сейчас давайте перейдем к практическому примеру применения REST - в Web Services. До этого мы говорили что WWW уже следует rest стилю. Web Sevices обычно базируються на WWW, так в чем же отличие? Отличие заключаеться в том что распределенная система может использовать элементы WWW (HTTP) как, к примеру, транспорт и при этом НЕ следовать REST. Так делают SOAP WebServices. Потому, для выявления уровня соответсвия системы REST стилю - существует так называемая "Модель Зрелости Ричардсона".

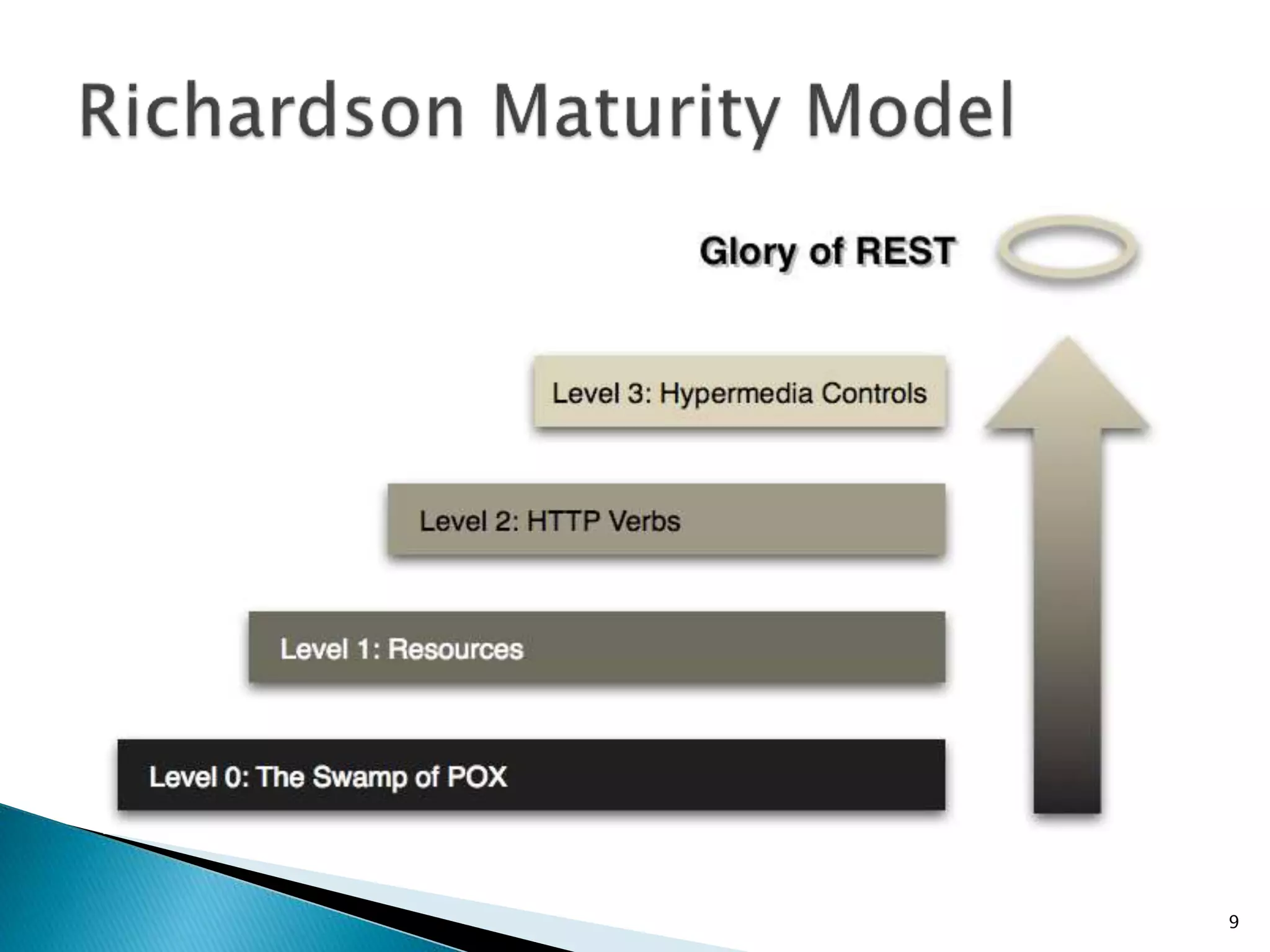

- #10 Вот она на илюстрации. Зачастую её используют для определения соответствия Web-Services REST стилю. Тоесть далее мы будем илюстрировать примеры на уровне HTTP протокола.
- #11 На нулевом уровне - мы используем HTTP как транспорт. Так обычно поступает SOAP, также он может использовать и другой транспорт - smpt, даже UPD тд. На примере не показано но даже в самом XML сообщении есть и место для хедеров, HTTP хедеры не используються.
- #12 Здесь мы вводим адресацию, использую URL.
- #13 Здесь мы начинаем использовать HTTP Methods - например, GET - для Readonly и POST для остальных. Это уже дает возможно кеширования на уровне сервера, прокси-сервера или клиента.
- #14 Здесь мы добавляем hyper-text. В данном случае - для избавления клиента от необходимости строить URL, перемещая логику на сервер.
- #15 Большинство существующих вебсервисов имеет 1 или 2 уровень. Хорошими примерами успешного примения REST стиля в Webservices можно считать спецификации WebDav. и к примеру ODATA. О них по -позже.
