This document contains the agenda for a seminar on electromagnetic waves, antennas, wireless transmission parameters and calculations, narrowband transmission, data rates, and a wireless lab. The topics covered include Maxwell's equations, antenna types such as monopole, dipole and parabolic, the Marconi equation, RF power loss, EIRP, RSS, SNR, modulation techniques, wireless standards such as 802.11a/b/g/n/ac, and configuring devices in a wireless lab including access points, wireless routers, and security settings.

2. Speaker
Eng Hasan Shamroukh
https://www.youtube.com/watch?v=AmH2nKNPphM

4. Seminar Agenda
•EMW
•Antennas
•Calculations
•Narrow Band Tx
•Data Rates
•Wireless Lab

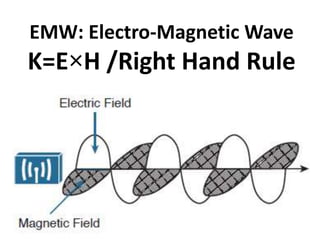

5. EMW: Electro-Magnetic Wave
H /Right Hand Rule×K=E

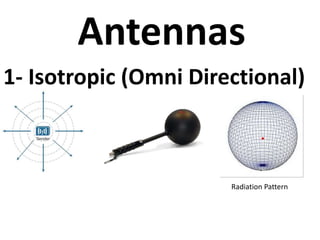

6. Antennas
1- Isotropic (Omni Directional)
Radiation Pattern

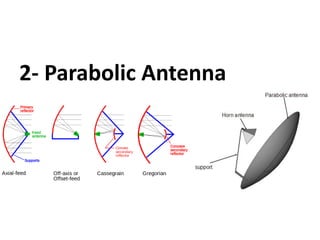

7. 2- Parabolic Antenna

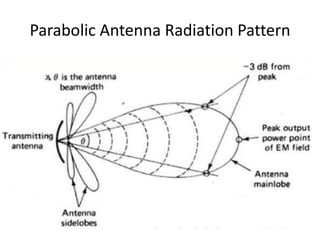

8. Parabolic Antenna Radiation Pattern

9. Marconi Equation
L = m λ/2L: Antenna Element Length(Hight)
λ: Wavelength

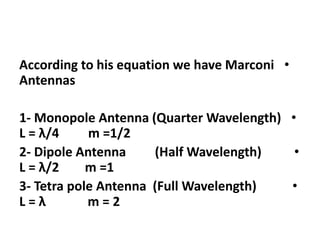

10. •According to his equation we have Marconi
Antennas
•1- Monopole Antenna (Quarter Wavelength)
L = λ/4 m =1/2
•2- Dipole Antenna (Half Wavelength)
L = λ/2 m =1
•3- Tetra pole Antenna (Full Wavelength)
L = λ m = 2

11. •Monopole
Radiation Pattern

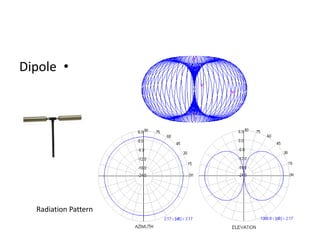

12. •Dipole
Radiation Pattern

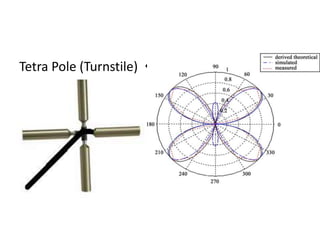

13. •Tetra Pole (Turnstile)

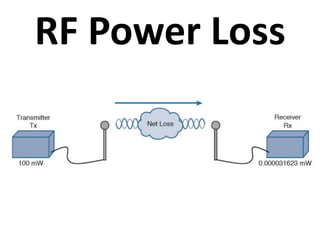

14. RF Power Loss

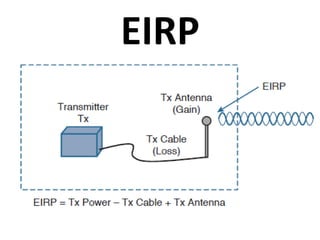

15. EIRP

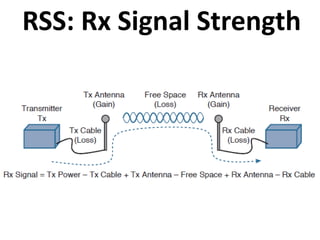

16. RSS: Rx Signal Strength

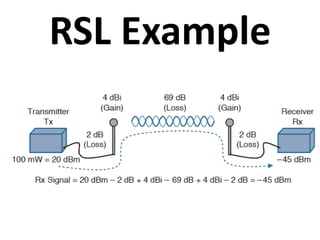

17. RSL Example

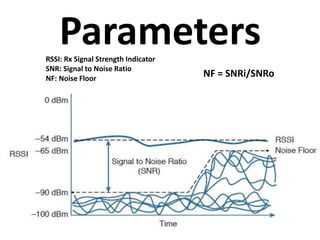

18. ParametersRSSI: Rx Signal Strength Indicator
SNR: Signal to Noise Ratio
NF: Noise Floor
NF = SNRi/SNRo

19. Narrow Band Tx
•FHSS
•DSSS
•OFDM

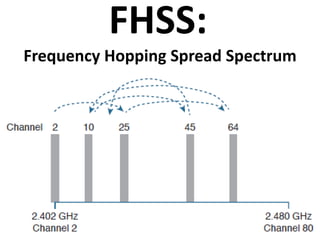

20. FHSS:
Frequency Hopping Spread Spectrum

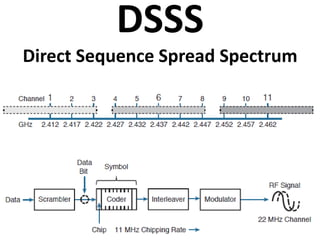

21. DSSS
Direct Sequence Spread Spectrum

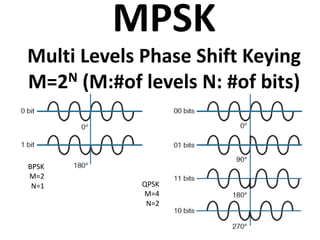

22. MPSK
Multi Levels Phase Shift Keying
M=2N (M:#of levels N: #of bits)
BPSK
M=2
N=1 QPSK
M=4
N=2

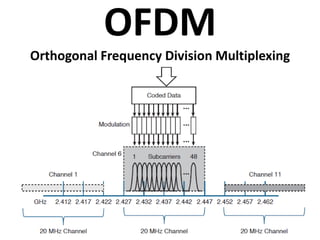

23. OFDM
Orthogonal Frequency Division Multiplexing

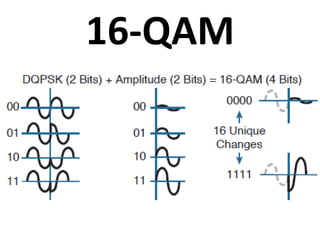

24. 16-QAM

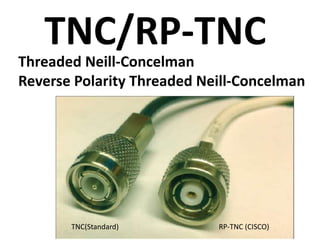

26. TNC/RP-TNC
Threaded Neill-Concelman
Reverse Polarity Threaded Neill-Concelman
TNC(Standard) RP-TNC (CISCO)

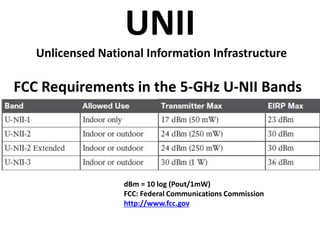

27. UNII
Unlicensed National Information Infrastructure
FCC Requirements in the 5-GHz U-NII Bands
dBm = 10 log (Pout/1mW)
FCC: Federal Communications Commission
http://www.fcc.gov

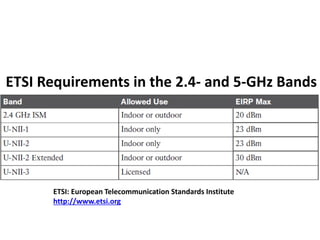

28. ETSI Requirements in the 2.4- and 5-GHz Bands
ETSI: European Telecommunication Standards Institute
http://www.etsi.org

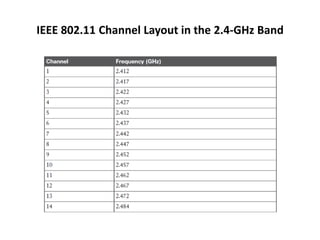

29. IEEE 802.11 Channel Layout in the 2.4-GHz Band

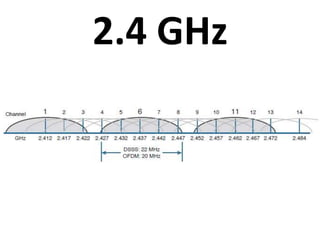

30. 2.4 GHz

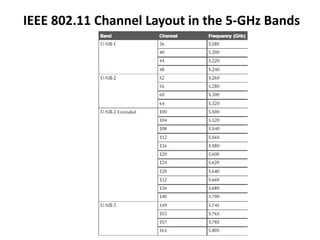

31. IEEE 802.11 Channel Layout in the 5-GHz Bands

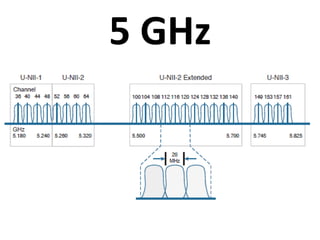

32. 5 GHz

33. Data Rates
802.11(1G)
802.11b(2G)

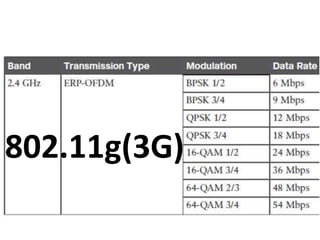

34. 802.11g(3G)

35. 802.11a(3G)

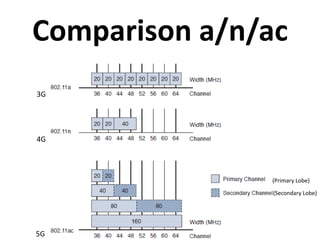

36. Comparison a/n/ac
3G
4G
5G
(Primary Lobe)
(Secondary Lobe)

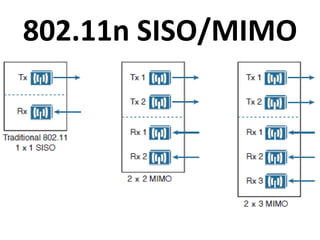

37. 802.11n SISO/MIMO

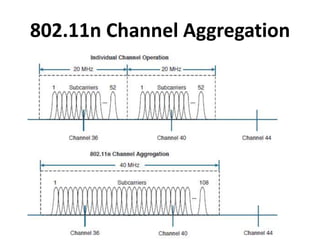

38. 802.11n Channel Aggregation

39. Spatial Multiplexing

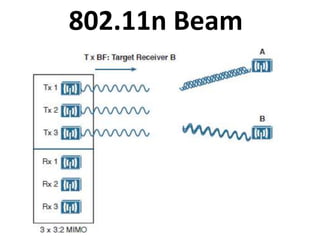

40. 802.11n Beam
Forming

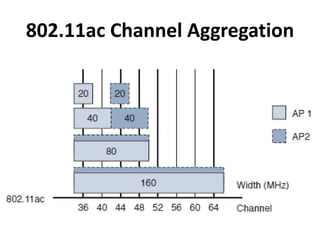

41. 802.11ac Channel Aggregation

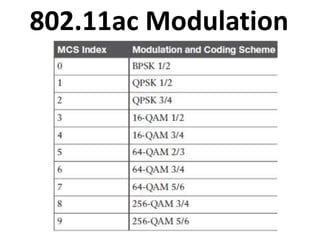

42. 802.11ac Modulation

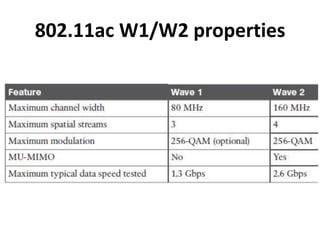

43. 802.11ac W1/W2 properties

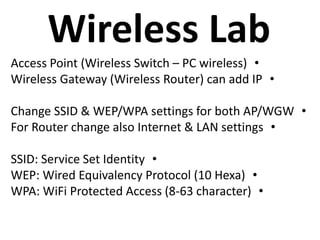

44. Wireless Lab
•Access Point (Wireless Switch – PC wireless)
•Wireless Gateway (Wireless Router) can add IP
•Change SSID & WEP/WPA settings for both AP/WGW
•For Router change also Internet & LAN settings
•SSID: Service Set Identity
•WEP: Wired Equivalency Protocol (10 Hexa)
•WPA: WiFi Protected Access (8-63 character)
