1. Использование радио-
интерфейсов Bluetooth/BLE
на точках беспроводного
доступа
Михаил Елин, Системный инженер
CCIE#5360, CWNA

2. Продуктовая линейка ExtremeWireless WiNGPRODUCTS
Внутренние Наружные
Контроллеры
Точки Доступа
C
NX 5500
NX 9600
NX 7500
SOLUTIONS
БезопасностьАналитика беспроводной сетиWLAN
 Network Assurance
 Аналитика
производительности сети
 Отчетность
 Удаленная диагностика
 24x7 Безопасность
 Позиционирование
Гостевой доступ
 Регистрация гостевых
пользователей
 Social Media Auth
 Аналитика поведения гостей &
Позиционирование
 Диагностика Captive Portal’a

3. 3
Borrow Radio 1
Unlocked Radio
For
Fulltime Network Sensor
5G:4x4:4
MU-MIMO
2.4G/5G: 3x3:3
AP-8432-680B30-xx Internal Ant, 2xGE, PoE-out
AP 8432
8.5” x 8.5”
BT / BLE
Dual Band WIPS
RF SA
GE + PoE out
GE
USB
Full 802.3af PoE out

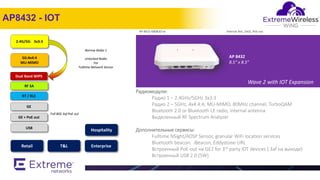

AP8432 - IOT
Радиомодули:
Радио 1 – 2.4GHz/5GHz 3x3:3
Радио 2 – 5GHz, 4x4:4:4; MU-MIMO, 80MHz channel, TurboQAM
Bluetooth 2.0 or Bluetooth LE radio, internal antenna
Выделенный RF Spectrum Analyzer
Дополнительные сервисы:
Fulltime NSight/ADSP Sensor, granular WiFi location services
Bluetooth beacon: iBeacon, Eddystone-URL
Встроенный PoE-out на GE2 for 3rd party IOT devices (.3af на выходе)
Встроенный USB 2.0 (5W)
Wave 2 with IOT Expansion
Retail EnterpriseT&L
Hospitality

4. 4
BT / BLE
Dual Band WIPS
RF SA
2x GE
Выделенные сенсоры
5G:4x4:4
MU-MIMO
2.4G: 4x4:4 Data Only
Data Only
AP-8533-68SB30-xx Internal Ant, 2xGE
AP-8533-68SB40-xx External Antenna, 2xGE

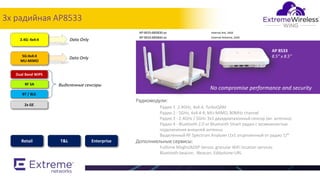

3x радийная AP8533
Радиомодули:
Радио 1 2.4GHz, 4x4:4, TurboQAM
Радио 2 - 5GHz, 4x4:4:4; MU-MIMO, 80MHz channel
Радио 3 - 2.4GHz / 5GHz 3х3 двухдиапазонный сенсор (вн. антенна)
Радио 4 - Bluetooth 2.0 or Bluetooth Smart радио с возможностью
подключения внешней антенны
Выделенный RF Spectrum Analyzer (1х1 отцепленный от радио 1)*
Дополниельные сервисы:
Fulltime NSight/ADSP Sensor, granular WiFi location services
Bluetooth beacon: iBeacon, Eddystone-URL
AP 8533
8.5” x 8.5”
No compromise performance and security
Retail EnterpriseT&L

5. 5

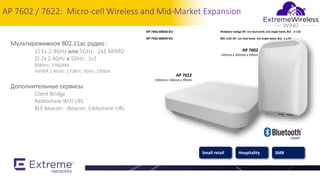

AP 7602 / 7622: Micro-cell Wireless and Mid-Market Expansion
Мультирежимное 802.11ас радио :
1) 1х 2.4GHz или 5GHz: 2x2 MIMO
2) 2х 2.4GHz и 5GHz: 1x1
80MHz, 256QAM
TxPWR 2.4GHz: 17dBm; 5GHz: 19dBm
Дополнительные сервисы:
Client Bridge
Radioshare WiFi LBS
BLE beacon: iBeacon, Eddystone-URL
Small retail Hospitality SMB
AP 7602
145mm x 102mm x 29mm
AP 7622
150mm x 140mm x 39mm
AP-7602-68B30-EU Wallplate wedge AP; 1x1 dual band, 2x2 single band, BLE. 2 x GE
AP-7622-68B30-EU 802.11AC AP; 1x1 dual band, 2x2 single band, BLE. 1 x GE

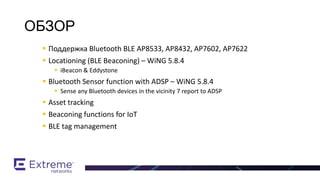

6.  Поддержка Bluetooth BLE AP8533, AP8432, AP7602, AP7622
 Locationing (BLE Beaconing) – WiNG 5.8.4
 iBeacon & Eddystone
 Bluetooth Sensor function with ADSP – WiNG 5.8.4
 Sense any Bluetooth devices in the vicinity 7 report to ADSP
 Asset tracking
 Beaconing functions for IoT
 BLE tag management
BT / BLE Support
ОБЗОР

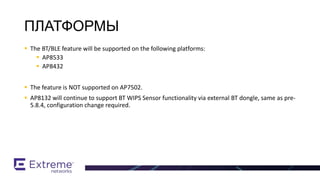

7.  The BT/BLE feature will be supported on the following platforms:
 AP8533
 AP8432
 The feature is NOT supported on AP7502.
 AP8132 will continue to support BT WIPS Sensor functionality via external BT dongle, same as pre-
5.8.4, configuration change required.
BT / BLE Support
ПЛАТФОРМЫ

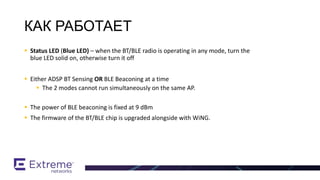

8.  Status LED (Blue LED) – when the BT/BLE radio is operating in any mode, turn the
blue LED solid on, otherwise turn it off
 Either ADSP BT Sensing OR BLE Beaconing at a time
 The 2 modes cannot run simultaneously on the same AP.
 The power of BLE beaconing is fixed at 9 dBm
 The firmware of the BT/BLE chip is upgraded alongside with WiNG.
BT / BLE Support
КАК РАБОТАЕТ

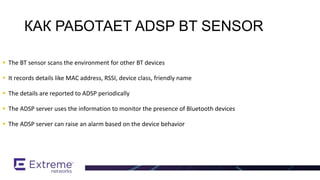

9.  The BT sensor scans the environment for other BT devices
 It records details like MAC address, RSSI, device class, friendly name
 The details are reported to ADSP periodically
 The ADSP server uses the information to monitor the presence of Bluetooth devices
 The ADSP server can raise an alarm based on the device behavior
КАК РАБОТАЕТ ADSP BT SENSOR

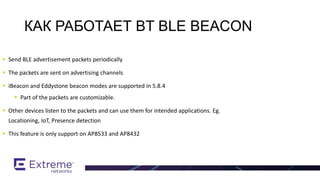

10.  Send BLE advertisement packets periodically
 The packets are sent on advertising channels
 iBeacon and Eddystone beacon modes are supported in 5.8.4
 Part of the packets are customizable.
 Other devices listen to the packets and can use them for intended applications. Eg.
Locationing, IoT, Presence detection
 This feature is only support on AP8533 and AP8432
КАК РАБОТАЕТ BT BLE BEACON

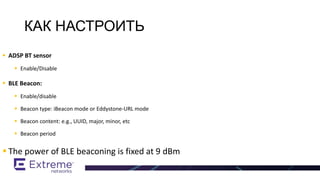

11.  ADSP BT sensor
 Enable/Disable
 BLE Beacon:
 Enable/disable
 Beacon type: iBeacon mode or Eddystone-URL mode
 Beacon content: e.g., UUID, major, minor, etc
 Beacon period
 The power of BLE beaconing is fixed at 9 dBm
КАК НАСТРОИТЬ

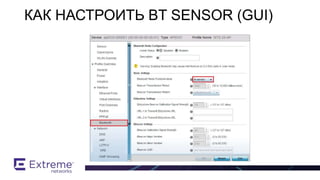

12. КАК НАСТРОИТЬ BT SENSOR (GUI)

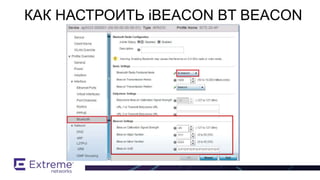

13. КАК НАСТРОИТЬ iBEACON BT BEACON

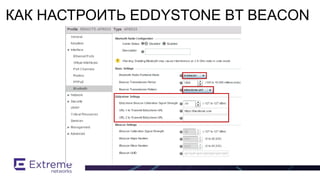

14. КАК НАСТРОИТЬ EDDYSTONE BT BEACON

15. The configuration is done on Bluetooth interface
 The commands will be available only on platforms that support
BT/BLE.
 AP8132 only supports bt-sensor mode with BT dongle attached to
USB port.
!
interface bluetooth1
description <WORD>
mode ble-beacon|bt-sensor
beacon pattern eddystone-url1|eddystone-url2|ibeacon
beacon period <NUMBER>
eddystone url <n> <URLn>
eddystone calibration-rssi <NUMBER>
ibeacon major|minor|calibration-rssi|uuid <NUMBER>
shutdown
!
КАК НАСТРОИТЬ BT (CLI)

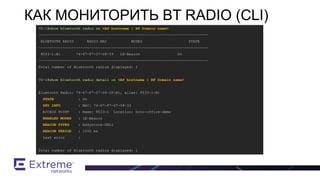

16. VX-1#show bluetooth radio on <AP hostname | RF Domain name>
-----------------------------------------------------------------------------
BLUETOOTH RADIO RADIO MAC MODES STATE
-----------------------------------------------------------------------------
8533-1:B1 74-67-F7-07-08-33 LE-Beacon On
-----------------------------------------------------------------------------
Total number of Bluetooth radios displayed: 1
VX-1#show bluetooth radio detail on <AP hostname | RF Domain name>
Bluetooth Radio: 74-67-F7-07-08-2F:B1, alias: 8533-1:B1
STATE : On
PHY INFO : MAC: 74-67-F7-07-08-33
ACCESS POINT : Name: 8533-1 Location: brno-office-demo
ENABLED MODES : LE-Beacon
BEACON TYPES : Eddystone-URL1
BEACON PERIOD : 1000 ms
Last error :
Total number of Bluetooth radios displayed: 1
КАК МОНИТОРИТЬ BT RADIO (CLI)

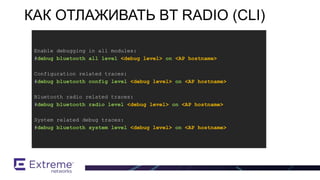

17. BT / BLE Support
Enable debugging in all modules:
#debug bluetooth all level <debug level> on <AP hostname>
Configuration related traces:
#debug bluetooth config level <debug level> on <AP hostname>
Bluetooth radio related traces:
#debug bluetooth radio level <debug level> on <AP hostname>
System related debug traces:
#debug bluetooth system level <debug level> on <AP hostname>
КАК ОТЛАЖИВАТЬ BT RADIO (CLI)

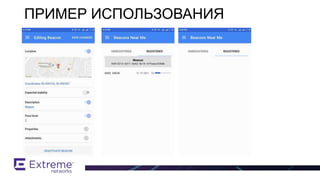

18. ПРИМЕР ИСПОЛЬЗОВАНИЯ

19. ПРИМЕР ИСПОЛЬЗОВАНИЯ

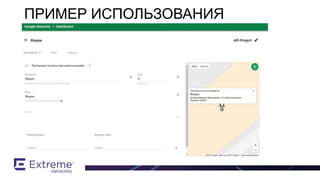

20. ПРИМЕР ИСПОЛЬЗОВАНИЯ

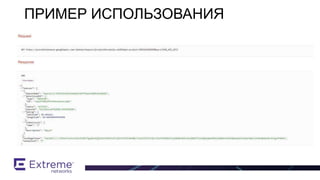

21. ПРИМЕР ИСПОЛЬЗОВАНИЯ

22. СПАСИБО ЗА ВНИМАНИЕ
