Wind
- 1. It Blows YouAway
- 2. "Coal, gas andoil will not be the three kings of the energy world for ever. It is no longer folly to look up to the sun and wind, down into the sea's waves"
- 3.

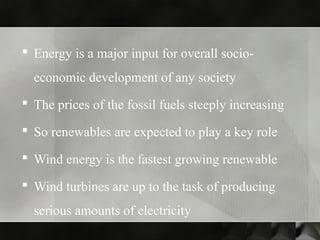

- 4. Energy isa major input for overall socio- economic development of any society The prices of the fossil fuels steeply increasing So renewables are expected to play a key role Wind energy is the fastest growing renewable Wind turbines are up to the task of producing serious amounts of electricity
- 5.

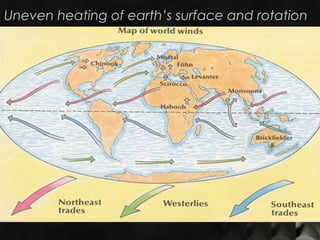

- 6. Uneven heating ofearth’s surface and rotation

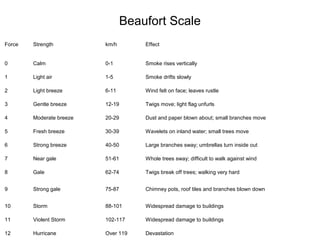

- 7. Force Strength km/hEffect 0 Calm 0-1 Smoke rises vertically 1 Light air 1-5 Smoke drifts slowly 2 Light breeze 6-11 Wind felt on face; leaves rustle 3 Gentle breeze 12-19 Twigs move; light flag unfurls 4 Moderate breeze 20-29 Dust and paper blown about; small branches move 5 Fresh breeze 30-39 Wavelets on inland water; small trees move 6 Strong breeze 40-50 Large branches sway; umbrellas turn inside out 7 Near gale 51-61 Whole trees sway; difficult to walk against wind 8 Gale 62-74 Twigs break off trees; walking very hard 9 Strong gale 75-87 Chimney pots, roof tiles and branches blown down 10 Storm 88-101 Widespread damage to buildings 11 Violent Storm 102-117 Widespread damage to buildings 12 Hurricane Over 119 Devastation Beaufort Scale

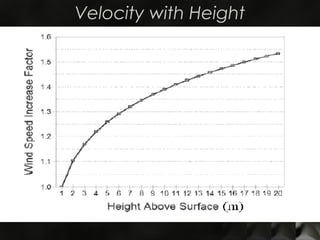

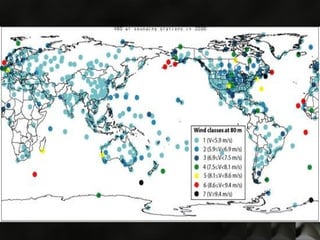

- 9.
- 10.

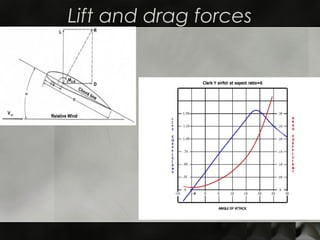

- 11. Lift and dragforces

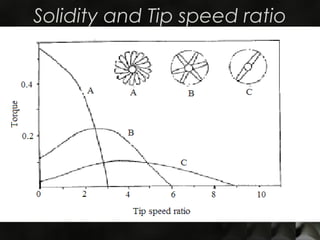

- 12. Solidity and Tipspeed ratio

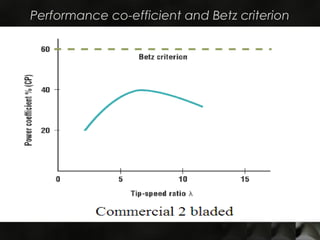

- 13. Performance co-efficient andBetz criterion
- 14.

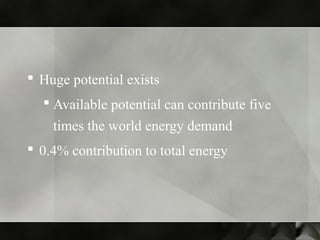

- 15. Huge potentialexists Available potential can contribute five times the world energy demand 0.4% contribution to total energy

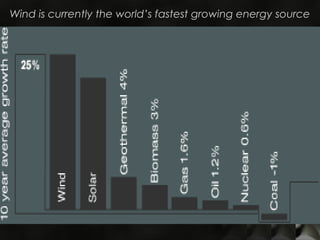

- 16. Wind is currentlythe world’s fastest growing energy source

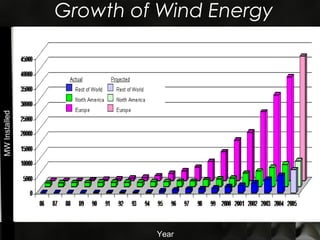

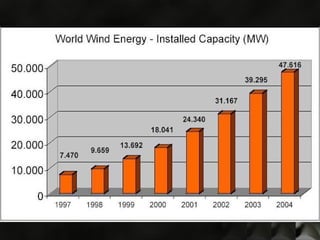

- 18. Growth of WindEnergyMWInstalled Year

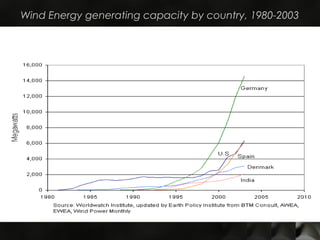

- 20. Wind Energy generatingcapacity by country, 1980-2003

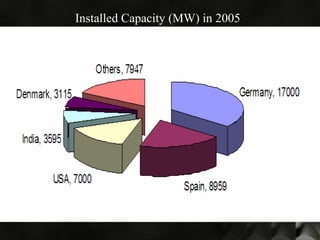

- 21. Installed Capacity (MW)in 2005
- 22.
- 23. Wind Power Densityof India

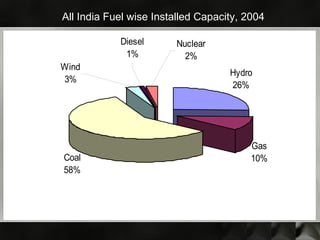

- 24. All India Fuelwise Installed Capacity, 2004 Hydro 26% Gas 10%Coal 58% Nuclear 2% Wind 3% Diesel 1%

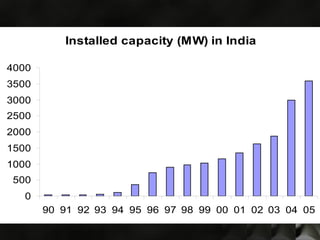

- 25. Installed capacity (MW)in India 0 500 1000 1500 2000 2500 3000 3500 4000 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 05
- 26. State wise potentialin India, 2005 0 2000 4000 6000 8000 10000 Gross Potential 8275 9675 6620 875 5500 3650 1700 5400 3050 450 Installed Capacity 120.6 253.53 410.75 2 28.85 456.15 2 284.76 2040.3 1.1 AP Gujara t Karnat aka Kerala MP Mahar ashtra Orissa Rajast han TN WB MW
- 27.

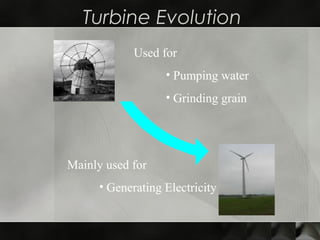

- 28. Turbine Evolution Used for •Pumping water • Grinding grain Mainly used for • Generating Electricity
- 29. Types of turbines VAWT Drag is the main force Nacelle is placed at the bottom Yaw mechanism is not required Lower starting torque Difficulty in mounting the turbine Unwanted fluctuations in the power output

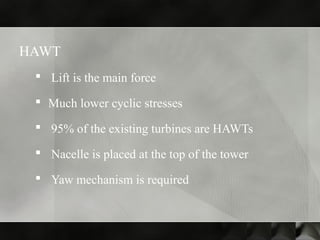

- 30. HAWT Lift isthe main force Much lower cyclic stresses 95% of the existing turbines are HAWTs Nacelle is placed at the top of the tower Yaw mechanism is required
- 31. Two types ofHAWT DOWNWIND TURBINE UPWIND TURBINE
- 32. Counter Rotating HAWT Increase the rotation speed Rear one is smaller and stalls at high wind speeds Operates for wider range of wind speeds

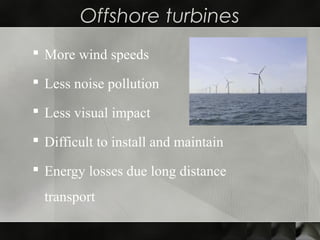

- 33. Offshore turbines Morewind speeds Less noise pollution Less visual impact Difficult to install and maintain Energy losses due long distance transport
- 34.

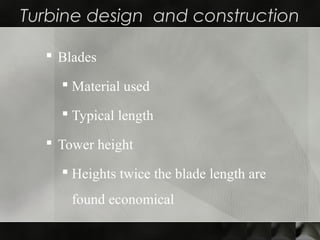

- 35. Turbine design andconstruction Blades Material used Typical length Tower height Heights twice the blade length are found economical

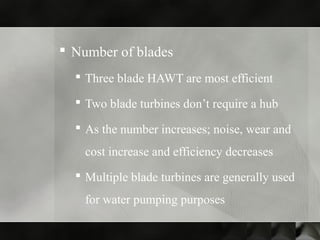

- 36. Number ofblades Three blade HAWT are most efficient Two blade turbines don’t require a hub As the number increases; noise, wear and cost increase and efficiency decreases Multiple blade turbines are generally used for water pumping purposes

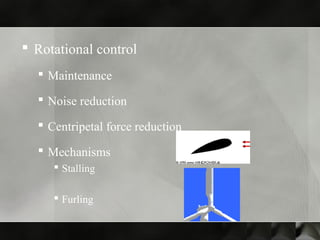

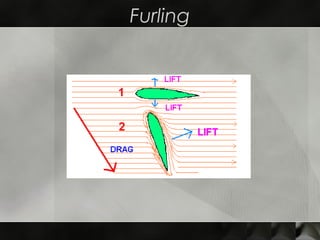

- 37. Rotational control Maintenance Noise reduction Centripetal force reduction Mechanisms Stalling Furling

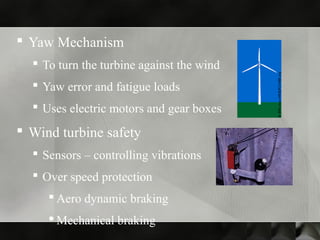

- 38. Yaw Mechanism To turn the turbine against the wind Yaw error and fatigue loads Uses electric motors and gear boxes Wind turbine safety Sensors – controlling vibrations Over speed protection Aero dynamic braking Mechanical braking
- 39.

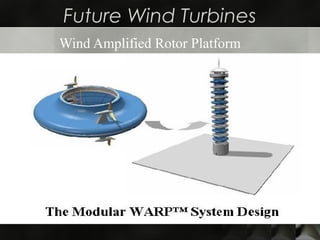

- 40. Future Wind Turbines WindAmplified Rotor Platform

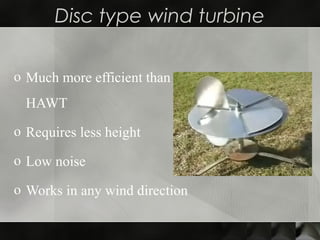

- 41. Disc type windturbine o Much more efficient than HAWT o Requires less height o Low noise o Works in any wind direction
- 42.

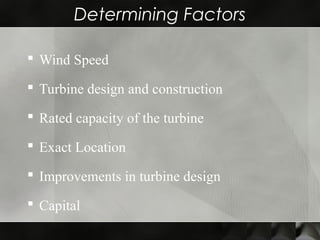

- 43. Determining Factors WindSpeed Turbine design and construction Rated capacity of the turbine Exact Location Improvements in turbine design Capital

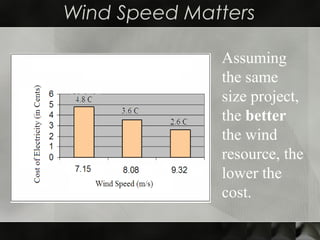

- 44. Wind Speed Matters Assuming thesame size project, the better the wind resource, the lower the cost.

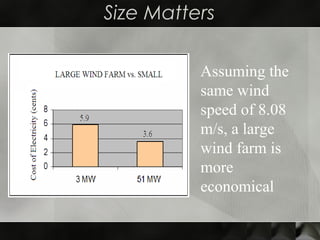

- 45. Size Matters Assuming the samewind speed of 8.08 m/s, a large wind farm is more economical
- 46.

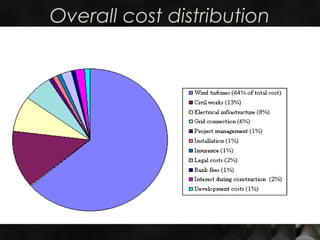

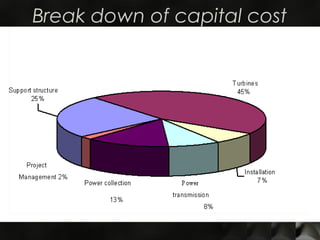

- 47. Break down ofcapital cost
- 48. Energy Cost Trend 1979:40 cents/kWh Increased Turbine Size R&D Advances Manufacturing Improvements 2004: 3 – 4.5 cents/kWh 2000: 4 - 6 cents/kWh
- 49. Typical cost statistics Size: 51 MW Wind Speed: 13-18 miles/hour Capital cost: $ 65 million ($1300/MW) Annual production: 150 million kW-hr Electricity costs: 3.6-4.5 cents Payback period: 20 years
- 50.

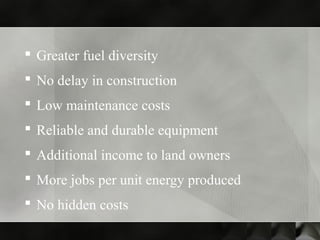

- 51. Greater fueldiversity No delay in construction Low maintenance costs Reliable and durable equipment Additional income to land owners More jobs per unit energy produced No hidden costs
- 53.

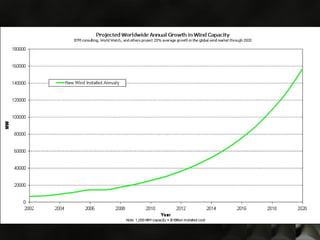

- 55.

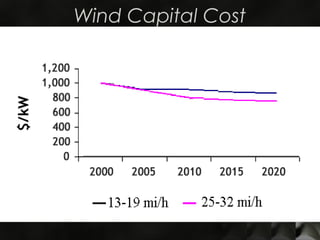

- 56. Cost of WindEnergy

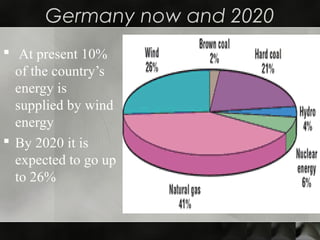

- 57. Germany now and2020 At present 10% of the country’s energy is supplied by wind energy By 2020 it is expected to go up to 26%

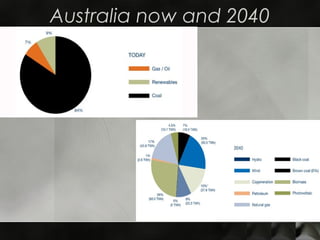

- 58.

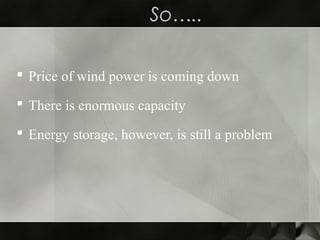

- 59. So….. Price ofwind power is coming down There is enormous capacity Energy storage, however, is still a problem
- 60.
- 61. Visual impact Off shore turbines Arrangement Avian concerns Suitable choice of site Using tubular towers instead of lattice tower Using radars

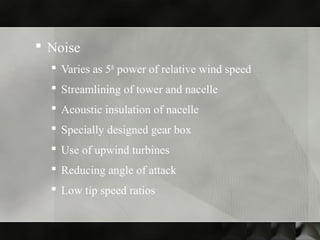

- 62. Noise Variesas 5th power of relative wind speed Streamlining of tower and nacelle Acoustic insulation of nacelle Specially designed gear box Use of upwind turbines Reducing angle of attack Low tip speed ratios

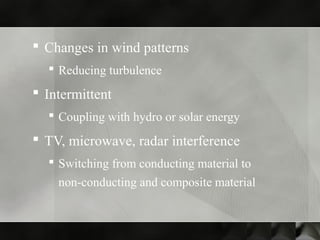

- 63. Changes inwind patterns Reducing turbulence Intermittent Coupling with hydro or solar energy TV, microwave, radar interference Switching from conducting material to non-conducting and composite material
- 64.

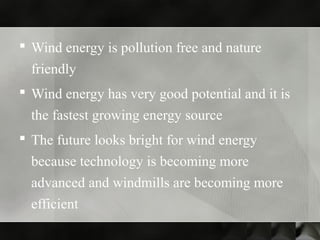

- 65. Wind energyis pollution free and nature friendly Wind energy has very good potential and it is the fastest growing energy source The future looks bright for wind energy because technology is becoming more advanced and windmills are becoming more efficient
- 66.
- 67.
Editor's Notes
- #5 Power generation from wind has emerged as one of the most successful programmes in the renewable energy sector, and has started making meaningful contributions to the overall power requirements of some States. Wind turbines today are up to the task of producing serious amounts of electricity. Turbines vary in size from small 1 kW structures to large machines rated at 2 MW or more. Energy is a major input for overall socio-economic development. Use of fossil fuels is expected to fuel the economic development process of a majority of the world population during the next two decades. However, at some time during the period 2020-2050, fossil fuels are likely to reach their maximum potential, and their price will become higher than other renewable energy options on account of increasingly constrained production and availability. Therefore, renewables are expected to play a key role in accelerating development and sustainable growth in the second half of the next century, accounting then to 50 to 60% of the total global energy supply.

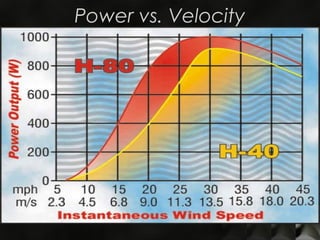

- #11 For the operation of wind turbine to be commercially feasible, average wind speed should be in the range of 13-30 mi/hr. at 25-30 mi/hr, a turbine operates at full capacity, and at higher wind speeds the turbine should be shut down to avoid damage.
- #12 There are two primary physical principles by which energy can be extracted from the wind; these are through the creation of either drag or lift force (or through a combination of the two). The basic features that characterize lift and drag are: • drag is in the direction of airflow • lift is perpendicular to the direction of airflow • generation of lift always causes a certain amount of drag to be developed • with a good aerofoil, the lift produced can be more than thirty times greater than the drag • lift devices are generally more efficient than drag devices
- #13 The tip speed ratio is defined as the ratio of the speed of the extremities of a windmill rotor to the speed of the free wind. It is a measure of the 'gearing ratio' of the rotor. Drag devices always have tip speed ratios less than one and hence turn slowly, whereas lift devices can have high tip speed ratios and hence turn quickly relative to the wind. Tip speed ratio = blade tip speed/wind speed Solidity is usually defined as the percentage of the circumference of the rotor which contains material rather than air. High solidity machines carry a lot of material and have coarse blade angles. They generate much higher starting torque than low-solidity machines but are inherently less efficient than low-solidity machines. The extra materials also cost more money. However, low-solidity machines need to be made with more precision which leads to little difference in costs.
- #14 The proportion of the power in the wind that the rotor can extract is termed the coefficient of performance (or power coefficient or efficiency; symbol Cp) and its variation as a function of tip speed ratio is commonly used to characterize different types of rotor. It is physically impossible to extract all the energy from the wind, without bringing the air behind the rotor to a standstill.
- #16 Wind energy is freely available, widely distributed, renewable and also nature-friendly. Wind has huge potential. It is estimated that if all the available wind energy is harnessed, it can contribute about five times the total energy demands of the world at present
- #17 Wind energy is the fastest growing renewable energy source in the world. The world wide installed capacity is growing at a rapid pace of over 30% per year. Factors: declining cost (4-6 cents k/wh) technological advances revenue for landowners & tax jurisdictions consumer demand
- #18 World wide wind generating capacity is less than 5000 MW in 1995 and is 39000MW in 2003, an increase of nearly eight fold.
- #21 World wide wind generating capacity is less than 5000 MW in 1995 and is 39000MW in 2003, an increase of nearly eight fold. Wind energy is the fastest growing renewable energy source in the world. The world wide installed capacity is growing at a rapid pace of over 30% per year.

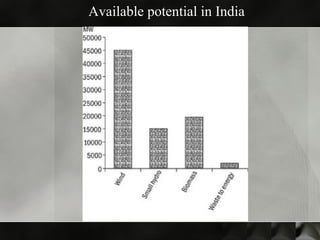

- #23 From the graph, we can see that the available potential for wind in India is 45000MW out of which at present we r using only ~3500 MW.
- #26 Installed capacity is rapidly increasing in India
- #29 Over 5,000 years ago, the ancient Egyptians used wind power to sail their ships on the Nile River. Later, people built windmills to grind their grain. In 1891, the first electrical output wind machine was developed incorporating the aerodynamic design principles.
- #30 However, a disadvantage of most VAWT configurations is the fact that they have either low or insignificant starting torque, so that in the case of Darrieus devices, for example, the rotor must be brought up to speed either by using the generator as a motor or by means of a small secondary rotor, such as a Savonius, mounted on the Darrieus main shaft.
- #31 Upwind turbines are used mostly. Because wind velocity increases at higher altitudes, the backward force and torque on a horizontal axis wind turbine (HAWT) blade peaks as it turns through the highest point in its circle. The tower hinders the airflow at the lowest point in the circle, which produces a local dip in force and torque. These two effects combine to produce a cyclic twist on the main bearings of a HAWT. The combined twist is worst in machines with an even number of blades, where one is straight up when another is straight down. To improve reliability, teetering hubs are used which allow the main shaft to rock through a few degrees, so that the main bearings do not have to resist the torque peaks.
- #33 Counter rotating turbines can be used to increase the rotation speed of the electrical generator. When the counter rotating turbines are on the same side of the tower, the blades on the one in front are angled forwards slightly so as to never hit the rear ones. They are either both geared to the same generator or, more often, one is connected to the rotor and the other to the field windings. Counter rotating turbines geared to the same generator have additional gearing losses. Counter rotating turbines connected to the rotor and stator are mechanically simpler; but, the field windings need slip rings which adds complexity, wastes some electricity and wastes some mechanical power. As of 2005, no large practical counter-rotating HAWTs are commercially sold. Counter rotating turbines can be on opposite sides of the tower. In this case it is best that the one at the back be smaller than the one at the front and set to stall at a higher wind speed. This way, at low wind speeds, both turn and the generator taps the maximum proportion of the wind's power. At intermediate speeds, the front turbine stalls; but, the rear one keeps turning, so the wind generator has a smaller wind resistance and the tower can still support the generator. At high wind speeds both turbines stall, the wind resistance is at a minimum and the tower can still support the generator. This allows the generator to function at a wider wind speed range than a single-turbine generator for a given tower. To reduce sympathetic vibrations, the two turbines should turn at speeds with few common factors, for example 7:3 speed ratio. Overall, this is a more complicated design than the single-turbine wind generator, but it taps more of the wind's energy at a wider range of wind speeds. Winds at a height of a few kilometers are quite constant and very fast (often over 40 m/s). Theoretically, flying wind turbines could tap into the energy in these winds. One design has four turbines linked together forming a kind of kite. Winds keep the construction in the air, while causing the blades on the turbines to rotate. The kite wire would carry the electrical energy to the ground. This approach would require no-fly-zones around the deployment site, and might require electrical energy to remain aloft if the winds would ever die down
- #36 One of the best construction materials available (in 2001 ) is graphite -fibre in epoxy . Graphite composites can be used to build turbines of sixty meters radius, enough to tap a few megawatts of power. Smaller household turbines can be made of lightweight fiberglass , aluminum , or sometimes laminated wood. Wood and canvas sails were originally used on early windmills. Unfortunately they require much maintenance over their service life. Also, they have a relatively high drag (low aerodynamic efficiency) for the force they capture. For these reasons they were superseded with solid airfoils . Wind power intercepted by the turbine is proportional to the square of its blade-length. The maximum blade-length of a turbine is limited by both the strength and stiffness of its material. The wind blows faster at higher altitudes because of the drag of the surface (sea or land) and the viscosity of the air. The variation in velocity with altitude, called wind shear is most dramatic near the surface. Typically, the variation follows the 1/7th power law , which predicts that wind speed rises proportionally to the seventh root of altitude. Doubling the altitude of a turbine, then, increases the expected wind speeds by 10% and the expected power by 34%. Doubling the tower height generally requires doubling the diameter as well, increasing the amount of material by a factor of eight. For HAWTs, tower heights approximately twice the blade length have been found to balance material costs of the tower against better utilisation of the more expensive active components.
- #37 Although turbines can be built with any number of blades, there are many constraints. There are a number of vibration modes that increase in peak intensity as the number of blades decreases. Some of these vibrations, besides causing wear on the machine, are also audible. Thus, noise and wear considerations point to larger numbers of blades, generally at least 3. Many small scale wind turbines, such as the Whisper 175, use 2 blades because such turbines are easy to construct as they avoid the need for using a hub with linkages to individual blades, and the blade(s) can be shipped easily in one long package. Three-bladed turbines, which are much more efficient, and more quiet, require more complicated onsite assembly.
- #38 The speed at which wind turbines rotate must be controlled for several reasons: Maintenance; because it is dangerous to have people working on a wind turbine while it is active, it is sometimes necessary to bring a turbine to a full stop. Noise reduction; As a rule of thumb, the noise from a wind turbine increases with the fifth power of the relative wind speed (as seen from the moving tip of the blades). In noise-sensitive environments (nearly all onshore installations), noise limits the tip speed to approximately 60 m/s. High efficiency turbines may have tip speed ratios of 5-6, which, for onshore turbines, limits high efficiency operation to winds of just 10 m/s. Centripetal force reduction; as the rotational speed increases, so does the centripetal force working on the central hub or axis. When it exceeds safe limits blades could snap off, and the turbine would fail dramatically. On a pitch controlled wind turbine the turbine's electronic controller checks the power output of the turbine several times per second. When the power output becomes too high, it sends an order to the blade pitch mechanism which immediately pitches (turns) the rotor blades slightly out of the wind. Conversely, the blades are turned back into the wind whenever the wind drops again. (Passive) stall controlled wind turbines have the rotor blades bolted onto the hub at a fixed angle. The geometry of the rotor blade profile, however has been aerodynamically designed to ensure that the moment the wind speed becomes too high, it creates turbulence on the side of the rotor blade which is not facing the wind as shown in the picture on the previous page. This stall prevents the lifting force of the rotor blade from acting on the rotor. An increasing number of larger wind turbines (1 MW and up) are being developed with an active stall power control mechanism. Technically the active stall machines resemble pitch controlled machines, since they have pitchable blades. In order to get a reasonably large torque (turning force) at low wind speeds, the machines will usually be programmed to pitch their blades much like a pitch controlled machine at low wind speeds. (Often they use only a few fixed steps depending upon the wind speed). When the machine reaches its rated power , however, you will notice an important difference from the pitch controlled machines: If the generator is about to be overloaded, the machine will pitch its blades in the opposite direction from what a pitch controlled machine does. In other words, it will increase the angle of attack of the rotor blades in order to make the blades go into a deeper stall, thus wasting the excess energy in the wind. One of the advantages of active stall is that one can control the power output more accurately than with passive stall, so as to avoid overshooting the rated power of the machine at the beginning of a gust of wind. Another advantage is that the machine can be run almost exactly at rated power at all high wind speeds. A normal passive stall controlled wind turbine will usually have a drop in the electrical power output for higher wind speeds, as the rotor blades go into deeper stall. The pitch mechanism is usually operated using hydraulics or electric stepper motors.
- #39 That part of the rotor which is closest to the source direction of the wind, however, will be subject to a larger force (bending torque) than the rest of the rotor. On the one hand, this means that the rotor will have a tendency to yaw against the wind automatically, regardless of whether we are dealing with an upwind or a downwind turbine. On the other hand, it means that the blades will be bending back and forth in a flapwise direction for each turn of the rotor. Wind turbines which are running with a yaw error are therefore subject to larger fatigue loads than wind turbines which are yawed in a perpendicular direction against the wind. Sensor:It simply consists of a ball resting on a ring. The ball is connected to a switch through a chain. If the turbine starts shaking, the ball will fall off the ring and switch the turbine off. There are many other sensors in the nacelle, e.g. electronic thermometers which check the oil temperature in the gearbox and the temperature of the generator. Overspeed Protection It is essential that wind turbines stop automatically in case of malfunction of a critical component Aerodynamic Braking System: Tip Brakes The primary braking system for most modern wind turbines is the aerodynamic braking system, which essentially consists in turning the rotor blades about 90 degrees along their longitudinal axis (in the case of a pitch controlled turbine or an active stall controlled turbine ), or in turning the rotor blade tips 90 degrees (in the case of a stall controlled turbine ). Aerodynamic braking systems are extremely safe. Mechanical Braking System The mechanical brake is used as a backup system for the aerodynamic braking system

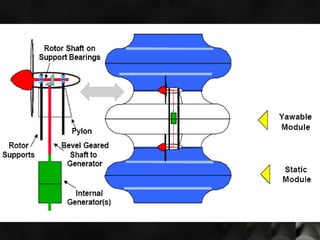

- #41 WARP system amplifies the ambient wind speed, through its multi-tasking aerodynamic modules or wind frames, to simple, standardized commodity horizontal axis (propeller-type) wind turbines. Each modular wind frame provides highly amplified wind flow fields from over 50% to 80% over free air wind speed to each conventional, small diameter wind turbine of no more than 1 meter to 3 meters in diameter. Each module also serves as a support for the wind turbines, a yaw assembly and protective housing for the core support tower and other internal subsystems.
