1. Building a highly available cloud with Ceph
and Apache CloudStack
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

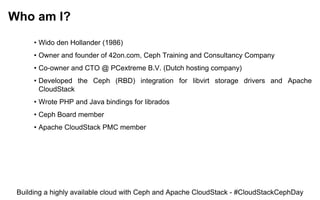

2. Who am I?
• Wido den Hollander (1986)
• Owner and founder of 42on.com, Ceph Training and Consultancy Company
• Co-owner and CTO @ PCextreme B.V. (Dutch hosting company)
• Developed the Ceph (RBD) integration for libvirt storage drivers and Apache
CloudStack
• Wrote PHP and Java bindings for librados
• Ceph Board member
• Apache CloudStack PMC member
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

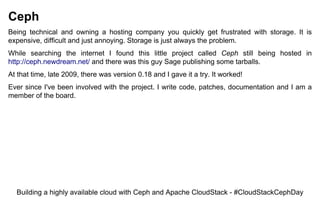

3. Ceph
Being technical and owning a hosting company you quickly get frustrated with storage. It is
expensive, difficult and just annoying. Storage is just always the problem.
While searching the internet I found this little project called Ceph still being hosted in
http://ceph.newdream.net/ and there was this guy Sage publishing some tarballs.
At that time, late 2009, there was version 0.18 and I gave it a try. It worked!
Ever since I've been involved with the project. I write code, patches, documentation and I am a
member of the board.
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

4. Apache CloudStack
From my role as CTO at PCextreme I first came into contact with CloudStack shortly after Citrix
bought cloud.com in 2012.
I travelled to the Citrix office in California for their first cloud.com/CloudStack conference at which
they announced donation to the Apache Foundation.
Ever since I've been working with CloudStack as a committer and PMC member. It is a vital part
of my company.
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

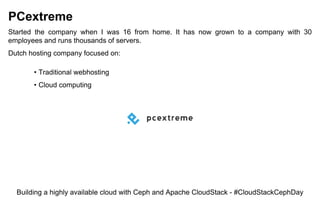

5. PCextreme
Started the company when I was 16 from home. It has now grown to a company with 30
employees and runs thousands of servers.
Dutch hosting company focused on:
• Traditional webhosting
• Cloud computing
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

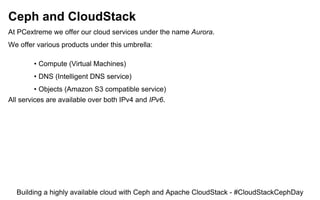

6. Ceph and CloudStack
At PCextreme we offer our cloud services under the name Aurora.
We offer various products under this umbrella:
• Compute (Virtual Machines)
• DNS (Intelligent DNS service)
• Objects (Amazon S3 compatible service)
All services are available over both IPv4 and IPv6.
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

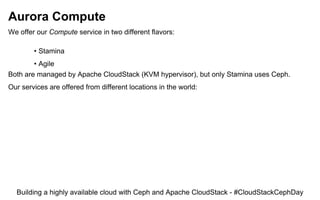

7. Aurora Compute
We offer our Compute service in two different flavors:
• Stamina
• Agile
Both are managed by Apache CloudStack (KVM hypervisor), but only Stamina uses Ceph.
Our services are offered from different locations in the world:
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

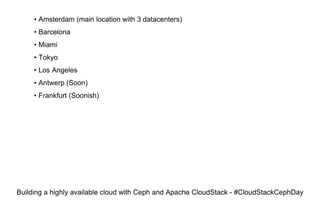

8. • Amsterdam (main location with 3 datacenters)
• Barcelona
• Miami
• Tokyo
• Los Angeles
• Antwerp (Soon)
• Frankfurt (Soonish)
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

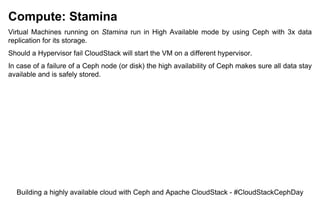

9. Compute: Stamina
Virtual Machines running on Stamina run in High Available mode by using Ceph with 3x data
replication for its storage.
Should a Hypervisor fail CloudStack will start the VM on a different hypervisor.
In case of a failure of a Ceph node (or disk) the high availability of Ceph makes sure all data stay
available and is safely stored.
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

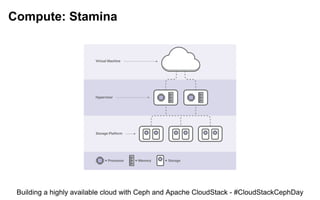

10. Compute: Stamina
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

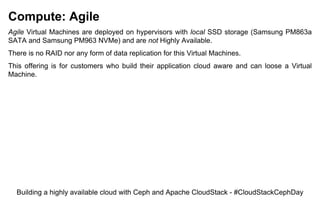

11. Compute: Agile
Agile Virtual Machines are deployed on hypervisors with local SSD storage (Samsung PM863a
SATA and Samsung PM963 NVMe) and are not Highly Available.
There is no RAID nor any form of data replication for this Virtual Machines.
This offering is for customers who build their application cloud aware and can loose a Virtual
Machine.
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

12. Compute: Agile
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

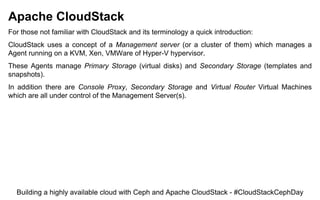

13. Apache CloudStack
For those not familiar with CloudStack and its terminology a quick introduction:
CloudStack uses a concept of a Management server (or a cluster of them) which manages a
Agent running on a KVM, Xen, VMWare of Hyper-V hypervisor.
These Agents manage Primary Storage (virtual disks) and Secondary Storage (templates and
snapshots).
In addition there are Console Proxy, Secondary Storage and Virtual Router Virtual Machines
which are all under control of the Management Server(s).
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

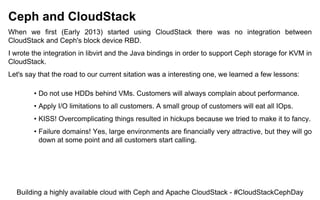

14. Ceph and CloudStack
When we first (Early 2013) started using CloudStack there was no integration between
CloudStack and Ceph's block device RBD.
I wrote the integration in libvirt and the Java bindings in order to support Ceph storage for KVM in
CloudStack.
Let's say that the road to our current sitation was a interesting one, we learned a few lessons:
• Do not use HDDs behind VMs. Customers will always complain about performance.
• Apply I/O limitations to all customers. A small group of customers will eat all IOps.
• KISS! Overcomplicating things resulted in hickups because we tried to make it to fancy.
• Failure domains! Yes, large environments are financially very attractive, but they will go
down at some point and all customers start calling.
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

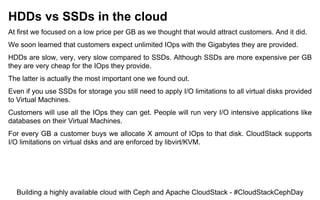

15. HDDs vs SSDs in the cloud
At first we focused on a low price per GB as we thought that would attract customers. And it did.
We soon learned that customers expect unlimited IOps with the Gigabytes they are provided.
HDDs are slow, very, very slow compared to SSDs. Although SSDs are more expensive per GB
they are very cheap for the IOps they provide.
The latter is actually the most important one we found out.
Even if you use SSDs for storage you still need to apply I/O limitations to all virtual disks provided
to Virtual Machines.
Customers will use all the IOps they can get. People will run very I/O intensive applications like
databases on their Virtual Machines.
For every GB a customer buys we allocate X amount of IOps to that disk. CloudStack supports
I/O limitations on virtual dsks and are enforced by libvirt/KVM.
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

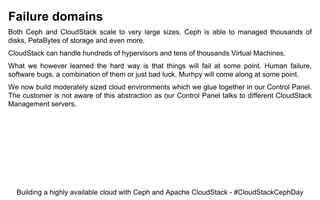

16. Failure domains
Both Ceph and CloudStack scale to very large sizes. Ceph is able to managed thousands of
disks, PetaBytes of storage and even more.
CloudStack can handle hundreds of hypervisors and tens of thousands Virtual Machines.
What we however learned the hard way is that things will fail at some point. Human failure,
software bugs, a combination of them or just bad luck. Murhpy will come along at some point.
We now build moderately sized cloud environments which we glue together in our Control Panel.
The customer is not aware of this abstraction as our Control Panel talks to different CloudStack
Management servers.
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

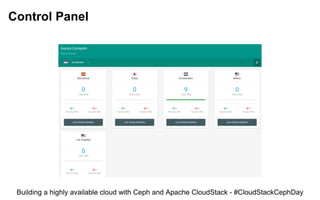

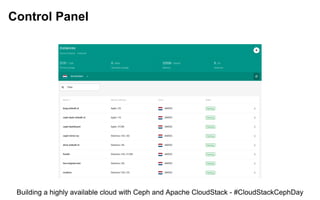

17. Control Panel
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

18. Control Panel
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

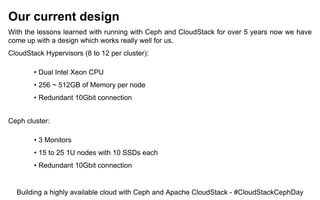

19. Our current design
With the lessons learned with running with Ceph and CloudStack for over 5 years now we have
come up with a design which works really well for us.
CloudStack Hypervisors (8 to 12 per cluster):
• Dual Intel Xeon CPU
• 256 ~ 512GB of Memory per node
• Redundant 10Gbit connection
Ceph cluster:
• 3 Monitors
• 15 to 25 1U nodes with 10 SSDs each
• Redundant 10Gbit connection
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

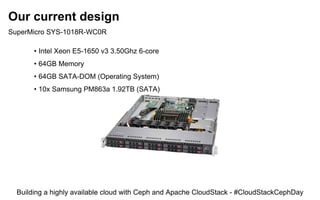

20. Our current design
SuperMicro SYS-1018R-WC0R
• Intel Xeon E5-1650 v3 3.50Ghz 6-core
• 64GB Memory
• 64GB SATA-DOM (Operating System)
• 10x Samsung PM863a 1.92TB (SATA)
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

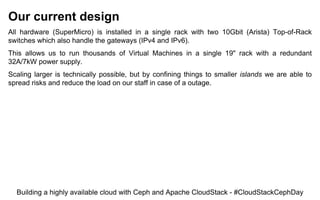

21. Our current design
All hardware (SuperMicro) is installed in a single rack with two 10Gbit (Arista) Top-of-Rack
switches which also handle the gateways (IPv4 and IPv6).
This allows us to run thousands of Virtual Machines in a single 19" rack with a redundant
32A/7kW power supply.
Scaling larger is technically possible, but by confining things to smaller islands we are able to
spread risks and reduce the load on our staff in case of a outage.
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

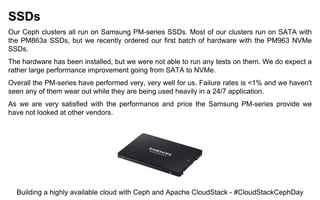

22. SSDs
Our Ceph clusters all run on Samsung PM-series SSDs. Most of our clusters run on SATA with
the PM863a SSDs, but we recently ordered our first batch of hardware with the PM963 NVMe
SSDs.
The hardware has been installed, but we were not able to run any tests on them. We do expect a
rather large performance improvement going from SATA to NVMe.
Overall the PM-series have performed very, very well for us. Failure rates is <1% and we haven't
seen any of them wear out while they are being used heavily in a 24/7 application.
As we are very satisfied with the performance and price the Samsung PM-series provide we
have not looked at other vendors.
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

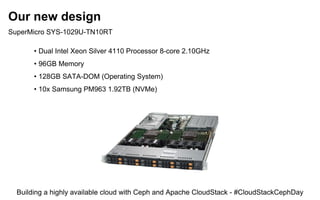

23. Our new design
SuperMicro SYS-1029U-TN10RT
• Dual Intel Xeon Silver 4110 Processor 8-core 2.10GHz
• 96GB Memory
• 128GB SATA-DOM (Operating System)
• 10x Samsung PM963 1.92TB (NVMe)
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

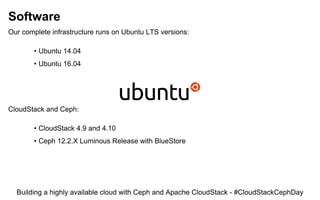

24. Software
Our complete infrastructure runs on Ubuntu LTS versions:
• Ubuntu 14.04
• Ubuntu 16.04
CloudStack and Ceph:
• CloudStack 4.9 and 4.10
• Ceph 12.2.X Luminous Release with BlueStore
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

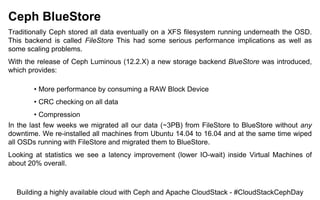

25. Ceph BlueStore
Traditionally Ceph stored all data eventually on a XFS filesystem running underneath the OSD.
This backend is called FileStore This had some serious performance implications as well as
some scaling problems.
With the release of Ceph Luminous (12.2.X) a new storage backend BlueStore was introduced,
which provides:
• More performance by consuming a RAW Block Device
• CRC checking on all data
• Compression
In the last few weeks we migrated all our data (~3PB) from FileStore to BlueStore without any
downtime. We re-installed all machines from Ubuntu 14.04 to 16.04 and at the same time wiped
all OSDs running with FileStore and migrated them to BlueStore.
Looking at statistics we see a latency improvement (lower IO-wait) inside Virtual Machines of
about 20% overall.
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

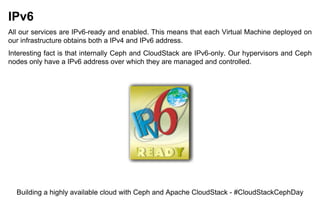

26. IPv6
All our services are IPv6-ready and enabled. This means that each Virtual Machine deployed on
our infrastructure obtains both a IPv4 and IPv6 address.
Interesting fact is that internally Ceph and CloudStack are IPv6-only. Our hypervisors and Ceph
nodes only have a IPv6 address over which they are managed and controlled.
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

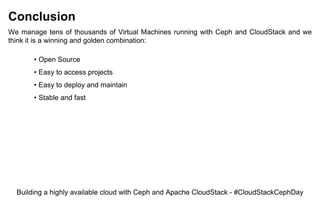

27. Conclusion
We manage tens of thousands of Virtual Machines running with Ceph and CloudStack and we
think it is a winning and golden combination:
• Open Source
• Easy to access projects
• Easy to deploy and maintain
• Stable and fast
Building a highly available cloud with Ceph and Apache CloudStack - #CloudStackCephDay

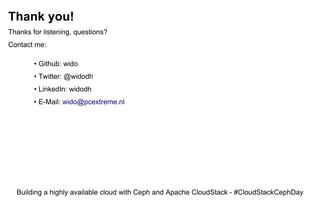

28. Thank you!
Thanks for listening, questions?
Contact me:
• Github: wido
• Twitter: @widodh
• LinkedIn: widodh
• E-Mail: wido@pcextreme.nl
