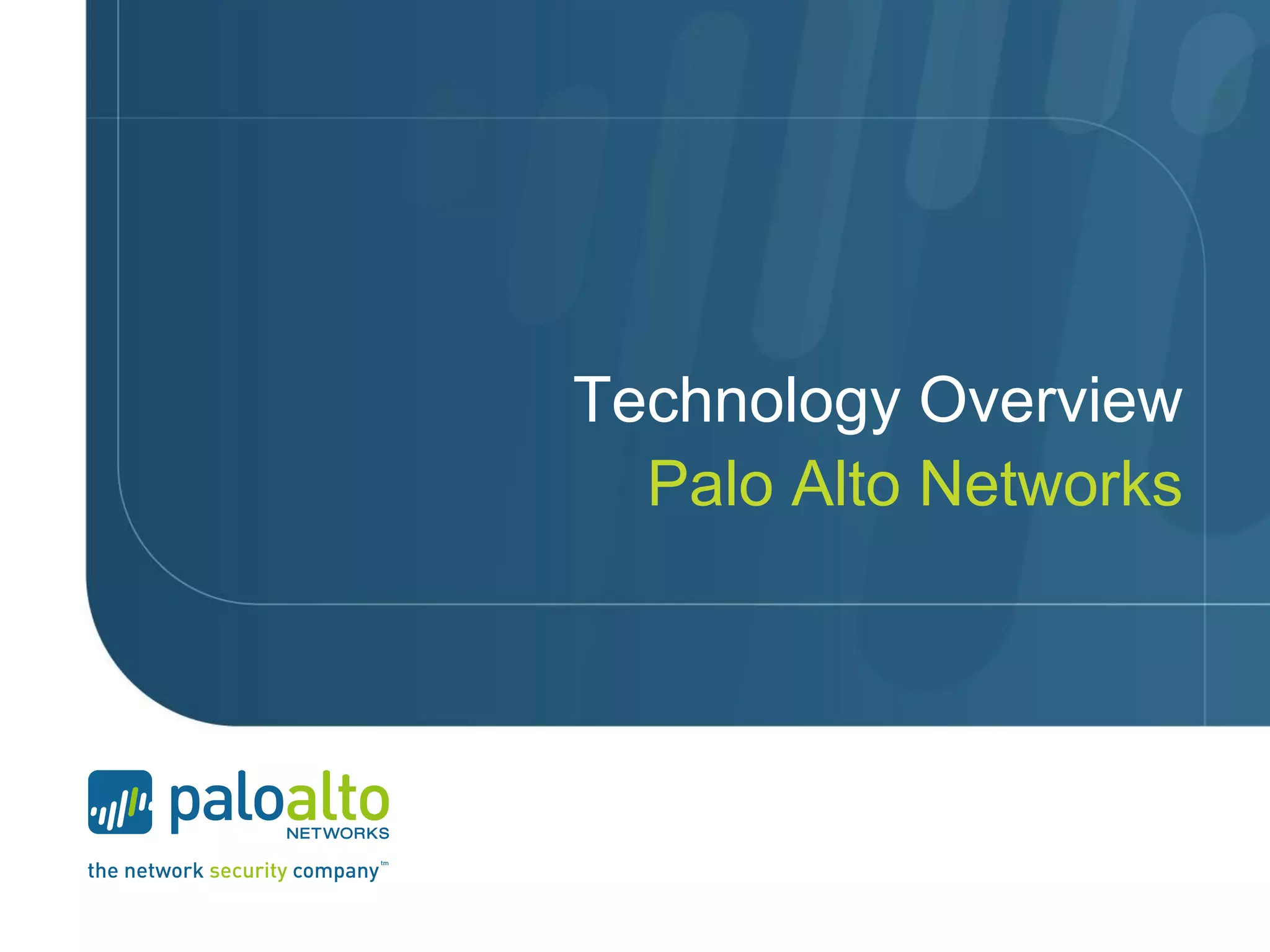

- 1. Technology Overview Palo AltoNetworks
- 2. Applications Have Changed;Firewalls Have Not © 2011 Palo Alto Networks. Proprietary and Confidential.Page 2 | • Need to restore visibility and control in the firewall BUT…applications have changed • Ports ≠ Applications • IP Addresses ≠ Users • Packets ≠ Content The gateway at the trust border is the right place to enforce policy control • Sees all traffic • Defines trust boundary

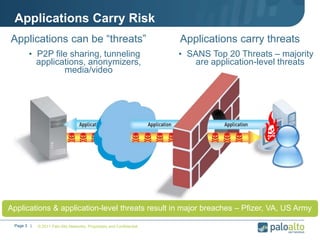

- 3. Applications Carry Risk ©2011 Palo Alto Networks. Proprietary and Confidential.Page 3 | Applications can be “threats” • P2P file sharing, tunneling applications, anonymizers, media/video Applications carry threats • SANS Top 20 Threats – majority are application-level threats Applications & application-level threats result in major breaches – Pfizer, VA, US Army

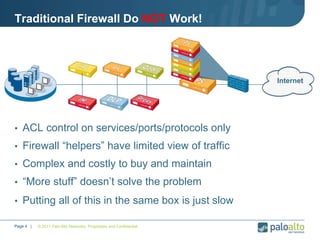

- 4. Traditional Firewall DoNOT Work! • ACL control on services/ports/protocols only • Firewall “helpers” have limited view of traffic • Complex and costly to buy and maintain • “More stuff” doesn’t solve the problem © 2011 Palo Alto Networks. Proprietary and Confidential.Page 4 | Internet • Putting all of this in the same box is just slow

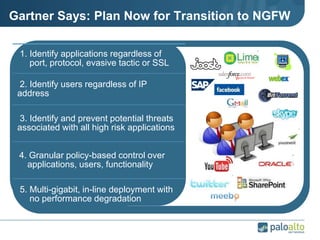

- 5. 1. Identify applicationsregardless of port, protocol, evasive tactic or SSL 2. Identify users regardless of IP address 3. Identify and prevent potential threats associated with all high risk applications 4. Granular policy-based control over applications, users, functionality 5. Multi-gigabit, in-line deployment with no performance degradation Gartner Says: Plan Now for Transition to NGFW

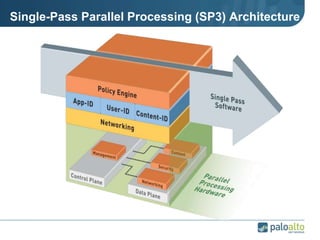

- 6. Single-Pass Parallel Processing(SP3) Architecture •Up to 10Gbps, Low Latency

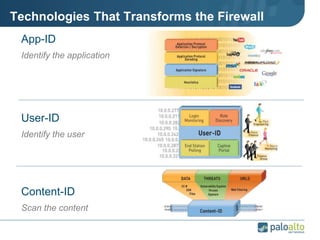

- 7. Technologies That Transformsthe Firewall App-ID Identify the application User-ID Identify the user Content-ID Scan the content

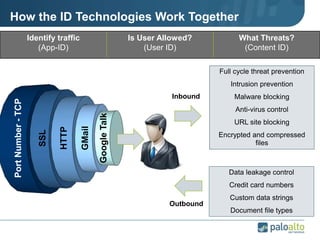

- 8. Identify traffic (App-ID) Is UserAllowed? (User ID) What Threats? (Content ID) Full cycle threat prevention Intrusion prevention Malware blocking Anti-virus control URL site blocking Encrypted and compressed files PortNumber-TCP SSL HTTP GMail GoogleTalk How the ID Technologies Work Together Data leakage control Credit card numbers Custom data strings Document file types •Inbound •Outbound

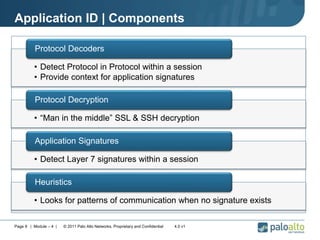

- 9. Application ID |Components • Detect Protocol in Protocol within a session • Provide context for application signatures Protocol Decoders • “Man in the middle” SSL & SSH decryption Protocol Decryption • Detect Layer 7 signatures within a session Application Signatures • Looks for patterns of communication when no signature exists Heuristics Page 9 | Module – 4 | © 2011 Palo Alto Networks. Proprietary and Confidential 4.0 v1

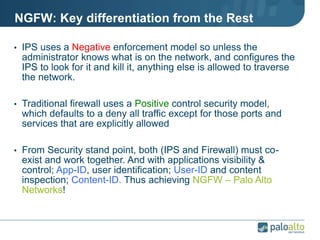

- 10. NGFW: Key differentiationfrom the Rest • IPS uses a Negative enforcement model so unless the administrator knows what is on the network, and configures the IPS to look for it and kill it, anything else is allowed to traverse the network. • Traditional firewall uses a Positive control security model, which defaults to a deny all traffic except for those ports and services that are explicitly allowed • From Security stand point, both (IPS and Firewall) must co- exist and work together. And with applications visibility & control; App-ID, user identification; User-ID and content inspection; Content-ID. Thus achieving NGFW – Palo Alto Networks!
- 11.

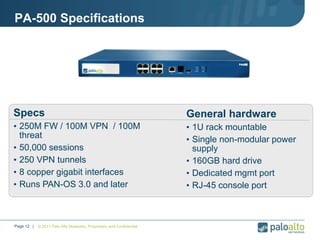

- 12. © 2011 PaloAlto Networks. Proprietary and ConfidentialPage 12 | PA-500 Specifications Specs • 250M FW / 100M VPN / 100M threat • 50,000 sessions • 250 VPN tunnels • 8 copper gigabit interfaces • Runs PAN-OS 3.0 and later General hardware • 1U rack mountable • Single non-modular power supply • 160GB hard drive • Dedicated mgmt port • RJ-45 console port

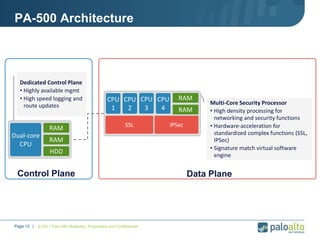

- 13. © 2011 PaloAlto Networks. Proprietary and ConfidentialPage 13 | PA-500 Architecture Multi-Core Security Processor • High density processing for networking and security functions • Hardware-acceleration for standardized complex functions (SSL, IPSec) • Signature match virtual software engine Dedicated Control Plane • Highly available mgmt • High speed logging and route updates Dual-core CPU RAM RAM HDD CPU 4 SSL IPSec CPU 1 CPU 2 Control Plane Data Plane RAM RAMCPU 3

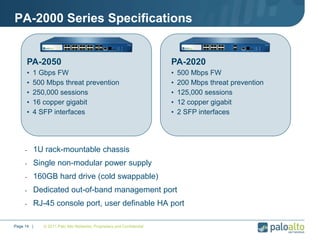

- 14. © 2011 PaloAlto Networks. Proprietary and ConfidentialPage 14 | PA-2000 Series Specifications - 1U rack-mountable chassis - Single non-modular power supply - 160GB hard drive (cold swappable) - Dedicated out-of-band management port - RJ-45 console port, user definable HA port PA-2050 • 1 Gbps FW • 500 Mbps threat prevention • 250,000 sessions • 16 copper gigabit • 4 SFP interfaces PA-2020 • 500 Mbps FW • 200 Mbps threat prevention • 125,000 sessions • 12 copper gigabit • 2 SFP interfaces

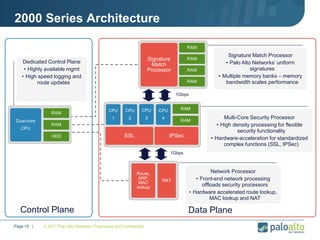

- 15. © 2011 PaloAlto Networks. Proprietary and ConfidentialPage 15 | 2000 Series Architecture Route, ARP, MAC lookup NAT Signature Match Processor • Palo Alto Networks’ uniform signatures • Multiple memory banks – memory bandwidth scales performance Multi-Core Security Processor • High density processing for flexible security functionality • Hardware-acceleration for standardized complex functions (SSL, IPSec) Dedicated Control Plane • Highly available mgmt • High speed logging and route updates 1Gbps Signature Match Processor RAM RAM RAM RAM Dual-core CPU RAM RAM HDD Network Processor • Front-end network processing offloads security processors • Hardware accelerated route lookup, MAC lookup and NAT CPU 4 SSL IPSec CPU 1 CPU 2 1Gbps Control Plane Data Plane RAM RAMCPU 3

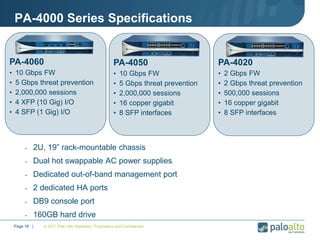

- 16. © 2011 PaloAlto Networks. Proprietary and ConfidentialPage 16 | PA-4000 Series Specifications - 2U, 19” rack-mountable chassis - Dual hot swappable AC power supplies - Dedicated out-of-band management port - 2 dedicated HA ports - DB9 console port - 160GB hard drive PA-4050 • 10 Gbps FW • 5 Gbps threat prevention • 2,000,000 sessions • 16 copper gigabit • 8 SFP interfaces PA-4020 • 2 Gbps FW • 2 Gbps threat prevention • 500,000 sessions • 16 copper gigabit • 8 SFP interfaces PA-4060 • 10 Gbps FW • 5 Gbps threat prevention • 2,000,000 sessions • 4 XFP (10 Gig) I/O • 4 SFP (1 Gig) I/O

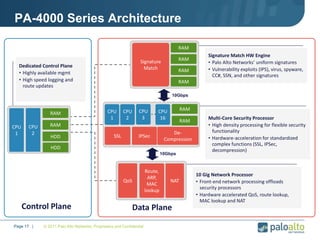

- 17. © 2011 PaloAlto Networks. Proprietary and Confidential PA-4000 Series Architecture Signature Match HW Engine • Palo Alto Networks’ uniform signatures • Vulnerability exploits (IPS), virus, spyware, CC#, SSN, and other signatures Multi-Core Security Processor • High density processing for flexible security functionality • Hardware-acceleration for standardized complex functions (SSL, IPSec, decompression) Dedicated Control Plane • Highly available mgmt • High speed logging and route updates 10Gbps Signature Match RAM RAM RAM RAM CPU 1 RAM RAM HDD 10 Gig Network Processor • Front-end network processing offloads security processors • Hardware accelerated QoS, route lookup, MAC lookup and NAT CPU 16 . . SSL IPSec De- Compression CPU 1 CPU 2 10Gbps Control Plane Data Plane RAM RAMCPU 3 QoS Route, ARP, MAC lookup NAT HDD CPU 2 Page 17 |

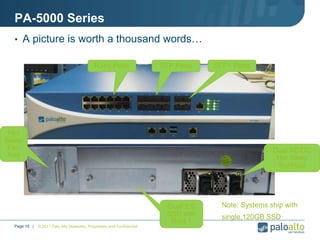

- 18. PA-5000 Series • Apicture is worth a thousand words… © 2011 Palo Alto Networks. Proprietary and Confidential.Page 18 | SFP+ Ports Hot Swap Fan Tray Dual AC/DC Hot Swap Supplies Dual 2.5 SSD with Raid 1 SFP PortsRJ45 Ports •Note: Systems ship with •single,120GB SSD

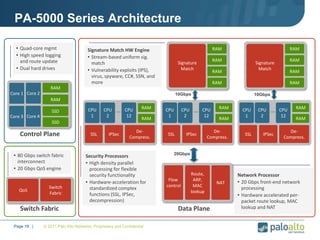

- 19. © 2011 PaloAlto Networks. Proprietary and Confidential PA-5000 Series Architecture • 80 Gbps switch fabric interconnect • 20 Gbps QoS engine Signature Match HW Engine • Stream-based uniform sig. match • Vulnerability exploits (IPS), virus, spyware, CC#, SSN, and more Security Processors • High density parallel processing for flexible security functionality • Hardware-acceleration for standardized complex functions (SSL, IPSec, decompression) 20Gbps Network Processor • 20 Gbps front-end network processing • Hardware accelerated per- packet route lookup, MAC lookup and NAT 10Gbps Data PlaneSwitch Fabric 10Gbps ... ...... QoS Flow control Route, ARP, MAC lookup NAT Switch Fabric Signature Match Signature Match SSL IPSec De- Compress. SSL IPSec De- Compress. SSL IPSec De- Compress. CPU 12 CPU 1 CPU 2 CPU 12 CPU 1 CPU 2 CPU 12 CPU 1 CPU 2 RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM • Quad-core mgmt • High speed logging and route update • Dual hard drives Control Plane Core 1 RAM RAM SSD SSD Core 2 Core 3 Core 4 Page 19 |

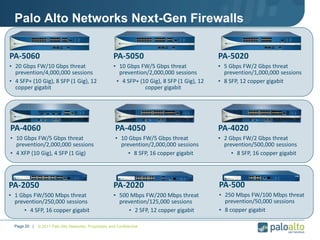

- 20. © 2011 PaloAlto Networks. Proprietary and ConfidentialPage 20 | Palo Alto Networks Next-Gen Firewalls PA-4050 • 10 Gbps FW/5 Gbps threat prevention/2,000,000 sessions • 8 SFP, 16 copper gigabit PA-4020 • 2 Gbps FW/2 Gbps threat prevention/500,000 sessions • 8 SFP, 16 copper gigabit PA-4060 • 10 Gbps FW/5 Gbps threat prevention/2,000,000 sessions • 4 XFP (10 Gig), 4 SFP (1 Gig) PA-2050 • 1 Gbps FW/500 Mbps threat prevention/250,000 sessions • 4 SFP, 16 copper gigabit PA-2020 • 500 Mbps FW/200 Mbps threat prevention/125,000 sessions • 2 SFP, 12 copper gigabit PA-500 • 250 Mbps FW/100 Mbps threat prevention/50,000 sessions • 8 copper gigabit PA-5050 • 10 Gbps FW/5 Gbps threat prevention/2,000,000 sessions • 4 SFP+ (10 Gig), 8 SFP (1 Gig), 12 copper gigabit PA-5020 • 5 Gbps FW/2 Gbps threat prevention/1,000,000 sessions • 8 SFP, 12 copper gigabit PA-5060 • 20 Gbps FW/10 Gbps threat prevention/4,000,000 sessions • 4 SFP+ (10 Gig), 8 SFP (1 Gig), 12 copper gigabit

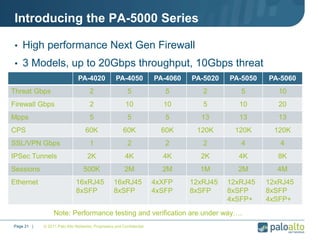

- 21. Introducing the PA-5000Series • High performance Next Gen Firewall • 3 Models, up to 20Gbps throughput, 10Gbps threat © 2011 Palo Alto Networks. Proprietary and Confidential.Page 21 | PA-4020 PA-4050 PA-4060 PA-5020 PA-5050 PA-5060 Threat Gbps 2 5 5 2 5 10 Firewall Gbps 2 10 10 5 10 20 Mpps 5 5 5 13 13 13 CPS 60K 60K 60K 120K 120K 120K SSL/VPN Gbps 1 2 2 2 4 4 IPSec Tunnels 2K 4K 4K 2K 4K 8K Sessions 500K 2M 2M 1M 2M 4M Ethernet 16xRJ45 8xSFP 16xRJ45 8xSFP 4xXFP 4xSFP 12xRJ45 8xSFP 12xRJ45 8xSFP 4xSFP+ 12xRJ45 8xSFP 4xSFP+ •Note: Performance testing and verification are under way….
- 22. Thank You © 2011Palo Alto Networks. Proprietary and Confidential Page 22 |
- 23. but why aFirewall? - What we really deliver compared to presently available from the competition
- 24. Gartner: What isan NGFW NOT? - 1 These are network-based security product spaces that are adjacent to NGFW but not equivalent: Unified threat management (UTM) devices • Target small/medium (SMB). • No application awareness functions and are not generally integrated, single- engine products. • Cost saving approach; Do not scale well in performance and with low quality IPS engine • Do not meet the needs of larger enterprises Messaging security gateways • Focus on latency-tolerant outbound content policy enforcement and inbound mail anti-spam and anti-malware enforcement. • Do not implement wire-speed network security policy. © 2011 Palo Alto Networks. Proprietary and Confidential 3.1-aPage 24 |

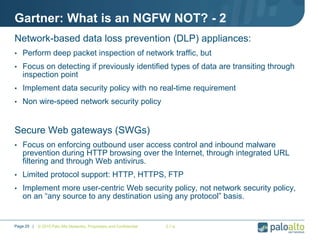

- 25. Gartner: What isan NGFW NOT? - 2 Network-based data loss prevention (DLP) appliances: • Perform deep packet inspection of network traffic, but • Focus on detecting if previously identified types of data are transiting through inspection point • Implement data security policy with no real-time requirement • Non wire-speed network security policy Secure Web gateways (SWGs) • Focus on enforcing outbound user access control and inbound malware prevention during HTTP browsing over the Internet, through integrated URL filtering and through Web antivirus. • Limited protocol support: HTTP, HTTPS, FTP • Implement more user-centric Web security policy, not network security policy, on an “any source to any destination using any protocol” basis. © 2010 Palo Alto Networks. Proprietary and Confidential 3.1-aPage 25 |
- 26. Seven Problems witha Traditional IPS 1. It cannot control applications – only “find it and kill it” 2. It cannot identify or control encrypted SSL or SSH traffic 3. It cannot identify or control compressed files or content 4. It cannot protect against threats in evasive applications 5. It cannot identify specific users that may be infected 6. It cannot integrate with existing firewall security policies 7. It cannot perform adequately with features fully enabled I HATE MY IPS
- 27. The Business NeedsSafe Enablement • “Block” or “Allow” is not enough • “Safe Enablement” to minimize risks and maximize rewards • IT organizations require granular application control - Block – e.g. – all P2P applications - Allow - without restrictions - Allow - but scan for threats - Allow - but limit app users - Allow - but limit app functions - Allow - but shape (QoS) •…and various combinations of the above •Low •High •Network Control

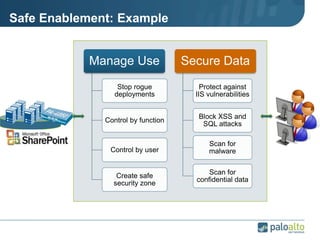

- 28. Manage Use Stop rogue deployments Controlby function Control by user Create safe security zone Secure Data Protect against IIS vulnerabilities Block XSS and SQL attacks Scan for confidential data Scan for malware Safe Enablement: Example

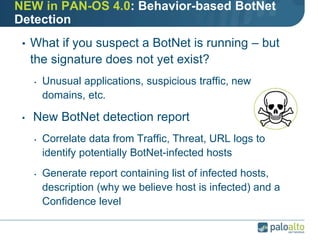

- 29. NEW in PAN-OS4.0: Behavior-based BotNet Detection • What if you suspect a BotNet is running – but the signature does not yet exist? • Unusual applications, suspicious traffic, new domains, etc. • New BotNet detection report • Correlate data from Traffic, Threat, URL logs to identify potentially BotNet-infected hosts • Generate report containing list of infected hosts, description (why we believe host is infected) and a Confidence level
- 30. NEW in PAN-OS4.0: More Threat Management • PDF file scanning - Blocks viruses in PDF files downloaded by users • “Drive by” .exe file blocking - Blocks attempts to download .exe files when users visit untrusted sites • SSH Tunneling Control - Decrypts SSH to ensure its used only for secure remote terminal session – not circumventing security • Customizable App-ID • Up to 6,000 App-IDs for internally developed applications.
