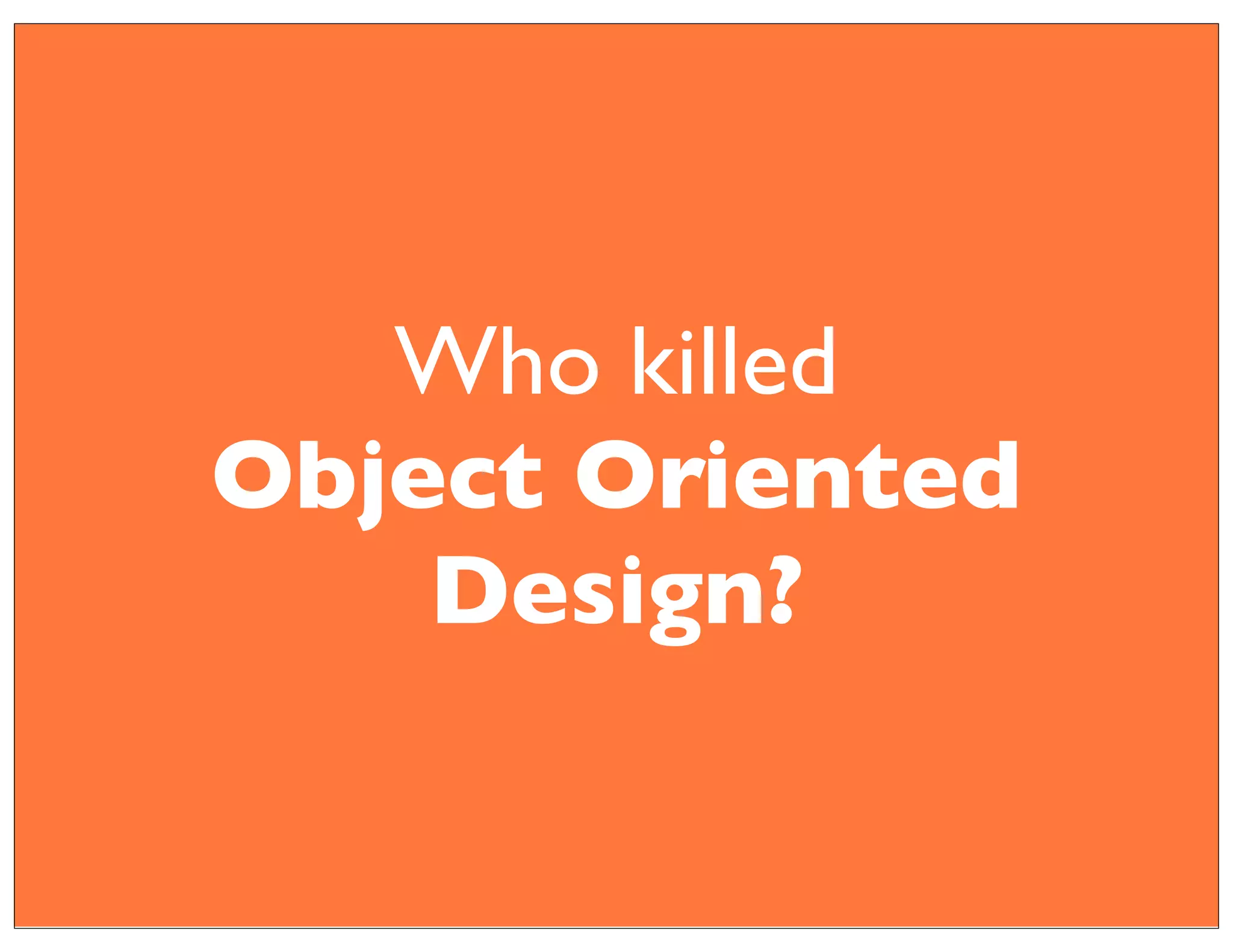

Who killed
Object Oriented
Design?
Colonel PHP
with a lead pipe in
the study?
Just look around...
Is OOD making
programming more
enjoyable?

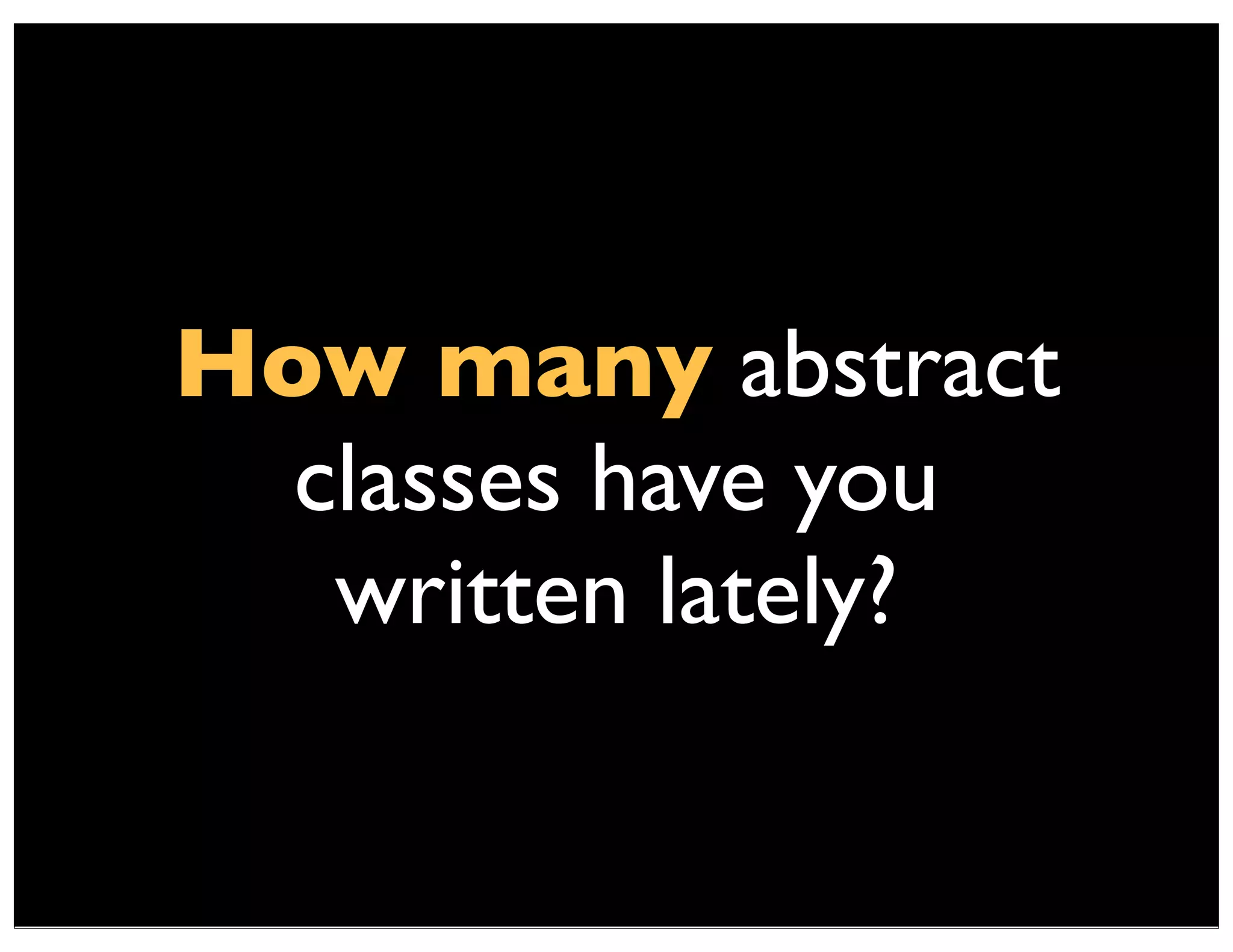

How many abstract
classes have you
written lately?
When was the last
time that you had a
design meeting?

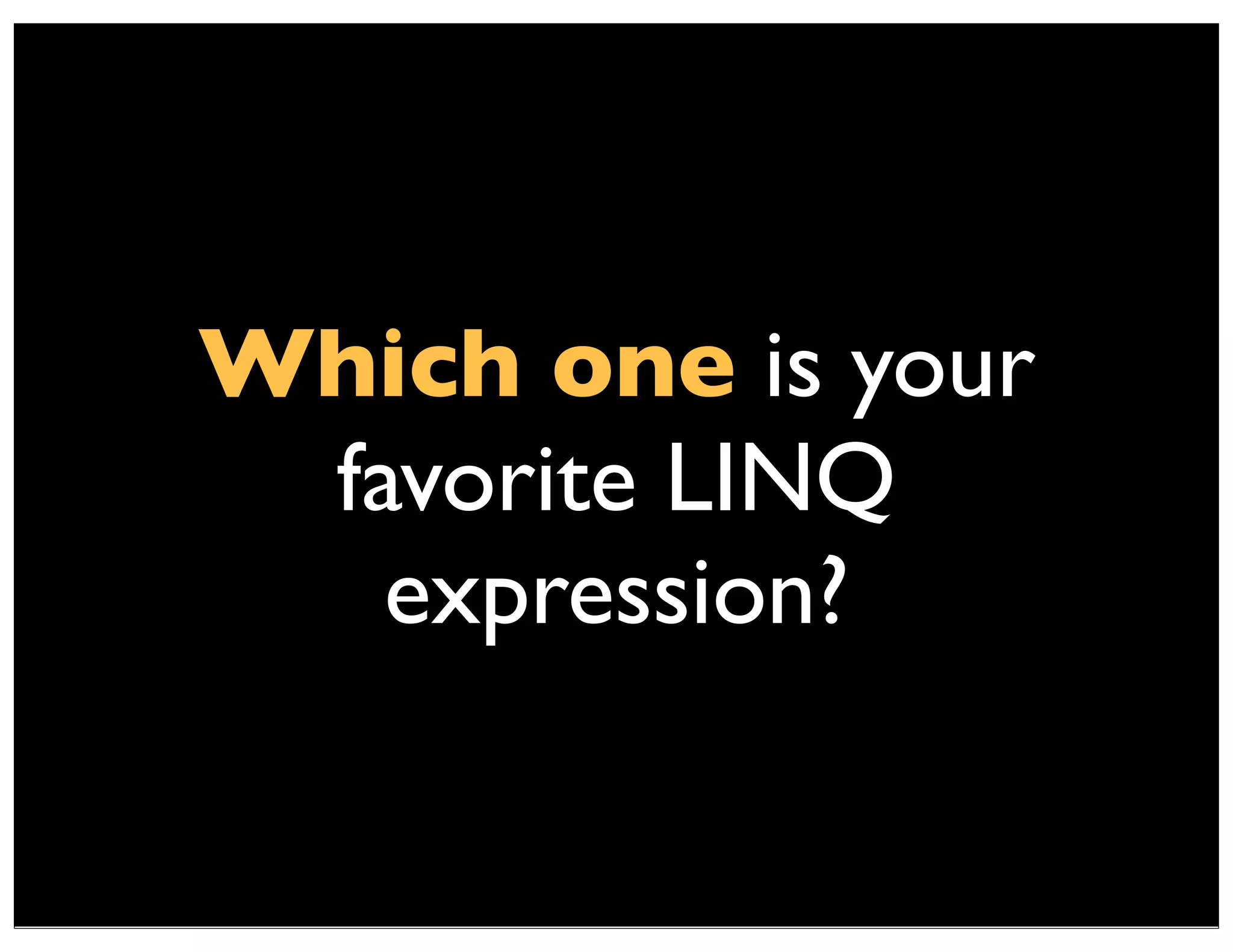

Which one is your
favorite LINQ
expression?
Why would you use
yield or yield
return?

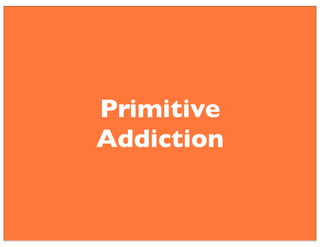

Primitive
Addiction
Be lazy
Make your life easier

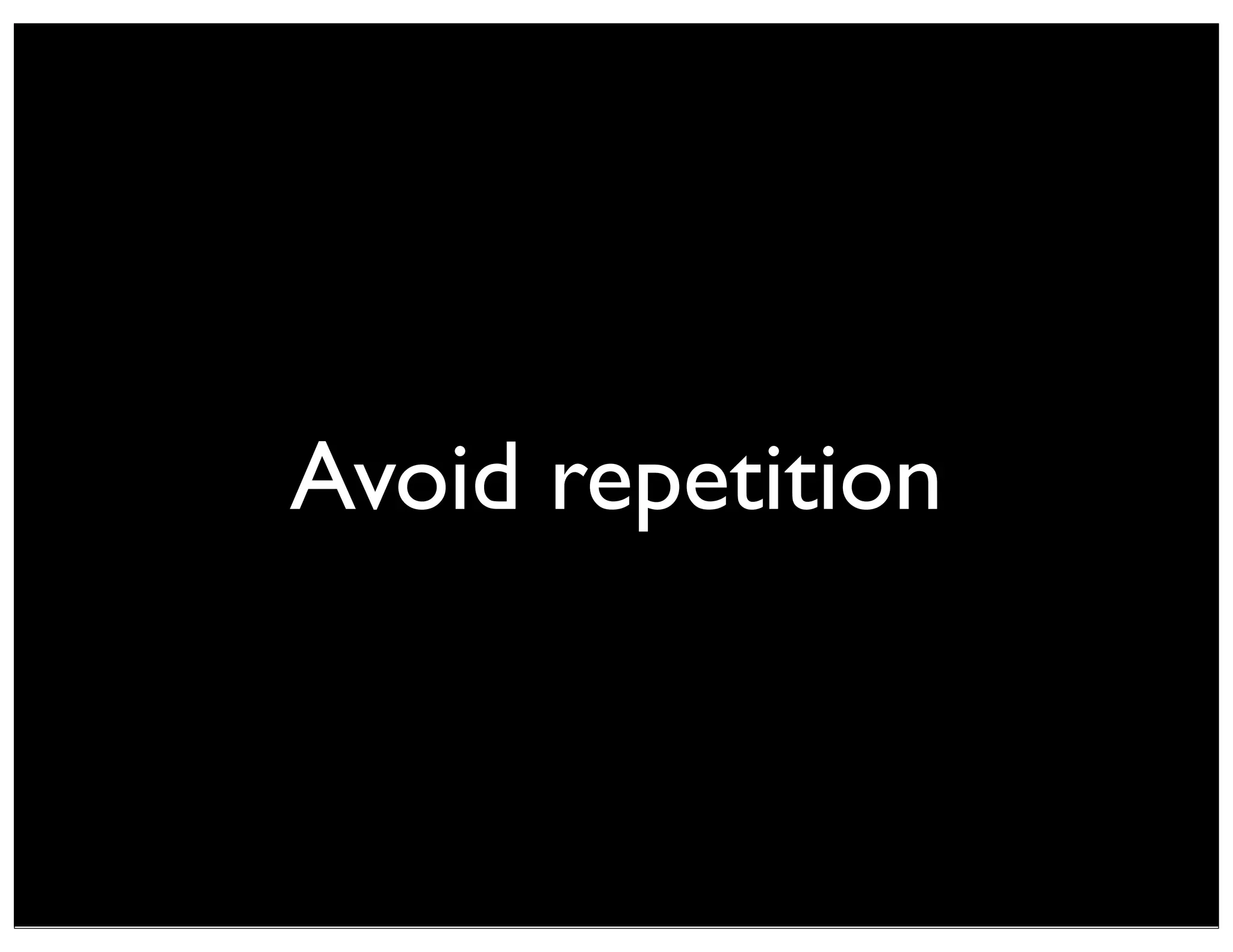

Avoid repetition

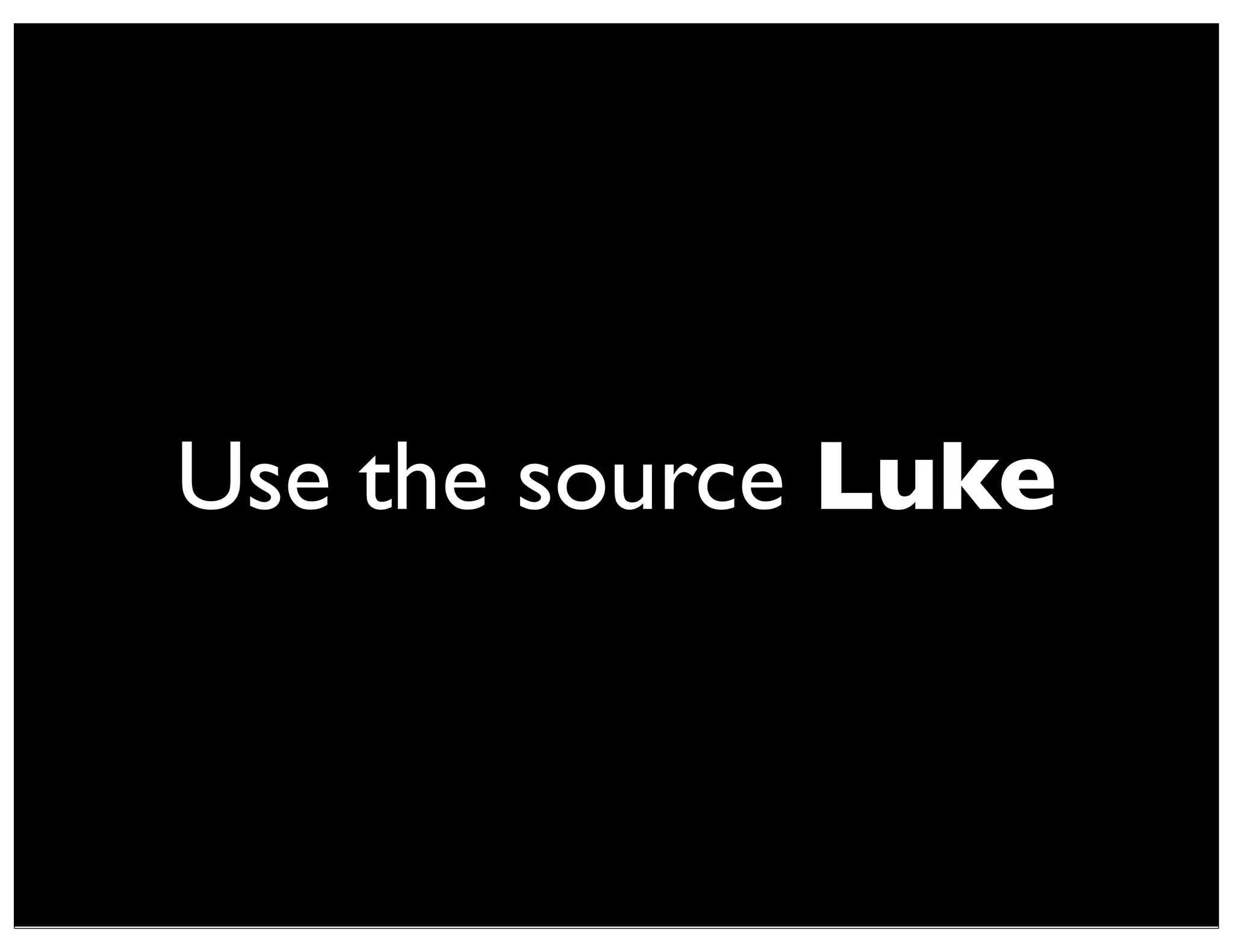

Use the source Luke

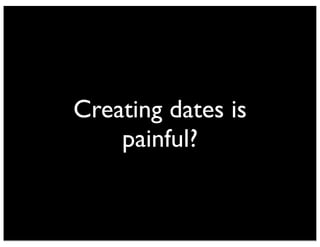

Creating dates is
painful?

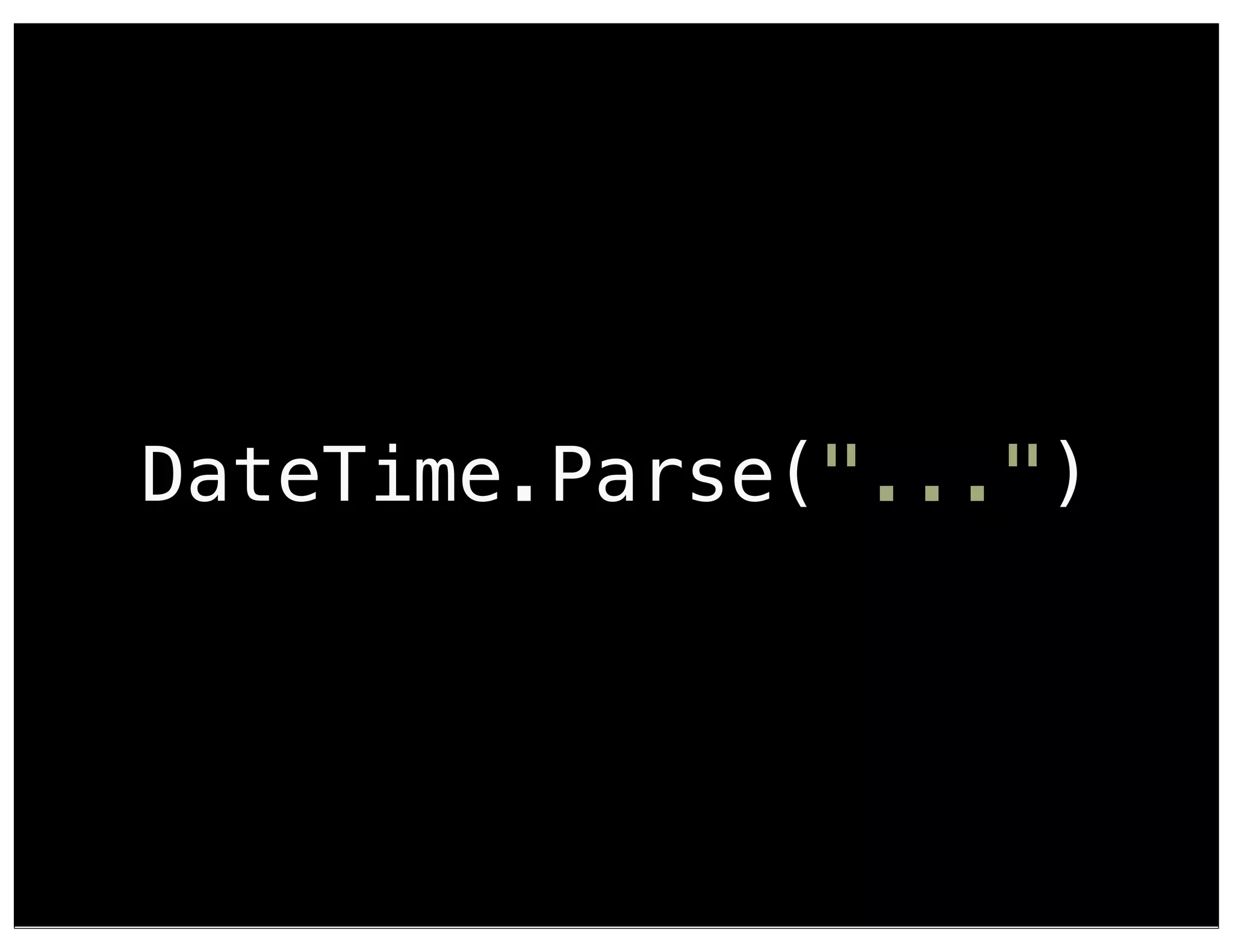

DateTime.Parse("...")

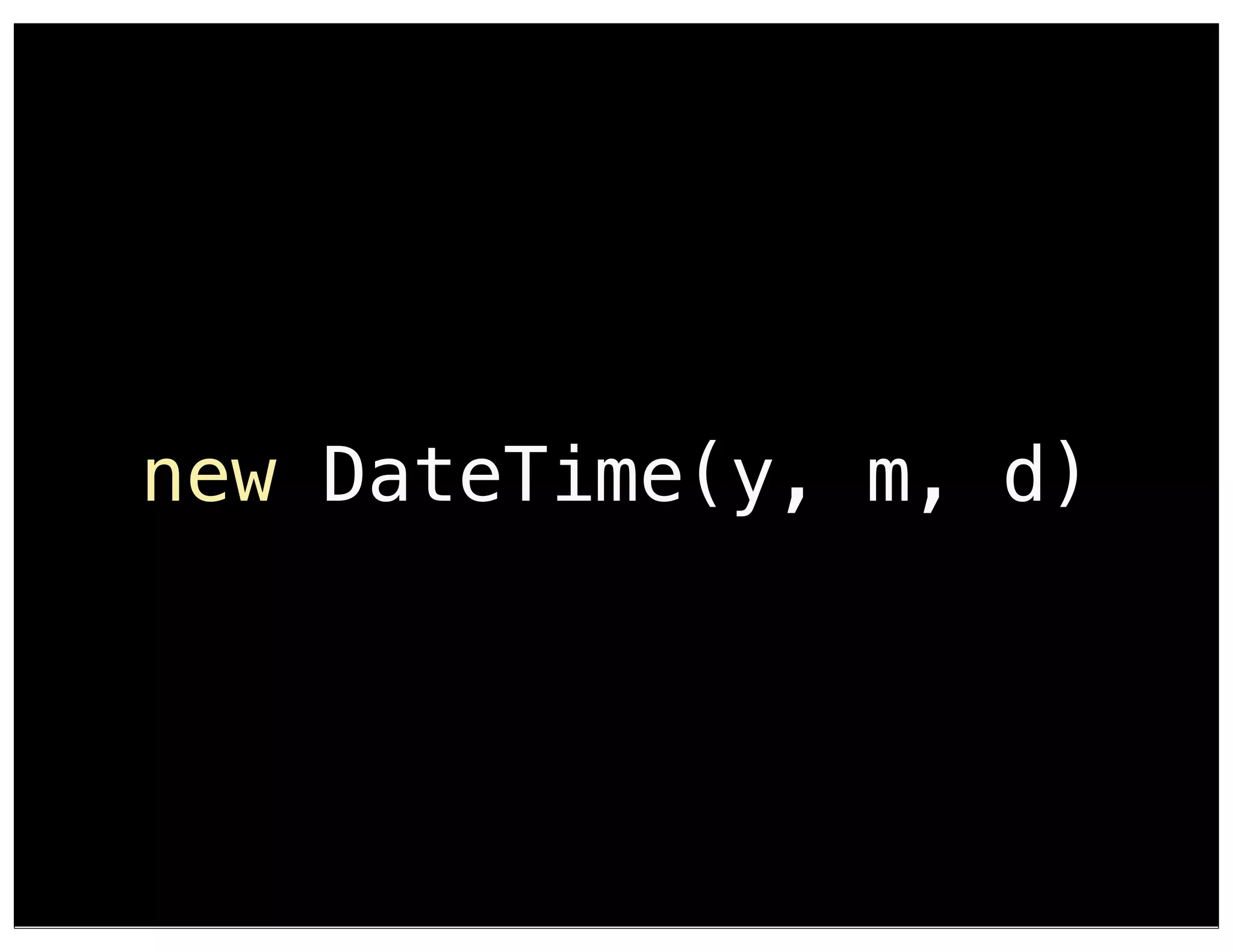

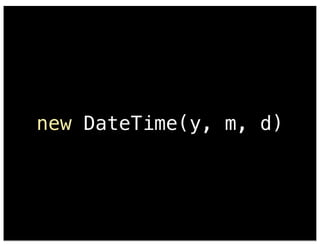

new DateTime(y, m, d)

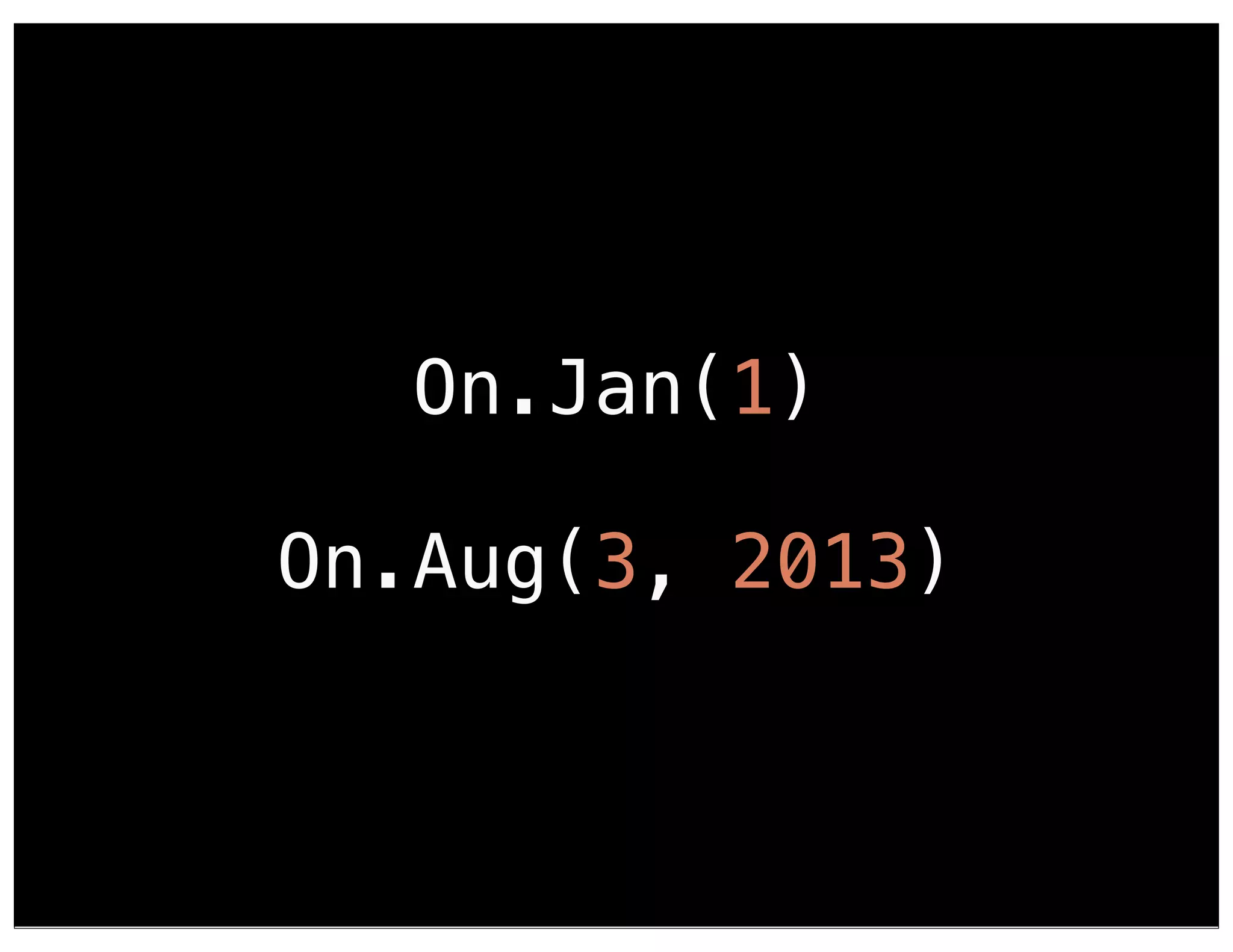

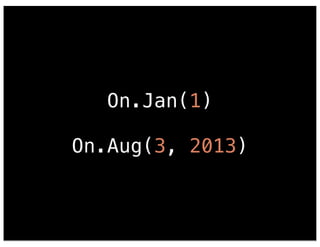

On.Jan(1)
On.Aug(3, 2013)
Date arithmetic makes
you crazy?

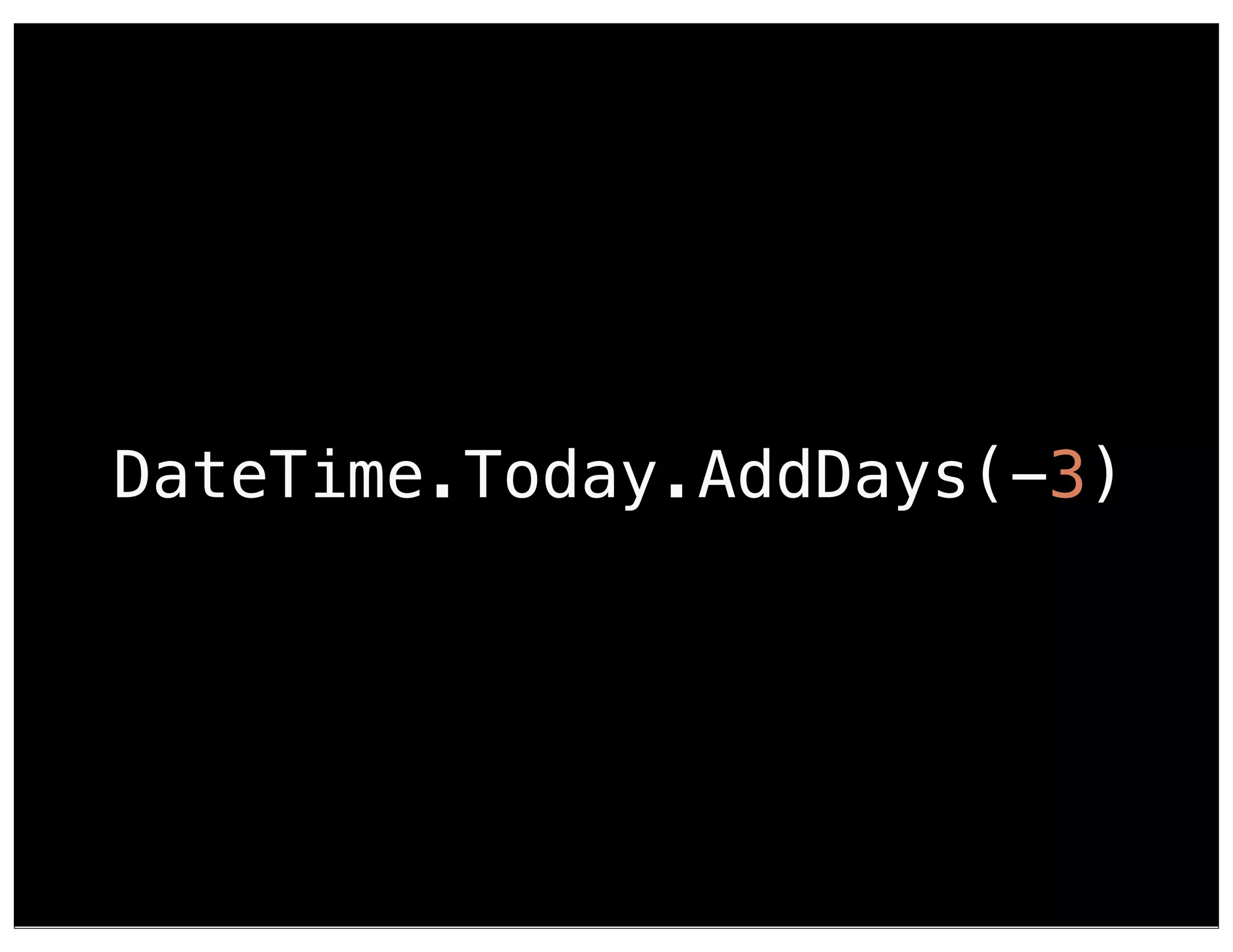

DateTime.Today.AddDays(-3)

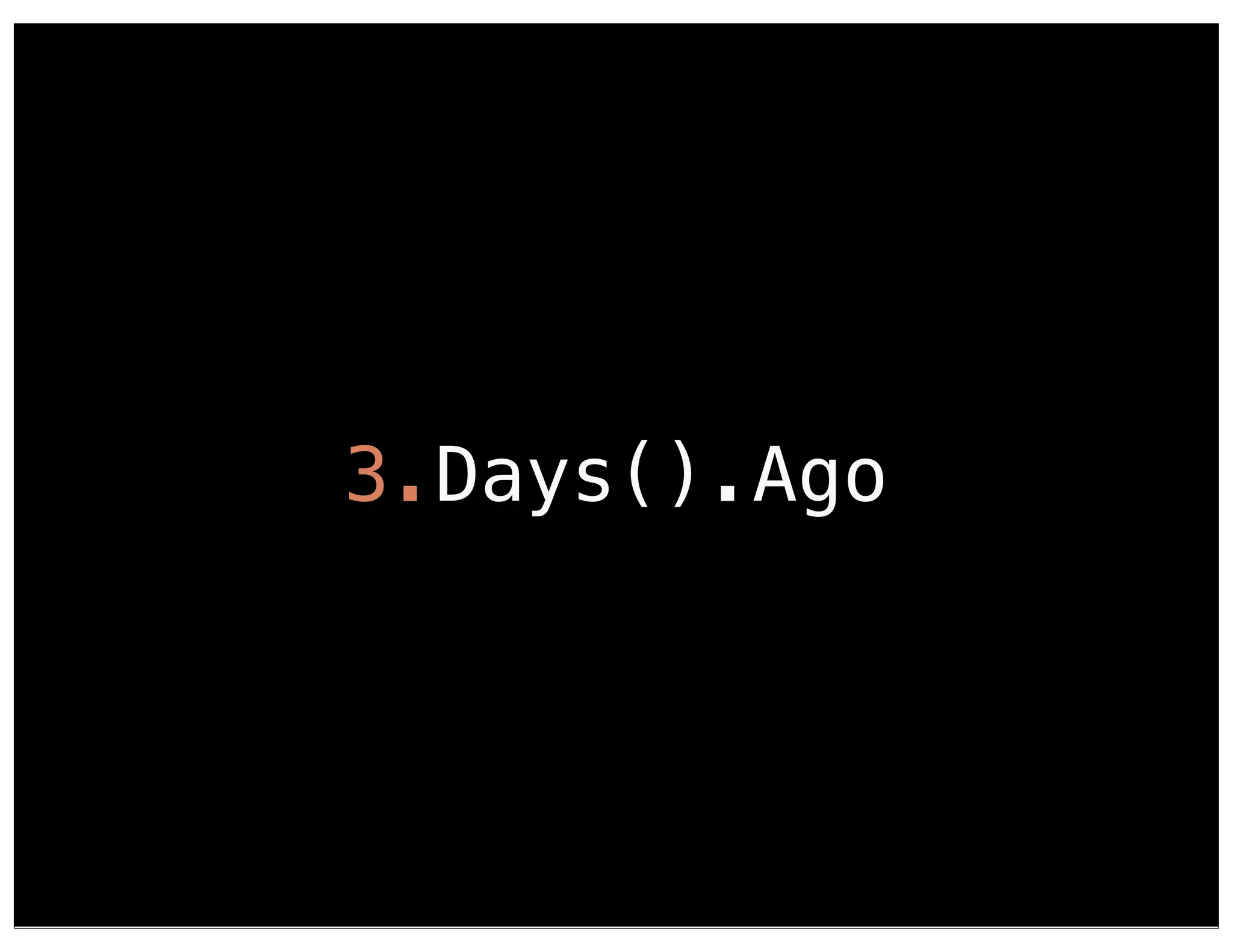

3.Days().Ago

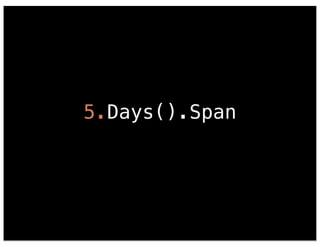

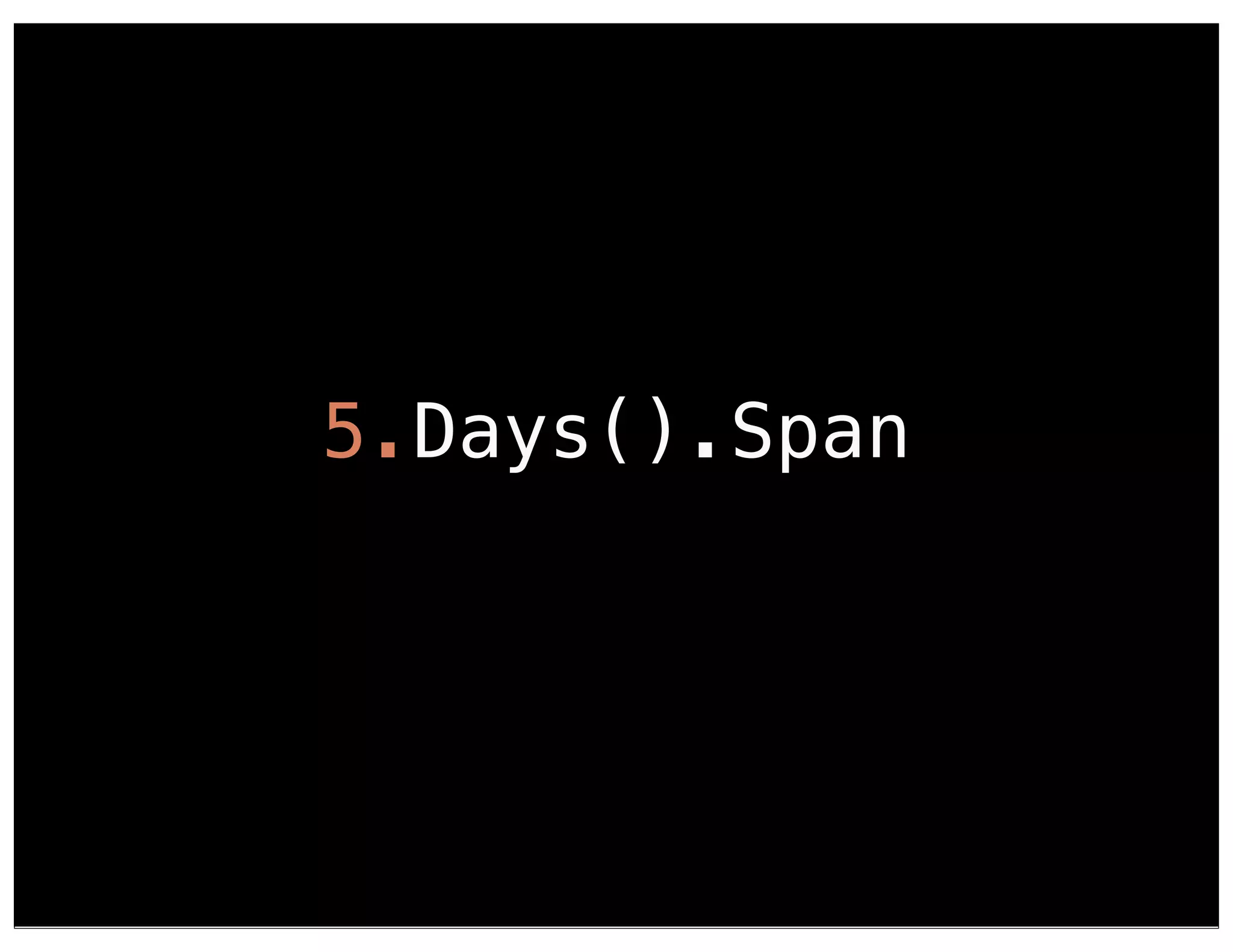

5.Days().Span

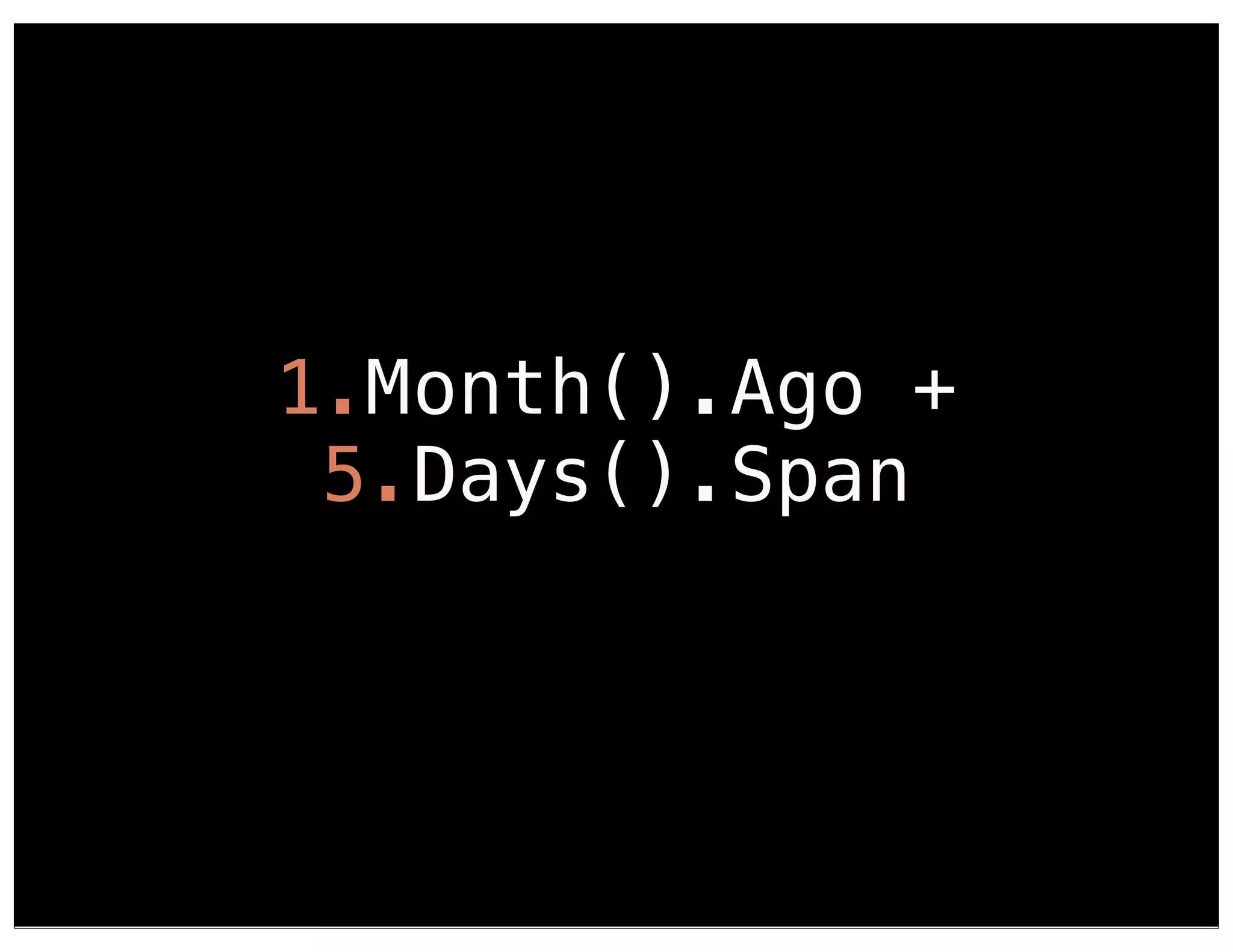

1.Month().Ago +
5.Days().Span

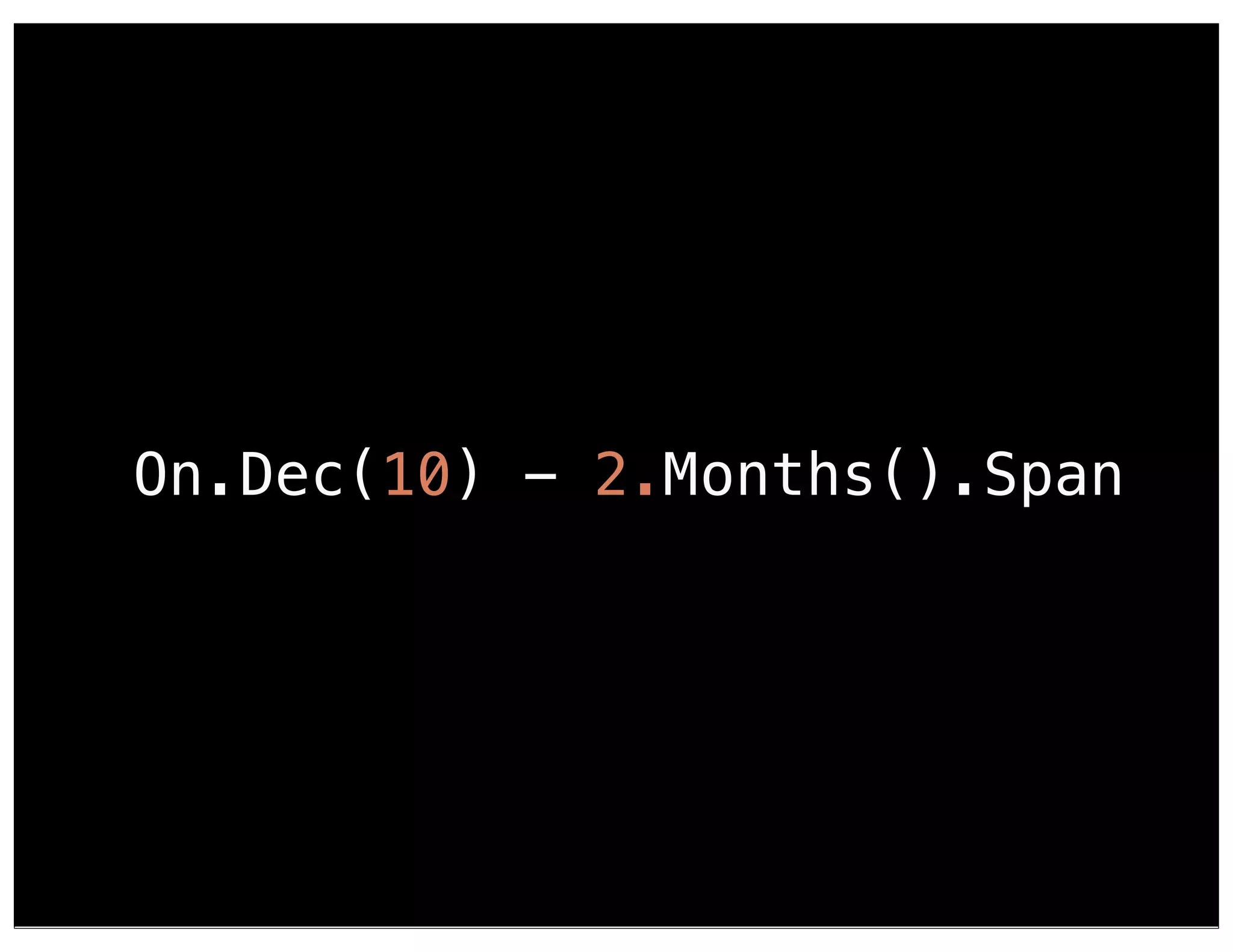

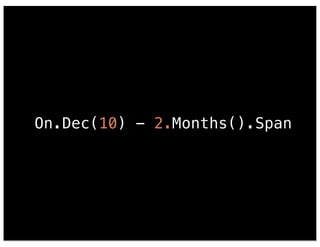

On.Dec(10) - 2.Months().Span

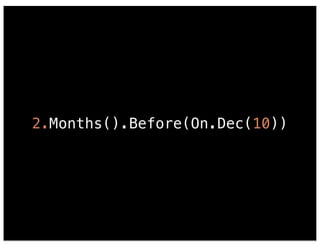

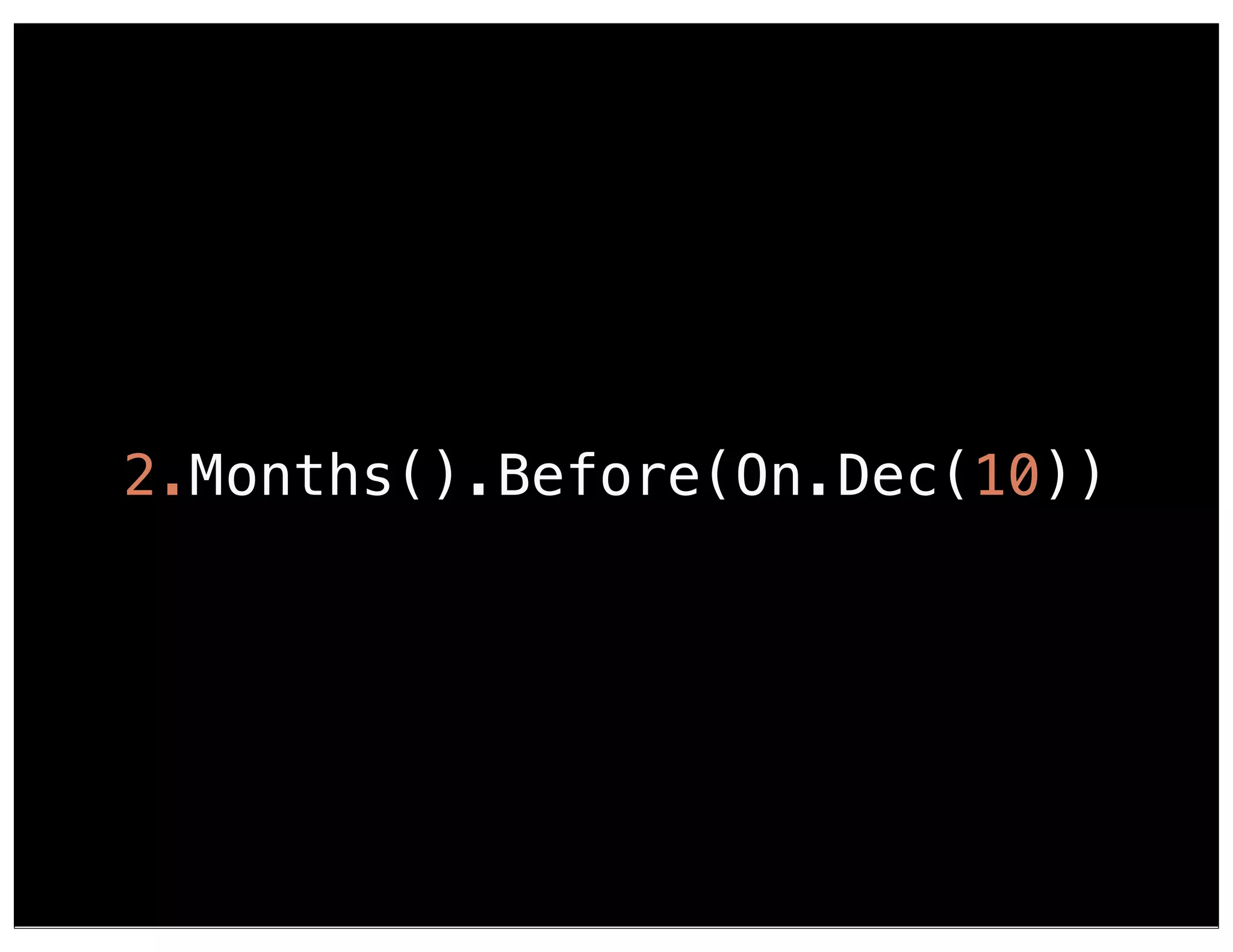

2.Months().Before(On.Dec(10))
Date from and to in
every method?
What’s missing?
Use a DateRange

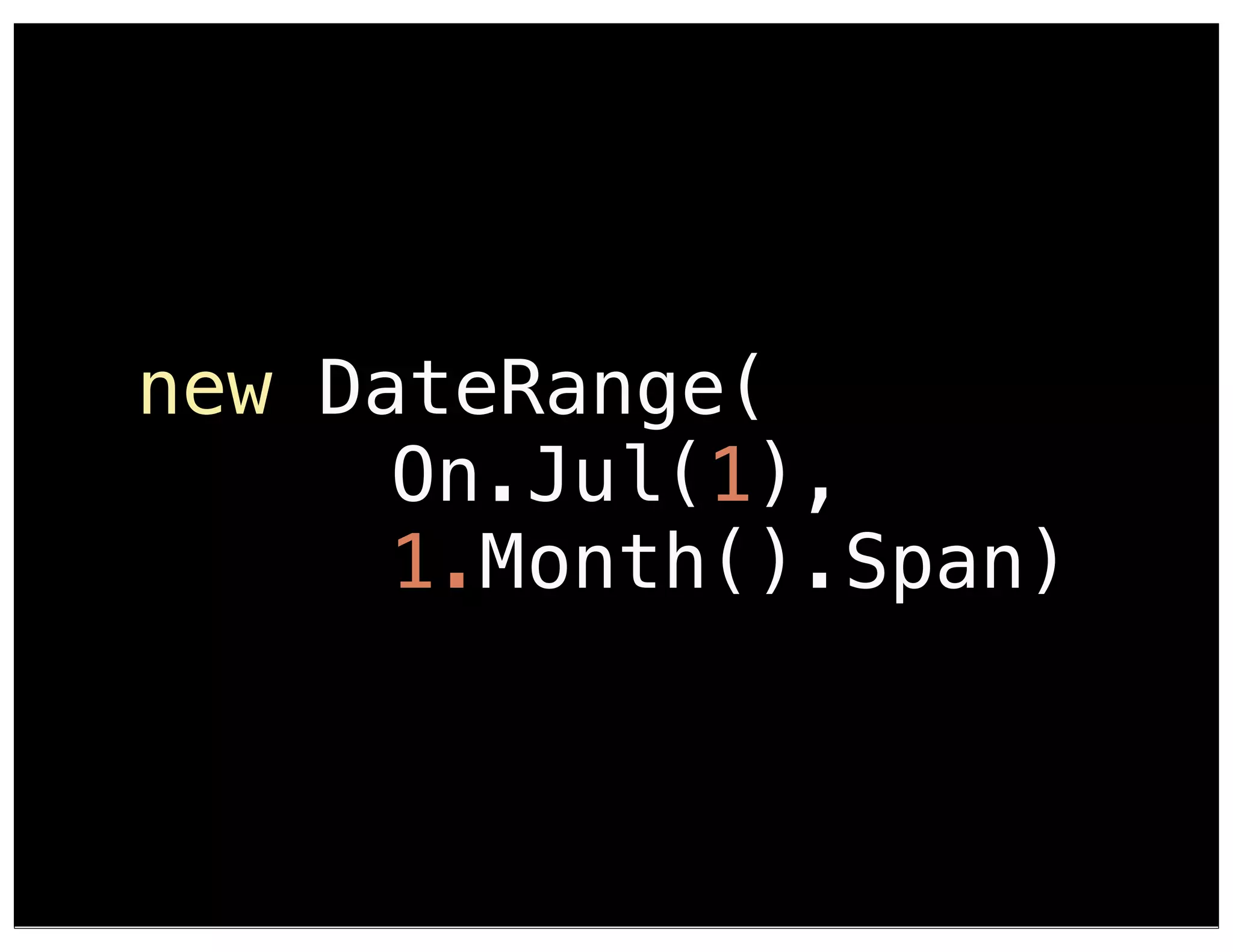

new DateRange(
!!!!!!On.Jul(1),
!!!!!!1.Month().Span)

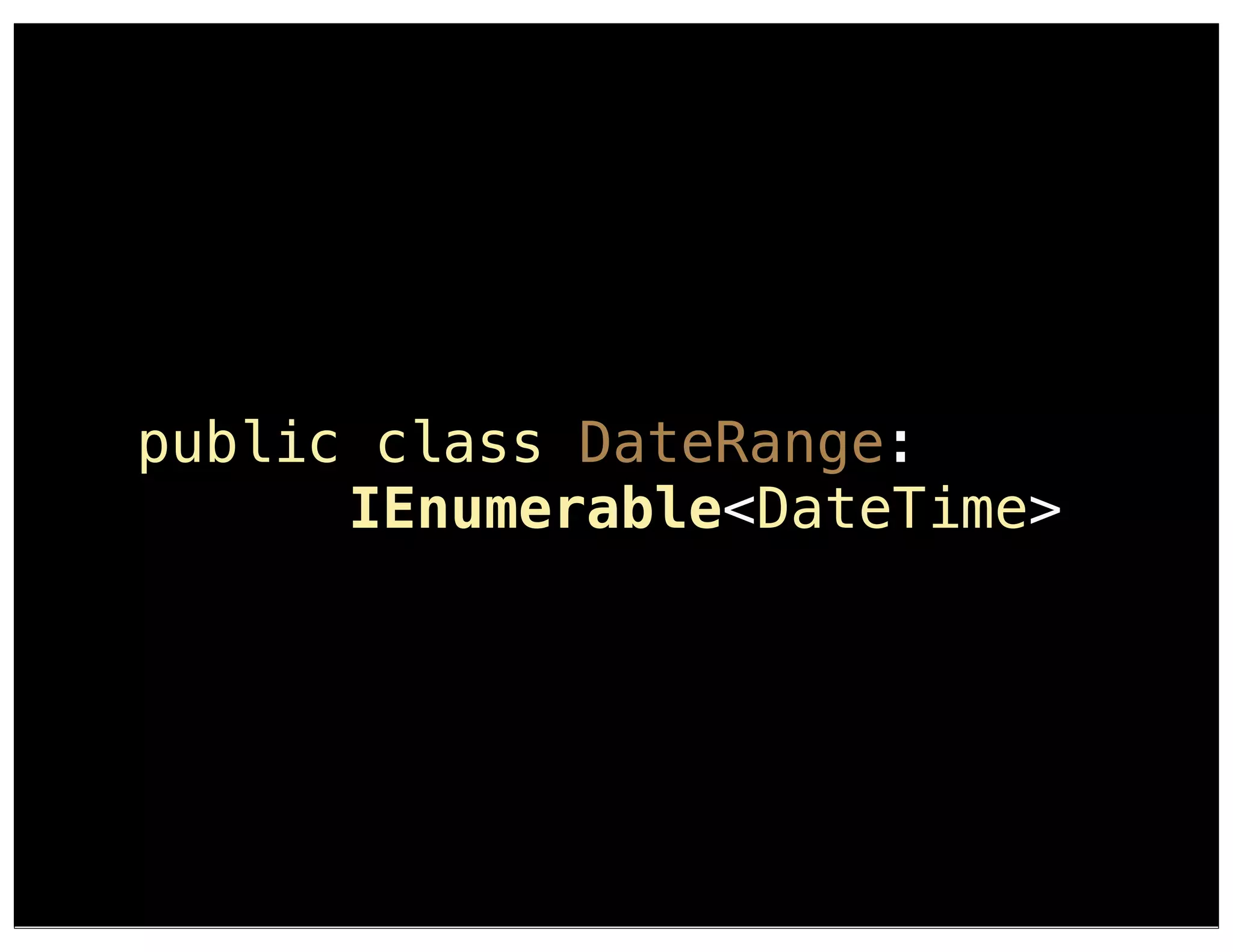

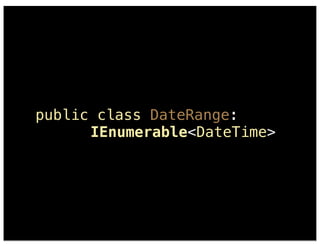

public class DateRange:
!!!!!IEnumerable<DateTime>

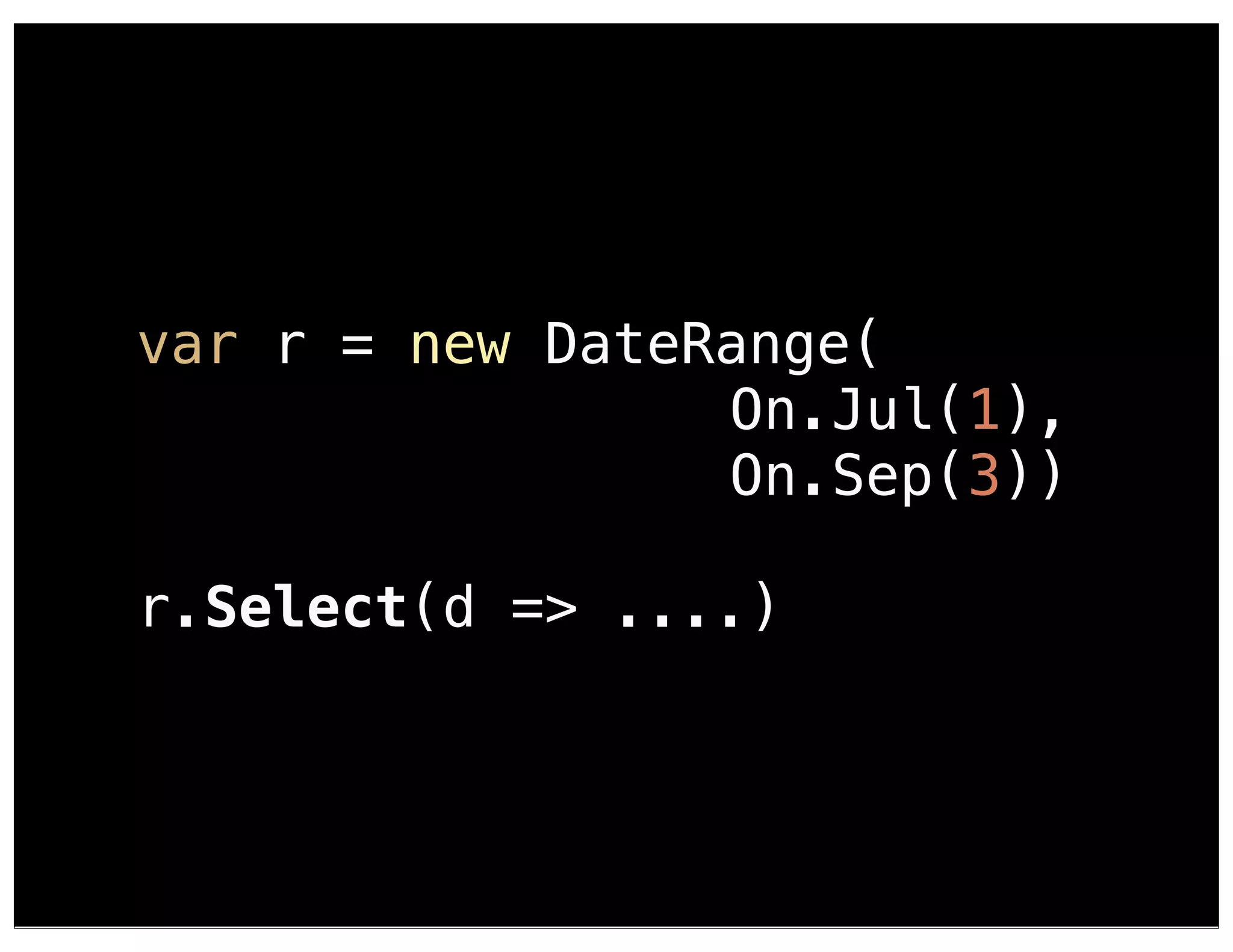

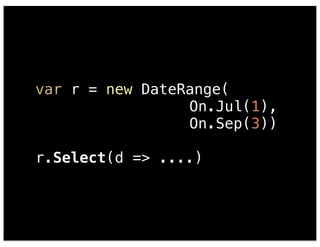

var r = new DateRange(
!!!!!!!!!!!!!!On.Jul(1),
!!!!!!!!!!!!!!On.Sep(3))
r.Select(d => ....)
Generates a sequence
of dates

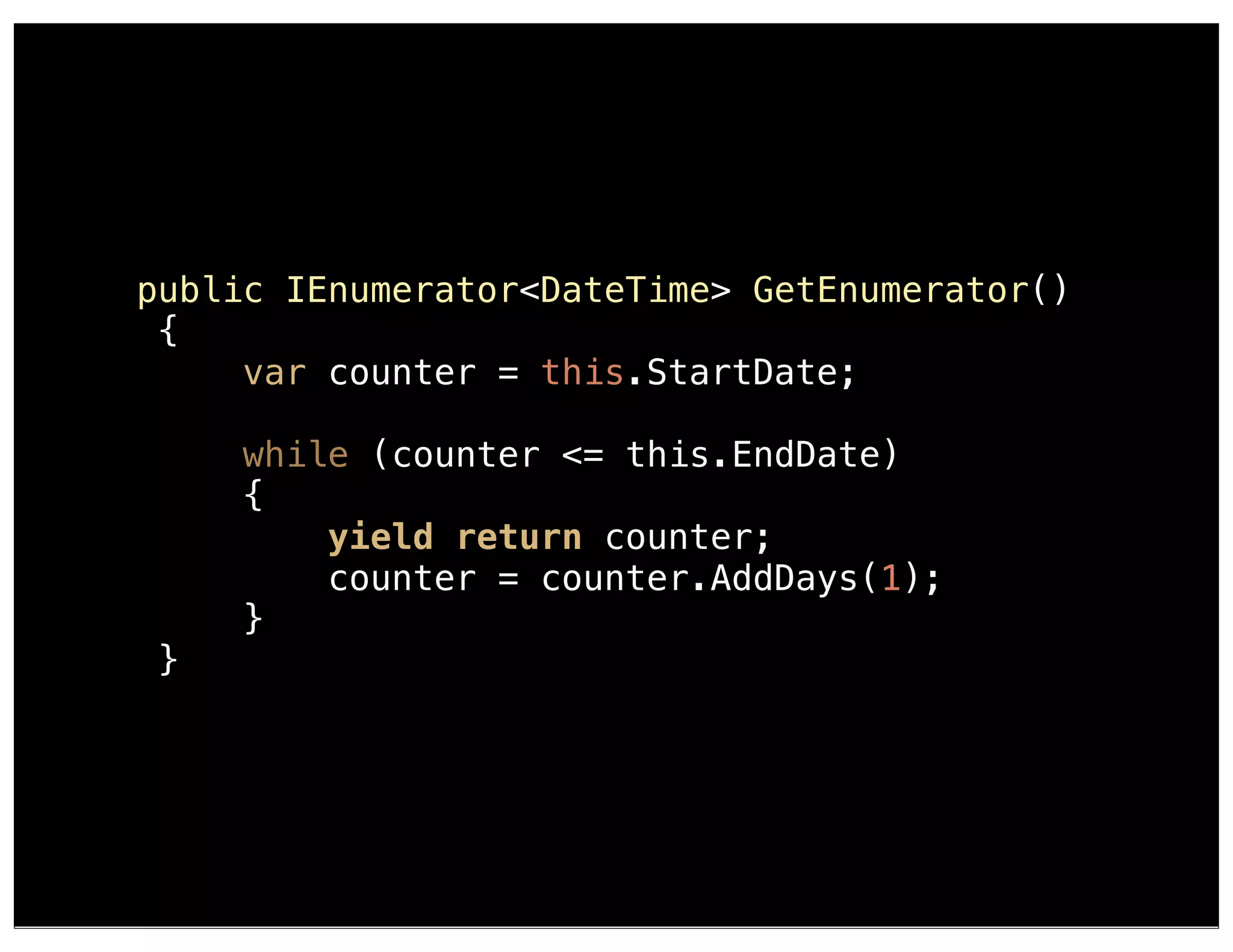

public IEnumerator<DateTime> GetEnumerator()
{
var counter = this.StartDate;
while (counter <= this.EndDate)
{
yield return counter;
counter = counter.AddDays(1);
}
}
Anemic models
OO mixes behavior
and data
Models usually
represent data
...and you realize that there
is hardly any behavior on
these objects, making them
little more than bags of
getters and setters...
Martin Fowler

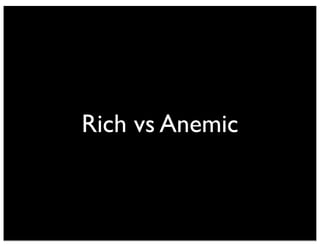

Rich vs Anemic

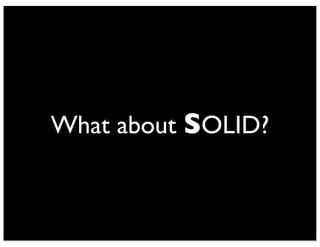

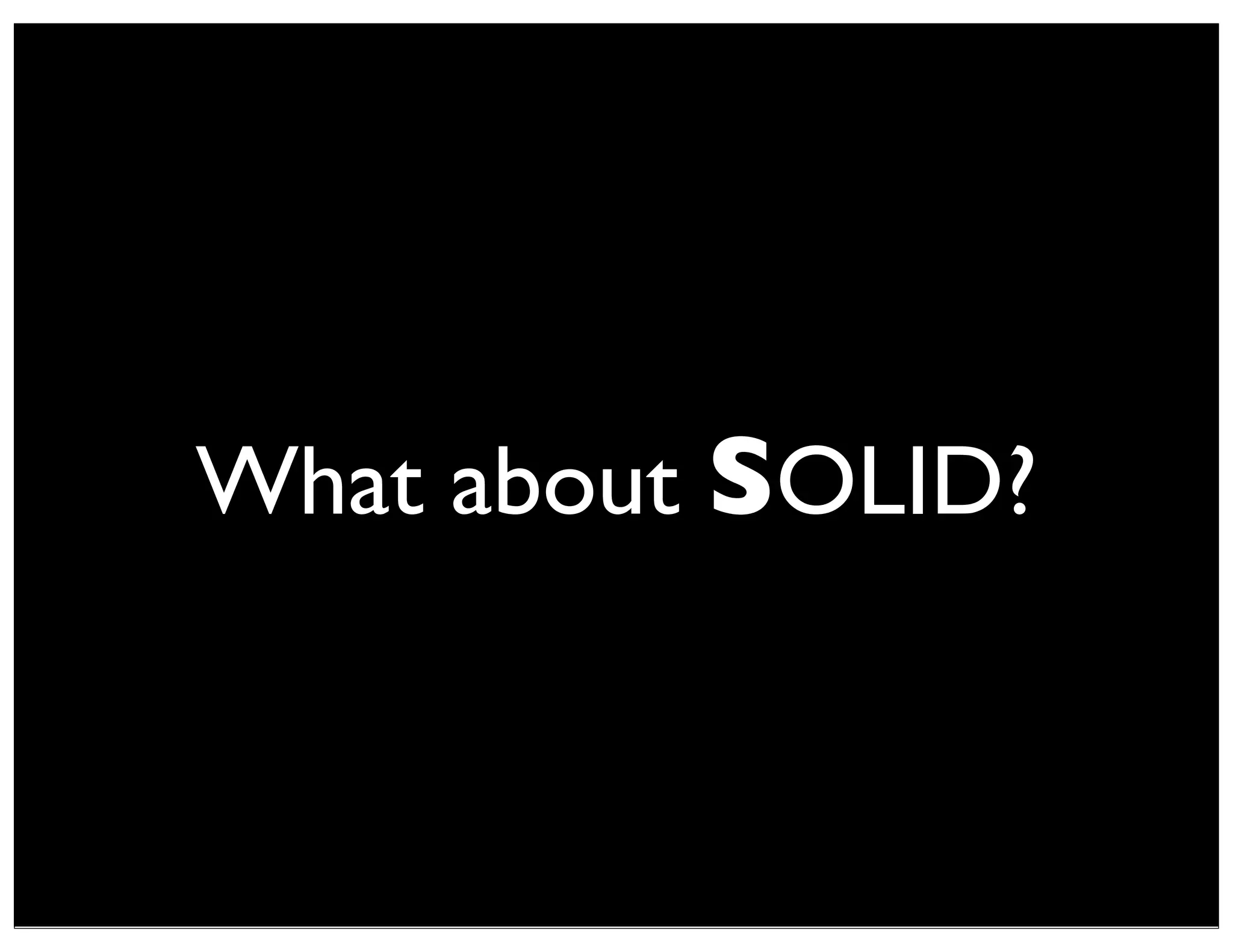

What about SOLID?

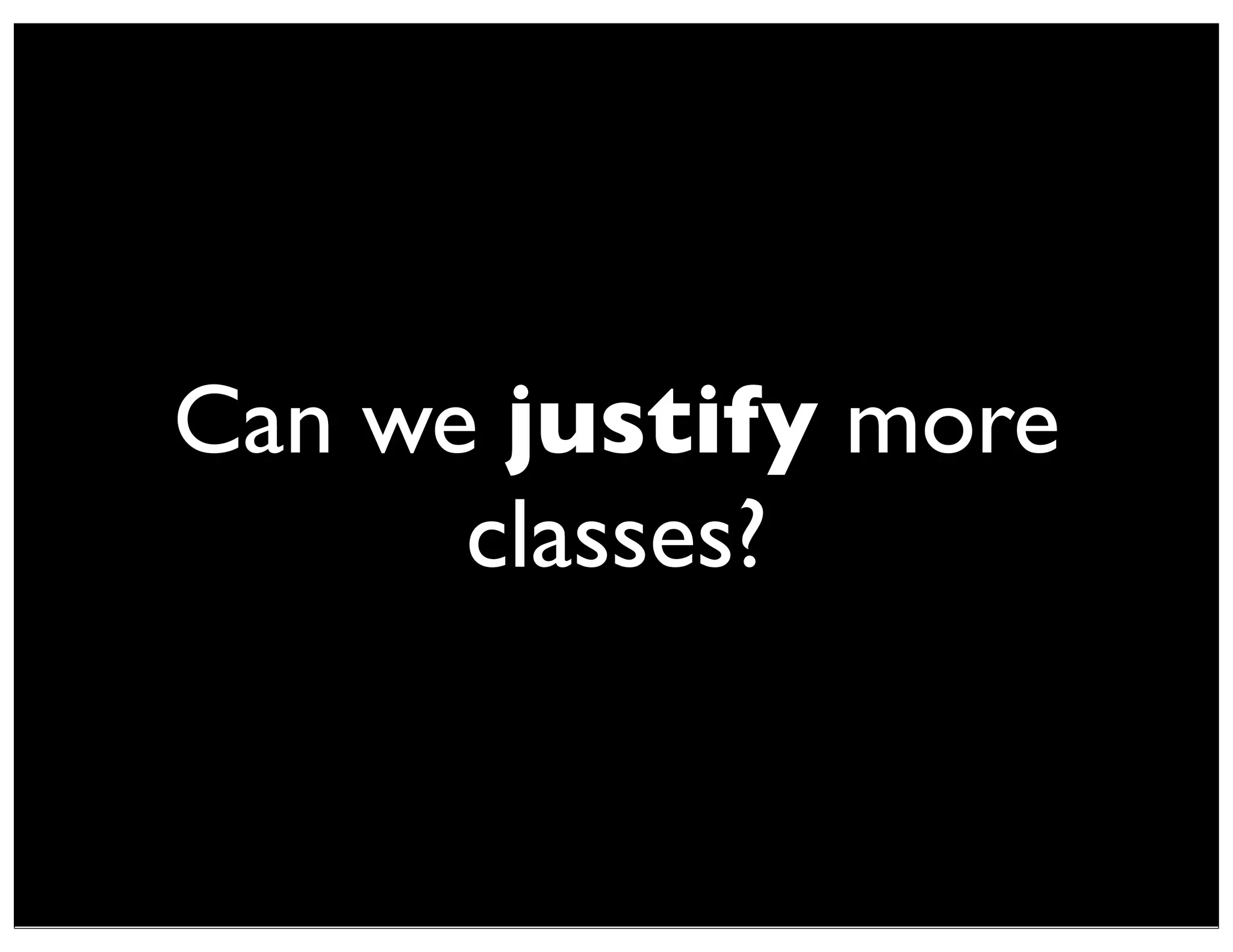

Can we justify more
classes?
Validators
Processors
Retrievers
Translators
Services
Builders

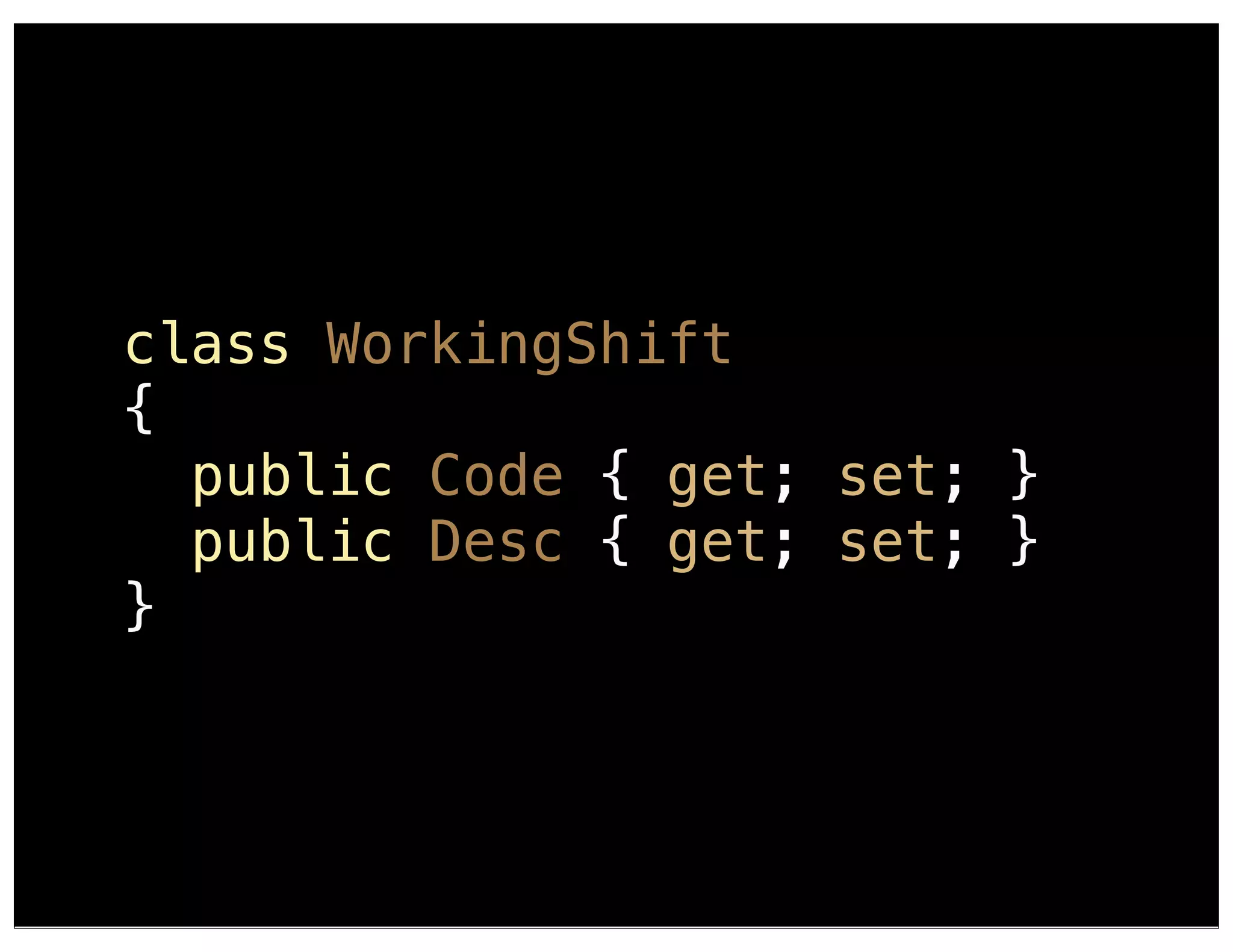

class WorkingShift
{
public Code { get; set; }
public Desc { get; set; }
}

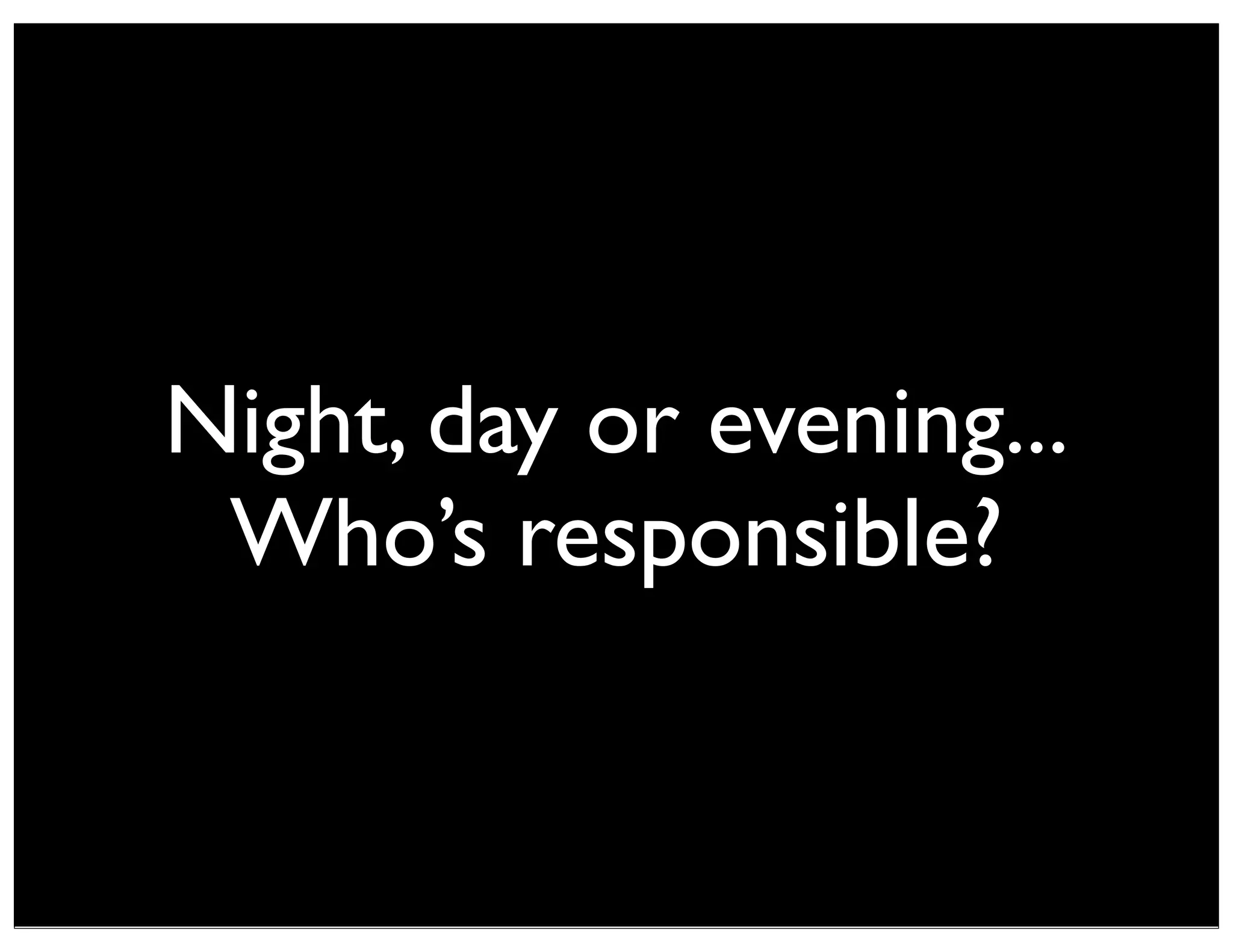

Night, day or evening...
Who’s responsible?

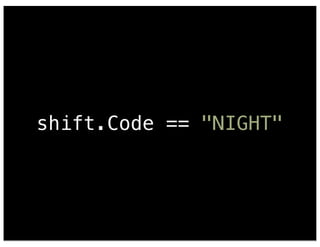

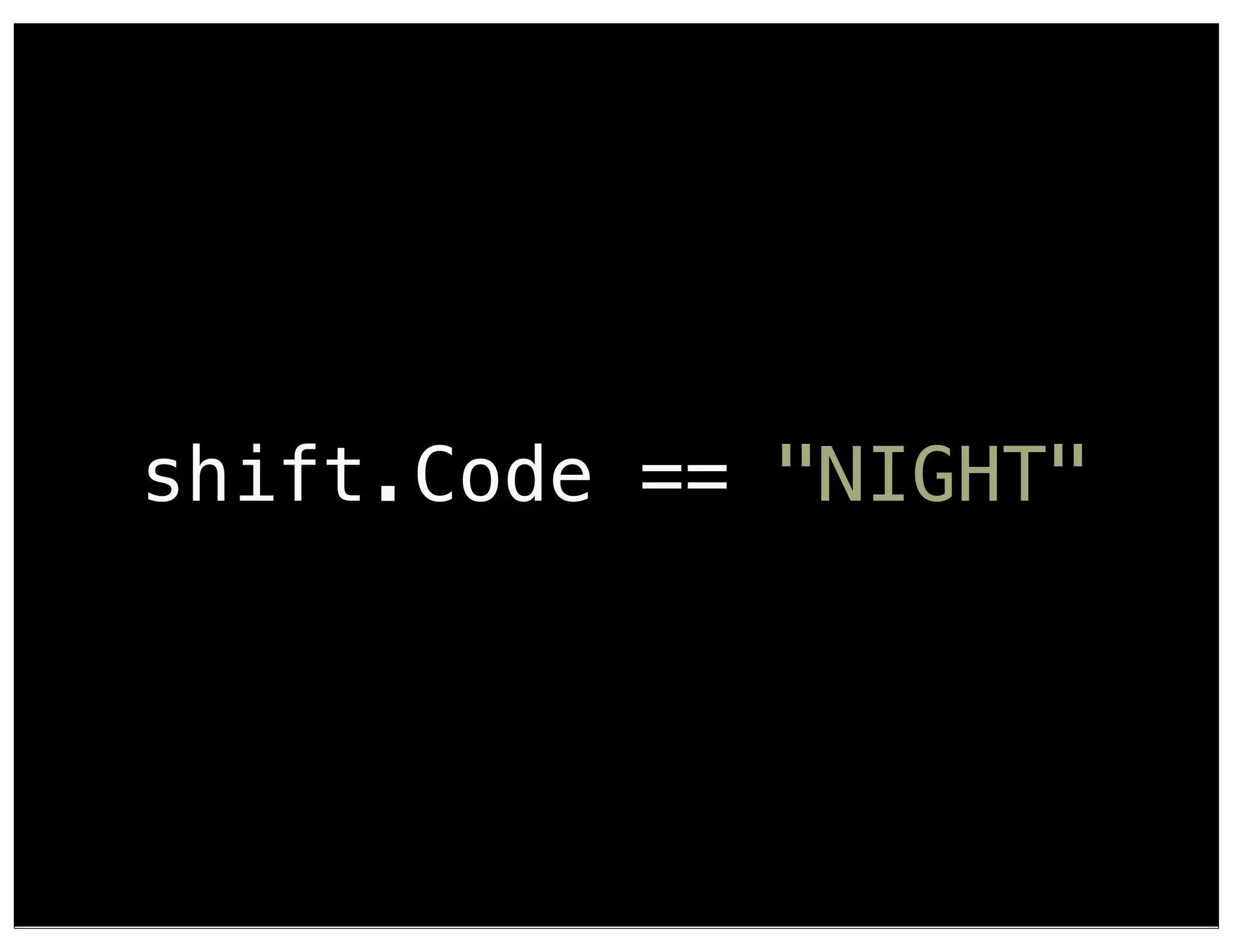

shift.Code == "NIGHT"

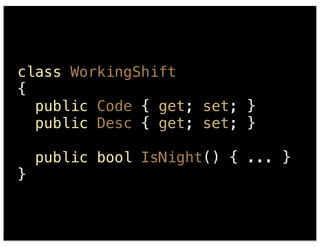

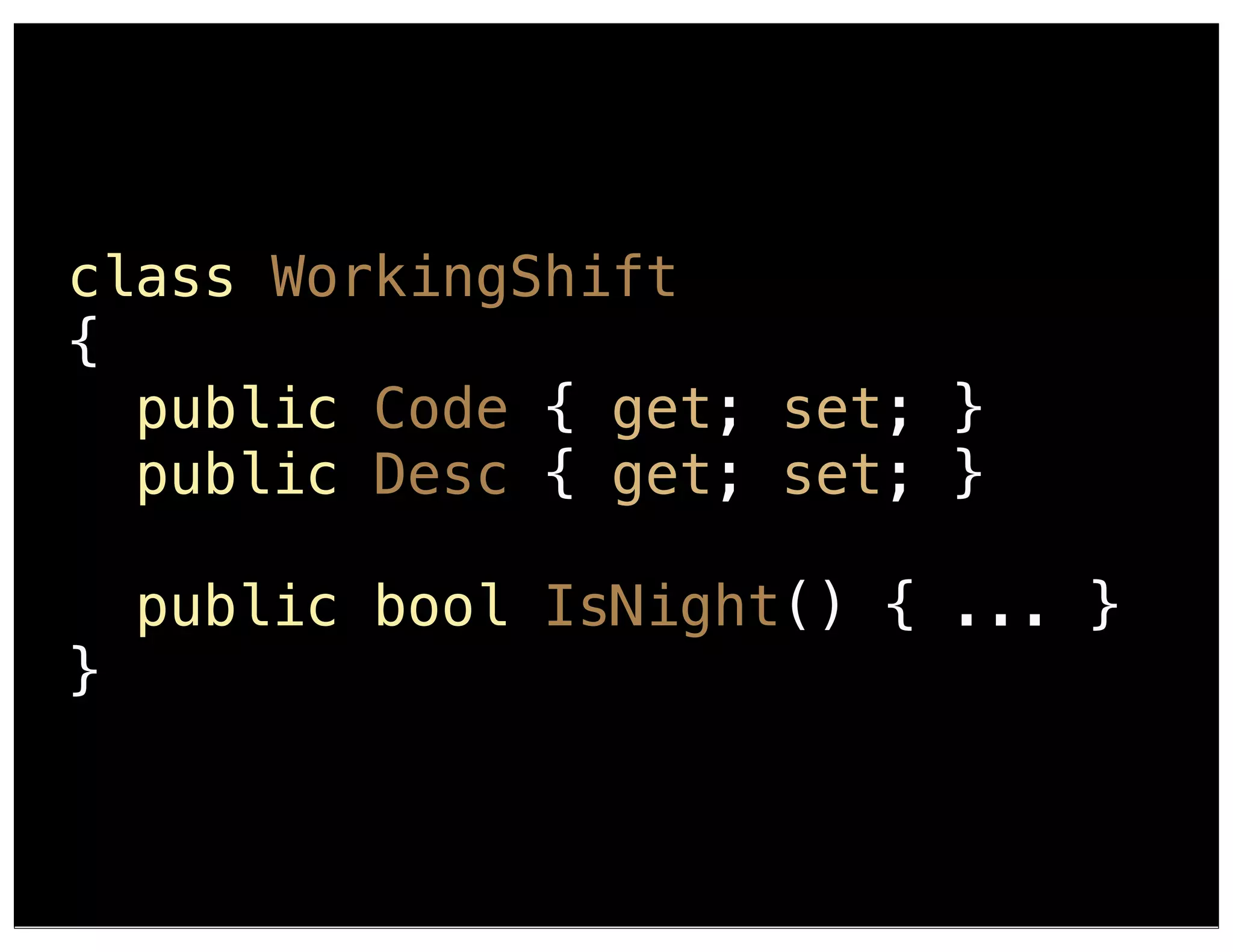

class WorkingShift
{
public Code { get; set; }
public Desc { get; set; }
public bool IsNight() { ... }
}

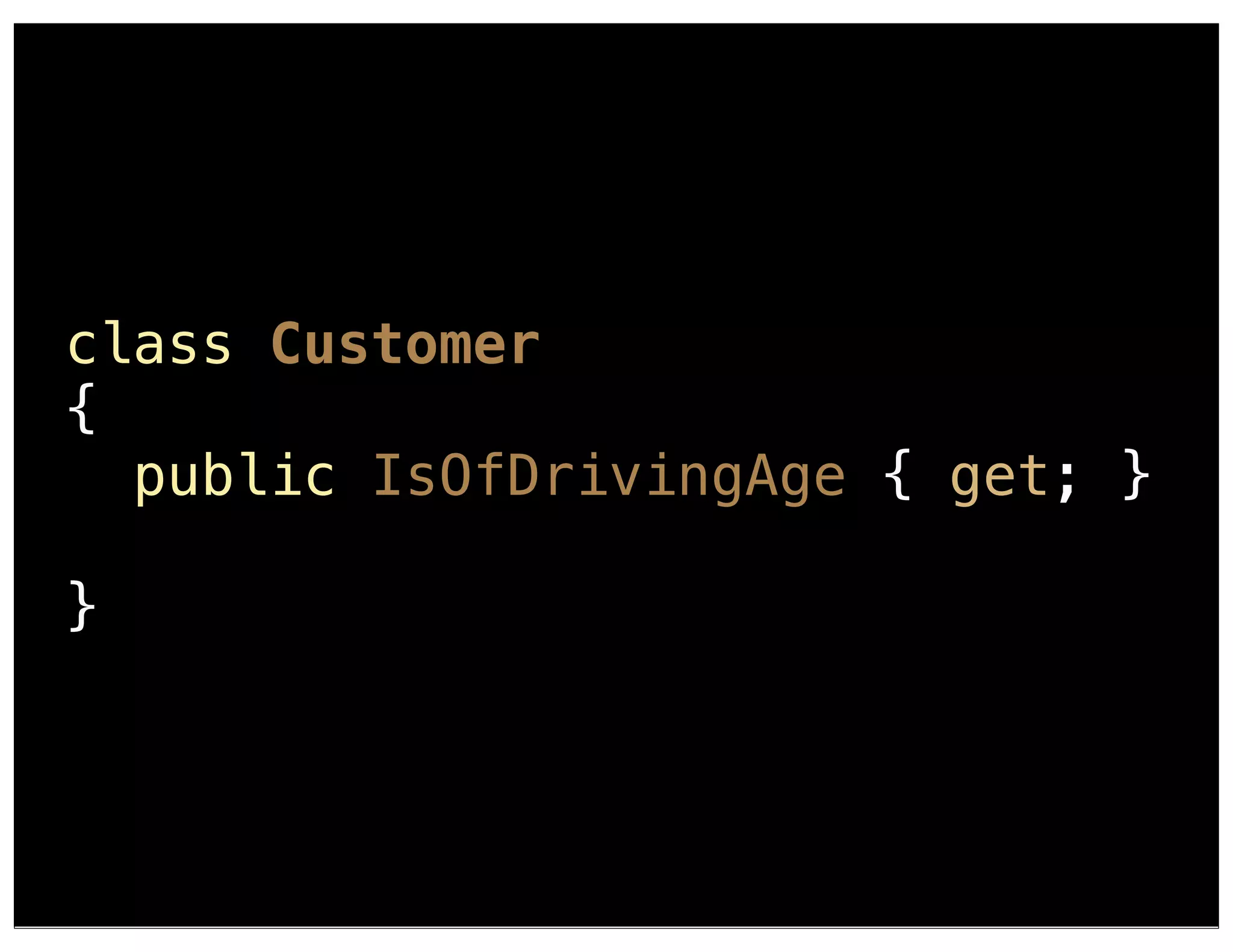

class Customer
{
public IsOfDrivingAge { get; }
}

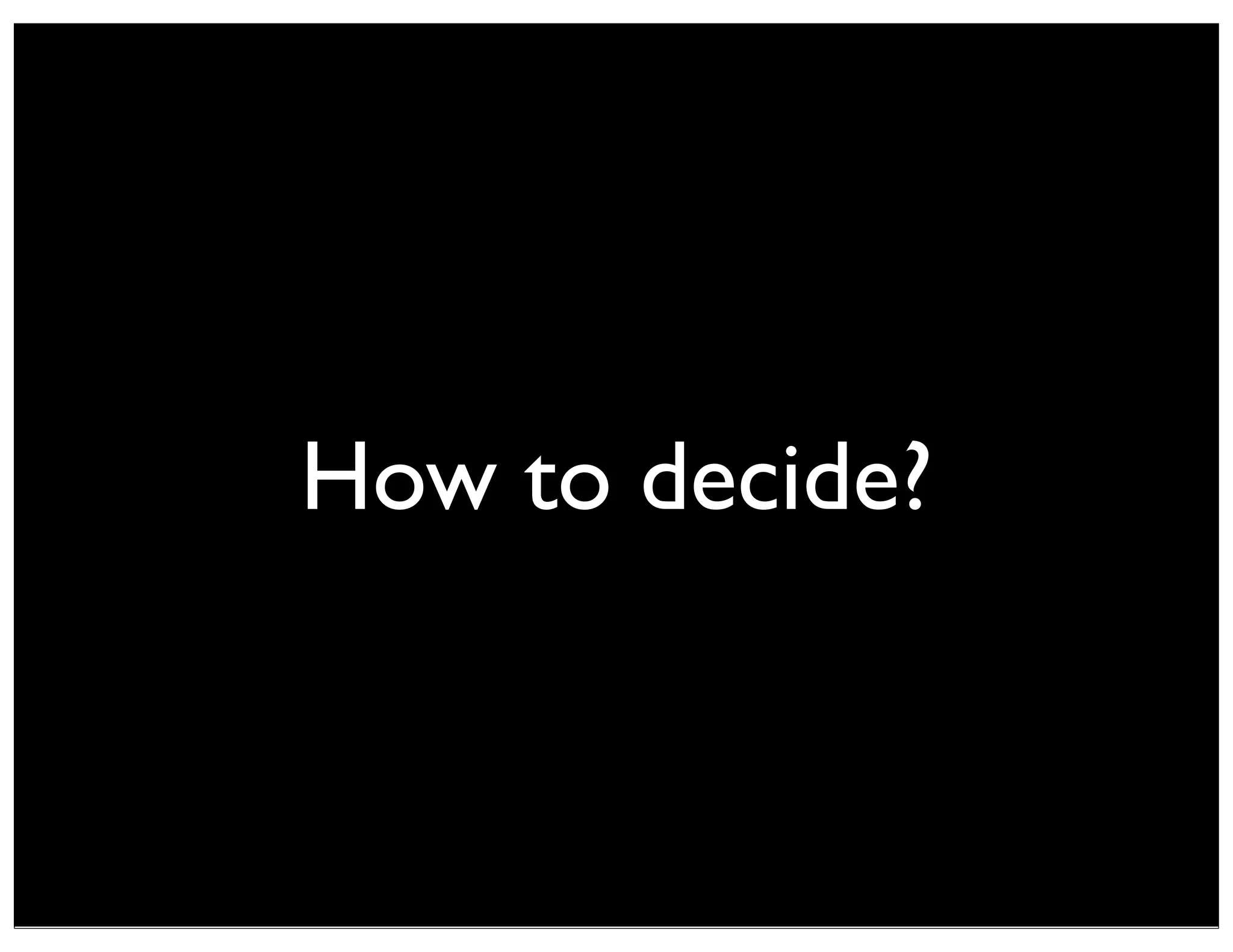

How to decide?
Functionality is
Complex
Functionality uses
multiple models
Interacting with
external service
Is not a core
concern

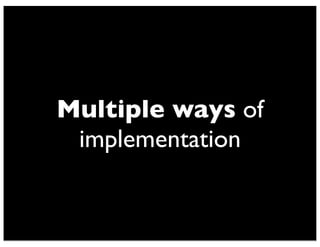

Multiple ways of
implementation
Some options

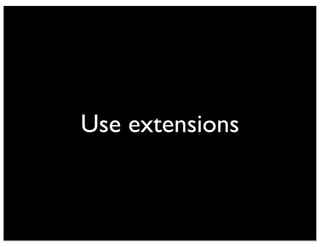

Use extensions

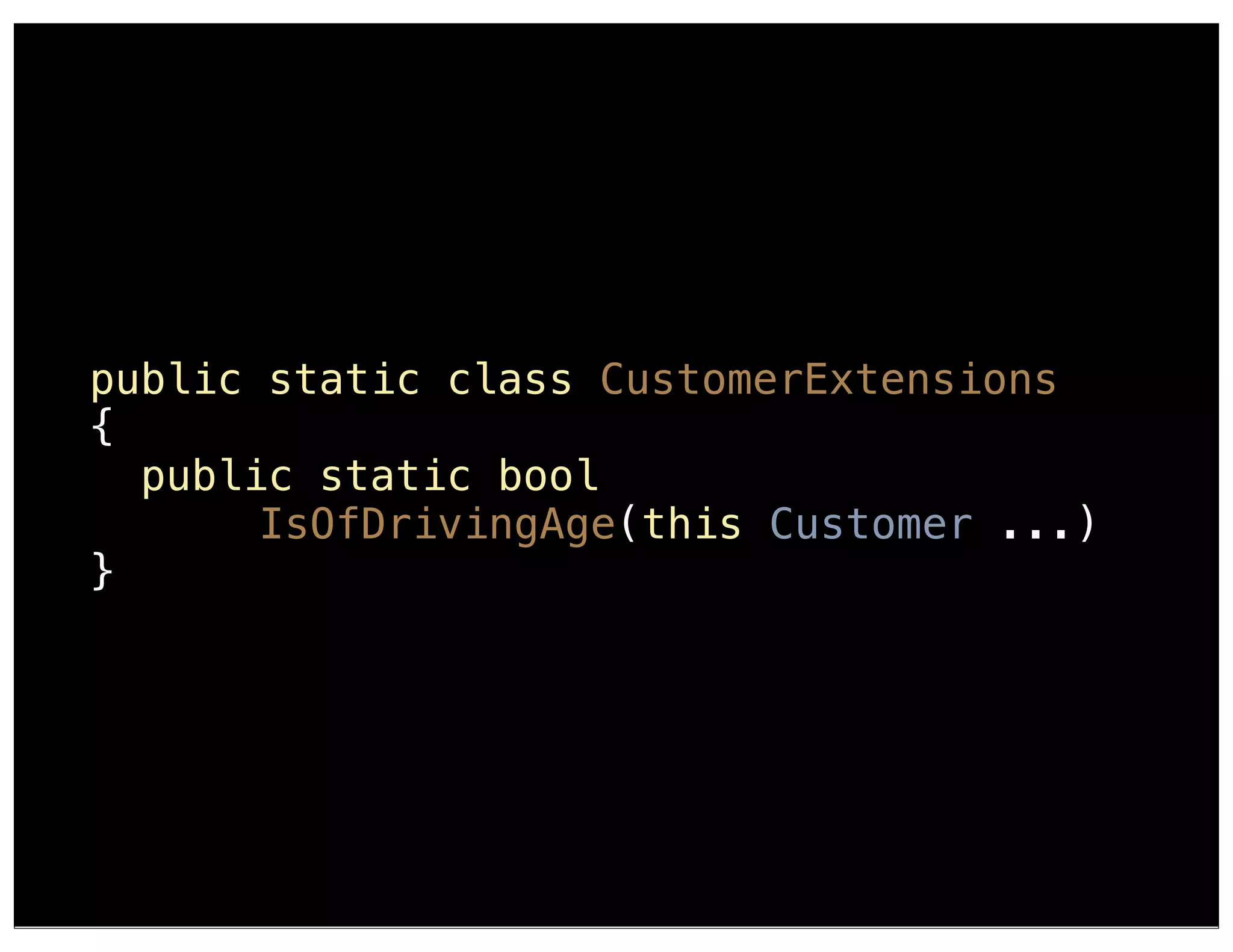

public static class CustomerExtensions
{
public static bool
! ! ! ! IsOfDrivingAge(this Customer ...)
}

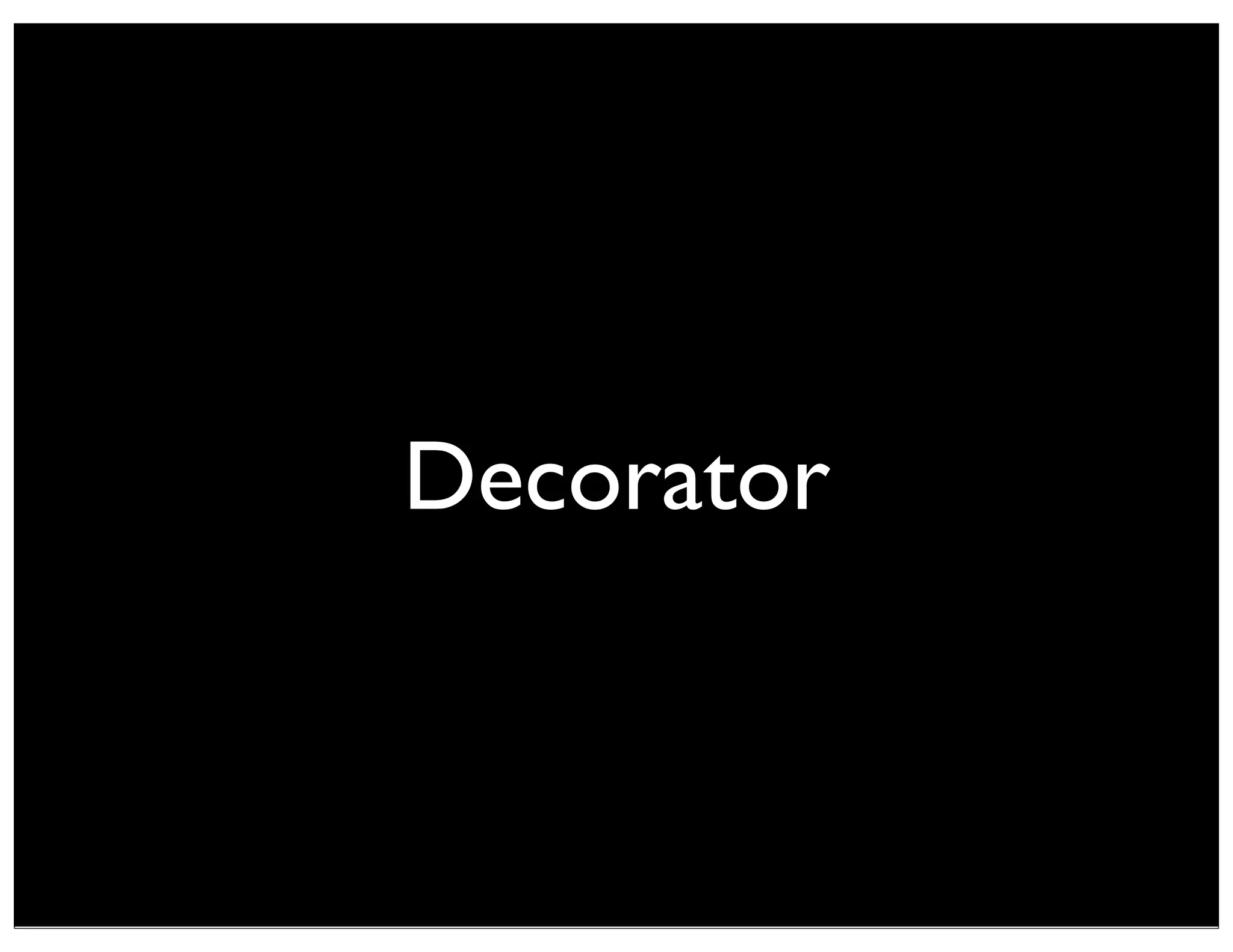

Decorator

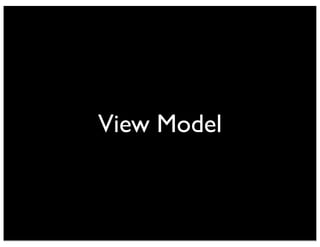

View Model

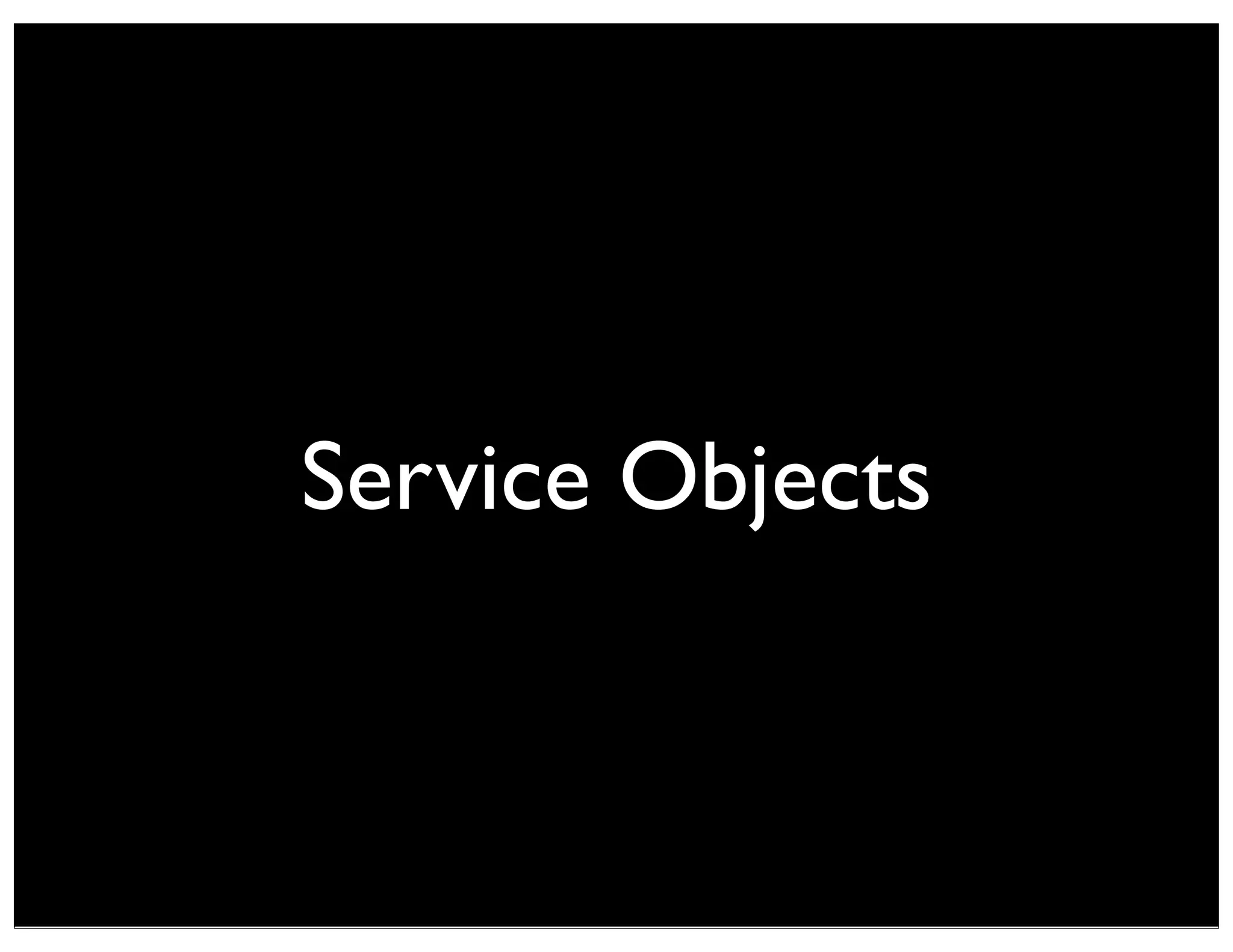

Service Objects
Form Objects
Repository
overpopulation
Mediates between the
domain and data mapping
layers using a collection-like
interface for accessing
domain objects
Martin Fowler

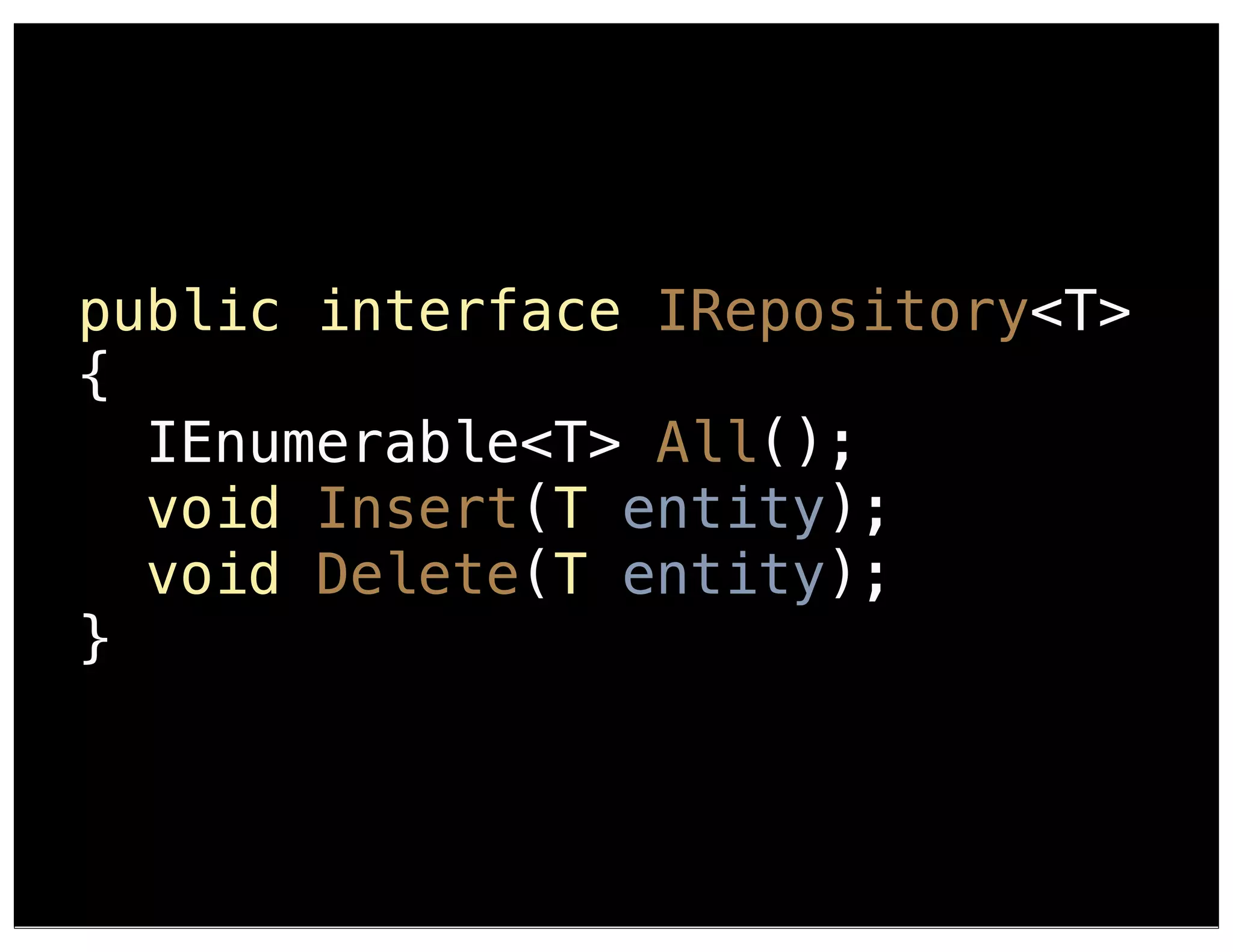

public interface IRepository<T>
{
IEnumerable<T> All();
void Insert(T entity);
void Delete(T entity);
}

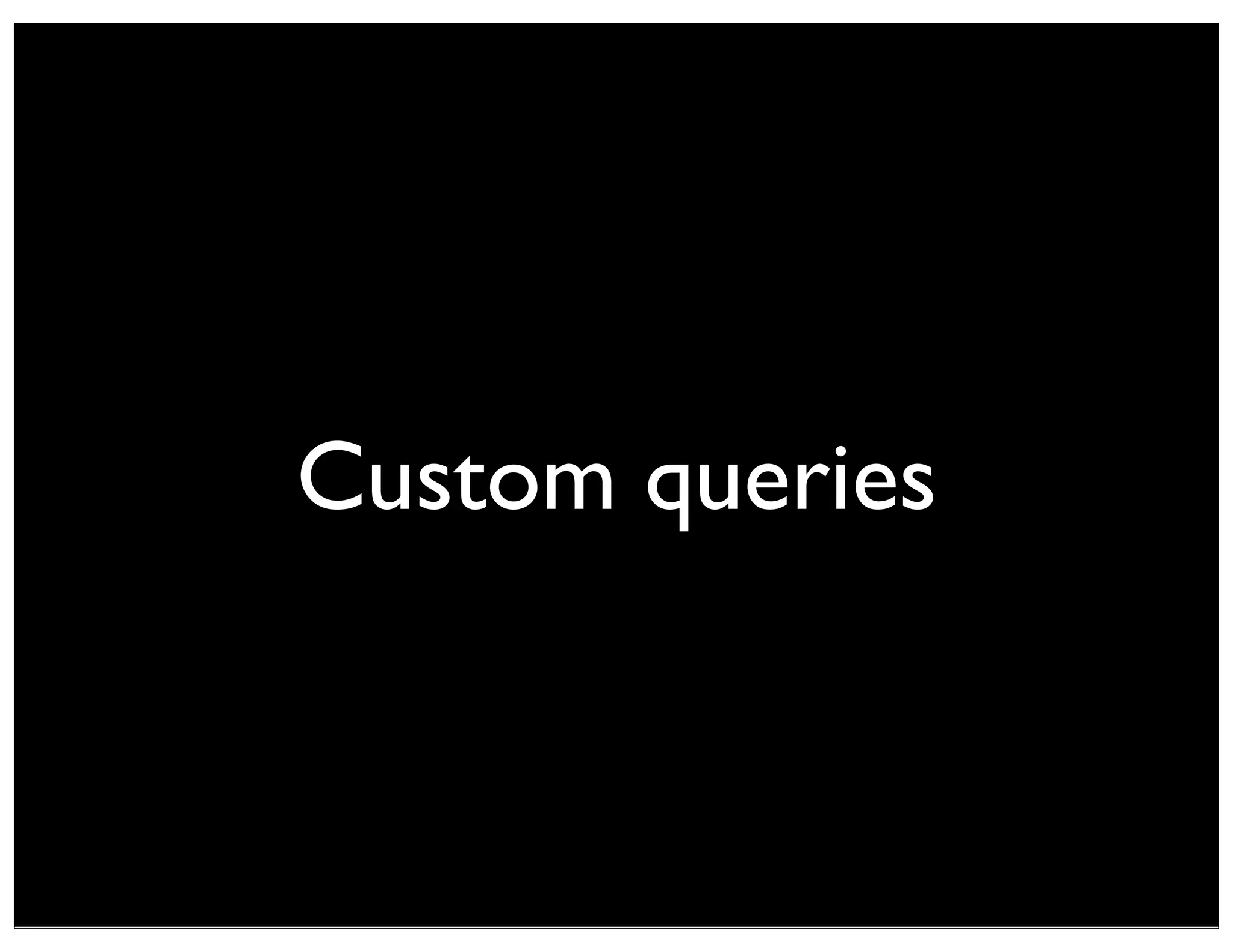

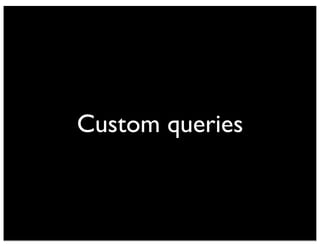

Custom queries

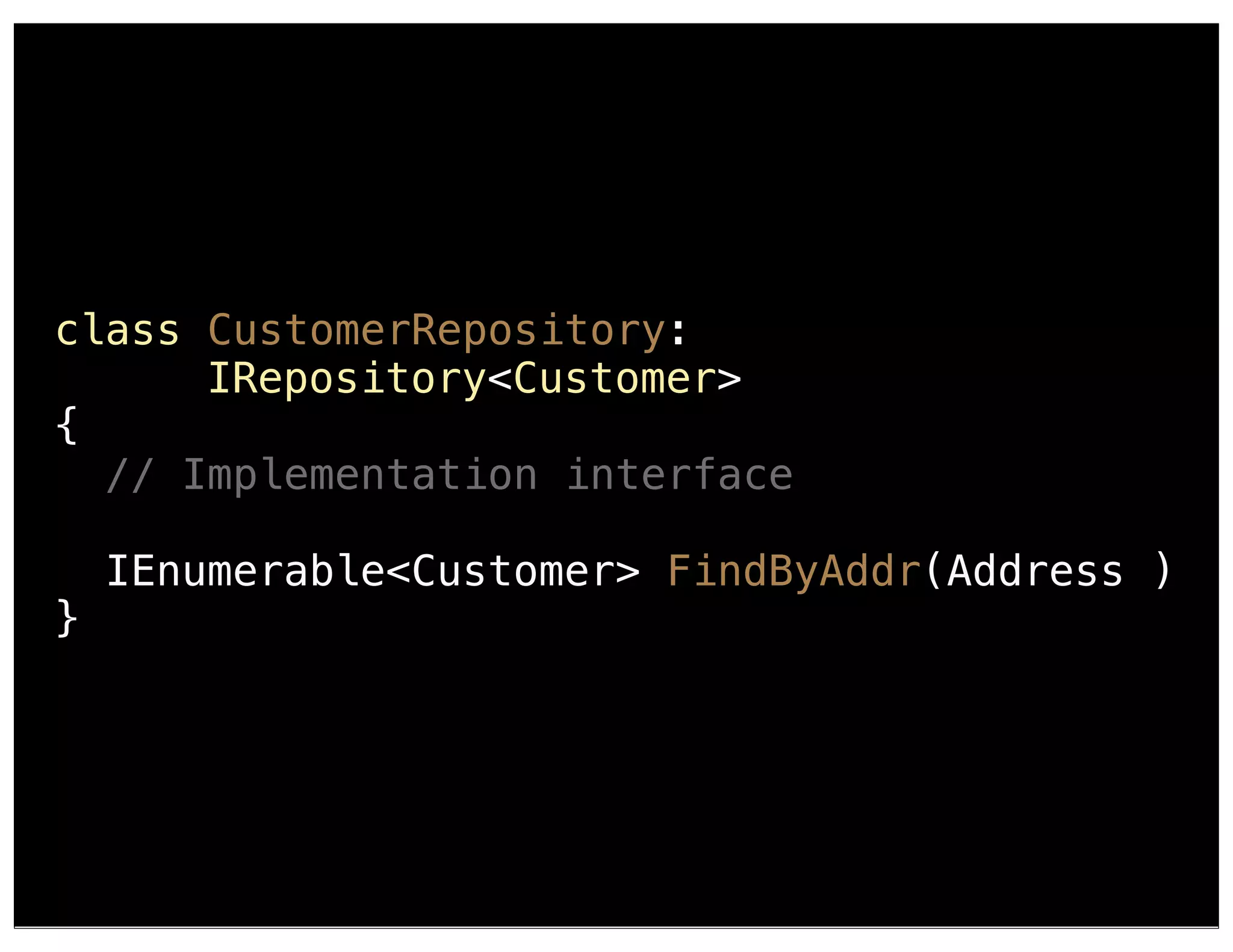

class CustomerRepository:
! ! ! IRepository<Customer>
{
// Implementation interface
IEnumerable<Customer> FindByAddr(Address )
}
CustomerRepository
AddressRepository
ChairRepository
...
IQueryable<T>

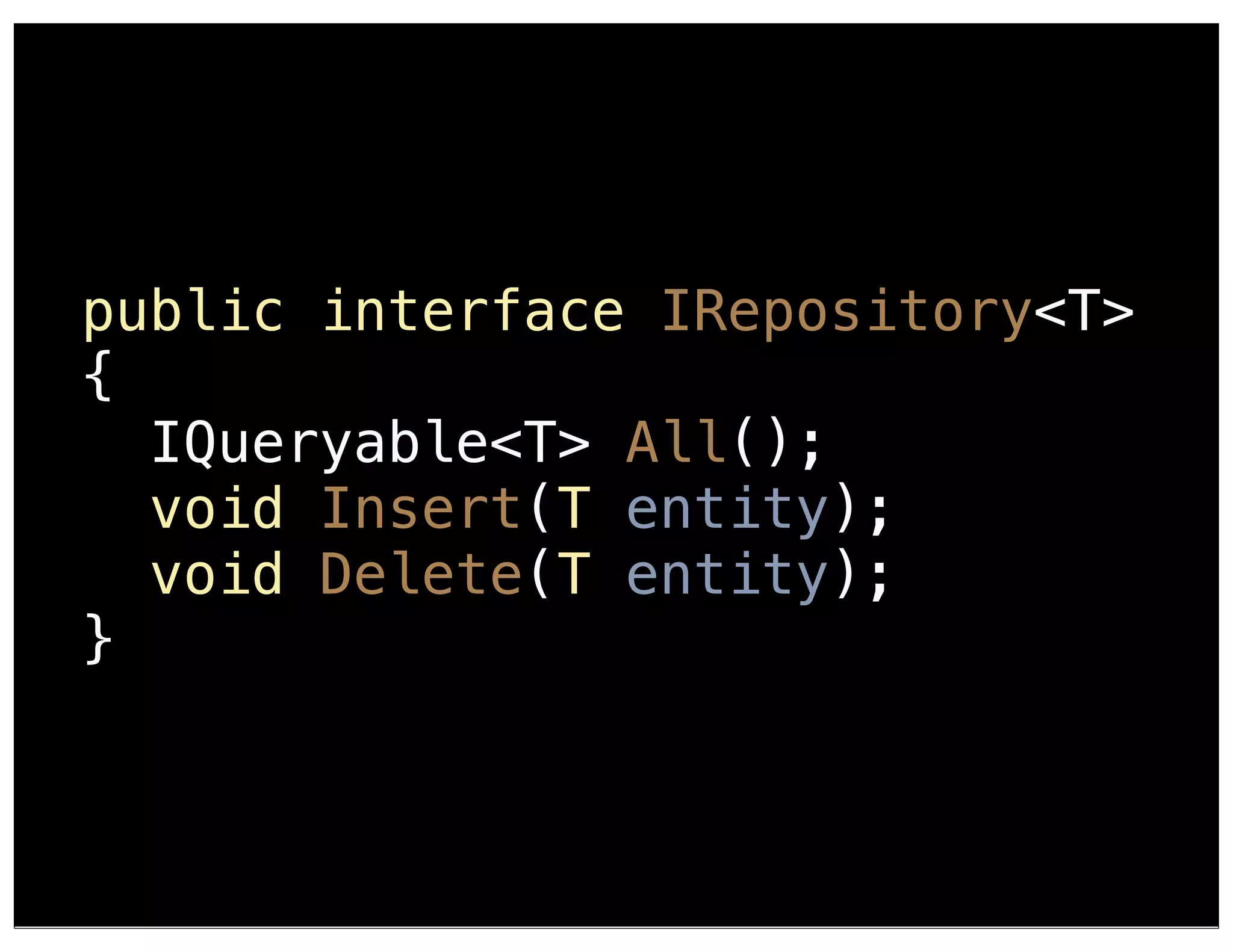

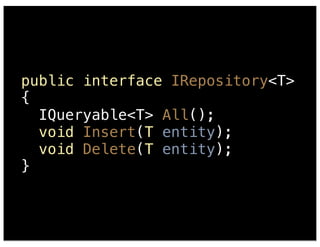

public interface IRepository<T>
{
IQueryable<T> All();
void Insert(T entity);
void Delete(T entity);
}

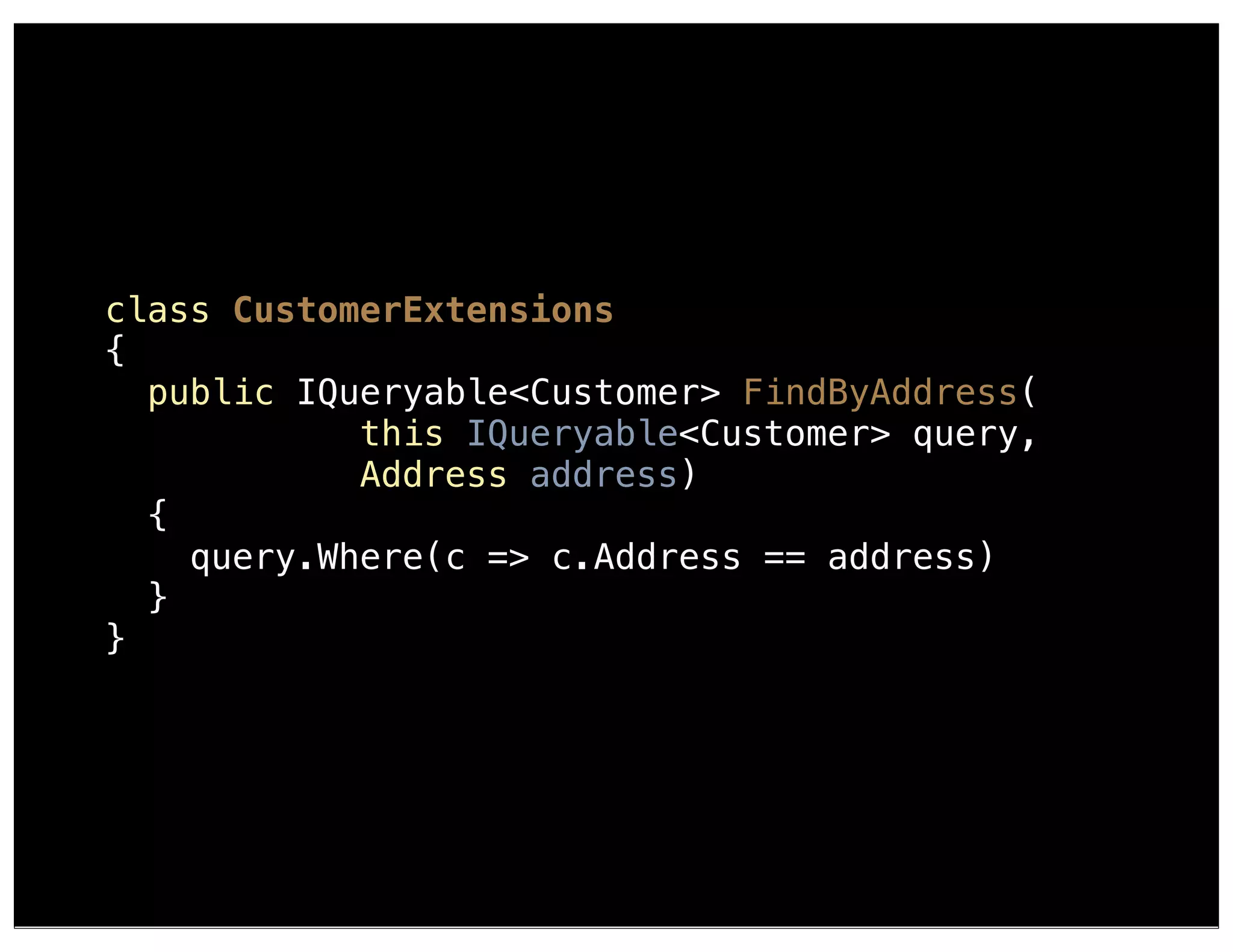

class CustomerExtensions
{
public IQueryable<Customer> FindByAddress(
this IQueryable<Customer> query,
Address address)
{
query.Where(c => c.Address == address)
}
}
How many
repositories?

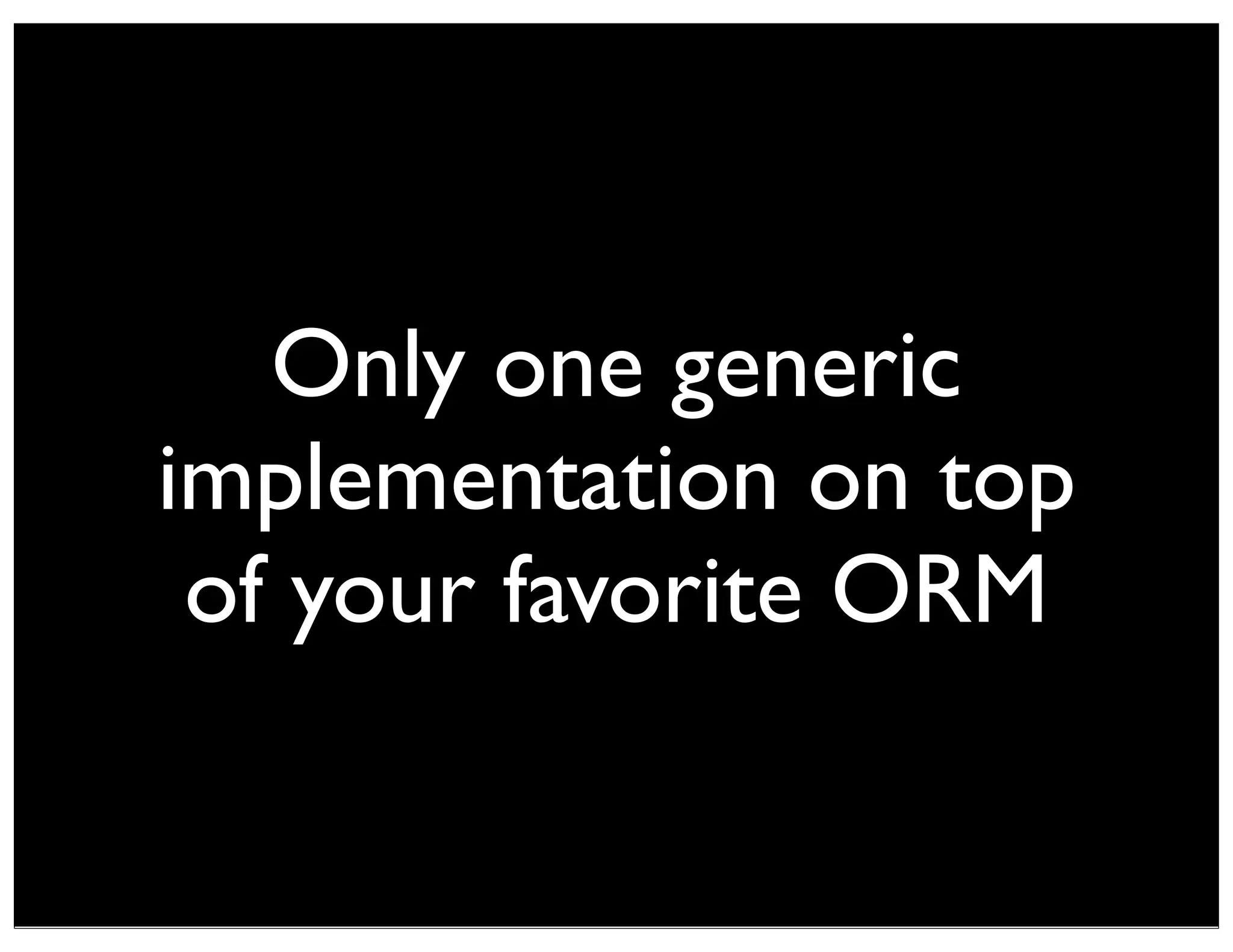

Only one generic
implementation on top
of your favorite ORM
IOC container can
instantiate the right one

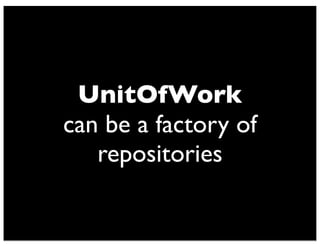

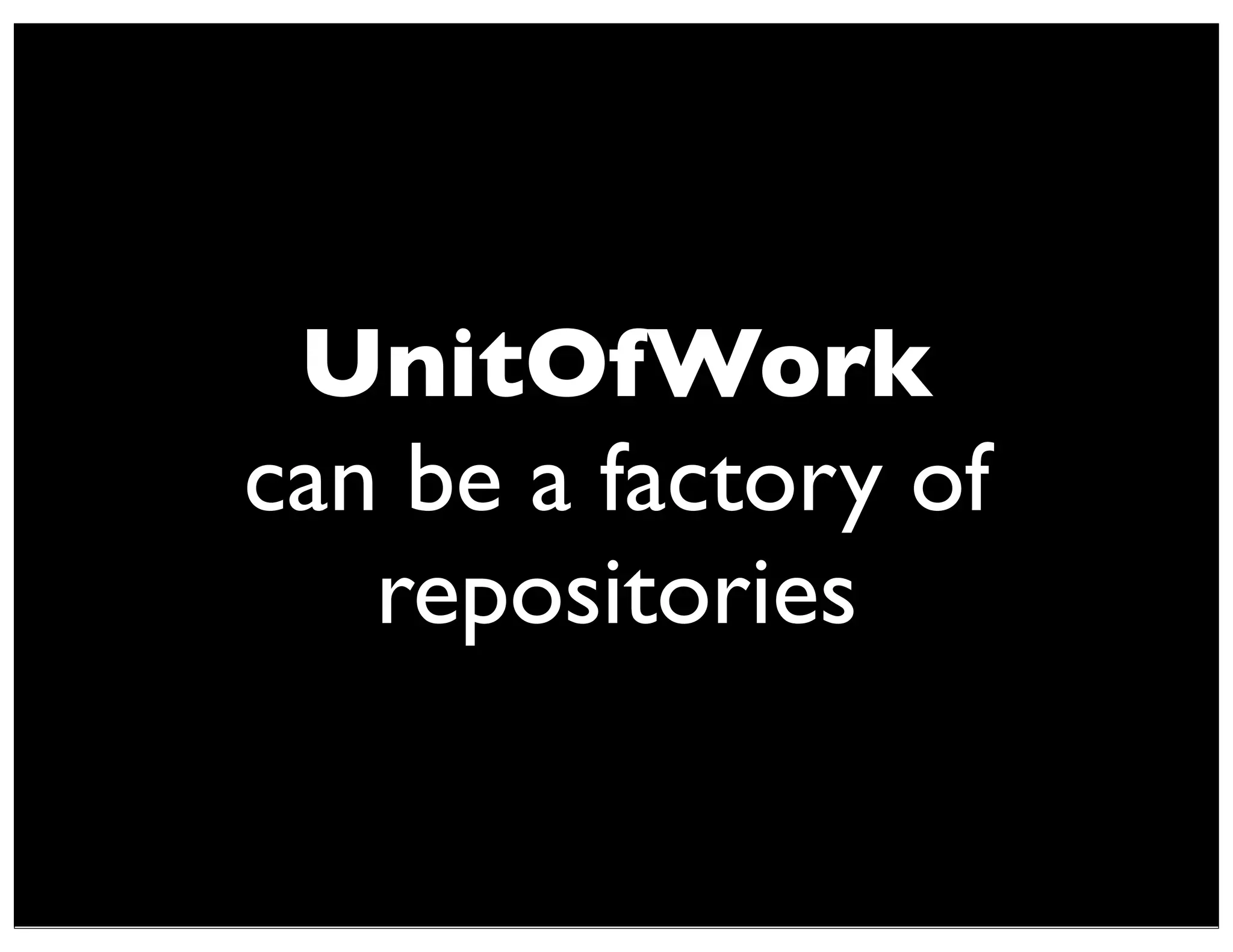

UnitOfWork
can be a factory of
repositories
Having an ORM do we
really need a
repository?
Testing the
testable test is
tested
A test is about behavior

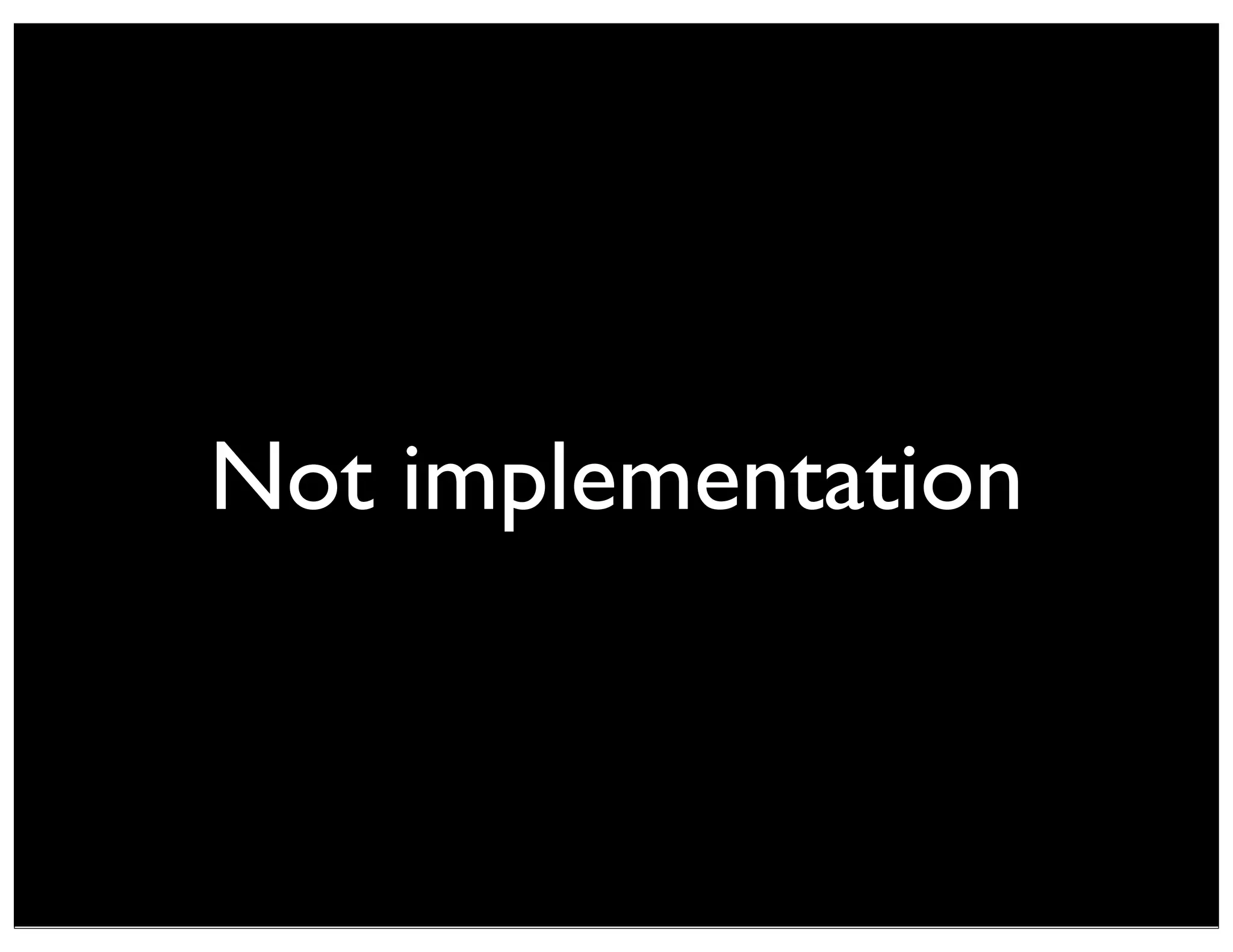

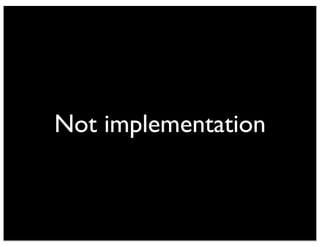

Not implementation

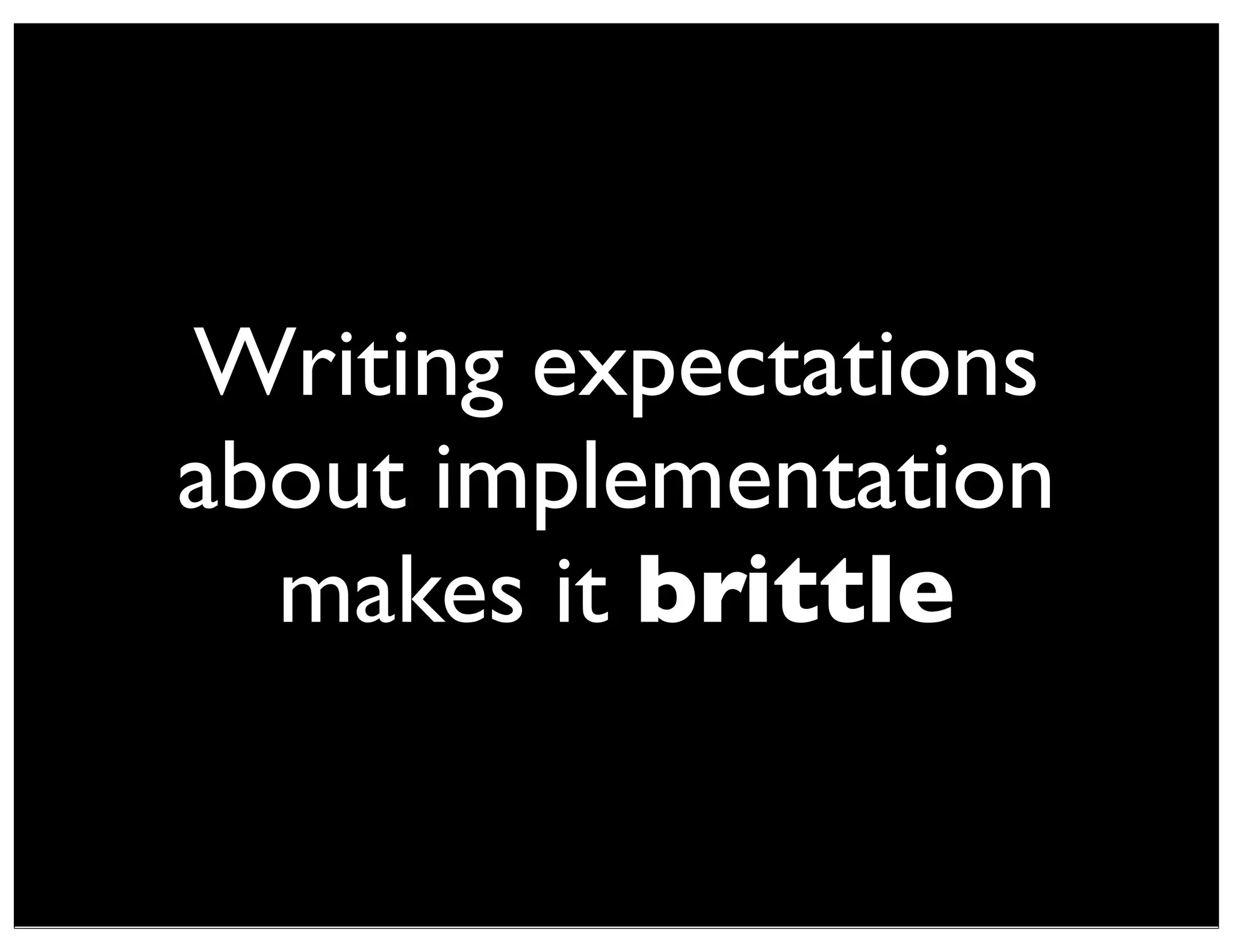

Writing expectations
about implementation
makes it brittle

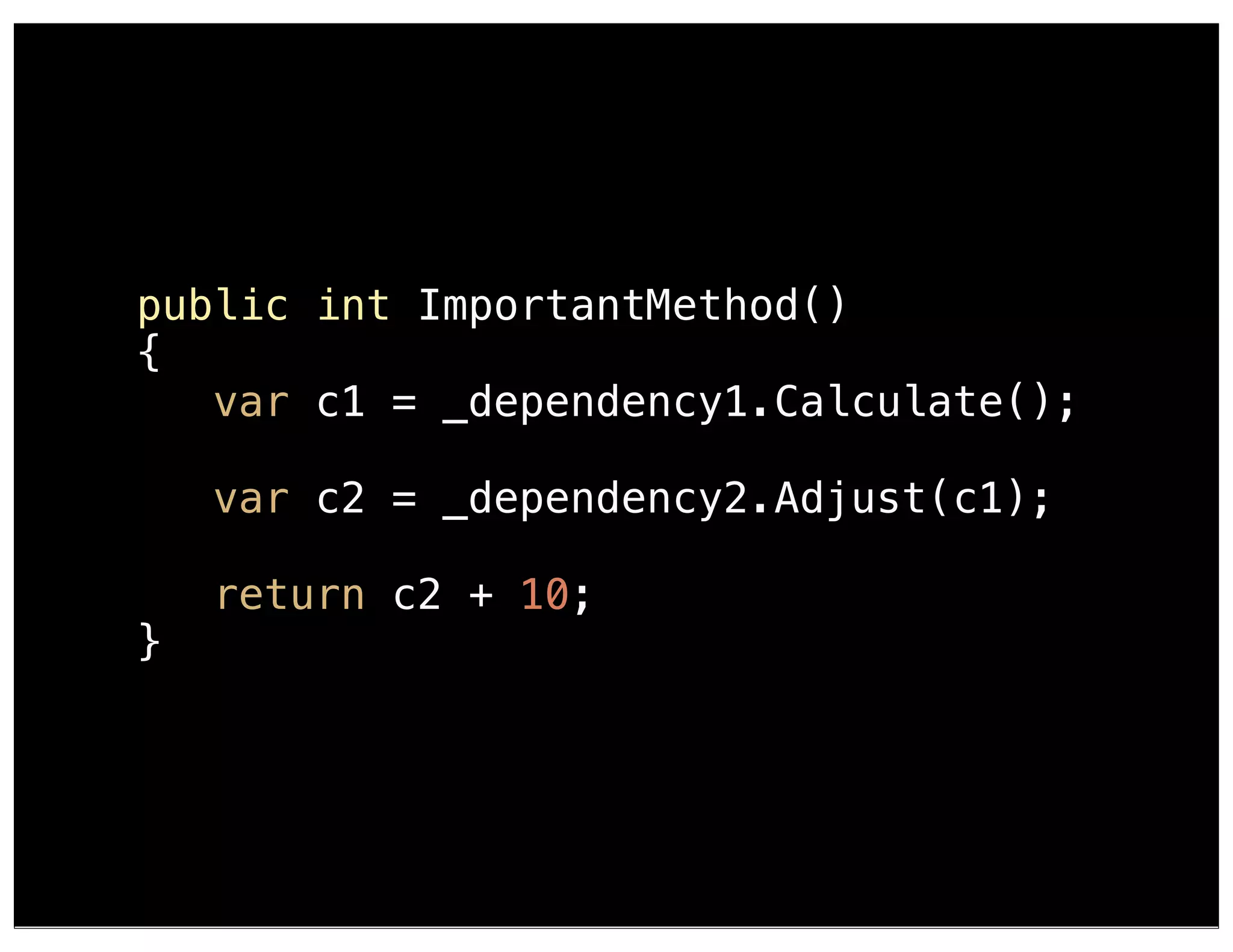

public int ImportantMethod()
{
var c1 = _dependency1.Calculate();
var c2 = _dependency2.Adjust(c1);
return c2 + 10;
}

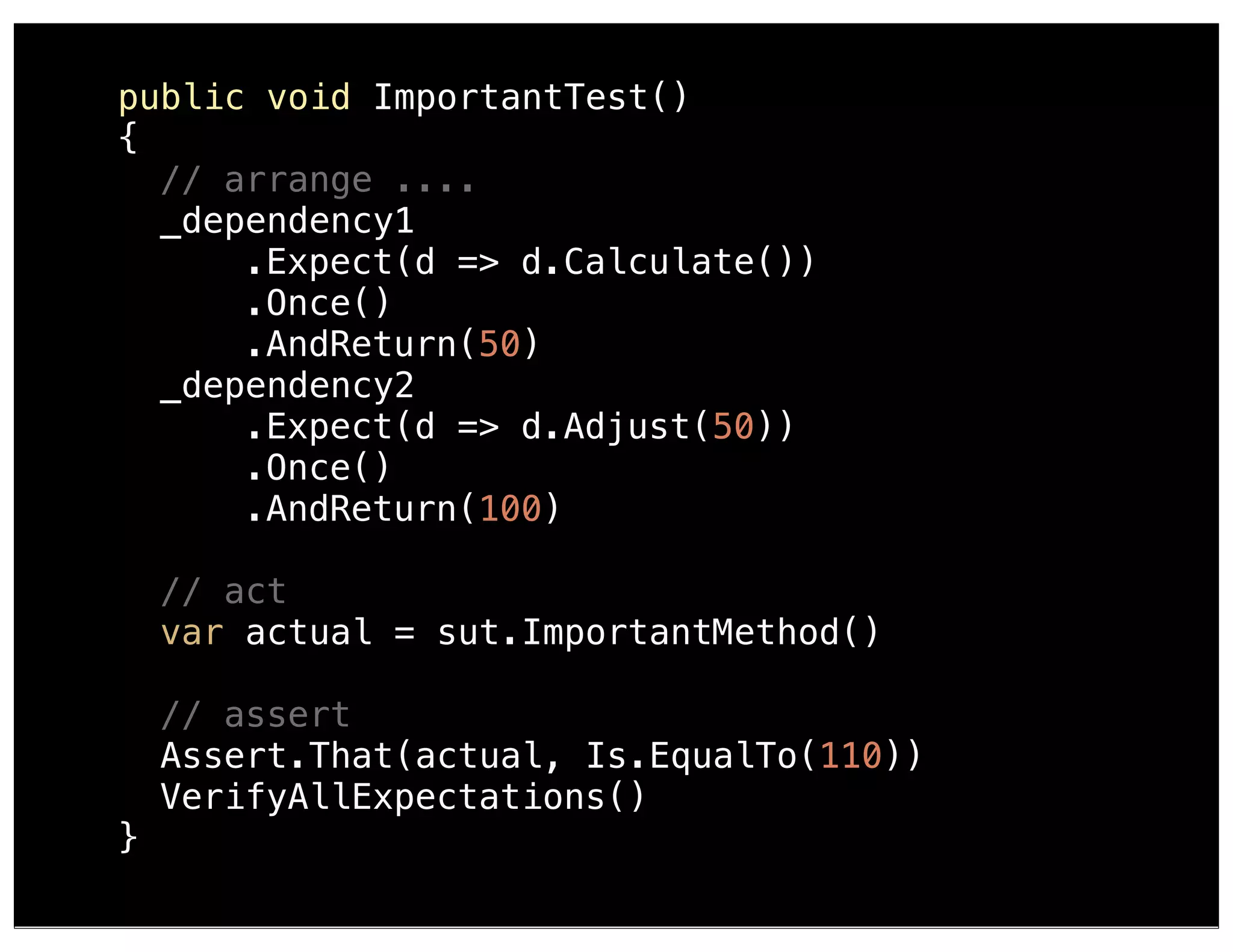

public void ImportantTest()
{
// arrange ....
_dependency1
! ! ! .Expect(d => d.Calculate())
! ! ! .Once()
! ! ! .AndReturn(50)
_dependency2
! ! ! .Expect(d => d.Adjust(50))
! ! ! .Once()
! ! ! .AndReturn(100)
// act
var actual = sut.ImportantMethod()
// assert
Assert.That(actual, Is.EqualTo(110))
! VerifyAllExpectations()
}

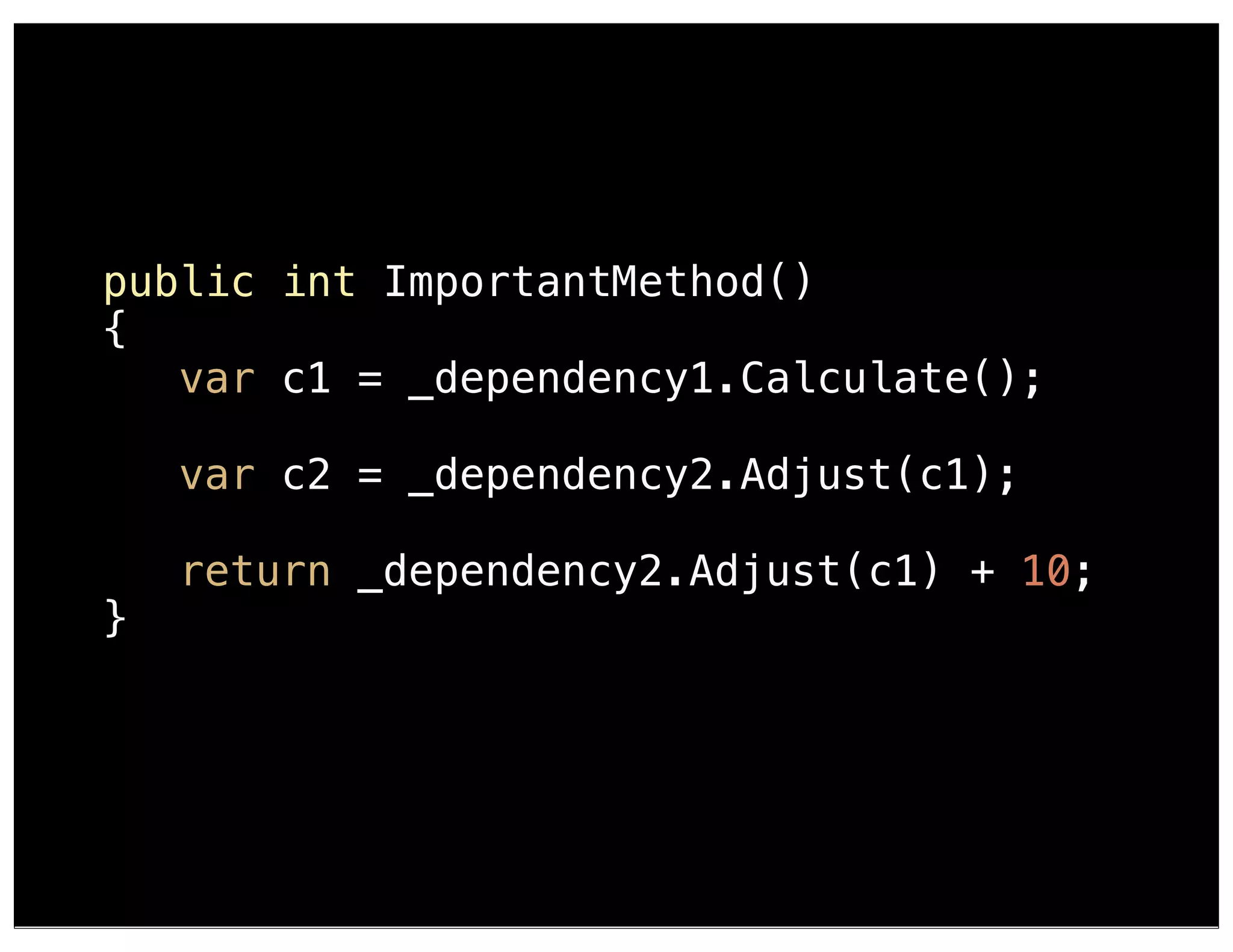

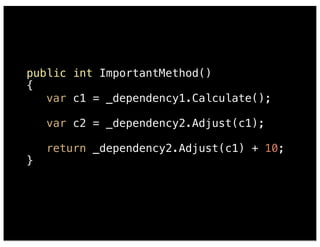

public int ImportantMethod()
{
var c1 = _dependency1.Calculate();
var c2 = _dependency2.Adjust(c1);
return _dependency2.Adjust(c1) + 10;
}

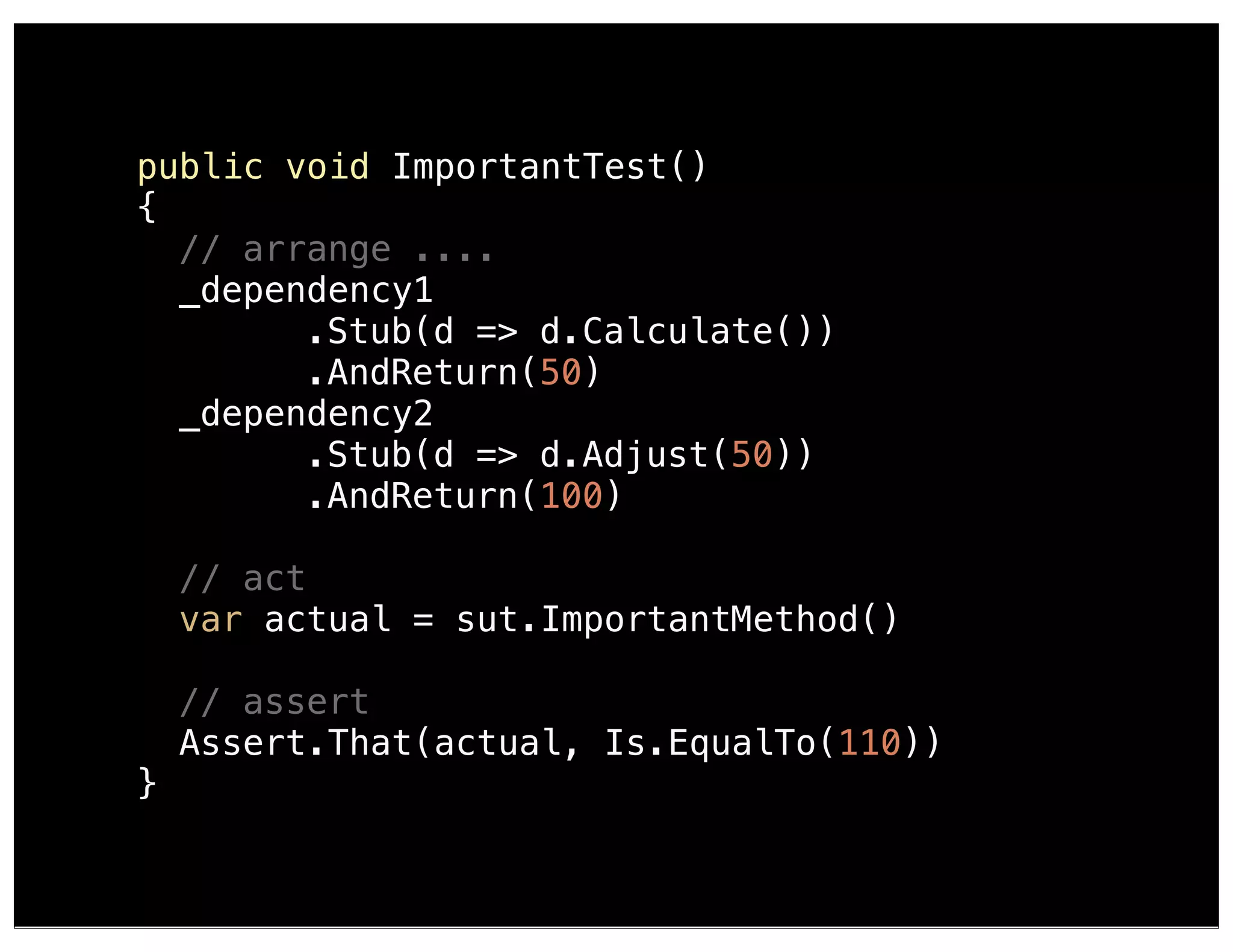

public void ImportantTest()
{
// arrange ....
_dependency1
! ! ! ! .Stub(d => d.Calculate())
! ! ! ! .AndReturn(50)
_dependency2
! ! ! ! .Stub(d => d.Adjust(50))
! ! ! ! .AndReturn(100)
// act
var actual = sut.ImportantMethod()
// assert
Assert.That(actual, Is.EqualTo(110))
}
Abstraction
subtraction
Exercise in groups
Hospital Domain Model

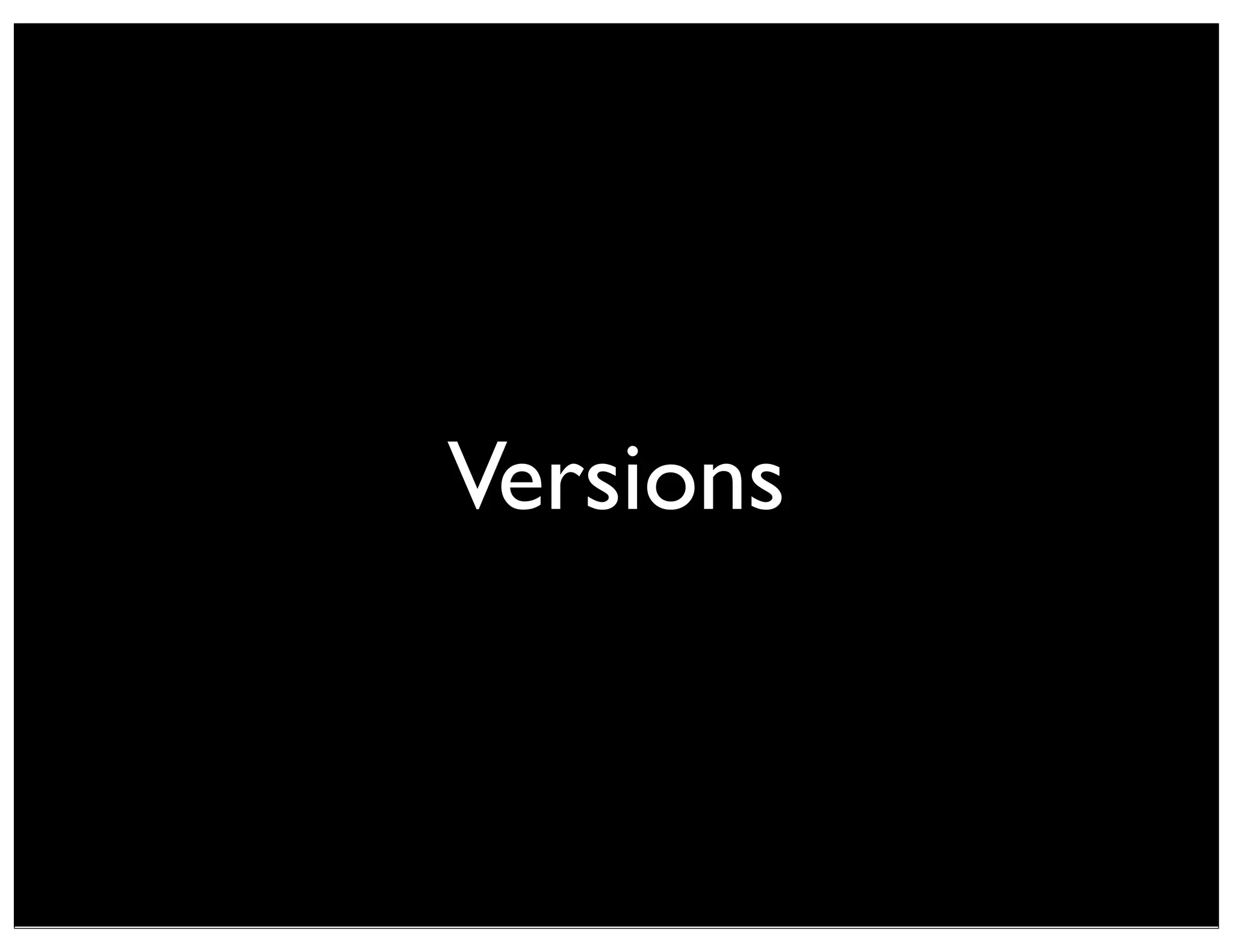

Versions
What the domain
looked like
X months ago
DB Driven
Development
Model may or may not
match the database

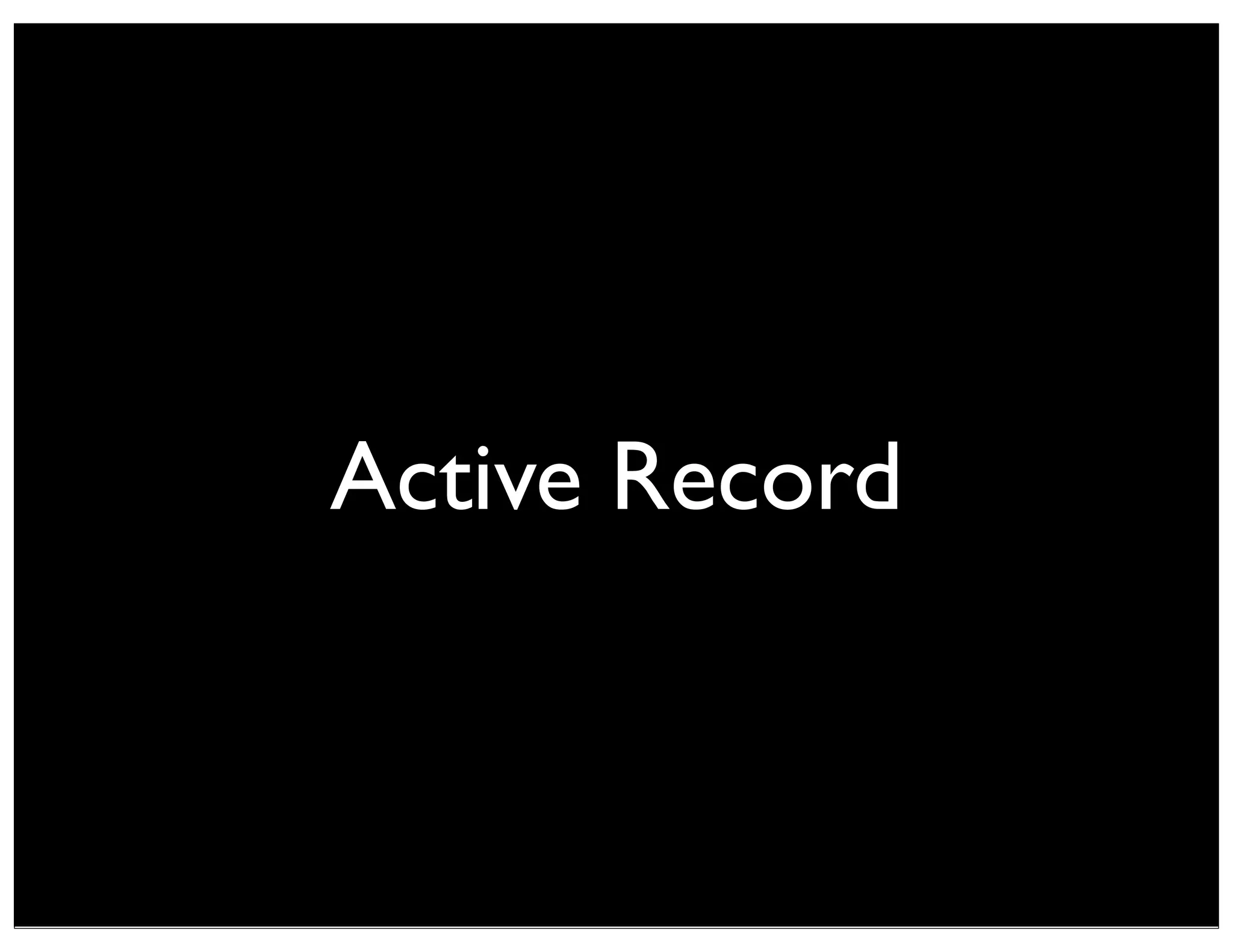

Active Record
Transaction Script
Data Mapper
Coding is like
Telling a Story
Leave the code cleaner
than you found it

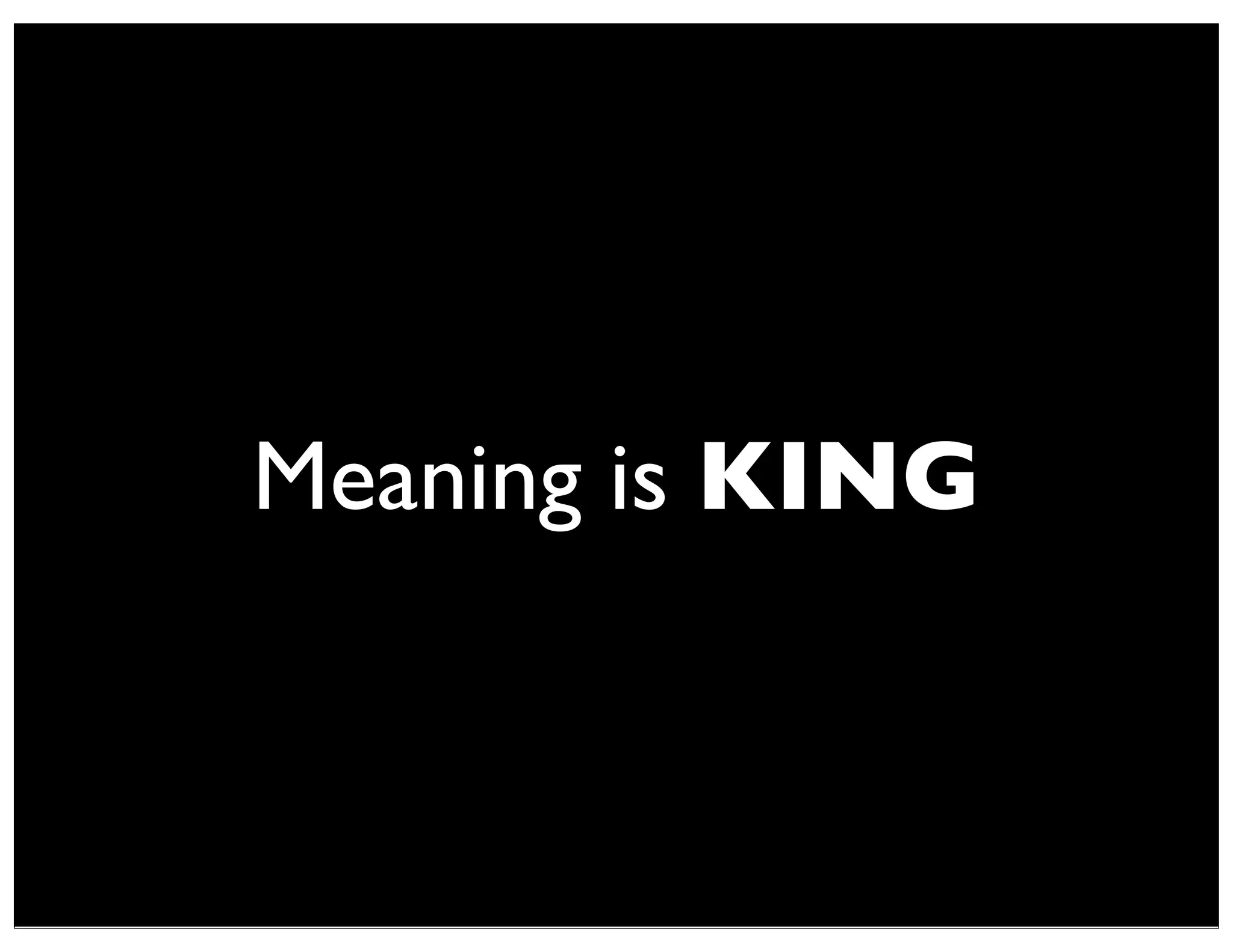

Meaning is KING
Don’t code what you
don’t need
Know your
collections

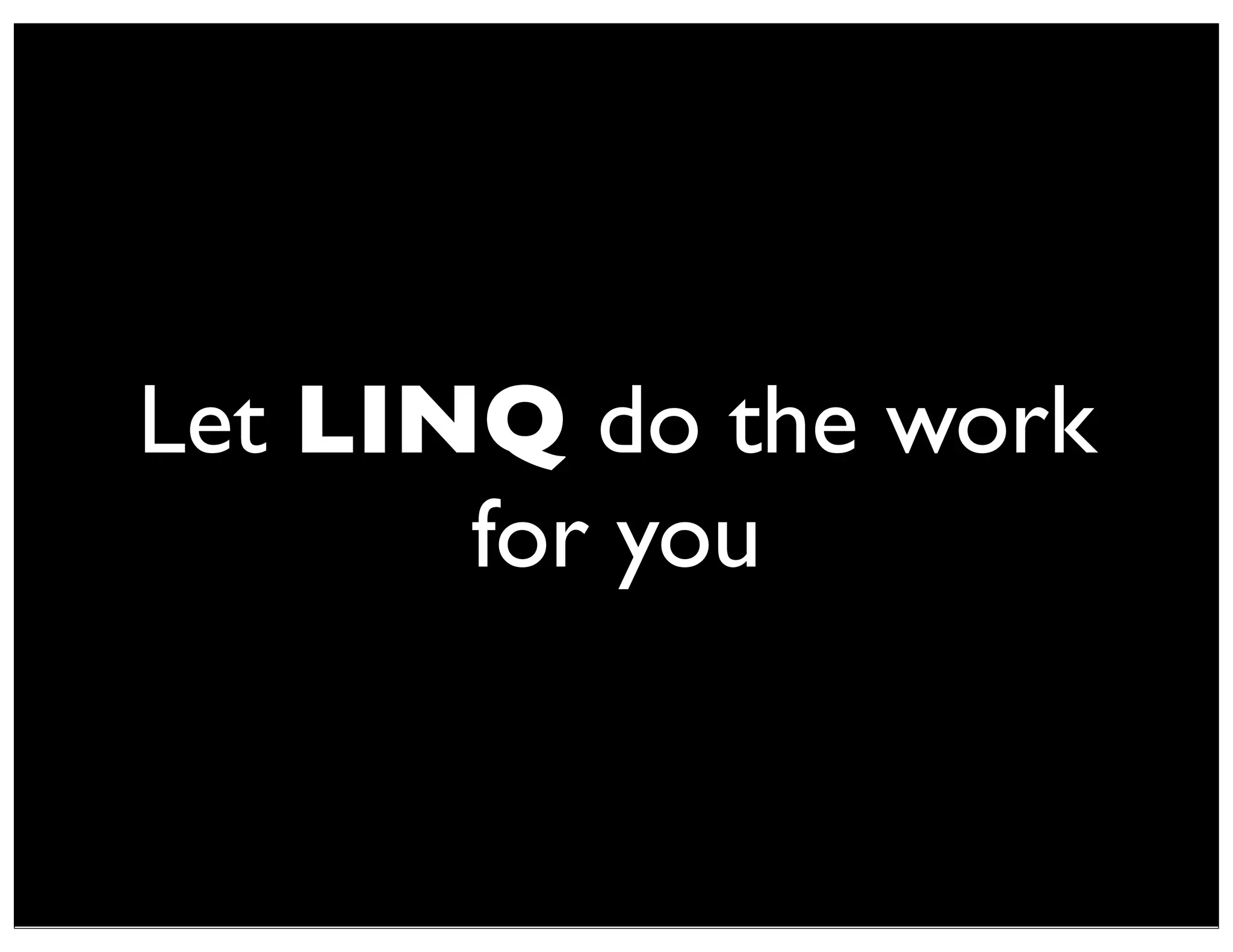

Let LINQ do the work
for you

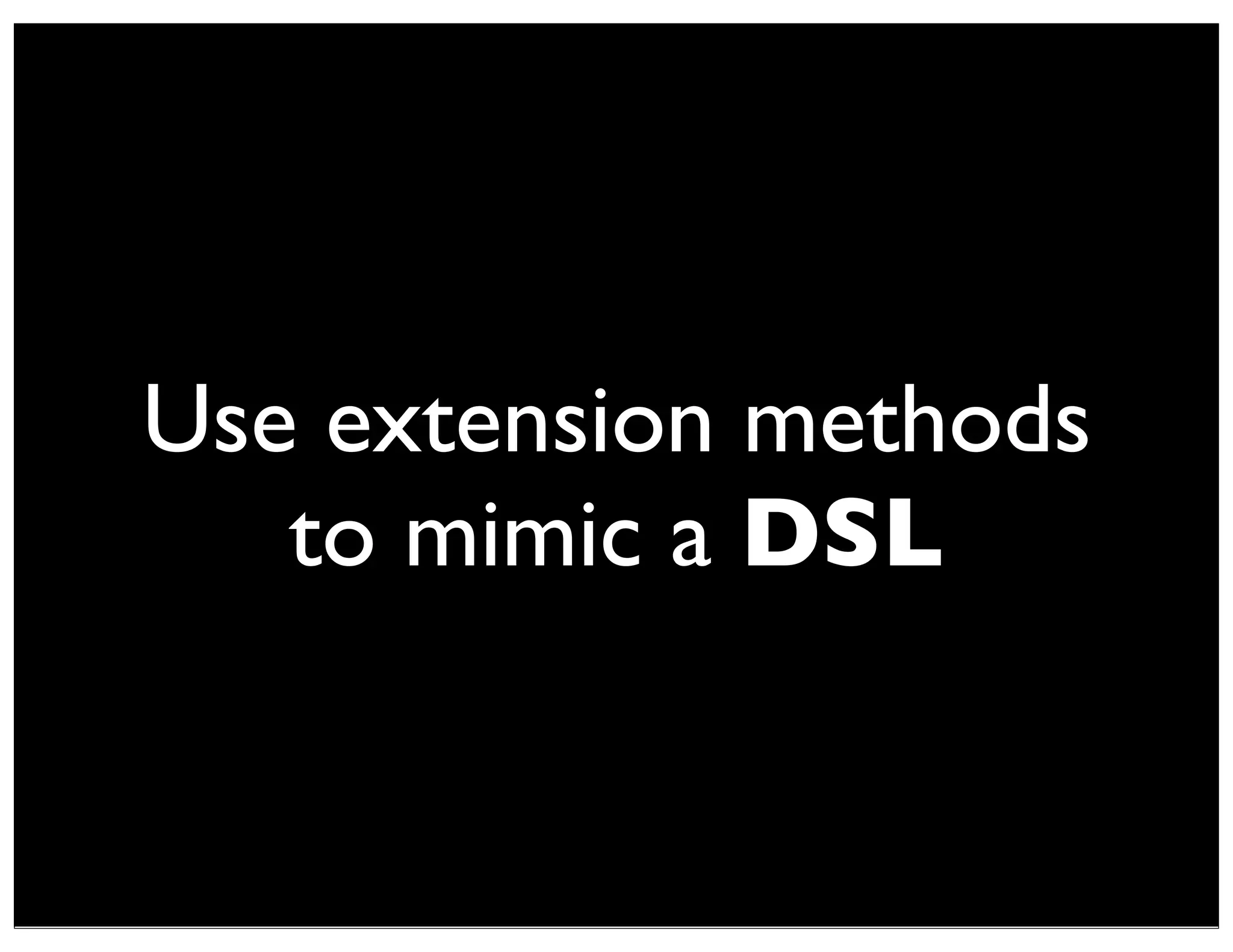

Use extension methods
to mimic a DSL

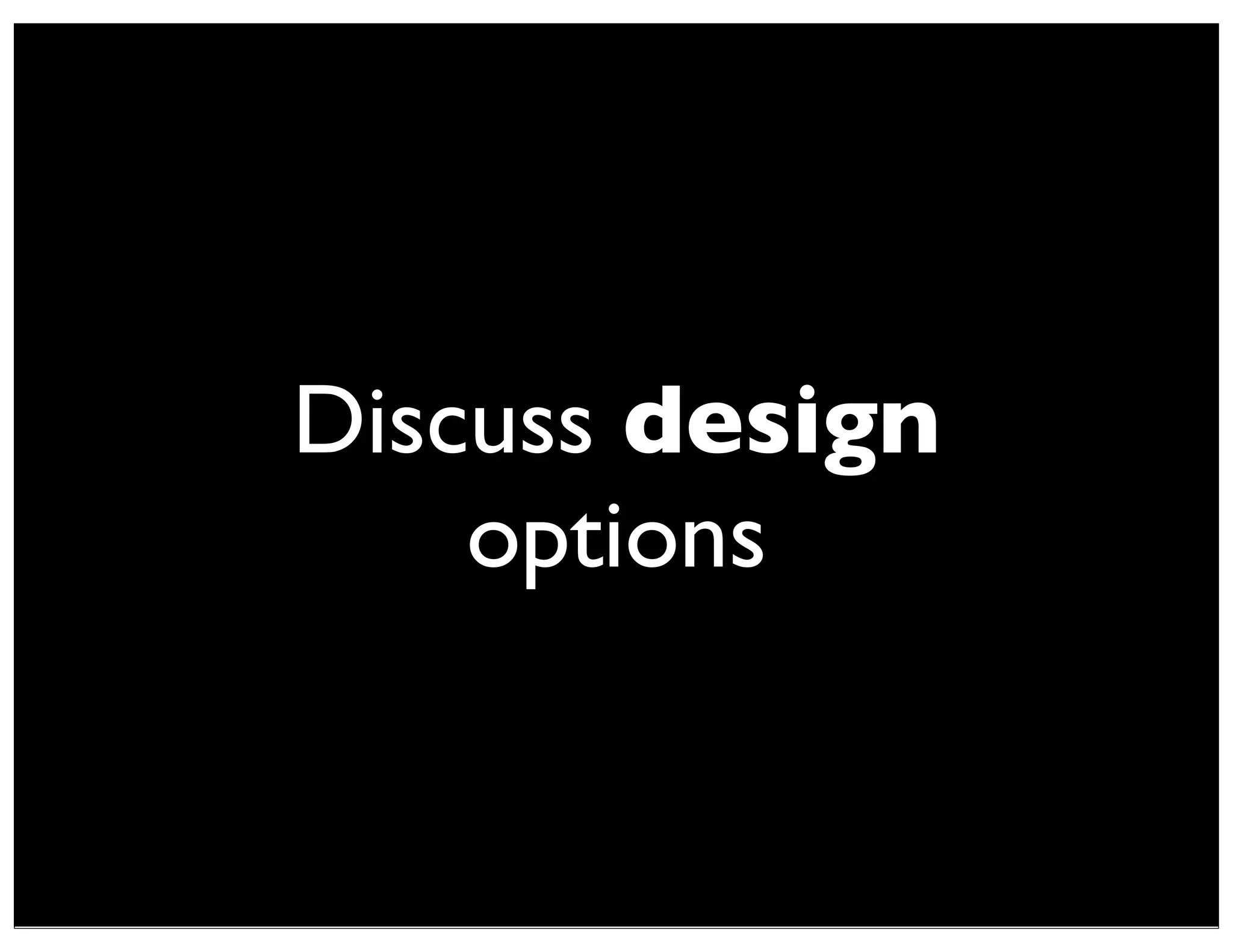

Discuss design
options
Explore F#
Thank you!
http://smartviewapp.com
The Smartest tool
for lean project
management
amir@barylko.com
@abarylko
http://bit.ly/abarylkoslides
