SharePoint Server 2019 introduces new features for end users, IT professionals, and developers. For end users, there are improvements to navigation, modern sites, and document libraries. IT professionals will see new installation and migration options as well as administrative tools. Developers have an updated SharePoint Framework and new connections to PowerApps and Flow. Some features from SharePoint Online like Microsoft Graph are still missing from the on-premises version.

1. SharePoint Server 2019
On-Premises
WHAT'S NEW AND WHAT'S OUT
LEVEL 200 / END USER, IT PRO & DEV
SHAREPOINT SATURDAY OTTAWA October 28, 2017

2. Thank you Sponsors!!
Platinum
Gold
Silver
Prize(s)

3. Salon A
@4:45 pm
Please drink responsibly . We will be happy to call a cab for you

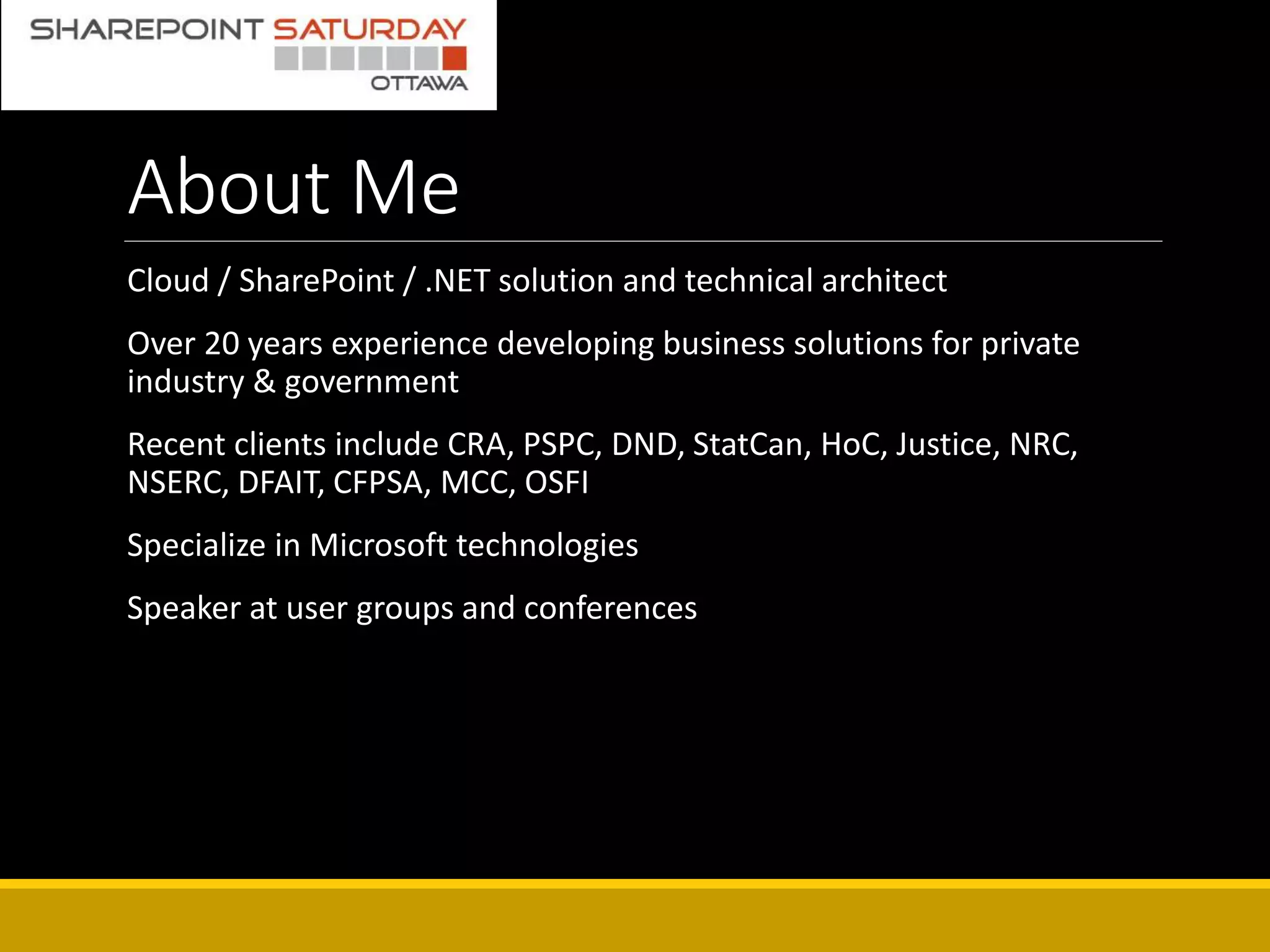

4. About Me
Cloud / SharePoint / .NET solution and technical architect
Over 20 years experience developing business solutions for private
industry & government
Recent clients include CRA, PSPC, DND, StatCan, HoC, Justice, NRC,
NSERC, DFAIT, CFPSA, MCC, OSFI
Specialize in Microsoft technologies
Speaker at user groups and conferences

5. Thank you to my sponsor
CloudShare – Environments Made Easy
http://www.cloudshare.com/

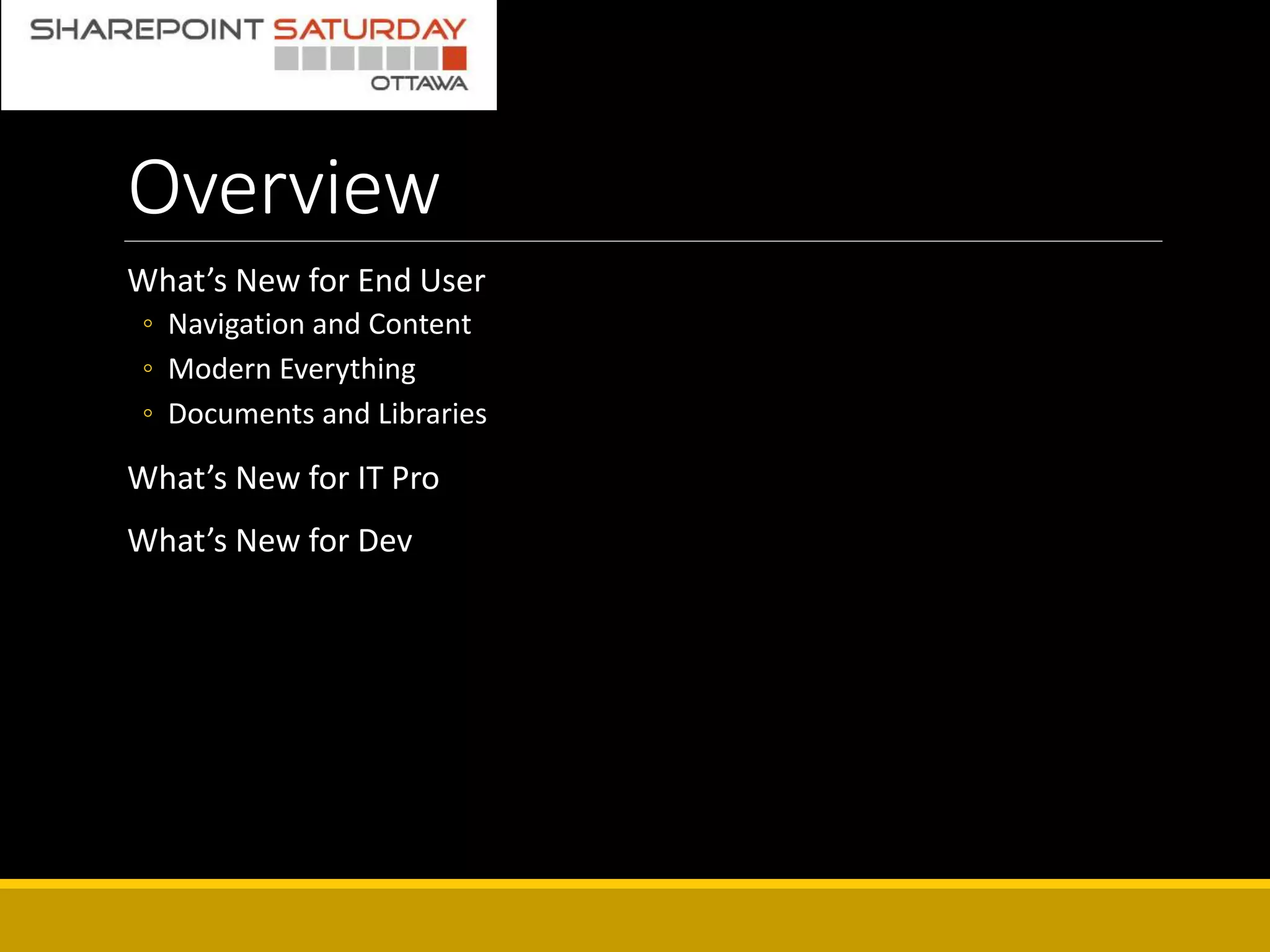

6. Overview
What’s New for End User
◦ Navigation and Content
◦ Modern Everything
◦ Documents and Libraries
What’s New for IT Pro
What’s New for Dev

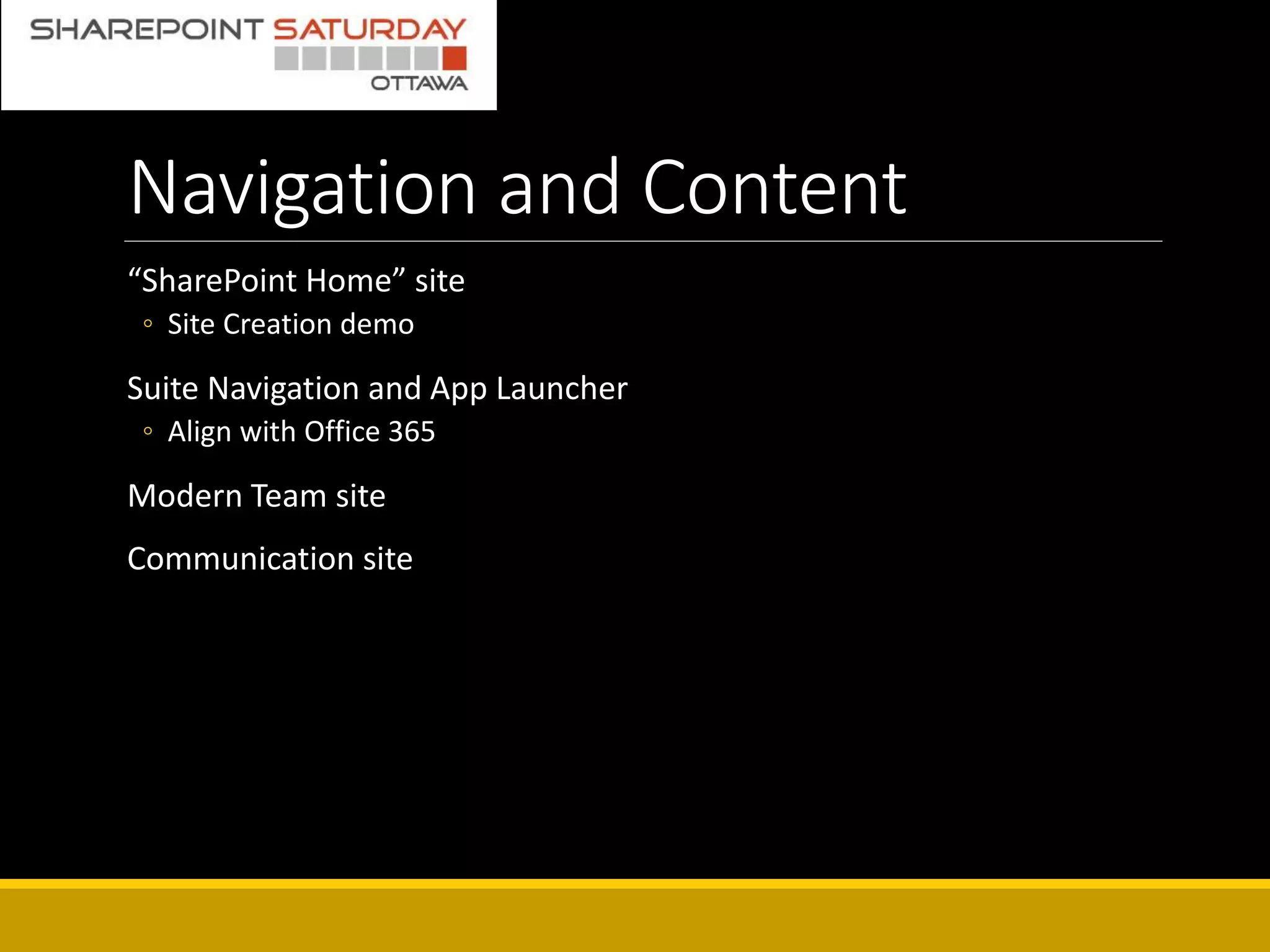

7. Navigation and Content
“SharePoint Home” site
◦ Site Creation demo
Suite Navigation and App Launcher
◦ Align with Office 365
Modern Team site
Communication site

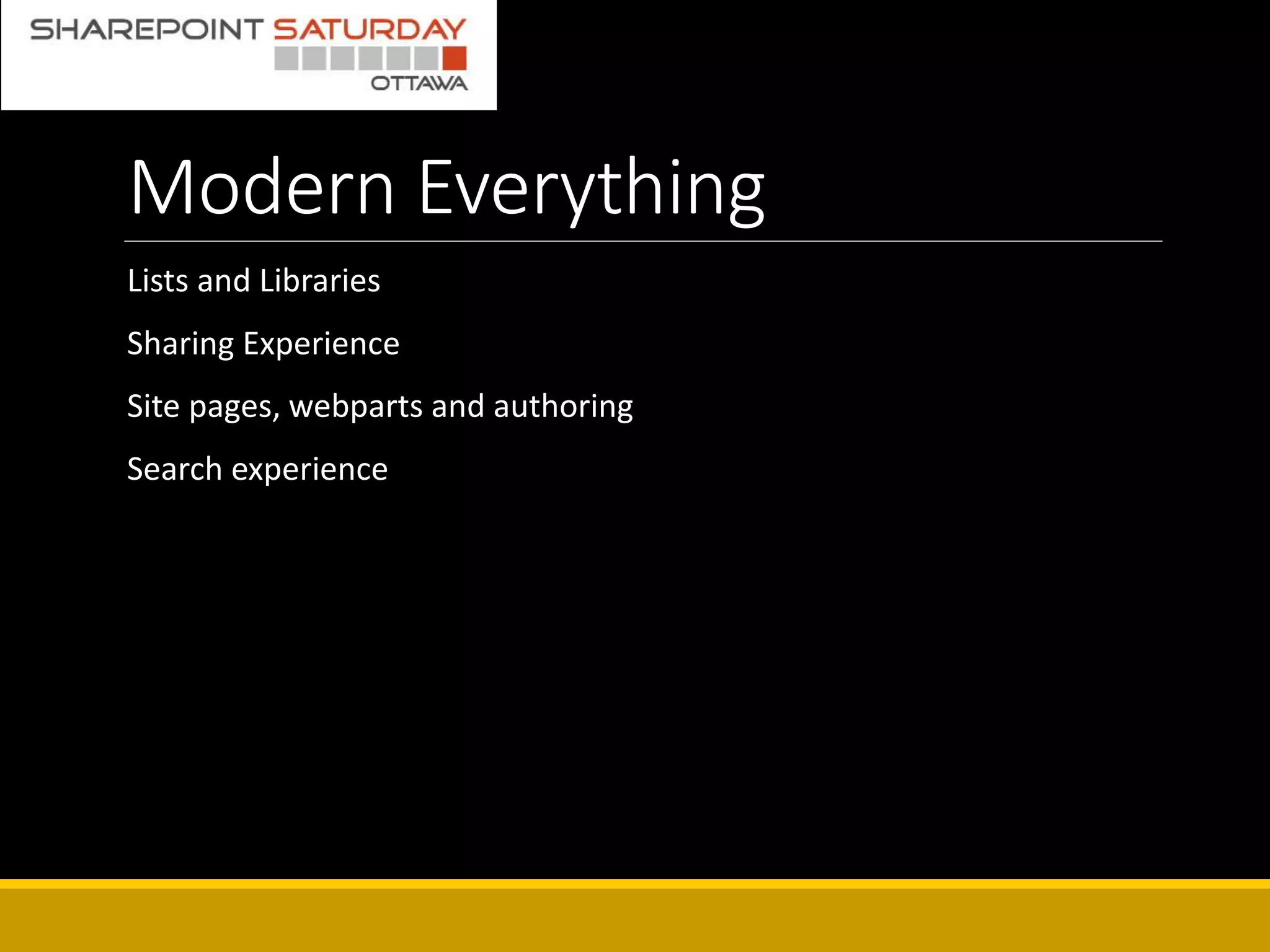

8. Modern Everything
Lists and Libraries
Sharing Experience
Site pages, webparts and authoring
Search experience

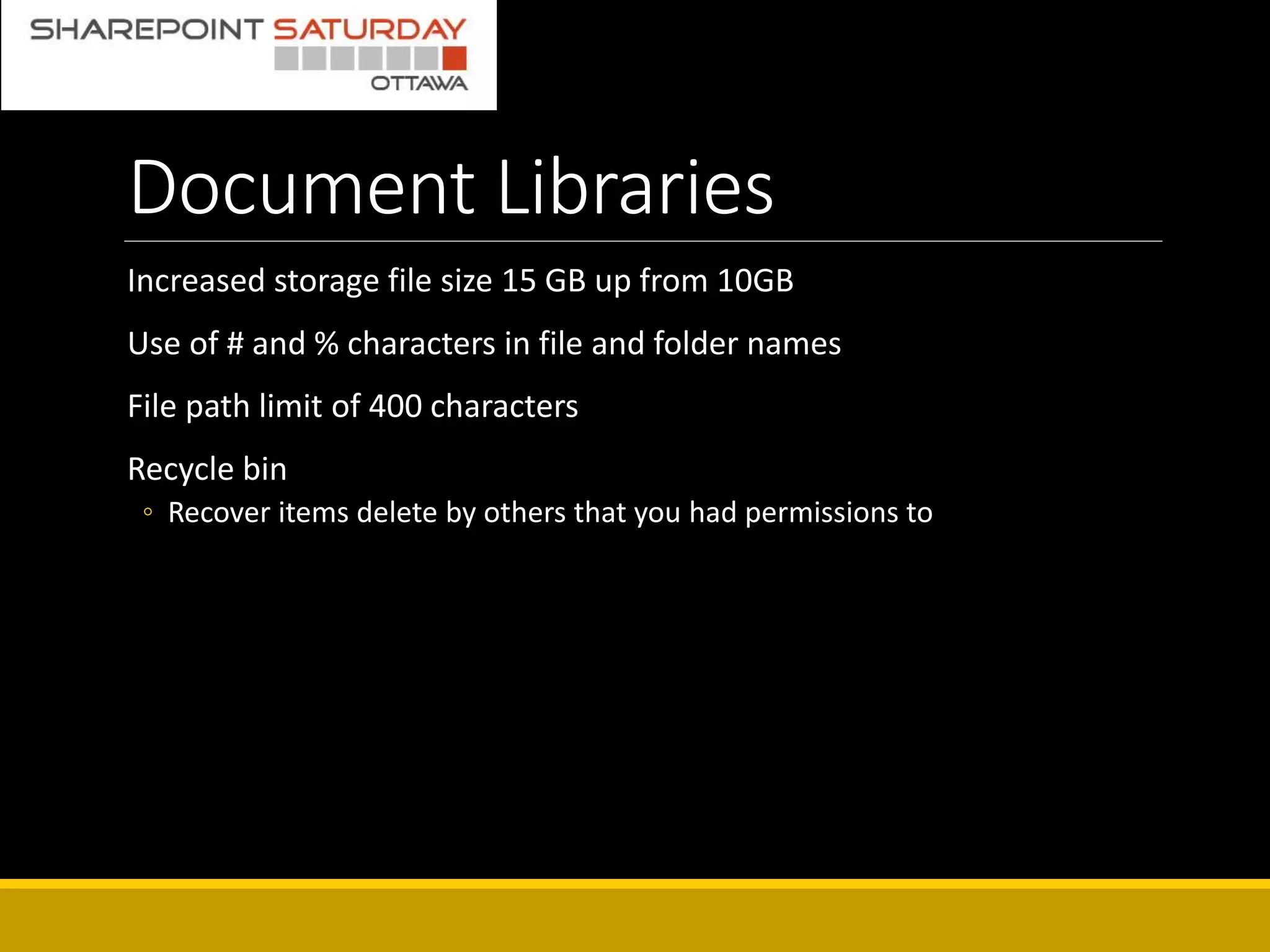

9. Document Libraries
Increased storage file size 15 GB up from 10GB
Use of # and % characters in file and folder names
File path limit of 400 characters
Recycle bin
◦ Recover items delete by others that you had permissions to

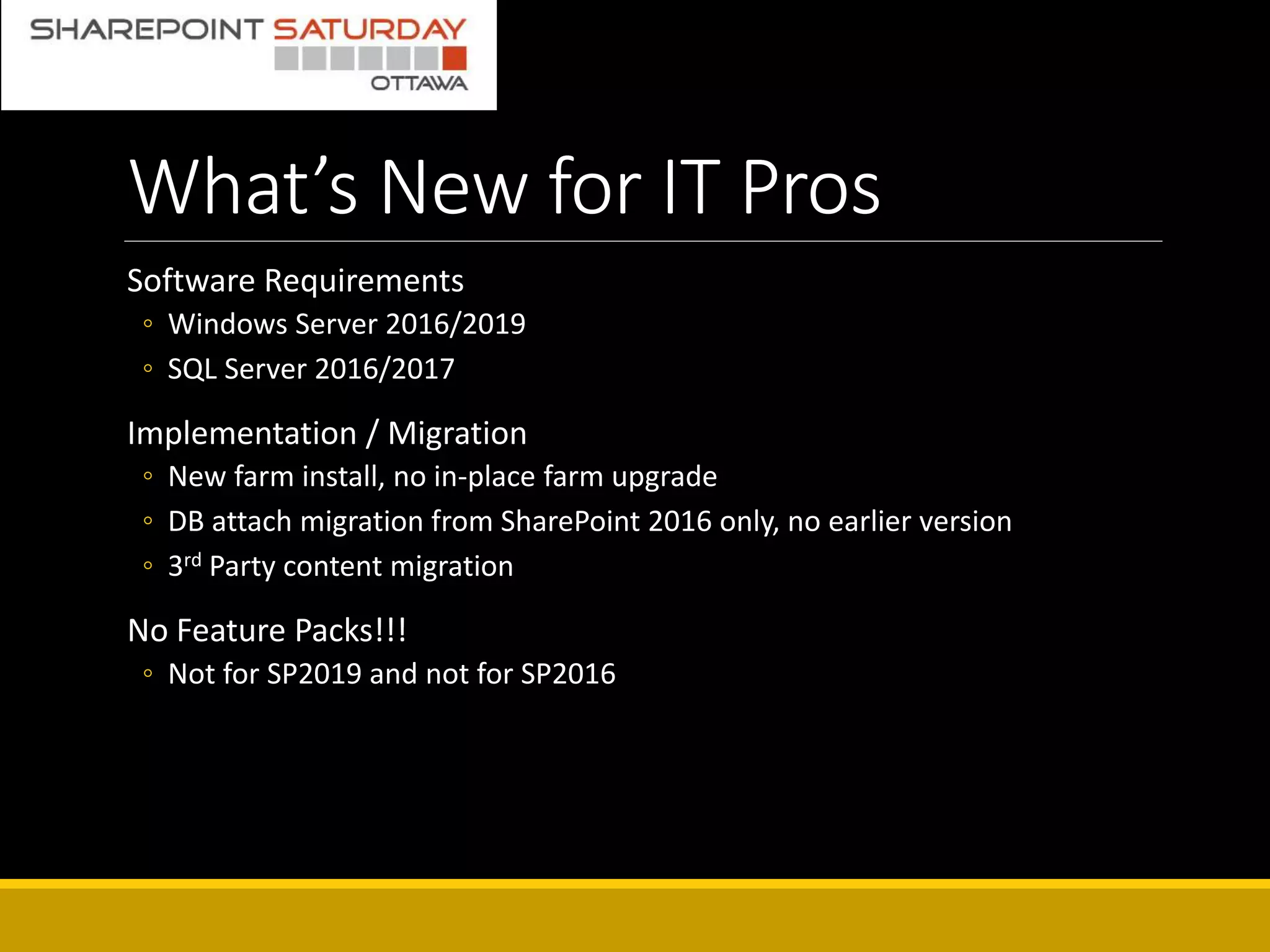

10. What’s New for IT Pros
Software Requirements
◦ Windows Server 2016/2019
◦ SQL Server 2016/2017
Implementation / Migration
◦ New farm install, no in-place farm upgrade
◦ DB attach migration from SharePoint 2016 only, no earlier version
◦ 3rd Party content migration
No Feature Packs!!!
◦ Not for SP2019 and not for SP2016

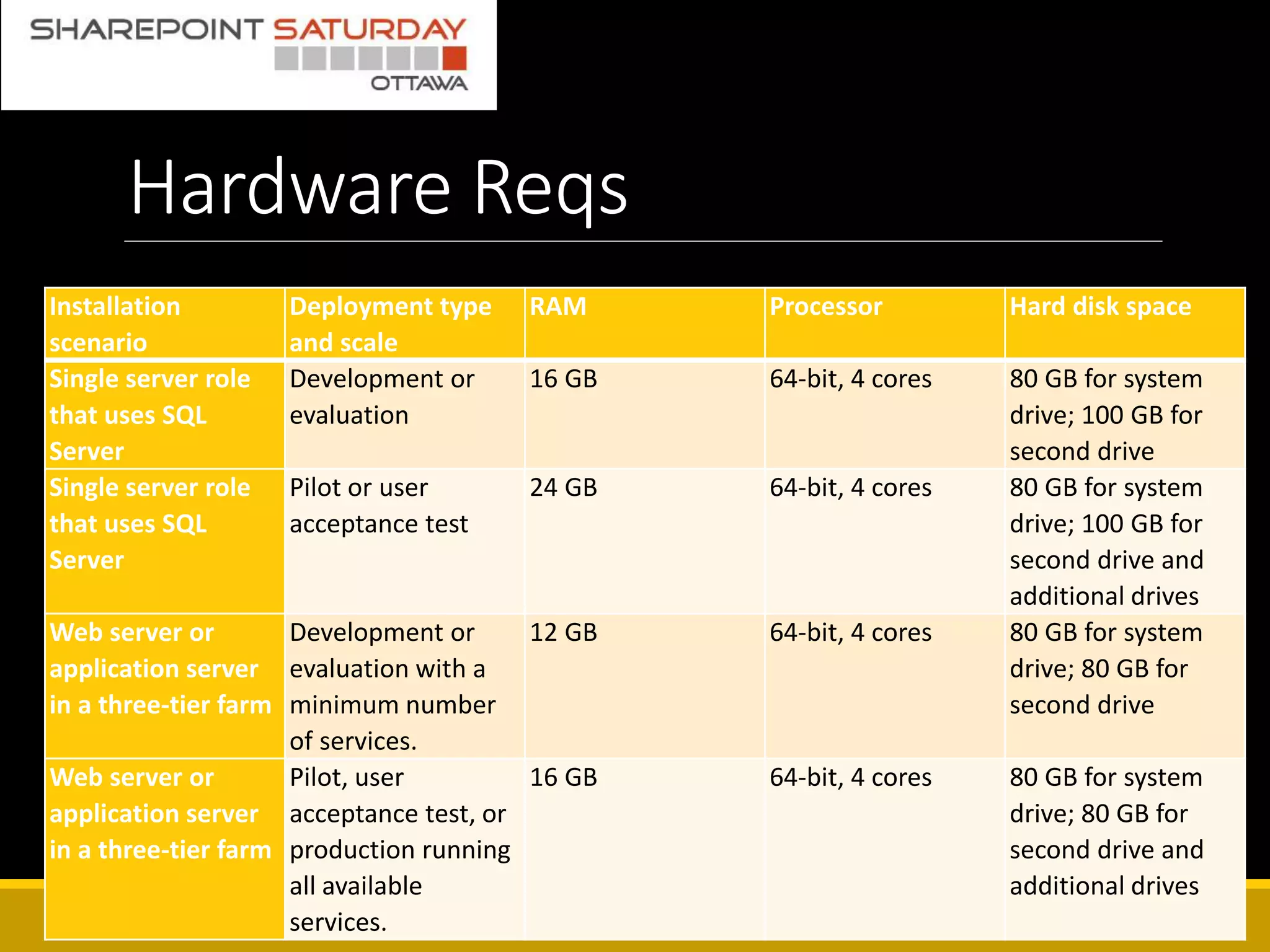

11. Hardware Reqs
Installation
scenario
Deployment type
and scale
RAM Processor Hard disk space
Single server role
that uses SQL
Server
Development or
evaluation
16 GB 64-bit, 4 cores 80 GB for system
drive; 100 GB for
second drive
Single server role
that uses SQL
Server
Pilot or user
acceptance test
24 GB 64-bit, 4 cores 80 GB for system
drive; 100 GB for
second drive and
additional drives
Web server or
application server
in a three-tier farm
Development or
evaluation with a
minimum number
of services.
12 GB 64-bit, 4 cores 80 GB for system
drive; 80 GB for
second drive
Web server or
application server
in a three-tier farm
Pilot, user
acceptance test, or
production running
all available
services.
16 GB 64-bit, 4 cores 80 GB for system
drive; 80 GB for
second drive and
additional drives

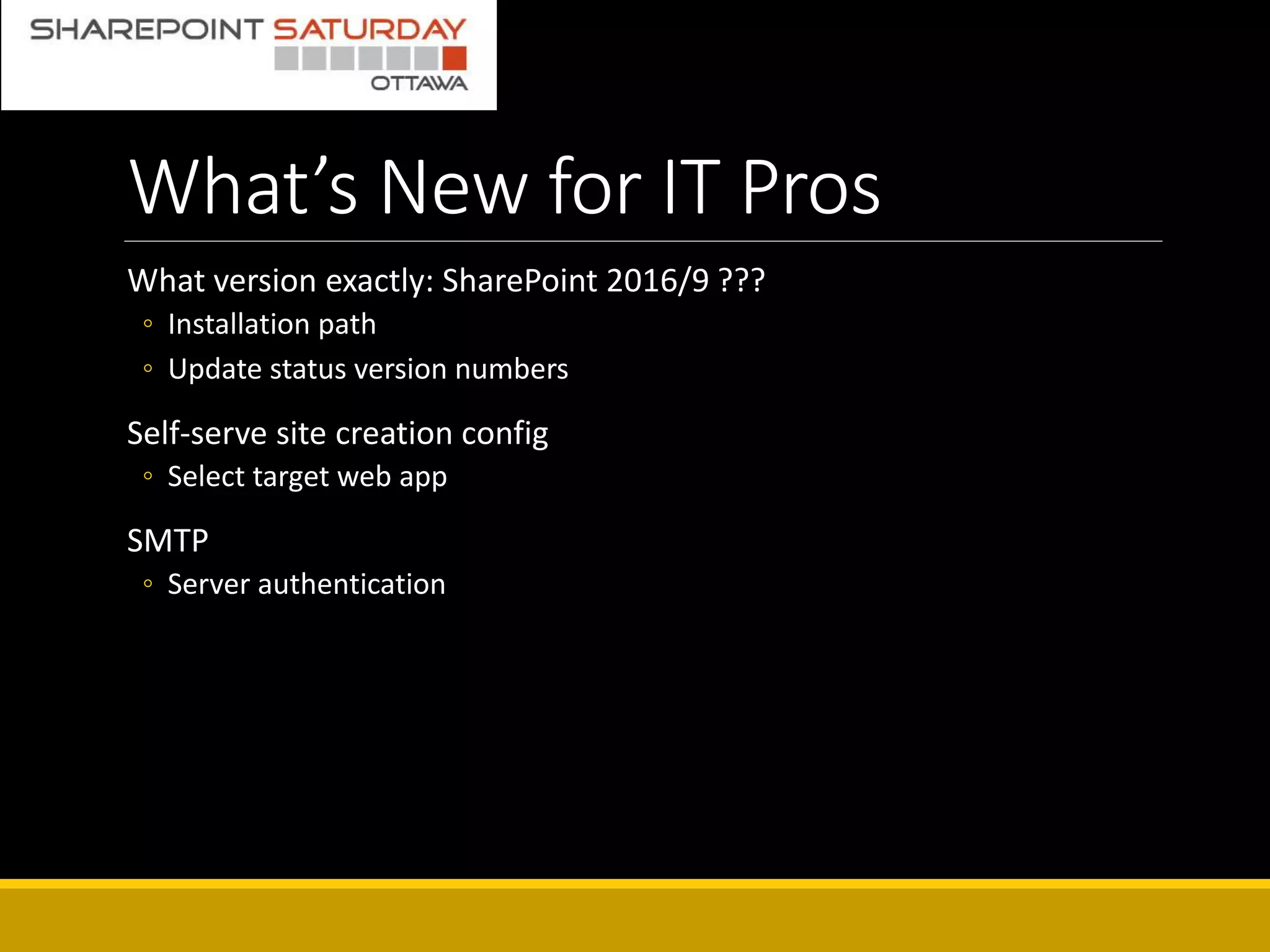

12. What’s New for IT Pros
What version exactly: SharePoint 2016/9 ???
◦ Installation path
◦ Update status version numbers
Self-serve site creation config
◦ Select target web app
SMTP
◦ Server authentication

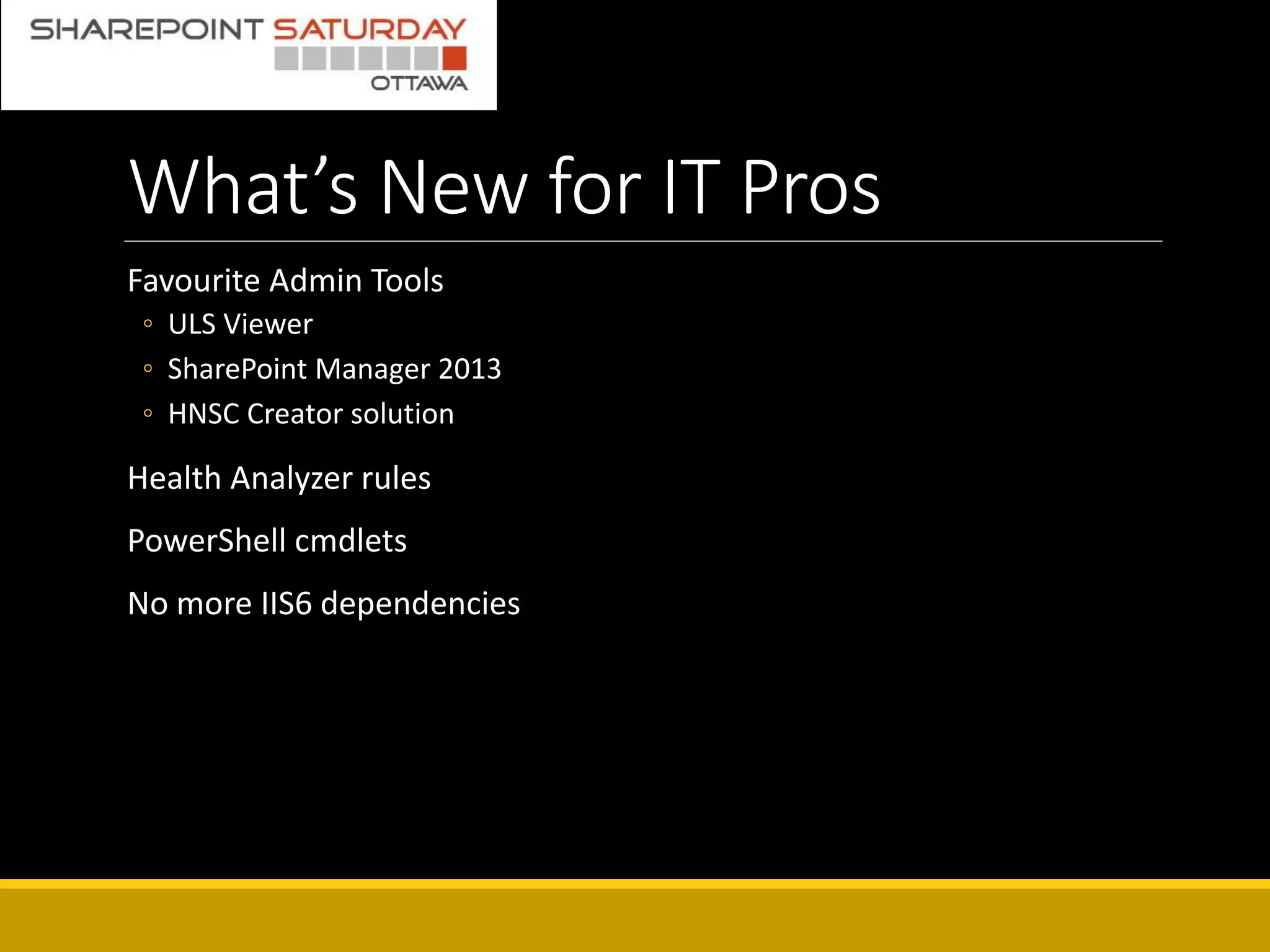

13. What’s New for IT Pros
Favourite Admin Tools
◦ ULS Viewer
◦ SharePoint Manager 2013
◦ HNSC Creator solution
Health Analyzer rules
PowerShell cmdlets
No more IIS6 dependencies

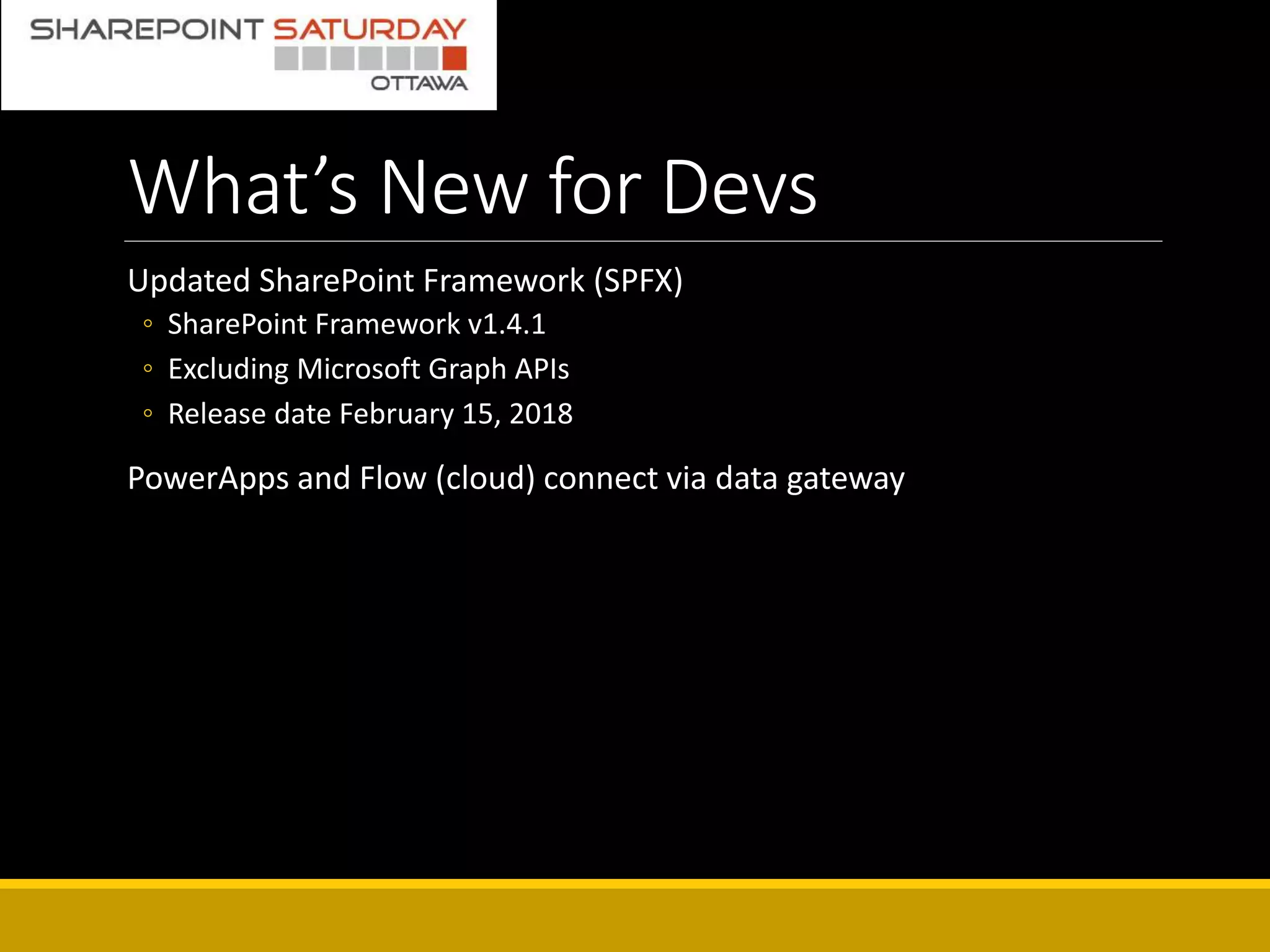

14. What’s New for Devs
Updated SharePoint Framework (SPFX)
◦ SharePoint Framework v1.4.1
◦ Excluding Microsoft Graph APIs
◦ Release date February 15, 2018
PowerApps and Flow (cloud) connect via data gateway

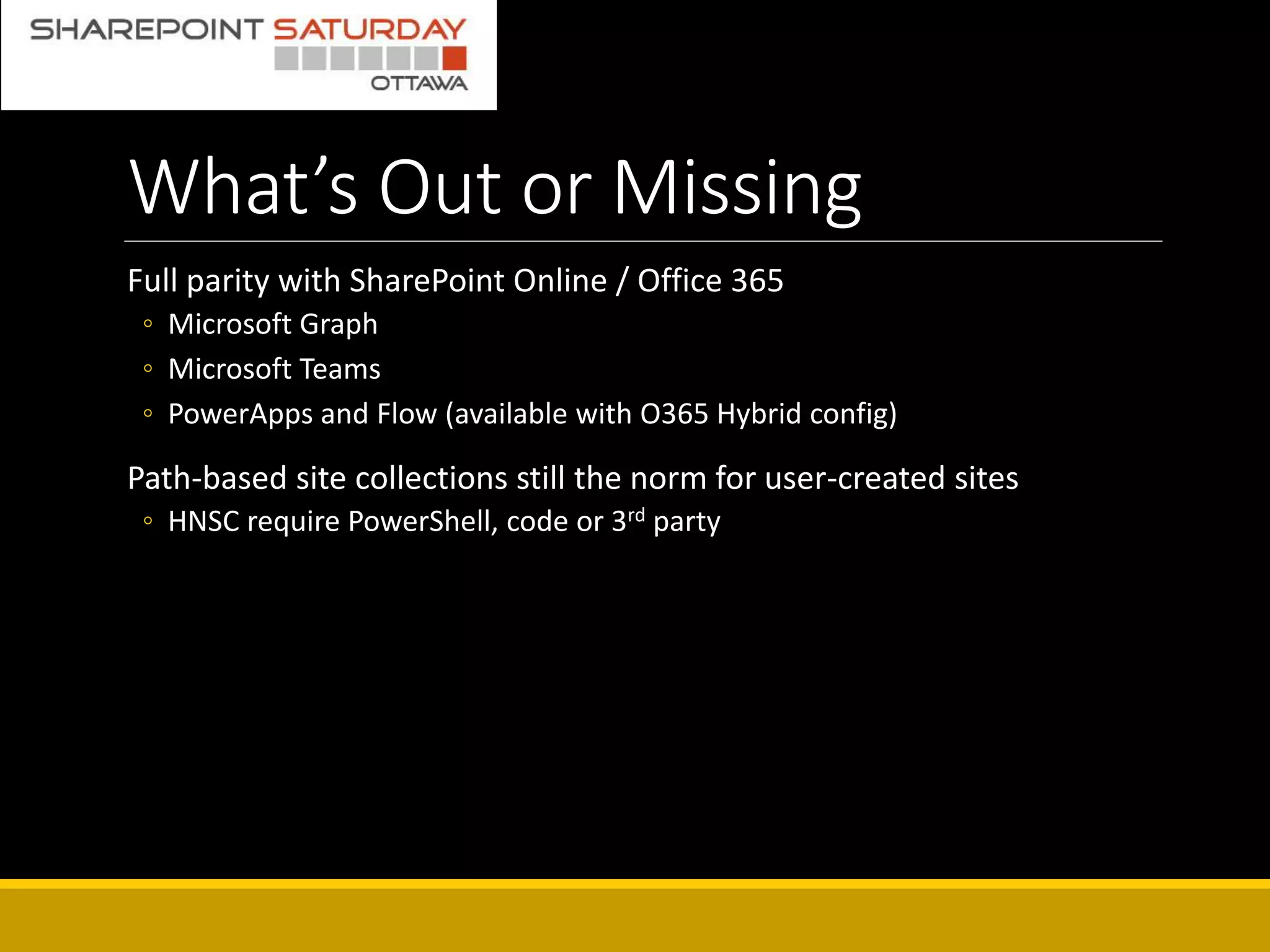

15. What’s Out or Missing
Full parity with SharePoint Online / Office 365
◦ Microsoft Graph
◦ Microsoft Teams
◦ PowerApps and Flow (available with O365 Hybrid config)
Path-based site collections still the norm for user-created sites
◦ HNSC require PowerShell, code or 3rd party

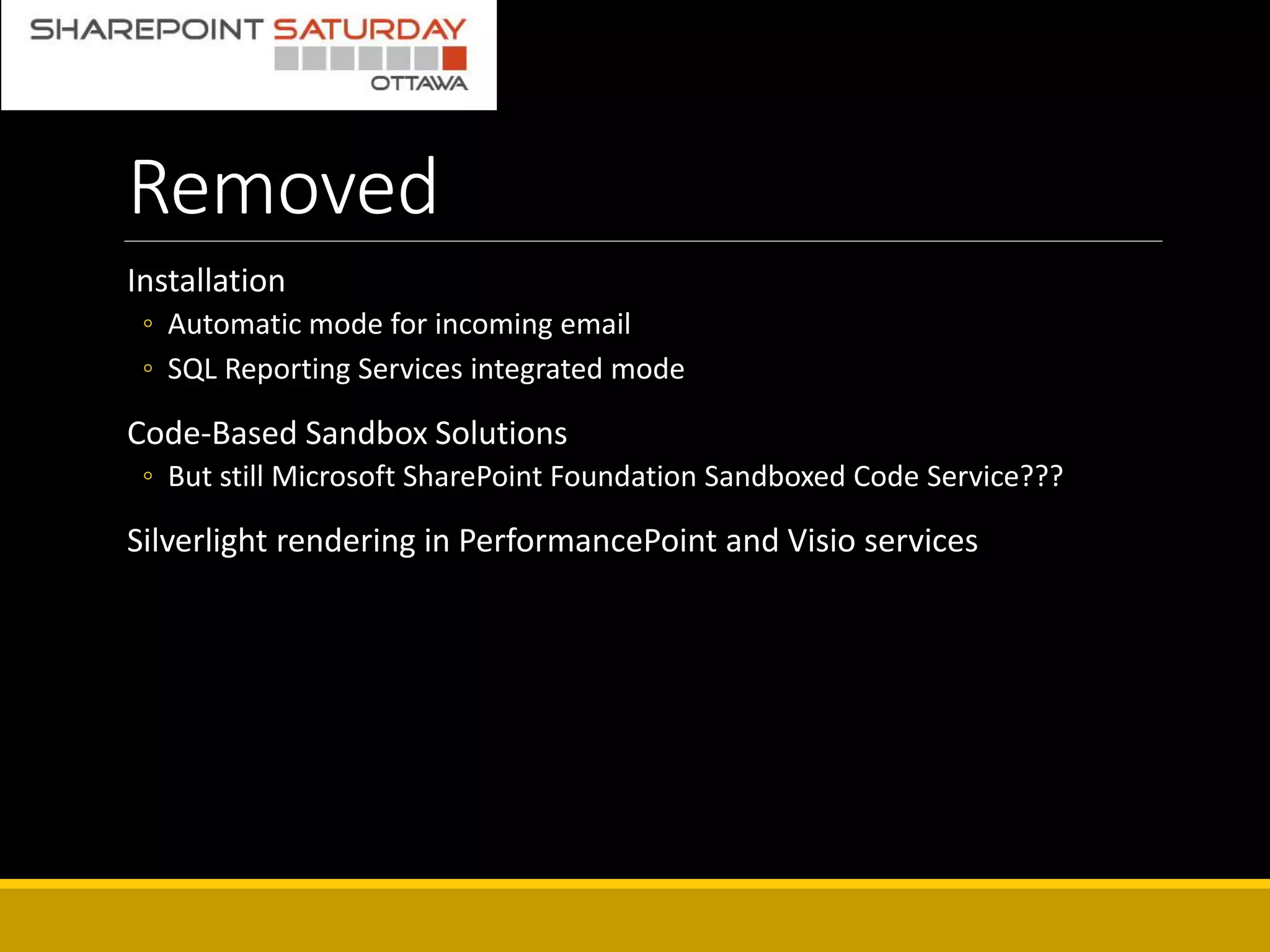

16. Removed
Installation
◦ Automatic mode for incoming email
◦ SQL Reporting Services integrated mode
Code-Based Sandbox Solutions
◦ But still Microsoft SharePoint Foundation Sandboxed Code Service???
Silverlight rendering in PerformancePoint and Visio services

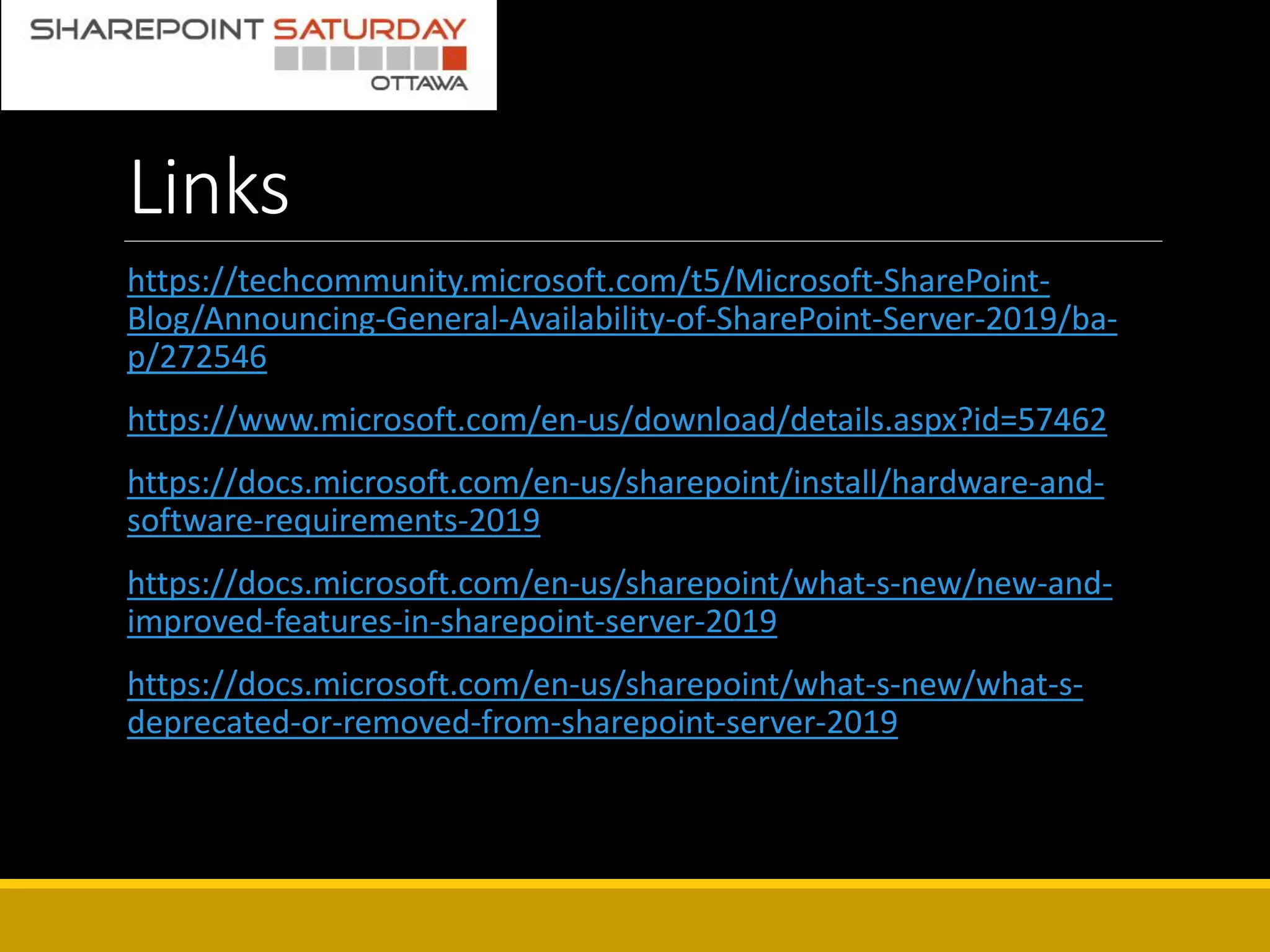

17. Links
https://techcommunity.microsoft.com/t5/Microsoft-SharePoint-
Blog/Announcing-General-Availability-of-SharePoint-Server-2019/ba-
p/272546
https://www.microsoft.com/en-us/download/details.aspx?id=57462
https://docs.microsoft.com/en-us/sharepoint/install/hardware-and-
software-requirements-2019
https://docs.microsoft.com/en-us/sharepoint/what-s-new/new-and-
improved-features-in-sharepoint-server-2019
https://docs.microsoft.com/en-us/sharepoint/what-s-new/what-s-
deprecated-or-removed-from-sharepoint-server-2019

18. Contact Me
John Calvert, Chief Architect
Software Craft, Inc.
John (a) softwarecraft dot ca
softwarecraft dot ca
(a) softwarecraft99
