- POSTECH EECE695J, "딥러닝 기초 및 철강공정에의 활용", 2017-11-10 - Contents: introduction to reccurent neural networks, LSTM, variants of RNN, implementation of RNN, case studies - Video: https://youtu.be/pgqiEPb4pV8

1. Recurrent Neural Networks
Sang Jun Lee
Ph.D. candidate, POSTECH
Email: lsj4u0208@postech.ac.kr
EECE695J 전자전기공학특론J(딥러닝기초및철강공정에의활용) – LECTURE 7 (2017. 11. 10)

2. 2

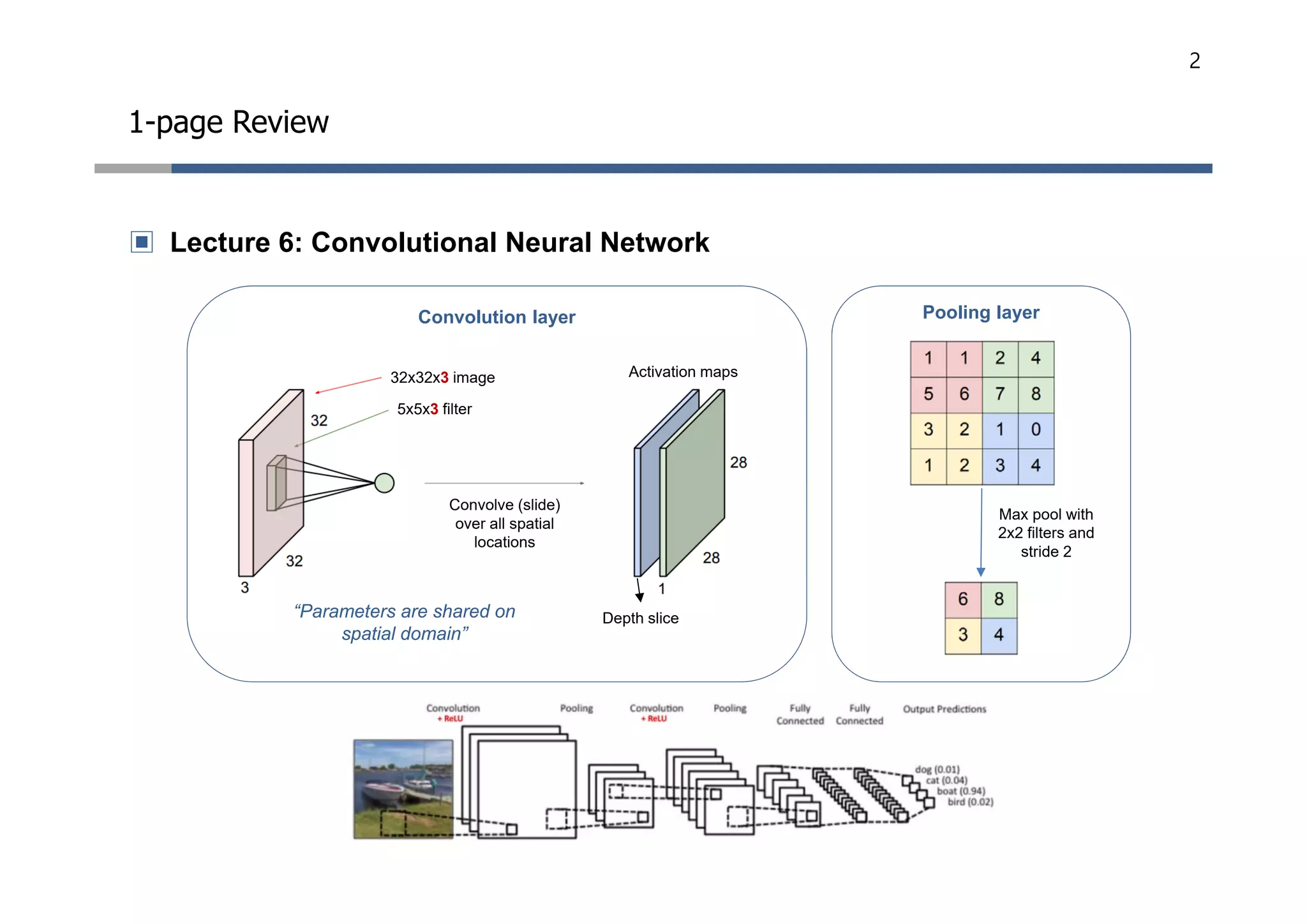

▣ Lecture 6: Convolutional Neural Network
1-page Review
Convolution layer Pooling layer
32x32x3 image
5x5x3 filter
Convolve (slide)
over all spatial
locations
Activation maps
Depth slice
Max pool with
2x2 filters and
stride 2
“Parameters are shared on
spatial domain”

3. 3
Introduction to recurrent neural network
Vanilla neural network
h
𝑥
𝑦
𝑥𝑥
𝑥 : concatenated data of 𝑥 , 𝑥 , 𝑥 , ⋯
h
𝑥
y
𝑊
𝑊𝑊𝑊
𝑊 𝑊 ; 𝑊 ; 𝑊 ; ⋯
A naive idea for handling sequential data
 We usually want to predict a vector at a time step for a time domain data 𝑥

4. 4
Introduction to recurrent neural network
ℎ
𝑥
𝑦
𝑥𝑥
ℎℎ
𝑊𝑊𝑊
𝑊𝑊𝑊
Recurrent neural network (RNN)
 Assume that
the relation between 𝑥 and 𝑥 is similar to the relation between 𝑥 and 𝑥
→ Parameter sharing for 𝑊
 Identical feature extraction from inputs
→ Parameter sharing for 𝑊

5. 5
Introduction to recurrent neural network
ℎ
𝑥
𝑦
𝑥𝑥
ℎℎ
𝑊𝑊𝑊
𝑊𝑊
Recurrent neural network (RNN)
 Multiple copies of a same network (same function and same paramters)
 ℎ : a hidden state that consists of a vector
ℎ 𝑓 ℎ , 𝑥
ℎ tanh 𝑊 ⋅ ℎ 𝑊 ⋅ 𝑥
𝑦 𝑊 ⋅ ℎ
ℎ
Usually set to 0
Fully-
connected
layer
RNN cell
Input layer
Output layer
(RNN feature)

6. 6
Introduction to recurrent neural network
Various architectures of RNN
 Flexibility for handling various types of data
Vanilla neural network

7. 7
Introduction to recurrent neural network
Various architectures of RNN
 Flexibility for handling various types of data
e.g. machine translation
(sequence of words
→ sequence of words)

8. 8
Introduction to recurrent neural network
Limitations of vanilla RNN
 Vanilla RNN works well for a small time step
 However, the sensitivity of the input values decays over time in a standard RNN
“the clouds are in the sky”
“I grew up in France
…
I speak fluent French.”

9. 9
LSTM (long short-term memory)
 A standard RNN contains a single layer in the repeating module

10. 10
LSTM (long short-term memory)
 A special kind of RNN for learning long-term dependencies
 Introduced by Hochreiter & Schmidhuber (1997)

11. 11
LSTM (long short-term memory)
The key idea of LSTMs : cell state
 The cell state is kind of like a conveyor belt

12. 12
LSTM (long short-term memory)
Forget gate
 LSTM have the ability to remove or add information to the cell state, carefully regulated by
structures call gates
 The decision what information we’re going to throw away from the cell state is made by a
sigmoid layer called forget gate layer

13. 13
LSTM (long short-term memory)
Input gate layer
 Decide what new information we’re going to store in the cell state
 First, input gate layer decide which values we’ll update
 Next, tanh layer creates a vector of new candidate values
 Finally, combine two to create an update to the state

14. 14
LSTM (long short-term memory)
Update
Output
Forget previous information
Add new information
Output is based on the cell state

15. 15
LSTM (long short-term memory)

16. 16
Variants of RNN
Gated Recurrent Unit (GRU)
 Combine the forget and input gates into a single update gate
 Merge the cell state and hidden state

17. 17
Implementation of RNN
Manipulation of time series data
Split raw data into train, validation, and test dataset
def split_data(data, val_size=0.2, test_size=0.2):
ntest = int(round(len(data) * (1 ‐ test_size)))
nval = int(round(len(data.iloc[:ntest]) * (1 ‐ val_size)))
df_train, df_val, df_test = data.iloc[:nval], data.iloc[nval:ntest],
data.iloc[ntest:]
return df_train, df_val, df_test
train, val, test = split_data(raw_data, val_size=0.2, test_size=0.2)
Raw data
(100%)
Train
(80%)
Validation
(20%)
Test
(20%)

18. 18
Implementation of RNN
Manipulation of time series data
Generate sequence pair (x, y)
def rnn_data(data, time_steps, labels=False):
"""
creates new data frame based on previous observation
* example:
l = [1, 2, 3, 4, 5]
time_steps = 2
‐> labels == False [[1, 2], [2, 3], [3, 4]]
‐> labels == True [3, 4, 5]
"""
rnn_df = []
for i in range(len(data) ‐ time_steps):
if labels:
try:
rnn_df.append(data.iloc[i + time_steps].as_matrix())
except AttributeError:
rnn_df.append(data.iloc[i + time_steps])
else:
data_ = data.iloc[i: i + time_steps].as_matrix()
rnn_df.append(data_ if len(data_.shape) > 1 else [[i] for i in data_])
return np.array(rnn_df)

19. 19
Implementation of RNN
Manipulation of time series data
Generate sequence pair (x, y)
time_steps = 10
train_x = rnn_data(df_train, time_steps, labels=false)
train_y = rnn_data(df_train, time_steps, labels=true)
Training data [1:10000]
x #01
[1, 2, 3, …,10]
y #01
11
…
…
x #02
[2, 3, 4, …,11]
y #02
12
x #9990
[9990, 9991, 9992, …,9999]
y #9990
10000
train_x
train_y

20. 20
Implementation of RNN
Manipulation of time series data
Split each sample data
time_step = 10
x_split = tf.unpack(x_data, time_steps,1)
tf.unpack
1 2 3 10
𝑥 𝑥 𝑥 … 𝑥
…
x #01
[1, 2, 3, …,10]
Placeholder

21. 21
Implementation of RNN
Choose a RNN cell
Connect input and recurrent layer
rnn_cell = tf.nn.rnn_cell.BasicLSTMCell(num_units)
output, state = tf.nn.rnn(rnn_cell, x_split)
Import tensorflow as tf
num_units = 100
rnn_cell = tf.nn.rnn_cell.BasicRNNCell(num_units)
rnn_cell = tf.nn.rnn_cell.BasicLSTMCell(num_units)
rnn_cell = tf.nn.rnn_cell.GRUCell(num_units)

22. 22
Case study 1: MNIST classification
Hyper parameters for implementing a RNN
 Learning rate, training iteration, batch size, etc.
 Time step, the number of RNN neurons
Placeholder and variable tensor preparation
One-hot encoding 된 라벨
“Sequential processing of
non-sequence data”

23. 23
Case study 1: MNIST classification
RNN cell 구성
28x28 sample을 28개의 28-dimensional vector로 split
Vanilla RNN: rnn.rnn_cell.BasicRNNCell
Output layer 구성
RNN cell의 neuron 개수
각 category에 속할 추정 확률

24. 24
Case study 1: MNIST classification
Define loss and training operation
tf.Session()
Session을 열고 train_op run!

25. 25
Case study 2 (2017년도 하계 최대전력수요 예측, 대한전기학회)
 예측 전략
• 일별 최대전력 수요 예측을 통한 하계 최대전력수요 예측
 알고리즘 개요
• 특별시 및 광역시의 평균 온도를 전력수요 비율로 weighted sum하여 일별 우리나라의 대표 기온 데이터 구성
• 과거 전력/기온데이터를 활용한 RNN/CNN 복합모델 기반의 일별 최대전력수요/기온 예측
• 전력수요 데이터의 특징인 요일과 계절에 따른 주기성을 반영하기 위한 딥러닝 알고리즘 개발

26. 26
Case study 2 (2017년도 하계 최대전력수요 예측, 대한전기학회)
 RNN 구조의 학습을 위한 학습 데이터 구성
• 과거 28일간의 전력/온도데이터를 이용하여 향후 28일간의 전력/온도 예측
 Vanilla RNN model
Electricity (E)
Temperature (T)
Training data Test data
A training sample A label data
Time step Output dimension
Fully-connected layer
RNN cell
Input layer
𝑊
𝑊
𝑊
𝑊
𝐸
𝑇
𝑡𝑡 1
Output layer (→ RNN feature)

27. 27
Case study 2 (2017년도 하계 최대전력수요 예측, 대한전기학회)
 Seasonal data
• 계절성을 학습에 반영하기 위한 데이터 구성
 계절성을 반영하기 위한 CNN model
Electricity (E)
Temperature (T)
1st sample of the training data
Time step (𝑡𝑠) Output dimension
𝑡𝑡 𝑇
𝑡 2𝑇
𝑡 3𝑇
𝑘 x 𝑡𝑠
𝑋
𝑋
𝑋
𝑋
𝑋
𝑋
2𝑘 x 𝑡𝑠
Convolution layer
(2 x 𝑡𝑠 x 1 x 𝐶𝑁𝑁 𝑑𝑒𝑝𝑡ℎ)
𝑘 x 𝐶𝑁𝑁 𝑑𝑒𝑝𝑡ℎ
Fully-connected layer
CNN feature

28. 28
Case study 2 (2017년도 하계 최대전력수요 예측, 대한전기학회)
 RNN과 CNN의 복합 모델
 Training
• Total loss Loss Loss
• Backpropagation via Adam optimizer
CNN feature
(50)
RNN feature
(200)
Fully-connectedlayer
(100)
Outputlayer
Predicted electricity
Outputlayer
Predicted temperature
𝐿𝑜𝑠𝑠
𝐿𝑜𝑠𝑠
RNN cell
(200
Convolutionlayer
(2x28x1x200)
Convolutionlayer
(5x1x200x50)
(100)
Electricity &
Temperature
Seasonal data

29. 29
Case study 2 (2017년도 하계 최대전력수요 예측, 대한전기학회)
 2017년 하계 최대 전력 수요 예측 결과: 86,477MW
(2017년도 하계 최대 전력 수요: 86,298MW, 오차: 0.21%)
 Back testing
• 2016.5.31 이전 데이터로 학습하여 2016.6.1 이후 데이터에 대하여 테스트
• Averaged error rate : 2.37%/2.81% (28-day/56-day prediction)

30. Introduction to recurrent neural network
- Properties of RNN: parameter sharing
- Various architectures
- Limitation
LSTM (long short-term memory)
- Components of LSTM
- Forget gate, input gate, update, output
Implementation of RNN
Case studies
- MNIST classification
- 2017 하계 최대전력수요 예측
30
Summary
