The document discusses the implementation of WebRTC technology in telecommunications to enhance service offerings by providing browser-based voice, video, and messaging capabilities. It outlines the architecture of a WebRTC-telco gateway that links web applications with telecom networks, highlighting its scalability and integration with existing systems. Additionally, it emphasizes the potential for telcos to leverage WebRTC for innovative services while detailing the development background and expertise of the team behind the initiative.

1. WebRTC for Telcos
Berlin 28/10/2013, Rich Communications
conference. WebRTC Workshop

2. The
Goal
q Helping telcos to add value to their current
services.
q Making fix & mobile voice available using a
web-browser ubiquitously
q Engage the customers & reduced the churn

3. What
is
WebRTC
WebRTC (Web Real-Time Communication) is an
API definition being drafted by the World Wide
Web Consortium (W3C) to enable browser-tobrowser applications for voice calling, video
chat, and P2P file sharing without plugins.

4. Only
browser
to
browser
?
NO!
It could be implemented a WebRTC – Telco
Gateway to as a bridge between Web and fix/
mobile operator networks allowing service
providers to extend their communication services
to the Internet. It means creating web-based
telco end-points.

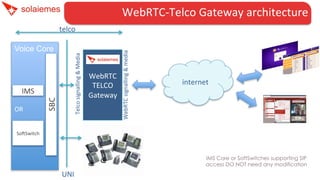

5. WebRTC-­‐Telco
Gateway
architecture
internet
WebRTC
signalling
&
media
WebRTC
TELCO
Gateway
IMS
OR
SBC
Voice Core
Telco
signalling
&
Media
telco
So?Switch
IMS Core or SoftSwitches supporting SIP
access DO NOT need any modification
UNI

6. Feasible
as
Cloud
based
architecture
The WebRTC-Telco GW
can be deployed
outside the telco
premise, in a public or
private cloud as the
access to the network
core is UNI based

7. The
plaHorm.
WebRTC-­‐Telco
GW
q
Hardware. Intel based server architecture running Linux (Dell, HP, IBM), no special
HW needed, also deployable in public clouds as AWS and virtualized environment
for cloud computing as Cisco UCS.
q
Scalable to the number of concurrent calls and users online needed .
q
A single platform could serve different cores, multi-tenancy available.
q
A single platform could serve different UX for different customers profiles.
q
It could be combined with RCS Thin Client Server to provide an all-in-one Unified
Communications experience: voice, video and enriched messaging.
q
Supporting current WebRTC capable Web-Browsers: Google Chrome & Mozilla
Firefox for Windows, Mac & Linux and Chrome for Android.

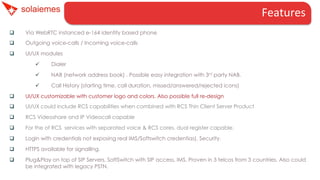

8. Features
q
Via WebRTC instanced e-164 identity based phone
q
Outgoing voice-calls / Incoming voice-calls
q
UI/UX modules
ü
Dialer
ü
NAB (network address book) . Possible easy integration with 3rd party NAB.
ü
Call History (starting time, call duration, missed/answered/rejected icons)
q
UI/UX customizable with customer logo and colors. Also possible full re-design
q
UI/UX could include RCS capabilities when combined with RCS Thin Client Server Product
q
RCS Videoshare and IP Videocall capable
q
For the of RCS services with separated voice & RCS cores, dual register capable.
q
Login with credentials not exposing real IMS/Softswitch credentias). Security.
q
HTTPS available for signalling.
q
Plug&Play on top of SIP Servers, SoftSwitch with SIP access, IMS. Proven in 3 telcos from 3 countries. Also could
be integrated with legacy PSTN.

9. SDK
and
embeddable
modules
q The javascropt SDK allows to use Voice/Videocapabilities in your
website freely.
q Embeddable modules make even easier to add WebRTC to third
party websites or applications. Just embedding the pre-designed
modules with CSS3 configuration to adapt to whatever UX preexisting style. Modules include now:
•
Simple dialer
•
NAB
•
Call register
•
…more coming soon…

10. WebPhone.
IniMal
User
Inteface.
Videodemo: https://www.youtube.com/watch?v=q0vClE774aE
UI/UX as it is web
based could be fully
redesigned easily

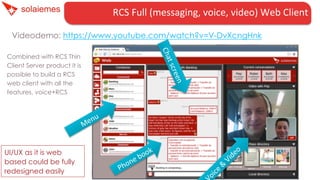

11. RCS
Full
(messaging,
voice,
video)
Web
Client
Videodemo: https://www.youtube.com/watch?v=V-DvXcngHnk
Combined with RCS Thin
Client Server product it is
possible to build a RCS
web client with all the
features, voice+RCS
UI/UX as it is web
based could be fully
redesigned easily

12. RCS
vs
WebRTC
WebRTC is not a rival service of RCS nor
telco communications, instead it is a great
tool for telcos to extend their end-point
portfolio, and leverage a more ubiquitous
reach of their enablers.

13. WebRTC-­‐Telco
GW
internal
architecture
The platform includes the
web-server to serve the
“WebPhone” but it could
be served from other
server as in the case of
future WebRTC cases
using the SDK.

14. Call-­‐Flows
Example: WebRTC originating voice call

15. The
next?

16. Key
Facts
SDK

17. Telco
services
deployed
in
days
Javascript SDK as
tool to create
easily telco
services as:
•
•
•
prepaid call-me
services.
creating casual
access to telco
comms
interworking with
OTTs, etc

18. The
business?
A market of WebRTC services based
on telco capabilities, causal services
to engage the users and extending
the reach of telco driven comms.
Self-service web based market of
premium services based on WebRTC

19. more
about
Solaiemes

20. Key
Facts
•
Started activities in 2007 trying to open Push to Talk and IMS VideoShare as
REST API. Pivoted to RCS API exposure in 2010, 1st to market solution and
editors of the GSMA spec on RCS API.
•
Awarded in 2011 as pioneers in the area: GSMA RCS Innovation Winner.
•
Staff: 15. Growth planned. HQ in Madrid (Spain).
•
Currently with RCS GW in 3 tier-1 telco groups and several opportunities
opened in 3 continents.
•
GSMA network RCS API provider for Joyn Innovation Accelerator.
•
web client accreditation submitted (API based web client).
•
Pioneering the WebRTC for Telcos vision.

21. Team
Juan developed his career in several companies as Motorola (Networks and Mobile Devices divisions), DMR
Consulting (now Everis), ICEX (Spanish Foreign Trade Office) and Colortex.
Juan holds an MSc degrees in Telecom Engineering from Polytechnics University of Valencia (Spain), an MSc in
Economics from UNED (Spain) and a Diploma in Politics from the University of London (Lead College, LSE).
http://www.linkedin.com/in/juanmateu
Jose has developed his career in Motorola and Ceselsa-Indra
Mr. Recio holds an MSc in Telecom Engineering from Universidad Politécnica de Madrid and an MSc (Distinction) in
Information Security from Royal Holloway College, University of London.
http://www.linkedin.com/in/chema
Luis had previous roles at Motorola and Alcatel. developing Switching, GSM coverage planning and IMS software.
Also worked at Textil Bondrap.
Mr. Valencia holds an MSc degree in Telecommunications Engineering from the Polytechnics University of Valencia
(Spain).
http://www.linkedin.com/in/luisvalencia
David developed his career in Motorola, Altran SDB and Consum SCV.
David holds an MSc degree in Telecom Engineering from Polytechnics University of Valencia (Spain) and an
executive MBA from EOI Business School (Spain).
http://www.linkedin.com/in/davidculebras

22. Why
us?
ü Solaiemes is solving a real problem telcos have. To find a
new role and make their assets a platform in the way that
developers can use them, as API.
ü Solaiemes is recognized by pioneering this field in the next
telco messaging, RCS joyn and the WebRTC for telcos
vision.
ü Solaiemes team is experienced, visionary, with international
experience in several continents and able to do more with
less and execute.

23. www.solaiemes.com
Addtional info at:
http://joyn.solaiemes.com
http://blog.solaiemes.com
http://www.youtube.com/solaiemes
