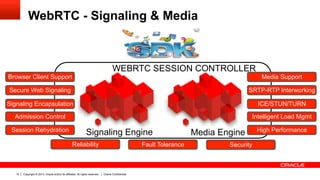

WebRTC - Signaling & Media
Signaling Engine Media Engine
WEBRTC SESSION CONTROLLER
Browser Client Support
Secure Web Signaling
Signaling Encapsulation
Admission Control
Session Rehydration
Reliability Fault Tolerance Security
Media Support
SRTP-RTP Interworking
ICE/STUN/TURN
Intelligent Load Mgmt
High Performance

11. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Oracle Confidential11
Signaling & Media Integration
WSC-SE
WSC-ME
JSON-RTC
(Web Socket)
SIP
ICE / SRTP
HTTP/SOAP
Media Ctrl
& SDP
RTP
WEB:JEE + SIP Servlets
Session Border Control

12. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Oracle Confidential12
WSC-SE: JSON to SIP
Network Initiated vs Application Initiated

13. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Oracle Confidential13
WSC-SE: JSON to SIP
Detailed call flow
BROWSER WSC Orig&Terminating
S-CSCF&AS&MRF
USER-A
01: JSON START/Request 02: SIP INVITE
05: SIP 100 TRYING
JSON START/Initial Response
Optional Response
12: JSON START/Initial Response
ICE Negotiation
Early Media via SRTP
22: SIP 200 OK23: SIP 200 OK25: JSON START/Final Response
26: JSON complete 28: SIP ACK 29: ACK
Media Transfer over SRTP (BROWSER-WSC) Bidirectional RTP Media (WSC-GW) Bidrectional RTP Media (intrra-IMS)
Early Media RTP (WSC-GW)
09: SIP 180 RINGING10: SIP 180 RINGING
13: SIP PRACK 15: SIP PRACK
18: SIP 200 OK20: SIP 200 OK
VF SBC
P-CSCF
04: SIP INVITE
03: SIP 100 TRYING
11 SIP 180 RINGING
14: SIP PRACK
19: SIP 200 OK
24: SIP 200 OK
27: SIP ACK
31: JSON SHUTDOWN 32 SIP BYE 33: SIP BYE 34: SIP BYE
Closing Audio Channel (WSC-GW)
Closing Audio Channel
37: SIP 200 OK38: SIP 200 OK39: SIP 200 OK40: JSON SHUTDOWN
Go to Application URL
HTML 5 App VF SBC
P-CSCF
21: SIP 200 OK
30: ACK
Bidirectional Media (IMS- UE A)
08: SIP 180 RINGING
16: SIP PRACK
17: SIP 200 OK
35: SIP BYE
36: SIP 200 OK
Closing Audio Channel (Intra-IMS) Closing Audio Channel (IMS-UE A)
Early Media RTP from MRF (WSC-GW)
06: SIP INVITE 07: SIP INVITE
SIP 100 TRYING
SIP 100 TRYING

14. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Oracle Confidential14
WSC-SE: Anatomy of a JSON RTC message
{
"control": {
"type":"response"
"sequence":"2",
"correlation_id":"c2"
"subsession_id":"c2“
"package_type":"call"
},
"header": {
"action":"start"
},
"payload": {
"<answer_sdp>"
}
}
Request (expect a “response”)
Response (response to a request send/received)
Message (asynch messagne. No need of answer)
Ack
Error (an error in any message)
A subsession represent a real time communication.
Example, one call is in one subsession. It has a
unique ID within a session
Package is “type” of subsession.
Call subsessions are of package “call”
Presence subsessions are of package “presence”.
Each JsonRTC message performs an action.
“action” is a general header.
Action explains what the message does. Example:
- "action":"shutdown“
- "action":"connect",
"initator":"bob@example.com",
CONTROL HEADER
OTHER HEADER
PAYLOAD

15. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Oracle Confidential15
OCSG API Management
§ Service Exposure
– Simplified access to telecom service infrastructure
implemented on standard WebLogic Server platfrom
§ Policy Control
– Enforce service level agreements against traffic flow with
the network in a controlled and determined manner
§ Security
– Ensure trusted access of applications to network
resources using well defined authorization and
authentication models, encryption and API protection
§ Partner Management
– Automatically on board service and content partners
providing intranet and extranet portals to service delivery
§ Service Creation
– Easily develop new applications and extend the Oracle
Communications Services Gatekeeper platform with
new value added service features
Service access to secure and protected REST & SOAP based services
Oracle Communications Services Gatekeeper
Developers
B2B
Partners
Enterprises
3rd
Party
Developers
RESTful/SOAP Interfaces
Network Interfaces
Operator Services 3rd Party Services
Access Control &
Policy Management
API
&
Partner
Management
Analy;cs
Reports

16. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Oracle Confidential16
Comprehensive Platform Test Environment
Simulates Application and Network Interfaces
• Simulates Application interfaces
• SOAP & REST support
• SLA support
• Management GUI to OCSG
• Simulates Network interfaces
• Logs events

18. Core
Network
3rd
Party
Applica;on
Call
Control
SMS
IPTV
Service
Exposure
Layer
1
2
3
1
2
3

20. Service
Exposure
Layer
Call
Control
SMS
IPTV
5
teams
1
STB
+
3
SIMs

21. Service
Exposure
Layer
SMS
POST
rest/sms/sendMessage
{
"sender": "36301234567",
"addresses": [ "36302345678" ],
"message": "Hello!"
}
1
3
Hello!
{ "result": "OK" }
2

22. Service
Exposure
Layer
SMS
POST
rest/sms/startNo;fica;on
{
"serviceNumber": "36301234567",
"callback": "http://example.com/callback"
}
1
2
{
"result":"OK",
"sessionId": "d6f666f6"
}
36301234567

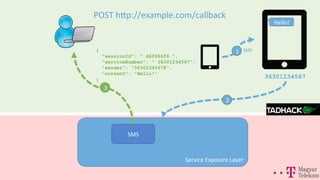

23. Service
Exposure
Layer
SMS
POST
hQp://example.com/callback
{
"sessionId": " d6f666f6 ",
"serviceNumber": " 36301234567",
"sender": "36302345678",
"content": "Hello!"
}
2
Hello!
36301234567
1
3
SMS

24. Service
Exposure
Layer
SMS
POST
rest/sms/stopNo;fica;on
{ "sessionId": "d6f666f6" }
1
2 { "result": "OK" }
36301234567

25. Service
Exposure
Layer
Call
Control
POST
rest/call/makeCall
{
"calledParty": "36301234567",
"callingParty": "36302345678",
}
1
3
{ result : "OK"}
2
4
5
call
connect
call

26. Service
Exposure
Layer
SMS
POST
rest/call/startNo;fica;on
{
"address": "36301234567",
"callback": "http://example.com/callback"
}
1
2
{
"result":"OK",
"sessionId"="d6f666f6"
}
36301234567

27. Service
Exposure
Layer
Call
Control
POST
hQp://example.com/callback
{
"event": "NoAnswer”,
"calledParty": "36301234567",
"callingParty": "36302345678",
"sessionId": " d6f666f6"
}
4
1 call
no
answer
36301234567
2
no
answer
3

28. Service
Exposure
Layer
SMS
POST
rest/call/stopNo;fica;on
{ "sessionId": "d6f666f6" } 1
2 { "result": "OK" }
36301234567

29. Service
Exposure
Layer
SMS
POST
rest/iptv/startNo;fica;on
1
2
{
"result":"OK",
"sessionId"="d6f666f6"
}
{
"device": "123456",
"callback": "http://example.com/callback"
}
123456

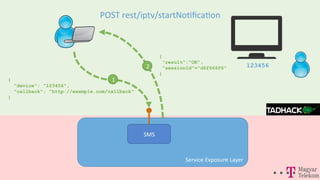

30. Service
Exposure
Layer
IPTV
POST
rest/iptv/sendMessage
1
3
{ "result": "OK"}
2
~~~~
~~~
~~~
~~~~
~
~
~
popup
{
"device": "123456",
"template": "popup_with_2_options",
"params": [
{"name": "message", "value": "Missed call from Alan"},
{"name": "option1", "value": "Call back"},
{"name": "option2", "value": "Ok"}
],
"correlator": "8f5dec0a"
}
123456

31. Service
Exposure
Layer
IPTV
POST
hQp://example.com/callback
1
2
~~~~
~~~
~~~
~~~~
~
~
~
Call
back
{
"device": "123456",
"sessionId": "d6f666f6",
"correlator": "8f5dec0a",
"event": "Call back”,
}
123456

32. Service
Exposure
Layer
SMS
POST
rest/iptv/stopNo;fica;on
1
2 { "result":"OK" }
{ "sessionId": "d6f666f6" }
123456

33. .com
testbed.

34. • Optare
Solu,ons
was
