WebRTC for Beginners Webinar Slides
- 1. WebRTC For Beginners Andrew Prokop Director of Vertical Industries

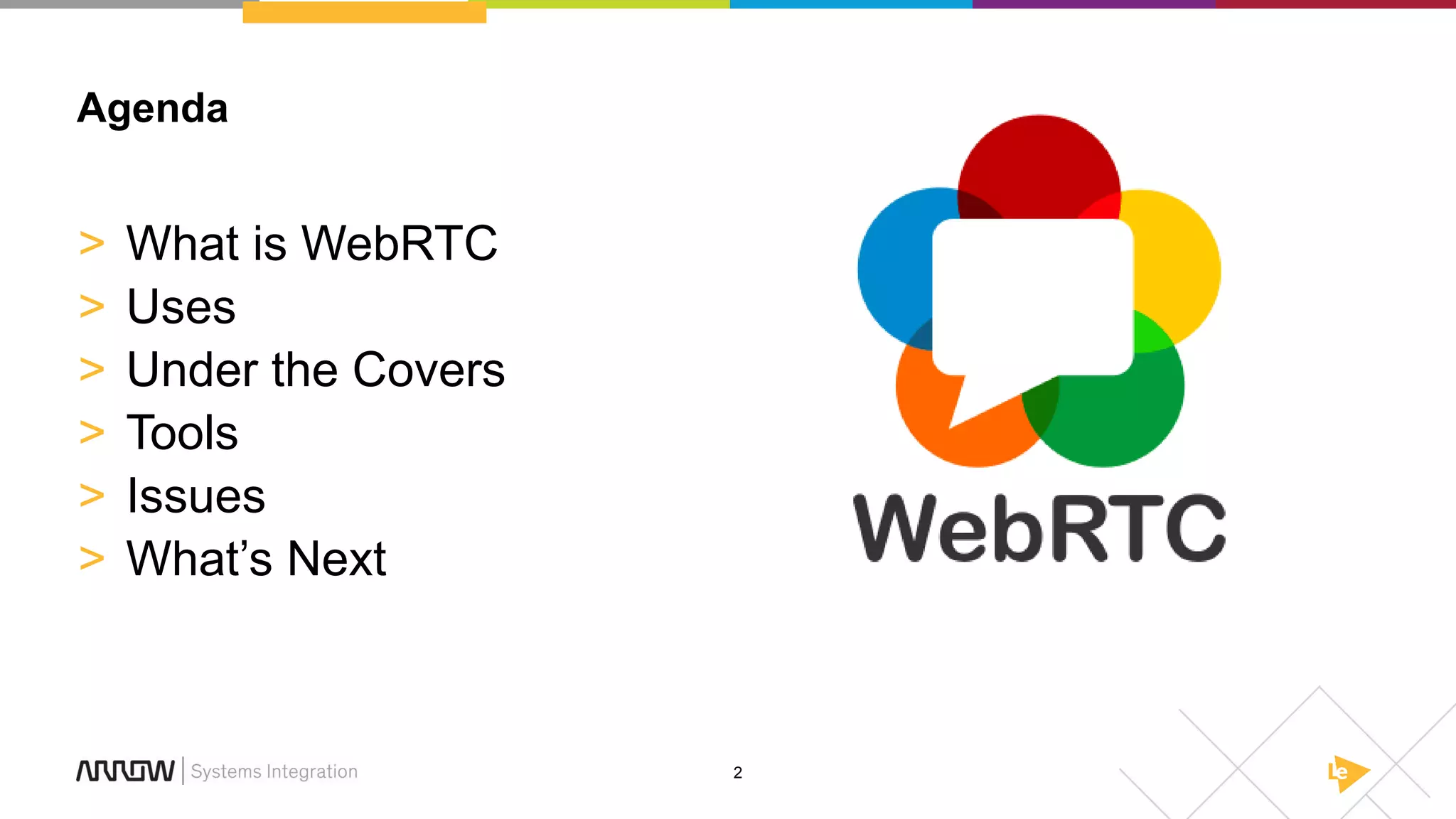

- 2. 2 Agenda > What is WebRTC > Uses > Under the Covers > Tools > Issues > What’s Next
- 3. 3 What is WebRTC > Web Real-Time Communications > Plug-In Free > Application Free > Browser to Browser Media – Voice – Video – Data > A standard from W3C and IETF

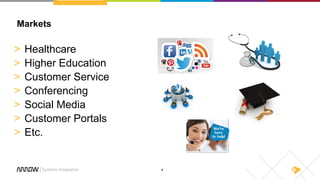

- 4. 4 Markets > Healthcare > Higher Education > Customer Service > Conferencing > Social Media > Customer Portals > Etc.

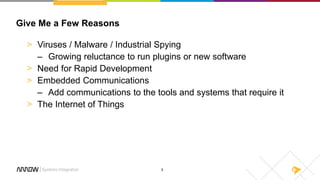

- 5. 5 Give Me a Few Reasons > Viruses / Malware / Industrial Spying – Growing reluctance to run plugins or new software > Need for Rapid Development > Embedded Communications – Add communications to the tools and systems that require it > The Internet of Things

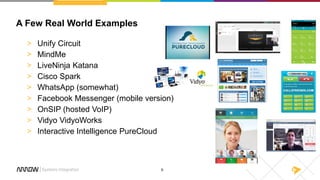

- 6. 6 A Few Real World Examples > Unify Circuit > MindMe > LiveNinja Katana > Cisco Spark > WhatsApp (somewhat) > Facebook Messenger (mobile version) > OnSIP (hosted VoIP) > Vidyo VidyoWorks > Interactive Intelligence PureCloud

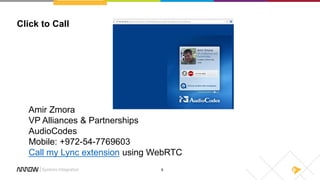

- 8. 8 Click to Call Amir Zmora VP Alliances & Partnerships AudioCodes Mobile: +972-54-7769603 Call my Lync extension using WebRTC

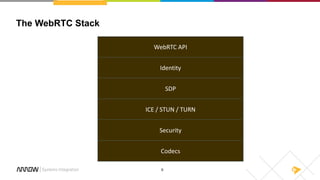

- 9. 9 The WebRTC Stack WebRTC API Identity SDP ICE / STUN / TURN Security Codecs

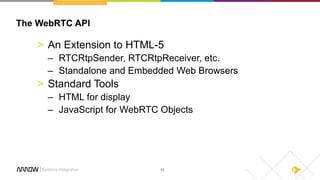

- 11. 11 The WebRTC API > An Extension to HTML-5 – RTCRtpSender, RTCRtpReceiver, etc. – Standalone and Embedded Web Browsers > Standard Tools – HTML for display – JavaScript for WebRTC Objects
- 12. 12 <!DOCTYPE html> <html> <head> <title>My WebRTC application</title> <style type="text/css"> div#lVideo { width: 45%; height: 200px; background: black; float: left; } </style> <script type="text/javascript"src="myrtclib.js"></script> <script type="text/javascript"src="myrtcadapter.js"></script> </head> <body onLoad="onPageLoad();"> HTML

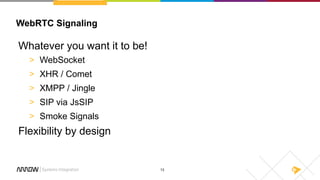

- 13. 13 WebRTC Signaling Whatever you want it to be! > WebSocket > XHR / Comet > XMPP / Jingle > SIP via JsSIP > Smoke Signals Flexibility by design

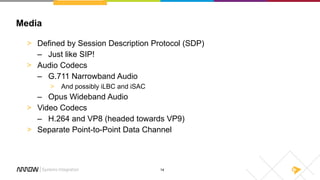

- 14. 14 Media > Defined by Session Description Protocol (SDP) – Just like SIP! > Audio Codecs – G.711 Narrowband Audio > And possibly iLBC and iSAC – Opus Wideband Audio > Video Codecs – H.264 and VP8 (headed towards VP9) > Separate Point-to-Point Data Channel

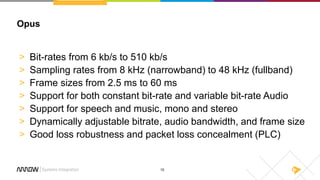

- 15. 15 Opus > Bit-rates from 6 kb/s to 510 kb/s > Sampling rates from 8 kHz (narrowband) to 48 kHz (fullband) > Frame sizes from 2.5 ms to 60 ms > Support for both constant bit-rate and variable bit-rate Audio > Support for speech and music, mono and stereo > Dynamically adjustable bitrate, audio bandwidth, and frame size > Good loss robustness and packet loss concealment (PLC)
- 16. Ah, but what about firewalls and private IP addresses?
- 17. 17 STUN

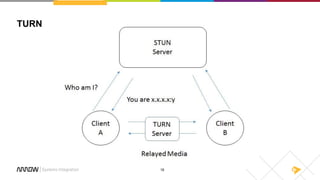

- 18. 18 TURN

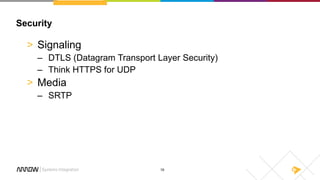

- 19. 19 Security > Signaling – DTLS (Datagram Transport Layer Security) – Think HTTPS for UDP > Media – SRTP

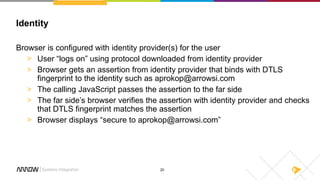

- 20. 20 Identity Browser is configured with identity provider(s) for the user > User “logs on” using protocol downloaded from identity provider > Browser gets an assertion from identity provider that binds with DTLS fingerprint to the identity such as aprokop@arrowsi.com > The calling JavaScript passes the assertion to the far side > The far side’s browser verifies the assertion with identity provider and checks that DTLS fingerprint matches the assertion > Browser displays “secure to aprokop@arrowsi.com”

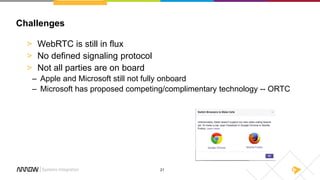

- 21. 21 Challenges > WebRTC is still in flux > No defined signaling protocol > Not all parties are on board – Apple and Microsoft still not fully onboard – Microsoft has proposed competing/complimentary technology -- ORTC

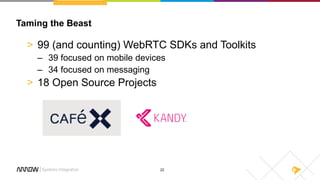

- 22. 22 Taming the Beast > 99 (and counting) WebRTC SDKs and Toolkits – 39 focused on mobile devices – 34 focused on messaging > 18 Open Source Projects

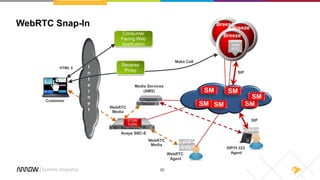

- 23. 23 I n t e r n e t HTML 5 Consumer Facing Web Application Make Call SM SMSM SM SM SM Breeze Breeze Breeze Web RTC Media Services (AMS) SIP/H.323 Agent STUN/ TURN Avaya SBC-E WebRTC Agent WebRTC Media Reverse Proxy SIP SIP WebRTC Snap-In STUN/ TURN Avaya SBC-E Customer WebRTC Media

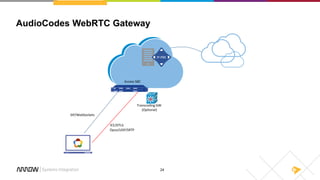

- 24. 24 AudioCodes WebRTC Gateway Access SBC Transcoding GW (Optional) SIP/WebSockets ICE/DTLS Opus/UDP/SRTP
- 25. 25 What’s Next > Specification will solidify > Multiparty media > Widespread IoT adoption > Middleware (e.g. media stream recording) > Better statistics and reporting > ORTC and WebRTC will merge > Apple will finally make up its mind
- 26. Questions
