1. MongoDB in FS
Position & Trade Management
27th November 2012
Daniel Roberts

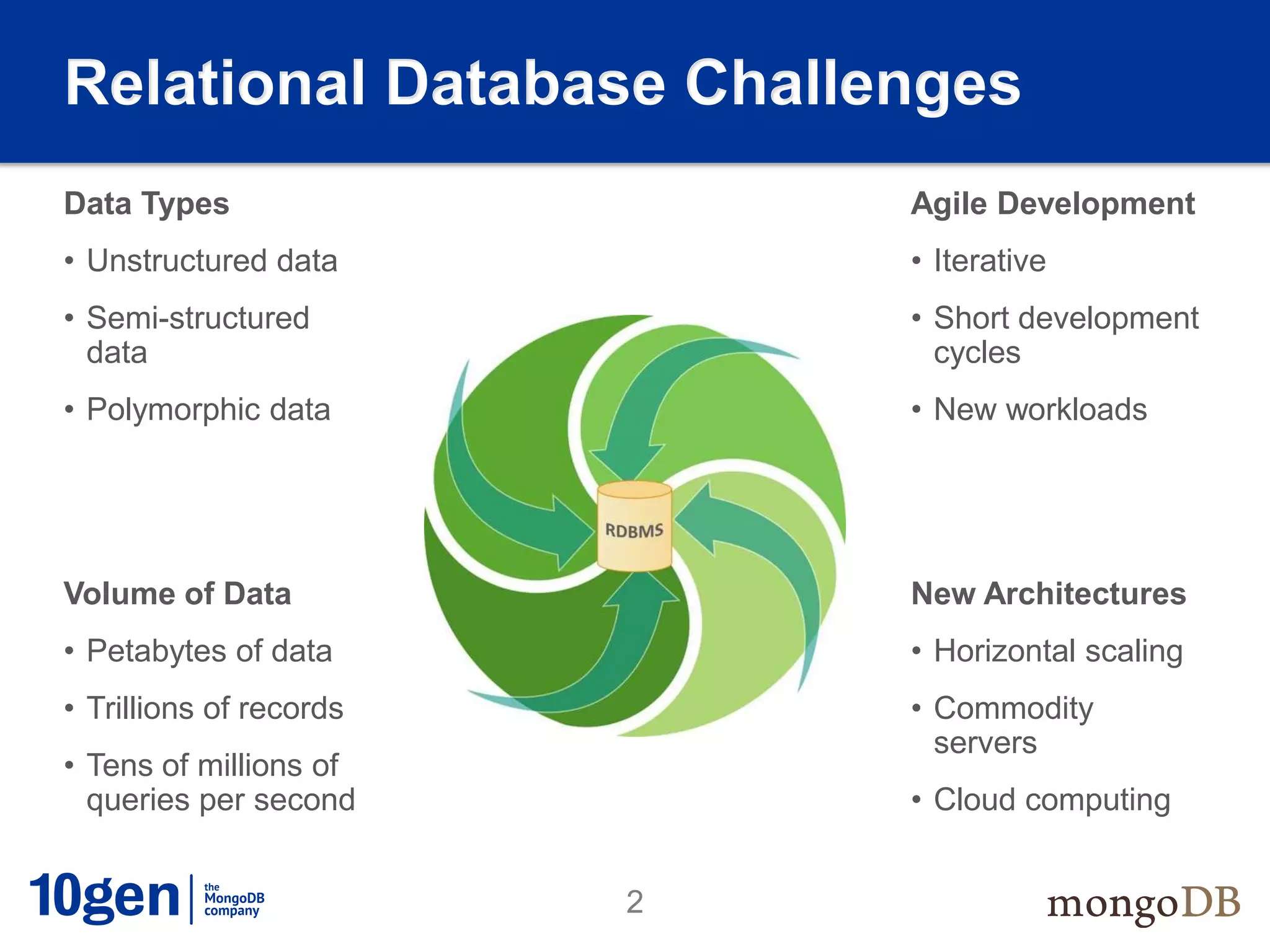

2. Relational Database Challenges
Data Types Agile Development
• Unstructured data • Iterative
• Semi-structured • Short development
data cycles
• Polymorphic data • New workloads
Volume of Data New Architectures
• Petabytes of data • Horizontal scaling
• Trillions of records • Commodity
servers
• Tens of millions of
queries per second • Cloud computing
2

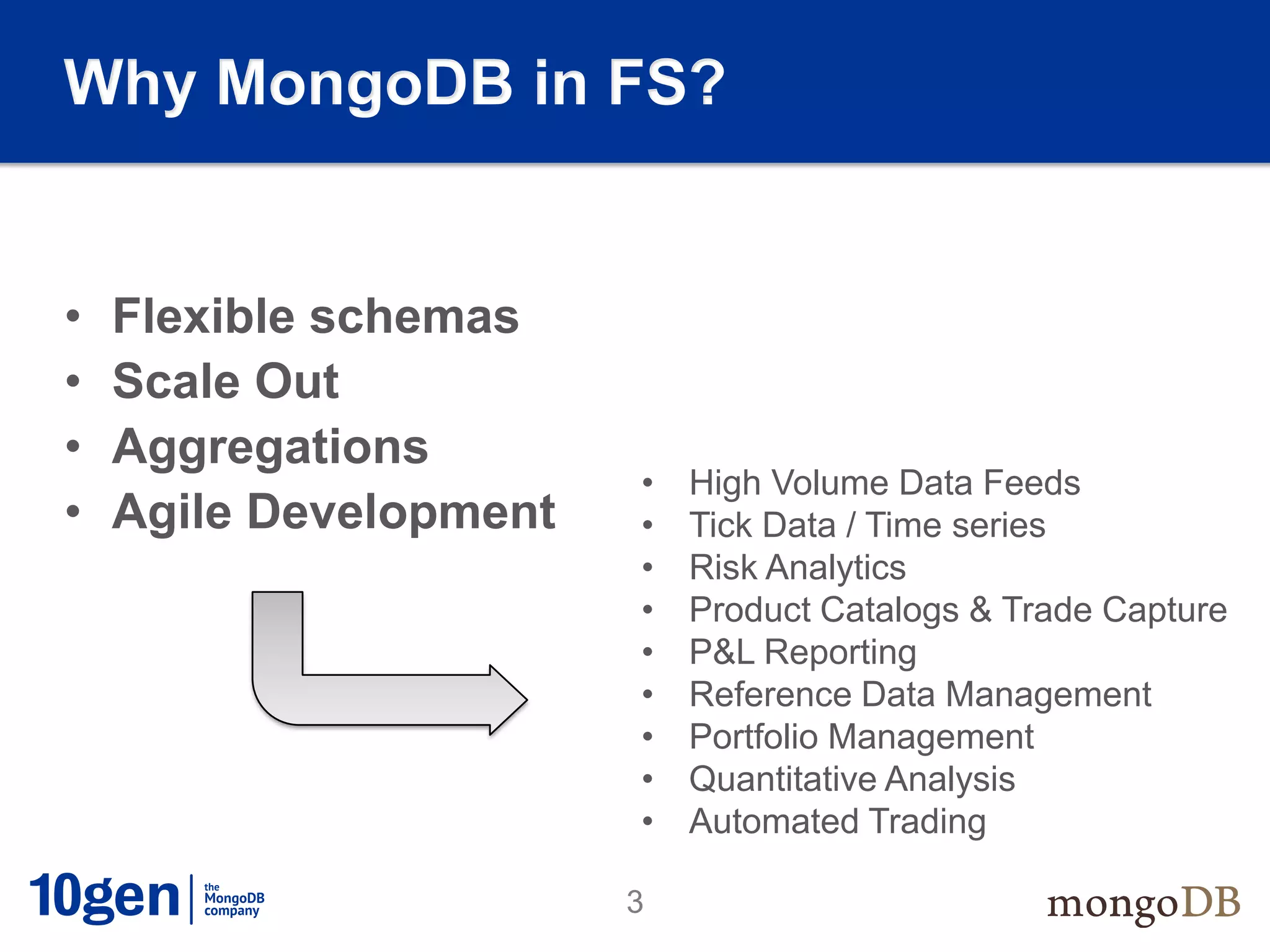

3. Why MongoDB in FS?
• Flexible schemas
• Scale Out
• Aggregations
• High Volume Data Feeds
• Agile Development • Tick Data / Time series
• Risk Analytics
• Product Catalogs & Trade Capture
• P&L Reporting
• Reference Data Management
• Portfolio Management
• Quantitative Analysis
• Automated Trading
3

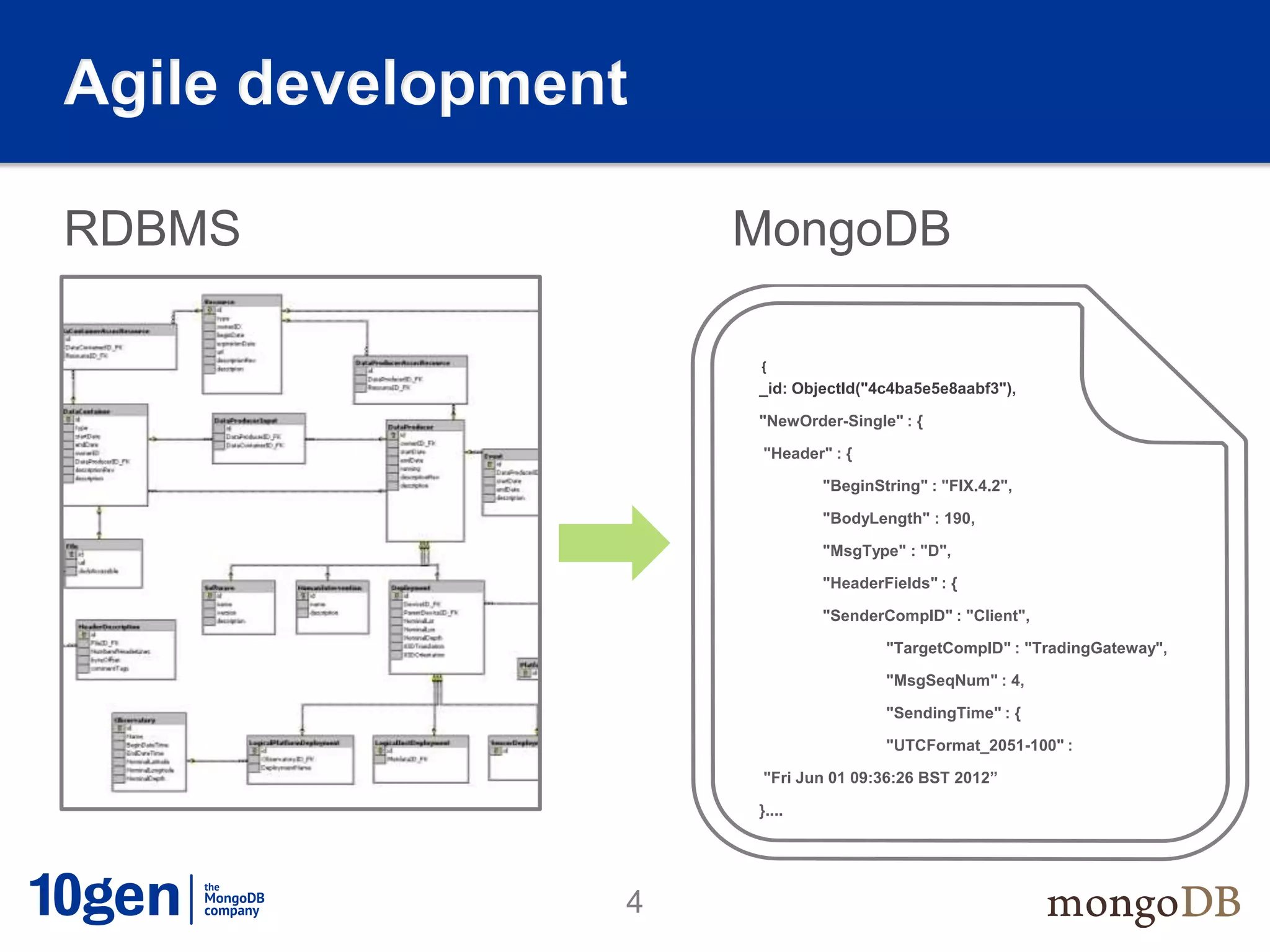

4. Agile development
RDBMS MongoDB
{
_id: ObjectId("4c4ba5e5e8aabf3"),
"NewOrder-Single" : {
"Header" : {
"BeginString" : "FIX.4.2",
"BodyLength" : 190,
"MsgType" : "D",
"HeaderFields" : {
"SenderCompID" : "Client",
"TargetCompID" : "TradingGateway",
"MsgSeqNum" : 4,
"SendingTime" : {
"UTCFormat_2051-100" :
"Fri Jun 01 09:36:26 BST 2012”
}....
4

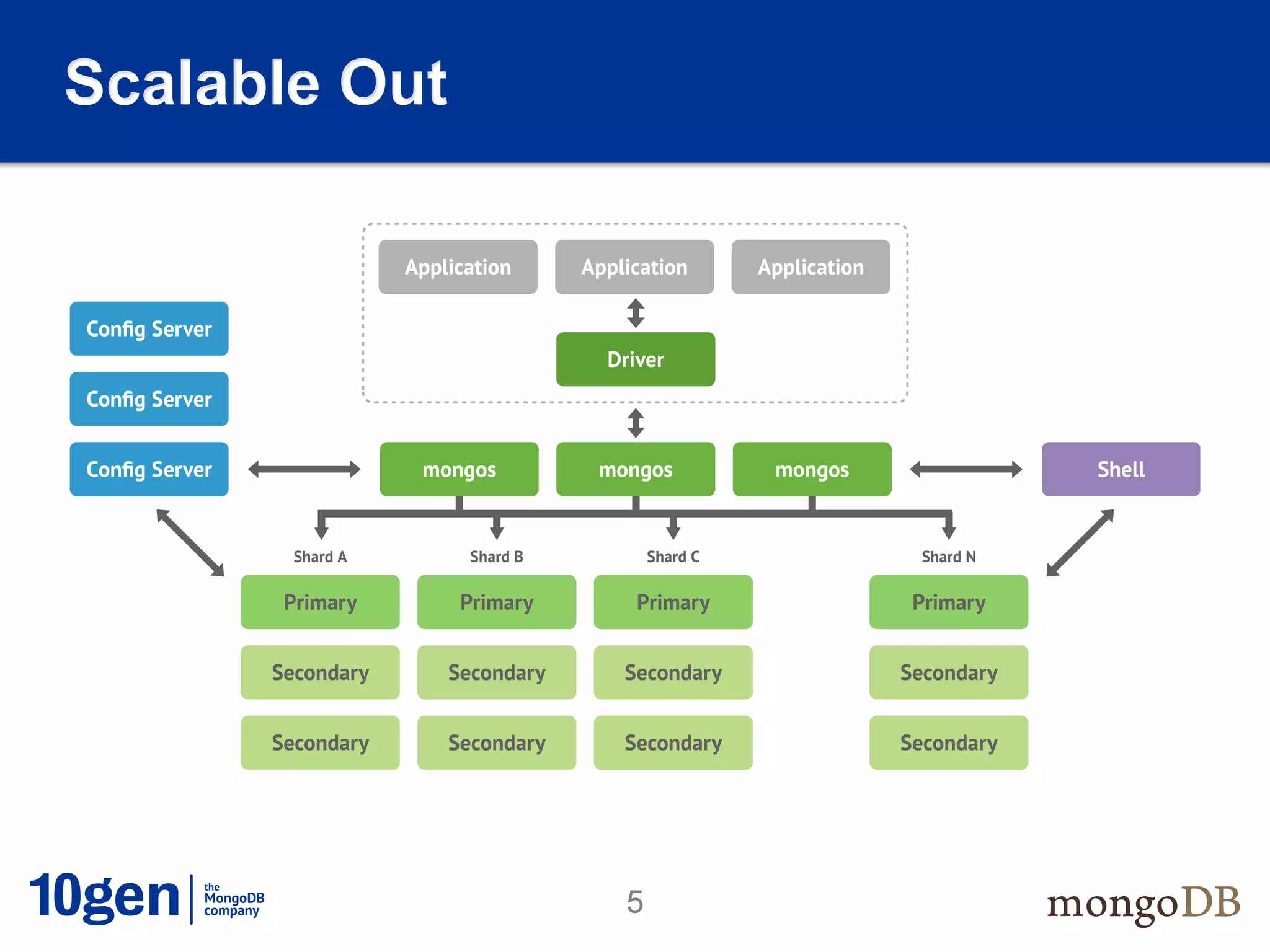

5. Scalable Out
5

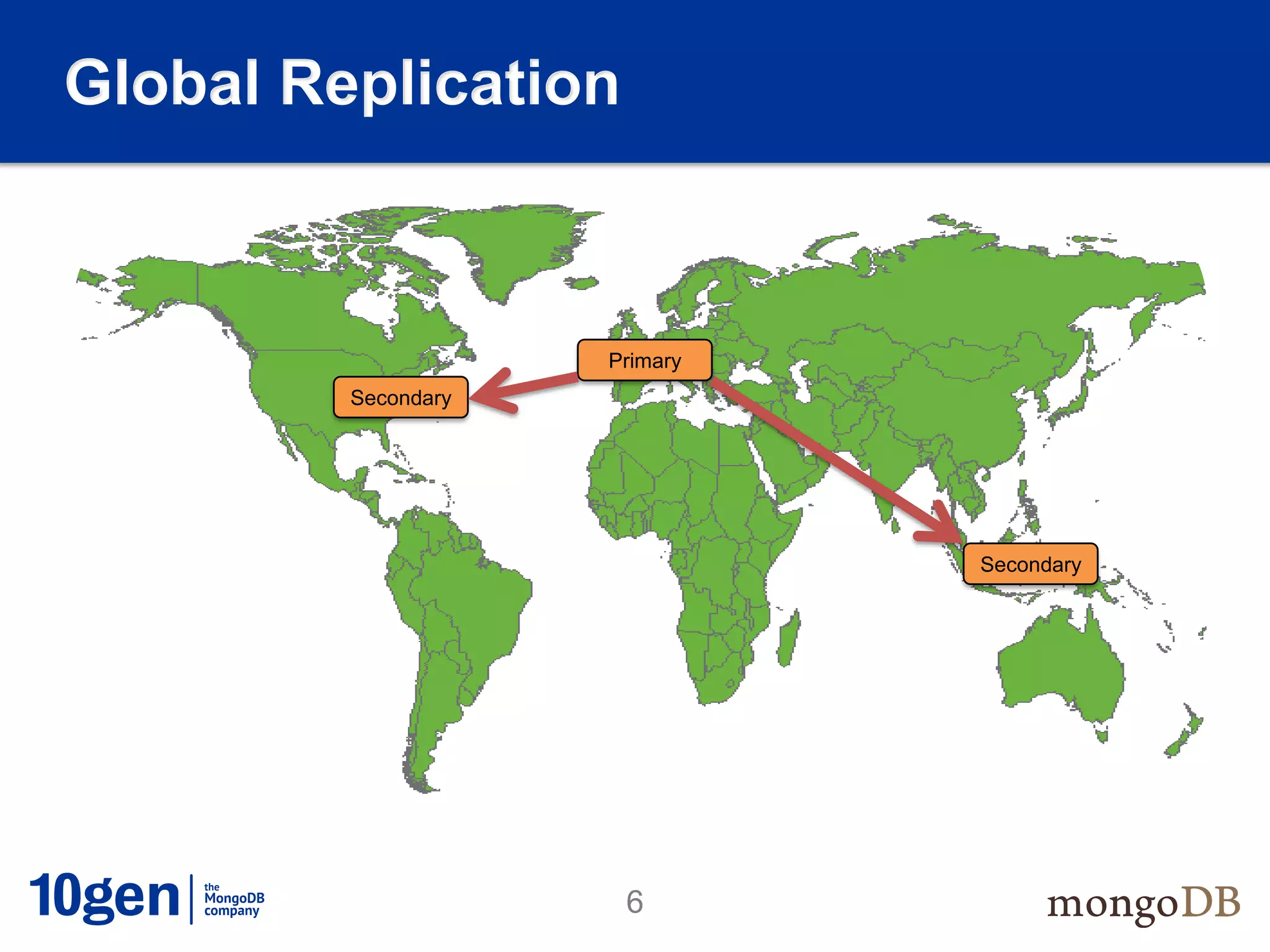

6. Global Replication
Primary
Secondary
Secondary
6

7. MongoDB Solutions

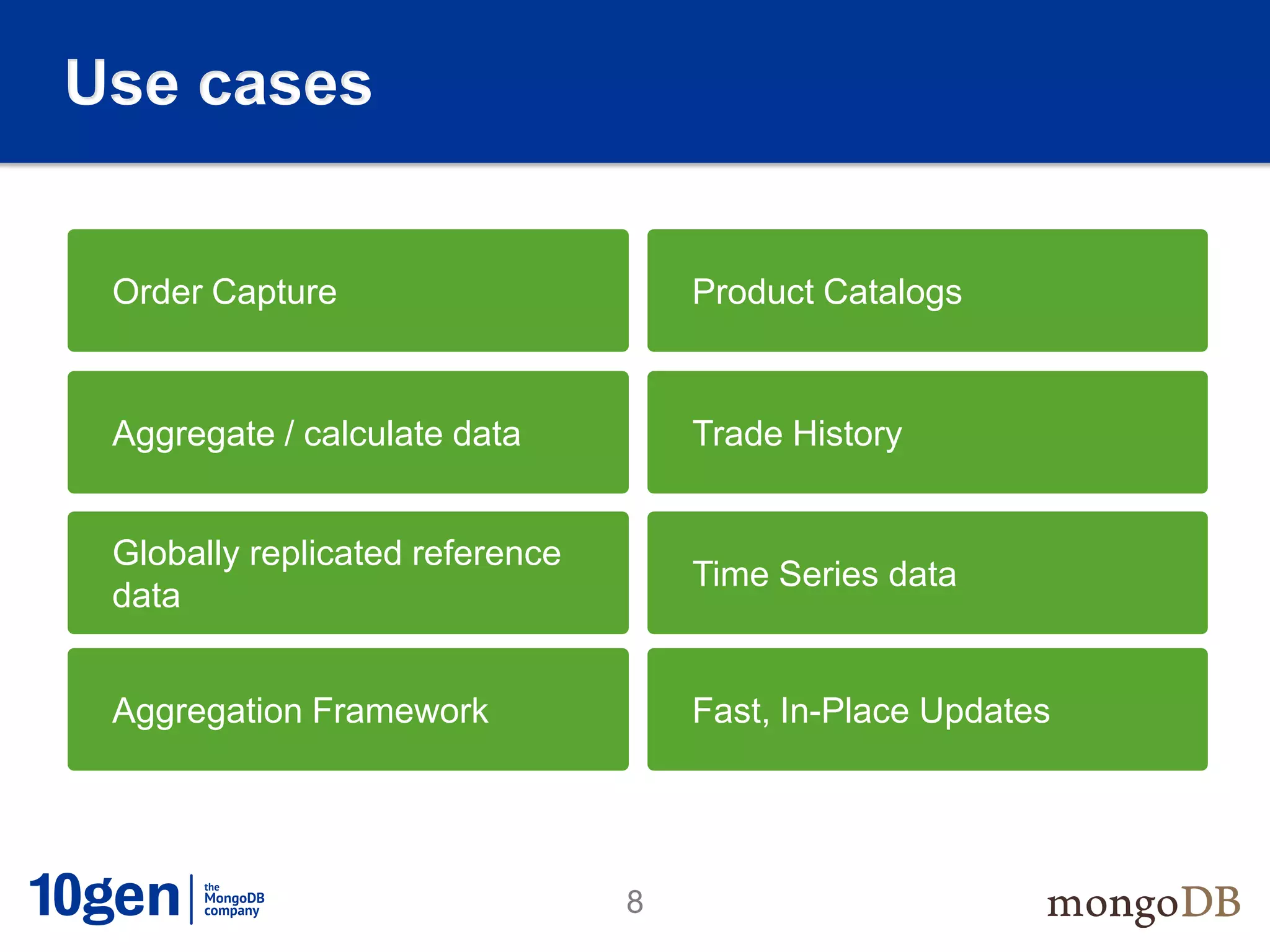

8. Use cases
Order Capture Product Catalogs
Aggregate / calculate data Trade History
Globally replicated reference
Time Series data
data
Aggregation Framework Fast, In-Place Updates
8

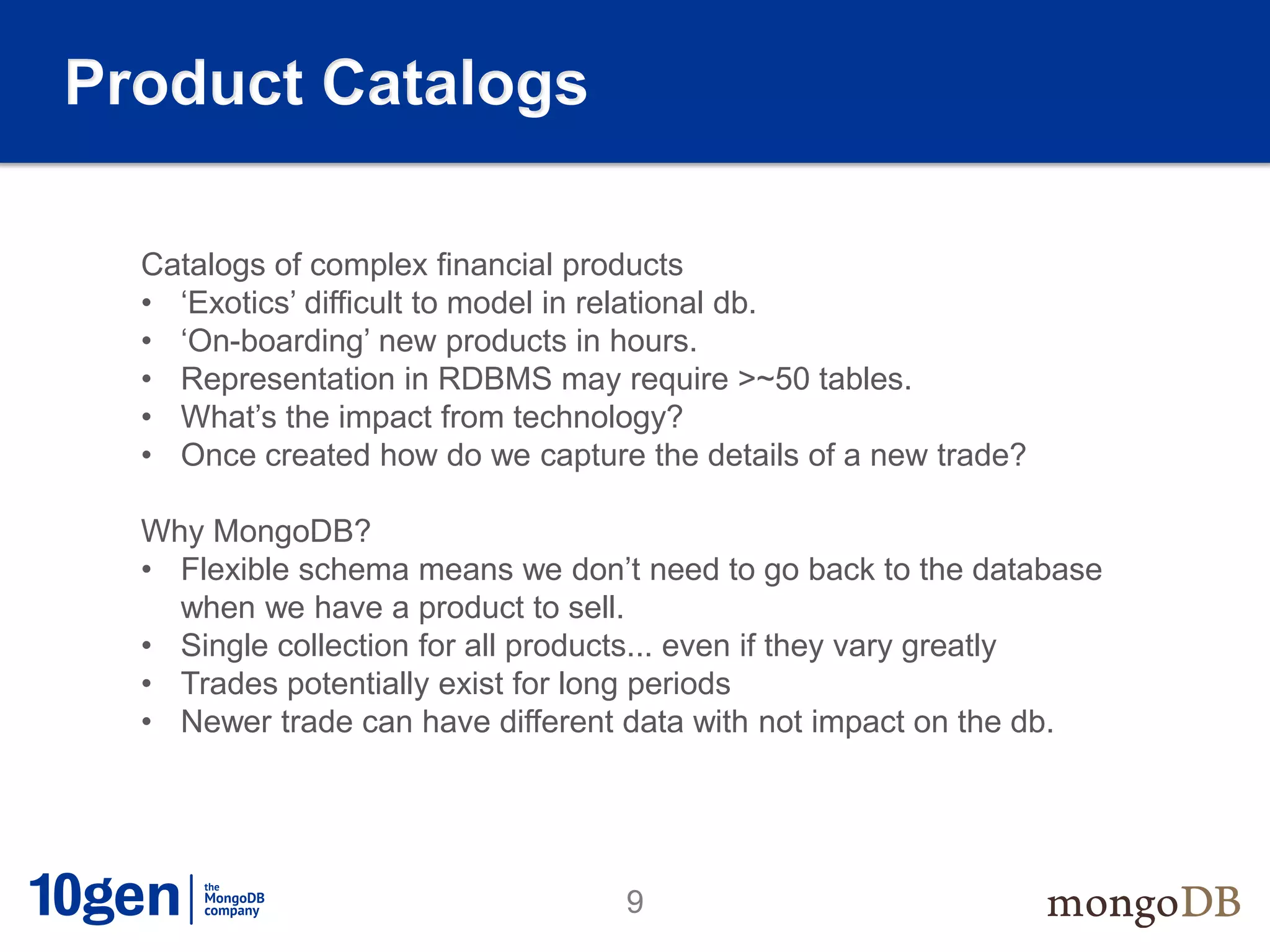

9. Product Catalogs
Catalogs of complex financial products
• ‘Exotics’ difficult to model in relational db.
• ‘On-boarding’ new products in hours.
• Representation in RDBMS may require >~50 tables.
• What’s the impact from technology?
• Once created how do we capture the details of a new trade?
Why MongoDB?
• Flexible schema means we don’t need to go back to the database
when we have a product to sell.
• Single collection for all products... even if they vary greatly
• Trades potentially exist for long periods
• Newer trade can have different data with not impact on the db.
9

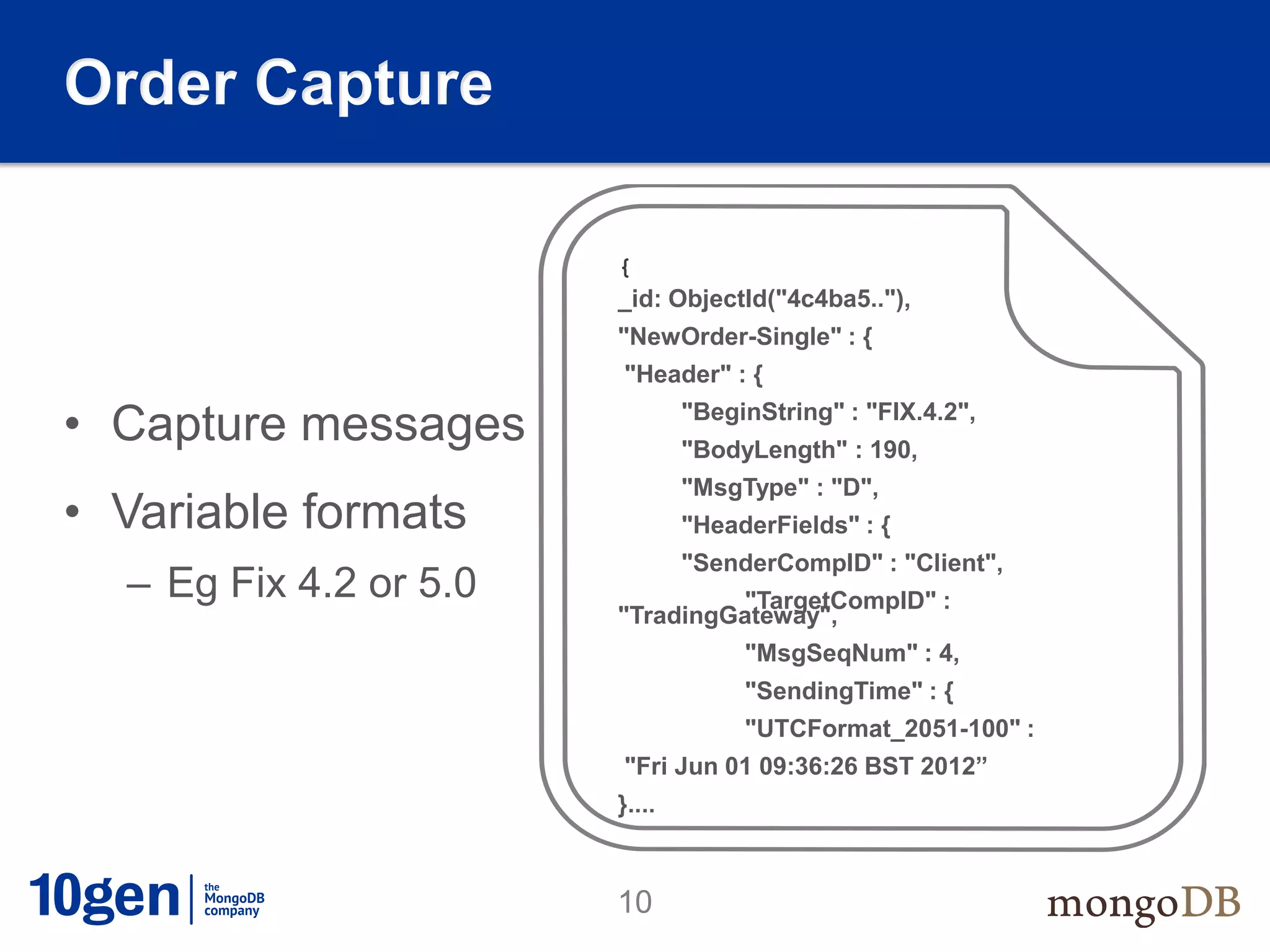

10. Order Capture
{
_id: ObjectId("4c4ba5.."),
"NewOrder-Single" : {
"Header" : {
• Capture messages "BeginString" : "FIX.4.2",
"BodyLength" : 190,
"MsgType" : "D",
• Variable formats "HeaderFields" : {
"SenderCompID" : "Client",
– Eg Fix 4.2 or 5.0 "TargetCompID" :
"TradingGateway",
"MsgSeqNum" : 4,
"SendingTime" : {
"UTCFormat_2051-100" :
"Fri Jun 01 09:36:26 BST 2012”
}....
10

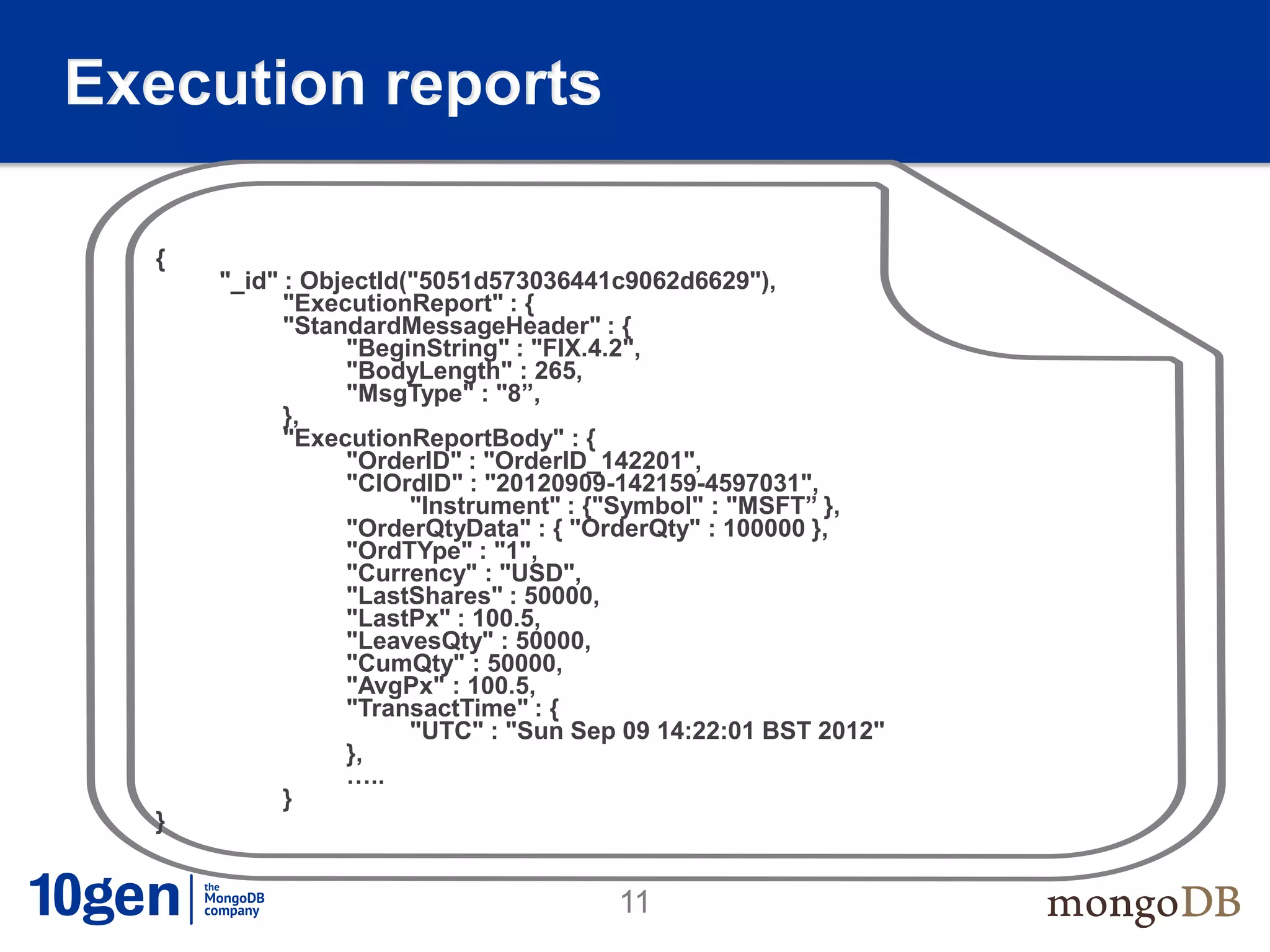

11. Execution reports
{
"_id" : ObjectId("5051d573036441c9062d6629"),
"ExecutionReport" : {
"StandardMessageHeader" : {
"BeginString" : "FIX.4.2",
"BodyLength" : 265,
"MsgType" : "8”,
},
"ExecutionReportBody" : {
"OrderID" : "OrderID_142201",
"ClOrdID" : "20120909-142159-4597031",
"Instrument" : {"Symbol" : "MSFT” },
"OrderQtyData" : { "OrderQty" : 100000 },
"OrdTYpe" : "1",
"Currency" : "USD",
"LastShares" : 50000,
"LastPx" : 100.5,
"LeavesQty" : 50000,
"CumQty" : 50000,
"AvgPx" : 100.5,
"TransactTime" : {
"UTC" : "Sun Sep 09 14:22:01 BST 2012"
},
…..
}
}
11

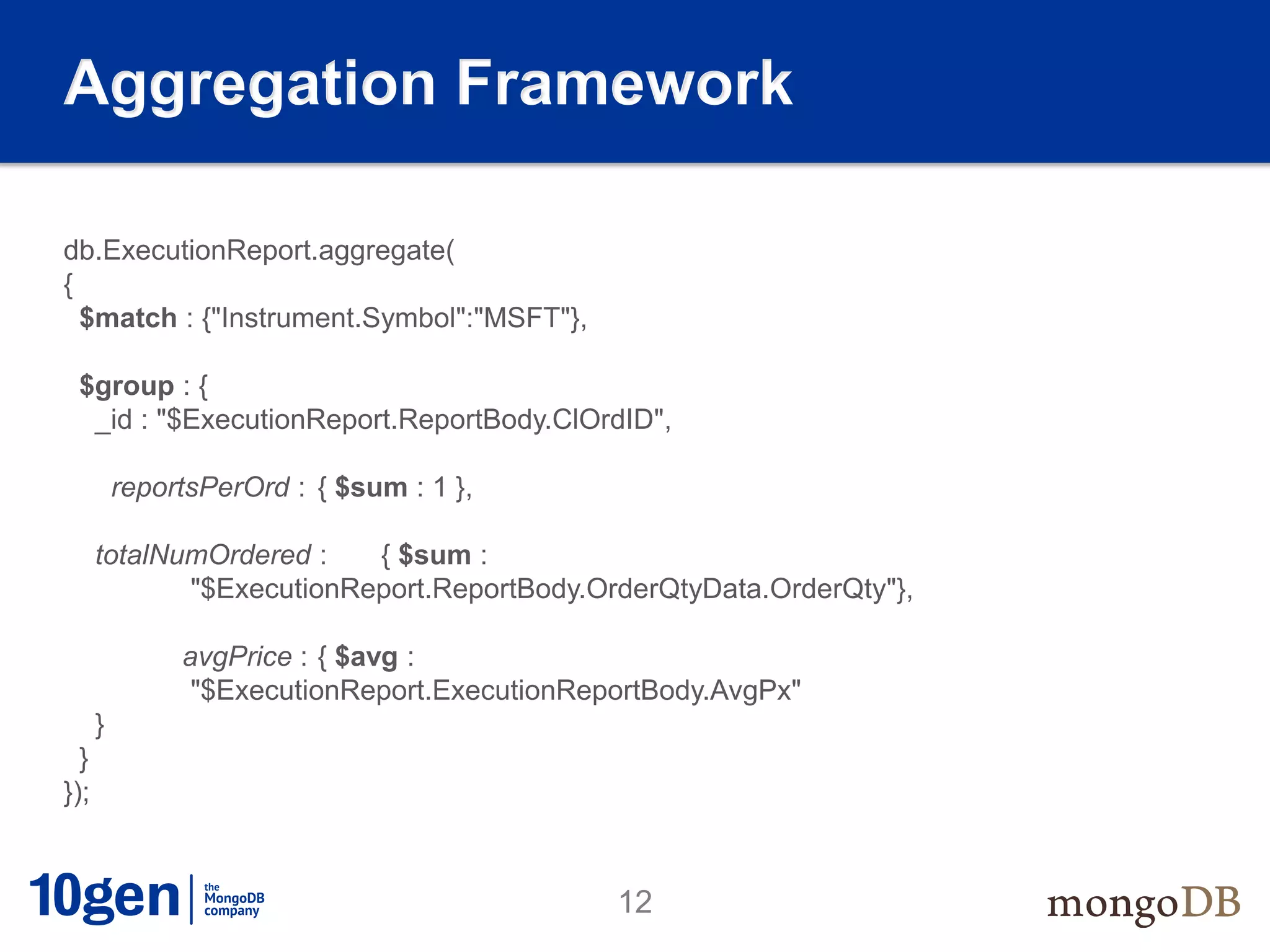

12. Aggregation Framework
db.ExecutionReport.aggregate(
{
$match : {"Instrument.Symbol":"MSFT"},
$group : {
_id : "$ExecutionReport.ReportBody.ClOrdID",
reportsPerOrd : { $sum : 1 },
totalNumOrdered : { $sum :
"$ExecutionReport.ReportBody.OrderQtyData.OrderQty"},
avgPrice : { $avg :
"$ExecutionReport.ExecutionReportBody.AvgPx"
}
}
});
12

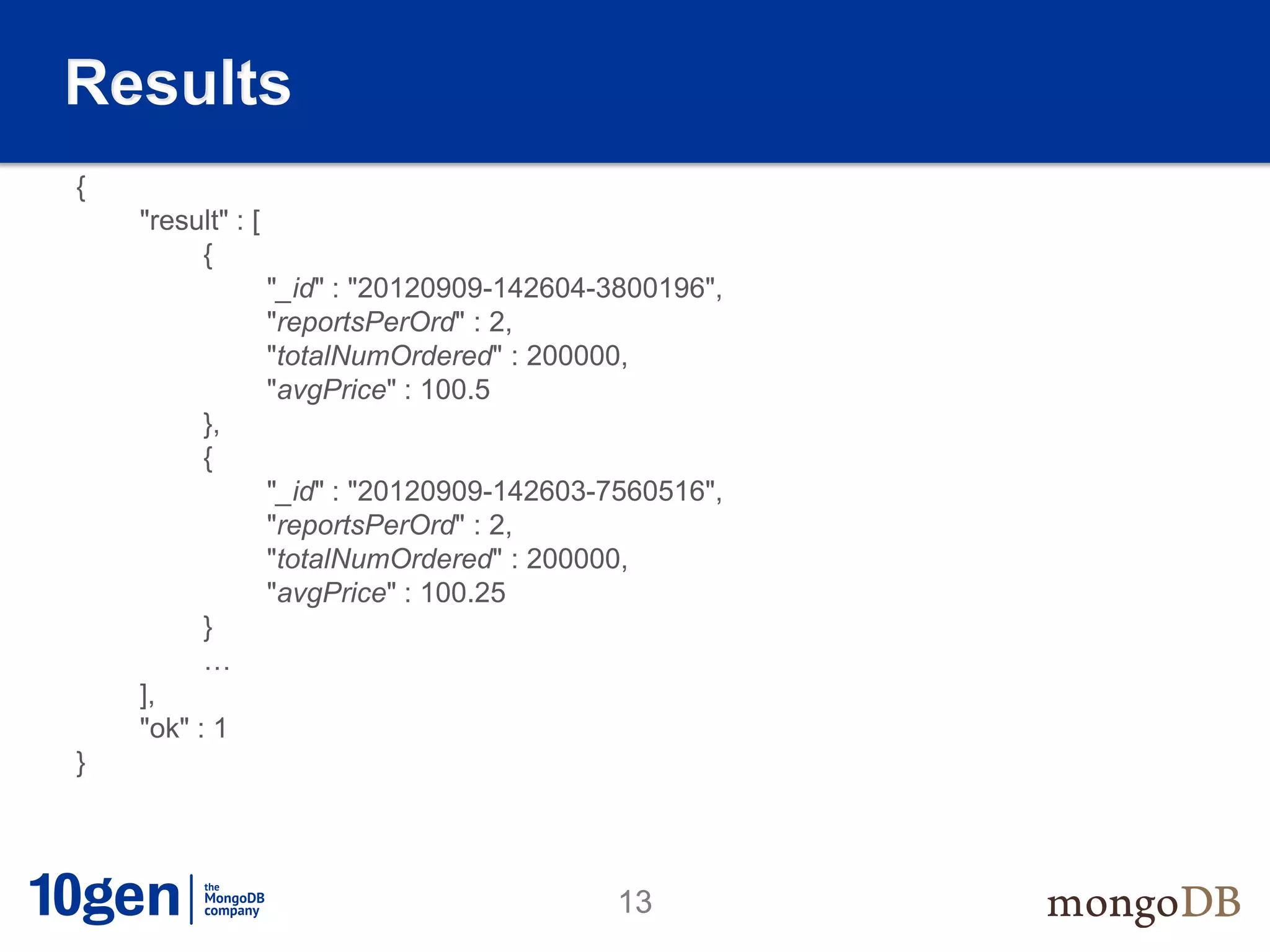

13. Results
{
"result" : [
{
"_id" : "20120909-142604-3800196",
"reportsPerOrd" : 2,
"totalNumOrdered" : 200000,
"avgPrice" : 100.5
},
{
"_id" : "20120909-142603-7560516",
"reportsPerOrd" : 2,
"totalNumOrdered" : 200000,
"avgPrice" : 100.25
}
…
],
"ok" : 1
}
13

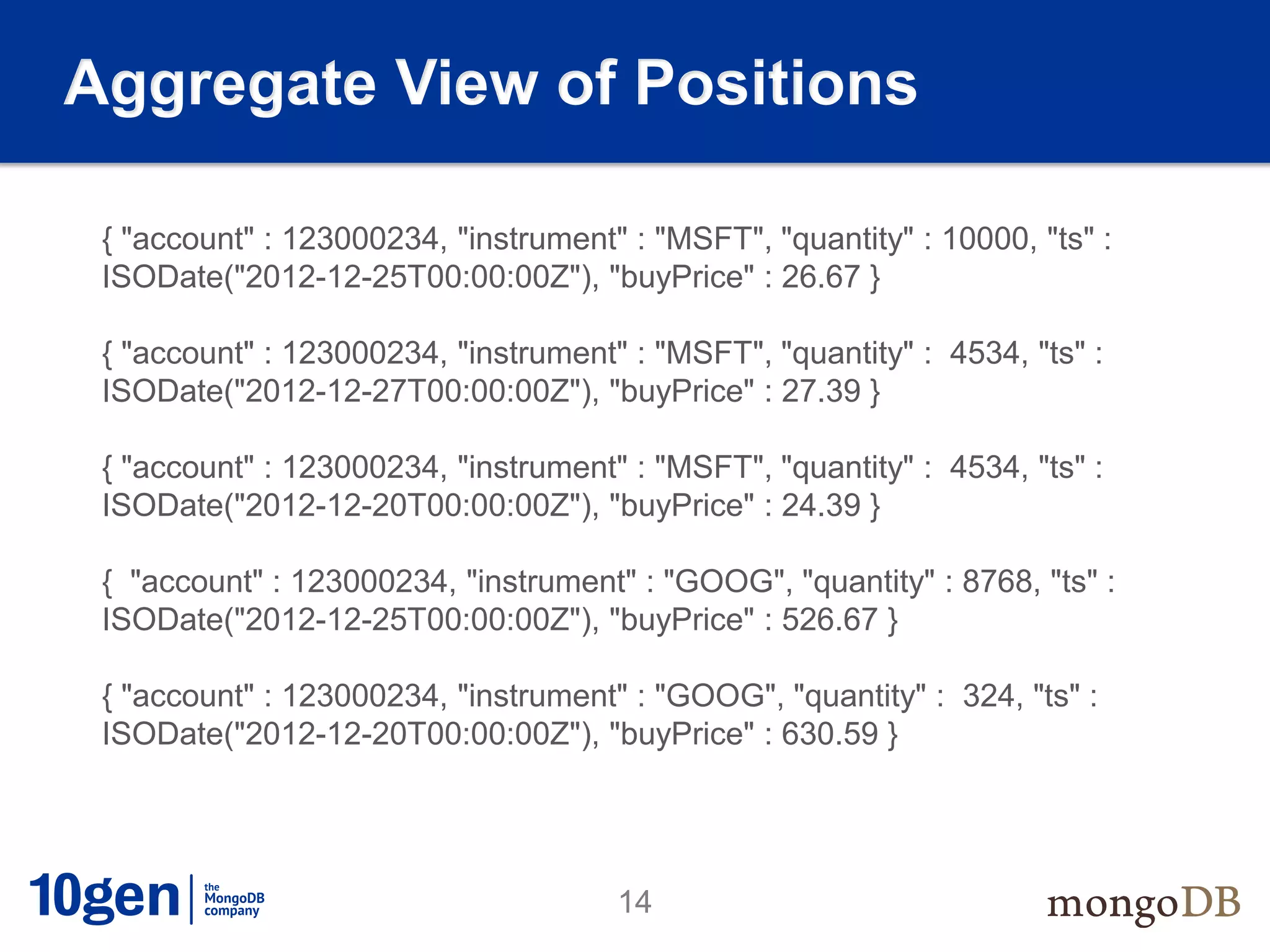

14. Aggregate View of Positions
{ "account" : 123000234, "instrument" : "MSFT", "quantity" : 10000, "ts" :
ISODate("2012-12-25T00:00:00Z"), "buyPrice" : 26.67 }
{ "account" : 123000234, "instrument" : "MSFT", "quantity" : 4534, "ts" :
ISODate("2012-12-27T00:00:00Z"), "buyPrice" : 27.39 }
{ "account" : 123000234, "instrument" : "MSFT", "quantity" : 4534, "ts" :
ISODate("2012-12-20T00:00:00Z"), "buyPrice" : 24.39 }
{ "account" : 123000234, "instrument" : "GOOG", "quantity" : 8768, "ts" :
ISODate("2012-12-25T00:00:00Z"), "buyPrice" : 526.67 }
{ "account" : 123000234, "instrument" : "GOOG", "quantity" : 324, "ts" :
ISODate("2012-12-20T00:00:00Z"), "buyPrice" : 630.59 }
14

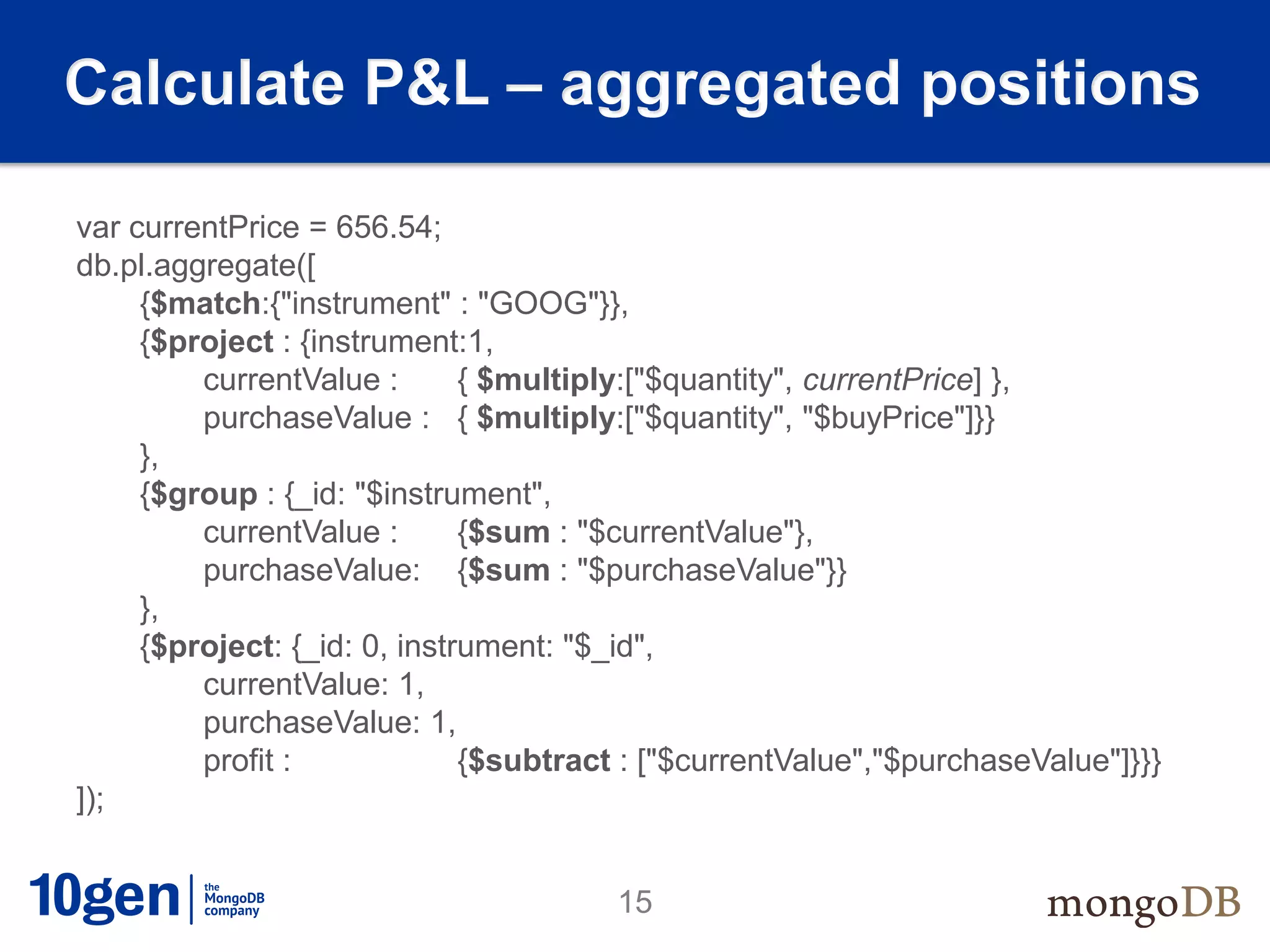

15. Calculate P&L – aggregated positions
var currentPrice = 656.54;
db.pl.aggregate([
{$match:{"instrument" : "GOOG"}},
{$project : {instrument:1,
currentValue : { $multiply:["$quantity", currentPrice] },
purchaseValue : { $multiply:["$quantity", "$buyPrice"]}}
},
{$group : {_id: "$instrument",
currentValue : {$sum : "$currentValue"},
purchaseValue: {$sum : "$purchaseValue"}}
},
{$project: {_id: 0, instrument: "$_id",
currentValue: 1,
purchaseValue: 1,
profit : {$subtract : ["$currentValue","$purchaseValue"]}}}
]);
15

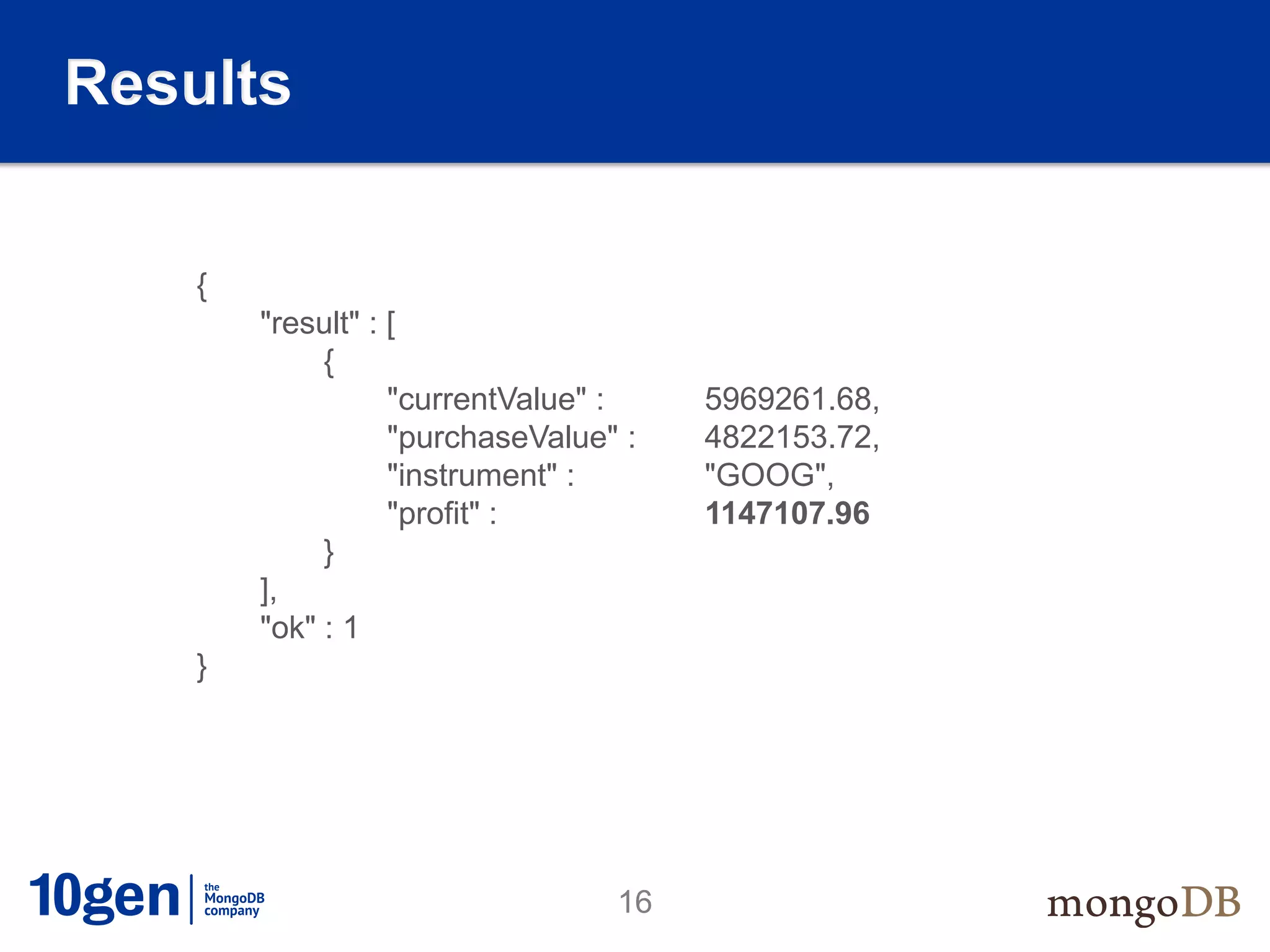

16. Results
{
"result" : [
{
"currentValue" : 5969261.68,
"purchaseValue" : 4822153.72,
"instrument" : "GOOG",
"profit" : 1147107.96
}
],
"ok" : 1
}
16

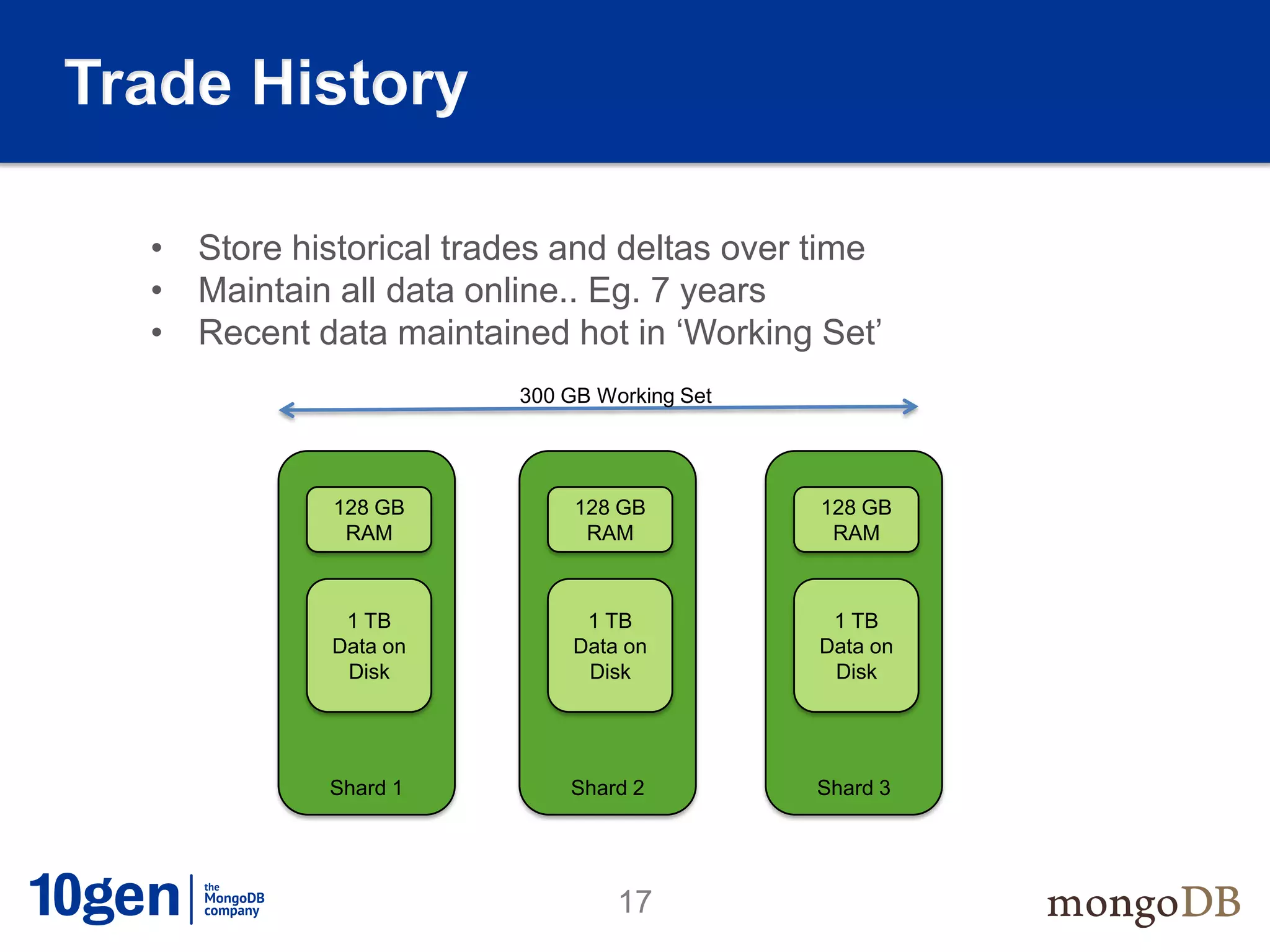

17. Trade History
• Store historical trades and deltas over time
• Maintain all data online.. Eg. 7 years
• Recent data maintained hot in ‘Working Set’
300 GB Working Set
128 GB 128 GB 128 GB
RAM RAM RAM
1 TB 1 TB 1 TB
Data on Data on Data on
Disk Disk Disk
Shard 1 Shard 2 Shard 3
17

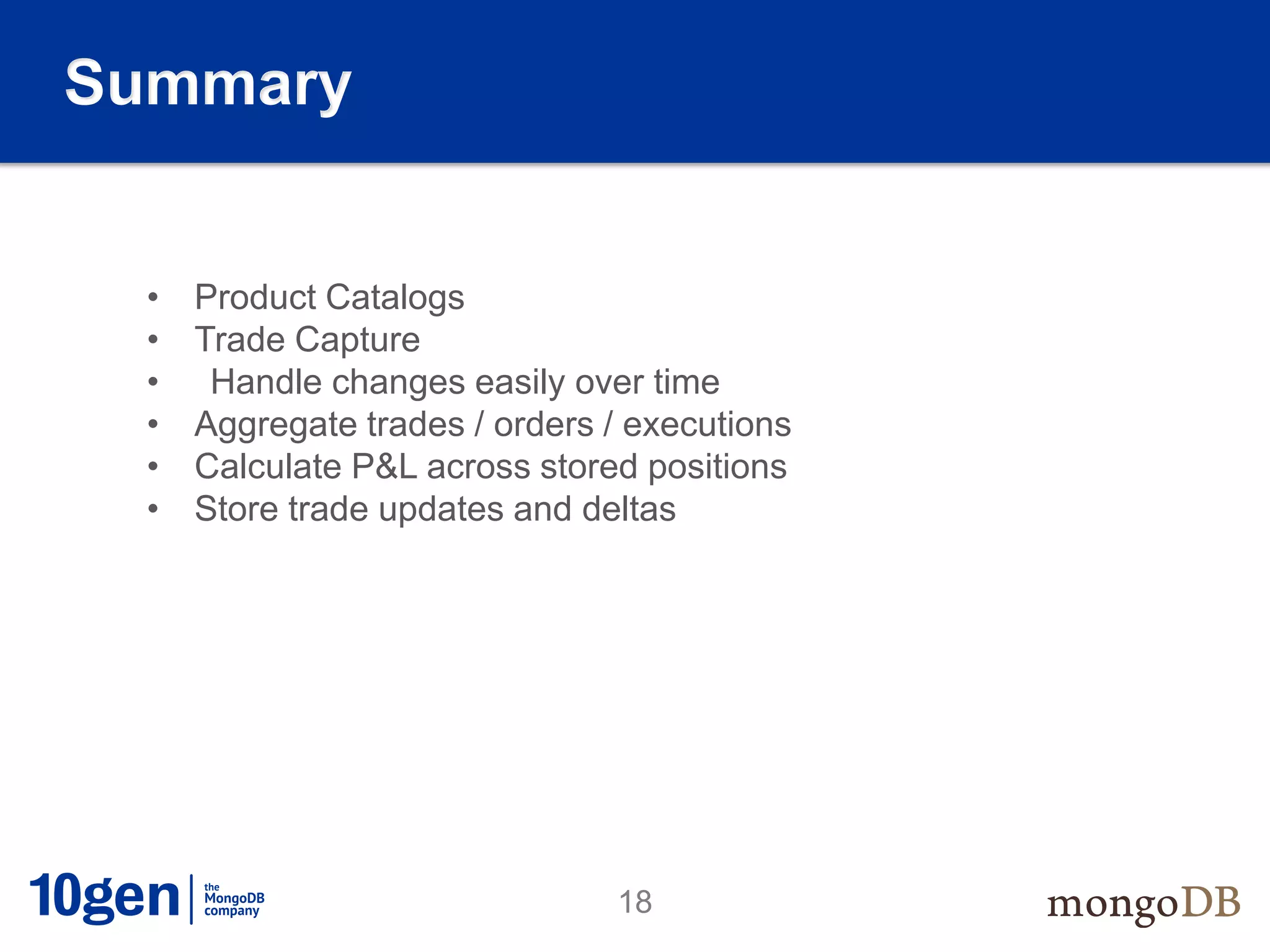

18. Summary
• Product Catalogs
• Trade Capture
• Handle changes easily over time
• Aggregate trades / orders / executions
• Calculate P&L across stored positions
• Store trade updates and deltas
18

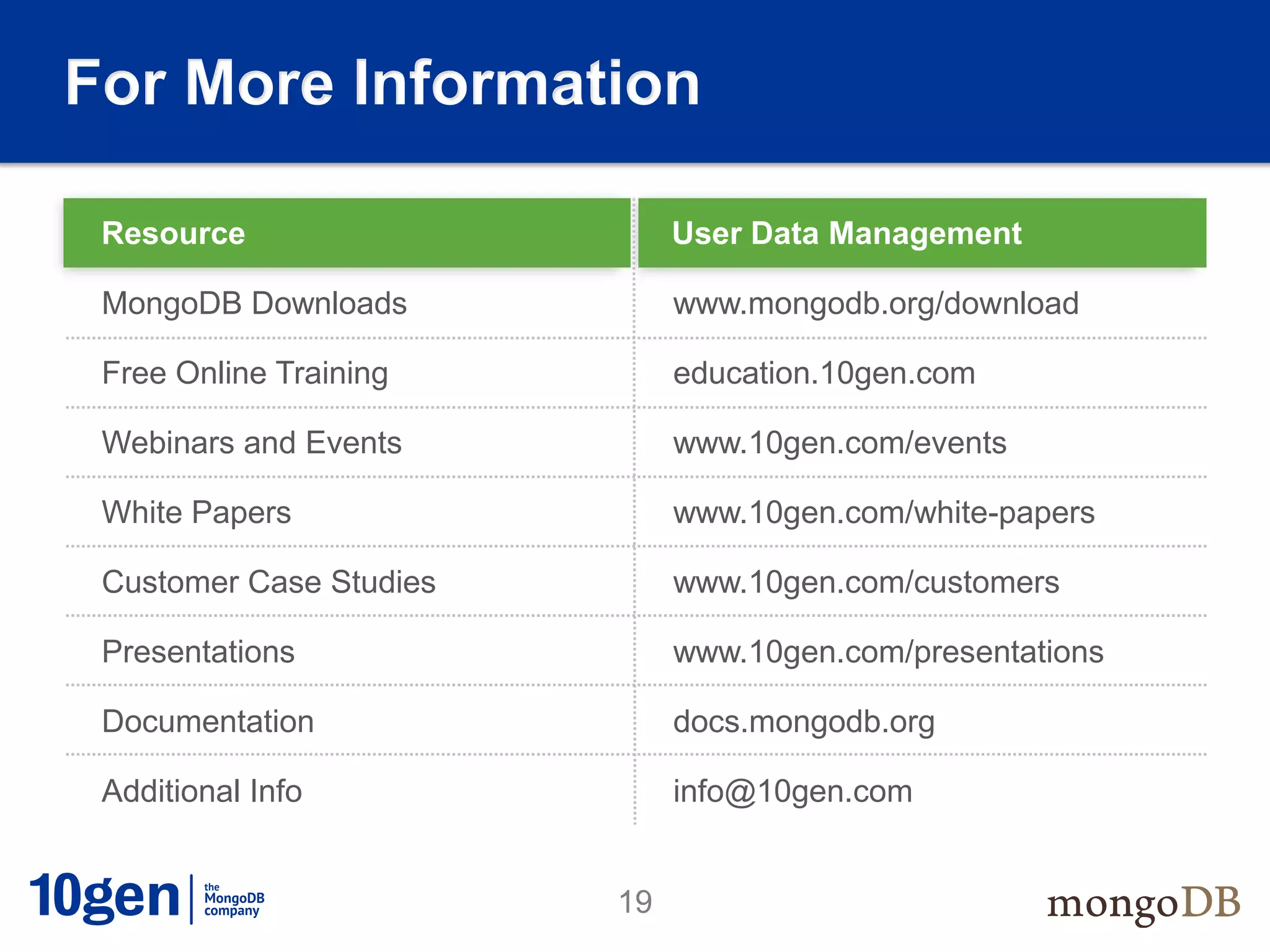

19. For More Information
Resource User Data Management
Location
MongoDB Downloads www.mongodb.org/download
Free Online Training education.10gen.com
Webinars and Events www.10gen.com/events
White Papers www.10gen.com/white-papers
Customer Case Studies www.10gen.com/customers
Presentations www.10gen.com/presentations
Documentation docs.mongodb.org
Additional Info info@10gen.com
19
