SCALING MONGODB IN THE CLOUD
        Simon Maynard - Bugsnag CTO
               @snmaynard
WHERE HAVE I USED MONGODB?

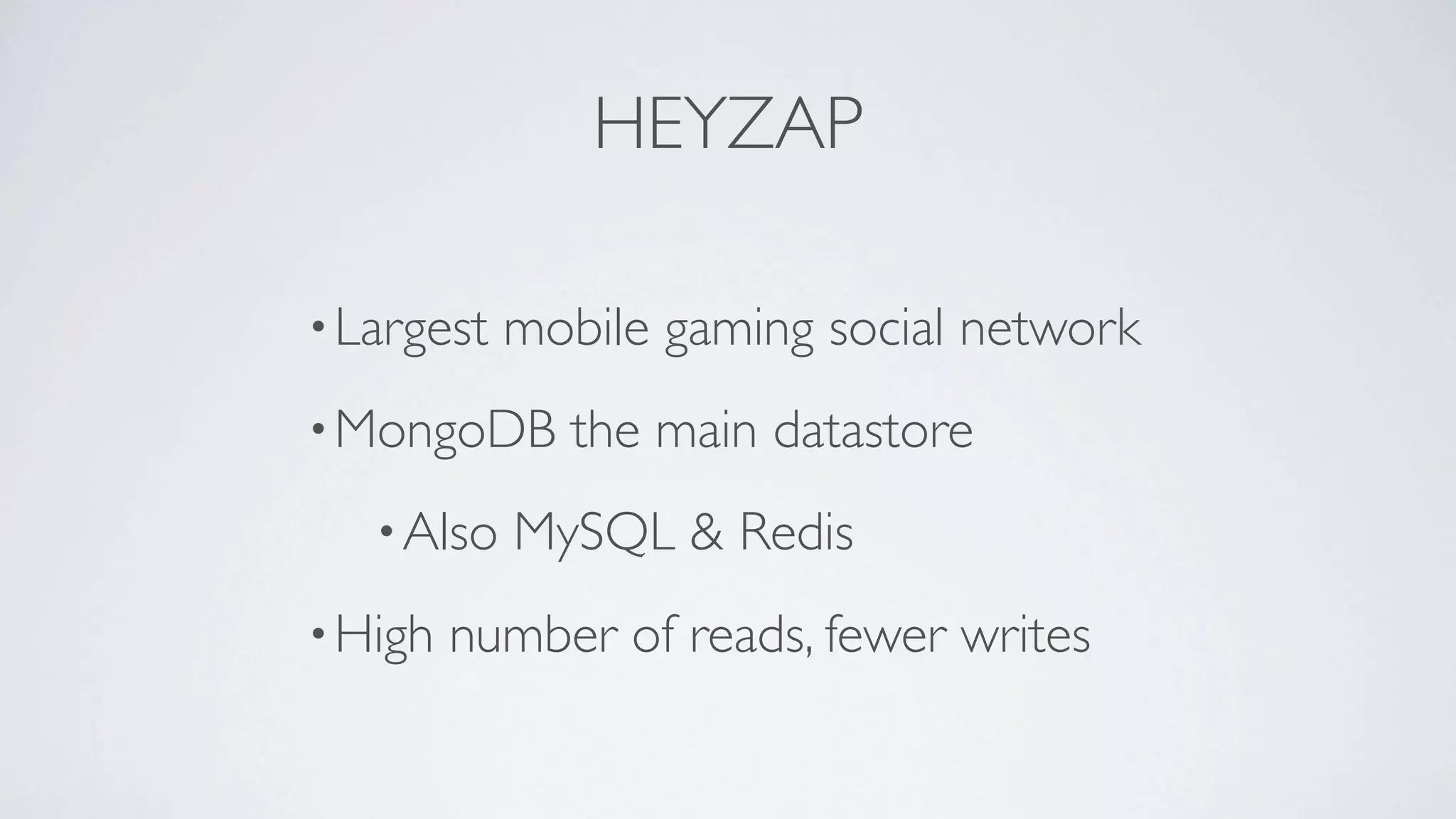

HEYZAP

• Largest   mobile gaming social network
• MongoDB     the main datastore
   • Also   MySQL & Redis
• High   number of reads, fewer writes

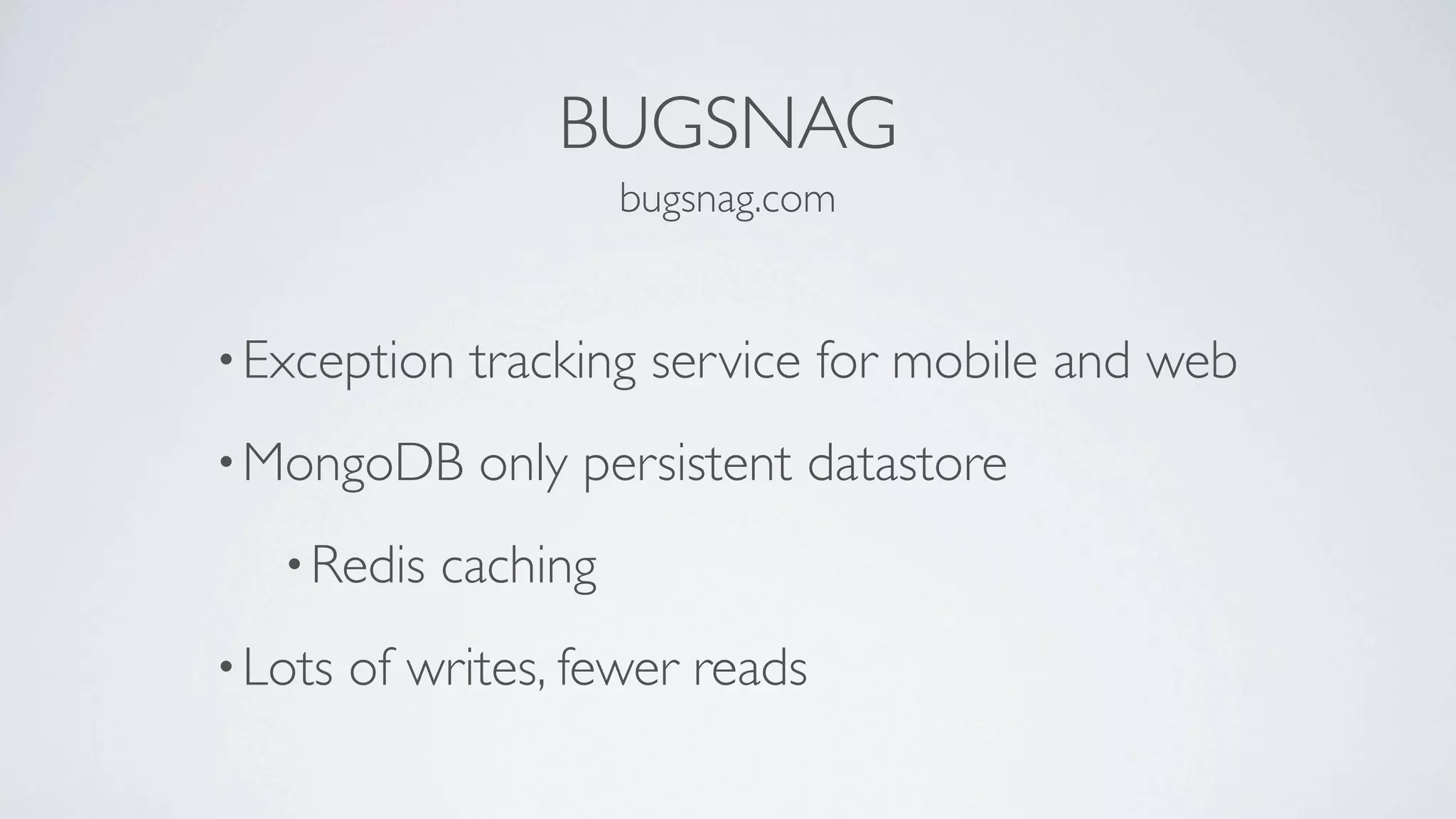

BUGSNAG
                       bugsnag.com


• Exception   tracking service for mobile and web
• MongoDB      only persistent datastore
   • Redis   caching
• Lots   of writes, fewer reads
WHAT ARE THE PROS & CONS OF
        MONGODB?

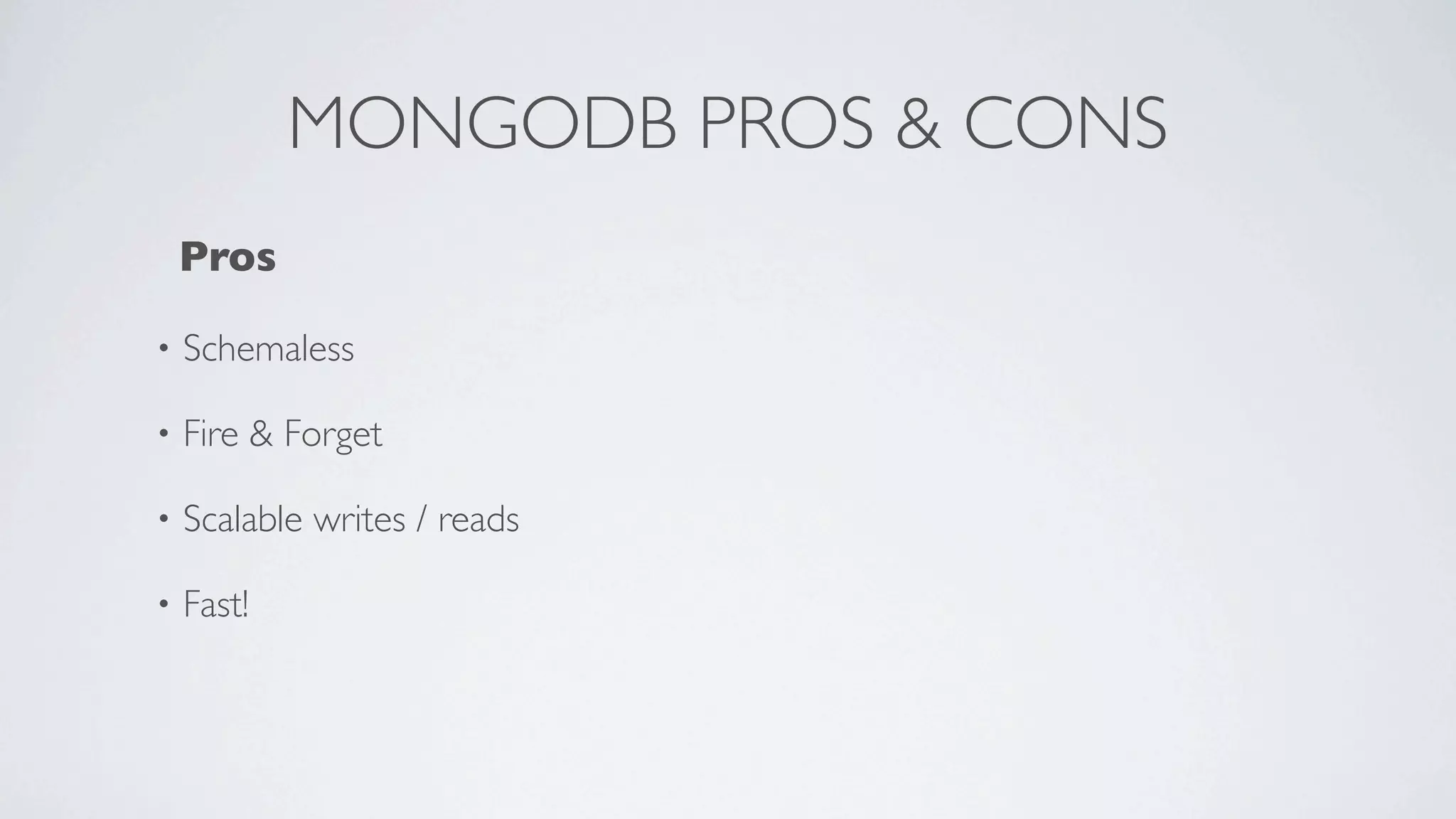

MONGODB PROS & CONS
    Pros

•   Schemaless

•   Fire & Forget

•   Scalable writes / reads

•   Fast!

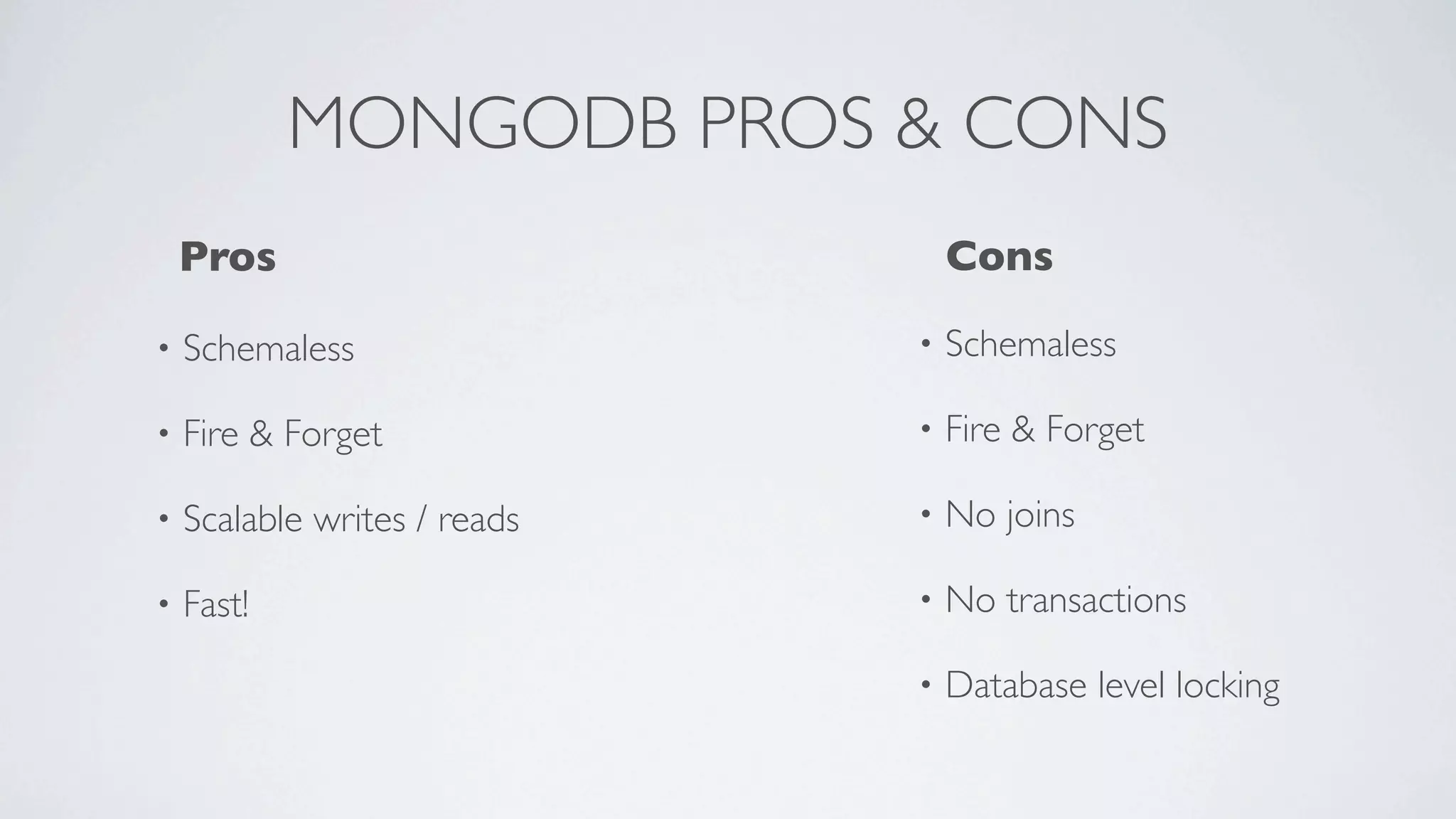

MONGODB PROS & CONS
    Pros                          Cons

•   Schemaless                •   Schemaless

•   Fire & Forget             •   Fire & Forget

•   Scalable writes / reads   •   No joins

•   Fast!                     •   No transactions

                              •   Database level locking

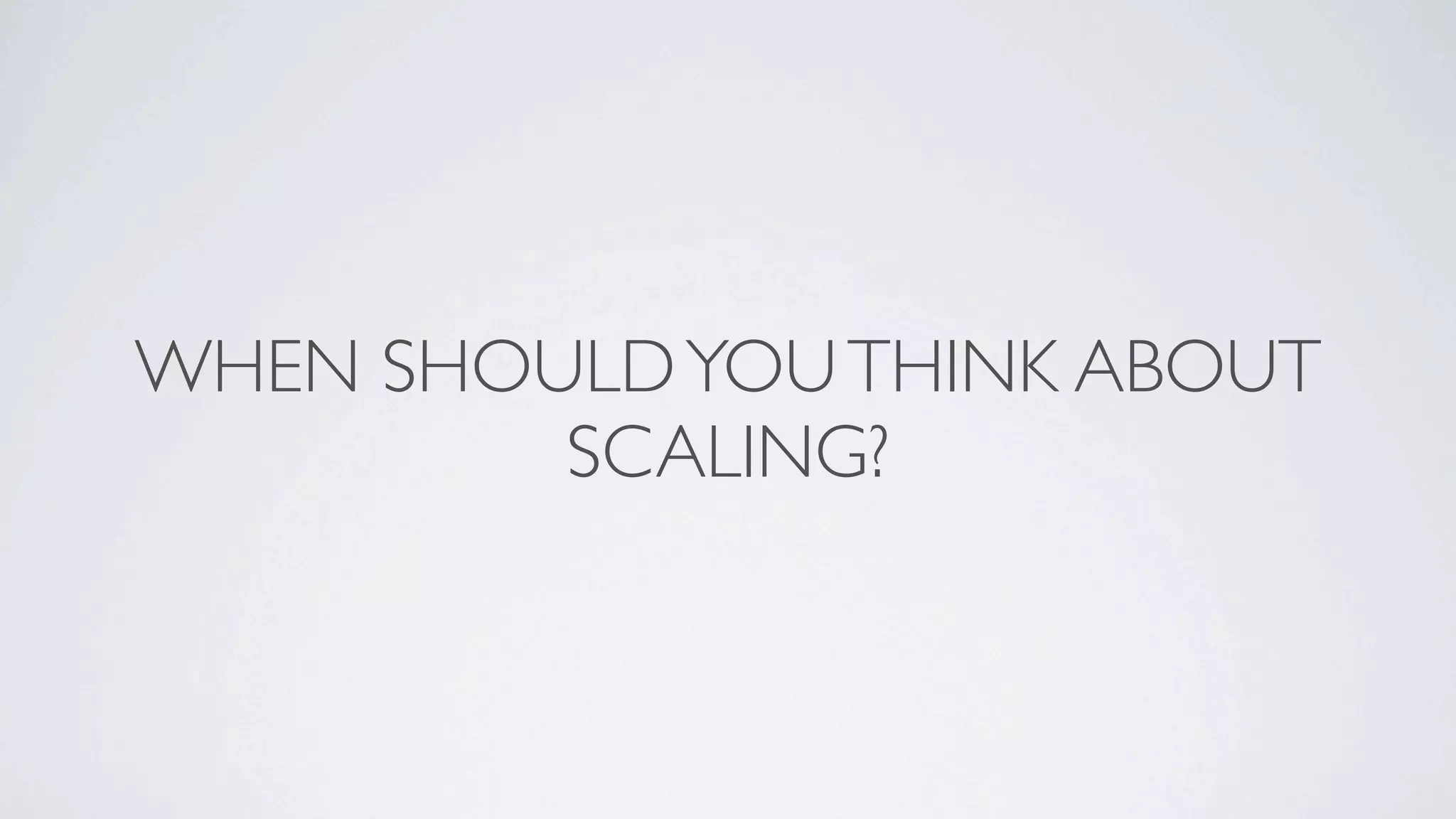

WHEN SHOULD YOU THINK ABOUT
         SCALING?

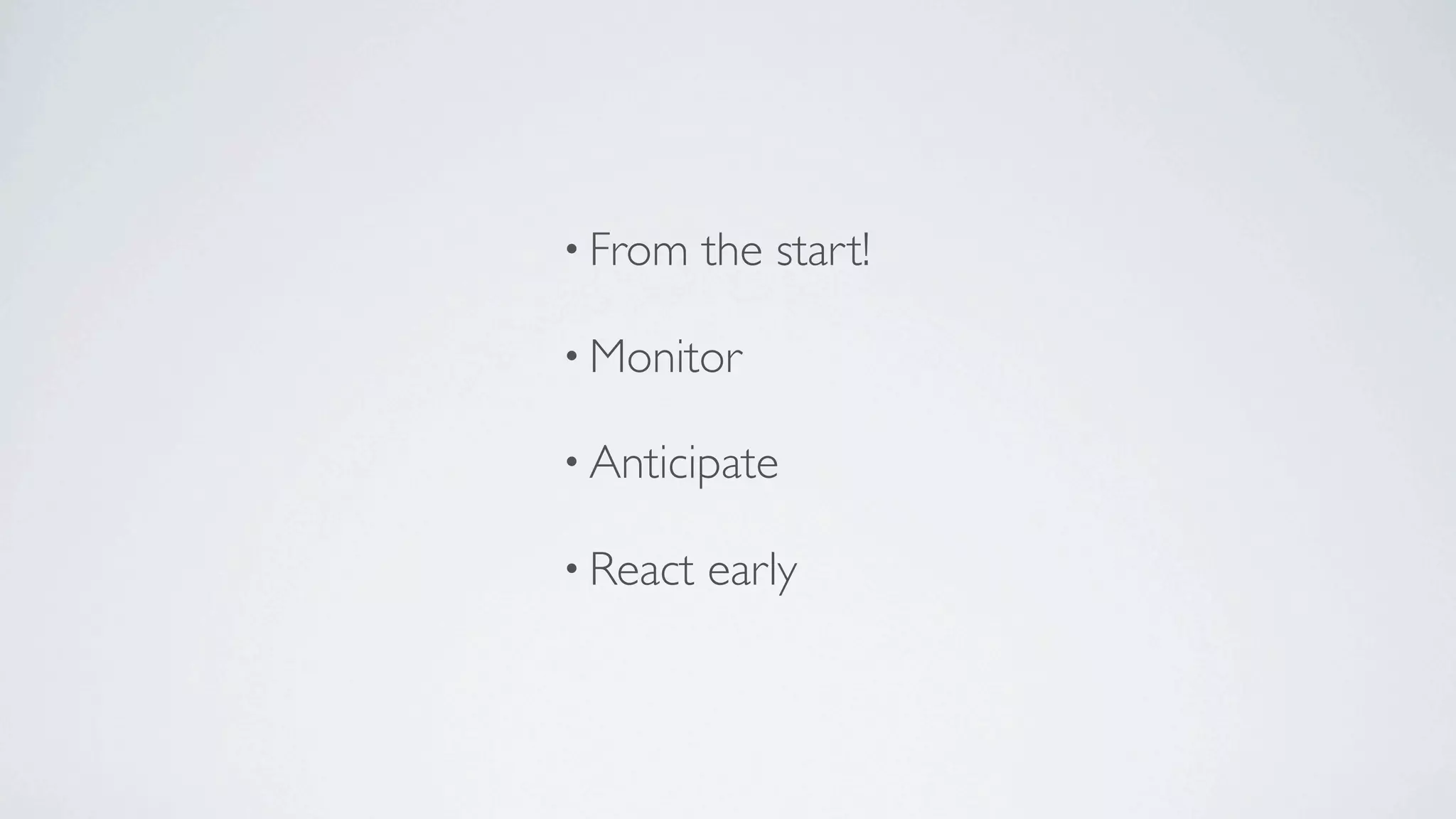

• From    the start!

• Monitor

• Anticipate

• React   early

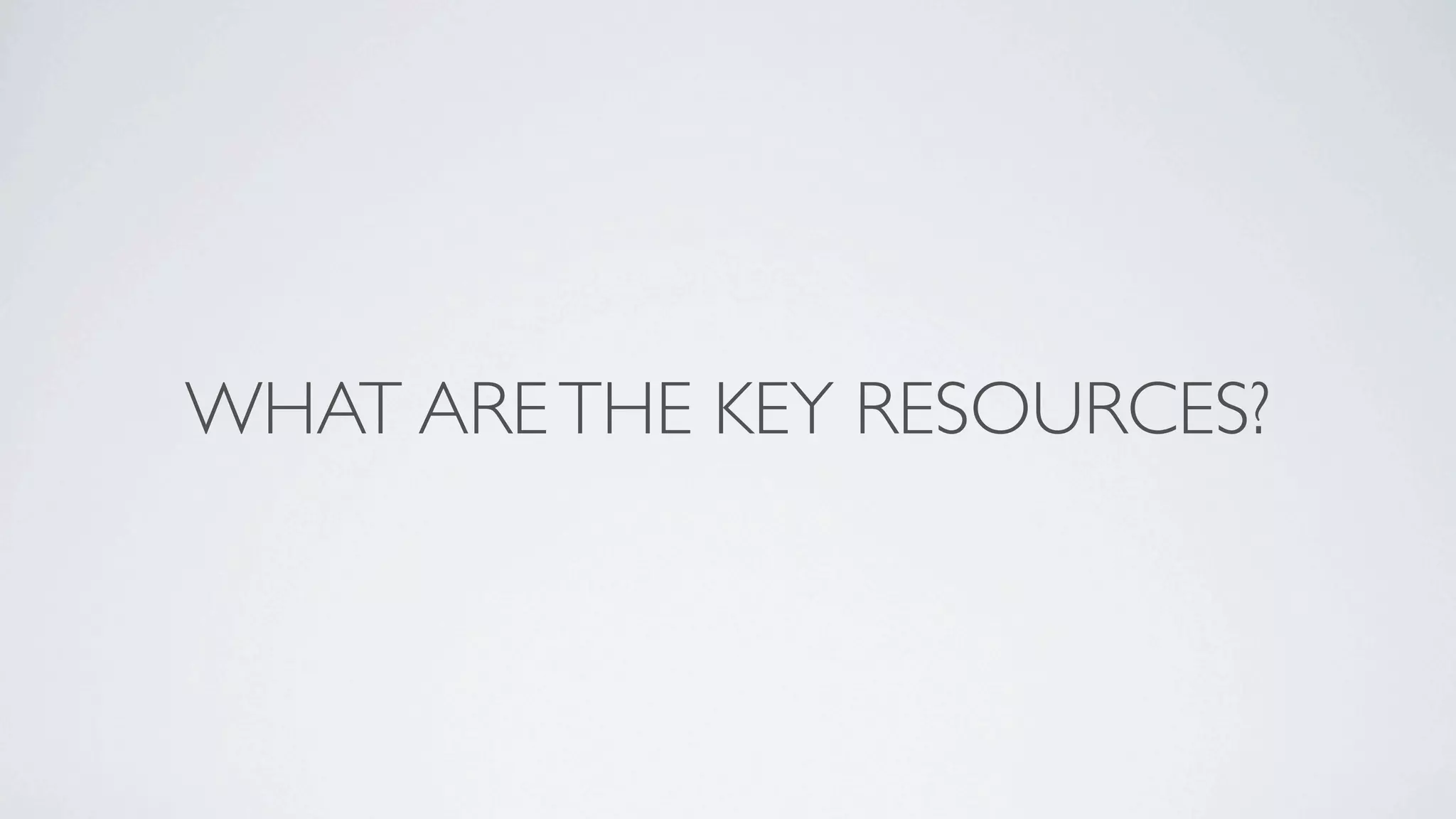

WHAT ARE THE KEY RESOURCES?

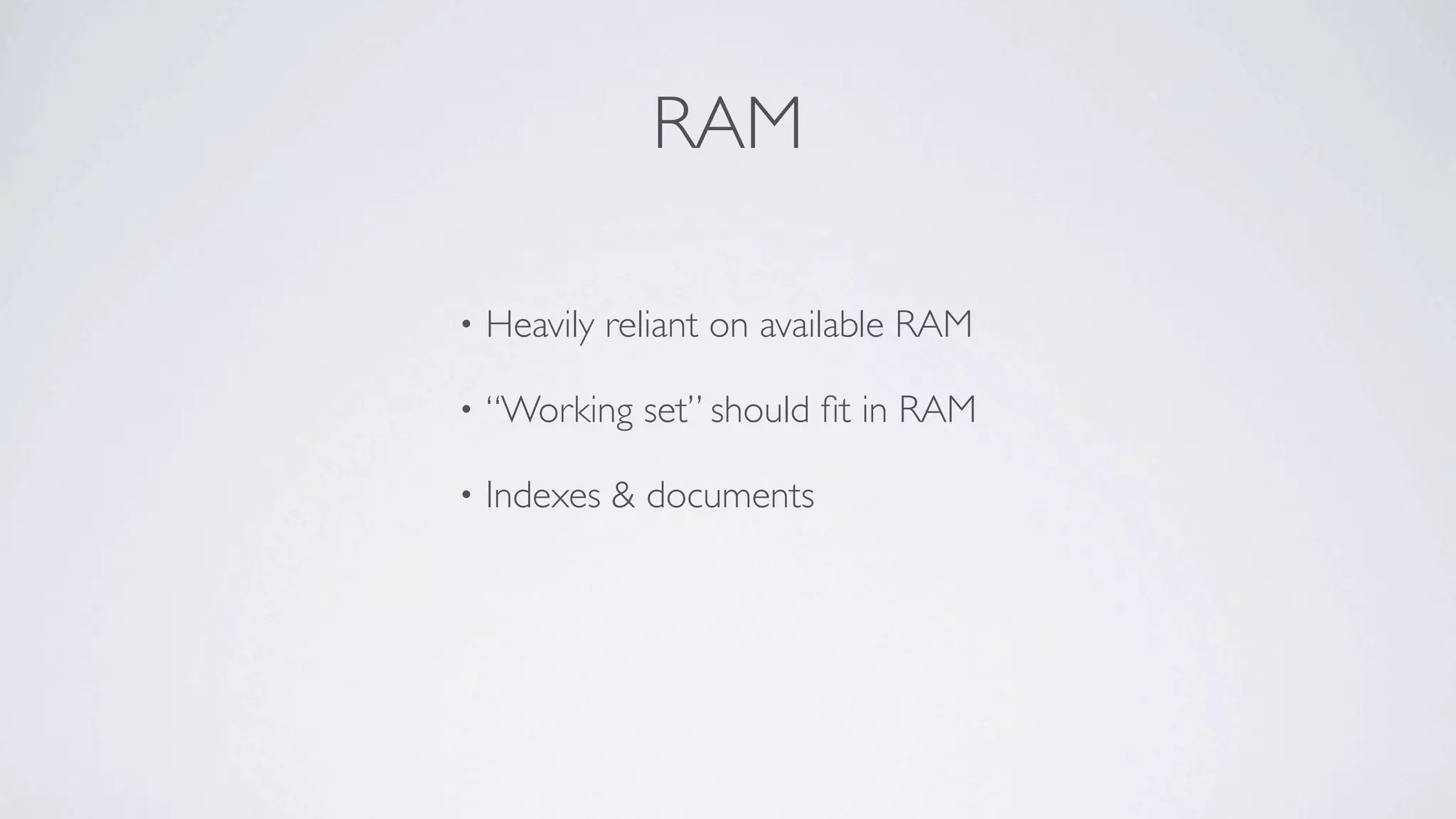

RAM

•   Heavily reliant on available RAM

•   “Working set” should fit in RAM

•   Indexes & documents

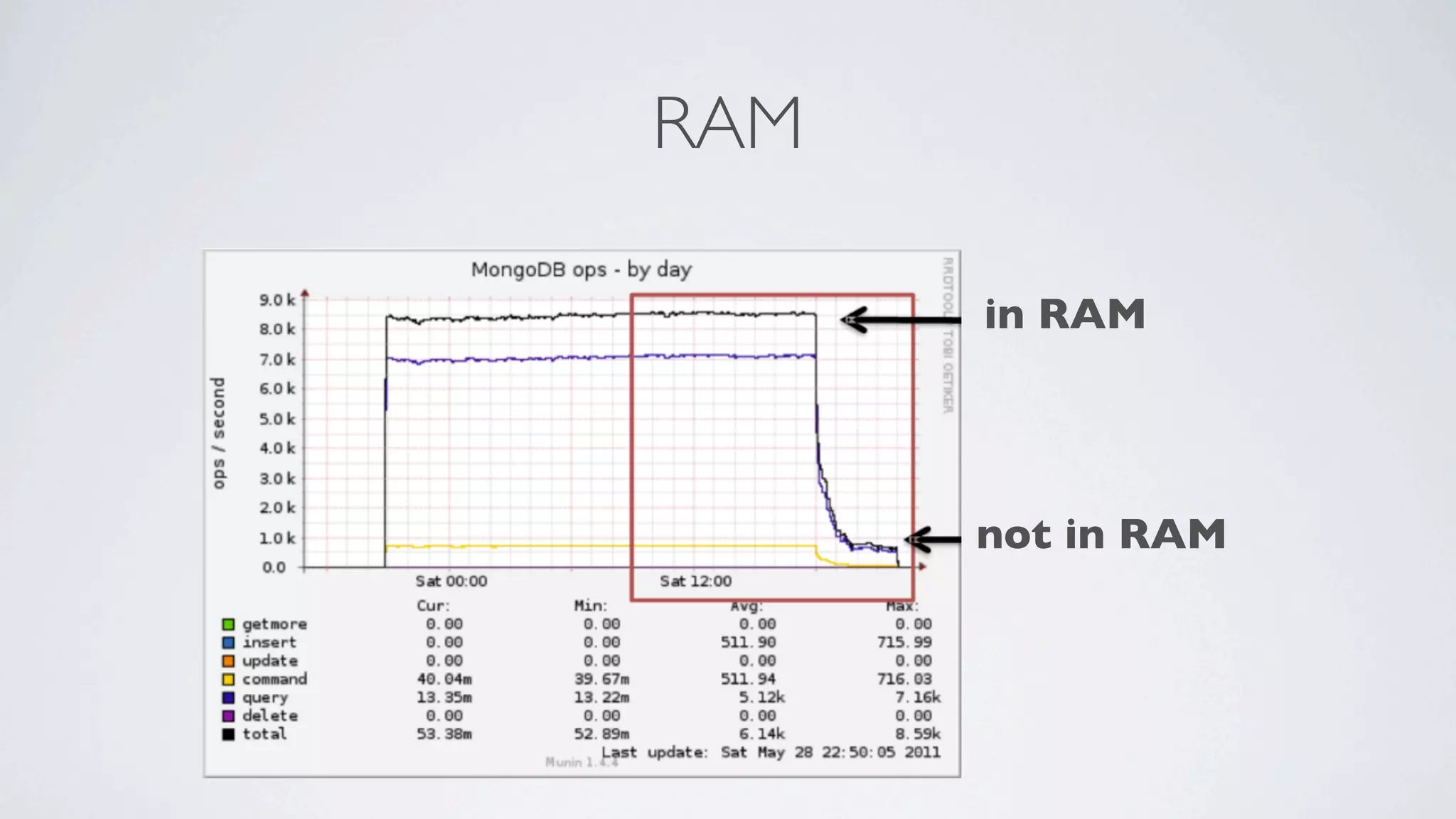

RAM

      in RAM




      not in RAM

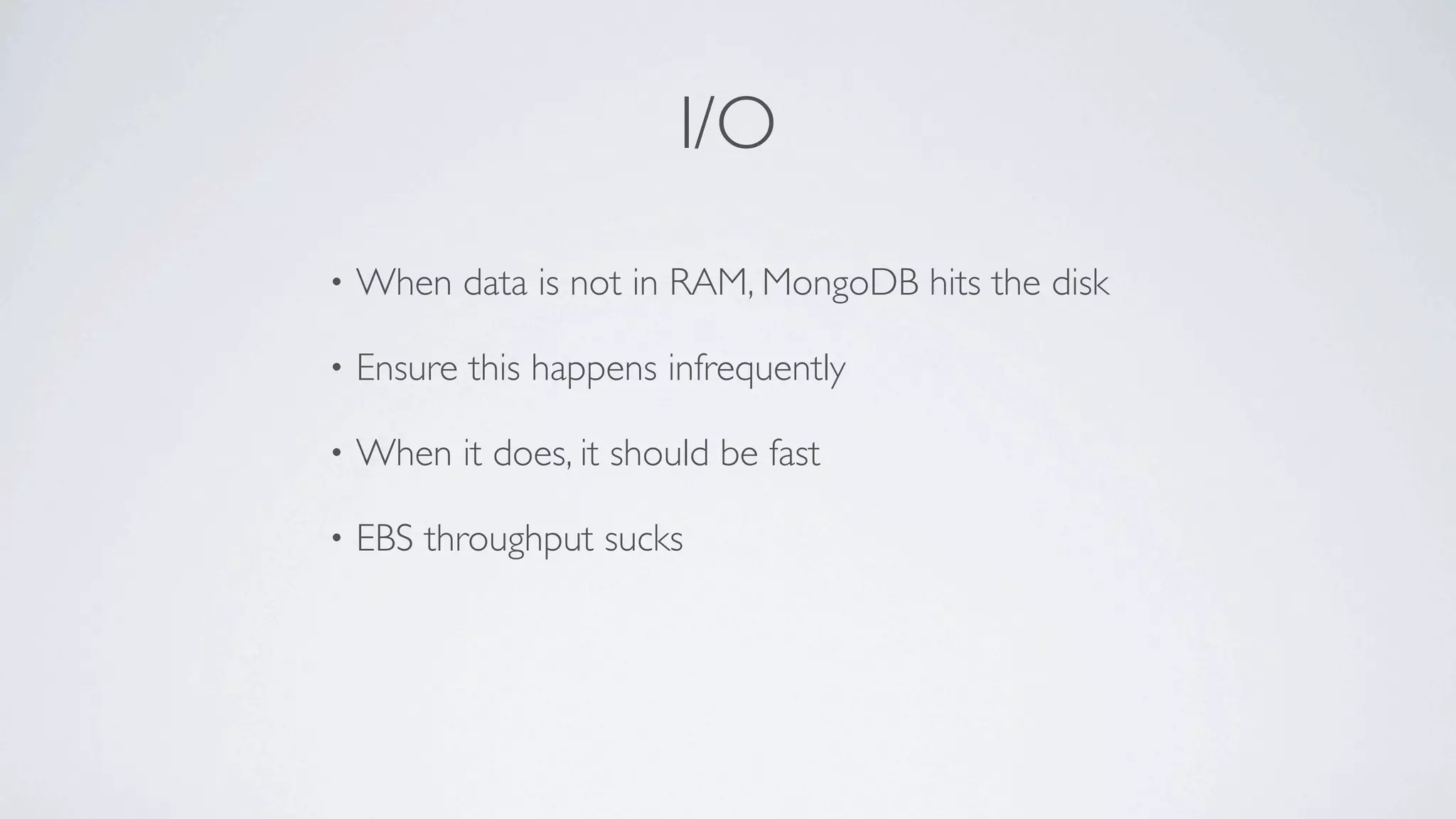

I/O
•   When data is not in RAM, MongoDB hits the disk

•   Ensure this happens infrequently

•   When it does, it should be fast

•   EBS throughput sucks

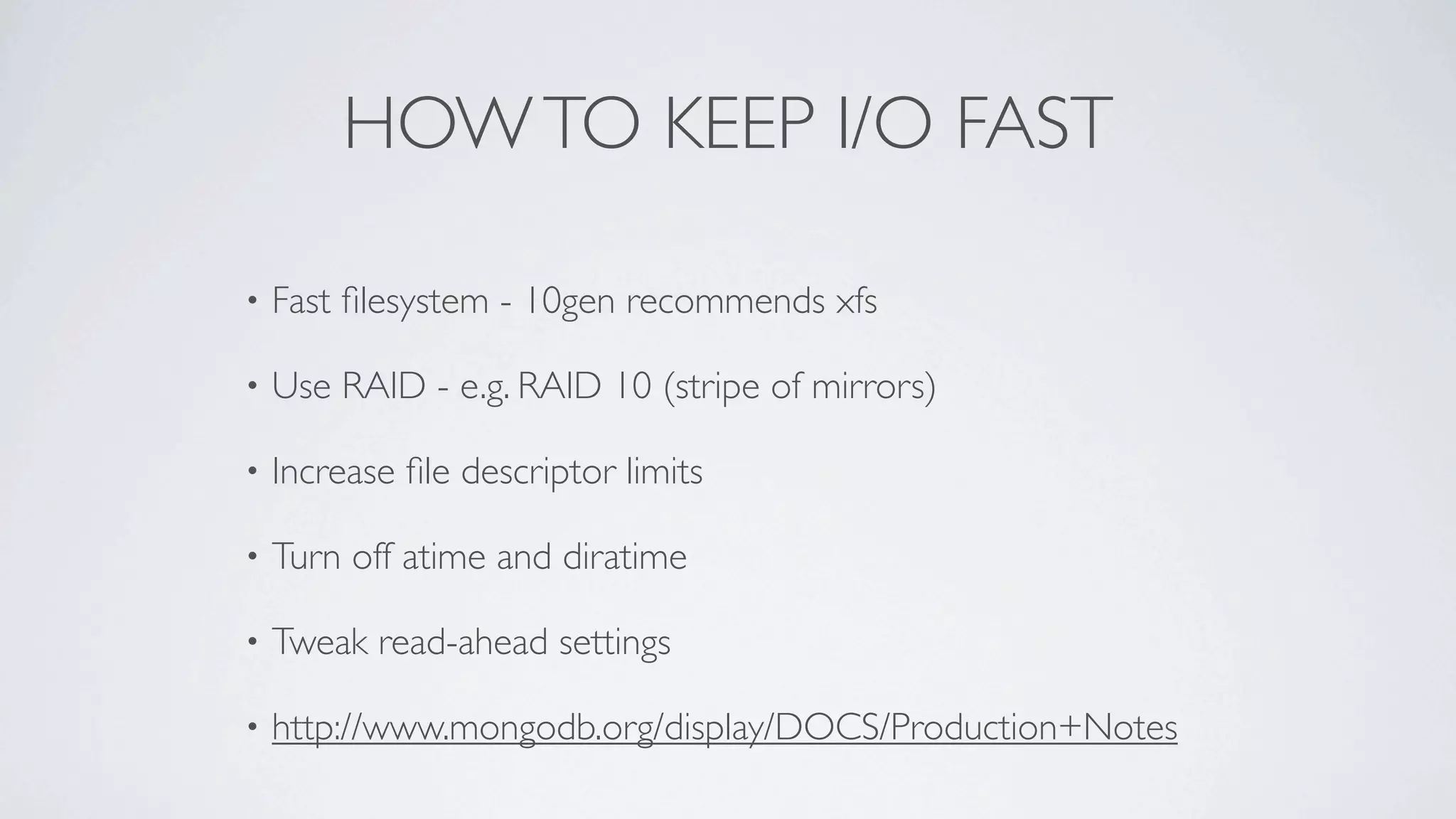

HOW TO KEEP I/O FAST

•   Fast filesystem - 10gen recommends xfs

•   Use RAID - e.g. RAID 10 (stripe of mirrors)

•   Increase file descriptor limits

•   Turn off atime and diratime

•   Tweak read-ahead settings

•   http://www.mongodb.org/display/DOCS/Production+Notes
HOW CAN YOU ARCHITECT MONGODB
          TO SCALE?

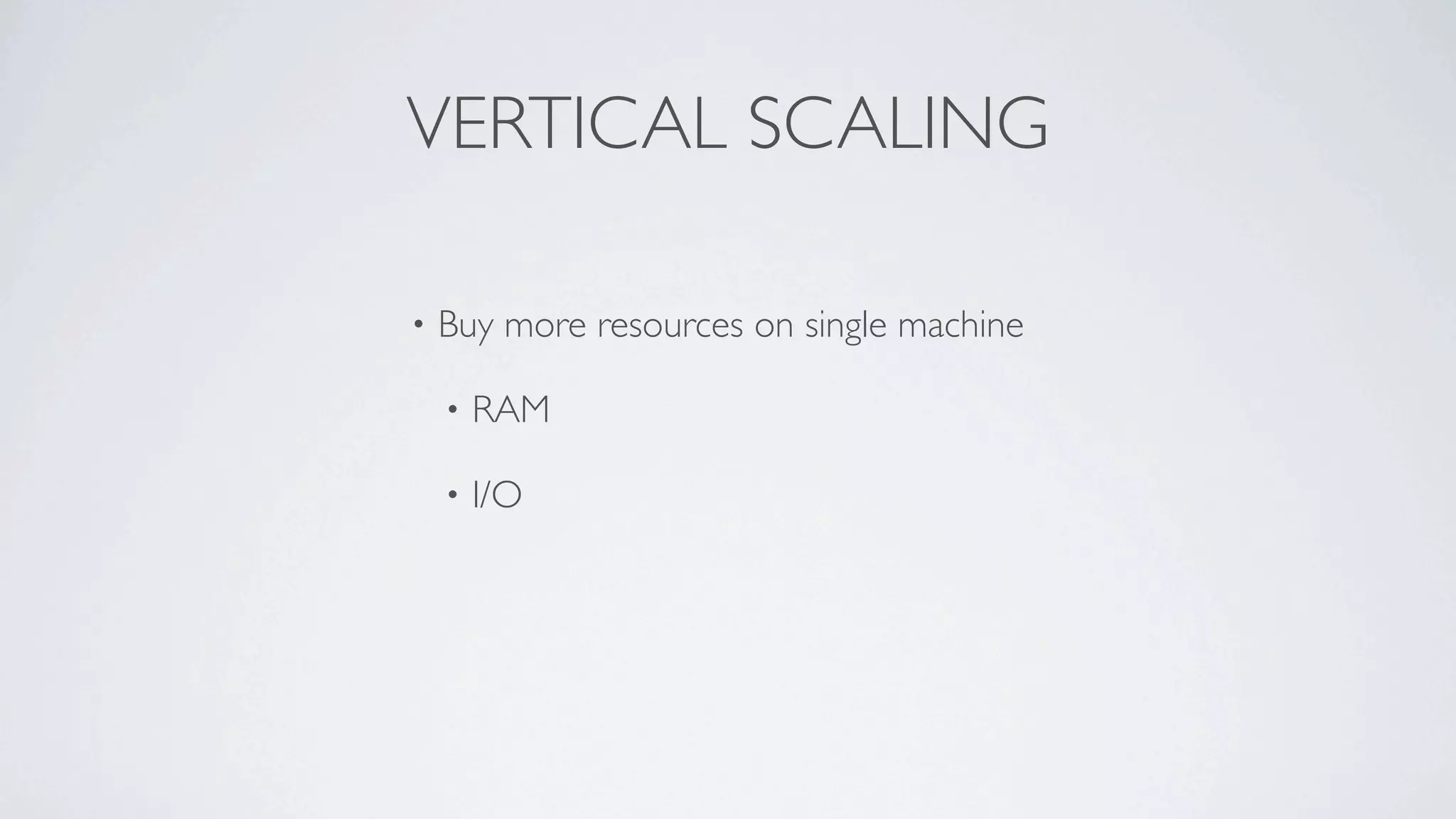

VERTICAL SCALING

•   Buy more resources on single machine

    •   RAM

    •   I/O

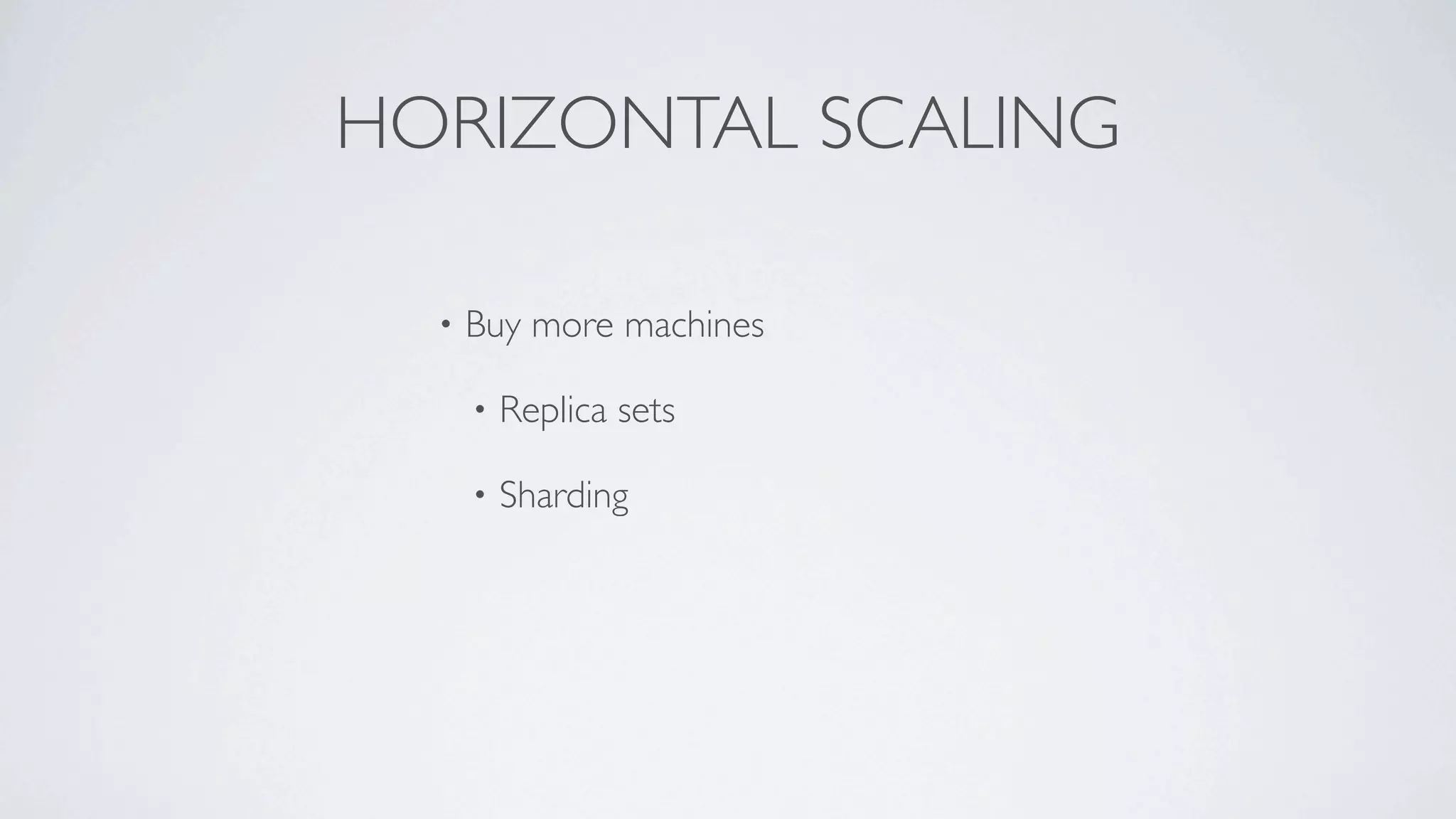

HORIZONTAL SCALING

  •   Buy more machines

      •   Replica sets

      •   Sharding

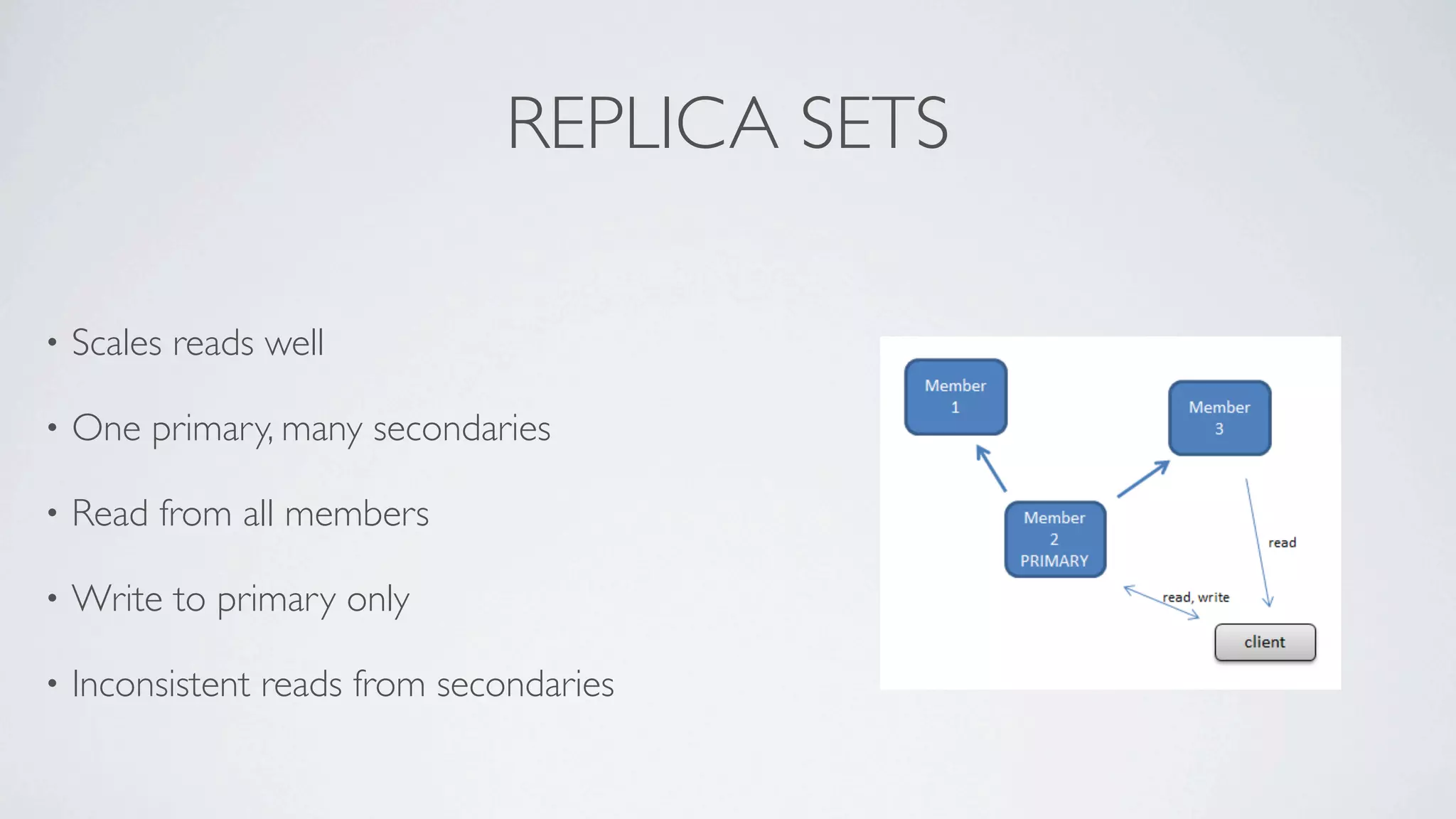

REPLICA SETS

•   Scales reads well

•   One primary, many secondaries

•   Read from all members

•   Write to primary only

•   Inconsistent reads from secondaries

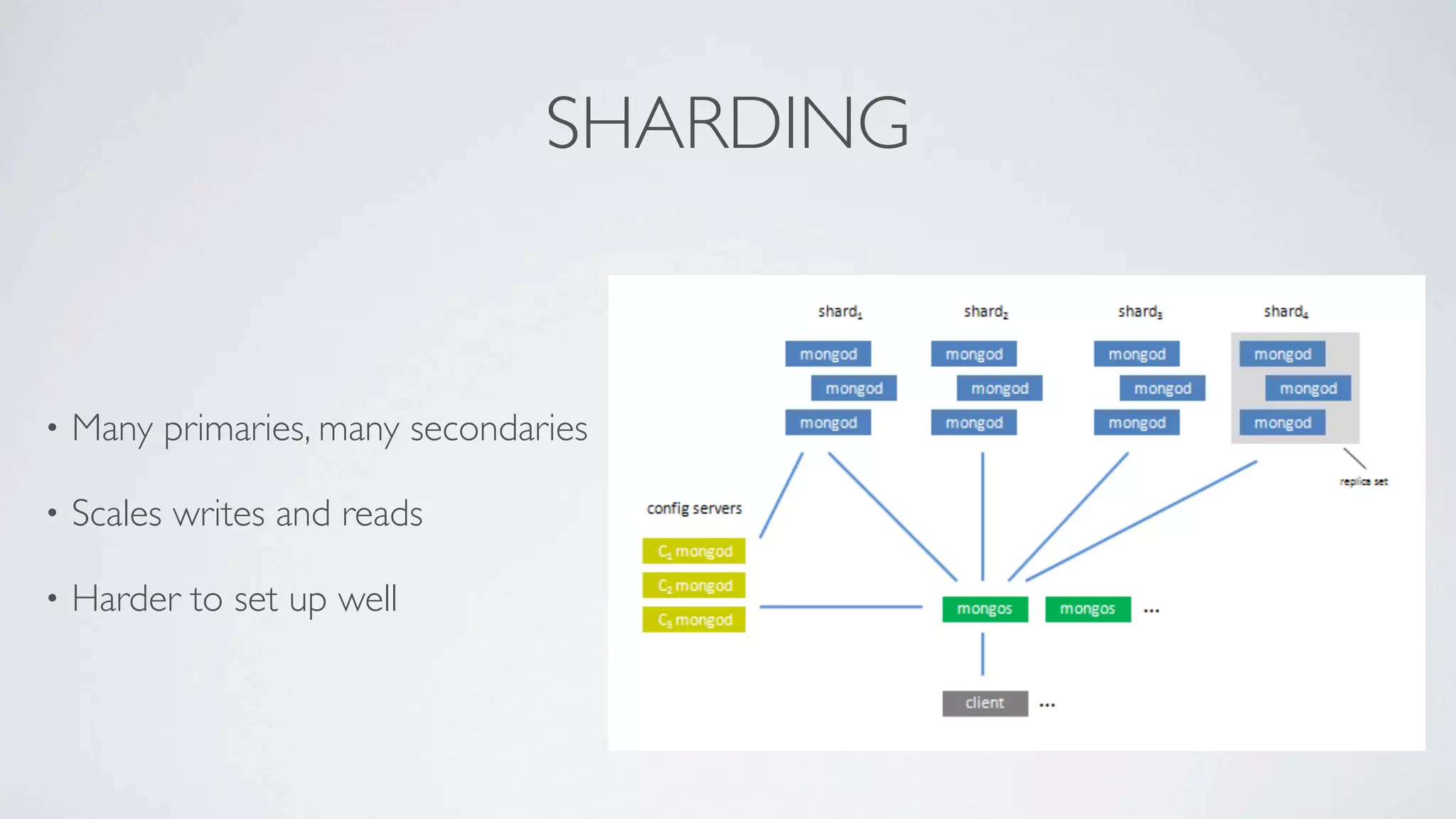

SHARDING


•   Many primaries, many secondaries

•   Scales writes and reads

•   Harder to set up well

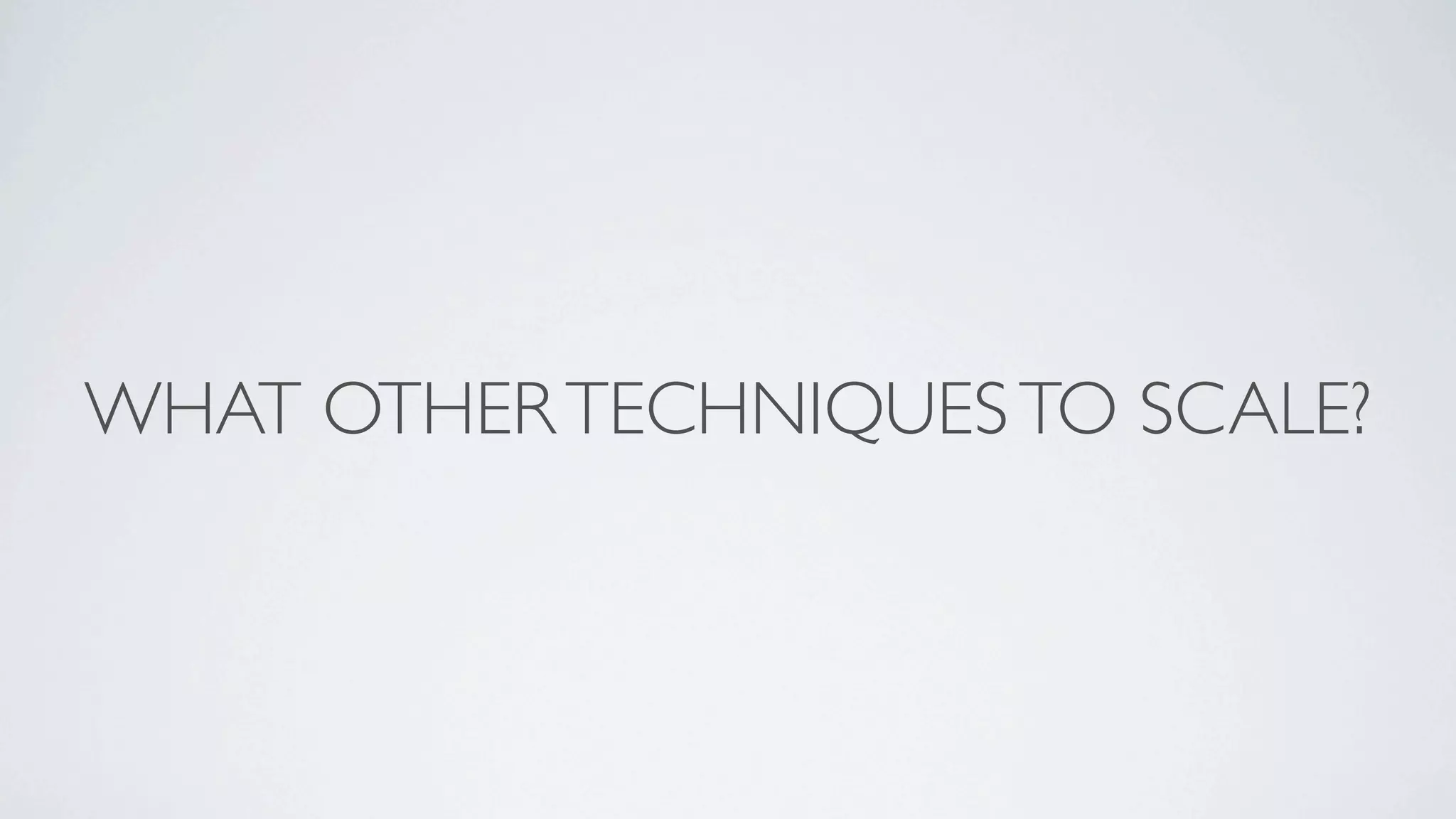

WHAT OTHER TECHNIQUES TO SCALE?

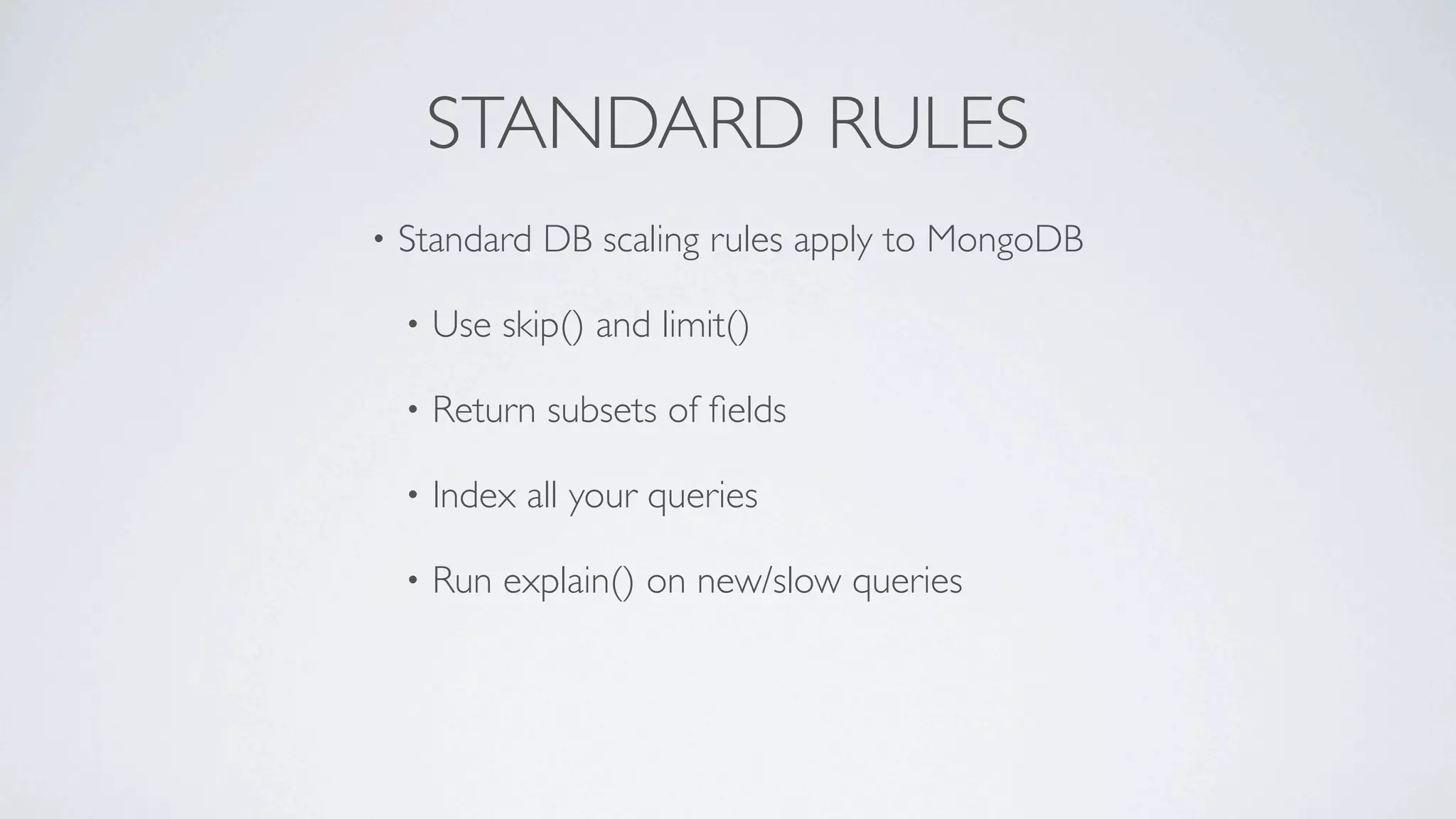

STANDARD RULES
•   Standard DB scaling rules apply to MongoDB

    •   Use skip() and limit()

    •   Return subsets of fields

    •   Index all your queries

    •   Run explain() on new/slow queries

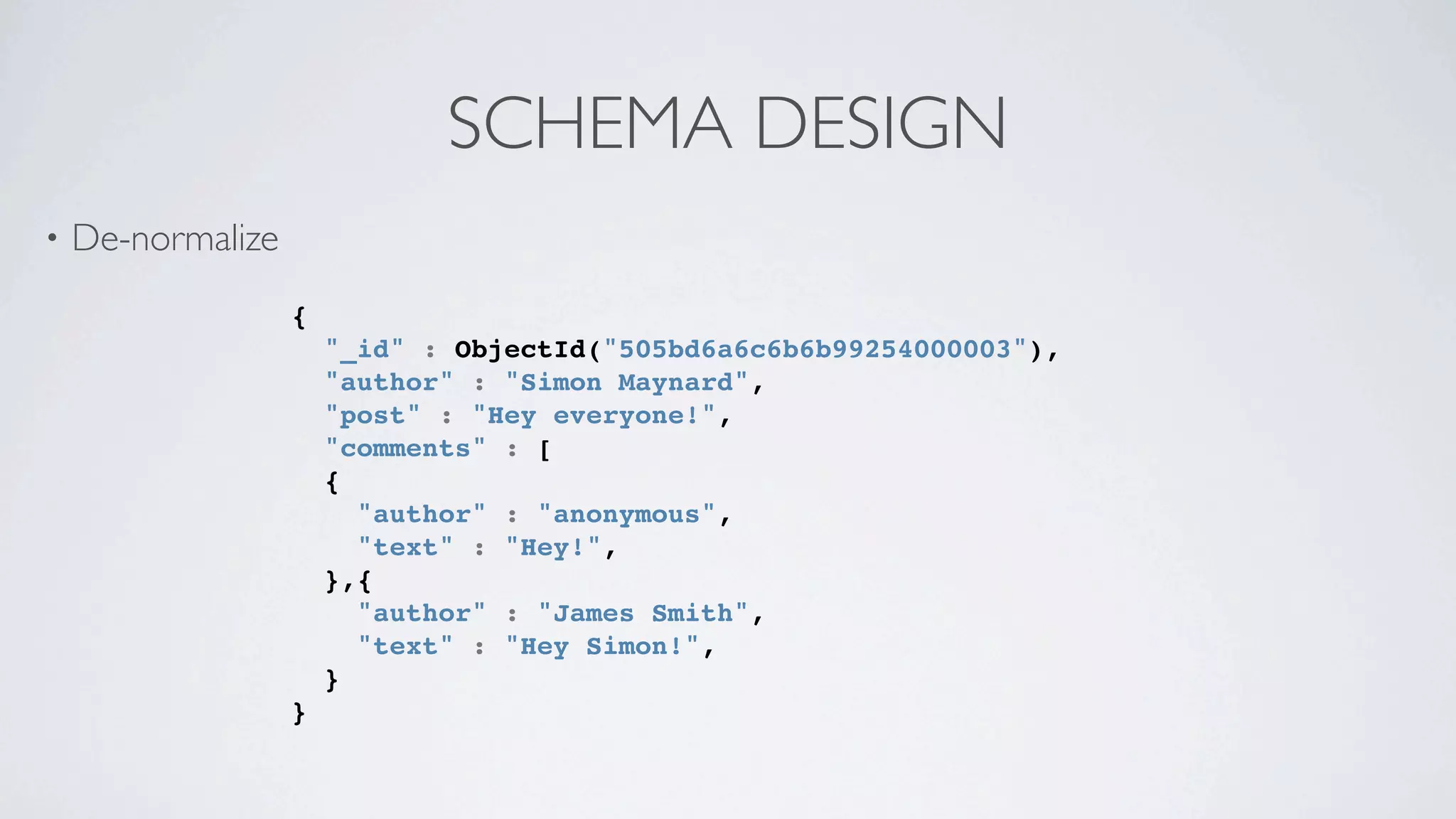

SCHEMA DESIGN
•   De-normalize
                   {
                       "_id" : ObjectId("505bd6a6c6b6b99254000003"),
                       "author" : "Simon Maynard",
                       "post" : "Hey everyone!",
                       "comments" : [
                       {
                         "author" : "anonymous",
                         "text" : "Hey!",
                       },{
                         "author" : "James Smith",
                         "text" : "Hey Simon!",
                       }
                   }

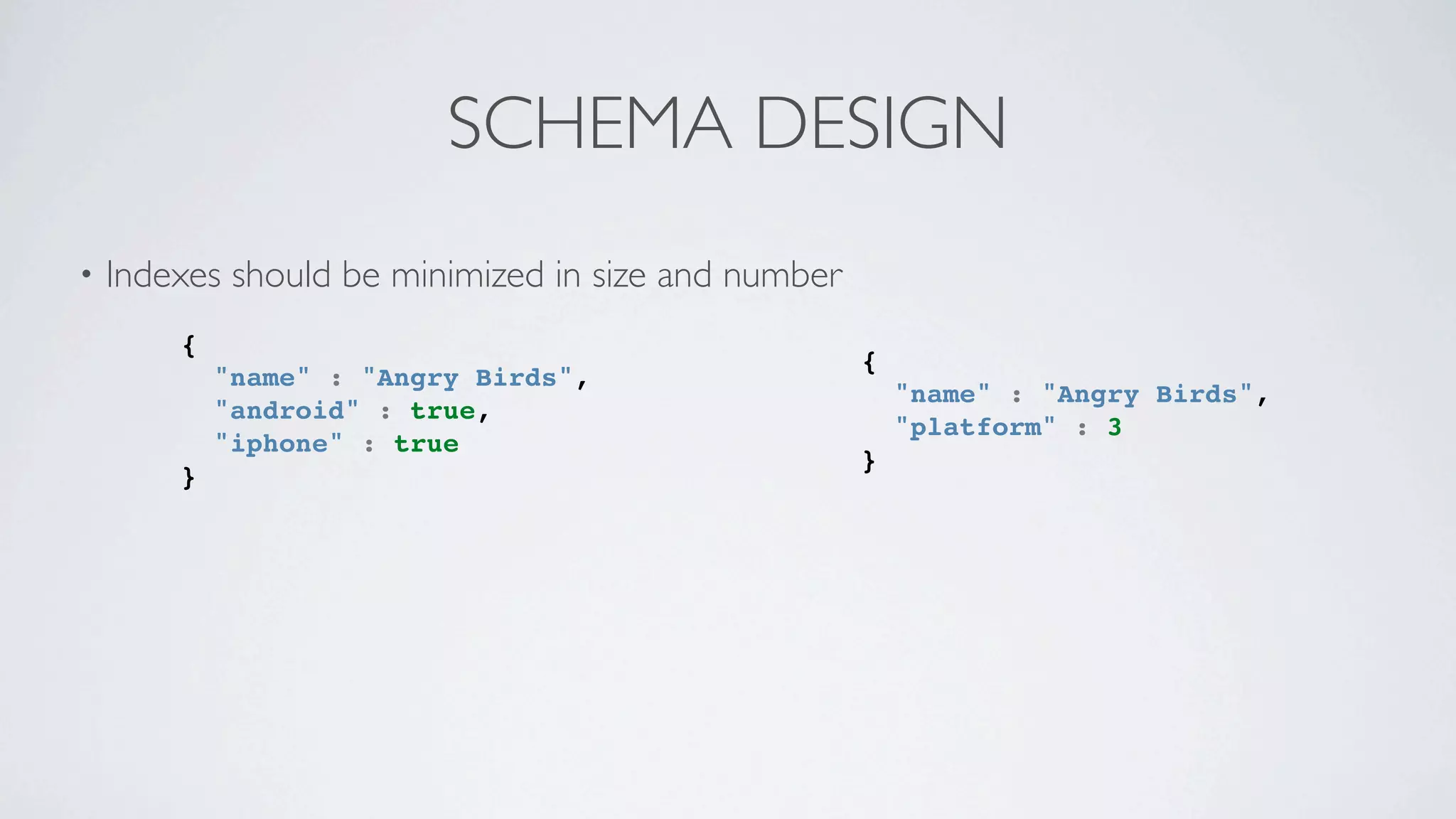

SCHEMA DESIGN
•   Indexes should be minimized in size and number
        {
                                                     {
            "name" : "Angry Birds",
                                                         "name" : "Angry Birds",
            "android" : true,
                                                         "platform" : 3
            "iphone" : true
                                                     }
        }

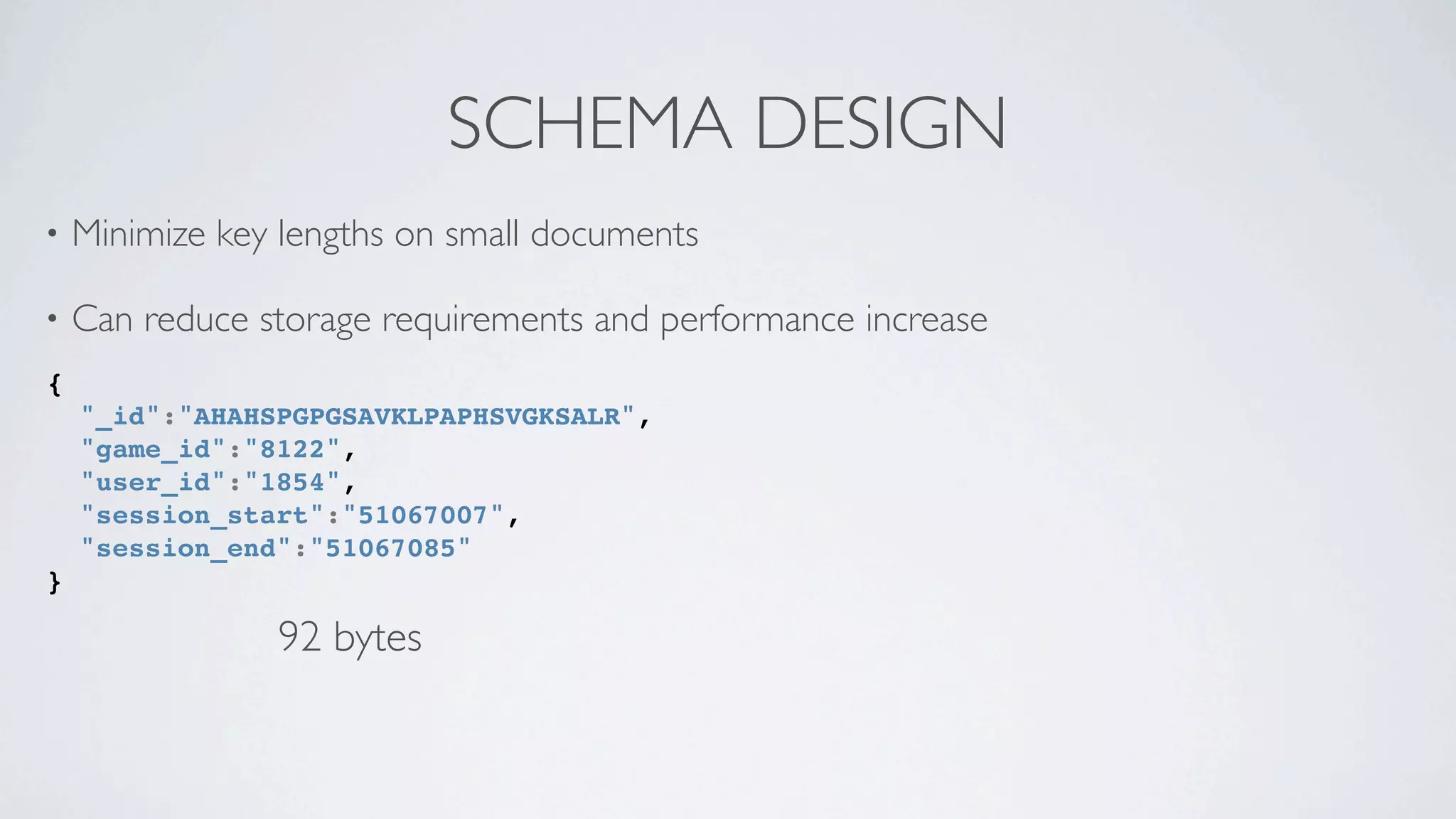

SCHEMA DESIGN
•   Minimize key lengths on small documents

•   Can reduce storage requirements and performance increase
{
    "_id":"AHAHSPGPGSAVKLPAPHSVGKSALR",
    "game_id":"8122",
    "user_id":"1854",
    "session_start":"51067007",
    "session_end":"51067085"
}

                92 bytes

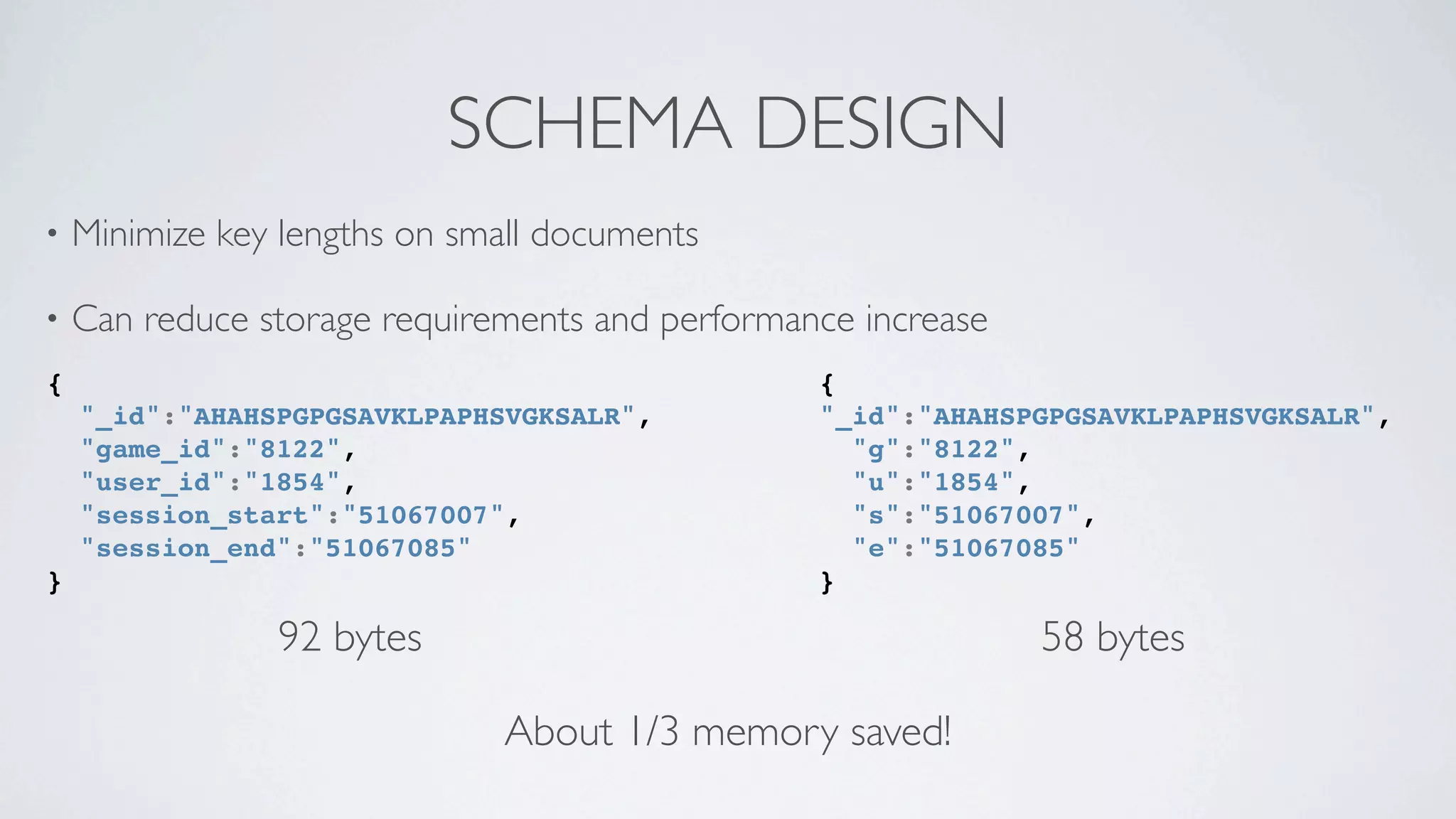

SCHEMA DESIGN
•   Minimize key lengths on small documents

•   Can reduce storage requirements and performance increase
{                                                {
    "_id":"AHAHSPGPGSAVKLPAPHSVGKSALR",          "_id":"AHAHSPGPGSAVKLPAPHSVGKSALR",
    "game_id":"8122",                              "g":"8122",
    "user_id":"1854",                              "u":"1854",
    "session_start":"51067007",                    "s":"51067007",
    "session_end":"51067085"                       "e":"51067085"
}                                                }

                92 bytes                                       58 bytes

                              About 1/3 memory saved!

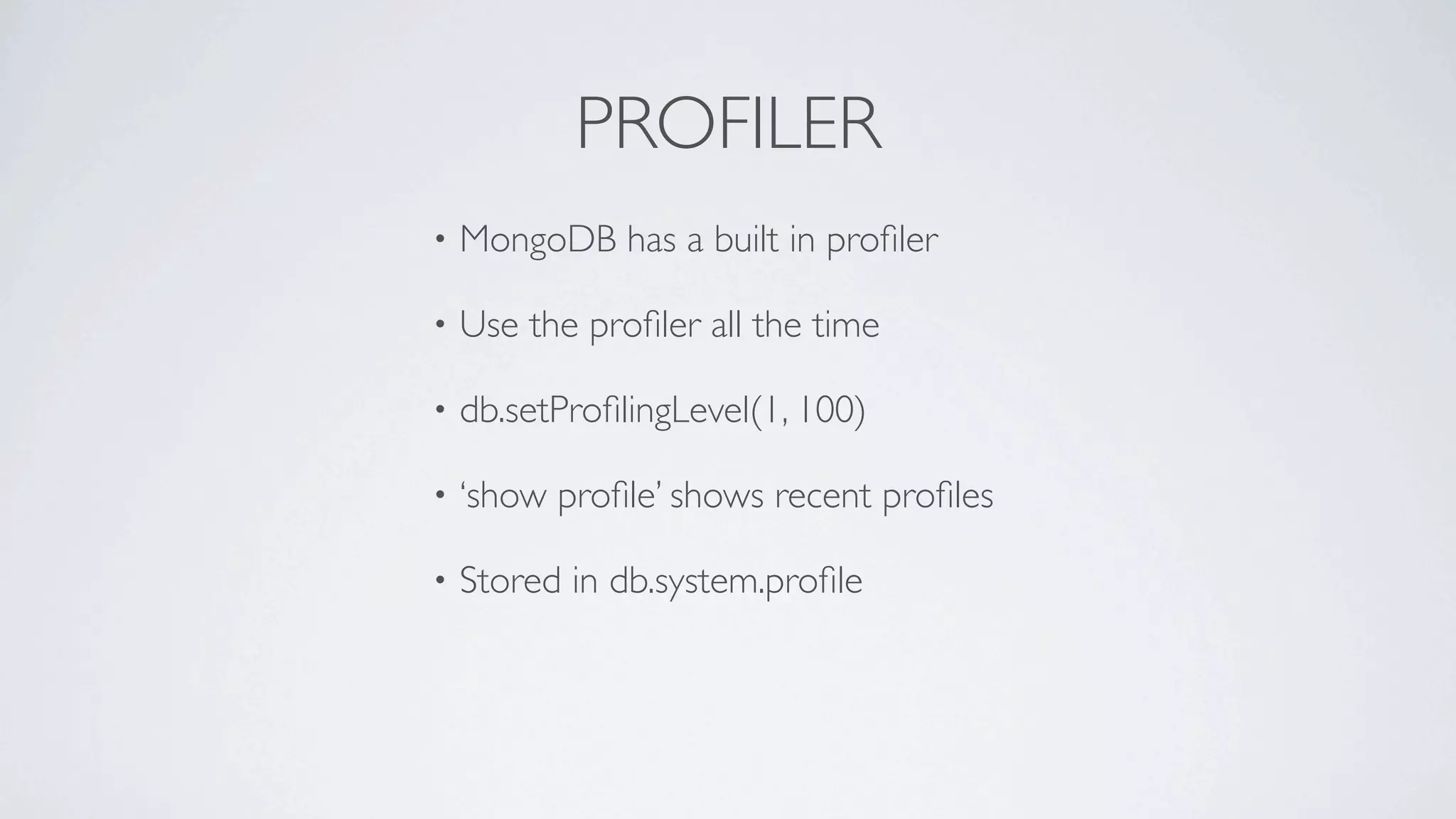

PROFILER
•   MongoDB has a built in profiler

•   Use the profiler all the time

•   db.setProfilingLevel(1, 100)

•   ‘show profile’ shows recent profiles

•   Stored in db.system.profile

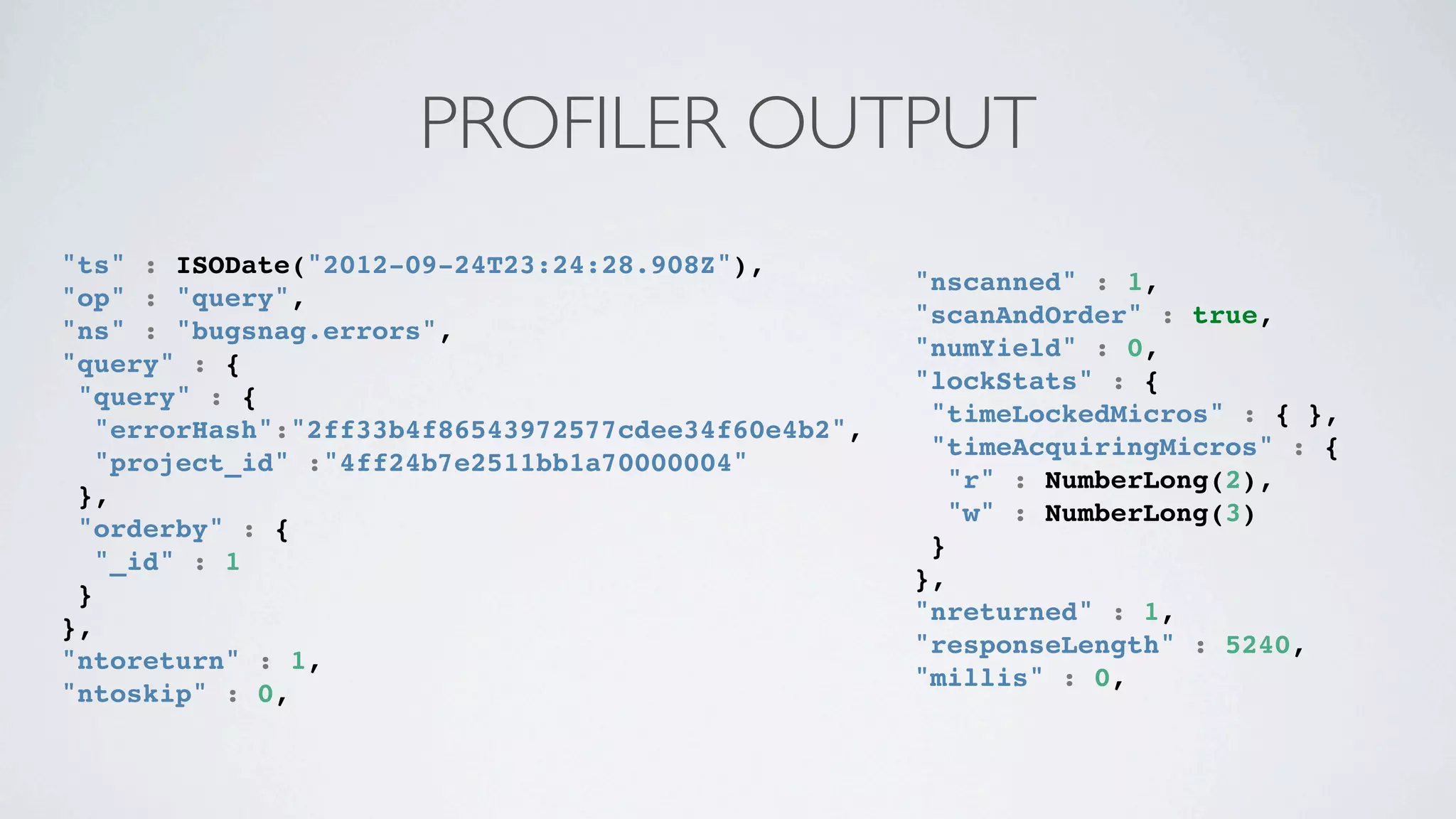

PROFILER OUTPUT
"ts" : ISODate("2012-09-24T23:24:28.908Z"),
                                                     "nscanned" : 1,
"op" : "query",
                                                     "scanAndOrder" : true,
"ns" : "bugsnag.errors",
                                                     "numYield" : 0,
"query" : {
                                                     "lockStats" : {
 "query" : {
                                                      "timeLockedMicros" : { },
   "errorHash":"2ff33b4f86543972577cdee34f60e4b2",
                                                      "timeAcquiringMicros" : {
   "project_id" :"4ff24b7e2511bb1a70000004"
                                                        "r" : NumberLong(2),
 },
                                                        "w" : NumberLong(3)
 "orderby" : {
                                                      }
   "_id" : 1
                                                     },
 }
                                                     "nreturned" : 1,
},
                                                     "responseLength" : 5240,
"ntoreturn" : 1,
                                                     "millis" : 0,
"ntoskip" : 0,
PROFILER OUTPUT
"ts" : ISODate("2012-09-24T23:24:28.908Z"),
                                                     "nscanned" : 1,
"op" : "query",
                                                     "scanAndOrder" : true,
"ns" : "bugsnag.errors",
                                                     "numYield" : 0,
"query" : {
                                                     "lockStats" : {
 "query" : {
                                                      "timeLockedMicros" : { },
   "errorHash":"2ff33b4f86543972577cdee34f60e4b2",
                                                      "timeAcquiringMicros" : {
   "project_id" :"4ff24b7e2511bb1a70000004"
                                                        "r" : NumberLong(2),
 },
                                                        "w" : NumberLong(3)
 "orderby" : {
                                                      }
   "_id" : 1
                                                     },
 }
                                                     "nreturned" : 1,
},
                                                     "responseLength" : 5240,
"ntoreturn" : 1,
                                                     "millis" : 0,
"ntoskip" : 0,
WHAT SHOULD I MONITOR?

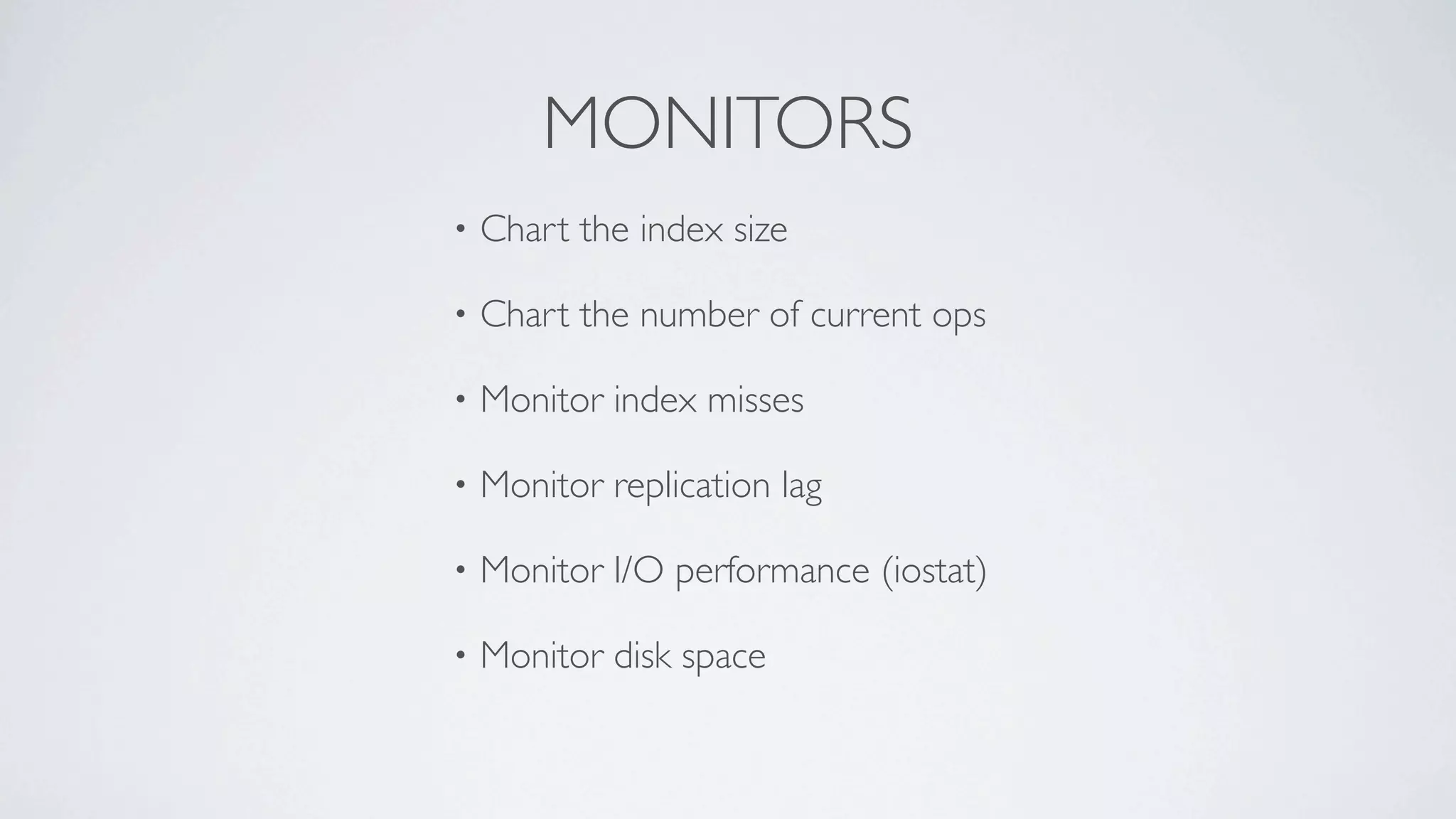

MONITORS
•   Chart the index size

•   Chart the number of current ops

•   Monitor index misses

•   Monitor replication lag

•   Monitor I/O performance (iostat)

•   Monitor disk space
HOW CAN I MONITOR MONGODB?

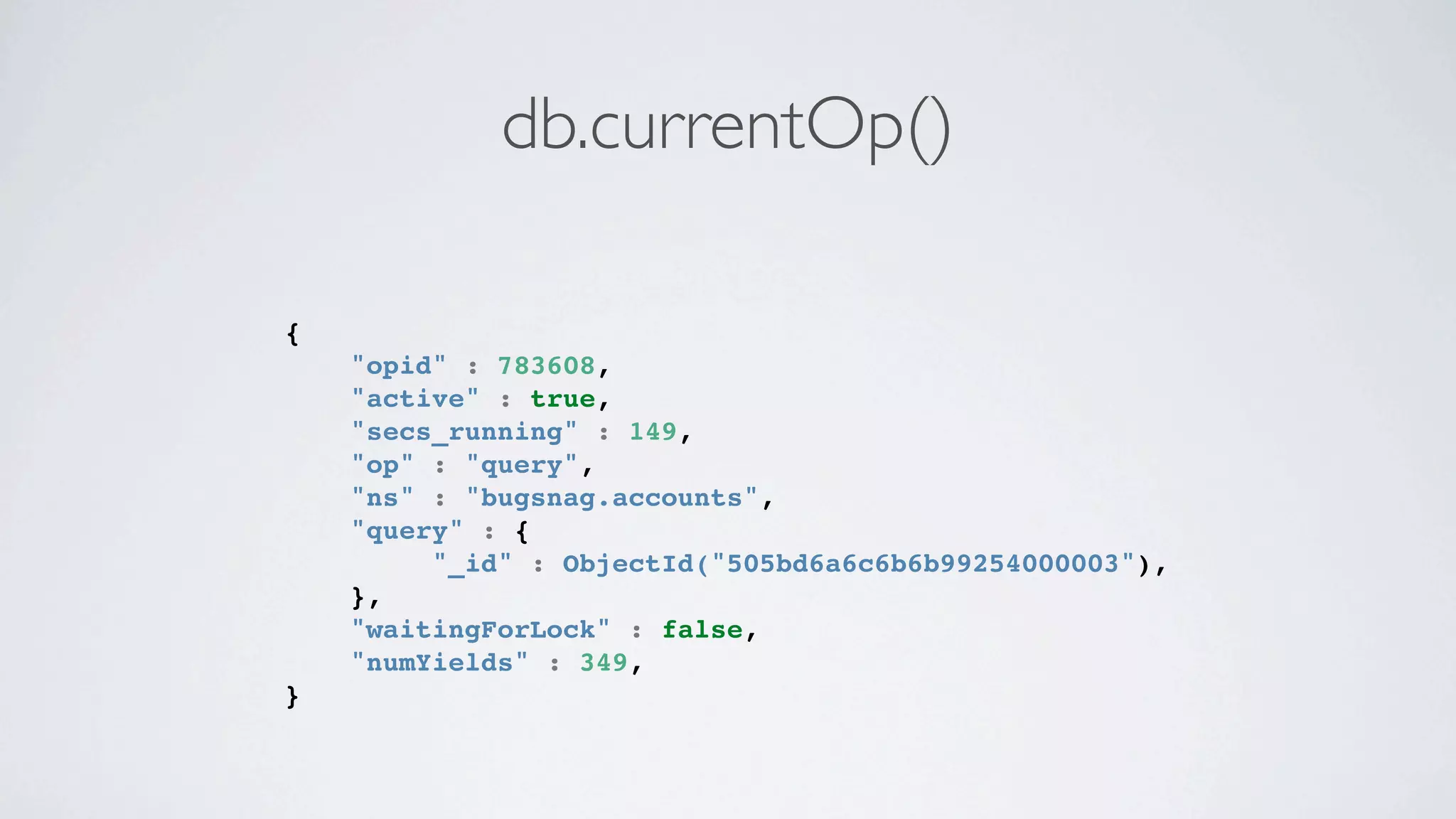

db.currentOp()

{
    "opid" : 783608,
    "active" : true,
    "secs_running" : 149,
    "op" : "query",
    "ns" : "bugsnag.accounts",
    "query" : {
         "_id" : ObjectId("505bd6a6c6b6b99254000003"),
    },
    "waitingForLock" : false,
    "numYields" : 349,
}

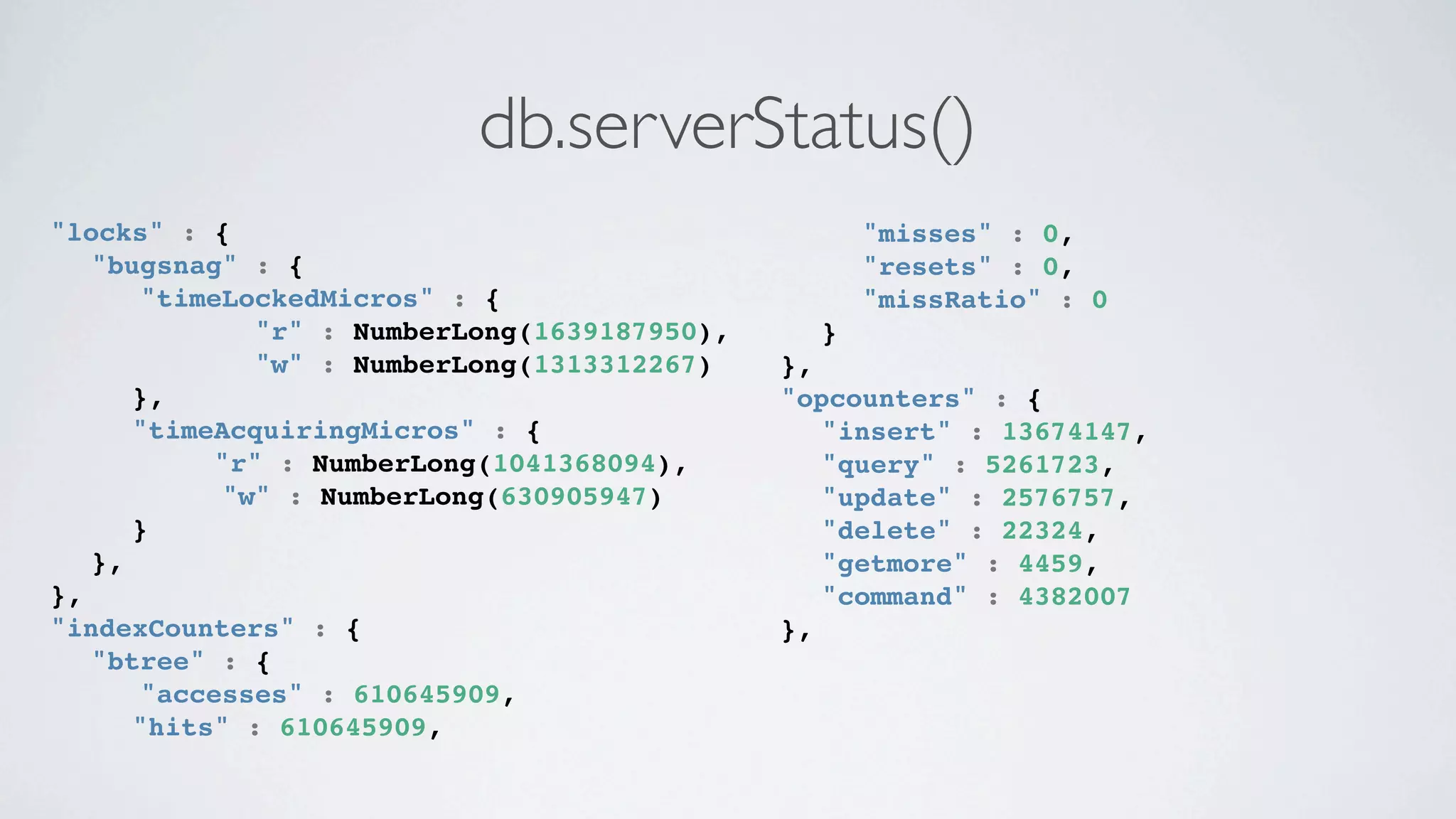

db.serverStatus()
"locks" : {                                    ! "misses" : 0,
! "bugsnag" : {                                ! "resets" : 0,
       "timeLockedMicros" : {                  ! "missRatio" : 0
           ! "r" : NumberLong(1639187950),     }
           ! "w" : NumberLong(1313312267)    },
      },                                     "opcounters" : {
      "timeAcquiringMicros" : {              ! "insert" : 13674147,
           "r" : NumberLong(1041368094),     ! "query" : 5261723,
            "w" : NumberLong(630905947)      ! "update" : 2576757,
      }                                      ! "delete" : 22324,
   },                                        ! "getmore" : 4459,
},                                           ! "command" : 4382007
"indexCounters" : {                          },
! "btree" : {
       "accesses" : 610645909,
   ! "hits" : 610645909,

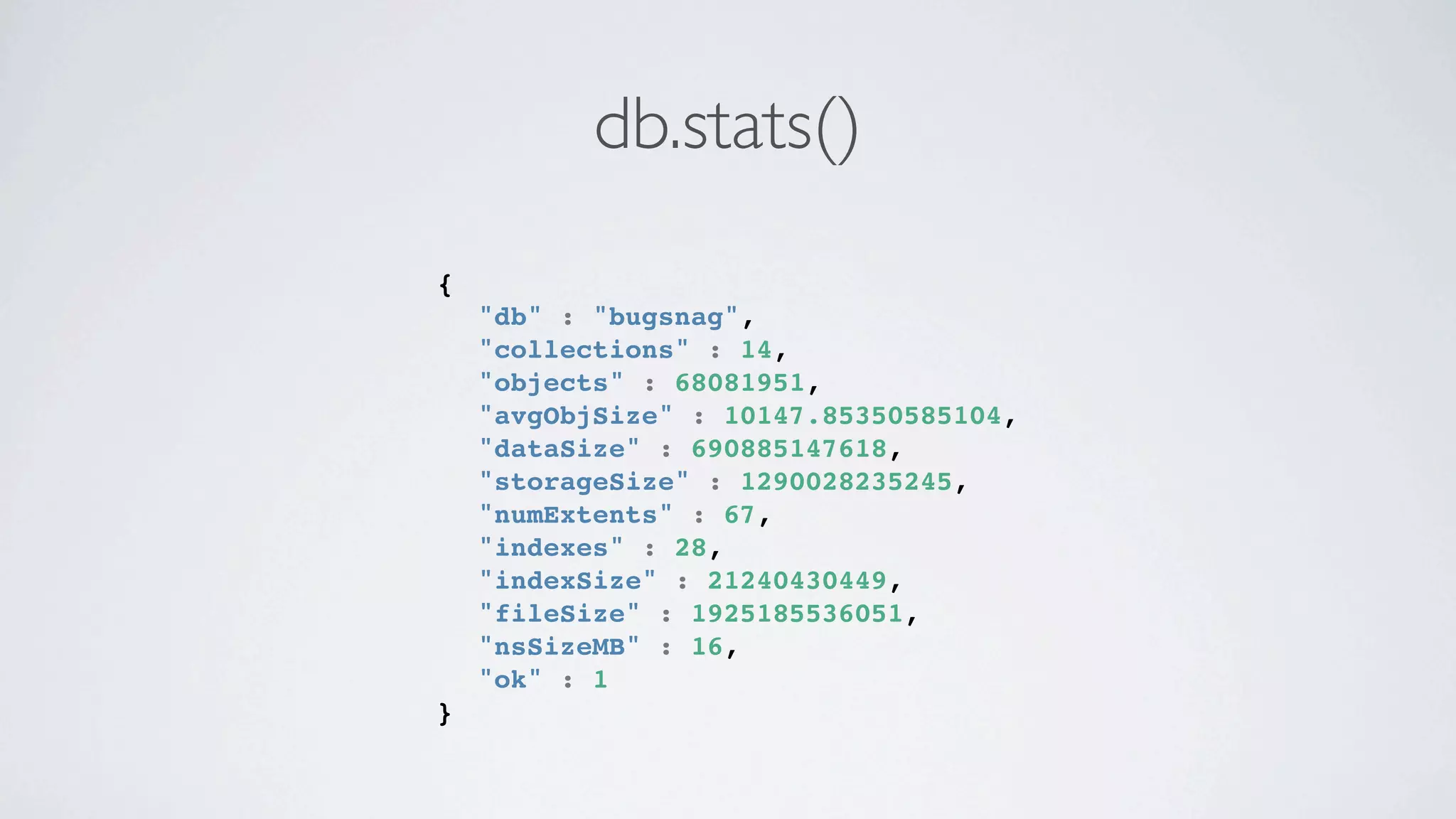

db.stats()
{
!   "db" : "bugsnag",
!   "collections" : 14,
!   "objects" : 68081951,
!   "avgObjSize" : 10147.85350585104,
!   "dataSize" : 690885147618,
!   "storageSize" : 1290028235245,
!   "numExtents" : 67,
!   "indexes" : 28,
!   "indexSize" : 21240430449,
!   "fileSize" : 1925185536051,
!   "nsSizeMB" : 16,
!   "ok" : 1
}

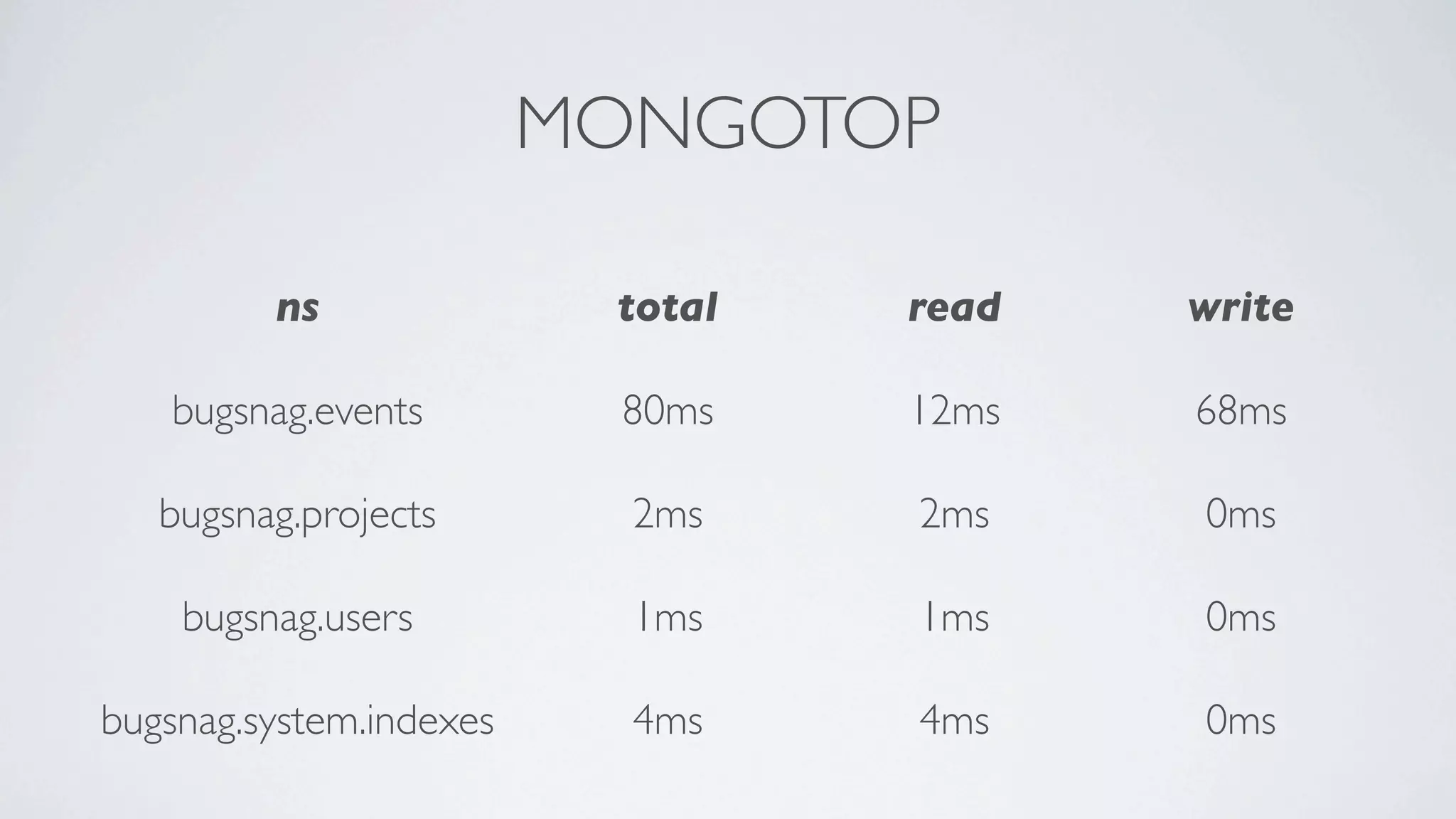

MONGOTOP

         ns               total   read   write

   bugsnag.events          80ms   12ms   68ms

   bugsnag.projects        2ms    2ms    0ms

    bugsnag.users          1ms    1ms    0ms

bugsnag.system.indexes     4ms    4ms    0ms

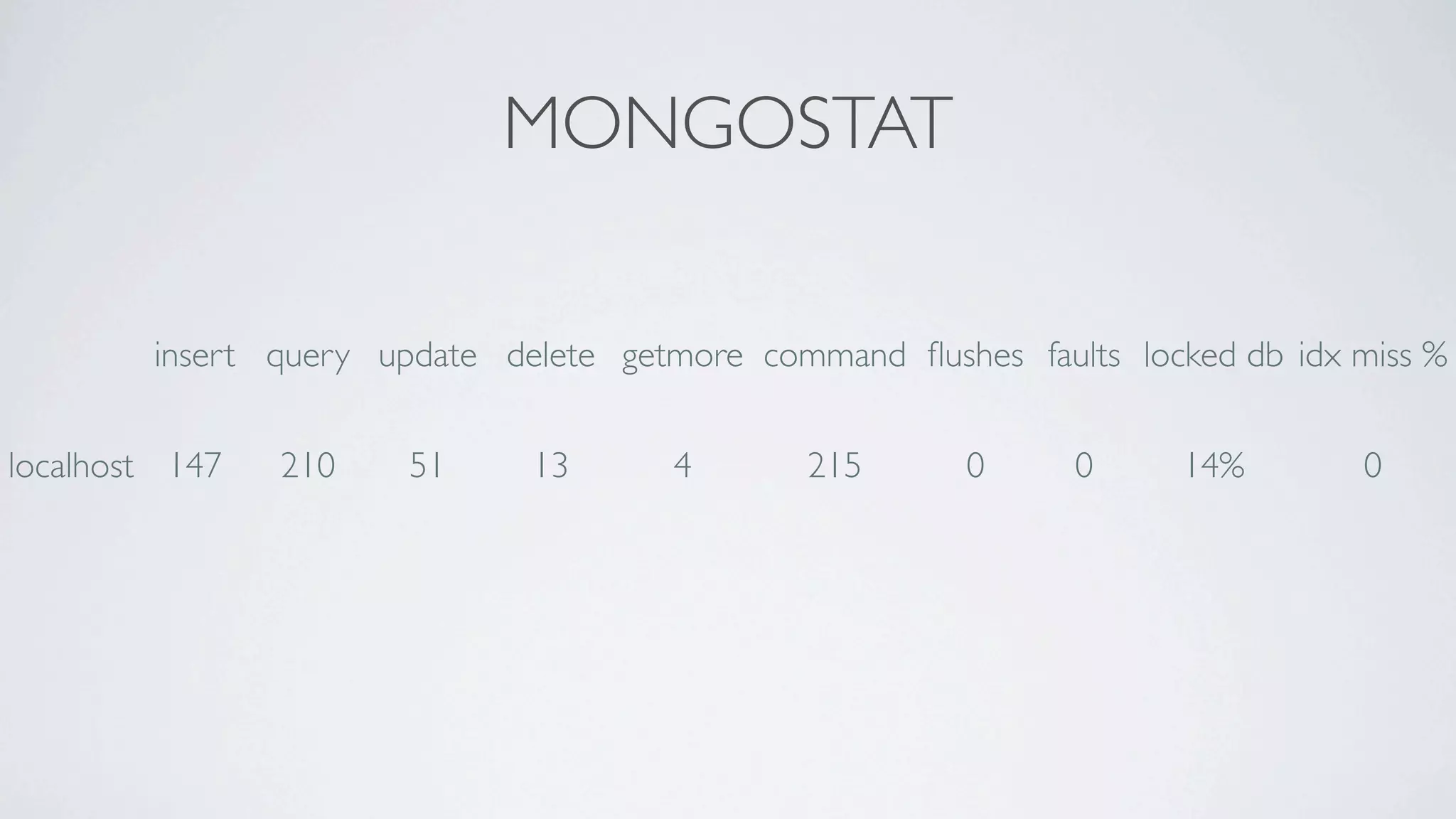

MONGOSTAT

        insert query update delete getmore command flushes faults locked db idx miss %


localhost 147   210    51     13      4       215       0     0      14%        0

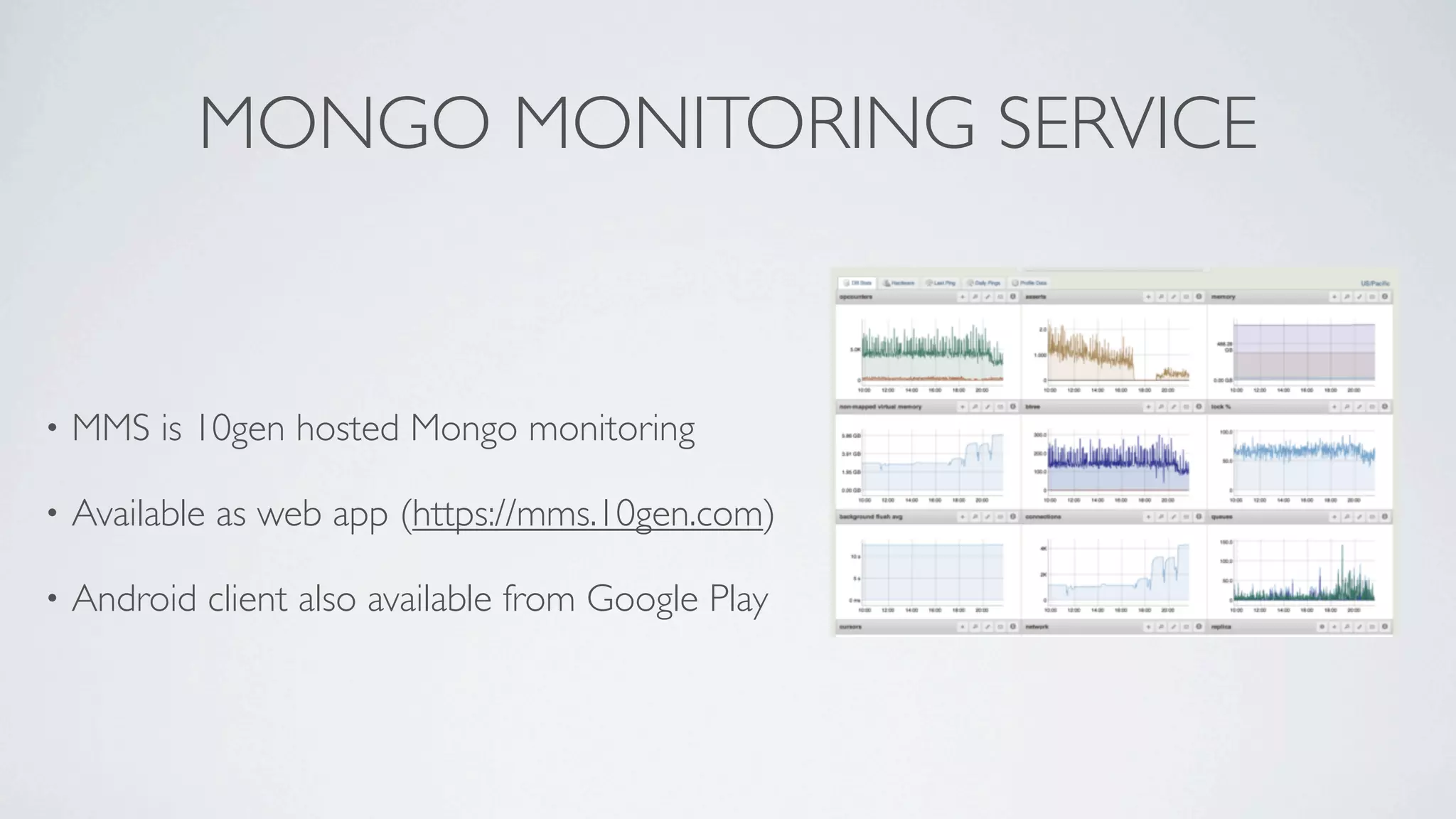

MONGO MONITORING SERVICE


•   MMS is 10gen hosted Mongo monitoring

•   Available as web app (https://mms.10gen.com)

•   Android client also available from Google Play

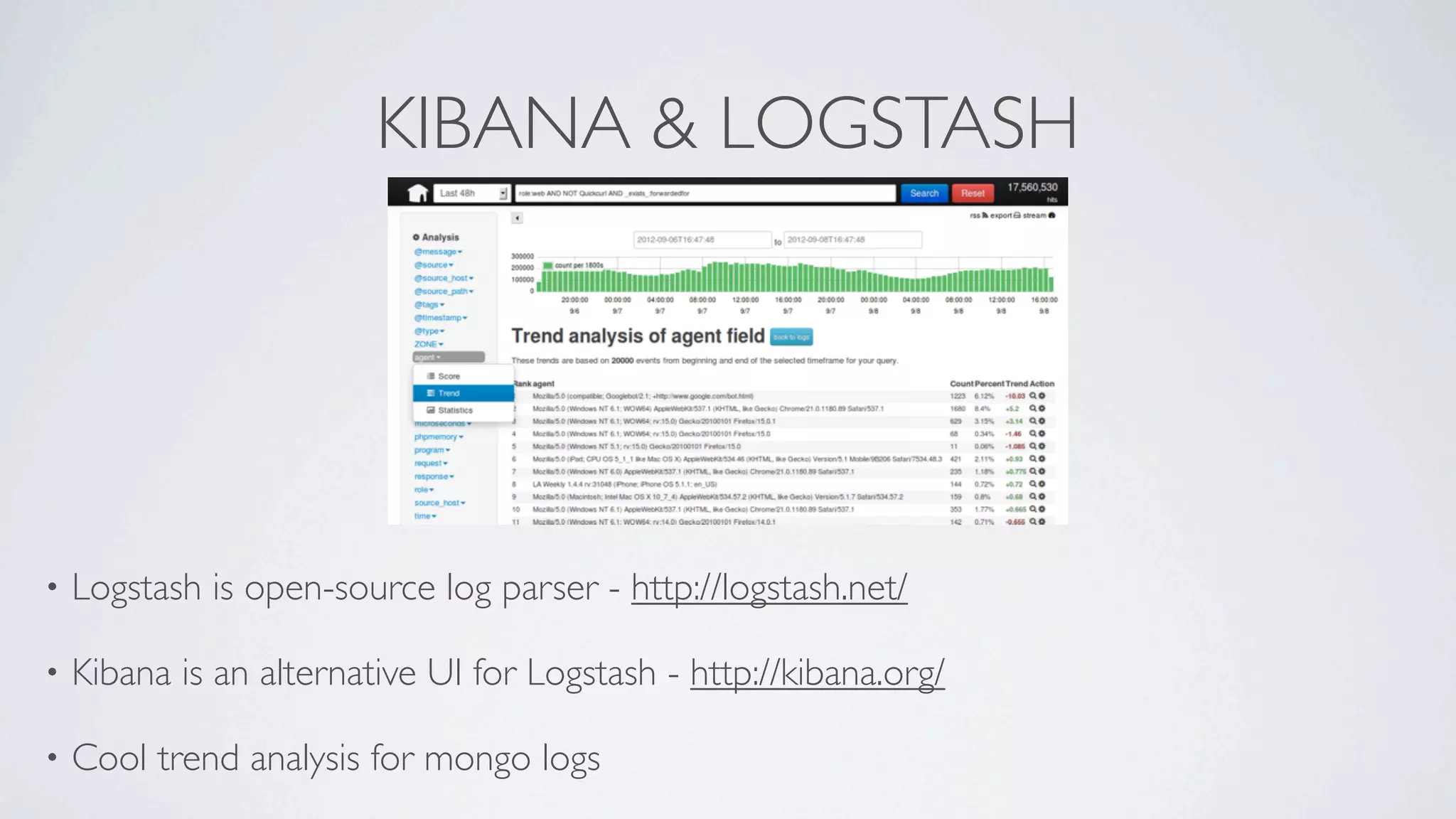

KIBANA & LOGSTASH




•   Logstash is open-source log parser - http://logstash.net/

•   Kibana is an alternative UI for Logstash - http://kibana.org/

•   Cool trend analysis for mongo logs
•   Questions?

•   Check out www.bugsnag.com

•   Follow me on twitter @snmaynard
