1. Automate
MariaDB Galera clusters
deployments with Ansible
How To and Best Practices
Federico Razzoli

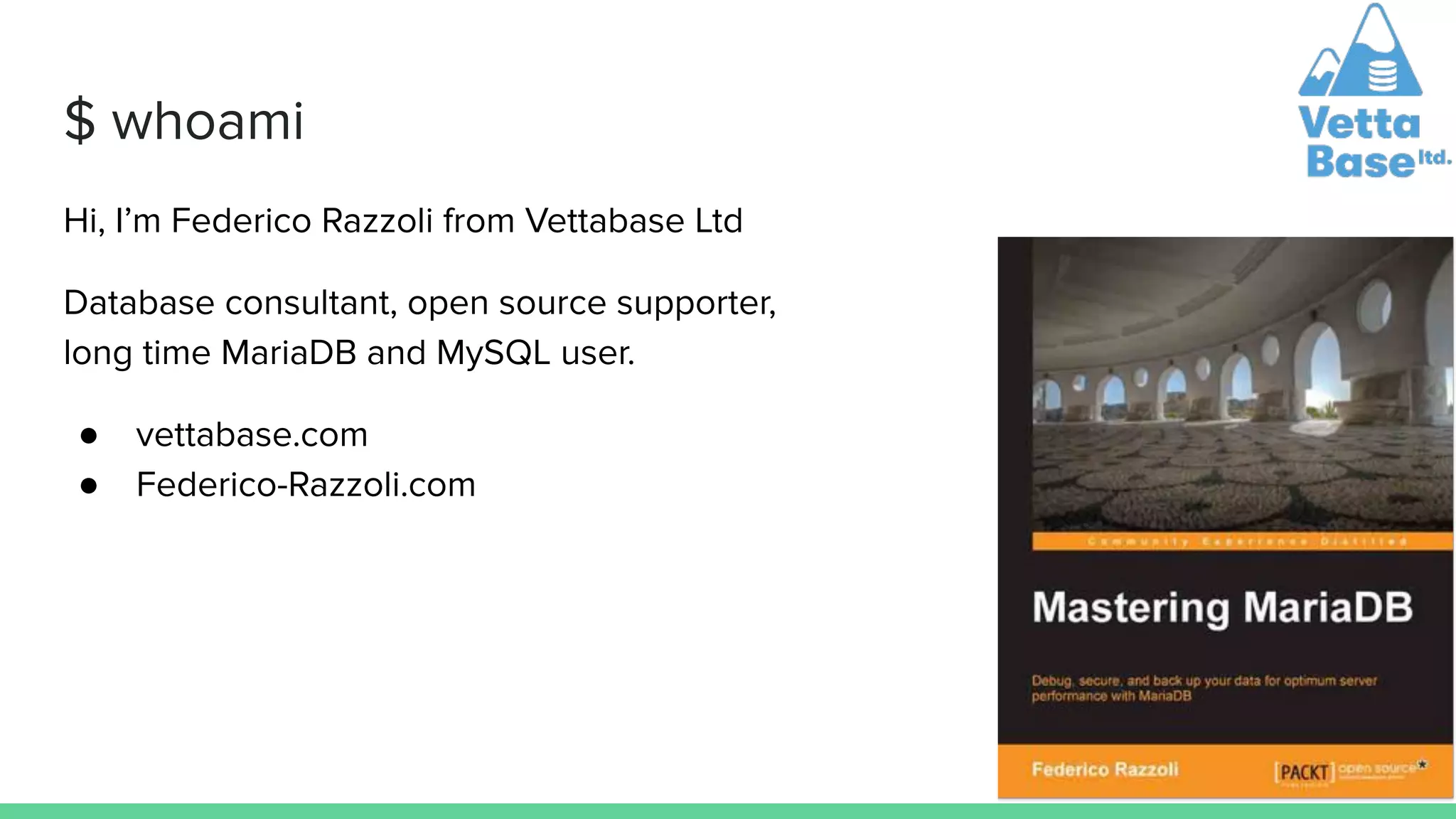

2. $ whoami
Hi, I’m Federico Razzoli from Vettabase Ltd
Database consultant, open source supporter,
long time MariaDB and MySQL user.
● vettabase.com
● Federico-Razzoli.com

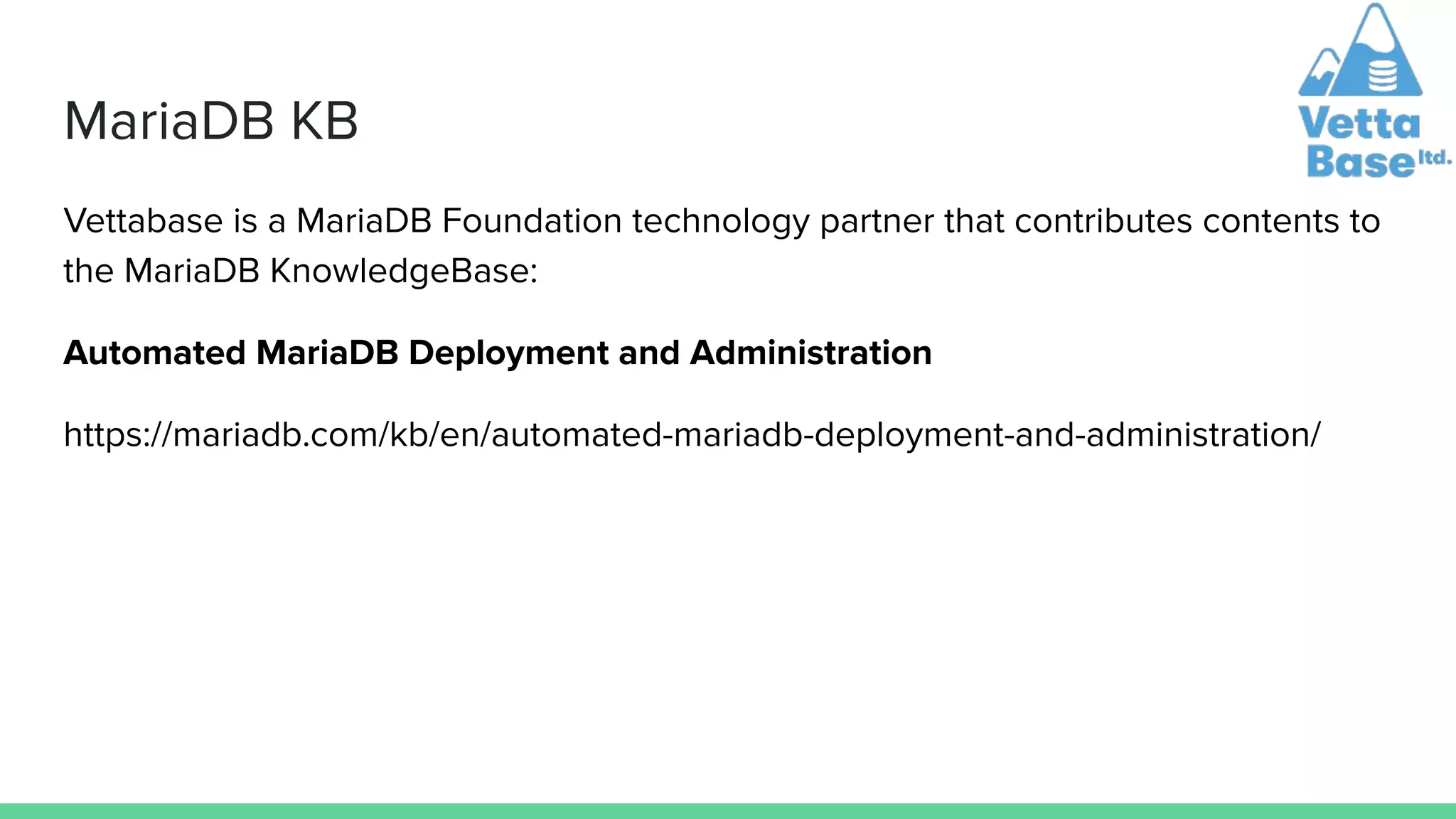

3. MariaDB KB
Vettabase is a MariaDB Foundation technology partner that contributes contents to
the MariaDB KnowledgeBase:
Automated MariaDB Deployment and Administration
https://mariadb.com/kb/en/automated-mariadb-deployment-and-administration/

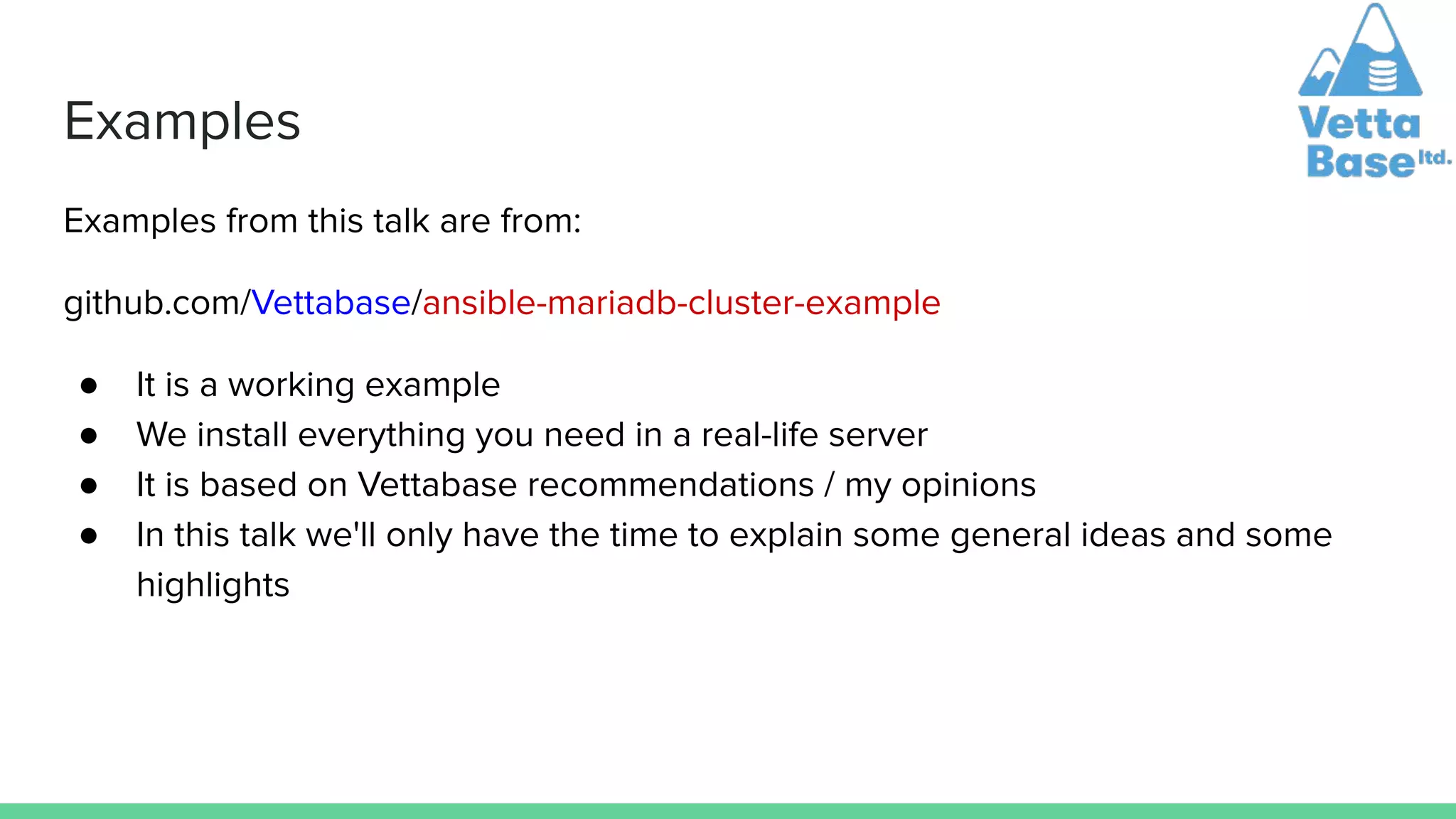

4. Examples
Examples from this talk are from:
github.com/Vettabase/ansible-mariadb-cluster-example
● It is a working example
● We install everything you need in a real-life server
● It is based on Vettabase recommendations / my opinions
● In this talk we'll only have the time to explain some general ideas and some
highlights

5. Inventories and Plays

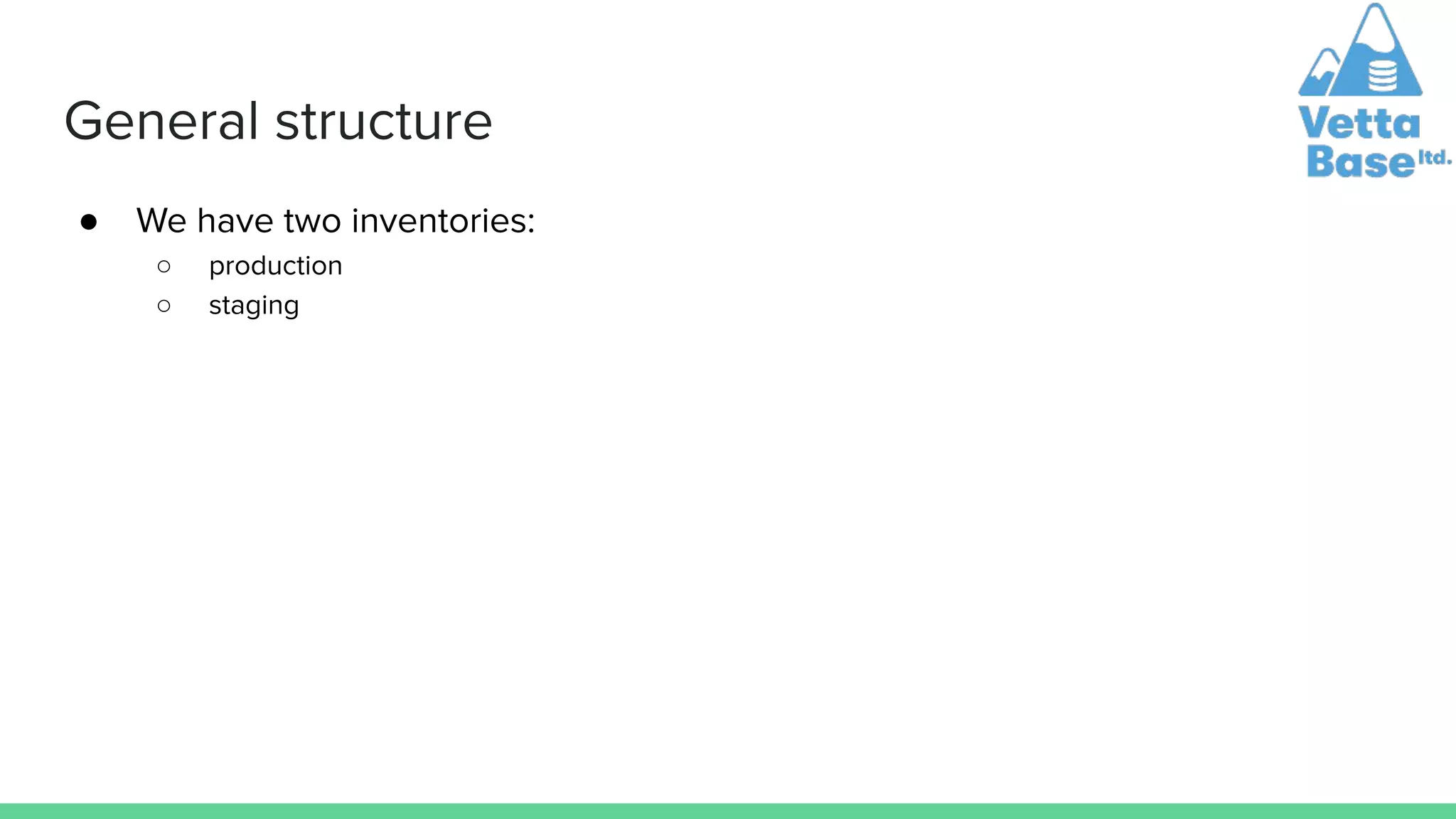

6. General structure
● We have two inventories:
○ production
○ staging

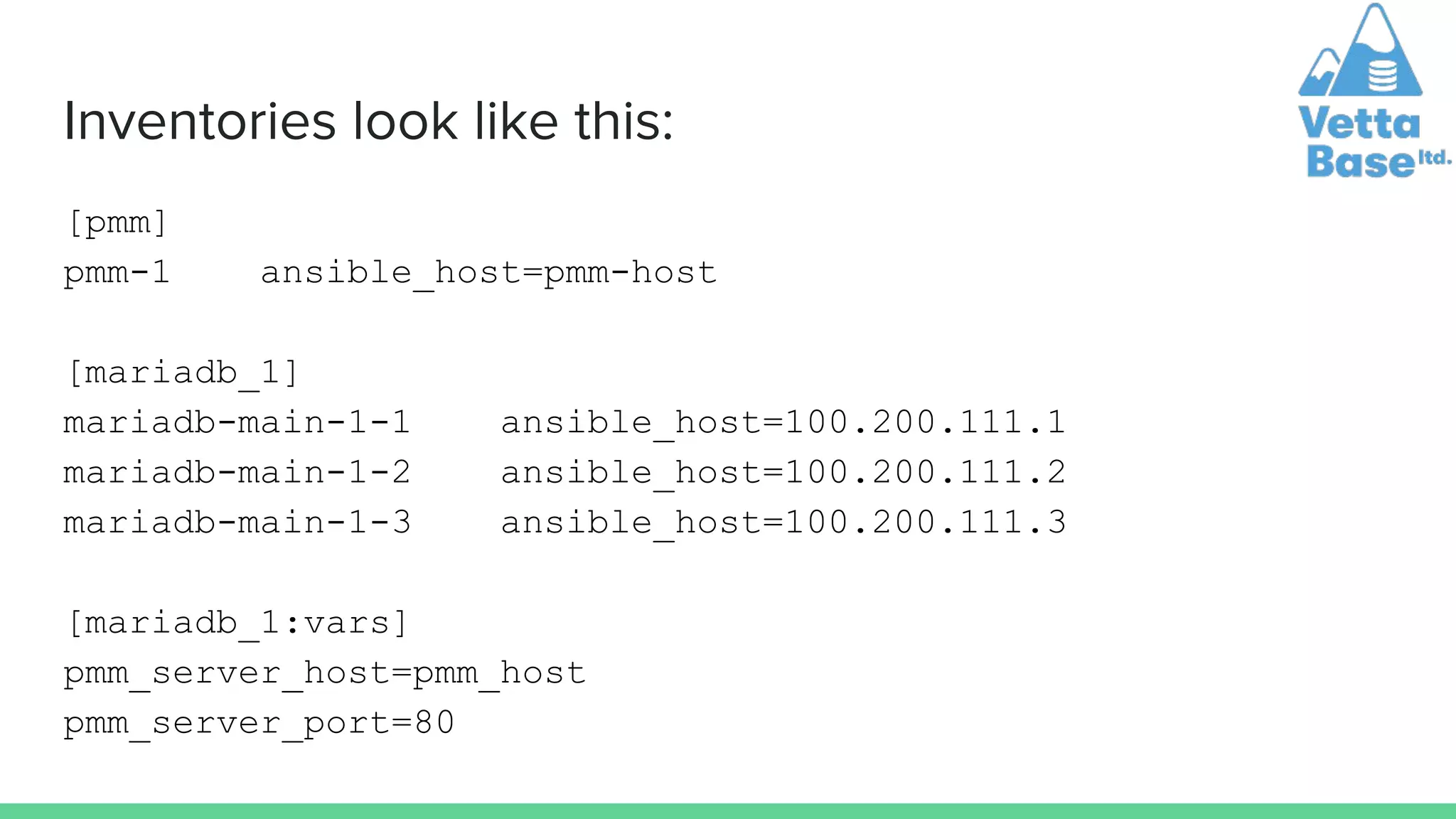

7. Inventories look like this:
[pmm]
pmm-1 ansible_host=pmm-host
[mariadb_1]
mariadb-main-1-1 ansible_host=100.200.111.1
mariadb-main-1-2 ansible_host=100.200.111.2
mariadb-main-1-3 ansible_host=100.200.111.3
[mariadb_1:vars]
pmm_server_host=pmm_host
pmm_server_port=80

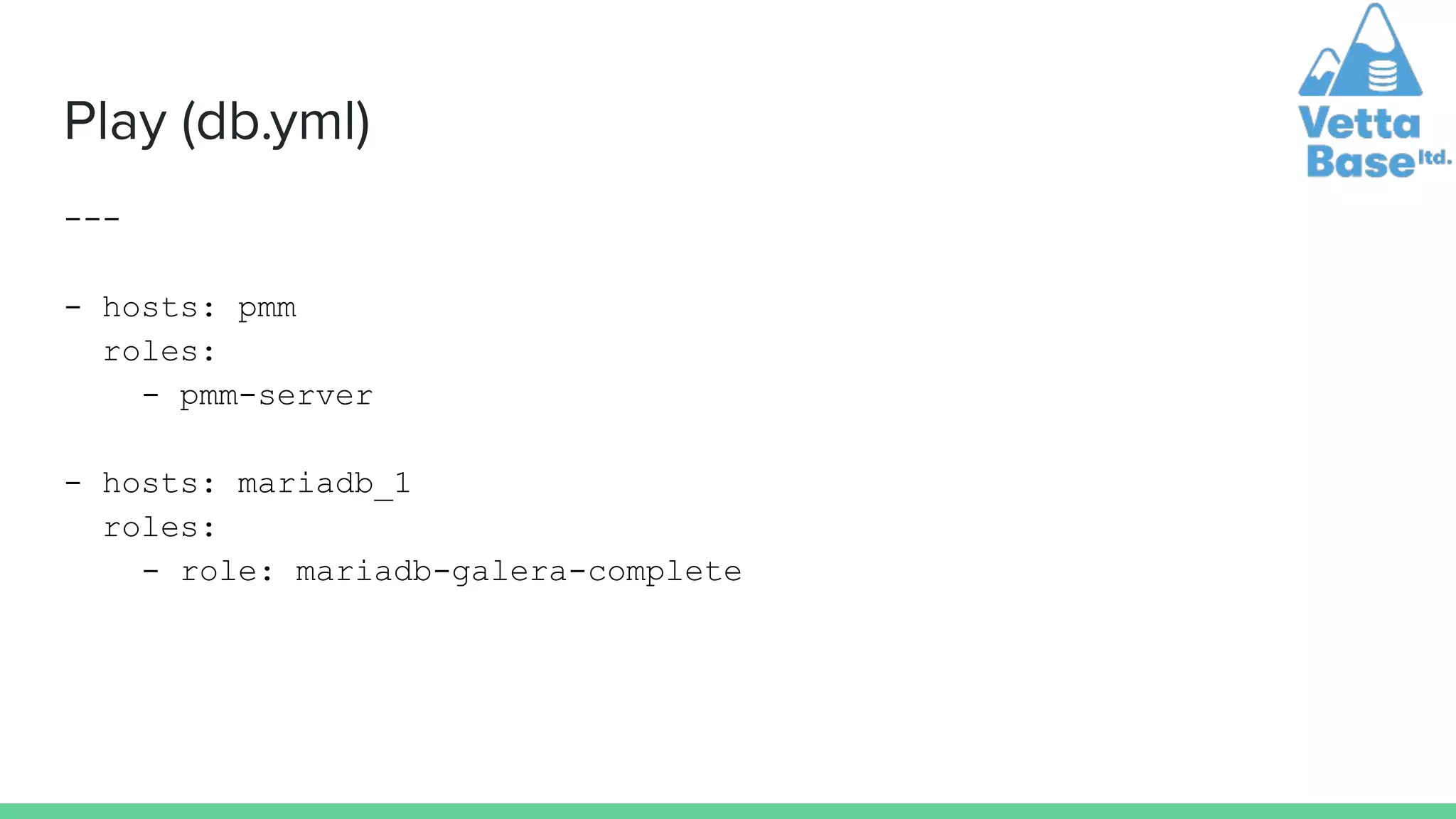

8. Play (db.yml)
---
- hosts: pmm
roles:
- pmm-server
- hosts: mariadb_1
roles:
- role: mariadb-galera-complete

9. Roles

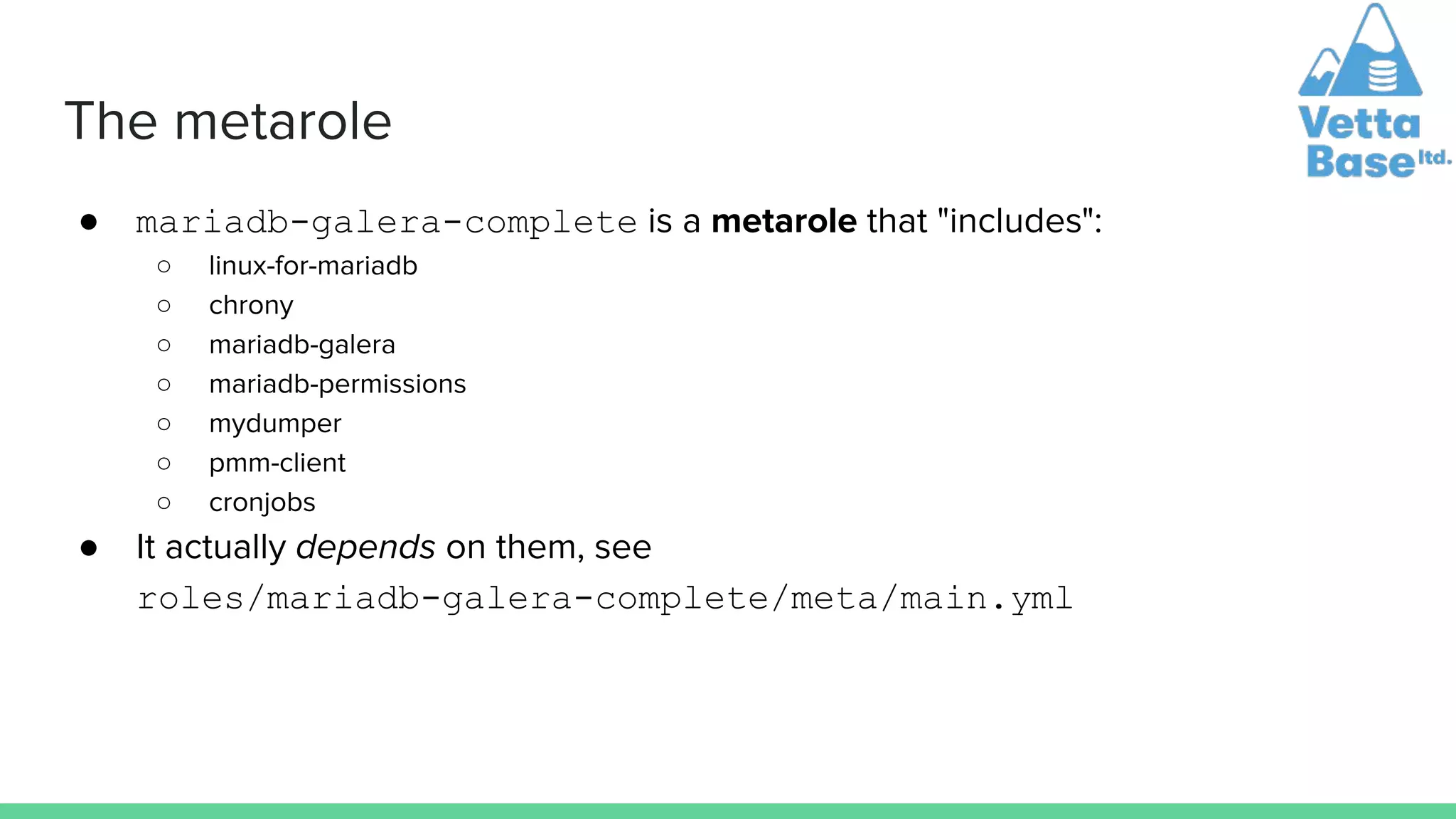

10. The metarole
● mariadb-galera-complete is a metarole that "includes":
○ linux-for-mariadb
○ chrony
○ mariadb-galera
○ mariadb-permissions
○ mydumper
○ pmm-client
○ cronjobs
● It actually depends on them, see
roles/mariadb-galera-complete/meta/main.yml

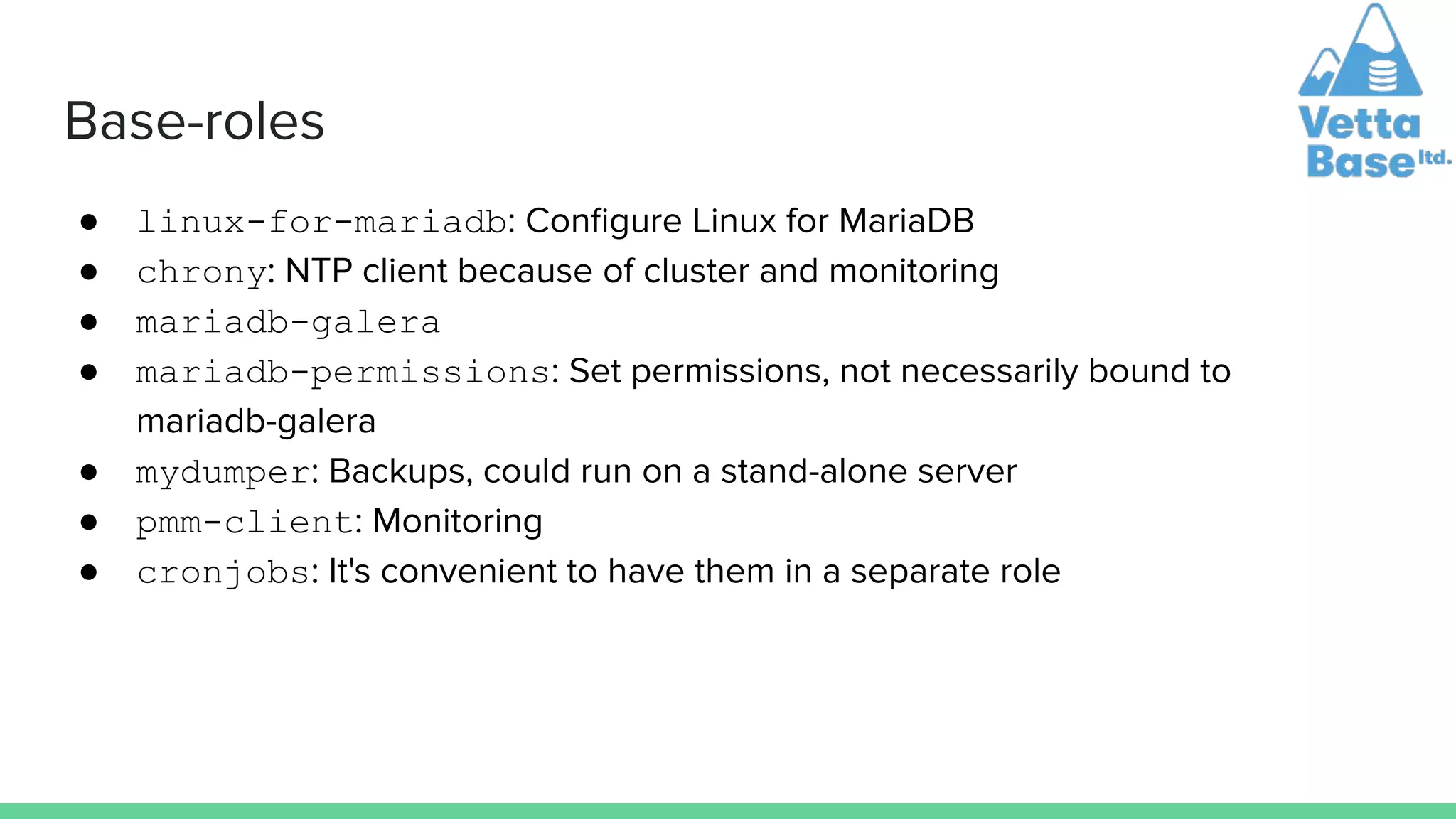

11. Base-roles
● linux-for-mariadb: Configure Linux for MariaDB
● chrony: NTP client because of cluster and monitoring
● mariadb-galera
● mariadb-permissions: Set permissions, not necessarily bound to
mariadb-galera
● mydumper: Backups, could run on a stand-alone server
● pmm-client: Monitoring
● cronjobs: It's convenient to have them in a separate role

12. Some highlights

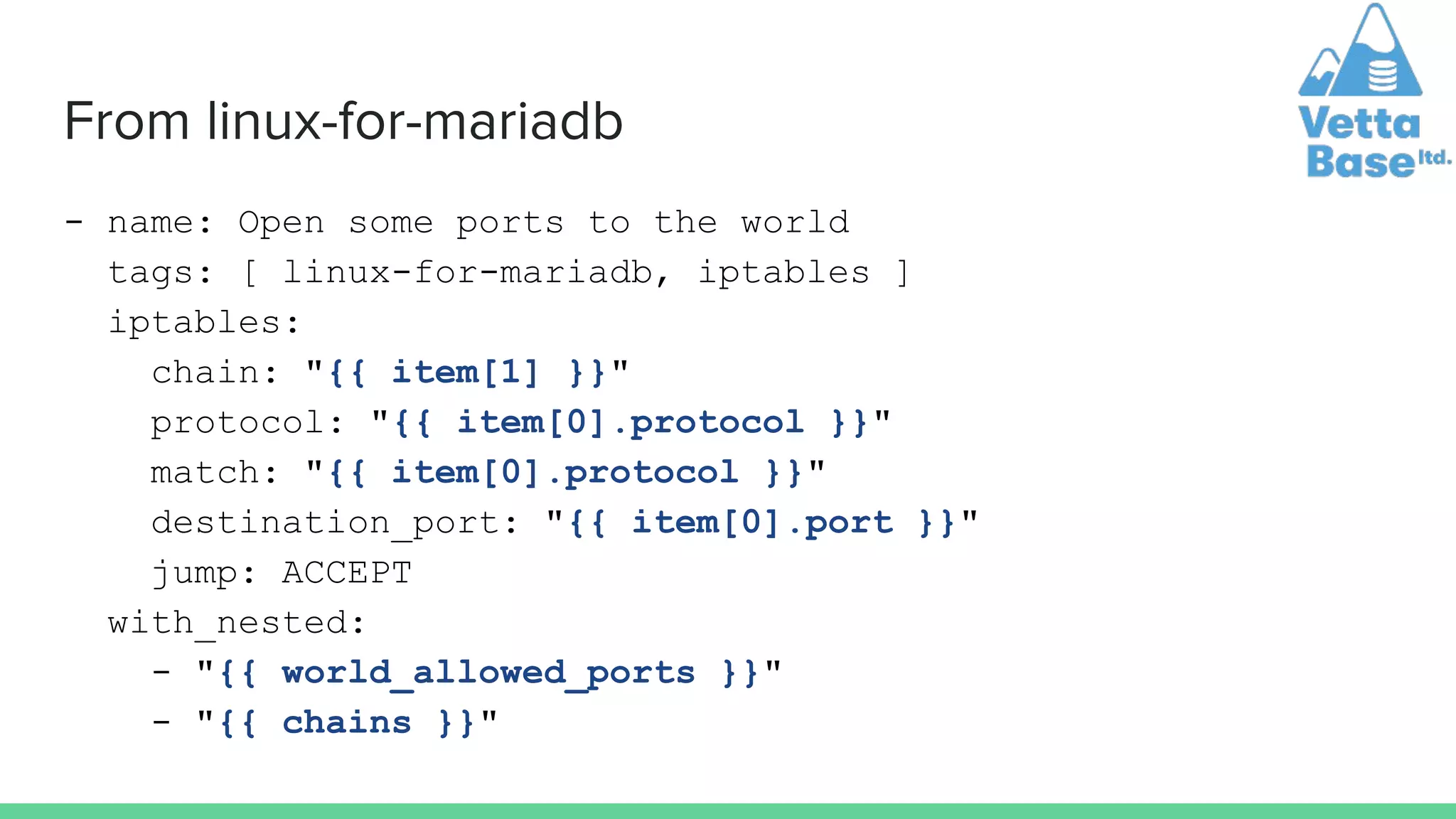

13. From linux-for-mariadb
- name: Open some ports to the world
tags: [ linux-for-mariadb, iptables ]
iptables:
chain: "{{ item[1] }}"
protocol: "{{ item[0].protocol }}"
match: "{{ item[0].protocol }}"
destination_port: "{{ item[0].port }}"
jump: ACCEPT
with_nested:
- "{{ world_allowed_ports }}"
- "{{ chains }}"

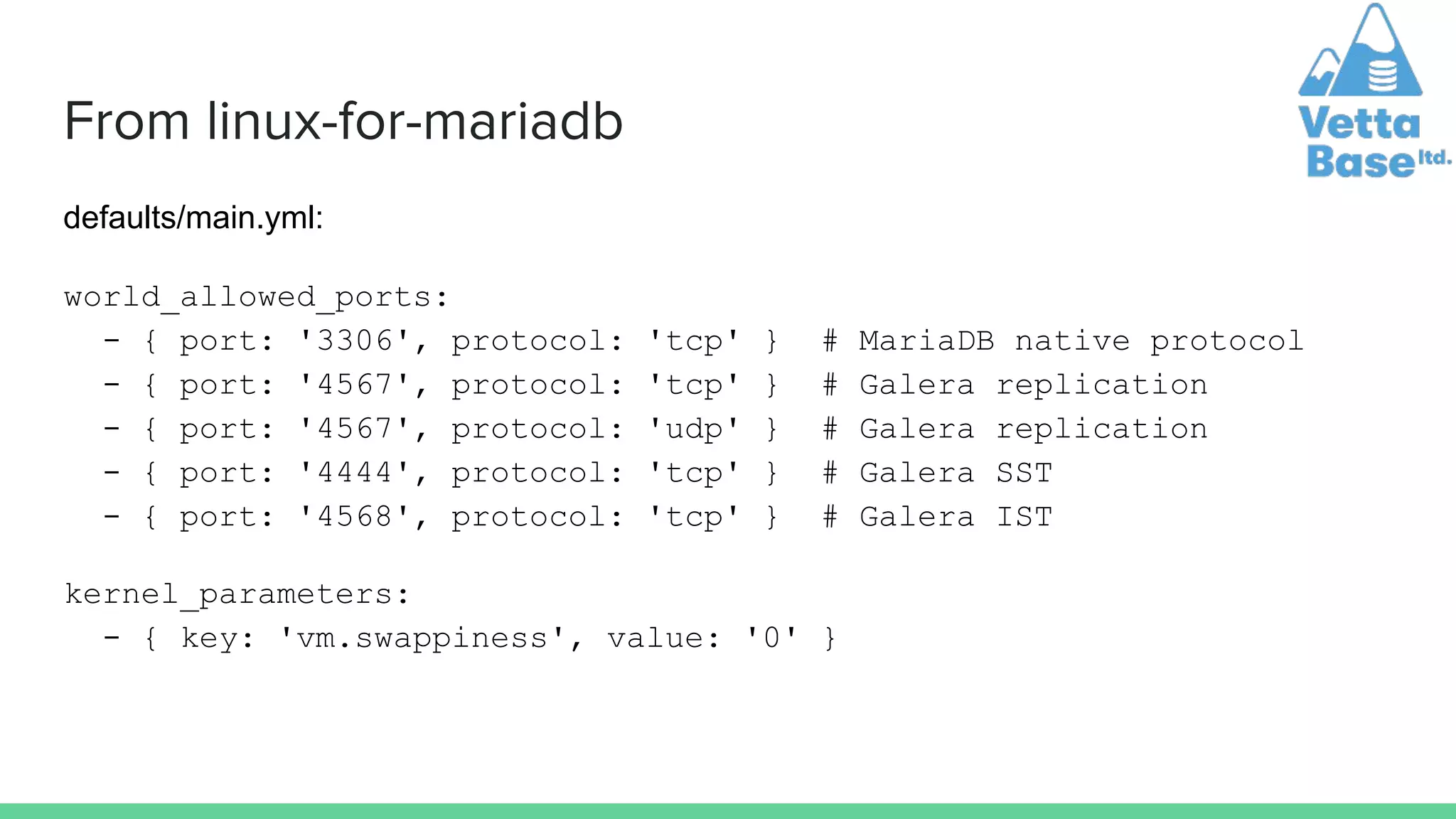

14. From linux-for-mariadb
defaults/main.yml:
world_allowed_ports:
- { port: '3306', protocol: 'tcp' } # MariaDB native protocol
- { port: '4567', protocol: 'tcp' } # Galera replication
- { port: '4567', protocol: 'udp' } # Galera replication
- { port: '4444', protocol: 'tcp' } # Galera SST
- { port: '4568', protocol: 'tcp' } # Galera IST
kernel_parameters:
- { key: 'vm.swappiness', value: '0' }

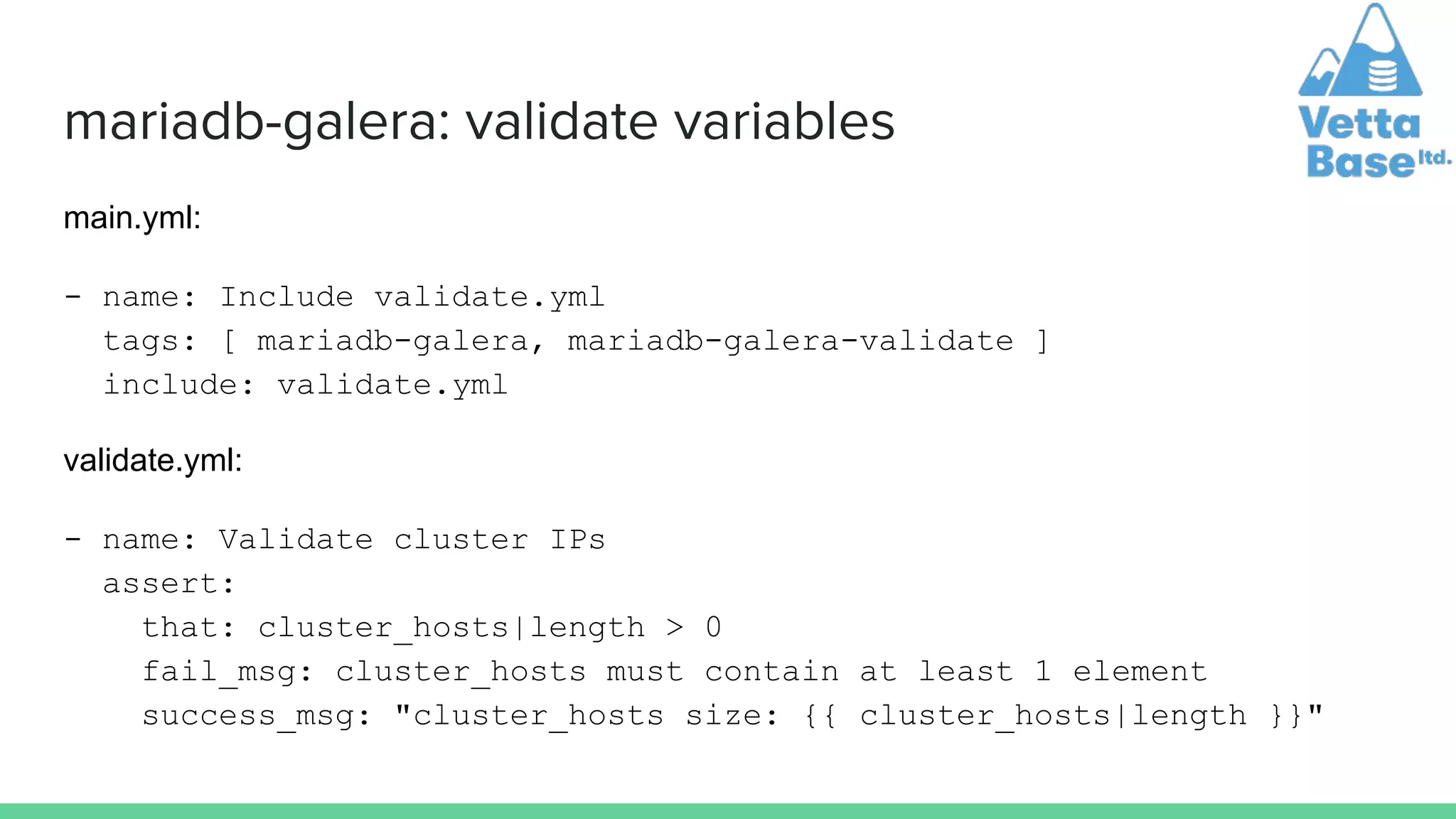

15. mariadb-galera: validate variables
main.yml:
- name: Include validate.yml
tags: [ mariadb-galera, mariadb-galera-validate ]
include: validate.yml
validate.yml:
- name: Validate cluster IPs
assert:
that: cluster_hosts|length > 0
fail_msg: cluster_hosts must contain at least 1 element
success_msg: "cluster_hosts size: {{ cluster_hosts|length }}"

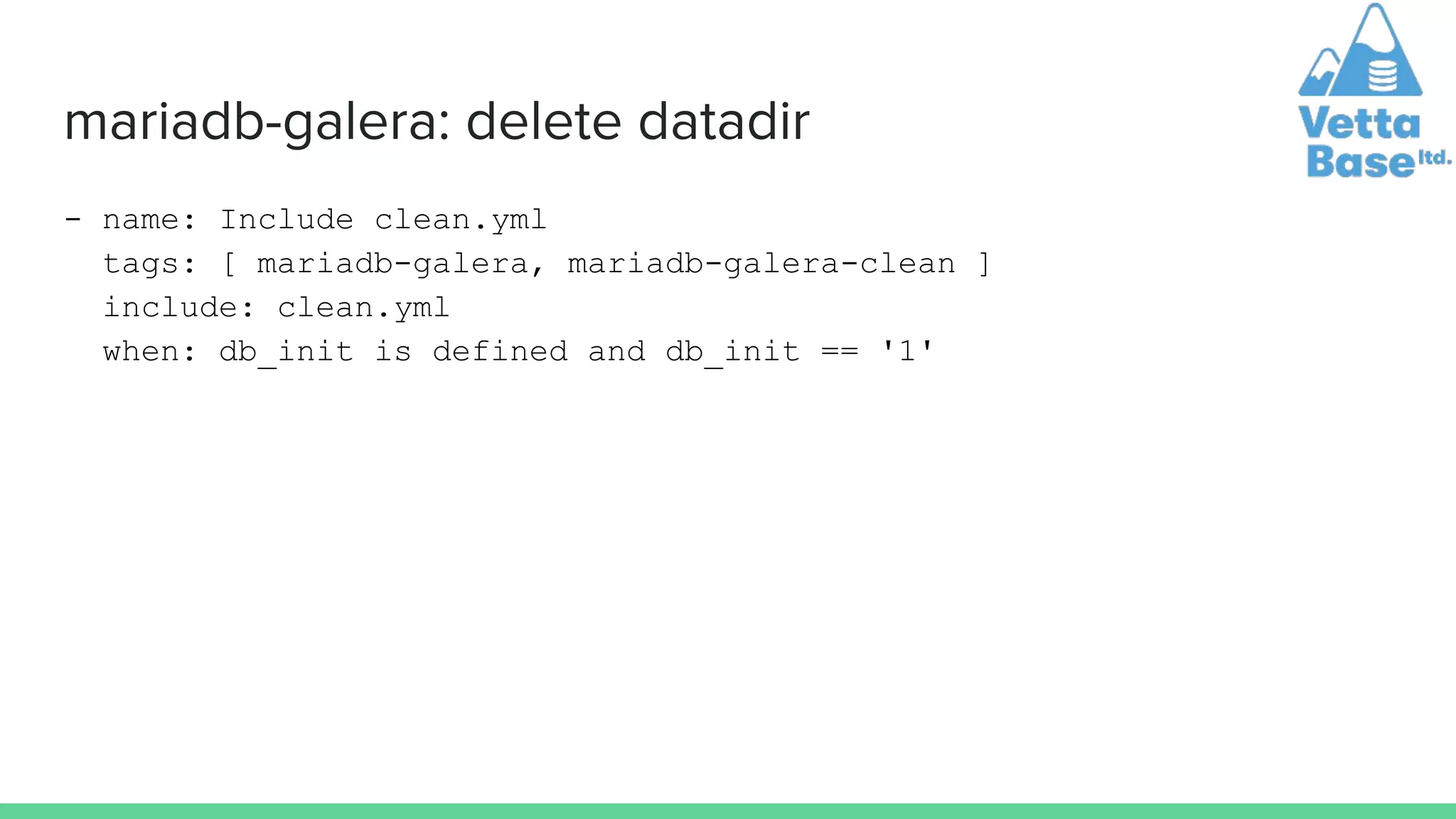

16. mariadb-galera: delete datadir
- name: Include clean.yml
tags: [ mariadb-galera, mariadb-galera-clean ]
include: clean.yml
when: db_init is defined and db_init == '1'

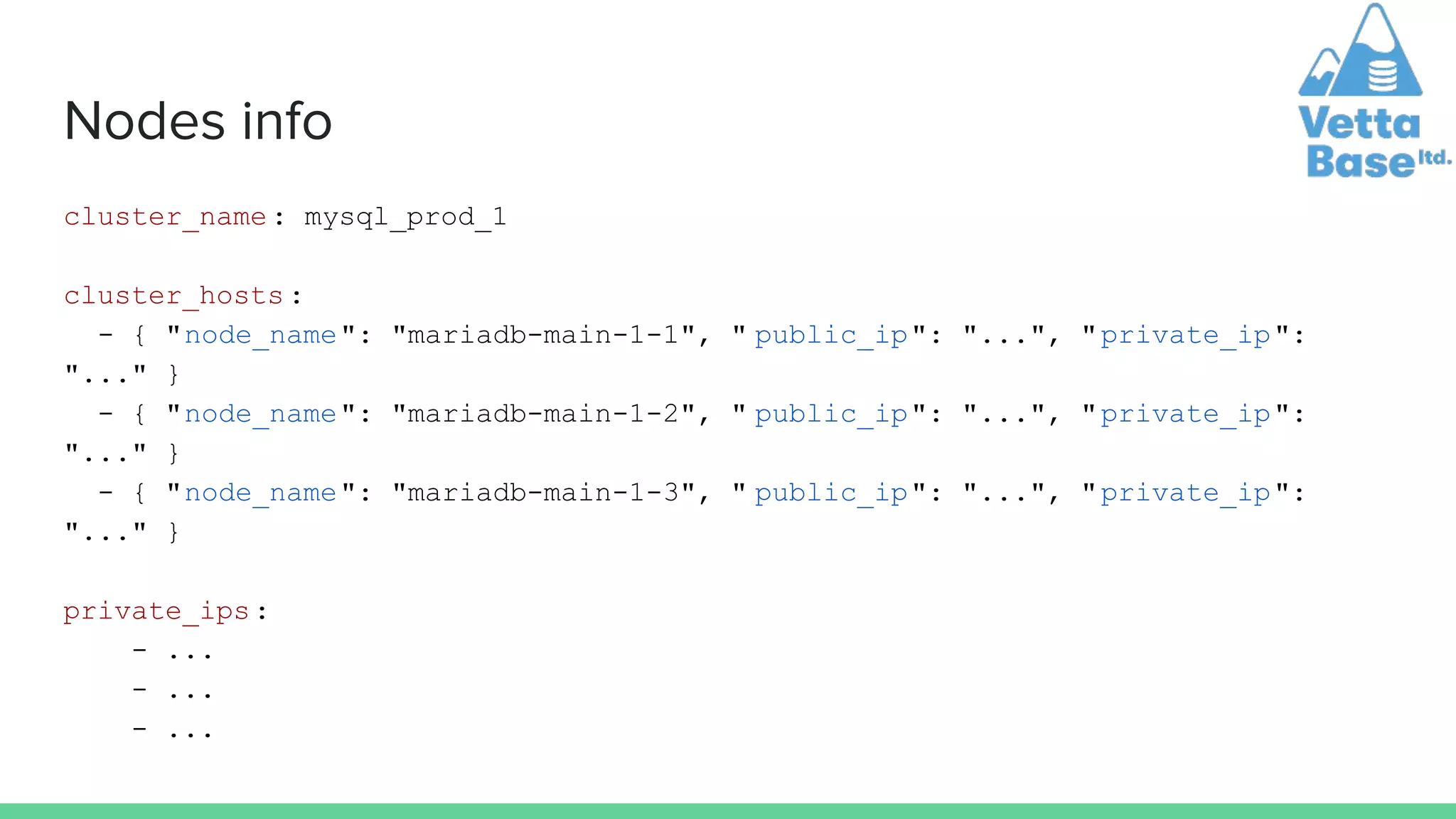

17. Nodes info
cluster_name: mysql_prod_1
cluster_hosts:
- { "node_name": "mariadb-main-1-1", " public_ip": "...", "private_ip":
"..." }
- { "node_name": "mariadb-main-1-2", " public_ip": "...", "private_ip":
"..." }
- { "node_name": "mariadb-main-1-3", " public_ip": "...", "private_ip":
"..." }
private_ips:
- ...
- ...
- ...

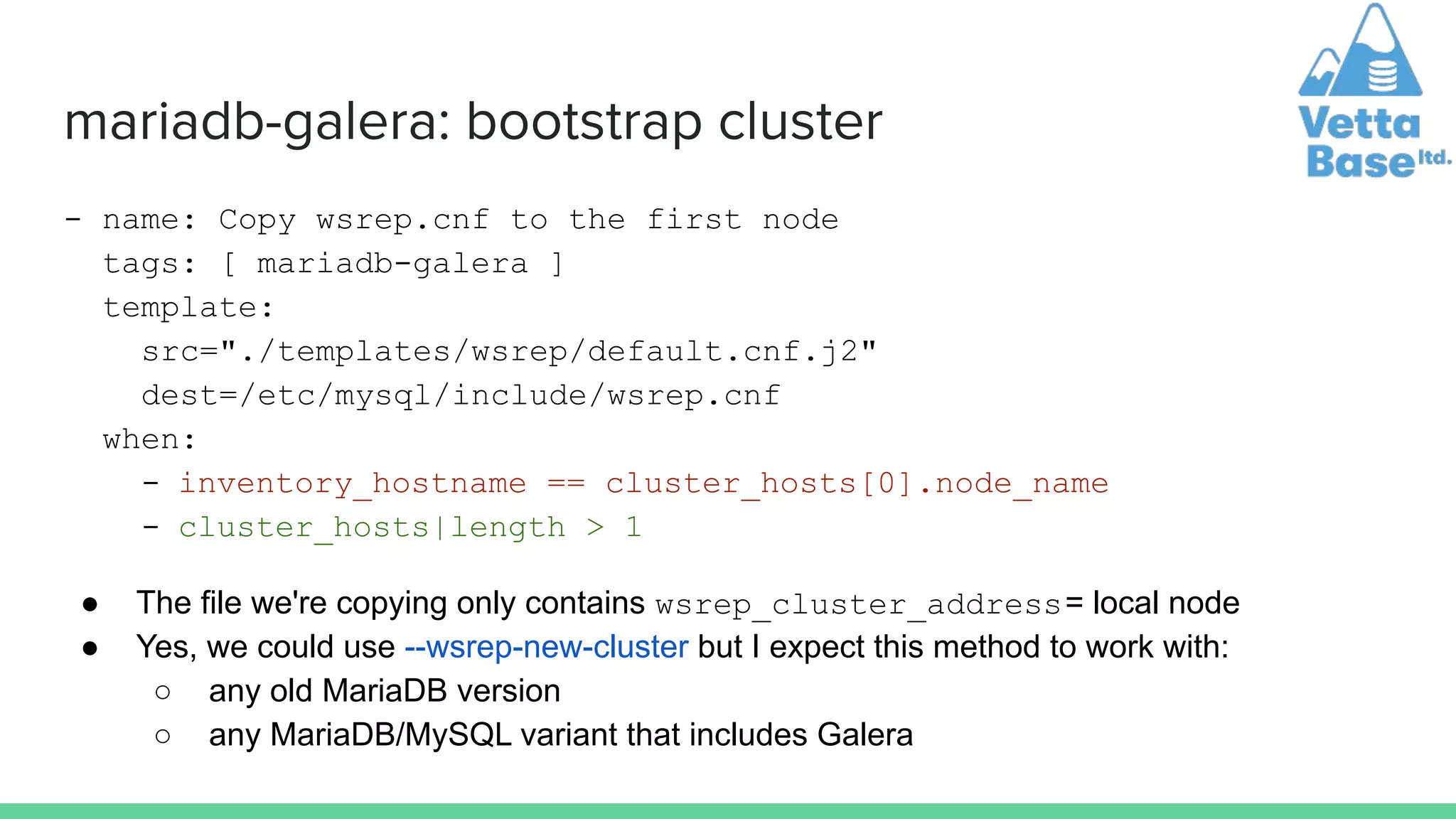

18. mariadb-galera: bootstrap cluster
- name: Copy wsrep.cnf to the first node
tags: [ mariadb-galera ]
template:
src="./templates/wsrep/default.cnf.j2"
dest=/etc/mysql/include/wsrep.cnf
when:
- inventory_hostname == cluster_hosts[0].node_name
- cluster_hosts|length > 1
● The file we're copying only contains wsrep_cluster_address= local node
● Yes, we could use --wsrep-new-cluster but I expect this method to work with:
○ any old MariaDB version
○ any MariaDB/MySQL variant that includes Galera

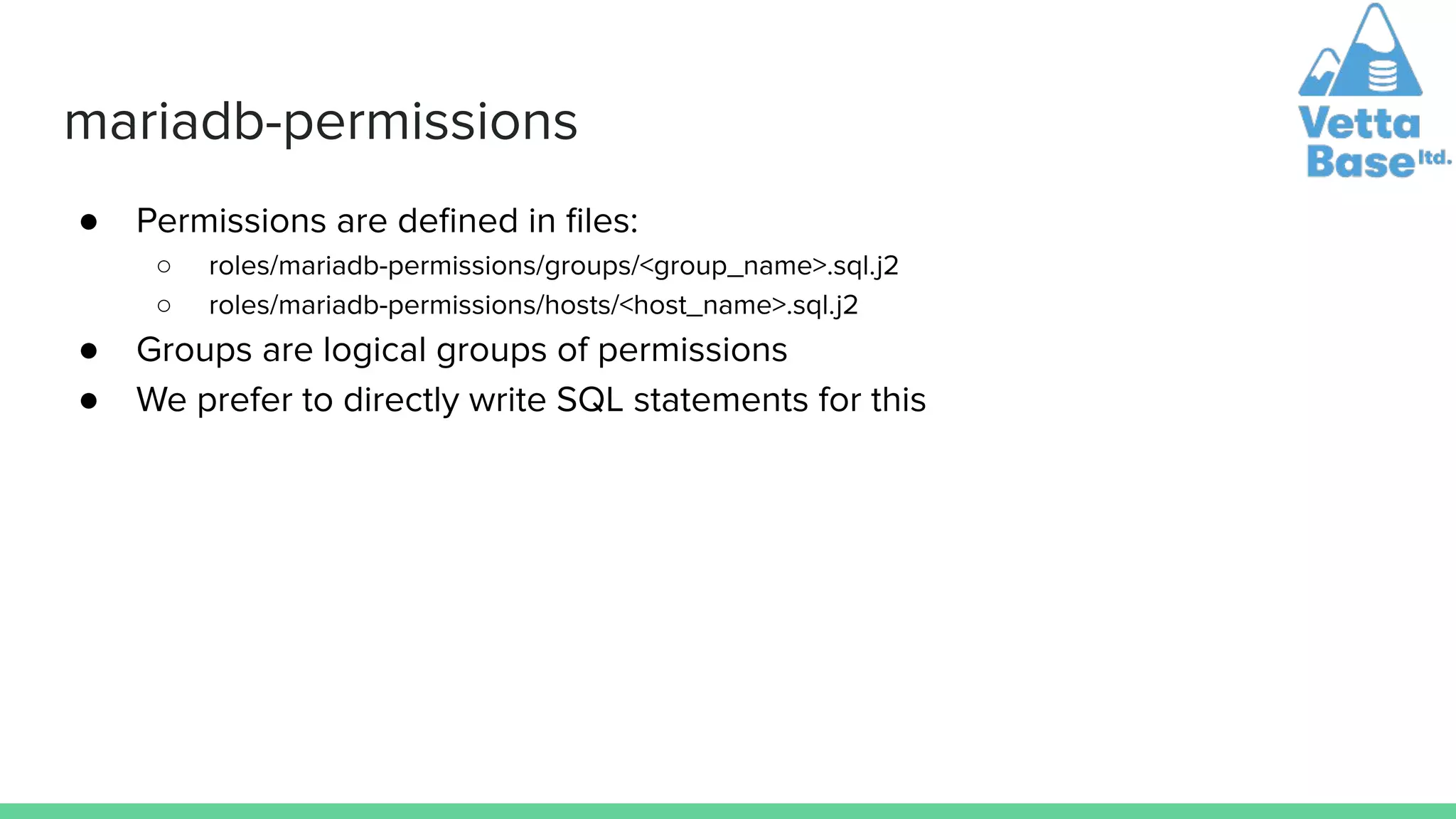

19. mariadb-permissions
● Permissions are defined in files:
○ roles/mariadb-permissions/groups/<group_name>.sql.j2
○ roles/mariadb-permissions/hosts/<host_name>.sql.j2
● Groups are logical groups of permissions
● We prefer to directly write SQL statements for this

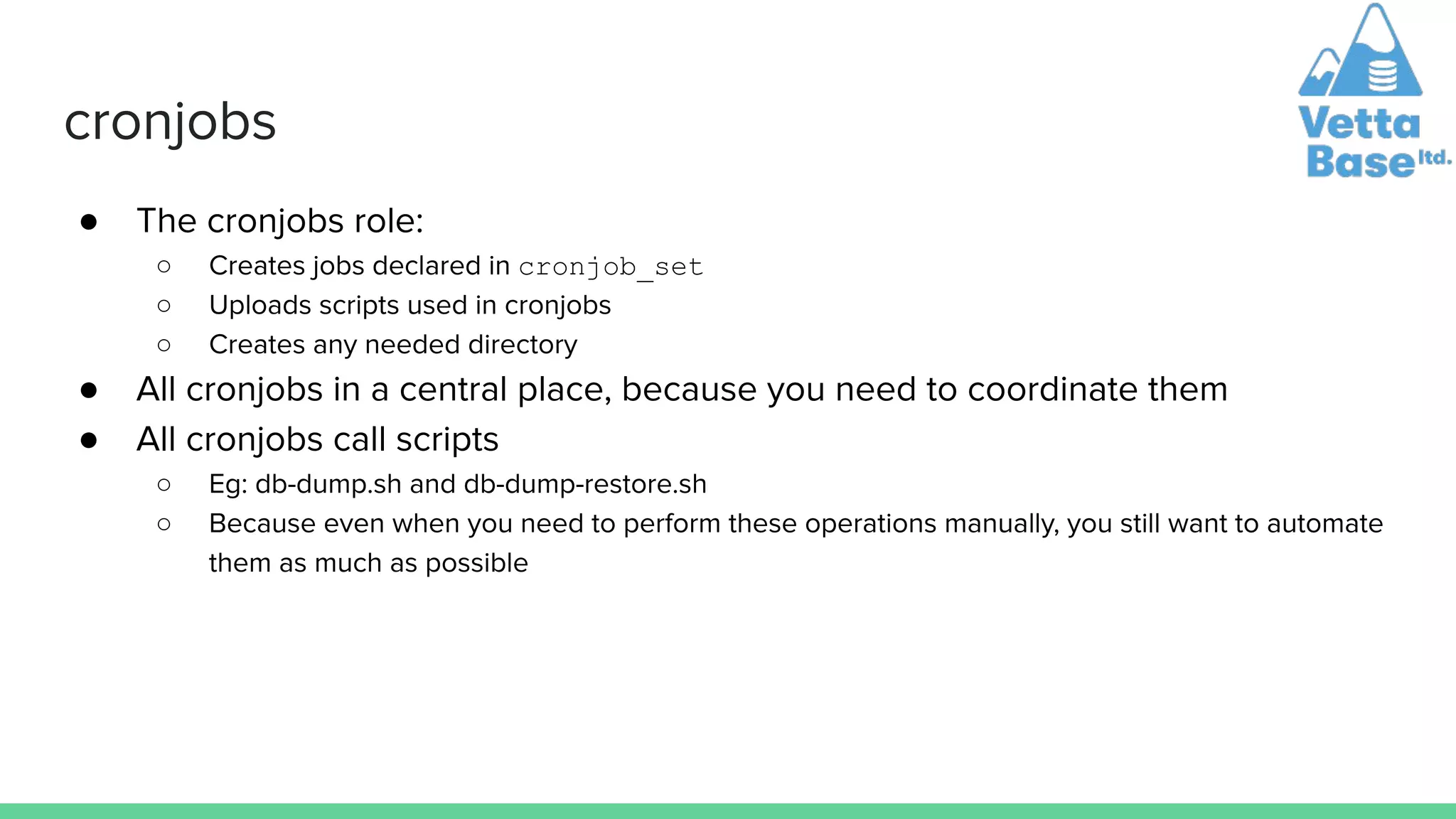

20. cronjobs
● The cronjobs role:
○ Creates jobs declared in cronjob_set
○ Uploads scripts used in cronjobs
○ Creates any needed directory
● All cronjobs in a central place, because you need to coordinate them
● All cronjobs call scripts
○ Eg: db-dump.sh and db-dump-restore.sh
○ Because even when you need to perform these operations manually, you still want to automate
them as much as possible

21. Thanks for attending!
github.com/Vettabase/ansible-mariadb-cluster-example
