The document introduces Weather Underground's personal weather station (PWS) network and making your own weather station. It discusses how Weather Underground ingests and quality checks data from over 200,000 PWSs around the world before presenting it on their website and apps. It also provides guidance on building a basic weather station using inexpensive sensors and a microcontroller, and outlines some of the technical challenges involved in collecting and transmitting reliable weather data.

1. Hello Sensor
1

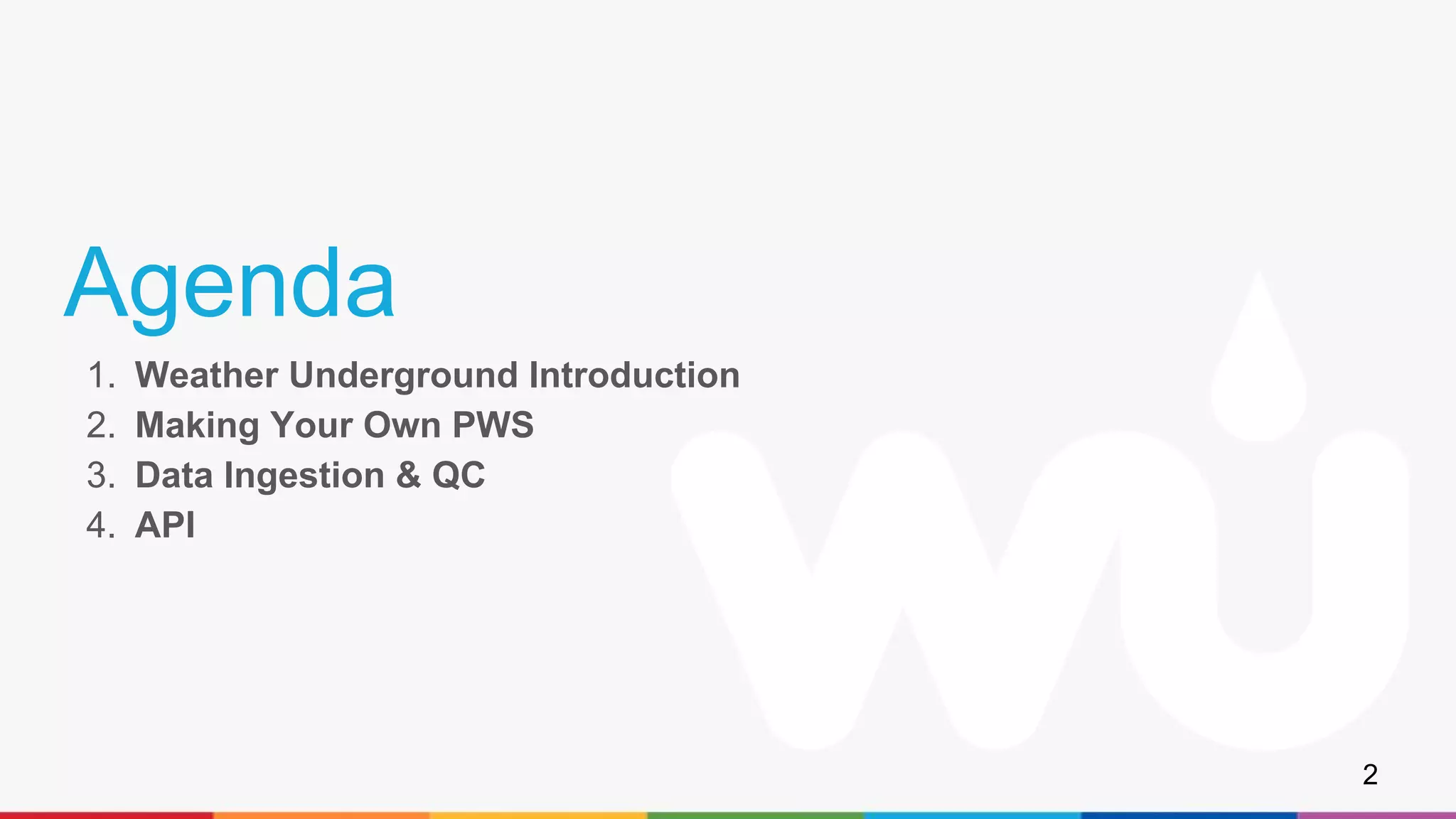

2. Agenda
1. Weather Underground Introduction
2. Making Your Own PWS
3. Data Ingestion & QC
4. API
2

3. Weather Underground Intro
3

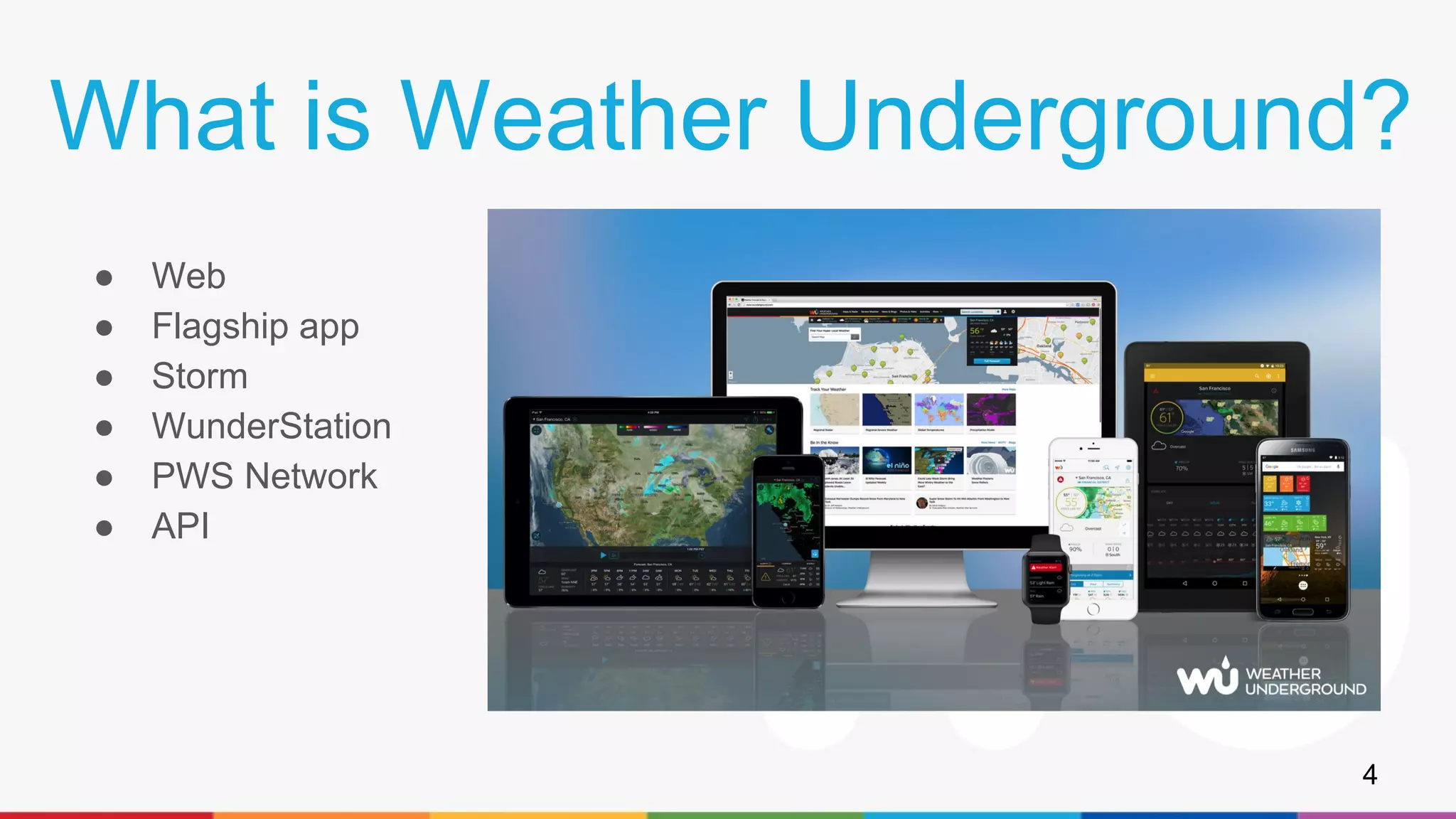

4. What is Weather Underground?
● Web
● Flagship app
● Storm
● WunderStation
● PWS Network
● API
4

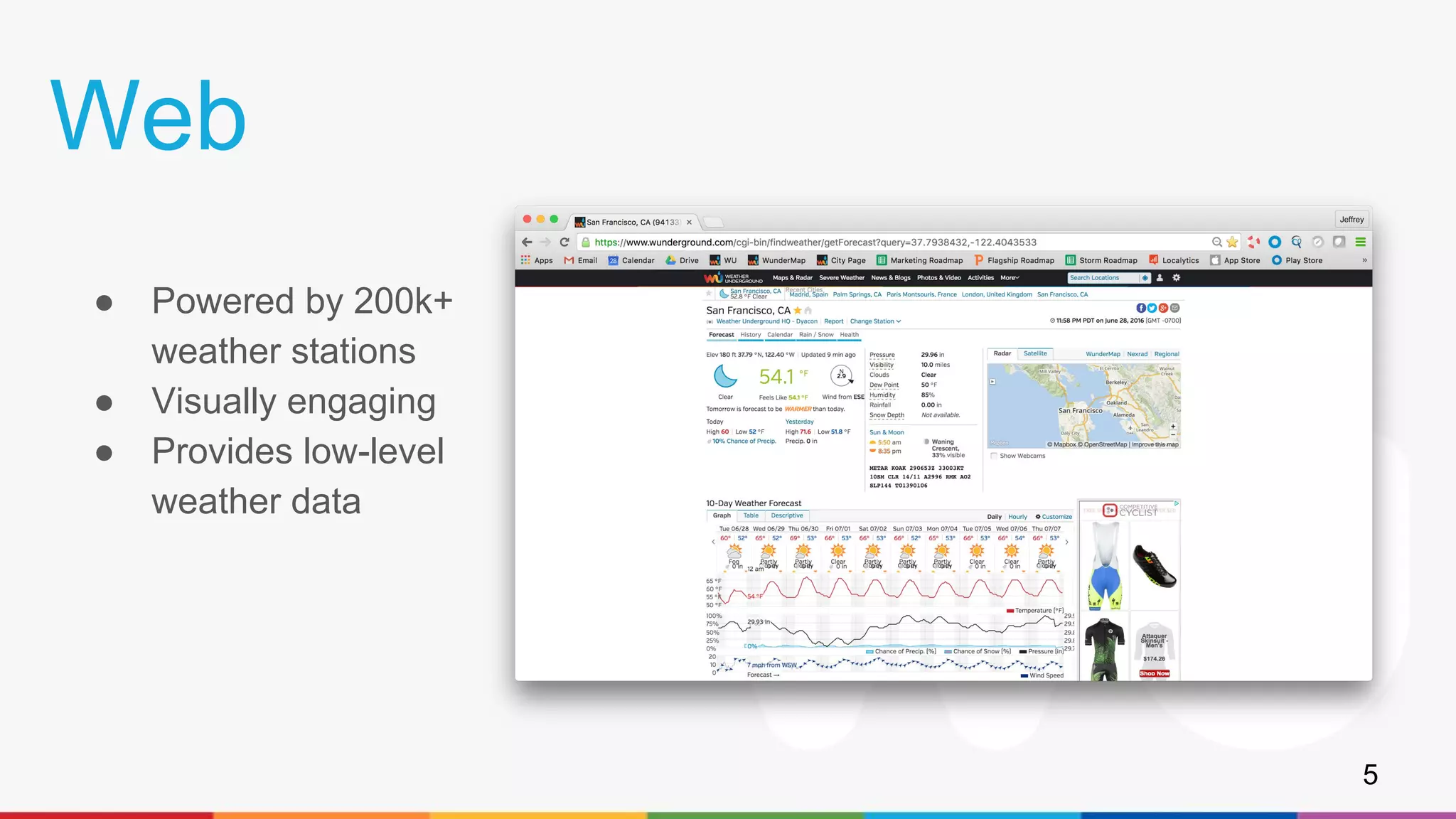

5. Web
● Powered by 200k+
weather stations
● Visually engaging
● Provides low-level
weather data
5

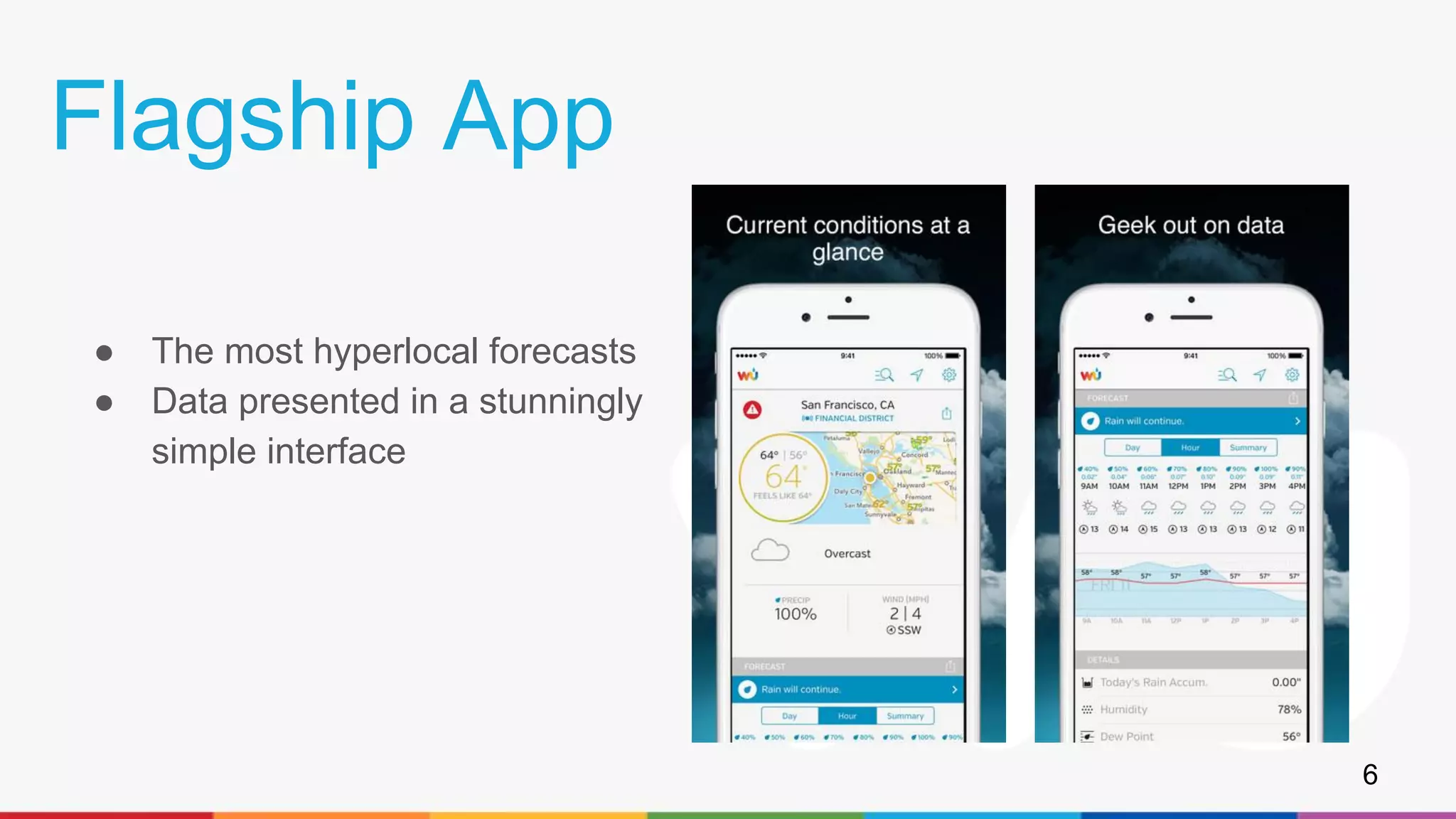

6. Flagship App
● The most hyperlocal forecasts
● Data presented in a stunningly
simple interface
6

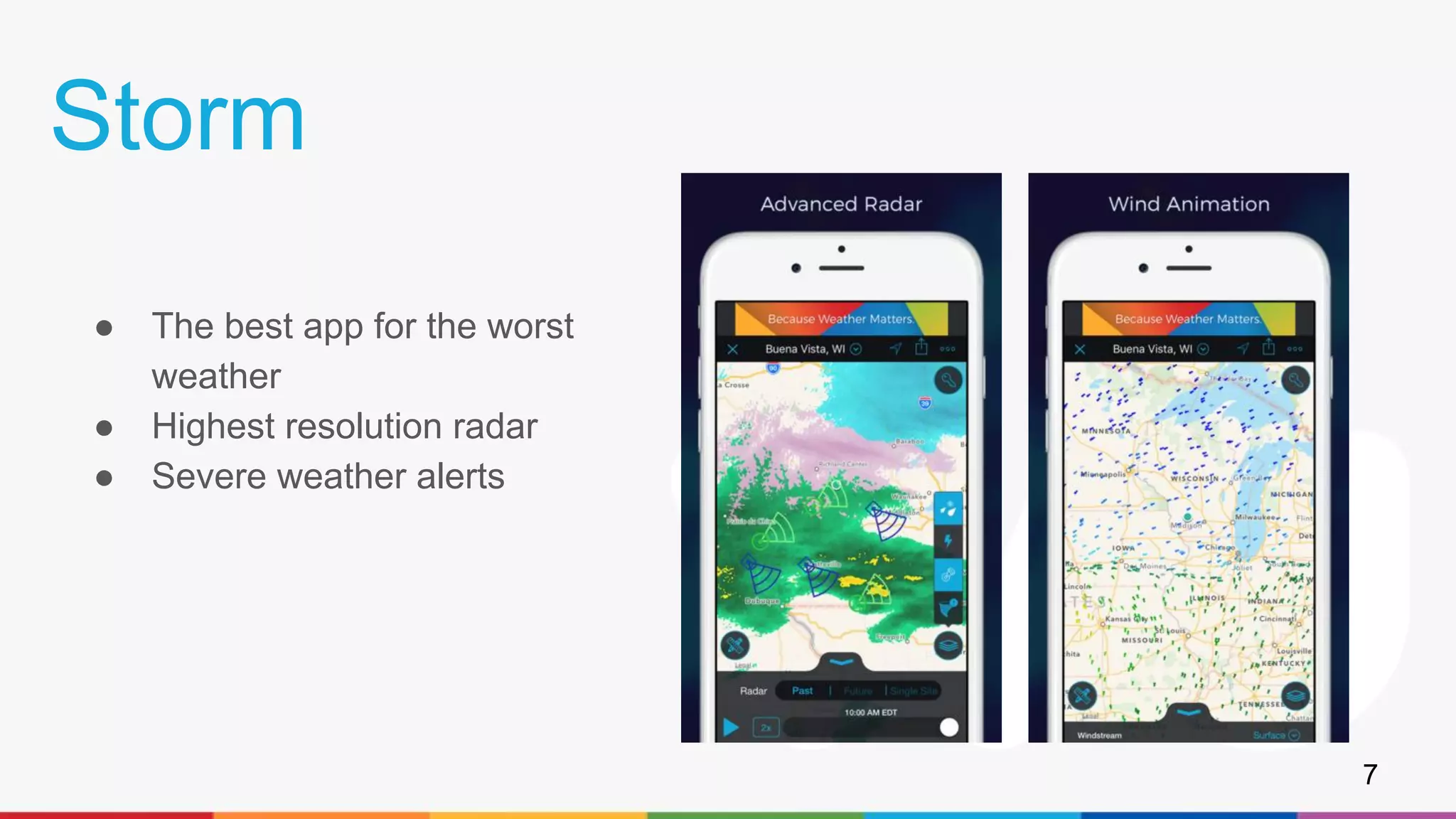

7. Storm
● The best app for the worst
weather
● Highest resolution radar
● Severe weather alerts
7

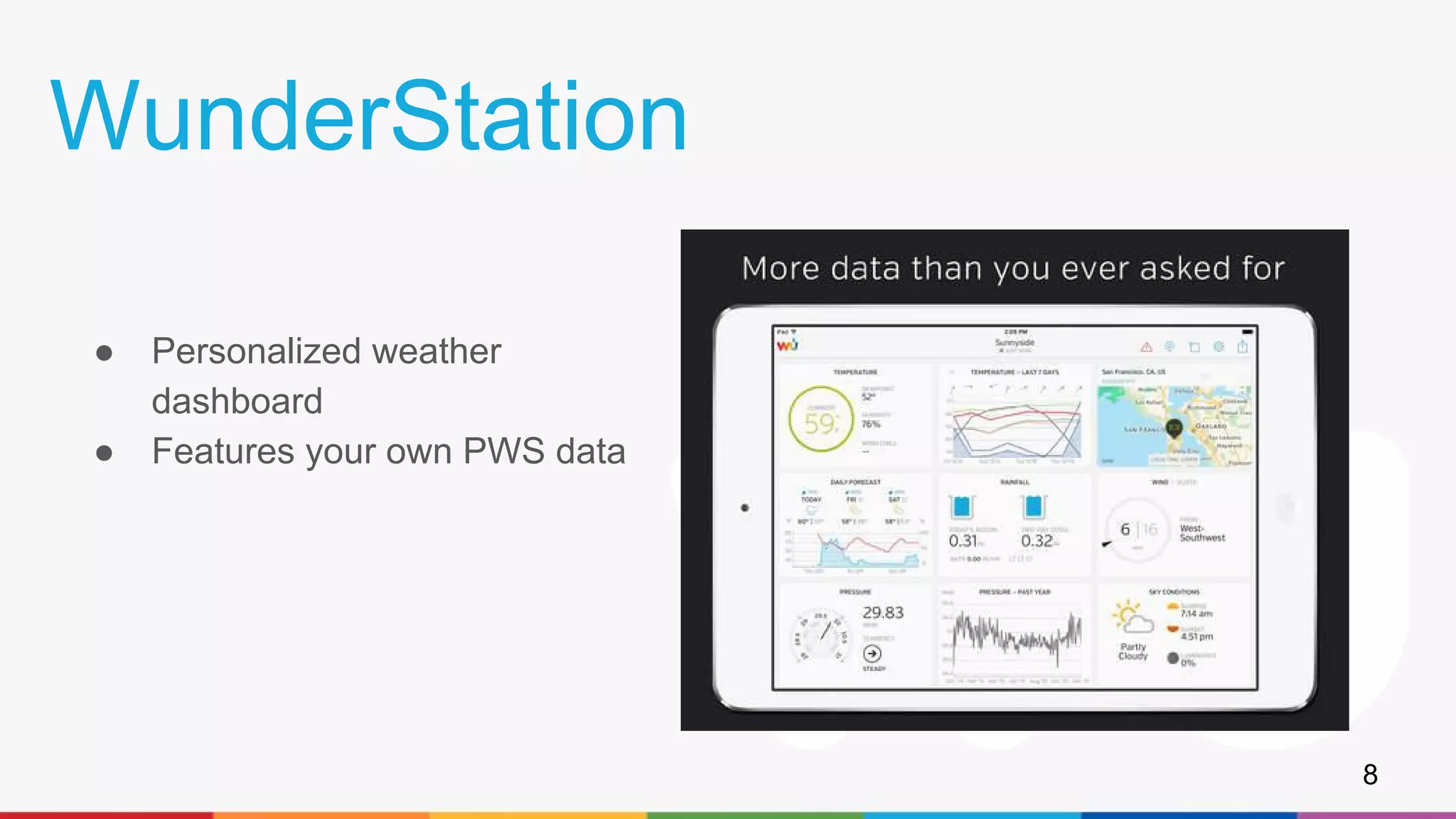

8. WunderStation
● Personalized weather
dashboard
● Features your own PWS data
8

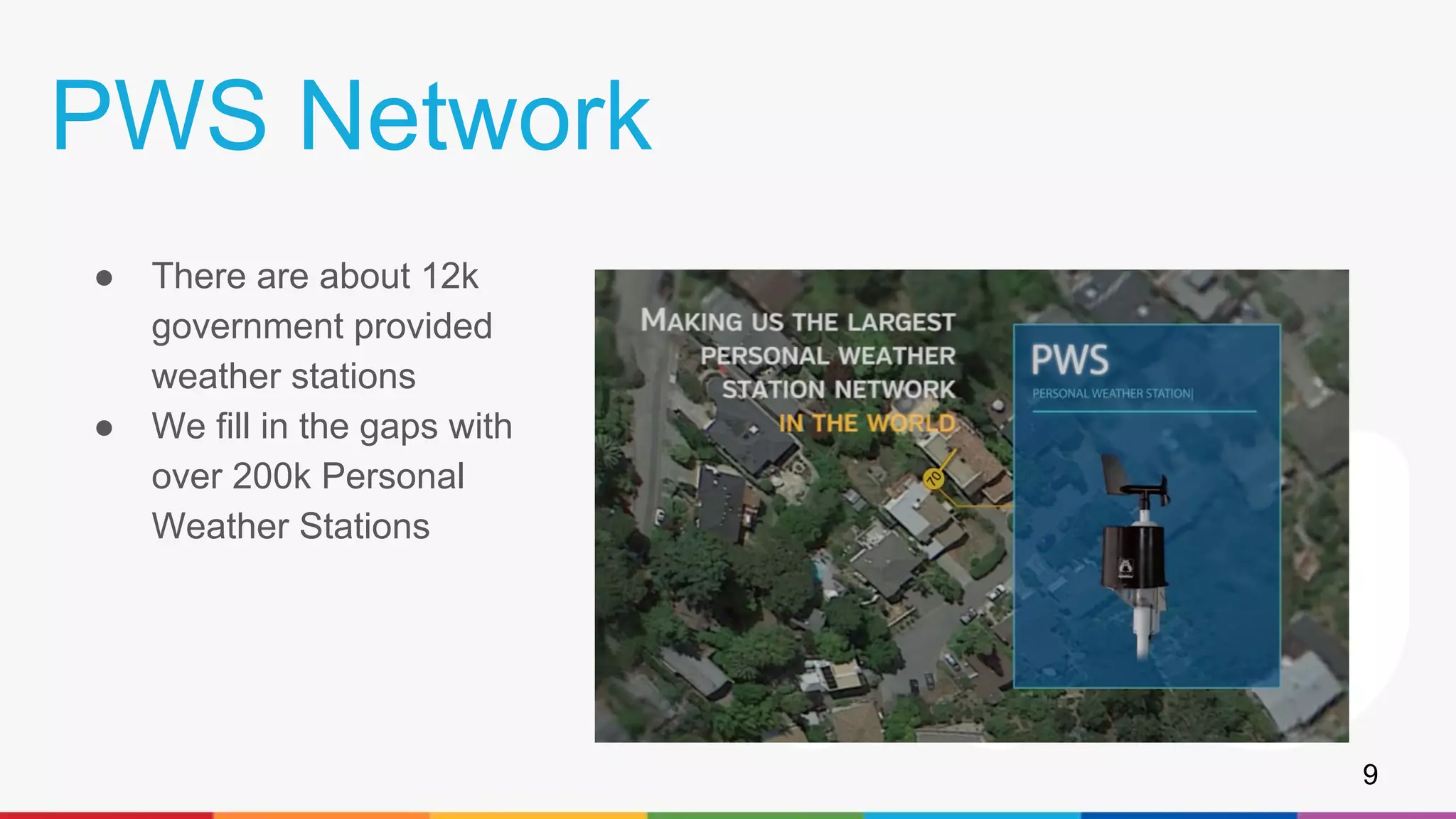

9. PWS Network
● There are about 12k
government provided
weather stations
● We fill in the gaps with
over 200k Personal
Weather Stations
9

10. Making Your Own PWS
10

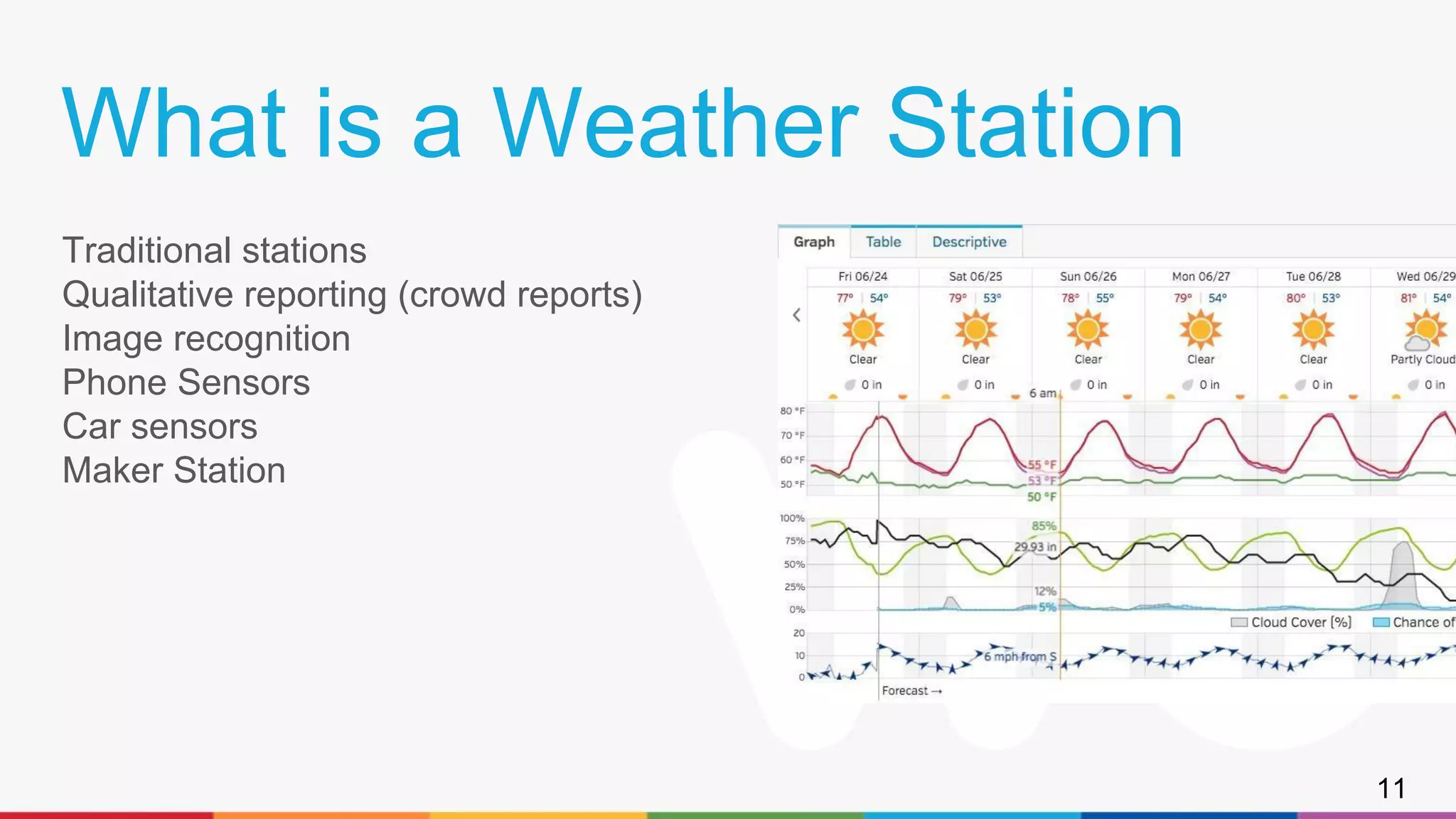

11. What is a Weather Station
Traditional stations
Qualitative reporting (crowd reports)
Image recognition
Phone Sensors
Car sensors
Maker Station
11

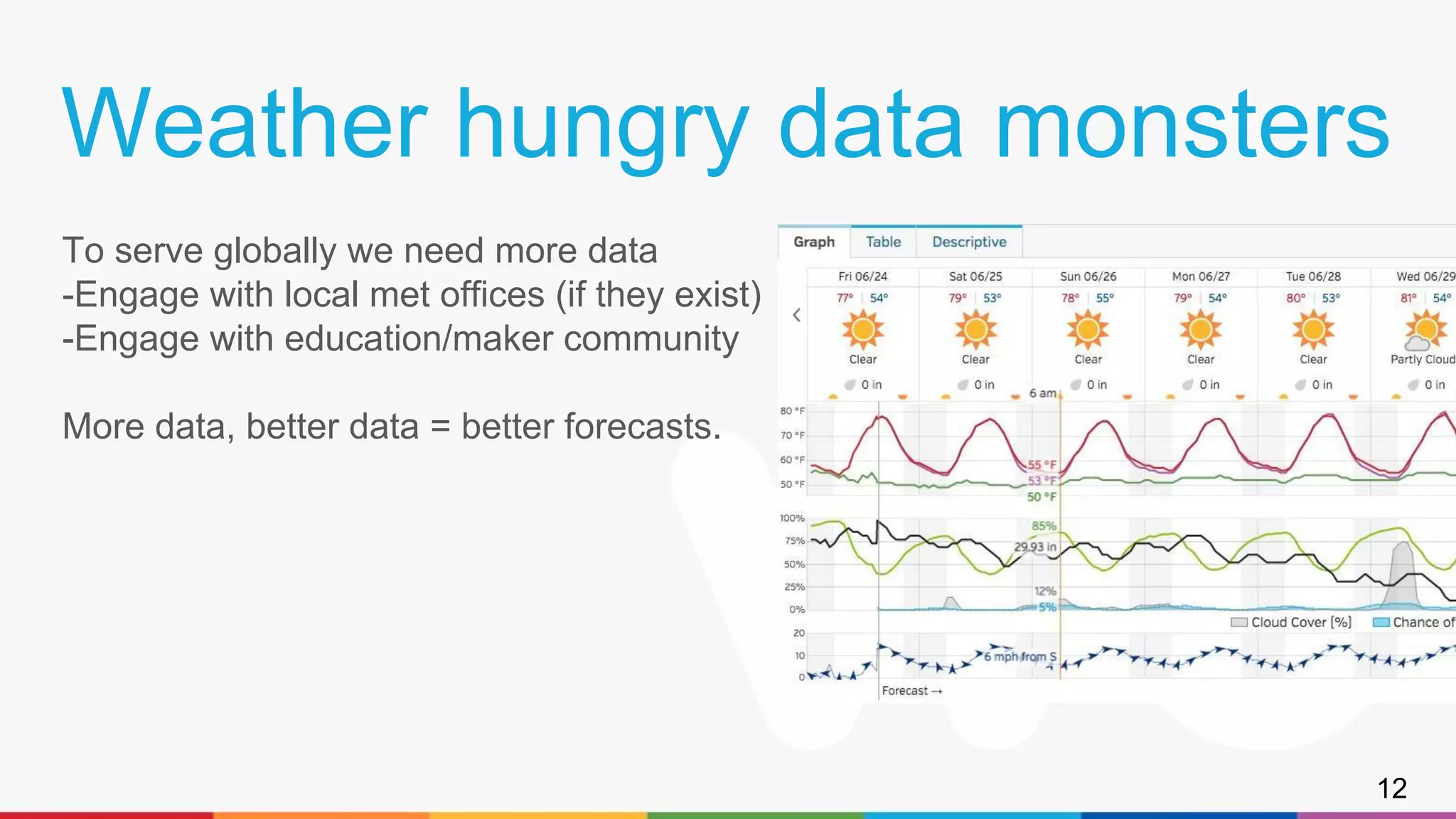

12. Weather hungry data monsters
To serve globally we need more data
-Engage with local met offices (if they exist)
-Engage with education/maker community
More data, better data = better forecasts.
12

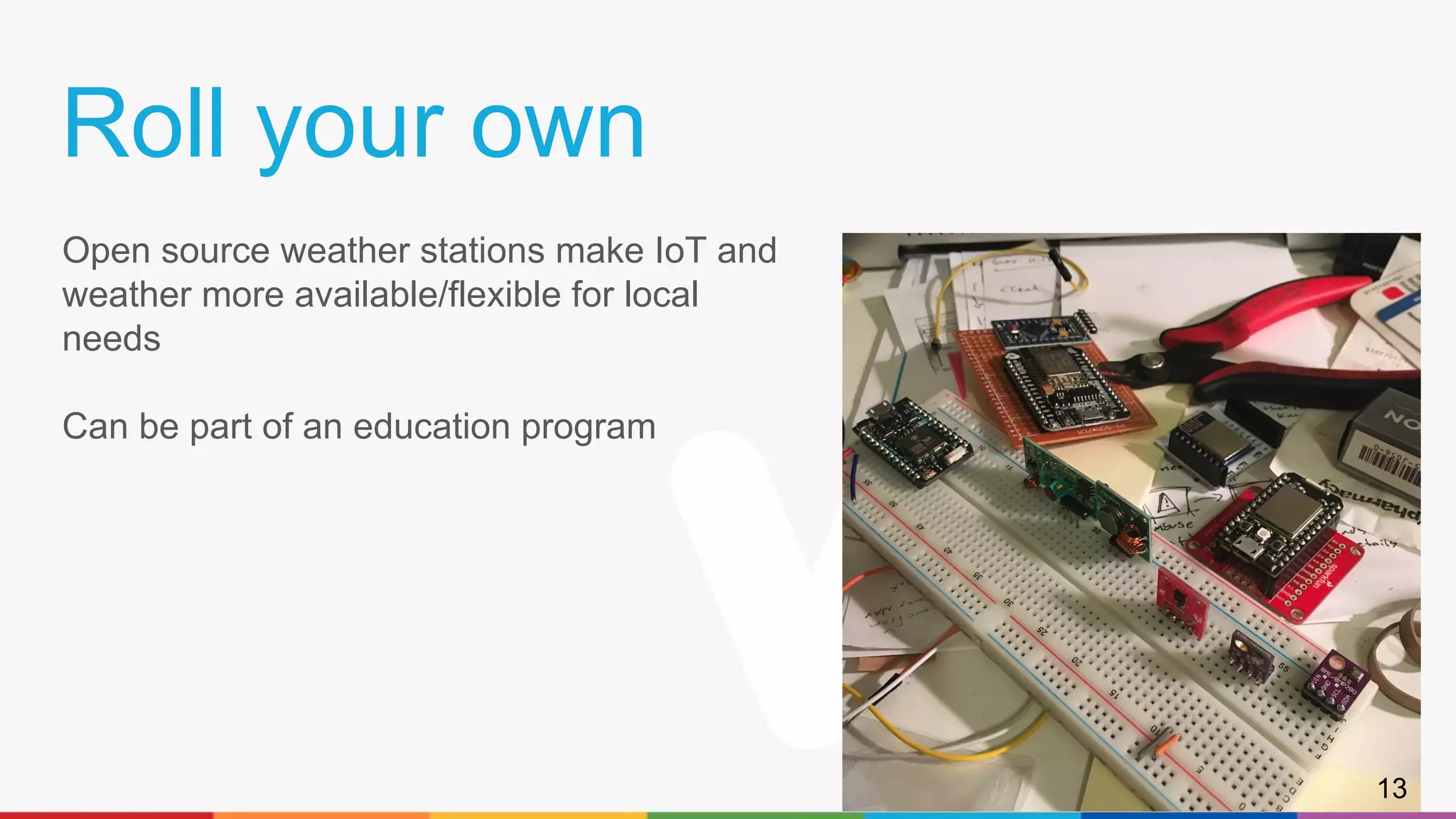

13. Roll your own
Open source weather stations make IoT and
weather more available/flexible for local
needs
Can be part of an education program
13

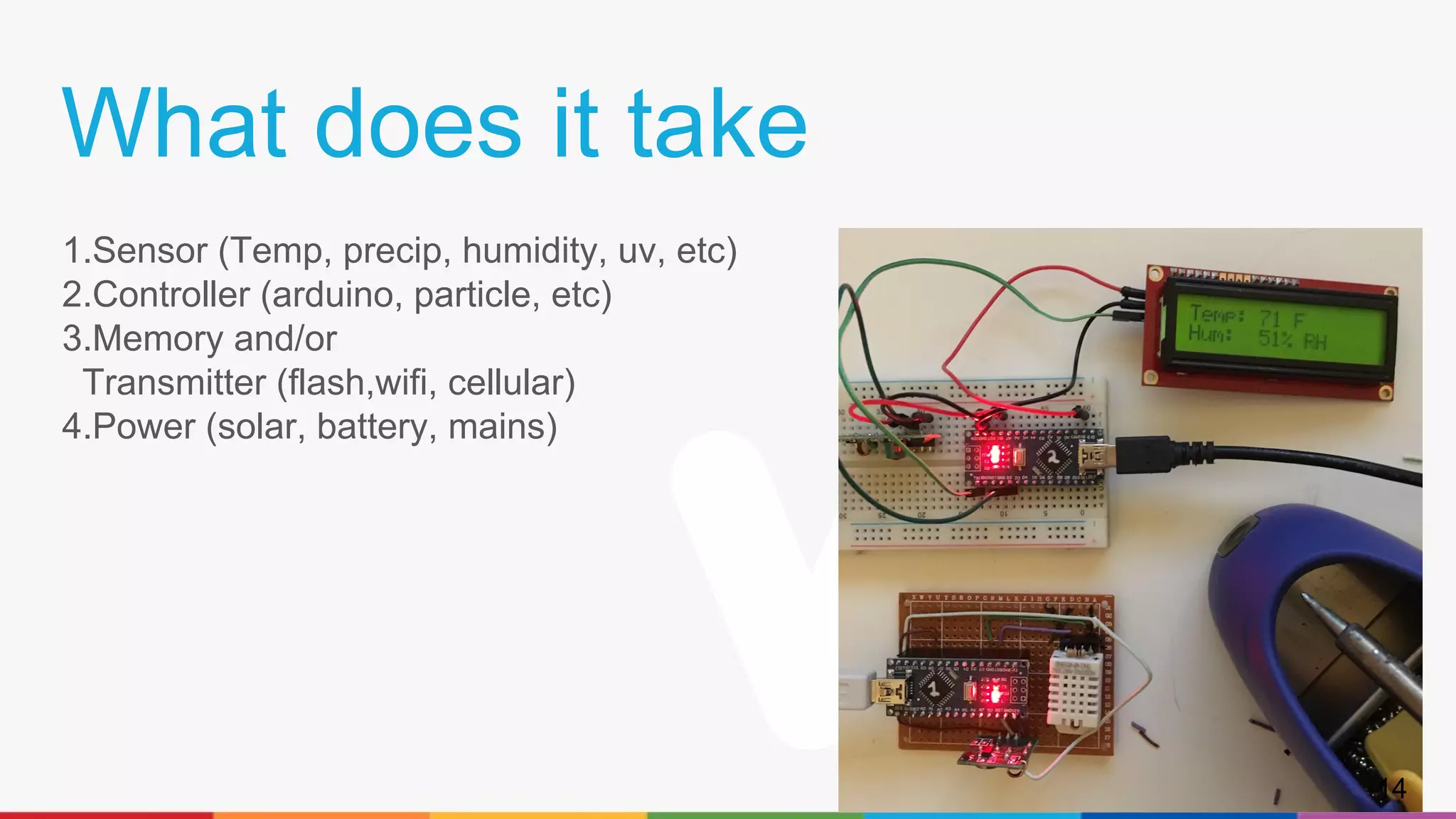

14. What does it take
1.Sensor (Temp, precip, humidity, uv, etc)
2.Controller (arduino, particle, etc)
3.Memory and/or
Transmitter (flash,wifi, cellular)
4.Power (solar, battery, mains)
14

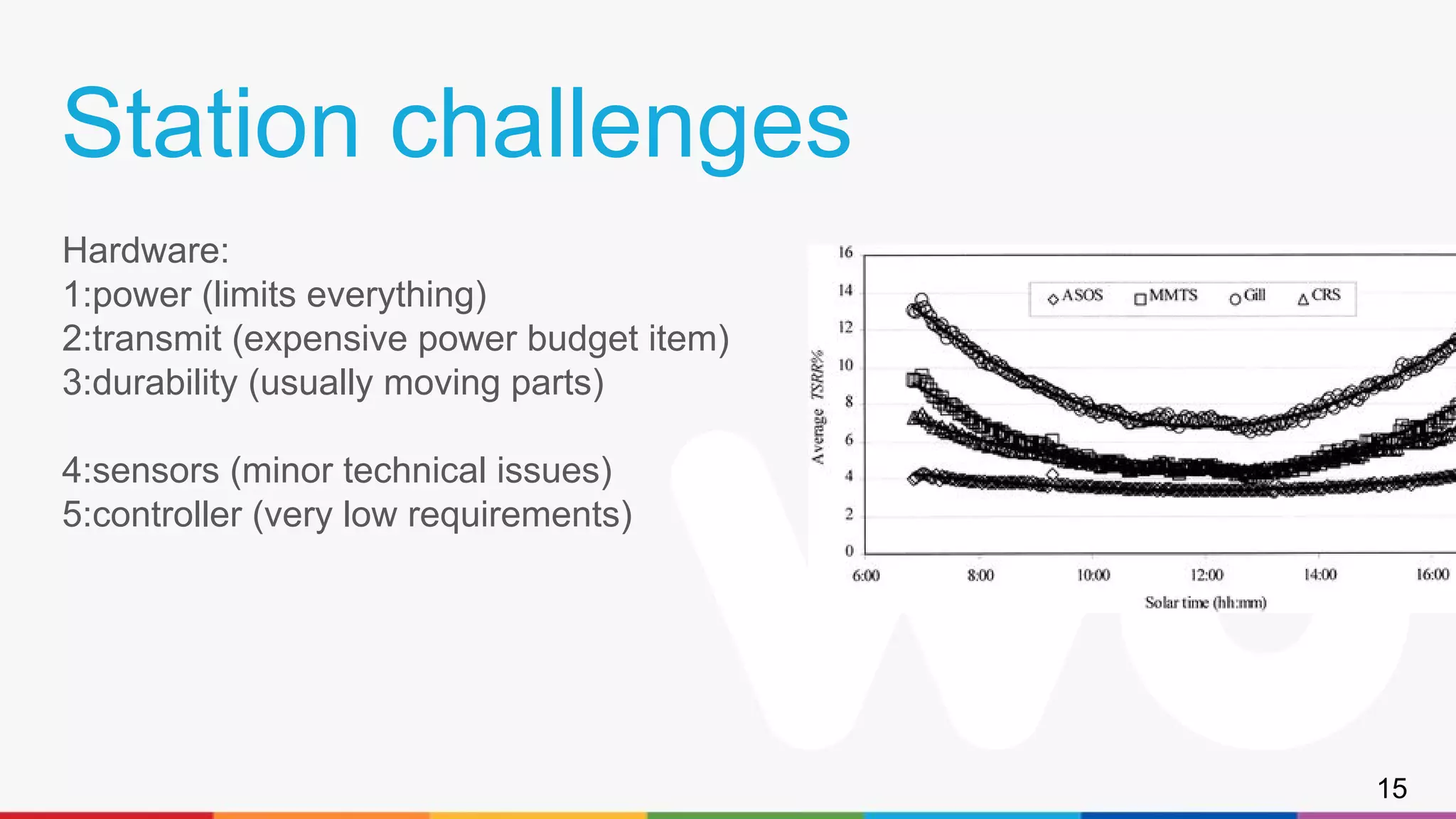

15. Station challenges
Hardware:
1:power (limits everything)
2:transmit (expensive power budget item)
3:durability (usually moving parts)
4:sensors (minor technical issues)
5:controller (very low requirements)
15

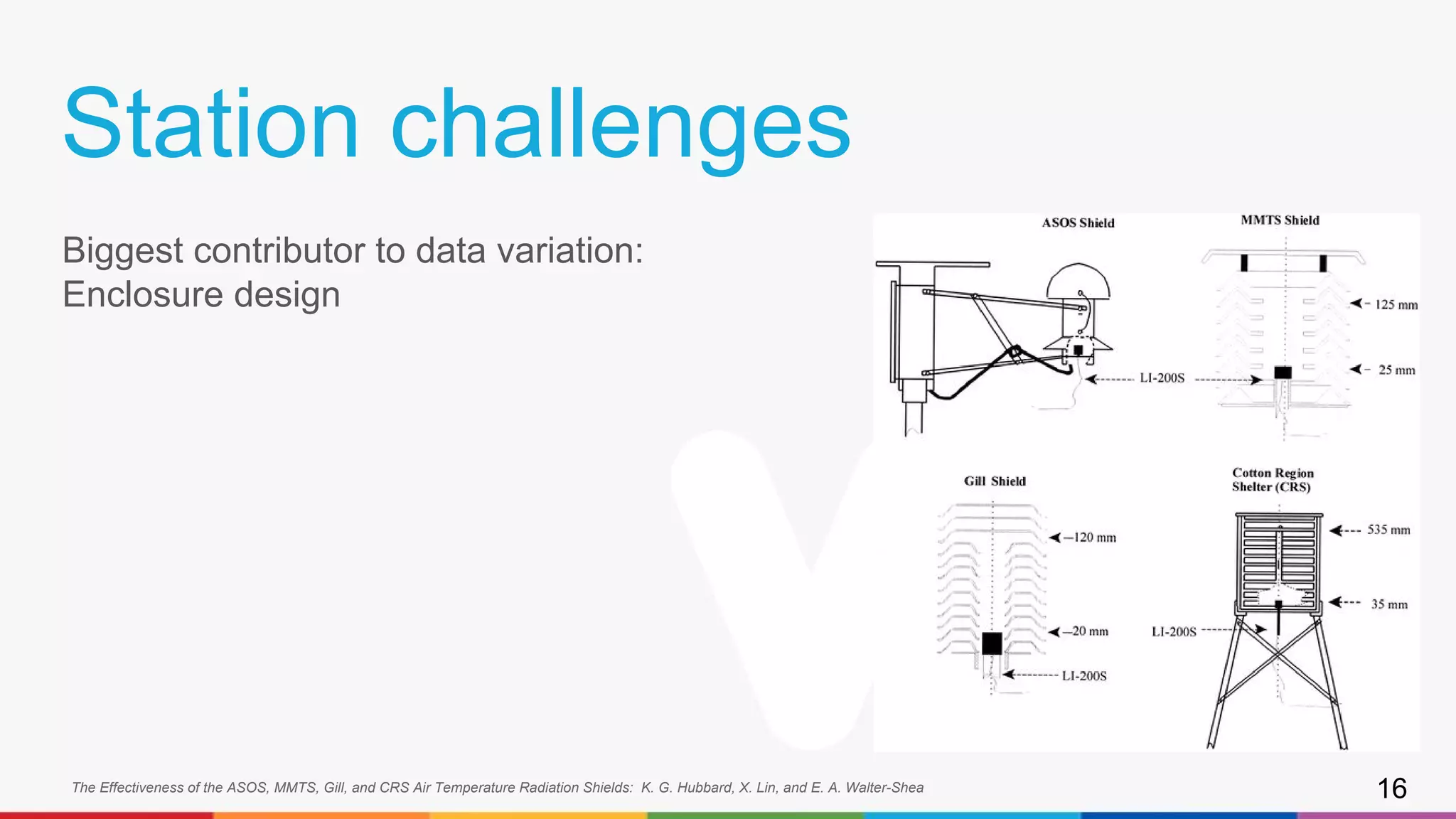

16. Station challenges
Biggest contributor to data variation:
Enclosure design
The Effectiveness of the ASOS, MMTS, Gill, and CRS Air Temperature Radiation Shields: K. G. Hubbard, X. Lin, and E. A. Walter-Shea 16

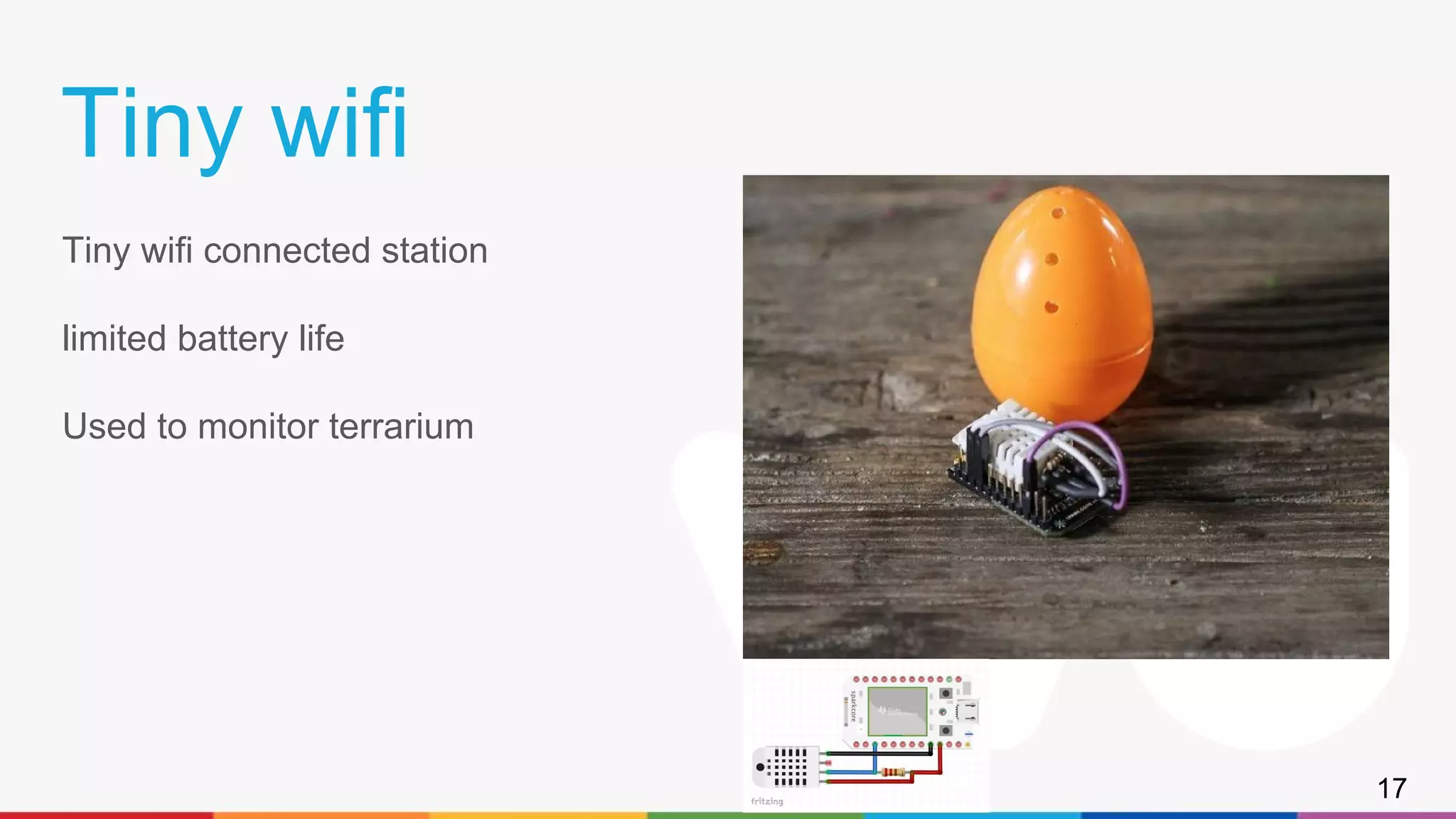

17. Tiny wifi
Tiny wifi connected station
limited battery life
Used to monitor terrarium
17

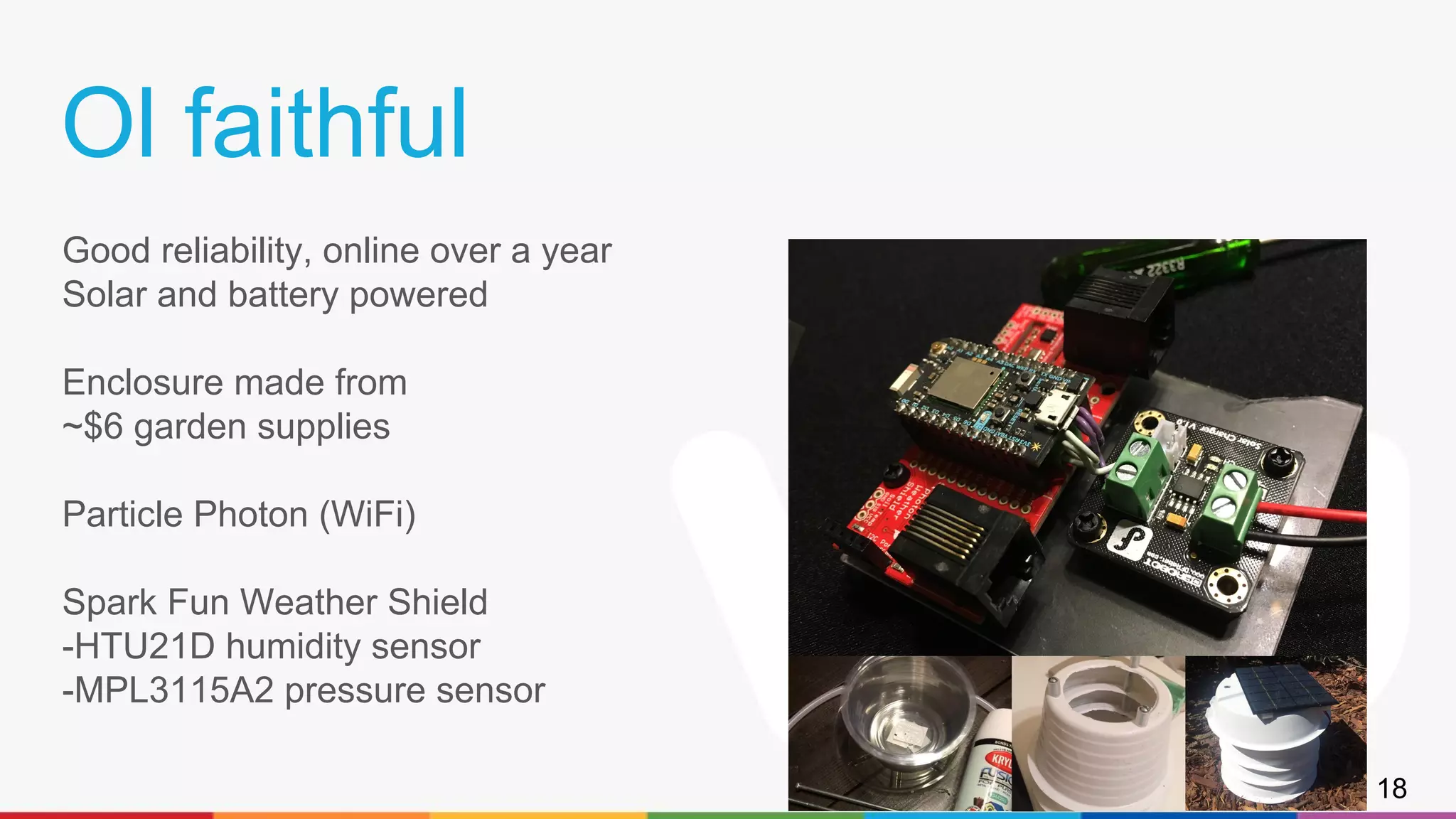

18. Ol faithful
Good reliability, online over a year
Solar and battery powered
Enclosure made from
~$6 garden supplies
Particle Photon (WiFi)
Spark Fun Weather Shield
-HTU21D humidity sensor
-MPL3115A2 pressure sensor
18

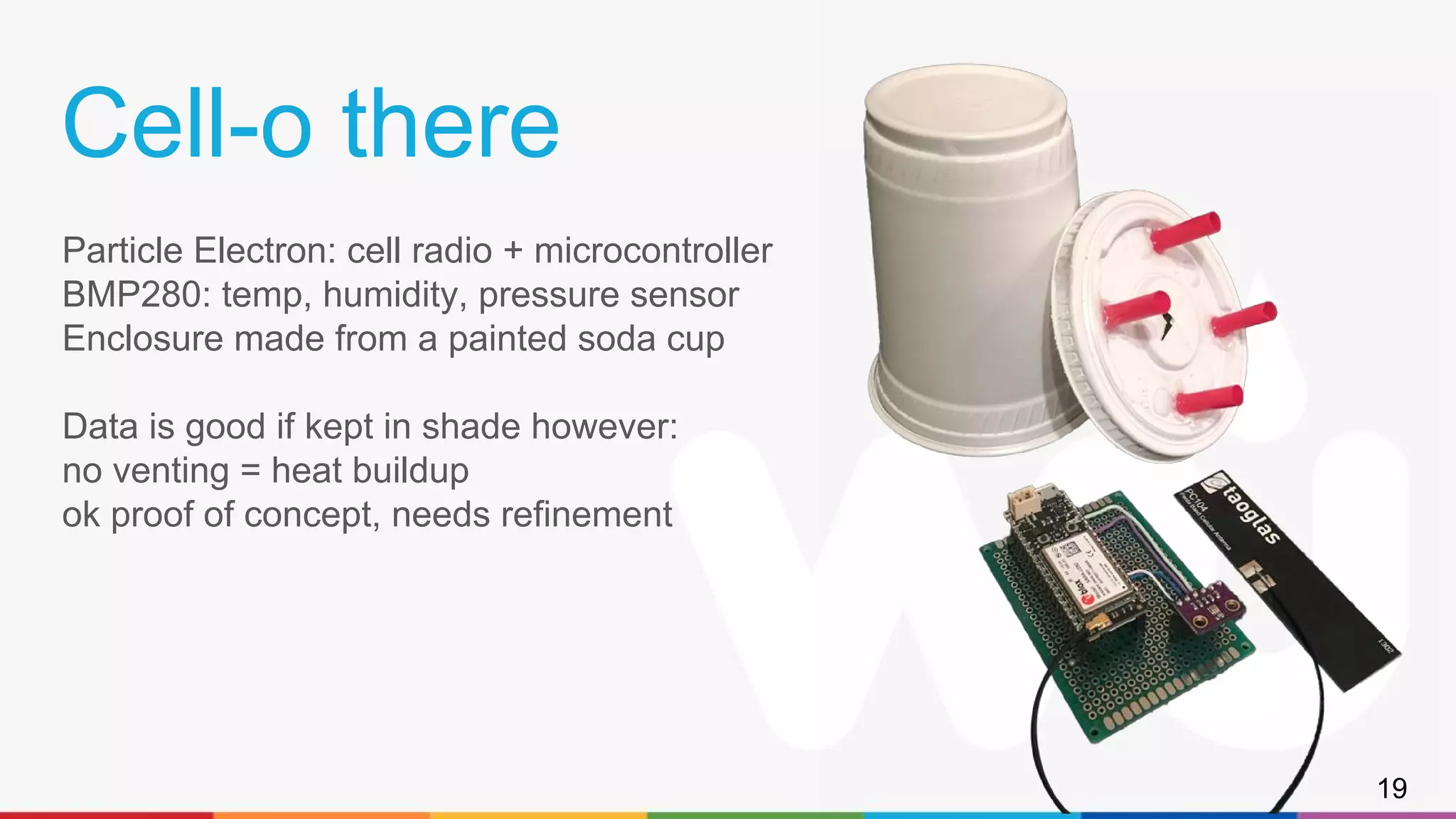

19. Cell-o there
Particle Electron: cell radio + microcontroller
BMP280: temp, humidity, pressure sensor
Enclosure made from a painted soda cup
Data is good if kept in shade however:
no venting = heat buildup
ok proof of concept, needs refinement
19

20. Data Ingestion & QC
20

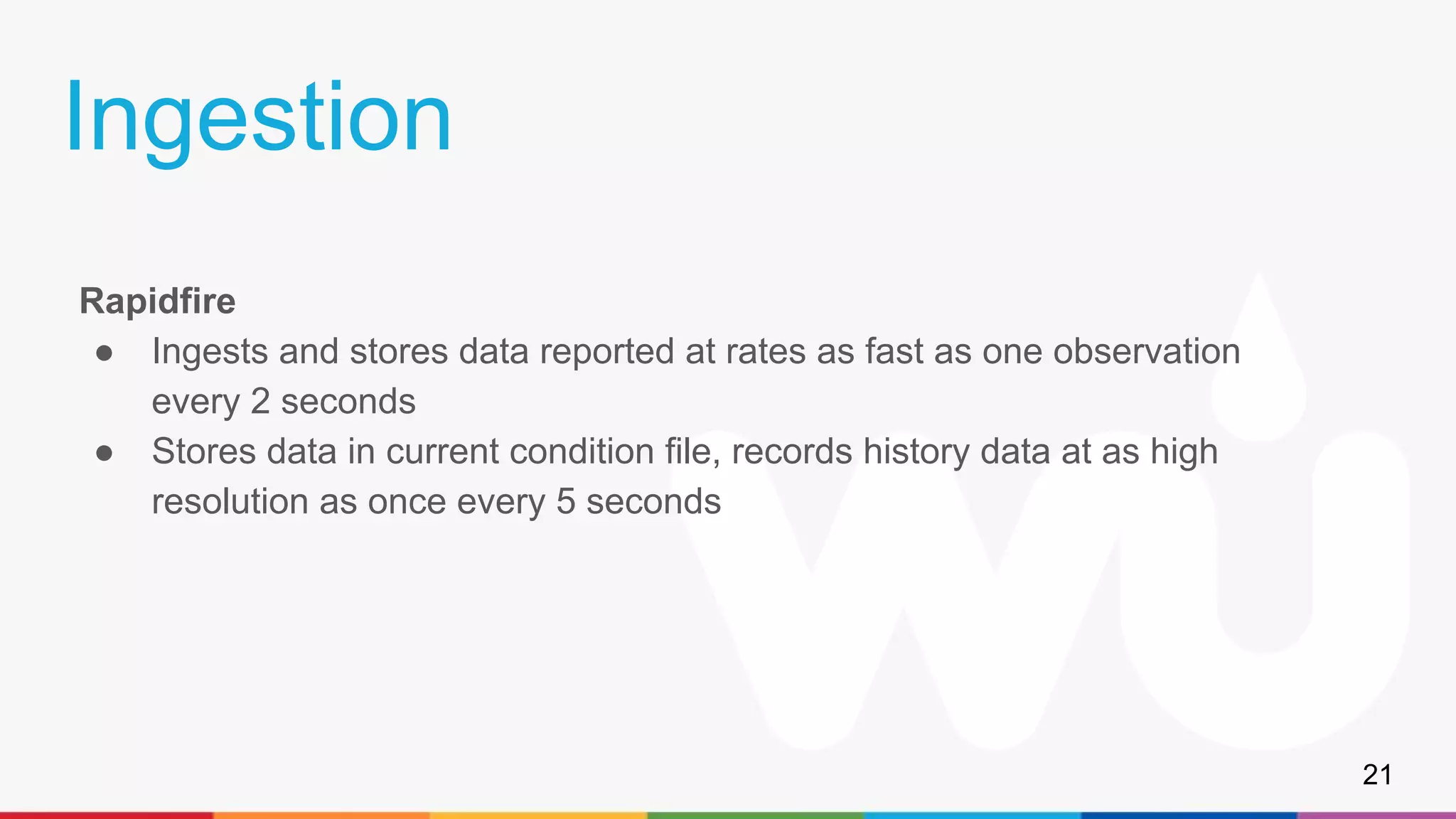

21. Ingestion
Rapidfire
● Ingests and stores data reported at rates as fast as one observation
every 2 seconds
● Stores data in current condition file, records history data at as high
resolution as once every 5 seconds
21

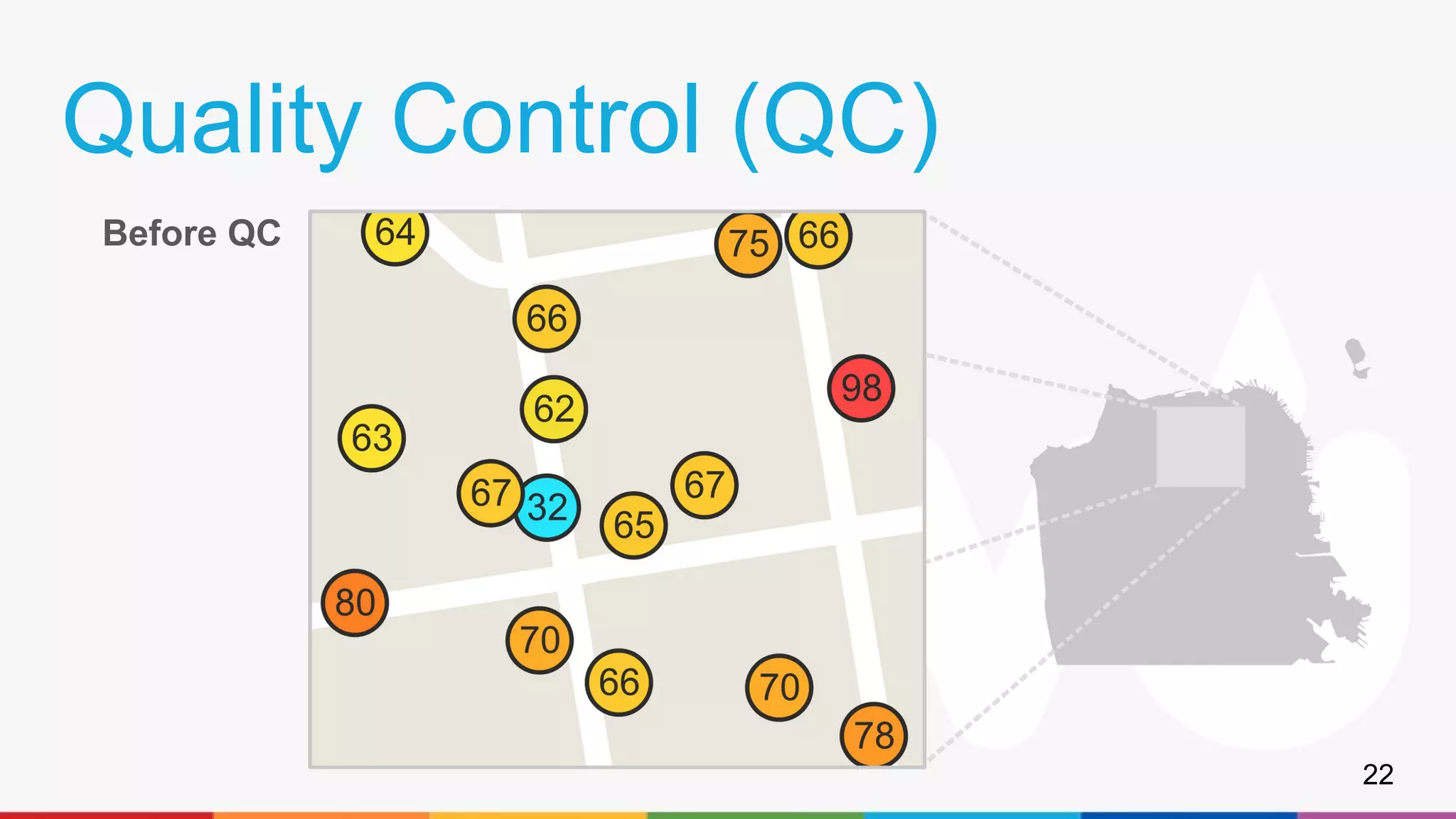

22. Quality Control (QC)
Before QC
22

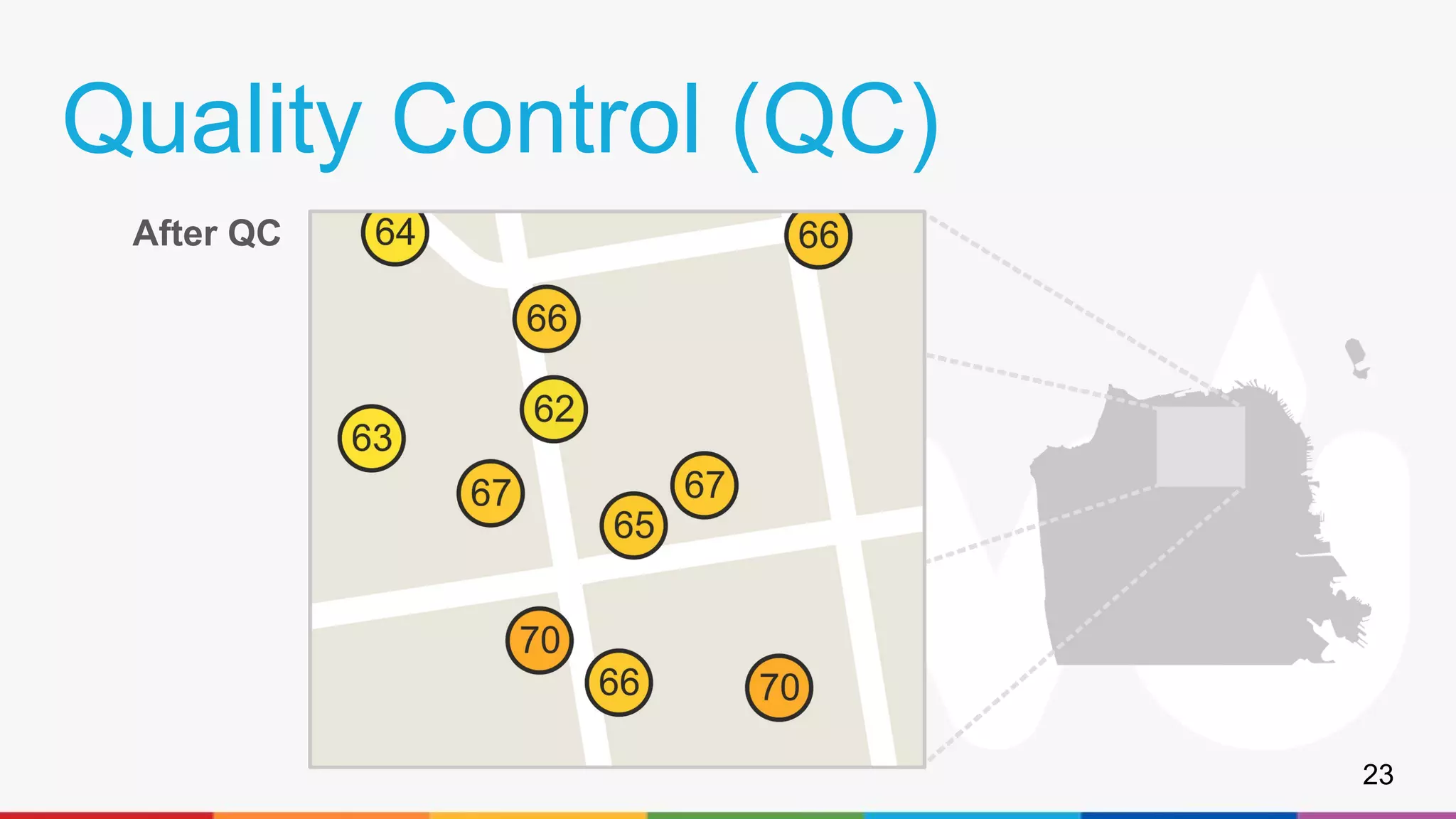

23. Quality Control (QC)
After QC
23

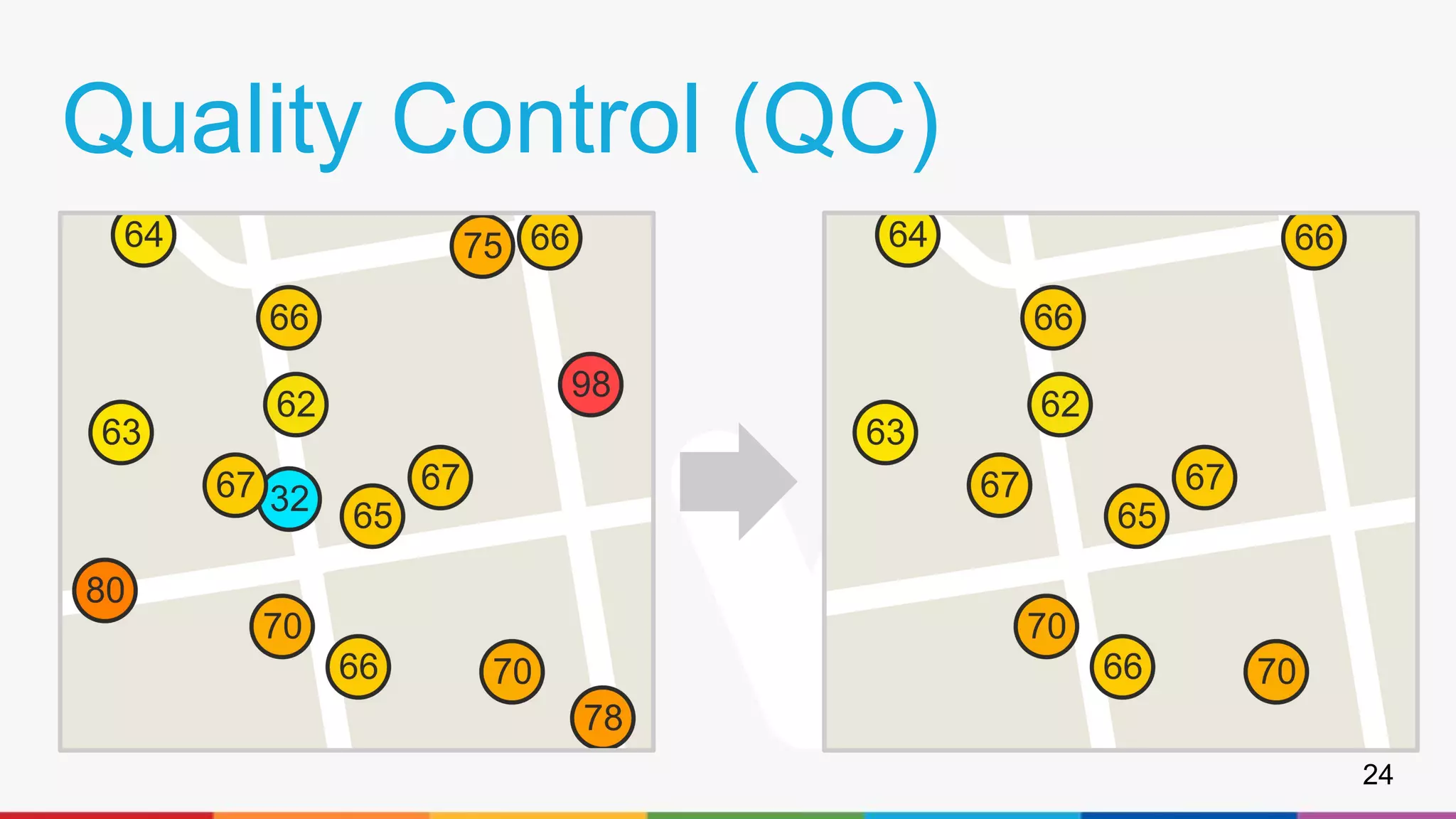

24. Quality Control (QC)
24

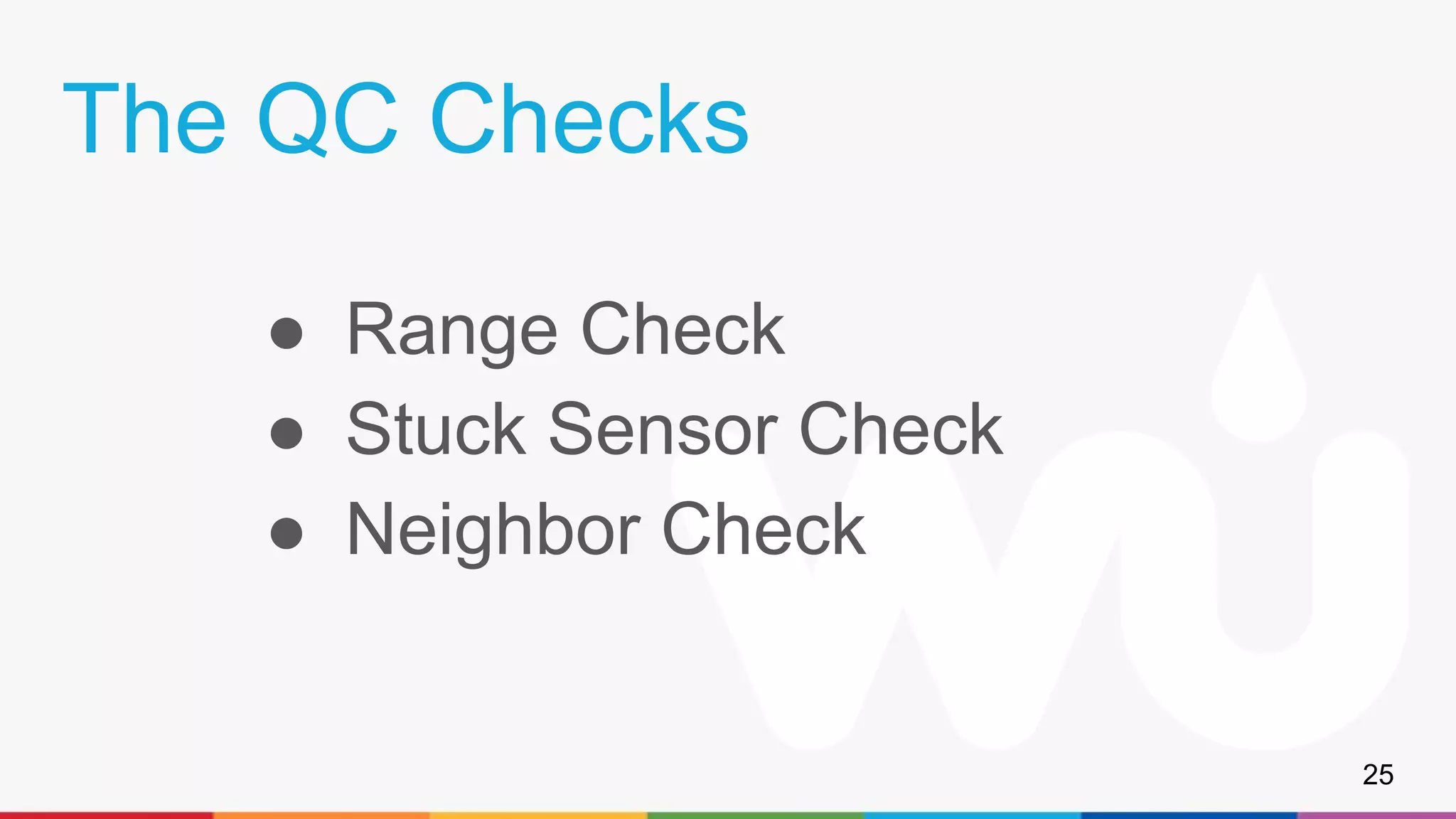

25. The QC Checks
● Range Check
● Stuck Sensor Check
● Neighbor Check
25

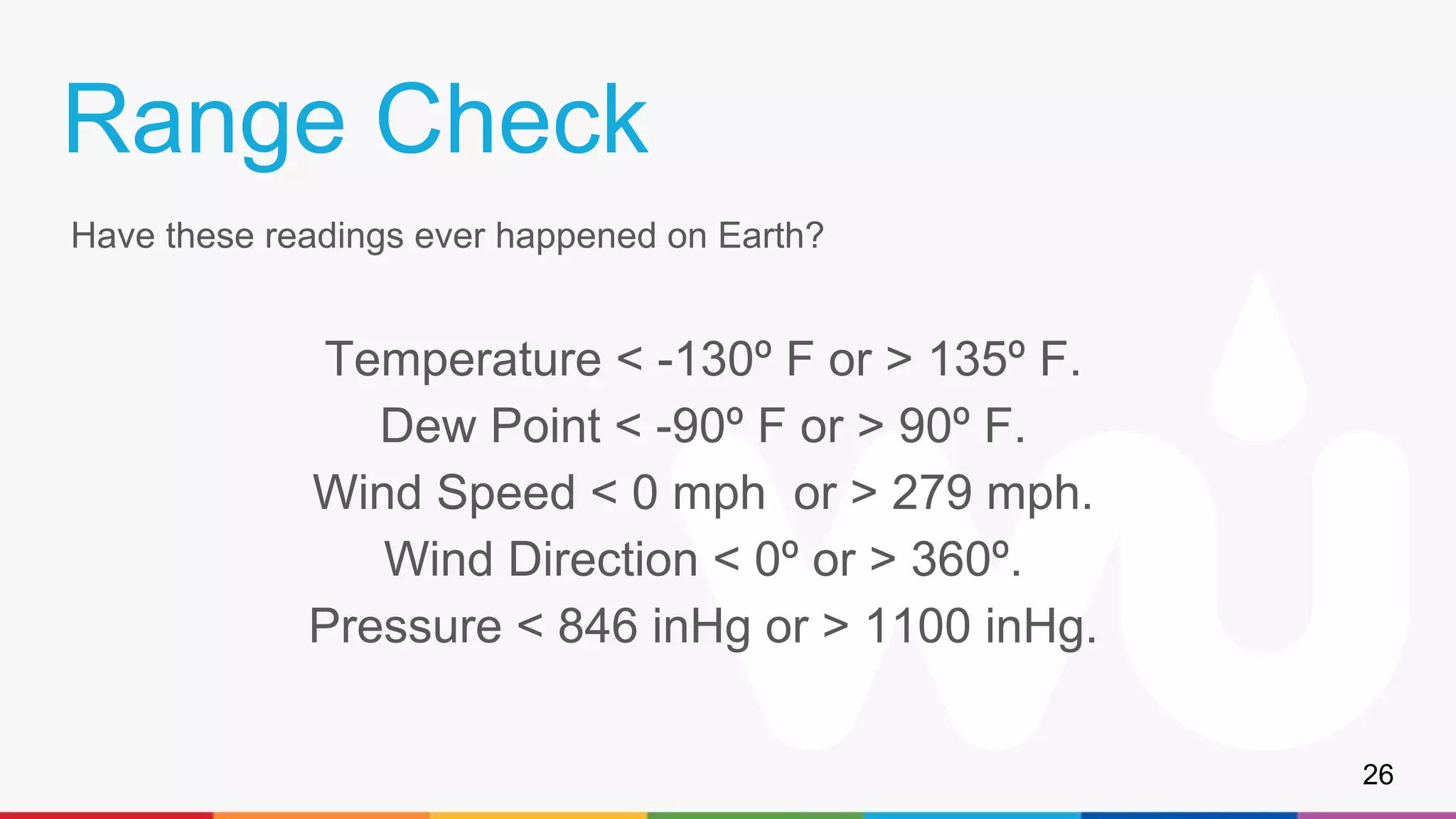

26. Range Check
Have these readings ever happened on Earth?
Temperature < -130º F or > 135º F.
Dew Point < -90º F or > 90º F.
Wind Speed < 0 mph or > 279 mph.
Wind Direction < 0º or > 360º.
Pressure < 846 inHg or > 1100 inHg.
26

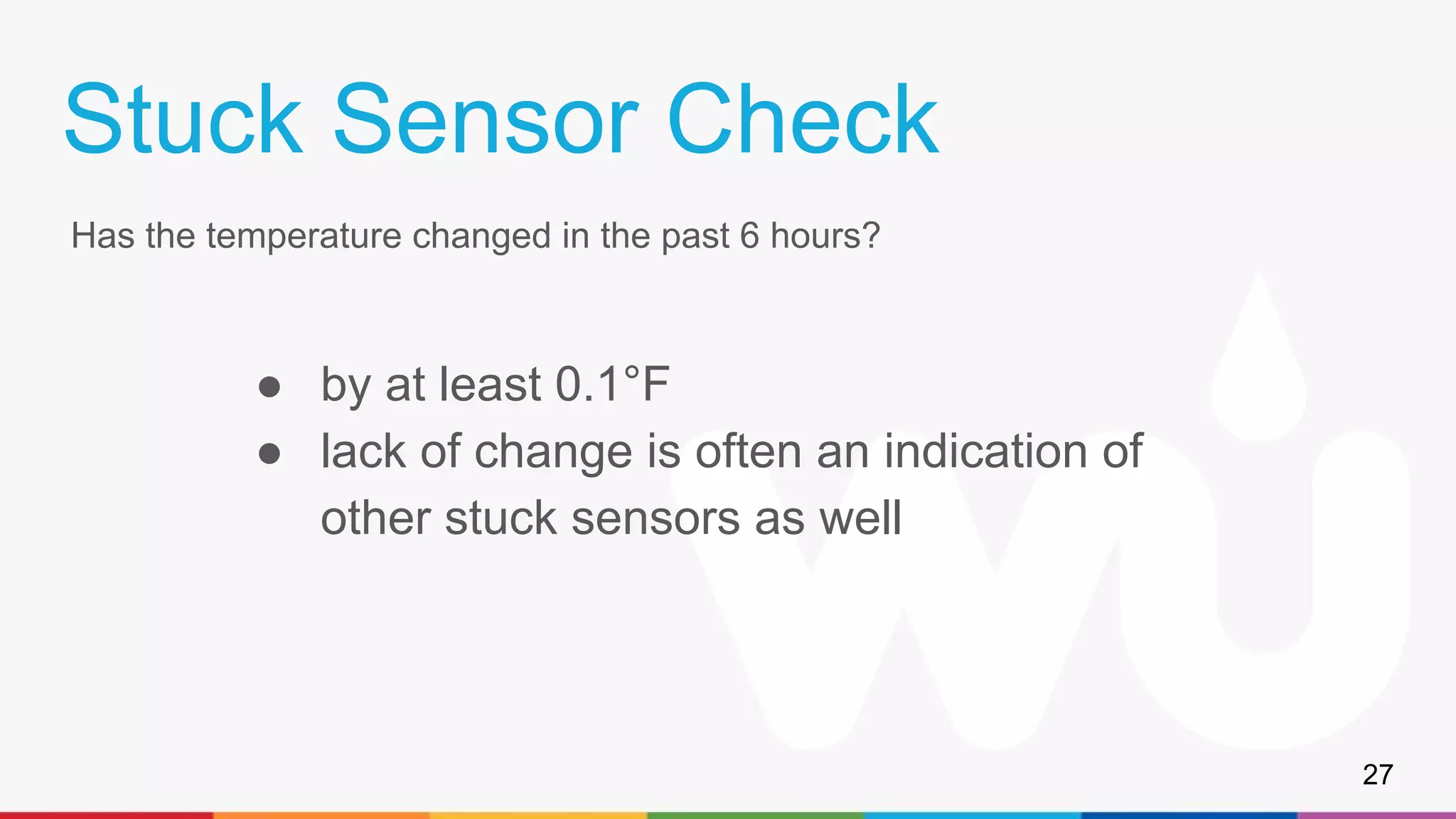

27. Stuck Sensor Check
Has the temperature changed in the past 6 hours?
● by at least 0.1°F
● lack of change is often an indication of
other stuck sensors as well
27

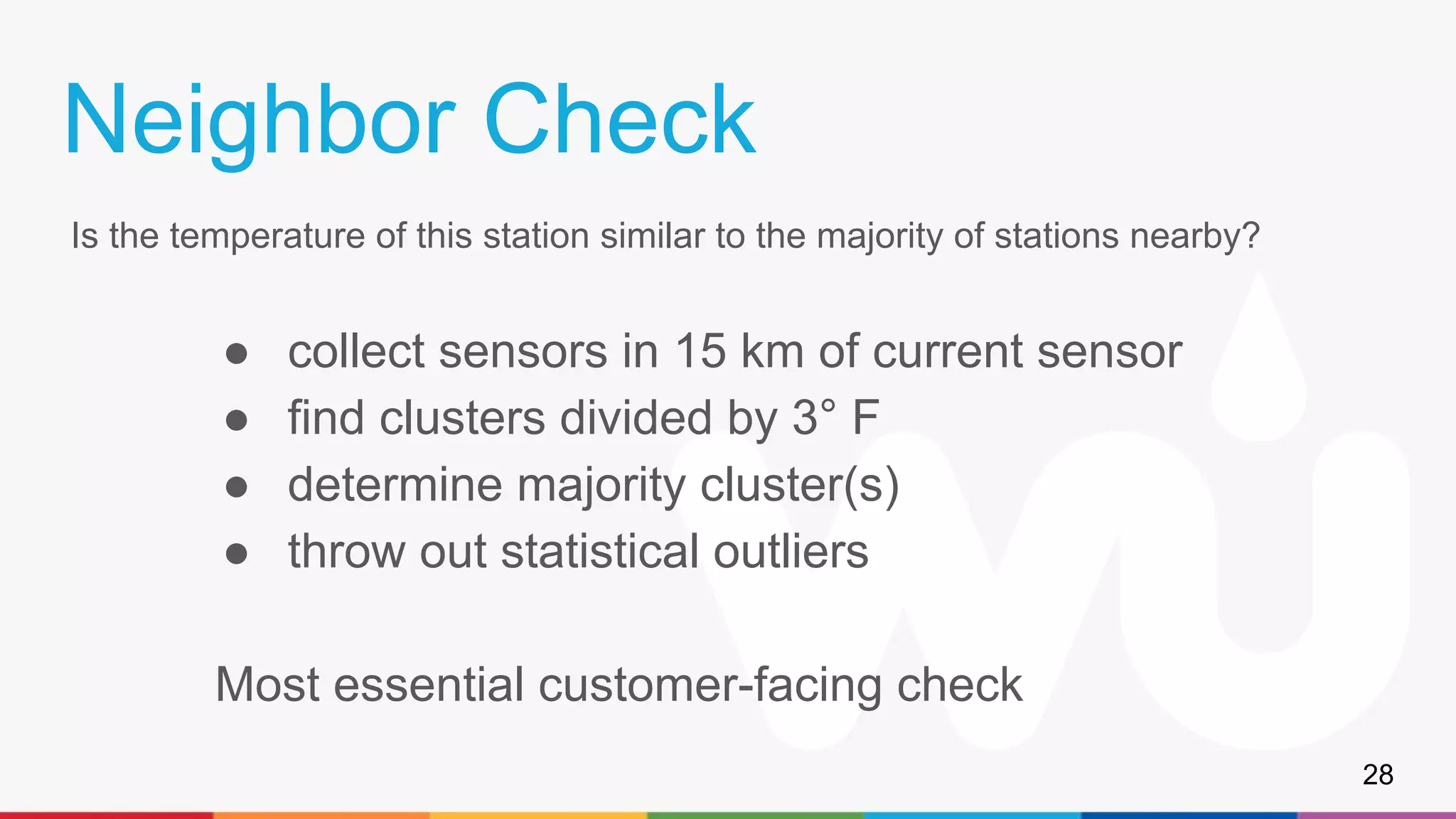

28. Neighbor Check
Is the temperature of this station similar to the majority of stations nearby?
● collect sensors in 15 km of current sensor
● find clusters divided by 3° F
● determine majority cluster(s)
● throw out statistical outliers
Most essential customer-facing check
28

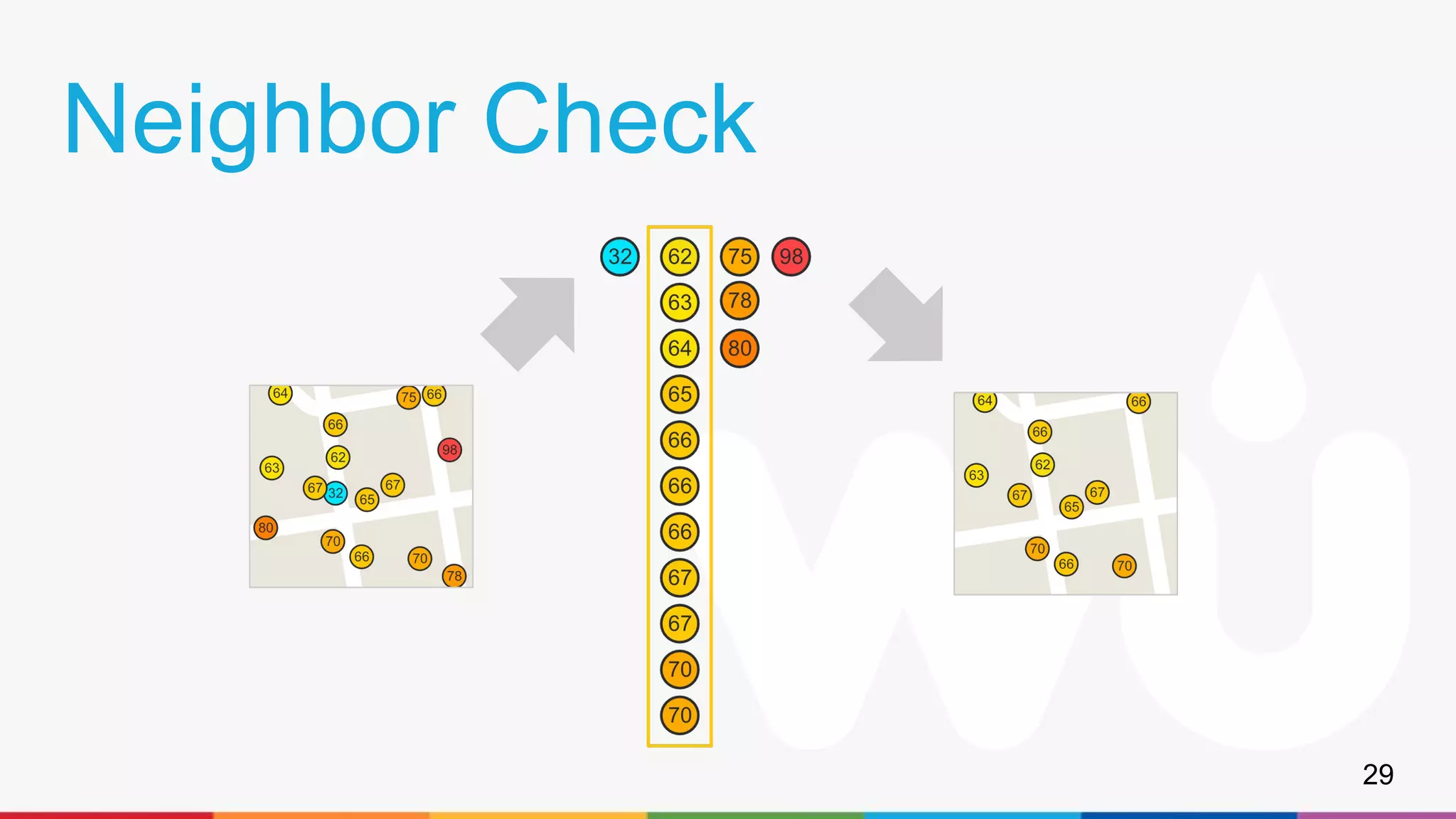

29. Neighbor Check
29

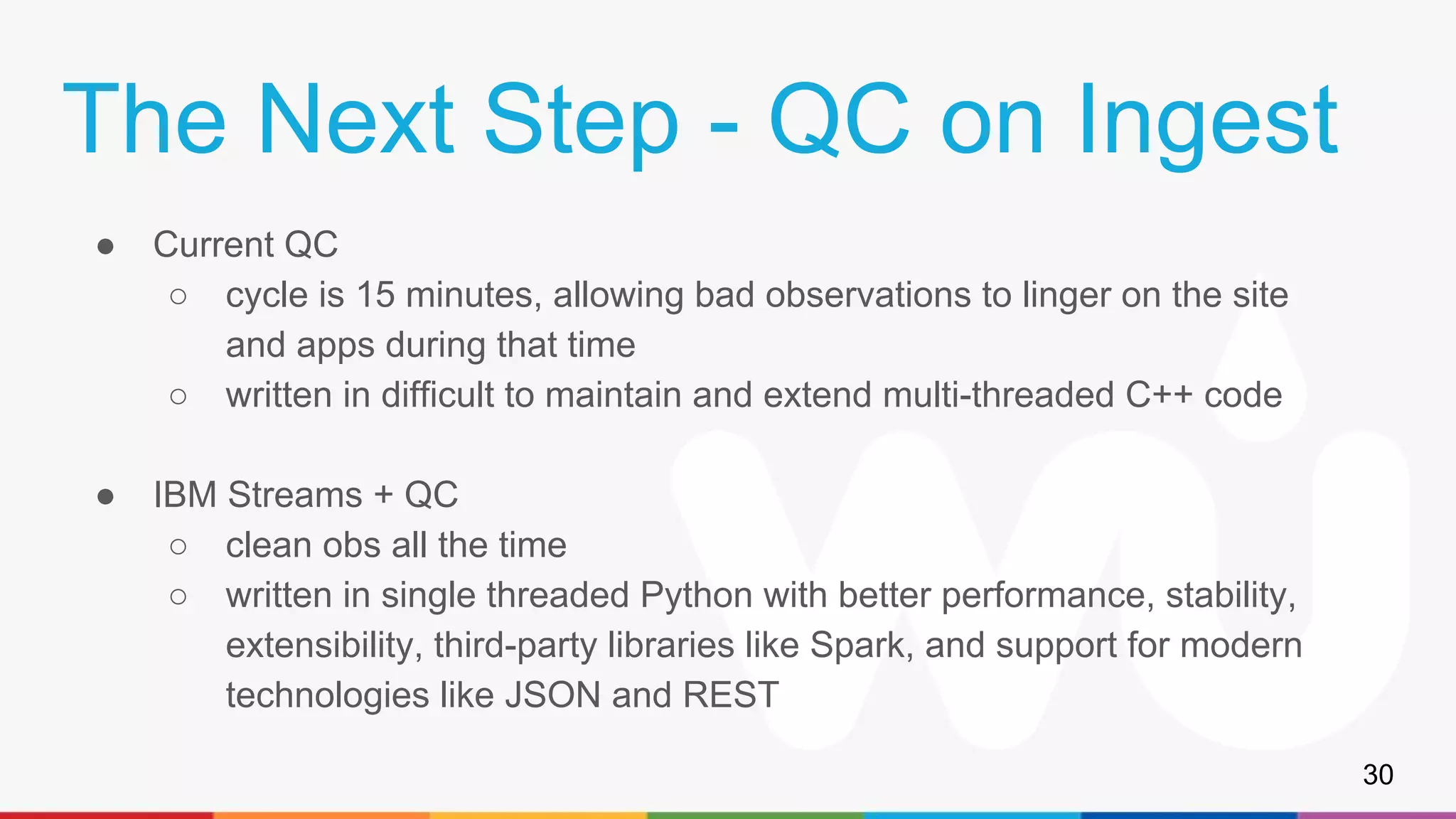

30. The Next Step - QC on Ingest
● Current QC
○ cycle is 15 minutes, allowing bad observations to linger on the site
and apps during that time
○ written in difficult to maintain and extend multi-threaded C++ code
● IBM Streams + QC
○ clean obs all the time
○ written in single threaded Python with better performance, stability,
extensibility, third-party libraries like Spark, and support for modern
technologies like JSON and REST
30

31. API
31

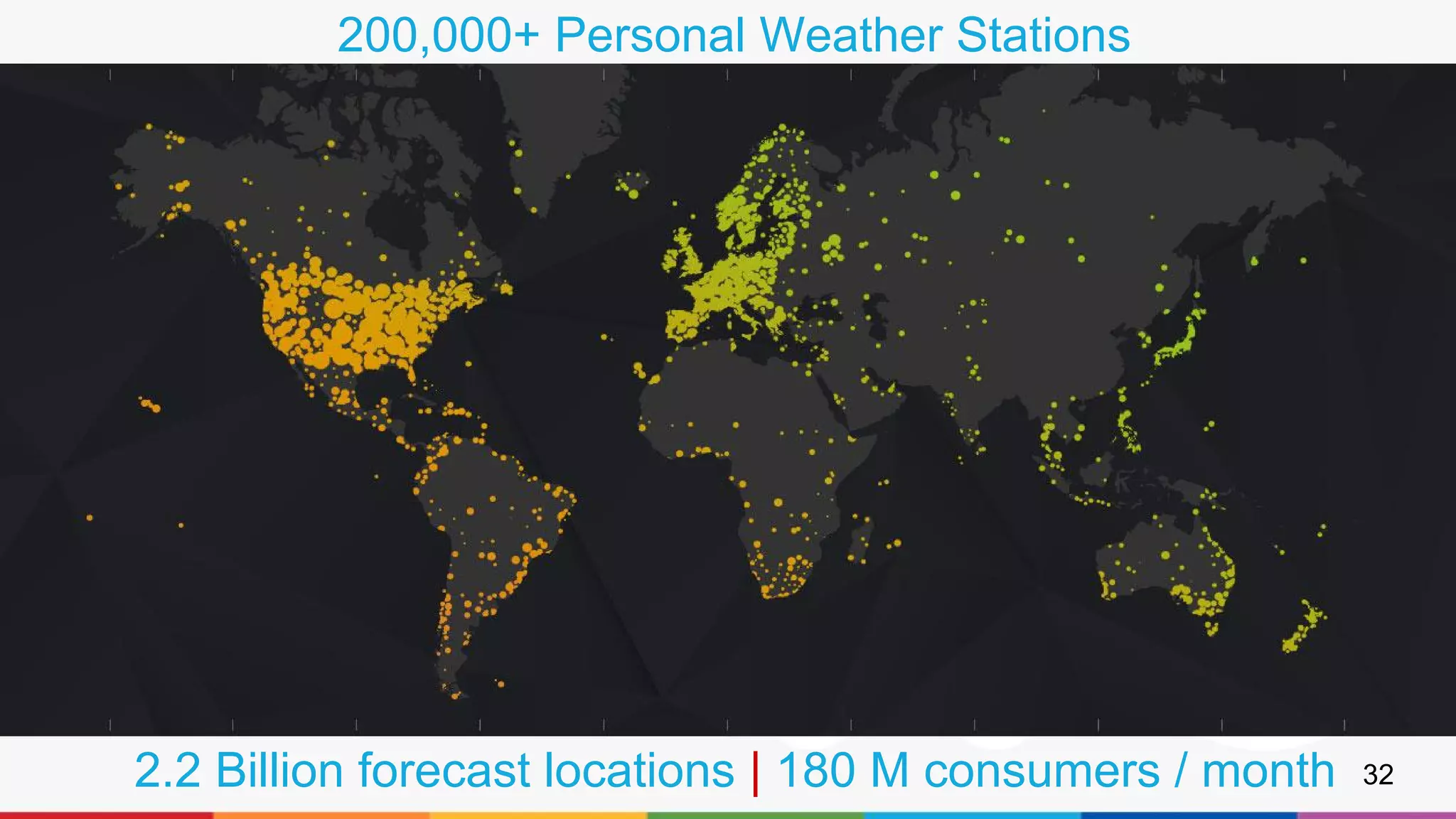

32. 200,000+ Personal Weather Stations
2.2 Billion forecast locations | 180 M consumers / month 32

33. 33

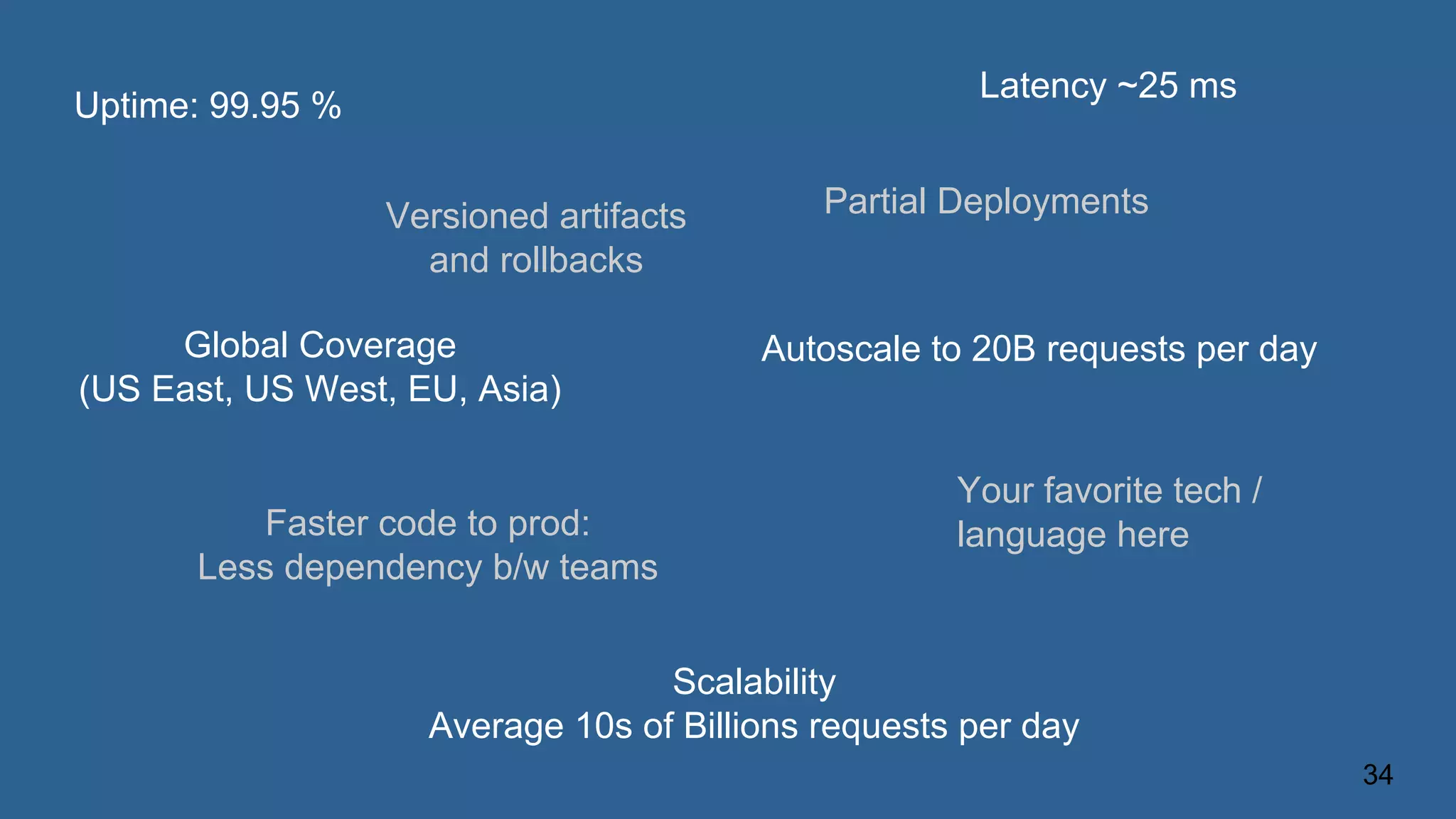

34. Uptime: 99.95 %
Latency ~25 ms
Autoscale to 20B requests per day
Scalability
Average 10s of Billions requests per day
Global Coverage
(US East, US West, EU, Asia)
Partial DeploymentsVersioned artifacts
and rollbacks
Faster code to prod:
Less dependency b/w teams
Your favorite tech /
language here
34

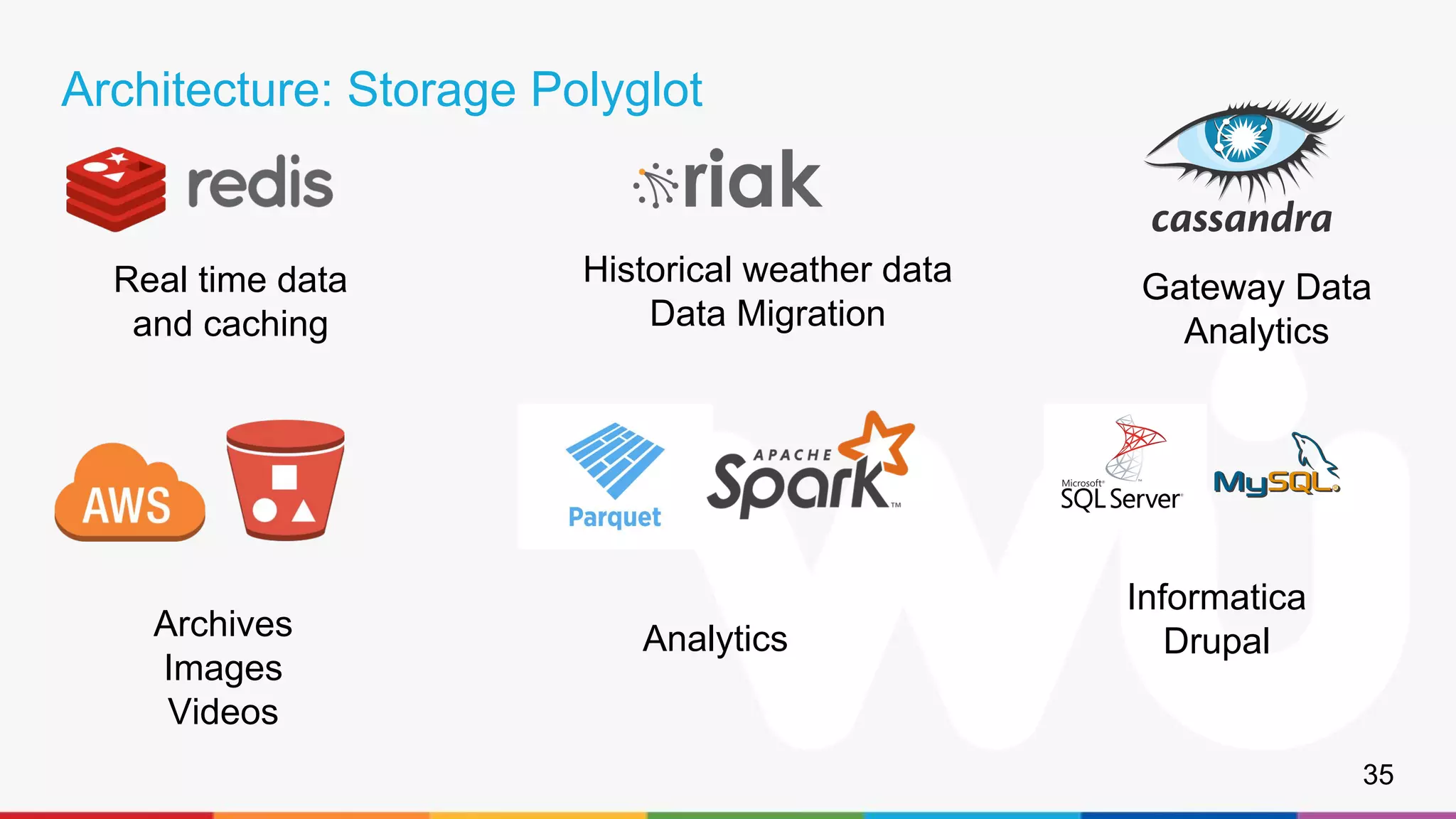

35. Architecture: Storage Polyglot
Real time data
and caching
Historical weather data
Data Migration
Gateway Data
Analytics
Archives
Images
Videos
Analytics
Informatica
Drupal
35

36. Thank you!
36

37. Questions?
37
