The presentation at WordCamp Buffalo 2018 discusses the distinction between CSS display properties and HTML semantics, emphasizing the importance of using correct HTML structures for accessibility, especially when designing tables. It covers best practices for accessible table design, including the use of attributes like <th> and scope, aria roles, and the implications of CSS properties like display: contents on accessibility. The session aims to raise awareness of how improper use of CSS can obscure semantics for assistive technologies, potentially hindering web accessibility.

1. CSS Display Properties
versus
HTML Semantics
Presented at WordCamp Buffalo 2018
Slides will be posted at rosel.li/wcbuf

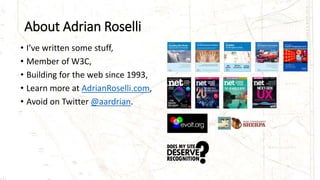

2. • I’ve written some stuff,
• Member of W3C,
• Building for the web since 1993,
• Learn more at AdrianRoselli.com,
• Avoid on Twitter @aardrian.
About Adrian Roselli

3. HTML Tables

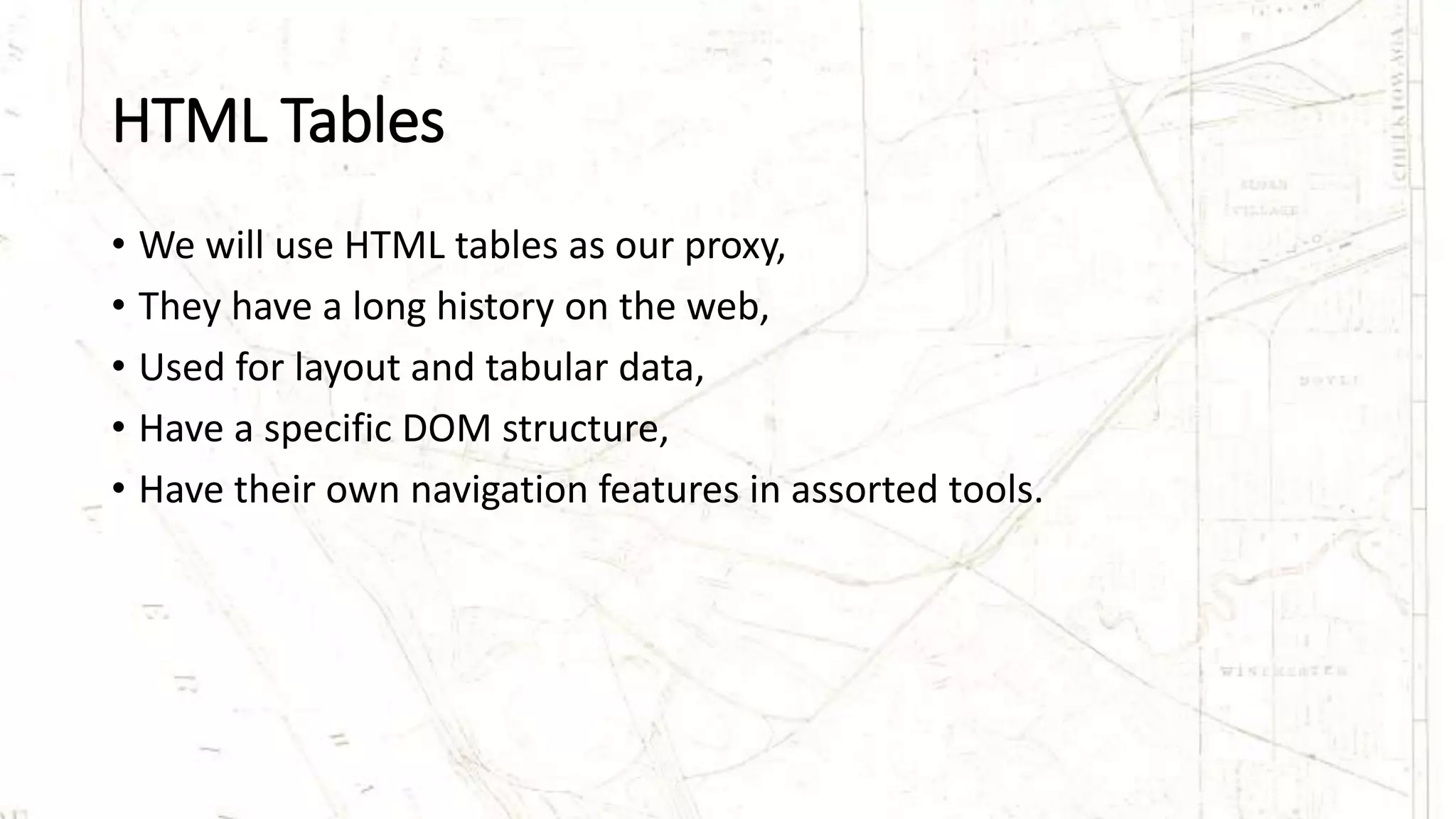

4. HTML Tables
• We will use HTML tables as our proxy,
• They have a long history on the web,
• Used for layout and tabular data,
• Have a specific DOM structure,
• Have their own navigation features in assorted tools.

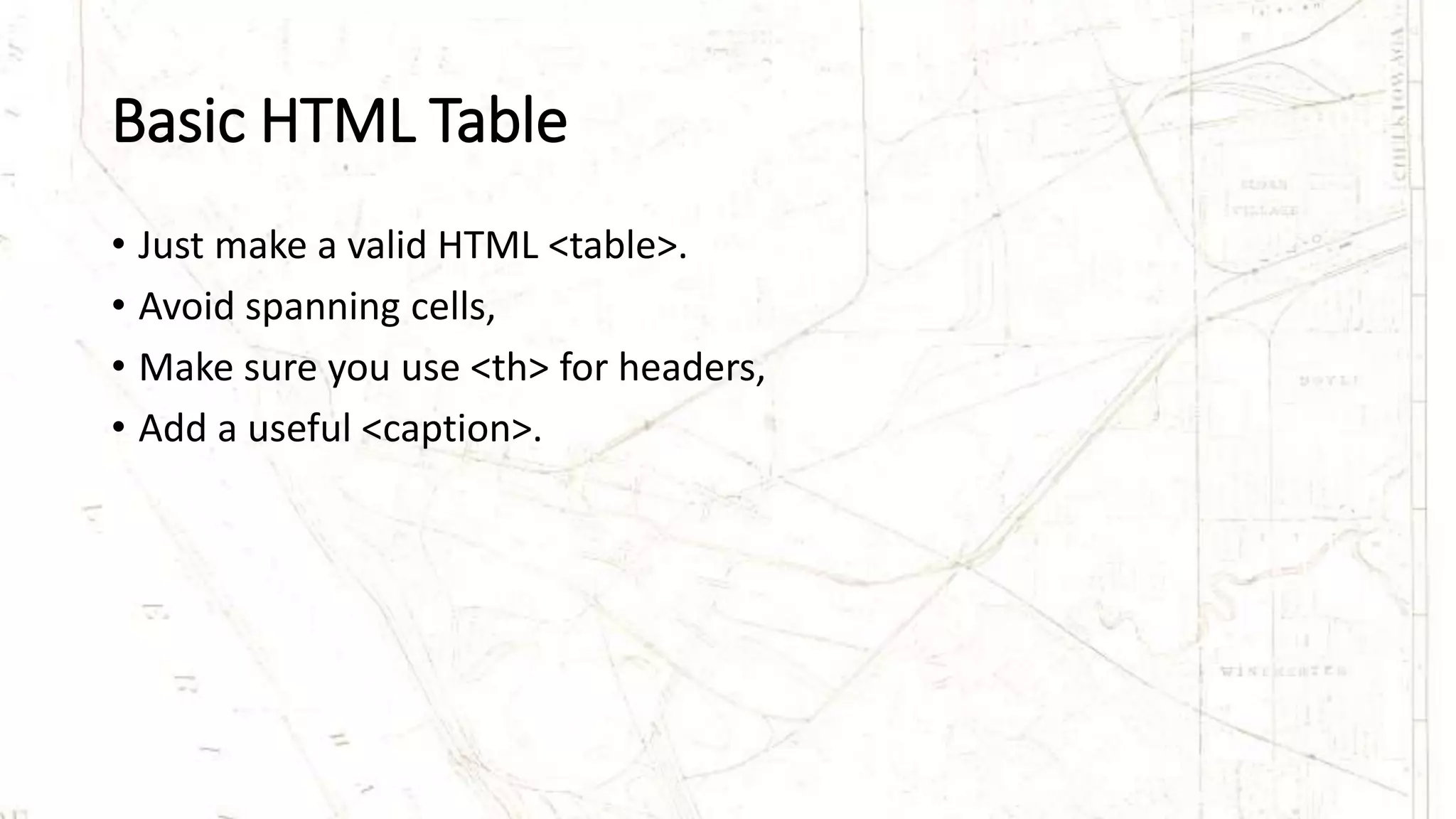

5. Basic HTML Table
• Just make a valid HTML <table>.
• Avoid spanning cells,
• Make sure you use <th> for headers,
• Add a useful <caption>.

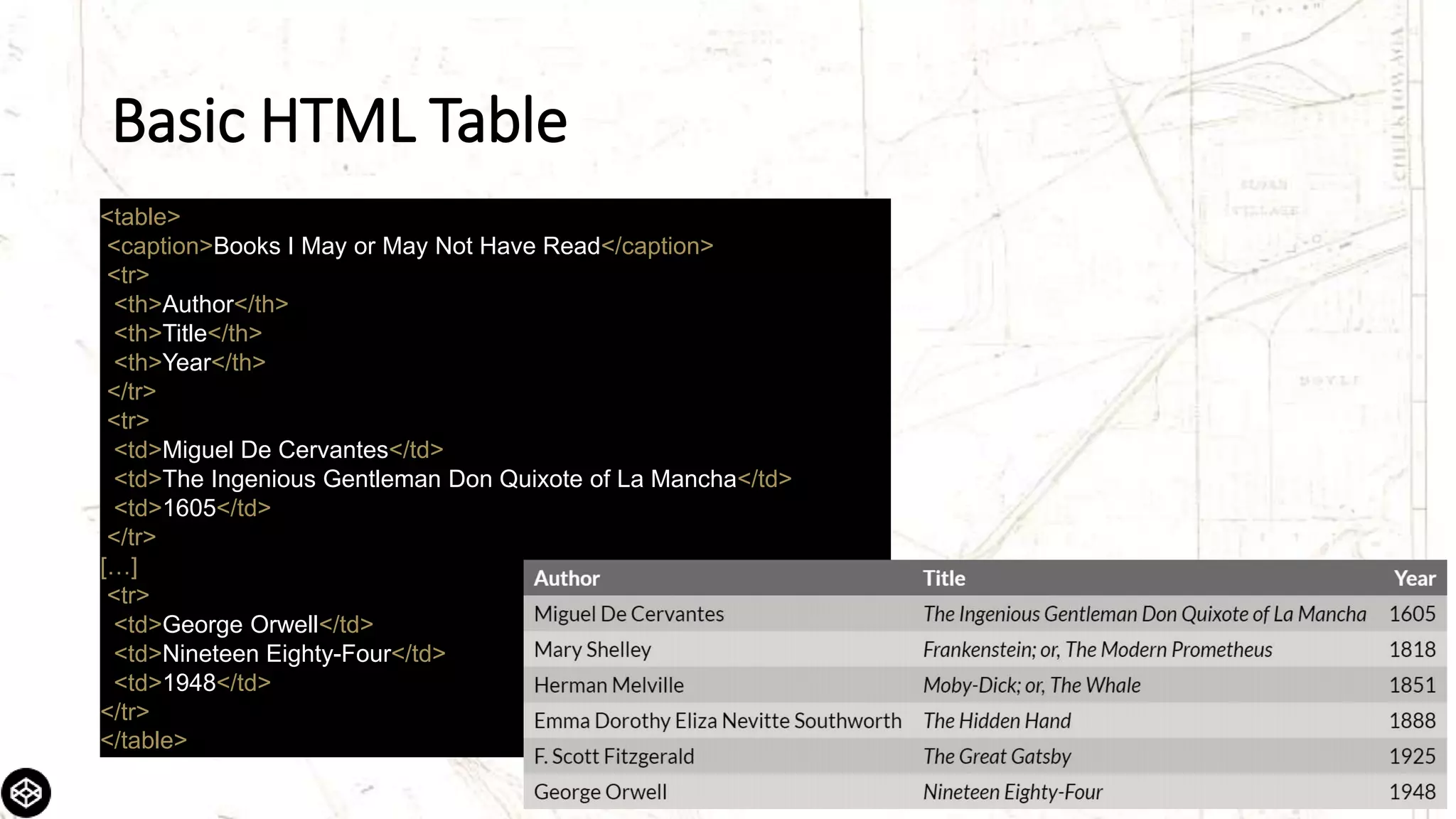

6. Basic HTML Table
<table>
<caption>Books I May or May Not Have Read</caption>
<tr>
<th>Author</th>
<th>Title</th>
<th>Year</th>
</tr>
<tr>
<td>Miguel De Cervantes</td>
<td>The Ingenious Gentleman Don Quixote of La Mancha</td>
<td>1605</td>
</tr>
[…]
<tr>
<td>George Orwell</td>
<td>Nineteen Eighty-Four</td>
<td>1948</td>
</tr>
</table>

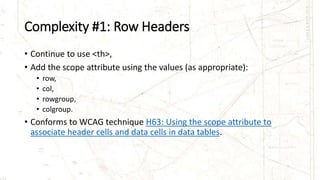

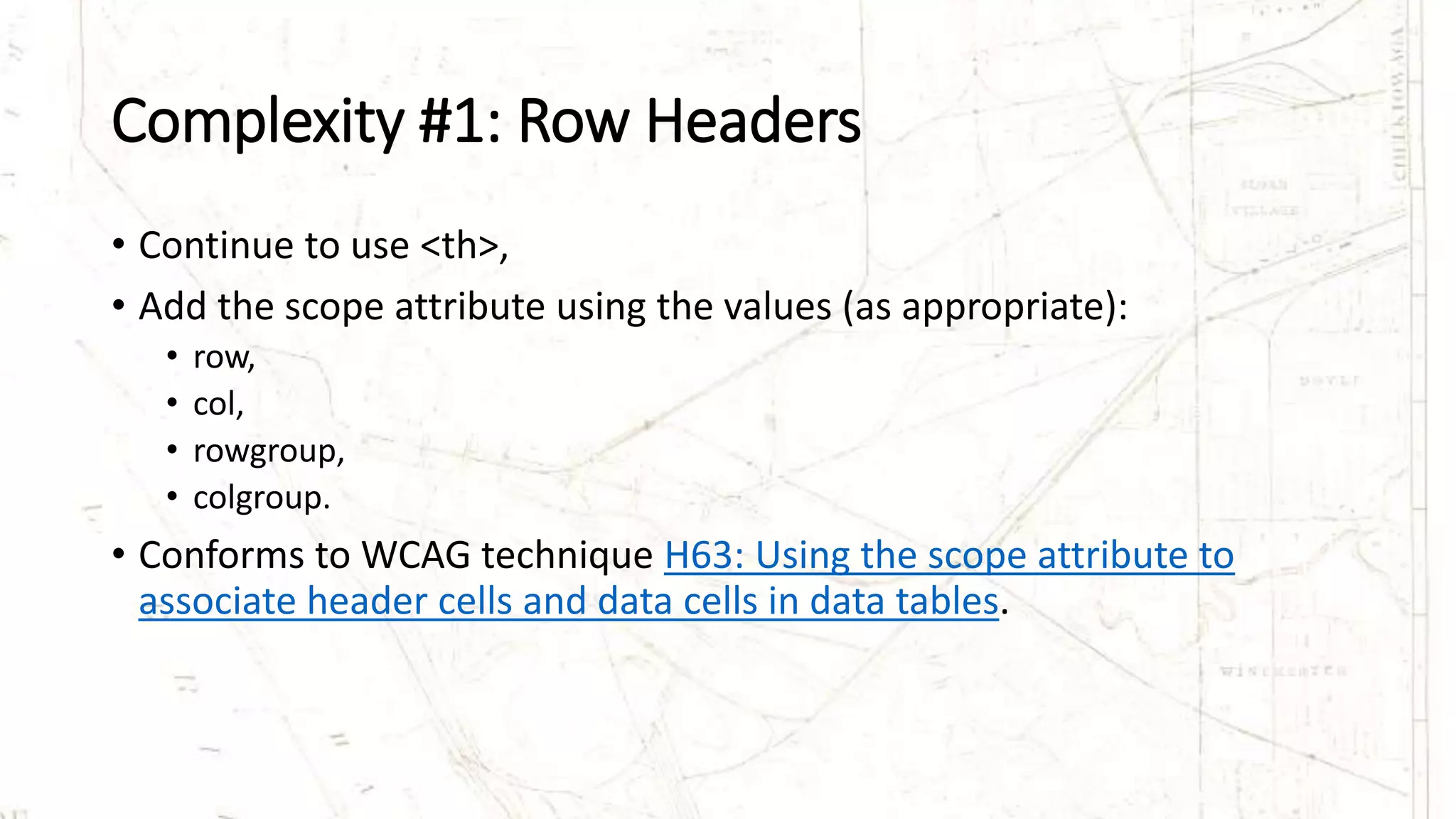

7. Complexity #1: Row Headers
• Continue to use <th>,
• Add the scope attribute using the values (as appropriate):
• row,
• col,
• rowgroup,
• colgroup.
• Conforms to WCAG technique H63: Using the scope attribute to
associate header cells and data cells in data tables.

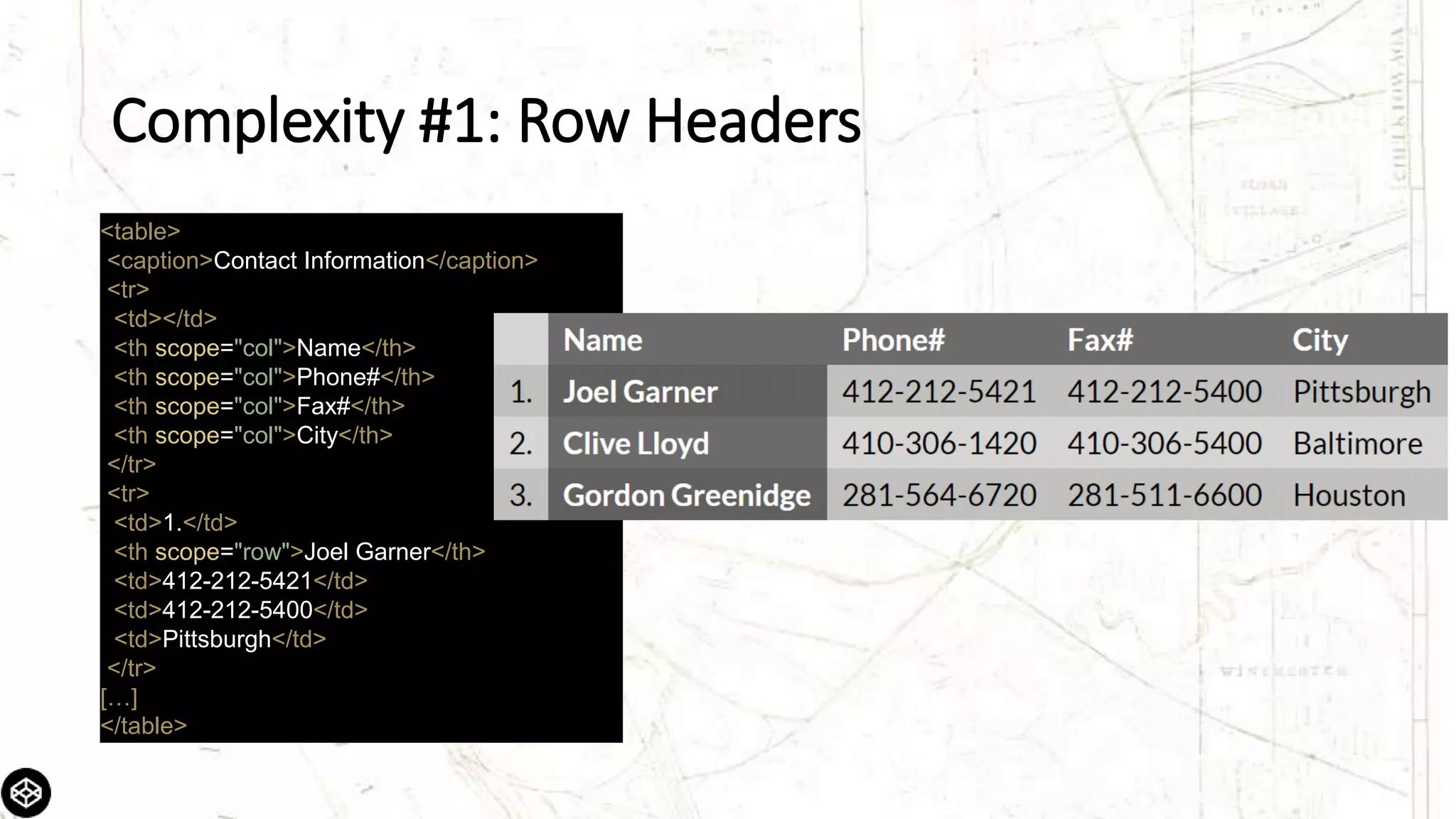

8. Complexity #1: Row Headers
<table>
<caption>Contact Information</caption>
<tr>
<td></td>
<th scope="col">Name</th>
<th scope="col">Phone#</th>
<th scope="col">Fax#</th>
<th scope="col">City</th>
</tr>
<tr>
<td>1.</td>
<th scope="row">Joel Garner</th>
<td>412-212-5421</td>
<td>412-212-5400</td>
<td>Pittsburgh</td>
</tr>
[…]
</table>

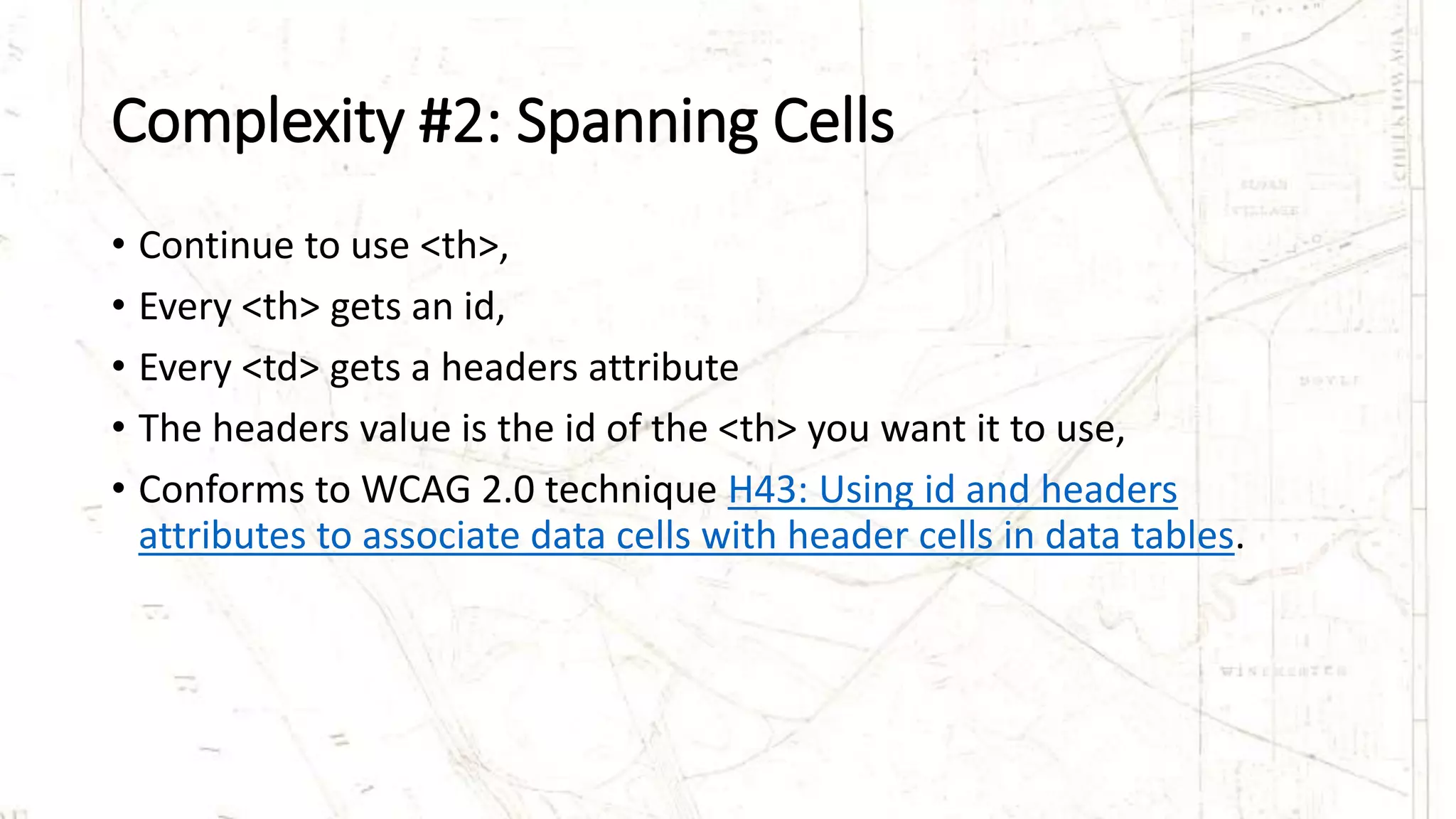

9. Complexity #2: Spanning Cells
• Continue to use <th>,
• Every <th> gets an id,
• Every <td> gets a headers attribute
• The headers value is the id of the <th> you want it to use,
• Conforms to WCAG 2.0 technique H43: Using id and headers
attributes to associate data cells with header cells in data tables.

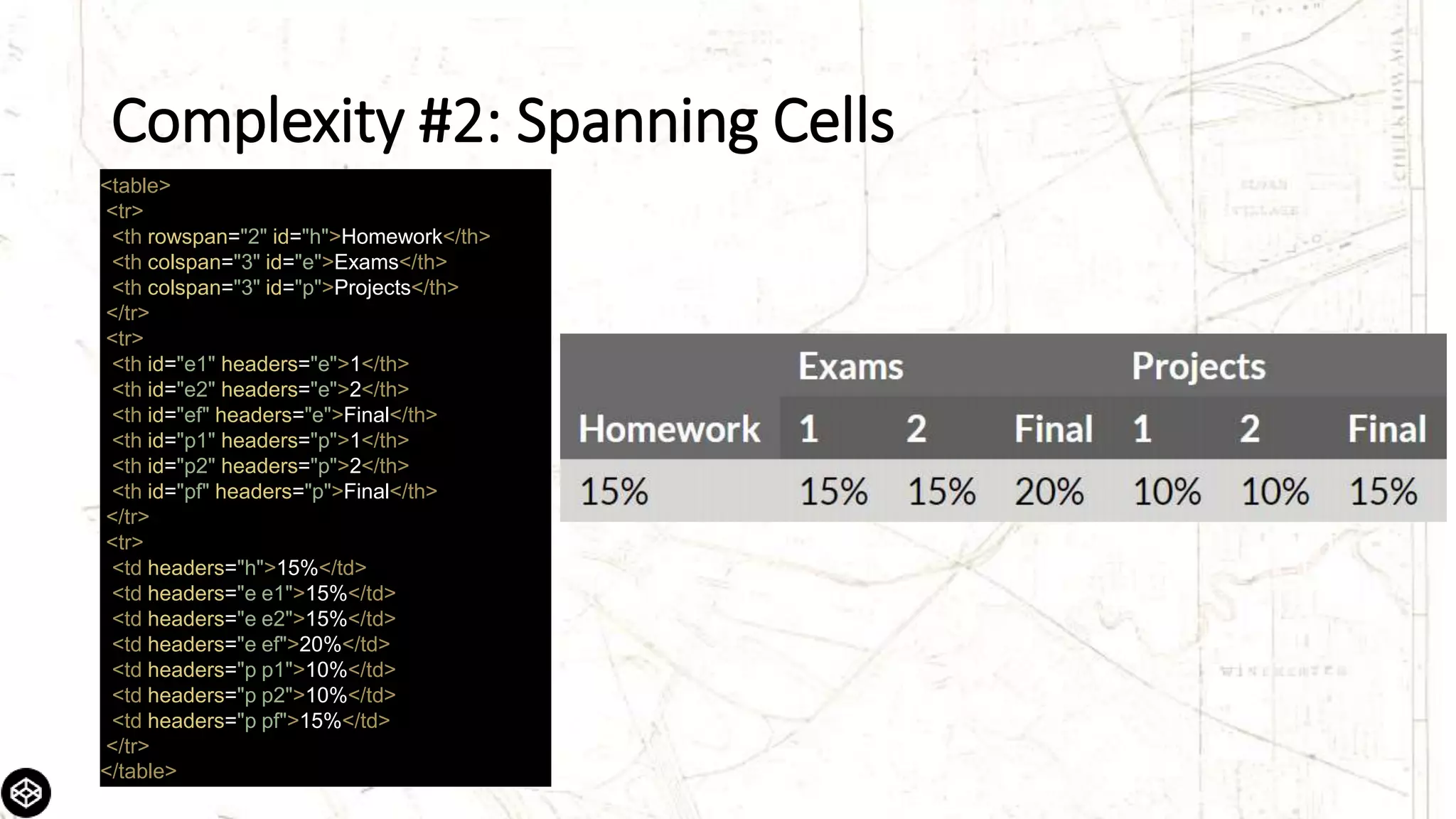

10. Complexity #2: Spanning Cells
<table>
<tr>
<th rowspan="2" id="h">Homework</th>
<th colspan="3" id="e">Exams</th>
<th colspan="3" id="p">Projects</th>
</tr>
<tr>
<th id="e1" headers="e">1</th>
<th id="e2" headers="e">2</th>
<th id="ef" headers="e">Final</th>
<th id="p1" headers="p">1</th>
<th id="p2" headers="p">2</th>
<th id="pf" headers="p">Final</th>
</tr>
<tr>
<td headers="h">15%</td>
<td headers="e e1">15%</td>
<td headers="e e2">15%</td>
<td headers="e ef">20%</td>
<td headers="p p1">10%</td>
<td headers="p p2">10%</td>
<td headers="p pf">15%</td>
</tr>
</table>

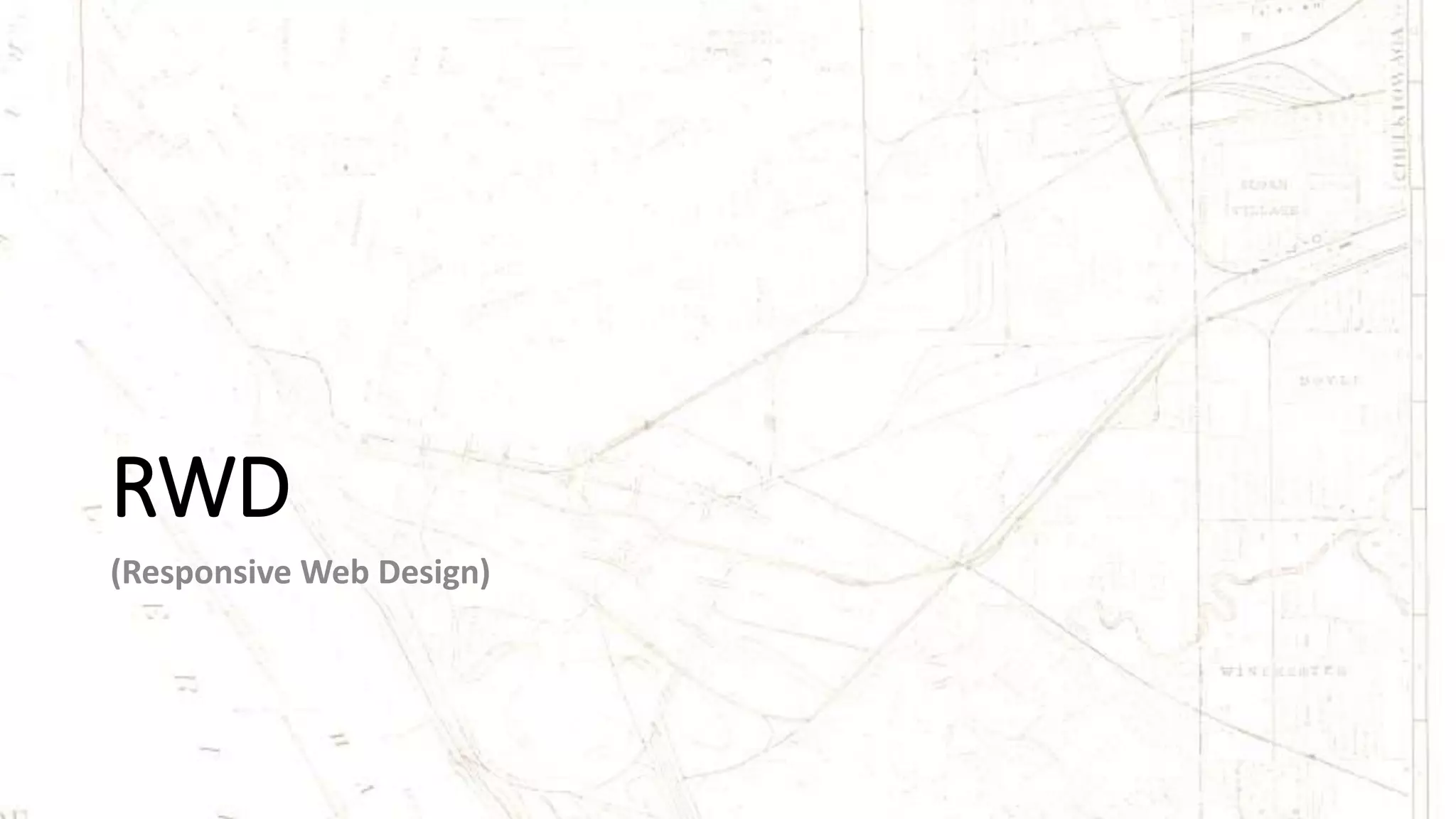

11. RWD
(Responsive Web Design)

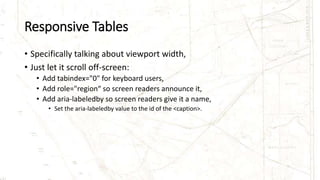

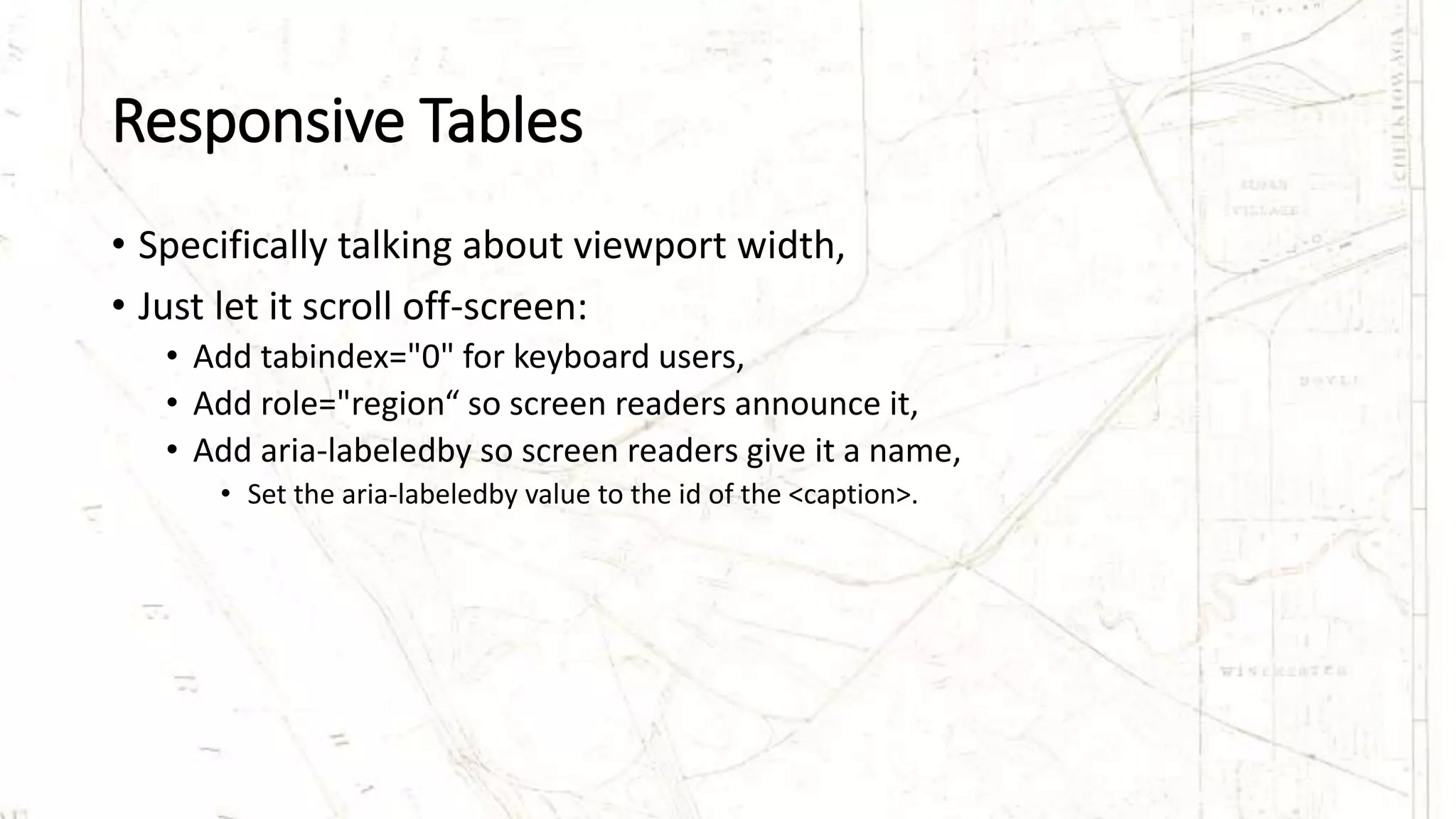

12. Responsive Tables
• Specifically talking about viewport width,
• Just let it scroll off-screen:
• Add tabindex="0" for keyboard users,
• Add role="region“ so screen readers announce it,
• Add aria-labeledby so screen readers give it a name,
• Set the aria-labeledby value to the id of the <caption>.

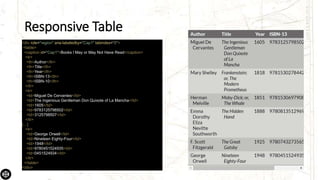

13. Responsive Table
<div role="region" aria-labeledby="Cap1" tabindex="0">
<table>
<caption id="Cap1">Books I May or May Not Have Read</caption>
<tr>
<th>Author</th>
<th>Title</th>
<th>Year</th>
<th>ISBN-13</th>
<th>ISBN-10</th>
</tr>
<tr>
<td>Miguel De Cervantes</td>
<td>The Ingenious Gentleman Don Quixote of La Mancha</td>
<td>1605</td>
<td>9783125798502</td>
<td>3125798507</td>
</tr>
[…]
<tr>
<td>George Orwell</td>
<td>Nineteen Eighty-Four</td>
<td>1948</td>
<td>9780451524935</td>
<td>0451524934</td>
</tr>
</table>
</div>

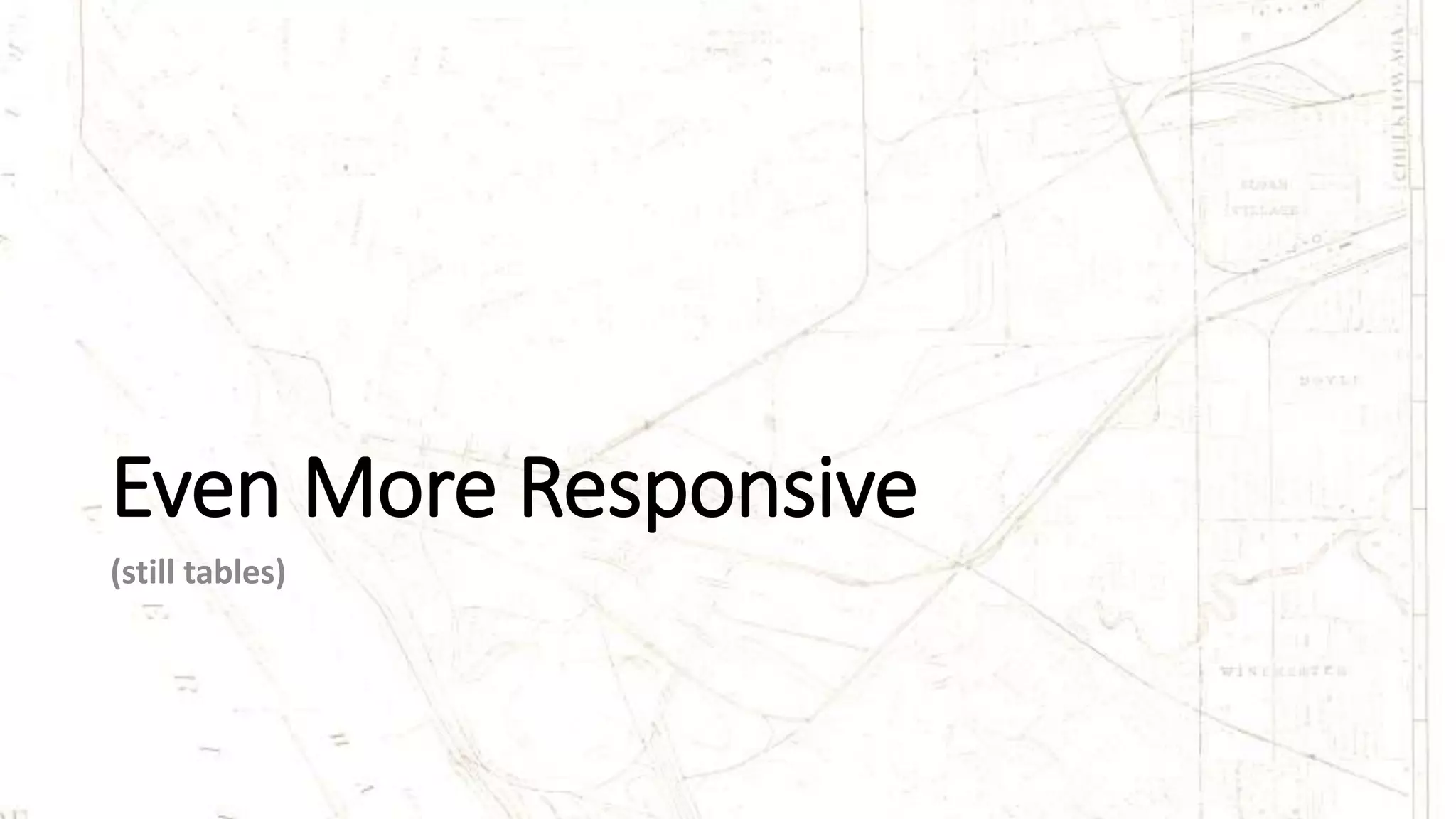

14. Even More Responsive
(still tables)

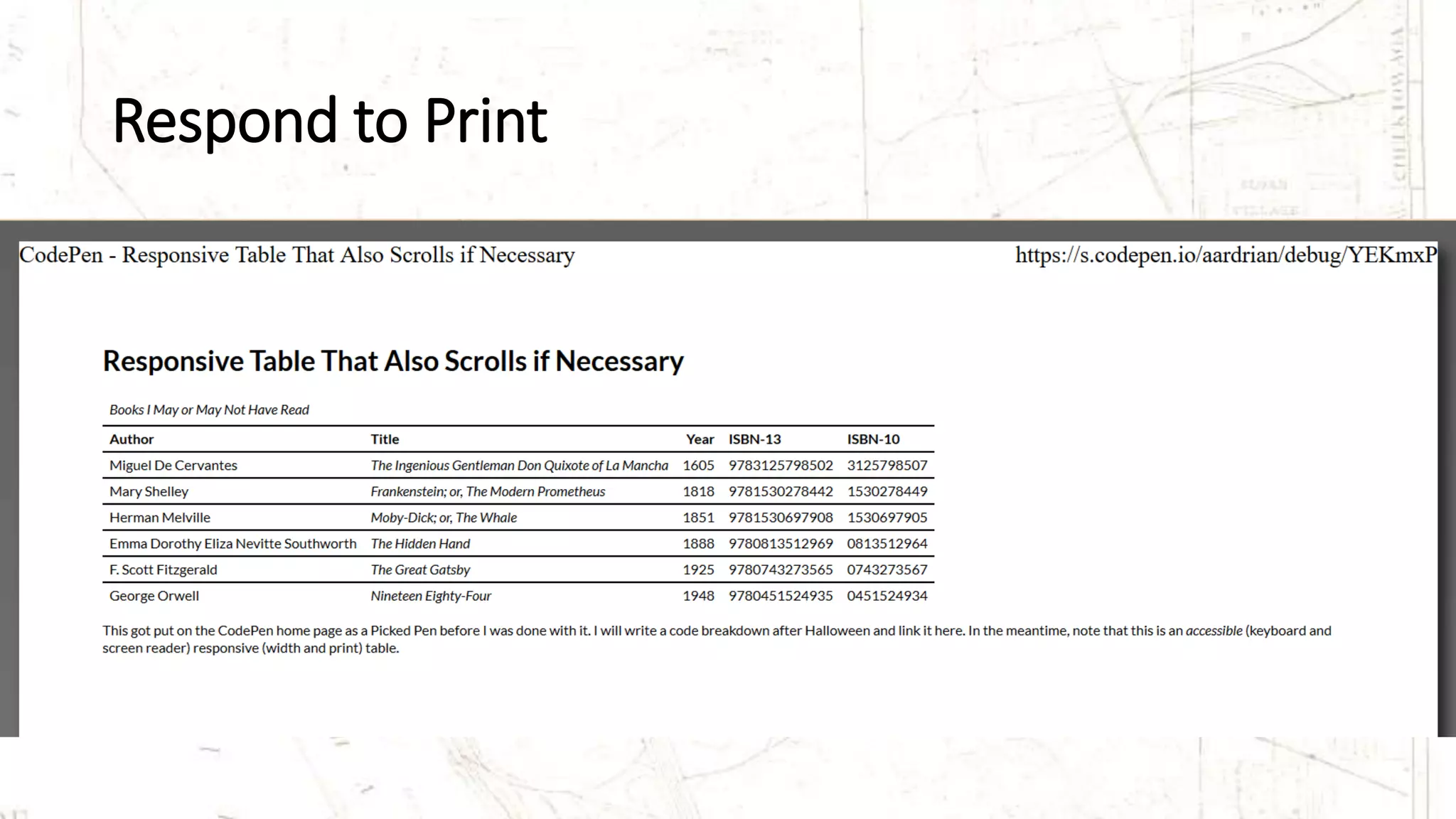

15. Respond to Print

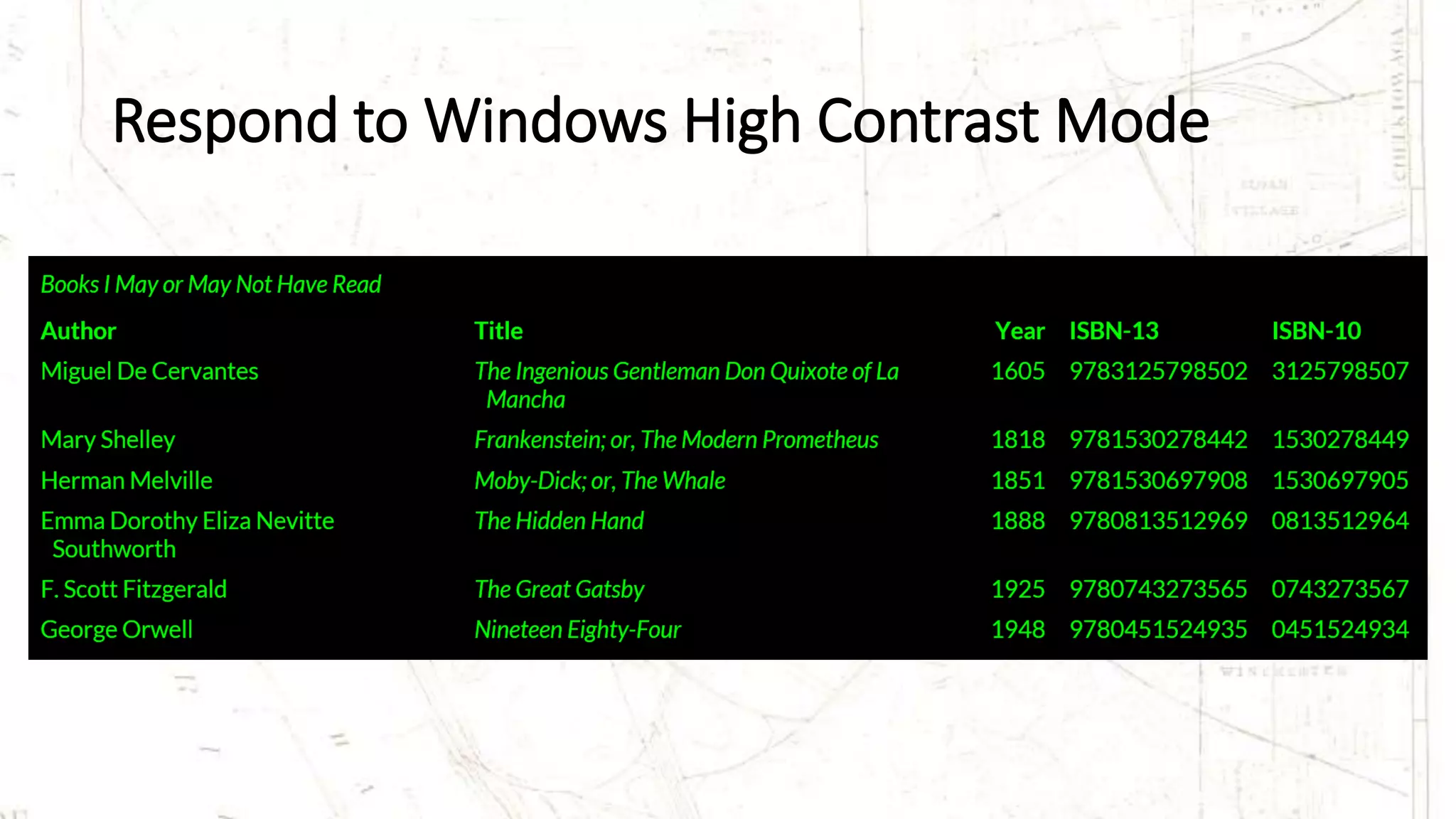

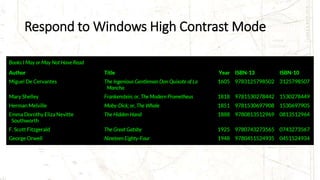

16. Respond to Windows High Contrast Mode

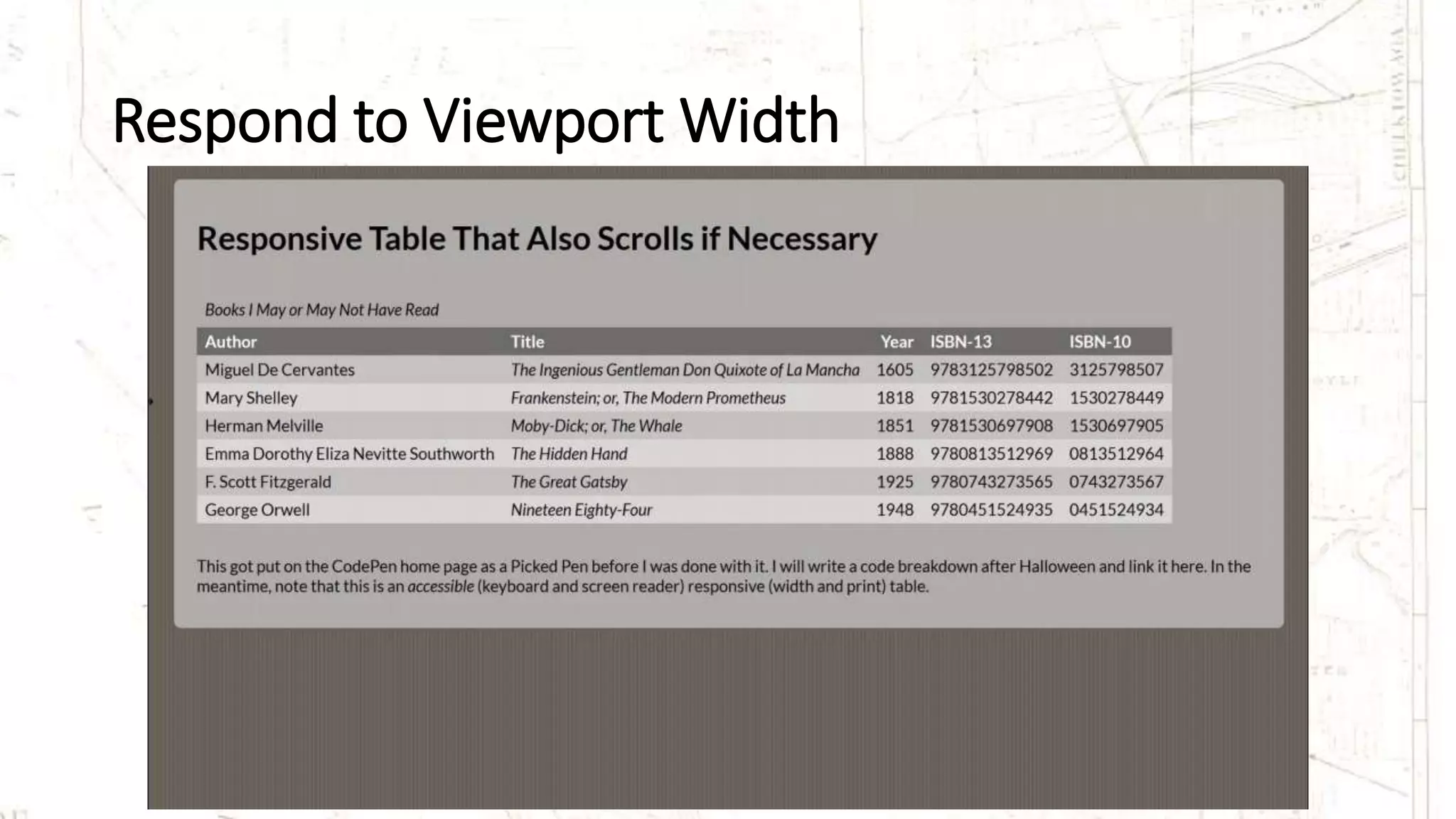

17. Respond to Viewport Width

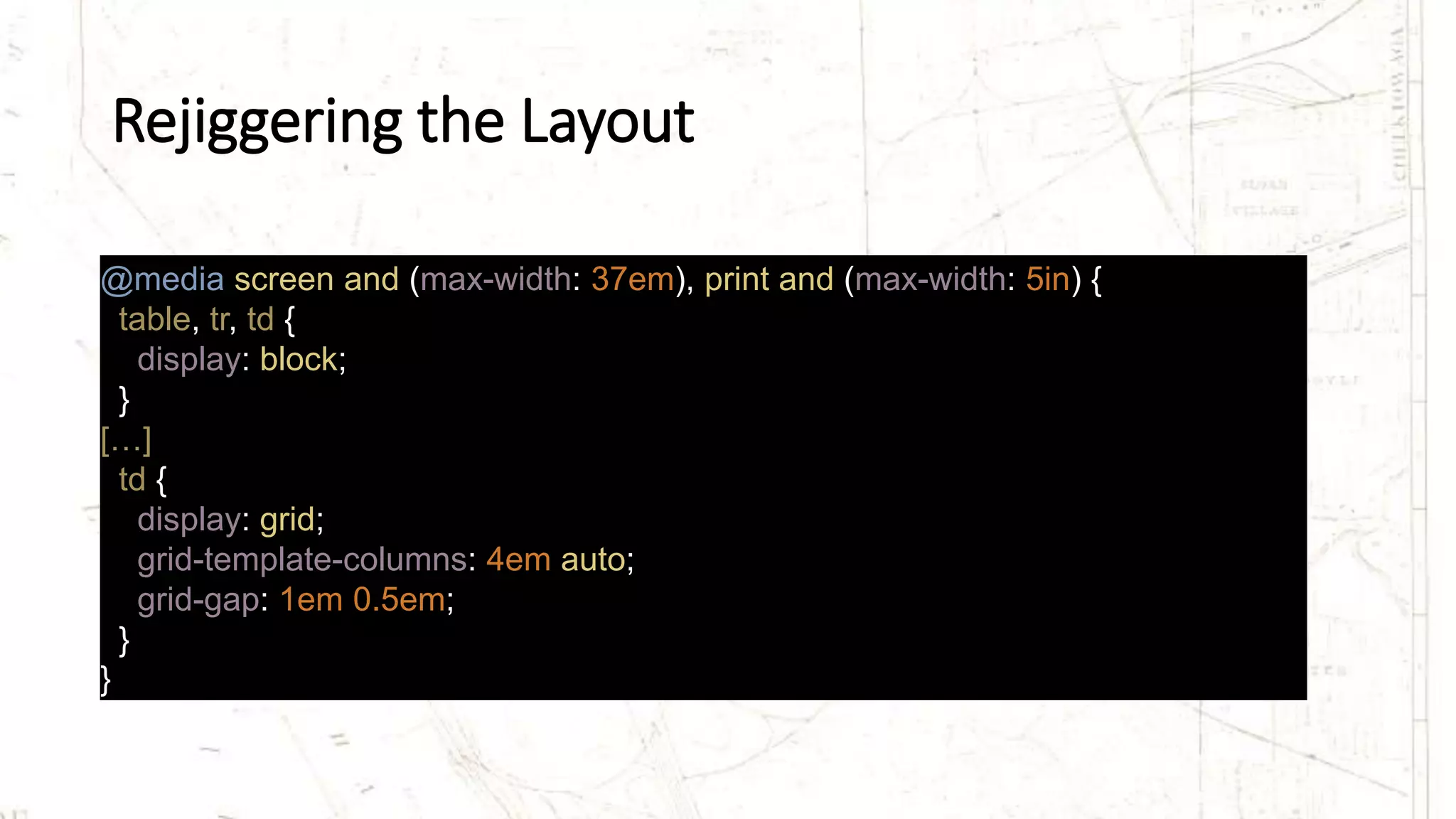

18. Rejiggering the Layout
@media screen and (max-width: 37em), print and (max-width: 5in) {
table, tr, td {
display: block;
}
[…]
td {
display: grid;
grid-template-columns: 4em auto;
grid-gap: 1em 0.5em;
}
}

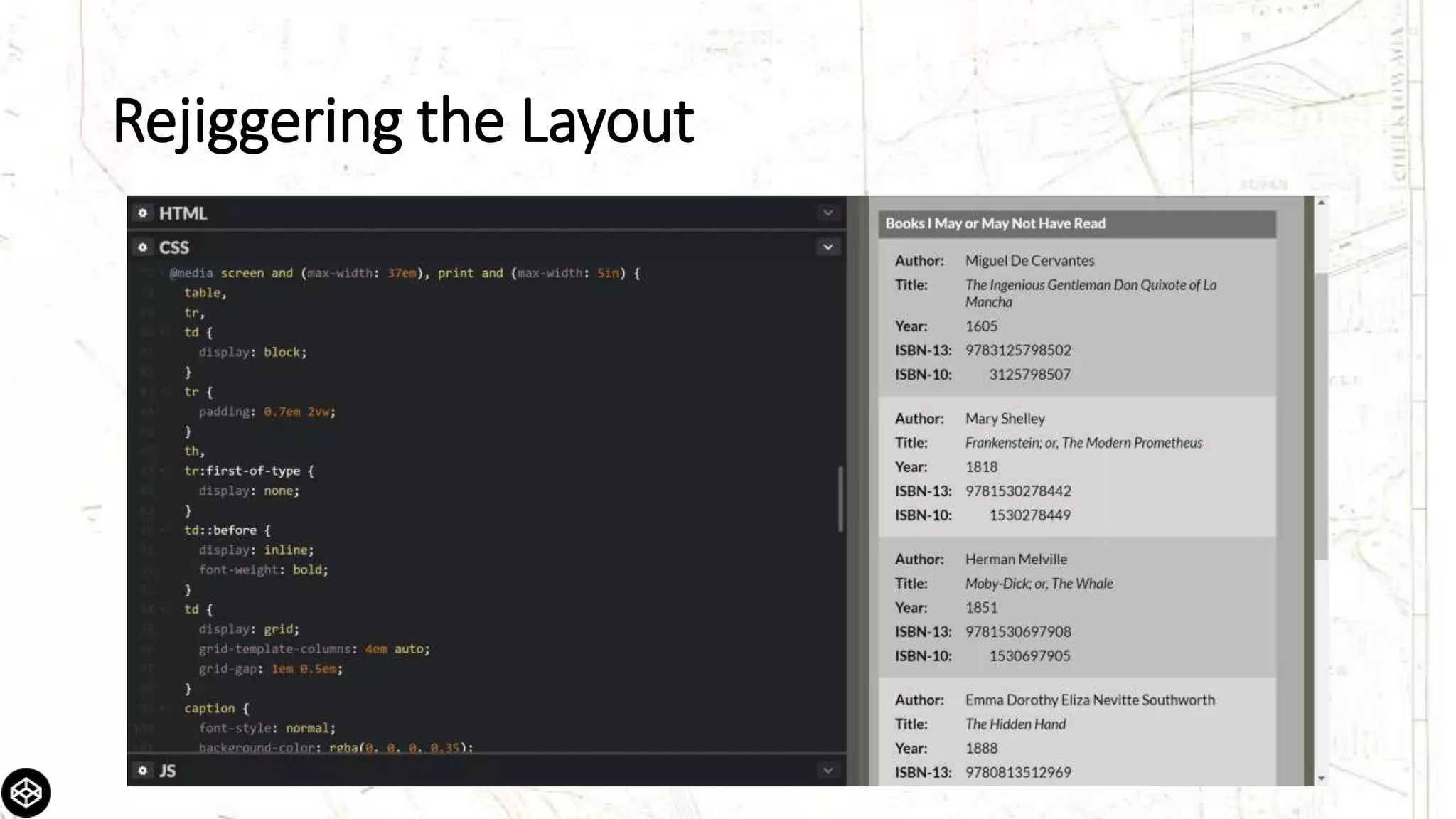

19. Rejiggering the Layout

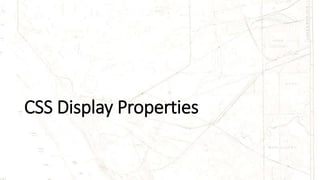

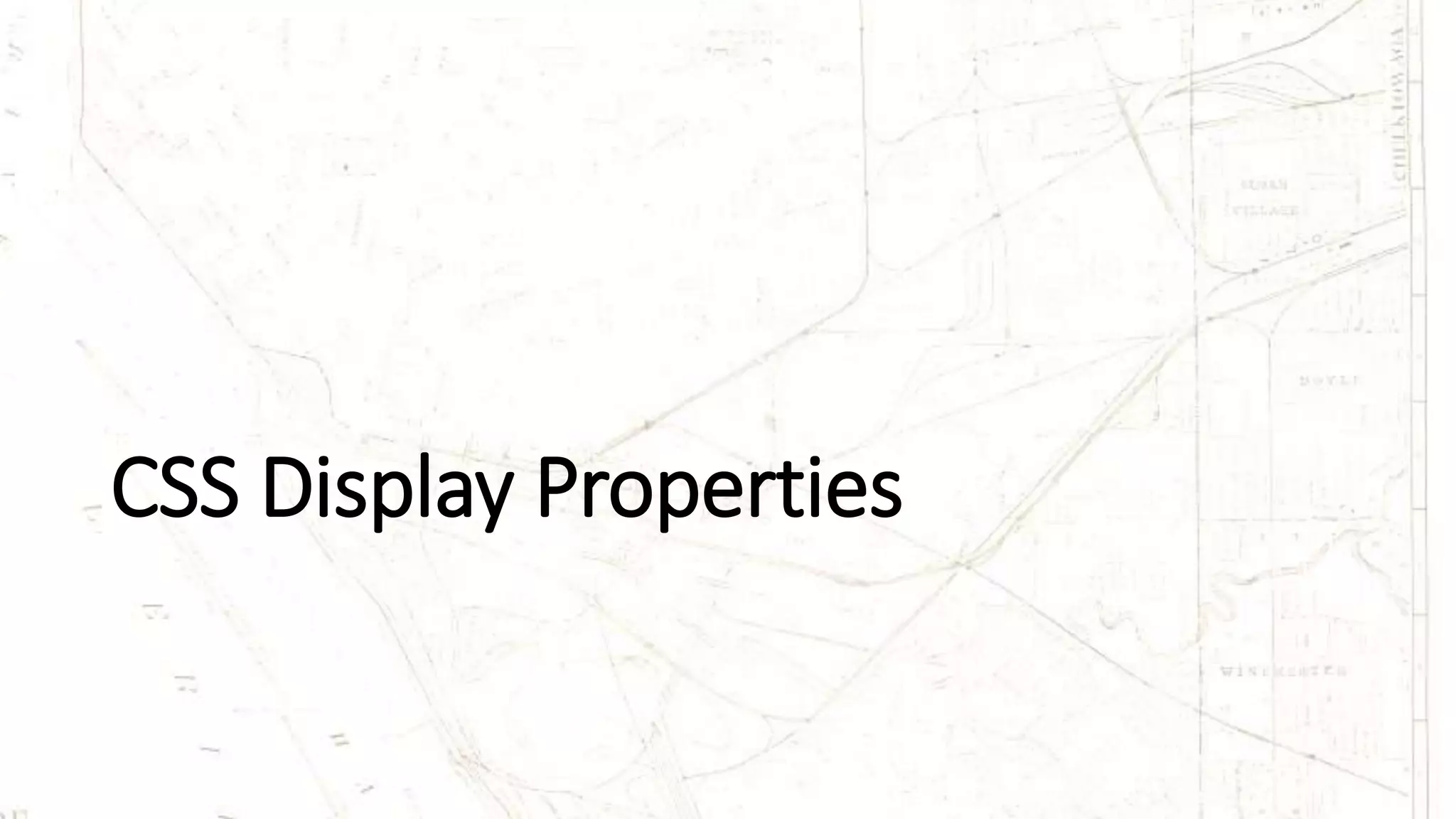

20. CSS Display Properties

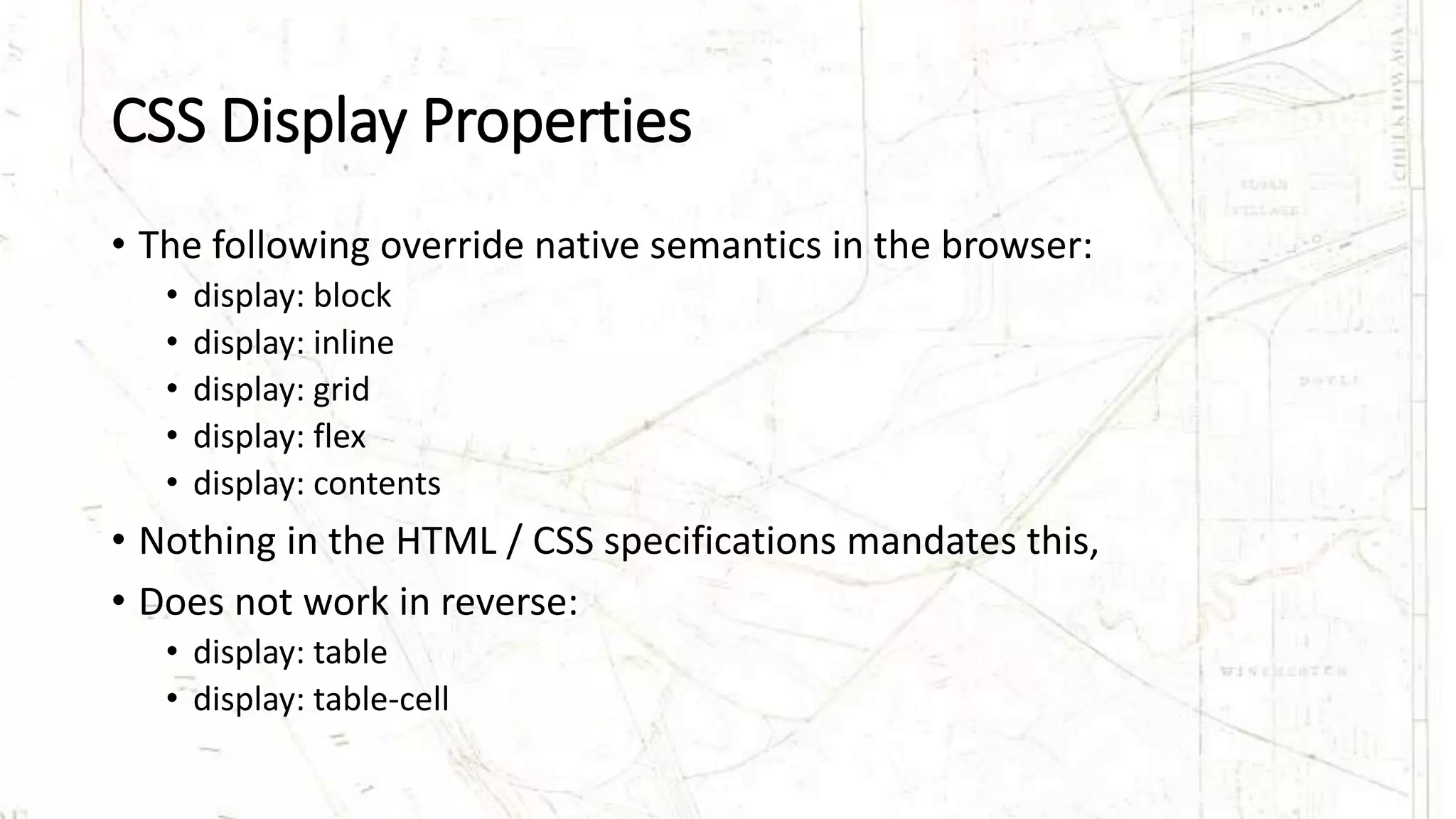

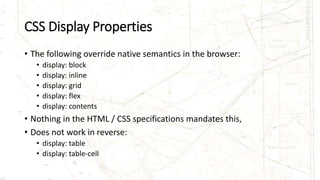

22. CSS Display Properties
• The following override native semantics in the browser:
• display: block
• display: inline
• display: grid
• display: flex
• display: contents
• Nothing in the HTML / CSS specifications mandates this,
• Does not work in reverse:
• display: table
• display: table-cell

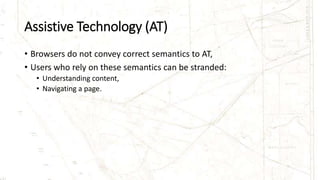

23. Assistive Technology (AT)
• Browsers do not convey correct semantics to AT,
• Users who rely on these semantics can be stranded:
• Understanding content,
• Navigating a page.

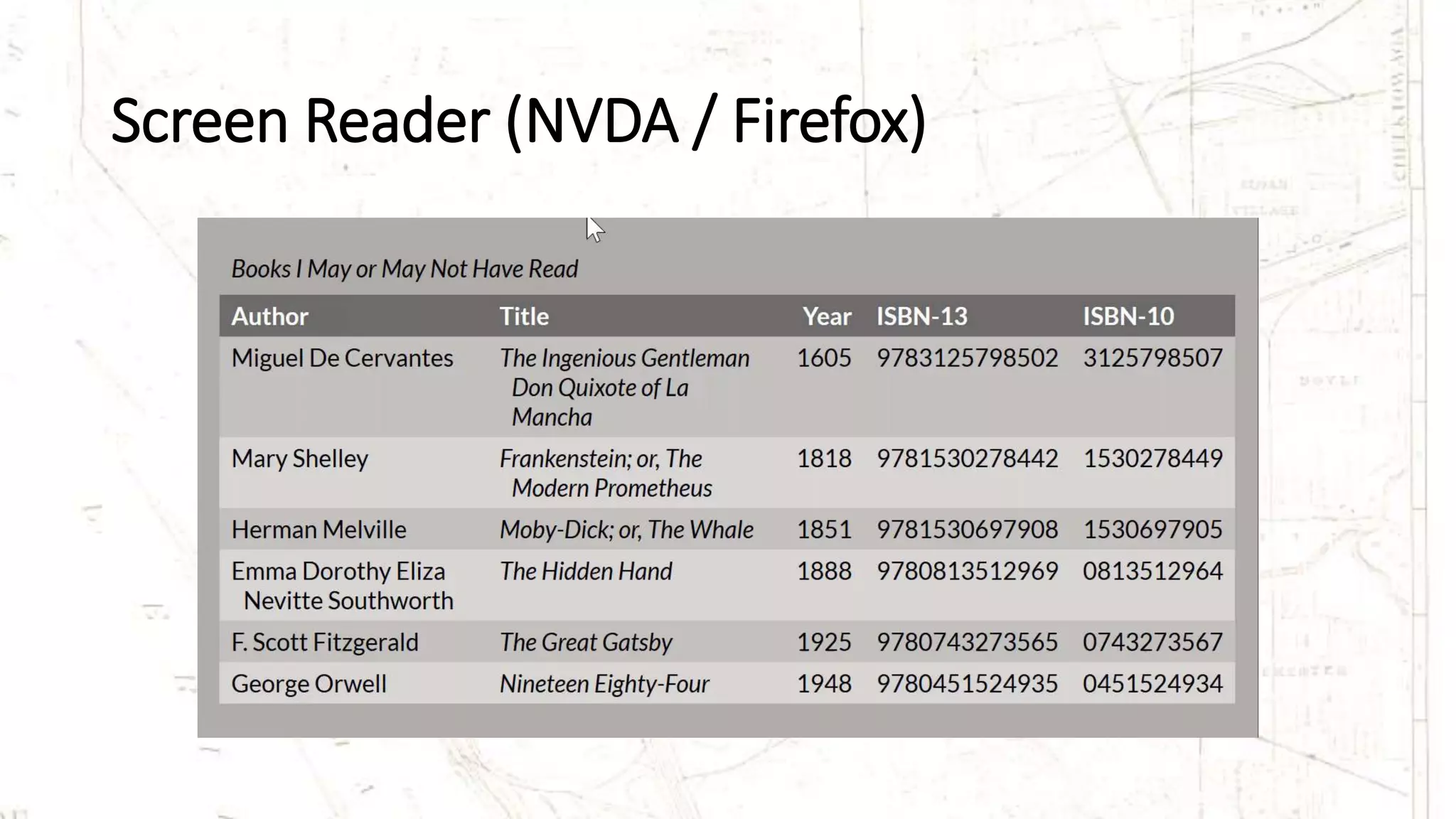

24. Screen Reader (NVDA / Firefox)

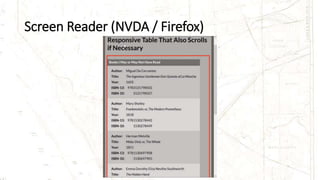

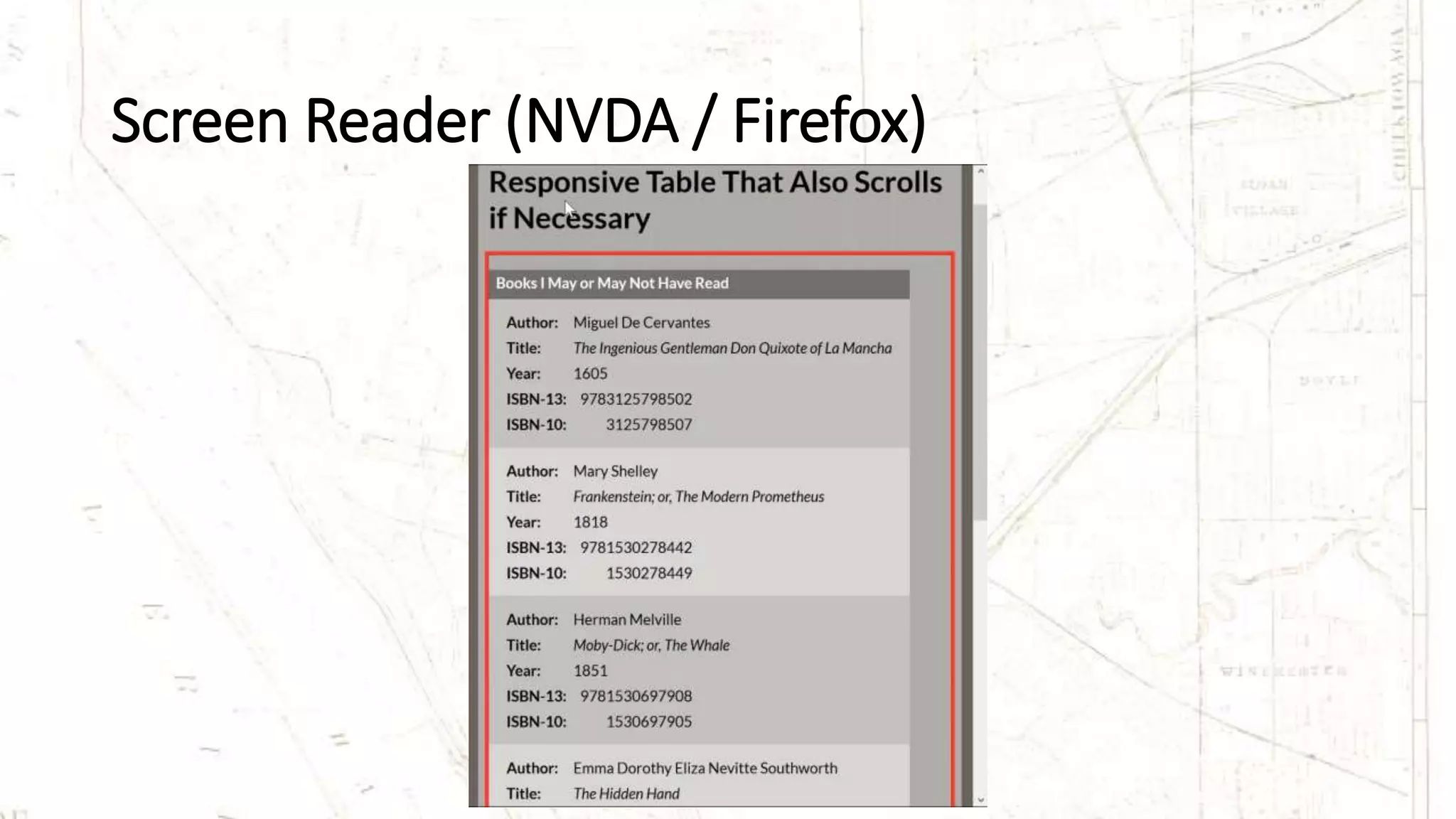

25. Screen Reader (NVDA / Firefox)

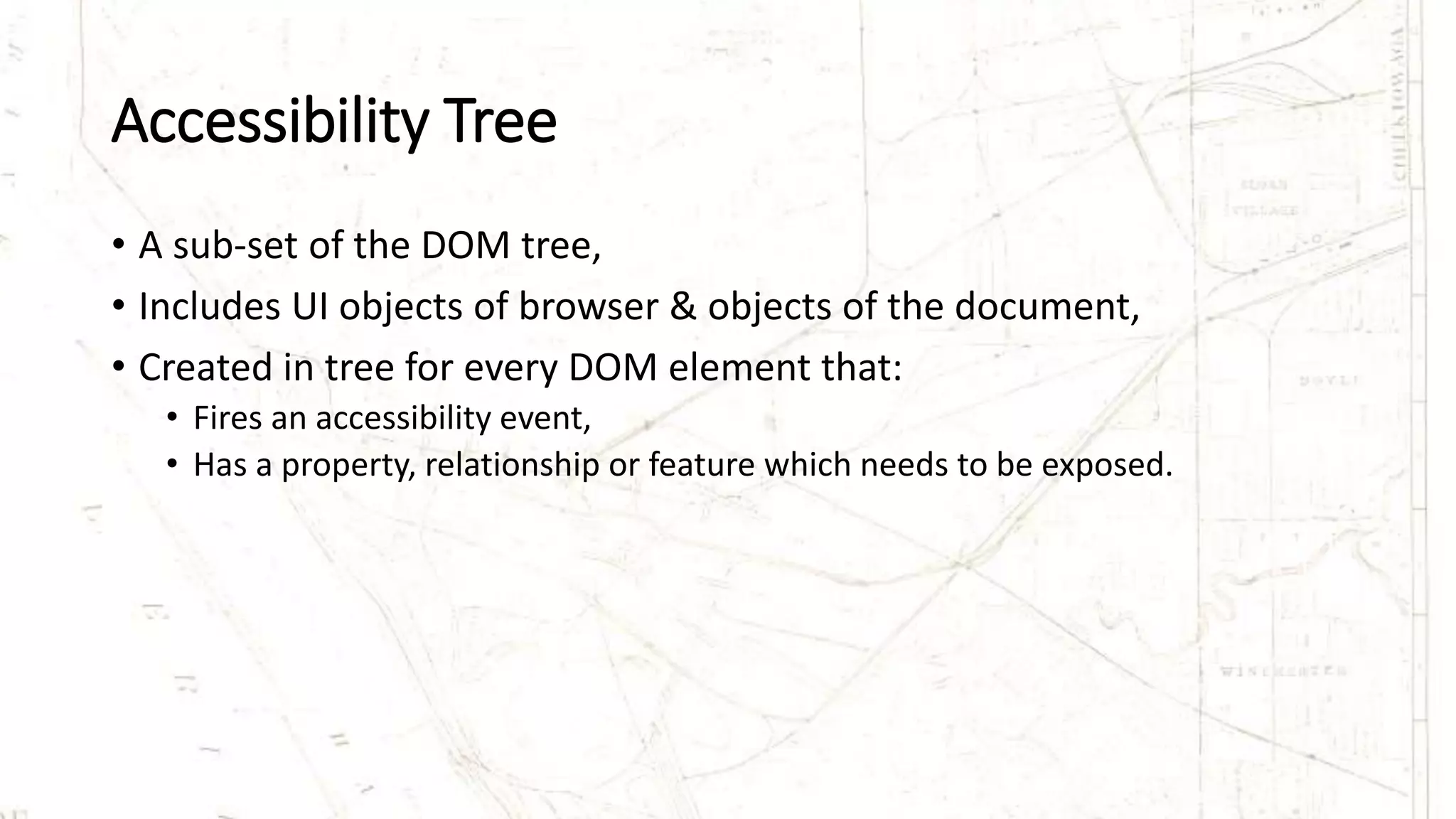

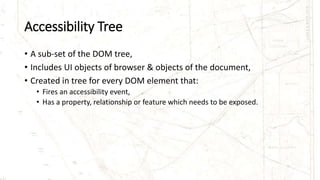

26. Accessibility Tree
• A sub-set of the DOM tree,
• Includes UI objects of browser & objects of the document,
• Created in tree for every DOM element that:
• Fires an accessibility event,
• Has a property, relationship or feature which needs to be exposed.

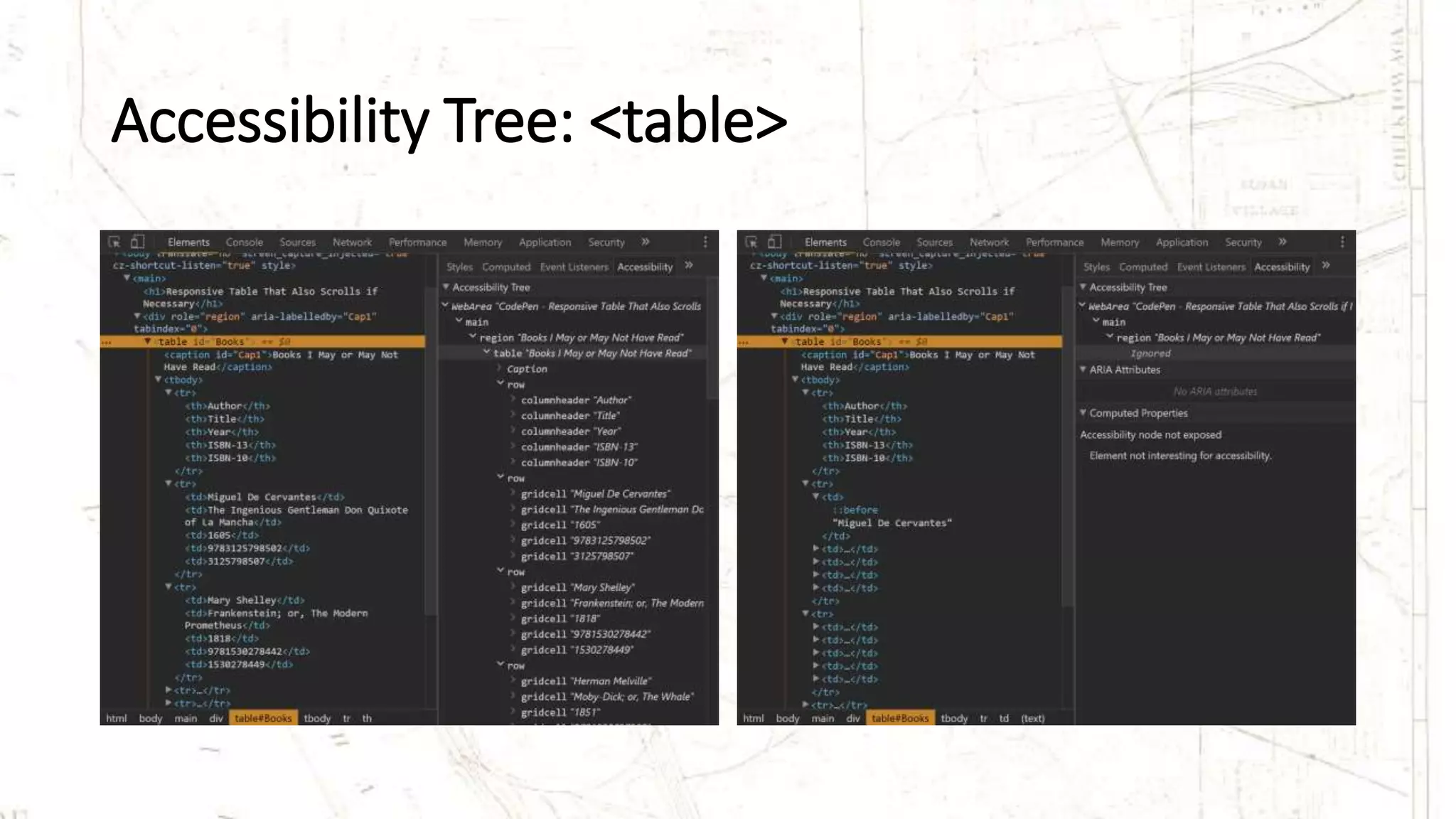

27. Accessibility Tree: <table>

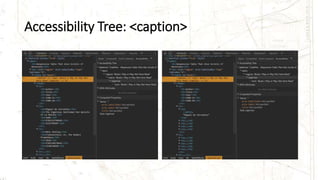

28. Accessibility Tree: <caption>

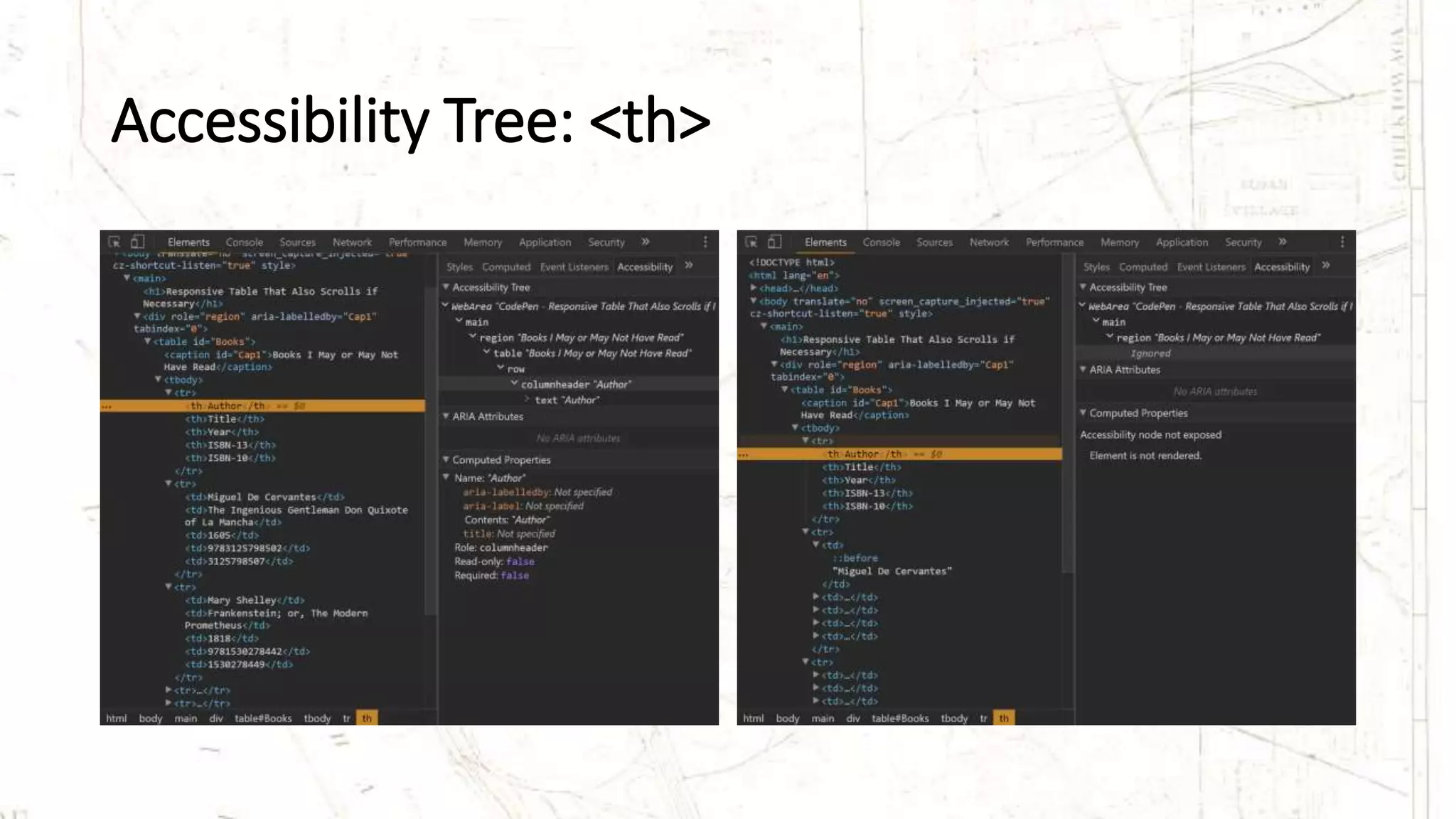

29. Accessibility Tree: <th>

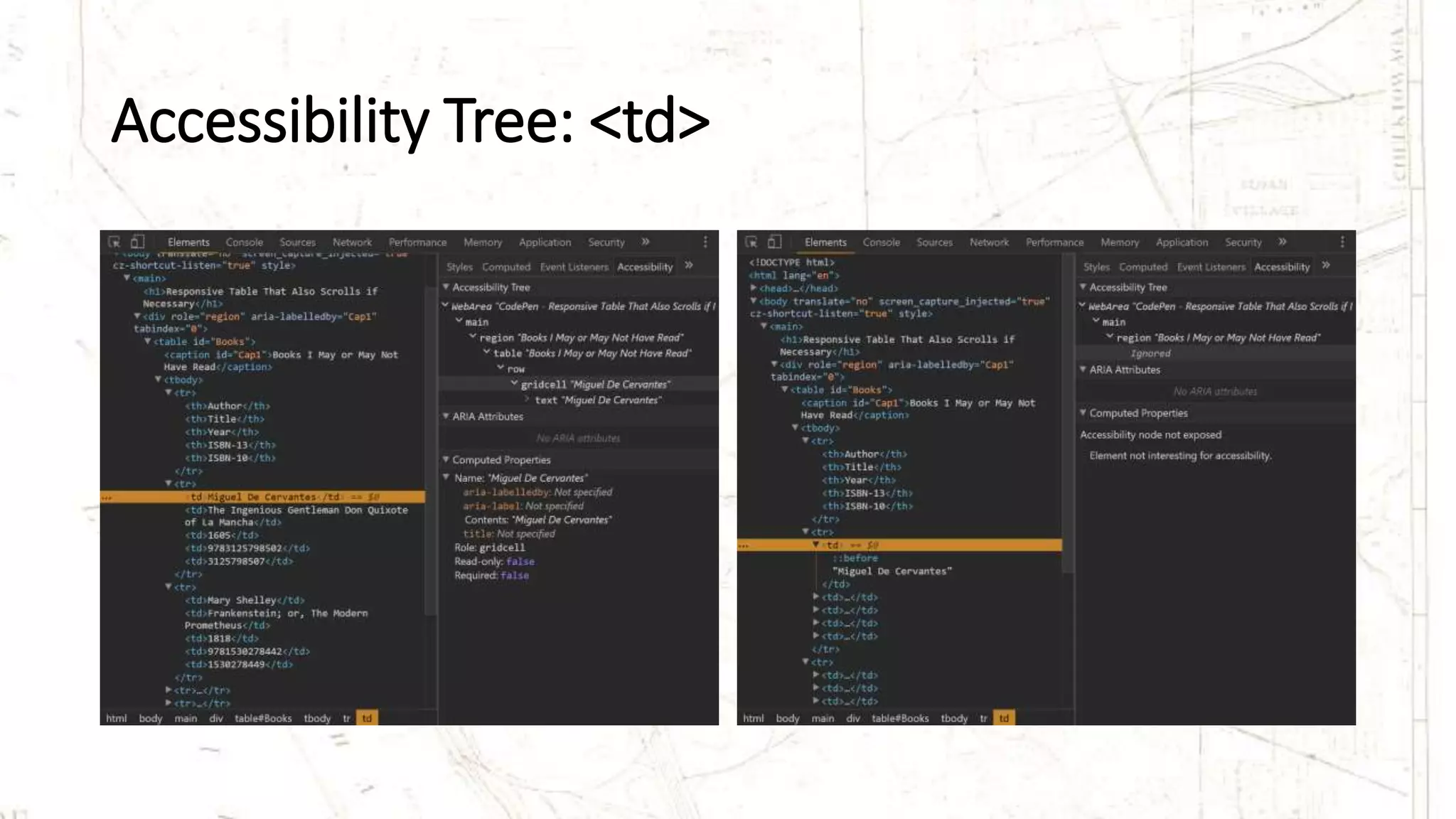

30. Accessibility Tree: <td>

31. ARIA to the Rescue?
(Accessible Rich Internet Applications)

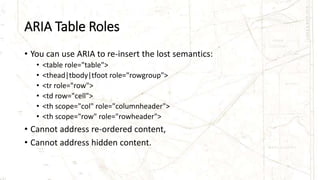

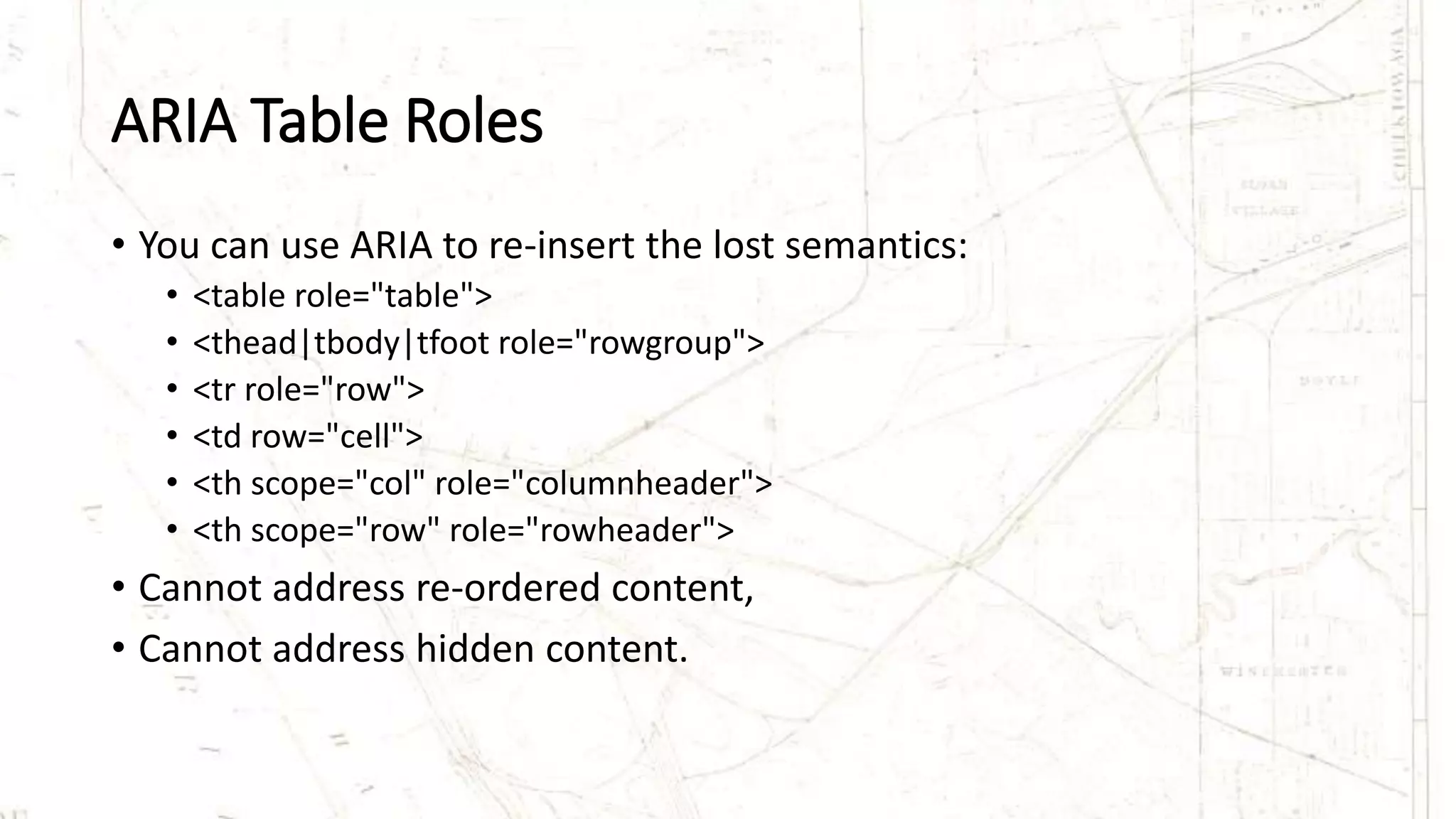

32. ARIA Table Roles
• You can use ARIA to re-insert the lost semantics:
• <table role="table">
• <thead|tbody|tfoot role="rowgroup">
• <tr role="row">
• <td row="cell">
• <th scope="col" role="columnheader">
• <th scope="row" role="rowheader">
• Cannot address re-ordered content,
• Cannot address hidden content.

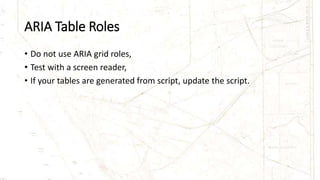

33. ARIA Table Roles
• Do not use ARIA grid roles,
• Test with a screen reader,
• If your tables are generated from script, update the script.

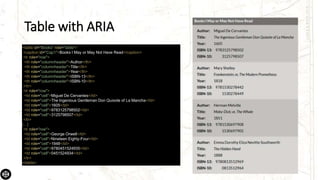

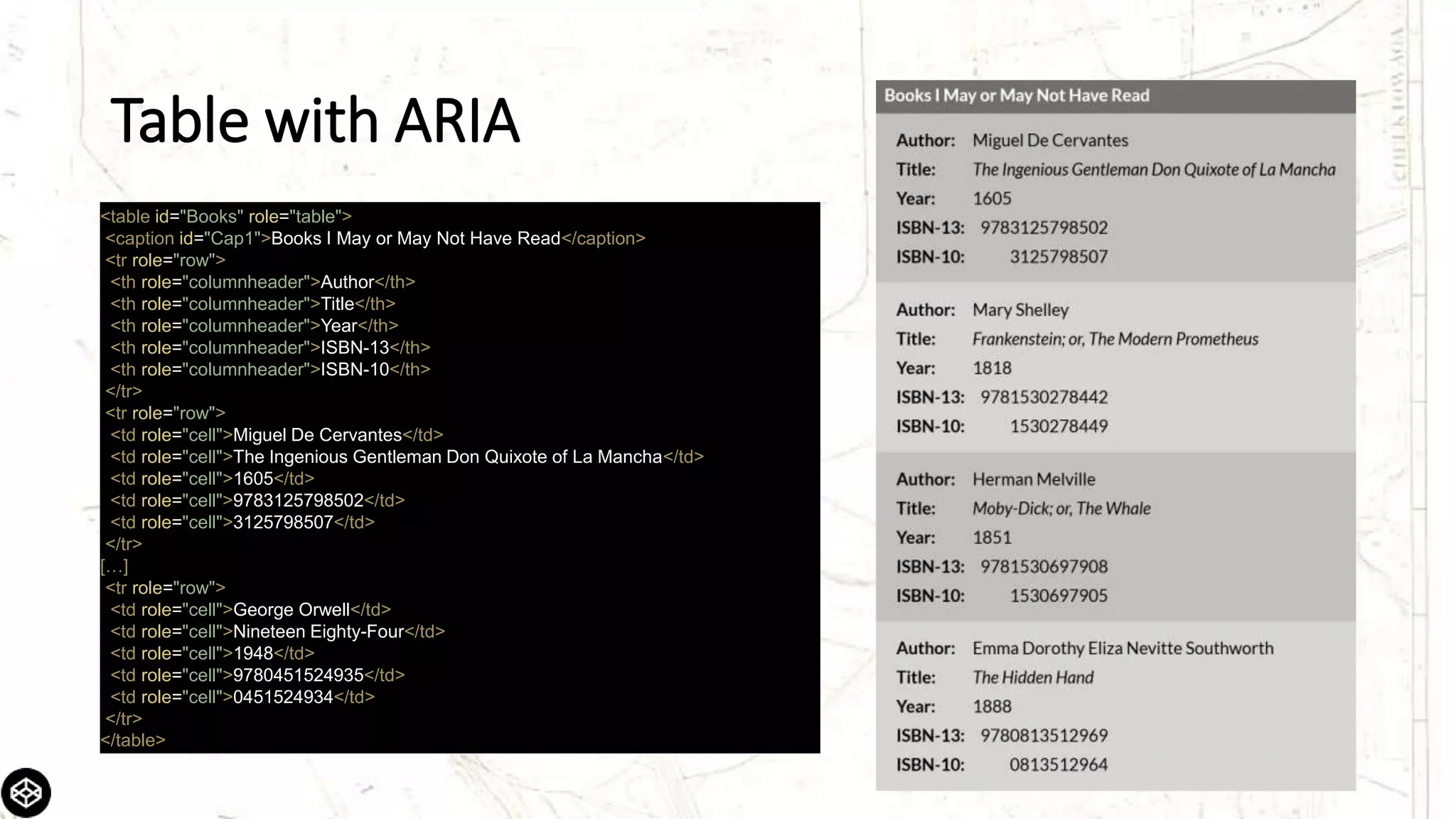

34. Table with ARIA
<table id="Books" role="table">
<caption id="Cap1">Books I May or May Not Have Read</caption>
<tr role="row">
<th role="columnheader">Author</th>
<th role="columnheader">Title</th>
<th role="columnheader">Year</th>
<th role="columnheader">ISBN-13</th>
<th role="columnheader">ISBN-10</th>
</tr>
<tr role="row">
<td role="cell">Miguel De Cervantes</td>
<td role="cell">The Ingenious Gentleman Don Quixote of La Mancha</td>
<td role="cell">1605</td>
<td role="cell">9783125798502</td>
<td role="cell">3125798507</td>
</tr>
[…]
<tr role="row">
<td role="cell">George Orwell</td>
<td role="cell">Nineteen Eighty-Four</td>
<td role="cell">1948</td>
<td role="cell">9780451524935</td>
<td role="cell">0451524934</td>
</tr>
</table>

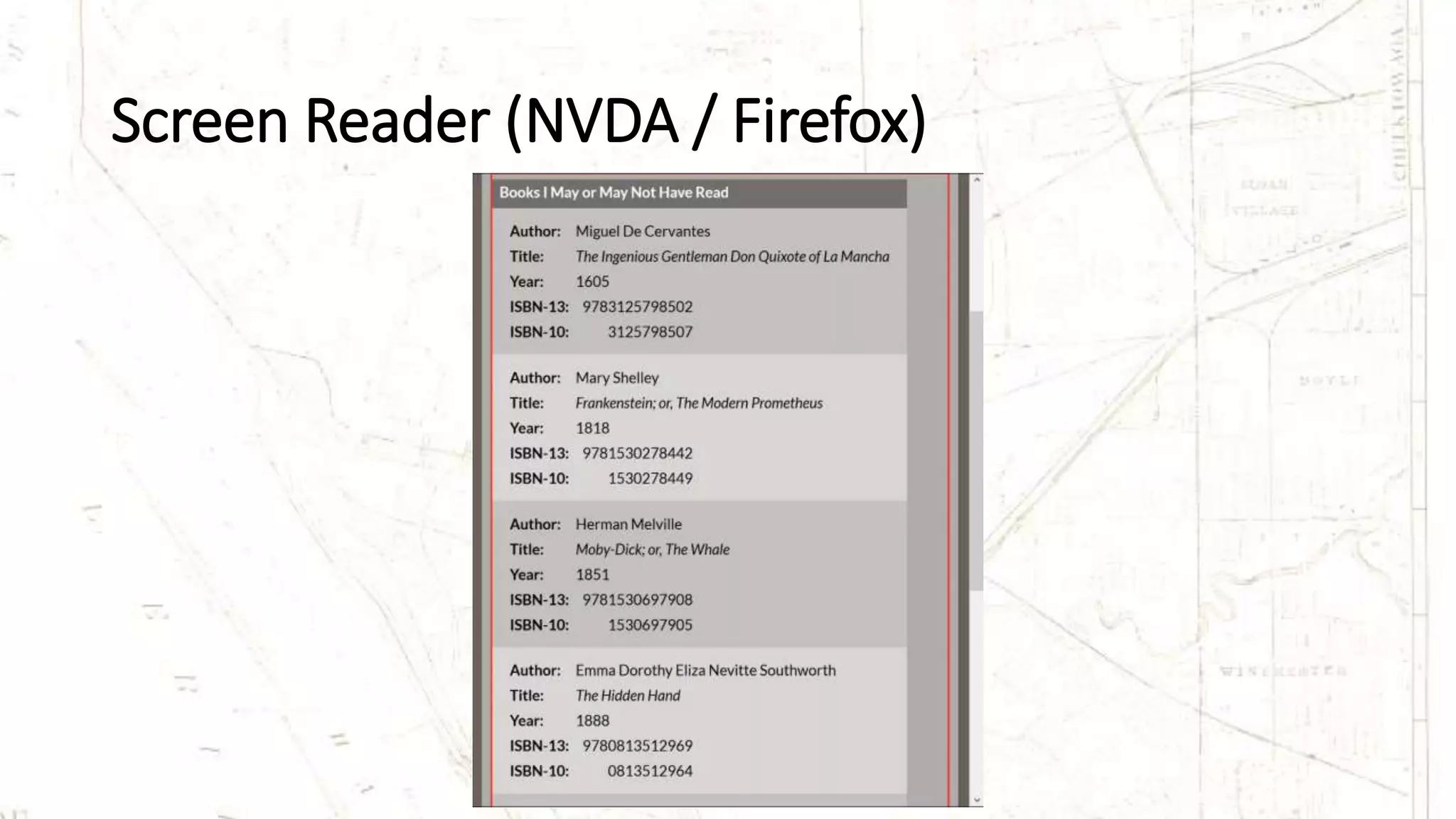

35. Screen Reader (NVDA / Firefox)

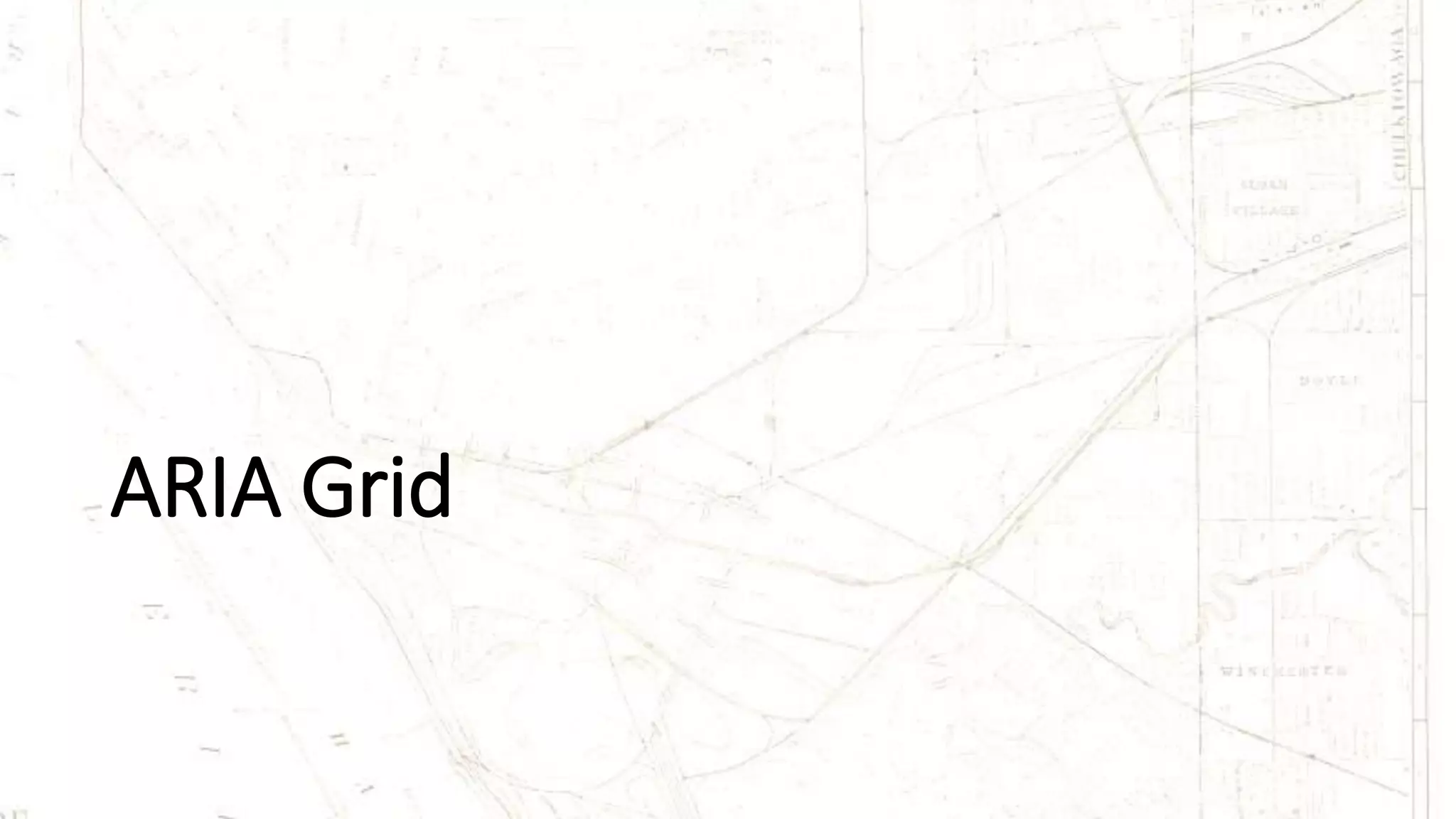

36. ARIA Grid

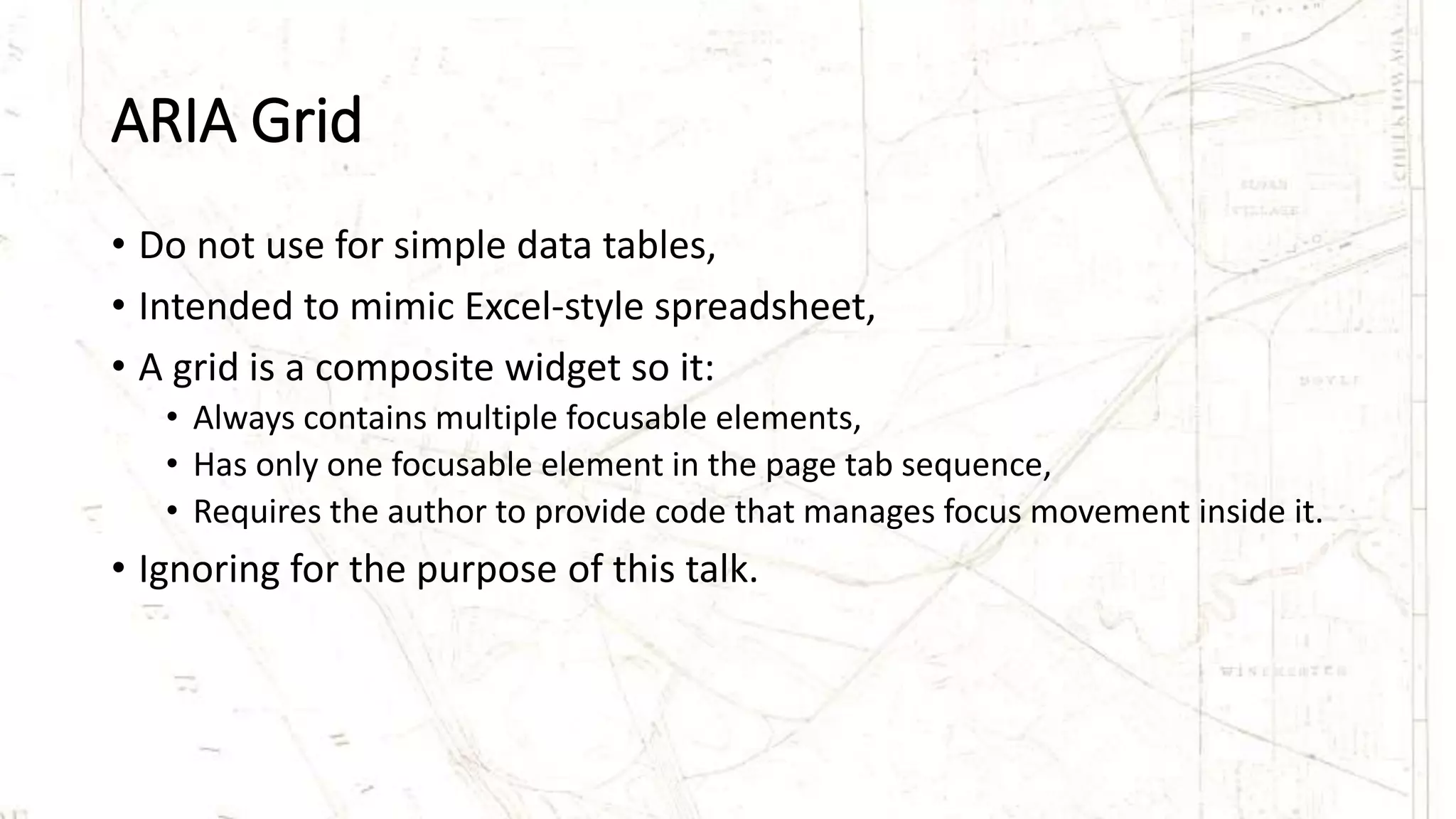

37. ARIA Grid
• Do not use for simple data tables,
• Intended to mimic Excel-style spreadsheet,
• A grid is a composite widget so it:
• Always contains multiple focusable elements,
• Has only one focusable element in the page tab sequence,
• Requires the author to provide code that manages focus movement inside it.
• Ignoring for the purpose of this talk.

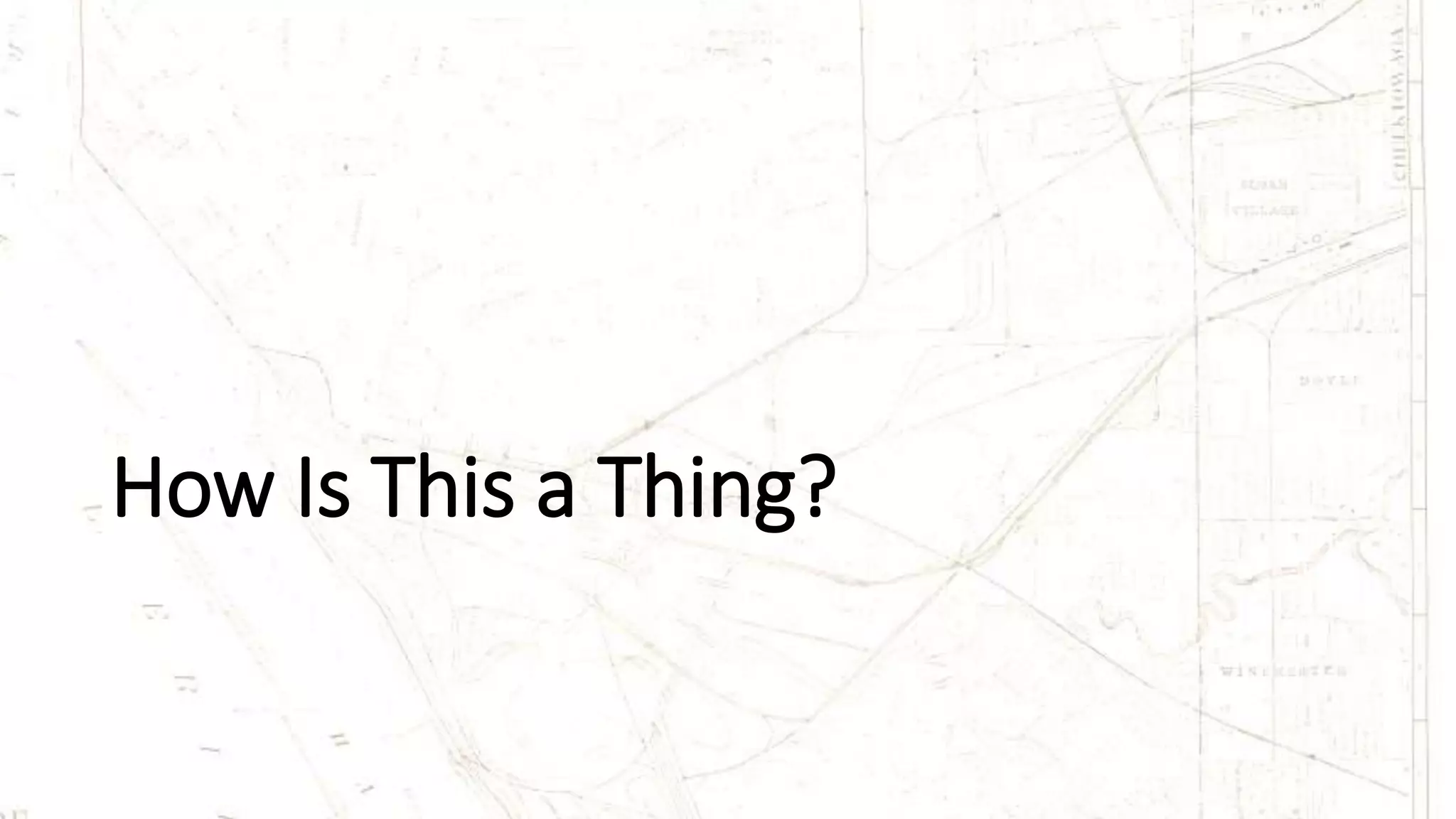

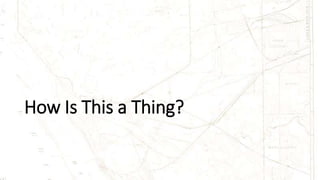

38. How Is This a Thing?

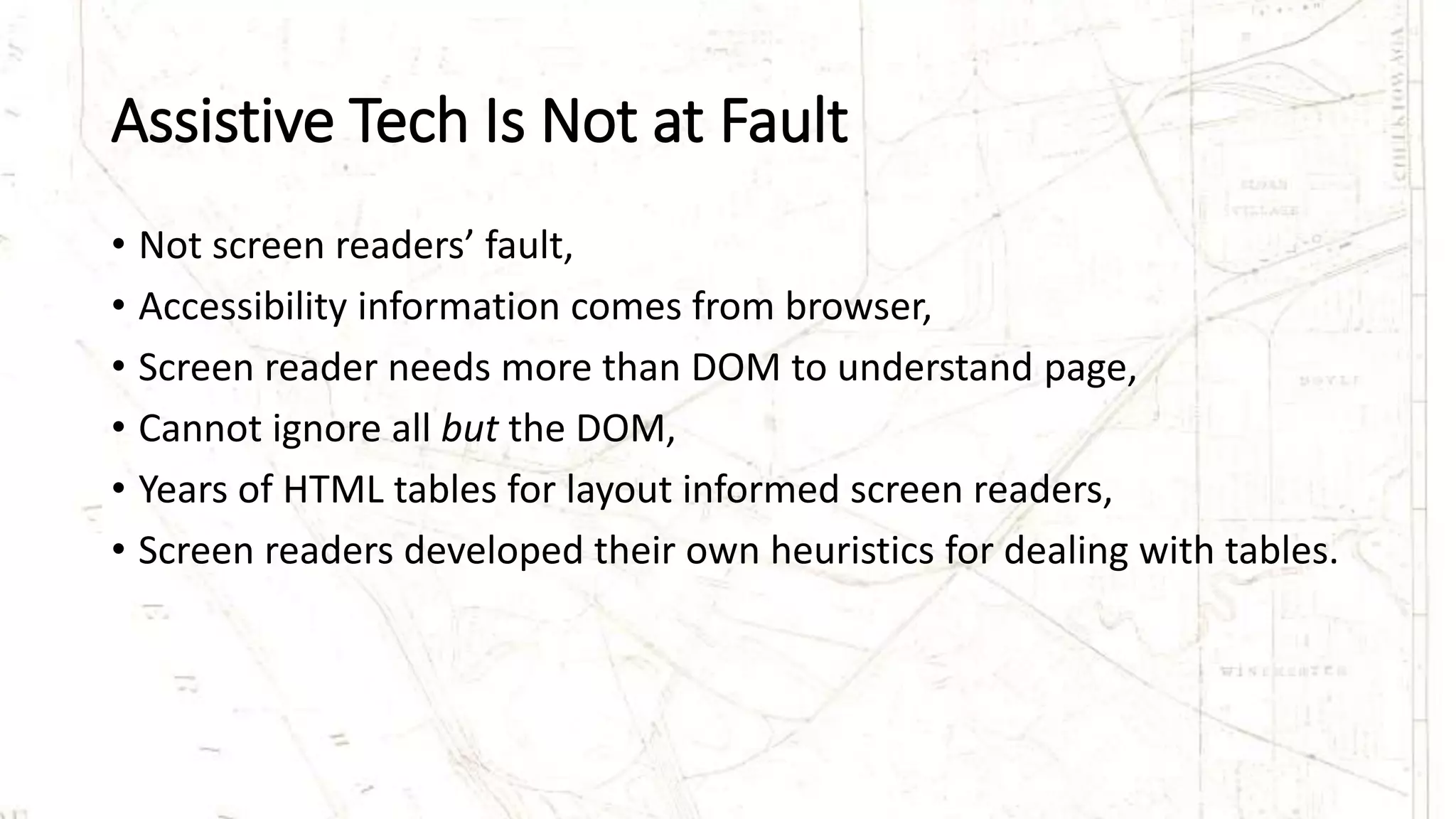

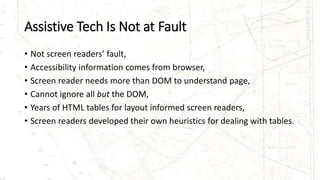

39. Assistive Tech Is Not at Fault
• Not screen readers’ fault,
• Accessibility information comes from browser,
• Screen reader needs more than DOM to understand page,
• Cannot ignore all but the DOM,
• Years of HTML tables for layout informed screen readers,
• Screen readers developed their own heuristics for dealing with tables.

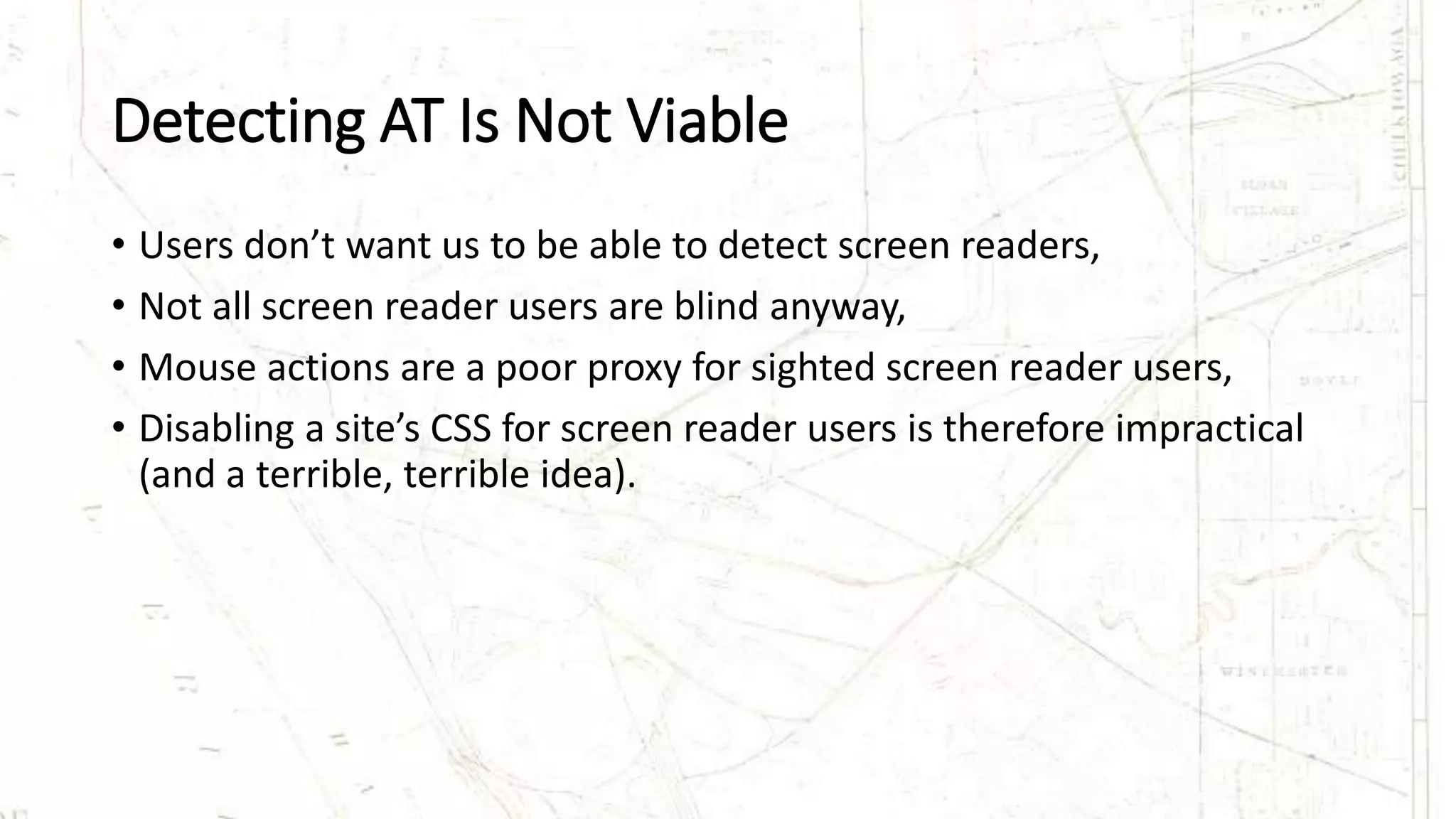

40. Detecting AT Is Not Viable
• Users don’t want us to be able to detect screen readers,
• Not all screen reader users are blind anyway,
• Mouse actions are a poor proxy for sighted screen reader users,
• Disabling a site’s CSS for screen reader users is therefore impractical
(and a terrible, terrible idea).

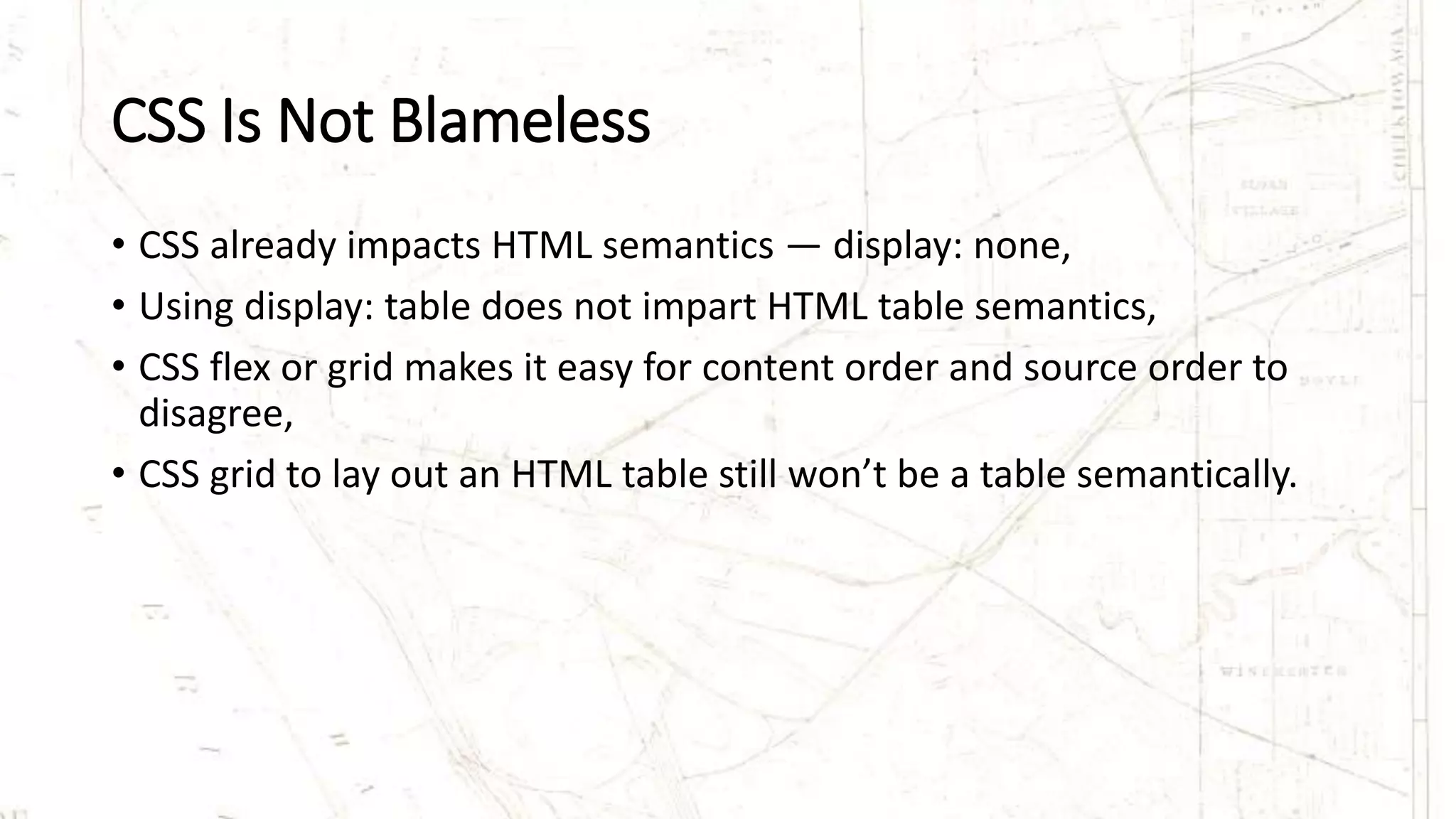

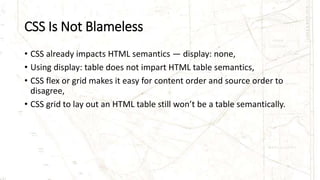

41. CSS Is Not Blameless
• CSS already impacts HTML semantics — display: none,
• Using display: table does not impart HTML table semantics,
• CSS flex or grid makes it easy for content order and source order to
disagree,
• CSS grid to lay out an HTML table still won’t be a table semantically.

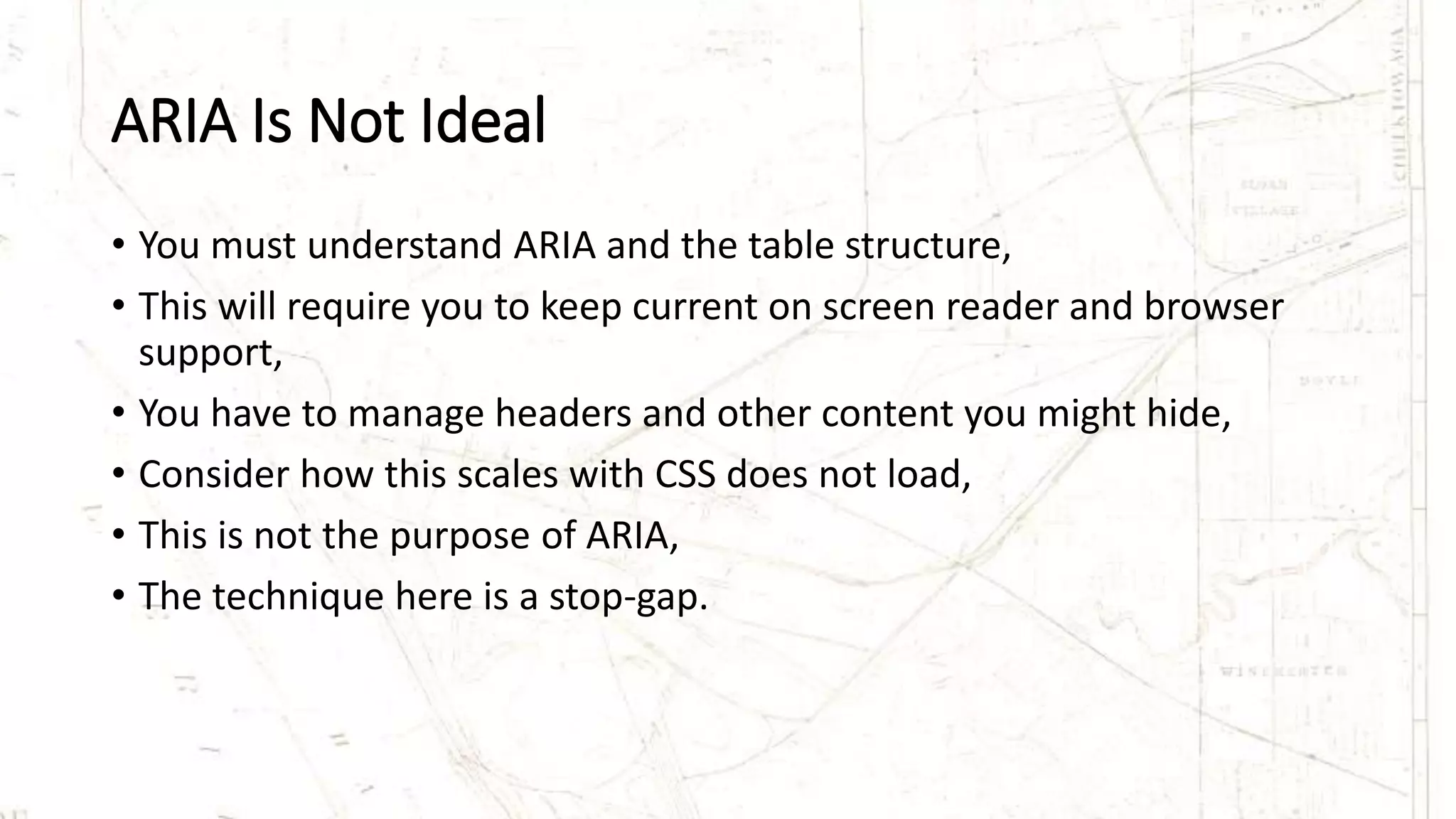

42. ARIA Is Not Ideal
• You must understand ARIA and the table structure,
• This will require you to keep current on screen reader and browser
support,
• You have to manage headers and other content you might hide,
• Consider how this scales with CSS does not load,
• This is not the purpose of ARIA,
• The technique here is a stop-gap.

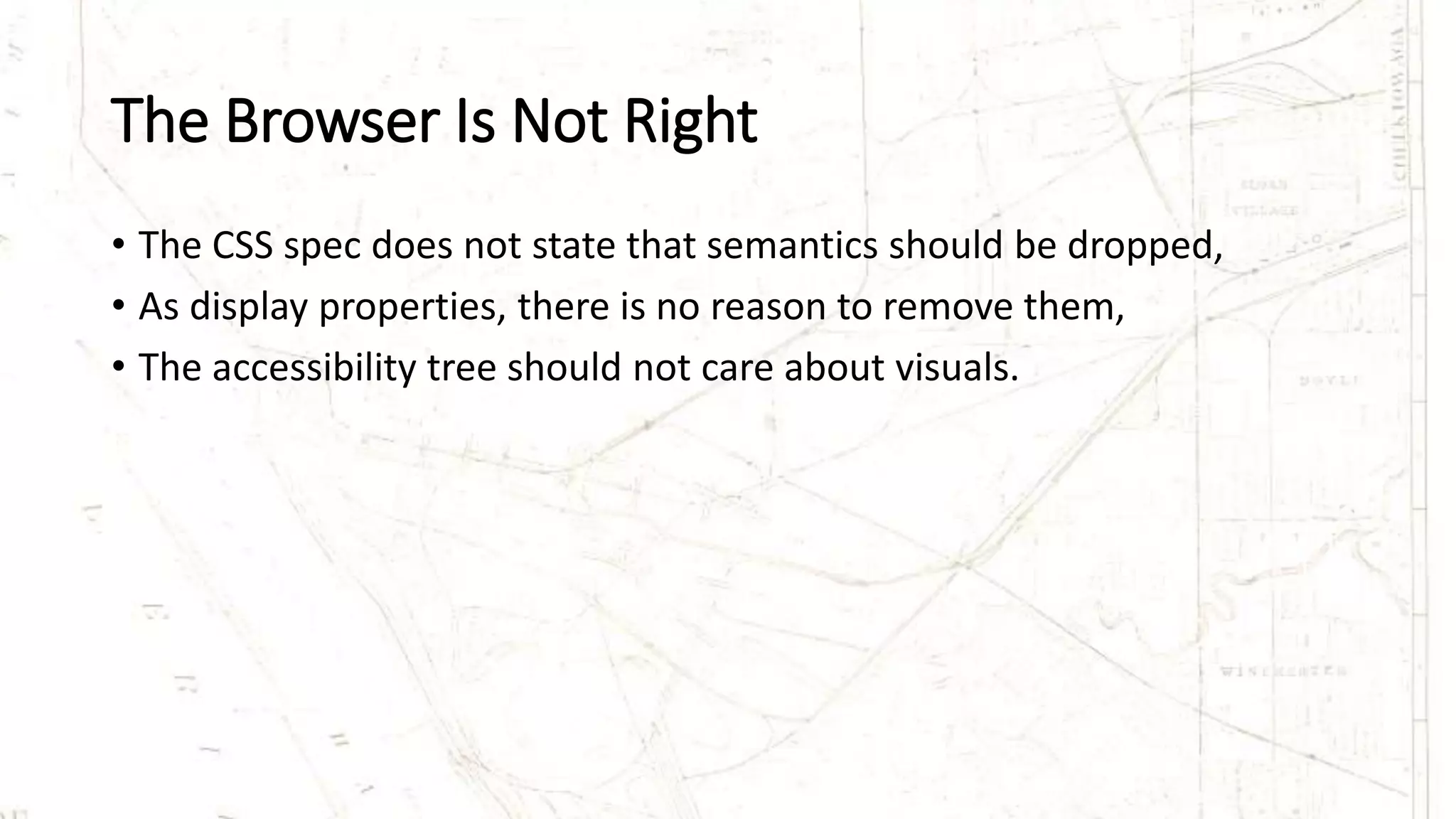

43. The Browser Is Not Right
• The CSS spec does not state that semantics should be dropped,
• As display properties, there is no reason to remove them,
• The accessibility tree should not care about visuals.

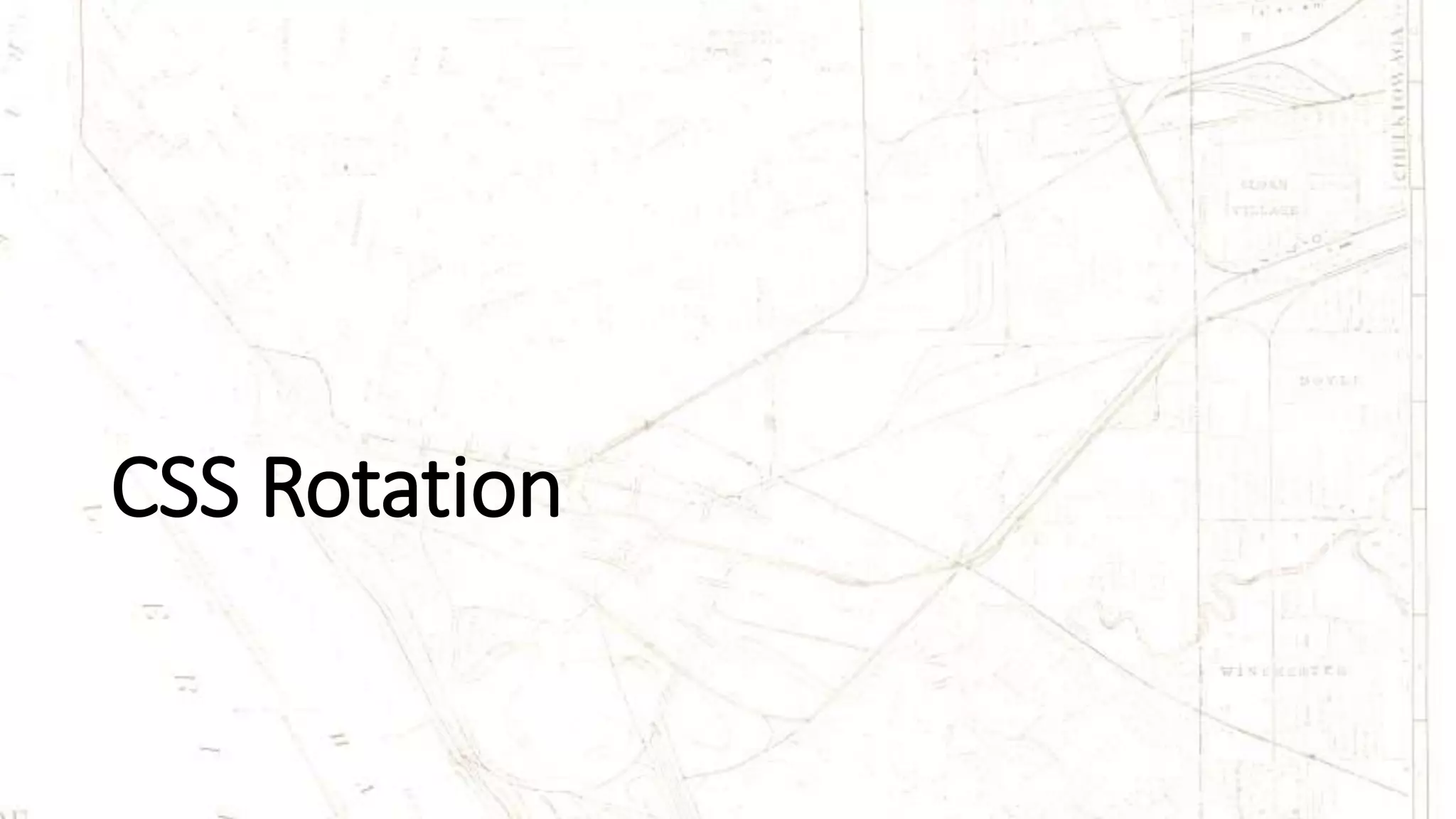

44. CSS Rotation

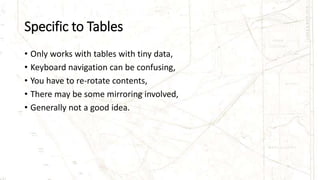

45. Specific to Tables
• Only works with tables with tiny data,
• Keyboard navigation can be confusing,
• You have to re-rotate contents,
• There may be some mirroring involved,
• Generally not a good idea.

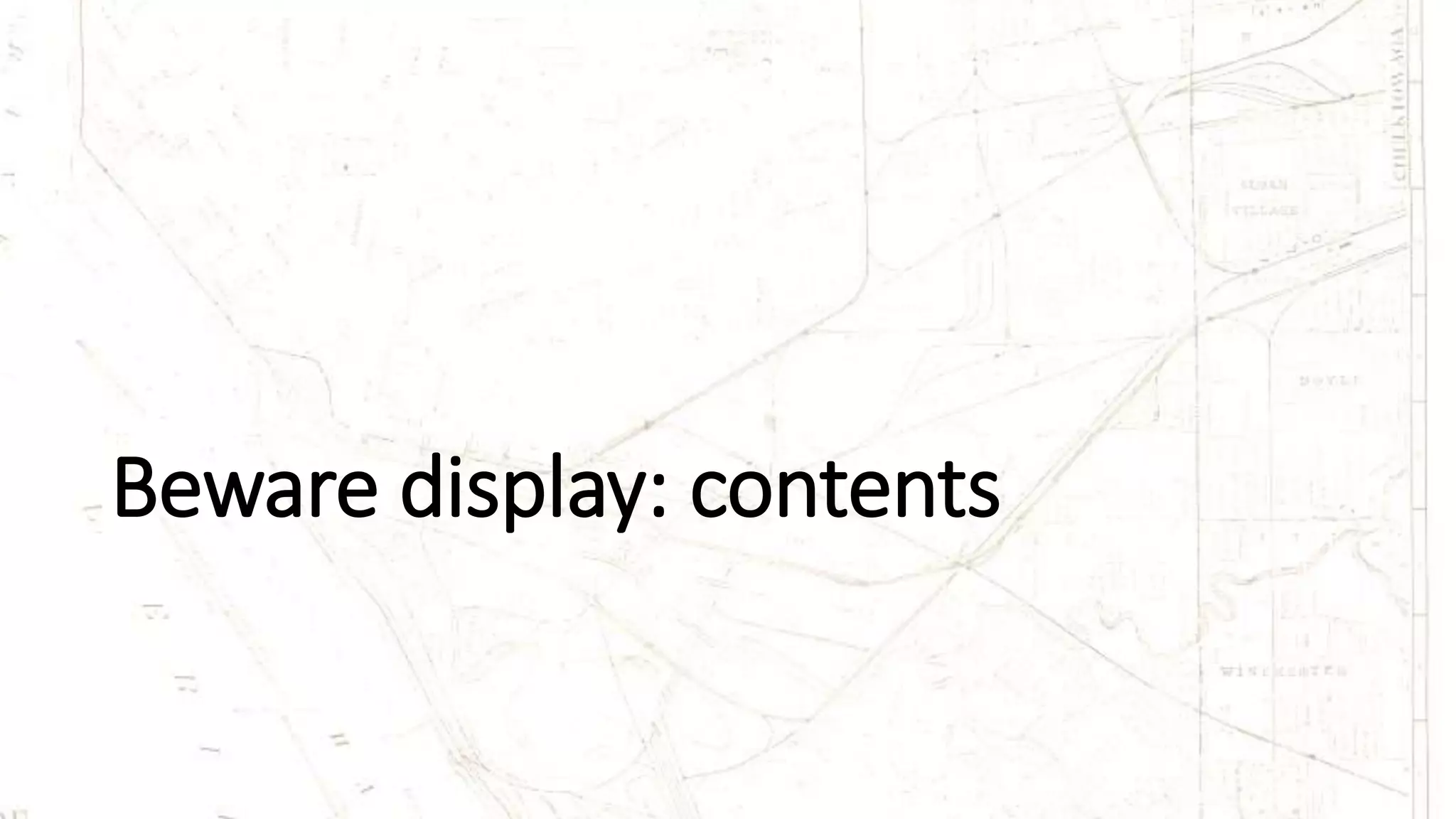

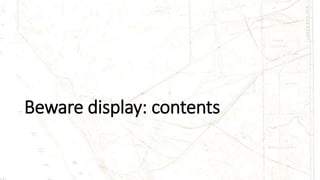

47. Beware display: contents

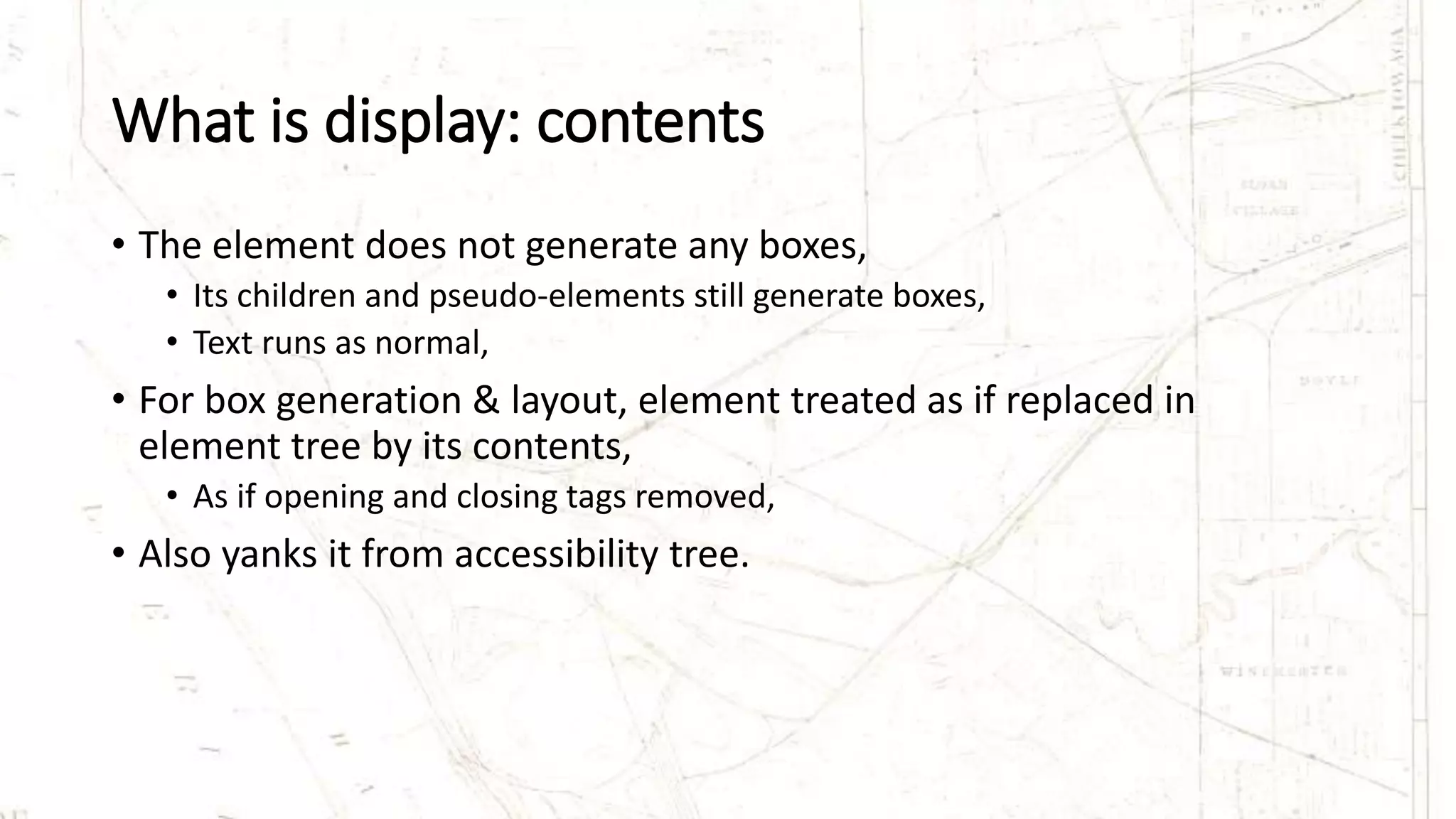

48. What is display: contents
• The element does not generate any boxes,
• Its children and pseudo-elements still generate boxes,
• Text runs as normal,
• For box generation & layout, element treated as if replaced in
element tree by its contents,
• As if opening and closing tags removed,
• Also yanks it from accessibility tree.

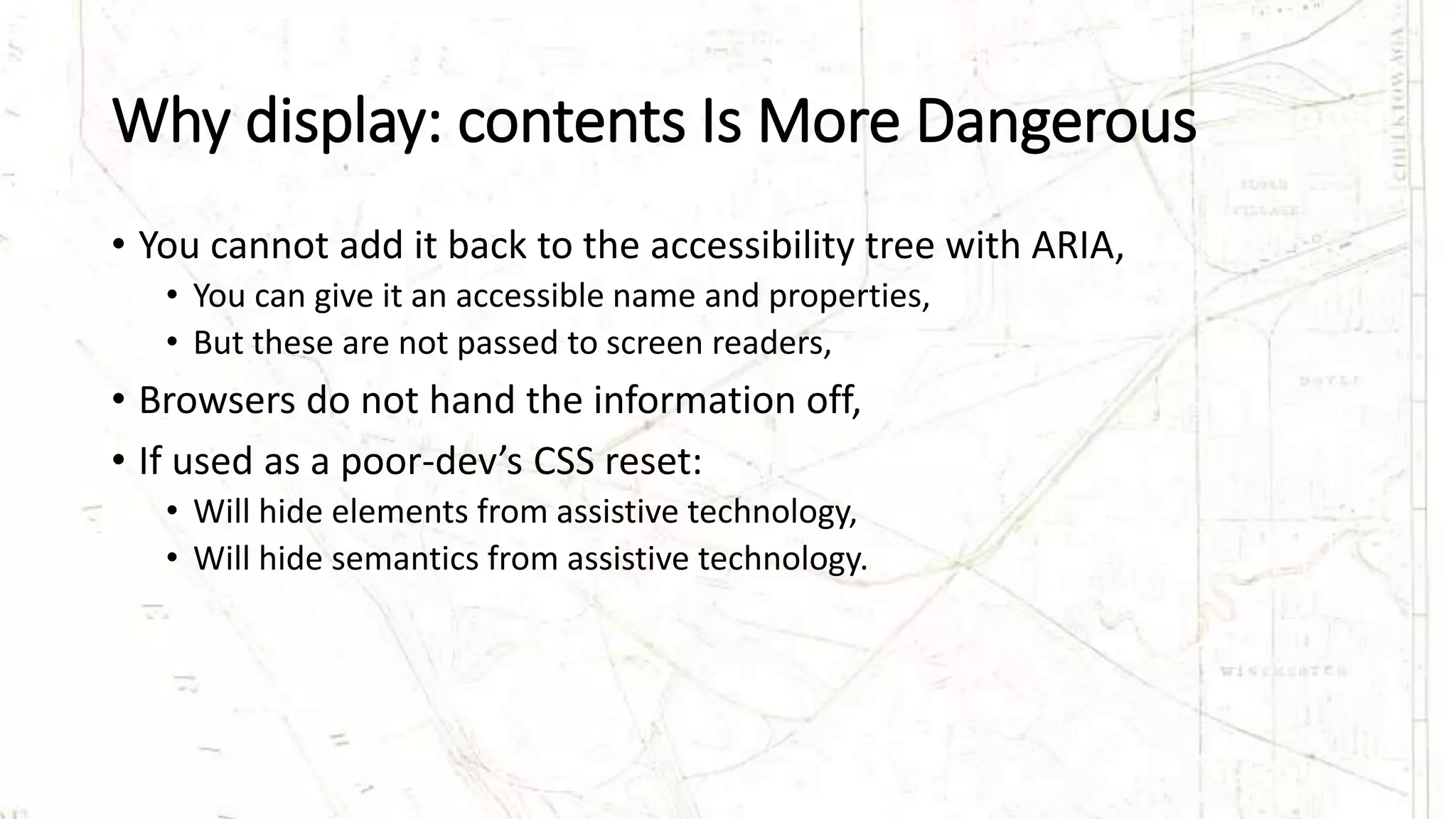

49. Why display: contents Is More Dangerous
• You cannot add it back to the accessibility tree with ARIA,
• You can give it an accessible name and properties,
• But these are not passed to screen readers,
• Browsers do not hand the information off,
• If used as a poor-dev’s CSS reset:
• Will hide elements from assistive technology,
• Will hide semantics from assistive technology.

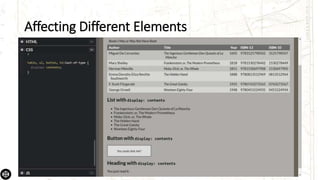

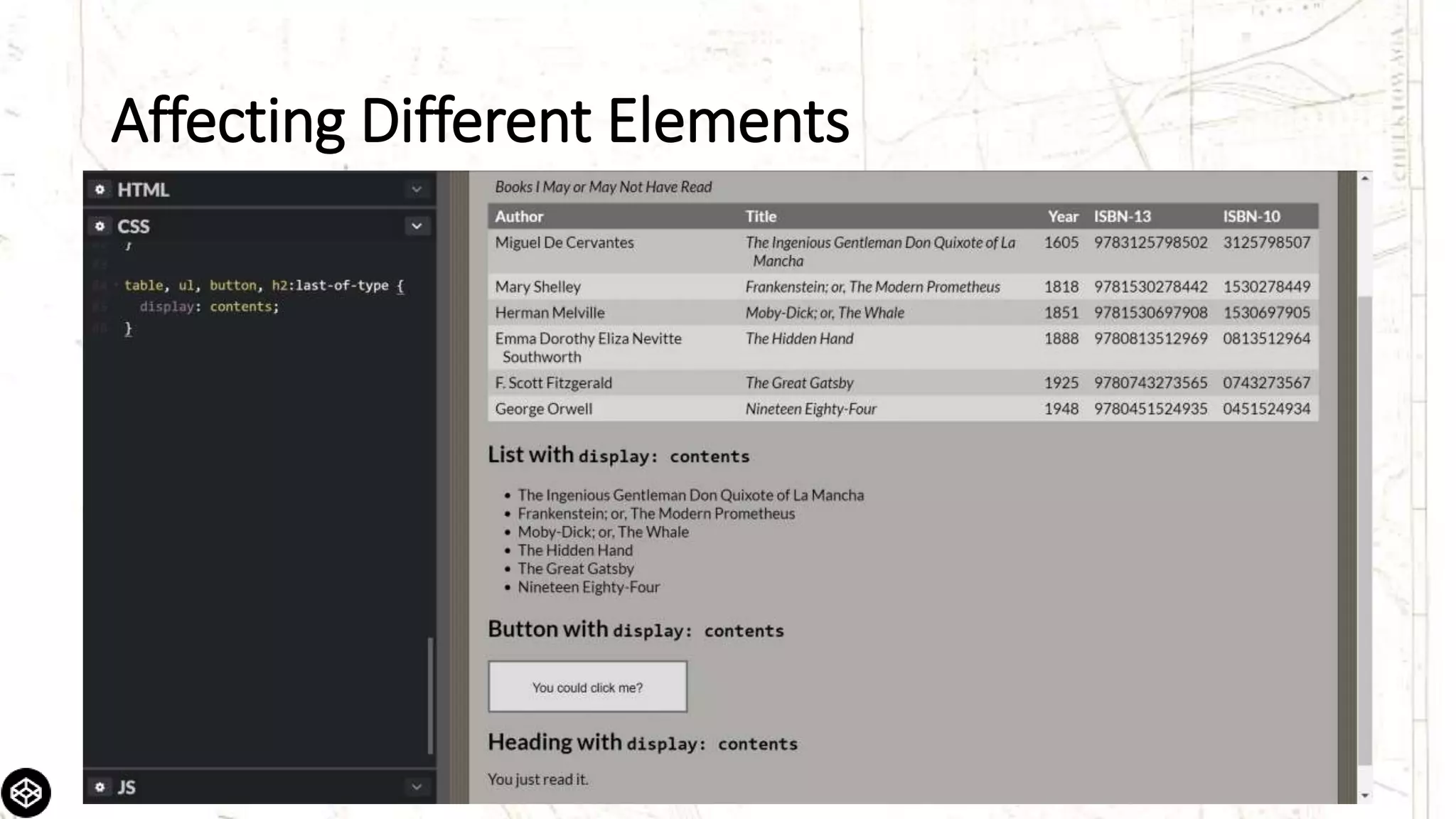

50. Affecting Different Elements

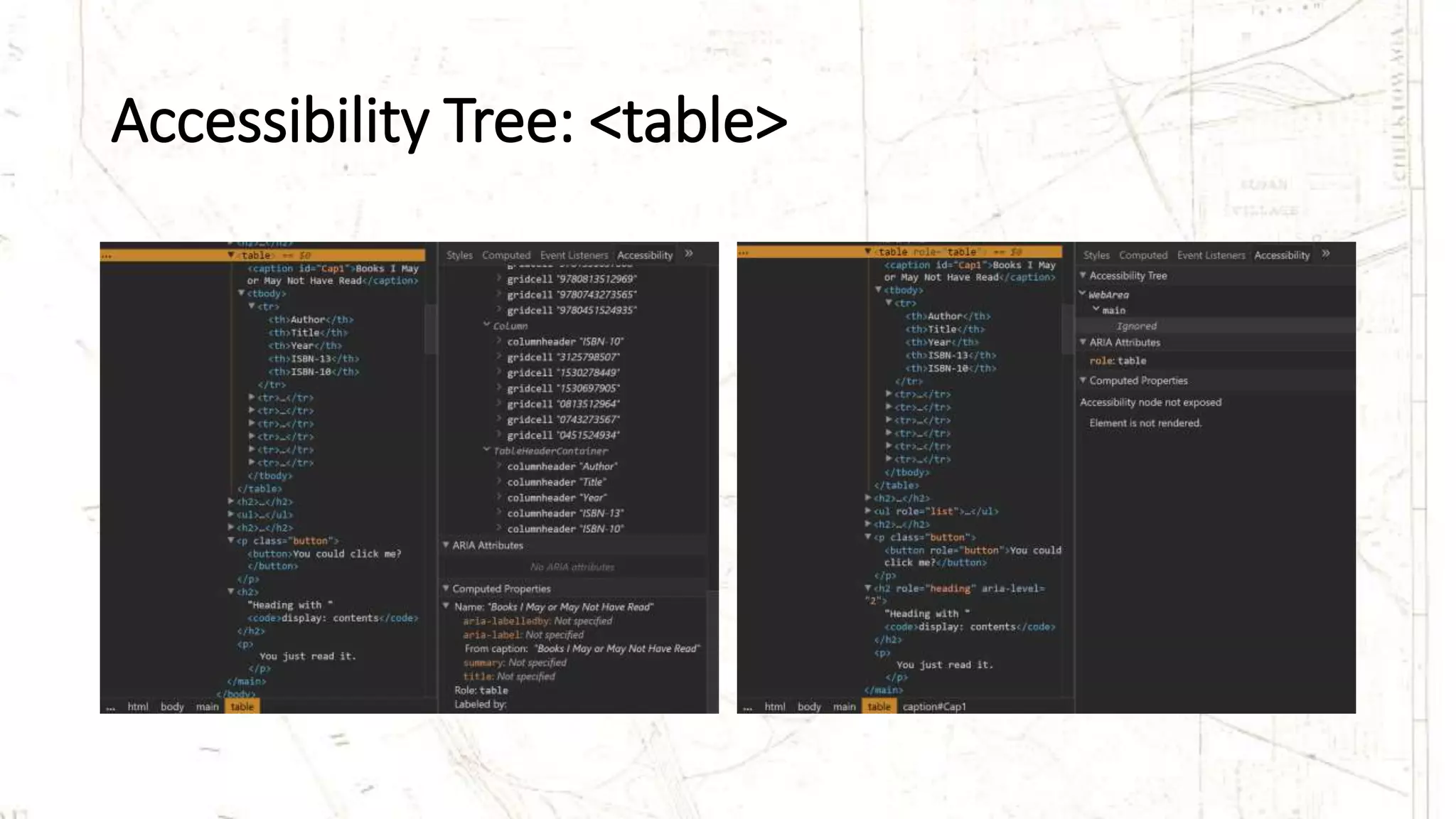

51. Accessibility Tree: <table>

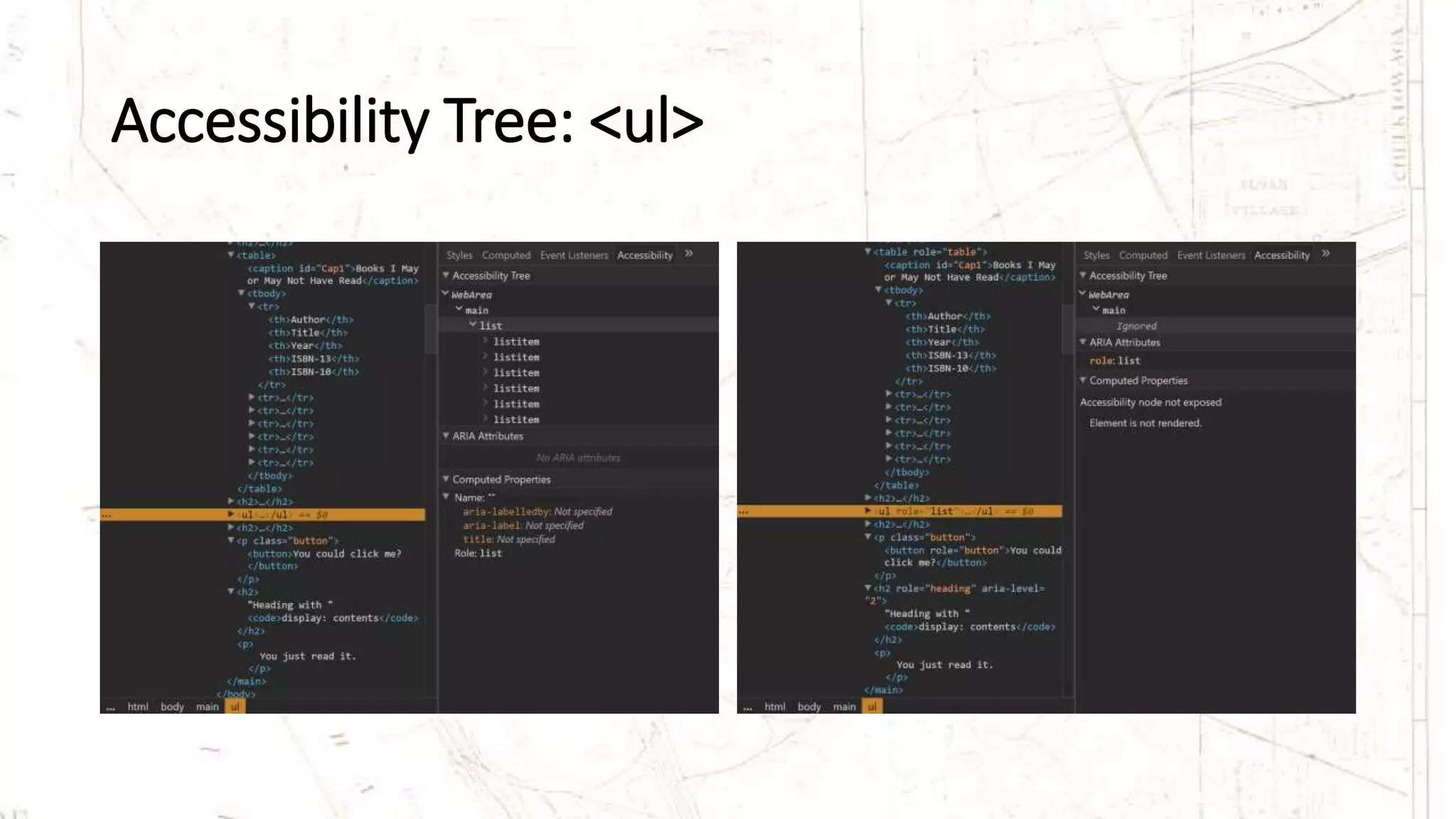

52. Accessibility Tree: <ul>

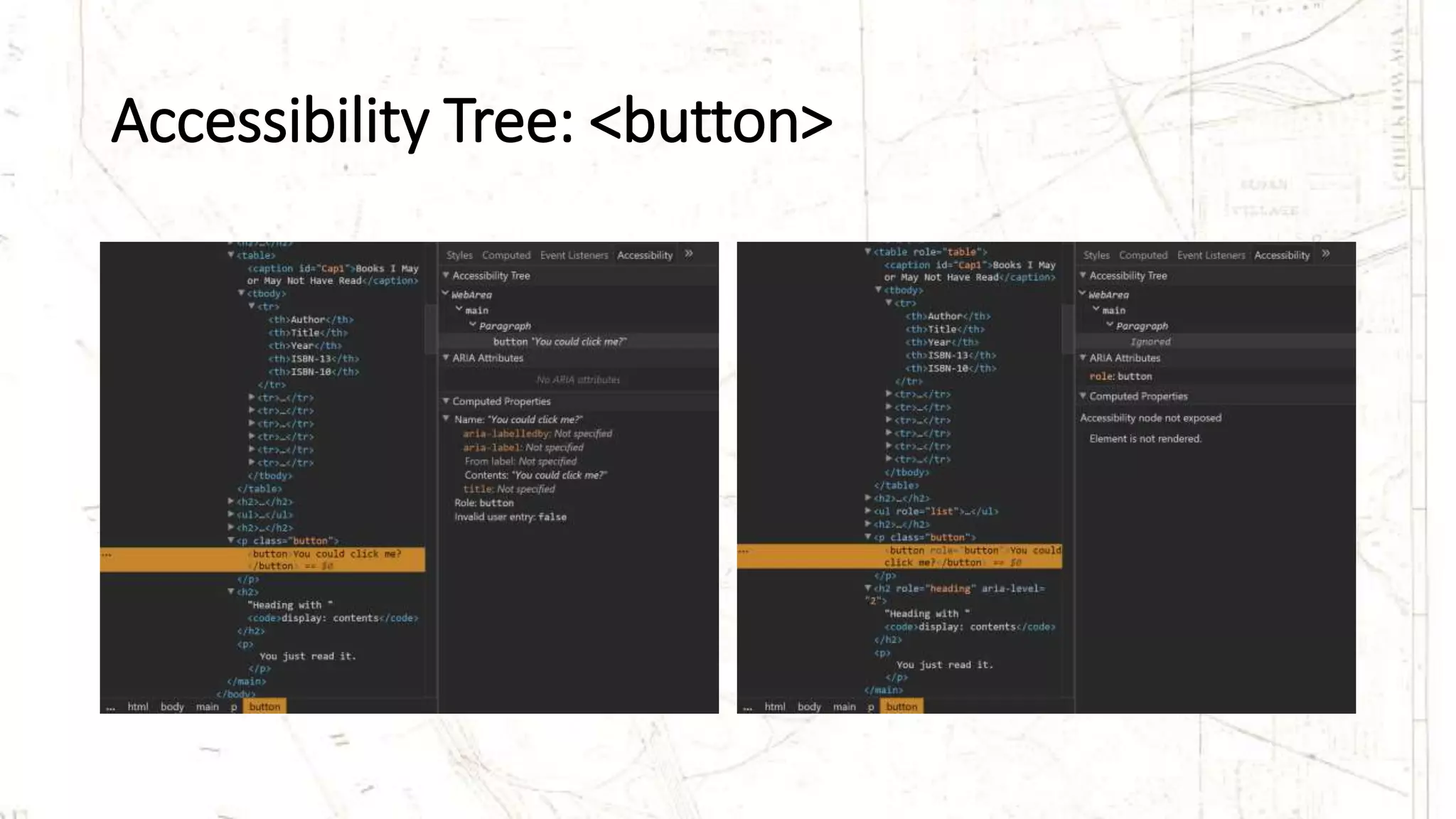

53. Accessibility Tree: <button>

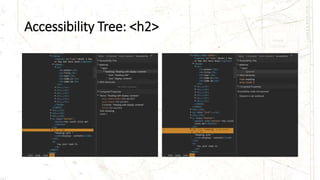

54. Accessibility Tree: <h2>

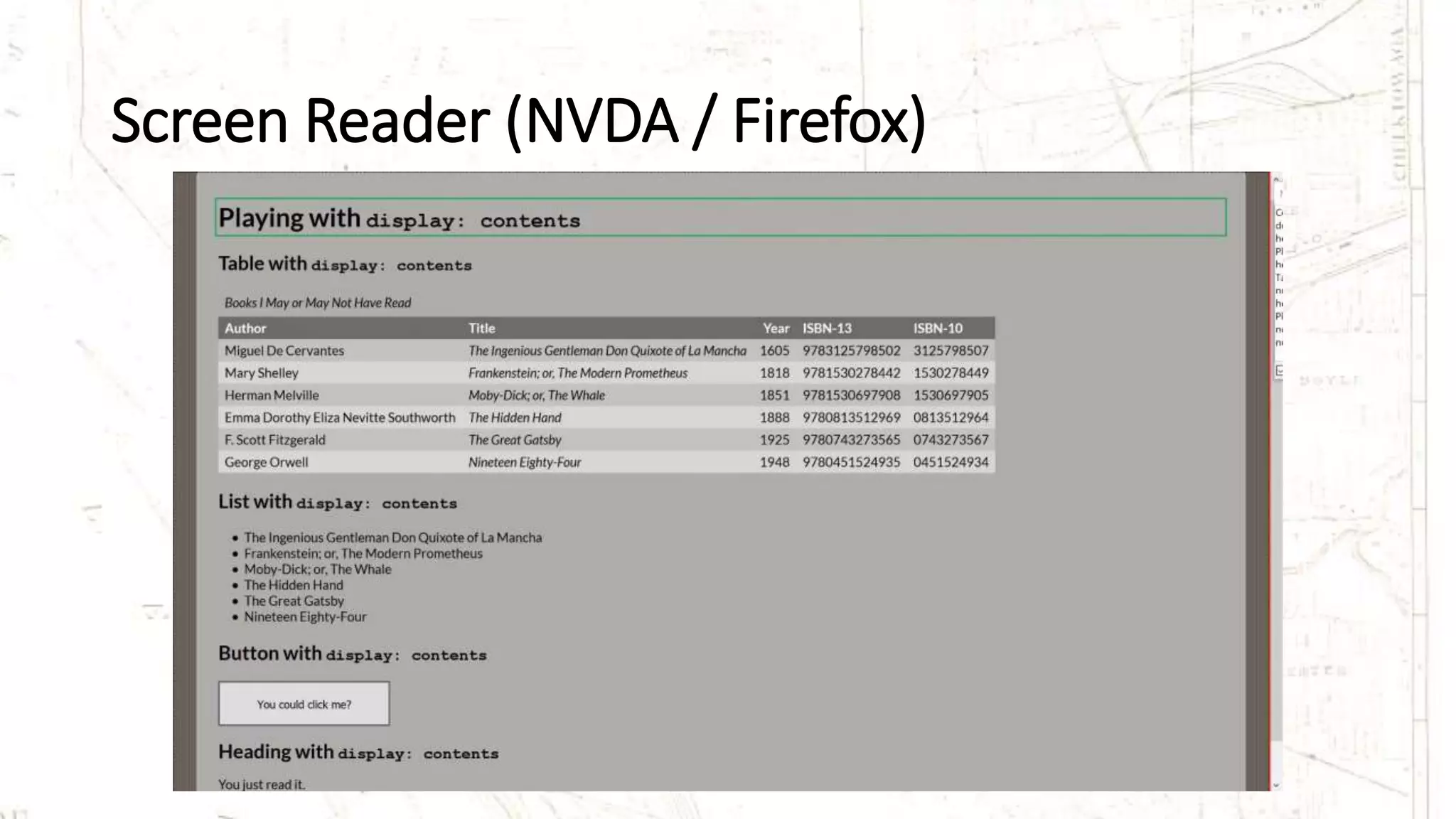

55. Screen Reader (NVDA / Firefox)

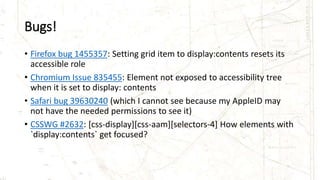

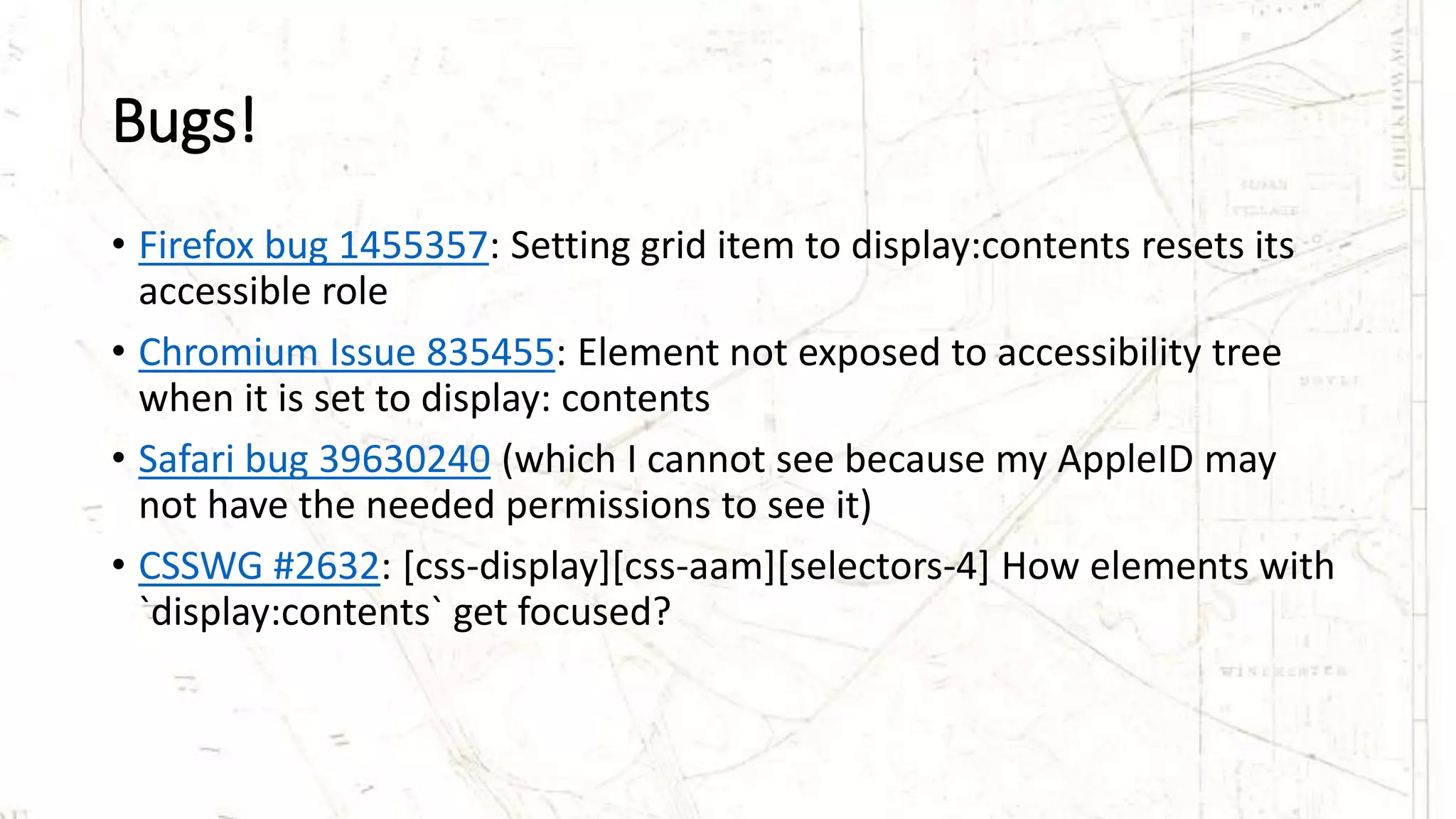

56. Bugs!
• Firefox bug 1455357: Setting grid item to display:contents resets its
accessible role
• Chromium Issue 835455: Element not exposed to accessibility tree
when it is set to display: contents
• Safari bug 39630240 (which I cannot see because my AppleID may
not have the needed permissions to see it)
• CSSWG #2632: [css-display][css-aam][selectors-4] How elements with
`display:contents` get focused?

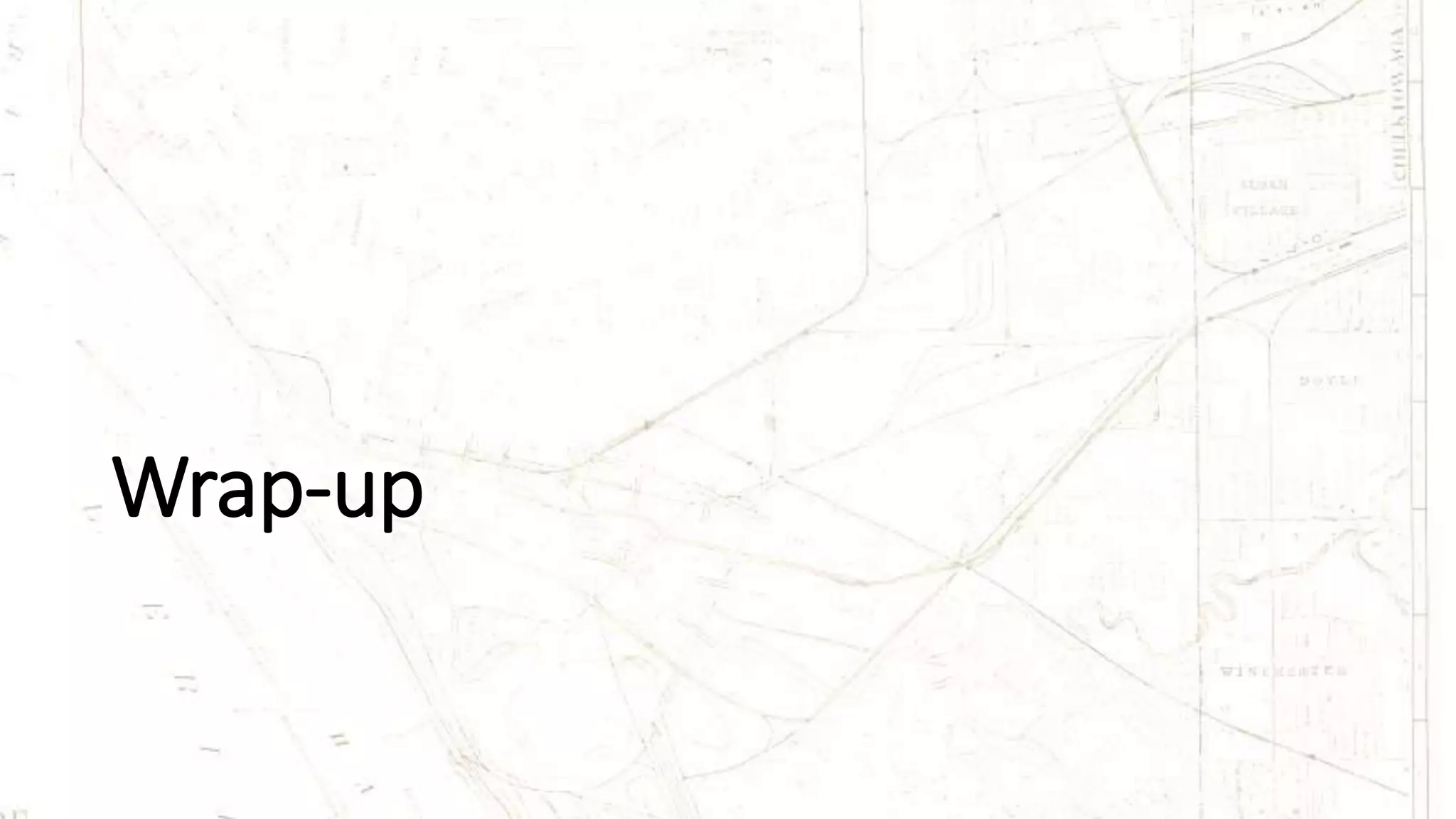

57. Wrap-up

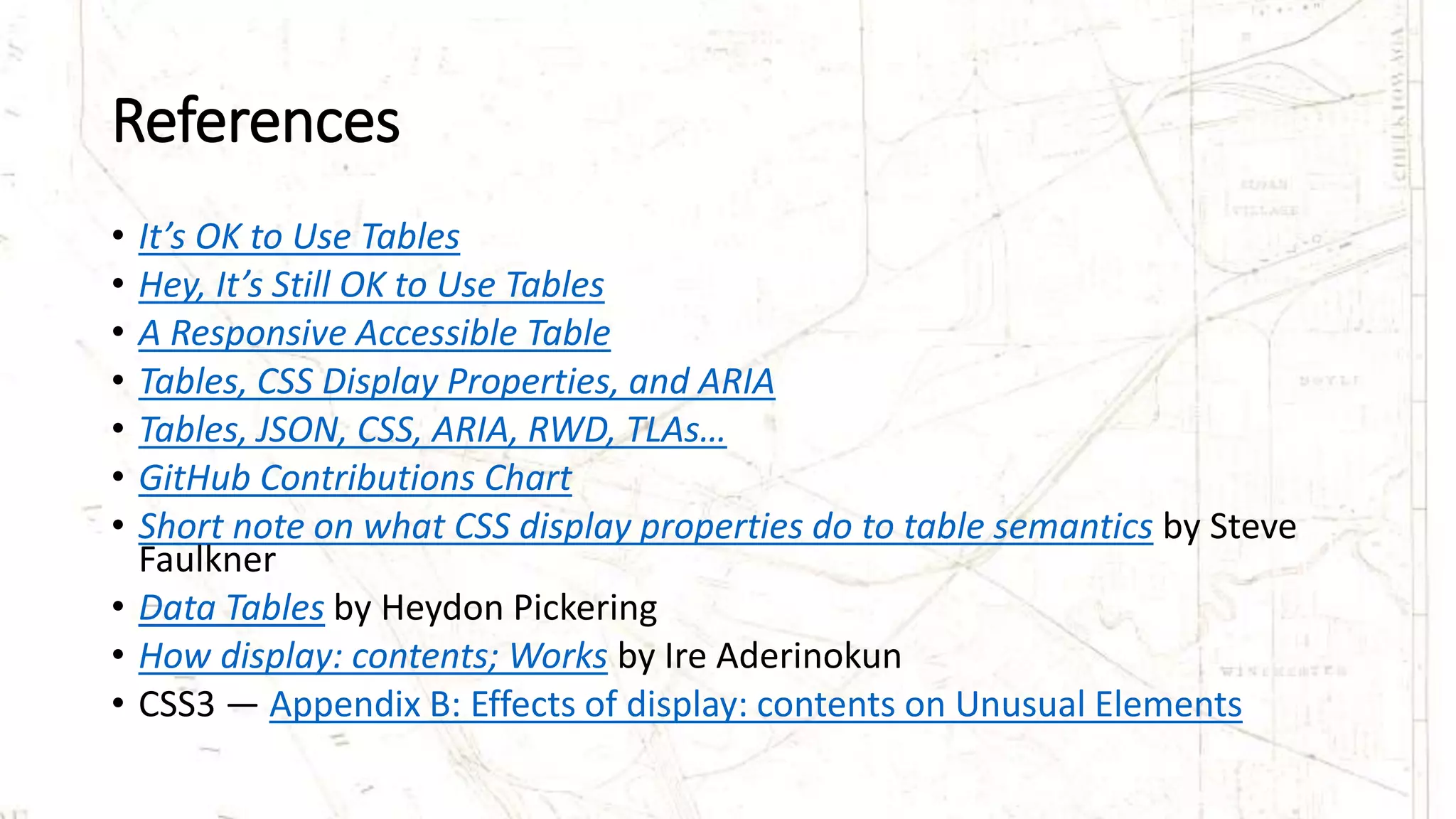

58. References
• It’s OK to Use Tables
• Hey, It’s Still OK to Use Tables
• A Responsive Accessible Table
• Tables, CSS Display Properties, and ARIA
• Tables, JSON, CSS, ARIA, RWD, TLAs…

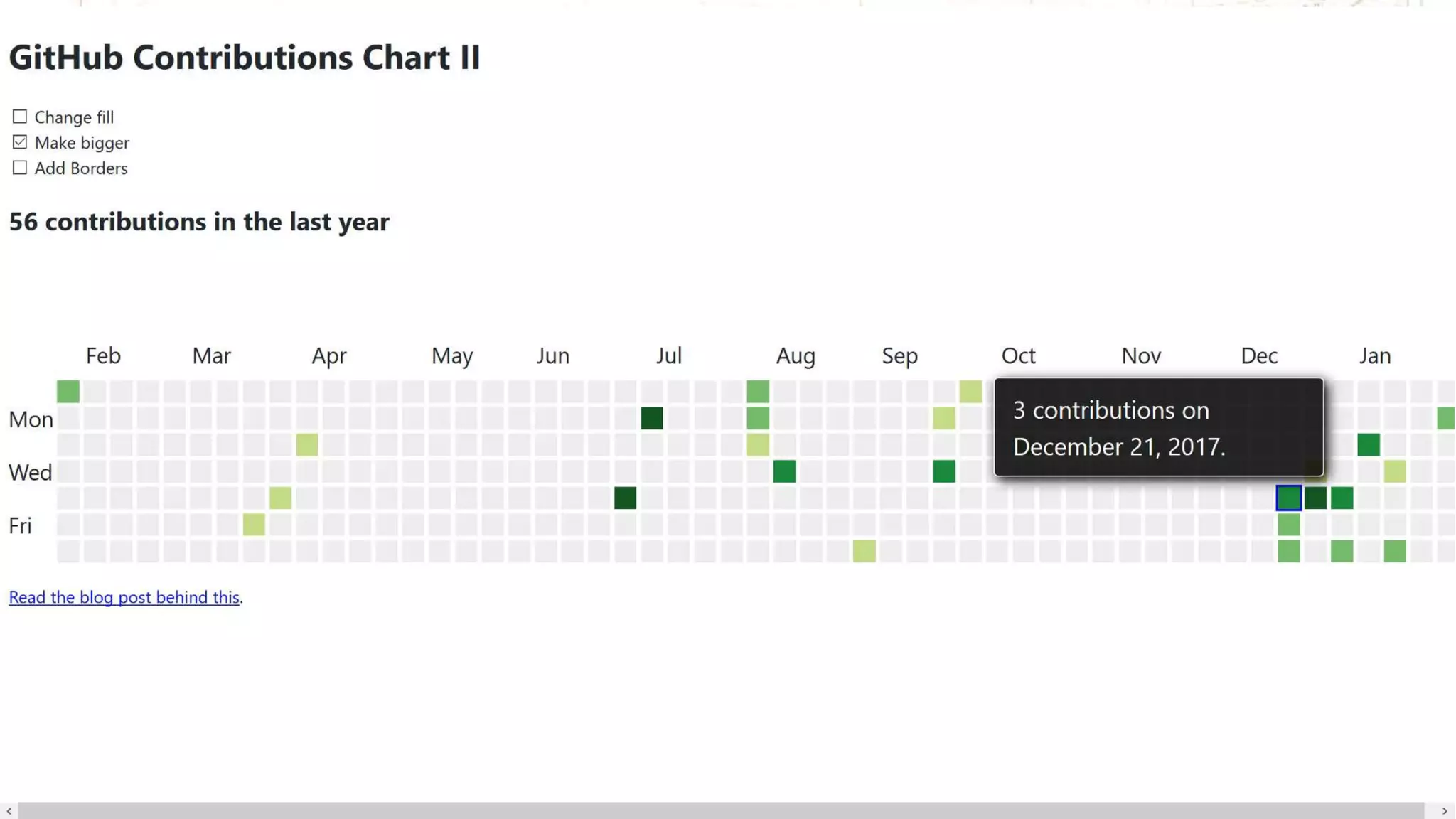

• GitHub Contributions Chart
• Short note on what CSS display properties do to table semantics by Steve
Faulkner
• Data Tables by Heydon Pickering
• How display: contents; Works by Ire Aderinokun
• CSS3 — Appendix B: Effects of display: contents on Unusual Elements

59. CSS Display Properties
versus
HTML Semantics
Presented at WordCamp Buffalo 2018
Slides will be posted at rosel.li/wcbuf
