This document outlines a project by Alex Chavez and Muntabir Choudhury to build a water level detection circuit within one month that can reduce water wastage and overflow by checking the water level without manual checks, using components like resistors, LEDs, a buzzer, transistor, and battery connected via leads and simulated in PSpice software.

1. Alex Chavez & Muntabir Choudhury

2. Our motivation for this project is to build a
circuit which can be able to detect the water
level and its feasible to build within one
month.

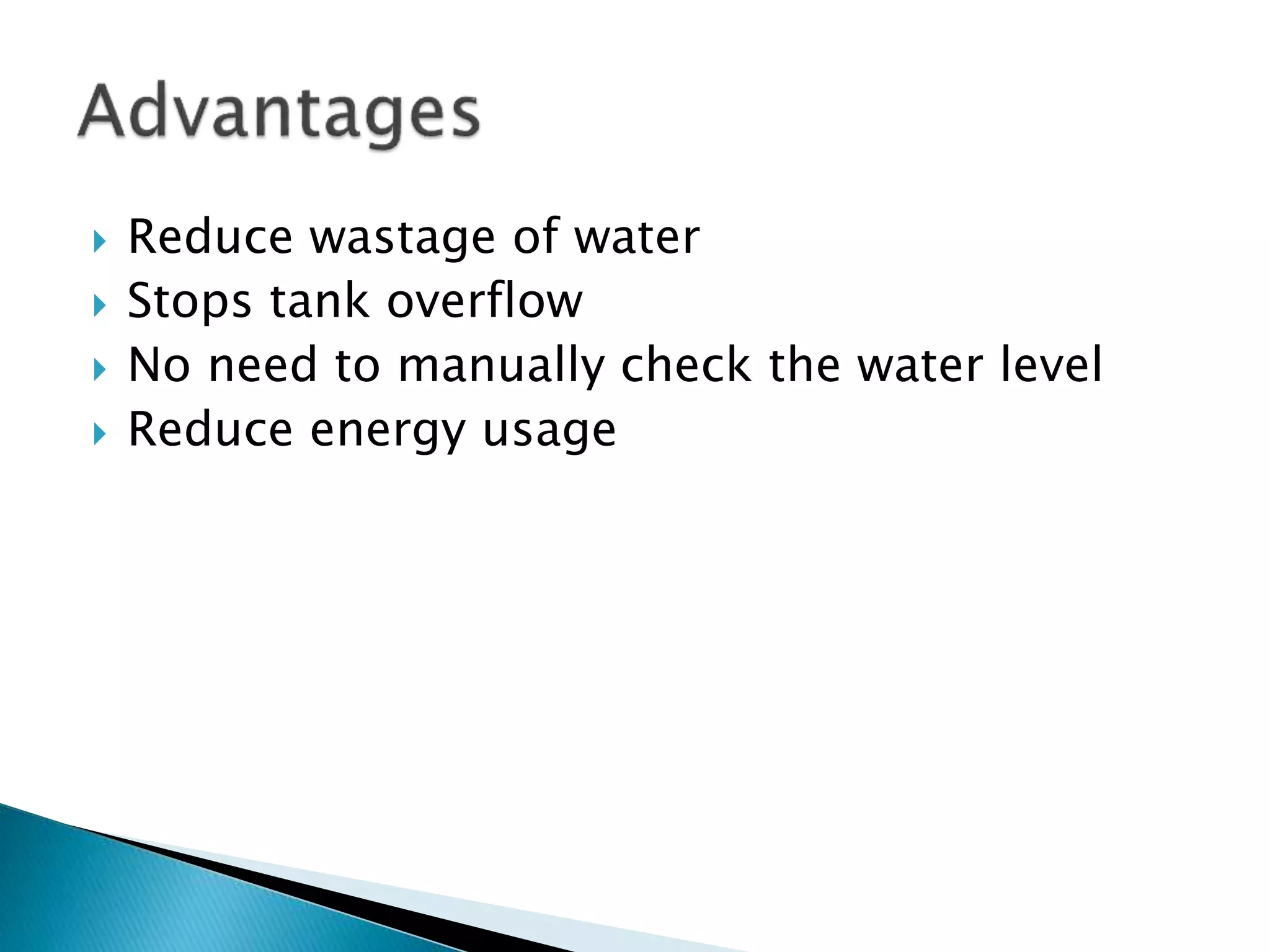

3.  Reduce wastage of water
 Stops tank overflow
 No need to manually check the water level
 Reduce energy usage

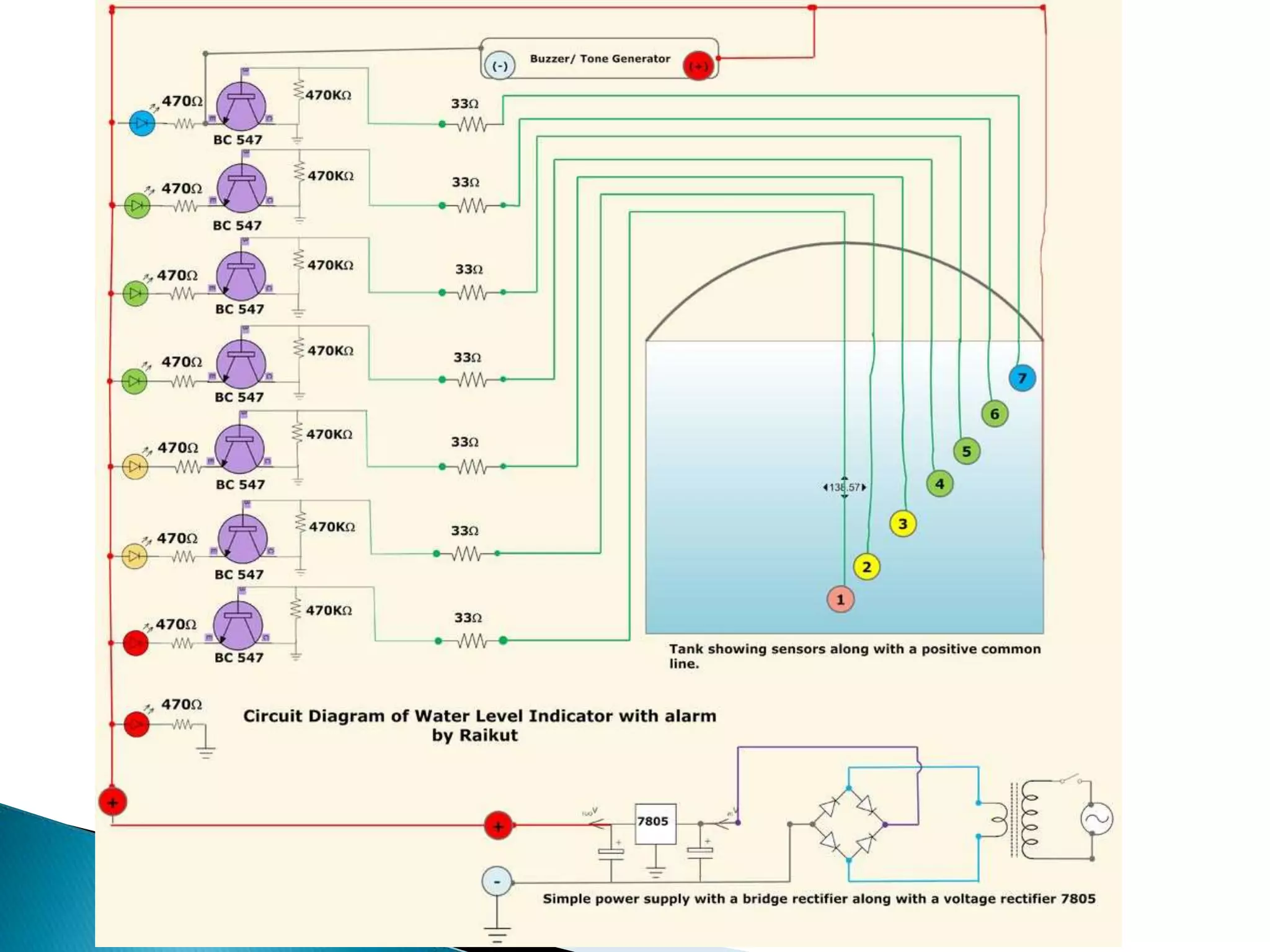

4.  Resistors (470Ω, 470KΩ, 33Ω)
 LEDs
 Sound buzzer
 Transistor (BC 547)
 9v Battery
 Switch

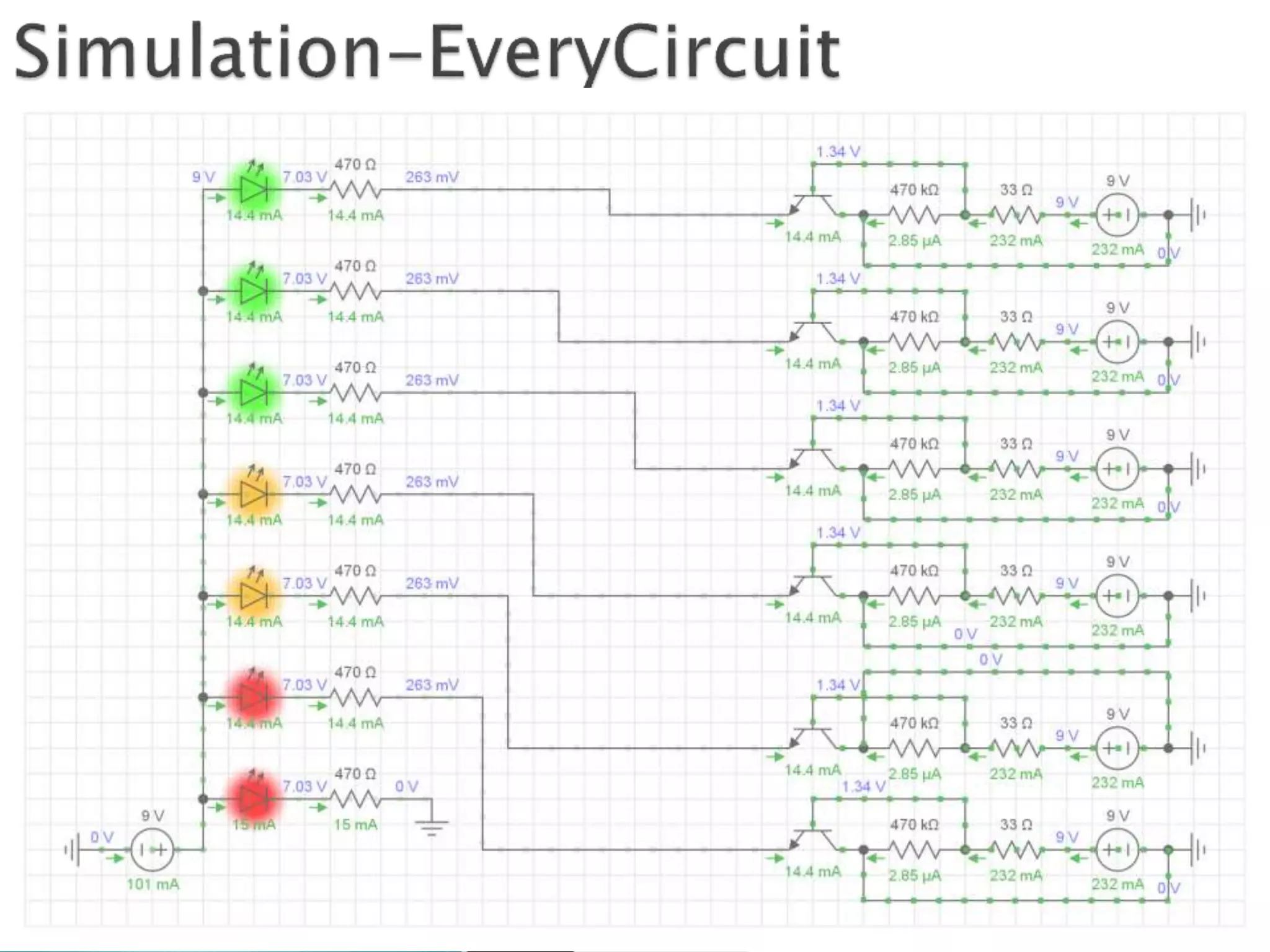

10.  PSpice
 Leads
 Lack of supplies

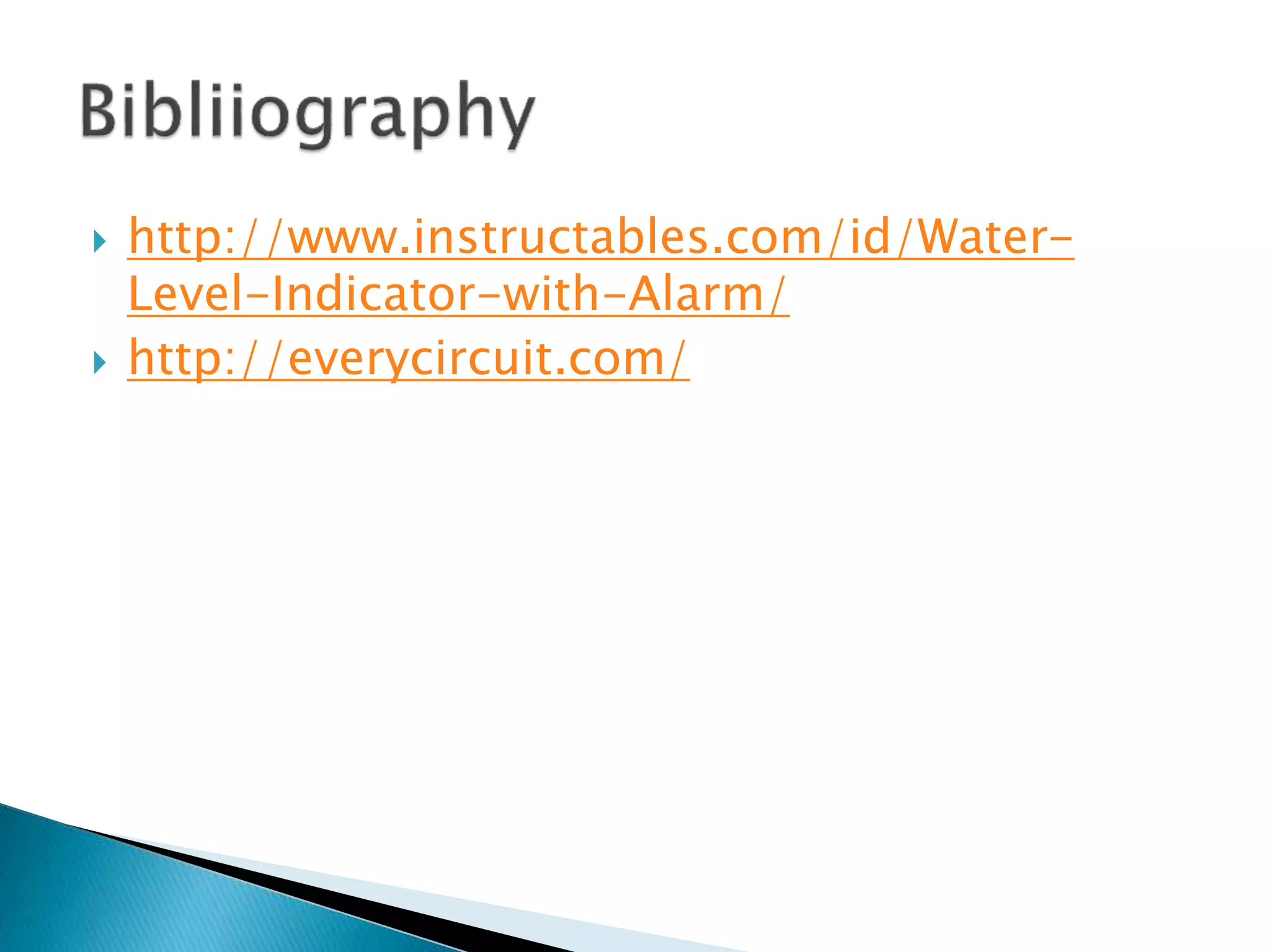

11.  http://www.instructables.com/id/Water-
Level-Indicator-with-Alarm/
 http://everycircuit.com/
