The document describes different types of walls used in construction including external walls, internal walls, super structural walls above ground, sub structural walls below ground, curtain wall systems, cavity wall systems, retaining walls, basement walls, and structural vs non-structural internal walls. Key wall types are retaining walls, shear walls, and core walls.

1. WALL TYPES
2013-08-08 SHANGRILA-UB-PH2

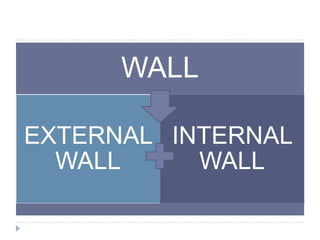

2. WALL
EXTERNAL
WALL
INTERNAL
WALL

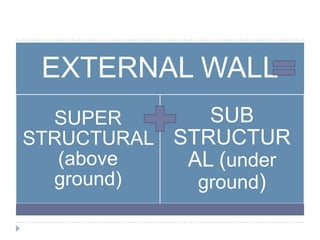

3. EXTERNAL WALL
SUPER
STRUCTURAL
(above ground)
SUB
STRUCTURAL
(under ground)

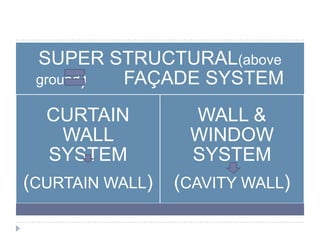

4. SUPER STRUCTURAL(above ground)
FAÇADE SYSTEM
CURTAIN WALL
SYSTEM
(CURTAIN WALL)
WALL &
WINDOW
SYSTEM
(CAVITY WALL)

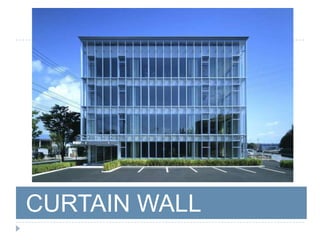

5. CURTAIN WALL SYSTEM

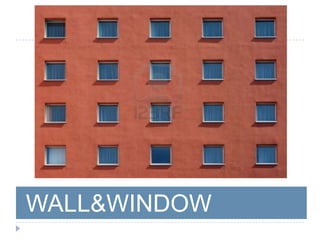

6. WALL&WINDOW SYSTEM

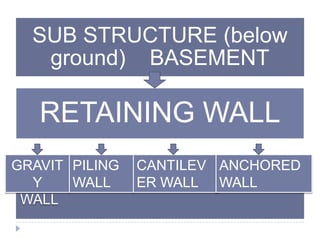

7. SUB STRUCTURE (below
ground) BASEMENT
RETAINING WALL
GRAVITY
WALL
PILING
WALL
CANTILEVER
WALL
ANCHORED
WALL

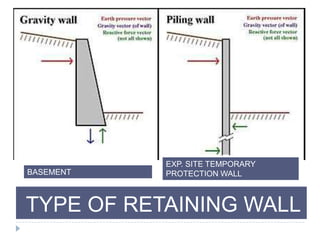

8. TYPE OF RETAINING WALL
BASEMENT
EXP. SITE TEMPORARY
PROTECTION WALL

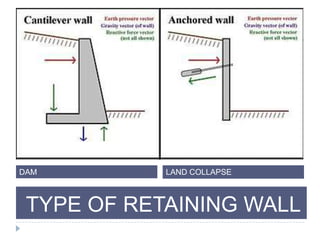

9. TYPE OF RETAINING WALL
DAM LAND COLLAPSE

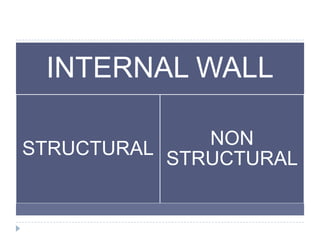

10. INTERNAL WALL
STRUCTURAL NON
STRUCTURAL

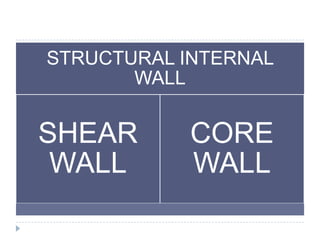

11. STRUCTURAL INTERNAL
WALL
SHEAR
WALL
CORE WALL

12. SHEAR WALL
• UNDER 1
DIRECTION
OF SHEAR
FORCE
CORE WALL
• UNDER 2
DIRECTION
OF SHEAR
FORCE

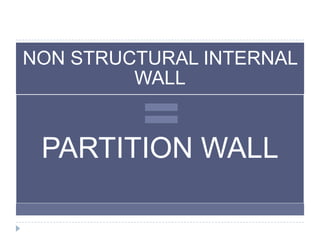

13. NON STRUCTURAL INTERNAL
WALL
PARTITION WALL
