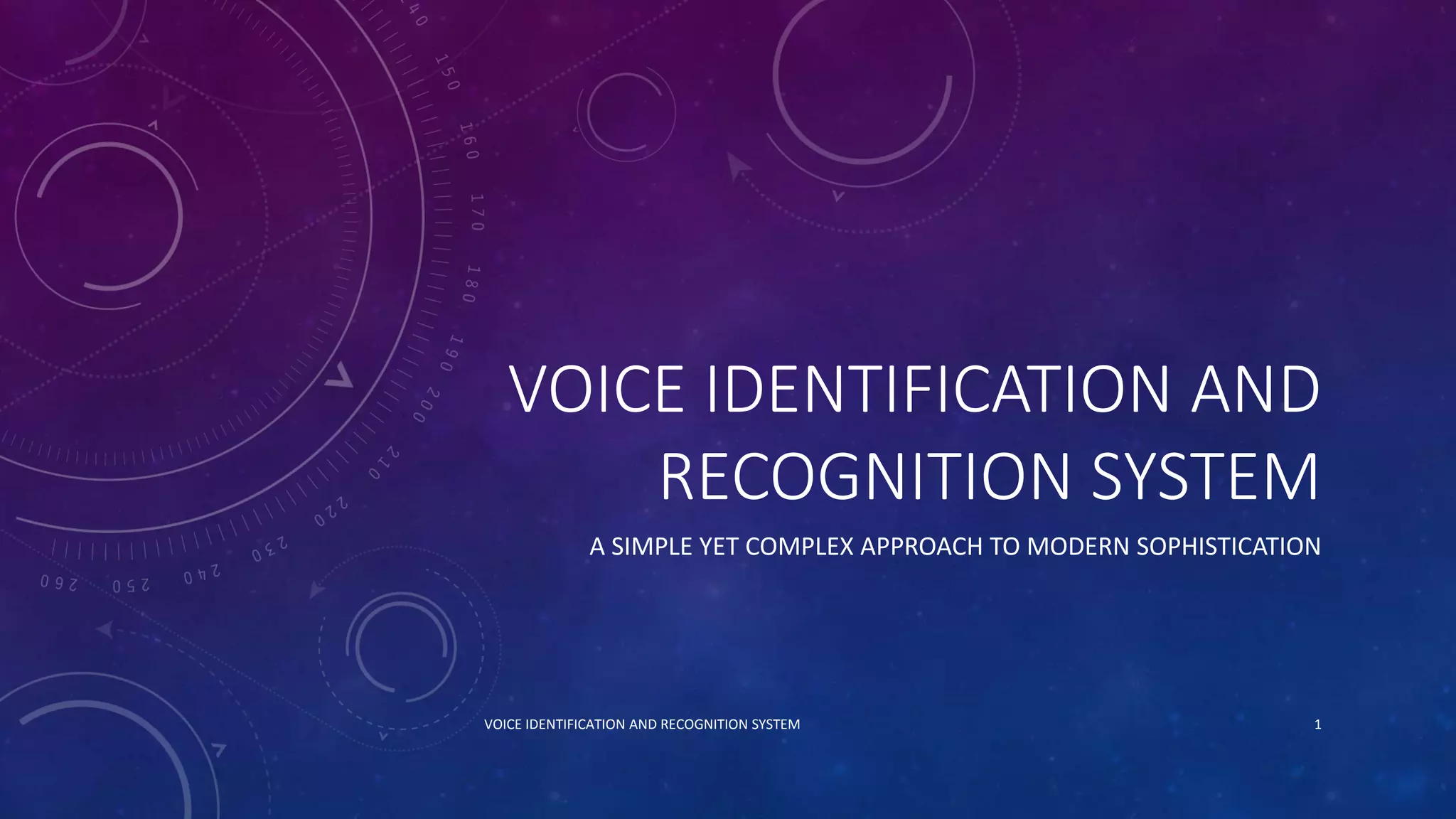

A simple yet complex approach to modern sophistication.
Made this project using the MFCC approach and then embedding the code to a Graphical User Interface. In the end made a standalone application for the program using deployment tools of matlab

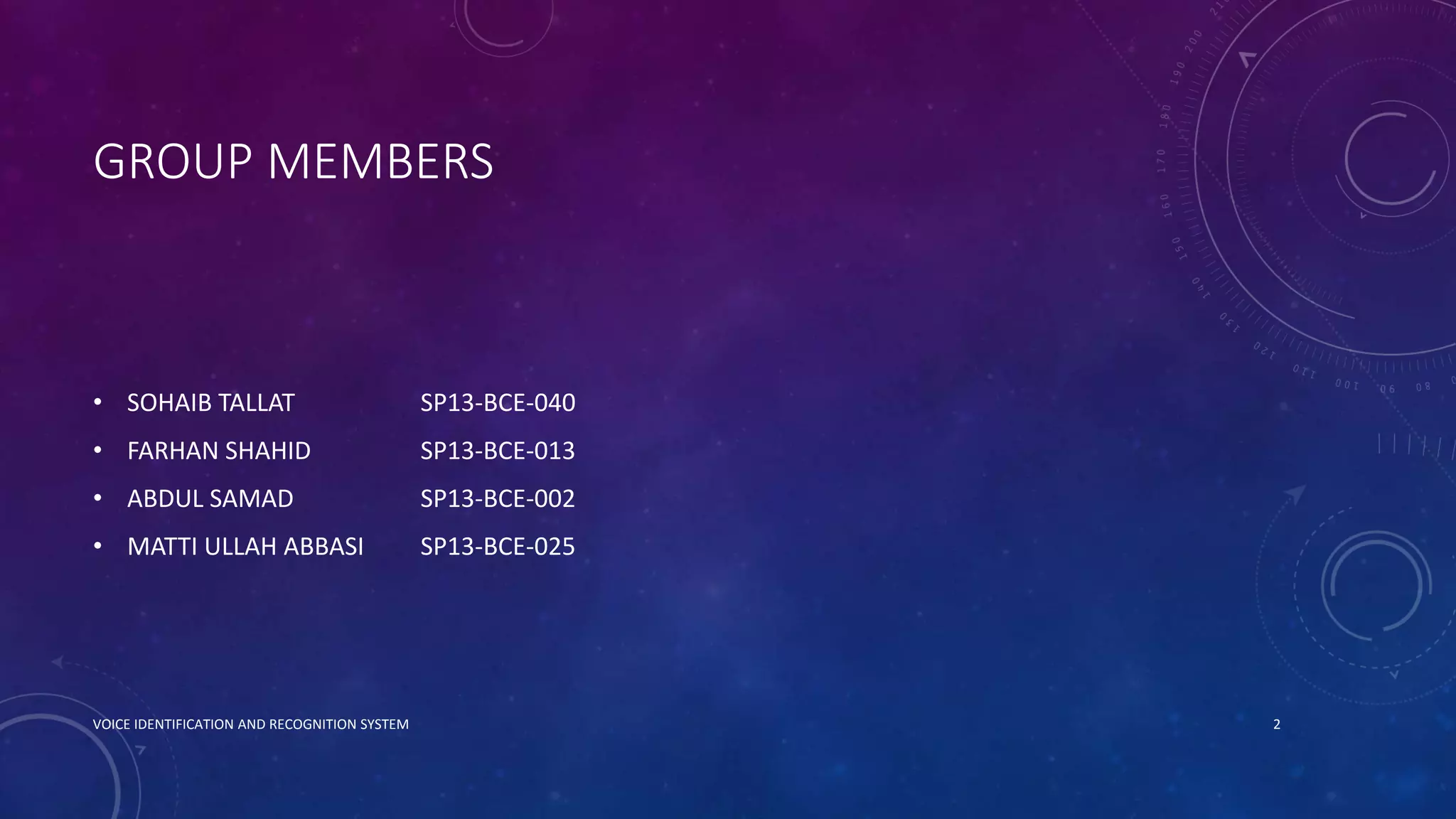

2. GROUP MEMBERS
⢠SOHAIB TALLAT SP13-BCE-040
⢠FARHAN SHAHID SP13-BCE-013
⢠ABDUL SAMAD SP13-BCE-002
⢠MATTI ULLAH ABBASI SP13-BCE-025
VOICE IDENTIFICATION AND RECOGNITION SYSTEM 2
3. INTRODUCTION AND INSPIRATION
⢠As we know that simplicity has taken its tool, it is now the age of sophisticated technologies therefore
nowadays efficient security systems have to be utilised in our life.
⢠The âVOICE IDENTIFICATION AND RECOGNITION SYSTEMâ has been developed to cater our needs for
controlling access to services such as: banking, databases systems etc. which are used to secure
confidential information.
⢠We were inspired to make this project for making lock mechanism systems speech automated,
especially for the ease of physically disabled people.
VOICE IDENTIFICATION AND RECOGNITION SYSTEM 3
4. ABSTRACT
⢠Approaches for making Voice recognition sytems:
a. Linear Prediction Coding (LPC)
b. Mel-Frequecy Cepstrum Coefficients (MFCC) and others.
⢠Principle Used: Mel-Frequecy Cepstrum Coefficients (MFCC)
⢠Working
VOICE IDENTIFICATION AND RECOGNITION SYSTEM 4
5. THE VOICE IDENTIFICATION ALGORITHM
⢠Priciples of Speaker Recognition:
a. Identification
b. Verification
Input
speech
Feature
extraction
Reference
model
(Speaker #1)
Similarity
Reference
model
(Speaker #N)
Similarity
Maximum
selection
Identification
result
(Speaker ID)
Reference
model
(Speaker #M)
Similarity
Input
speech
Feature
extraction
Verification
result
(Accept/Reject)
Decision
ThresholdSpeaker ID
(#M)
VOICE IDENTIFICATION AND RECOGNITION SYSTEM 5
Figure 1: Speaker Identification
Figure 2: Speaker Recognition
6. FEATURE EXTRACTION
⢠Feature extraction is the process that extracts a small amount of data from the voice signal that can
later be used to represent each speaker.
⢠A wide range of possibilities exist for parametrically representing the speech signal for the speaker
recognition task, such as Mel Frequency Cepstrum Coefficients (MFCC).
0 0.002 0.004 0.006 0.008 0.01 0.012 0.014 0.016 0.018
-0.5
-0.4
-0.3
-0.2
-0.1
0
0.1
0.2
0.3
0.4
0.5
Time (second)
VOICE IDENTIFICATION AND RECOGNITION SYSTEM 6
Figure 3: Example Of Speech Signal
8. MFCC PROCESSOR ELABORATED
⢠Frame Blocking
⢠Windowing
⢠Fast Fourier Transform
⢠Mel- Frequency Wrapping
⢠Cepstrum
0 1000 2000 3000 4000 5000 6000 7000
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
Mel-spaced filterbank
Frequency (Hz)
VOICE IDENTIFICATION AND RECOGNITION SYSTEM 8
Figure 4: Example of mel-spaced
frequency bank
9. FEATURE MATCHING
⢠Feature matching involves the actual procedure to identify the unknown speaker by comparing
extracted features from his/her voice input with the ones from a set of known speakers
⢠The goal of pattern recognition is to classify objects of interest into one of a number of categories or
classes.
⢠The objects of interest are called patterns and in our case are sequences of acoustic vectors that are
extracted from an input speech.
⢠Classes are referred to individual speakers.
VOICE IDENTIFICATION AND RECOGNITION SYSTEM 9
10. PATTERN RECOGNITION TECHNIQUE
⢠Feature matching technique used in âVOICE IDENTIFICATION AND RECOGNITION SYSTEMâ is Vector
Quantization (VQ).
⢠VQ is a process of mapping vectors from a large vector space to a finite number of regions in that space.
Each region is called a cluster and can be represented by its center called a codeword. The collection of
all codewords is called a codebook.
VOICE IDENTIFICATION AND RECOGNITION SYSTEM 10
12. LINDE-BUZO-GREY ALGORITHM
The LindeâBuzoâGray algorithm (introduced by Yoseph Linde,
AndrĂŠs Buzo and Robert M. Gray in 1980) is a vector quantization
algorithm to derive a good codebook.
VOICE IDENTIFICATION AND RECOGNITION SYSTEM 12
Find
centroid
Split each
centroid
Cluster
vectors
Find
centroids
Compute D
(distortion)
ďĽďź
ď
D
D'D
Stop
Dâ = D
m = 2*m
No
Yes
Yes
No
m < M
13. THE GRAPHICAL USER INTERFACE
⢠There are many ways to make your own custom Graphical User Interface (GUI); you can do it manually
or you can use another efficient approach that is the âGuideâ approach.
VOICE IDENTIFICATION AND RECOGNITION SYSTEM 13
Figure 6: Guide Quick Start Window
Figure 7: Our Custom GUI
14. EMBEDDING CODE TO THE GUI
⢠Note that in the figure we have six essential buttons, which perform their unique task.
a. âAdd New Sound To The Databaseâ
b. âSpeaker Recognition From Mikeâ
c. âDATABASE INFORMATIONâ
d. âPLOT DATABASEâ
e. âDelete Databaseâ
f. âEXITâ
VOICE IDENTIFICATION AND RECOGNITION SYSTEM 14
Figure 7: Our Custom GUI
15. ADDING BACK GROUND TO THE GUI
CODE:
% create an axes that spans the whole gui
ah = axes('unit', 'normalized', 'position', [0 0 1 1]);
% import the background image and show it on the axes
bg = imread('project image 3.jpg'); imagesc(bg);
% prevent plotting over the background and turn the axis off
set(ah,'handlevisibility','off','visible','off')
% making sure the background is behind all the other uicontrols
uistack(ah, 'bottom');
VOICE IDENTIFICATION AND RECOGNITION SYSTEM 15
Figure 8: Our Custom Background
18. REFERENCES
⢠L.R. Rabiner and B.H. Juang, Fundamentals of Speech Recognition, Prentice-Hall, Englewood Cliffs, N.J., 1993.
⢠S.B. Davis and P. Mermelstein, âComparison of parametric representations for monosyllabic word recognition
in continuously spoken sentencesâ, IEEE Transactions on Acoustics, Speech, Signal Processing, Vol. ASSP-28,
No. 4, August 1980
⢠Y. Linde, A. Buzo & R. Gray, âAn algorithm for vector quantizer designâ, IEEE Transactions on Communications,
Vol. 28, pp.84-95, 1980
⢠S. Furui, âSpeaker independent isolated word recognition using dynamic features of speech spectrumâ, IEEE
Transactions on Acoustic, Speech, Signal Processing, Vol. ASSP-34, No. 1, pp. 52-59, February 1986
⢠F.K. Song, A.E. Rosenberg and B.H. Juang, âA vector quantisation approach to speaker recognitionâ, AT&T
Technical Journal, Vol. 66-2, pp. 14-26, March 1987
⢠comp.speech Frequently Asked Questions WWW site,
http://svr-www.eng.cam.ac.uk/comp.speech/
VOICE IDENTIFICATION AND RECOGNITION SYSTEM 18
