![INTENTS AND SLOTS
You define interactions for your voice app through
intent schemas
Each intent consists of two fields. The intent field
gives the name of the intent. The slots field lists the
slots associated with that intent.
Slots can also included types such as LITERAL,
NUMBER, DATE, etc.
intent schemas are uploaded to your skill in the
Amazon Developer Portal
{
"intents": [
{
"intent": "tubeinfo",
"slots": [
{
"name": "LINENAME",
"type": "LINENAMES"
}
]
}
]
}](https://image.slidesharecdn.com/voiceenableallthethingswithalexa-feb2017-markbate-170314102640/85/Voice-enable-all-the-things-with-Alexa-31-320.jpg)

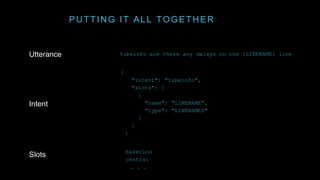

![PUTTING IT ALL TOGETHER
tubeinfo are there any delays on the {LINENAME} line
{
"intent": "tubeinfo",
"slots": [
{
"name": "LINENAME",
"type": "LINENAMES"
}
]
}
bakerloo
central
. . .
Utterance
Intent
Slots](https://image.slidesharecdn.com/voiceenableallthethingswithalexa-feb2017-markbate-170314102640/85/Voice-enable-all-the-things-with-Alexa-35-320.jpg)
More Related Content
Similar to Voice enable all the things with Alexa
Voice enable all the things with Alexa
- 1. VOICE ENABLE ALLTHE THINGS WITH ALEXA M a r k B a t e Solutions Architect, Alexa Skills Kit @markbate markbate@amazon.com
- 2. VOICE EXPERIENCE A BR I E F H I S T O R Y O F
- 3. 70s 80s 90s00s Present mode GUI web mobile character VUI
- 5. WE BELIEVE VOICEREPRESENTS THE NEXT MAJOR DISRUPTION IN COMPUTING
- 6. CONVERSATION IS THEMOST NATURAL WAY TO ENGAGE WITH YOUR PRODUCTS VOICE RELEASES THE FRICTION OF TRADITIONAL TECHNOLOGY INTERACTION USERS CAN NOW INTERACT WITH YOUR PRODUCT IN A MORE INTIMATE WAY
- 8.
- 9. EUROPEAN ALEXA SKILLSPARTNERS

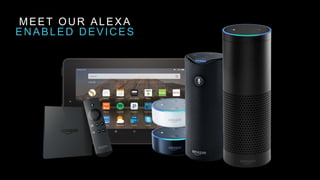

- 10. MEET OUR ALEXA ENABLEDDEVICES
- 13. Create Great Content: ASKis how you connect to your consumer THE ALEXA SERVICE Supported by two powerful SDKs ALEXA VOICE SERVICE Unparalleled Distribution: AVS allows your content to be everywhere Lives In The Cloud Automated Speech Recognition (ASR) Natural Language Understanding (NLU) Always Learning ALEXA SKILLS KIT

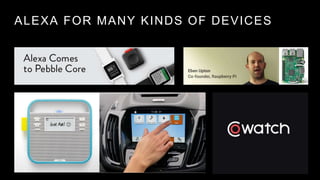

- 14. ALEXA FOR MANYKINDS OF DEVICES

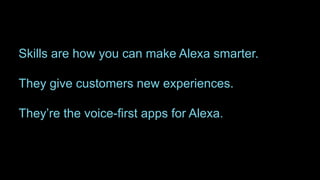

- 16. Skills are howyou can make Alexa smarter. They give customers new experiences. They’re the voice-first apps for Alexa.
- 17.
- 19. WHAT HAVE WELEARNED?

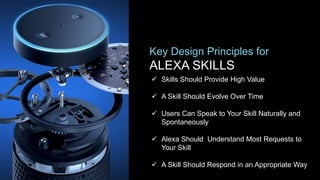

- 20. Key Design Principlesfor ALEXA SKILLS Skills Should Provide High Value A Skill Should Evolve Over Time Users Can Speak to Your Skill Naturally and Spontaneously Alexa Should Understand Most Requests to Your Skill A Skill Should Respond in an Appropriate Way
- 21. High Utility LowUtility Doing Performs a Task “Alexa, ask Scout to arm away mode.” “Away mode armed. You have 45 seconds to leave the house.” Searching Identifies specific info “Alexa, ask Vendor if there are Pearl Jam tickets available for this weekend.” “There are a limited number of tickets, ranging from $49 to $279.” Telling Provides a quick reference point “Alexa, tell me a cat fact.” “It is well known that dogs are superior to cats.” Browsing Gives info on a broad subject “Alexa, ask Amazon what’s on sale.” “The following items are on sale right now...”

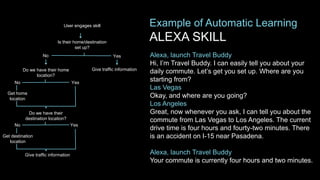

- 22. Example of AutomaticLearning ALEXA SKILL Alexa, launch Travel Buddy Hi, I’m Travel Buddy. I can easily tell you about your daily commute. Let’s get you set up. Where are you starting from? Las Vegas Okay, and where are you going? Los Angeles Great, now whenever you ask, I can tell you about the commute from Las Vegas to Los Angeles. The current drive time is four hours and fourty-two minutes. There is an accident on I-15 near Pasadena. Alexa, launch Travel Buddy Your commute is currently four hours and two minutes. User engages skill Give traffic information Get destination location Do we have their destination location? Do we have their home location? Get home location YesNo Is their home/destination set up? Give traffic information No Yes No Yes
- 23. AVOID FEATURE CREEP.KEEP IT SIMPLE Don’t overwhelm your users with features out of the box. Voice is a new way for users to interact with your product. Keep it simple and grow from there. AS NATURAL CONVERSATION AS POSSIBLE Try to make your utterances as natural as they possibly can. Top Tip: Have a real world conversations with one another to create these. CORE BUSINESS FUNCTIONALITY AS A MINIMUM It’s important to do the fundamentals right. If you are a news company. Your users will naturally expect you to at least provide the news. Do the extra features later. UTILIZE THE BUILT IN LIBRARY There are hundreds of entities that Alexa can understand using the Built-In library. You can handle this in your skill by simply including them in your interaction model and respond with a useful response. VOICE DESIGN TOP TIPS

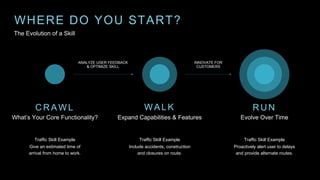

- 24. WHERE DO YOUSTART? The Evolution of a Skill Traffic Skill Example Give an estimated time of arrival from home to work. Traffic Skill Example Include accidents, construction and closures on route. Traffic Skill Example Proactively alert user to delays and provide alternate routes. R U N Evolve Over Time CRAWL What’s Your Core Functionality? ANALYZE USER FEEDBACK & OPTIMIZE SKILL WALK Expand Capabilities & Features INNOVATE FOR CUSTOMERS
- 25. LETS BUILD ASKILL!

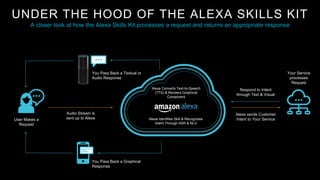

- 26. UNDER THE HOODOF THE ALEXA SKILLS KIT A closer look at how the Alexa Skills Kit processes a request and returns an appropriate response You Pass Back a Textual or Audio Response You Pass Back a Graphical Response Alexa Converts Text-to-Speech (TTS) & Renders Graphical Component Respond to Intent through Text & Visual Alexa sends Customer Intent to Your Service Your Service processes Request User Makes a Request Audio Stream is sent up to Alexa Alexa Identifies Skill & Recognizes Intent Through ASR & NLU
- 27. CONFIGURING A NEWALEXA SKILL

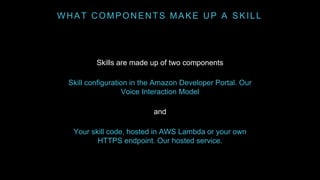

- 28. WHAT COMPONENTS MAKEUP A SKILL Skills are made up of two components Skill configuration in the Amazon Developer Portal. Our Voice Interaction Model and Your skill code, hosted in AWS Lambda or your own HTTPS endpoint. Our hosted service.
- 29.

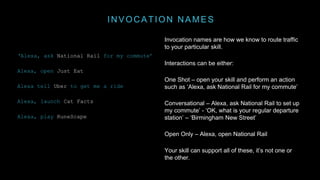

- 30. INVOCATION NAMES Invocation namesare how we know to route traffic to your particular skill. Interactions can be either: One Shot – open your skill and perform an action such as ‘Alexa, ask National Rail for my commute’ Conversational – Alexa, ask National Rail to set up my commute’ - ‘OK, what is your regular departure station’ – ‘Birmingham New Street’ Open Only – Alexa, open National Rail Your skill can support all of these, it’s not one or the other. ‘Alexa, ask National Rail for my commute’ Alexa, open Just Eat Alexa tell Uber to get me a ride Alexa, launch Cat Facts Alexa, play RuneScape
- 31. INTENTS AND SLOTS Youdefine interactions for your voice app through intent schemas Each intent consists of two fields. The intent field gives the name of the intent. The slots field lists the slots associated with that intent. Slots can also included types such as LITERAL, NUMBER, DATE, etc. intent schemas are uploaded to your skill in the Amazon Developer Portal { "intents": [ { "intent": "tubeinfo", "slots": [ { "name": "LINENAME", "type": "LINENAMES" } ] } ] }

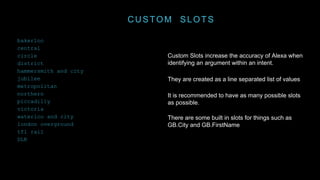

- 32. CUSTOM SLOTS Custom Slotsincrease the accuracy of Alexa when identifying an argument within an intent. They are created as a line separated list of values It is recommended to have as many possible slots as possible. There are some built in slots for things such as GB.City and GB.FirstName bakerloo central circle district hammersmith and city jubilee metropolitan northern piccadilly victoria waterloo and city london overground tfl rail DLR

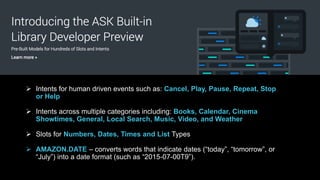

- 33. Intents forhuman driven events such as: Cancel, Play, Pause, Repeat, Stop or Help Intents across multiple categories including: Books, Calendar, Cinema Showtimes, General, Local Search, Music, Video, and Weather Slots for Numbers, Dates, Times and List Types AMAZON.DATE – converts words that indicate dates (“today”, “tomorrow”, or “July”) into a date format (such as “2015-07-00T9”).

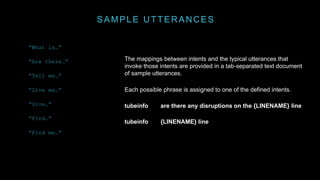

- 34. SAMPLE UTTERANCES The mappingsbetween intents and the typical utterances that invoke those intents are provided in a tab-separated text document of sample utterances. Each possible phrase is assigned to one of the defined intents. tubeinfo are there any disruptions on the {LINENAME} line tubeinfo {LINENAME} line “What is…” “Are there…” “Tell me…” “Give me…” “Give…” “Find…” “Find me…”
- 35. PUTTING IT ALLTOGETHER tubeinfo are there any delays on the {LINENAME} line { "intent": "tubeinfo", "slots": [ { "name": "LINENAME", "type": "LINENAMES" } ] } bakerloo central . . . Utterance Intent Slots
- 36.

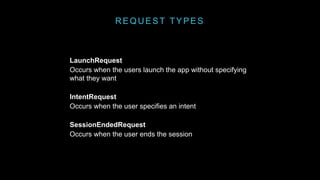

- 37. REQUEST TYPES LaunchRequest Occurs whenthe users launch the app without specifying what they want IntentRequest Occurs when the user specifies an intent SessionEndedRequest Occurs when the user ends the session

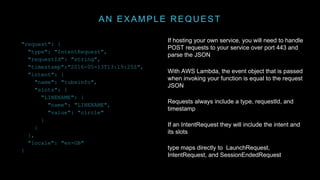

- 38. AN EXAMPLE REQUEST Ifhosting your own service, you will need to handle POST requests to your service over port 443 and parse the JSON With AWS Lambda, the event object that is passed when invoking your function is equal to the request JSON Requests always include a type, requestId, and timestamp If an IntentRequest they will include the intent and its slots type maps directly to LaunchRequest, IntentRequest, and SessionEndedRequest "request": { "type": "IntentRequest", "requestId": "string", "timestamp":"2016-05-13T13:19:25Z", "intent": { "name": "tubeinfo", "slots": { "LINENAME": { "name": "LINENAME", "value": "circle" } } }, "locale": "en-GB" }

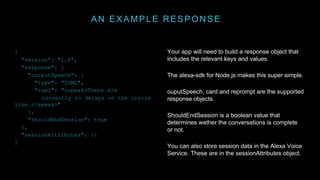

- 39. AN EXAMPLE RESPONSE Yourapp will need to build a response object that includes the relevant keys and values. The alexa-sdk for Node.js makes this super simple. ouputSpeech, card and reprompt are the supported response objects. ShouldEndSession is a boolean value that determines wether the conversations is complete or not. You can also store session data in the Alexa Voice Service. These are in the sessionAttributes object. { "version": "1.0", "response": { "outputSpeech": { "type": "SSML", "ssml": "<speak>There are currently no delays on the circle line.</speak>" }, "shouldEndSession": true }, "sessionAttributes": {} }

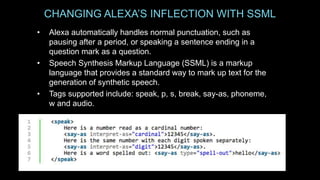

- 40. CHANGING ALEXA’S INFLECTIONWITH SSML • Alexa automatically handles normal punctuation, such as pausing after a period, or speaking a sentence ending in a question mark as a question. • Speech Synthesis Markup Language (SSML) is a markup language that provides a standard way to mark up text for the generation of synthetic speech. • Tags supported include: speak, p, s, break, say-as, phoneme, w and audio.
- 41. Existing Customer with ACCOUNTLINKING • Allow your customers to link their existing accounts with you, to Alexa. • Customers are prompted to log in to your site using their normal credentials with webview url you provide. • You authenticate the customer and generate an access token that uniquely identifies the customer and link the accounts.
- 42. DEMO Alexa Skills Kitfor NodeJS
- 43.
- 44. VOICE ENABLE ALLTHE THINGS WITH ALEXA M a r k B a t e Solutions Architect, Alexa Skills Kit @markbate markbate@amazon.com
Editor's Notes

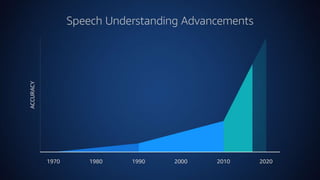

- #4 Let’s look at a history of user interfaces. The evolution of user interfaces, every decade there is a new technology disruption. Voice represents the latest interface.
- #5 ASR is at approx 95% accuracy today, we are striving for 99%
- #6 Voice is Everywhere! It’s the most natural user interface, it’s how were taught as children to communicate. We were’nt born with keyboards and or smart phones in our hands. The idea is to put lots of voice enabled devices throughout the house
- #8 Mention how heavily invested we are in this area. Talk about far field recognition. Investment in the first party device hardware and the newly released reference architecture for the microphone array.
- #9 Explain what skills are, and that we now have over 7,000 in the US Thousands in the UK
- #11 Echo 2014 Hand’s free in noisy rooms – 7 mics Echo v. Dot Tap, FireTV, Tablets The Echo is the first and best-known endpoint of the Alexa Ecosystem. We released Echo in 2014 to allow customers to engage with Alexa and control their home via voice. Alexa and The Echo device was built to make life easier and more enjoyable. The Echo and the Echo Dot are what we call far-field Alexa devices. You interact with them in a completely hand’s free way from anywhere in the room…even if that room is noisy. They include a 7 microphone mic-array with advanced beam-forming and noise cancelling technology. The difference between Echo and Echo Dot is simple: Echo has a powerful built-in speaker that provides room filling sound. Echo Dot is smaller and contains a less powerful speaker and works great when connected to another audio system. Both include the same array microphone and are otherwise functionally identical Alexa is also available other Amazon devices including Tap, our portable, battery powered speaker. Alexa is available on Fire TV via the push-to talk remote control that comes with it. And just last week we announced Alexa on Amazon’s Fire Tablets.
- #12 Ideal for Smart Home and the CEDIA channel Every room Available in 6-packs and 12-packs We will be enabling CEDIA partners to order them in bulk Echo: White & Black On Wednesday, we made a bunch of announcements. Hopefully you heard the news, but if you didn’t here's a recap: First, we announced the general availability of the all-new Echo Dot, in two colors (White & Black). The Echo Dot sells for $49 each. We’re also offering them in 6-packs and 12-packs. Buy 5 and get one free or buy 10 and get 2 free. As you can see, we’ve engineered and priced it so that you can put them in every one of your customers’ rooms! Next, we announced the original Echo is now available in White as well as black. Those of you who deal in whole-home and multi-zone audio systems know that sound travels between rooms in the real world. When a customer speaks to Alexa, when there are multiple Echo devices scattered throughout the home, you want Alexa to do the right thing and only respond in the room the customer is actually in. To enable this we’ve invented a new technology that was also announced on Weds: Echo Spatial Perception which goes by the nice acronym ESP. ESP gives Alexa the ability to perceive spatial relationships within the home. Finally, we announced that our Alexa devices are available to customers in the UK and Germany, available for the first time outside the US.

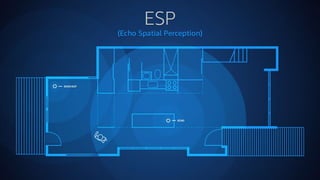

- #13 Echo Spatial Perception This shows how we are constantly innovating and enhancing the product.
- #14 I previously mentioned the Alexa ecosystem, so let’s spend a little time talking about what that means. The Alexa Ecosystem is supported by two important frameworks that provide unparalleled distribution and ways to connect with your customer. On one side we have ASK (Alexa Skills Kit) which empowers brands and developers to create rich voice experiences for their consumers; On the other side is AVS (Alexa Voice Service), which ensures that the places that Alexa can go are endless All you Have to Do Is ASK (What is the Alexa Skills Kit?) The ASK is our SDK, read human….our way of making the voice experience via Alexa possible. ASK gives you the ability to create new voice-driven capabilities (also known as skills, think Apps) for Alexa using the new Alexa Skills Kit (ASK). You can connect existing services to Alexa in minutes with just a few lines of code. You can also build entirely new voice-powered experiences in a matter of hours, even if you know nothing about speech recognition or natural language processing. AVS: Serving a Platform Agnostic Voice Experience Let’s start with AVS, it’s through the Alexa Voice Service that, hardware manufacturers and other participants in the new and exciting world of the Internet of Things (IoT) can incorporate an Alexa-driven voice experience into their devices. Any device that has a speaker, a microphone, and an Internet connection can integrate Alexa with a few lines of code. This enables a platform agnostic growth strategy that ends with your consumer having one, if not multiple seamless touch-points to a world by voice. Just imagine what that means… While right now there are two Amazon provided endpoints, picture everything from a car to a microwave to a pen, and more...all enabled to deliver an experience by voice
- #15 Talk briefly about how AVS enables us to get wider distribution. Skills and interactions are not limited to first party devices. Tons of other integrations from hardware manufacturrers
- #16 But the focus of today is the Alexa skills kit. And we’ll be focussing on custom skills.

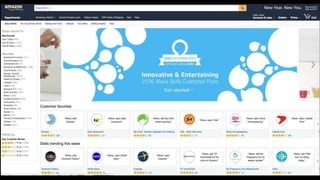

- #18 Talk about the consumer experience
- #31 Let’s take a step back and look under the hood of ASK. When the user makes a request of Alexa, all of THIS happens in just seconds...resulting in audio and/or visual feedback to the user. So how does this work... The customer speaks into a device Ex. Alexa, what do I make for dinner? Ex. Alexa, play a song from Bruno Mars We send an audio file up to the Alexa Service sitting in the cloud. Alexa identifies your skill and recognizes intent through Automated Speech Recognition (ASR) and Natural Language Understanding (NLU) Alexa passes the intent and variables (ie. slots) to your service, where you process and return VUI and GUI Graphical Experiences are delivered via the companion app, and on companion screens with the recent launch on FireTV VUI, again, through the speaker (could be text or audio file)
- #32 Demos of the developer portal screens. Hidden slides that follow show what to enter or demonstrate.
- #47 Demos of the developer portal screens. Hidden slides that follow show what to enter or demonstrate.
