1. Delivering Hybrid Cloud Solutions
with KEMP LoadMaster and
Microsoft Azure
Layer 7 Application Delivery in the Microsoft Azure Cloud
New York: 631-345-5292 • Limerick: +353-61-260-101 • Hannover: +49-511-367393-0 • Singapore: +65-62222429

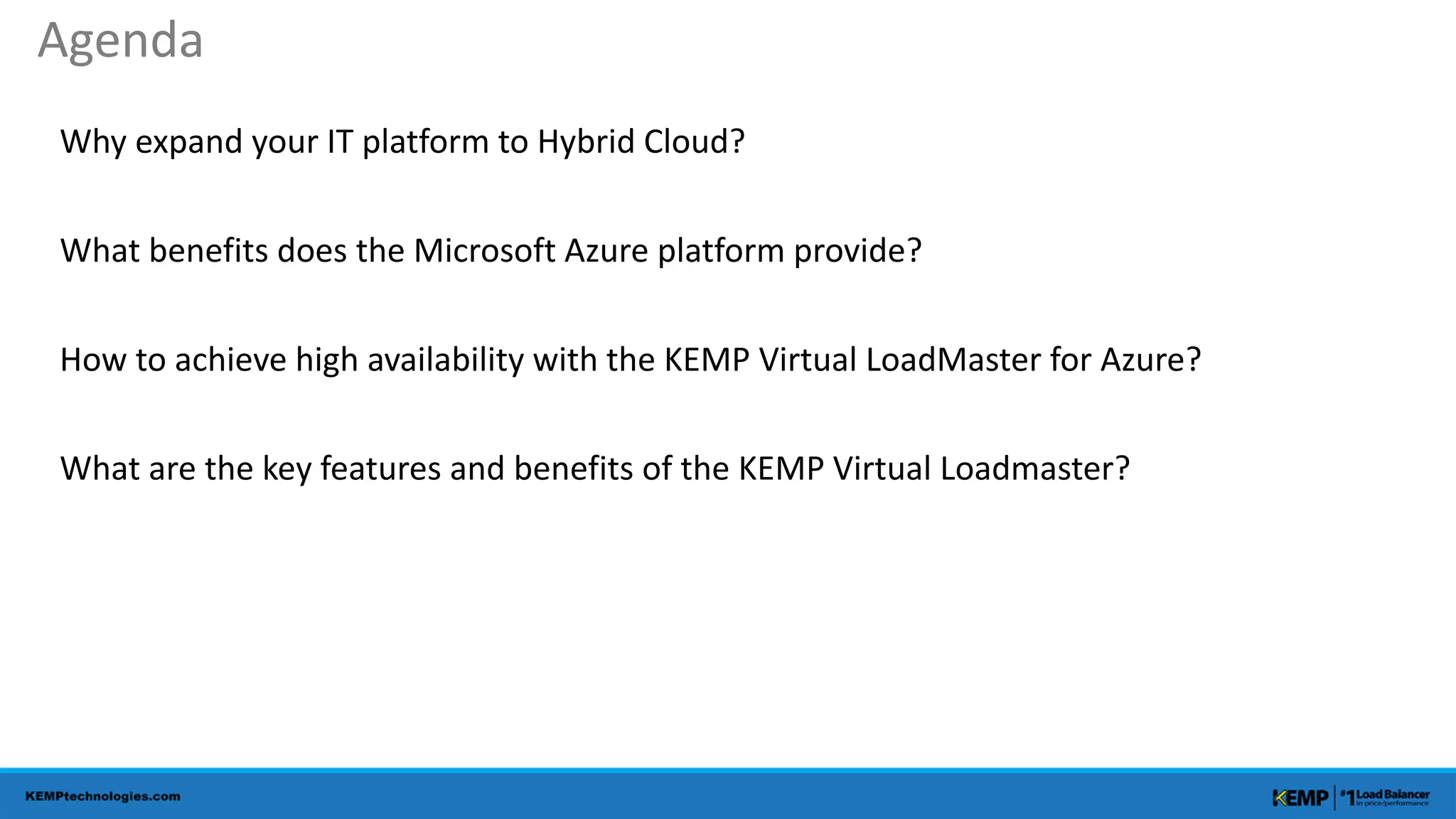

2. Why expand your IT platform to Hybrid Cloud?
What benefits does the Microsoft Azure platform provide?
How to achieve high availability with the KEMP Virtual LoadMaster for Azure?
What are the key features and benefits of the KEMP Virtual Loadmaster?
Agenda

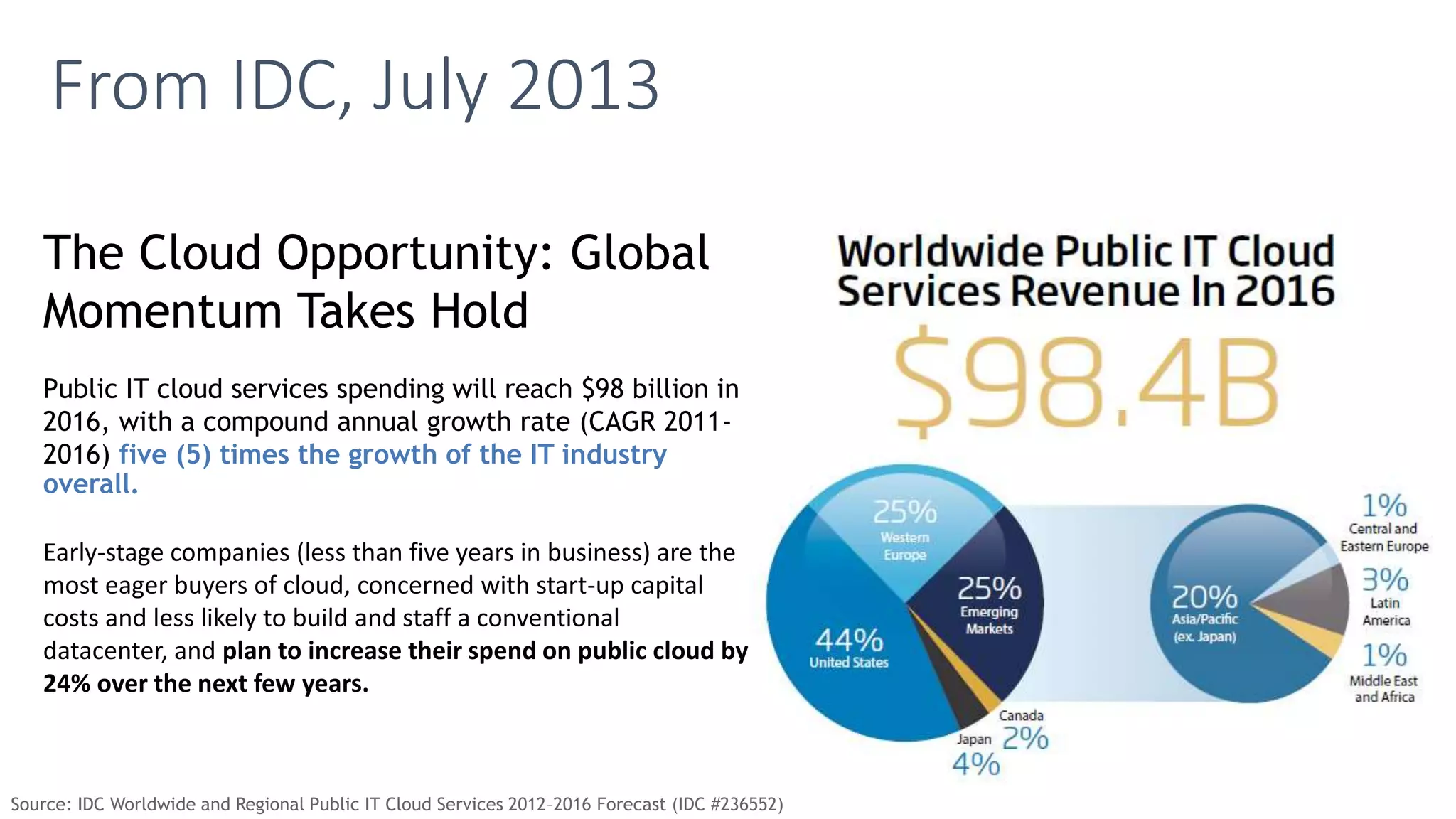

3. From IDC, July 2013
The Cloud Opportunity: Global
Momentum Takes Hold
Public IT cloud services spending will reach $98 billion in
2016, with a compound annual growth rate (CAGR 2011-
2016) five (5) times the growth of the IT industry
overall.
Early-stage companies (less than five years in business) are the
most eager buyers of cloud, concerned with start-up capital
costs and less likely to build and staff a conventional
datacenter, and plan to increase their spend on public cloud by
24% over the next few years.
Source: IDC Worldwide and Regional Public IT Cloud Services 2012–2016 Forecast (IDC #236552)

4. How do I help my
business make faster
decisions?
How can I ensure my
infrastructure will
scale to
meet demand?
Can I enable
employees to work
from anywhere?
How can I evolve my
business apps
to meet new needs?

5. 5

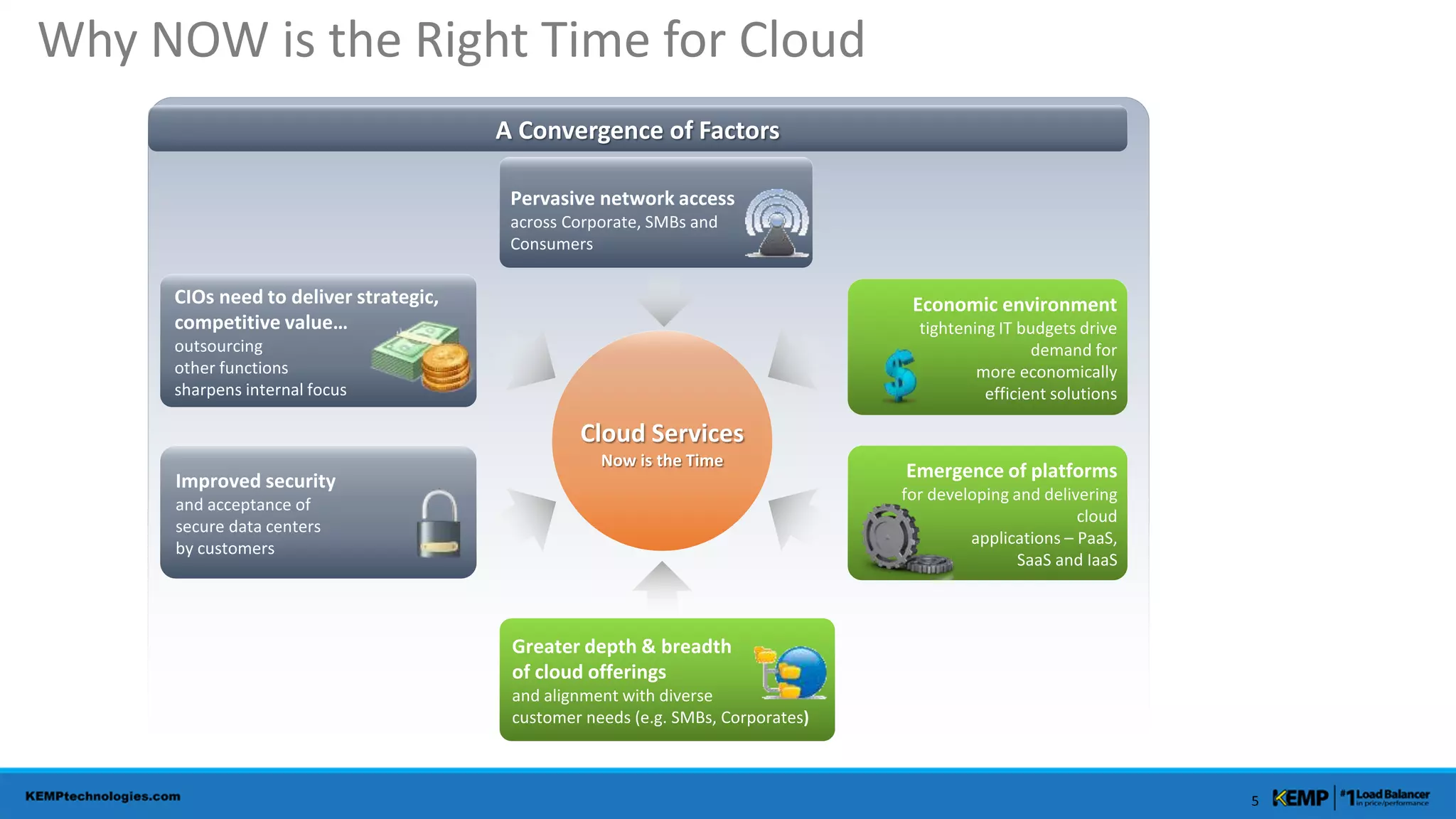

Why NOW is the Right Time for Cloud

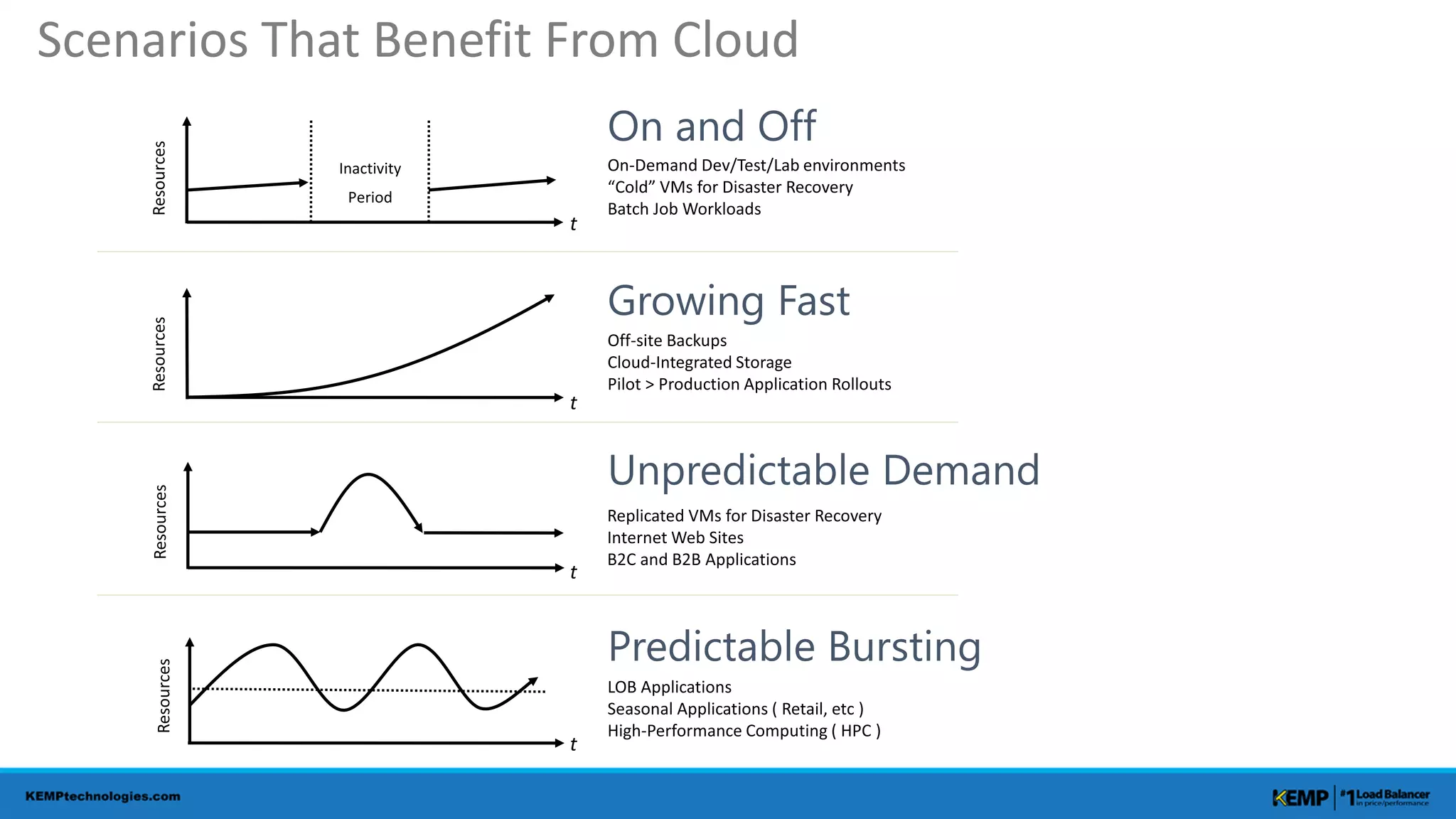

6. Scenarios That Benefit From Cloud

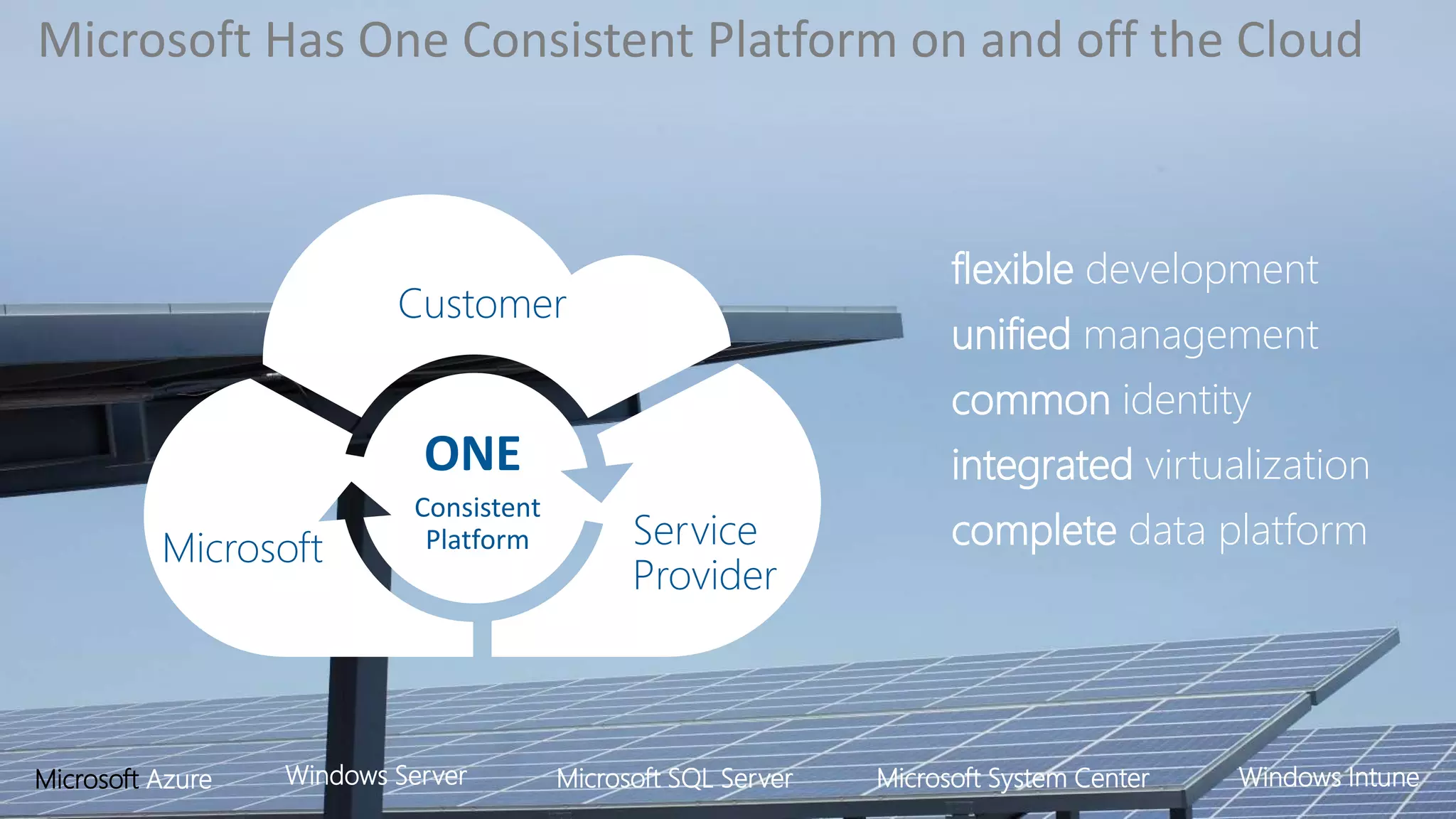

7. flexible development
unified management
common identity
integrated virtualization
complete data platform
Microsoft Azure Windows Server Microsoft SQL Server Microsoft System Center Windows Intune
Microsoft Has One Consistent Platform on and off the Cloud

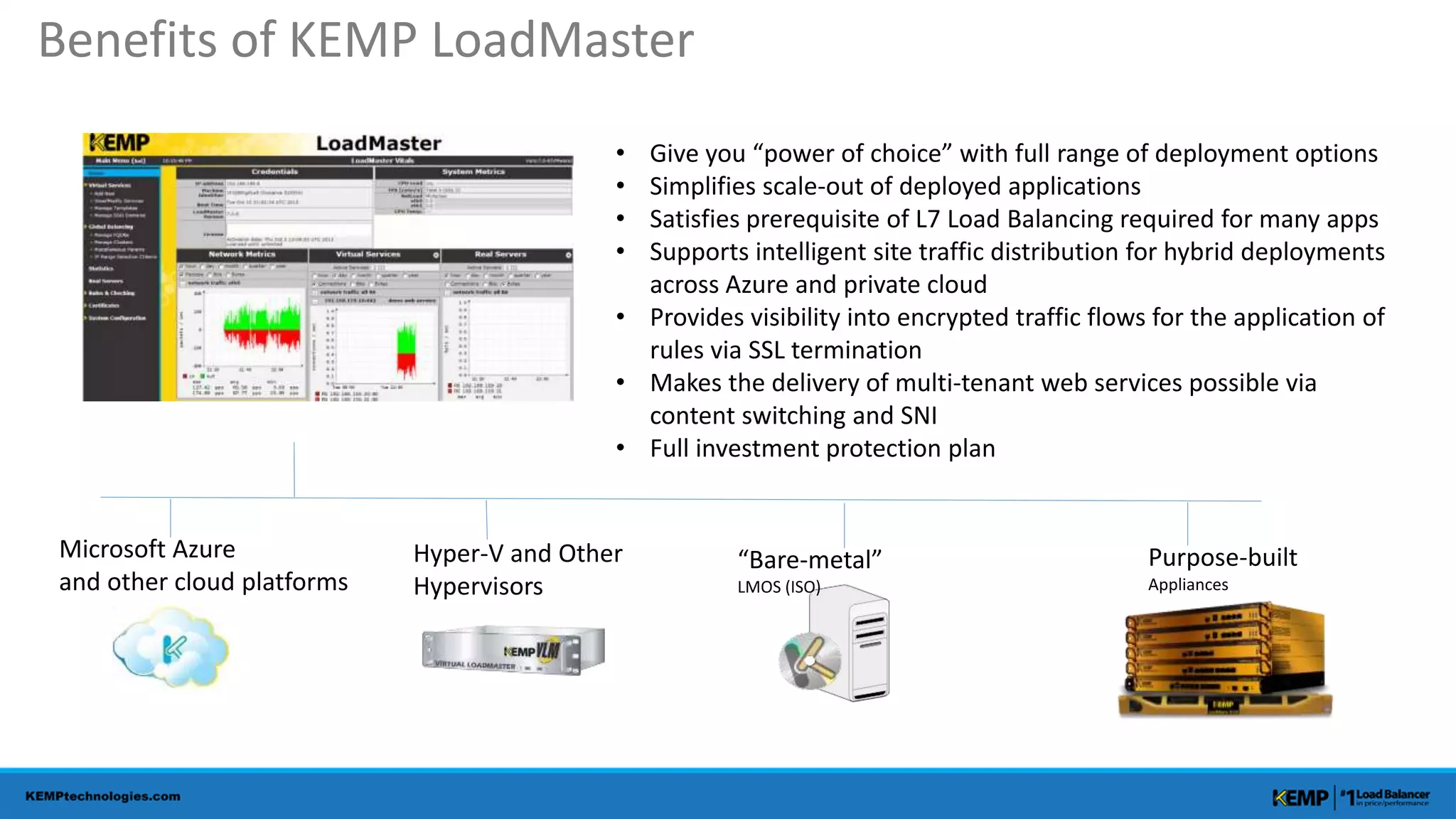

8. Microsoft Azure
and other cloud platforms
Hyper-V and Other
Hypervisors
“Bare-metal”
LMOS (ISO)
Purpose-built
Appliances
• Give you “power of choice” with full range of deployment options
• Simplifies scale-out of deployed applications
• Satisfies prerequisite of L7 Load Balancing required for many apps
• Supports intelligent site traffic distribution for hybrid deployments
across Azure and private cloud
• Provides visibility into encrypted traffic flows for the application of
rules via SSL termination
• Makes the delivery of multi-tenant web services possible via
content switching and SNI
• Full investment protection plan
Benefits of KEMP LoadMaster

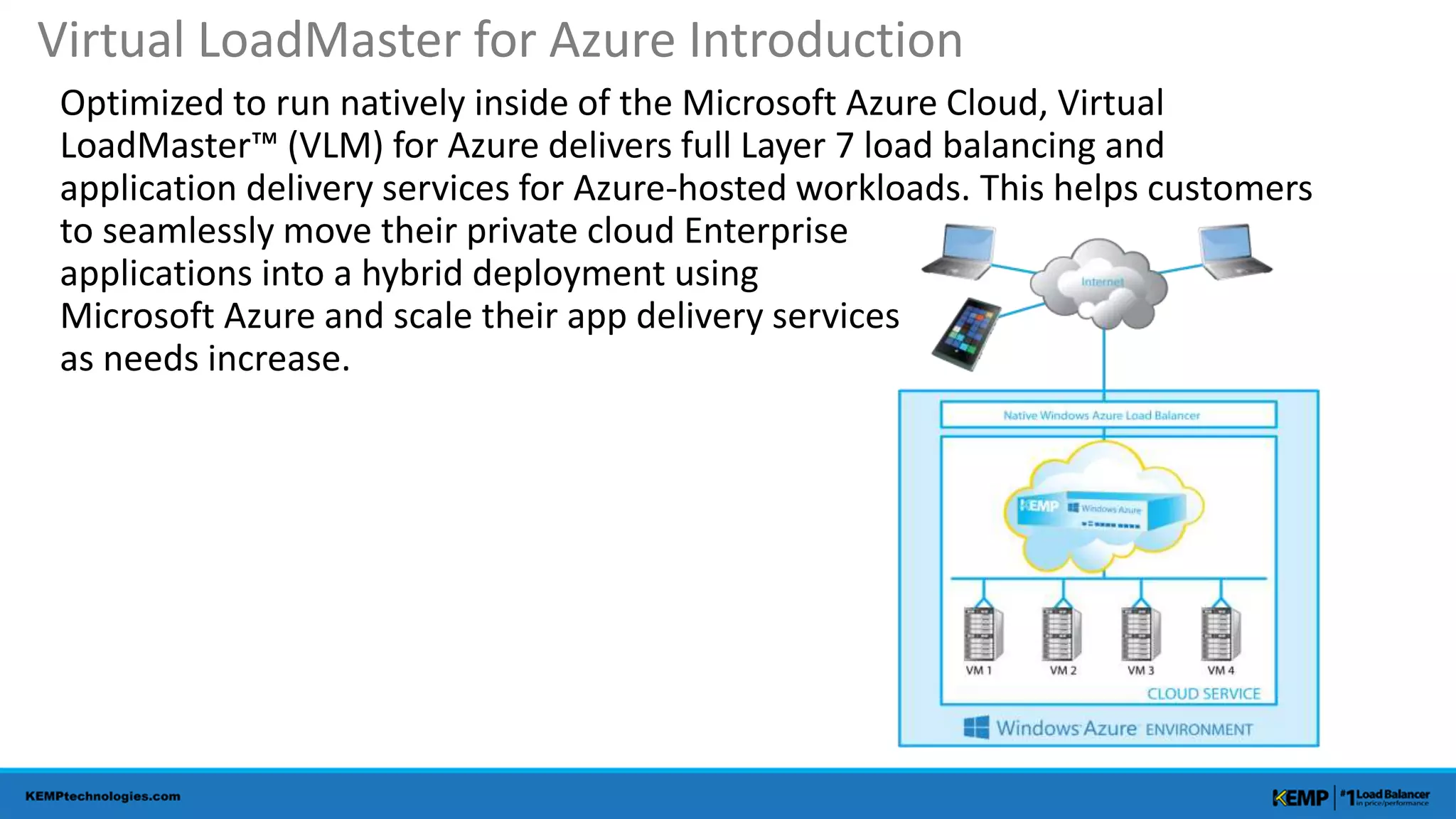

9. Optimized to run natively inside of the Microsoft Azure Cloud, Virtual
LoadMaster™ (VLM) for Azure delivers full Layer 7 load balancing and
application delivery services for Azure-hosted workloads. This helps customers
to seamlessly move their private cloud Enterprise
applications into a hybrid deployment using
Microsoft Azure and scale their app delivery services
as needs increase.
Virtual LoadMaster for Azure Introduction

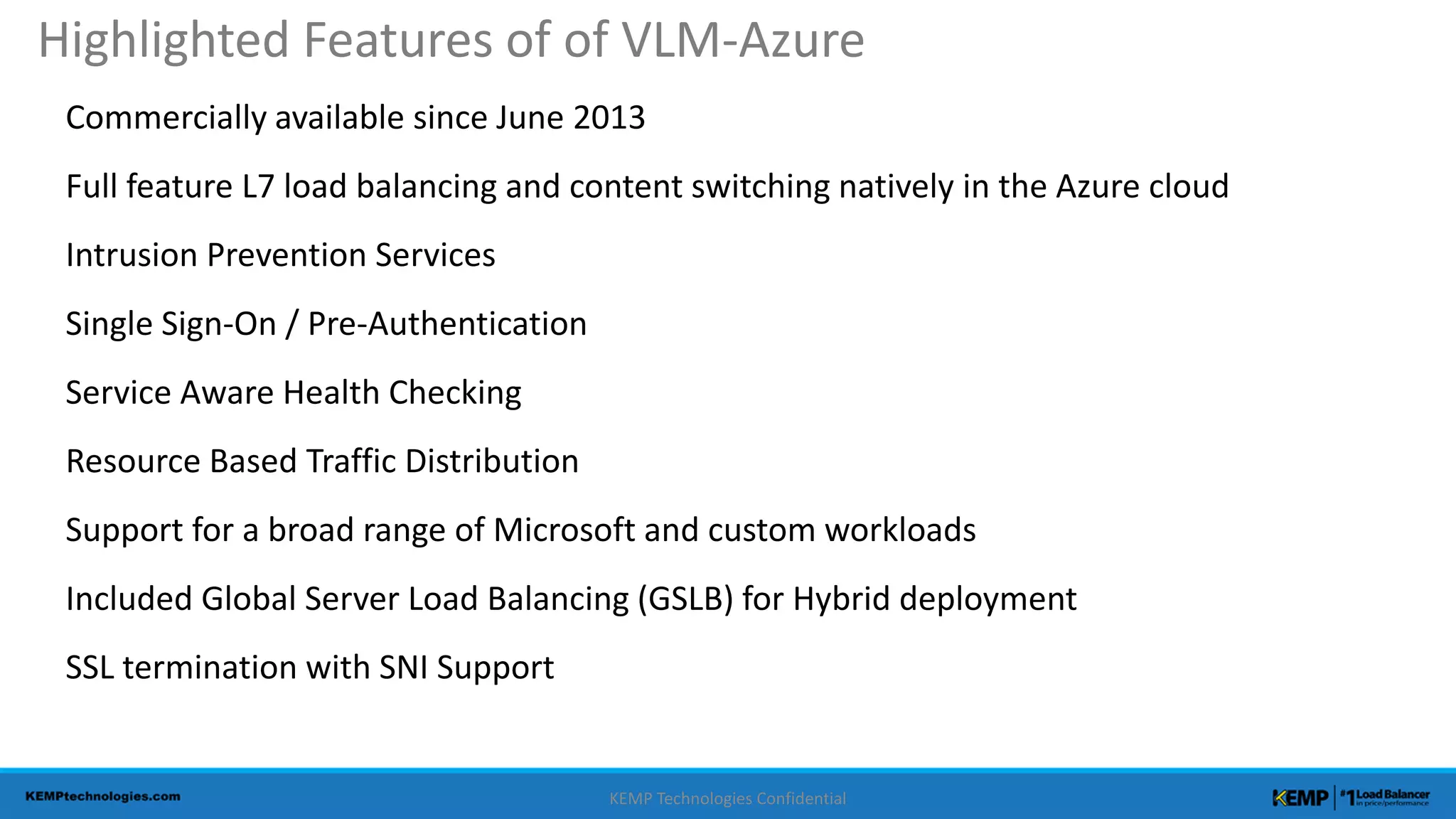

10. Commercially available since June 2013
Full feature L7 load balancing and content switching natively in the Azure cloud
Intrusion Prevention Services
Single Sign-On / Pre-Authentication
Service Aware Health Checking
Resource Based Traffic Distribution
Support for a broad range of Microsoft and custom workloads
Included Global Server Load Balancing (GSLB) for Hybrid deployment
SSL termination with SNI Support
KEMP Technologies Confidential
Highlighted Features of of VLM-Azure

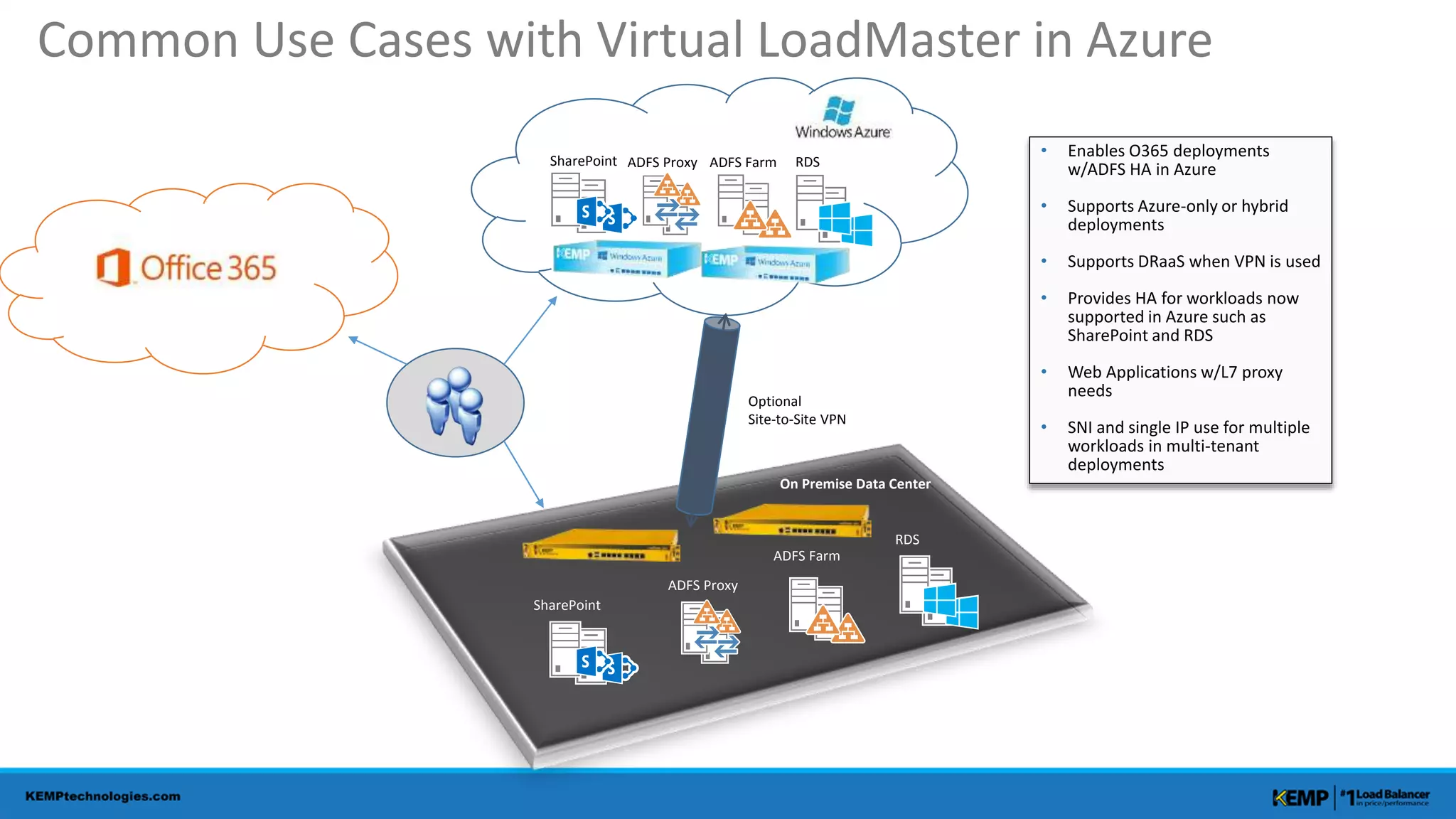

11. SharePoint ADFS Proxy ADFS Farm RDS
SharePoint
ADFS Proxy
ADFS Farm
RDS
Optional
Site-to-Site VPN
On Premise Data Center
• Enables O365 deployments
w/ADFS HA in Azure
• Supports Azure-only or hybrid
deployments
• Supports DRaaS when VPN is used
• Provides HA for workloads now
supported in Azure such as
SharePoint and RDS
• Web Applications w/L7 proxy
needs
• SNI and single IP use for multiple
workloads in multi-tenant
deployments
Common Use Cases with Virtual LoadMaster in Azure

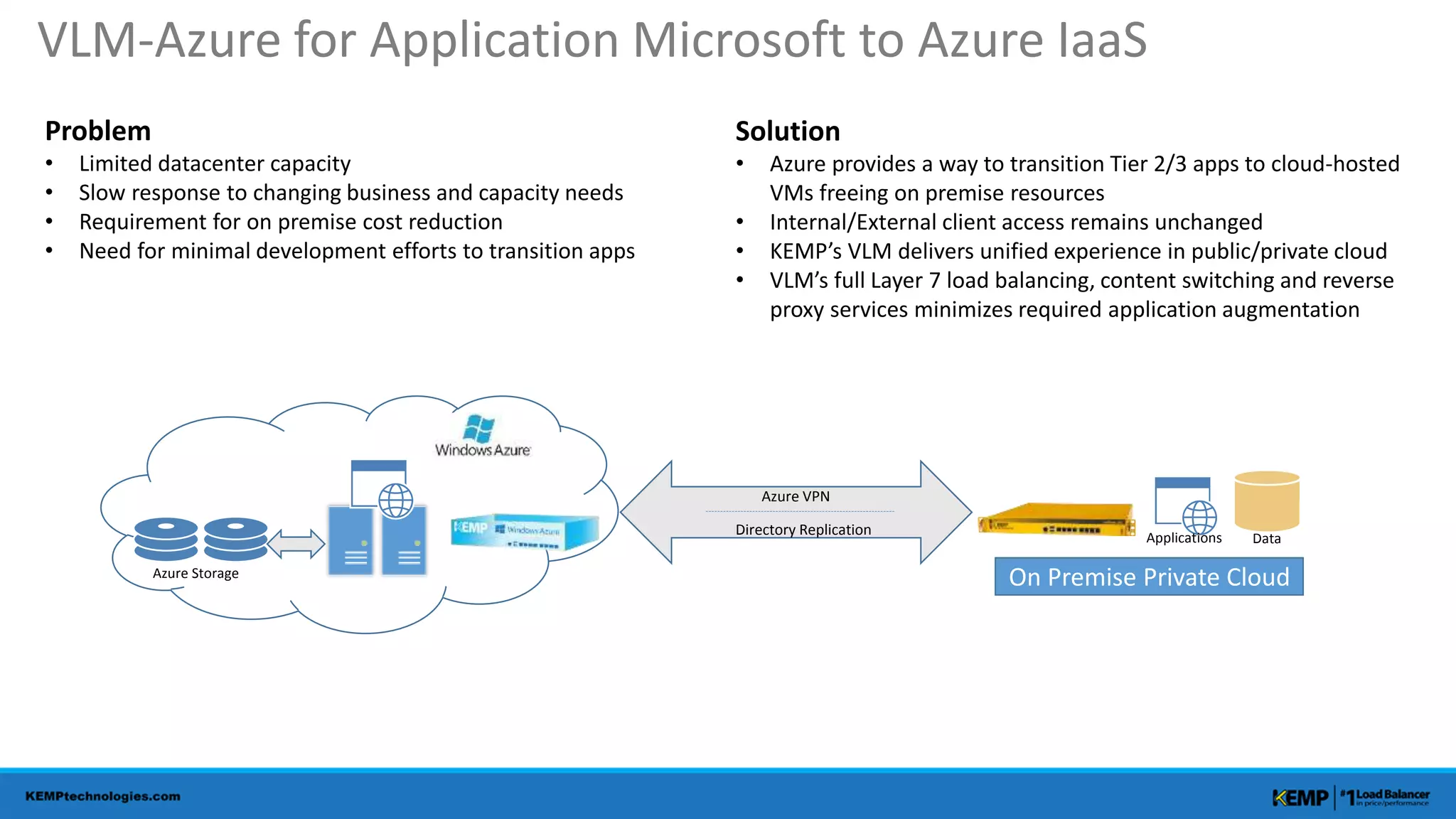

12. Azure Storage
Data
On Premise Private Cloud
Applications
Azure VPN
VLM-Azure for Application Microsoft to Azure IaaS
Directory Replication
Problem
• Limited datacenter capacity
• Slow response to changing business and capacity needs
• Requirement for on premise cost reduction
• Need for minimal development efforts to transition apps
Solution
• Azure provides a way to transition Tier 2/3 apps to cloud-hosted
VMs freeing on premise resources
• Internal/External client access remains unchanged
• KEMP’s VLM delivers unified experience in public/private cloud
• VLM’s full Layer 7 load balancing, content switching and reverse
proxy services minimizes required application augmentation

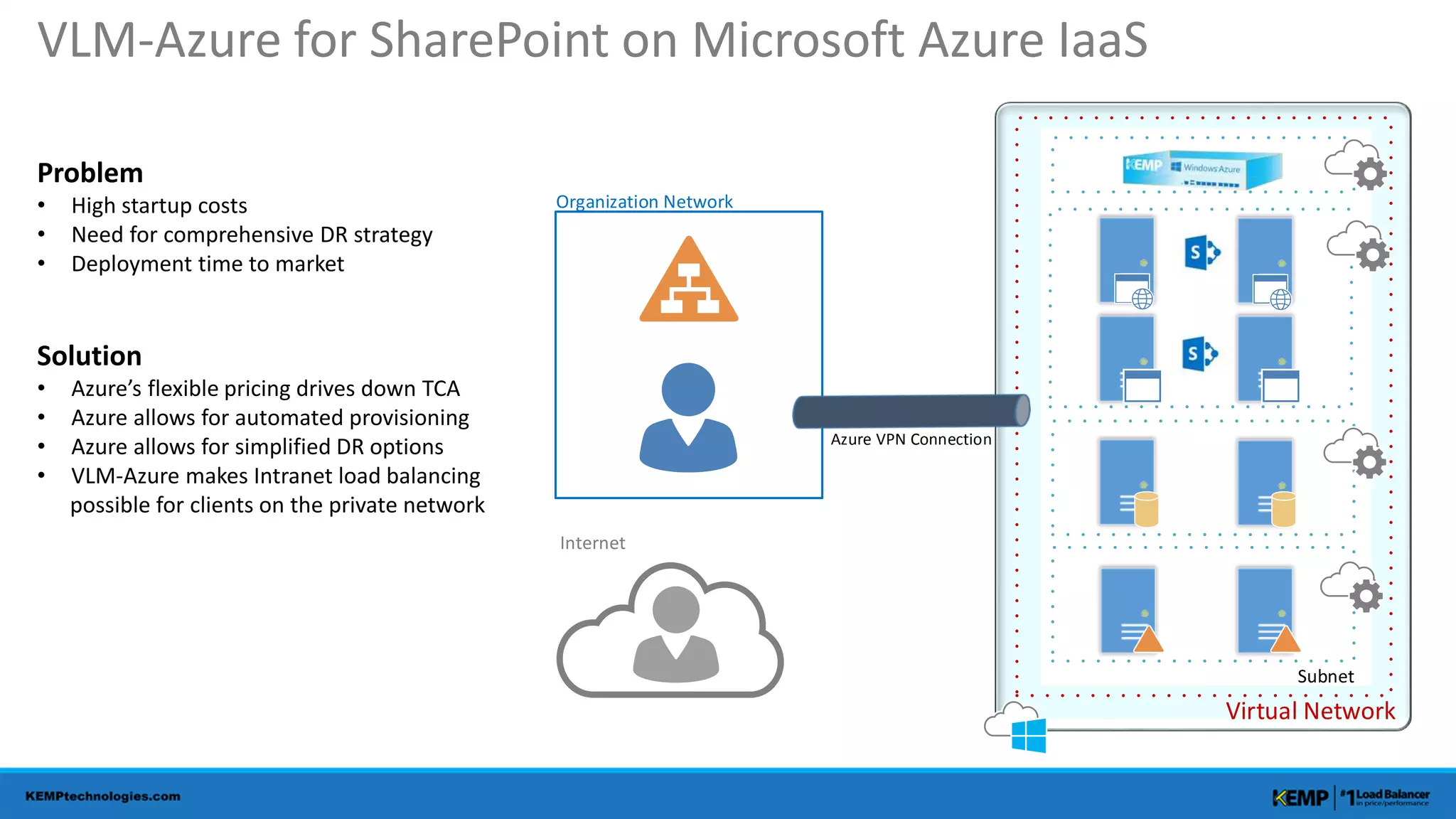

13. Virtual Network
Subnet
Organization Network
Azure VPN Connection
Internet
VLM-Azure for SharePoint on Microsoft Azure IaaS
Problem
• High startup costs
• Need for comprehensive DR strategy
• Deployment time to market
Solution
• Azure’s flexible pricing drives down TCA
• Azure allows for automated provisioning
• Azure allows for simplified DR options
• VLM-Azure makes Intranet load balancing
possible for clients on the private network

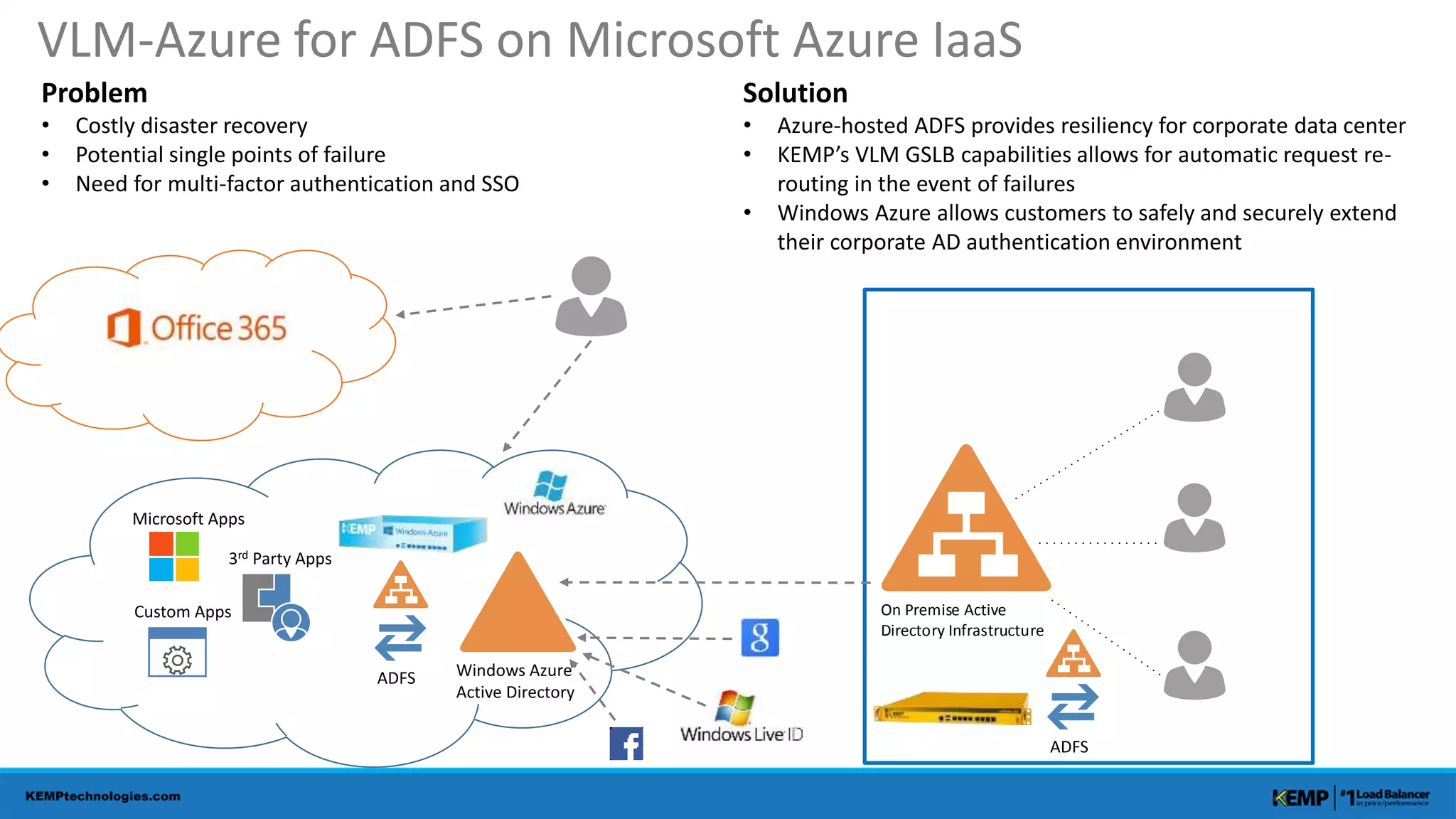

14. VLM-Azure for ADFS on Microsoft Azure IaaS
Microsoft Apps
Custom Apps
3rd Party Apps
Windows Azure
Active Directory
On Premise Active
Directory Infrastructure
ADFS
Problem
• Costly disaster recovery
• Potential single points of failure
• Need for multi-factor authentication and SSO
Solution
• Azure-hosted ADFS provides resiliency for corporate data center
• KEMP’s VLM GSLB capabilities allows for automatic request re-
routing in the event of failures
• Windows Azure allows customers to safely and securely extend
their corporate AD authentication environment
ADFS

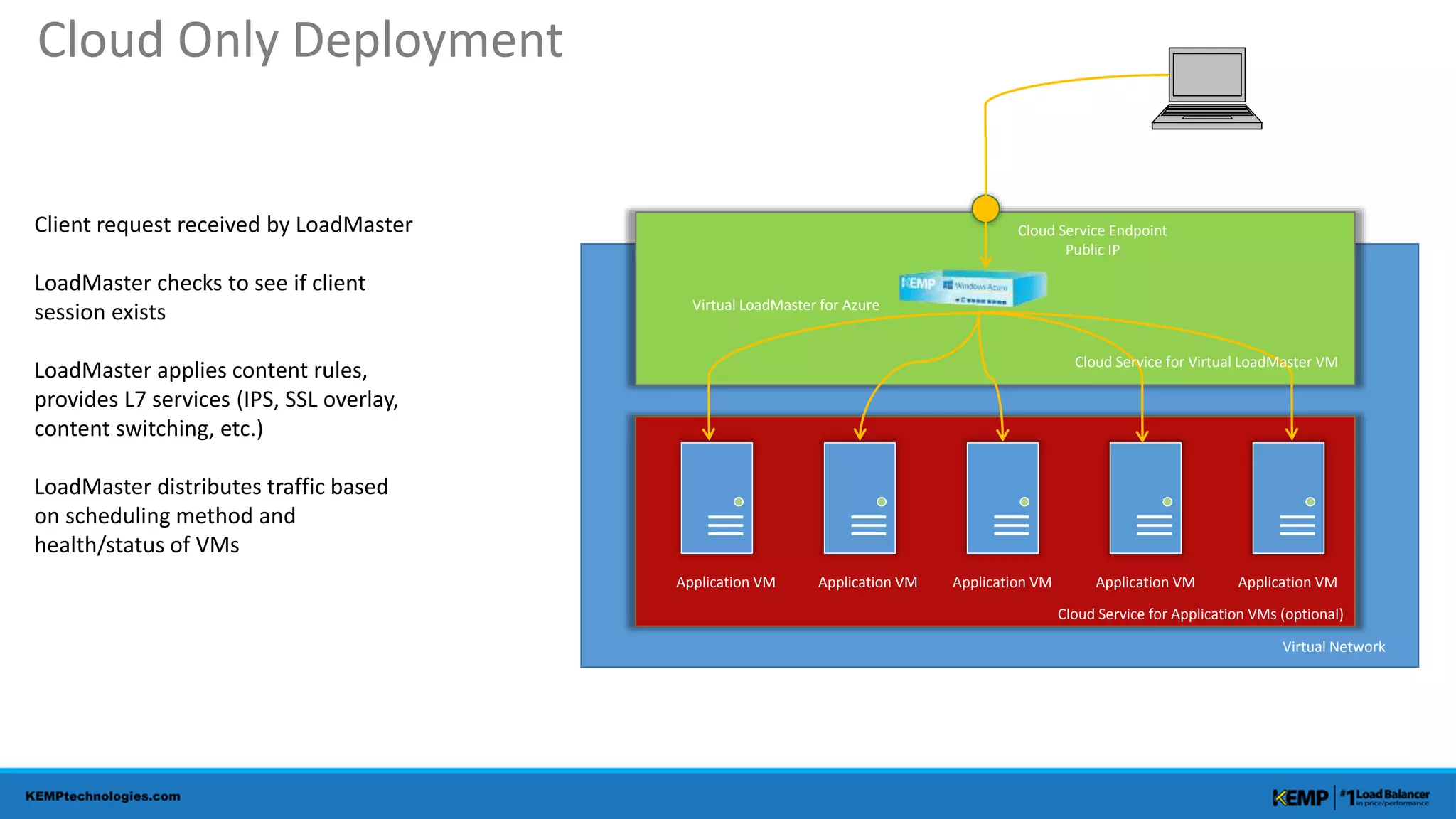

15. Virtual LoadMaster for Azure
Application VM Application VM Application VM Application VMApplication VM
Virtual Network
Cloud Service Endpoint
Public IP
Cloud Service for Application VMs (optional)
Cloud Only Deployment
Cloud Service for Virtual LoadMaster VM
Client request received by LoadMaster
LoadMaster checks to see if client
session exists
LoadMaster applies content rules,
provides L7 services (IPS, SSL overlay,
content switching, etc.)
LoadMaster distributes traffic based
on scheduling method and
health/status of VMs

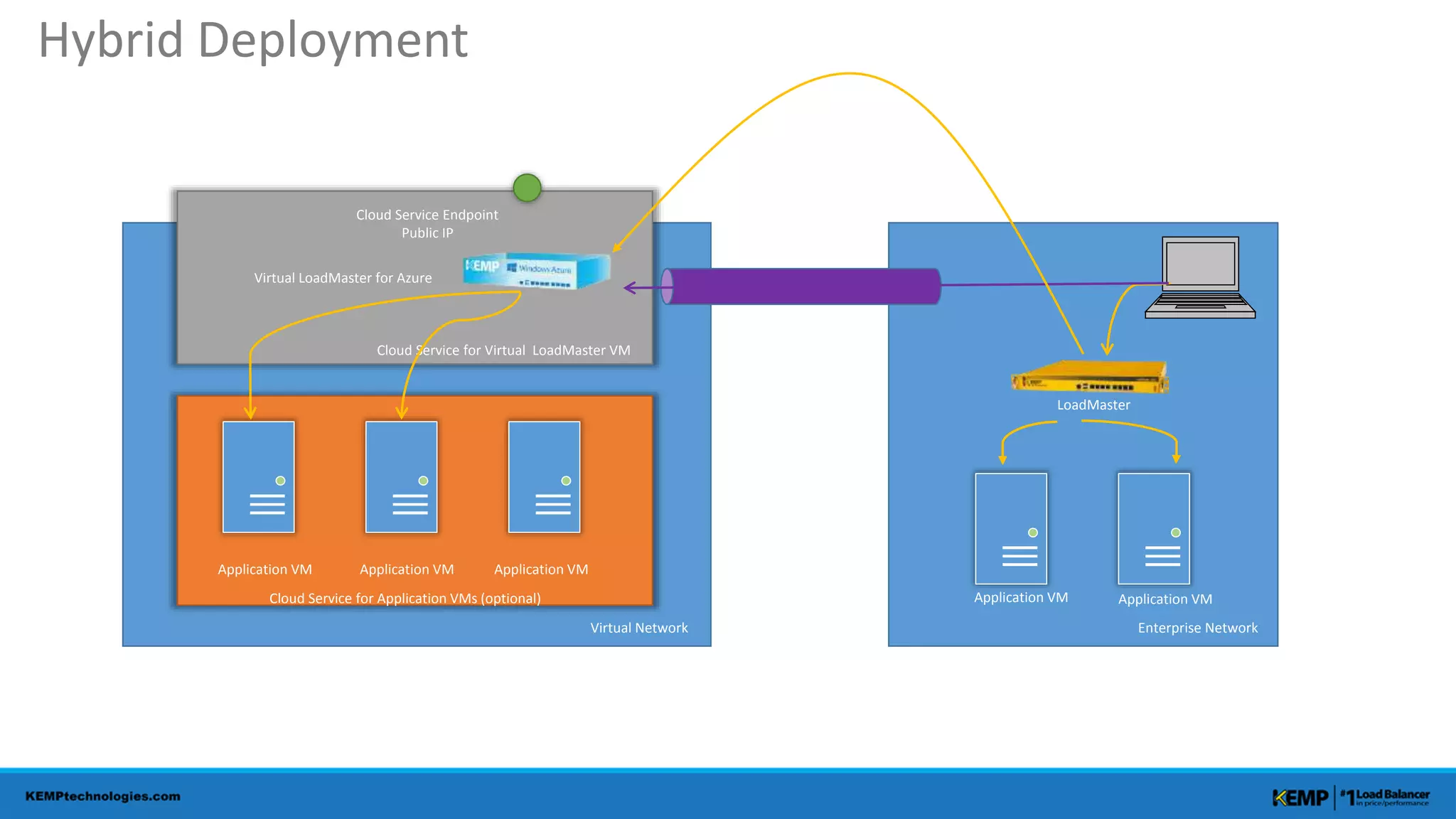

16. Virtual LoadMaster for Azure
Application VM Application VMApplication VM
Virtual Network
Cloud Service Endpoint
Public IP
Cloud Service for Virtual LoadMaster VM
Cloud Service for Application VMs (optional) Application VM Application VM
LoadMaster
Enterprise Network
Hybrid Deployment

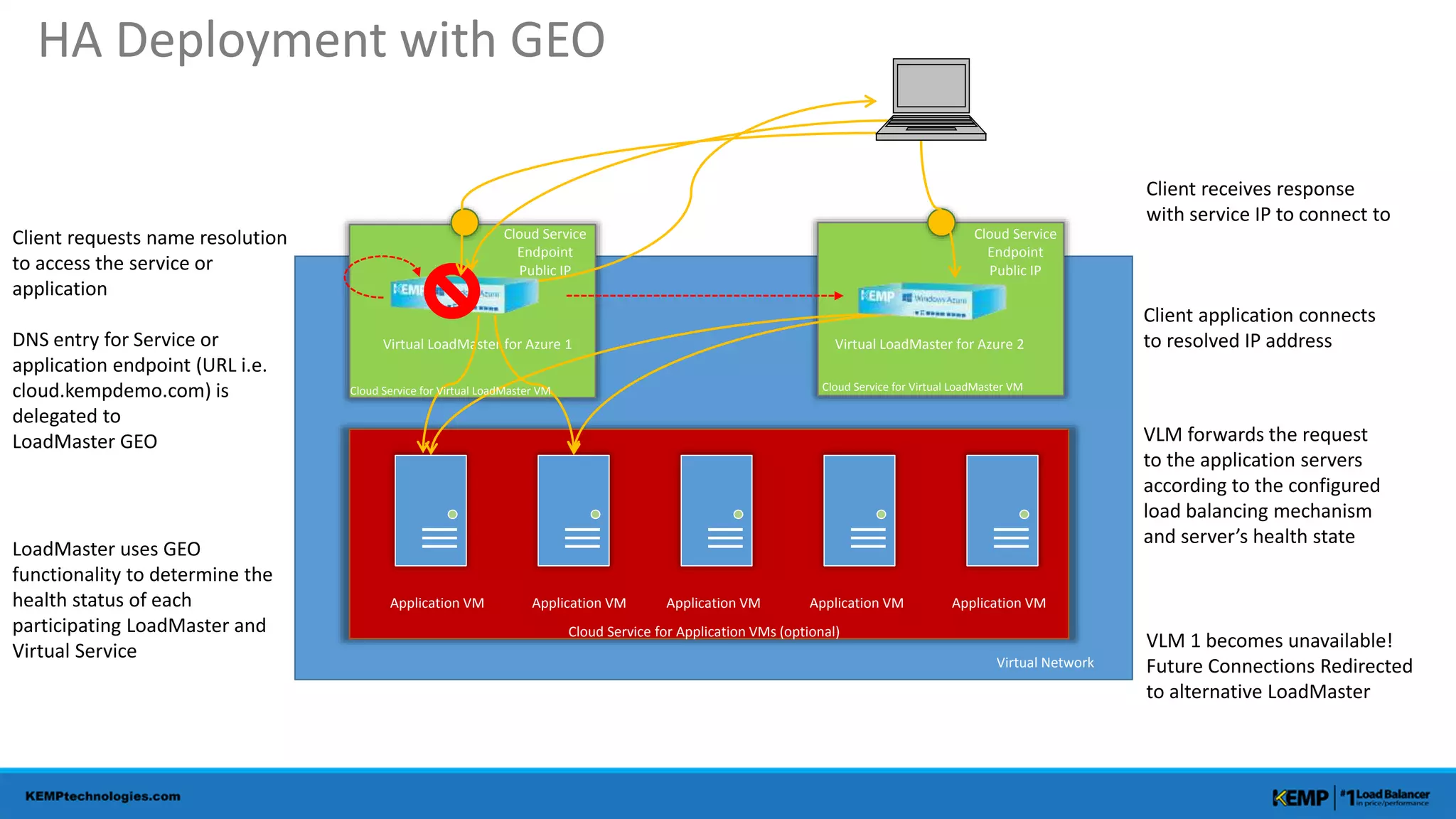

17. Virtual LoadMaster for Azure 1
Application VM Application VM Application VM Application VMApplication VM
Virtual Network
Cloud Service
Endpoint
Public IP
Cloud Service for Virtual LoadMaster VM
Cloud Service for Application VMs (optional)
Client requests name resolution
to access the service or
application
DNS entry for Service or
application endpoint (URL i.e.
cloud.kempdemo.com) is
delegated to
LoadMaster GEO
LoadMaster uses GEO
functionality to determine the
health status of each
participating LoadMaster and
Virtual Service
Client receives response
with service IP to connect to
Client application connects
to resolved IP address
VLM forwards the request
to the application servers
according to the configured
load balancing mechanism
and server’s health state
Virtual LoadMaster for Azure 2
Cloud Service
Endpoint
Public IP
VLM 1 becomes unavailable!
Future Connections Redirected
to alternative LoadMaster
HA Deployment with GEO
Cloud Service for Virtual LoadMaster VM

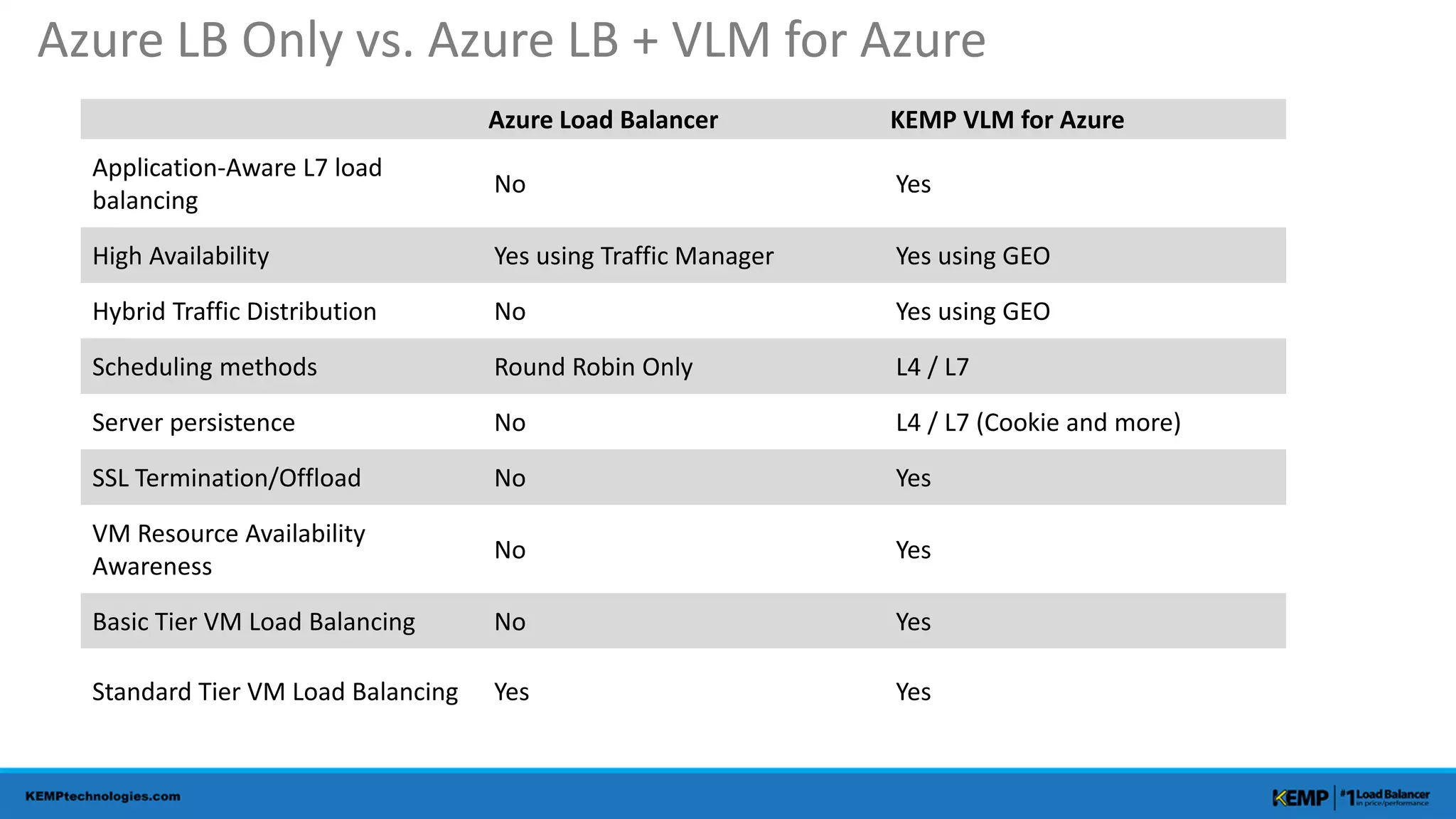

18. Azure Load Balancer KEMP VLM for Azure
Application-Aware L7 load
balancing
No Yes
High Availability Yes using Traffic Manager Yes using GEO
Hybrid Traffic Distribution No Yes using GEO
Scheduling methods Round Robin Only L4 / L7
Server persistence No L4 / L7 (Cookie and more)
SSL Termination/Offload No Yes
VM Resource Availability
Awareness
No Yes
Basic Tier VM Load Balancing No Yes
Standard Tier VM Load Balancing Yes Yes
Azure LB Only vs. Azure LB + VLM for Azure

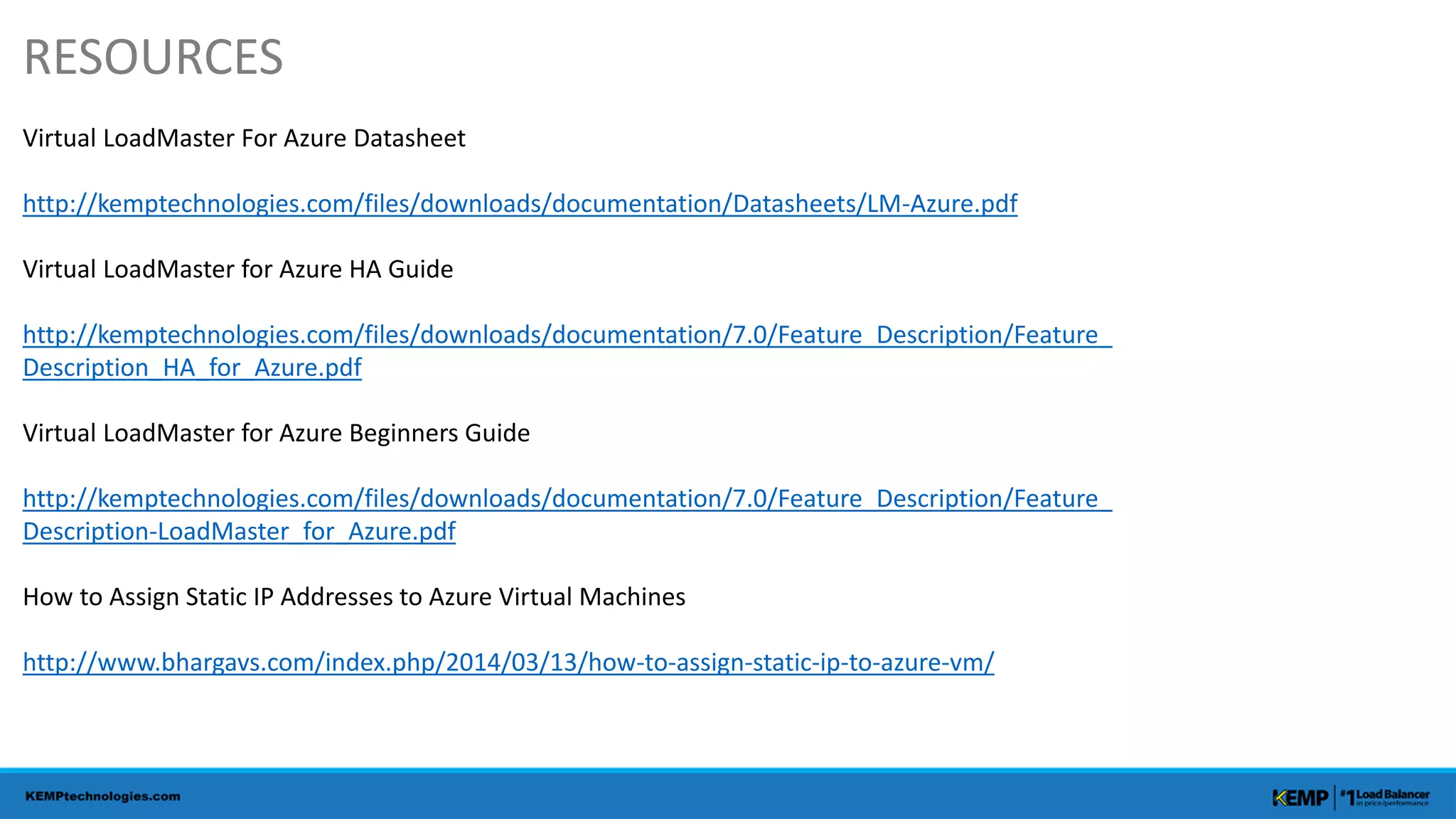

19. RESOURCES
Virtual LoadMaster For Azure Datasheet
http://kemptechnologies.com/files/downloads/documentation/Datasheets/LM-Azure.pdf
Virtual LoadMaster for Azure HA Guide
http://kemptechnologies.com/files/downloads/documentation/7.0/Feature_Description/Feature_
Description_HA_for_Azure.pdf
Virtual LoadMaster for Azure Beginners Guide
http://kemptechnologies.com/files/downloads/documentation/7.0/Feature_Description/Feature_
Description-LoadMaster_for_Azure.pdf
How to Assign Static IP Addresses to Azure Virtual Machines
http://www.bhargavs.com/index.php/2014/03/13/how-to-assign-static-ip-to-azure-vm/

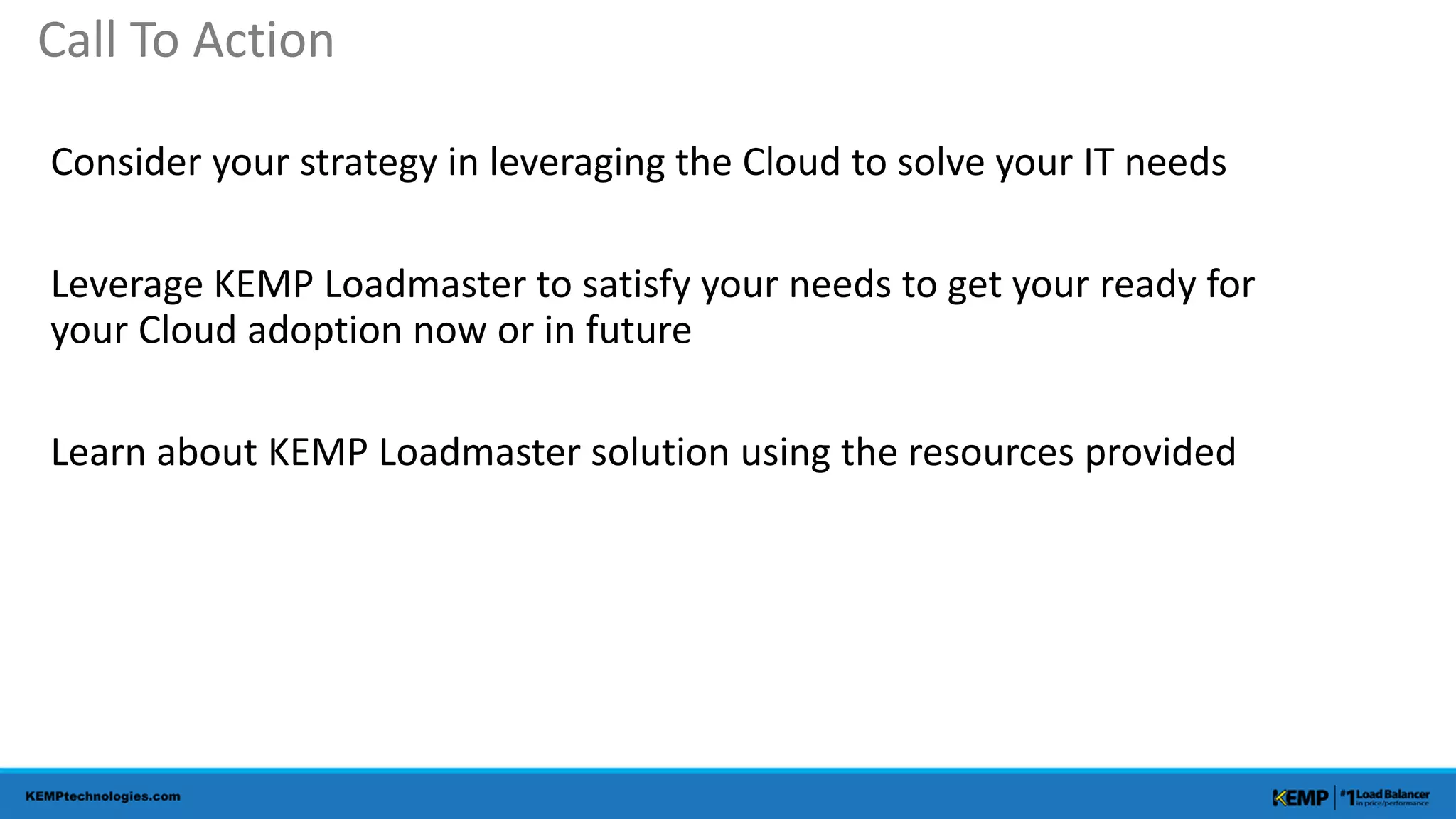

20. Consider your strategy in leveraging the Cloud to solve your IT needs
Leverage KEMP Loadmaster to satisfy your needs to get your ready for
your Cloud adoption now or in future
Learn about KEMP Loadmaster solution using the resources provided
Call To Action

21. Questions?

22. Appendix

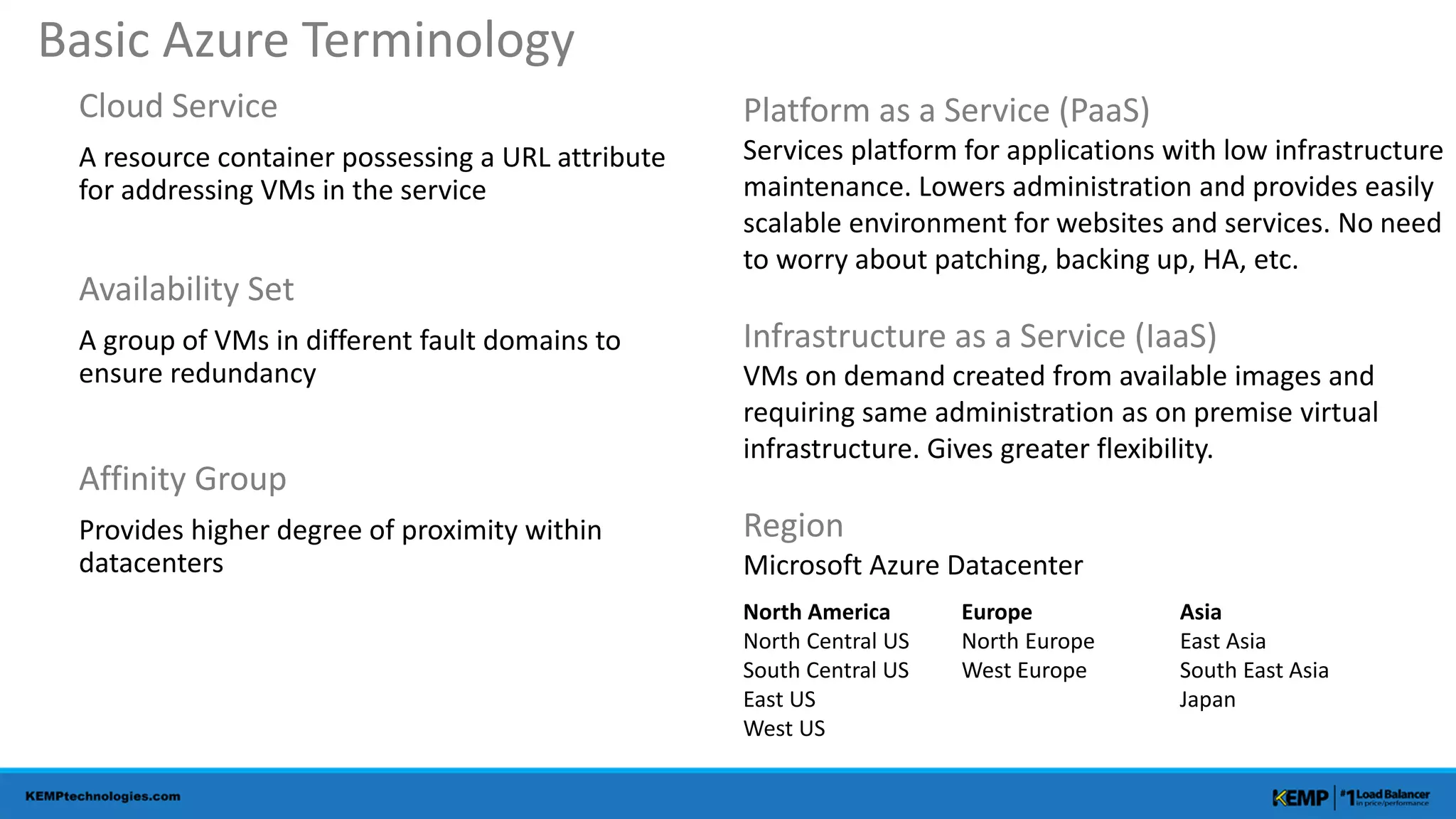

23. Cloud Service
A resource container possessing a URL attribute
for addressing VMs in the service
Availability Set
A group of VMs in different fault domains to
ensure redundancy
Affinity Group
Provides higher degree of proximity within
datacenters
Basic Azure Terminology
Platform as a Service (PaaS)
Services platform for applications with low infrastructure
maintenance. Lowers administration and provides easily
scalable environment for websites and services. No need
to worry about patching, backing up, HA, etc.
Infrastructure as a Service (IaaS)
VMs on demand created from available images and
requiring same administration as on premise virtual
infrastructure. Gives greater flexibility.
Region
Microsoft Azure Datacenter
North America Europe Asia
North Central US North Europe East Asia
South Central US West Europe South East Asia
East US Japan
West US
