Viva city open smart city platform
The document discusses challenges with open data and proposes solutions to improve data integration and semantics. It notes that open data comes in different formats like SHP and CSV that lack consistent semantics. Adding semantics and normalizing data structures would help, as would defining a meta-semantic model and treating dimensions like time, topic and space as first-class entities. Ontologies also exist for standardizing terminology across various topics.
More Related Content
Similar to Viva city open smart city platform
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
Viva city open smart city platform
- 1. VivaCity 2.0 Open Data Smart City Pla6orm Marco Montanari
- 2. HI, I’M MARCO
- 3. @ingmmo marco.montanari@gmail.com marco.montanari or sirmmo on facebook, slideshare, … hDp://ingmmo.com hDp://www.mmo.it hDps://github.com/sirmmo HI, I’M MARCO
- 4. We <3 open data!!! -‐ Almost everyone

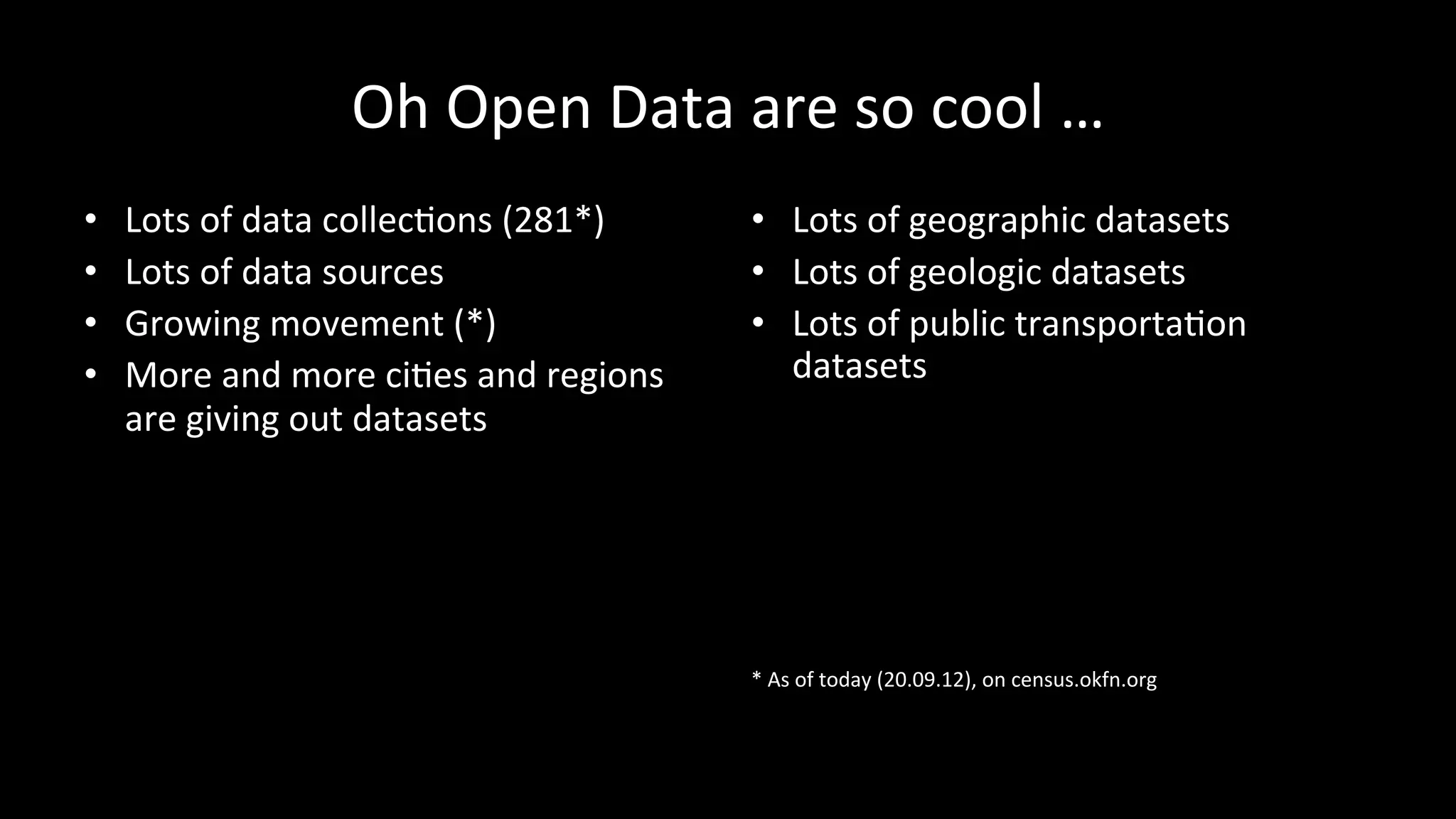

- 5. Oh Open Data are so cool … • Lots of data collecPons (281*) • Lots of data sources • Growing movement (*) • More and more ciPes and regions are giving out datasets • Lots of geographic datasets • Lots of geologic datasets • Lots of public transportaPon datasets * As of today (20.09.12), on census.okfn.org
- 6. … But There’s a catch

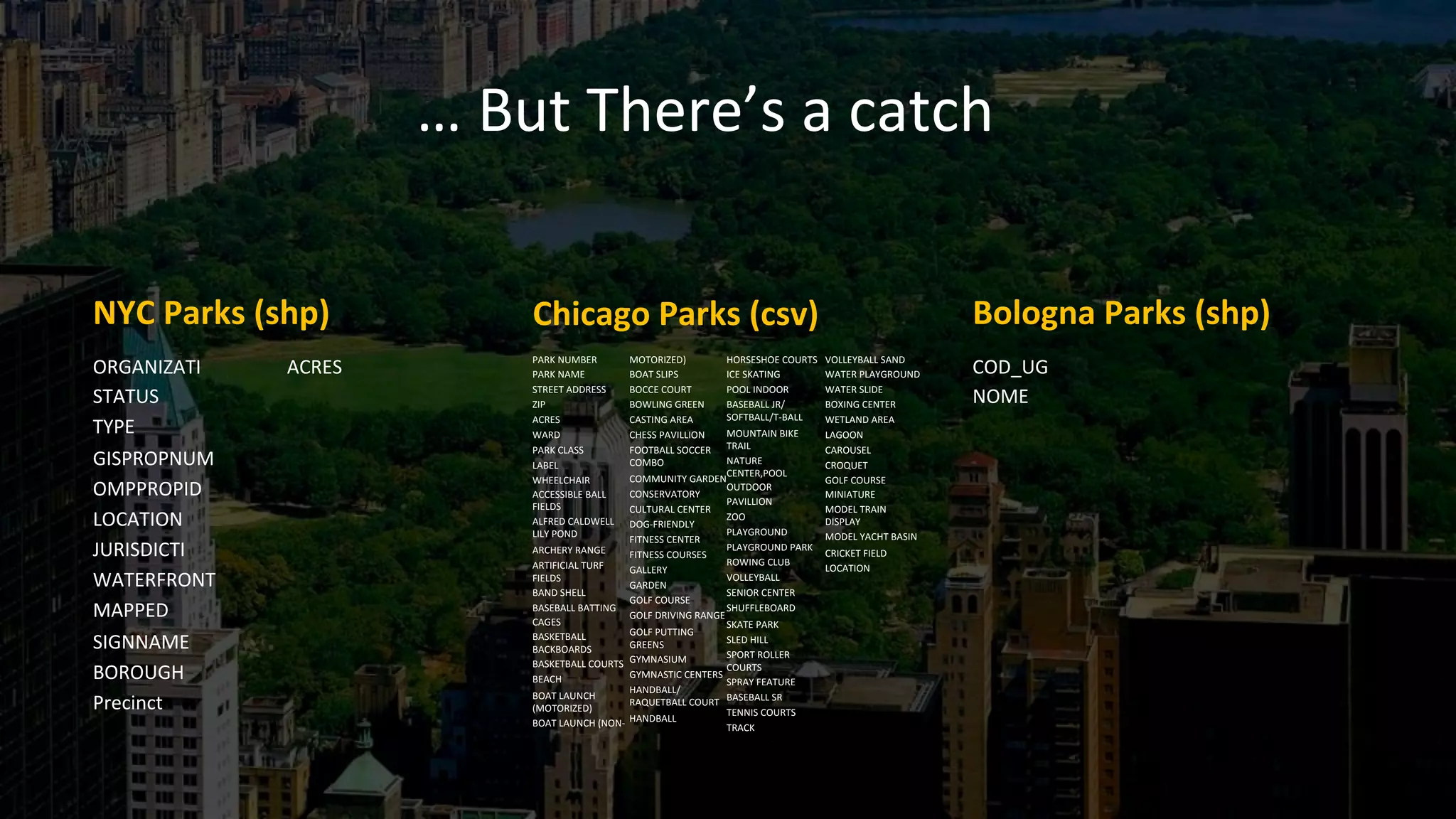

- 7. … But There’s a catch NYC Parks (shp) ORGANIZATI STATUS TYPE GISPROPNUM OMPPROPID LOCATION JURISDICTI WATERFRONT MAPPED SIGNNAME BOROUGH Precinct ACRES Chicago Parks (csv) PARK NUMBER PARK NAME STREET ADDRESS ZIP ACRES WARD PARK CLASS LABEL WHEELCHAIR ACCESSIBLE BALL FIELDS ALFRED CALDWELL LILY POND ARCHERY RANGE ARTIFICIAL TURF FIELDS BAND SHELL BASEBALL BATTING CAGES BASKETBALL BACKBOARDS BASKETBALL COURTS BEACH BOAT LAUNCH (MOTORIZED) BOAT LAUNCH (NON-‐ MOTORIZED) BOAT SLIPS BOCCE COURT BOWLING GREEN CASTING AREA CHESS PAVILLION FOOTBALL SOCCER COMBO COMMUNITY GARDEN CONSERVATORY CULTURAL CENTER DOG-‐FRIENDLY FITNESS CENTER FITNESS COURSES GALLERY GARDEN GOLF COURSE GOLF DRIVING RANGE GOLF PUTTING GREENS GYMNASIUM GYMNASTIC CENTERS HANDBALL/ RAQUETBALL COURT HANDBALL HORSESHOE COURTS ICE SKATING POOL INDOOR BASEBALL JR/ SOFTBALL/T-‐BALL MOUNTAIN BIKE TRAIL NATURE CENTER,POOL OUTDOOR PAVILLION ZOO PLAYGROUND PLAYGROUND PARK ROWING CLUB VOLLEYBALL SENIOR CENTER SHUFFLEBOARD SKATE PARK SLED HILL SPORT ROLLER COURTS SPRAY FEATURE BASEBALL SR TENNIS COURTS TRACK VOLLEYBALL SAND WATER PLAYGROUND WATER SLIDE BOXING CENTER WETLAND AREA LAGOON CAROUSEL CROQUET GOLF COURSE MINIATURE MODEL TRAIN DISPLAY MODEL YACHT BASIN CRICKET FIELD LOCATION Bologna Parks (shp) COD_UG NOME

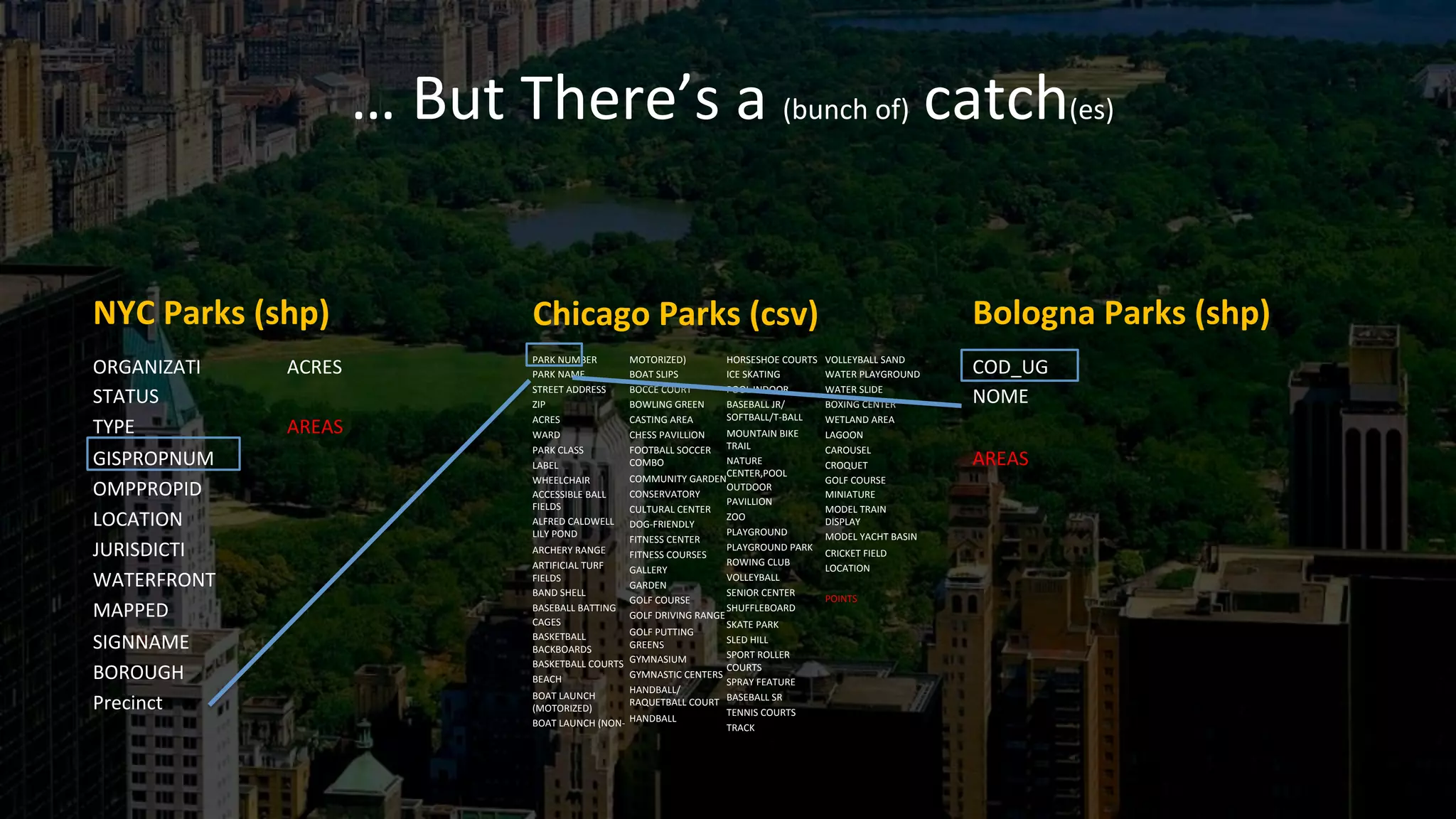

- 8. … But There’s a (bunch of) catch(es) NYC Parks (shp) ORGANIZATI STATUS TYPE GISPROPNUM OMPPROPID LOCATION JURISDICTI WATERFRONT MAPPED SIGNNAME BOROUGH Precinct ACRES AREAS Chicago Parks (csv) PARK NUMBER PARK NAME STREET ADDRESS ZIP ACRES WARD PARK CLASS LABEL WHEELCHAIR ACCESSIBLE BALL FIELDS ALFRED CALDWELL LILY POND ARCHERY RANGE ARTIFICIAL TURF FIELDS BAND SHELL BASEBALL BATTING CAGES BASKETBALL BACKBOARDS BASKETBALL COURTS BEACH BOAT LAUNCH (MOTORIZED) BOAT LAUNCH (NON-‐ MOTORIZED) BOAT SLIPS BOCCE COURT BOWLING GREEN CASTING AREA CHESS PAVILLION FOOTBALL SOCCER COMBO COMMUNITY GARDEN CONSERVATORY CULTURAL CENTER DOG-‐FRIENDLY FITNESS CENTER FITNESS COURSES GALLERY GARDEN GOLF COURSE GOLF DRIVING RANGE GOLF PUTTING GREENS GYMNASIUM GYMNASTIC CENTERS HANDBALL/ RAQUETBALL COURT HANDBALL HORSESHOE COURTS ICE SKATING POOL INDOOR BASEBALL JR/ SOFTBALL/T-‐BALL MOUNTAIN BIKE TRAIL NATURE CENTER,POOL OUTDOOR PAVILLION ZOO PLAYGROUND PLAYGROUND PARK ROWING CLUB VOLLEYBALL SENIOR CENTER SHUFFLEBOARD SKATE PARK SLED HILL SPORT ROLLER COURTS SPRAY FEATURE BASEBALL SR TENNIS COURTS TRACK VOLLEYBALL SAND WATER PLAYGROUND WATER SLIDE BOXING CENTER WETLAND AREA LAGOON CAROUSEL CROQUET GOLF COURSE MINIATURE MODEL TRAIN DISPLAY MODEL YACHT BASIN CRICKET FIELD LOCATION POINTS Bologna Parks (shp) COD_UG NOME AREAS

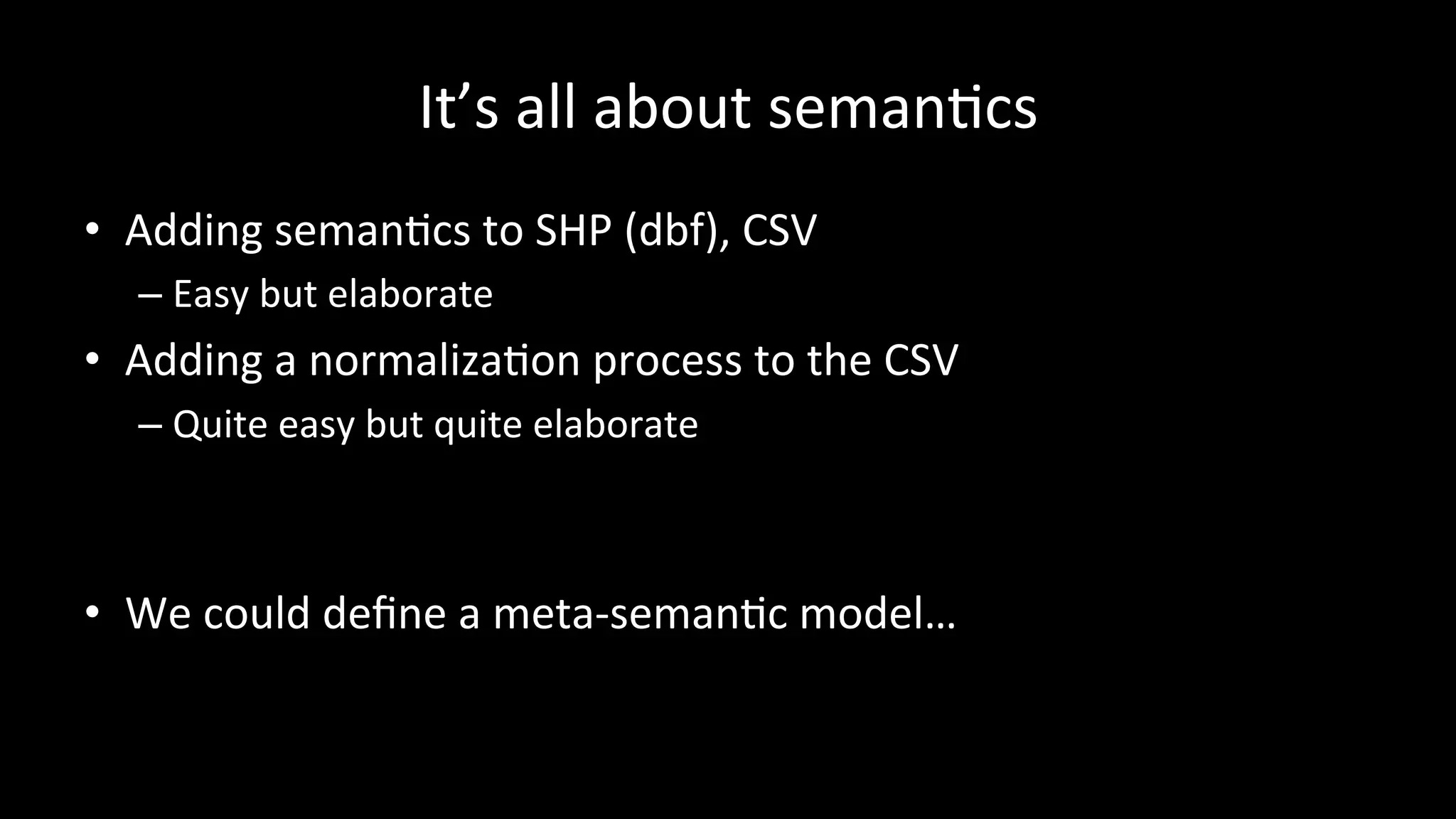

- 10. It’s all about semanPcs • Adding semanPcs to SHP (dbf), CSV – Easy but elaborate • Adding a normalizaPon process to the CSV – Quite easy but quite elaborate • We could define a meta-‐semanPc model…

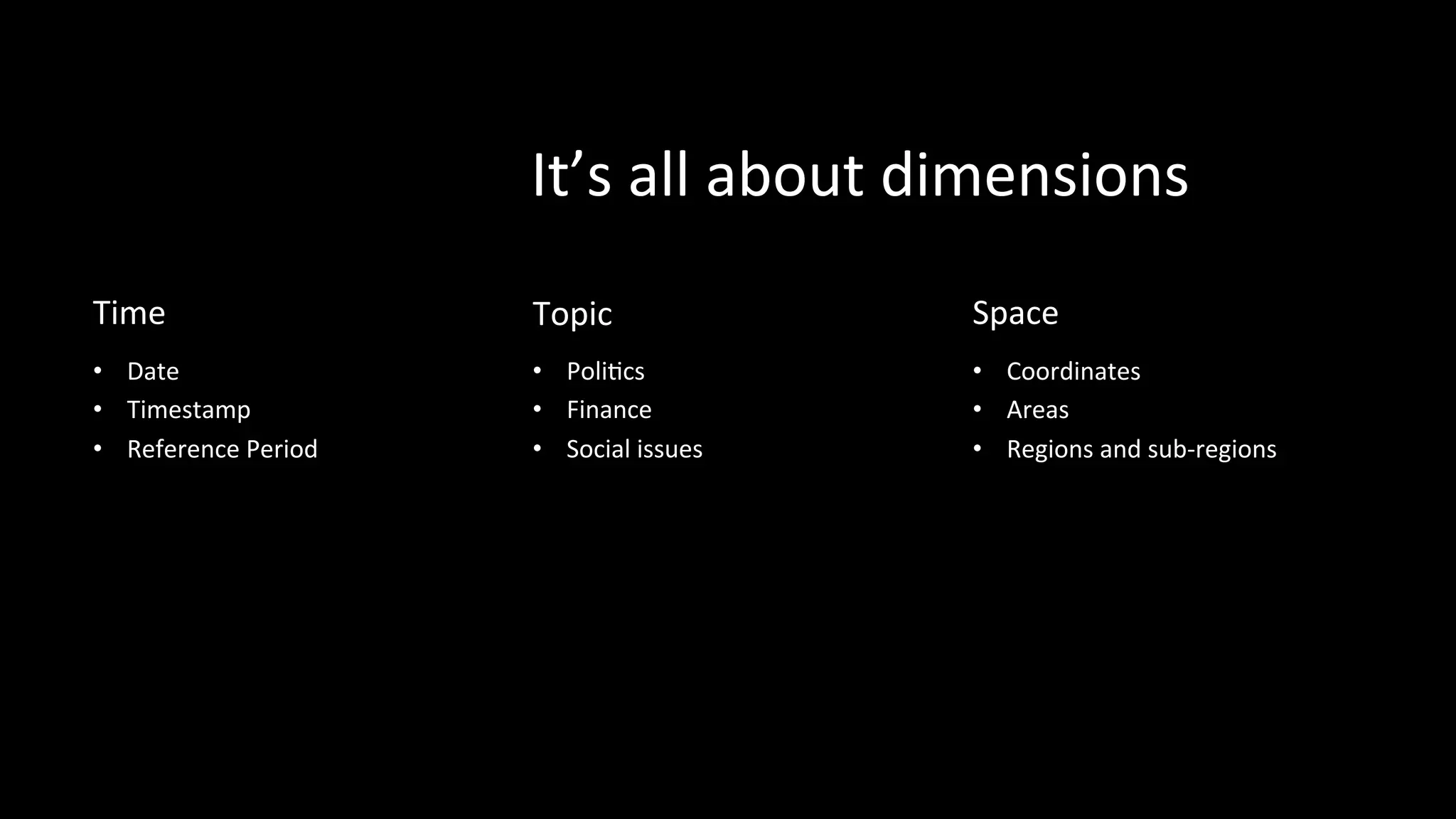

- 11. It’s all about dimensions Time • Date • Timestamp • Reference Period Topic • PoliPcs • Finance • Social issues Space • Coordinates • Areas • Regions and sub-‐regions

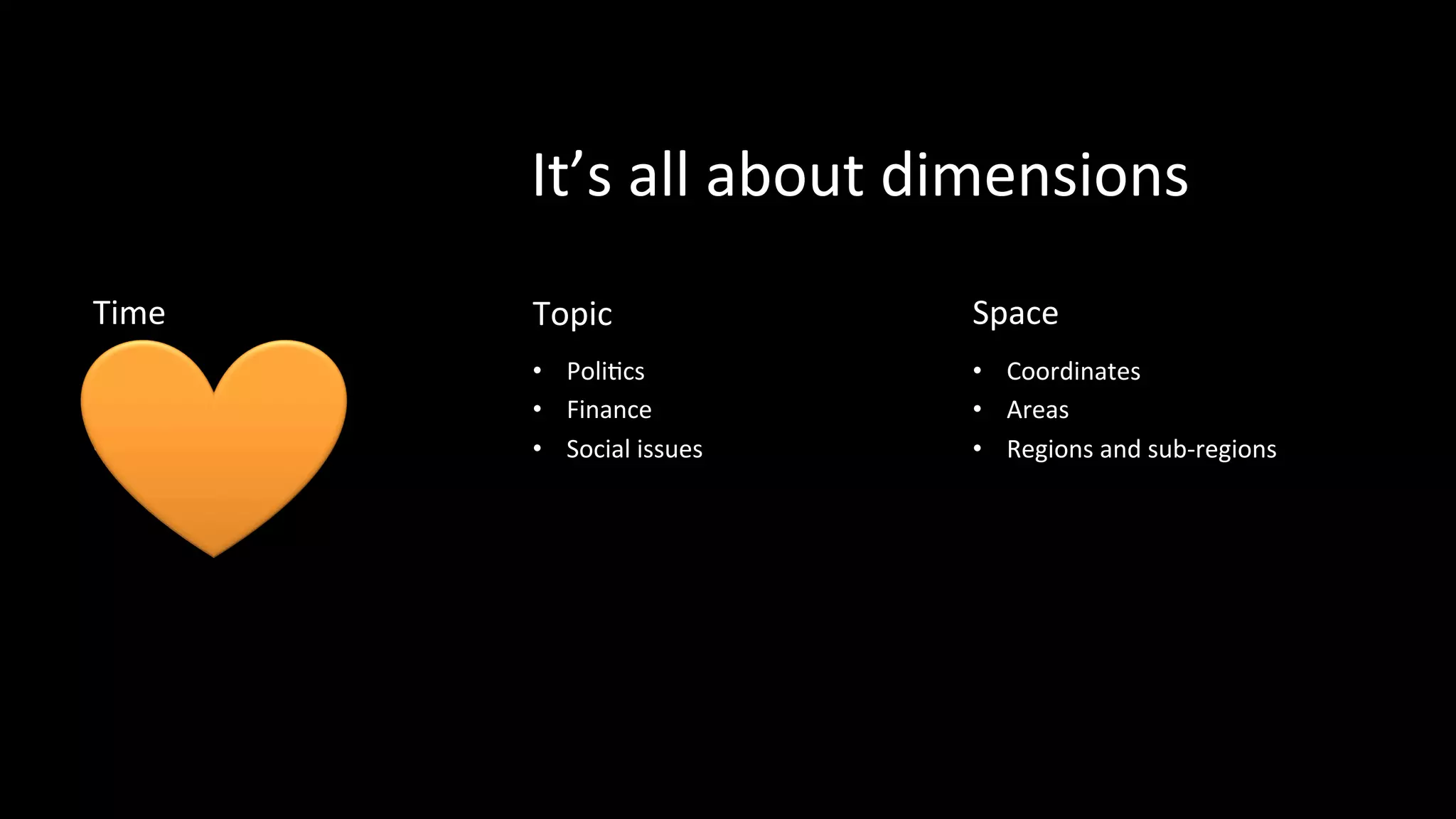

- 12. It’s all about dimensions Time • Date • Timestamp • Reference Period Topic • PoliPcs • Finance • Social issues Space • Coordinates • Areas • Regions and sub-‐regions
- 13. It’s all about dimensions Time • Date • Timestamp • Reference Period Topic • PoliPcs • Finance • Social issues Space • Coordinates • Areas • Regions and sub-‐regions
- 14. It’s all about dimensions Time • Date • Timestamp • Reference Period Topic • PoliPcs • Finance • Social issues Space • Coordinates • Areas • Regions and sub-‐regions

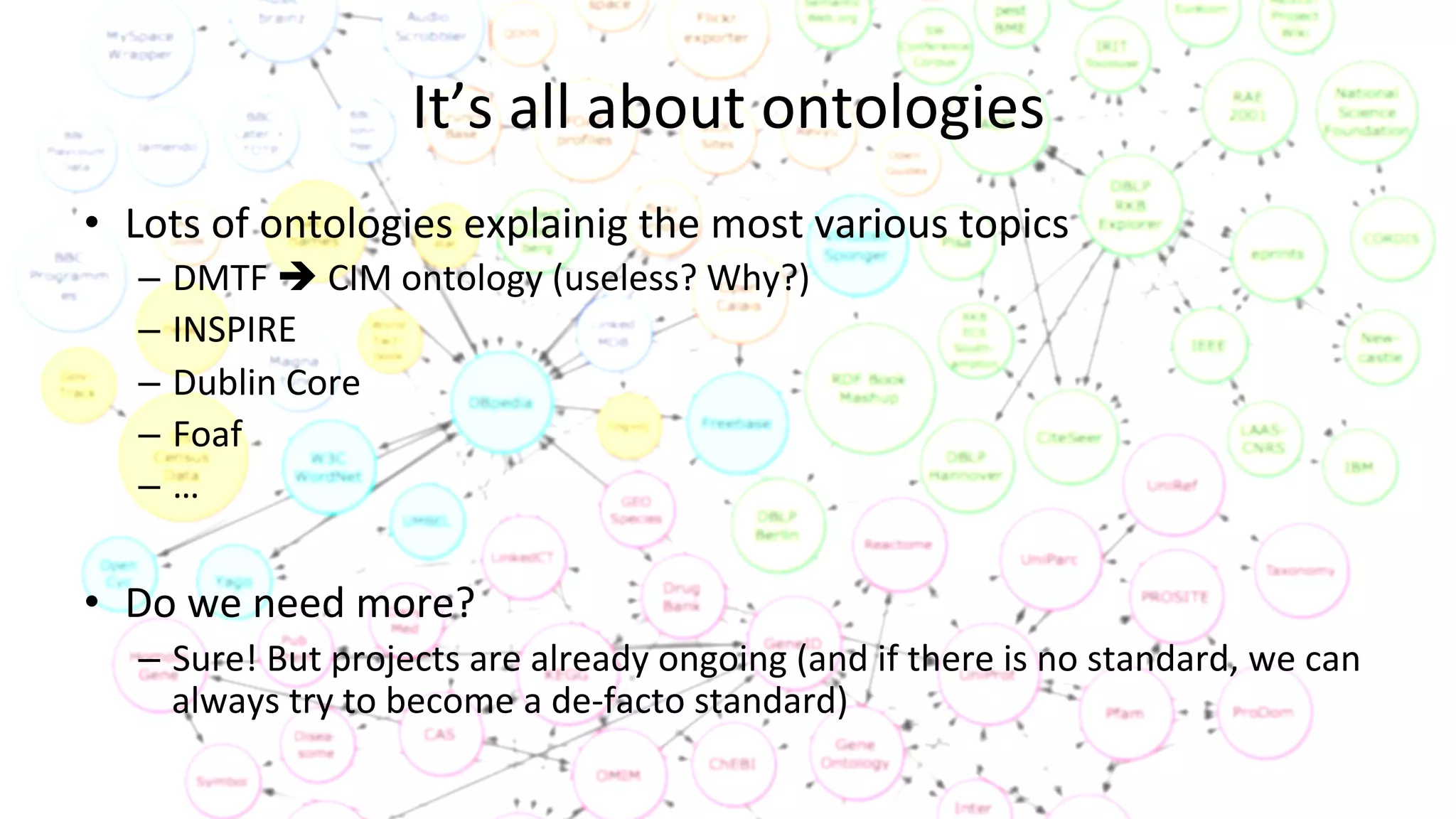

- 15. It’s all about ontologies • Lots of ontologies explainig the most various topics – DMTF è CIM ontology (useless? Why?) – INSPIRE – Dublin Core – Foaf – … • Do we need more? – Sure! But projects are already ongoing (and if there is no standard, we can always try to become a de-‐facto standard)

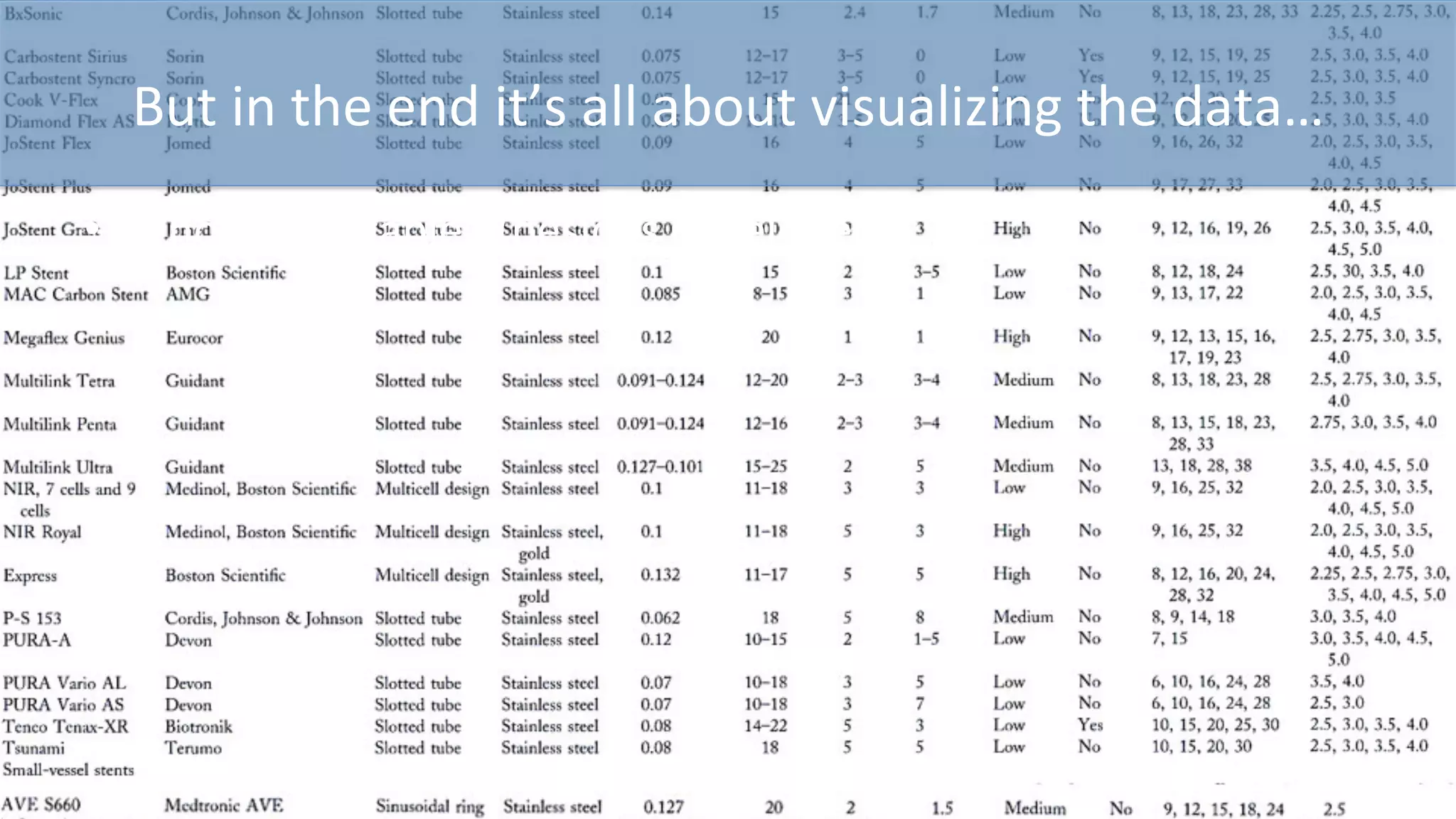

- 16. But in the end it’s all about visualizing the data… • Who likes a table? (besides developers)
- 17. …and puong it into context (generate informaPon)…
- 18. …and puong it into context (generate informaPon)…

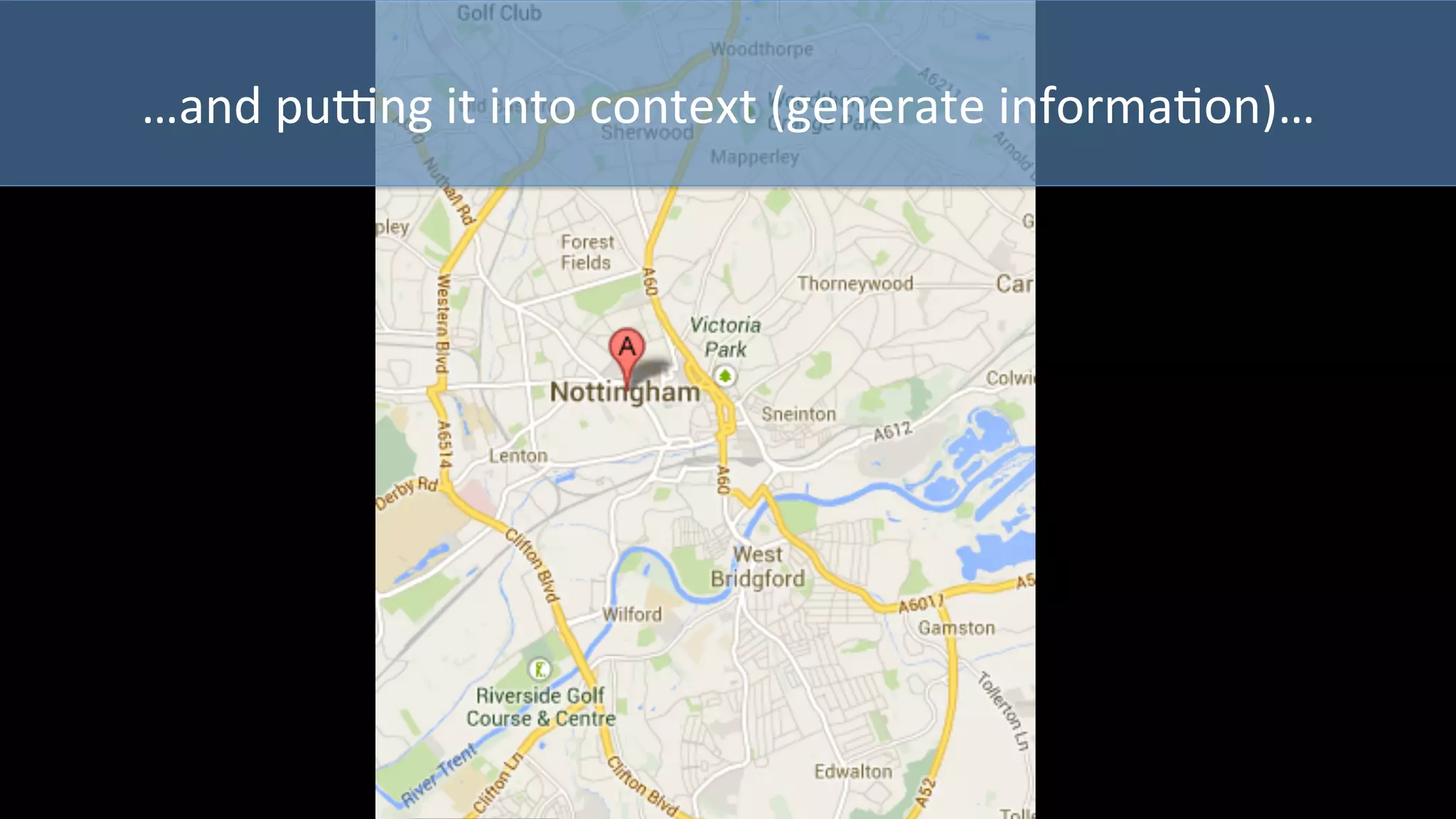

- 19. …and puong it into context (generate informaPon)…

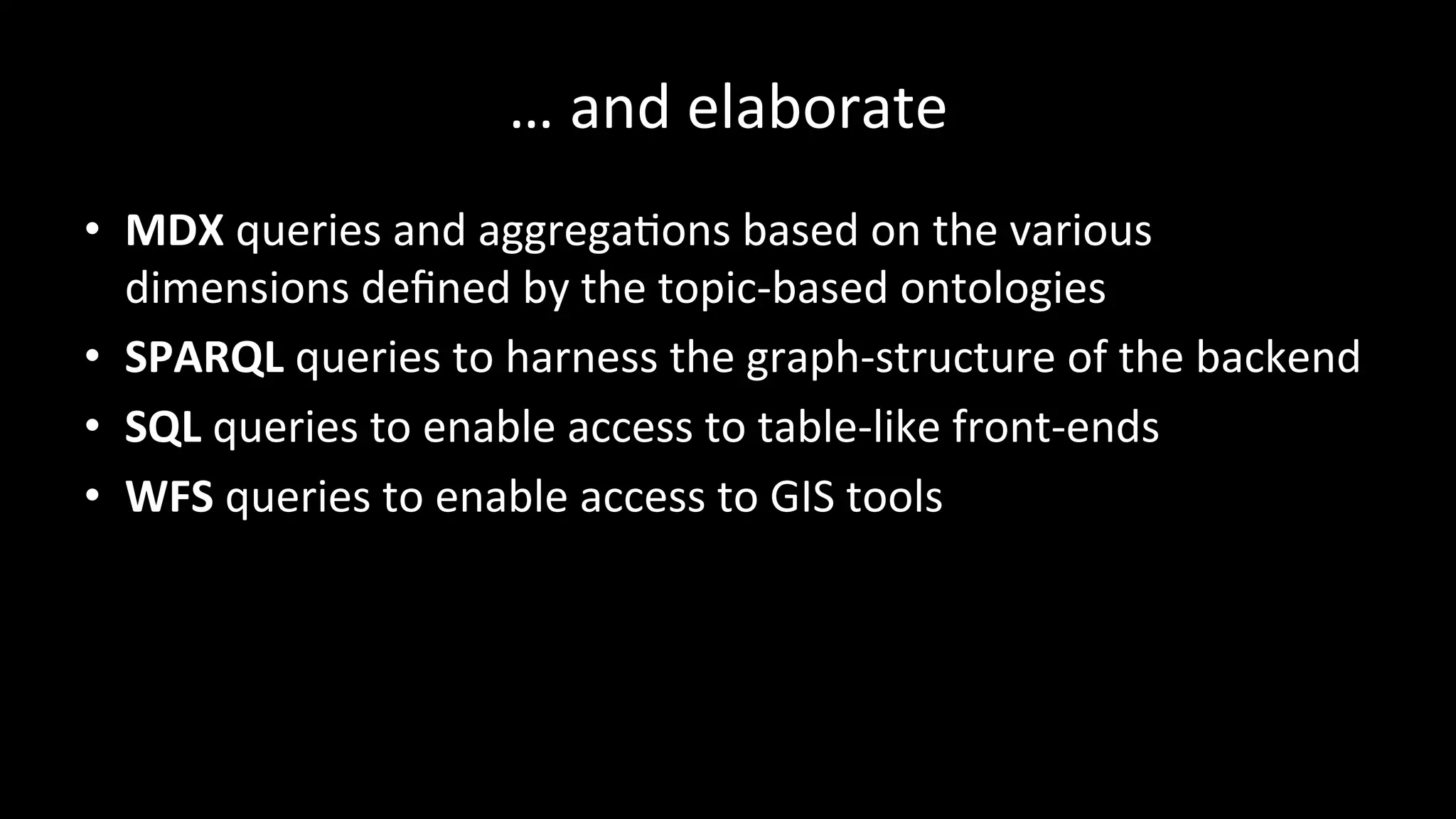

- 20. … and elaborate • MDX queries and aggregaPons based on the various dimensions defined by the topic-‐based ontologies • SPARQL queries to harness the graph-‐structure of the backend • SQL queries to enable access to table-‐like front-‐ends • WFS queries to enable access to GIS tools

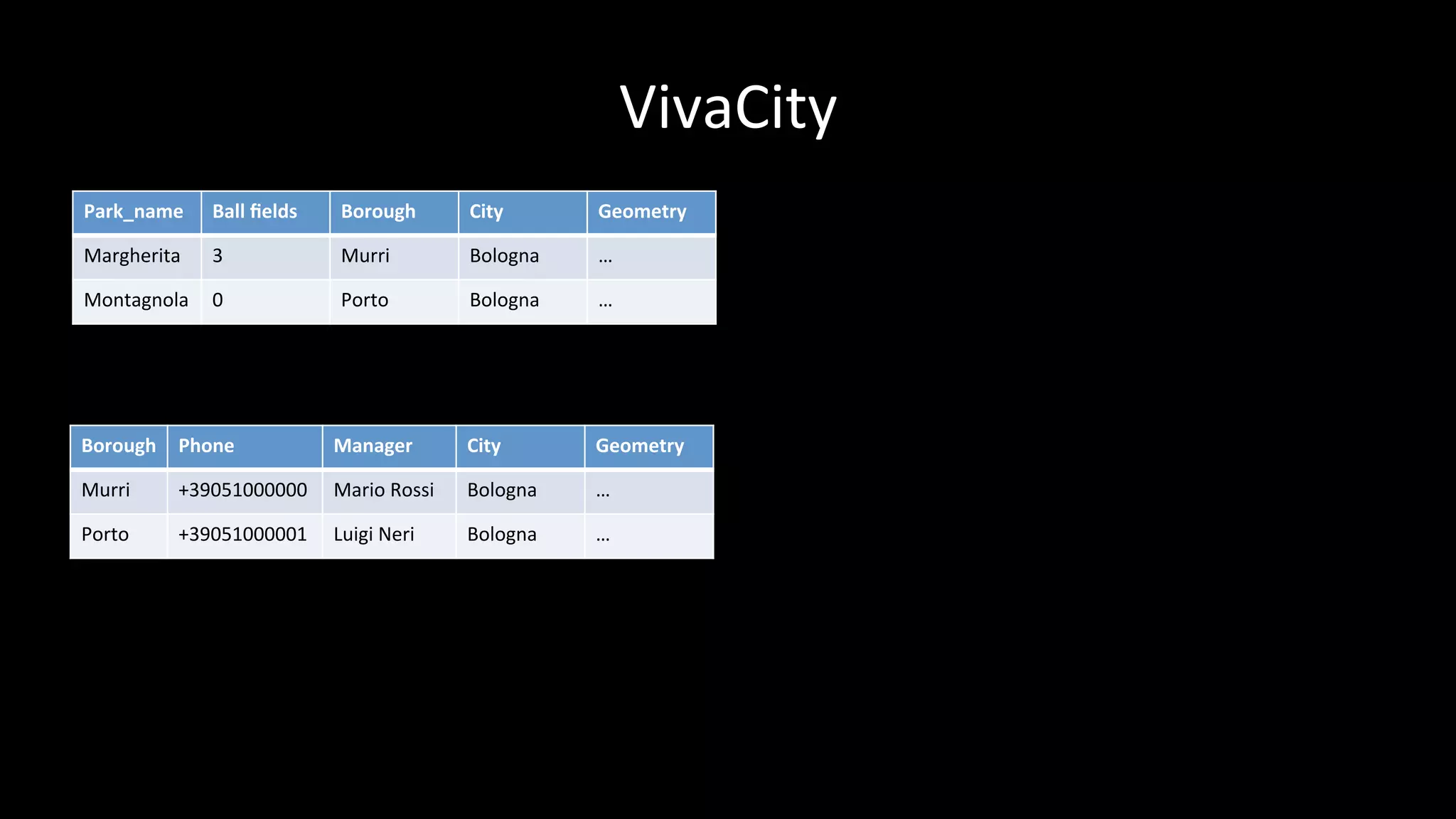

- 23. VivaCity Park_name Ball fields Borough City Geometry Margherita 3 Murri Bologna … Montagnola 0 Porto Bologna … Borough Phone Manager City Geometry Murri +39051000000 Mario Rossi Bologna … Porto +39051000001 Luigi Neri Bologna …

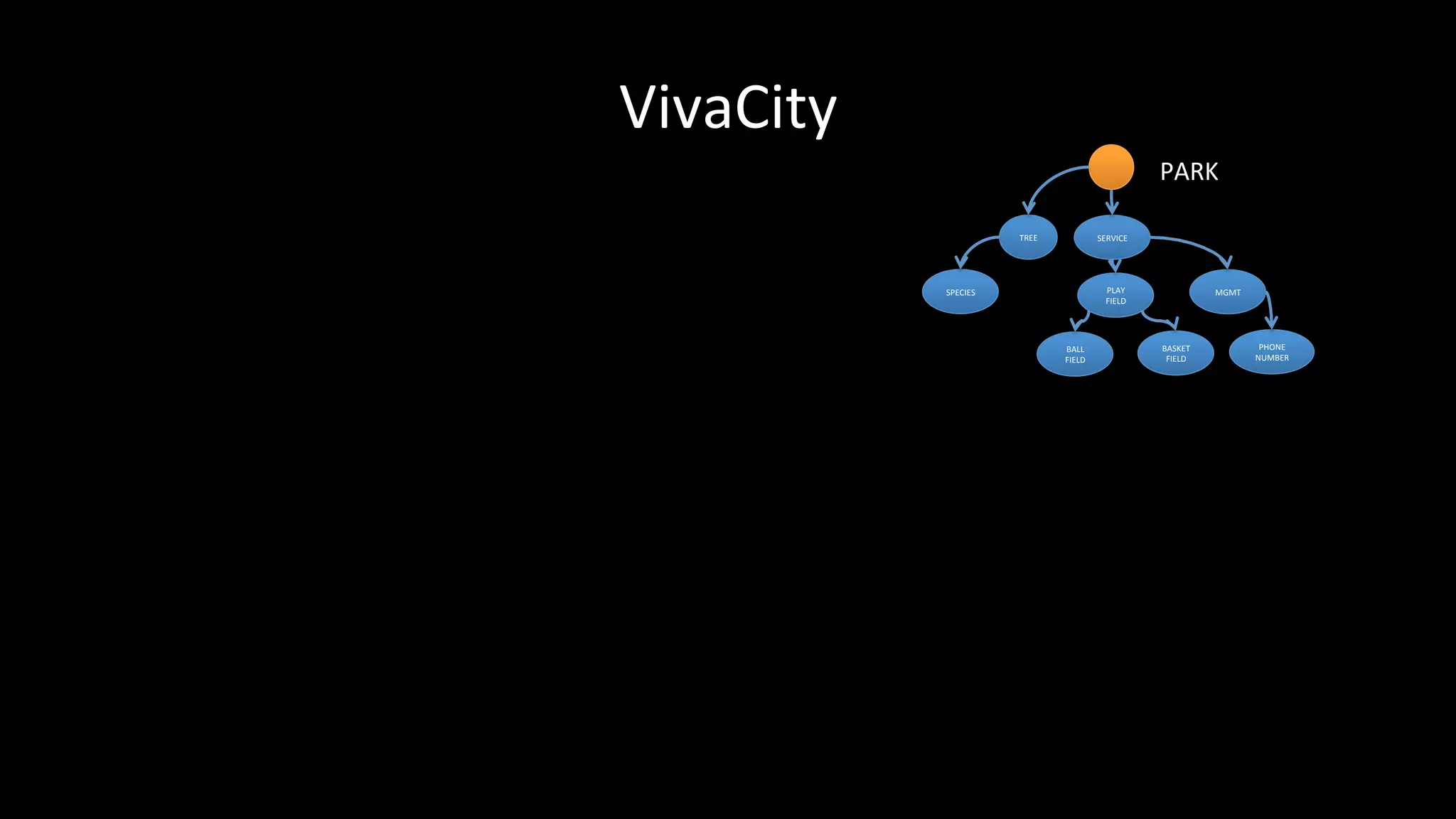

- 24. VivaCity PARK TREE SPECIES SERVICE PLAY FIELD BALL FIELD BASKET FIELD MGMT PHONE NUMBER
- 25. VivaCity Park_name Ball fields Borough City Geometry Margherita 3 Murri Bologna … Montagnola 0 Porto Bologna … Borough Phone Manager City Geometry Murri +39051000000 Mario Rossi Bologna … Porto +39051000001 Luigi Neri Bologna … PARK TREE SPECIES SERVICE PLAY FIELD BALL FIELD BASKET FIELD MGMT PHONE NUMBER
- 26.

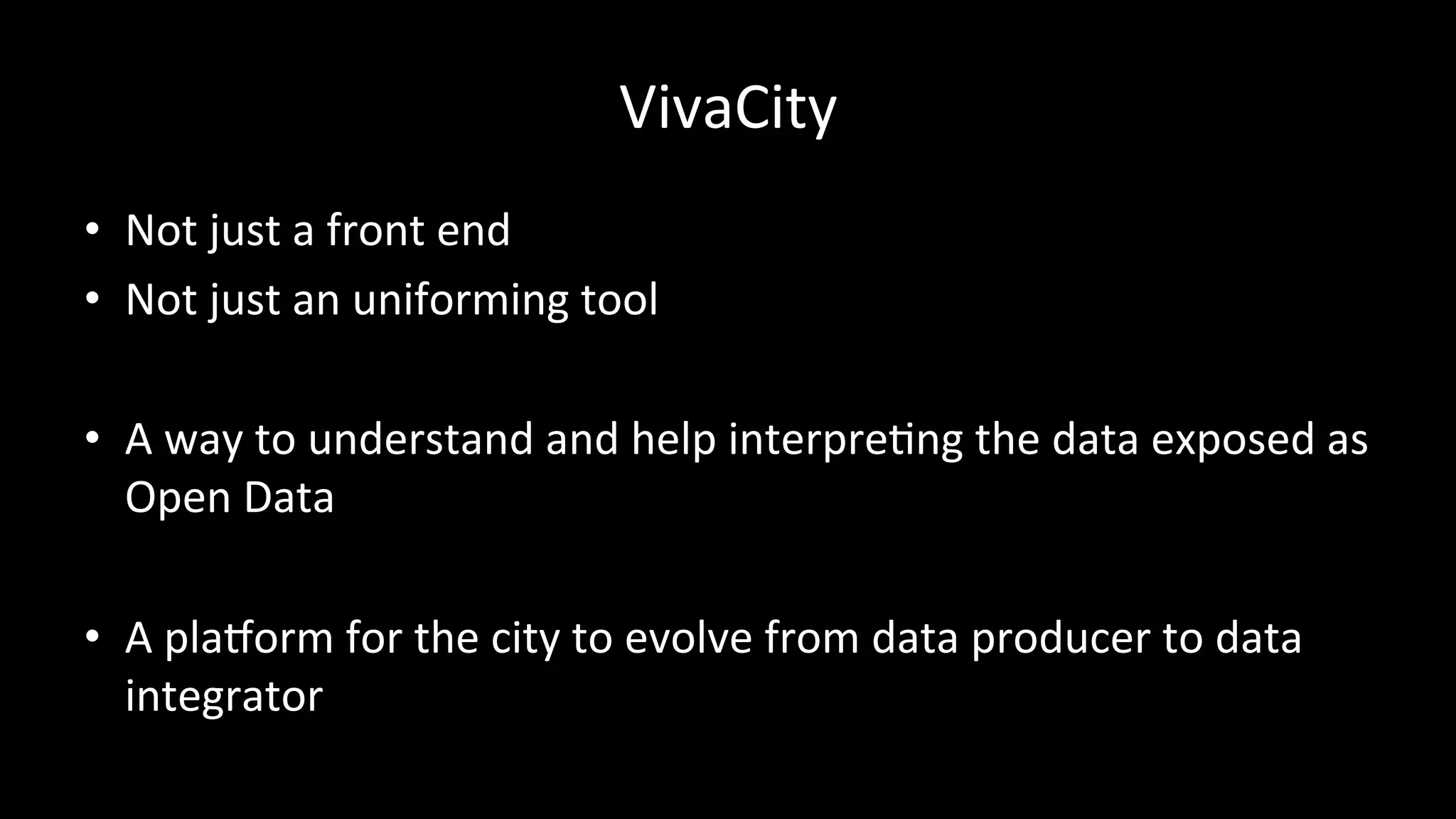

- 27. VivaCity • Not just a front end • Not just an uniforming tool • A way to understand and help interprePng the data exposed as Open Data • A pla6orm for the city to evolve from data producer to data integrator
- 28. The stack VivaCity 1.0 • Openlayers 2 – Geojson where possible • Django – Data manager – Exposed basic WFS • Postgresql (PostGIS) – Neo4j was young and needed more evoluPon – Mongodb supported only points, had only superficial support of queries – PostGIS is THE best for many cases – Not for graphs… VivaCity 2.0 • Leaflet (with plugins) [maybe OL3.js soon] – GeoJSON, TopoJSON where possible • Django – With the role of data manager – Exposes the “data” APIs • Fyzz for sparql interpretaPon • MDXParse (developed for this project) for MDX interpretaPon • SQLParse for SQL interpretaPon – Exposes the OGC APIs – Celery to manage the import of data • Mongodb + Neo4j spaPal – Mongo for basic document queries and a document centric approach – Neo4j for complex relaPonal queries and a relaPonship-‐ centric approach

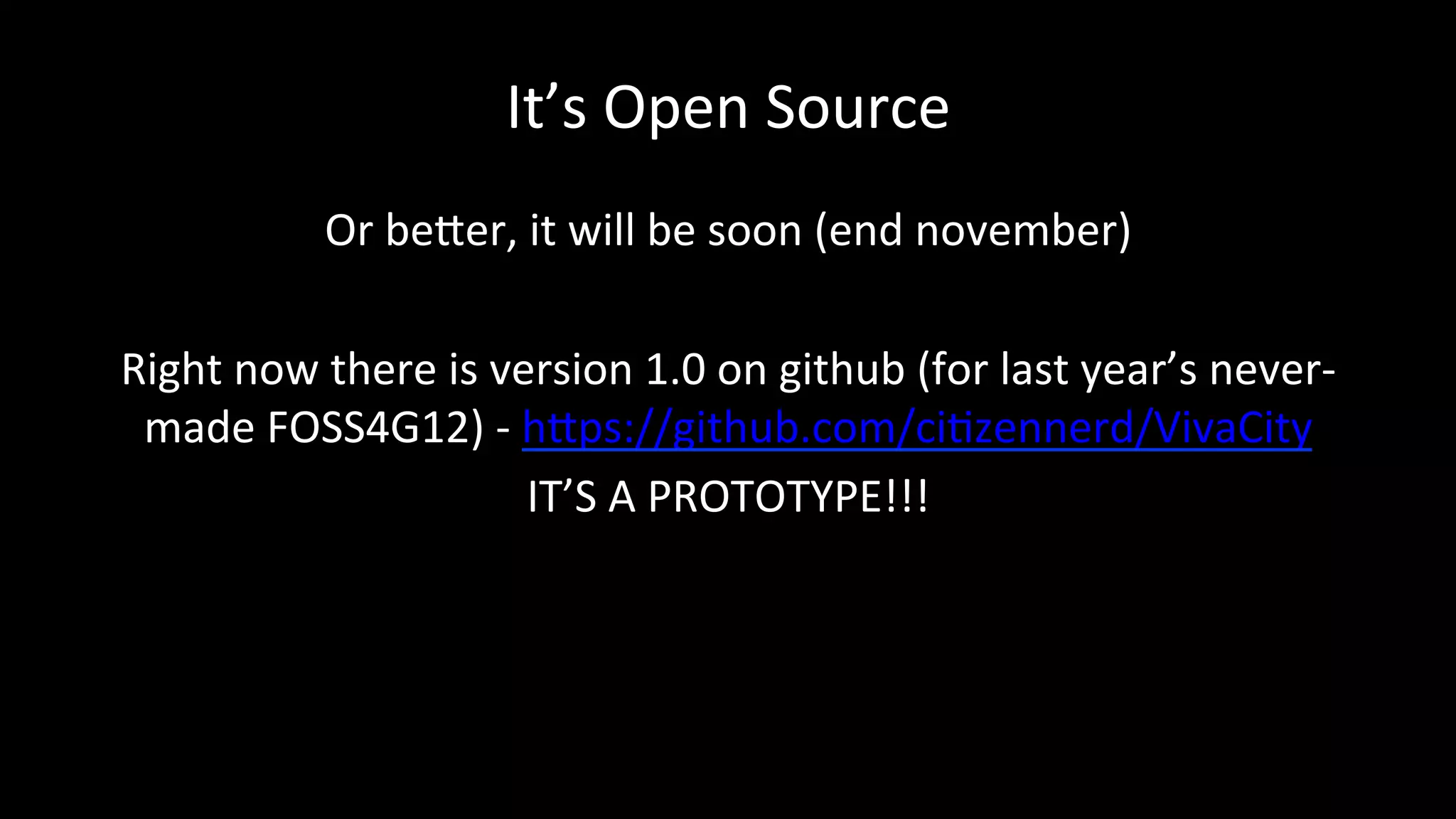

- 29. It’s Open Source Or beDer, it will be soon (end november) Right now there is version 1.0 on github (for last year’s never-‐ made FOSS4G12) -‐ hDps://github.com/ciPzennerd/VivaCity IT’S A PROTOTYPE!!!
- 30. Thanks! Marco.montanari@gmail.com , @ingmmo, ingmmo.com, hDps://github.com/sirmmo,
