1. Virtual
Function

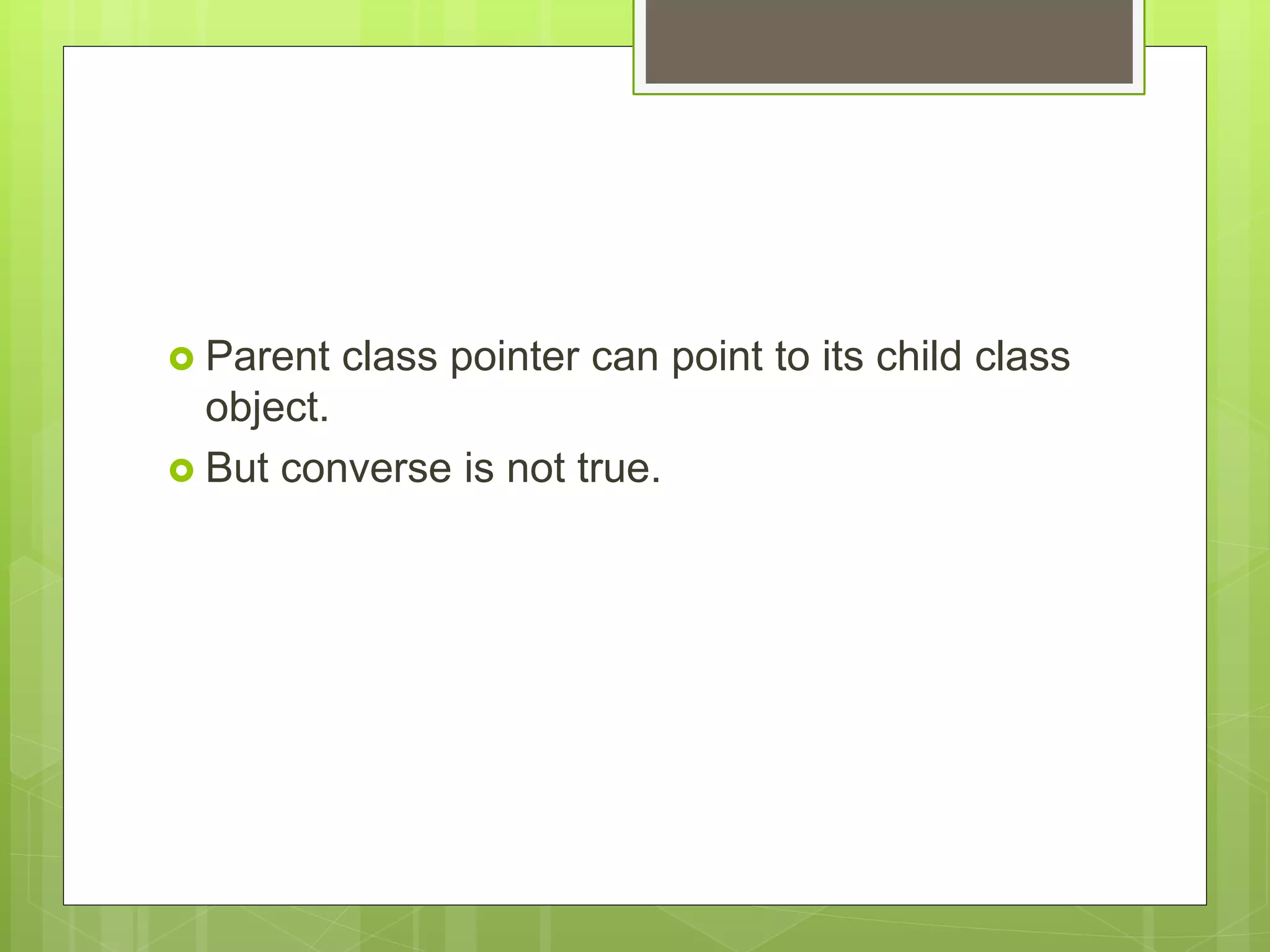

2.  Parent class pointer can point to its child class
object.
 But converse is not true.

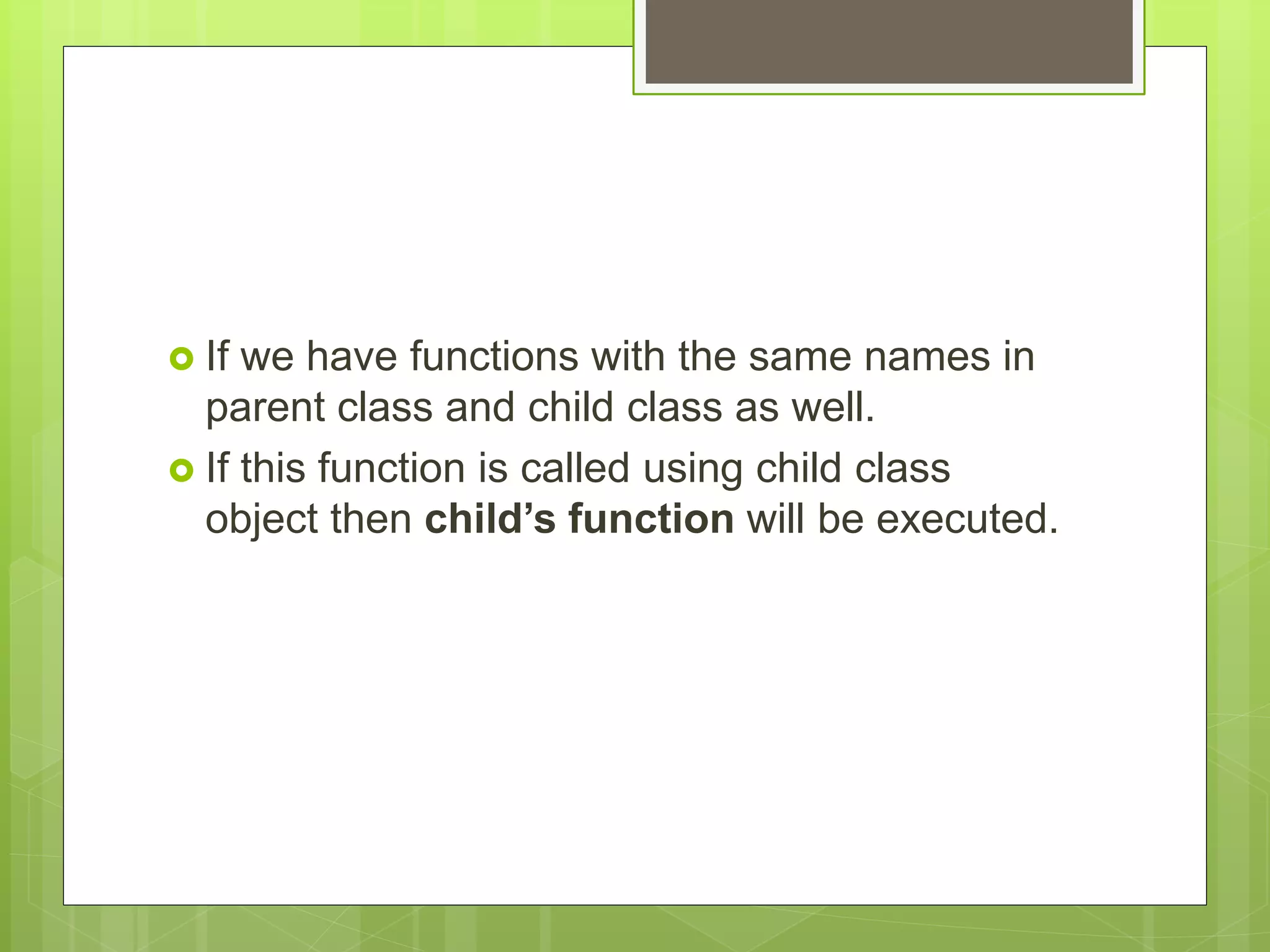

3.  If we have functions with the same names in
parent class and child class as well.
 If this function is called using child class
object then child’s function will be executed.

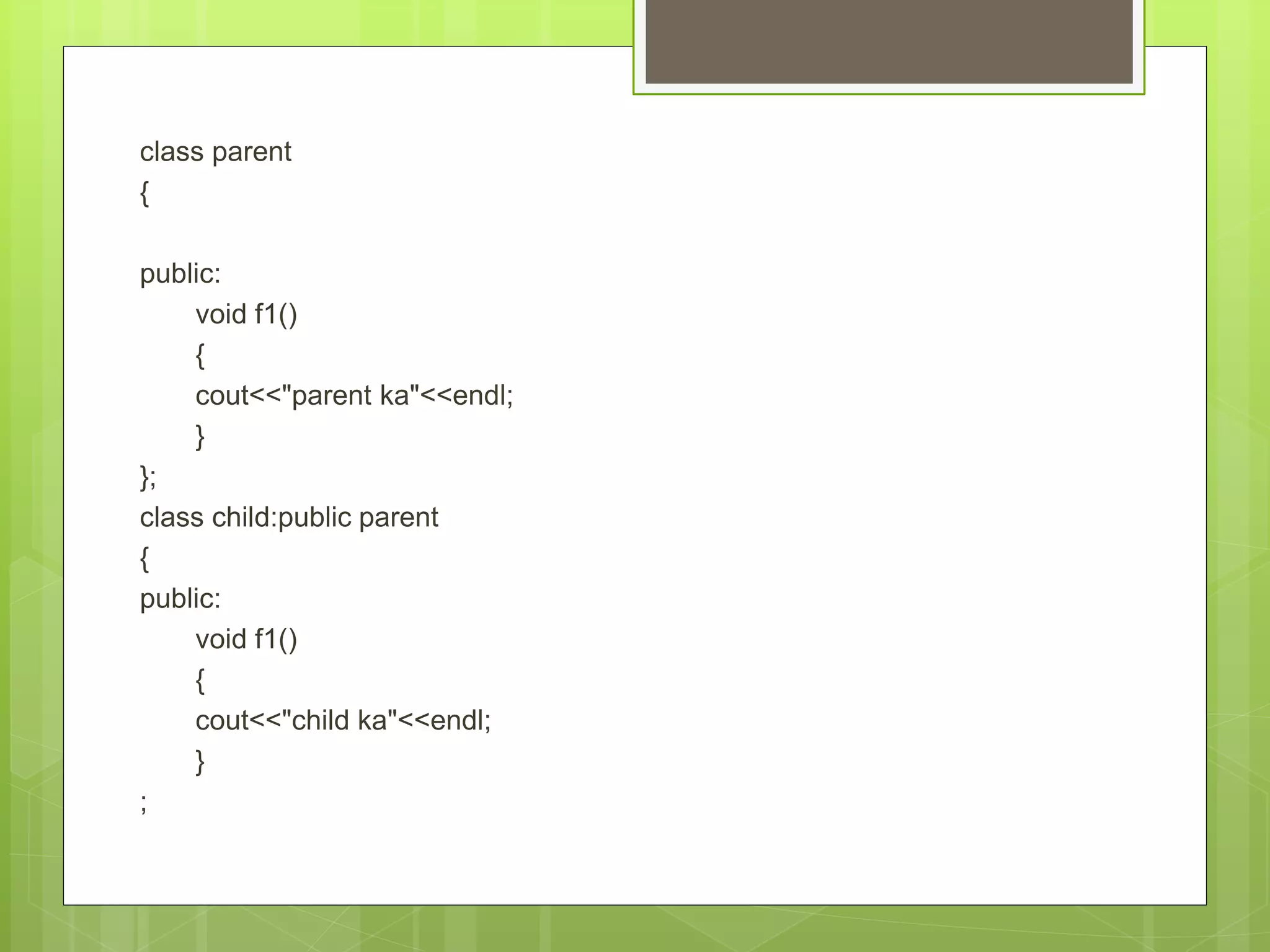

4. class parent
{
public:
void f1()
{
cout<<"parent ka"<<endl;
}
};
class child:public parent
{
public:
void f1()
{
cout<<"child ka"<<endl;
}
;

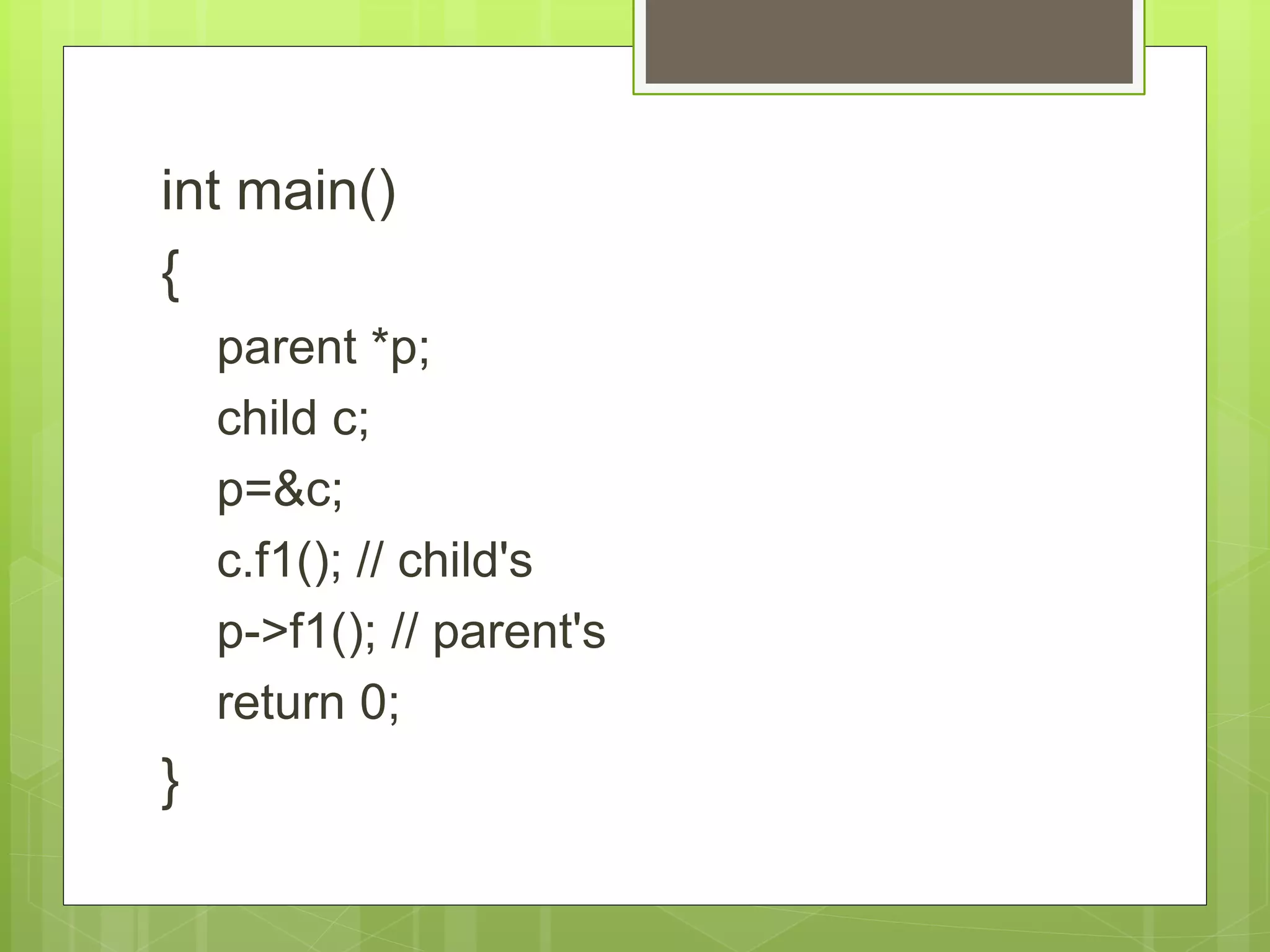

5. int main()
{
parent *p;
child c;
p=&c;
c.f1(); // child's
p->f1(); // parent's
return 0;
}

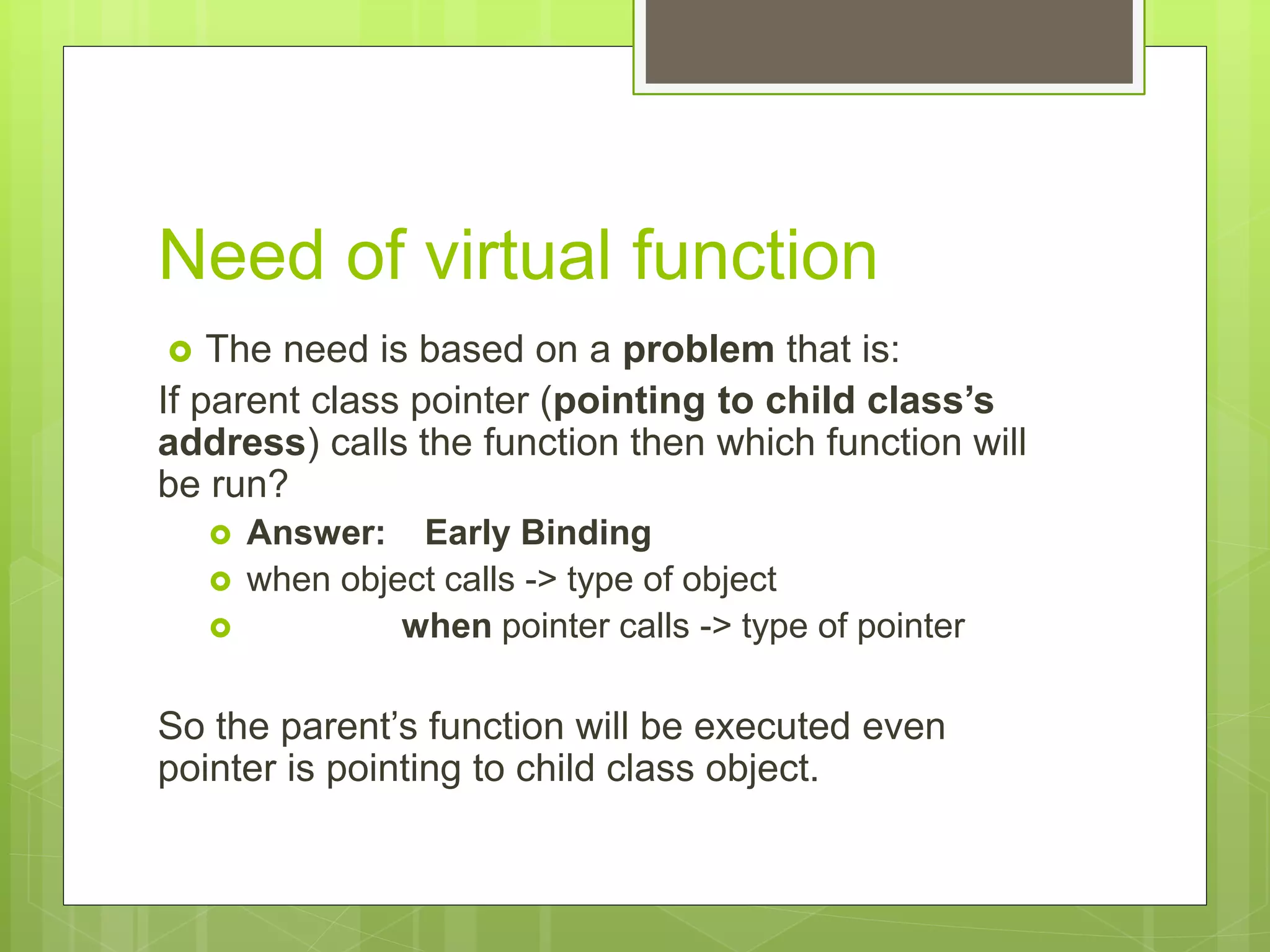

6. Need of virtual function
 The need is based on a problem that is:
If parent class pointer (pointing to child class’s
address) calls the function then which function will
be run?
 Answer: Early Binding
 when object calls -> type of object
 when pointer calls -> type of pointer
So the parent’s function will be executed even
pointer is pointing to child class object.

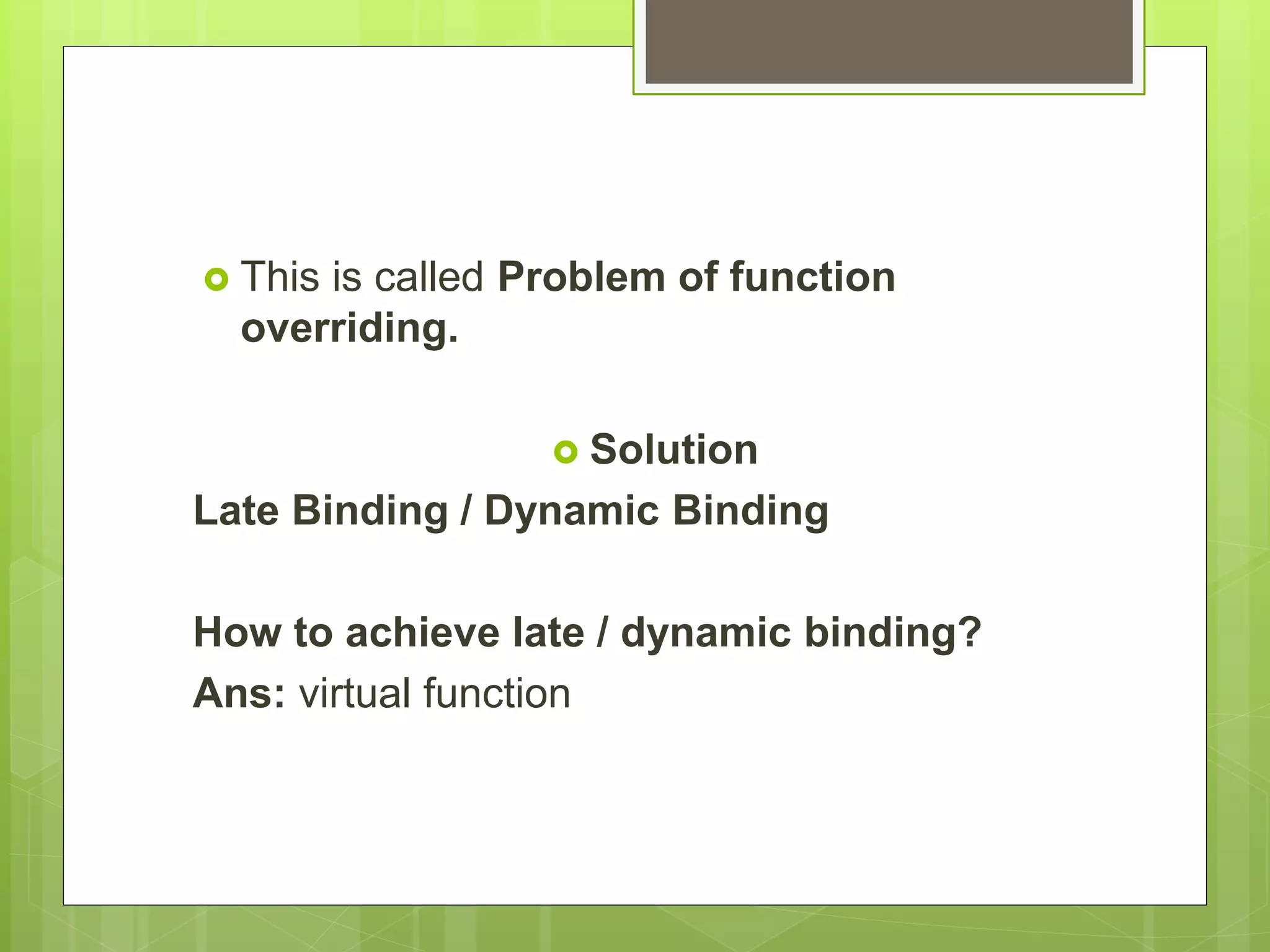

7.  This is called Problem of function
overriding.
 Solution
Late Binding / Dynamic Binding
How to achieve late / dynamic binding?
Ans: virtual function

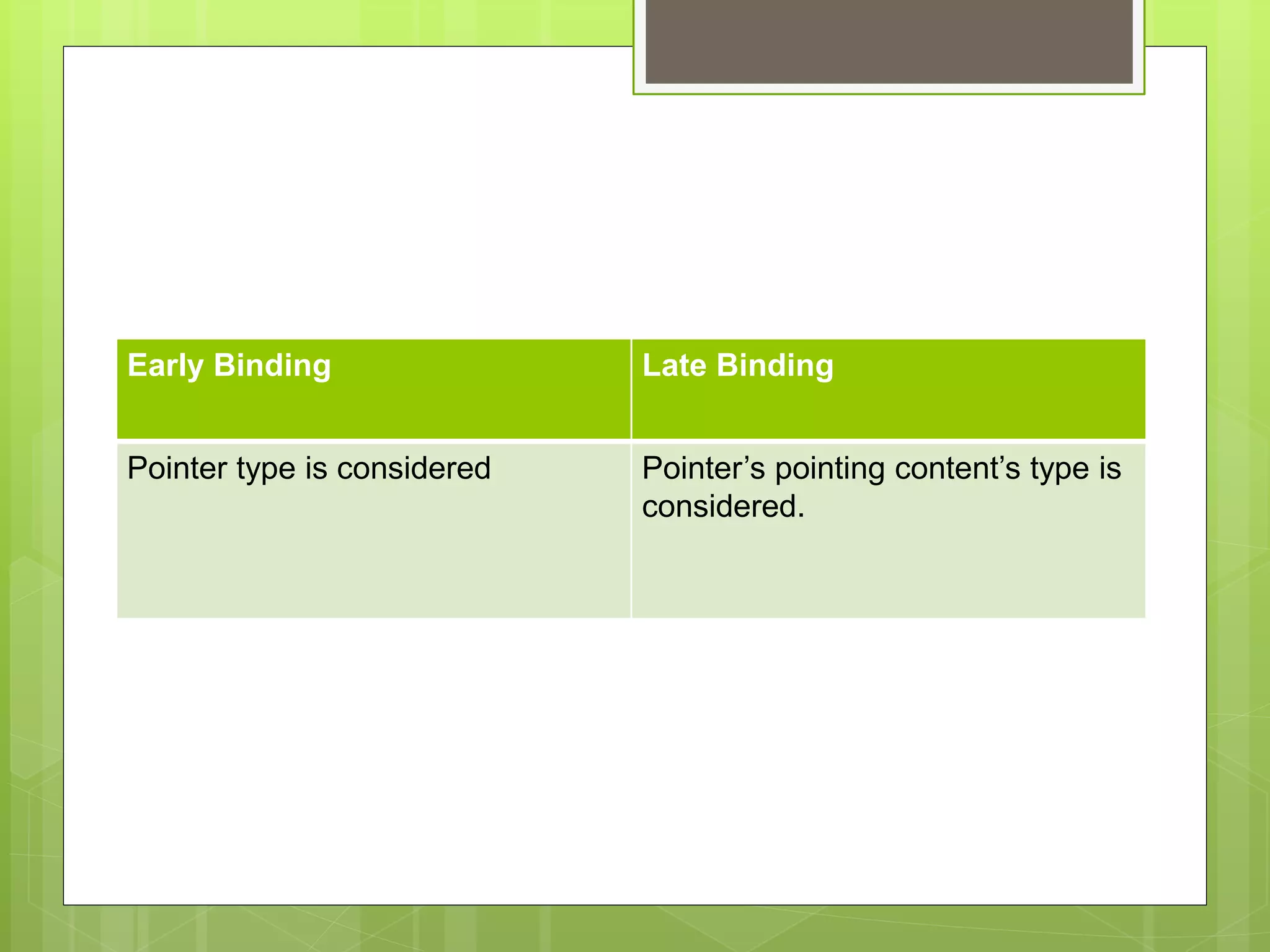

8. Early Binding Late Binding
Pointer type is considered Pointer’s pointing content’s type is
considered.

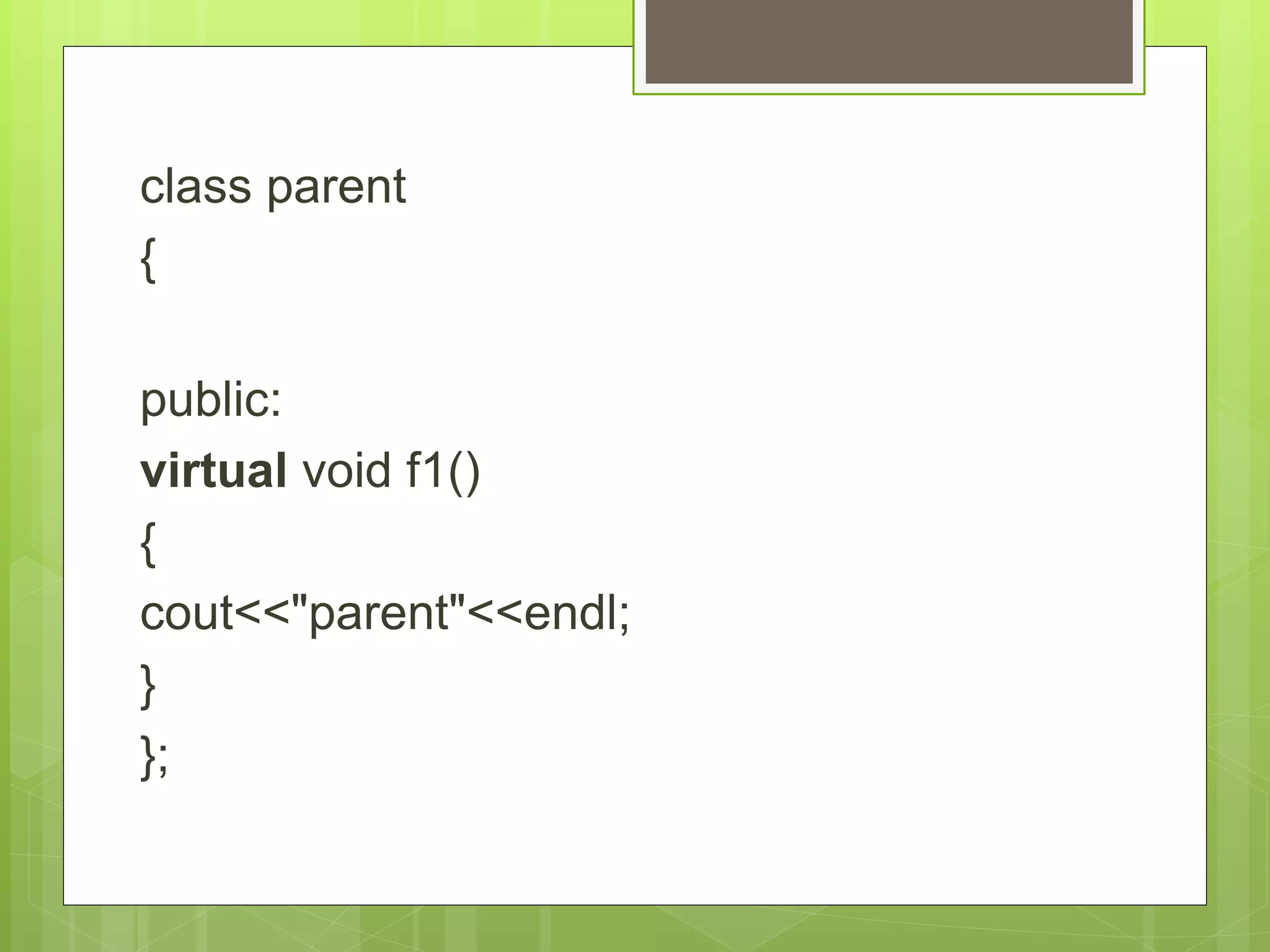

9. class parent
{
public:
virtual void f1()
{
cout<<"parent"<<endl;
}
};

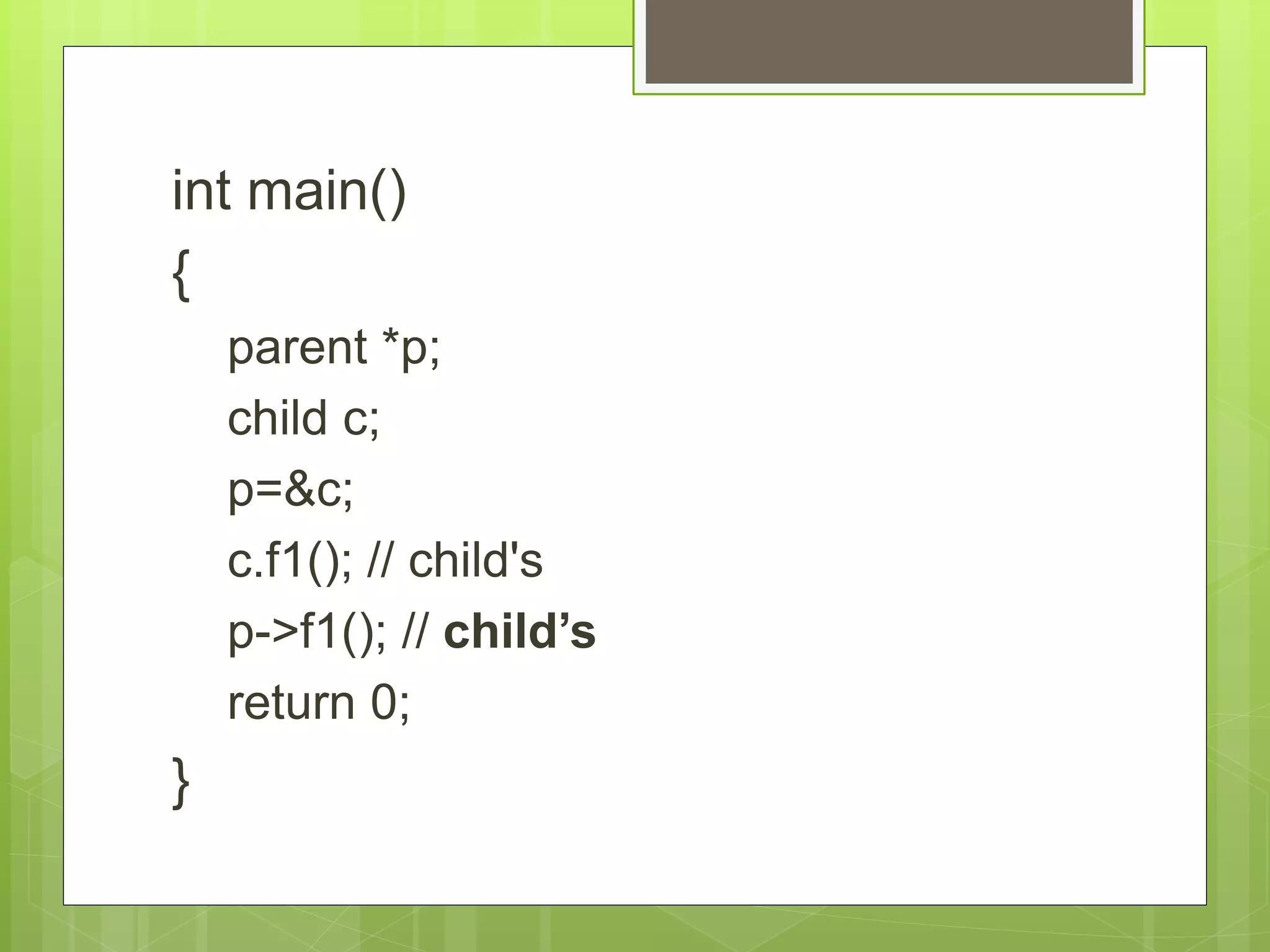

10. int main()
{
parent *p;
child c;
p=&c;
c.f1(); // child's
p->f1(); // child’s
return 0;
}

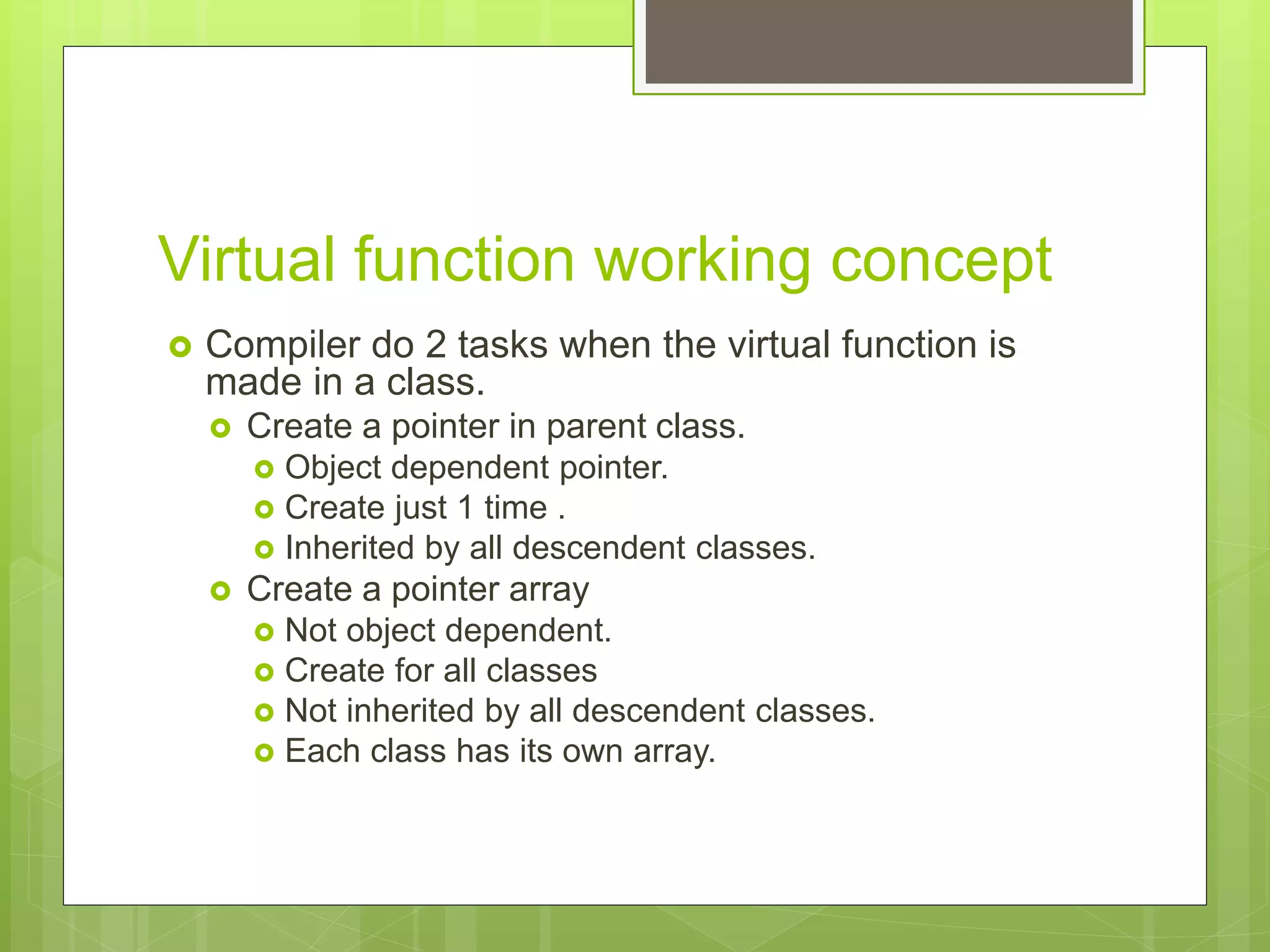

11. Virtual function working concept
 Compiler do 2 tasks when the virtual function is
made in a class.
 Create a pointer in parent class.
 Object dependent pointer.
 Create just 1 time .
 Inherited by all descendent classes.
 Create a pointer array
 Not object dependent.
 Create for all classes
 Not inherited by all descendent classes.
 Each class has its own array.

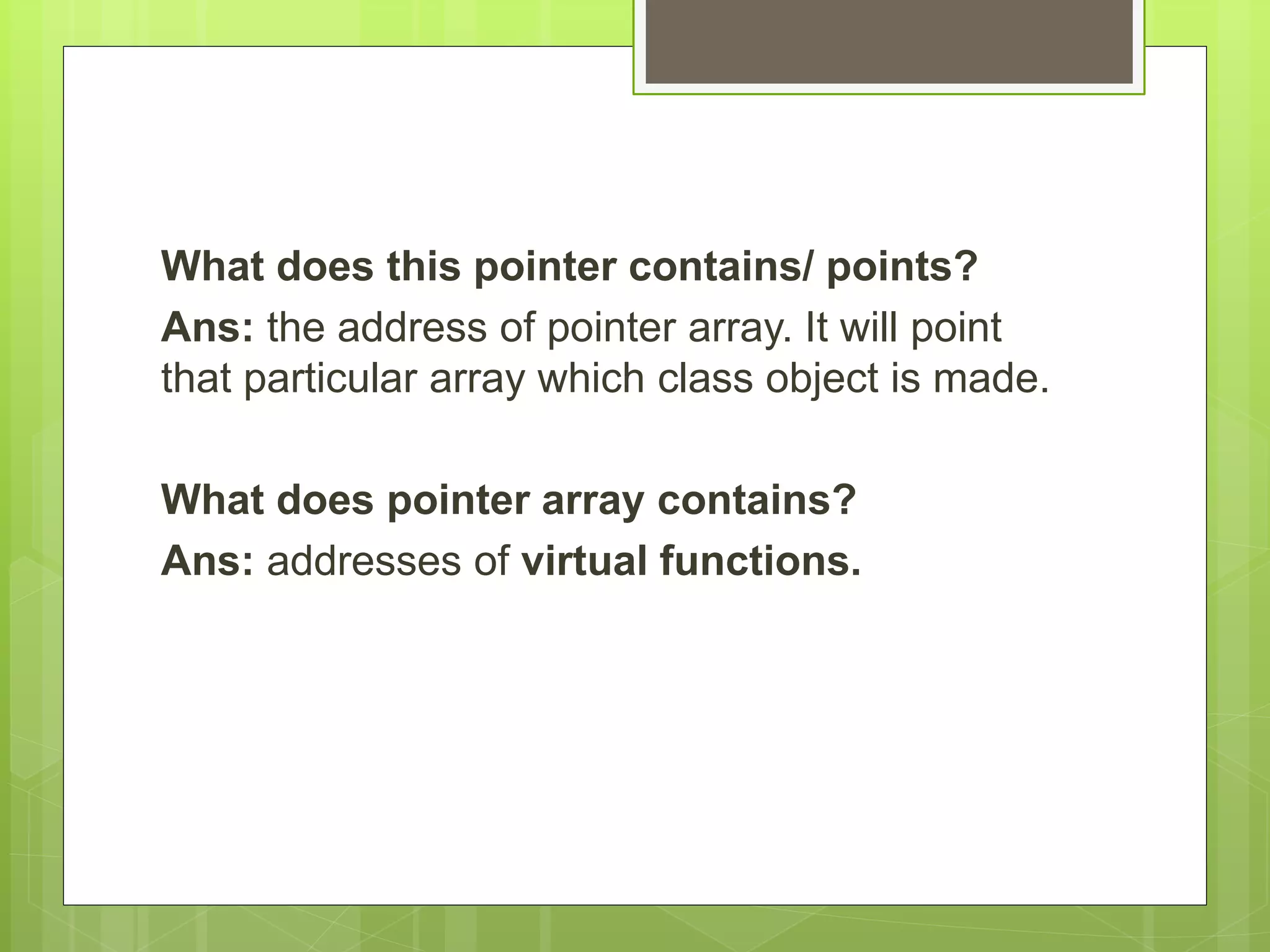

12. What does this pointer contains/ points?
Ans: the address of pointer array. It will point
that particular array which class object is made.
What does pointer array contains?
Ans: addresses of virtual functions.

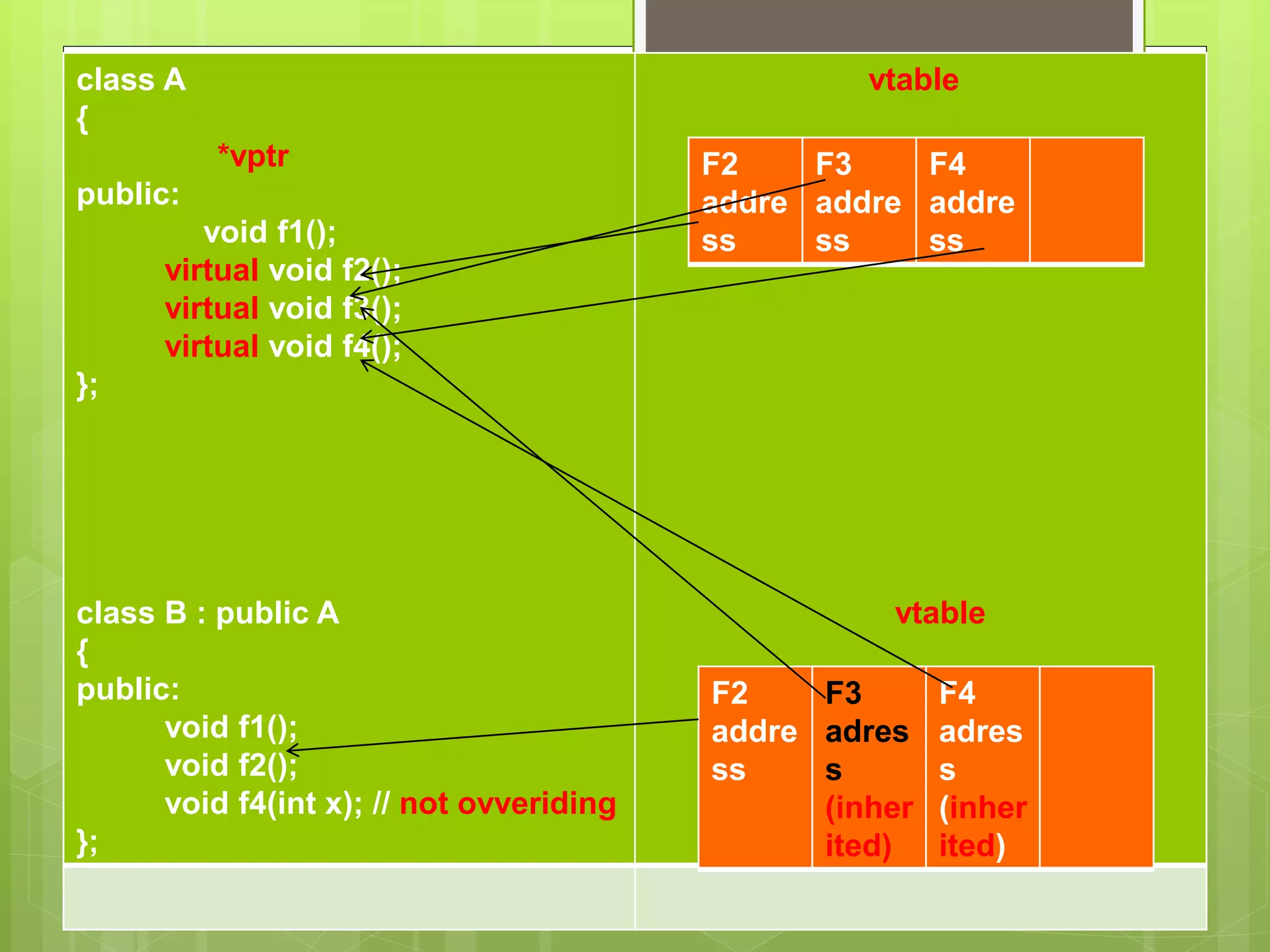

13. class A
{
*vptr
public:
void f1();
virtual void f2();
virtual void f3();
virtual void f4();
};
class B : public A
{
public:
void f1();
void f2();
void f4(int x); // not ovveriding
};
vtable
vtable
F2
addre
ss
F3
addre
ss
F4
addre
ss
F2
addre
ss
F3
adres
s
(inher
ited)
F4
adres
s
(inher
ited)

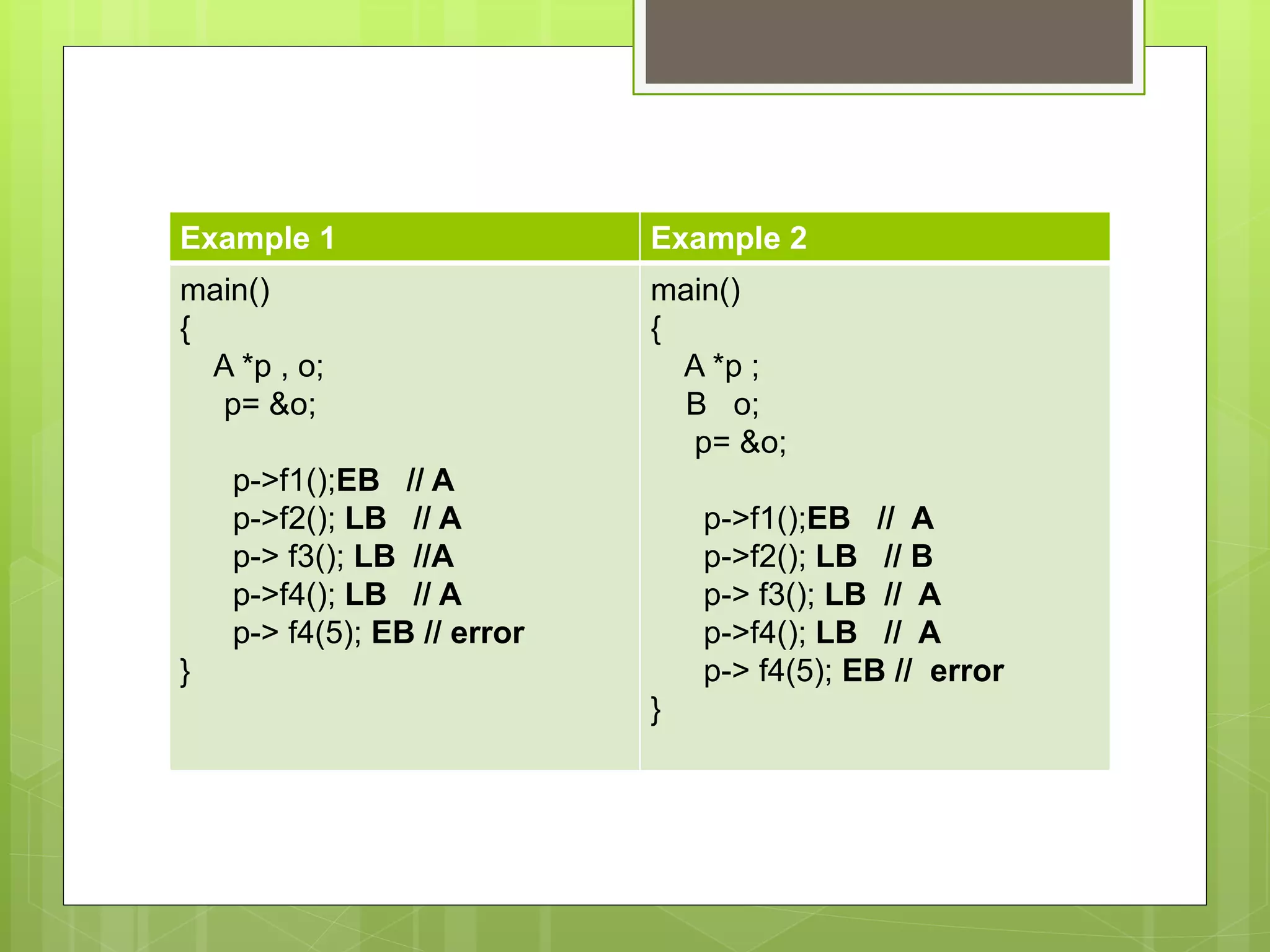

14. Example 1 Example 2
main()
{
A *p , o;
p= &o;
p->f1();EB // A
p->f2(); LB // A
p-> f3(); LB //A
p->f4(); LB // A
p-> f4(5); EB // error
}
main()
{
A *p ;
B o;
p= &o;
p->f1();EB // A
p->f2(); LB // B
p-> f3(); LB // A
p->f4(); LB // A
p-> f4(5); EB // error
}
