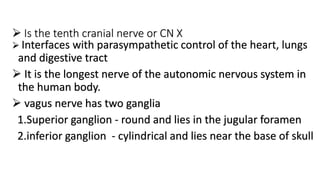

 Is the tenth cranial nerve or CN X
 Interfaces with parasympathetic control of the heart, lungs
and digestive tract
 It is the longest nerve of the autonomic nervous system in
the human body.
 vagus nerve has two ganglia
1.Superior ganglion - round and lies in the jugular foramen
2.inferior ganglion - cylindrical and lies near the base of skull

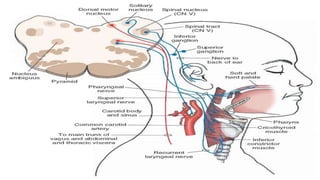

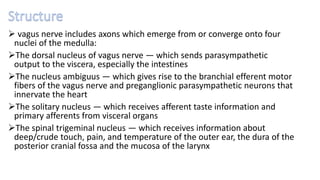

 vagus nerve includes axons which emerge from or converge onto four
nuclei of the medulla:
The dorsal nucleus of vagus nerve — which sends parasympathetic
output to the viscera, especially the intestines
The nucleus ambiguus — which gives rise to the branchial efferent motor
fibers of the vagus nerve and preganglionic parasympathetic neurons that
innervate the heart
The solitary nucleus — which receives afferent taste information and
primary afferents from visceral organs
The spinal trigeminal nucleus — which receives information about
deep/crude touch, pain, and temperature of the outer ear, the dura of the
posterior cranial fossa and the mucosa of the larynx

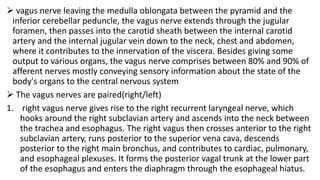

 vagus nerve leaving the medulla oblongata between the pyramid and the
inferior cerebellar peduncle, the vagus nerve extends through the jugular
foramen, then passes into the carotid sheath between the internal carotid
artery and the internal jugular vein down to the neck, chest and abdomen,
where it contributes to the innervation of the viscera. Besides giving some
output to various organs, the vagus nerve comprises between 80% and 90% of
afferent nerves mostly conveying sensory information about the state of the
body's organs to the central nervous system
 The vagus nerves are paired(right/left)
1. right vagus nerve gives rise to the right recurrent laryngeal nerve, which
hooks around the right subclavian artery and ascends into the neck between
the trachea and esophagus. The right vagus then crosses anterior to the right
subclavian artery, runs posterior to the superior vena cava, descends
posterior to the right main bronchus, and contributes to cardiac, pulmonary,
and esophageal plexuses. It forms the posterior vagal trunk at the lower part
of the esophagus and enters the diaphragm through the esophageal hiatus.

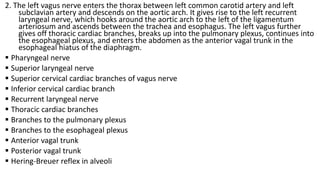

2. The left vagus nerve enters the thorax between left common carotid artery and left
subclavian artery and descends on the aortic arch. It gives rise to the left recurrent
laryngeal nerve, which hooks around the aortic arch to the left of the ligamentum
arteriosum and ascends between the trachea and esophagus. The left vagus further
gives off thoracic cardiac branches, breaks up into the pulmonary plexus, continues into
the esophageal plexus, and enters the abdomen as the anterior vagal trunk in the
esophageal hiatus of the diaphragm.

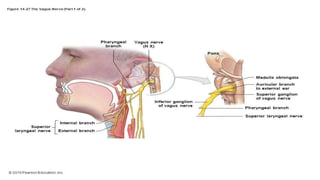

 Pharyngeal nerve
 Superior laryngeal nerve
 Superior cervical cardiac branches of vagus nerve
 Inferior cervical cardiac branch
 Recurrent laryngeal nerve
 Thoracic cardiac branches
 Branches to the pulmonary plexus
 Branches to the esophageal plexus
 Anterior vagal trunk
 Posterior vagal trunk
 Hering-Breuer reflex in alveoli

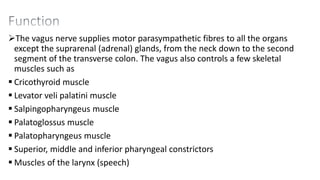

The vagus nerve supplies motor parasympathetic fibres to all the organs
except the suprarenal (adrenal) glands, from the neck down to the second
segment of the transverse colon. The vagus also controls a few skeletal
muscles such as
 Cricothyroid muscle
 Levator veli palatini muscle
 Salpingopharyngeus muscle
 Palatoglossus muscle
 Palatopharyngeus muscle
 Superior, middle and inferior pharyngeal constrictors
 Muscles of the larynx (speech)

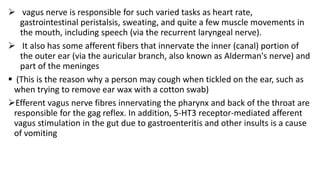

 vagus nerve is responsible for such varied tasks as heart rate,
gastrointestinal peristalsis, sweating, and quite a few muscle movements in
the mouth, including speech (via the recurrent laryngeal nerve).
 It also has some afferent fibers that innervate the inner (canal) portion of
the outer ear (via the auricular branch, also known as Alderman's nerve) and
part of the meninges
 (This is the reason why a person may cough when tickled on the ear, such as
when trying to remove ear wax with a cotton swab)
Efferent vagus nerve fibres innervating the pharynx and back of the throat are
responsible for the gag reflex. In addition, 5-HT3 receptor-mediated afferent
vagus stimulation in the gut due to gastroenteritis and other insults is a cause
of vomiting

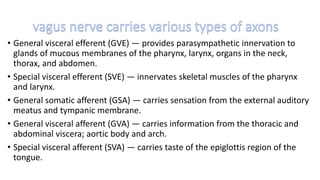

• General visceral efferent (GVE) — provides parasympathetic innervation to
glands of mucous membranes of the pharynx, larynx, organs in the neck,
thorax, and abdomen.
• Special visceral efferent (SVE) — innervates skeletal muscles of the pharynx
and larynx.
• General somatic afferent (GSA) — carries sensation from the external auditory
meatus and tympanic membrane.
• General visceral afferent (GVA) — carries information from the thoracic and
abdominal viscera; aortic body and arch.
• Special visceral afferent (SVA) — carries taste of the epiglottis region of the
tongue.

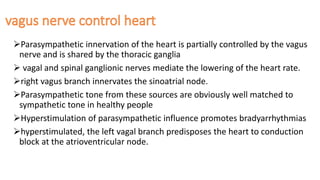

Parasympathetic innervation of the heart is partially controlled by the vagus
nerve and is shared by the thoracic ganglia
 vagal and spinal ganglionic nerves mediate the lowering of the heart rate.
right vagus branch innervates the sinoatrial node.
Parasympathetic tone from these sources are obviously well matched to
sympathetic tone in healthy people
Hyperstimulation of parasympathetic influence promotes bradyarrhythmias
hyperstimulated, the left vagal branch predisposes the heart to conduction
block at the atrioventricular node.

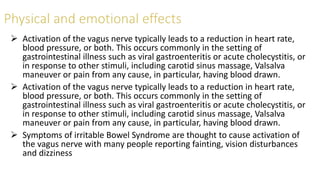

 Activation of the vagus nerve typically leads to a reduction in heart rate,
blood pressure, or both. This occurs commonly in the setting of
gastrointestinal illness such as viral gastroenteritis or acute cholecystitis, or
in response to other stimuli, including carotid sinus massage, Valsalva
maneuver or pain from any cause, in particular, having blood drawn.
 Activation of the vagus nerve typically leads to a reduction in heart rate,
blood pressure, or both. This occurs commonly in the setting of
gastrointestinal illness such as viral gastroenteritis or acute cholecystitis, or
in response to other stimuli, including carotid sinus massage, Valsalva
maneuver or pain from any cause, in particular, having blood drawn.
 Symptoms of irritable Bowel Syndrome are thought to cause activation of
the vagus nerve with many people reporting fainting, vision disturbances
and dizziness
Excessive activation of the vagal nerve during emotional stress, which is a
parasympathetic overcompensation of a strong sympathetic nervous system
response associated with stress, can also cause vasovagal syncope due to a
sudden drop in cardiac output, causing cerebral hypoperfusion. Vasovagal
syncope affects young children and women more than other groups. It can
also lead to temporary loss of bladder control under moments of extreme
fear
1. Pain - most common nerve pain symptoms are due to pinched nerve (when
nerve exits through tiny foramina in the skull).
2. Organ Dysfunction - a branch or tributary of nerve is affected that leads to
localized symptoms of organ dysfunction due to damage to nerve fibers or
discrepancy in the synthesis of neurotransmitters.

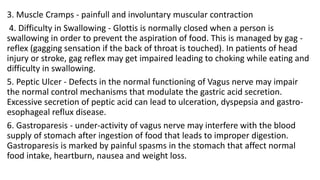

3. Muscle Cramps - painfull and involuntary muscular contraction
4. Difficulty in Swallowing - Glottis is normally closed when a person is
swallowing in order to prevent the aspiration of food. This is managed by gag -
reflex (gagging sensation if the back of throat is touched). In patients of head
injury or stroke, gag reflex may get impaired leading to choking while eating and
difficulty in swallowing.
5. Peptic Ulcer - Defects in the normal functioning of Vagus nerve may impair
the normal control mechanisms that modulate the gastric acid secretion.
Excessive secretion of peptic acid can lead to ulceration, dyspepsia and gastro-
esophageal reflux disease.
6. Gastroparesis - under-activity of vagus nerve may interfere with the blood
supply of stomach after ingestion of food that leads to improper digestion.
Gastroparesis is marked by painful spasms in the stomach that affect normal
food intake, heartburn, nausea and weight loss.
7. Fainting - Over-activity of Vagus nerve increases the firing rate of receptors that
presents with sudden episodes of collapse and fainting (also referred to as vasovagal
reflex). Although, it is not dangerous, but fainting episodes may increase the risk of
accidental injuries that may prove life threatening.
8. Other Symptoms - Other symptoms include changes in the rhythm of heart, urinary
difficulties and changes in vocal tone.
 Nerves are protected by myelin sheaths that serve to prevent the delicate nerve fibers
from damage and destruction; however, aberrations in normal biochemical
environment due to excessive alcoholism or persistently raised blood sugar levels can
lead to swelling of myelin sheaths that lead to permanent destruction of nerve fibers
leading to inactivity of nerves. Other causes includes inflammatory disorders,
autoimmune destruction of nerves (in the setting of diseases like amyotrophic lateral
sclerosis, multiple sclerosis and other), viral infections and damage due to neoplastic
conditions that press upon nerves causing mechanical damage.

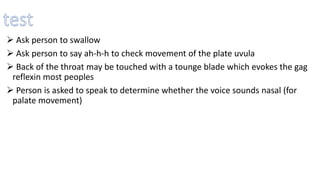

 Ask person to swallow
 Ask person to say ah-h-h to check movement of the plate uvula
 Back of the throat may be touched with a tounge blade which evokes the gag
reflexin most peoples
 Person is asked to speak to determine whether the voice sounds nasal (for
palate movement)

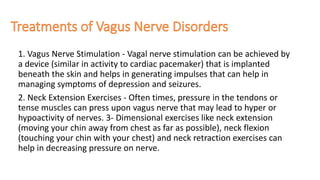

1. Vagus Nerve Stimulation - Vagal nerve stimulation can be achieved by
a device (similar in activity to cardiac pacemaker) that is implanted
beneath the skin and helps in generating impulses that can help in
managing symptoms of depression and seizures.
2. Neck Extension Exercises - Often times, pressure in the tendons or
tense muscles can press upon vagus nerve that may lead to hyper or
hypoactivity of nerves. 3- Dimensional exercises like neck extension
(moving your chin away from chest as far as possible), neck flexion
(touching your chin with your chest) and neck retraction exercises can
help in decreasing pressure on nerve.

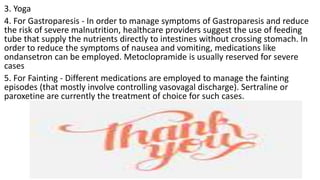

3. Yoga
4. For Gastroparesis - In order to manage symptoms of Gastroparesis and reduce
the risk of severe malnutrition, healthcare providers suggest the use of feeding
tube that supply the nutrients directly to intestines without crossing stomach. In
order to reduce the symptoms of nausea and vomiting, medications like
ondansetron can be employed. Metoclopramide is usually reserved for severe
cases
5. For Fainting - Different medications are employed to manage the fainting
episodes (that mostly involve controlling vasovagal discharge). Sertraline or
paroxetine are currently the treatment of choice for such cases.

More Related Content

What's hot

Glossopharyngeal (cn ix) and vagus (
Glossopharyngeal (cn ix) and vagus (Glossopharyngeal (cn ix) and vagus (
Glossopharyngeal (cn ix) and vagus (
NeurologyKota

Vagus nerve
Vagus nerveVagus nerve
Vagus nerve
Shazeena Qaiser

Glossopharyngeal nerve
Glossopharyngeal nerveGlossopharyngeal nerve
Glossopharyngeal nerve
RAJAT SINGHAL

olfactory nerve
olfactory nerveolfactory nerve
olfactory nerve
Rajesh Kabilan

Anatomy of external ear
Anatomy of external earAnatomy of external ear
Anatomy of external ear
Razal M

Pterygopalatine fossa and approaches by Dr.Ashwin Menon
Pterygopalatine fossa and approaches by Dr.Ashwin MenonPterygopalatine fossa and approaches by Dr.Ashwin Menon
Pterygopalatine fossa and approaches by Dr.Ashwin Menon
Dr.Ashwin Menon

cervical and brachial plexus
cervical and brachial plexuscervical and brachial plexus
cervical and brachial plexus
Sado Anatomist

Parasympathetic ganglia of Head and Neck
 Parasympathetic ganglia of Head and Neck Parasympathetic ganglia of Head and Neck
Parasympathetic ganglia of Head and Neck
CIMS

Hypoglossal nerve
Hypoglossal nerveHypoglossal nerve
Hypoglossal nerve
AmyEmtage

Medial longitudinal bundle
Medial longitudinal bundle Medial longitudinal bundle
Medial longitudinal bundle
Idris Siddiqui

Olfactory nerve
Olfactory nerveOlfactory nerve
Olfactory nerve
AmyEmtage

Glossopharyngeal nerve & its pathology ppt
Glossopharyngeal nerve & its pathology pptGlossopharyngeal nerve & its pathology ppt
Glossopharyngeal nerve & its pathology ppt
D Venkatesh Kumar

Anatomy of pharynx
Anatomy of pharynxAnatomy of pharynx
Anatomy of pharynx
NISCHAL SHRESTHA

Hypoglossal nerve
Hypoglossal nerveHypoglossal nerve
Hypoglossal nerve
Adarsh Nath

Laryngeal Muscles
Laryngeal MusclesLaryngeal Muscles
Laryngeal Muscles
Rashmi Priyem Saravanan

Cranial nerves xi and xii
Cranial nerves xi and xiiCranial nerves xi and xii
Cranial nerves xi and xii
NeurologyKota

Accessory nerve xi
Accessory nerve   xi Accessory nerve   xi
Accessory nerve xi
Dr. sana yaseen

Trigeminal Nerve
Trigeminal NerveTrigeminal Nerve
Trigeminal Nerve
Ah A

Corpus callosum with disconnection syndromes
Corpus callosum with disconnection syndromes Corpus callosum with disconnection syndromes
Corpus callosum with disconnection syndromes
Amruta Rajamanya


What's hot (20)

Glossopharyngeal (cn ix) and vagus (
Glossopharyngeal (cn ix) and vagus (Glossopharyngeal (cn ix) and vagus (
Glossopharyngeal (cn ix) and vagus (

Vagus nerve
Vagus nerveVagus nerve
Vagus nerve

Glossopharyngeal nerve
Glossopharyngeal nerveGlossopharyngeal nerve
Glossopharyngeal nerve

olfactory nerve
olfactory nerveolfactory nerve
olfactory nerve

Anatomy of external ear
Anatomy of external earAnatomy of external ear
Anatomy of external ear

Pterygopalatine fossa and approaches by Dr.Ashwin Menon
Pterygopalatine fossa and approaches by Dr.Ashwin MenonPterygopalatine fossa and approaches by Dr.Ashwin Menon
Pterygopalatine fossa and approaches by Dr.Ashwin Menon

cervical and brachial plexus
cervical and brachial plexuscervical and brachial plexus
cervical and brachial plexus

Parasympathetic ganglia of Head and Neck
 Parasympathetic ganglia of Head and Neck Parasympathetic ganglia of Head and Neck
Parasympathetic ganglia of Head and Neck

Hypoglossal nerve
Hypoglossal nerveHypoglossal nerve
Hypoglossal nerve

Medial longitudinal bundle
Medial longitudinal bundle Medial longitudinal bundle
Medial longitudinal bundle

Olfactory nerve
Olfactory nerveOlfactory nerve
Olfactory nerve

Glossopharyngeal nerve & its pathology ppt
Glossopharyngeal nerve & its pathology pptGlossopharyngeal nerve & its pathology ppt
Glossopharyngeal nerve & its pathology ppt

Anatomy of pharynx
Anatomy of pharynxAnatomy of pharynx
Anatomy of pharynx

Cerebellum
CerebellumCerebellum
Cerebellum

Hypoglossal nerve
Hypoglossal nerveHypoglossal nerve
Hypoglossal nerve

Laryngeal Muscles
Laryngeal MusclesLaryngeal Muscles
Laryngeal Muscles

Cranial nerves xi and xii
Cranial nerves xi and xiiCranial nerves xi and xii
Cranial nerves xi and xii

Accessory nerve xi
Accessory nerve   xi Accessory nerve   xi
Accessory nerve xi

Trigeminal Nerve
Trigeminal NerveTrigeminal Nerve
Trigeminal Nerve

Corpus callosum with disconnection syndromes
Corpus callosum with disconnection syndromes Corpus callosum with disconnection syndromes
Corpus callosum with disconnection syndromes


Similar to VAGUS NERVE AND ITS DESORDERS AND TREATMENT

Vagus indigestion
Vagus indigestionVagus indigestion
Vagus indigestion
Abhineet Bhatti

презентация Vagus
презентация Vagusпрезентация Vagus
презентация Vagus
Ajaindu Shrivastava

AUTONOMIC_NERVOUS_SYSTEM_AND_DRUGS-final.pptx
AUTONOMIC_NERVOUS_SYSTEM_AND_DRUGS-final.pptxAUTONOMIC_NERVOUS_SYSTEM_AND_DRUGS-final.pptx
AUTONOMIC_NERVOUS_SYSTEM_AND_DRUGS-final.pptx
TofikMohammed3

VAGUS NERVE IN HEAD AND NECK.pptx
VAGUS NERVE IN HEAD AND NECK.pptxVAGUS NERVE IN HEAD AND NECK.pptx
VAGUS NERVE IN HEAD AND NECK.pptx
KarishmaMishra13

Bladder involvement in spine disorders
Bladder involvement in spine disordersBladder involvement in spine disorders
Bladder involvement in spine disordersJayant Sharma

VAGUS NERVE IN HEAD AND NECK.pptx
VAGUS NERVE IN HEAD AND NECK.pptxVAGUS NERVE IN HEAD AND NECK.pptx
VAGUS NERVE IN HEAD AND NECK.pptx
KarishmaMishra13

bladder dysfunction syndrome 3.pptx
bladder dysfunction syndrome 3.pptxbladder dysfunction syndrome 3.pptx
bladder dysfunction syndrome 3.pptx
DrGyaneshwarYadav

Vegetative nervous system
Vegetative nervous systemVegetative nervous system
Vegetative nervous system
Tetyana Knyazevych

VAGUS NERVE ANATOMY IN HEAD AND NECK AND ITS BRANCHES
VAGUS NERVE ANATOMY IN HEAD AND NECK AND ITS BRANCHESVAGUS NERVE ANATOMY IN HEAD AND NECK AND ITS BRANCHES
VAGUS NERVE ANATOMY IN HEAD AND NECK AND ITS BRANCHES
VaishnawiRai

Esophageal motility disorders
Esophageal motility disorders Esophageal motility disorders
Esophageal motility disorders
rks sivasankar

esophagus.pdf
esophagus.pdfesophagus.pdf
esophagus.pdf
madhurikakarnati

Autonomic nervous system.pptx
Autonomic nervous system.pptxAutonomic nervous system.pptx
Autonomic nervous system.pptx
Shubham Shukla

Autonomic nervous system.pptx
Autonomic nervous system.pptxAutonomic nervous system.pptx
Autonomic nervous system.pptx
Shubham Shukla

Autonomic nervous system.of neurological pdf
Autonomic nervous system.of neurological pdfAutonomic nervous system.of neurological pdf
Autonomic nervous system.of neurological pdf
cvmvhqrksn

AcuPoints iii, midterm ii
AcuPoints iii, midterm iiAcuPoints iii, midterm ii
AcuPoints iii, midterm ii
Daniel Nikzad

Esophagus
EsophagusEsophagus
Bladder in paraplegia
Bladder in paraplegiaBladder in paraplegia
Bladder in paraplegia
Krishna Chaitanya

3 autonomic nervous system
3 autonomic nervous system3 autonomic nervous system
3 autonomic nervous system
DAWN V TOMY

vagusnerve1-181031072238.pptx
vagusnerve1-181031072238.pptxvagusnerve1-181031072238.pptx
vagusnerve1-181031072238.pptx
KarishmaMishra13


Similar to VAGUS NERVE AND ITS DESORDERS AND TREATMENT (20)

Vagus indigestion
Vagus indigestionVagus indigestion
Vagus indigestion

презентация Vagus
презентация Vagusпрезентация Vagus
презентация Vagus

AUTONOMIC_NERVOUS_SYSTEM_AND_DRUGS-final.pptx
AUTONOMIC_NERVOUS_SYSTEM_AND_DRUGS-final.pptxAUTONOMIC_NERVOUS_SYSTEM_AND_DRUGS-final.pptx
AUTONOMIC_NERVOUS_SYSTEM_AND_DRUGS-final.pptx

VAGUS NERVE IN HEAD AND NECK.pptx
VAGUS NERVE IN HEAD AND NECK.pptxVAGUS NERVE IN HEAD AND NECK.pptx
VAGUS NERVE IN HEAD AND NECK.pptx

Bladder involvement in spine disorders
Bladder involvement in spine disordersBladder involvement in spine disorders
Bladder involvement in spine disorders

VAGUS NERVE IN HEAD AND NECK.pptx
VAGUS NERVE IN HEAD AND NECK.pptxVAGUS NERVE IN HEAD AND NECK.pptx
VAGUS NERVE IN HEAD AND NECK.pptx

bladder dysfunction syndrome 3.pptx
bladder dysfunction syndrome 3.pptxbladder dysfunction syndrome 3.pptx
bladder dysfunction syndrome 3.pptx

Vegetative nervous system
Vegetative nervous systemVegetative nervous system
Vegetative nervous system

VAGUS NERVE ANATOMY IN HEAD AND NECK AND ITS BRANCHES
VAGUS NERVE ANATOMY IN HEAD AND NECK AND ITS BRANCHESVAGUS NERVE ANATOMY IN HEAD AND NECK AND ITS BRANCHES
VAGUS NERVE ANATOMY IN HEAD AND NECK AND ITS BRANCHES

Esophageal motility disorders
Esophageal motility disorders Esophageal motility disorders
Esophageal motility disorders

esophagus.pdf
esophagus.pdfesophagus.pdf
esophagus.pdf

Cardiac assessment
Cardiac assessmentCardiac assessment
Cardiac assessment

Autonomic nervous system.pptx
Autonomic nervous system.pptxAutonomic nervous system.pptx
Autonomic nervous system.pptx

Autonomic nervous system.pptx
Autonomic nervous system.pptxAutonomic nervous system.pptx
Autonomic nervous system.pptx

Autonomic nervous system.of neurological pdf
Autonomic nervous system.of neurological pdfAutonomic nervous system.of neurological pdf
Autonomic nervous system.of neurological pdf

AcuPoints iii, midterm ii
AcuPoints iii, midterm iiAcuPoints iii, midterm ii
AcuPoints iii, midterm ii

Esophagus
EsophagusEsophagus
Esophagus

Bladder in paraplegia
Bladder in paraplegiaBladder in paraplegia
Bladder in paraplegia

3 autonomic nervous system
3 autonomic nervous system3 autonomic nervous system
3 autonomic nervous system

vagusnerve1-181031072238.pptx
vagusnerve1-181031072238.pptxvagusnerve1-181031072238.pptx
vagusnerve1-181031072238.pptx


Recently uploaded

Are There Any Natural Remedies To Treat Syphilis.pdf
Are There Any Natural Remedies To Treat Syphilis.pdfAre There Any Natural Remedies To Treat Syphilis.pdf
Are There Any Natural Remedies To Treat Syphilis.pdf
Little Cross Family Clinic

BRACHYTHERAPY OVERVIEW AND APPLICATORS
BRACHYTHERAPY OVERVIEW  AND  APPLICATORSBRACHYTHERAPY OVERVIEW  AND  APPLICATORS
BRACHYTHERAPY OVERVIEW AND APPLICATORS
Krishan Murari

New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...
New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...
New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...
i3 Health

Flu Vaccine Alert in Bangalore Karnataka
Flu Vaccine Alert in Bangalore KarnatakaFlu Vaccine Alert in Bangalore Karnataka
Flu Vaccine Alert in Bangalore Karnataka
addon Scans

Dehradun #ℂall #gIRLS Oyo Hotel 9719300533 #ℂall #gIRL in Dehradun
Dehradun #ℂall #gIRLS Oyo Hotel 9719300533 #ℂall #gIRL in DehradunDehradun #ℂall #gIRLS Oyo Hotel 9719300533 #ℂall #gIRL in Dehradun
Dehradun #ℂall #gIRLS Oyo Hotel 9719300533 #ℂall #gIRL in Dehradun
chandankumarsmartiso

HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
GL Anaacs

Physiology of Chemical Sensation of smell.pdf
Physiology of Chemical Sensation of smell.pdfPhysiology of Chemical Sensation of smell.pdf
Physiology of Chemical Sensation of smell.pdf
MedicoseAcademics

Light House Retreats: Plant Medicine Retreat Europe
Light House Retreats: Plant Medicine Retreat EuropeLight House Retreats: Plant Medicine Retreat Europe
Light House Retreats: Plant Medicine Retreat Europe
Lighthouse Retreat

basicmodesofventilation2022-220313203758.pdf
basicmodesofventilation2022-220313203758.pdfbasicmodesofventilation2022-220313203758.pdf
basicmodesofventilation2022-220313203758.pdf
aljamhori teaching hospital

NVBDCP.pptx Nation vector borne disease control program
NVBDCP.pptx Nation vector borne disease control programNVBDCP.pptx Nation vector borne disease control program
NVBDCP.pptx Nation vector borne disease control program
Sapna Thakur

Ophthalmology Clinical Tests for OSCE exam
Ophthalmology Clinical Tests for OSCE examOphthalmology Clinical Tests for OSCE exam
Ophthalmology Clinical Tests for OSCE exam
KafrELShiekh University

MANAGEMENT OF ATRIOVENTRICULAR CONDUCTION BLOCK.pdf
MANAGEMENT OF ATRIOVENTRICULAR CONDUCTION BLOCK.pdfMANAGEMENT OF ATRIOVENTRICULAR CONDUCTION BLOCK.pdf
MANAGEMENT OF ATRIOVENTRICULAR CONDUCTION BLOCK.pdf
Jim Jacob Roy

Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...
Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...
Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...
Oleg Kshivets

planning for change nursing Management ppt
planning for change nursing Management pptplanning for change nursing Management ppt
planning for change nursing Management ppt
Thangamjayarani

Basavarajeeyam - Ayurvedic heritage book of Andhra pradesh
Basavarajeeyam - Ayurvedic heritage book of Andhra pradeshBasavarajeeyam - Ayurvedic heritage book of Andhra pradesh
Basavarajeeyam - Ayurvedic heritage book of Andhra pradesh
Dr. Madduru Muni Haritha

TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
kevinkariuki227

Ocular injury ppt Upendra pal optometrist upums saifai etawah
Ocular injury  ppt  Upendra pal  optometrist upums saifai etawahOcular injury  ppt  Upendra pal  optometrist upums saifai etawah
Ocular injury ppt Upendra pal optometrist upums saifai etawah
pal078100

Superficial & Deep Fascia of the NECK.pptx
Superficial & Deep Fascia of the NECK.pptxSuperficial & Deep Fascia of the NECK.pptx
Superficial & Deep Fascia of the NECK.pptx
Dr. Rabia Inam Gandapore

Alcohol_Dr. Jeenal Mistry MD Pharmacology.pdf
Alcohol_Dr. Jeenal Mistry MD Pharmacology.pdfAlcohol_Dr. Jeenal Mistry MD Pharmacology.pdf
Alcohol_Dr. Jeenal Mistry MD Pharmacology.pdf
Dr Jeenal Mistry

Knee anatomy and clinical tests 2024.pdf
Knee anatomy and clinical tests 2024.pdfKnee anatomy and clinical tests 2024.pdf
Knee anatomy and clinical tests 2024.pdf
vimalpl1234


Recently uploaded (20)

Are There Any Natural Remedies To Treat Syphilis.pdf
Are There Any Natural Remedies To Treat Syphilis.pdfAre There Any Natural Remedies To Treat Syphilis.pdf
Are There Any Natural Remedies To Treat Syphilis.pdf

BRACHYTHERAPY OVERVIEW AND APPLICATORS
BRACHYTHERAPY OVERVIEW  AND  APPLICATORSBRACHYTHERAPY OVERVIEW  AND  APPLICATORS
BRACHYTHERAPY OVERVIEW AND APPLICATORS

New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...
New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...
New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...

Flu Vaccine Alert in Bangalore Karnataka
Flu Vaccine Alert in Bangalore KarnatakaFlu Vaccine Alert in Bangalore Karnataka
Flu Vaccine Alert in Bangalore Karnataka

Dehradun #ℂall #gIRLS Oyo Hotel 9719300533 #ℂall #gIRL in Dehradun
Dehradun #ℂall #gIRLS Oyo Hotel 9719300533 #ℂall #gIRL in DehradunDehradun #ℂall #gIRLS Oyo Hotel 9719300533 #ℂall #gIRL in Dehradun
Dehradun #ℂall #gIRLS Oyo Hotel 9719300533 #ℂall #gIRL in Dehradun

HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...

Physiology of Chemical Sensation of smell.pdf
Physiology of Chemical Sensation of smell.pdfPhysiology of Chemical Sensation of smell.pdf
Physiology of Chemical Sensation of smell.pdf

Light House Retreats: Plant Medicine Retreat Europe
Light House Retreats: Plant Medicine Retreat EuropeLight House Retreats: Plant Medicine Retreat Europe
Light House Retreats: Plant Medicine Retreat Europe

basicmodesofventilation2022-220313203758.pdf
basicmodesofventilation2022-220313203758.pdfbasicmodesofventilation2022-220313203758.pdf
basicmodesofventilation2022-220313203758.pdf

NVBDCP.pptx Nation vector borne disease control program
NVBDCP.pptx Nation vector borne disease control programNVBDCP.pptx Nation vector borne disease control program
NVBDCP.pptx Nation vector borne disease control program

Ophthalmology Clinical Tests for OSCE exam
Ophthalmology Clinical Tests for OSCE examOphthalmology Clinical Tests for OSCE exam
Ophthalmology Clinical Tests for OSCE exam

MANAGEMENT OF ATRIOVENTRICULAR CONDUCTION BLOCK.pdf
MANAGEMENT OF ATRIOVENTRICULAR CONDUCTION BLOCK.pdfMANAGEMENT OF ATRIOVENTRICULAR CONDUCTION BLOCK.pdf
MANAGEMENT OF ATRIOVENTRICULAR CONDUCTION BLOCK.pdf

Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...
Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...
Lung Cancer: Artificial Intelligence, Synergetics, Complex System Analysis, S...

planning for change nursing Management ppt
planning for change nursing Management pptplanning for change nursing Management ppt
planning for change nursing Management ppt

Basavarajeeyam - Ayurvedic heritage book of Andhra pradesh
Basavarajeeyam - Ayurvedic heritage book of Andhra pradeshBasavarajeeyam - Ayurvedic heritage book of Andhra pradesh
Basavarajeeyam - Ayurvedic heritage book of Andhra pradesh

TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...

Ocular injury ppt Upendra pal optometrist upums saifai etawah
Ocular injury  ppt  Upendra pal  optometrist upums saifai etawahOcular injury  ppt  Upendra pal  optometrist upums saifai etawah
Ocular injury ppt Upendra pal optometrist upums saifai etawah

Superficial & Deep Fascia of the NECK.pptx
Superficial & Deep Fascia of the NECK.pptxSuperficial & Deep Fascia of the NECK.pptx
Superficial & Deep Fascia of the NECK.pptx

Alcohol_Dr. Jeenal Mistry MD Pharmacology.pdf
Alcohol_Dr. Jeenal Mistry MD Pharmacology.pdfAlcohol_Dr. Jeenal Mistry MD Pharmacology.pdf
Alcohol_Dr. Jeenal Mistry MD Pharmacology.pdf

Knee anatomy and clinical tests 2024.pdf
Knee anatomy and clinical tests 2024.pdfKnee anatomy and clinical tests 2024.pdf
Knee anatomy and clinical tests 2024.pdf


VAGUS NERVE AND ITS DESORDERS AND TREATMENT

  • 1.
  • 2.  Is the tenth cranial nerve or CN X  Interfaces with parasympathetic control of the heart, lungs and digestive tract  It is the longest nerve of the autonomic nervous system in the human body.  vagus nerve has two ganglia 1.Superior ganglion - round and lies in the jugular foramen 2.inferior ganglion - cylindrical and lies near the base of skull
  • 3.
  • 4.  vagus nerve includes axons which emerge from or converge onto four nuclei of the medulla: The dorsal nucleus of vagus nerve — which sends parasympathetic output to the viscera, especially the intestines The nucleus ambiguus — which gives rise to the branchial efferent motor fibers of the vagus nerve and preganglionic parasympathetic neurons that innervate the heart The solitary nucleus — which receives afferent taste information and primary afferents from visceral organs The spinal trigeminal nucleus — which receives information about deep/crude touch, pain, and temperature of the outer ear, the dura of the posterior cranial fossa and the mucosa of the larynx
  • 5.
  • 6.  vagus nerve leaving the medulla oblongata between the pyramid and the inferior cerebellar peduncle, the vagus nerve extends through the jugular foramen, then passes into the carotid sheath between the internal carotid artery and the internal jugular vein down to the neck, chest and abdomen, where it contributes to the innervation of the viscera. Besides giving some output to various organs, the vagus nerve comprises between 80% and 90% of afferent nerves mostly conveying sensory information about the state of the body's organs to the central nervous system  The vagus nerves are paired(right/left) 1. right vagus nerve gives rise to the right recurrent laryngeal nerve, which hooks around the right subclavian artery and ascends into the neck between the trachea and esophagus. The right vagus then crosses anterior to the right subclavian artery, runs posterior to the superior vena cava, descends posterior to the right main bronchus, and contributes to cardiac, pulmonary, and esophageal plexuses. It forms the posterior vagal trunk at the lower part of the esophagus and enters the diaphragm through the esophageal hiatus.
  • 7. 2. The left vagus nerve enters the thorax between left common carotid artery and left subclavian artery and descends on the aortic arch. It gives rise to the left recurrent laryngeal nerve, which hooks around the aortic arch to the left of the ligamentum arteriosum and ascends between the trachea and esophagus. The left vagus further gives off thoracic cardiac branches, breaks up into the pulmonary plexus, continues into the esophageal plexus, and enters the abdomen as the anterior vagal trunk in the esophageal hiatus of the diaphragm.  Pharyngeal nerve  Superior laryngeal nerve  Superior cervical cardiac branches of vagus nerve  Inferior cervical cardiac branch  Recurrent laryngeal nerve  Thoracic cardiac branches  Branches to the pulmonary plexus  Branches to the esophageal plexus  Anterior vagal trunk  Posterior vagal trunk  Hering-Breuer reflex in alveoli
  • 8.
  • 9. The vagus nerve supplies motor parasympathetic fibres to all the organs except the suprarenal (adrenal) glands, from the neck down to the second segment of the transverse colon. The vagus also controls a few skeletal muscles such as  Cricothyroid muscle  Levator veli palatini muscle  Salpingopharyngeus muscle  Palatoglossus muscle  Palatopharyngeus muscle  Superior, middle and inferior pharyngeal constrictors  Muscles of the larynx (speech)
  • 10.  vagus nerve is responsible for such varied tasks as heart rate, gastrointestinal peristalsis, sweating, and quite a few muscle movements in the mouth, including speech (via the recurrent laryngeal nerve).  It also has some afferent fibers that innervate the inner (canal) portion of the outer ear (via the auricular branch, also known as Alderman's nerve) and part of the meninges  (This is the reason why a person may cough when tickled on the ear, such as when trying to remove ear wax with a cotton swab) Efferent vagus nerve fibres innervating the pharynx and back of the throat are responsible for the gag reflex. In addition, 5-HT3 receptor-mediated afferent vagus stimulation in the gut due to gastroenteritis and other insults is a cause of vomiting
  • 11. • General visceral efferent (GVE) — provides parasympathetic innervation to glands of mucous membranes of the pharynx, larynx, organs in the neck, thorax, and abdomen. • Special visceral efferent (SVE) — innervates skeletal muscles of the pharynx and larynx. • General somatic afferent (GSA) — carries sensation from the external auditory meatus and tympanic membrane. • General visceral afferent (GVA) — carries information from the thoracic and abdominal viscera; aortic body and arch. • Special visceral afferent (SVA) — carries taste of the epiglottis region of the tongue.
  • 12. Parasympathetic innervation of the heart is partially controlled by the vagus nerve and is shared by the thoracic ganglia  vagal and spinal ganglionic nerves mediate the lowering of the heart rate. right vagus branch innervates the sinoatrial node. Parasympathetic tone from these sources are obviously well matched to sympathetic tone in healthy people Hyperstimulation of parasympathetic influence promotes bradyarrhythmias hyperstimulated, the left vagal branch predisposes the heart to conduction block at the atrioventricular node.
  • 13.  Activation of the vagus nerve typically leads to a reduction in heart rate, blood pressure, or both. This occurs commonly in the setting of gastrointestinal illness such as viral gastroenteritis or acute cholecystitis, or in response to other stimuli, including carotid sinus massage, Valsalva maneuver or pain from any cause, in particular, having blood drawn.  Activation of the vagus nerve typically leads to a reduction in heart rate, blood pressure, or both. This occurs commonly in the setting of gastrointestinal illness such as viral gastroenteritis or acute cholecystitis, or in response to other stimuli, including carotid sinus massage, Valsalva maneuver or pain from any cause, in particular, having blood drawn.  Symptoms of irritable Bowel Syndrome are thought to cause activation of the vagus nerve with many people reporting fainting, vision disturbances and dizziness
  • 14. Excessive activation of the vagal nerve during emotional stress, which is a parasympathetic overcompensation of a strong sympathetic nervous system response associated with stress, can also cause vasovagal syncope due to a sudden drop in cardiac output, causing cerebral hypoperfusion. Vasovagal syncope affects young children and women more than other groups. It can also lead to temporary loss of bladder control under moments of extreme fear 1. Pain - most common nerve pain symptoms are due to pinched nerve (when nerve exits through tiny foramina in the skull). 2. Organ Dysfunction - a branch or tributary of nerve is affected that leads to localized symptoms of organ dysfunction due to damage to nerve fibers or discrepancy in the synthesis of neurotransmitters.
  • 15. 3. Muscle Cramps - painfull and involuntary muscular contraction 4. Difficulty in Swallowing - Glottis is normally closed when a person is swallowing in order to prevent the aspiration of food. This is managed by gag - reflex (gagging sensation if the back of throat is touched). In patients of head injury or stroke, gag reflex may get impaired leading to choking while eating and difficulty in swallowing. 5. Peptic Ulcer - Defects in the normal functioning of Vagus nerve may impair the normal control mechanisms that modulate the gastric acid secretion. Excessive secretion of peptic acid can lead to ulceration, dyspepsia and gastro- esophageal reflux disease. 6. Gastroparesis - under-activity of vagus nerve may interfere with the blood supply of stomach after ingestion of food that leads to improper digestion. Gastroparesis is marked by painful spasms in the stomach that affect normal food intake, heartburn, nausea and weight loss.
  • 16. 7. Fainting - Over-activity of Vagus nerve increases the firing rate of receptors that presents with sudden episodes of collapse and fainting (also referred to as vasovagal reflex). Although, it is not dangerous, but fainting episodes may increase the risk of accidental injuries that may prove life threatening. 8. Other Symptoms - Other symptoms include changes in the rhythm of heart, urinary difficulties and changes in vocal tone.  Nerves are protected by myelin sheaths that serve to prevent the delicate nerve fibers from damage and destruction; however, aberrations in normal biochemical environment due to excessive alcoholism or persistently raised blood sugar levels can lead to swelling of myelin sheaths that lead to permanent destruction of nerve fibers leading to inactivity of nerves. Other causes includes inflammatory disorders, autoimmune destruction of nerves (in the setting of diseases like amyotrophic lateral sclerosis, multiple sclerosis and other), viral infections and damage due to neoplastic conditions that press upon nerves causing mechanical damage.
  • 17.  Ask person to swallow  Ask person to say ah-h-h to check movement of the plate uvula  Back of the throat may be touched with a tounge blade which evokes the gag reflexin most peoples  Person is asked to speak to determine whether the voice sounds nasal (for palate movement)
  • 18. 1. Vagus Nerve Stimulation - Vagal nerve stimulation can be achieved by a device (similar in activity to cardiac pacemaker) that is implanted beneath the skin and helps in generating impulses that can help in managing symptoms of depression and seizures. 2. Neck Extension Exercises - Often times, pressure in the tendons or tense muscles can press upon vagus nerve that may lead to hyper or hypoactivity of nerves. 3- Dimensional exercises like neck extension (moving your chin away from chest as far as possible), neck flexion (touching your chin with your chest) and neck retraction exercises can help in decreasing pressure on nerve.
  • 19. 3. Yoga 4. For Gastroparesis - In order to manage symptoms of Gastroparesis and reduce the risk of severe malnutrition, healthcare providers suggest the use of feeding tube that supply the nutrients directly to intestines without crossing stomach. In order to reduce the symptoms of nausea and vomiting, medications like ondansetron can be employed. Metoclopramide is usually reserved for severe cases 5. For Fainting - Different medications are employed to manage the fainting episodes (that mostly involve controlling vasovagal discharge). Sertraline or paroxetine are currently the treatment of choice for such cases.
