Pleiades satellite imagery can be used to generate high-resolution digital elevation models, contour lines, and 3D models for mining sector planning activities. A case study acquired 240 sq km of Pleiades stereo imagery with less than 5% cloud cover to generate a 5m DEM and detailed contour lines and 3D visualizations. The Pleiades data provided more accurate topographic information than existing SRTM data for environmental studies, monitoring mining volume changes, and other planning purposes in the mining sector.

1. 1
Using Pleiades
Very High Resolution Images
for planning activities
in mining sector
DEM and TOPO products

2. 2

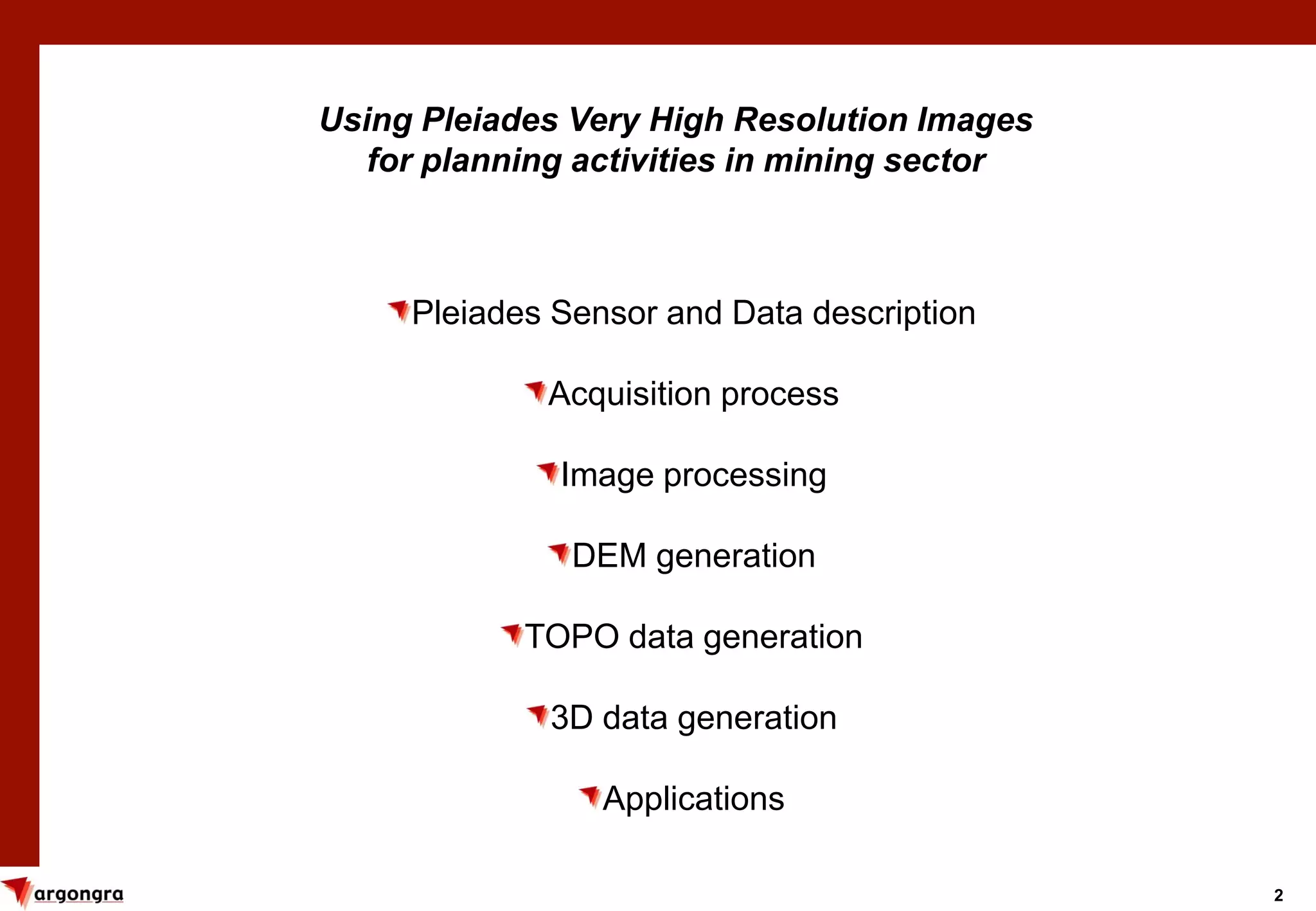

Using Pleiades Very High Resolution Images
for planning activities in mining sector
Pleiades Sensor and Data description
Acquisition process
Image processing
DEM generation
TOPO data generation
3D data generation
Applications

3. 3

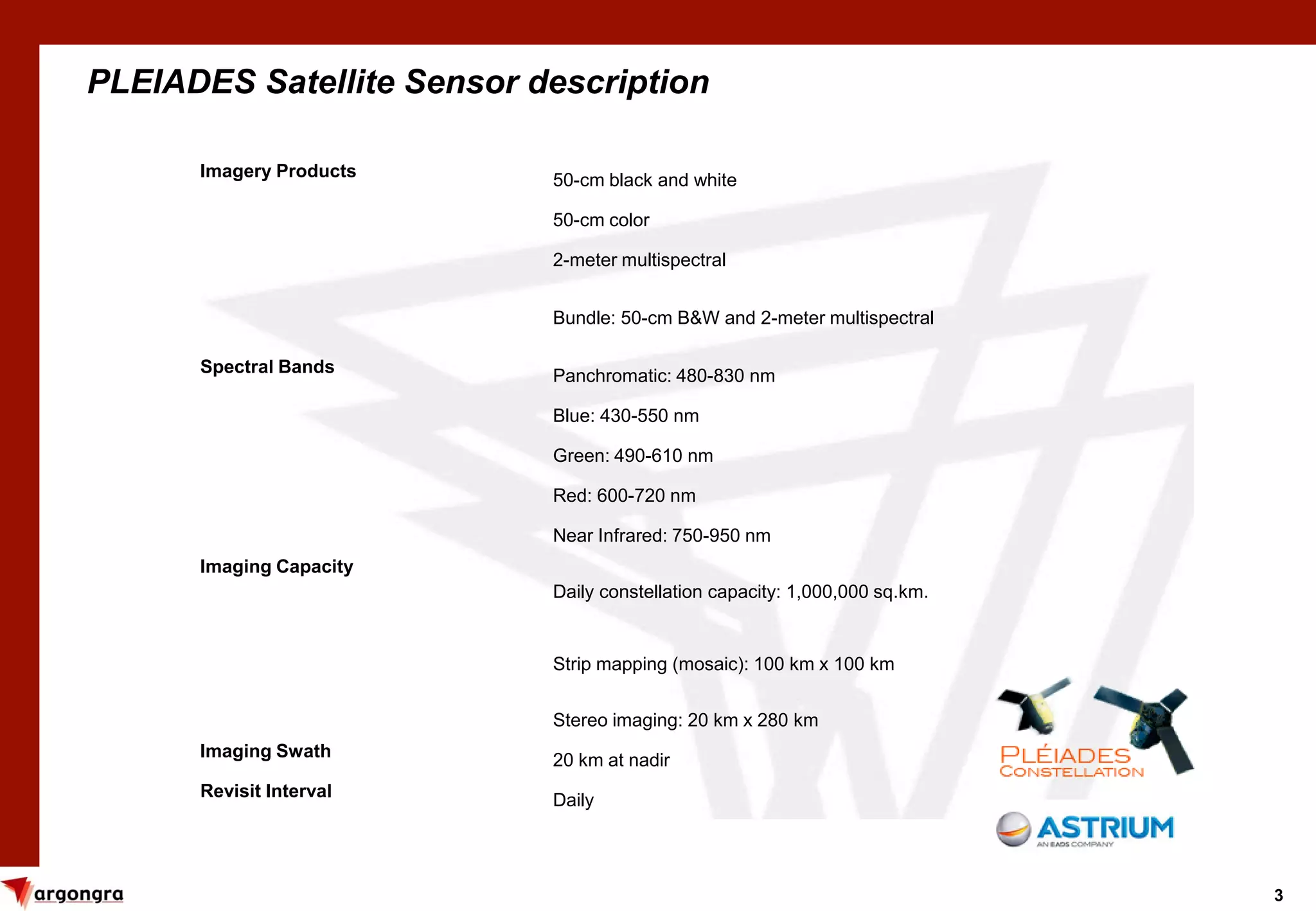

PLEIADES Satellite Sensor description
Imagery Products 50-cm black and white
50-cm color
2-meter multispectral
Bundle: 50-cm B&W and 2-meter multispectral
Spectral Bands Panchromatic: 480-830 nm
Blue: 430-550 nm
Green: 490-610 nm
Red: 600-720 nm
Near Infrared: 750-950 nm
Imaging Capacity
Daily constellation capacity: 1,000,000 sq.km.
Strip mapping (mosaic): 100 km x 100 km
Stereo imaging: 20 km x 280 km
Imaging Swath 20 km at nadir
Revisit Interval Daily

4. 4

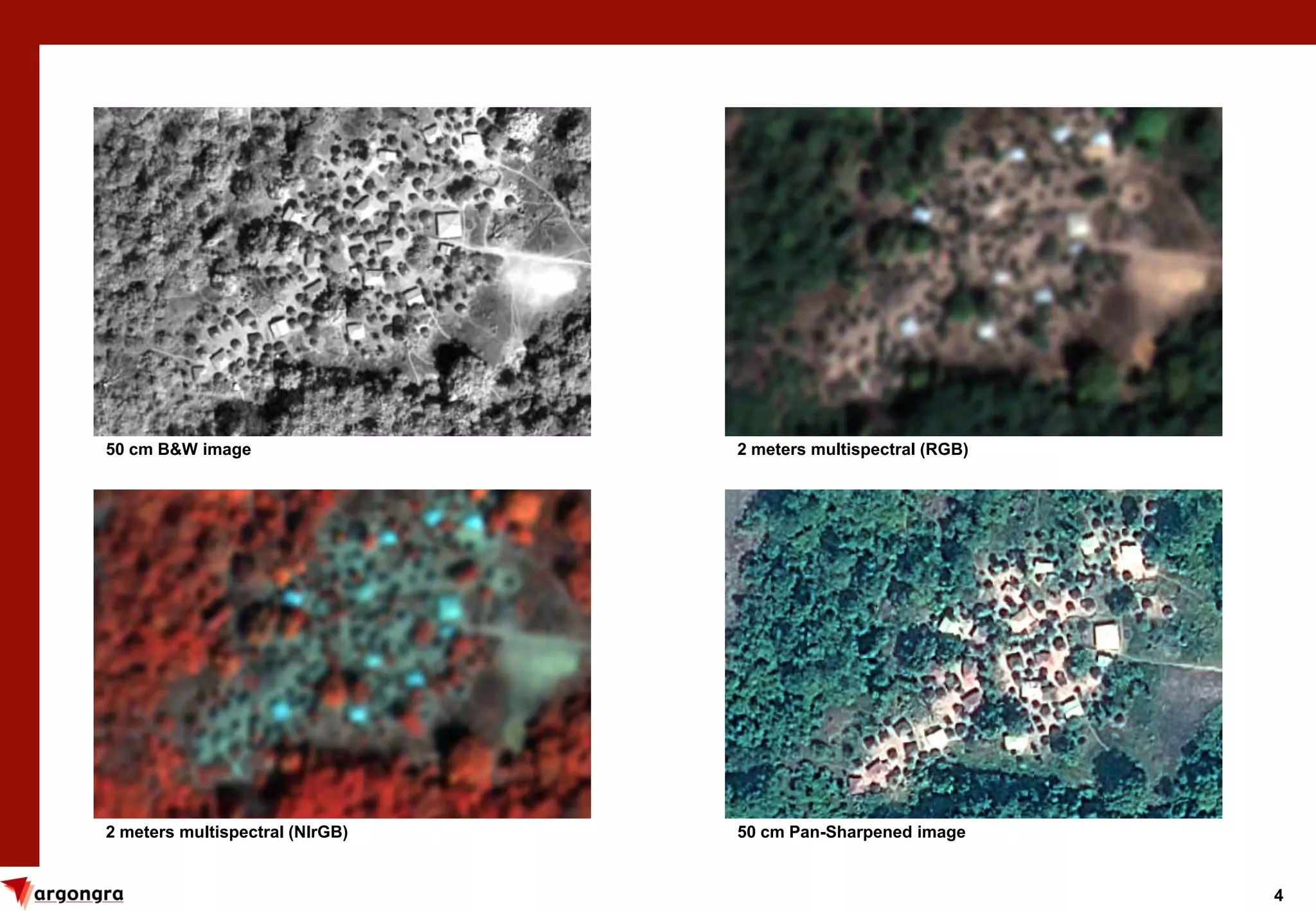

50 cm B&W image 2 meters multispectral (RGB)
2 meters multispectral (NIrGB) 50 cm Pan-Sharpened image

5. 5

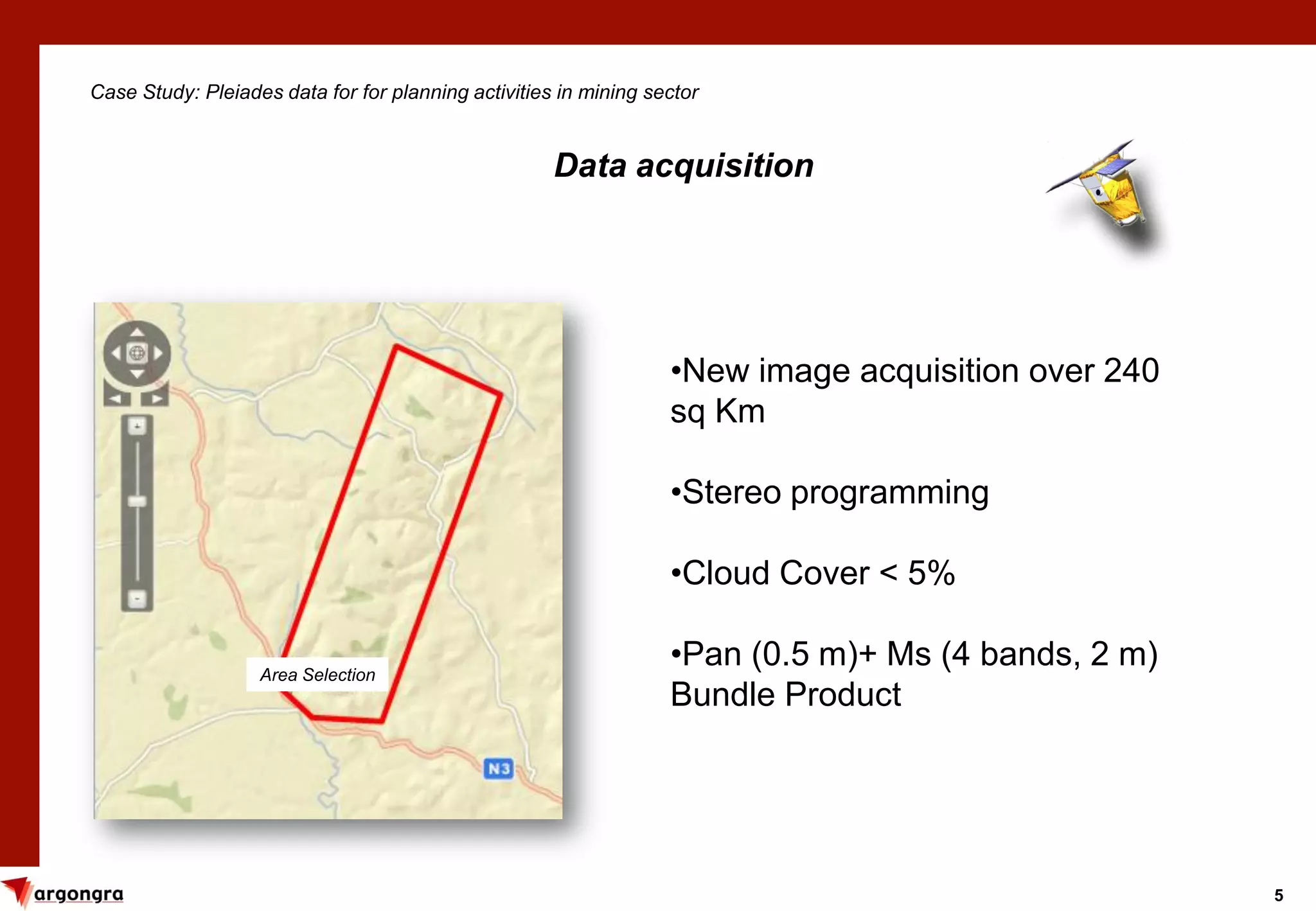

Case Study: Pleiades data for for planning activities in mining sector
Data acquisition
•New image acquisition over 240
sq Km
•Stereo programming
•Cloud Cover < 5%
•Pan (0.5 m)+ Ms (4 bands, 2 m)
Bundle Product
Area Selection

6. 6

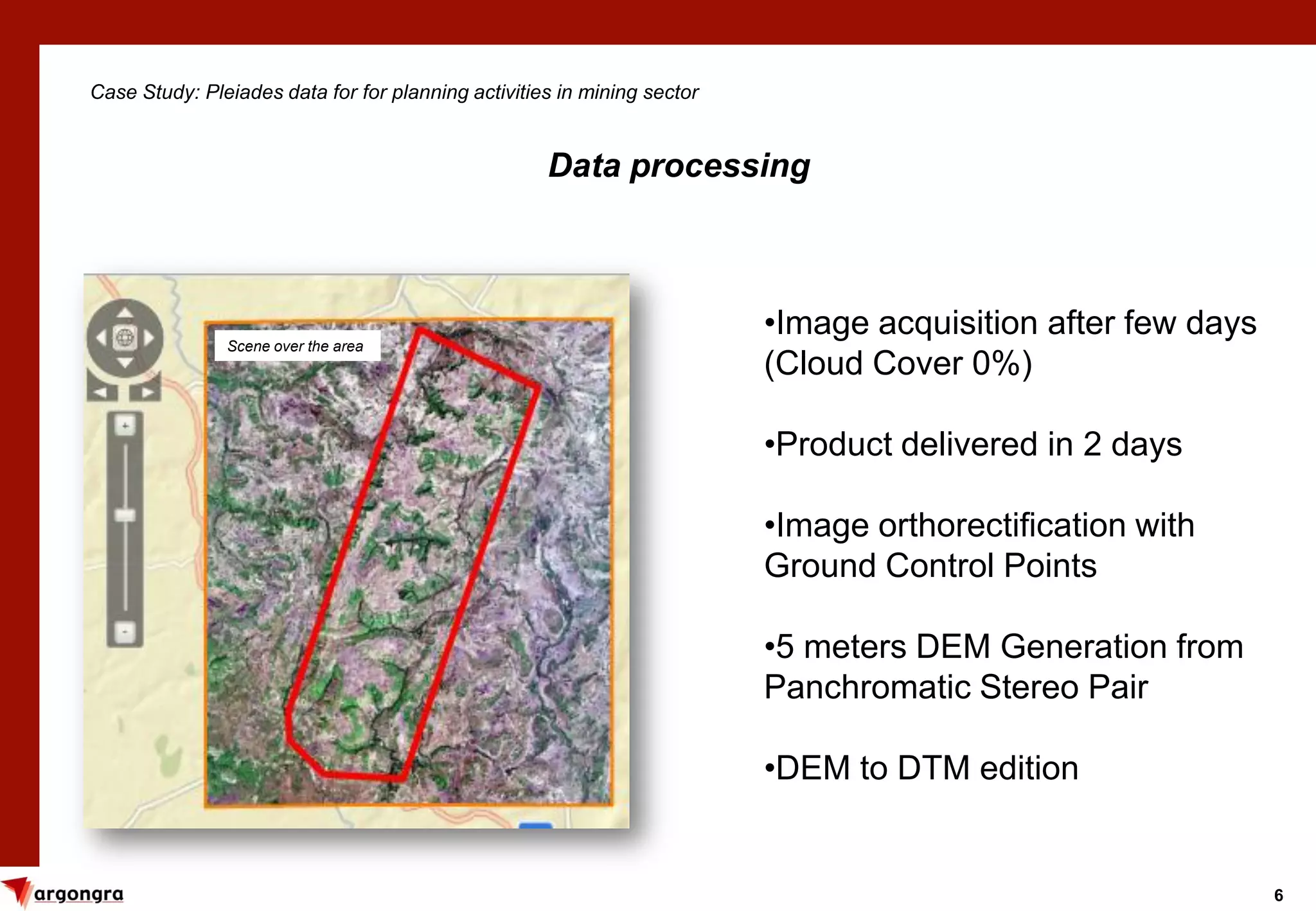

Case Study: Pleiades data for for planning activities in mining sector
Data processing
•Image acquisition after few days
(Cloud Cover 0%)
•Product delivered in 2 days
•Image orthorectification with
Ground Control Points
•5 meters DEM Generation from
Panchromatic Stereo Pair
•DEM to DTM edition
Scene over the area

7. 7

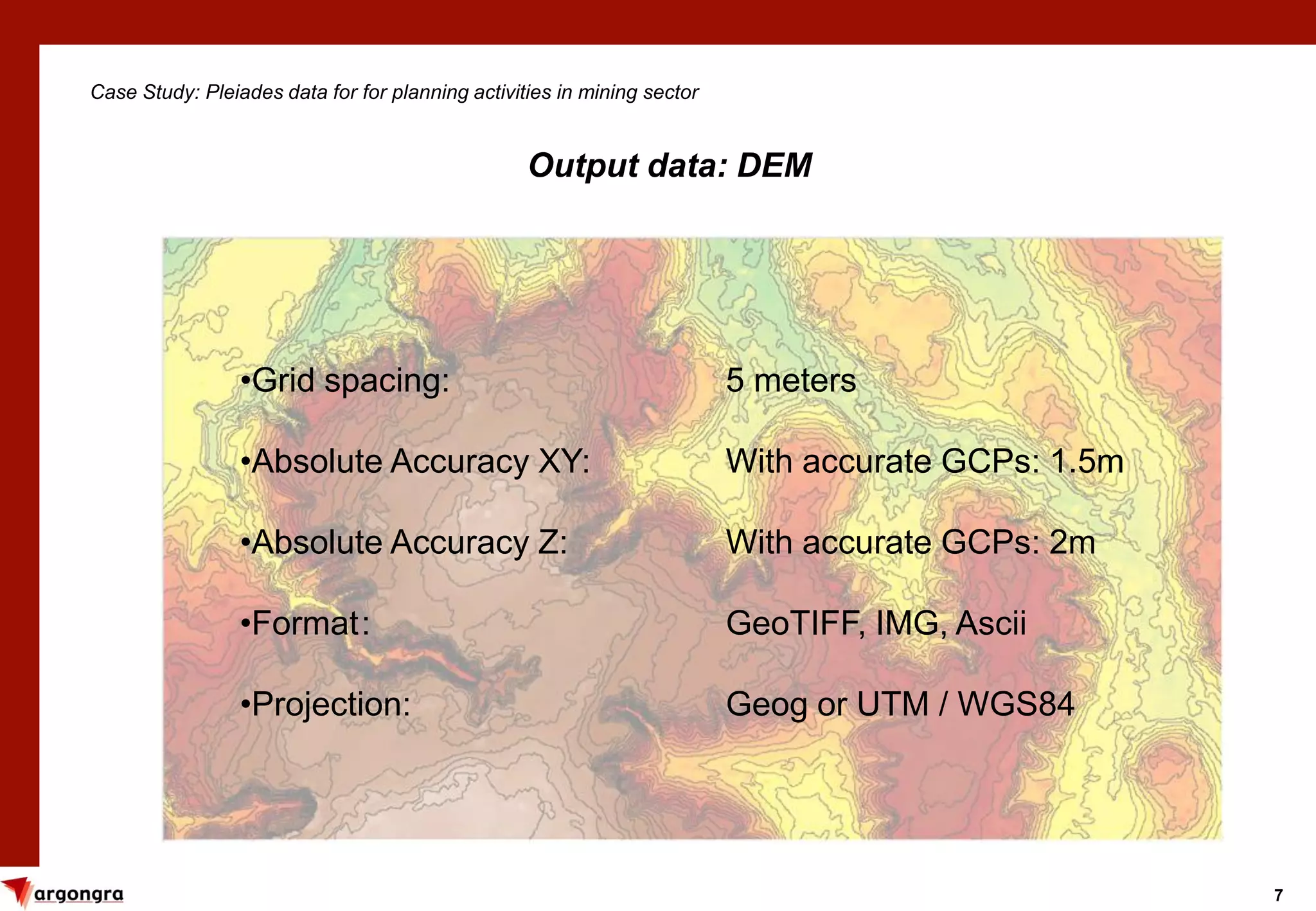

Case Study: Pleiades data for for planning activities in mining sector
Output data: DEM
•Grid spacing: 5 meters
•Absolute Accuracy XY: With accurate GCPs: 1.5m
•Absolute Accuracy Z: With accurate GCPs: 2m
•Format: GeoTIFF, IMG, Ascii
•Projection: Geog or UTM / WGS84

8. 8

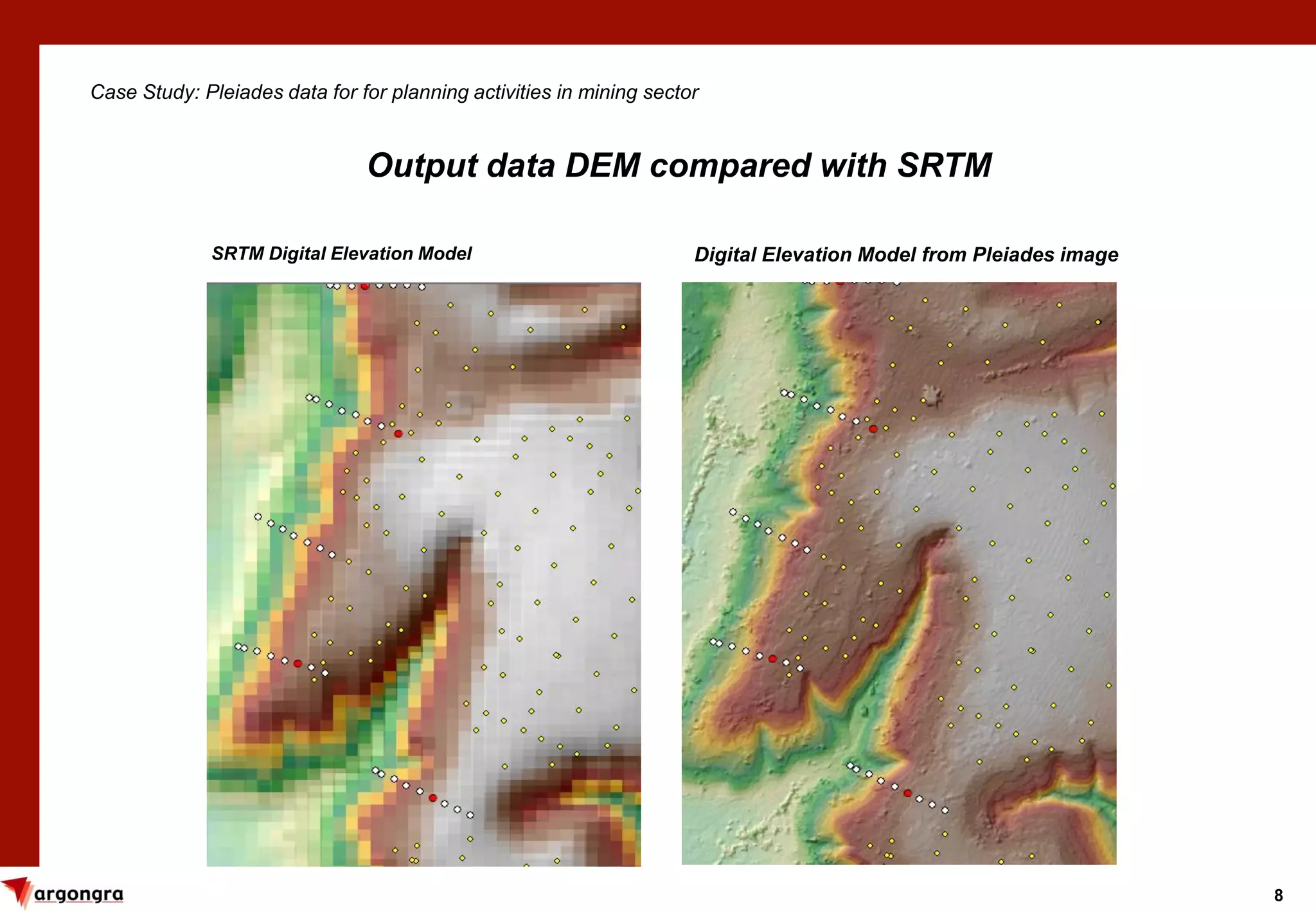

SRTM Digital Elevation Model Digital Elevation Model from Pleiades image
Case Study: Pleiades data for for planning activities in mining sector
Output data DEM compared with SRTM

9. 9

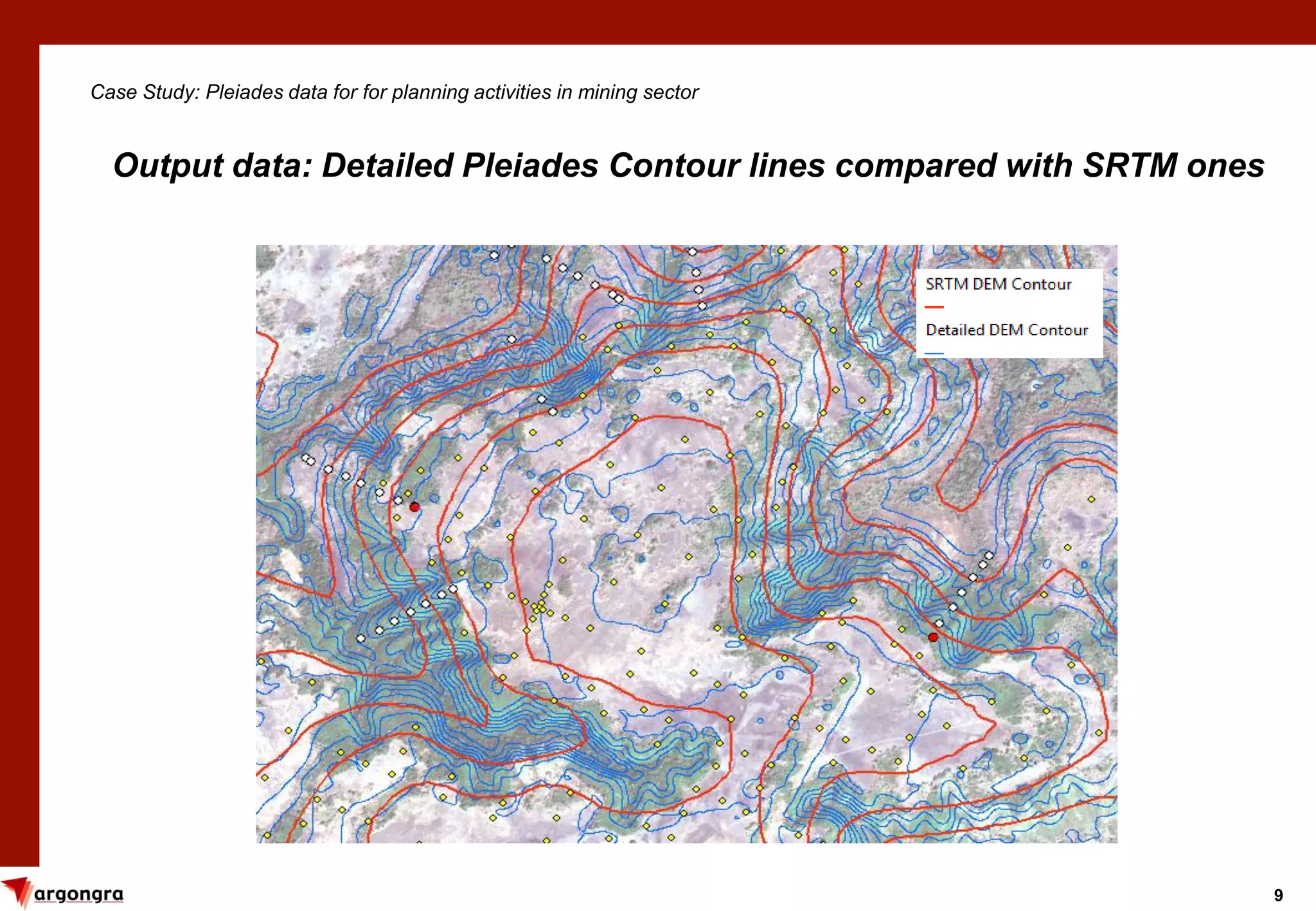

Case Study: Pleiades data for for planning activities in mining sector
Output data: Detailed Pleiades Contour lines compared with SRTM ones

10. 10

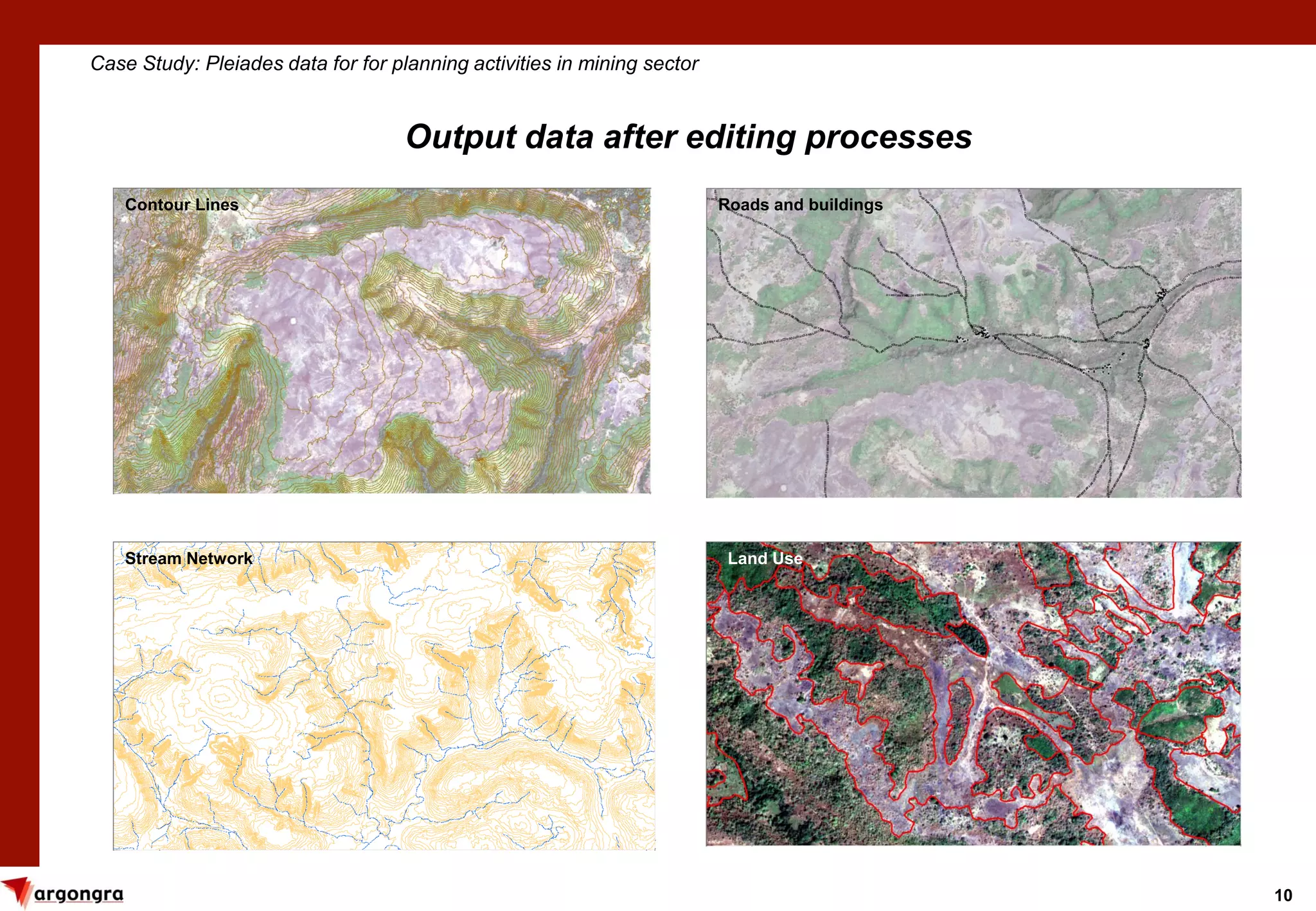

Case Study: Pleiades data for for planning activities in mining sector
Output data after editing processes
Contour Lines Roads and buildings
Stream Network Land Use

11. 11

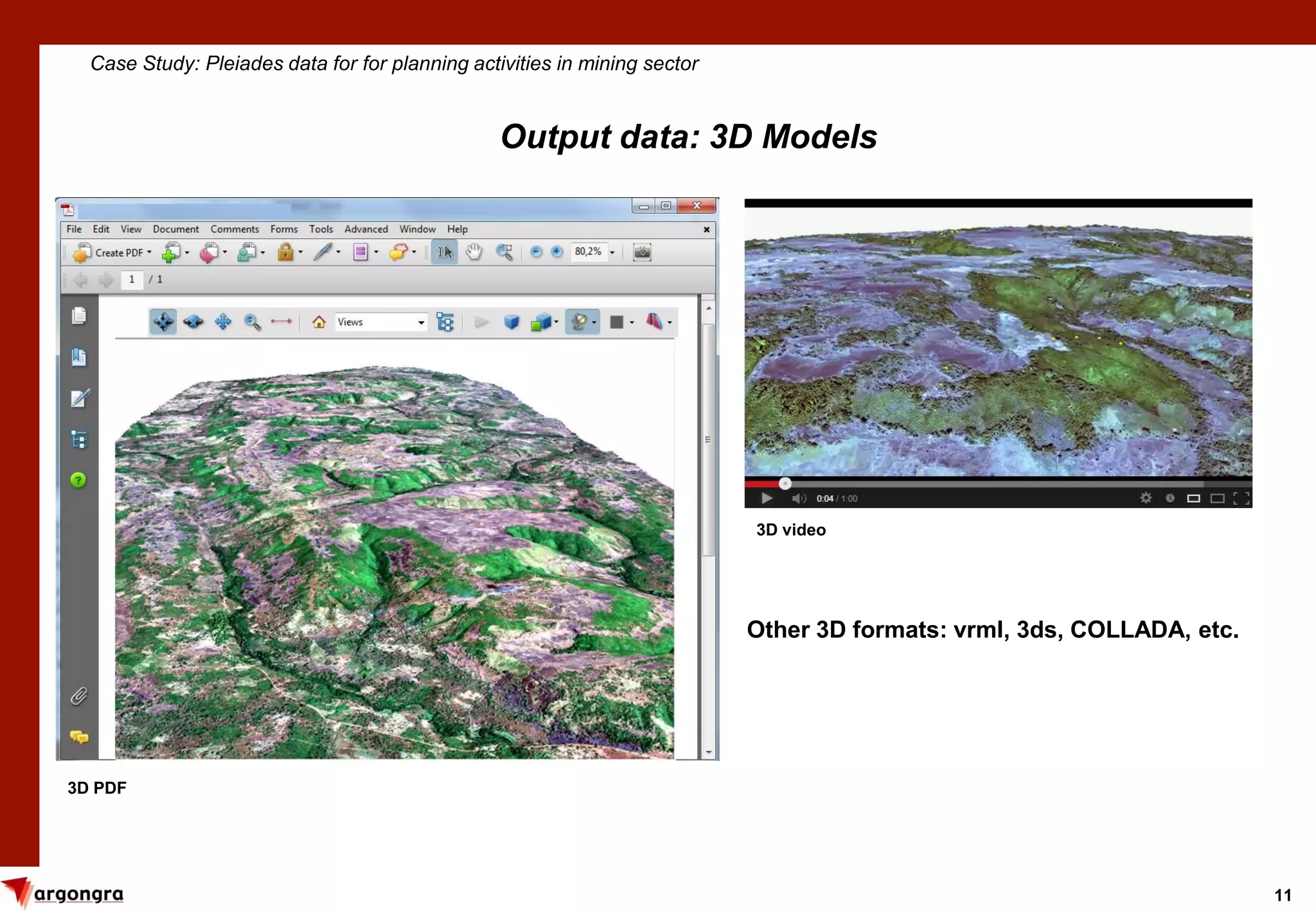

Case Study: Pleiades data for for planning activities in mining sector
Output data: 3D Models
3D PDF
3D video
Other 3D formats: vrml, 3ds, COLLADA, etc.

12. 12

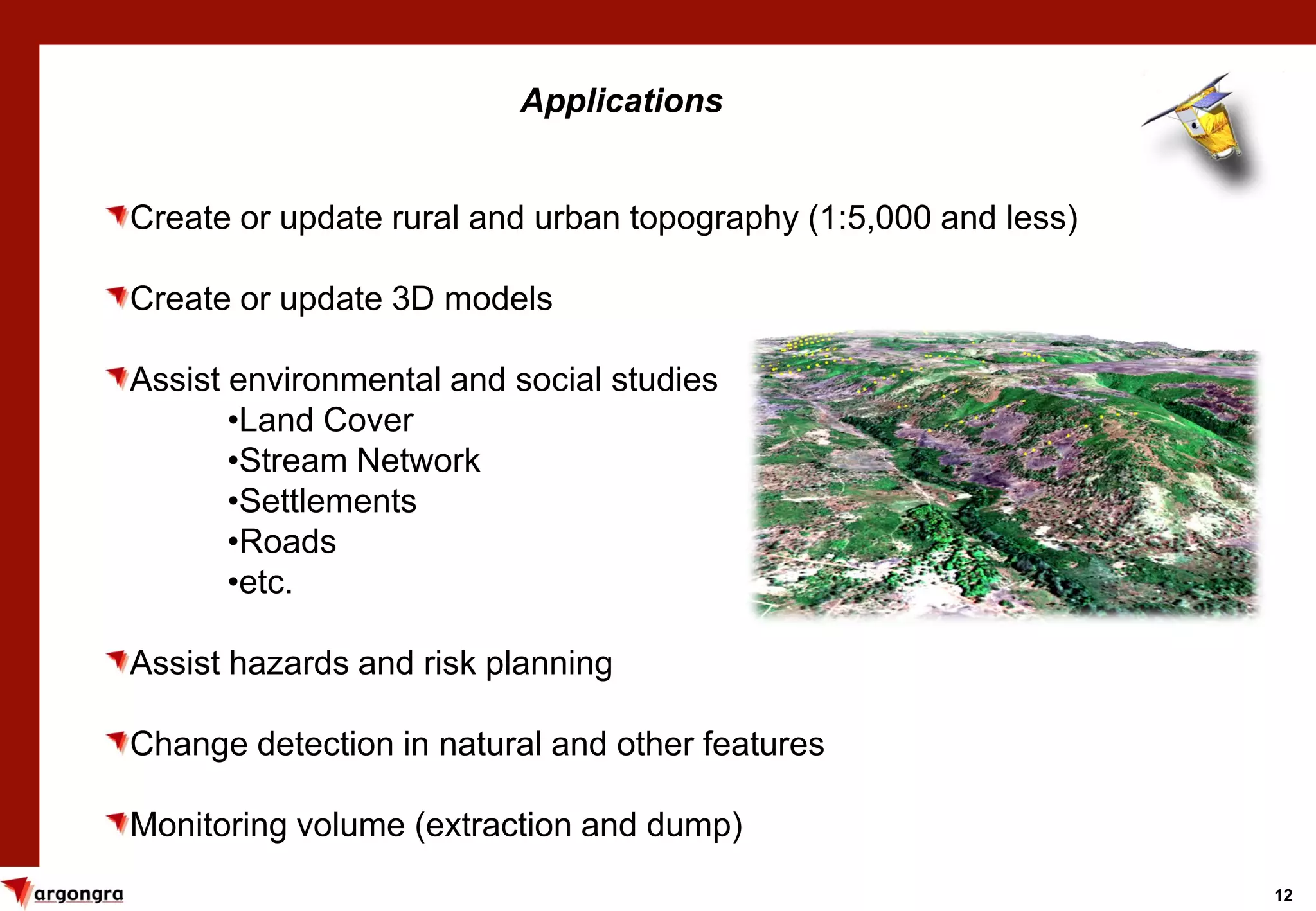

Applications
Create or update rural and urban topography (1:5,000 and less)
Create or update 3D models
Assist environmental and social studies
•Land Cover
•Stream Network
•Settlements
•Roads
•etc.
Assist hazards and risk planning
Change detection in natural and other features
Monitoring volume (extraction and dump)

13. 13

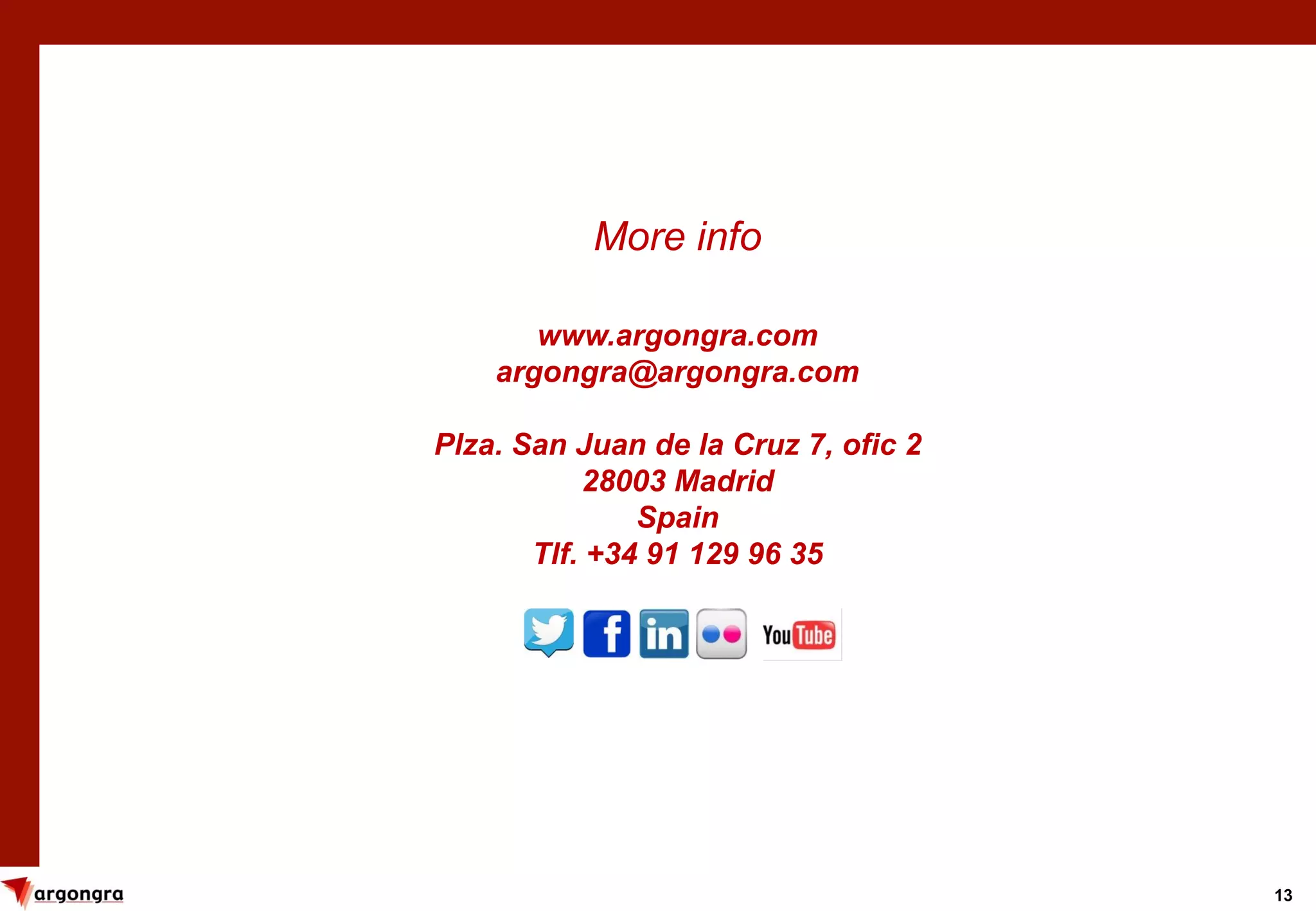

More info
