Using Kotlin, to Create Kotlin,to Teach Kotlin,in Space

© Instil Software 2020
Using Kotlin,
to Create Kotlin,
to Teach Kotlin,
in Space
Amy Crockett
Garth Gilmour

This is a Fusion Talk
We aim to tie together many threads
Kotlin Spring 5 Reactor
Space Automation DSLs

@GarthGilmour / garth.gilmour@instil.co

This caused us some anxiety…

We had to take our training virtual…

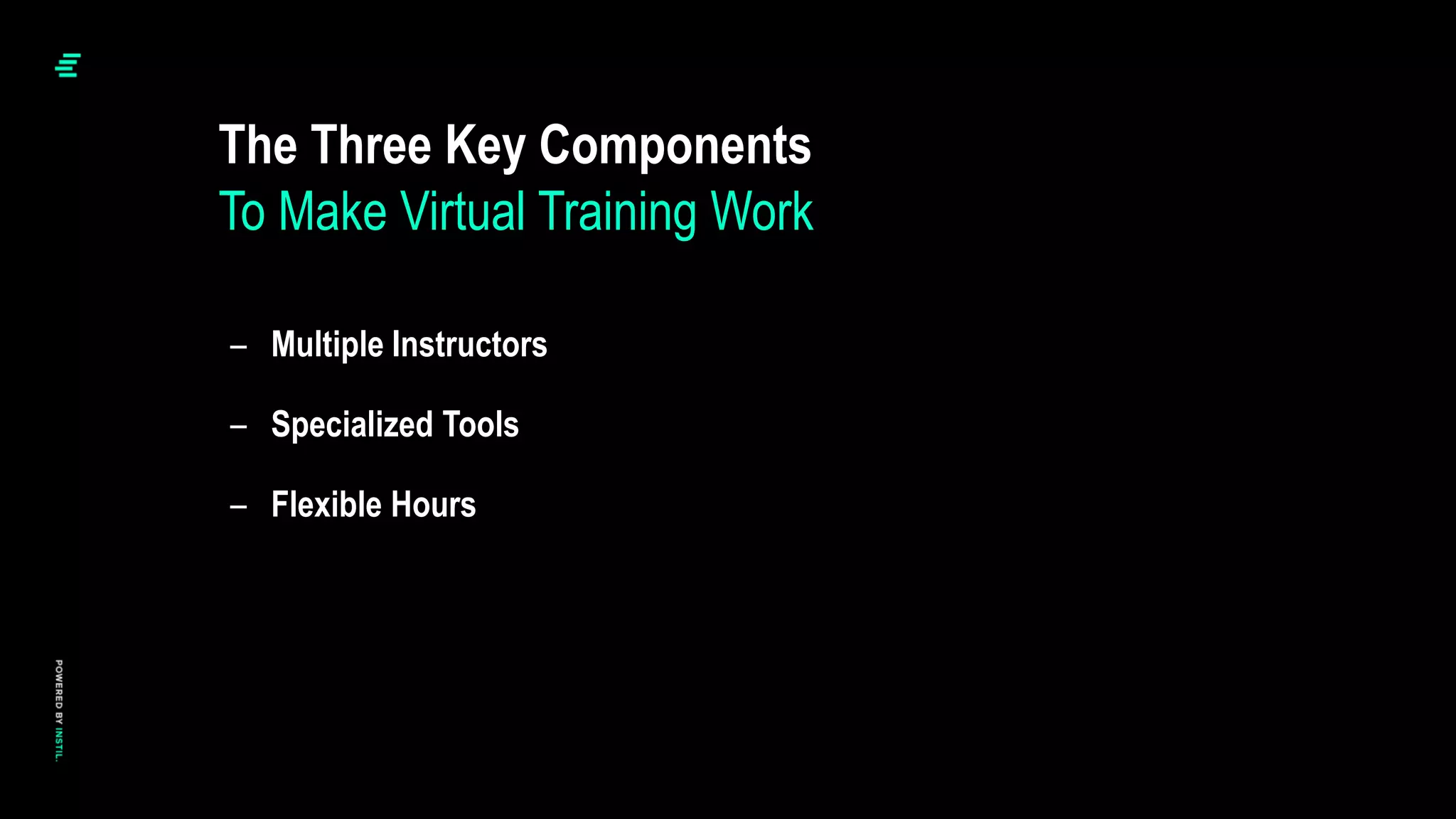

– Multiple Instructors
– Specialized Tools
– Flexible Hours
The Three Key Components
To Make Virtual Training Work

– The instructor works with the group
– By teaching, live coding etc…
– They proceed at the average pace
– The coach responds to queries
– Working with students at the extremes
– They ensure that no one is left behind
Multiple Trainers
Acting as Instructor and Coach

– We partitioned our material into 60 min blocks
– Allowing us to deliver a course to your timeline
– A delivery could take place over:
– A week's worth of mornings
– One day a week for six weeks
– Afternoon and evening sessions
Flexible Hours
Fitting Material Into Your Day

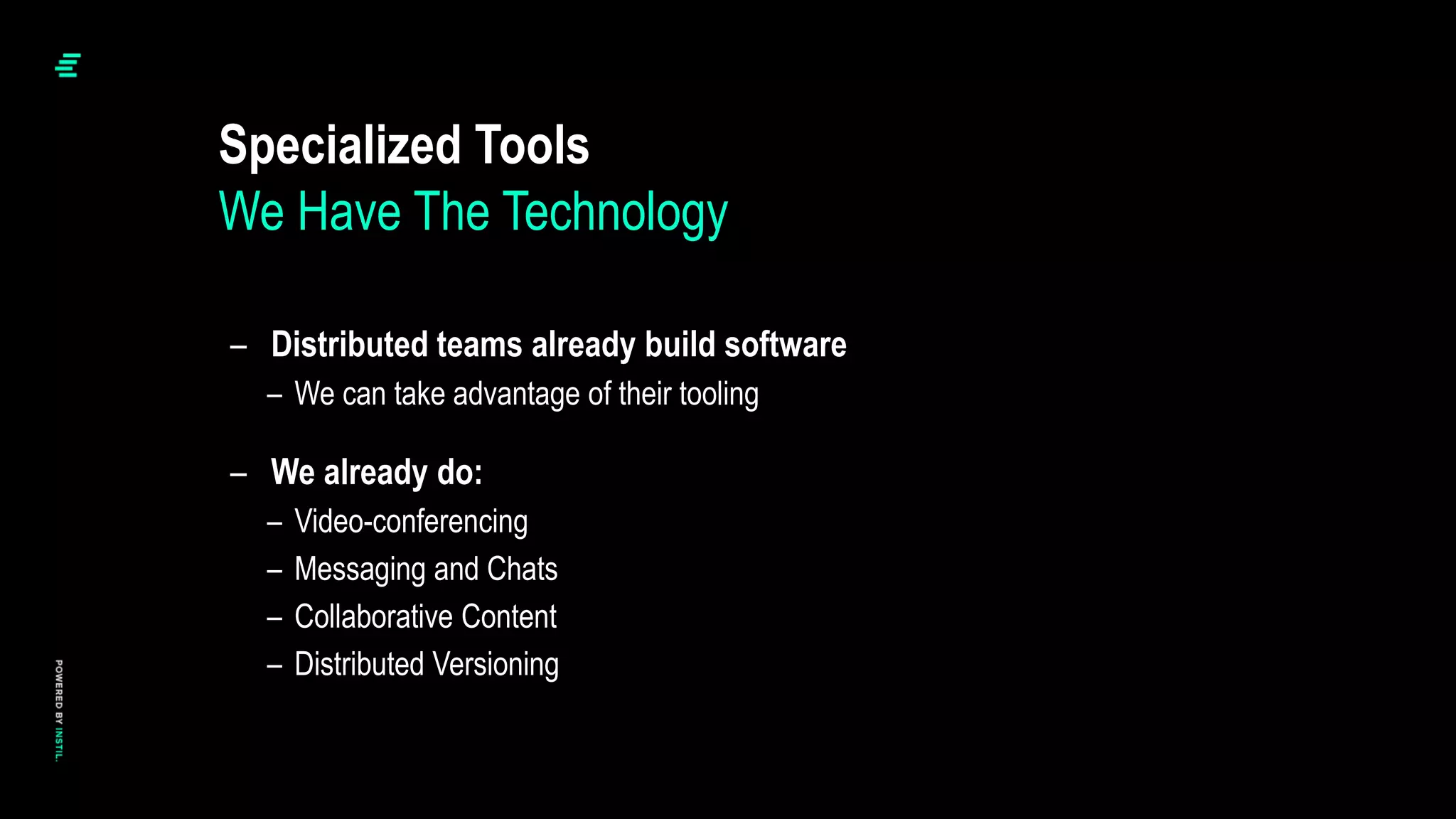

– Distributed teams already build software
– We can take advantage of their tooling
– We already do:
– Video-conferencing
– Messaging and Chats
– Collaborative Content
– Distributed Versioning
Specialized Tools
We Have The Technology

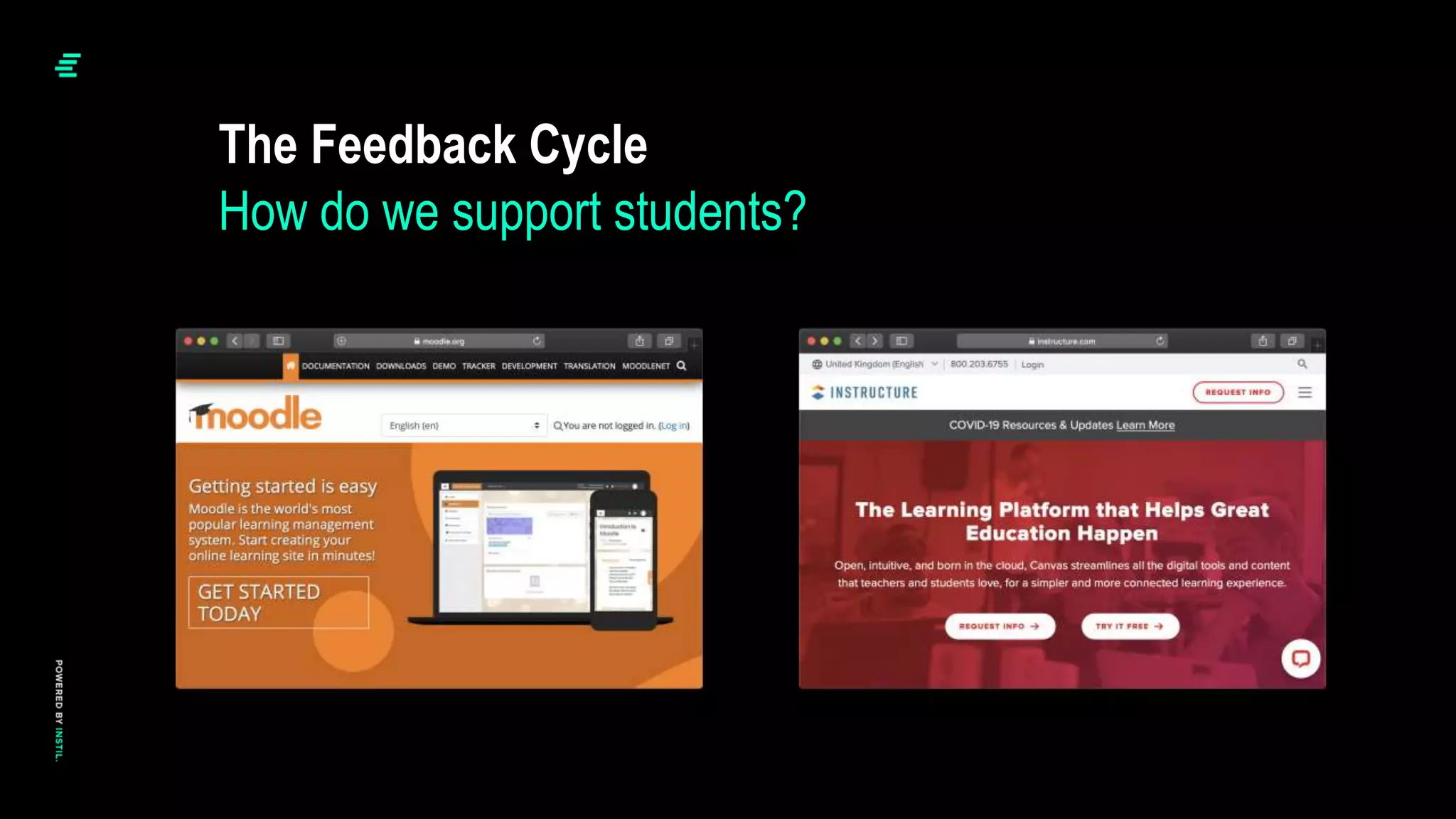

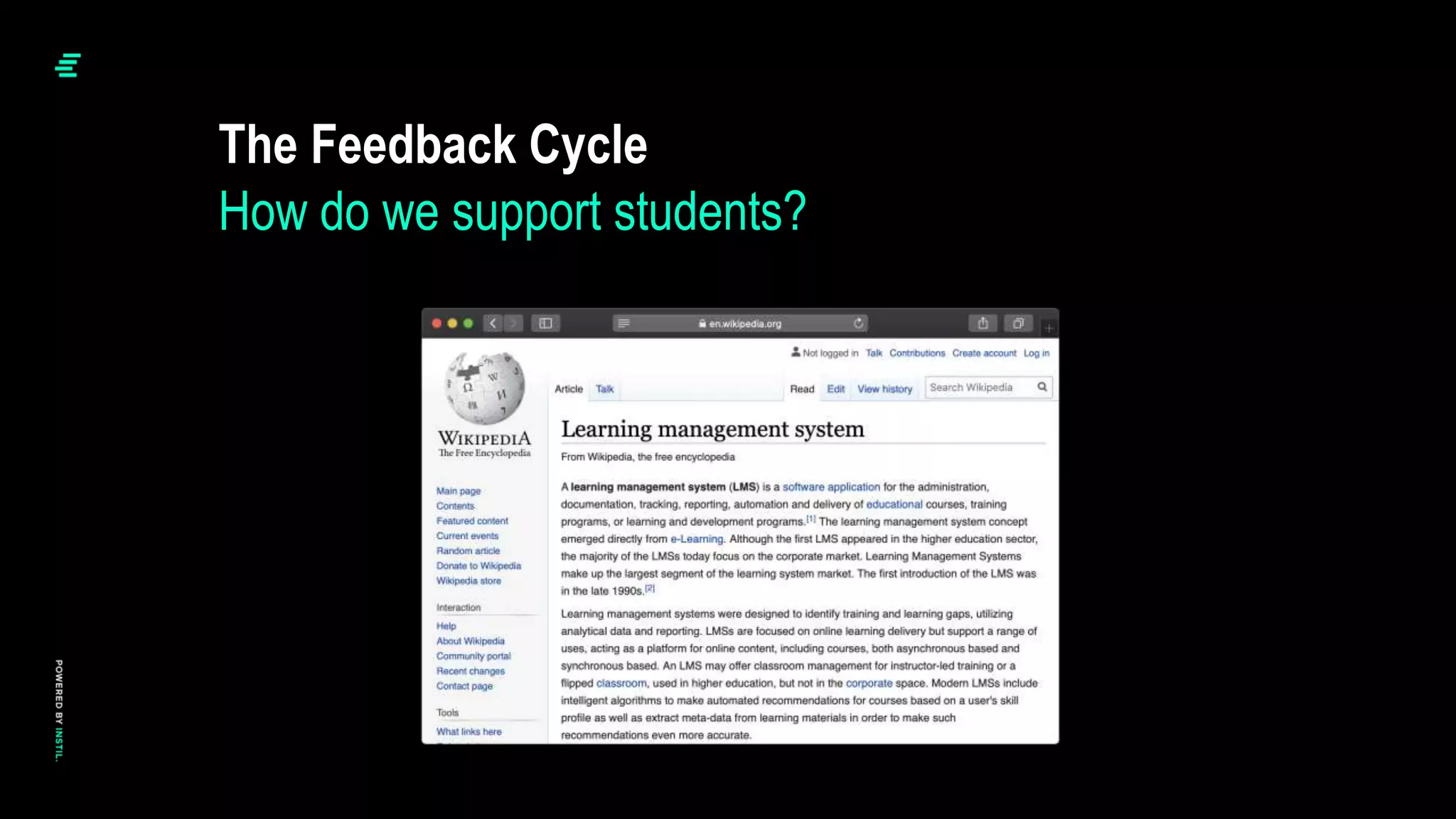

The Feedback Cycle
How do we support students?

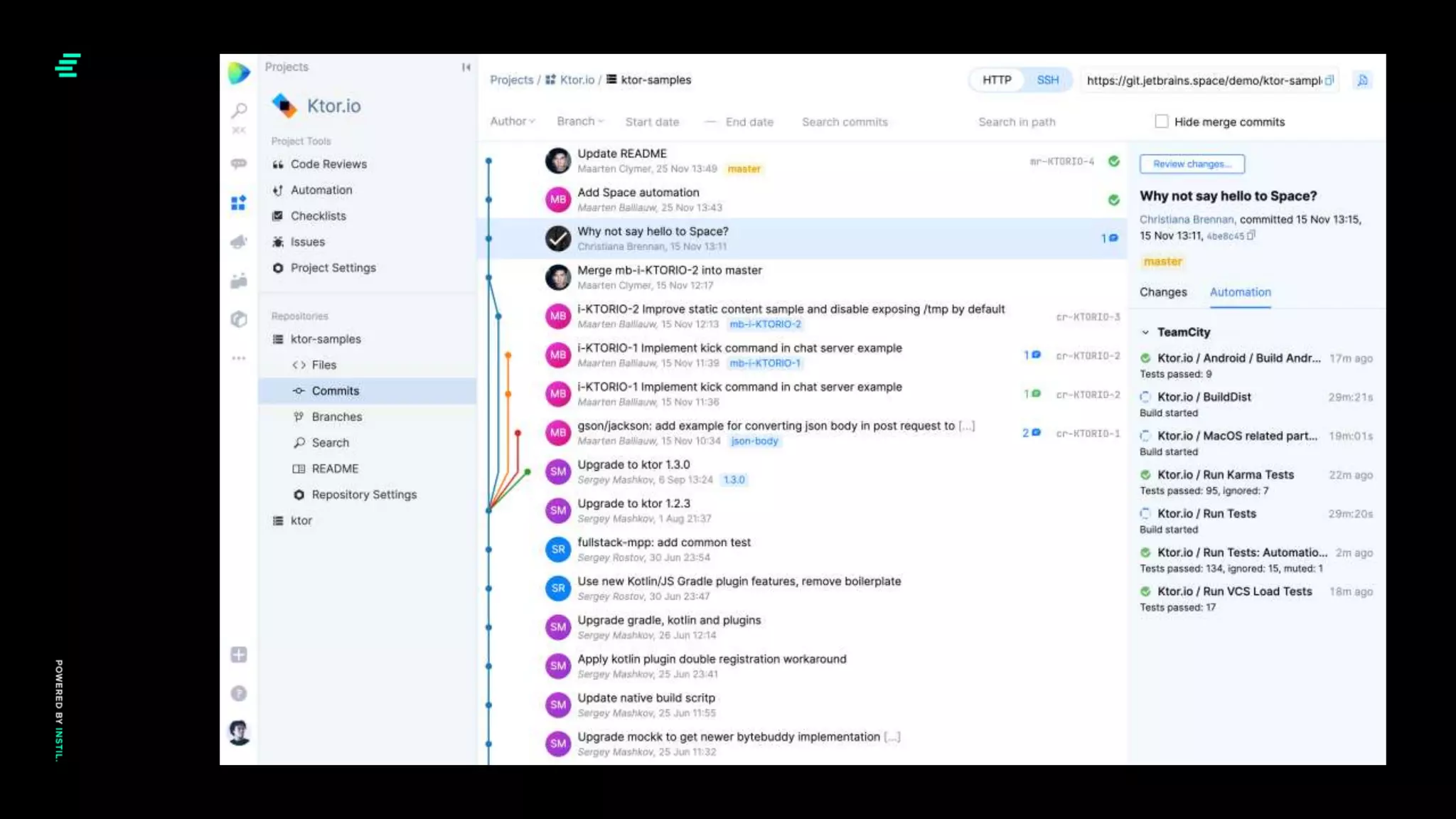

Enter Space…
We needed a ‘one size fits all’ solution…

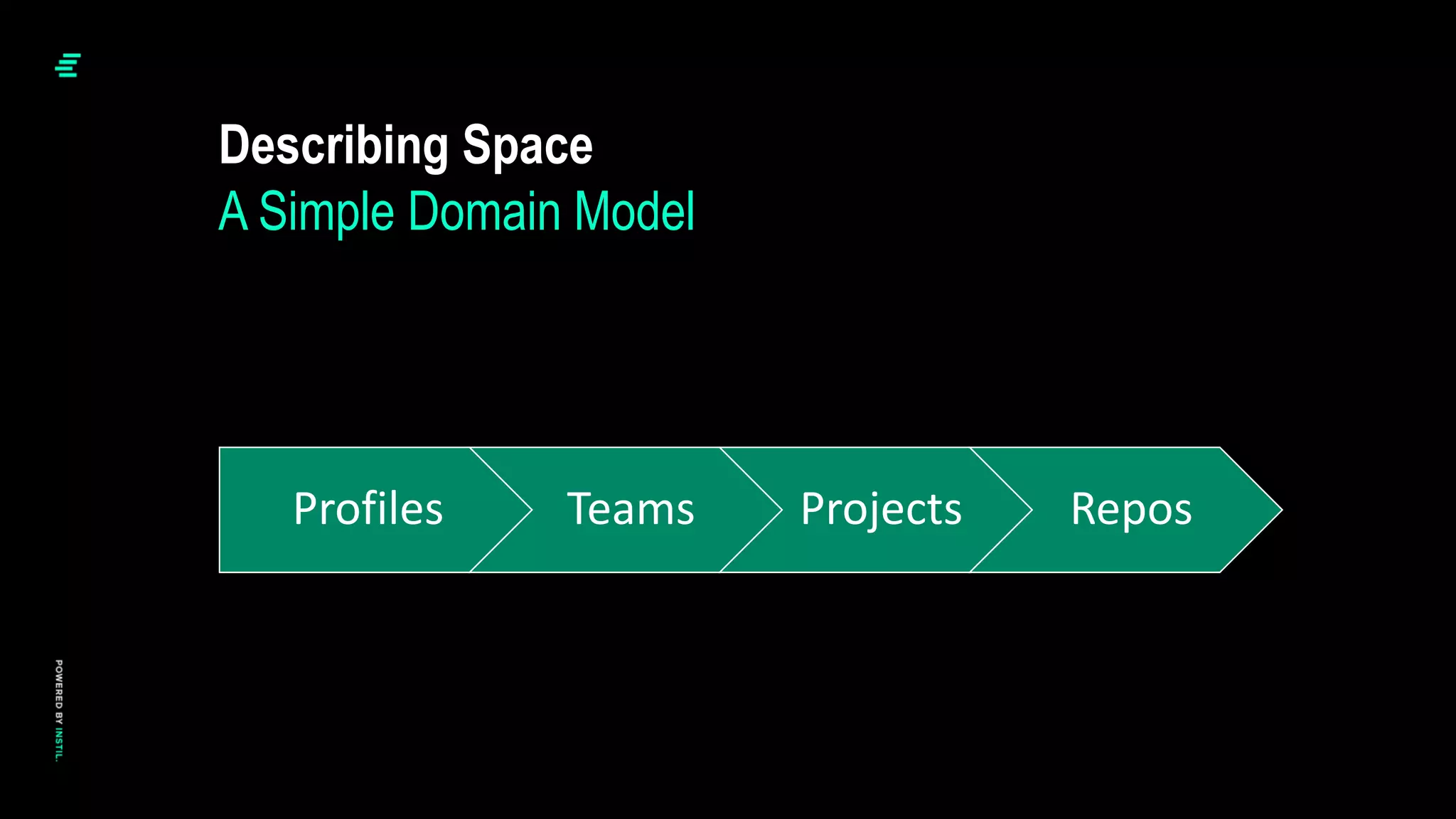

Describing Space
A Simple Domain Model
Profiles Teams Projects Repos

Describing Space
A Simple Domain Model

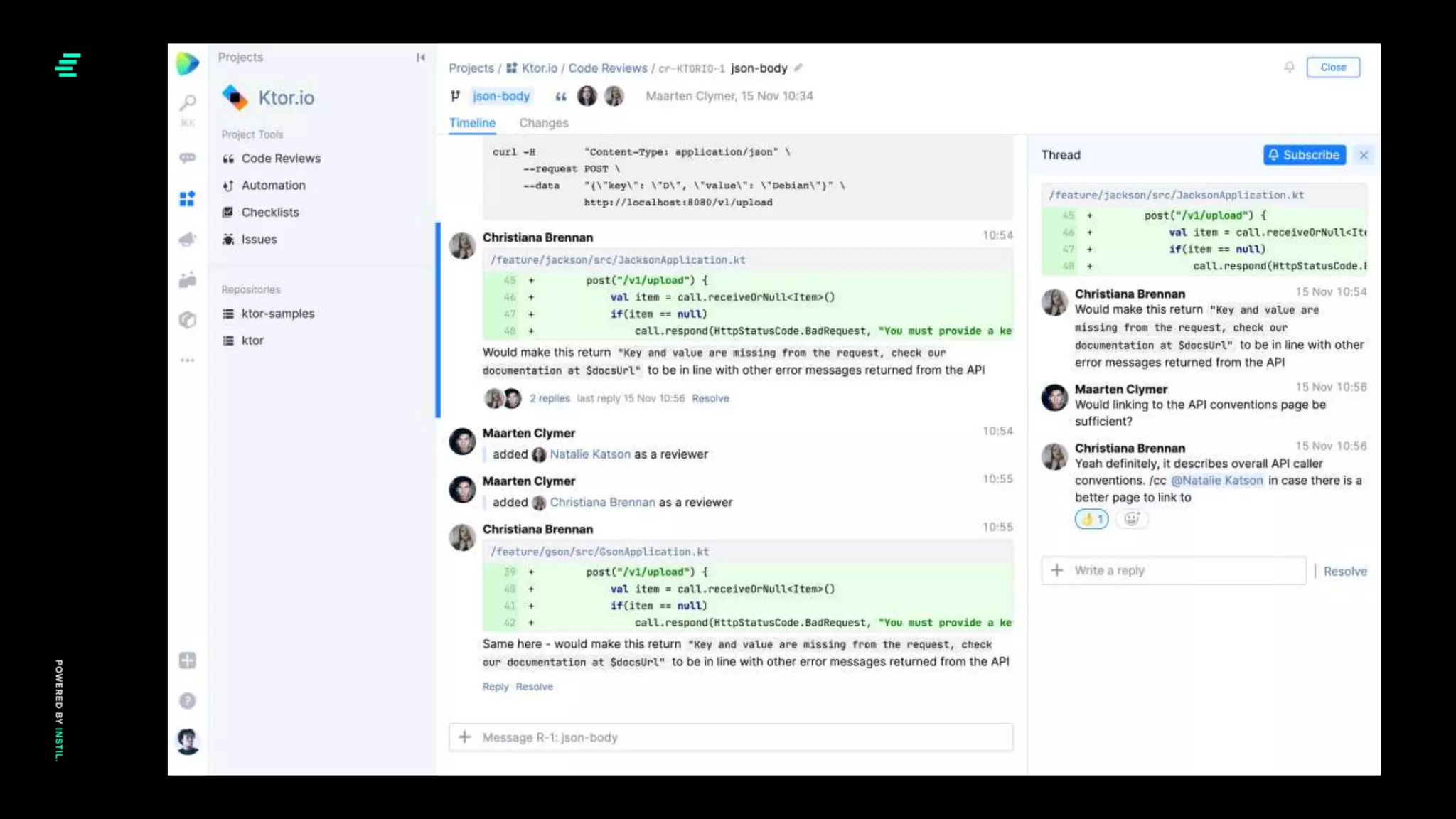

Chats Reviews Issues Checklists
Calendars Meetings Absences To-Dos

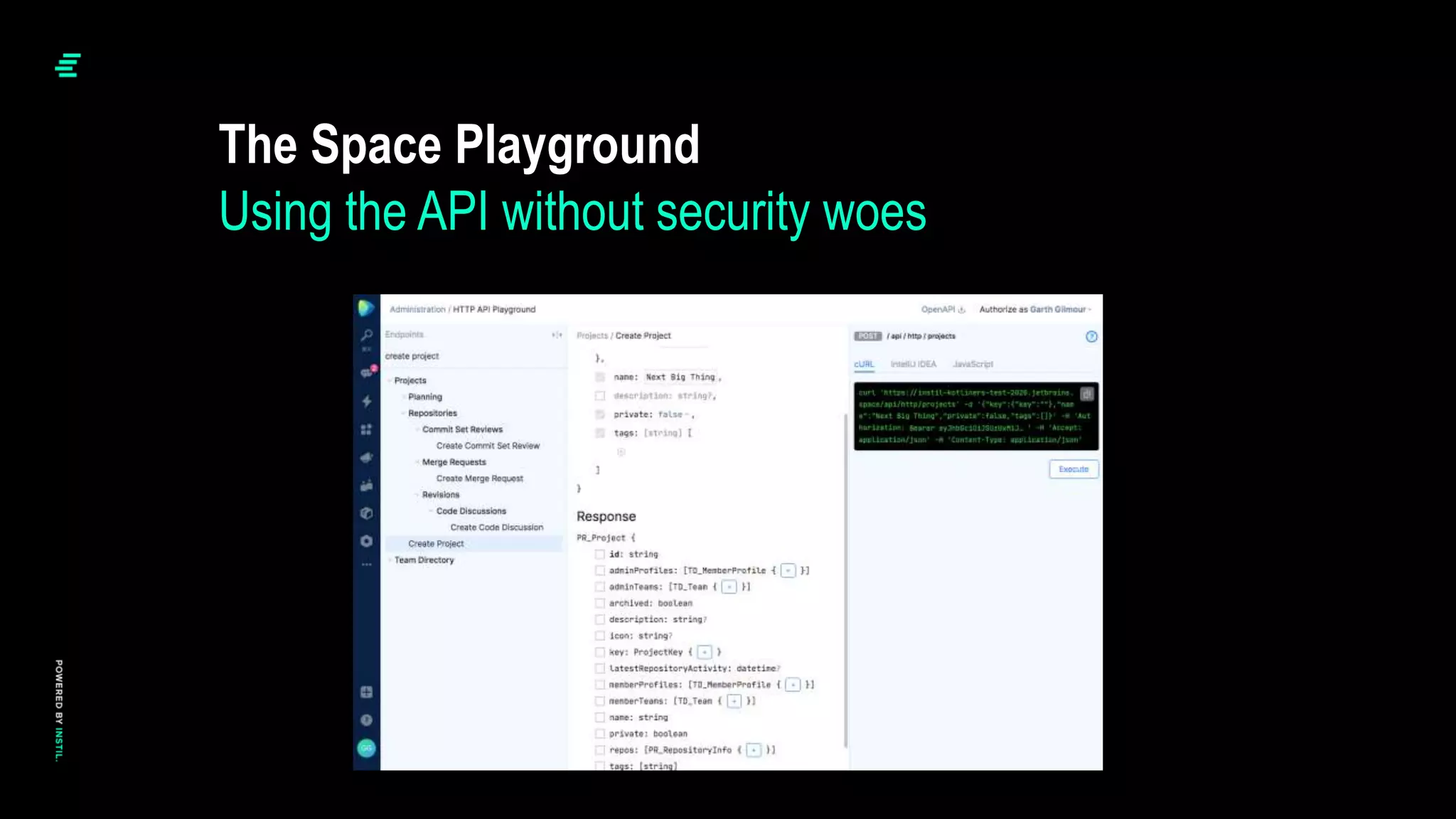

The Space Playground
Using the API without security woes

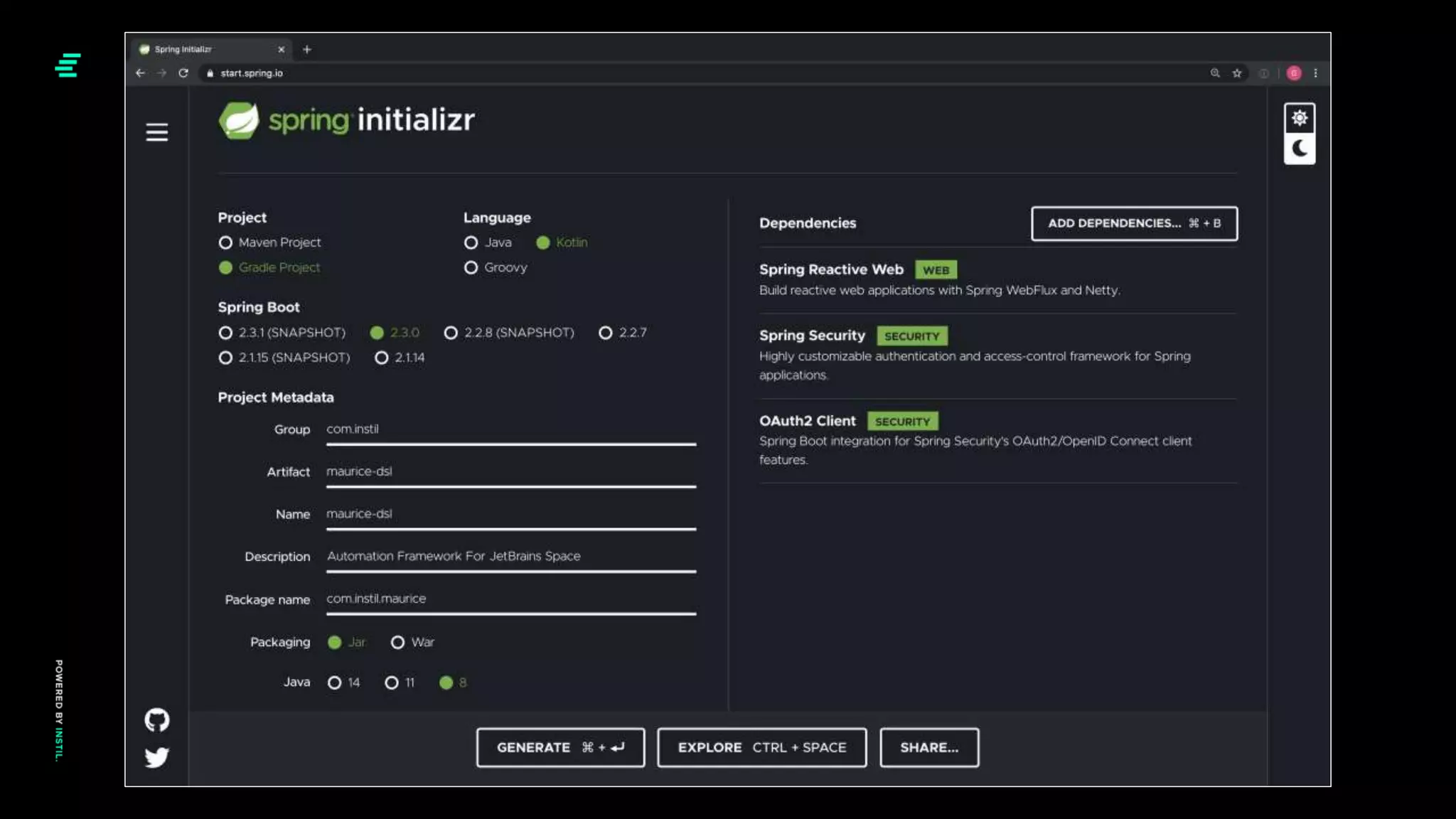

Making a Start
Thank goodness for the Initializr

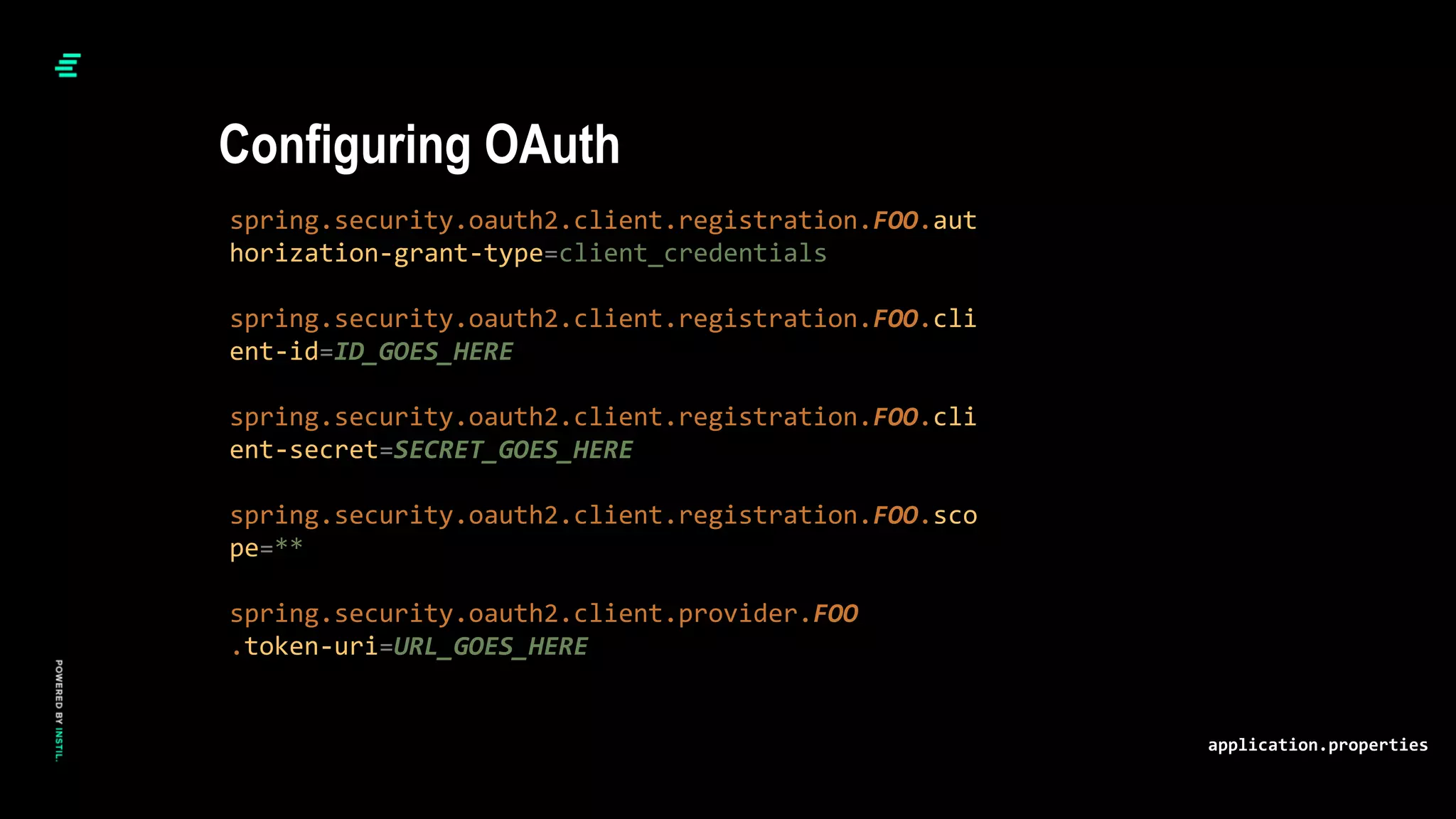

spring.security.oauth2.client.registration.FOO.aut
horization-grant-type=client_credentials
spring.security.oauth2.client.registration.FOO.cli
ent-id=ID_GOES_HERE
spring.security.oauth2.client.registration.FOO.cli
ent-secret=SECRET_GOES_HERE
spring.security.oauth2.client.registration.FOO.sco
pe=**
spring.security.oauth2.client.provider.FOO
.token-uri=URL_GOES_HERE
application.properties
Configuring OAuth

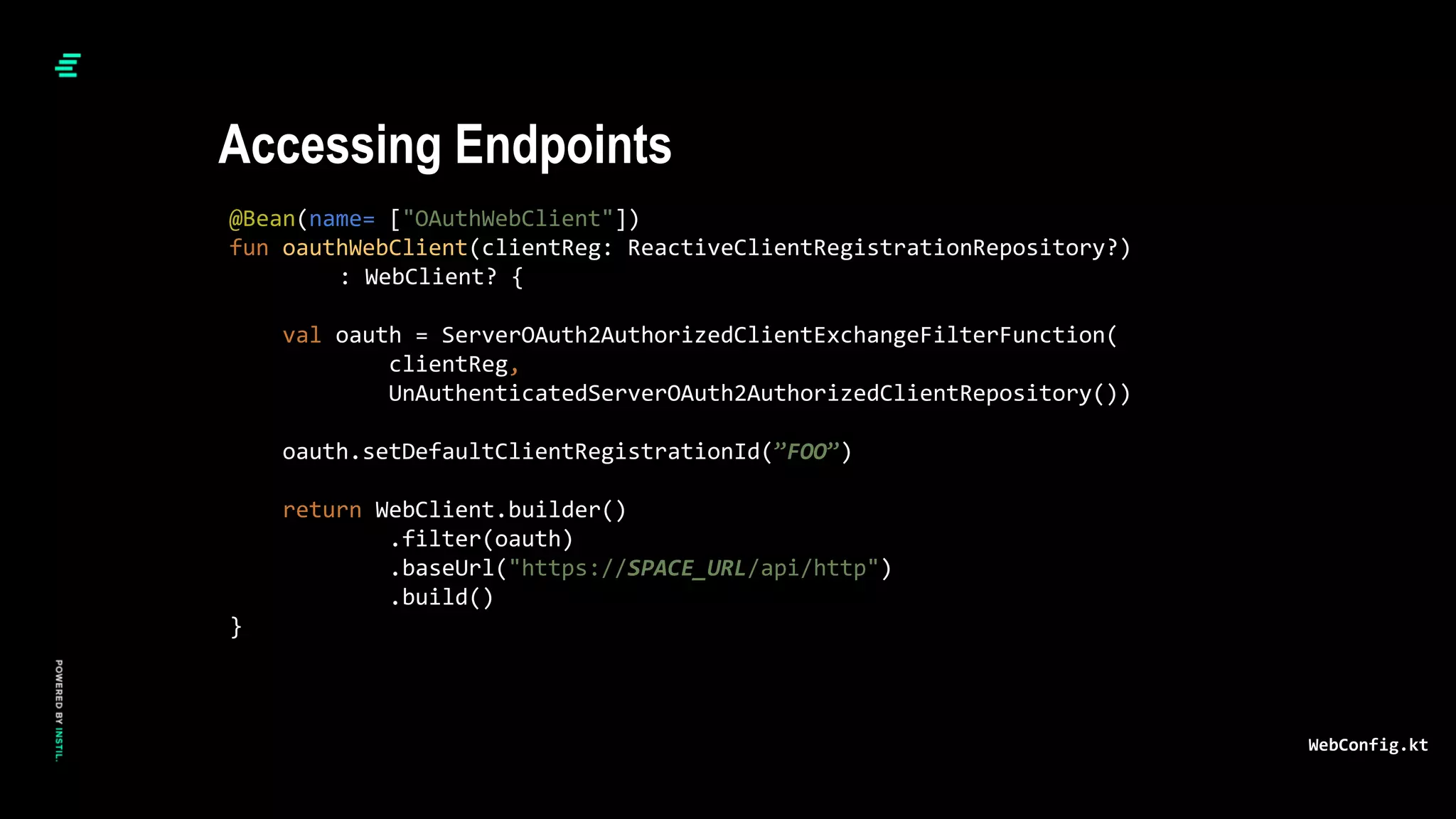

@Bean(name= ["OAuthWebClient"])
fun oauthWebClient(clientReg: ReactiveClientRegistrationRepository?)
: WebClient? {
val oauth = ServerOAuth2AuthorizedClientExchangeFilterFunction(
clientReg,
UnAuthenticatedServerOAuth2AuthorizedClientRepository())
oauth.setDefaultClientRegistrationId(”FOO”)
return WebClient.builder()
.filter(oauth)
.baseUrl("https://SPACE_URL/api/http")
.build()
}
WebConfig.kt
Accessing Endpoints

@Bean(name= ["TokenWebClient"])
fun tokenWebClient() = WebClient
.builder()
.baseUrl("https://SPACE_URL/api/http")
.defaultHeader(HttpHeaders.AUTHORIZATION, "Bearer TOKEN")
.build()
WebConfig.kt
Accessing Endpoints

Demo 1
Running the console app

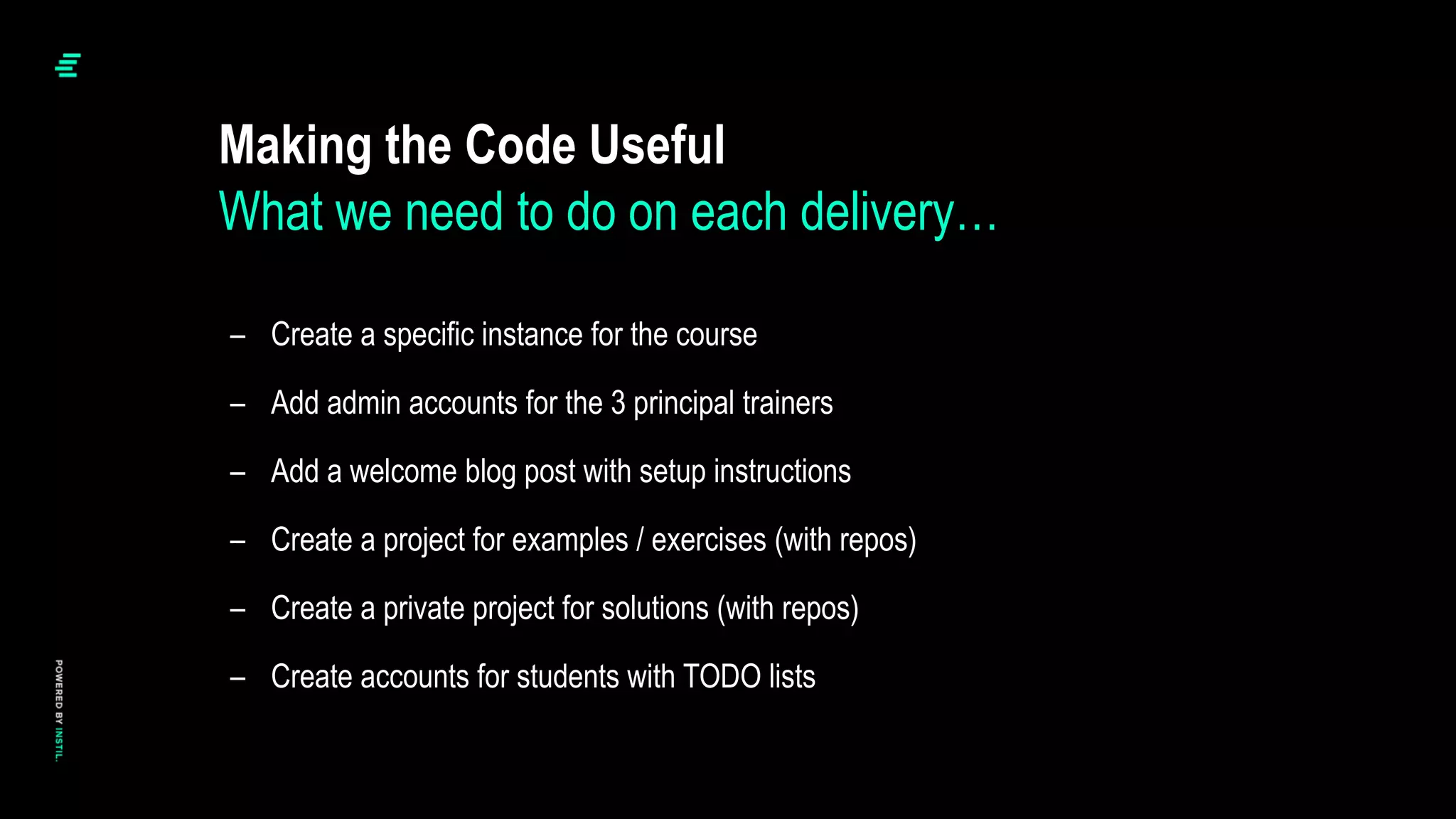

– Create a specific instance for the course
– Add admin accounts for the 3 principal trainers
– Add a welcome blog post with setup instructions
– Create a project for examples / exercises (with repos)
– Create a private project for solutions (with repos)
– Create accounts for students with TODO lists
Making the Code Useful
What we need to do on each delivery…

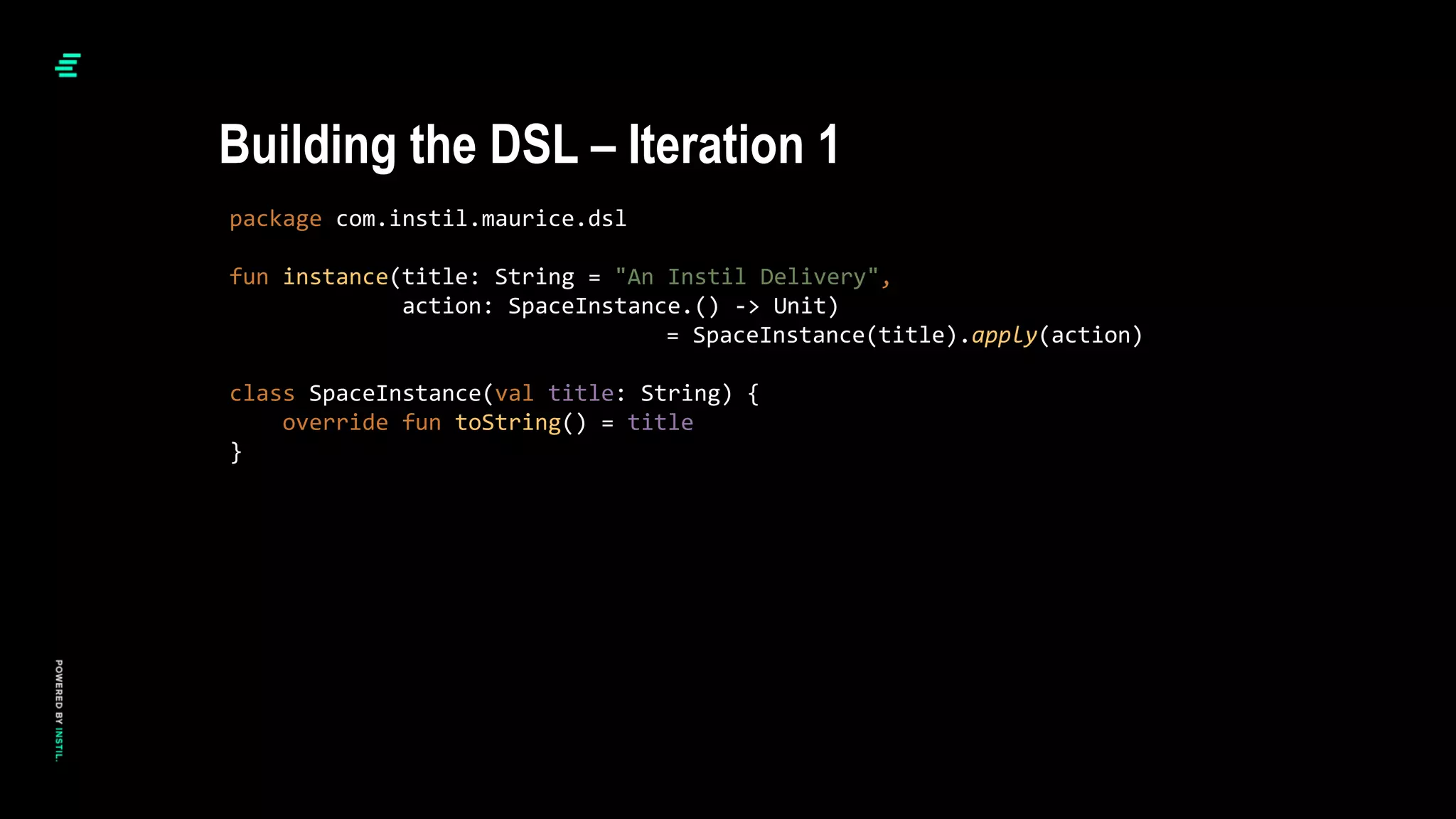

package com.instil.maurice.dsl
fun instance(title: String = "An Instil Delivery",
action: SpaceInstance.() -> Unit)
= SpaceInstance(title).apply(action)
class SpaceInstance(val title: String) {
override fun toString() = title
}

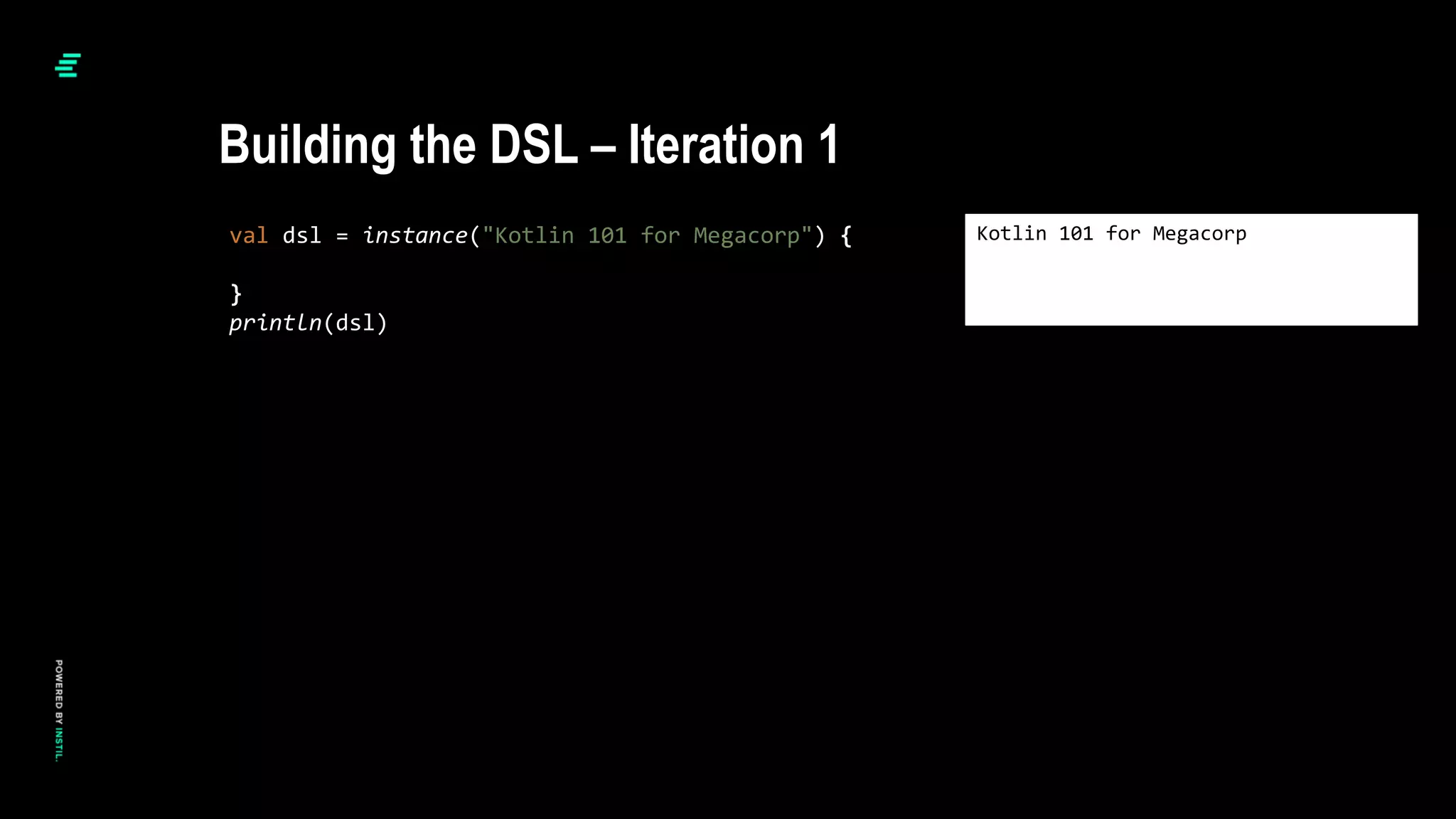

Building the DSL – Iteration 1

val dsl = instance("Kotlin 101 for Megacorp") {
}
println(dsl)
Kotlin 101 for Megacorp

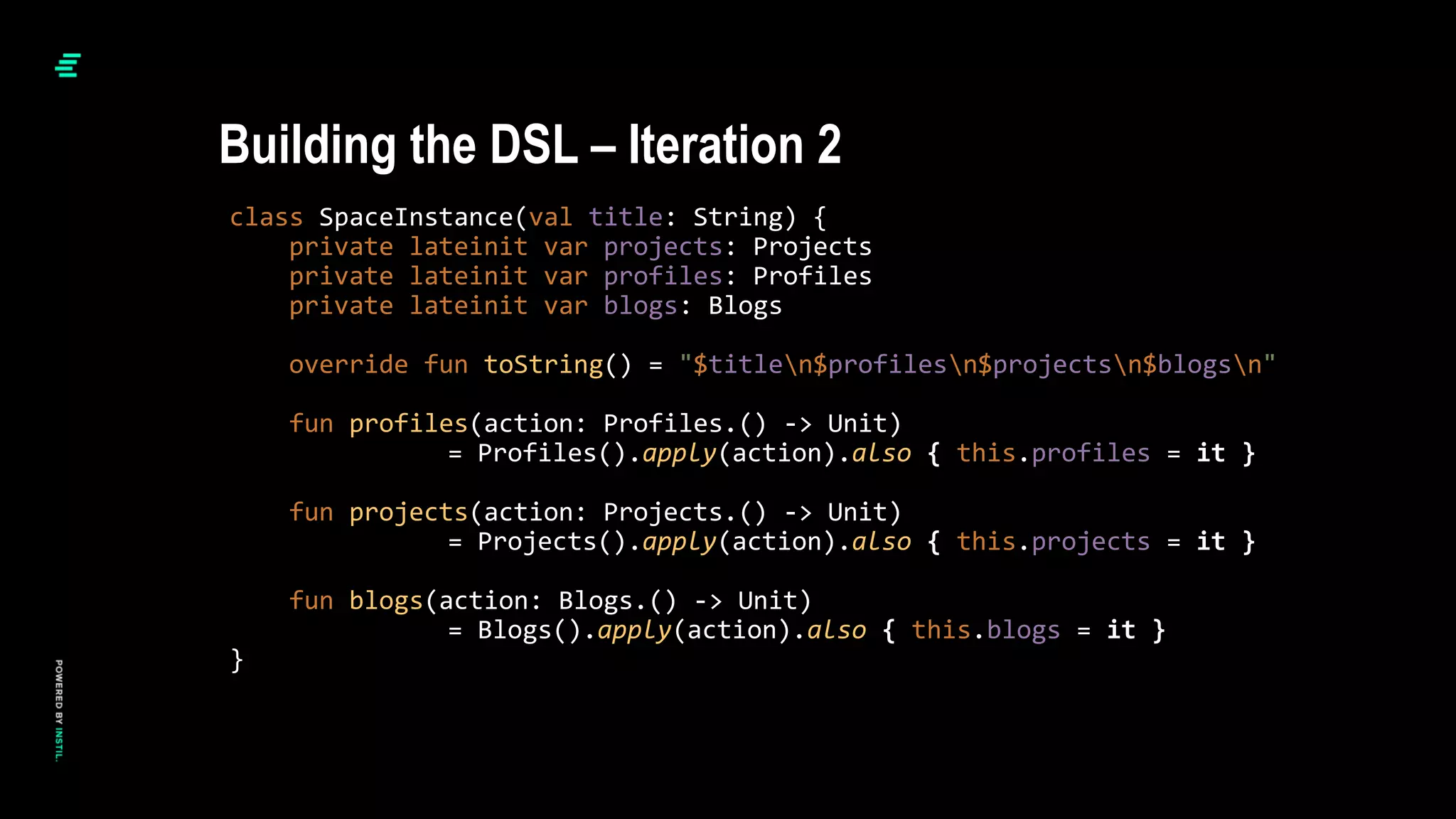

class SpaceInstance(val title: String) {
private lateinit var projects: Projects
private lateinit var profiles: Profiles
private lateinit var blogs: Blogs
override fun toString() = "$titlen$profilesn$projectsn$blogsn"
fun profiles(action: Profiles.() -> Unit)
= Profiles().apply(action).also { this.profiles = it }
fun projects(action: Projects.() -> Unit)
= Projects().apply(action).also { this.projects = it }
fun blogs(action: Blogs.() -> Unit)
= Blogs().apply(action).also { this.blogs = it }
}

class Profiles {
private val profiles = mutableListOf<Profile>()
fun profile(action: Profile.() -> Unit)
= Profile().apply(action).also { profiles.add(it) }
override fun toString()
= profiles.fold("Current profiles:") { state, profile ->
"$statent$profile"
}
}

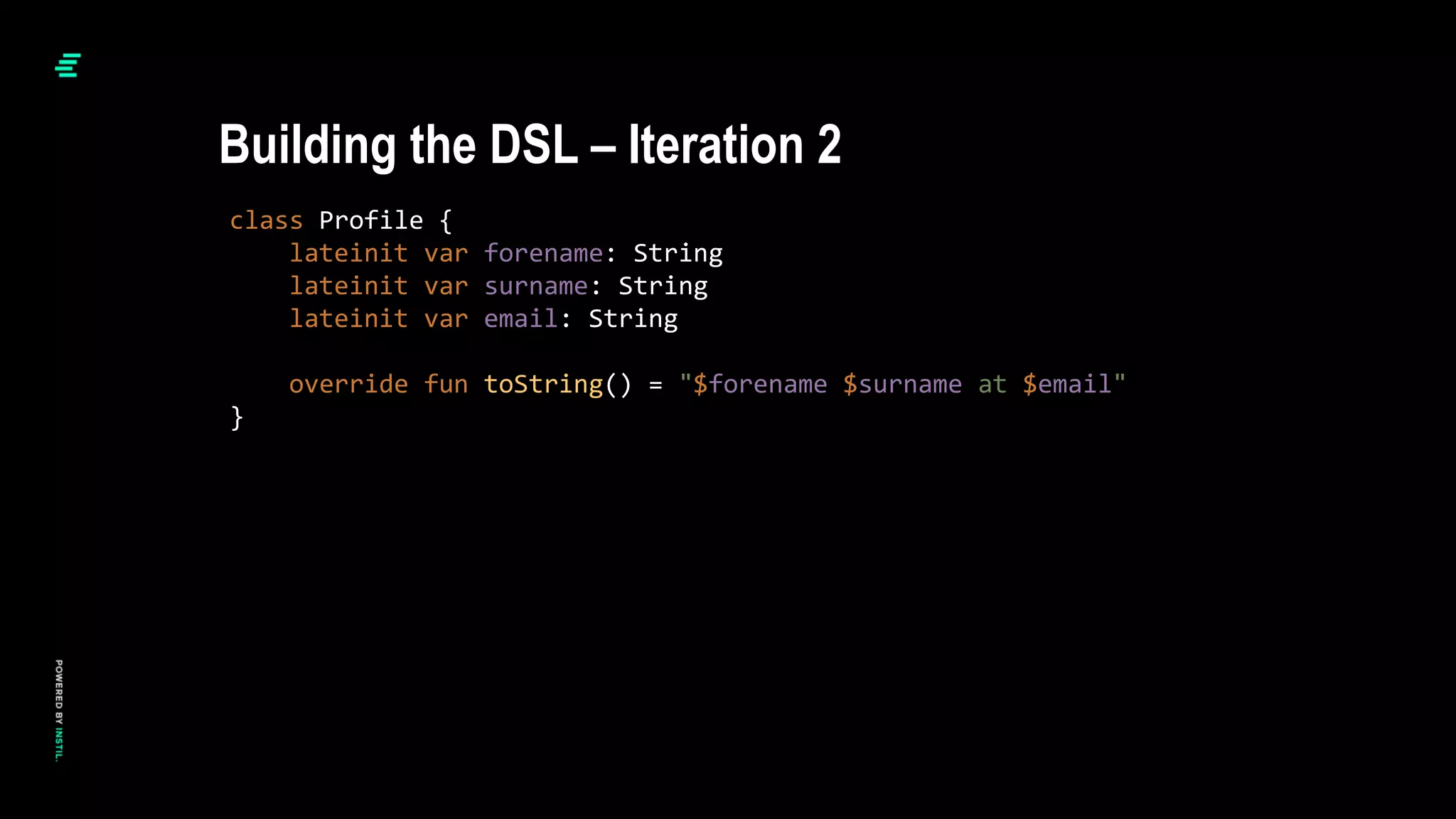

class Profile {
lateinit var forename: String
lateinit var surname: String
lateinit var email: String
override fun toString() = "$forename $surname at $email"
}

profiles {
profile {
forename = "Jane"
surname = "Smith"
email = "Jane.Smith@megacorp.com"
}
}
projects { }
blogs { }
}
println(dsl)
Current profiles:
Jane Smith at
Jane.Smith@megacorp.com
com.instil.maurice.dsl.Projects@350b3a17
com.instil.maurice.dsl.Blogs@38600b

class Repo(private val location: URI) {
override fun toString() = "t$location"
}

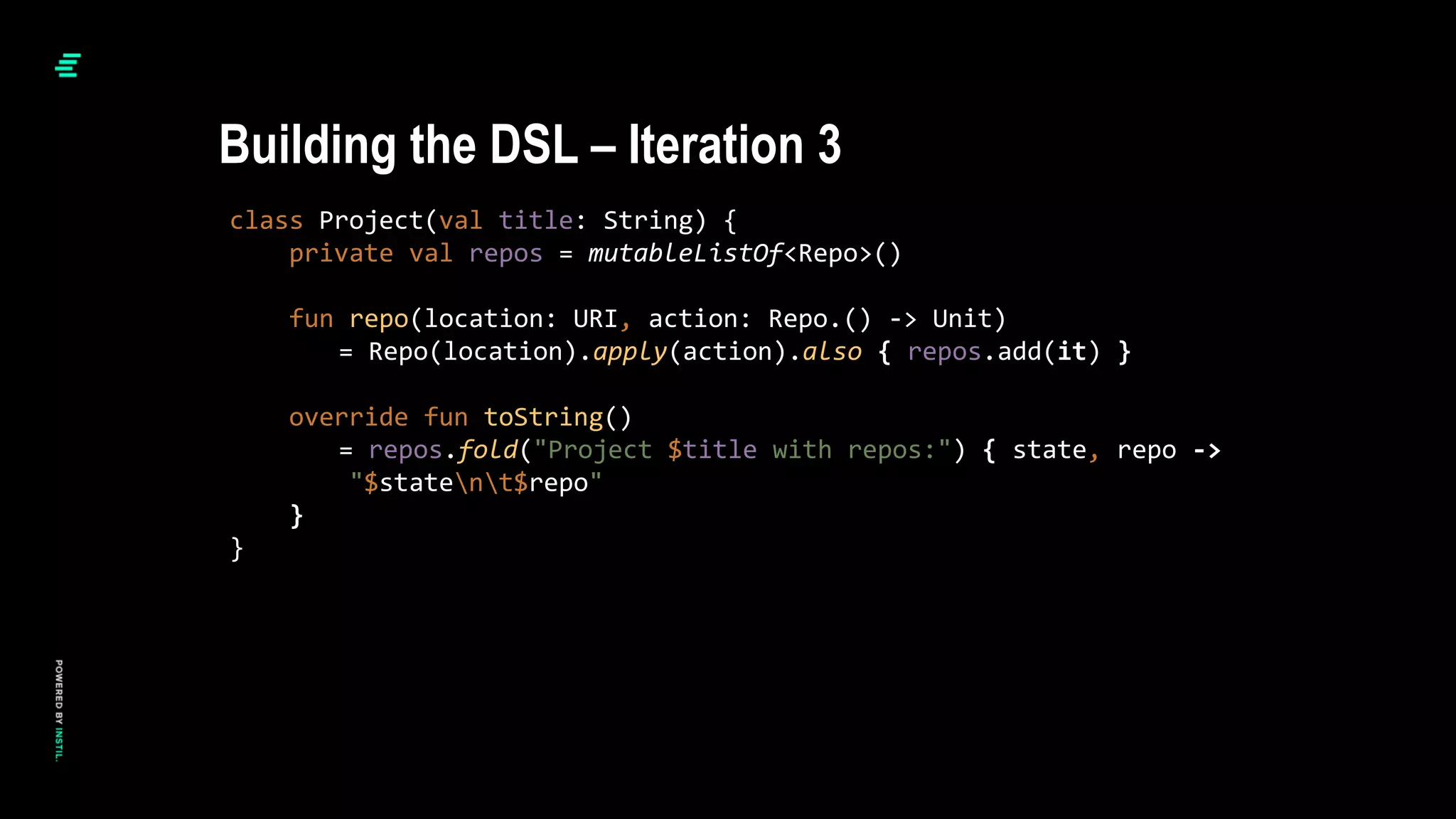

class Project(val title: String) {
private val repos = mutableListOf<Repo>()
fun repo(location: URI, action: Repo.() -> Unit)
= Repo(location).apply(action).also { repos.add(it) }
= repos.fold("Project $title with repos:") { state, repo ->
"$statent$repo"
}
}

class Projects {
private val projects = mutableListOf<Project>()
fun project(title: String, action: Project.() -> Unit)
= Project(title).apply(action).also { projects.add(it) }
= projects.fold("Current projects:") { state, project ->
"$statent$project"
}
}

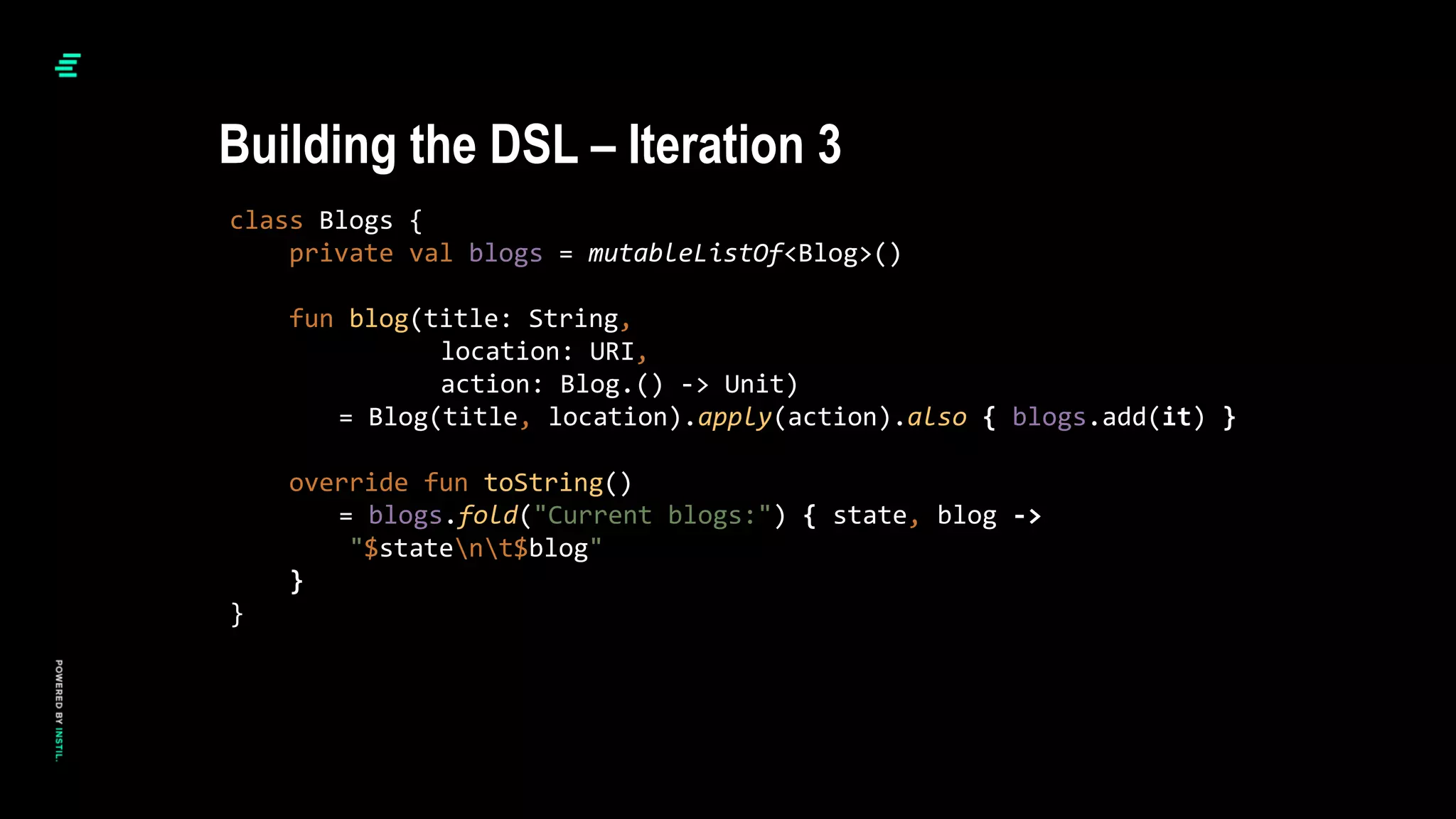

class Blogs {
private val blogs = mutableListOf<Blog>()
fun blog(title: String,
location: URI,
action: Blog.() -> Unit)
= Blog(title, location).apply(action).also { blogs.add(it) }
= blogs.fold("Current blogs:") { state, blog ->
"$statent$blog"
}
}

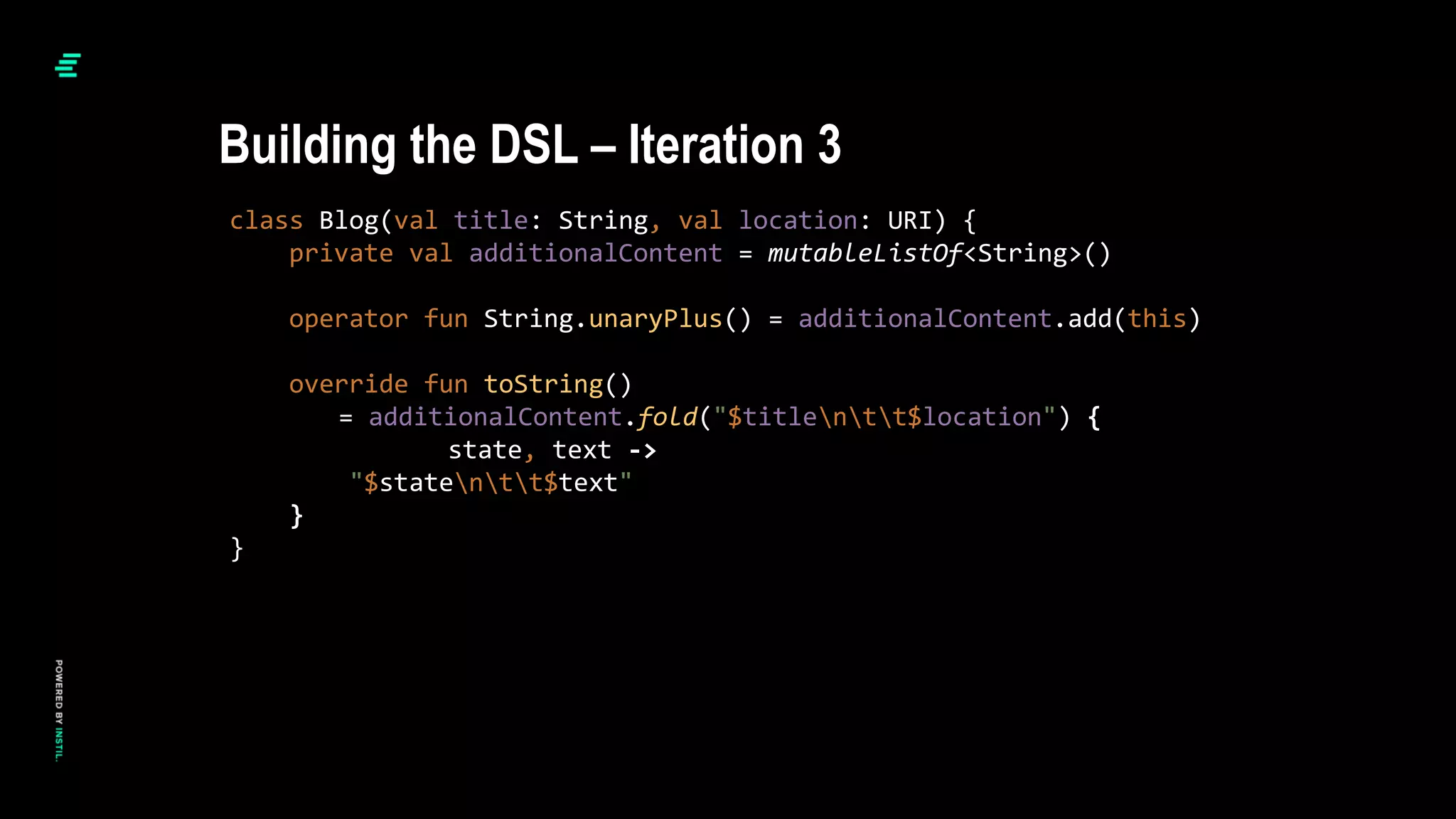

class Blog(val title: String, val location: URI) {
private val additionalContent = mutableListOf<String>()
operator fun String.unaryPlus() = additionalContent.add(this)
= additionalContent.fold("$titlentt$location") {
state, text ->
"$statentt$text"
}
}

profiles {
profile {
forename = "Jane"
surname = "Smith"
}
}
projects {
project("Kotlin Examples") {
repo(URI("http://somewhere.com")) {}
}
}
blogs {
blog("Welcome and Setup", URI("http://elsewhere.com")) {
+"Some additional client-specific content"
}
}
}
println(dsl)

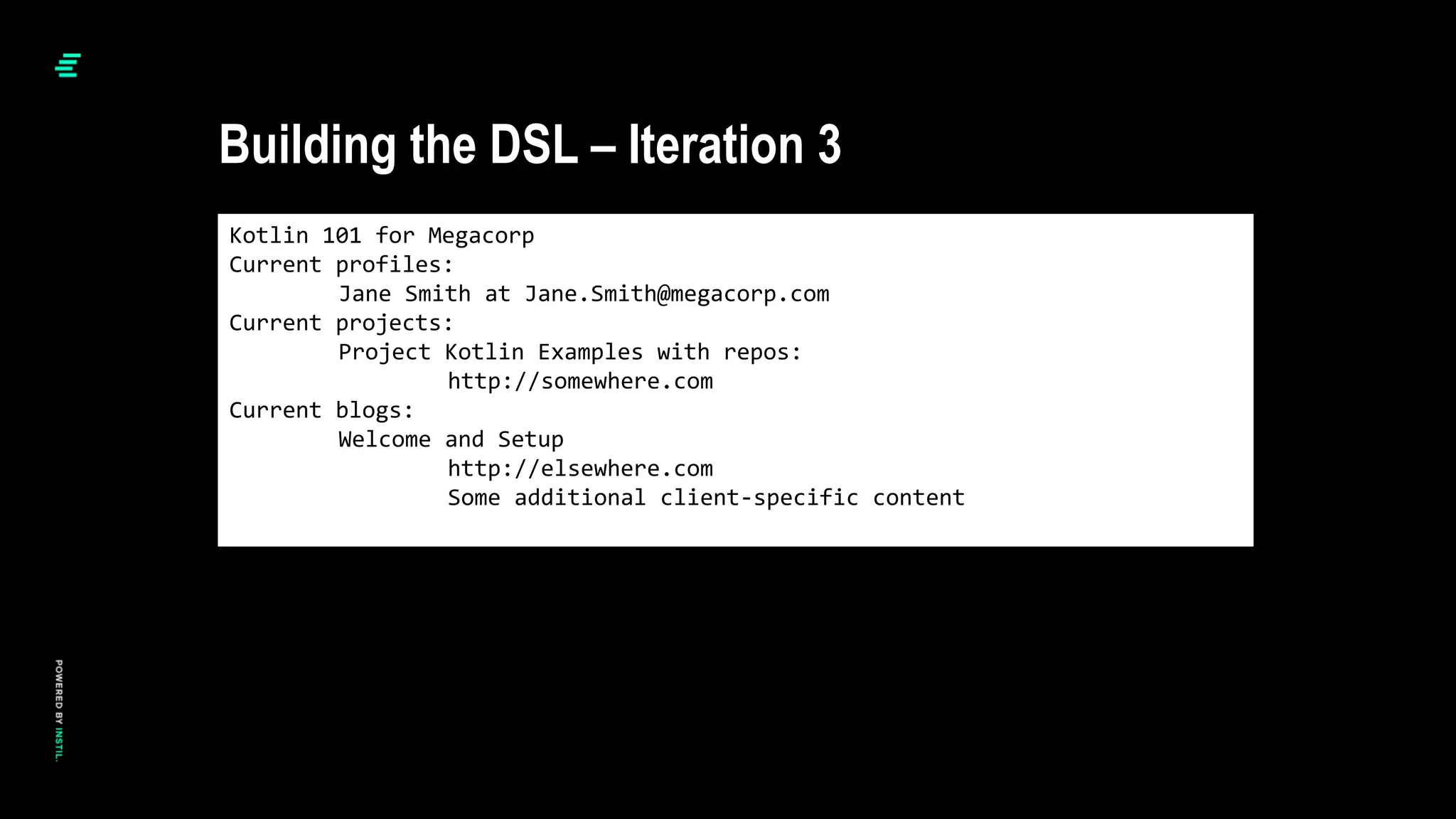

Current profiles:
Jane Smith at Jane.Smith@megacorp.com
Current projects:
Project Kotlin Examples with repos:
http://somewhere.com
Current blogs:
Welcome and Setup
http://elsewhere.com
Some additional client-specific content

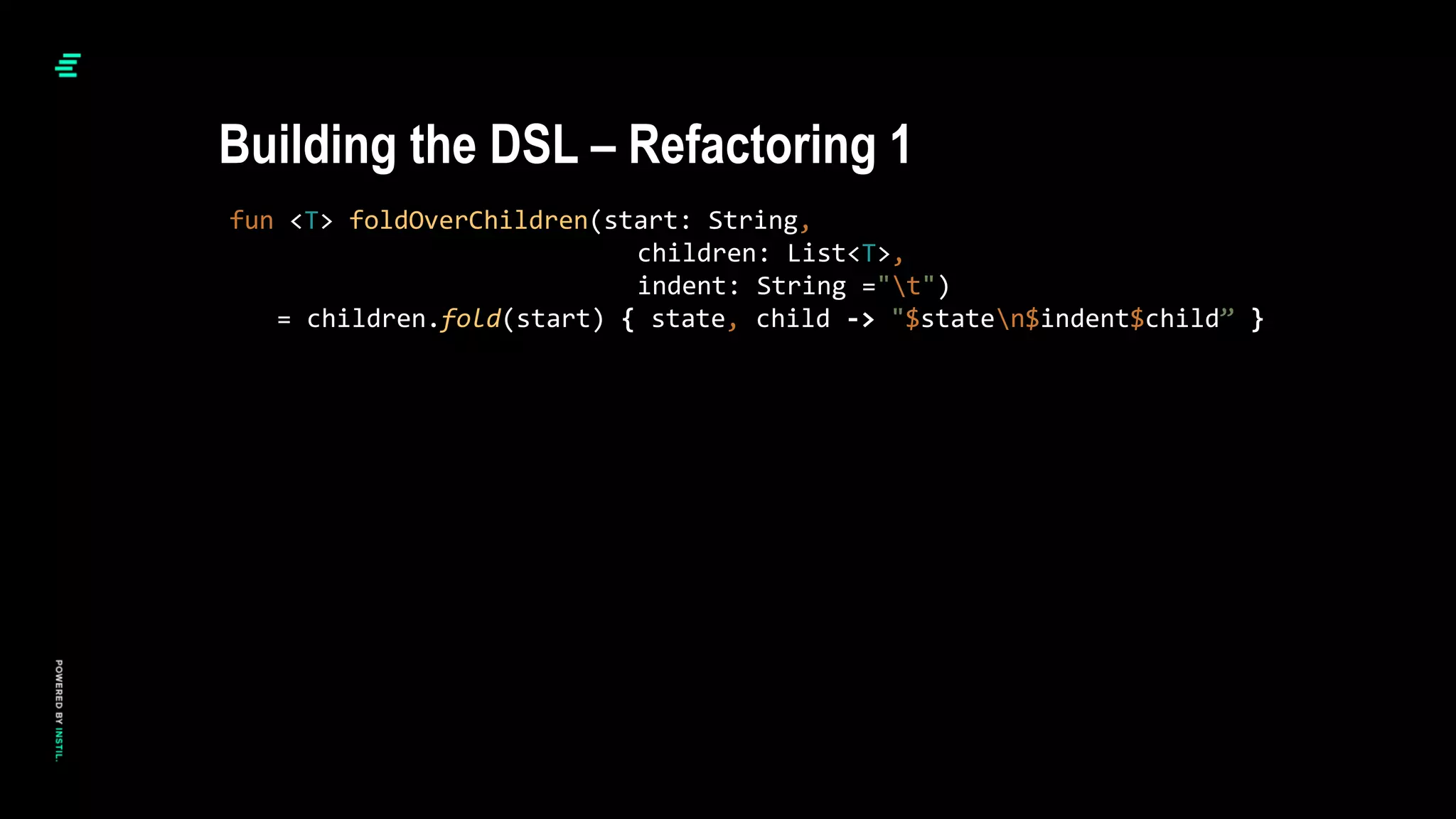

fun <T> foldOverChildren(start: String,
children: List<T>,
indent: String ="t")
= children.fold(start) { state, child -> "$staten$indent$child” }

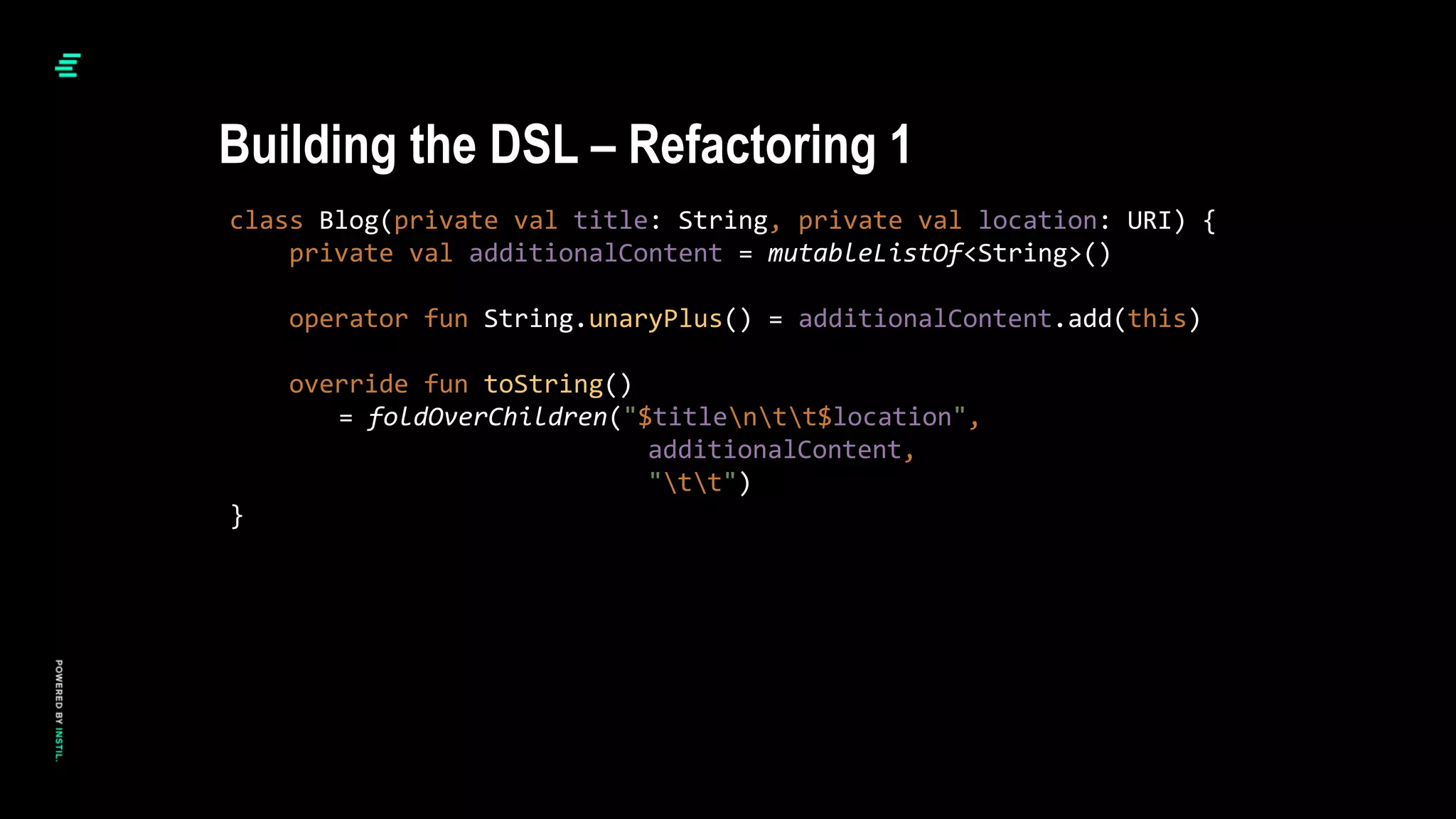

Building the DSL – Refactoring 1

class Blog(private val title: String, private val location: URI) {
private val additionalContent = mutableListOf<String>()
operator fun String.unaryPlus() = additionalContent.add(this)
= foldOverChildren("$titlentt$location",
additionalContent,
"tt")
}

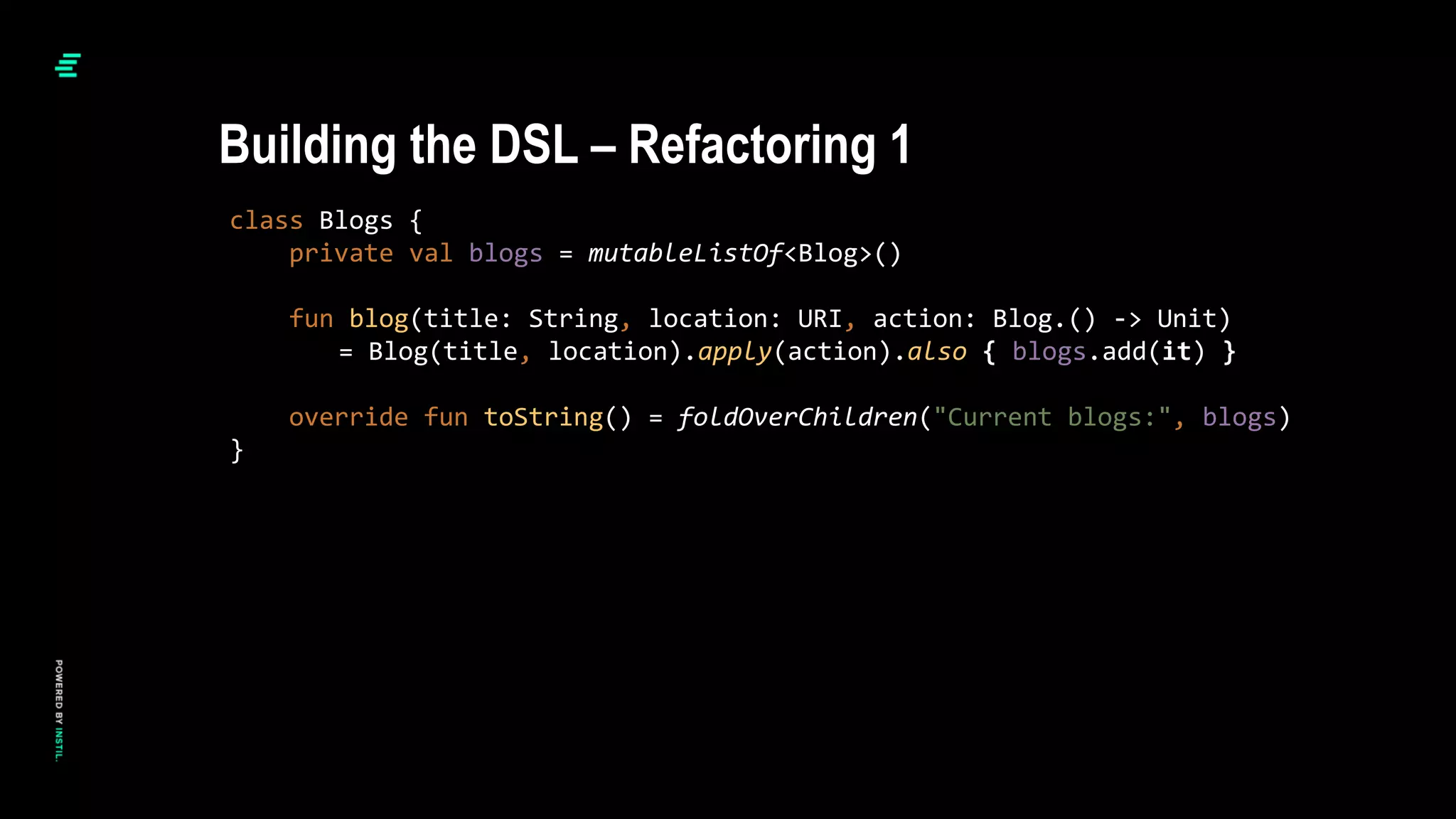

class Blogs {
private val blogs = mutableListOf<Blog>()
fun blog(title: String, location: URI, action: Blog.() -> Unit)
= Blog(title, location).apply(action).also { blogs.add(it) }
override fun toString() = foldOverChildren("Current blogs:", blogs)
}

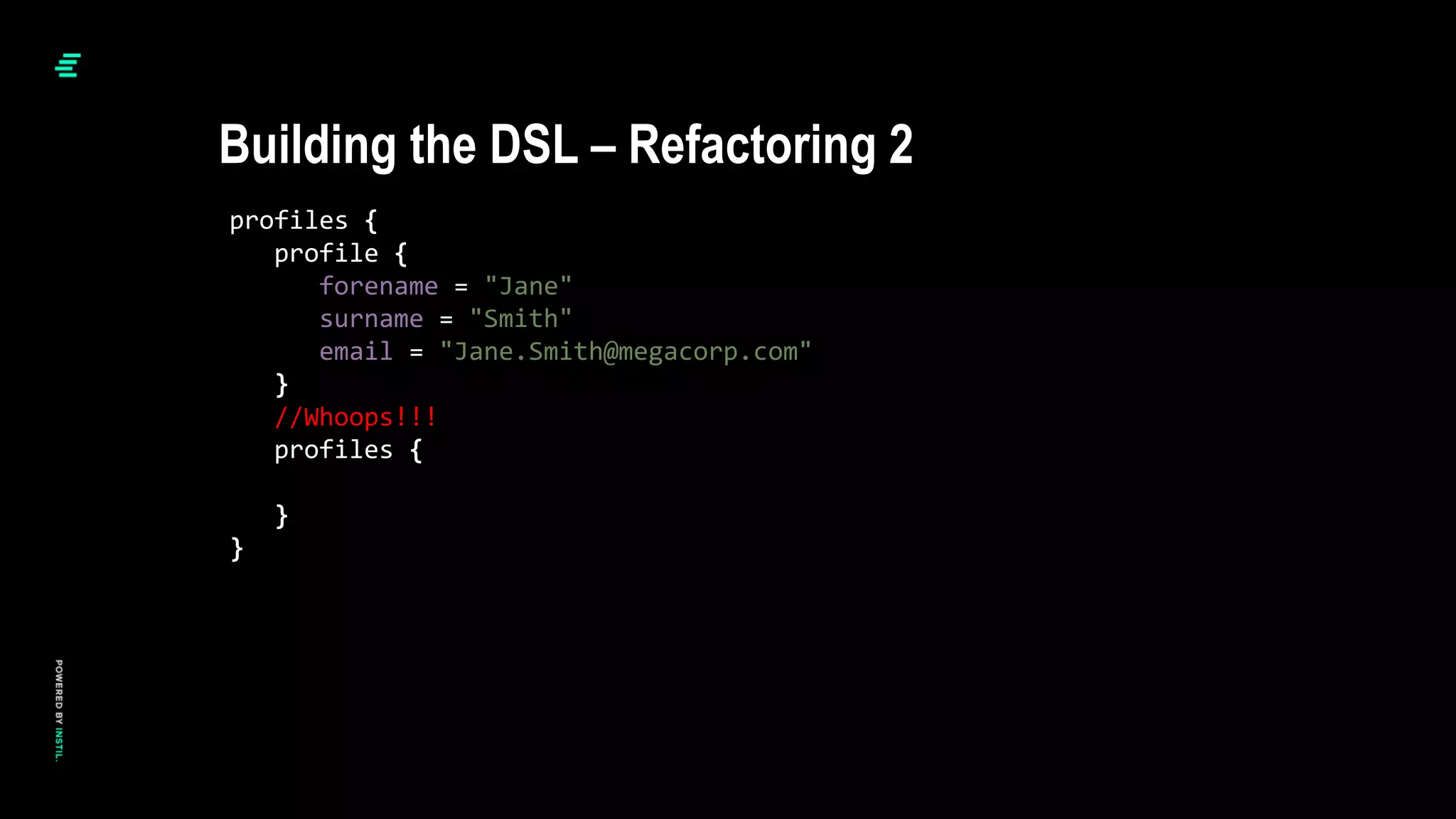

profiles {
profile {
forename = "Jane"
surname = "Smith"
}
//Whoops!!!
profiles {
}
}

@DslMarker
annotation class SpaceEntityMarker
@SpaceEntityMarker
class SpaceInstance(val title: String) { ... }
@SpaceEntityMarker
class Profiles { ... }
@SpaceEntityMarker
class Profile { ... }

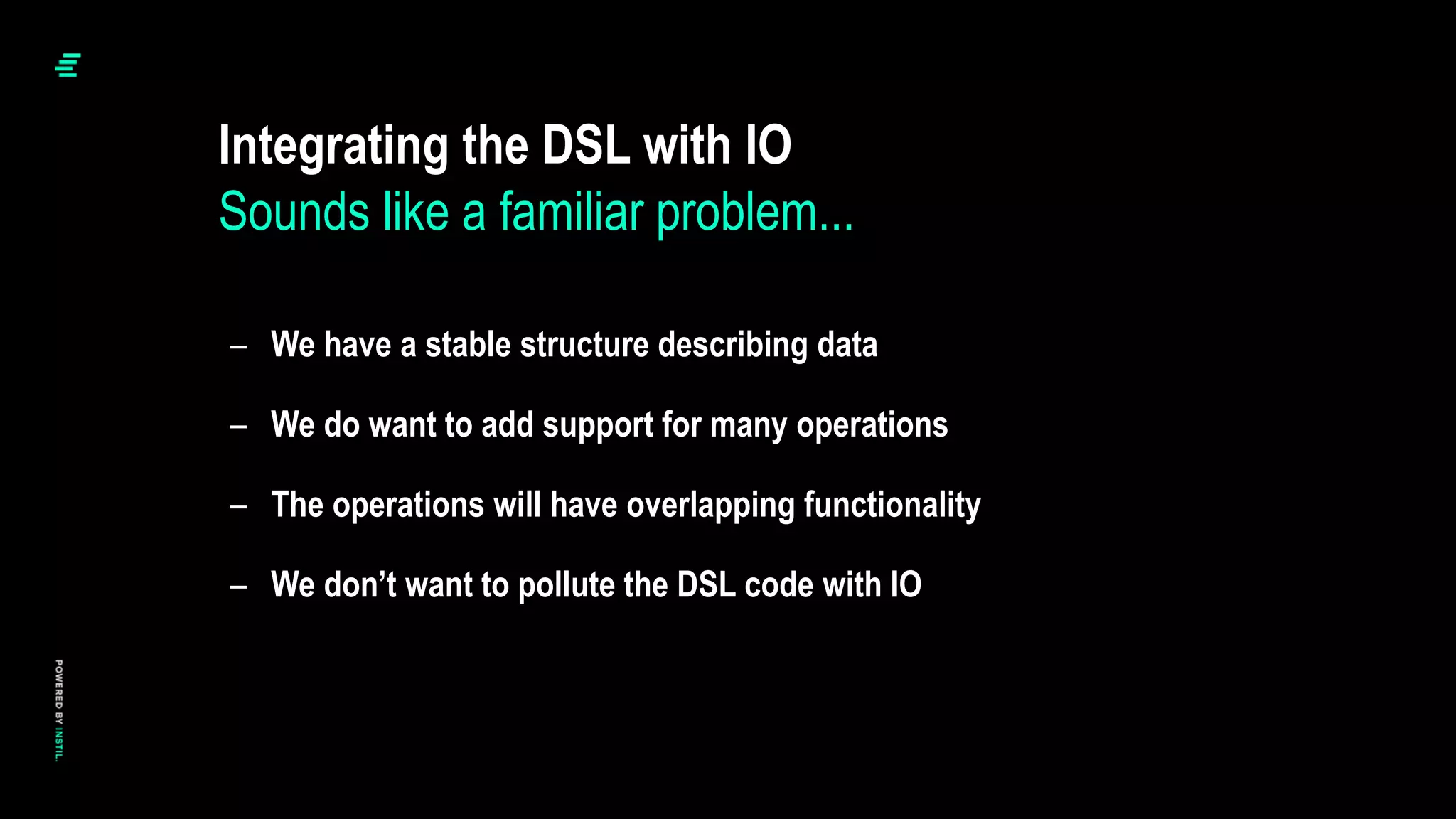

– We have a stable structure describing data
– We do want to add support for many operations
– The operations will have overlapping functionality
– We don’t want to pollute the DSL code with IO
Integrating the DSL with IO
Sounds like a familiar problem...

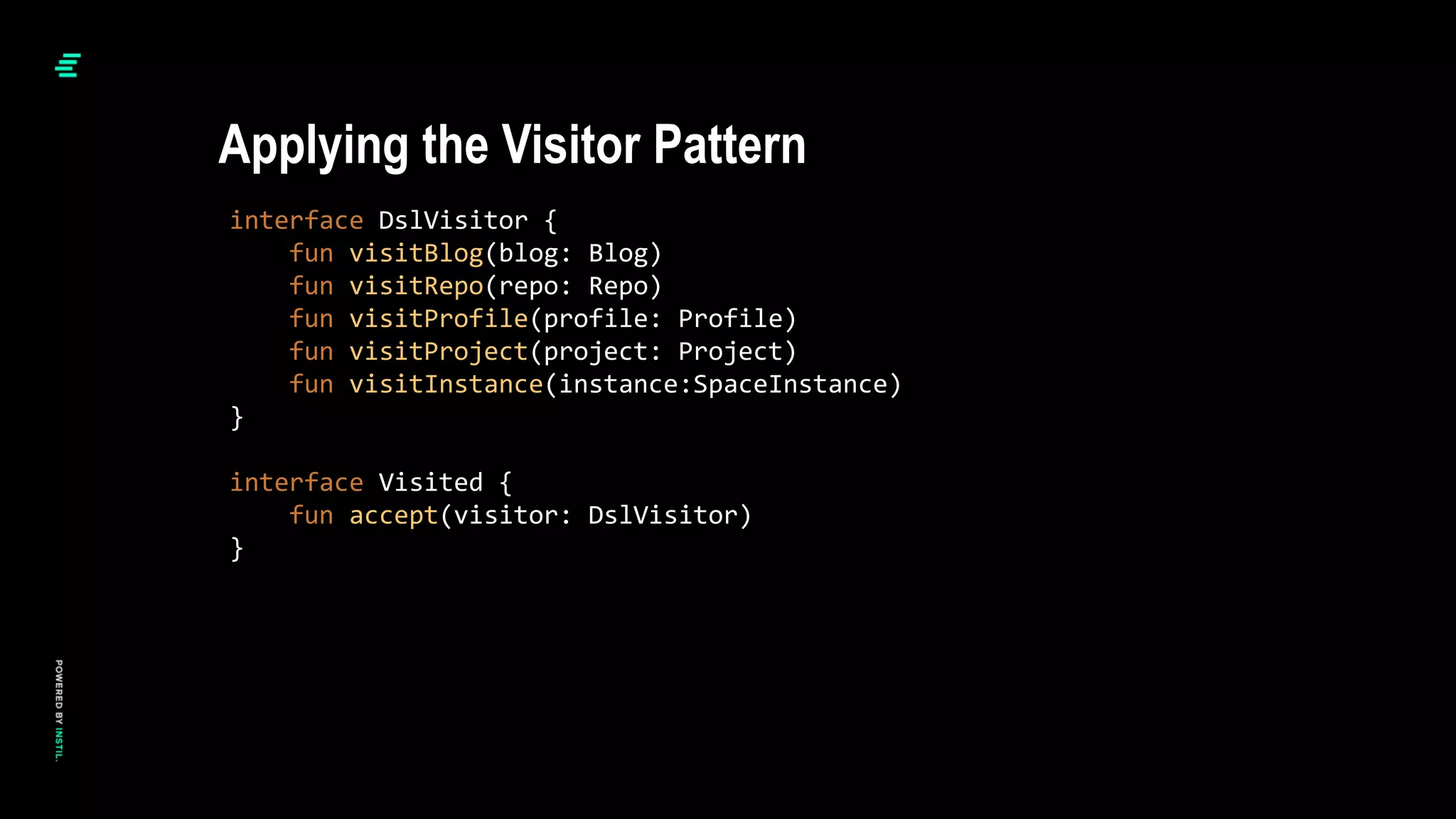

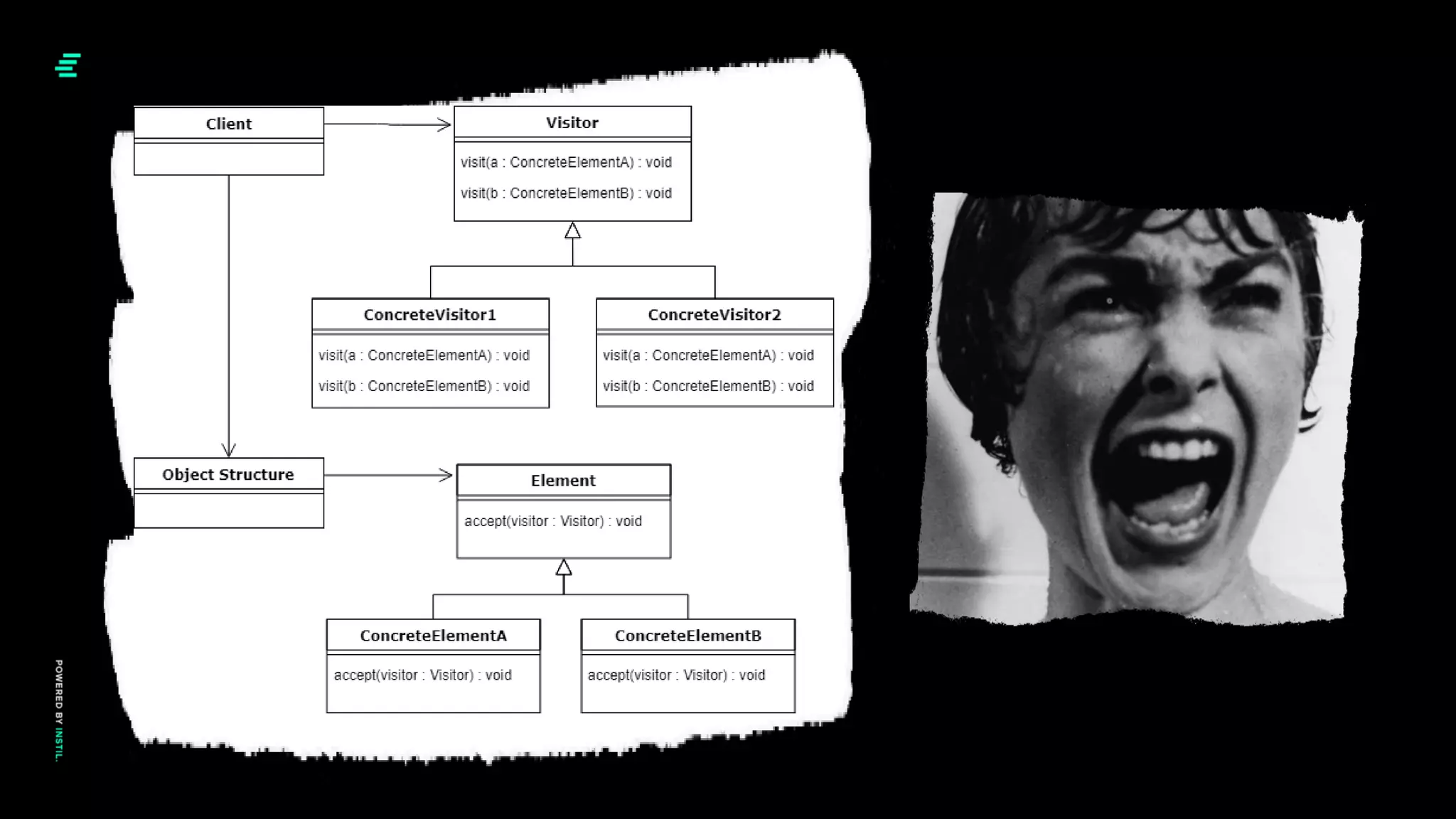

Applying the Visitor Pattern
interface DslVisitor {
fun visitBlog(blog: Blog)
fun visitRepo(repo: Repo)
fun visitProfile(profile: Profile)
fun visitProject(project: Project)
fun visitInstance(instance:SpaceInstance)
}
interface Visited {
fun accept(visitor: DslVisitor)
}

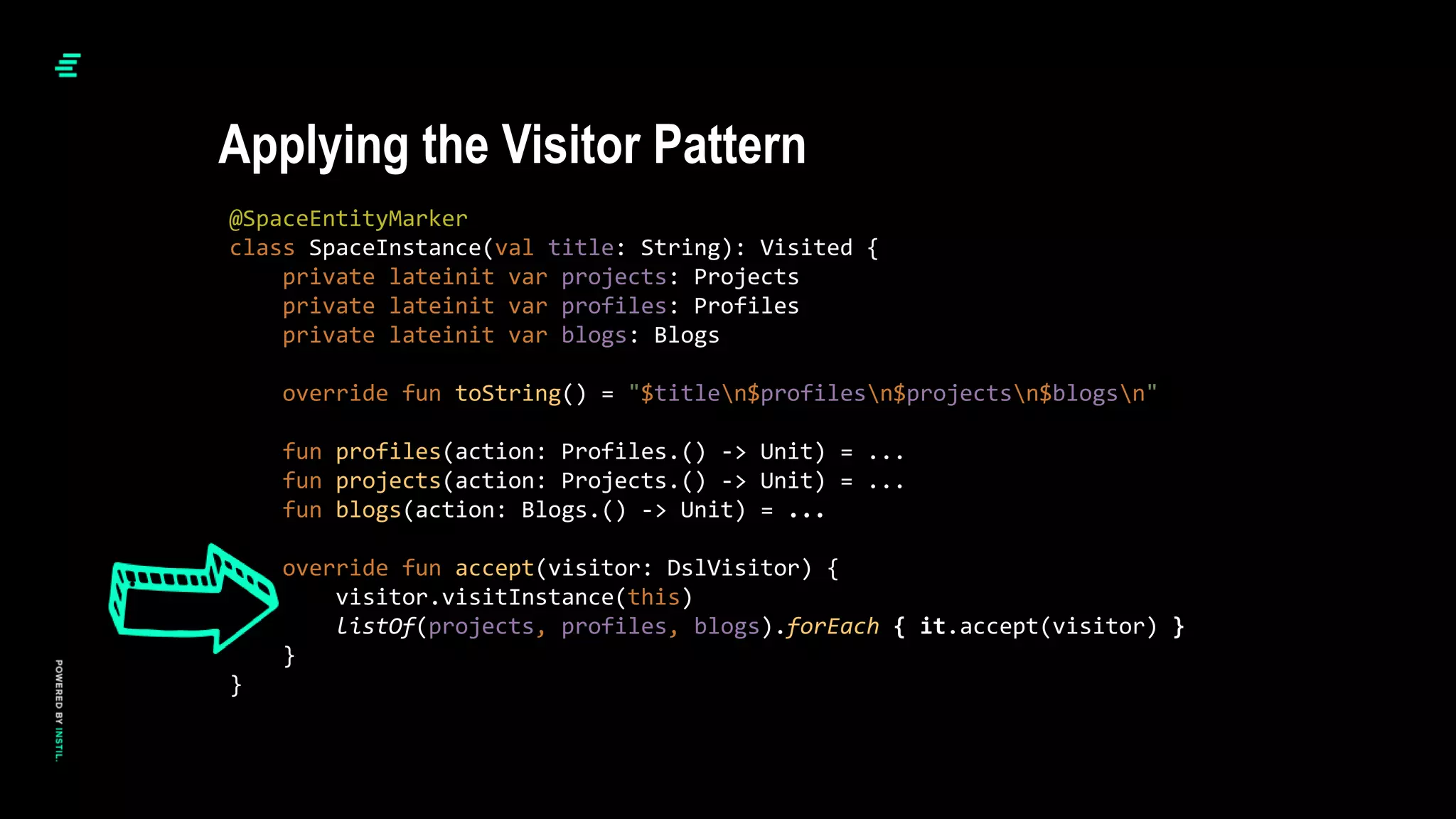

@SpaceEntityMarker
class SpaceInstance(val title: String): Visited {
private lateinit var projects: Projects
private lateinit var profiles: Profiles
private lateinit var blogs: Blogs
override fun toString() = "$titlen$profilesn$projectsn$blogsn"
fun profiles(action: Profiles.() -> Unit) = ...
fun projects(action: Projects.() -> Unit) = ...
fun blogs(action: Blogs.() -> Unit) = ...
override fun accept(visitor: DslVisitor) {
visitor.visitInstance(this)
listOf(projects, profiles, blogs).forEach { it.accept(visitor) }
}
}

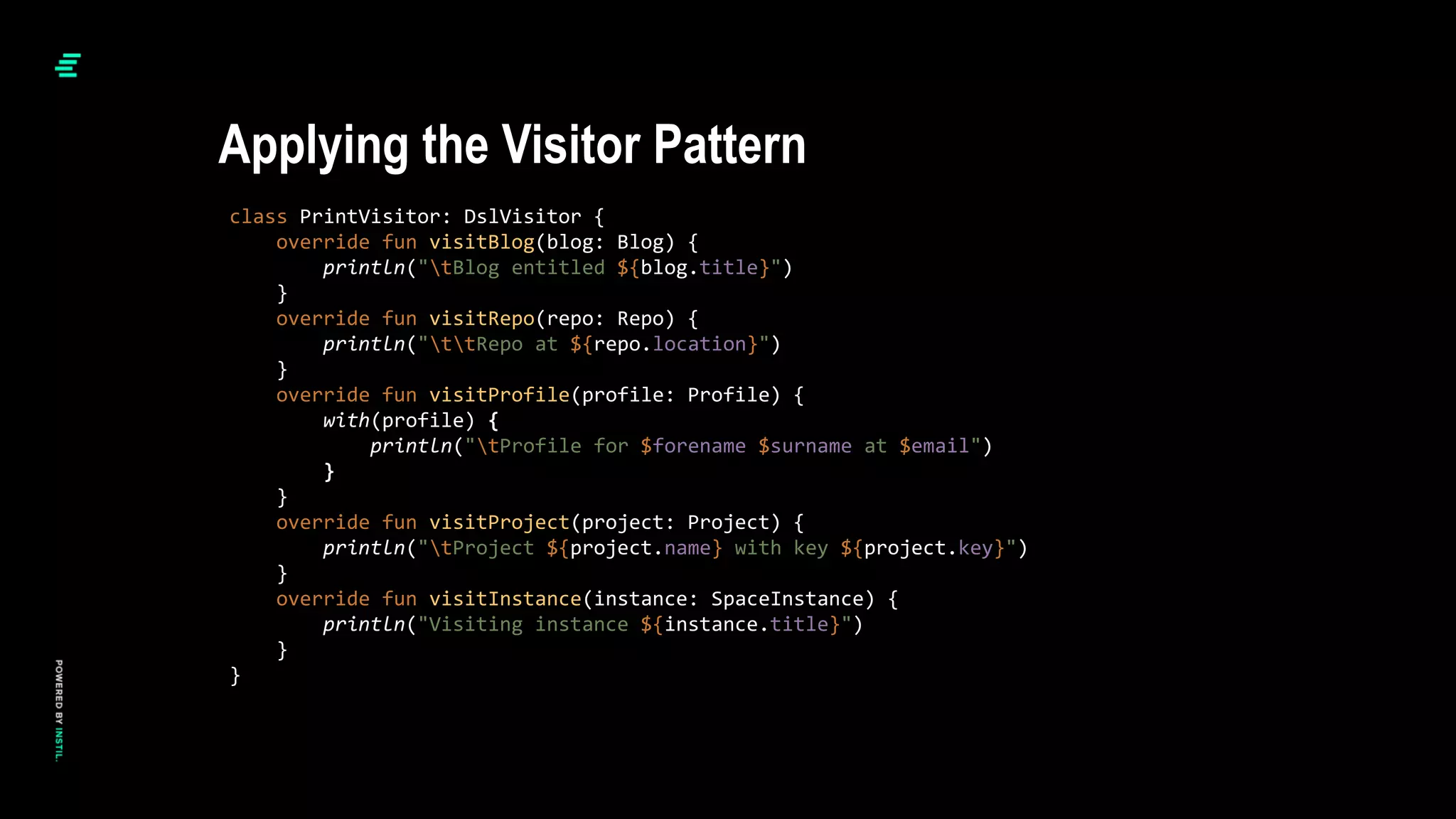

class PrintVisitor: DslVisitor {
override fun visitBlog(blog: Blog) {
println("tBlog entitled ${blog.title}")
}
override fun visitRepo(repo: Repo) {
println("ttRepo at ${repo.location}")
}
override fun visitProfile(profile: Profile) {
with(profile) {
println("tProfile for $forename $surname at $email")
}
}
override fun visitProject(project: Project) {
println("tProject ${project.name} with key ${project.key}")
}
override fun visitInstance(instance: SpaceInstance) {
println("Visiting instance ${instance.title}")
}
}

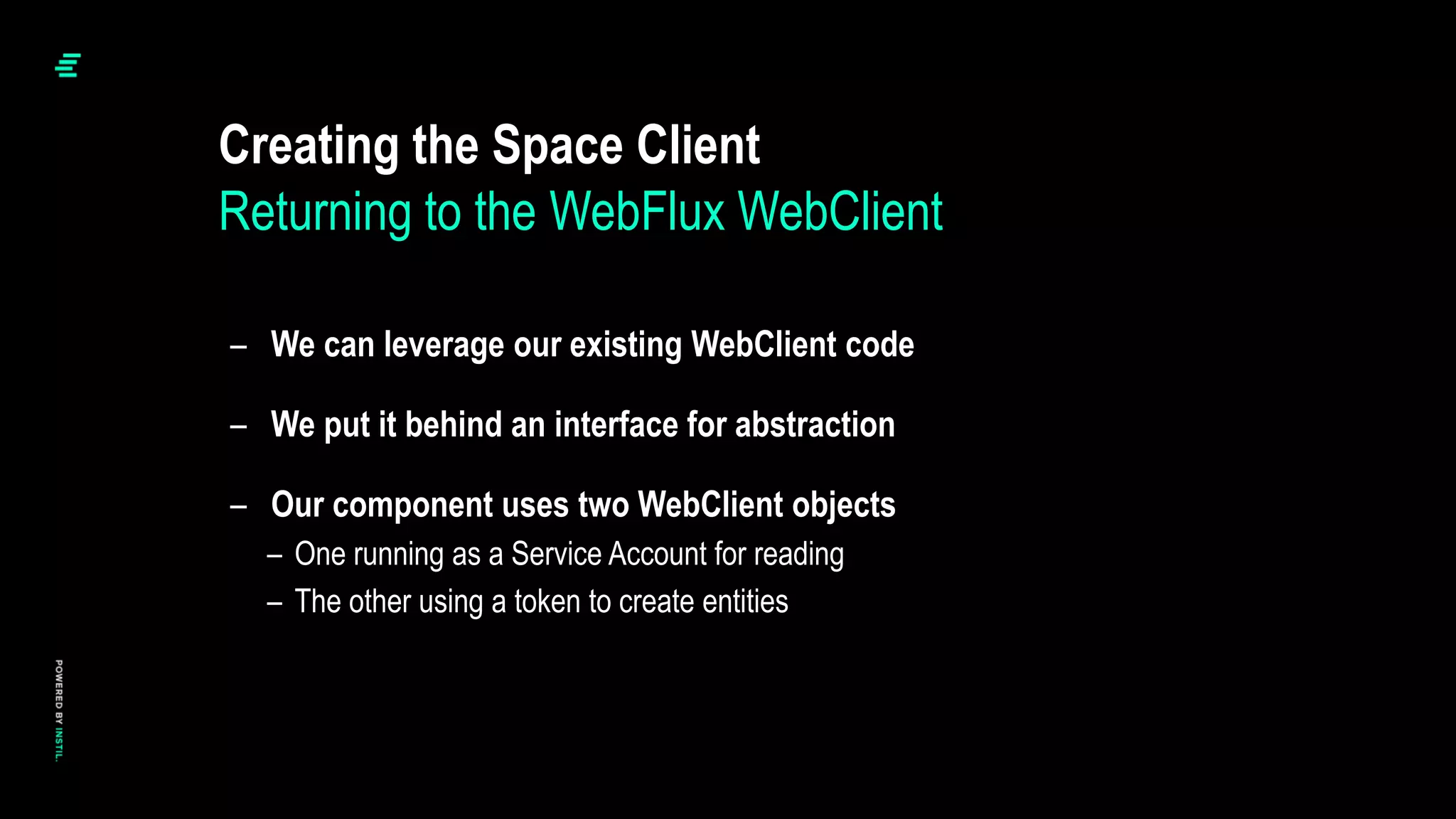

– We can leverage our existing WebClient code
– We put it behind an interface for abstraction
– Our component uses two WebClient objects
– One running as a Service Account for reading
– The other using a token to create entities

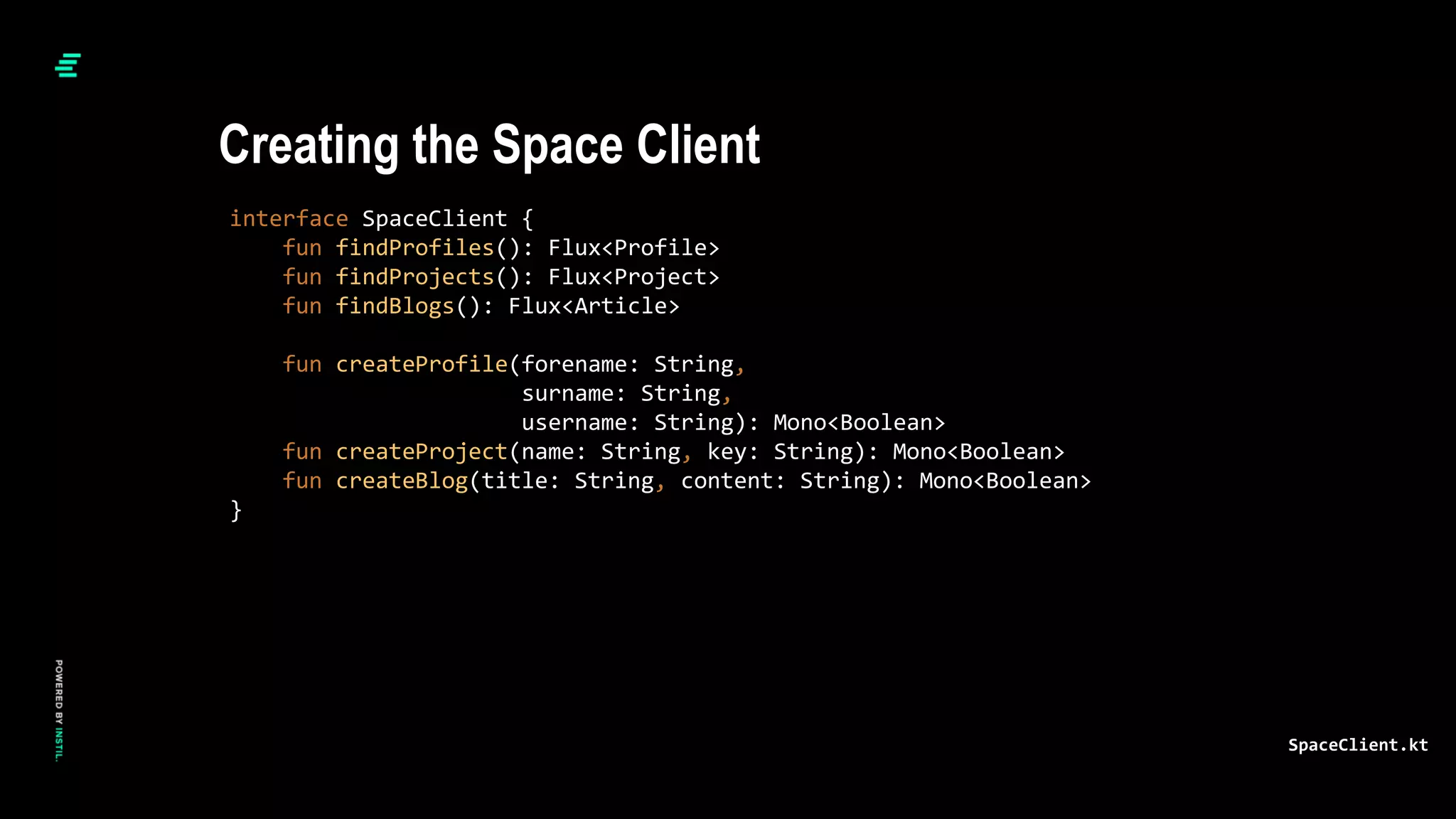

Creating the Space Client
Returning to the WebFlux WebClient

interface SpaceClient {
fun findProfiles(): Flux<Profile>
fun findProjects(): Flux<Project>
fun findBlogs(): Flux<Article>
fun createProfile(forename: String,
surname: String,
username: String): Mono<Boolean>
fun createProject(name: String, key: String): Mono<Boolean>
fun createBlog(title: String, content: String): Mono<Boolean>
}
SpaceClient.kt

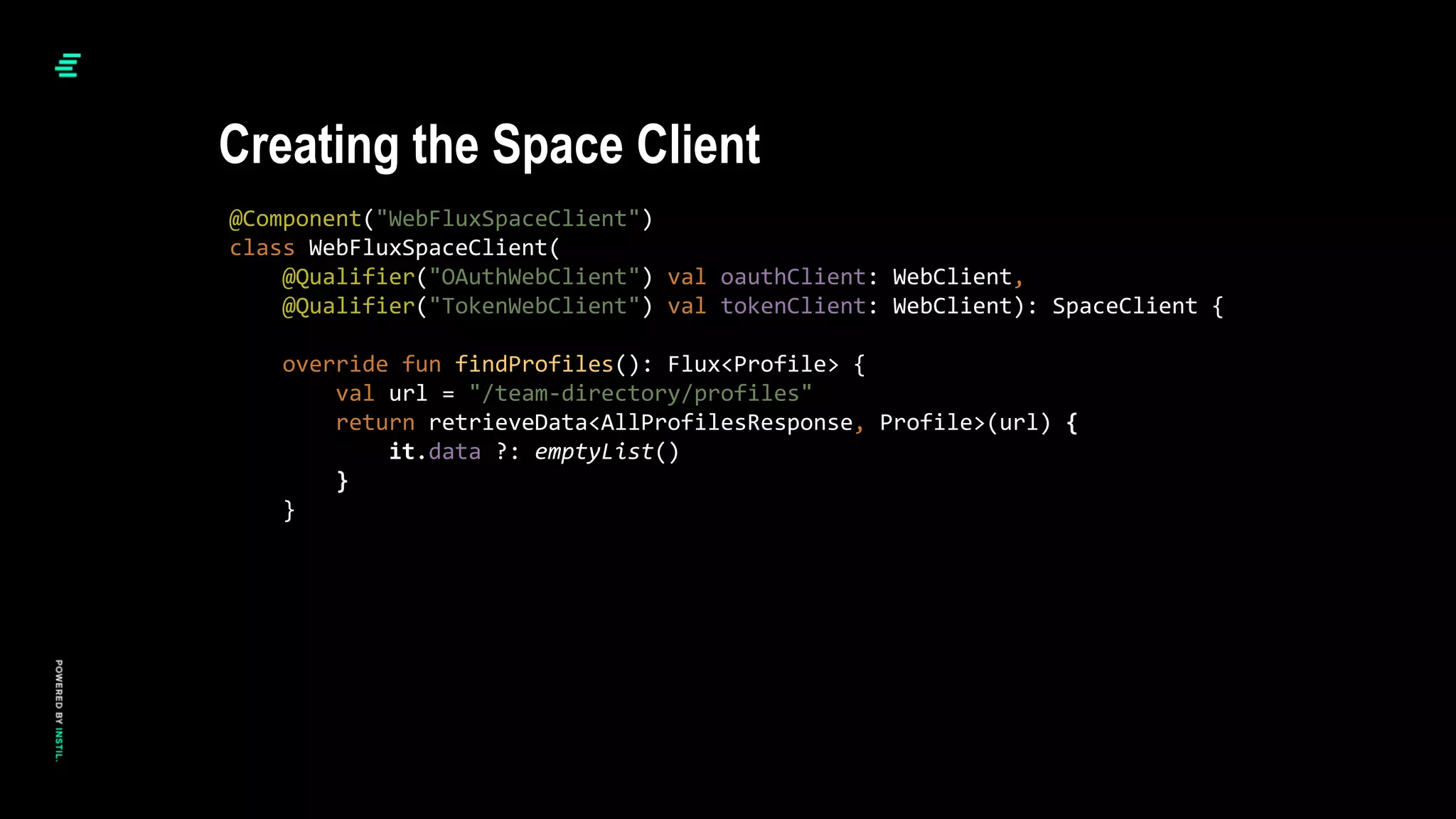

@Component("WebFluxSpaceClient")
class WebFluxSpaceClient(
@Qualifier("OAuthWebClient") val oauthClient: WebClient,
@Qualifier("TokenWebClient") val tokenClient: WebClient): SpaceClient {
override fun findProfiles(): Flux<Profile> {
val url = "/team-directory/profiles"
return retrieveData<AllProfilesResponse, Profile>(url) {
it.data ?: emptyList()
}
}

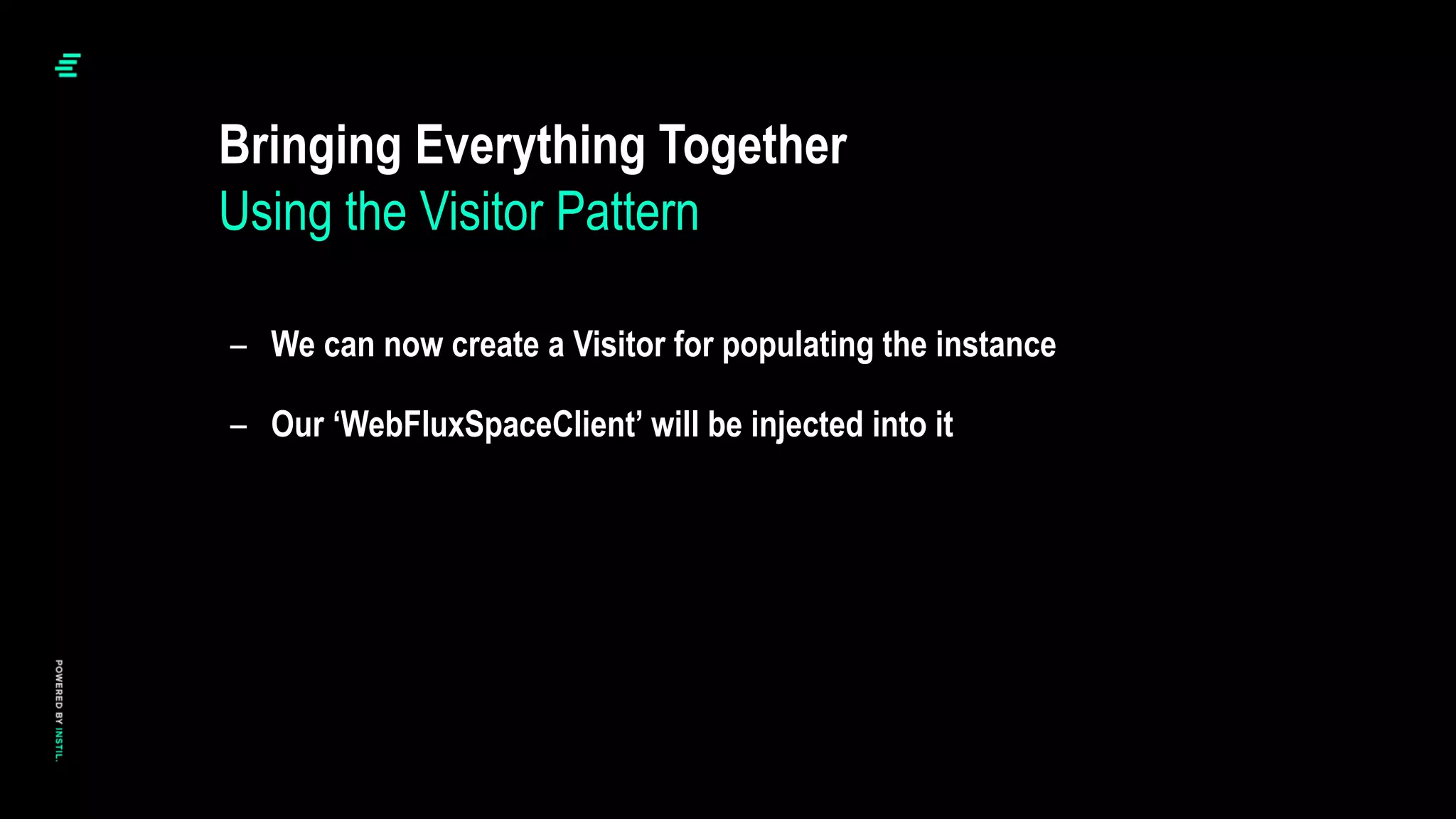

– We can now create a Visitor for populating the instance
– Our ‘WebFluxSpaceClient’ will be injected into it
Bringing Everything Together
Using the Visitor Pattern

@Component
class SpaceCreationVisitor(val client: WebFluxSpaceClient): DslVisitor {
override fun visitBlog(blog: Blog) {
println("tCreating blog entitled ${blog.title}")
val content = blog.additionalContent.joinToString()
waitOnMono(client.createBlog(blog.title, content))
}
override fun visitRepo(repo: Repo) {
println("ttRepo at ${repo.location}")
}
SpaceCreationVisitor.kt

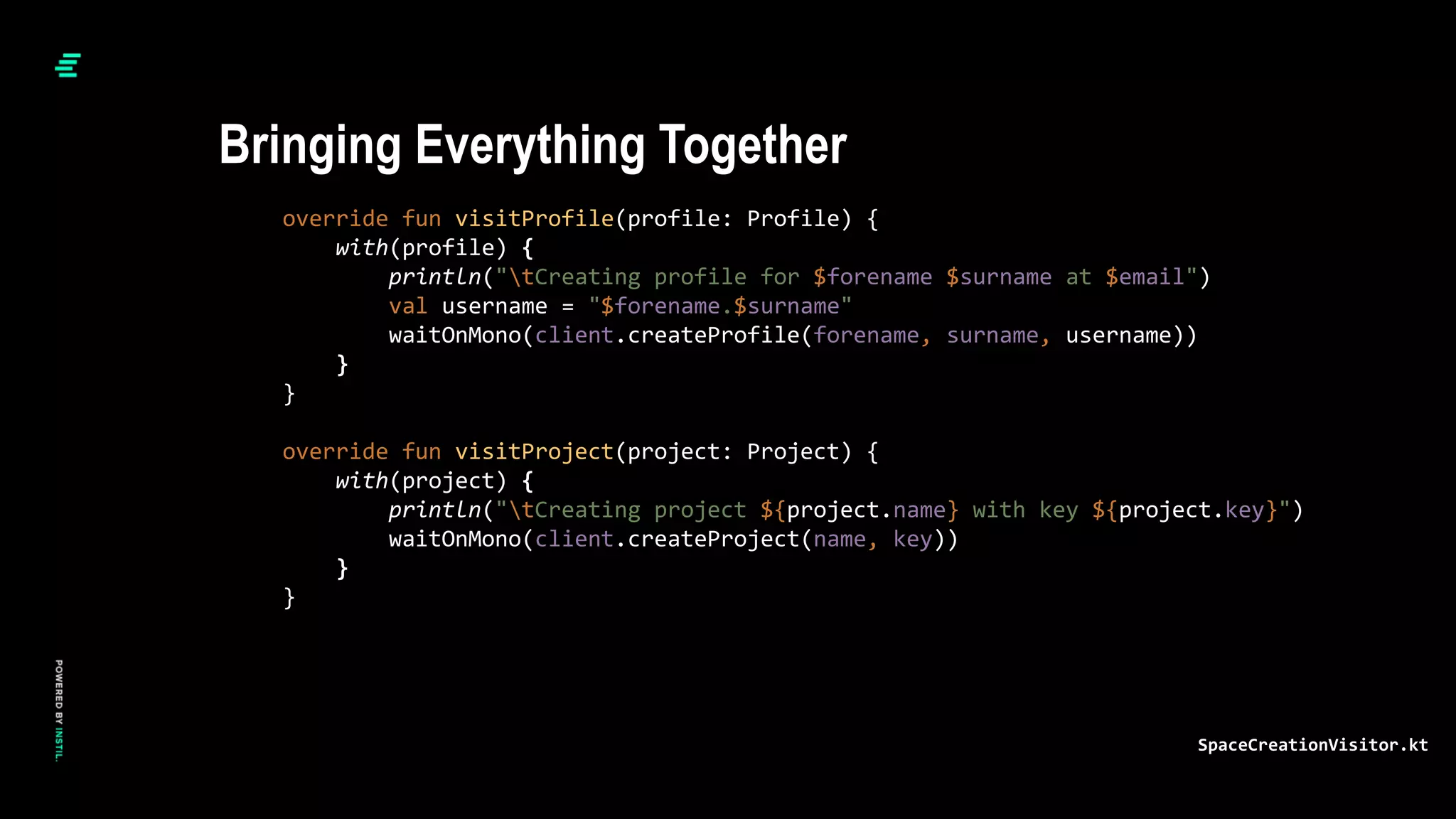

override fun visitProfile(profile: Profile) {
with(profile) {
println("tCreating profile for $forename $surname at $email")
val username = "$forename.$surname"
waitOnMono(client.createProfile(forename, surname, username))
}
}
override fun visitProject(project: Project) {
with(project) {
println("tCreating project ${project.name} with key ${project.key}")
waitOnMono(client.createProject(name, key))
}
}

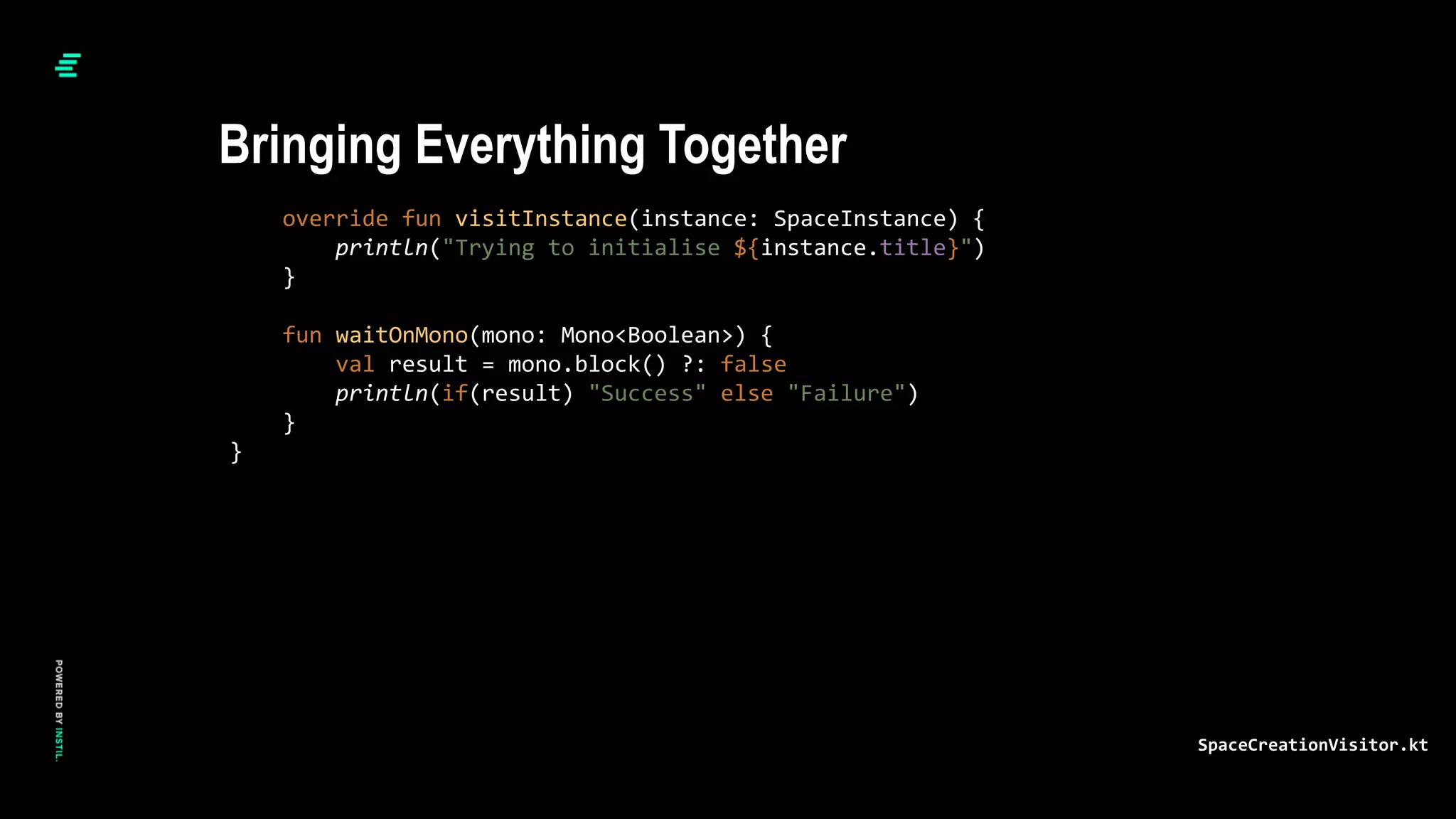

override fun visitInstance(instance: SpaceInstance) {
println("Trying to initialise ${instance.title}")
}
fun waitOnMono(mono: Mono<Boolean>) {
val result = mono.block() ?: false
println(if(result) "Success" else "Failure")
}
}

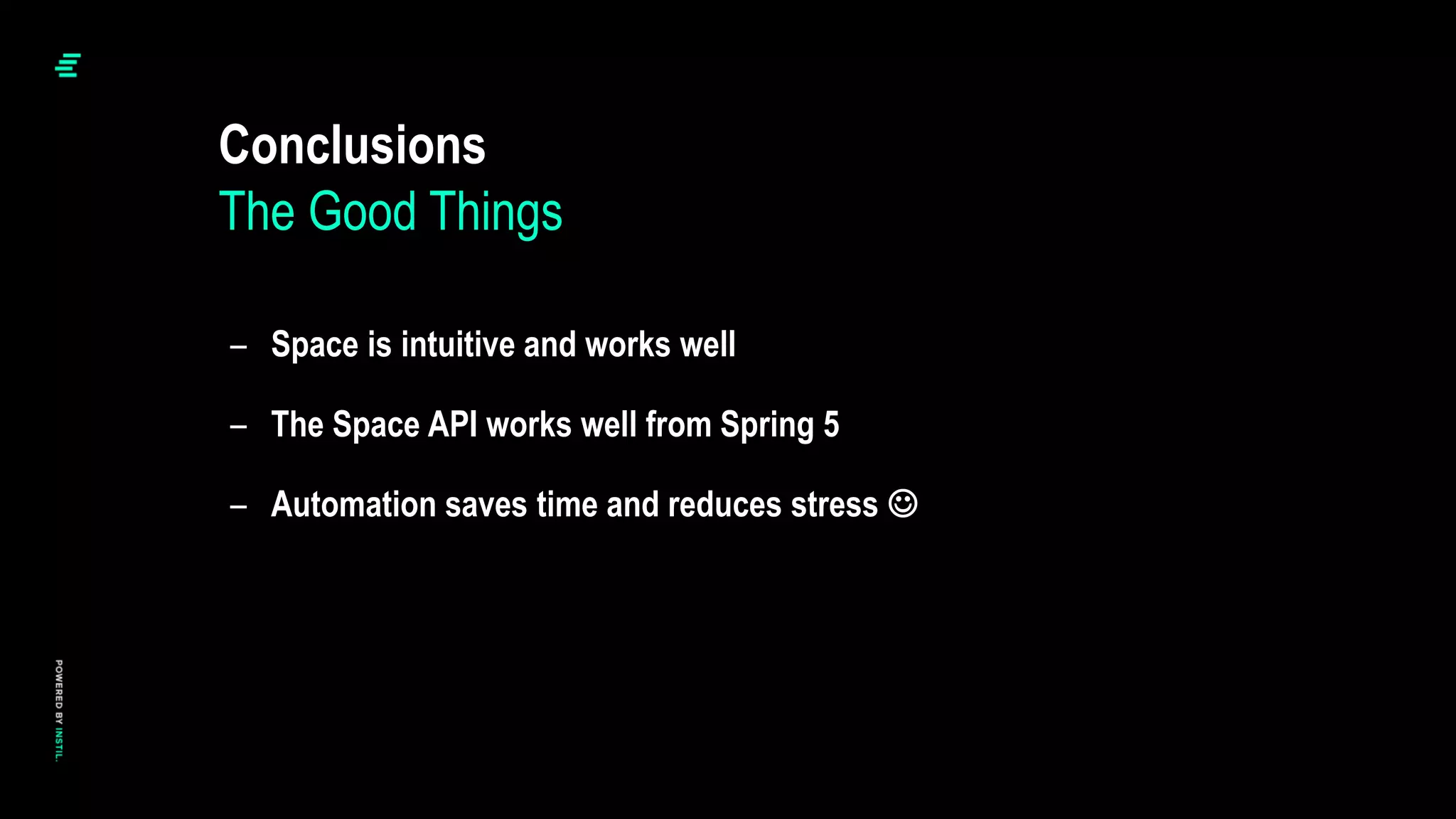

– Space is intuitive and works well
– The Space API works well from Spring 5
– Automation saves time and reduces stress 
Conclusions
The Good Things

– Space and its API are still in EAP
– Reactive coding remains tough going
– Bridging the ‘reactive divide’ is ugly
Conclusions
The Bad Things

Thank You!
Please reach out to us with questions...

Using Kotlin, to Create Kotlin,to Teach Kotlin,in Space

Recommended

Recommended

More Related Content

What's hot

What's hot (15)

Similar to Using Kotlin, to Create Kotlin,to Teach Kotlin,in Space

Similar to Using Kotlin, to Create Kotlin,to Teach Kotlin,in Space (20)

More from Garth Gilmour

More from Garth Gilmour (20)

Recently uploaded

Recently uploaded (20)
